CES8007 - Juicer VOX - Free user manual and instructions

Product Type	Citrus Juicer
Model	CES8007
Brand	VOX
Power Supply	230V~50Hz, 40W
Motor Base	Includes 230V motor base with transmission shaft
Included Cones	Orange cone and lemon cone
Filter	Removable filter for pulp separation
Jug	Removable jug for juice collection
Protective Cover	Protective cover included
Operation	Push fruit onto cone to start, release to stop
Cleaning	All removable parts (cover, cones, filter, jug) dishwasher safe
Cleaning Restriction	Motor base and plug must not be submerged or washed in water
Safety Feature	Automatic stop when pressure is released from cone
Intended Use	Household use only, not professional or industrial
Storage	Store in a dry place, free from dust and direct sunlight; not horizontally
Warranty	Manufacturer warranty applies; misuse or non-compliance voids warranty

Frequently Asked Questions - CES8007 VOX

How do I start and stop the juicer?

Simply place a halved citrus fruit on the cone and push down to start. Release pressure to stop.

Can I juice oranges and lemons with the same cone?

Yes, but different cones are provided: one for oranges (larger) and one for lemons (smaller). Use the appropriate cone for best results.

How do I clean the juicer?

Unplug and let cool. Remove the protective cover, cones, filter, and jug. These parts are dishwasher safe. Clean the motor base with a damp cloth, never submerge in water.

What should I do if the juicer stops working?

Check that it is plugged in and the voltage matches. Ensure you are applying enough pressure on the cone. If it still doesn't work, the supply cord may be damaged; contact a qualified professional for repair.

Can I use the juicer for other fruits like pomegranates?

No, this appliance is specifically designed for citrus fruits only. Using other fruits may damage the motor or filter.

Is the jug dishwasher safe?

Yes, the jug, protective cover, cones, and filter are all dishwasher safe. The motor base must not be placed in the dishwasher.

What safety precautions should I take?

Never immerse the motor base in water, do not use if cord is damaged, keep out of reach of children, and unplug when not in use or cleaning.

How do I remove the pulp from the filter?

After juicing, remove the cone and filter. The filter can be emptied and rinsed under running water or placed in the dishwasher.

Can I store the appliance horizontally?

No, the manual advises against storing the appliance in a horizontal position. Store it upright in a dry, dust-free place.

What is the warranty coverage?

The warranty covers manufacturing defects. It is voided if the instructions are not followed or the appliance is misused. Contact the manufacturer or service agent for issues.

USER MANUAL CES8007 VOX

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

CES8007

INSTRUCTION MANUAL MANUALLE DELL'UTENTE BEDIENUNGSANLEITUNG ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ UPUTSTVO ZA UPOTREBU MANUEL DE USO MANUAL DE USO ЕГХЕІРІДІО ХРНЗНЗ NAVODILA ZA UPORABO UPUTE ZA UPORABU UPUTSTVO ZA UPOTREBU UPUTSTVO ZA UPOTREBU УПАТСТВА ЗА РАКУВАЊЕ ИНСТРУКЦИИ ЗА ЕКСПЛОАТАЦИЯ MANUALI I PERDORUESIT

CITRUS JUICER SPREMIAGRUMI ZITRUSPRESSE СОКОВЫЖИМАЛКА ДЛЯ ЦИТРУСОВЫХ SOKOVNIK ZA CITRUSE EXPRIMIDOR DE CITRICOS ESPREMEDOR DE CITRINOS АПОХУМΩΤΗΣ ΕΣΠΕΡΙΔΟΕΙΔΩΝ SOKOVNIK ZA CITRUSE SOKOVNIK ZA CITRUSE SOKOVNIK ZA CITRUSE SOKOVNIK ZA CITRUSE ЦИТРУСЕН СОКОВНИК ЦИТРУС СОКОИЗСТИСКВАЧКА SHTRYDHESE PËR CITRUSE

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

Instruction Manual Citrus Juicer

CES8007

Line drawing of a bucket with lid and handle (no text or symbols)

230V\~50Hz 40W

Dear customer,

Many thanks for choosing to purchase our product.

Thanks to its technology, design and operation and the fact that it exceeds

The strictest quality standards, a fully satisfactory use and long product life can be assured.

Description

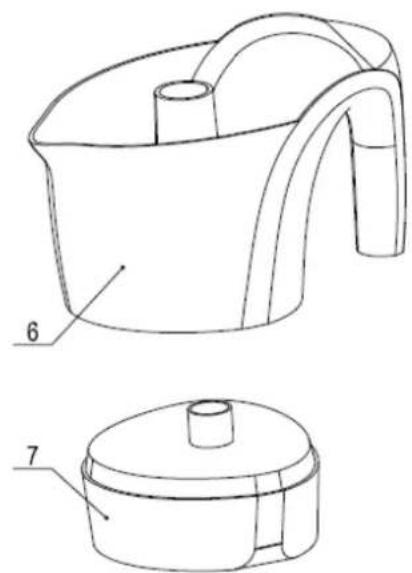

1. Protective Cover 2. Orange Cone 3. Lemon Cone 4.Filter 5. Transmission Shaft 6 Jug 7. Motor Base

Safety Advice and Cautions

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

- Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section before use.

Electric Safety

- Do not use the appliance if the cable or plug is damaged.

- Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.

- The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.

- Do not use or store the appliance outdoors.

- Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.

- Do not force the electrical connection wire. Never use the electric wire to lift up, carry or unplug the appliance.

• Ensure that the electric cable does not get trapped or tangled.
• Check the state of the electric cable. Damaged or knotted cables increase the risk of electric shock.
• Do not touch the plug with wet hands.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Use and Care:

1) Fully unroll the appliance's power cable before each use.
2) Do not turn the appliance over while it is in use or connected to the mains.
3) Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
4) This appliance is for household use only, not professional or industrial use.
5) This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
6) This appliance is intended for adult use. Ensure that this product is not used by the disabled, children or people unused to its handling.
7) This appliance should be stored out of reach of children and/or the disabled.
8) Do not store the appliance in a horizontal position.
9) Store the appliance in a dry place, free from dust and out of direct sunlight.
10) Never leave the appliance unattended while in use.
11) Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

Instructions for use

1) Unroll the cord completely before plugging in.
2) Connect the appliance to the mains.
3) Cut the citrus fruit/s to be squeezed in half.
4) Turn on the appliance by pushing down on the piece of citrus fruit, once it has been placed on the juicing cone.
5) To stop the appliance, simply stop applying pressure to the cone.
6) Remove both the cone and the filter to empty the jug.
7) Pour juice out of the jug and into glasses to serve directly.
8) If you process a large quantity of fruit, you must periodically clean the filter and remove the remains of the pulp.

Cleaning

• Unplug the appliance from the mains and let it cool before starting any cleaning.
• Except for the power unit and the mains connection, all the parts can be cleaned with detergent and water or in washing up liquid. Rinse thoroughly to remove all traces of detergent.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not submerge the appliance in water or any other liquid, or place it under a running tap.
• It is advisable to clean the appliance regularly and remove any food remains.
• The following parts can be cleaned in the dishwasher: Protective cover, Cone, Filter, Jug

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

Line drawing of a bucket with lid and handle (no text or symbols)

230V\~ 50Hz 40W

ITA

Distinto cliente,

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

Line drawing of a bucket with lid and handle (no text or symbols)

230V\~50Hz 40W

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

RUS

Line drawing of a bucket with lid and handle (no text or symbols)

230V\~50Hz 40W

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

Uputstvo za upotrebu

Sokovnik za citruse

CES8007

Line drawing of a bucket with lid and handle (no text or symbols)

230V\~50Hz 40W

Poštovani kupče,

Veliko hvala što ste se odlučili za kupovinu našeg proizvoda.

Zahvaljujući svojoj tehnologiji, dizajnu i radu kao i činjenici da zadovoljava najstrože standarde kvaliteta, može se osigurati potpuno zadovoljavajuća upotreba i dug životni vek proizvoda.

Opis

1. Zaštitni poklopac 2. Konus za pomorandže 3.Konus za limun 4.Filter 5. Osovina 6 Posuda za sok 7. Motorna jedinica

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ESP

Line drawing of a bucket with lid and handle (no text or symbols)

230V\~50Hz 40W

Estimado cliente,

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

PRT

Line drawing of a bucket with lid and handle (no text or symbols)

230V\~50Hz 40W

Estimado cliente,

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GRC

Line drawing of a bucket with lid and handle (no text or symbols)

230V\~50Hz 40W

Αγαπητέ πελάτη,

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

Navodilo za uporabo Sokovnik za citruse

CES8007

Line drawing of a bucket with lid and handle (no text or symbols)

230V\~50Hz 40W

Soštovani kupec,

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

HRV

Upute za uporabu

Sokovnik za citruse

CES8007

Line drawing of a bucket with lid and handle (no text or symbols)

230V\~ 50Hz 40W

Dragi kupče,

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

Uputstvo za upotrebu Sokovnik za citruse

CES8007

Line drawing of a bucket with lid and handle (no text or symbols)

230V\~50Hz 40W

Poštovani kupče,

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

Line drawing of a bucket with lid and handle (no text or symbols)

230V\~50Hz 40W

Technical line drawing of a two-part mechanical component with labeled parts (6 and 7), no text or symbols present.

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

BGR

Line drawing of a bucket with lid and handle (no text or symbols)

230V\~50Hz 40W

Уважаеми клиенти,

Technical line drawing of a bucket and lid components (no text or symbols)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ALB

Line drawing of a bucket with lid and handle (no text or symbols)

230V\~ 50Hz 40W

I nderuar klient,
