IKK3400 - Refrigerator VOX - Free user manual and instructions

Product Type	Refrigerator-Freezer
Brand	VOX
Model	IKK3400
Height (cm)	185
Width (cm)	60
Depth (cm)	65
Weight (kg)	65
Power Supply	220-240 V, 50 Hz
Energy Class	A+
Annual Energy Consumption (kWh)	280
Climate Class	N-ST
Noise Level (dB)	42
Total Gross Capacity (L)	300
Fridge Compartment Capacity (L)	200
Freezer Compartment Capacity (L)	80
Freezer Star Rating	4 stars
Cooling System	Fan-assisted
Defrost Type	Fridge: automatic, Freezer: manual
Temperature Control	Mechanical thermostat
Interior Light	LED
Shelves	Adjustable glass shelves
Door Storage	Yes
Reversible Door	Yes
Warranty (years)	2

Frequently Asked Questions - IKK3400 VOX

How do I adjust the temperature in my VOX IKK3400 fridge?

Use the thermostat dial inside the fridge compartment. Turn clockwise for colder, counterclockwise for warmer.

How often should I defrost the freezer?

Defrost when ice thickness reaches 5 mm. Unplug the unit, remove all items, and let ice melt naturally.

Why is my VOX fridge not cooling properly?

Check if the thermostat is set correctly, ensure air vents are not blocked, and clean the condenser coils behind the unit.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual to swap hinges and door handles.

How do I clean the interior?

Unplug the fridge, remove all food, and wipe surfaces with a mild soap and water solution. Rinse and dry before restocking.

What is the noise level of this model?

The noise level is approximately 42 dB, which is within normal range for a fridge-freezer.

How can I reduce energy consumption?

Keep the fridge away from heat sources, ensure proper air circulation around the unit, and avoid frequent door openings.

Is it safe to place hot food inside the fridge?

No, allow hot food to cool to room temperature before placing it in the fridge to avoid raising internal temperature.

What should I do if water leaks from the fridge?

Check if the drain hole is blocked, ensure the fridge is level, and clean the drain tray underneath.

How long does it take for the fridge to reach the set temperature after first startup?

It may take up to 24 hours for the fridge to stabilize at the desired temperature after initial installation.

USER MANUAL IKK3400 VOX

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GBR

SRB

HRV

MKD

SVN

BIH

MNE

IKK-3400

OPERATING INSTRUCTIONS BUILT IN REFRIGERATOR UPUTSTVO ZA UPOTREBU UGRADNI FRIŽIDER UPUTE ZA UPORABU UGRADNI HLADNJAK УПАТСТВА ЗА РАКУВАНЬЕВГРАДЕН ФРИЖИДЕР NAVODILA ZA UPORABO VGRAJENI HLADILNIK UPUTSTVO ZA UPOTREBU UGRADNI FRIŽIDER

Index

PRECAUTIONS 2

General warnings ...... 2

Old and out-of-order fridges ....4

Safety warnings....4

Installing and operating your fridge 5

Before using your fridge 6

HOW TO OPERATE THE APPLIANCE......6

Thermostat setting....6

Warnings about temperature adjustments....6

Accessories 7

Ice tray 7

Bottle holder....7

FOOD STORAGE IN THE APPLIANCE....8

Refrigerator compartment......8

Freezer compartment 8

CLEANING AND MAINTENANCE 9

Defrosting the refrigerator compartment....9

Defrosting the freezer compartment 9

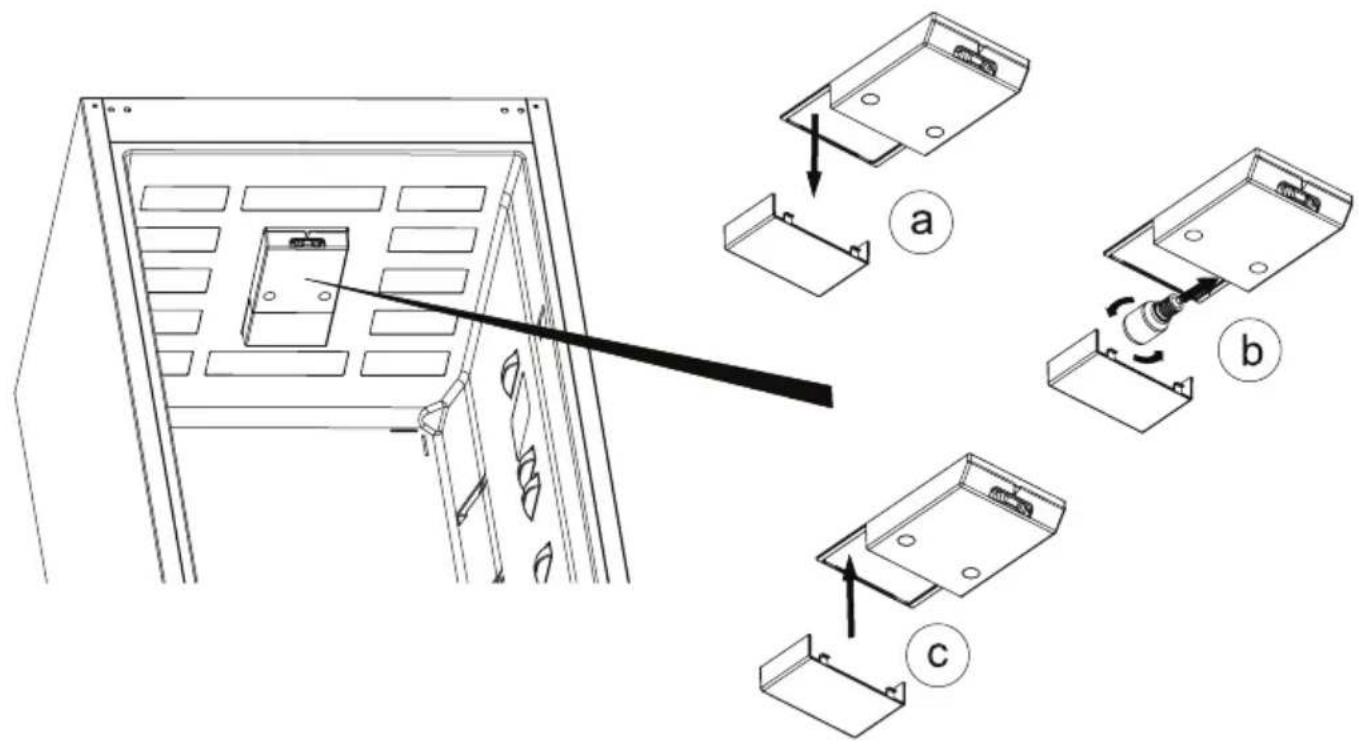

Replacing the light bulb 10

SHIPMENT AND REPOSITIONING.... 11

BEFORE CALLING FOR AFTER SALES SERVICE .... 11

Tips for saving energy 12

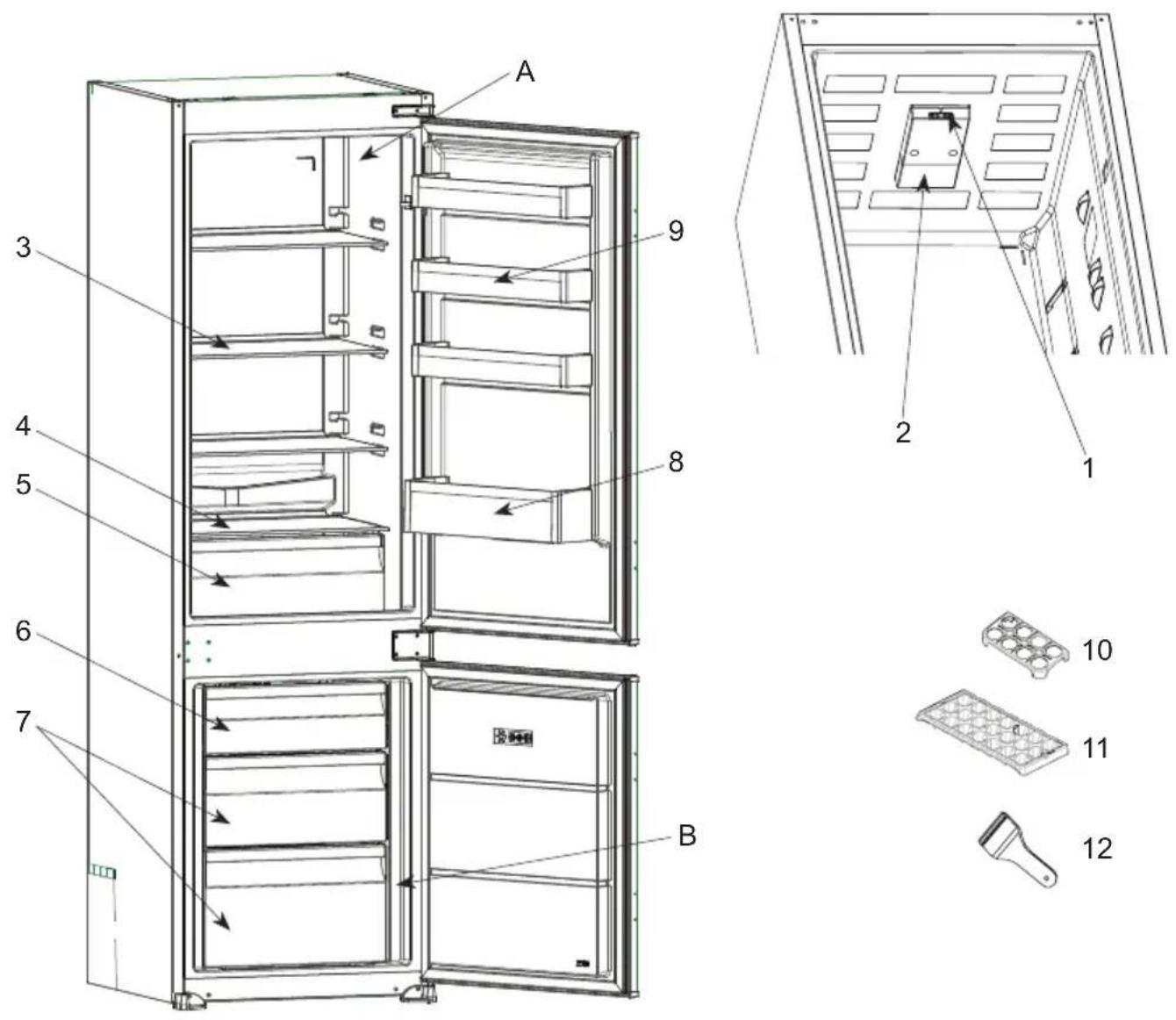

PARTS OF THE APPLIANCE AND THE COMPARTMENTS ...... 13

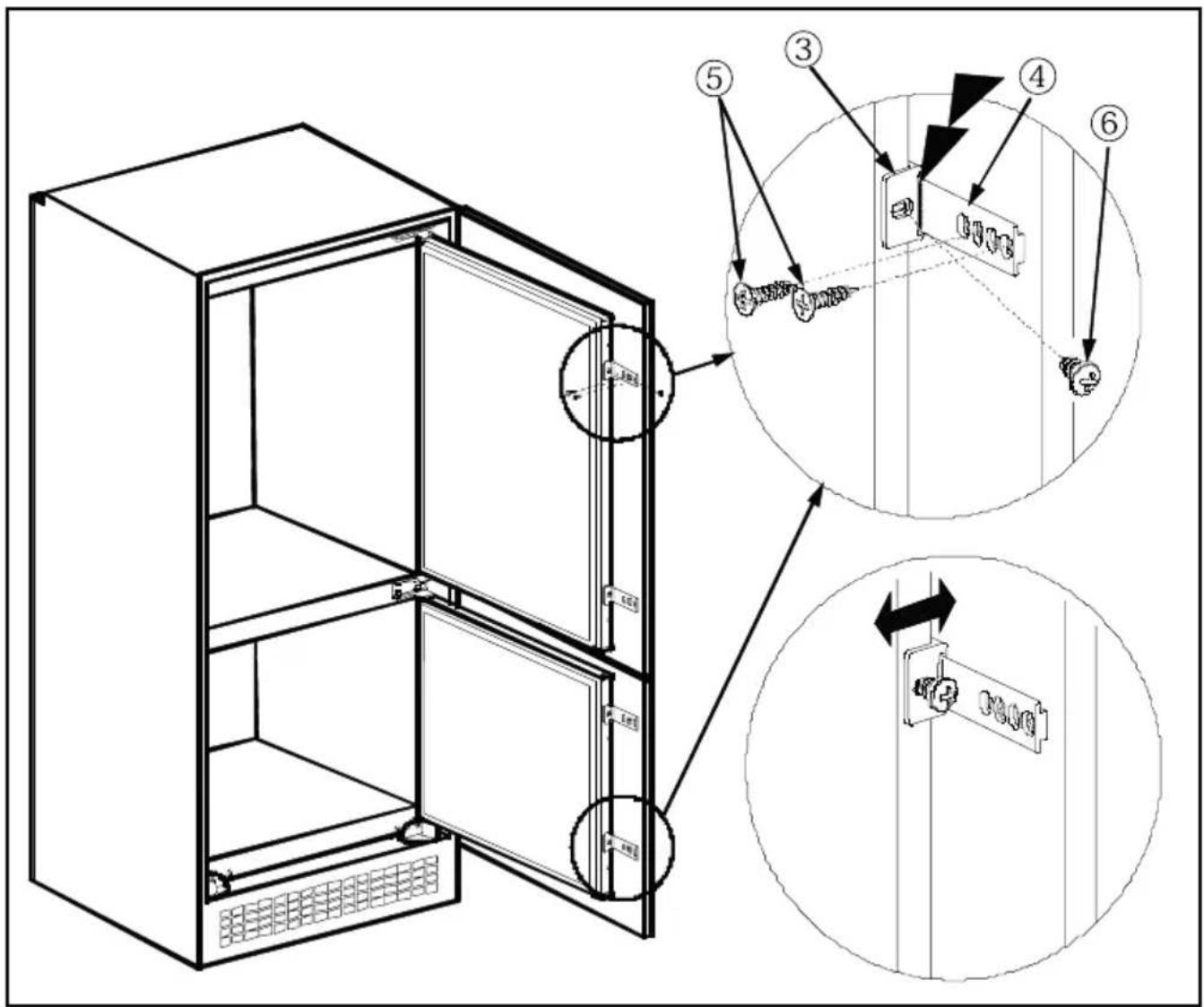

Installation instructions and door reversibility 14

The operating instructions apply to several models. Differences may therefore occur.

PRECAUTIONS

General warnings

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability of the appliance, it must be fixed in accordance with the instructions.

- If your appliance uses R600a as a refrigerant – you can learn this information from the label on the cooler- you should be careful during shipment and installation to prevent your appliance’s cooler elements from being damaged. Although R600a is an environmentally friendly and natural gas. As it is explosive, in the event of a leak due to damage to the cooler elements, move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

- While carrying and positioning the fridge, do not damage the cooler gas circuit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- This appliance is intended to be used in household and similar applications such as;

- staff kitchen areas in shops, offices and other working environments - farm houses and by clients in hotels, motels and other residential type environments

• bed and breakfast type environments;
• catering and similar non-retail applications

- If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its' service agent or similarly qualified persons in order to avoid a hazard.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have it installed by an authorized electrician.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

- This appliance is not intended for use at altitudes exceeding 2000 m.

Old and out-of-order fridges

• If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

Pure mechanical diagram showing a binocular device with no text or symbols

Please ask your local authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for damage due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

Safety warnings

• Do not use multiple sockets or extension cords.
• Do not plug in damaged, torn or old plugs.

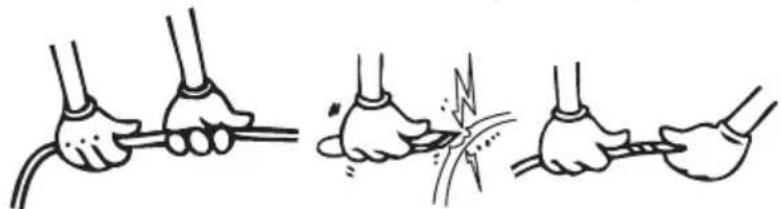

• Do not pull, bend or damage the cord.
• Do not twist and bend the cables, and keep them away from hot surfaces.

Illustration of three hands performing a manual cable manipulation technique (no text or symbols present)

• After installation make sure that the power cable is not trapped underneath appliance.
- This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.
- Do not plug-in or un-plug from the socket with wet hands to prevent electrocution!

Cartoon illustration of a plug with an angry face and a lightning bolt, no text or symbols present

Cartoon illustration of a smiling computer door with arms and legs open, no text or symbols present

Illustration of a hand holding a phone with a smiling face, crossed out by a no-smoking symbol (no text or numbers present)

- Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode.

- Do not place explosive or flammable material in your fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the fridge department.

- When taking ice made in the freezer department, do not touch it, ice may cause ice burns and/or cuts.

- Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes immediately after you have taken them out of the freezer department!

Simple line drawing of a bottle and glass with explosion effects (no text or symbols)

- Do not re-freeze frozen goods after they have melted. This may cause health issues like food poisoning.

- Do not cover the body or top of fridge with lace. This affects the performance of your fridge.

- Do not operate any electrical appliances inside the refrigerator or freezer.

• Fix the accessories in the fridge during transportation to prevent damage to accessories

Installing and operating your fridge

Before starting to use your fridge, you should pay attention to the following points:

- Operating voltage for your fridge is 220-240 V at 50Hz.

• The plug must be accessible after installation.

- There can be an odour when you first switch on the appliance. It will disappear after the appliance starts to cool.

- Before making the connection to the power supply, ensure that the voltage on the nameplate corresponds to the voltage of electrical system in your home.

- Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we suggest you to call an authorized electrician for assistance.

- The appliance must be connected with a properly installed fused socket. Power supply (AC) and voltage at the operating point must correspond with the details on the name plate of the appliance (name plate is located on the inside left of the appliance).

• We do not take responsibility for damages that occur due to ungrounded usage.

- Place your fridge in a place where it won't be exposed to direct sunlight.

- Your fridge should never be used outdoors or left under the rain.

- Your appliance should be at least 50 cm away from stoves, Gas ovens and heaters, and should be at least 5 cm away from electrical ovens.

- When your fridge is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity on the outer surface.

- Do not place heavy items on the appliance.

- Clean the appliance thoroughly, especially in the interior, before use (See Cleaning and Maintenance).

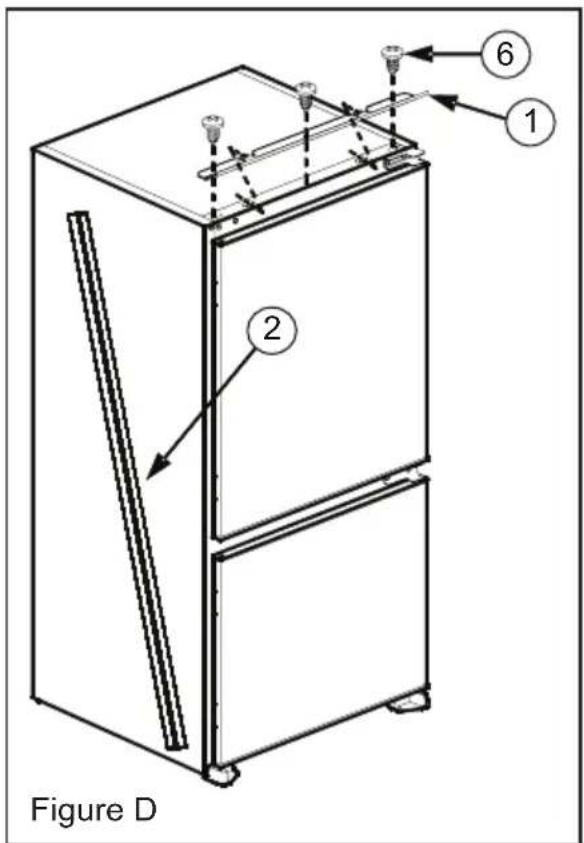

- Installation procedure into the kitchen unit is given in the installation manual. This product is intended to be used in proper kitchen units only.

Cartoon illustration of a distressed container character holding a box labeled 'KG', with arms and facial expression (no text or symbols beyond the label)

- Before using your fridge, wipe all parts back with warm water added with a tea spoonful of sodium bicarbonate, and then rinse with clean water and dry. Replace all parts after cleaning.

Before using your fridge

• When it is operated for the first time or after transportation, keep your fridge in the upright position for 3 hours and plug it on to allow efficient operation. Otherwise, you may damage the compressor.
• Your fridge may have a smell when it is operated for the first time; the smell will fade away when your fridge starts to cool.

Simple line drawing of a smiling face on a square and a hand holding a wrist (no text or symbols)

HOW TO OPERATE THE APPLIANCE

Thermostat setting

The freezer thermostat automatically regulates the inside temperature of the compartments. By rotating the knob from position 1 to 5, colder temperatures can be obtained.

Important note: Do not try to rotate knob beyond 1 position it will stop your appliance.

Freezer & Refrigerator thermostat setting;

1 - 2 : For short-term storage of food in the freezer compartment, you can set the knob between minimum and medium position.

3 - 4 : For long-term storage of food in the freezer compartment, you can set knob to medium position.

5: For freezing the fresh food. The appliance will run for colder temperatures.

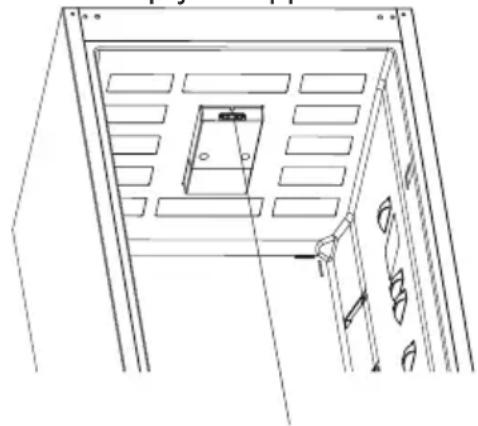

Technical line drawing of a door frame with internal compartments and a door handle (no text or symbols)

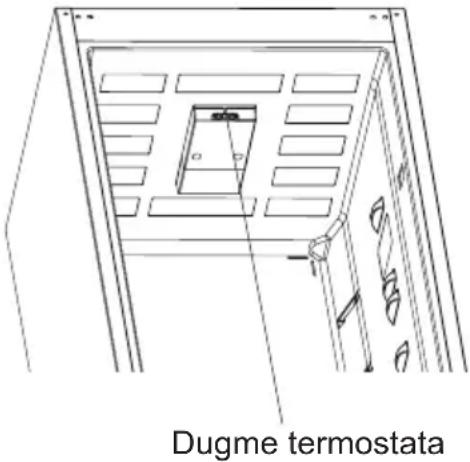

Thermostat knob

Warnings about temperature adjustments

• It is not recommended that you operate your fridge in environments colder than 10^ C in terms of its efficiency.
• Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge.
• Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.
• A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug out and then plug it in again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.
• Your fridge is designed to operate in the ambient temperature intervals stated in the

standards, according to the climate recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

- This appliance is designed for use at an ambient temperature within the 16°C - 38°C range.

class stated in the information label. We do not

Climate class	Ambient temperature (°C)
T Between 16 and 43	°C
ST Between 16 and 38	°C
N Between 16 and 32	°C
SN Between 10 and 32	°C

Accessories

Ice tray

• Fill the ice tray with water and place in freezer compartment.
  • After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

Illustration of hands holding a grid-patterned object with curved arrows indicating rotation (no text or symbols)

Bottle holder

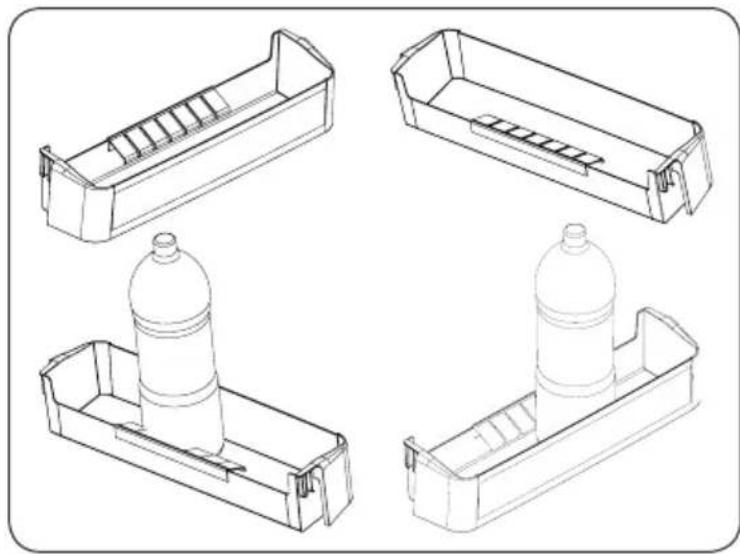

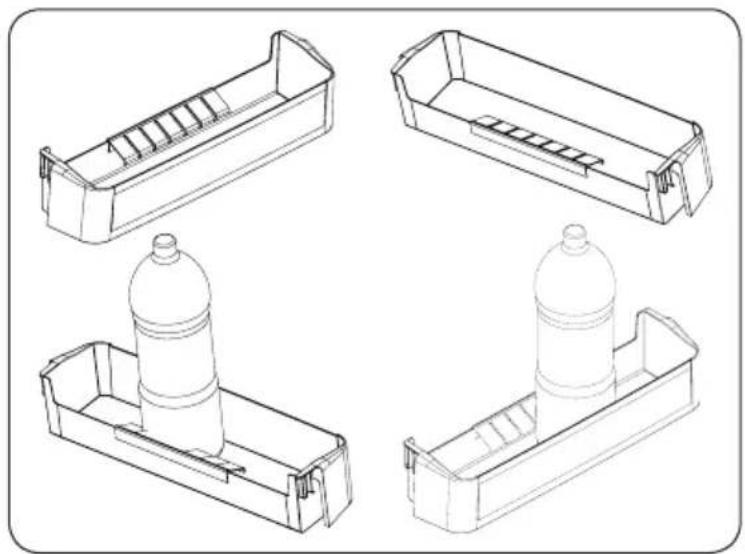

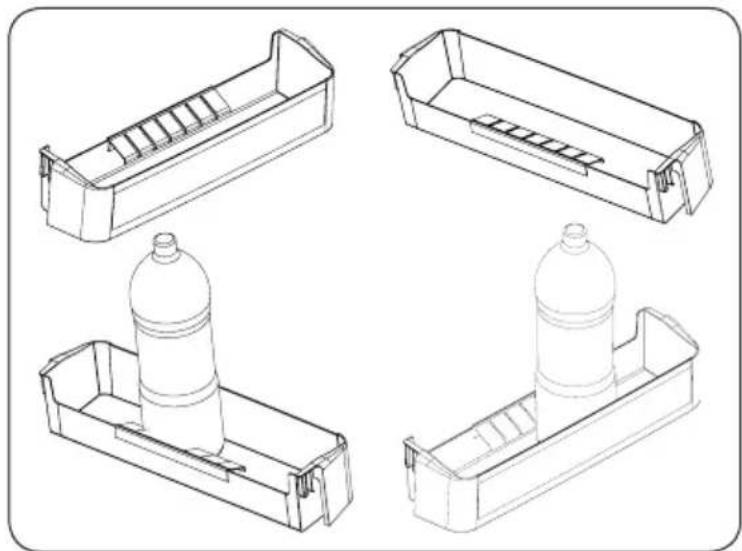

In order to prevent the bottles slipping or falling over you can use the bottle holder.

Four technical line drawings of plastic storage compartments with different shapes and internal structures (no text or symbols)

Simple line drawing of a bottle mounted on a stand (no text or symbols)

All written and visual descriptions in the accessories may vary according to the appliance model.

FOOD STORAGE IN THE APPLIANCE

Refrigerator compartment

The refrigerator compartment is used for storing fresh food for a few days.

• Do not place food in direct contact with the rear wall of the refrigerator compartment. Leave some space around food to allow circulation of air.
• Do not place hot food or evaporating liquid in the refrigerator.
  • Always store food in closed containers or wrapped.
• To reduce humidity and avoid formation of frost, never place liquids in unsealed containers in the refrigerator.
• Meat of all types, wrapped in packages, is recommended to be placed on the glass shelf just above the vegetable bin, where the air is colder.
• You can put fruit and vegetables into the crisper without packaging.
• To avoid cold air escaping, try not to open the door too often, and not leave the door open for a long time.

Freezer compartment

The freezer compartment is used for freezing fresh foods and for storing frozen foods for the period of time indicated on packaging, and for making ice cubes.

• For freezing fresh food; wrap and seal fresh food properly, that is the packaging should be air tight and shouldn't leak. Special freezer bags, aluminum foil polythene bags and plastic containers are ideal.
• Do not allow the fresh food to be frozen to come into contact with the already frozen food.
• Always mark the date and the content on the pack and do not exceed the stated storage time.
• In case of a power failure or malfunction, the freezer compartment will maintain a sufficiently low temperature for food storage. However, avoid opening the freezer door to slow down the temperature rise within the freezer compartment.
• The maximum amount of fresh foods that can be loaded in the freezer within 24 hours is indicated on the name plate (see Freezing Capacity).
• Never place warm food in the freezer compartment.
• When purchasing and storing frozen food products; ensure that the packaging is not damaged.
• The storage time and the recommended temperature for storing frozen foods are indicated on the packaging. For storing and using, follow the manufacturer's instructions. If no information is provided, food should not be stored for more than 3 months.
• Place frozen food in the freezer compartment as soon as possible after buying it.
• Once the food is thawed, it must not be refrozen; you must cook it as quickly as possible in order to consume or to freeze once again.
• Storage: If you want to use the maximum net capacity, you can remove the drawers and store the items directly on the cooling tubes. This will enable you to make use of the entire volume of the compartment.

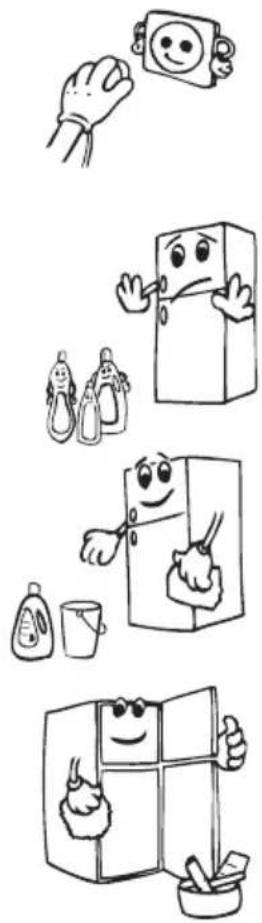

CLEANING AND MAINTENANCE

- Disconnect the appliance from the power supply before cleaning.

- Do not pour water over the appliance.

- The refrigerator compartment should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

- Clean the accessories separately with soap and water. Do not put them in the dishwasher.

- Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When the cleaning operations have been completed, reconnect the plug with dry hands.

Illustration of four cartoon household items: a hand holding a smiling phone, a sad refrigerator with a bandage, a bottle with a spoon, and a box with a smiling face (no text or symbols)

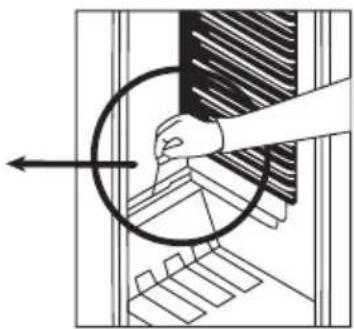

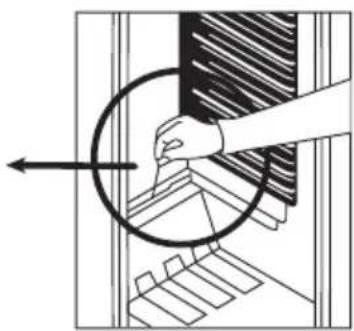

Defrosting the refrigerator compartment

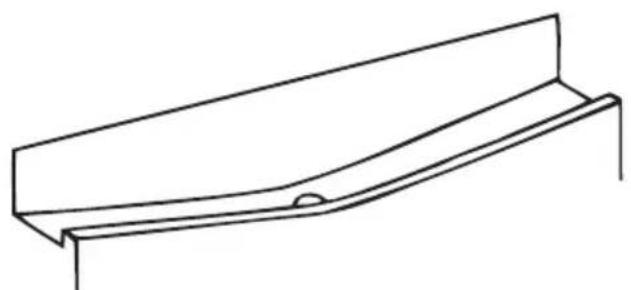

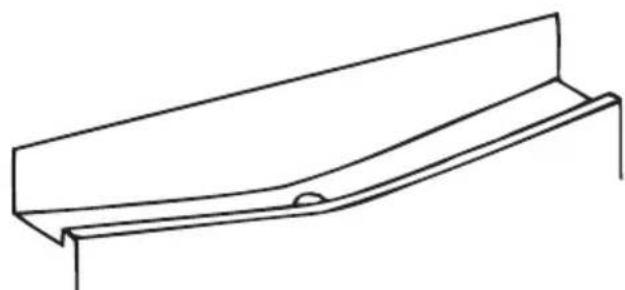

Simple line drawing of a structural beam or support with a notch (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with a circular arrow indicating direction (no text or symbols present)

- Defrosting occurs automatically in refrigerator compartment during operation; the defrost water is collected by the evaporating tray and evaporates automatically.

- The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.

- You can also pour 12 glass of the water to drain hole to clean inside.

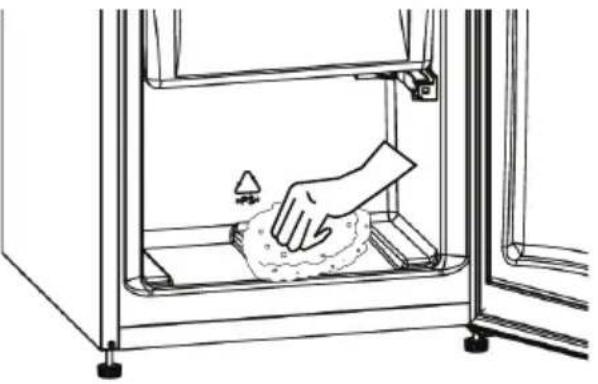

Defrosting the freezer compartment

- The frost, which covers the shelves of the freezer compartment, should be removed periodically.

- Do not use sharp metal objects for this operation. They could puncture the refrigerator circuit and cause irreparable damage to the unit. Use the plastic scraper provided.

- When there is more than 5 mm of frost on the shelves, defrosting must be done.

- Before defrosting operation, place the frozen food in a cool place after wrapping them in sheets of newspaper in order to obtain its temperature steady for long time.

- To accelerate the defrosting process place one or more basins of warm water in the freezer compartment.

- Dry the inside of the compartment with a sponge or a clean cloth.

- Once the unit has been defrosted, place the food into the freezer and remember to consume them in a short period of time.

Line drawing of a hand cleaning a wall-mounted object inside a technical enclosure (no text or symbols)

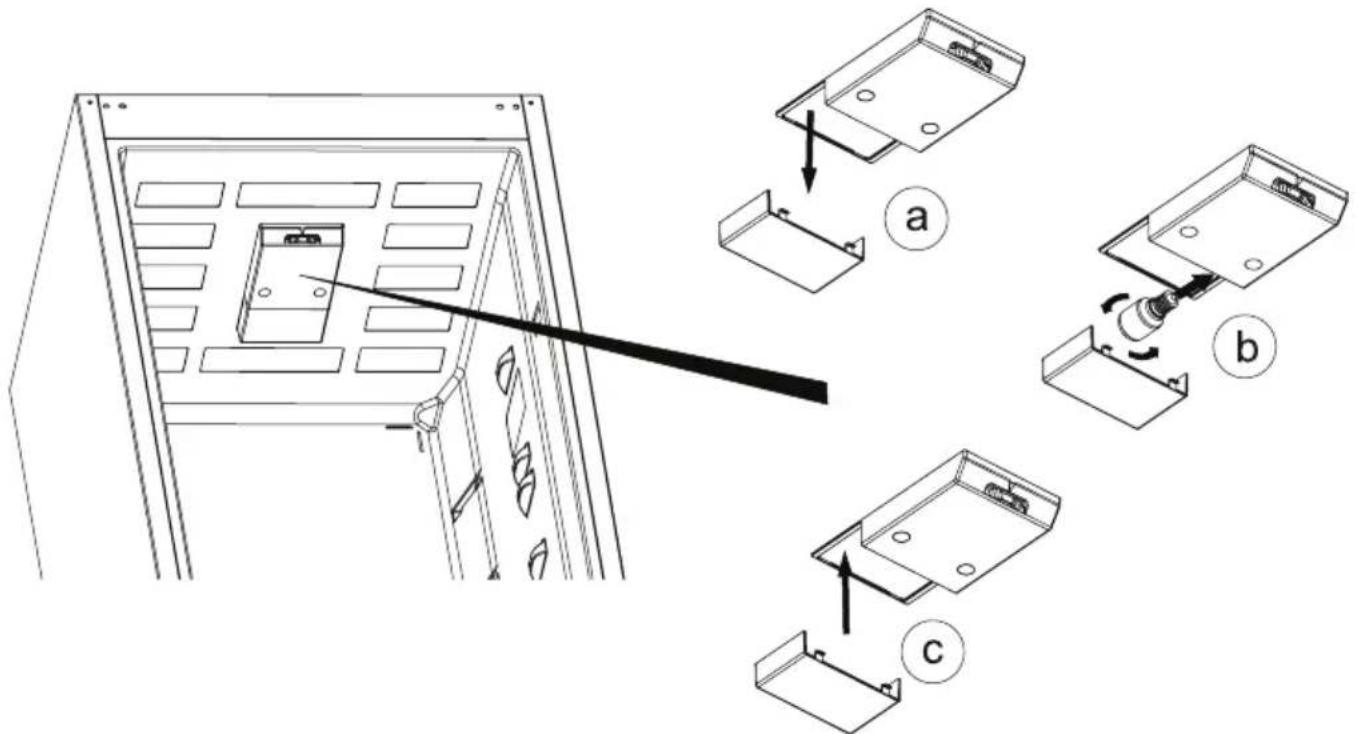

Replacing the light bulb

To replace the bulb in the fridge compartments;

1. Unplug your fridge freezer.

2. Using a screwdriver, carefully remove the light cover from the top panel. (a)

3. Replace with a 15 watt bulb. (b)

4. Reinstall the light cover. (c)

5. Wait for 5 minutes before re-plugging the fridge in and restore the thermostat to its original position.

Replacing LED lighting

If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.

SHIPMENT AND REPOSITIONING

• The original packaging and foam may be kept for re-transportation (optionally).
• You should fasten your fridge with thick packaging, bands or strong cords and follow the instructions for transportation on the package for re-transportation.
• Remove movable parts (shelves, accessories, vegetable bins etc.) or fix them into the fridge against shocks using bands during re-positioning and transportation.
• Carry your fridge in the upright position.

Simple line drawing of two children playing a large block together (no text or symbols)

BEFORE CALLING FOR AFTER SALES SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following.

The appliance does not operate,

Check if;

• There is a power failure,
- The mains plug is not properly plugged in, or is loose
- The thermostat setting is on position “•”,
- The socket is defective. To check this, plug in another appliance that you know which is working into the same socket.

The appliance performs poorly;

Check if;

• You have overloaded the appliance,
  • The doors are not closed perfectly,
• There are not enough ventilation ducts on the kitchen unit as mentioned in the Installation Manual.

If there is noise;

The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry, this is quite normal. If these sounds are different check if;

• The appliance is installed firmly as described in the installation manual.
• The objects on the appliance are vibrating.

If there is water in the lower part of the refrigerator;

Check if;

The drain hole for defrost water is not clogged (use defrost drain plug to clean the drain hole).

IMPORTANT NOTES:

- In case of a sudden power loss or disconnecting and reconnecting of the plug to the electrical socket, the compressor protective thermal element will be opened as the pressure of the gas in the cooling system of your refrigerator has not yet been balanced. 4 or 5 minutes later, your refrigerator will start to operate; this is normal.

- If you won't be using your refrigerator for a long time (such as on summer holidays), please disconnect the plug from the socket. Clean your refrigerator as per Part 4 of this document and leave the door open to prevent any humidification or odor formation.

- If there is still a problem with your refrigerator although you have followed the instructions in this book, please consult your nearest authorized service center.

Tips for saving energy

1. Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near a heat source (radiator, cooker.. etc).
2. Allow warm food and drinks to cool down outside the appliance.
3. When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. So it causes energy saving. If the frozen food is put out, it wastes energy.
4. When placing, food and drinks they must be covered.
5. When placing food and drinks, open the appliance door as briefly as possible.
6. Keep the covers closed for the different compartments to avoid changing the temperature of each section. (crisper, chiller ...etc).
7. The door gasket must be clean and pliable. Replace gaskets if worn.

PART - 7. PARTS OF THE APPLIANCE AND THE COMPARTMENTS

This presentation is only for information about the parts of the appliance.

Parts may vary according to the appliance model.

A) Refrigerator compartment
B) Freezer compartment

1) Thermostat knob
2) Refrigerator lamp & cover
3) Refrigerator shelves
4) Crispers cover
5) Crisper
6) Freezer room cover

7) Freezer comp. drawers
8) Bottle shelf
9) Door shelves
10) Egg holder
11) Ice tray
12) Plastic ice blade *

* In some models

Installation instructions and door reversibility

Installation

! Before installation, read the instructions carefully.
! Fit the refrigerator/freezer in stable kitchen units only.
! If necessary, reverse the door according to instructions.

! Cabinet dimensions are changed by material of trim flap ^1 .

1. If material of trim flap ^1 is plastic, look at (Table.1/E1) for cabinet dimensions.
2. If material of trim flap is metal, look at (Table.1/E2) for cabinet dimensions.

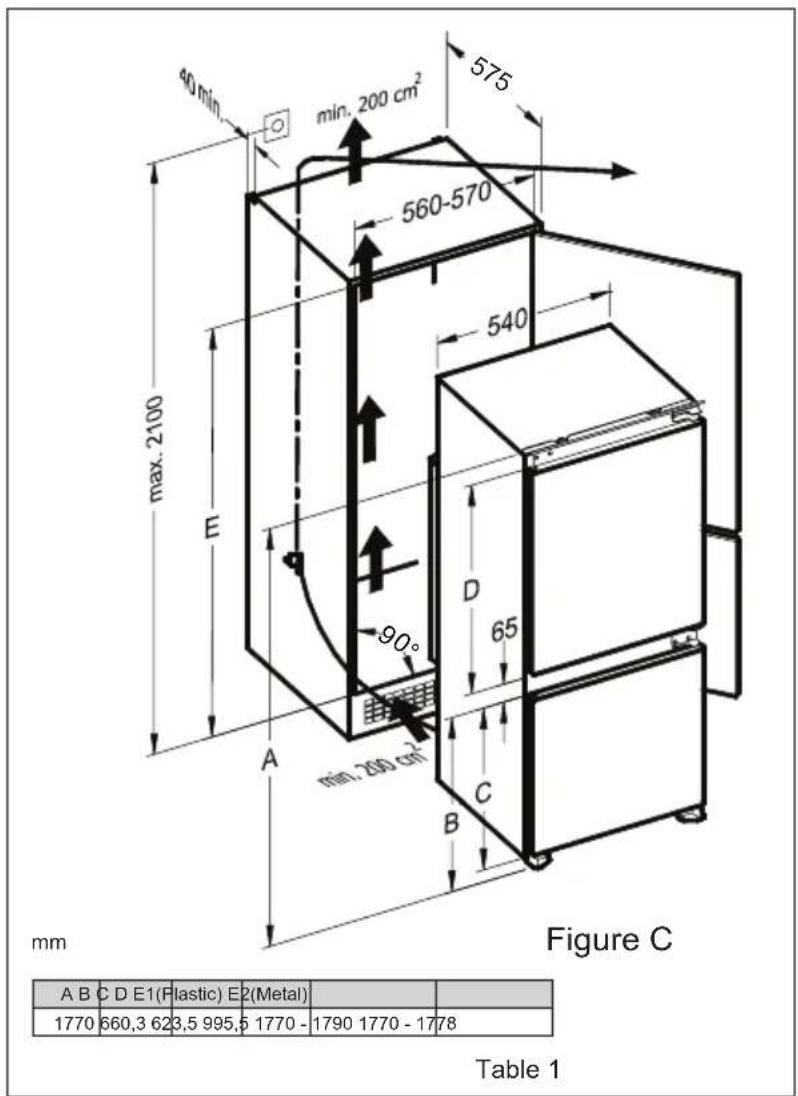

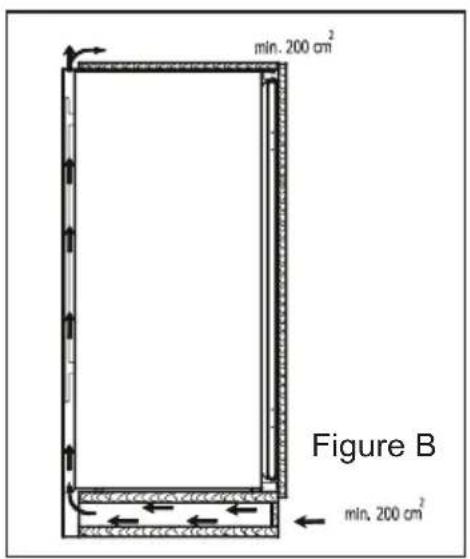

! Check the installation dimensions according to fig.C. The position of the joint between the unit doors must be level with the position of the joint between the appliance doors.

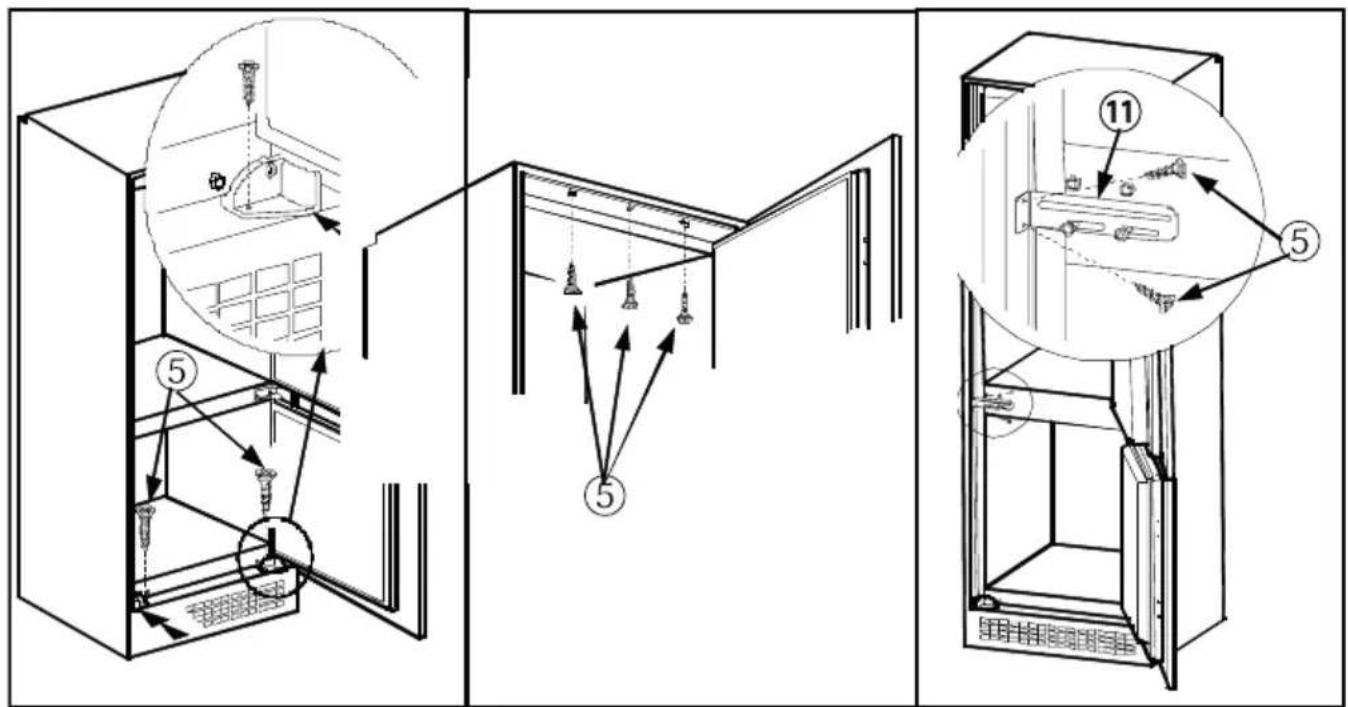

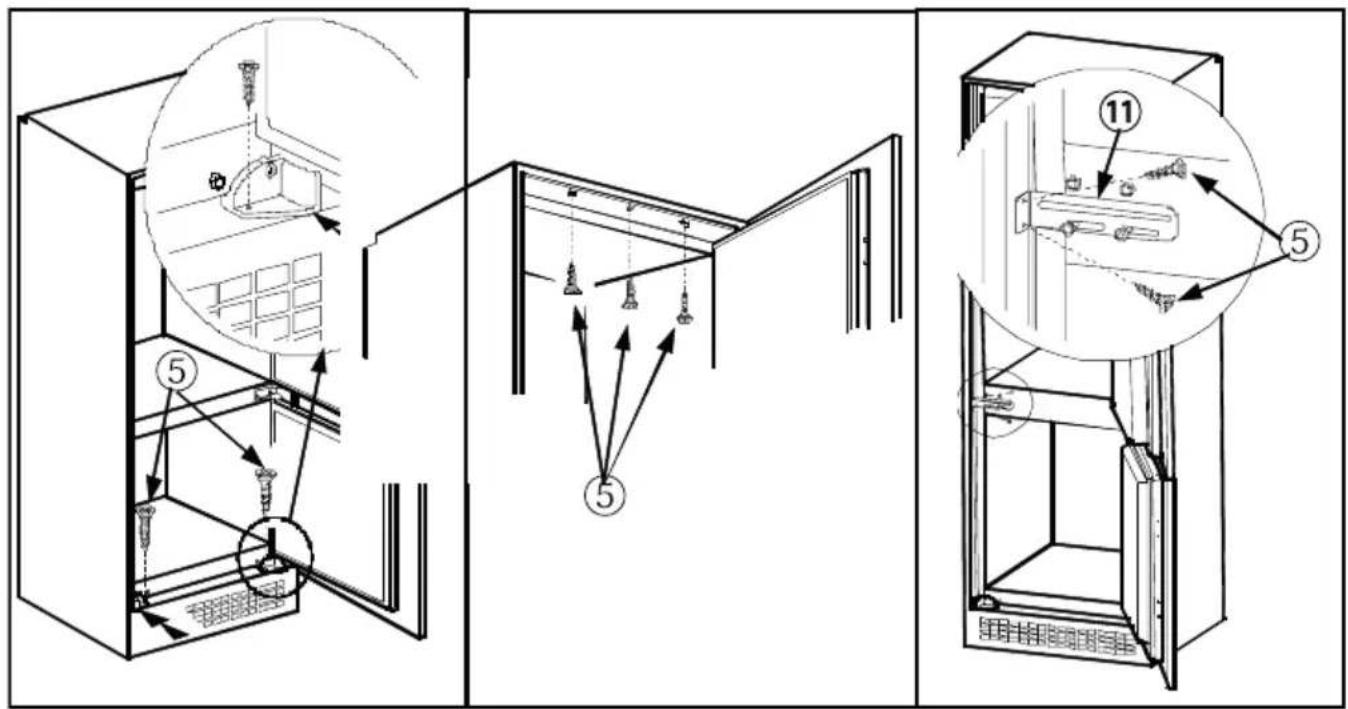

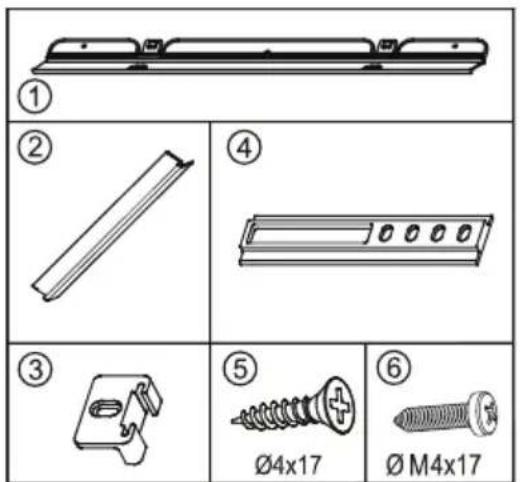

1. See fig.A for the necessary attachment components.
2. Insert trim flap into slot and screw by screws ^6 . (fig.D)
3. Pass the power cord through ventilation shaft and position it so that the appliance could be easily plugged in once it has been installed. (fig.B - fig.C)

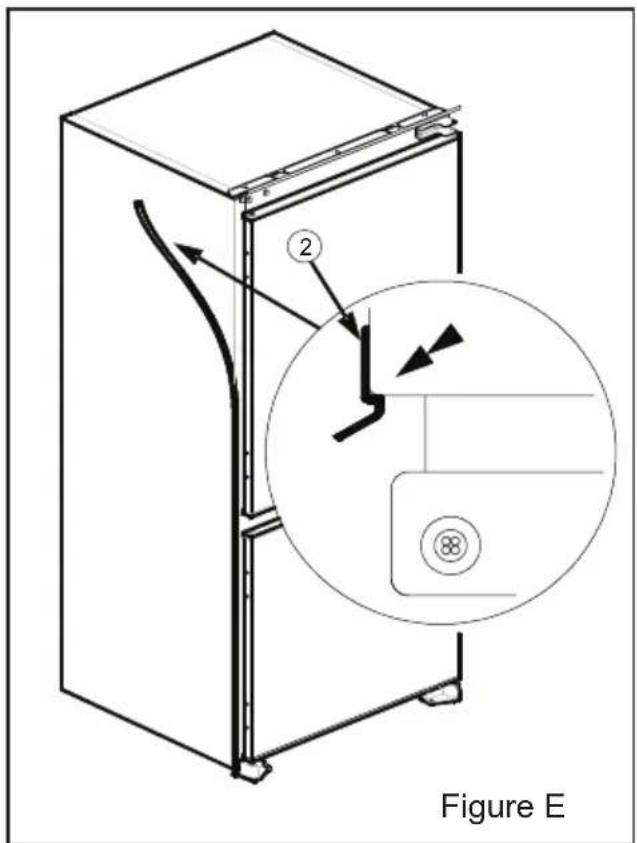

4. Take out the trim gasket ^2 located on the side panel of the appliance and stick it on the reverse side of the door hinges of the appliance. (fig.D - fig.E)
5. Raise appliance and slide into the kitchen unit. Push the appliance to the reverse side of door hinges providing that the trim gasket ^2 covers space between appliance and the kitchen unit.
6. Align front feet with the front surface of the kitchen unit. (fig.F)
7. Screw the front feet by using screws ^5 . (fig.F)
8. Screw the trim flap ^1 to the kitchen unit using screws ^5 . (fig.G)
9. Screw the fixing bracket ^1 , as leaned to kitchen unit by using screws ^5 . Repeat this for the opposite side. (fig.H)
10. Screw guides ^3 to the appliance doors with screws ^6 . Lean the appliance doors to the unit door as it is opened at right angle. Slide rails ^4 into the guides ^3 aligning the groove. Screw the rails ^4 to the unit doors with screws ^5 . (fig.J)
11. Set 1\~2 mm gap on the handle side between the unit itself and the unit doors by adjusting the guides ^3 . This is vital for appliance performance. (fig.J)

Figure A

A B C D E1(Plastic) E2(Metal)
1770 660,3 623,5 995,5 1770 -	1790 1770 - 17	78

Table 1

Figure F Figure G Figure H

Figure J

Door reversing

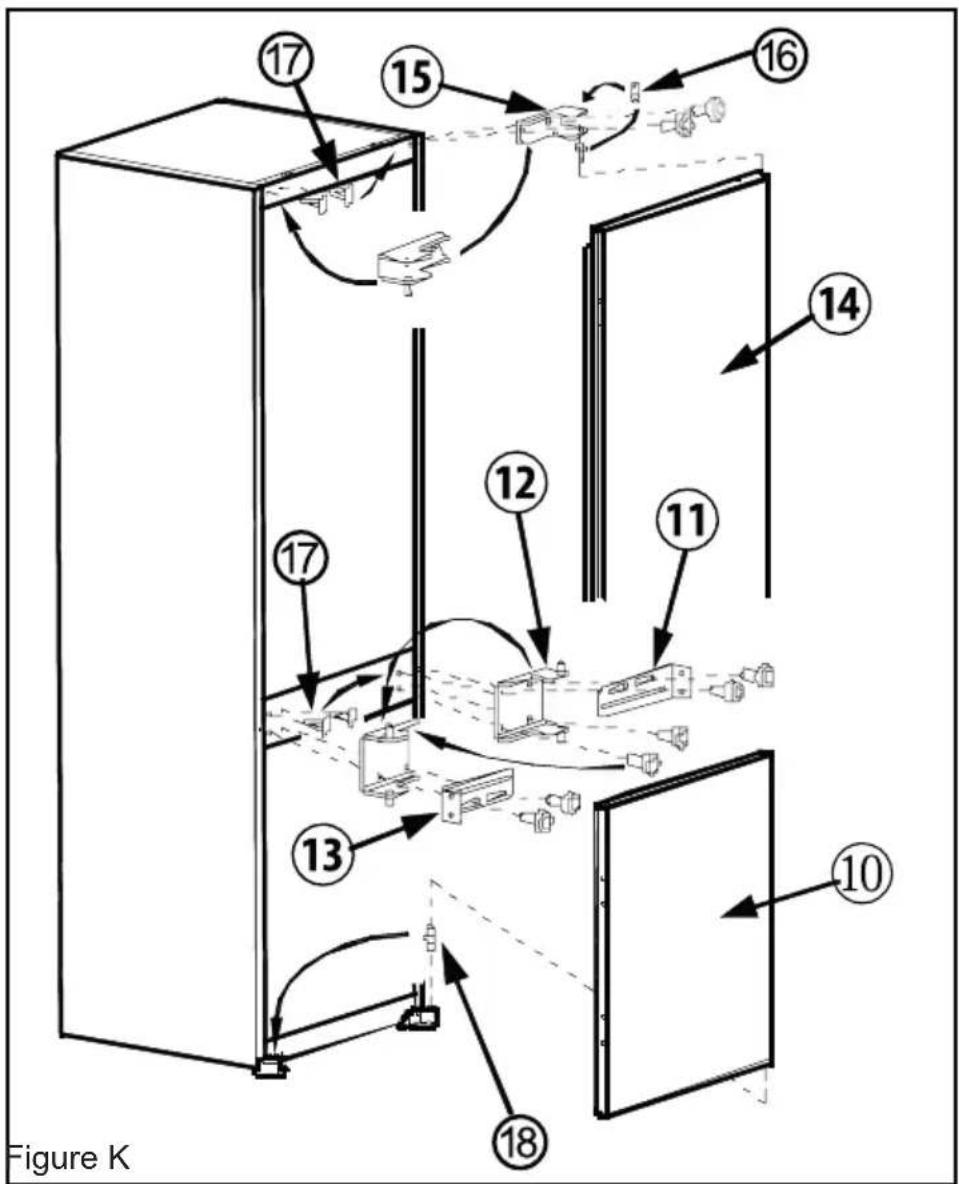

1. Unscrew the upper door hinge ^15 and take the upper door ^14 to a safe place.
2. Unscrew the door hinge pin ^16 and screw it to the opposite side firmly and take to a safe place.
3. Unscrew the middle door hinge ^12 and take the lower door ^10 to safe place. Screw back the fixing bracket ^11 to original position without the middle door hinge ^12 .
4. Take the door lower pin ^18 to opposite side.
5. Take the hole plugs ^4 to empty holes on opposite side.
6. Place the lower door ^10 over the door lower pin ^18 and close onto cabinet.
7. Unscrew the fixing bracket ^13 . Position the middle door hinge ^12 onto the lower door ^10 . Place the fixing bracket ^11 onto the middle door hinge ^12 and screw together onto cabinet firmly.
8. Place the upper door ^14 over the middle door hinge ^12 and position the upper door hinge ^15 over the upper door ^14 and then screw the upper door hinge ^15 firmly onto opposite side of original position.

SADRŽAJ

PRE NEGO ŠTO KORISTITE UREĐAJ ....19

Symbol of a trash bin with diagonal lines crossing it, no text or labels present

- Stari frižideri i zamrzivači sadrže izolacioni materijal i gas za hlađenje sa CFC-om. Stoga, budite obazrivi da ne naškodite životnoj sredini prilikom odlaganja starih frižidera.

Raspitajte se kod lokalnih vlasti u vezi sa odlaganjem WEEE za ponovnu upotrebu, reciklažu i obnavljanje.

Napomene:

- Pročitajte priručnik sa uputstvima pažljivo pre instalacije i upotrebe uređaja. Mi nismo odgovorni za oštećenje koje se desi usled pogrešnog korišćenja.

Illustration showing three different techniques for using a tool to tighten or break electrical wire (no text or symbols present)

Cartoon illustration of an angry plug with a lightning bolt, no text or symbols present

Cartoon illustration of a smiling character inside a door, holding hands with arms outstretched (no text or symbols)

Simple line drawing of two bottles and a paint can with a spray bottle (no text or symbols)

Technical line drawing of a door frame with vented seating and door opening (no text or symbols)

Dugme termostata

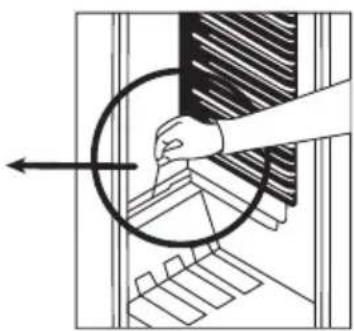

Upozorenja u vezi sa podešavanjem temperature

- Sobna temperatura, temperatura sveže uskladištene hrane i učestalost otvaranja vrata utiču na temperaturu u odeljku frižidera. Ako je potrebno, promenite podešavanje temperature.

- Ne preporučuje se da koristite frižider u okruženjima hladnijim od 10 °C u pogledu efikasnosti.

- Podešavanje termostata treba obaviti uzimajući u obzir koliko često se sveža hrana ubacuje i vrata otvaraju i zatvaraju, i koliko hrane se čuva u frižideru; kao i u kom okruženju se frižider nalazi.

Illustration showing three steps of a dental tool: using a toothbrush to form a grid, then using a tool to cut the tooth with a cross symbol (no text or labels present)

Technical line drawings of four different plastic storage compartments with one bottle, shown from different angles (no text or symbols)

Illustration showing three hand gestures: a smiling face, a hand holding a tool, and a pair of hands cleaning the wall (no text or symbols)

Cartoon illustration of a smiling cube character giving thumbs up and making medicine from a bowl (no text or symbols)

- Police čistiti posebno sa vodom i sapunom i nikako u mašini za pranje.

- Ne koristite abrazivne proizvode, deterdžente i slično. Posle pranja isperite čistom vodom i pažljivo osušite.

Cartoon illustration of a smiling character and two small characters next to a large rectangular object (no text or symbols)

Cartoon illustration of a smiling refrigerator with hands holding a spoon, accompanied by a small bottle and a cup (no text or symbols)

Illustration of a hand cleaning a bicycle rear cage (no text or symbols)

Simple line drawing of a structural beam or support with a small circular hole at one end (no text or symbols)

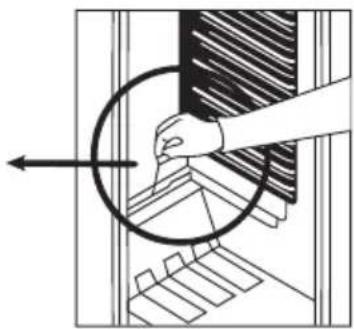

Diagram showing a hand pressing down on a mechanical component with a circular arrow indicating direction (no text or symbols present)

Line drawing of a hand cleaning a textured surface inside a 3D printer or enclosure (no text or symbols)

Zamena sijalice u frižideru

1. Izvadite utikač iz utičnice,
2. Uklonite poklopac sijalice pritiskom na kvačice koje se nalaze na obe strane poklopca. (A)
3. Zamenite sijalicu novom, (ne jačom od 15 W). (B)
4. Vratite poklopac sijalice i ponovo priključite aparat u struju. (C)

Zamena LED lampe

Ako vaš frižider poseduje LED lampu, obratite se korisničkoj službi jer nju treba da zameni isključivo ovlašćeno osoblje.

DEO 5. PREVOZ I PROMENE POZICIJE

Simple line drawing of two children playing a game with a large block (no text or symbols)

DEO 6.

PRE NEGO ŠTO SE POZOVETE POST- PRODAJNI SERVIS

Three technical illustrations of plastic components with numbered labels (10, 11, 12), no readable text or symbols beyond labels.

Slika J

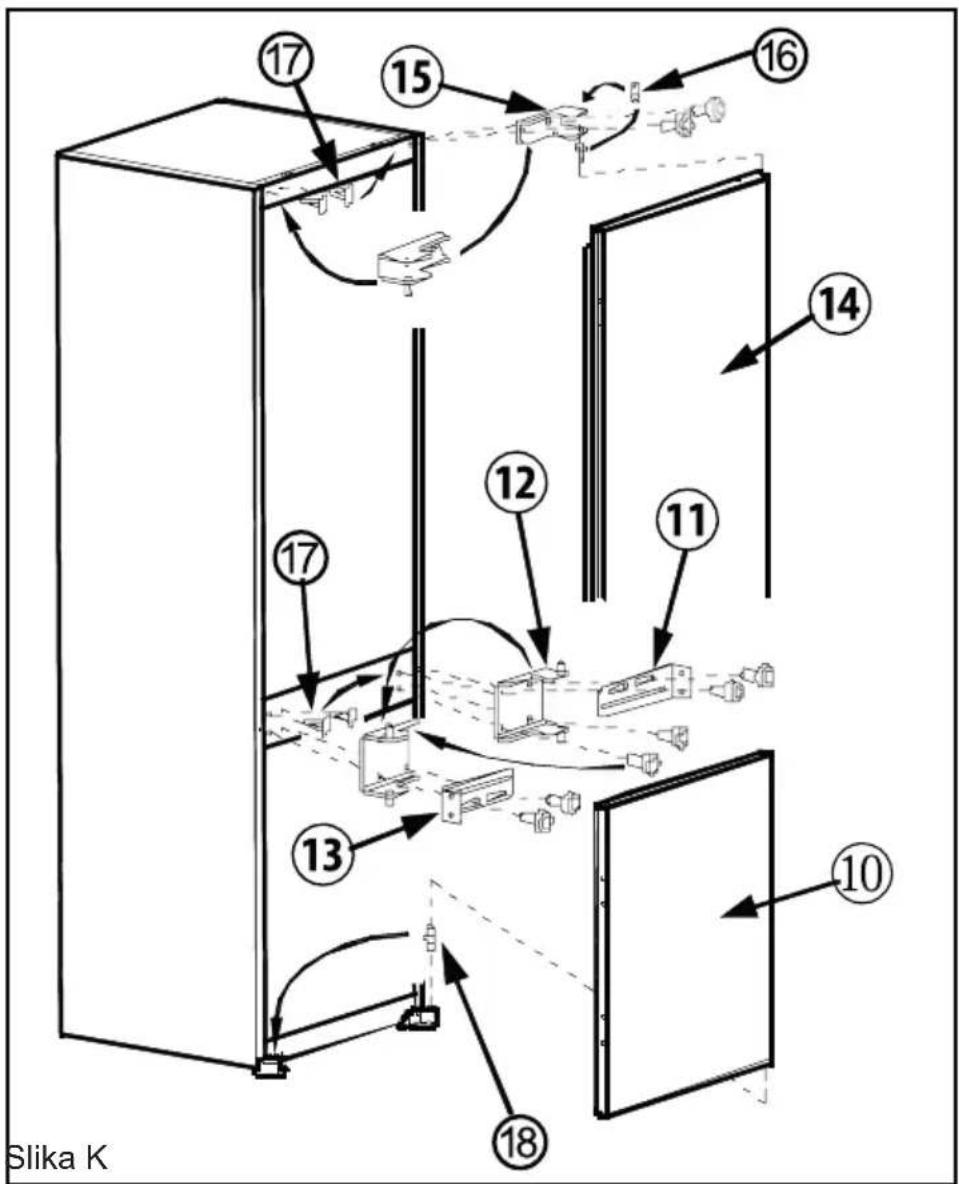

Promena smera otvaranja vrata

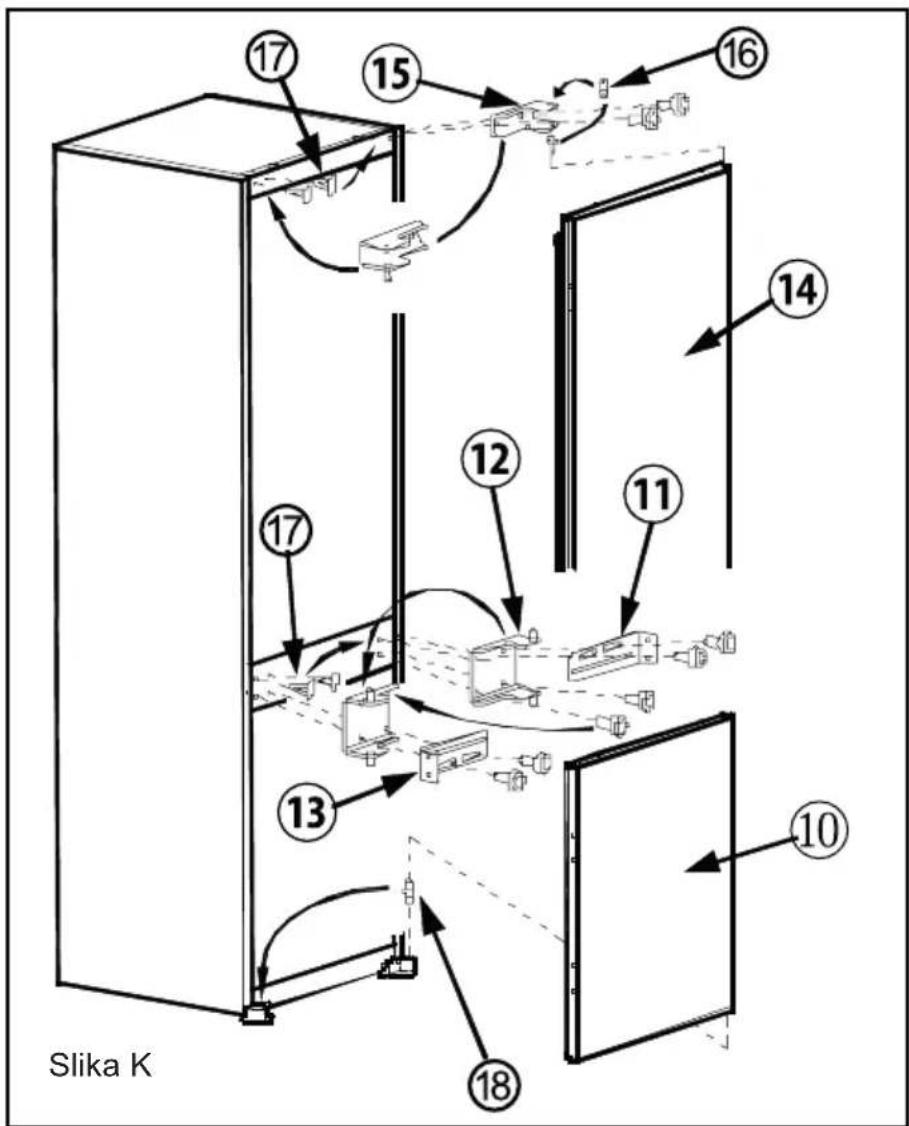

1. Odvrnite šrafe i skinite šarku vrata ^15 i zatim skinite gornja vrata ^14 te odložite vrata na sigurno mesto.

2. Odvrnite osovinu šarke ^16 i ponovno je pažljivo zavrnite na suprotnu stranu šarke. Zatim šarku odložite na sigurno mesto.

3. Odvrnite šrafove i skinite srednju šarku vrata ^12 i zatim skinite donja vrata ^10 te ih odložite na sigurno mesto. Pričvrstite natrag metalni profil ^11 na isto mesto ali ovaj put bez srednie šarke ^12 .

4. Premestite donju osovinu šarke ^18 na suprotnu stranu.

5. Izvadite plastične čepove ^17 da bi oslobodili rupe za šrafe. Čepove premestite na suprotnu stranu frižidera i zatvorite rupe.

6. Postavite donja vrata ^10 tako da donja osovina ^18 uđe u svoje mesto na vratima i prislonite vrata na kućište frižidera.

7. Odvojite metalni profil ^13 . Postavite srednju šarku ^12 tako da osovina uđe u svoje mesto na donjim vratima ^10 . Postavite metalni profil ^13 na srednju šarku ^12 i sve zajedno pričvrstite na kućište frižidera.

8. Postavite gornja vrata ^14 na srednju šarku ^12 i postavite gornju šarku ^15 na vrata ^4 i tada čvrsto pričvrstite gornju šarku ^15 suprotno od originalne pozicije.

Kazalo

PRIJE UPORABE UREĐAJA....36

Pure diagram of a trash bin with diagonal lines crossing it, no text or symbols present

- Molimo, posavjetujte se s općinskim vlastima o načinu zbrinjavanja WEEE (istrošene električne i elektronske opreme) za ponovnu uporabu, recikliranje i oporabu.

Napomene:

Illustration of three hands performing a rope knotting technique (no text or symbols present)

Cartoon illustration of an angry plug with a warning sign, no text or symbols present

Cartoon illustration of a character opening a door, with arms and legs open (no text or symbols)

- Ne stavljajte staklene boce ili limenke u odjeljak zamrzivača. Boce ili limenke mogu eksplodirati.

Simple line drawing of two bottles with splashes and a droplet, no text or symbols present

- Kad uzimate led nastao u odjeljku zamrzivača, ne dirajte ga jer može izazvati ozebline i/ili posjekotine.

- Zamrznutu hranu ne dirajte mokrim rukama! Ne jedite sladoled i kockice leda odmah kad ih izvadite iz odjeljka zamrzivača!

Cartoon illustration of a distressed container with arms and a label 'KG' on top (no text or symbols beyond the label)

- Način montiranje u kuhinji objašnjen je u "Postupak montiranja u jedinci" ovog priručnika za montažu. Ovaj proizvod namijenjen je uporabi samo u odgovarajućim kuhinjskim jedinicama.

Simple line drawing of a smiling square character and a hand, no text or symbols present

KAKO RUKOVATI UREĐAJEM

Postavke termostata

Upozorenja o podešavanju temperature

- Ne preporučuje se da radite s vašim hladnjakom u okolini hladnijoj od 10°C vezano za njegovu učinkovitost.

Line drawing of a container being poured into a tray of circular wells (no text or symbols)

Illustration of hands holding a tray with circular wells, showing rotational arrows (no text or symbols)

Illustration of two hands holding teeth with a black X symbol indicating a dental or dental procedure (no text or labels)

Four technical line drawings of plastic storage compartments with different shapes and internal structures (no text or symbols)

Simple line drawing of a bottle mounted on a base (no text or symbols)

Vizualni i tekstovni opisi u odjeljku s dodatnom opremom mogu se razlikovati u odnosu na model koji imate.

ČUVANJE HRANE U UREĐAJU

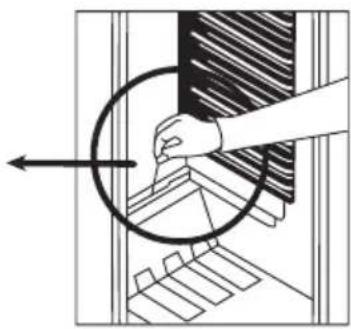

Odjeljci hladnjaka

Simple line drawing of a hand holding a tool near a doorbell (no text or symbols)

Cartoon illustration of a smiling baby bottle and two smaller bottles (no text or symbols)

- Pribor čistite odvojeno sapunom i vodom. Ne perite ih u perilici suđa.

Cartoon illustration of a smiling refrigerator with hands cleaning it, accompanied by a small bottle and bucket (no text or symbols)

- Ne koristite abrazivne proizvode, deterdžente i sapune. Nakon pranja, isperite čitom vodom i pažljivo ih osušite. Kad je postupak čišćenja završen ponovno uključite uređaj suhim rukama.

Cartoon illustration of a smiling window with hands giving thumbs up and a mortar (no text or symbols)

Simple line drawing of a structural beam or support with a small hole at one end (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with a circular arrow indicating direction (no text or symbols present)

Line drawing of a hand cleaning a textured surface inside a 3D printer (no text or symbols)

- Osušite unutrašniost odjeljka spužvom ili čistom krpom.

Zamjena LED svjetla

Simple line drawing of two children holding a large rectangular object (no text or symbols)

PRIJE POZIVA SERVISU

Three technical illustrations of microplate designs with numbered labels (10, 11, 12), no readable text or symbols beyond labels.

Slika J

Pure diagram of a trash bin with no text, numbers, or symbols

Illustration showing three different techniques for connecting wires, with no text or symbols present.

Cartoon illustration of an electric plug with a sad face and plug, showing electrical shock (no text or symbols)

Cartoon illustration of a character inside a door, holding his finger (no text or symbols present)

Simple line drawing of two bottles and a glass with stars, no text or symbols present

Technical line drawing of a door frame with vent slots and a handle, no text or symbols present

Термостатско тркало

Line drawing of a hand pouring liquid into a container on a grid-patterned tray (no text or symbols)

Illustration of hands holding a grid-like object with curved arrows indicating rotation (no text or symbols)

Illustration of two hands holding a tooth with a black X symbol (no text or labels)

Technical line drawings of four plastic container designs with no visible text or symbols

Cartoon illustration of a smiling character next to two surprised characters (no text or symbols)

Cartoon illustration of a smiling refrigerator with sunglasses and a mortar, giving thumbs up (no text or symbols)

Cartoon illustration of a smiling refrigerator with hands cleaning it, accompanied by a small bottle and bucket (no text or symbols)

Illustration of a hand using a tool to clean or wire mesh (no text or symbols)

Одмрзнување

Simple line drawing of a structural beam or support with a small circular hole at one end (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with a circular arrow indicating direction (no text or symbols present)

Line drawing of a hand cleaning a textured object inside a container (no text or symbols)

Simple line drawing of two children holding a large rectangular object (no text or symbols)

ДЕЛ: 6

Three technical diagrams of a microfluidic device with labeled parts (10, 11, 12), no text or symbols present.

Фигура J

Pure diagram of a trash bin with diagonal lines indicating no waste or plastic discharge (no text or symbols)

Illustration of three hands performing a knot break operation (no text or symbols present)

Simple line drawing of a smiling emoji inside a square frame and a hand holding a small object (no text or symbols)

Technical line drawing of a mechanical or architectural component with no visible text, numbers, or symbols.

Gumb termostata

Opozorila o nastavitvah temperature

Illustration showing three steps of a robotic manipulation: moving a tool, rotating a grid, and removing a hand with a crossed-out object (no text or symbols)

Simple line drawing of a bottle mounted on a stand (no text or symbols)

Four technical line drawings of plastic storage bins with different internal structures (no text or symbols)

Cartoon illustration of a hand using a tool to clean or store items, with no visible text or symbols

Cartoon illustration of a smiling refrigerator with hands cleaning it, accompanied by a small bottle and bucket (no text or symbols)

Cartoon illustration of a smiling refrigerator with thumbs up and a bowl of food nearby (no text or symbols)

Technical line drawing of a multi-tiered storage unit with red crosshair lines indicating internal structure (no text or symbols)

Cartoon illustration of a smiling rectangular character and two small figures (no text or symbols)

Illustration of a hand cleaning a wire mesh structure (no text or symbols)

Technical line drawing of a structural component with an inset showing a magnified view of a hand holding a circular object (no text or symbols present)

Line drawing of a hand cleaning a wall with a cloth, inside a 3D printer or enclosure (no text or symbols)

Simple line drawing of two children playing a large block together (no text or symbols)

PRED KLICANJEM POPRODAJNEGA SERVISERJA

Three technical line drawings of laboratory test tubes or pipettes, labeled 10, 11, and 12 (no text or symbols on the tubes themselves)

Slika J

Pure diagram of a trash bin with diagonal lines crossing it, no text or symbols present

Illustration showing three different techniques for using a tool to lift a cable, with no text or symbols present.

Cartoon illustration of an angry plug with a lightning bolt, no text or symbols present

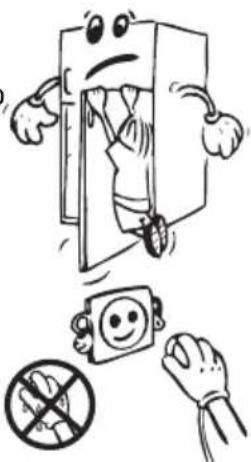

• Ovaj uredjaj je namijenjen za koristenje od strane odraslih osoba, zato ne dozvolite da se djeca igraju sa uredjajem ili da se vjesaju na vrata frizidera.
• Ne ukljucujte ili iskljucujte uredjaj sa mokrim rukama kako bi se izbiegla mogucnost elektro udara.
• Ne stavljajte staklene flase ili konzerve sa hranom u zamrzivac, jer flase ili konzerve mogu eksplodirati.

Cartoon illustration of a person inside a door with a smiling face, and another figure holding a phone symbol (no text or symbols present)

Simple line drawing of two bottles and a glass with a starburst effect (no text or symbols)

- Prilikom vadjenja leda iz zamrzivaca nemojte ga odma dodirivati ili koristiti jer led moze dovesti po smrzotine ili ostecenja i posjekotine koze.

- Ne dodirujte smrznutu hranu sa vlaznim rukama.

- Ne zamrzavajte ponovo hranu koju ste vec jednom odledili, jer to moze dovesti do trovanja hranom.

- Nemojte pokrivati frizider jer to moze umanjiti performanse vaseg frizidera.

Simple line drawing of a smiling face on a phone and a hand reaching toward it (no text or symbols)

KORIŠTENJE UREĐAJA

Podešavanje Termostata

Termostat hladjenja automatski regulise unutrasnju temperature odjeljka. Okrecuci dugme od pozicije 1 do 5 moguce je regulisati i dobiti nizu temperaturu.

Važna napomena: Nemojte pokušavati postaviti taster na poziciju nižu od 1, jer tako ćete isključiti uređaj.

Postavke termostata hladnjaka i zamrzivaca

1 – 2 : Za kratkorocno skladistenje hrane u zamrzivacu mozete postaviti dugme izmedju minimum i medium pozicije.
3 – 4 : Za dugorocno skladistenje hrane mozete postaviti dugme na medium poziciju.
5 : Za smrzavanje svjeze hrane uredjaj moze raditi duze, tako da posle postignute zeljene temperature mozete dugme vratiti na prvobitnu poziciju.

Upozorenja oko podesavanja temperature

• Nije preporuceno da koristite uredjaj u okruzenju gdje je temperature ispod 10^ iz razloga efikasnosti.
• Temperaturna promjena treba biti uradjena ovisno o frekfentnosti odvaranja vrata i kolicini hrane koja se nalazi u frizideru.
• Vas frizider treba da radi i do 24 sata ovisno o vanjskoj temperatiri bez prekida posle uključenja da bi doslo do potpunog ohladjenja. Ne otvarajte frizider cesto i ne stavljajte puno hrane u ovom periodu.
• 5 minuta odgodjenog rada je aktivna u cilju zastite kompresora vaseg frizidera kada iskljucite pa ukljucite frizider kada dodje do nestanka elektricne energije. Vas frizider ce nastaviti sa radom normalno posle 5 minuta.
• Vas frizider je dizajniran da radi pri vanjskoj temperature izrazenoj u standardima u

Illustration showing three different hand positions: a keyboard, a grid with curved arrows indicating rotation, and a hand holding a cross symbol (no text or labels)

Držač za boce (Samo neki modeli)

Simple line drawing of a bottle mounted on a stand, labeled 'stiti' in the top-left corner (no other text or symbols)

Four technical line drawings of plastic storage compartments with different shapes and internal structures (no text or symbols)

ARANŽIRANJE NAMIRNICA U UREĐAJU

Frižider

Illustration of a hand holding a smiling emoji next to a computer with a smiling face, and another hand using a tool to clean the image (no text or symbols present)

Cartoon illustration of a refrigerator with a spoon and a bottle beside it (no text or symbols)

Cartoon illustration of a door with a smiling face and hands giving thumbs up, next to a mortar and pestle (no text or symbols)

- Cistite pribor koji se nalazi u uredjaju odvojeno sa sapunom i vodom, nemojte ih cistiti u masini za suđe.

Technical line drawing of a multi-tiered storage unit with red crosshair lines indicating internal structure (no text or symbols)

- Ne koristite sredstva kao deterdžente ili sapune. Nakon pranja, isperite čistom vodom i osušite pažljivo. Kad su čišæenja završena spojite utikač jedinice sa suhim rukama.

Cartoon illustration of a smiling refrigerator with arms and legs, accompanied by two small pumpkins (no text or symbols)

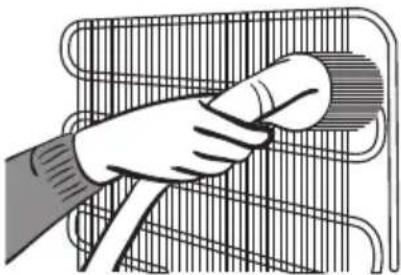

- Trebali bi očistiti kondenzator (iza aparata) s metlom svake godine kako bi se osigurala ušteda energije i povećala produktivnost.

Illustration of a hand cleaning a wire cage (no text or symbols)

NAPAJANJE MORA BITI ISKLJUCENO.

Odmrzavanje frižidera

Simple line drawing of a structural beam or support with a small triangular notch (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

- Odmrzavanje se vrši potpuno automatski u prostoru frižidera u toku rada uređaja; odmrznuta voda se sakuplja u traci za isparavanje i automatski isparava.

• Potrebno je periodično čistiti ladicu za isparavanje i odvod kako bi se spriječilo sakupljanje vode na dnu frižidera.
• Moguće je nasuti pola čaše vode u odvodni otvor prilikom čišćenja.

Odmrzavanje zamrzivača

- koristiti ostre predmete prilikom ciscenja, jer moze dovesti do ostecenja uredjaja. Koristite plasticne strugalice.

- Ako postoji naslaga leda veca od 5 mm, odlediavanje mora biti urađeno.

Line drawing of a hand cleaning a textured object inside a 3D printer or scanner (no text or symbols)

Zamjena slijalice za svjetlo

Simple line drawing of two children playing a game with a block (no text or symbols)

PRIJE KONTAKTIRANJA POSTPRODAJNOG SERVISA

Three technical illustrations of plastic components with numbered labels (10, 11, 12), no readable text or symbols beyond labels.

Ovaj prikaz se odnosi samo na informacije o dijelovima uređaja. Dijelovi mogu varirati ovisno o modelu uređaja.

A) Hladnjak pretinac
B) Odjeljak za zamrzavanje
1) Termostat biranje
2) Hladnjak lampica & cover
3) Hladnjak police
4) Posude za povrće Polica
5) Posude za povrće
6) Zamrzivač gornji poklopac
7) Zamrzivač dno ladice

8) Polica za boce
9) Police u vratima
10) Posuda za jaja*
11) Posudu za led*
12) Plastični nož ice*

* kod nekih modela

Uputstvo za Instalciju

Instalciju

! Prije instalacije, pažljivo pročitajte uputstvo.

! Montirajte frižider/zamrzivač u stabilan kuhinjski element.

Figure F Figure G Figure H

Figure J
