USER MANUAL MCF-LW06420D MCF88
MCF-LW06420D is a class A LoRaWAN interface, able to read 2 analog inputs 4-20mA and 2 analog inputs 0-10V with a resolution of 12 bit. Inputs have an insulation of 1000Vdc with respect to the power supply, and are protected against polarity inversion. It has a protected digital output to drive a load 24Vac/dc up to 500mA, useful for power the connected sensors only when making the measurement, and save energy.

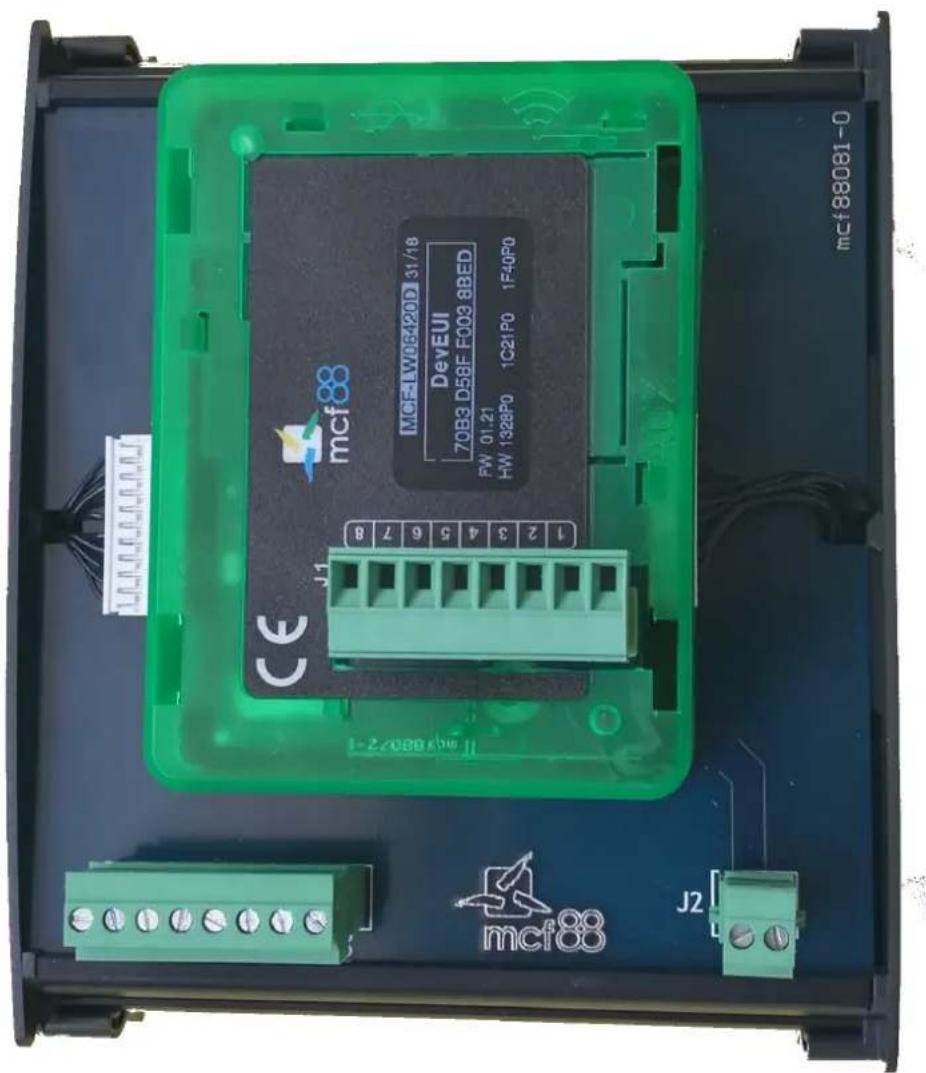

MCF-LW06420D is available with an optional DIN rail mount board (MCF-DIN105) as follow:


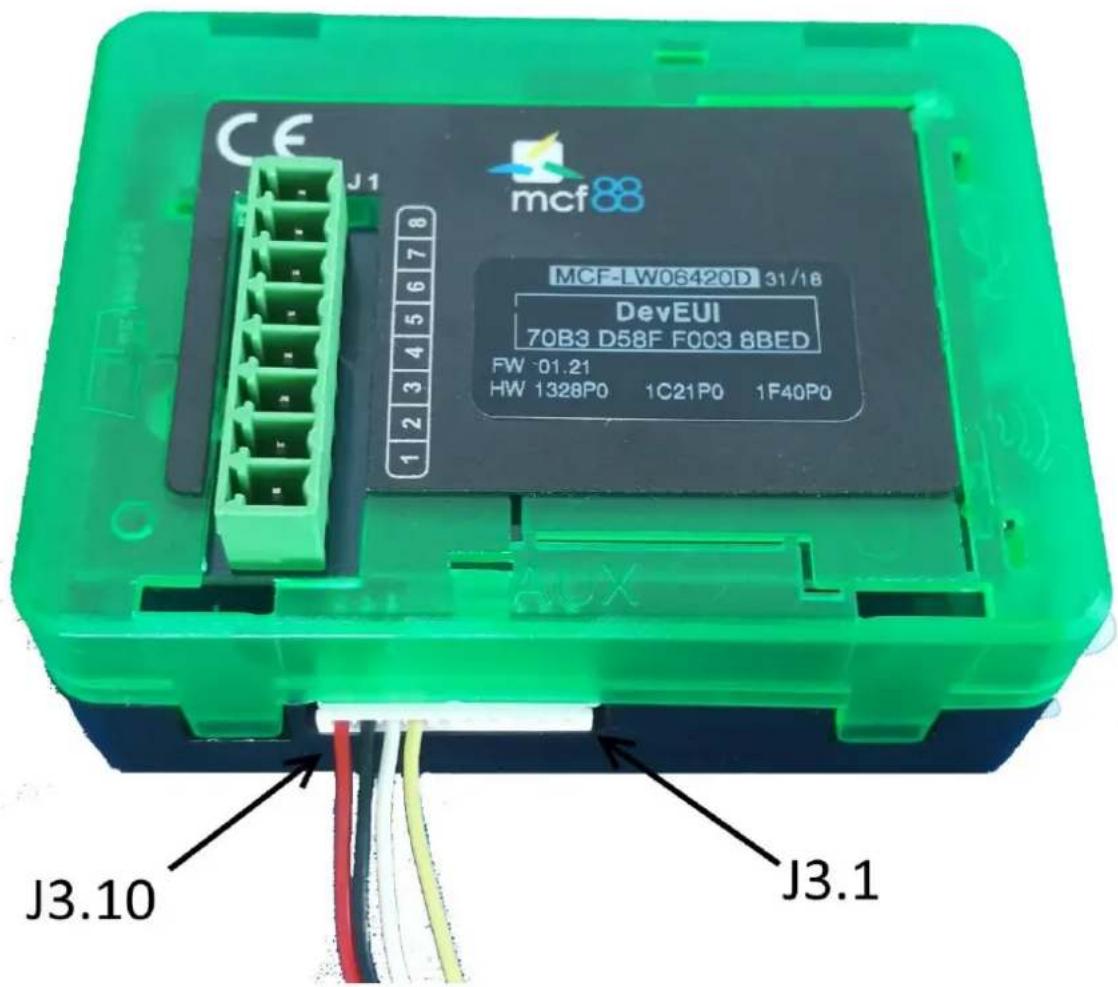

2.1 Connection as stand-alone device:
| J3.7 | IO5 | Digital output positive (yellow) |
| J3.8 | IO6 | Digital output negative (white) |
| J3.9 | GND | Negative power supply (black) |
| J3.10 | VDD | Positive power supply range [10-36Vdc] (red) |
Power can also be supplied by USB.

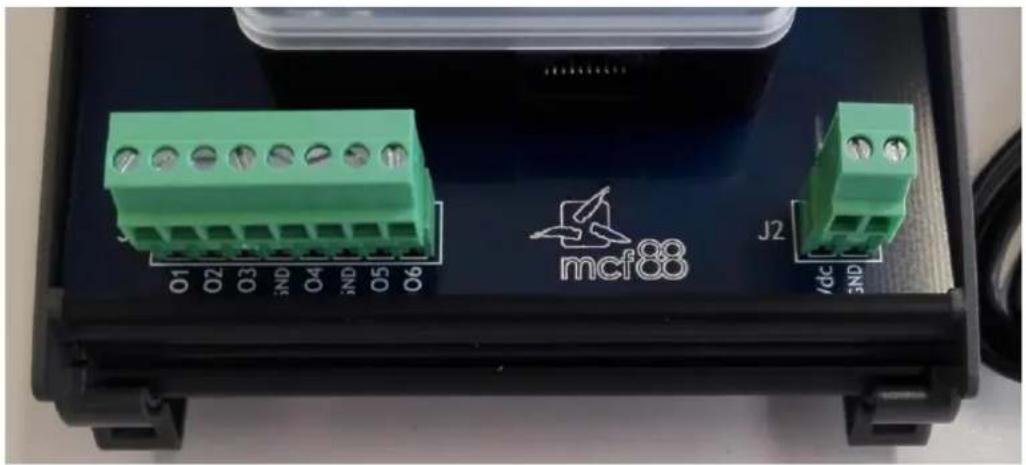

2.2 Connection with MCF-DIN105:
| Pin | Name | Description |
| J1.1 | ||
| J1.2 | ||
| J1.3 | ||
| J1.4 | ||
| J1.5 | ||
| J1.6 | ||
| J1.7 | IO5 | Digital output positive |
| J1.8 | IO6 | Digital output negative |
Maximum load voltage: 26Vac/34Vdc Maximum load current: 500mA.
2.2.2 Power supply:
| Pin | Name | Description |
| J2.1 | VDD | Positive power supply range [10-36Vdc] |
| J2.2 | GND | Negative power supply |
Power can also be supplied by USB.

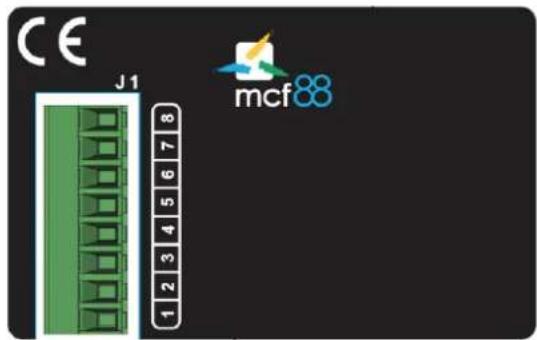

2.3 Analog inputs
| J1.1 | AI1 | Analog input 1 | 4-20mA | 12 bit |
| J1.2 | GA | Common | ||
| J1.3 | AI2 | Analog input 2 | 4-20mA | 12 bit |
| J1.4 | GA | Common | ||
| J1.5 | AI3 | Analog input 3 | 0-10V | 12 bit |
| J1.6 | GA | Common | ||
| J1.7 | AI4 | Analog input 4 | 0-10V | 12 bit |
| J1.8 | GA | Common |
| Voltmetric (0-10V) | Current Loop (4-20mA) | |
| Input resistance | 20KΩ | 125Ω |
| Absolute maximum value | 12V | 24mA |
| Max error | ±0.1% | |
| Insulation | 1000Vdc | |
For inputs AI1 and AI2 current values less than 3mA generate a “disconnected sensor” condition.
Caution: inputs are not galvanically isolated from each other.

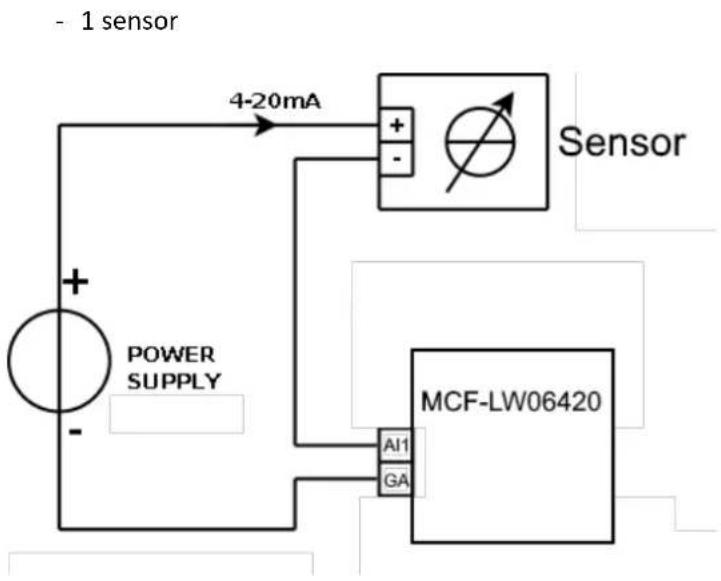

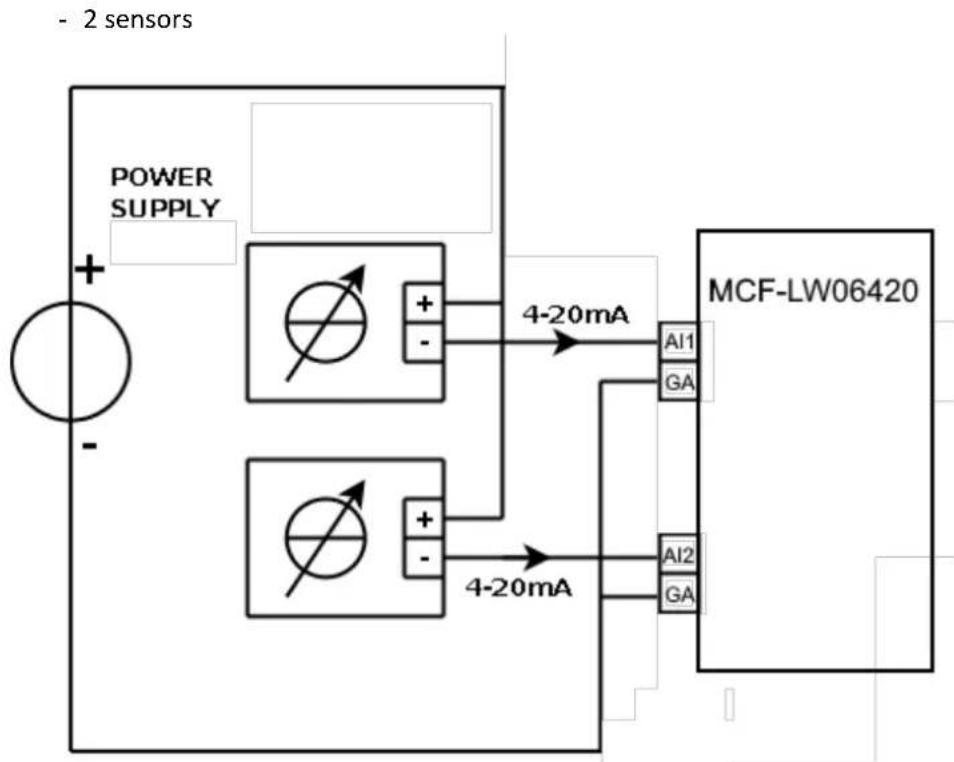

Connection examples for current inputs:


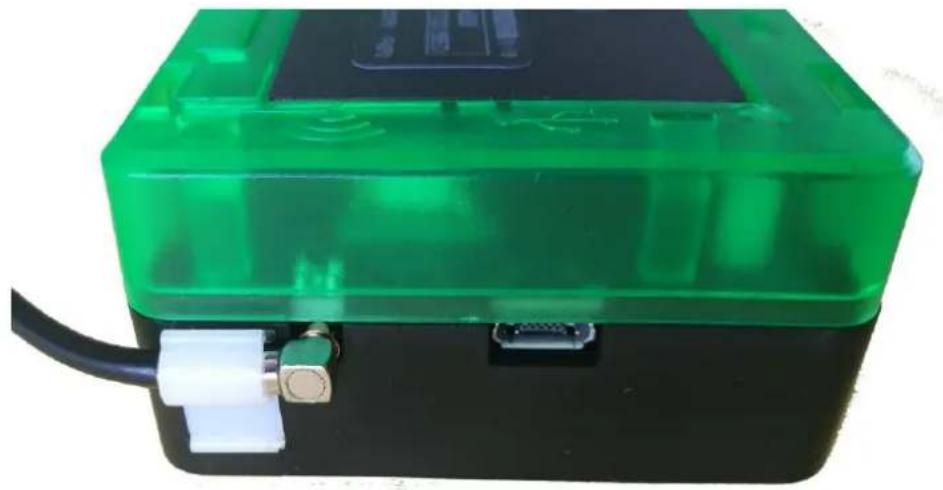

2.4 Connect the antenna as shown below, using the provided clip to hold the antenna connector in place:
The device supports the following activations on a LoRaWAN ^™ network:
NONE: sensor not activated
OTAA: needs settings of appkey and appEUI
OTAA MCF88: Over the air activation according to mcf88 specifications
ABP: needs settings of NwkSkey, AppSkey, DevAddr
The device exits factory activated with NONE mode. The devEUI of the device is shown on the product label. MCF-LW06420D is a Class A LoRaWAN ^™ device.
4. DEVICE CONFIGURATION

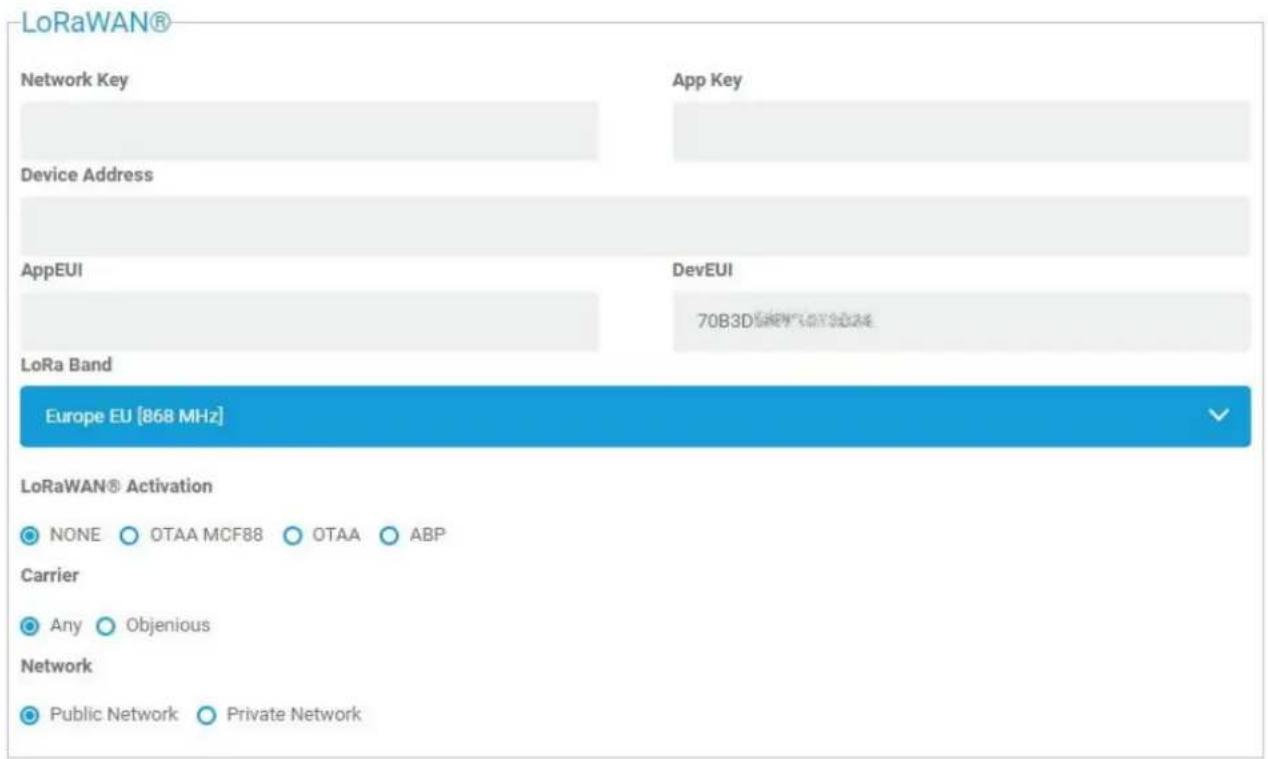

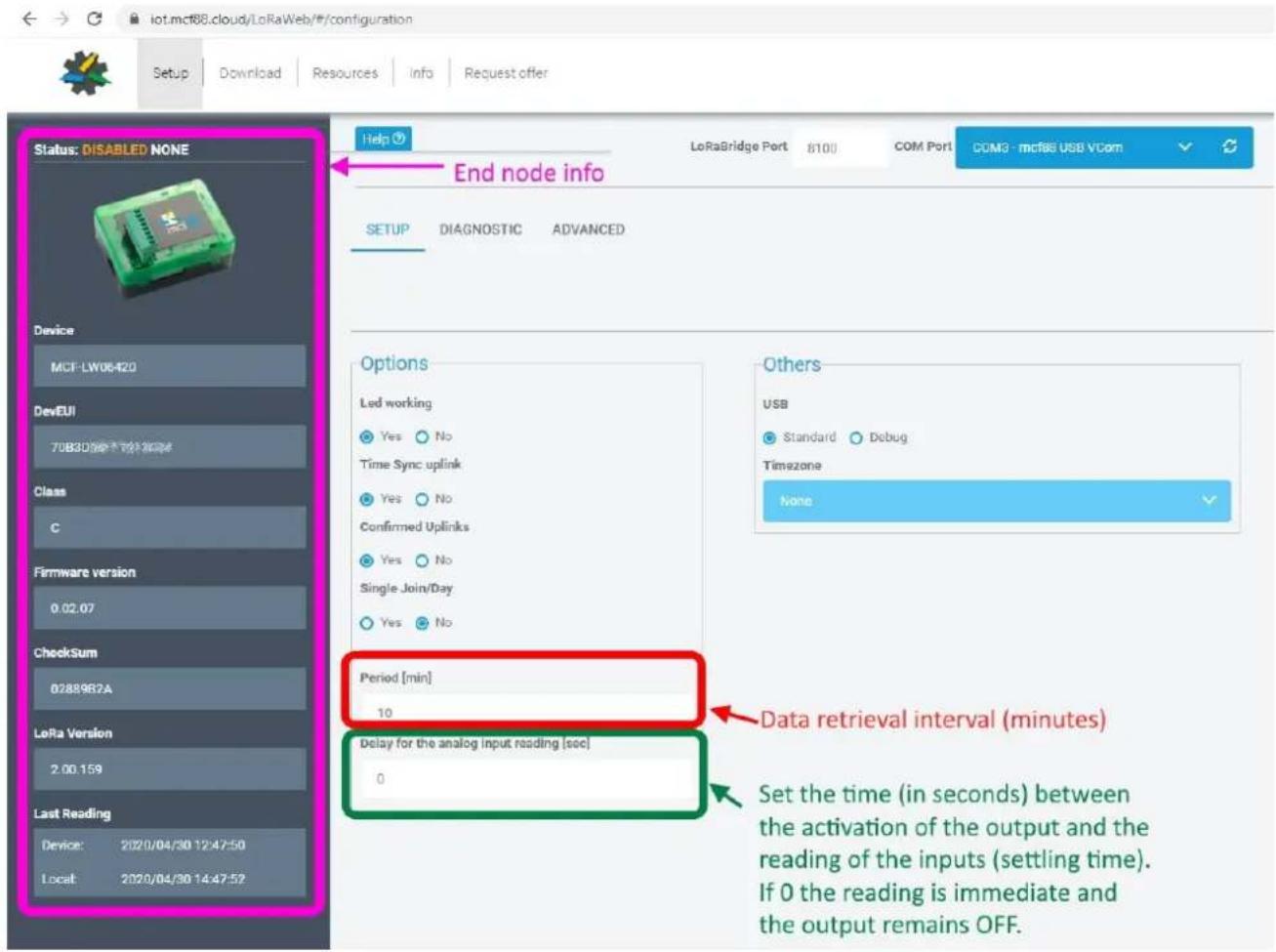

The activation parameters and the device settings can be read and modified via USB using the appropriate "LoRaWEB" desktop application (https://iot.mcf88.cloud/LoRaWeb/#/configuration):
LoRaWAN® Parameters
Save File
Cancel
Save LoRaWAN® parameters
The magnetic antenna must be positioned on a metal body. It should preferably be vertical and at least 30 cm away from other metal bodies.
The installation must take place in a place where the LoRaWAN ^TM signal coverage is good (SF=7 optimal, SF=12 weak).
6. ORDERING CODE
| Ordering Code | Description |
| MCF-LW06420D | 4-20mA/0-10V to LoRaWAN interface EU863-870 |
| MCF-LW06420D-AS | 4-20mA/0-10V to LoRaWAN interface AS923 |
| MCF-DIN105 | DIN Rail option 105mm |
