Type	Floorstanding Loudspeaker
Brand	KLH Audio
Model	Kendall
Frequency Response	25Hz-23kHz +/-3dB
Sensitivity	96dB
Power Handling	250 watts
Components	2 x 6.5" Woven Kevlar bass drivers, 1 x 5.25" Woven Kevlar mid/bass driver, 1 x 1" Anodized Aluminum tweeter
Impedance	8Ω
Crossover Points	800Hz and 2.5kHz
Dimensions (H x W x D)	40" x 7.75" x 14.75"
Weight	48.7 lbs
Finishes	Walnut Wood Veneer or Black Oak Wood Veneer
Included Accessories	2 sets of feet (rubber and chrome-plated spikes), port tuning stops
Amplification Options	Conventional or bi-amplification
Placement Distance (between speakers)	At least 6 feet apart
Placement Distance (from walls)	At least 12 inches
Port Tuning	Use tuning stops when placed within 6 inches of wall
Cleaning	Dry cotton cloth only, no microfiber
Warranty	10-year parts warranty

Frequently Asked Questions - Kendall KLH Audio

How do I connect the Kendall speakers to my amplifier?

Use quality speaker cables up to 12 AWG. Connect the positive wire to the red binding post and negative to black. For conventional wiring, keep the terminal straps in place. For banana plugs, remove the black and red inserts.

What is the difference between the rubber feet and the spikes?

Rubber feet are for solid flooring (wood, tile, concrete) to reduce vibration. Spikes are for carpet; they penetrate the carpet to stabilize the speaker. Spikes can be used on solid floors with the included isolation discs.

How do I install the port tuning stops?

If your speakers are placed within 6 inches of a wall, insert the provided tuning stops into the rear ports to reduce bass output. This feature is exclusive to the Kendall model.

Can I bi-amp the Kendall speakers?

Yes. Remove the terminal straps, then connect one amplifier to the top binding posts and another identical amplifier to the bottom binding posts. Ensure correct polarity (+ to +, - to -).

What is the recommended placement for best sound?

Place speakers at least 6 feet apart. For optimal imaging, listening distance should be 1.5 times the distance between speakers. Keep speakers at least 12 inches from walls.

How should I clean the Kendall speakers?

Use a dry cotton cloth. Do not use microfiber or any liquids. Avoid moisture to prevent damage.

What is the warranty coverage for the Kendall speakers?

KLH offers a 10-year parts warranty from the purchase date. It covers production and material defects but excludes misuse, electrical overloads, and unauthorized repairs. Register at klhaudio.com/warranty.

Can I remove the terminal straps?

Yes, if you plan to bi-wire or bi-amp. For conventional single-wire connection, keep the straps on. Removing them separates the crossover sections.

What speaker wire gauge should I use?

Use quality speaker cables up to 12 AWG. Thicker wire (lower gauge) is recommended to minimize resistance.

Where can I find the serial number?

The serial number is typically located on the back of the speaker. Do not alter it; doing so voids the warranty.

USER MANUAL Kendall KLH Audio

Three identical vertical speakers with three circular speaker holes, arranged side by side (no text or symbols visible)

KENDALL QUINCY CAMBRIDGE

FLOORSTANDING

LOUDSPEAKERS

QUINCY CAMBRIDGE LOUDSPEAKERS MANUAL KLH

WELCOME!

Thank you for purchasing one of the best sounding loudspeakers ever produced. At KLH, we have been making high-quality components since 1957, and we take pride in making your music and movies the best experience possible.

FOR YOUR SAFETY

Important Safety Instructions!

1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN with dry cotton cloth. Do not use microfiber.
7. DO NOT block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other heat producing appliances
9. USE ONLY attachments/accessories specified by the manufacturer.
10. DO NOT expose to excess moisture or liquids, and do not place containers with liquids on top of speakers.

clamation point, within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

ghtning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel.

EU COMPLIANCE INFORMATION:

Eligible to bear the CE mark, Conforms to European Union EMC Directive 2004/108/EC; European Union Restriction of Hazardous Substances Recast (RoHS2) Directive 2011/65/EC; European Union WEEE Directive 2002/96/EC.

KLH and the KLH logo are registered trademarks of Kelley Global Brands Inc., registered in the U.S. and other countries.

WEEE NOTICE

Note: This mark applies only to countries within the European Union (EU) and Norway.

oppliance is labeled in accordance with European 2002/96/EC concerning waste electrical and

nic equipment (WEEE). This label indicates that product should not be disposed of with household

waste. It should be deposited at an appropriate facility to enable recovery and recycling.

CONTENTS:

This package should contain 2 sets (4 each) of feet. The rubber feet are used for solid flooring such as wood, tile and concrete, and the chrome-plated spikes are used for carpet. Spikes may be used on solid flooring when placed on chrome plated isolation discs.

UNPACKING

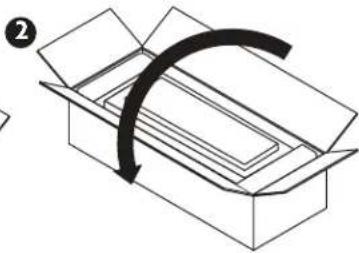

Place the package on the floor with the box flaps up. Cut the tape with a utility knife to open the package. Fold the carton flaps back and carefully slide the speaker and packaging from the box, or turn the box over with flaps open and remove the box. Stand the speaker and packing upright, making sure the loudspeaker plinth is on the bottom, and remove the packing material.

Simple line drawing of a box with an arrow indicating rotation (no text or symbols)

Diagram of an open box with a curved arrow indicating rotation or movement (no text or symbols)

Isometric diagram of a rectangular block with three upward arrows placed on its surface, no text or symbols present.

CONNECTING YOUR

FLOORSTANDING LOUDSPEAKERS

All three floorstanding loudspeakers have the same quality nickel-plated binding posts that will accommodate stripped wire, spade connectors or banana plugs. Be sure to use quality speaker cables, up to 12 gauge (AWG). The lowest gauge possible is recommended. Before using banana plugs, be sure to remove the black and red inserts on the binding posts. The straps connecting the binding posts should remain in place for conventional wiring, but may be removed where bi-wiring is preferred. See the following diagrams in the AMPLIFICATION section for further instruction.

Pure electrical connector diagram without any text, numbers, or symbols

AMPLIFICATION

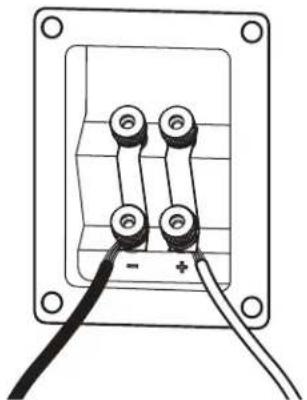

Conventional amplification involves a single stereo amplifier wired to a single set of binding posts with straps connecting the second set of posts as seen in diagram above.

Simply attach the positive wire + to the red post, and the negative wire – to the black post.

Diagram of an electrical connector with two terminal blocks and wires (no text or symbols)

BI-AMPLIFICATION

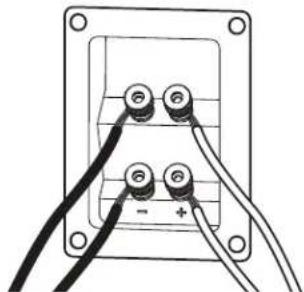

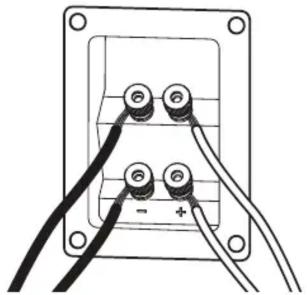

This connection method (see diagram above) uses two separate two channel amplifiers to power one set of speakers. One stereo amplifier connects to one speaker, and the other identical amplifier powers the second speaker. This is referred to as bi-amplification.

Be sure to remove the terminal straps before using the bi-amplification method. Connect positive + and negative – cables from the amplifier to the top terminals, and make sure the connection is tight. Connect the second set of cables (positive and negative) to the bottom terminals and tighten. Repeat these same steps using the second amplifier to connect to the second terminals.

ROOM POSITION

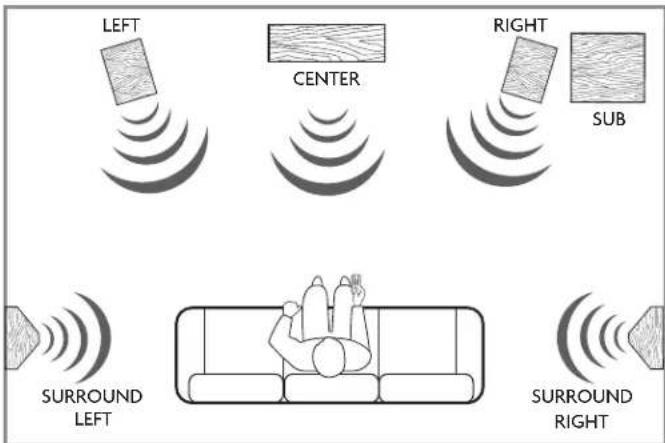

Placement of your floorstanding loudspeakers is a personal preference, but it is recommended that speakers be placed at least 6 feet apart whether they are being used for a stereo application, or as the main left and right channels for a home theater. For best imaging and separation, listening distance from the speakers should be about 1.5 times the distance the speakers are apart from each other.

Example: If the distance between each speaker and the listening position is 9 feet, then the speakers should be 6 feet apart from one another.

Also be sure that loudspeakers are placed at least 12 inches away from any wall. Further adjustments can be made to optimize your listening experience.

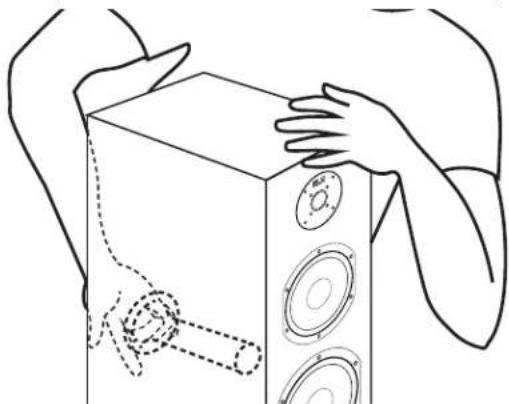

NOTE: When moving floorstanding loudspeakers take extra caution to place hands in a position that will not damage the drivers. This can best be done by placing one hand in the port at the back of the loudspeaker, and the other hand at the either top corner.

Line drawing of hands holding a box with speaker holes and a dotted line indicating motion (no text or symbols)

SPIKE AND RUBBER FEET

List of items included in package:

x 8 x 8 x 8 x 8

Spiked and rubber feet are to be used for bass decoupling (reducing bass transmission) and should only be used when plinth is on the bottom of the speaker. To install metal spiked feet, first thread ridged discs onto the metal spikes until flush. Follow by threading both into the insert at the bottom corners of the plinth. To level the speaker, height may be adjusted by turning the spike ONLY.

Diagram showing four steps of a mechanical assembly with three conical components and a rotating knob (no text or symbols)

To avoid damage to floors other than carpet, the metal spike can be used with protective ring as shown below left. Threaded rubber feet can be used on virtually all surfaces. Installation is shown below on right

Technical diagram showing three steps of a mechanical or structural assembly with labeled components and directional arrows.

PORT TUNING

If placing your floorstanding loudspeakers 6 inches or closer to a wall, bass output can be controlled by reducing the amount of air flow from rear ports. You can "tune" bass output by using the tuning stops provided with your loudspeaker by inserting as shown. NOTE: Port tuning stops included in Kendall model ONLY.

Illustration of a hand holding a cylindrical object with an arrow pointing to it (no text or symbols present)

SPECIFICATIONS

Kendall Floorstanding Loudspeaker

Frequency	response	25Hz-23kHz.+/-3dB
Sensitivity		96dB.
Power	handling	250	watts.
Components	2 x 6.5" Woven Kevlar bass drivers, 1 x 5.25" Woven Kevlar mid/bass driver and 1 high performance 1" Anodized Aluminum tweeter
Finishes	Walnut Wood Veneer or Black Oak Wood Veneer
Impedance	8Ω.
Crossover	points	800Hz	and	2.5kHz.
Dimensions:	40" x 7.75" x 14.75" (H x W x D).
Weight:		48.7	Ibs.

Quincy Floorstanding Loudspeaker

Frequency	response	28Hz-23kHz.+/-3dB
Sensitivity		94dB.
Power	handling	225	watts.
Components	1 x 6.5" Woven Kevlar bass driver, 1 x 5.25" Woven Kevlar mid/bass driver,and 1 high performance 1" Anodized Aluminum tweeter
Finishes	Walnut Wood Veneer or Black Oak Wood Veneer
Impedance	8Ω.
Crossover	points	600Hz	and	2.6kHz.
Dimensions:	37.5" x 7.75" x 14.75" (H x W x D).
Weight:		40	lbs.

Cambridge Floorstanding Loudspeaker

Frequency	response	30Hz-23kHz.+/-3dB
Sensitivity		94dB.
Power	handling	200	watts.
Components	2 x 5.25" Woven Kevlar bass drivers, and 1 high performance 1" Anodized Aluminum tweeter
Finishes	Walnut Wood Veneer or Black Oak Wood Veneer
Impedance	8Ω.
Crossover	point	2.4kHz.
Dimensions:	35.25" x 6.5" x 11.5" (H x W x D).
Weight:		31	lbs.

WARRANTY

Our 10-year parts warranty begins from purchase date of the item (invoice date). For warranty/service issues, please contact your place of purchase. Please keep your original receipt. The warranty covers any production and material defects of product. Warranty registration may be completed at klhaudio.com/warranty The following is NOT COVERED by the warranty:

1. Accidents, misuse, poor maintenance, electrical overloads such as lightning or voltage.

2. Repair must be performed by an authorized KLH dealer or service center

3. Incorrect installation of product.
4. Altered serial number.
5. Transportation costs for service call.
6. Purchase of KLH products from unauthorized reseller.

Replacement item cannot exceed the cost of the item under warranty. The supplier is responsible for only repair or replacement.
