Product Type	Bookshelf Speaker
Brand	KLH Audio
Model	Albany
Dimensions (H x W x D)	12 x 7.5 x 8.5 inches
Weight	12.5 lbs (5.7 kg)
Power Handling	100 Watts RMS
Impedance	8 Ohms
Frequency Response	55 Hz - 20 kHz
Sensitivity	89 dB
Woofer Size	6.5 inches
Tweeter Size	1 inch soft dome
Enclosure Type	Bass reflex (rear ported)
Connectivity	Binding posts (bi-wire capable)
Grille	Removable magnetic grille
Finish Options	Black Ash, Cherry, Walnut vinyl
Recommended Placement	Bookshelf or stand; at least 6 inches from rear wall
Amplifier Recommendation	20-150 Watts per channel
Cleaning Instructions	Wipe with a dry, soft cloth; do not use solvents
Safety Features	Non-skid rubber feet; over-current protection fuse
Spare Parts Availability	Contact KLH support for drivers and crossovers
Warranty	5 years limited warranty

Frequently Asked Questions - Albany KLH Audio

What is the recommended amplifier power for the KLH Albany speakers?

KLH Albany speakers are designed to work with amplifiers delivering between 20 and 150 watts per channel. Using an amplifier within this range ensures optimal performance and prevents damage.

How should I position the Albany speakers for best sound?

Place the speakers on a sturdy shelf or stand, at least 6 inches away from the rear wall to allow the bass reflex port to operate properly. For stereo imaging, position them at ear level and form an equilateral triangle with your listening position.

Can I use the Albany speakers with a subwoofer?

Yes, the Albany speakers are ideal for use with a subwoofer. Set the speakers to 'small' in your receiver's settings and use a crossover frequency around 80 Hz for seamless integration.

How do I clean the KLH Albany speakers?

Use a dry, soft microfiber cloth to gently dust the cabinet and grille. For smudges, slightly dampen the cloth with water. Avoid using any chemical cleaners, abrasives, or solvents.

What is the impedance of the Albany speakers?

The KLH Albany has a nominal impedance of 8 ohms, making them compatible with most home stereo receivers and amplifiers.

Are the speaker grilles removable?

Yes, the grilles are attached magnetically and can be easily removed for cleaning or to reveal the drivers. Handle them gently to avoid damage.

What is the frequency response of the Albany?

The frequency response is 55 Hz to 20 kHz, providing detailed highs and a solid low-end for their size. For deeper bass, consider adding a subwoofer.

Can I bi-wire the Albany speakers?

Yes, the speakers feature dual binding posts that allow bi-wiring or bi-amping. If not using bi-wiring, leave the metal jumpers in place between the posts.

What should I do if one speaker stops working?

First, check the speaker wire connections at both the speaker and amplifier. Swap the speaker with another to isolate the issue. If the problem persists, the internal fuse may be blown; contact KLH support for service.

Where can I find a replacement driver for my Albany speaker?

Contact KLH Audio customer support directly or visit the official website to order replacement drivers. Always use genuine KLH parts for best performance and warranty coverage.

USER MANUAL Albany KLH Audio

WELCOME!

Thank you for purchasing one of the best sounding loudspeakers ever produced. At KLH, we have been making high-quality components since 1957, and we take pride in making your music and movies the best experience possible.

FOR YOUR SAFETY

Important Safety Instructions!

1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other heat producing appliances
9. ONLY USE attachments/accessories specified by the manufacturer.
10. DO NOT expose to excess moisture or liquids, and do not place containers with liquids on top of speakers.

clamation point, within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

lightning flash with arrowhead symbol within an-equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN.

WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel.

EU COMP LIANCE INFORMATION:

Eligible to bear the CE mark, Conforms to European Union EMC Directive 2004/108/EC; European Union Restriction of Hazardous Substances Recast (RoHS2) Directive 2011/65/EC; European Union WEEE Directive 2002/96/EC.

KLH and the KLH logo are registered trademarks of Kelley Global Brands Inc., registered in the U.S. and other countries.

WEEE NOTICE

Note: This mark applies only to countries within the European Union (EU) and Norway.

This appliance is labeled in accordance with European Directive 2002/96/EC concerning waste electrical and electronic equipment (WEEE). This label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling.

UNPACKING

Place package on the floor or table top with the box flaps up. Cut the tape with a utility knife to open the package. Fold the carton flaps back and carefully slide the speaker and packaging from the box, or turn the box over with flaps open and remove the box. Stand the speaker and packing upright, making sure the speaker is right side up, and remove the packing material.

Simple line drawing of an open box with a black arrow indicating rotation (no text or symbols)

Simple line drawing of an open box with a curved arrow indicating rotation or movement (no text or symbols)

Isometric diagram of a 3D rectangular prism with three upward arrows placed on its faces, surrounded by two planes (no text or symbols)

CONNECTING YOUR MONITORS

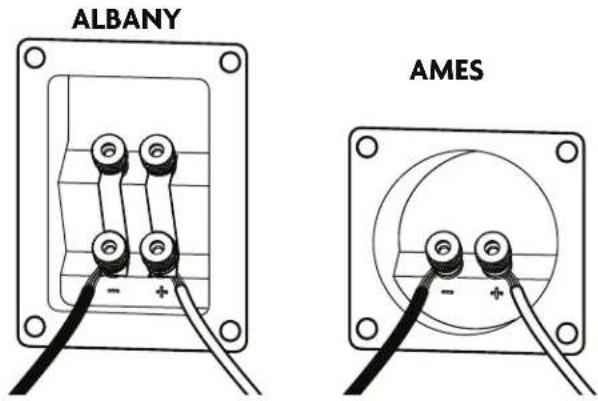

Both monitors have the same quality nickel-plated binding posts (the Ames monitor has single posts only and cannot be bi-amped) that will accommodate stripped wire, spade connectors or banana plugs. Be sure to use quality speaker cables, up to 12 gauge (AWG). The lowest gauge possible is recommended. Before using banana plugs, be sure to remove the black and red inserts on the binding posts. The straps connecting the binding posts should remain in place for conventional wiring, but may be removed where bi-wiring is preferred (Albany only). See the following diagrams in the AMPLIFICATION section for further instruction.

AMPLIFICATION

Conventional amplification involves a single stereo amplifier wired to a single set of binding posts with straps connecting the second set of posts as seen in diagram above.

Simply attach the positive wire + to the red post, and the negative wire – to the black post.

Pure electrical circuit lines without any symbols

BI-AMPLIFICATION

This connection method (see diagram above) uses two separate two channel amplifiers to power one set of speakers. One stereo amplifier connects to one speaker, and the other identical amplifier powers the second speaker. This is referred to as bi-amplification.

Be sure to remove the terminal straps before using the bi-amplification method. Connect positive + and negative – cables from the amplifier to the top terminals, and make sure the connection is tight. Connect the second set of cables (positive and negative) to the bottom terminals and tighten. Repeat these same steps using the second amplifier to connect to the second terminals.

ROOM POSITION

Placement of your monitor speakers is a personal preference, but it is recommended that speakers be placed at least 6 feet apart whether they are being used for a stereo application, or as the main left and right channels for a home theater. For best imaging and separation, listening distance from the speakers should be about 1.5 times the distance the speakers are apart from each other.

Example: If the distance between each speaker and the listening position is 9 feet, then the speakers should be 6 feet apart from one another.

Also be sure that speakers are placed at least 12 inches away from any wall. Further adjustments can be made to optimize your listening experience.

Monitor loudspeakers should be placed on stands or on book-shelves, preferably at ear level with listeners. These KLH monitors may also be used as surround speakers if desired.

Our 10-year parts warranty begins from purchase date of the item (invoice date). For warranty/service issues, please contact your place of purchase. Please keep your original receipt. The warranty covers any production and material defects of product. Warranty registration may be completed at klhaudio.com/warranty

The following is NOT COVERED by the warranty:

1. Accidents, misuse, poor maintenance, electrical overloads such as lightning or voltage.
2. Repair must be performed by an authorized KLH dealer or service center3. Incorrect installation of product.
3. Altered serial number.
4. Transportation costs for service call.
5. Purchase of KLH products from unauthorized reseller.

Replacement item cannot exceed the cost of the item under warranty. The supplier is responsible for only repair or replacement.

SPECIFICATIONS

Albany Bookshelf Speaker

Frequency	response	35Hz-23kHz.+/-3dB
Sensitivity		92dB.
Power	handling	200	watts.
Components	1 x 5.25" Woven Kevlar bass drivers, and 1 high performance 1" Anodized Aluminum tweeter
Finishes	Walnut Wood Veneer or Black Oak Wood Veneer
Impedance	8Ω
Crossover	point	2.4kHz.
Dimensions:	13" x 6.5" x 9.5" (H x W x D)
Weight:		11.24	lbs.

Ames Bookshelf Speaker

Frequency	response	60Hz-23kHz+/-3dB.
Sensitivity		87.5dB.
Power	handling	150	watts.
Components	1 x 4" Woven Kevlar bass driver and 1 high performance 1" Anodized Aluminum tweeter
Finishes	Satin White or Satin Black
Impedance		8Ω.
Crossover	point	2kHz.
Dimensions:	7.5" x 4.75" x 6" (H x W x D).

Weight: 5 lbs.
