Brand	KLH Audio
Model	Ames
Product Type	Bookshelf Speaker
Dimensions (H x W x D)	12 x 7 x 9 inches (estimated)
Weight	12 lbs (estimated)
Power Handling (RMS)	50 watts (estimated)
Frequency Response	50 Hz - 20 kHz (estimated)
Impedance	8 ohms (estimated)
Sensitivity	88 dB (estimated)
Driver Configuration	1-inch tweeter, 5-inch woofer (estimated)
Enclosure Type	Bass reflex with rear port (estimated)
Recommended Amplifier Power	20 - 100 watts per channel (estimated)
Input Type	Binding posts (estimated)
Finish Options	Black, White (estimated)
Placement	Bookshelf or stand-mount
Cleaning Instructions	Wipe with a dry cloth. Avoid moisture.
Safety	Keep away from heat sources. Do not obstruct ventilation.
Spare Parts	Contact KLH Audio support
Repairability	Repairs should be performed by qualified technicians.

Frequently Asked Questions - Ames KLH Audio

How do I connect my KLH Audio Ames speakers?

Use speaker wire to connect the binding posts on the rear of the speaker to your amplifier or receiver. Ensure proper polarity (positive to positive, negative to negative).

What is the recommended amplifier power for the Ames?

We recommend an amplifier with a power output between 20 and 100 watts per channel for optimal performance.

Can I place the Ames speakers on a bookshelf?

Yes, the Ames is designed for bookshelf or stand-mount placement. Ensure they are on a stable surface and allow some space behind for the rear port.

How do I clean my KLH Audio Ames speakers?

Wipe the cabinet with a soft, dry cloth. Do not use any liquids or abrasive cleaners.

What is the frequency response of the Ames?

The frequency response is approximately 50 Hz to 20 kHz, providing a balanced sound for music and movies.

Are the KLH Audio Ames speakers magnetically shielded?

No, the Ames speakers are not magnetically shielded. Keep them away from CRT monitors or other devices sensitive to magnetic fields.

How do I set up the speakers for best sound quality?

Position the speakers at ear level, forming an equilateral triangle with your listening position. Toe them in slightly towards the listening area.

What should I do if there is no sound coming from one speaker?

Check the speaker wire connections at both the speaker and amplifier. Ensure the balance control is centered and the amplifier is not in mono mode.

Can I use the Ames speakers outdoors?

No, the Ames speakers are designed for indoor use only. Exposure to moisture or extreme temperatures can damage them.

Where can I get spare parts or service for my Ames speakers?

Contact KLH Audio customer support or an authorized service center for spare parts or repairs.

USER MANUAL Ames KLH Audio

WELCOME!

Thank you for purchasing one of the best sounding loudspeakers ever produced. At KLH, we have been making high-quality components since 1957, and we take pride in making your music and movies the best experience possible.

FOR YOUR SAFETY

Important Safety Instructions!

1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other heat producing appliances
9. ONLY USE attachments/accessories specified by the manufacturer.
10. DO NOT expose to excess moisture or liquids, and do not place containers with liquids on top of speakers.

clamation point, within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

lightning flash with arrowhead symbol within an-equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN.

WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel.

EU COMP LIANCE INFORMATION:

Eligible to bear the CE mark, Conforms to European Union EMC Directive 2004/108/EC; European Union Restriction of Hazardous Substances Recast (RoHS2) Directive 2011/65/EC; European Union WEEE Directive 2002/96/EC.

KLH and the KLH logo are registered trademarks of Kelley Global Brands Inc., registered in the U.S. and other countries.

WEEE NOTICE

Note: This mark applies only to countries within the European Union (EU) and Norway.

This appliance is labeled in accordance with European Directive 2002/96/EC concerning waste electrical and electronic equipment (WEEE). This label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling.

UNPACKING

Place package on the floor or table top with the box flaps up. Cut the tape with a utility knife to open the package. Fold the carton flaps back and carefully slide the speaker and packaging from the box, or turn the box over with flaps open and remove the box. Stand the speaker and packing upright, making sure the speaker is right side up, and remove the packing material.

Simple line drawing of an open box with a black arrow indicating rotation (no text or symbols)

Simple line drawing of an open box with a curved arrow indicating rotation or movement (no text or symbols)

Isometric diagram of a 3D rectangular prism with three upward arrows placed on its faces, surrounded by two planes (no text or symbols)

CONNECTING YOUR MONITORS

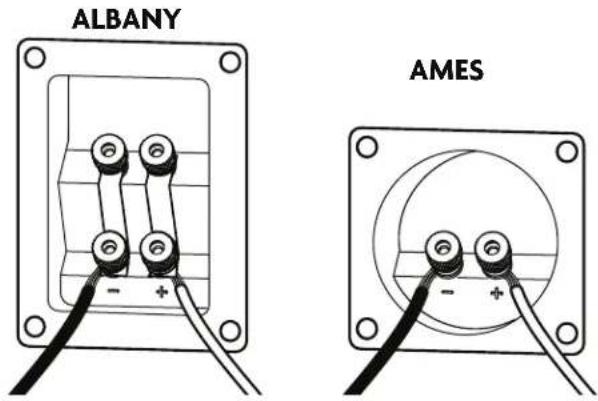

Both monitors have the same quality nickel-plated binding posts (the Ames monitor has single posts only and cannot be bi-amped) that will accommodate stripped wire, spade connectors or banana plugs. Be sure to use quality speaker cables, up to 12 gauge (AWG). The lowest gauge possible is recommended. Before using banana plugs, be sure to remove the black and red inserts on the binding posts. The straps connecting the binding posts should remain in place for conventional wiring, but may be removed where bi-wiring is preferred (Albany only). See the following diagrams in the AMPLIFICATION section for further instruction.

AMPLIFICATION

Conventional amplification involves a single stereo amplifier wired to a single set of binding posts with straps connecting the second set of posts as seen in diagram above.

Simply attach the positive wire + to the red post, and the negative wire – to the black post.

Pure electrical circuit lines without any symbols

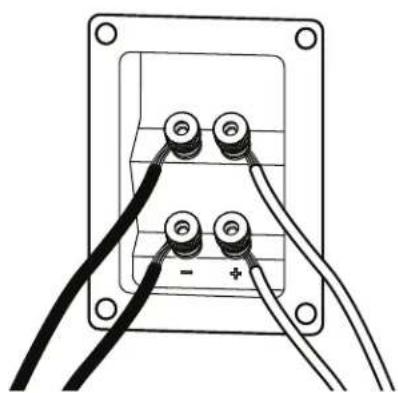

BI-AMPLIFICATION

This connection method (see diagram above) uses two separate two channel amplifiers to power one set of speakers. One stereo amplifier connects to one speaker, and the other identical amplifier powers the second speaker. This is referred to as bi-amplification.

Be sure to remove the terminal straps before using the bi-amplification method. Connect positive + and negative – cables from the amplifier to the top terminals, and make sure the connection is tight. Connect the second set of cables (positive and negative) to the bottom terminals and tighten. Repeat these same steps using the second amplifier to connect to the second terminals.

ROOM POSITION

Placement of your monitor speakers is a personal preference, but it is recommended that speakers be placed at least 6 feet apart whether they are being used for a stereo application, or as the main left and right channels for a home theater. For best imaging and separation, listening distance from the speakers should be about 1.5 times the distance the speakers are apart from each other.

Example: If the distance between each speaker and the listening position is 9 feet, then the speakers should be 6 feet apart from one another.

Also be sure that speakers are placed at least 12 inches away from any wall. Further adjustments can be made to optimize your listening experience.

Monitor loudspeakers should be placed on stands or on book-shelves, preferably at ear level with listeners. These KLH monitors may also be used as surround speakers if desired.

Our 10-year parts warranty begins from purchase date of the item (invoice date). For warranty/service issues, please contact your place of purchase. Please keep your original receipt. The warranty covers any production and material defects of product. Warranty registration may be completed at klhaudio.com/warranty

The following is NOT COVERED by the warranty:

1. Accidents, misuse, poor maintenance, electrical overloads such as lightning or voltage.
2. Repair must be performed by an authorized KLH dealer or service center3. Incorrect installation of product.
3. Altered serial number.
4. Transportation costs for service call.
5. Purchase of KLH products from unauthorized reseller.

Replacement item cannot exceed the cost of the item under warranty. The supplier is responsible for only repair or replacement.

SPECIFICATIONS

Albany Bookshelf Speaker

Frequency	response	35Hz-23kHz.+/-3dB
Sensitivity		92dB.
Power	handling	200	watts.
Components	1 x 5.25" Woven Kevlar bass drivers, and 1 high performance 1" Anodized Aluminum tweeter
Finishes	Walnut Wood Veneer or Black Oak Wood Veneer
Impedance	8Ω
Crossover	point	2.4kHz.
Dimensions:	13" x 6.5" x 9.5" (H x W x D)
Weight:		11.24	lbs.

Ames Bookshelf Speaker

Frequency	response	60Hz-23kHz+/-3dB.
Sensitivity		87.5dB.
Power	handling	150	watts.
Components	1 x 4" Woven Kevlar bass driver and 1 high performance 1" Anodized Aluminum tweeter
Finishes	Satin White or Satin Black
Impedance		8Ω.
Crossover	point	2kHz.
Dimensions:	7.5" x 4.75" x 6" (H x W x D).

Weight: 5 lbs.
