IAN 273659 - Wristwatch AURIOL - Free user manual and instructions

Product Type	Wristwatch
Brand	Auriol
Model	IAN 273659
Power Source	Battery (replace by specialist)
Display Type	Analog with hour, minute, second hands
Crown	Pull out to position 1 for time setting
Bezel	Rotating outer ring (on models HG00457A-L,T,Z) for timing
Water Resistance	5 bar (50 meters) according to DIN 8310
Use Cases Water	Suitable for swimming, showering (non-diving)
Cleaning	Use a soft, dry cloth only
Battery Disposal	Recycle according to Directive 2006/66/EC
Warranty Period	3 years from date of purchase
Warranty Coverage	Material and manufacturing defects; excludes batteries, glass, normal wear
Watertightness Check	Recommended annually or before special use
Packaging Materials	Recyclable
Manual Languages	EN, DE, HU, SK, SL, CS

Frequently Asked Questions - IAN 273659 AURIOL

How do I set the time on my Auriol watch?

Pull the crown out to the 1st position (position 1). Turn the crown to set the hour and minute hands. Push the crown back in to start the second hand.

Is the Auriol watch waterproof?

It is water-resistant to 5 bar (50 meters) according to DIN 8310. It is suitable for swimming and showering, but not for diving. Water resistance is not permanent and should be checked annually.

How do I change the battery?

Have the battery changed by a specialist shop to maintain water resistance and warranty.

What is the warranty on this watch?

The warranty is 3 years from purchase and covers material and manufacturing defects. It does not cover batteries, glass, normal wear, or damage from improper use.

How do I use the rotating bezel?

The rotating bezel is used for timing. Turn it anti-clockwise to align the mark with the minute hand. Then read elapsed time from the bezel markings.

How should I clean my watch?

Clean the outside only with a soft, dry cloth. Do not use chemicals or water.

What do I do with the watch when it is worn out?

Dispose of the watch and battery separately according to local regulations. Do not dispose of in household waste.

Why does the second hand stop when I set the time?

When you pull the crown out, the second hand stops to allow precise time setting. It starts again when you push the crown back in.

Does the watch have a date display?

No, the manual does not indicate a date function. Only hour, minute, and second hands are described.

Where can I find more information or download the manual?

Visit www.lidl-service.com or use the QR code on the manual to download a PDF.

USER MANUAL IAN 273659 AURIOL

GB

WRISTWATCH

Operation and Safety Notes

HU

KARÓRA

Two abstract icons: one with an information symbol and the other a stylized open book or folder (no text or symbols present)

GB Page 5

HU Oldal 12

SI Stran 19

CZ Strana 26

SK Strana 33

DE/AT/CH Seite 40

HG00457A-L, T, Z

HG00457M-S,

U-Y, AA-AD

	3 BAR	✓	✘	[XZDY]
	5 BAR	✓	✓	[XZY6]
	10 BAR	✓	✓	[XZ8Y6]
	20 BAR	✓	✓	[XZ8Y6]

WRISTWATCH

Introduction

We congratulate you on the purchase of your new device. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

● Preparations for use

Changing the battery
Note: Have batteries changed in a specialist shop.

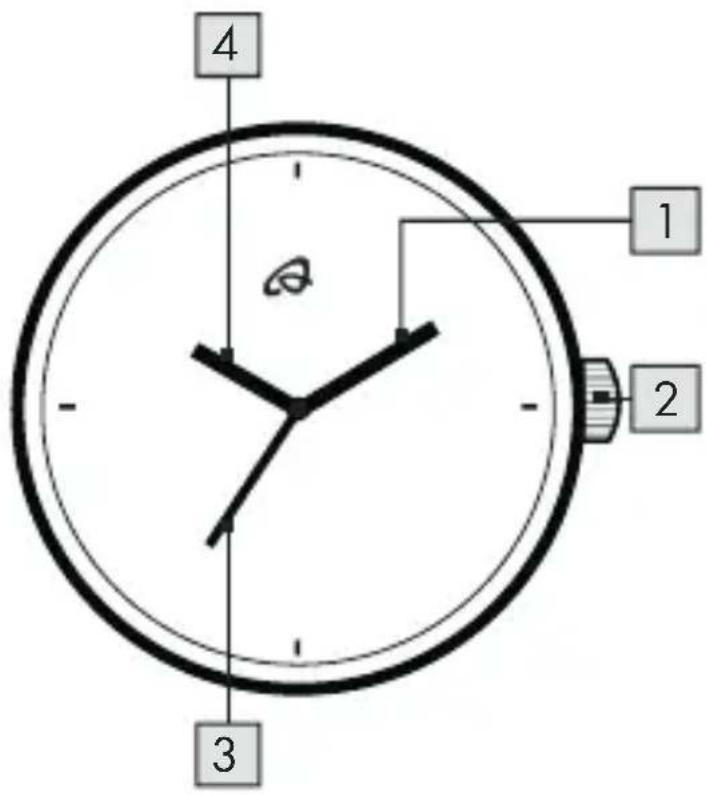

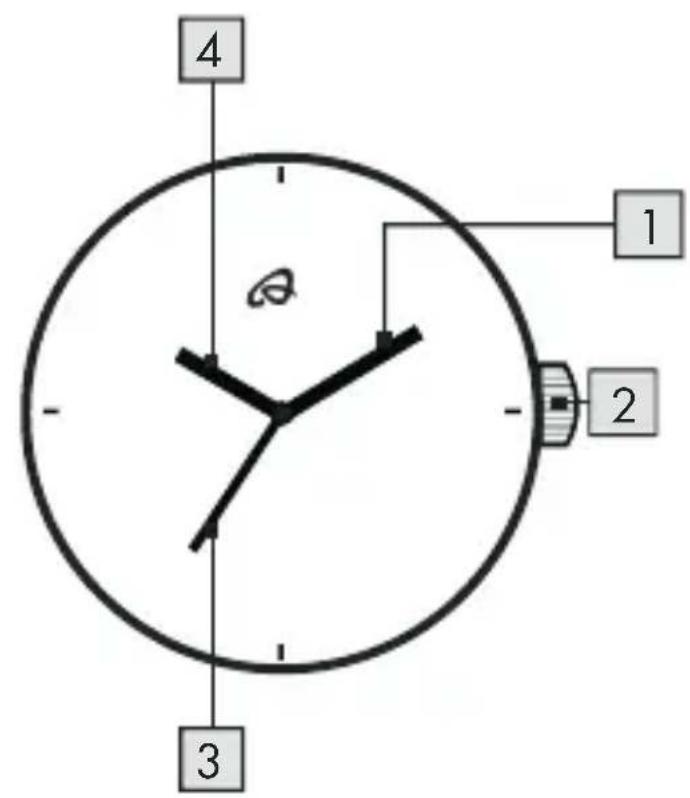

Display

1 Minute hand
2 Crown
3 Second hand
4 Hour hand

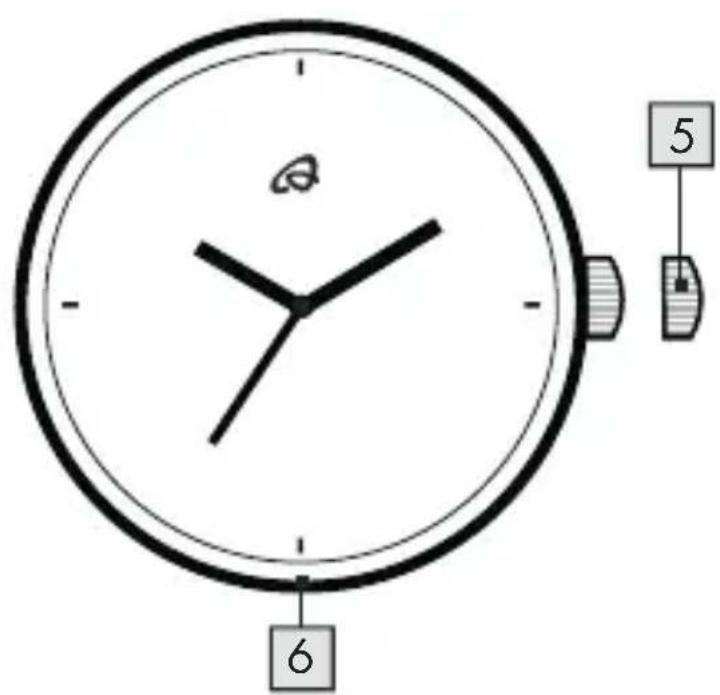

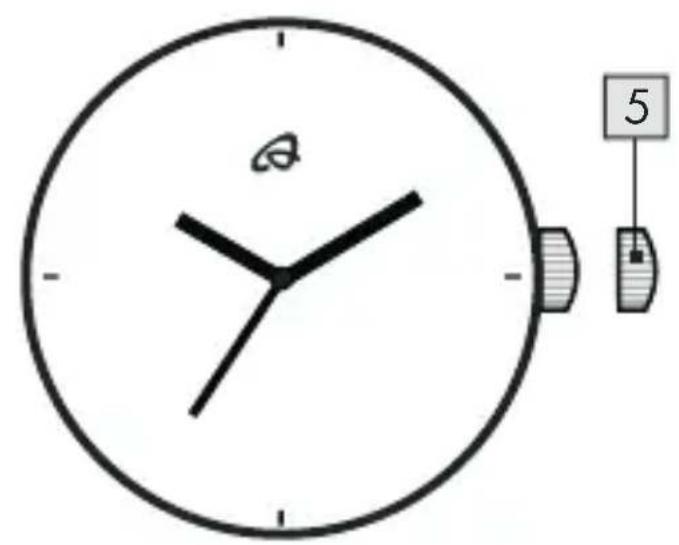

5 1st position
6 Bezel (rotating outer ring) (HG00457A-L,T,Z)

Setting the time

1. To set the time, pull the crown 2 out to the 1st position 5.
2. Turn the crown 2 to set the hour and minute hands 4, 1.
3. When the crown 2 is pushed back to the normal position the second hand 3 begins to run.

Watertightness

This watch is watertight to five bar in accordance with DIN 8310. Figure C shows the permissible areas of use. Please note that the watertightness is not a permanent feature.

It should be checked annually and particularly before subjecting it to special conditions, as the function of the inbuilt sealing elements diminishes with daily use.

Timing (HG00457A-L,T,Z)

The bezel 6 is used to indicate a period of time (e.g. jogging time).

The amount of time elapsed can be read easily from the bezel.

§ ■ §Turn the bezeln anti-clockwise direction to mark the start of timing.

§ Cleaning and maintenance

■ Clean the product on the outside only with a soft, dry cloth.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries must be recycled in accordance with Directive

2006 / 66 / EC and its amendment.

Please return the batteries and / or the device to the available collection points.

Environmental damage through incorrect disposal of the batteries!

Batteries must not be disposed off with domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols of the heavy metals are as follows:

Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries at a local collection point.

WARRANTY

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within three years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

The warranty further excludes a reduction in water tightness. The state of water tightness is not a permanent property and should therefore be regularly maintained. Please note, opening and repairs performed by unauthorized individuals will void any warranty.

CE
