Product Type	Combination Microwave Oven (Microwave + Oven + Grill)
Brand	Pelgrim
Model	MAC696MAT
Appliance Dimensions (W x H x D)	595 x 454 x 570 mm
Built-in Dimensions (W x H x D)	555 x 445 x 548.8 mm
Net Weight	38.3 kg
Shipping Weight	45.5 kg
Power Supply	230 V ~ 50 Hz
Maximum Power Consumption	3000 W
Microwave Output Power	800 W (IEC-705)
Grill Power	2500 W
Hot Air Power	2500 W
Oven Capacity	50 L
Functions	Microwave, Hot Air, Grill, Large Grill, Grill + Fan, Microwave + Hot Air, Microwave + Grill, Automatic Menus (10), Vegetable Menu (10), Defrost (5), Aqua Clean, Steamer
Accessories Included	Ceramic baking tray, Baking tray (metal), Grill rack for ceramic tray, Steamer basket (plastic)
Child Lock	Yes
Aqua Clean Function	Yes (15-minute steam cleaning)
Eco Mode	Yes (display off)
Display	LED digital display with clock
Control Type	Rotary knobs + touch buttons
Door Opening	Drop-down door with handle
Oven Light	Yes
Cleaning	Manual cleaning with damp cloth; Aqua Clean function for interior

Frequently Asked Questions - MAC696MAT Pelgrim

How do I set the clock on my Pelgrim MAC696MAT microwave?

Press the CLOCK button. The hour digits will flash. Turn the FUNCTION SELECTOR KNOB to set the hour, then press CLOCK again. The minutes will flash; set them with the knob and press CLOCK again to confirm.

Can I use metal cookware in the microwave mode?

No, metal cookware can cause arcing and fire. Only use microwave-safe cookware. The ceramic baking tray supplied is safe for microwave use. Aluminium foil can be used in small quantities if kept away from the oven walls.

How do I defrost food automatically?

Turn the SETTING SELECTOR KNOB to the defrost setting (snowflake icon). Then turn the FUNCTION SELECTOR KNOB to choose the appropriate program (d:01 meat, d:02 poultry, etc.). Press SELECT to set the weight, then press START. The oven will signal when to turn the food.

What is the Aqua Clean function and how do I use it?

Aqua Clean uses steam to loosen dirt for easy cleaning. Pour about 100 ml of water into the empty oven, turn the SETTING SELECTOR KNOB to the Aqua Clean setting, and press START. The cycle lasts 15 minutes, after which you wipe the interior dry.

Why does my oven make clicking sounds during defrosting?

Clicking sounds are normal, especially during defrosting. They are caused by the microwave components cycling on and off to maintain the low power level.

How do I activate the child lock?

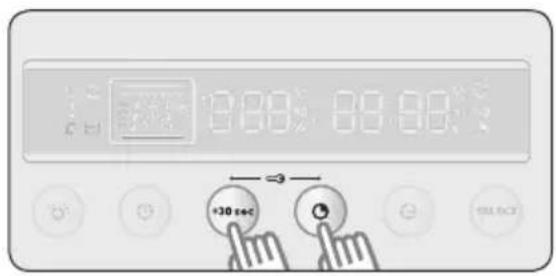

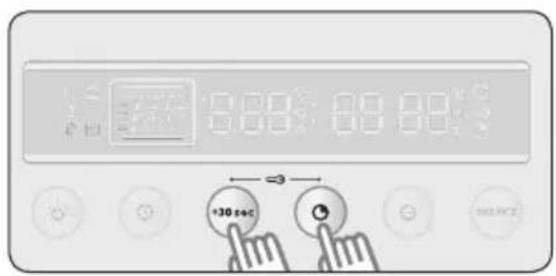

Press and hold the +30 SEC and PREPARATION TIME buttons simultaneously for 1 second. A lock symbol will appear on the display. To unlock, repeat the same action.

What should I do if I see an error code on the display?

Error codes indicate sensor or communication issues. For example, 'ERROR TEMPERATURE SENSOR OPEN' means a faulty sensor. Unplug the oven, wait a minute, then plug it back in. If the error persists, contact Pelgrim customer service with the model and error code.

Can I use the steamer basket for all dishes?

The steamer basket is ideal for vegetables, rice, fish, and frozen foods. Do not use it for dishes with high sugar or fat content, or on grill settings. The basket withstands temperatures from -10°C to 130°C and is dishwasher safe.

How do I set a delayed start or end time?

First select a function and set the preparation time. Then press END TIME, turn the FUNCTION SELECTOR KNOB to set the desired end time, and press END TIME again. Press START to activate the delay. The oven will automatically start and stop at the programmed times.

Why does steam escape from the door or vents?

Steam escaping from the door or vents is normal during operation. The oven is designed to release moisture. Ensure the door seal is clean to prevent accumulation of dirt.

USER MANUAL MAC696MAT Pelgrim

Close-up of a kitchen oven control panel with digital display and rotary knob (no visible text or symbols)

MAC696RVS

MAC696MAT

Handleiding

Oven

Instructions for use

Oven

NL Handleiding NL 3 - NL 53

EN Instructions for use EN 3 - EN 53

Simple line drawing of a rectangular tray or container (no text or symbols)

Simple line drawing of a rectangular tray or container (no text or symbols)

Line drawing of a cooking pot with lid and side handles (no text or symbols)

Circular device knob with arrow indicating refresh or update function (no text or symbols)

Digital display showing 3:89' and a rotary knob with bidirectional arrows (no text or symbols)

Gray-scale icon of a camera lens with control buttons and a curved arrow, no text or symbols present.

Digital display showing time reading with control knob and circular buttons (no text or symbols)

4 Druk op START.

Opmerking

Top-down schematic of a traditional-style oven or chamber with internal structure and no visible text or symbols

Top-down architectural diagram of a double boiler or stove with no visible text or symbols

Technical line drawing of a traditional Chinese oven or stove interior with decorative grilles and a central circular opening (no text or symbols)

Two circular icons showing a rotary knob with control buttons and directional arrows, no text or symbols present.

Two technical diagrams showing a rotary knob and a digital clock interface with a finger pointing to the button (no text or symbols present)

Icon of a camera lens with a circular button and arrow, surrounded by small icons (no text or symbols)

Circular button with directional arrows indicating rotation or refresh (no text or symbols)

Two circular mechanical components with directional arrows indicating rotation and cycle (no text or symbols)

Icon of a rotary knob with an arrow, surrounded by blurred background symbols (no readable text)

Digital display showing time reading of 0:88, with a rotary knob and circular arrows indicating rotation (no text or symbols)

Digital display showing 18:00 with clock, mouse icon, and circular dial with bidirectional arrows (no text or symbols)

Technical line drawing of a mechanical or architectural component with no visible text or symbols

Digital display with time and clock icons, featuring a rotary knob and bidirectional arrows (no text or symbols)

Digital timer and rotary knob icon with circular arrows indicating refresh or move (no text or symbols)

Simple diagram showing a control panel with a circular dial and a hand cursor clicking the button (no text or symbols)

Top-down schematic of a microwave oven with internal fan and cooling unit (no text or symbols)

Illustration of a hand pressing a button on a digital timer (no text or symbols)

Simple diagram showing a circular button with vertical stripes and a hand cursor clicking the button (no text or symbols)

5 Druk op START.

Opmerking

Circular button with arrow and control icons, no readable text or symbols

Circular mechanical component with rotational arrows, no visible text or symbols

Digital display showing 3:88' and control knob with circular arrows indicating refresh or move (no text or symbols)

Circular dial indicator with arrow and droplet symbol, no readable text or labels

Digital display showing time reading and control knob with circular dial and bidirectional arrows (no text or symbols)

Simple line drawing of a cooking pot with arrows indicating direction (no text or symbols)

+

Illustration showing a circular vent with rotation arrow and a kitchen appliance interior (no text or symbols)

Belangrijk

Circular dial indicator with pointer and control buttons, no readable text or symbols

▶ De oven veroorzaakt storingen in radio's of televisies.

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

The oven functions 5

The accessories 6

Using this user manual....6

Setting the clock 7

Setting the energy saving setting 8

The heating possibilities....9

How a microwave oven works .... 11

Using the microwave function 12

Using the oven functions 22

Setting a preparation time 28

Setting an end time....29

Postponing a preparation time 30

Using the combi functions 31

Using the automatic menu settings 35

Using the steamer basket 43

Using the Aqua Clean setting....46

Deactivating the beeping noise 47

The child-proof lock 48

Cleaning the microwave oven....49

Storing and repairing the microwave oven....49

Solving problems 50

Error codes....51

Technical specifications 52

Disposal of appliance and packaging. 53

1. Off setting
2. Microwave setting
3. Oven function 'hot air'
4. Oven function 'grill'
5. Oven function 'large grill'
6. Oven function 'grill with fan'
7. Defrost setting
8. Aqua clean function
9. Vegetable menu setting
10. Automatic preparation
11. Combi function ‘microwave with hot air’
12. Combi function ‘microwave with grill’
13. Setting selector knob
14. Display
15. Oven light button
16. Clock button
17. +30 sec button
18. Preparation time button
19. End time button
20. Select button
21. Function selector knob
22. Start button
23. Stop/cancel button

Note

• A baking tray or grill rack + ceramic baking can be slid into the different levels in the oven.

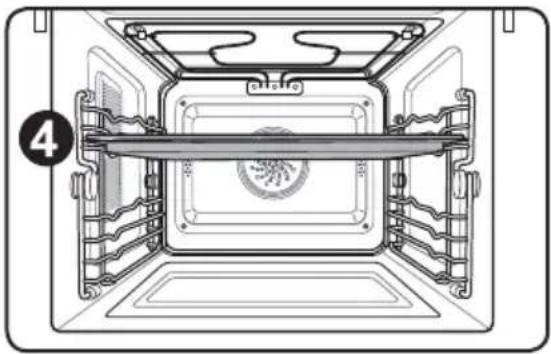

  • Level 1 is the lowest level in the oven and level 5 is the highest level.
  • Level 1 is used mainly for the microwave function using the ceramic baking plate.
  • Levels 4 and 5 are used mainly for the grill functions.
• Consult the preparation guidelines in this user manual to determine the correct level for your dishes.

The following accessories are supplied with your microwave oven:

Simple line drawing of a rectangular tray or container (no text or symbols)

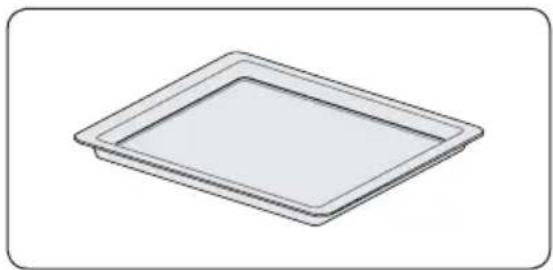

1 Ceramic baking tray (use with microwave setting)

Simple line drawing of a rectangular tray or container (no text or symbols)

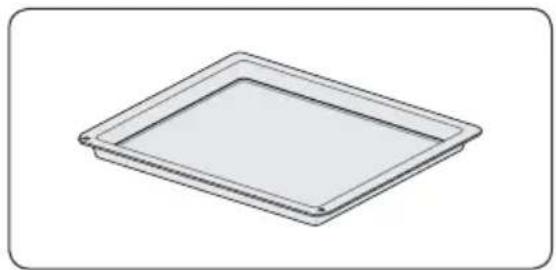

2 Baking tray (do NOT use with microwave setting)

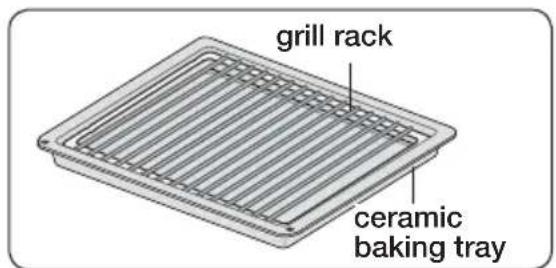

3 Grill rack for ceramic baking tray (use with quick menu and grill setting)

Line drawing of a cooking pot with lid and side handles (no text or symbols)

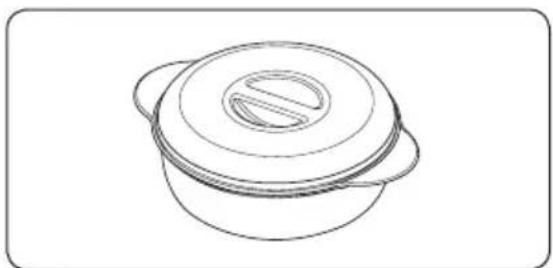

4 Steamer basket Use the plastic steamer basket to prepare dishes with steam.

Note

Consult the preparation guidelines in this user manual to determine the correct accessories for your dishes.

USING THIS USER MANUAL

Thank you for buying an Pelgrim microwave oven.

The user manual contains important information about the use and maintenance of your new microwave oven. The installation instructions are supplied separately.

Read the separate safety instructions before using the appliance!

When you connect the appliance to the mains electricity for the first time, the display lights up. After three seconds the clock symbol and '12:00' flash on the display. Set the clock to the correct time.

Setting the clock


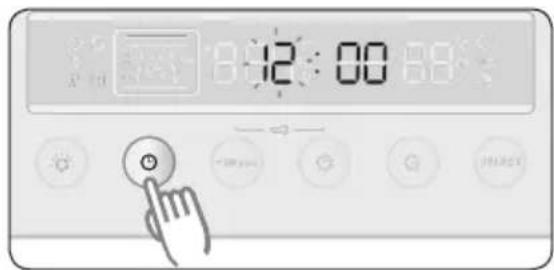

1 Press CLOCK. '12' starts flashing. Turn the FUNCTION SELECTOR KNOB to set the hour.

3 Press CLOCK again. '00' starts flashing.

4 Turn the FUNCTION SELECTOR KNOB to set the minutes.

5 Press CLOCK again. The clock is set in 5 seconds.

Note

If you press a button, the setting starts to flash. You can now change the setting. You can only change the setting if it is flashing. If it stops flashing, you must press the button again so that the setting starts flashing again.

The oven has an energy-saving setting (Eco setting). The oven display is switched off in this setting.

Stand-by setting

If the oven is not used for 10 minutes, it switches automatically to the stand-by setting (default).

ECO setting

The display (time indication) is switched off in the ECO setting.

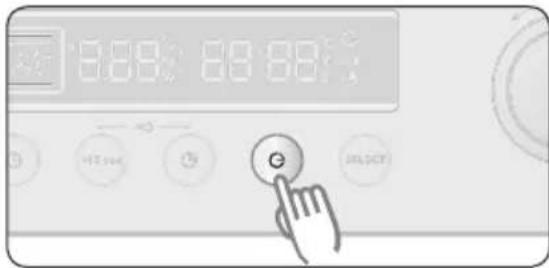

1 Press and hold END TIME for 3 seconds. The oven switches to the ECO setting and the display shows nothing.

2 Open the door or press a button if you want to go to the stand-by setting. The current time is shown on the display and the oven is ready for use.

The following list shows the different heating possibilities and oven settings which are available. Use the preparation guidelines on the following pages to determine the correct mode and setting for your recipes.

MICROWAVE MODE

Microwaves are used for preparing and defrosting dishes. Dishes are prepared quickly and efficiently without the colour or form of the dish being affected. You set the power and preparation time manually for the different dishes.

OVEN FUNCTIONS

	Hot air settingThe fan distributes the heat from the top and bottom heating elements through the oven. The heat is distributed evenly in the oven. This setting is suitable for traditional baking and roasting. Recommended temperature: 180 °C
	Grill settingThe grill element heats the dish. The grill setting is particularly suitable for grilling smaller quantities, such as baguette, fish fillets or for giving an oven dish a gratin finish. Put the dish in the middle of the grill rack + ceramic baking, because the element is in the middle of the oven.Recommended temperature: 180 °C
	Large grill settingThe grill element and the top element heat the dish. The large grill setting is suitable for grilling steak, sausages and toasted sandwiches.Recommended temperature: 220 °C
	Grill + fan settingThe fan distributes the heat from the grill and the top heating element. You can use this setting for grilling meat and fish. Recommended temperature: 220 °C

AUTOMATIC FUNCTIONS

	Defrost settingSelect from 5 preset defrost settings. The fan is switched on with a low temperature during defrosting. Turn the food over during defrosting. You only have to choose the programme and the weight to start defrosting.
	Aqua cleanThe hot steam makes the interior of the oven wet, so you can clean the oven easily. The Aqua Clean programme takes 15 minutes.Vegetable menu settingSelect from 10 preset ‘vegetable menu settings’. Preparation time and power are chosen automatically. You only have to choose the programme and the weight to start the preparation process.
	Automatic menu settingSelect from 10 preset automatic preparation settings. The time and temperature are set automatically. You only have to choose the programme and the weight to start the preparation process.

MICROWAVE COMBI FUNCTIONS

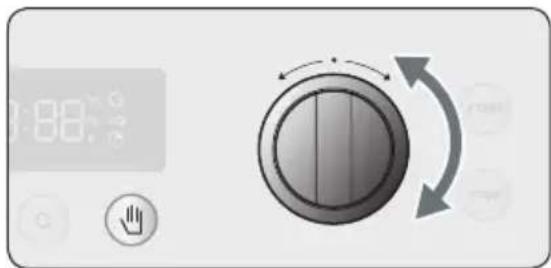

	Microwave + hot airThis function is suitable for all types of meat and poultry, but also for casseroles, au gratin casseroles, roast beef, biscuit dough and light fruitcakes, tarts and crumble desserts.
	Microwave + grillThis function is suitable for all types of prepared dishes which have to be warmed up and browned (e.g. baked pasta) and dishes which need a short preparation time for a brown crust.This setting can also be used for thick portions for which a brown, crunchy crust is tasty (e.g. chicken drumsticks).

Microwaves are high-frequency electromagnetic waves. The energy makes it possible to cook or warm up dishes without affecting the form or colour.

You can use your microwave for the following:

• Microwave setting
• Combi functions

Preparation principle

1. The microwaves which the microwave generates are spread evenly by a distribution system. This cooks the dish evenly.
2. The microwaves are absorbed to a depth of approximately 2.5 cm by the dish. Cooking then continues, because the heat is spread in the dish.
3. The preparation times vary and depend on the dish you use and the properties of the food:

• Quantity and density

- Moisture content

- Starting temperature (whether or not it is cooled)

Important

The dish is cooked from the inside out by means of heat distribution. The cooking continues even when you take the dish from the oven.

Standing times in recipes and in this book must therefore be adhered to, in order to ensure

• Even heating into the middle of the dish;
• Equal temperatures in all parts of the dish.

When the microwave is used, microwaves penetrate the dish. These waves are attracted and absorbed by water, fat and sugar in the dish. The microwaves make the molecules in the dish move faster. The fast movement of these molecules causes friction and the dish is warmed up by the heat which this releases.

IMPORTANT: use the ceramic baking tray on level 1.

Microwave mode

Circular device knob with arrow indicating refresh or update function (no text or symbols)

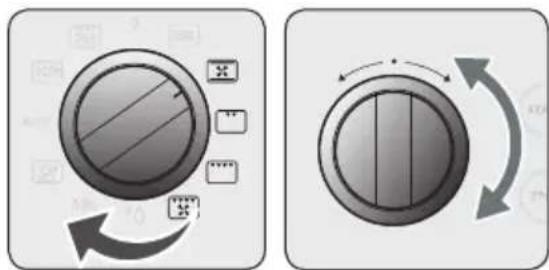

1 Turn the SETTING SELECTOR KNOB to the microwave setting. The DISPLAY shows the time and the power.

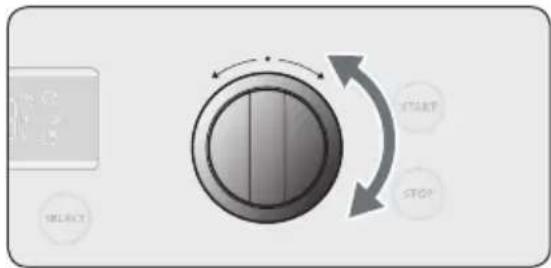

2 Turn the FUNCTION SELECTOR KNOB to set the preparation time you want. If you do not want to change the power, press START to start the preparation.

Digital display showing 3:89' and a rotary knob with bidirectional arrows (no text or symbols)

3 If you want to change the power, press SELECT and turn the FUNCTION SELECTOR KNOB to the level you want. Consult the preparation guidelines for guidelines on the correct preparation times and power.

4 Press START to start the preparation.

Guidelines for the microwave power

POWER PERCENTAGE(%)	OUTPUT POWER(W)	NOTE
MAXIMUM 100 800 For warming up liquids.
HIGH 83 700		For warming up and preparing dishes.
MEDIUM HIGH 67 600		For warming up and preparing dishes.
MEDIUM 50 450		For preparing meat and warming up delicate dishes.
MEDIUM LOW 33 300
DEFROST 20 180		For defrosting and continued cooking.
LOW 11 100		For defrosting delicate dishes.

Guidelines for microwave cookware

Cookware that you use for the microwave setting may not block the microwaves. Metals such as stainless steel, aluminium and copper reflect microwaves. For that reason, do not use metal cookware. Cookware which is designated as microwave-safe can be used safely. For more information about suitable cookware, consult the following guidelines and always use the ceramic baking tray on level 1 if you use the microwave setting.

COOKWARE MICROWAVE-SAFE		REMARKS
Aluminium foil	X	Can be used in small quantities to prevent certain parts of the dish from overcooking. Arcing can occur if the foil is too close to the oven wall or if too much foil is used.
Porcelain and earthenware		Porcelain, earthenware, glazed earthenware and ivory porcelain are usually suitable, unless they have a metal edge.
Disposable crockery made from polyester or cardboard		Frozen meals are sometimes packaged in disposable crockery.
Fast food packagingPolystyrene cupsPaper bags or newspaperRecycled paper or metal edges	× ×	Can be used to warm up dishes.Polystyrene can melt if it overheats.Can catch fire.Can cause arcing.
GlasswareOven dishesFine glasswareGlass jars		Can be used, unless it has a metal edge.Can be used to warm up dishes or liquids. Thin glass can break or shatter with sudden heating.The lid must be removed. Only suitable for warming up.
MetalDishesMetal strips for freezer bags	✕✕	Can cause arcing or fire.
PaperPlates, cups, serviettes and kitchen paperRecycled paper	✕√✕	For short preparation times and warming up. For absorbing excess moisture.Can cause arcing.
PlasticTraysCling filmFreezer bags	✕√✕✕/✕	Especially heat-resistant thermoplastic material. Other types of plastic can warp or discolour at high temperatures. Do not use melamine plastic.Can be used to hold moisture. Do not touch the food. Be careful when you remove the film; hot steam can escape.Only if boil-proof or ovenproof. Must not be airtight. If necessary, prick it with a fork.
Waxed or baking paper	✕√	Can be used to hold moisture and prevent splashes.

Note

Sparks in the microwave are also called arcing.

√: Recommended

√X: Careful

X: Unsafe

General preparation guidelines for the microwave function

Dishes suitable for preparation in the microwave

Various kinds of dishes can be prepared in the microwave, such as fresh or frozen vegetables, fruit, pasta, rice, grains, beans, fish and meat. You can also prepare sauce, custard, soup, steamed pudding, fruit preserves and chutney in a microwave.

Cover during preparation

Dishes should be covered for the preparation, because the water evaporates and the steam contributes to the preparation process. There are various ways to cover dishes, for example with a ceramic plate, a plastic lid or microwave-proof cling film.

Standing times

It is important after preparation that the dish is allowed to stand the recommended time so that the temperature can spread evenly in the dish.

General preparation guidelines for frozen vegetables

Use a suitable glass Pyrex dish with lid. Keep it covered during the minimum time (see the table).

Continue the preparation for the desired result. Stir two times during preparation and one more time after preparation. After preparation, add salt, herbs or butter. Keep the dish covered during the standing time.

Dish Portion	(g)	Power (P)	Time (min.)	Standing time (min.)	Instructions
Spinach 150 600 5 - 6 2	-3 Add 1	5 ml			(1 tablespoon) of cold water.
Broccoli 300 600 8 - 9 2	-3 Add 30 ml				(2 tablespoons) of cold water.
Peas 300 600 7 - 8 2 - 3	Add 15 ml				(1 tablespoon) of cold water.
Green beans 300 600 712 - 812		2 - 3	Add 30 ml		(2 tablespoons) of cold water.
Mixed vegetables (carrots/peas/sweetcorn)	300 600 7 - 8 2 - 3 Add 15 ml				(1 tablespoon) of cold water.
Mixed vegetables (Chinese vegetable mix)	300 600 712 - 812		2 - 3	Add 15 ml	(1 tablespoon) of cold water.

Preparation guidelines for fresh vegetables

Use a suitable glass Pyrex dish with lid. Add 30 - 45 ml (2 - 3 tablespoons) of cold water for every 250 g, unless a different amount of water is recommended (see the table). Keep it covered during the minimum time (see the table). Continue the preparation for the desired result. Stir once during the preparation and one more time after preparation. After preparation, add salt, herbs or butter. Keep covered during the standing time of 3 minutes.

Tip: cut fresh vegetables into pieces of equal size. The smaller the pieces, the shorter the preparation time.

Note: All fresh vegetables should be prepared at full power (800 W).

Dish Portion	(g)	Time (min.)	Standing time (min.)	Instructions
Broccoli 250	500	4 - 55 - 6	3 Make sure the florets are of equal size. Point the stalks to the middle.
Brusselsprouts	250 5 -	6 3 Add	60 - 75 ml (5 - 6 tablespoons)of water.
Carrots 250 5 -	6 3 Cut the	carrots into slices of equal size.
Cauliflower 250	500	5 - 67 - 8	3 Make sure the florets are of equal size. Cut large florets in half. Point the stalks to the middle.
Courgette 250 3 -	4 3 Cut	the courgette into slices. Add
Aubergine 250 3 -	4 3 Cut	the aubergine into thin
Leek 250 3 - 4 3 Cut the leek into thick rings.
Mushrooms 125	250	1 - 22 - 3	3 For preparation, use small mushrooms whole, and cut larger mushrooms into slices. Do not add water. Sprinkle with lemon juice.Season with pepper and salt.Drain before serving.
Onions 250 4 -	5 3 Cut the	onions into rings or half
Capsicum 250 4 -	5 3 Cut	the capsicum into small strips.
Potatoes	250	4 - 5	3 Weigh the peeled potatoes and cut them in half (or in four pieces) for pieces of equal size.
	500	7 - 8
Swede	250 5 -	6 3 Cut the swede into cubes.

Preparation guidelines for rice and pasta

Rice Use a large, glass Pyrex dish with lid. (Take into consideration that rice doubles in volume during the preparation.) Keep covered during the preparation. Stir after the preparation and before the standing time. Add salt or herbs and butter. The rice may not have absorbed all the water after the preparation is completed.

Pasta Use a large, glass Pyrex dish. Add boiling water and a pinch of salt and stir it all thoroughly. Do not cover during the preparation. Stir several times during and after the preparation. Cover during the standing time and then drain well.

Dish Portion	(g)	Power (W)	Time (min.)	Standing time (min.)	Instructions
White rice (parboiled)	250375	800	17 - 1818 - 20	5	Add 500 ml of cold water.Add 750 ml of cold water.
Brown rice (parboiled)	250375	800	20 - 2222 - 24	5	Add 500 ml of cold water.Add 750 ml of cold water.
Mixed rice (rice + wild rice)	250 800	17 - 19	5 Add 500	ml of cold water.
Mixed grains (rice + grain)	250 800	18 - 20	5 Add 400	ml of cold water.
Pasta 250 800 10 - 11 5					Add 1000 ml of warm water.

WARMING UP

The microwave oven only needs a fraction of the time a traditional oven requires to warm up dishes.

Dividing and covering

Avoid warming up large pieces of food. They may become overcooked and dry out before they are warm enough inside. Warming up smaller pieces works better. If you cover dishes during the warming up, you prevent them from drying out.

Power settings

Different power settings can be used to warm up dishes. In general it is advisable to use a low power for delicate dishes or dishes which heat up fast, such as fruit pie.

Stirring

For best results, stir dishes thoroughly or turn them over during the warming up. If possible, stir one more time before serving. Stirring is particularly important if you are warming up liquids.

Warming up and standing times

If you are warming up dishes for the first time, it is useful to note down the time required, so that you can consult this in the future. Avoid overheating. If you are not sure about the preparation time, it is better to use a short time. In that case you can always add extra time if you need it. Always make sure that warmed up dishes are heated thoroughly.

Let dishes stand for a short while after warming up to ensure that the temperature is evenly distributed. The recommended standing time after warming up is 2 - 4 minutes.

Warming up liquids

Take care when warming up liquids. Prevent splashes and possible burning by putting a spoon or glass stirrer in the drink. Stir during and definitely after the warming up. After the warming up, let stand for at least 20 seconds to ensure that the temperature is evenly distributed.

Warming up baby food

Baby food

Take care when warming up baby food. Put the food in a deep ceramic plate. Cover it with a plastic lid. After warming up, stir it thoroughly. Let stand for 2 to 3 minutes before use. Stir it again and check the temperature.

The recommended usage temperature is 30 - 40 °C.

Baby milk

Pour milk into a sterilised glass bottle. Warm the bottle up without covering it. Never warm up a baby bottle with the teat on it. The bottle can explode if it overheats. Shake the bottle well before the standing time, and shake it again before use. Always check the temperature of the baby food or milk before you feed your baby.

The recommended usage temperature is 37^ C.

Warming up baby food and milk

Use the power and times in this table as a guideline for warming up.

Dish Portion Power		(W)	Time Standing time (min.)	Instructions
Baby food (vegetables + meat)	190 g 600 W		30 - 40 sec.	2 - 3 Spoon the contents into a deep ceramic plate. Keep covered during the preparation. Stir the dish thoroughly after preparation. Let it stand for 2-3 minutes. Stir it thoroughly before use and check the temperature carefully.
Baby cereal (grains + milk + fruit)	190 g 600 W		20 - 30 sec.	2 - 3 Spoon the contents into a deep ceramic plate. Keep covered during the preparation. Stir the dish thoroughly after preparation. Let it stand for 2-3 minutes. Stir it thoroughly before use and check the temperature carefully.
Baby milk	100 ml 200 ml	300 W	30 - 40 sec. 50 sec. to 1 min.	2 - 3 Stir or shake the content thoroughly and pour it into a sterilised glass bottle. Put the bottle in the middle of the ceramic baking tray. Do not cover during the preparation. Shake the bottle thoroughly and allow it to stand for at least 3 minutes. Shake the content thoroughly before use and check the temperature carefully.

Warming up liquids and food

Use the power and times in this table as a guideline for warming up.

Dish Portion Power(W)			Time Standing time(min.)		Instructions
Beverages	250 ml(1 mug)500 ml(2 mugs)	800 W	112 - 2 2-3	1-2	Pour the beverage into a ceramic mug and warm up the beverage without covering the mug. Put the mug in the middle of the ceramic baking tray. Stir the content carefully before and after the standing time.
Soup(cooled)	250 g 8	00 W 3-4 2-3			Pour the food into a deep ceramic plate. Cover it with a plastic lid. After warming up, stir it thoroughly. Stir one more time before serving.
Casserole(cooled)	350 g 6	00 W 5-6 2-3			Pour the food into a deep ceramic plate. Cover it with a plastic lid. After warming up, stir it thoroughly. Stir one more time before serving.
Pasta with sauce(cooled)	350 g 6	00 W 5-6 2-3			Pour the food into a deep ceramic plate. Cover it with a plastic lid. After warming up, stir it thoroughly. Stir one more time before serving.
Complete meal(cooled)	350 g450 g	600 W	5-66-7	3	Scoop 2-3 cooled dishes on to a ceramic plate. Cover the whole with cling film.

Defrosting

Microwaves are excellent for defrosting frozen dishes. Microwaves ensure that frozen dishes are gradually defrosted in a short time. This can be a great advantage if you receive unexpected guests. Frozen poultry must be fully defrosted before preparation. Remove any metal strips and take the product out of the packaging to allow moisture to drain off. Put the frozen dish on a plate and do not cover it. Turn it over halfway through and drain any moisture. Remove any organs as soon as possible. Check the dish now and then to ensure that it does not become too warm. If smaller, thinner parts of the frozen dish become warm, you can protect them by wrapping them in small pieces of aluminium foil. If the poultry becomes warm on the outside, press STOP/CANCEL and let it stand for 20 minutes before continuing. Let fish, meat and poultry stand to defrost further. The standing time for full defrosting depends on the amount of food you want to defrost. Consult the table on the next page.

Tip: Flat dishes defrost faster than thick ones, and small quantities take less time than larger ones. Take this into consideration when you freeze the dish and defrost it.

Consult the following table for defrosting frozen dishes (-18/-20 °C).

Frozen dishes should be defrosted at the defrosting power (180 W).

Put the dish on the ceramic baking tray and slide it on to level 1 in the microwave.

Dish Portion	(g)	Time (min.)	Standing time (min.)	Instructions
Meat
Minced beef	250	6 - 7	15 - 30 Put	the meat on a ceramic plate. Wrap thinner pieces in aluminium foil. Turn the meat over halfway through the defrosting time.
	500	8 - 12
Pork chops	250	7 - 8
Poultry
	500	12 - 14	15 - 60 Put	chicken pieces skin down and whole chickens with the breast down on a ceramic plate. Wrap thinner pieces such as the wings and ends in aluminium foil. Turn the food over halfway through the defrosting time.
Chicken pieces	(2 pieces)
Whole chicken	1200	28 - 32
Fish
Fish fillets	200	6 - 7	10 - 25 Put	frozen fish in the middle of a ceramic plate. Put thinner pieces under the thicker pieces. Wrap the narrow ends of the fillets and the tail of the whole fish in aluminium foil. Turn the food over halfway through the defrosting time.
Entire fish	400	11 - 13
Fruit
Berries 300 6 - 7	5 - 10 Distribute the fruit on a large, flat, round glass dish.
Bread
Bread rolls (each approx. 50 g)	2 pieces	1 - 112	5 - 20 Put	bread rolls in a circle or place the bread horizontally on kitchen paper on the ceramic baking tray. Turn the food over halfway through the defrosting time.
	4 pieces	212 - 3
	250	4 - 412
Toasted bread/toasted sandwich	500	7 - 9

Select from 4 oven functions. Consult the preparation guidelines to determine the correct oven function.

Selecting oven function

Gray circular icon with a curved arrow and small icons, no readable text or symbols present.

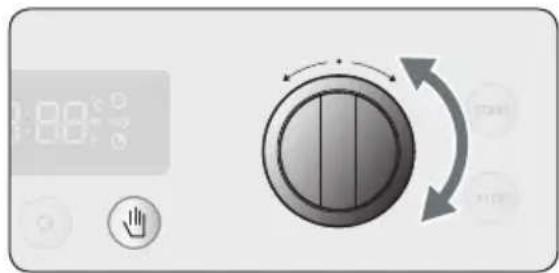

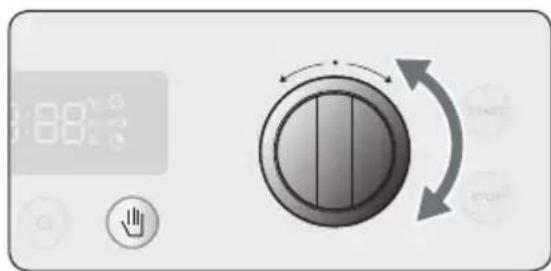

1 Turn the SETTING SELECTOR KNOB to the desired oven function.

	Hot air
	Grill
	Large grill
	Grill + Hot air

Digital display showing time reading with control knob and circular buttons (no text or symbols)

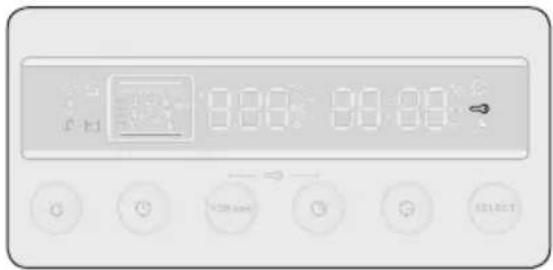

2 If you want to change the temperature, press SELECT and turn the FUNCTION SELECTOR KNOB to the temperature you want.

3 If you want to change the preparation time, press PREPARATION TIME and turn the FUNCTION SELECTOR KNOB to the preparation time you want.

4 Press START.

Note

1) During the preparation you can change the preparation time and the temperature.
2) If you use the oven setting, the operation of the heating elements is interrupted regularly to regulate the temperature.

Hot air

In this setting the top and bottom heating elements and the fan are activated. The heat is distributed evenly in the oven. This setting is suitable for large amounts of food which need heat supply, such as large au gratins and pies.

Top-down architectural diagram of a double boiler or stove interior showing structural beams and central fan (no text or symbols)

The baking tray or the grill rack + ceramic baking is usually placed on level 2.

* Temperature setting: 40 - 230 °C.

* Use oven crockery that is resistant to a temperature of 250 °C.

Cooking table

The temperatures and cooking times in this table are guidelines.

We recommend you preheat the oven if you use the intensive function.

Dish Level Accessories	Temperature (°C) Time (min.)
Lasagne 2 kg	2 Grill rack + Ceramic baking tray	180 0:20 - 0:25
Vegetable gratin 2 kg	2 Grill rack + Ceramic baking tray	170 0:40 - 0:50
Potato gratin 2 kg	2 Grill rack + Ceramic baking tray	170 0:50 - 1:00
Roast beef / 2 kg medium	2 Grill rack + Ceramic baking tray	160 1:30 - 1:40
Whole duck / 2 kg	2 Grill rack + Ceramic baking tray	180 1:30 - 1:40
2 whole chickens / each 1.2 kg	2 Grill rack + Ceramic baking tray	180 1:30 - 1:40

Please note

You do not have to turn the food over, but if you do this halfway through, you have a better result.

Grill

This function is for grilling smaller quantities of flat dishes such as steaks, schnitzels, fish and toast. Put the dishes in the middle on the rack. Only the top heating element is turned on.

For grilling, use the grill rack + ceramic baking on level 4 and the baking tray on level 3.

* Temperature setting: 180 °C.

Grill Table

The temperatures and cooking times in this table are guidelines.

Dish Level Accessories	Temperature (°C)	Time (min.)
Melting Camembert(2 - 4 each 75 g)Do not pre-heat the oven	4 Grill	rack+ ceramicbaking tray	200 9 - 11
Frozen baguette with filling(mozzarella and tomato orham and cheese)	4 Grill	rack+ Ceramicbaking tray	200 14 - 16
Fish fingers, frozen(300 - 450 g)Do not pre-heat the oven	4 Grill	rack+ ceramicbaking tray	200 15 - 20
Fish burger, frozen(300 - 450 g)Do not pre-heat the oven	3 Baking tray	180 23 - 27
Pizza, frozen (300 - 400 g)Do not pre-heat the oven	4 Grill	rack+ Ceramicbaking tray	170 15 - 18

Large grill

The maxi grill is highly suited for grilling larger quantities of flat dishes such as steak, schnitzel and fish. The maxi grill is also suitable for making toast. Both top heating elements and the grill element are turned on when you select this oven function. It is recommended you preheat the oven when you use the maxi grill.

Top-down schematic of a traditional Chinese oven or stove with decorative panels and a central circular emblem (no text or symbols)

For grilling, use the grill rack + ceramic baking on level 4.

* Temperature setting: from 150 - 230 °C.

* Use oven crockery that can withstand temperatures of 230 °C.

Grill Table

The temperatures and cooking times in this table are guidelines.

Dish Level Accessories	Temperature (°C) Time (min.)
Sausages (thick)5 - 8 pieces	4 Grill	rack + Ceramicbaking tray	180 5 - 7	turn over5 - 7
Sausages (thin)8 - 10 pieces	4 Grill	rack + Ceramicbaking tray	180 4 - 5	turn over4 - 5
Toast 5 - 10 pieces 4 Grill rack + Ceramicbaking tray	230 1 - 2	turn over1 - 2
Toasted sandwiches4 - 6 pieces	4 Grill	rack + Ceramicbaking tray	200 4 - 8
Filled pancake(350 - 450 g)	4 Baking tray 200 20 - 25
Steak (400 - 800 g) 4 Grill rack + Ceramicbaking tray	230 7 - 8	turn over6 - 7

Grill + fan

The grill element and the fan in the back of the oven are turned on. The fan circulates the hot air. It is best to preheat the oven before placing dishes in the oven.

Technical line drawing of a mechanical or architectural component with no visible text or symbols

For grilling, the grill rack + ceramic baking or the baking tray are usually placed on level 4.

* Temperature setting: 150 - 230 °C

* Make sure the glass dishes you use can withstand temperatures of 40 - 250 °C.

Cooking guidelines

Use the temperatures and times in this table as a guideline for grilling. Set a grilling temperature of 170-220 °C and preheat the oven for 5 minutes.

Dish Rack	level	Time (minutes)	Accessories	Temperature (°C)
Sausages 250-350g 4 7 - 9	Grill rack + ceramic baking			200
Potato segments 4 pieces 4	20 - 23	Grill rack + ceramic baking		210
Frozen oven fries 400-500g	4 11	- 15 Baking tray		220
Frozen potato rissoles 6-8 ea	4 18	- 22 Baking tray		210
Frozen chicken nuggets 400-500g	4 9	- 13 Baking tray		220
Salmon steak 400-500g 4	2 - 15		Grill rack + ceramic baking / baking tray	220
Fish fillet 300-400g 4 12 - 15			Grill rack + ceramic baking / baking tray	180
Entire fish 300-400g 4 10 - 13			Grill rack + ceramic baking / baking tray	180
Chicken pieces 400-500g 4	27 - 32		Grill rack + ceramic baking / baking tray	180

Note

Preheating is recommended.

If you open the door during cooking, the oven will stop. Close the door and press Start to start the oven again.

When you set a preparation time, you can have the oven switch off automatically once the set time has expired.

Setting the preparation time

Two grayscale diagrams showing a circular device with internal components and directional arrows, no text or symbols present.

1 Select the function you want (and if desired, set the temperature).

2 Press PREPARATION TIME.

Two technical diagrams: one showing a rotary knob with bidirectional arrows, the other showing a hand pressing a circular button (no text or symbols)

3 Turn the FUNCTION SELECTOR KNOB to set the preparation time you want and press PREPARATION TIME to set the end time for the preparation.

4 Press START. The oven switches on immediately.

Note

1) When the set time has expired you will hear a beep. '0:00' flashes on the display and the oven switches off automatically. The current time appears on the display.
2) You can set the programmed preparation time again as shown above.
3) If you want to cancel the programmed preparation time, press PREPARATION TIME and use the FUNCTION SELECTOR KNOB to set the time to zero.

When you set an end time, you can have the oven switch off automatically at the set time.

Setting the end time

Icon of a camera lens with control buttons and a curved arrow, no text or symbols present.

Circular button with directional arrows indicating rotation or refresh (no text or symbols)

1 Select the function you want (and if desired, set the temperature).

2 Press END TIME. The current time flashes on the DISPLAY.

Circular dial indicator with arrow and control buttons, no text or symbols present

3 Turn the FUNCTION SELECTOR KNOB to the end time (14:00) you want.

4 Press END TIME again.

Example The desired time is 14:00 o'clock.

Example The current time is 13:00 o'clock. The desired end time is 14:00 o'clock.

Simple diagram showing a circular button labeled 'START' and a hand cursor clicking a button (no text or symbols beyond the button)

5 Press START to start the preparation. The preparation time '1:00' is shown. The oven switches on immediately.

Note

1) The time display shows the remaining time. Once the set time has expired, you hear a beep. '0:00' flashes on the display and the oven switches off automatically. The current time appears on the display.

2) During the preparation you can change the preset preparation time and the temperature for better results. Press PREPARATION TIME and change the time with the FUNCTION SELECTOR KNOB.

3) You can set the end time again as shown above. If you want to cancel the programmed preparation time, press END TIME and set the time to the current time.

When you set a preparation time and an end time, you can have the oven switch on and off automatically at the set times.

Example with the hot air setting: Current time: 12:00 o'clock / Preparation time: 2 hours End time: You want the preparation to end at 18:00 o'clock

Two circular control knob diagrams with rotation arrows, no text or symbols present

1 Select the function you want and if desired, set the temperature.

2 Press PREPARATION TIME and turn the FUNCTION SELECTOR KNOB to the desired preparation time (2 hours).

3 Press END TIME.

4 Press END TIME.

The preparation time is added to the current time and '14:00' is displayed.

Turn the FUNCTION SELECTOR KNOB to set the end time (18:00) you want.

The display shows a figure which indicates that the postpone function has been activated.

The oven starts automatically at the set time (16:00) and the preparation time is shown.

Note

• The preparation time and the end time can be changed before the set time.
• Please note! Do not leave the dish too long in the oven; the food could spoil.

Microwave + grill

This setting combines the radiant heat from the grill and the fast preparation through the microwave.

The preparation time is shortened and the result is a browned, crispy layer.

This function is suitable for all kinds of prepared food which has to be warmed up and browned (e.g. baked pasta) and dishes which require a short preparation time for a brown crust. This setting can also be used for thick portions for which a brown, crunchy crust is tasty (e.g. chicken drumsticks).

If you want to brown both sides of the food, turn it over halfway through the preparation.

Selecting the microwave + grill function

Circular icon with diagonal stripes and curved arrow, no text or symbols present

1 Turn the SETTING SELECTOR KNOB to the microwave + grill setting.

2 Turn the FUNCTION SELECTOR KNOB to set the preparation time you want.

Digital display showing time reading of 18:00 with a rotary knob and circular buttons, no text or symbols present.

3 If you want to change the power, press SELECT and turn the FUNCTION SELECTOR KNOB to the level you want.

Digital display showing 18:00 with clock and control knob, accompanied by a circular dial indicator with bidirectional arrows (no text or symbols)

4 If you want to change the temperature, press SELECT again and turn the FUNCTION SELECTOR KNOB to the level you want.

5 Press START to start the preparation.

Technical line drawing of a mechanical or architectural component with no visible text or symbols

For the grill + microwave setting, the ceramic baking tray is usually placed with the grill rack on level 3 and 4.

* Microwave power: 100 - 600 W

* Temperature setting: 40 - 200 °C

* Make sure the glass dishes you use can withstand temperatures of 40 - 250 °C.

Cooking guidelines

Take the temperatures and times in this table as a guideline for cooking.

Preheating is not necessary.

Dish Level Power	(W)	Temperature (°C)	Time 1st(min.)	Time 2nd(min.)	Accessories
Fried potatoes400-500g	4 450	200 12 - 14 -			Ceramicbaking tray
Grilled tomatoes3 each	4 180	170 7 - 9 -			Ceramicbaking traywith grill rack
Vegetable gratin450-600g	3 450	180 15 - 18 -			Ceramicbaking traywith grill rack
Grilled fish each1 piece	4 300	180 06 - 08	06 - 08		Ceramicbaking traywith grill rack
Chicken pieces400-500g	4 300	180 10 - 13	10 - 13		Ceramicbaking traywith grill rack

Microwave + hot air

In this setting, the microwave function is combined with hot air. This reduces the preparation time and dishes obtain a brown, crispy layer. This function is suitable for all types of meat and poultry, but also for casseroles, au gratin casseroles, roast beef, biscuit dough and light fruitcakes, tarts and crumble desserts.

Selecting the microwave + hot air function

1 Turn the SETTING SELECTOR KNOB to the microwave + hot air setting.

2 Turn the FUNCTION SELECTOR KNOB to set the preparation time you want.

Digital display with time and clock icons, featuring a rotary knob and bidirectional arrows (no text or symbols)

3 If you want to change the power, press SELECT and turn the FUNCTION SELECTOR KNOB to the level you want.

Digital timer and rotary knob icon with circular arrows indicating refresh or move (no text or symbols)

4 If you want to change the temperature, press SELECT again and turn the FUNCTION SELECTOR KNOB to the level you want.

5 Press START to start the preparation.

Top-down technical diagram of an oven with internal structure and fan (no text or symbols)

For the microwave + hot air setting, the ceramic baking tray is usually placed with the grill rack on level 3.

* Microwave power: 100 - 600 W

* Temperature setting: 40 - 200 °C

* Make sure the glass dishes you use can withstand temperatures of 40 - 250 °C.

Cooking guidelines

Take the temperatures and times in this table as a guideline for cooking.

Preheating is not necessary.

Dish Level Power	(W)	Temperature (°C)	Time 1 ^st (min.)	Time 2 ^nd (min.)	Accessories
Whole chicken, 1.2 kg	3 300 180 25 -	27 15 - 18			Ceramic baking tray with grill rack
Roast beef/ lamb (medium) 450-700g	3 300 180 17 -	20 17 - 20			Ceramic baking tray with grill rack
Frozen lasagne/ pasta gratin 450-500g	3 450 180 18 -	22 -			Ceramic baking tray with grill rack
Potato gratin 500-600g	3 450 190 20 -	25 -			Ceramic baking tray with grill rack
Fresh fruit flan 3	100 170 40 - 45				Ceramic baking tray

The automatic menu settings offer you 25 pre-programmed settings (10 for automatic preparation, 10 for the vegetable menu setting and 5 for automatic defrosting) for handy preparation of your favourite dishes. The preparation time and power are set automatically. Select one of the 25 settings, enter the weight and start the preparation.

Automatic preparation

1 Turn the SETTING SELECTOR KNOB to the AUTOMATIC PREPARATION setting.

2 Turn the FUNCTION SELECTOR KNOB to choose an automatic preparation function.

- Consult the tables for a description of the 25 automatic menu settings.

3 Press SELECT to change the weight. Turn the FUNCTION SELECTOR KNOB to set the desired weight.

Simple diagram showing a switch button and a hand cursor icon (no text or symbols)

5 Press START.

Note

• Some automatic menus require no further action. Other menus require the dish to be turned over. The oven gives a signal to indicate this.
• The set oven temperature and the preparation time are displayed when the automatic menu is active.
• The temperatures and times cannot be changed during the preparation.

Guidelines for automatic preparation

The following table shows you 10 automatic programmes for warming up, cooking, roasting and baking. The quantities, standing times and corresponding recommendations are given. These automatic programmes contain special, useful preparation settings.

No.	Dish Weight	(kg)	Accessories Level Instructions
A:01	Complete meal	0.3 - 0.350.4 - 0.45	Ceramic baking tray	1	Put the food on a ceramic baking tray and cover the food with cling film. This programme is suitable for meals which consist of 3 dishes (e.g. meat with sauce, vegetables and potatoes, rice or pasta). Let the meal stand for 3 minutes after cooking.
A:02	Frozen pizza	0.3-0.350.4-0.45	Grill rack + ceramic baking tray	2	Put the frozen pizza on the grill rack with the ceramic baking tray and place it in the oven.
A:03	Frozen lasagne	0.4-0.450.6-0.65	Grill rack + ceramic baking tray	2	Put the frozen lasagne in a suitable glass Pyrex dish or on the grill rack with the ceramic baking tray. Let it stand for 2 to 3 minutes after warming up.
A:04	Whole chicken	1.1-1.151.2-1.25	Grill rack + ceramic baking tray	2	Mix olive oil or butter with pepper and salt. Rub this thoroughly into the chicken on the inside and the outside. Put the chicken with the breast downwards on the grill rack with the ceramic baking tray in the oven. Turn the chicken over when the oven gives a signal, and press START. Let the meal stand for 3 minutes after preparation.
A:05No.	Chicken piecesDish Weight	0.6-0.70.9-1.0(kg)	Grill rack + ceramic baking trayAccessories	4Level Instructions	Mix olive oil or butter with pepper and salt. Rub this thoroughly into the chicken pieces. Put the chicken pieces with the skin side down on the grill rack with ceramic baking tray in the oven. Turn the chicken pieces over when the oven gives a signal, and press START. Let the meal stand for 3 minutes after preparation.
A:06	Roast lamb	0.8-0.91.1-1.2	Grill + ceramic baking tray	3	Put the marinated lamb roast on the grill rack with ceramic baking tray in the oven. Turn the lamb roast over when the oven gives a signal, and press START.
A:07	Frozen oven fries	0.3-0.40.45-0.5	Baking tray 3		Distribute the frozen oven fries on a metal baking tray.
A:08	Baked potato halves	0.4-0.50.6-0.7	Grill + ceramic baking tray	4	Cut potatoes lengthwise and sprinkle salt on the flat side. Put them flat side up on the grill rack with ceramic baking tray. Let the meal stand for 3 minutes after preparation.
A:09	Apple pie 1.2-1.4 Baking tray 2				Prepare the apple pie in a spring form and put it on the baking tray. The weight includes apples, etc.
A:10	Cake 0.7-0.8 Baking tray 3				Put the cake form (25 cm) with cake mix lengthwise (with respect to the door) on the baking tray in the oven.

Vegetable menu setting

The vegetable menu settings offer you 10 pre-programmed settings for handy preparation of your vegetables. The preparation time and power are set automatically. Select one of the 10 settings, enter the weight and start the preparation. Put the vegetables in the steamer basket on the ceramic baking tray on level 1 in the oven.

Selecting the vegetables menu setting function

Circular icon with arrow and checkmark, no text or symbols present

1 Turn the SETTING SELECTOR KNOB to the VEGETABLES MENU setting.

Circular device with directional arrows indicating rotation or refresh (no text or symbols)

2 Turn the FUNCTION SELECTOR KNOB to set the vegetable setting you want.

Digital display showing 3:08:30 with a rotary knob and circular buttons (no text or symbols)

3 If you want to change the weight, press SELECT and turn the FUNCTION SELECTOR KNOB to the weight you want.

4 Press START to start the preparation.

If you do not select a weight, a weight is set automatically after 5 seconds.

Vegetable menu setting table

Take this table as a guideline for the preparation. Preheating is not necessary.

No.	Dish Portion	(kg)	Accessories	Level Instructions
U:01	Broccoli florets	0.2-0.30.3-0.4	Ceramic baking tray + Steamer basket	1 Rinse the broccoli, clean it and put it in the steamer basket. Add 2 tablespoons (for 0.2-0.3 kg) or 3 to 4 tablespoons (for 0.3-0.4 kg) of water. Put the steamer basket with lid in the middle of the ceramic baking tray. Stir well after preparation.
U:02	Cauliflower florets	0.2-0.30.3-0.4	Ceramic baking tray + Steamer basket	1 Rinse the cauliflower, clean it and put it in the steamer basket. Add 2 tablespoons (for 0.2-0.3 kg) or 3 to 4 tablespoons (for 0.3-0.4 kg) of water. Put the steamer basket with lid in the middle of the ceramic baking tray. Stir well after preparation.
U:03	Sliced carrots 0.2-	0.30.4-0.5	Ceramic baking tray + Steamer basket	1 Rinse the carrots, clean them and put them in the steamer basket. Add 2 tablespoons (for 0.2-0.3 kg) or 3 to 4 tablespoons (for 0.4-0.5 kg) of water. Put the steamer basket with lid in the middle of the ceramic baking tray. Stir well after preparation.
U:04	Potatoes in skin	0.3-0.40.7-0.8	Ceramic baking tray + Steamer basket	1 Rinse the potatoes and clean them. Rub the potatoes with olive oil and prick the skin with a fork. Put them in the steamer basket on the ceramic baking tray, and let the dish stand another 3-5 minutes after preparation.
U:05	Peeled potatoes	0.4-0.50.7-0.8	Ceramic baking tray + Steamer basket	1 Rinse the potatoes and clean them. Cut them in half and put them in the steamer basket with the lid. Add 1-2 tablespoons of water. Stir well after preparation. For large quantities, also stir thoroughly halfway through the preparation process. Let the dish stand another 3-5 minutes after preparation.
U:06	Courgette 0.2-0.3	0.3-0.4	Ceramic baking tray + Steamer basket	1 Cut the courgette into slices. Add 2 tablespoons of water or a knob of butter. Put them in the steamer basket with the lid. Cook them with the lid on in the steamer basket until they are al dente.
U:07	Sliced aubergine	0.1-0.20.3-0.4	Ceramic baking tray + Steamer basket	1 Cut the aubergine into thin slices and sprinkle 1 tablespoon of lemon juice over them. Put them in the steamer basket with the lid. Stir well after preparation.
U:08	Sliced onion 0.2-0.3	0.4-0.5	Ceramic baking tray + Steamer basket	1 Cut the onions into rings or half rings. Add only 1 tablespoon of cold water. Put them in the steamer basket with the lid. Stir well after preparation.
U:09	Mixed vegetables	0.2-0.30.4-0.5	Ceramic baking tray + Steamer basket	1 Rinse the mixed vegetables and clean them. Put the vegetables in the bowl with lid. Add 1 tablespoon (for 0.2-0.3 kg) or 3 to 4 tablespoons (for 0.4-0.5 kg) of water. Put the steamer basket with lid in the middle of the ceramic baking tray. Stir well after preparation.
U:10	White rice 0.2-0.3		Ceramic baking tray + Steamer basket	1 Use the steamer basket with lid (take note! the water volume of rice doubles during preparation). Cook the rice with the lid on the steamer basket. After preparation, drain off the excess water. Add salt, herbs and butter, stir the rice and let it stand for a moment.

Defrost setting

These programmes use only microwaves. Remove all packaging before defrosting. Put meat, poultry and fish on the ceramic baking tray.

Selecting the defrost setting

Circular dial indicator with arrow and droplet symbol, no readable text or labels

1 Turn the SETTING SELECTOR KNOB to the DEFROST setting.

2 Turn the FUNCTION SELECTOR KNOB to set the defrost setting you want.

Digital display showing time reading and control knob with circular dial and bidirectional arrows (no text or symbols)

3 If you want to change the weight, press SELECT and turn the FUNCTION SELECTOR KNOB to the weight you want.

4 Press START to start the preparation.

If you do not select a weight, a weight is set automatically after 5 seconds.

Guidelines for the automatic defrost setting

The following table shows you the different programmes for automatic defrosting, quantities, standing times and the corresponding recommendations.

No.	Dish Weight(kg)		Accessories	Level Standing time(min.)	Instructions
d:01	Meat 0.2 -	1.5	Ceramic baking tray	1 20 - 60	Wrap the edges with aluminium foil. Turn the meat over when the oven gives a signal.This programme is suitable for beef, lamb, pork, steaks, chops and mince.
d:02	Poultry 0.2	- 1.5	Ceramic baking tray	1 20 - 60	Wrap the ends of drumsticks and wings with aluminium foil.Turn the poultry over when the oven gives a signal.This programme is suitable for whole chickens and chicken pieces.
d:03	Fish 0.2 -	1.5	Ceramic baking tray	1 20 - 60	Wrap the tail of a whole fish in aluminium foil. Turn the fish over when the oven gives a signal. This programme is suitable for whole fish and fish fillets.
d:04	Bread/cake	0.1 - 0.8	Ceramic baking tray	1 10 - 30	Put the bread on a piece of kitchen paper and turn it over when the oven gives a signal. Put the cake on the ceramic baking tray and if possible, turn it over when the oven gives a signal.(The oven stops working when you open the door.) This programme is suitable for all kinds of bread (sliced or whole loaves), yeast pastry, biscuit, cheesecake and puff pastry, but also for bread rolls and baguettes. Place bread rolls in a circle. It is not suitable for crumbly pastry, fruit/cream pie and cakes with a chocolate layer.
d:05	Fruit 0.1 -	0.6	Ceramic baking tray	1 5 - 15	Divide the frozen fruit evenly on the ceramic baking tray. This programme is suitable for fruit such as raspberries and mixed berries.

Important! The defrost setting uses microwaves to warm up dishes. When you use this setting, you must carefully follow the guidelines for cookware and other precautions for safe use of the microwave.

The steamer basket is based on the principle of cooking with steam and has been designed for fast, healthy cooking in your Pelgrim microwave.

This accessory is ideal for preparing rice, pasta, vegetables, etc. in record time, while preserving their nutritional values.

The steamer basket has three components:

bowl basket lid

All components are resistant to temperatures of -10 °C to 130 °C.

Suitable for storing in a freezer. Can be used separately or in combination.

Use

• Do not use:
  To prepare dishes with a high sugar or fat content.
  On a grill setting or on a hob.
• Before first use, wash the basket thoroughly in soapy water.
• Consult the steaming table for preparation times.

Maintenance

• The steamer basket can be cleaned in a dishwasher.
• When washing by hand, use warm water with detergent. Do not use abrasives.
• Some dishes (such as dishes with tomato) can discolour the plastic.

Defrosting

- Put frozen dishes in the steamer basket without using the lid. The moisture remains at the bottom of the bowl and does not affect the dish.

Steaming table

The following table has guidelines for preparing various dishes using the steamer basket. The quantities, power, preparation time and corresponding recommendations are given.

Dish Weight(g)		Power(W)	Cooking time(min.)	Accessories	Recommendation
Artichokes	300(1-2 pieces)	800 5-6	Steam basket		Rinse the artichokes and clean them. Put the basket in the bowl and put the artichokes in the basket. Add 1 tablespoon of lemon juice. Put the lid on. Let it stand for 1-2 minutes after preparation.
Fresh vegetables	300 800	4-5 Steam basket			Clean the vegetables, cut them into equal pieces. Weigh the vegetables (for example broccoli, cauliflower, carrots or capsicum). Put the basket in the bowl and put the vegetables in the basket. Add 2 tablespoons of water. Put the lid on. Stir well after preparation and let stand for 1-2 minutes.
Frozen vegetables	300 600	8-9 Steam basket			Put the basket in the bowl and put the vegetables in the basket. Add 1 tablespoon of water. Put the lid on. Let it stand for 1-2 minutes after preparation.
Rice 250 800	15-18 Bowl with lid				Put the rice in the bowl. Add 500 ml of cold water. Put the lid on. After preparation, let white rice stand for 5 minutes and unpolished rice stand for 10 minutes.
Potatoes in skin	500 800	7-8 Bowl with lid			Rinse the potatoes, weigh them and put them in the bowl. Add 3 tablespoons of water. Put the lid on. Let stand for 2-3 minutes after preparation.
Stew (cooled)	400 600	5.5-6.5 Bowl with lid			Put the stew in the bowl. Put the lid on. Stir well after preparation and let stand for 1-2 minutes.

Dish Weight(g)	Power(W)	Cooking time(min.)	Accessories	Recommendation
Soup(cooled)	400 800	3-4 Bowl with lid		Put the soup in the bowl.Put the lid on. Stir well after preparation and let stand for 1-2 minutes.
Soup(frozen)	400 800	8-10 Bowl with lid		Put the frozen soup in the bowl.Put the lid on. Stir well after preparation and let stand for 2-3 minutes.
Frozen yeast/Bun with jam filling	400 400	8-10 Bowl with lid		Moisten the top of the bun. Put 1-2 frozen buns next to each other in the bowl. Put the lid on. Let stand for 2-3 minutes after preparation.
Stewed fruit 250 800 3-4 Bowl with lid				After peeling, weigh the fresh fruit (for example apples, pears, apricots, mangos or pineapple). Clean the fruit, cut it into equal pieces or cubes. Put the fruit stew in the bowl.Add 1-2 tablespoons of water and 1-2 tablespoons of sugar. Put the lid on. Let stand for 2-3 minutes after preparation.

Three-step diagram showing a cooking or storage setup with arrows indicating flow direction (no text or symbols)

bowl with lid Steam basket

Please note!

• The lid can become very hot during use!
- Use oven mitts when handling the steamer basket after preparation of the dish.

With the Aqua Clean setting you can clean your oven quickly (15 minutes).

Illustration showing a circular vent with rotation arrow and a close-up of a kitchen appliance inside (no text or symbols)

1 Turn the SETTING SELECTOR KNOB to the Aqua Clean setting.

Pour approximately 100 ml water in the bottom of the empty oven.

2 Press START. The oven starts automatically.

▶ After 15 minutes the oven stops automatically. Wipe out the oven with a dry cloth.

Important

• Use this function only when the oven has cooled down fully to room temperature.
• Do NOT use distilled water.
• Do NOT use high-pressure cleaners or steam cleaners to clean the microwave oven.

Circular dial indicator with pointer and control buttons, no readable text or symbols

1 Turn the SETTING SELECTOR KNOB to the 'OFF' setting.

2 If you want to deactivate the beeping noise, press PREPARATION TIME and END TIME simultaneously and keep them pressed for 1 second.

3 If you want to activate the beeping noise again, press PREPARATION TIME and END TIME simultaneously and keep them pressed for 1 second again.

With the child-proof lock of the oven you can lock the control panel to prevent unintended use of the oven.

Locking the oven

1 Press +30 sec (quick start) and PREPARATION TIME simultaneously and keep them pressed for 1 second.

2 The display shows a lock symbol, which means that all functions are locked.

Unlocking the oven

1 Press +30 sec (quick start) and PREPARATION TIME simultaneously and keep them pressed for 1 second.

2 The lock symbol disappears from the display, which means that all functions are unlocked.

Clean the oven regularly to prevent fat and leftover food from accumulating, especially on the surfaces of the interior and the exterior, the door and the seal.

1. Clean the exterior surfaces with a soft cloth and warm water with soap. Wipe afterwards with a clean, damp cloth and dry the surfaces.
2. Remove splashes and stains on the interior surfaces with a cloth with soap. Wipe afterwards with a clean, damp cloth and dry the surfaces.
3. To remove stubborn leftover food and odours, put a mug with diluted lemon juice at the bottom of the empty oven. Heat the juice for ten minutes at maximum power.
4. Wipe the interior with a damp cloth.

Important

• Take care that NO water enters the vents.
- NEVER use abrasive cleaning materials or chemical solvents.
- ALWAYS ensure that the seal of the door is clean. This prevents accumulation of dirt and allows you to close the door properly.

STORING AND REPAIRING THE MICROWAVE OVEN

Repairs must be performed only by a qualified service technician. If maintenance is required, pull the plug from the socket and contact the Pelgrim customer service.

Have the following information at hand when you call:

• The model number and serial number (you can find them on the inside of the oven door or oven edge)
  • Guarantee information
  • A clear description of the problem

Choose a clean, dry place if you have to store the oven temporarily, since dust and moisture can damage the appliance.

Try the solutions below if you have problems with your oven. You might save yourself the time and effort of an unnecessary phone call to the customer service.

▶ The food is not cooked.

• Check whether the timer has been set and you have pressed START.
• Close the door properly.
• Check whether a fuse has blown and whether a circuit breaker has been activated.

▶ Food is overcooked or undercooked.

• Check whether the correct preparation time has been set.
• Check whether the correct power has been set.

▶ There is arcing in the oven.

• Make sure you use the correct cookware (without metal edges).
- Check whether forks or other metal utensils have been placed in the oven.
- Make sure when you use aluminium foil that it does not come too close to the walls.

The oven causes disturbances in radios or televisions.

- When it is operating, the oven can cause minor disturbance to televisions or radios. To limit this effect, do not install the oven in the vicinity of televisions, radios and antennas.

▶ If there are electronic interruptions, the display is reset.

- Pull the plug from the socket and put it back in again. Set the time again.

▶ There is condensation on the interior of the oven.

• This is normal. Wipe the oven clean after use.

▶ The fan keeps working after the oven is switched off.

- This is normal. The cooling fan can run for a maximum of three minutes after the oven has stopped.

▶ An air flow can be felt at the door and the exterior of the appliance.

- This is normal.

▶ Light reflects on the door and the exterior of the appliance.

- This is normal.

▶ Steam escapes from the door or the vents.

- This is normal.

▶ When the oven is working, and particularly in the defrost setting, click sounds can be heard.

- This is normal.

Error code General functions
	ERROR TEMPERATURE SENSOR OPENThis error occurs if there is a faulty sensor, incorrect connections, a faulty PCB and if the A/D value detected by MICOM is lower than 10.
	ERROR TEMPERATURE SENSOR SHORTThis error occurs if there is a faulty sensor, incorrect connections, a faulty PCB and if the A/D value detected by MICOM is higher than 252.
	TARGET TEMPERATURE TEMPERATURE SENSORThis error occurs if the preheating was not completed and the temperature in the oven is lower than 120 °C for 30 minutes.
	ERROR ABNORMAL TEMPERATURE DETECTIONThis error occurs if the temperature in the oven is higher than 250 °C for 10 minutes.
	ERROR ABNORMAL TEMPERATURE DETECTION MICROWAVEThis error occurs if the temperature in the oven in the microwave setting is higher than 210 °C.
	ERROR BUTTON SHORTThis error occurs if you press and hold a button for longer than 60 seconds.This error may occur if water gets into the control panel or if dust particles stick on theTOUCH PANEL.
	ERROR NAK SIGNALThe NAK signal is given if it takes longer than 10 seconds to switch on the appliance.
	COMMUNICATION ERRORThis error occurs if there is no communication between the main PCB and the sub PCB for longer than 10 seconds.
	ERROR EEPROM OPENThis error occurs if something goes wrong in the EEPROM communication when you are setting the power.
	ERROR EEPROM READ & WRITEEeprom is not used.

If one of these errors occurs, contact the Pelgrim customer service.

Model MAC696RVS/MAC696MAT
Power source 230 V ~ 50 Hz
Energy consumptionMaximum powerMicrowave settingGrill settingHot air setting	3000 W1650 W2500 W2500 W
Output power 100 W/800 W (IEC - 705)
Nominal frequency 2450 MHz
Microwave OM75P (21)
Cooling method Engine cooling fan
DimensionsAppliance dimensions:Built-in dimensions:	595 x 454 x 570 mm (w x h x d)555 x 445 x 548.8 mm (w x h x d)
Volume 50 l
WeightNetShipping	38.3 kg45.5 kg

The packaging of the appliance can be recycled and may be made from:

• cardboard
• paper
  • polyethylene wrap (PE)
  • CFC-free polystyrene (hard PS foam)
  • polypropylene tape (PP)

Dispose of these materials in a responsible manner in accordance with legal provisions.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

The product is marked with a crossed-out dustbin symbol to remind you to dispose of it separately. This prevents any potential negative impact on the environment and on health. This means that at the end of its working life, the product must be taken to a special centre for separated waste collection or to the supplier.

Separate processing ensures that the materials from which this appliance are made can be recovered, which means considerable savings in power and raw materials.

CE

Declaration of conformity

We declare that our products comply with the relevant European directives, standards and regulations as well as all requirements referred to in the standards.

When contacting the service department, have the complete type number to hand.

You will find the addresses and phone numbers of the service organisation on the guarantee card.
