MAC396RVS - Microwave Pelgrim - Free user manual and instructions

Product Type	Built-in Microwave
Brand	Pelgrim
Model	MAC396RVS
Built-in Dimensions (W x H x D)	555 x 445 x 548.8 mm
Weight	Approximately 25 kg
Power Source	230 V ~ 50 Hz
Microwave Power	900 W
Power Consumption	1500 W
Functions	Microwave cooking, defrost, timer
Controls	Touch control panel
Interior Capacity	25 L
Safety Features	Child lock, overheat protection
Installation Type	Built-in
Cabinet Heat Resistance	Up to 100 °C
Color	Stainless Steel (RVS)
Compliance	EU regulations
Packaging Materials	Cardboard, polyethylene film, CFC-free polystyrene
Included Accessories	Two mounting screws (4 x 25 mm)
Disposal	Recyclable packaging; dispose appliance per local regulations

Frequently Asked Questions - MAC396RVS Pelgrim

How do I install the Pelgrim MAC396RVS microwave?

Installation must be done by a qualified technician. Slide the oven partially into the recess, lead the connection cable to the power source, then slide fully in. Fasten with the two provided screws (4x25 mm) and make the electrical connection. Ensure kitchen cabinets are heat-resistant up to 100°C.

What are the built-in dimensions of the microwave?

The built-in dimensions are: width 555 mm, height 445 mm, depth 548.8 mm.

Is the microwave safe for use around children?

The appliance becomes hot during and after use. Exercise caution when young children are present. It is not designed for commercial use and should only be used for home cooking.

How should I clean the microwave?

The manual does not provide specific cleaning instructions, but generally, wipe the interior with a damp cloth and mild detergent. Avoid abrasive cleaners. Keep the exterior clean with a soft cloth.

What type of cookware can I use in the microwave?

Use microwave-safe containers such as glass, ceramic, or plastic labeled for microwave use. Do not use metal containers or aluminum foil.

How do I set the timer on the microwave?

The microwave has a timer function. Refer to the user manual for specific instructions, as controls are touch panel based. Typically, press the timer button and adjust using the + and - controls.

Does the microwave have a grill function?

The manual mentions only microwave cooking, defrost, and timer functions. It does not specify a grill function.

What is the power consumption of the microwave?

The microwave has a power consumption of 1500 W and a microwave power output of 900 W.

How should I dispose of the packaging and old appliance?

The packaging is recyclable and consists of cardboard, polyethylene film, and CFC-free polystyrene. Dispose responsibly according to local regulations. For the appliance, contact local authorities for proper disposal.

Where can I download the user manual?

You can download the user manual for free from notice-facile.com or other online platforms. The manual is available in PDF format.

USER MANUAL MAC396RVS Pelgrim

Line drawing of an oven with internal structure and mounting base (no text or symbols)

Simple line drawing of a mechanical assembly with no text or symbols

Line drawing of a simple refrigerator cabinet with front panel and side shelves (no text or symbols)

Built in size: W 555 x H 445 x D 548.8

This appliance complies with EU regulations.

Disposal of Packaging and Appliance

Packaging is recyclable

Packaging may consist of the following materials:

- cardboard;

- polyethylene film (PE);

- CFC-free polystyrene(PS rigid foam).

Please dispose of these materials in a responsible manner in accordance with government regulations.

The authorities can provide information on how to dispose of domestic appliances in a responsible manner.

Safety

This appliance should only be connected by a qualified technician. The Oven is NOT designed for use in a commercial cooking setting. It should be used exclusively for cooking food in a home setting.

The appliance is hot during and after use.

Exercise caution when young children are present.

Electrical Connection

The house mains to which the appliance is connected should comply with national and local regulations. Appliance should allow to disconnection of the appliance from the supply after installation.

The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.

Installation instructions

Building-in dimensions

Install in the Cabinet

Kitchen Cabinets in contact with the oven must be heat-resistant up to 100 °C. Pelgrim will take no responsibility for damage of cabinets from the heat.

Line drawing of an oven with internal compartments and control panel (no text or symbols)

Pure technical diagram showing a 3D object inside a vertical frame with no text or symbols

Line drawing of a single refrigerator with open door and side drawer (no text or symbols)

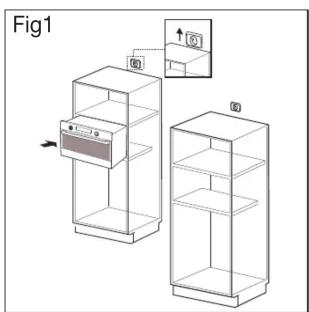

Fig1. Slide the oven partly into the recess. Lead the connection cable to the power source.
Fig2. Slide the oven completely into the recess.
Fig3. Fasten the oven using the two screws (4 X 25 mm) provided.
Fig4. Make the electrical connection. Check that the appliance works.

Built-under Dimensions
