Product Type	Canister Vacuum Cleaner
Brand	Profilo
Model	PSU7A330
Dimensions (L x W x H)	400 mm x 250 mm x 300 mm
Weight	5.5 kg
Power Consumption	2000 W
Dust Capacity	2.5 L
Filter Type	HEPA washable
Cord Length	6 m
Noise Level	78 dB(A)
Suction Power	350 air watts
Vacuum Cleaner Type	Bagless
Accessories Included	Crevice tool, brush, upholstery nozzle
Maintenance	Empty dust container after each use; clean filter monthly
Safety Features	Thermal overload protection; automatic shut-off
Repairability	Spare parts available online; user-replaceable filters and belt
Energy Rating	Class A

Frequently Asked Questions - PSU7A330 Profilo

How do I empty the dust container?

Press the release button on the top of the container and pull it out. Hold it over a trash bin and press the bottom latch to empty. Wash the container with water and let it dry completely before reinserting.

How often should I clean the filter?

The HEPA filter should be cleaned every month. Remove it from the unit, tap off loose dust, and rinse under running water. Allow it to dry for 24 hours before reinstalling.

What should I do if the vacuum loses suction?

First, check if the dust container is full and empty it. Then inspect the filter for clogs and clean or replace it. Also check the hose and brush for blockages.

Can I use the vacuum on hardwood floors?

Yes, the vacuum comes with a brush setting that can be switched off for hard floors. Use the appropriate floor nozzle and set the suction to low to avoid scratching.

How do I change the belt?

Unplug the vacuum. Remove the brush roll cover, take out the old belt, and loop the new belt around the motor shaft and brush roller. Reassemble the cover.

What does the thermal protection do?

If the vacuum overheats (e.g., from blocked airflow), it will automatically shut off. Unplug the unit, let it cool for at least 30 minutes, and resolve the blockage before restarting.

Is the hose long enough for stairs?

The hose is approximately 1.5 meters long. For stairs, you can attach the extension wand and use the crevice tool for corners.

Can I wash all filters?

The main HEPA filter is washable. The pre-motor foam filter can also be washed. Do not wash the exhaust filter (if present) — replace it every 6 months.

Where can I find replacement parts?

Replacement parts such as filters, belts, and nozzles are available on the Profilo website or through authorized retailers. Use the model number PSU7A330 to ensure compatibility.

How do I store the vacuum?

Wrap the cord around the cord hooks on the back. Store the unit upright in a dry place. The hose can be detached and stored separately to save space.

USER MANUAL PSU7A330 Profilo

8001061508 973021

PROFiLO

Kularma (kavuz)

Instructions for use

Illustration of a vacuum cleaner with a curved handle and circular head (no text or symbols)

PSUYA330

Simple line drawing of an open book with a right-handled arrow indicating rotation (no text or symbols)

Cihaz açıklaması

Bandrol ve Seri No. :

Please keep this instruction manual. When passing the vacuum cleaner on to a third party, please also pass on this instruction manual.

Intended use

This appliance is intended for domestic use only. This appliance is intended for use up to a maximum height of 2000 metres above sea level. Only use this vacuum cleaner in accordance with the instructions in this instruction manual.

In order to prevent injuries and damage, the vacuum cleaner must not be used for:

■ Vacuum-cleaning persons or animals
■ Vacuuming up:

• hazardous, sharp-edged, hot or glowing substances.
• damp or liquid substances.
• highly flammable or explosive substances and gases.
• ash, soot from tiled stoves and central heating systems.
• toner dust from printers and copiers.

Spare parts, accessories, dust bags

Our original spare parts, original (special) accessories and original dust bags are designed to work with the features and requirements of our vacuum cleaners. We therefore recommend that you only use our original spare parts, original (special) accessories and original dust bags. This will ensure that your vacuum cleaner has a long service life and that the quality of its cleaning performance will remain consistently high throughout.

Please note:

- Using unsuitable or inferior-quality spare parts, (special) accessories and dust bags can damage your vacuum cleaner. Damage caused by the use of such products is not covered by our guarantee.

Safety information

This vacuum cleaner complies with the recognised rules of technology and the relevant safety regulations.

■ The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are super-

vised or have been instructed on the safe use of the appliance and the have understood the potential dangers of using the appliance.

■ Children must never play with the appliance.
■ Cleaning and user maintenance must never be carried out by children without supervision.
■ Plastic bags and films must be kept out of the reach of children before disposal.

= Risk of suffocation.

Proper use

■ Only connect and use the vacuum cleaner in accordance with the specifications on the rating plate.
■ Never vacuum without the dust bag or dust container, motor protection or exhaust filter.

= This may damage the vacuum cleaner.

■ Always keep the vacuum cleaner away from your head when using nozzles and tubes.

= This could cause injury!
■ When vacuuming stairs, the appliance must always be positioned below the user.
■ Do not use the power cord or the hose to carry or transport the vacuum cleaner.
■ For safety reasons, if this appliance's mains power cable becomes damaged, it must be replaced by the manufacturer, their after-sales service department or a similarly qualified person.
■ If using the appliance for longer than 30 minutes, pull out the power cord completely.
■ When disconnecting the appliance from the mains, pull on the plug itself to remove it; do not pull on the power cord.
- Do not pull the power cord over sharp edges or allow it to become trapped.
■ When the cable is being automatically rewound, ensure that the mains plug is not thrown towards persons, body parts, animals or objects.

= Use the mains plug to guide the power cord.

■ Pull out the mains plug before carrying out any work on the vacuum cleaner.
■ Do not operate the vacuum cleaner if it is damaged. Unplug the appliance from the mains if a fault is detected.
■ For safety reasons, only authorised after-sales service personnel are permitted to carry out repairs and fit replacement parts to the vacuum cleaner.
■ Protect the vacuum cleaner from the weather, moisture and sources of heat.

■ Do not pour flammable substances or substances containing alcohol onto the filters (dust bag, motor protection filter, exhaust filter, etc.).
■ The vacuum cleaner is not suitable for use on construction sites.

= Vacuuming up building rubble could damage the appliance.

■ When not in use, switch off the appliance and pull out the mains plug.
At the end of its life, the appliance should immediately be rendered unusable, then disposed of in an appropriate manner.

Please note

- The mains socket must be protected by at least a 16 amp circuit breaker.

If a circuit breaker is tripped when you switch on the vacuum cleaner, this may be because other electrical appliances which have a high current draw are connected to the same power circuit.

To prevent the circuit breaker from tripping, select the lowest power setting before switching the appliance on, and increase the power only once it is running.

Disposal information

Packaging

The packaging is designed to protect the vacuum cleaner from being damaged during transportation. It is made of environmentally friendly materials and can therefore be recycled. Dispose of packaging that is no longer required at an appropriate recycling point.

■ Old appliance

Old appliances still contain many valuable materials. Therefore, please take appliances that have reached the end of their service life to your retailer or recycling centre so that they can be recycled. For current disposal methods, please enquire at a retailer or your local council.

■ Disposal of filters and dust bags

Filters and dust bags are manufactured from environmentally friendly materials. Provided they do not contain substances that are not permitted in household waste, you can dispose of them with your normal household waste.

Notes on the energy label

This vacuum cleaner is a general purpose vacuum cleaner with a primary hose.

To achieve the declared energy efficiency and cleaning performance class on carpet, please use the interchangeable universal nozzle.

To achieve the declared energy efficiency and cleaning performance class on hard floor with nooks and crannies, please use the hard floor nozzle provided.

These calculations are based on the Commission Delegated Regulation (EU) No. 665/2013 of 3rd May 2013 supplementing Directive 2010/30/EU.

Unless otherwise stated, all the procedures referred to in these instructions were carried out in accordance with the EN 60312-1:2017* standard.

*As the motor service test is carried out with the dust collector empty, the stated motor service life must be increased by 10% for tests with the dust collector half filled.

en

Congratulations on your purchase of a Profilo PSU7 vacuum cleaner.

This instruction manual describes various PSU7 models, which means that some of the equipment features and functions described may not be available on your model.

You should only use original Profilo accessories, which have been specially developed for your vacuum cleaner to achieve the best possible vacuuming results.

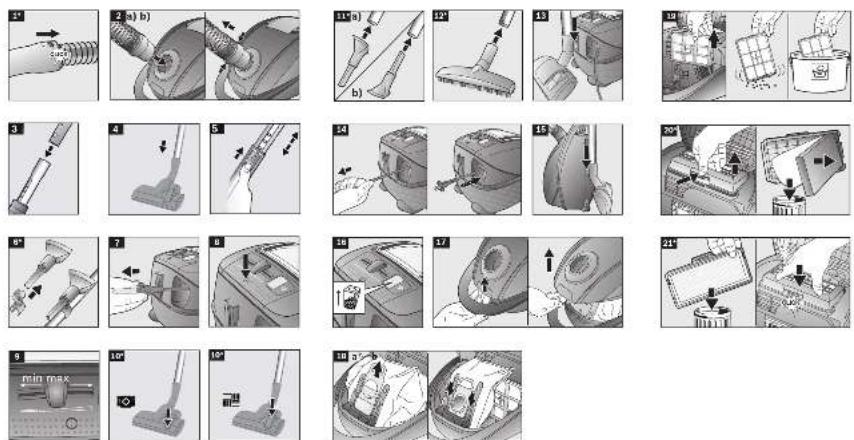

Fold out the picture pages.

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

Your vacuum cleaner

1 Adjustable floor tool
2 Hard-floor brush
3 Telescopic tube with adjusting sleeve and locking collar
4 Handle
5 Flexible hose
6 Accessories holder for multi-purpose nozzle*
7 Multi-purpose nozzle*
8 Cover
9 Exhaust filter*
10 Electronic slide control
11 Dust bag change indicator
12 ON/OFF button
13 Parking aid
14 Power cord
15 Storage aid (on underside of unit)
16 Motor protection filter*
17 Dust bag

Replacement parts and special accessories

A Replacement filter package VZ51PT1AFG

("For high suction power"/ "for top performance and excellent cleaning quality")

Content:

• 5 dust bags with fasteners
• 1 micro-hygiene filter

We therefore recommend that you only use our original dust bags.

Your appliance is a highly efficient vacuum cleaner that achieves excellent cleaning results when used with high-quality dust bags. Only by using high-quality dust bags (such as Profilo original dust bags) can you ensure that your vacuum cleaner is working at the energy efficiency class, dust pick-up rate and dust retention capacity listed on its EU energy label.

The use of inferior-quality dust bags (e.g. paper bags) can have a negative effect on the service life and performance of your appliance. Using unsuitable or inferior-quality dust bags can also damage your vacuum cleaner. Such damage is not covered by our guarantee.

You can find more information about this at www.profilo.com/tr. You can order our original vacuum cleaner bags here.

Before using for the first time

Figure 1\*

■ Push the handle onto the flexible hose until it engages.

Setting up

Figure 2

a) Push the flexible hose adapter into the opening on the vacuum cleaner until it engages.
b To remove the flexible hose, press the release button and pull the hose out.

Figure 3

■ Connect the handle and the telescopic tube together.

Figure 4\*

■ Connect the floor tool and the telescopic tube together.

Figure 5

■ To adjust the length of the telescopic tube, adjust the sliding switch in the direction of the arrow and adjust the tube to the required length.

Figure 6\*

■ Attach the accessories holder to the multi-purpose nozzle and clip it onto the suction pipe/telescopic tube.

Figure 7

■ Take the mains plug, pull the mains cable to the required length and insert the plug into a socket.

Figure 8

- Press the ON/OFF button in the direction of the arrow to switch your vacuum cleaner on.

Vacuuming

Figure 9

The required suction power can be selected infinitely variably by adjusting the slide control.

■Lowest

suction range:

For vacuuming delicate fabrics, e.g. curtains.

Low

suction range:

For daily vacuuming of lightly soiled floors.

■Medium

suction range:

For vacuuming durable floor coverings, hard floors and for heavily soiled surfaces.

■High

suction range:

For vacuuming stubborn dirt and very heavily soiled surfaces.

Figure 10

Adjusting the floor tool:

a) For vacuuming rugs and carpets =>

b For vacuuming hard floors =>

Caution!

Floor tools are subject to a certain amount of wear, depending on the type of hard floors you have (e.g. rough, rustic tiles). Therefore, you must check the underside of the floor tool at regular intervals. Worn undersides of floor tools may have sharp edges that can damage sensitive hard floors, such as parquet or linoleum. The manufacturer does not accept any responsibility for damage caused by worn floor tools.

Figure 11\* cuuming with accessories

Attach the nozzles to the tube or handle as required:

a) Crevice nozzle for vacuuming crevices and corners, etc.

b) Upholstery nozzle for vacuuming upholstered furniture, curtains, etc.

Figure 12\*

Hard-floor brush

■For cleaning hard floor coverings (tiles, parquet flooring, etc.)

■Connect the floor tool and the telescopic tube together.

Figure 13

- Once you have switched off the vacuum cleaner, you can use the parking aid on the back of the vacuum cleaner if you wish to stop vacuuming for a short time. To do this, slide the catch on the floor tool into the groove on the back of the vacuum cleaner.

When the work is done

Figure 14

■Unplug the vacuum cleaner.

■Briefly pull the power cord and release. The cord rewinds automatically.

Figure 15

- To store or transport the vacuum cleaner, use the storage aid on the underside of the vacuum cleaner. Stand the vacuum cleaner up on its end. Slide the catch on the floor tool into the groove on the underside of the vacuum cleaner.

Changing the dust bag and filters

Replacing the dust bag

Figure 16

If the dust bag change indicator lights up brightly and evenly when the floor tool is lifted from the carpet and the highest suction power is selected, the dust bag must be changed, even though it may not yet be full. In this case it is essential to change the dust bag due to the type of material it contains. First check that the nozzle, suction pipe and flexible hose are not blocked, as this would also lead to the dust bag change indicator being triggered.

Figure 17

- Open the lid by moving the locking lever in the direction of the arrow.

Figure

18

a) Seal the dust bag by pulling the sealing strip and then remove it.
b) Insert a new dust bag into the holder and close the dust bag compartment lid.

Caution: the lid will only close when the dust bag is inserted.

Cleaning the motor protection filter

The motor protection filter should be cleaned regularly by knocking out the dirt and rinsing.

Figure

19\*

■ Open the dust bag compartment lid (see Figure 17).
■ Pull out the motor protection filter in the direction of the arrow.
■ Clean the motor protection filter by tapping it.
■ If it is very dirty, the motor protection filter should be rinsed.
The filter must then be left to dry for at least 24 hours.
■ After cleaning, slide the motor protection filter into the vacuum cleaner and close the dust bag compartment lid.

Replacing the exhaust filter

You must replace the exhaust filter in your vacuum cleaner once a year.

Replacing the micro-hygiene filter

Figure

20\*

■ Open the dust bag compartment lid (see Figure 17)
■ Release the filter holder by pressing the locking tab in the direction of the arrow
■ Remove the foam filter and micro-hygiene filter. Insert the new micro-hygiene filter and foam filter into the filter holder.
- Insert the filter holder into the vacuum cleaner and clip into place.

Replacing the HEPA filter

You can order a new filter from our after-sales service using the following replacement part number: 574 020

Figure

21\*

■Open the dust bag compartment lid (see Figure 17)
■Release the HEPA filter by pressing the locking tab in the direction of the arrow and remove it from the vacuum cleaner (see Figure 20)
■Insert the new HEPA filter and clip into place.

If you have used the vacuum cleaner for fine dust particles (such as plaster or cement), clean the motor protection filter by tapping it and, if necessary, replace the motor protection filter and the exhaust filter.

Care

Always switch off the vacuum cleaner and disconnect the power cord from the mains before cleaning the vacuum cleaner. The vacuum cleaner and plastic accessories can be cleaned with a commercial plastic cleaner.

Do not use a scourer, glass-cleaning agent or all-purpose cleaning product.
Never immerse the vacuum cleaner in water.

The dust compartment can, if necessary, be cleaned with a second vacuum cleaner or simply wiped with a dry cloth or dusting brush.

Subject to technical modifications.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.
