D-165 - Pregnant ONKYO - Free user manual and instructions

Product Type	Bookshelf Speaker
Brand	Onkyo
Model	D-165
Driver Configuration	2-way, 1x 1-inch soft dome tweeter, 1x 6.5-inch cone woofer
Frequency Response	45 Hz - 40 kHz
Impedance	6 ohms
Sensitivity	87 dB (2.83 V/1 m)
Recommended Amplifier Power	30 - 120 W per channel
Dimensions (H x W x D)	300 x 180 x 220 mm (each)
Weight	4.5 kg each
Cabinet Type	Bass-reflex with front-firing port
Grille	Removable cloth grille
Terminals	Gold-plated binding posts (bi-wire capable)
Magnetic Shielding	Yes (suitable for use near CRT TVs)
Warranty	2 years
Accessories Included	Speaker grille, user manual (online)

Frequently Asked Questions - D-165 ONKYO

What is the recommended amplifier power for the Onkyo D-165 speakers?

The Onkyo D-165 speakers are designed to work best with amplifiers rated between 30 and 120 watts per channel at 6 ohms.

How should I connect the Onkyo D-165 speakers to my amplifier?

Use high-quality speaker wire with banana plugs or bare wire. Ensure proper polarity: red to red (+), black to black (-). The terminals accept up to 10 AWG wire.

Can I bi-wire the Onkyo D-165 speakers?

Yes, the speakers feature two sets of binding posts that allow bi-wiring or bi-amping. Remove the metal jumpers to separate the tweeter and woofer circuits.

What is the best placement for the Onkyo D-165 bookshelf speakers?

Place speakers at ear level, at least 20 cm from walls to avoid bass boom. Angle them slightly toward the listening position for optimal stereo imaging.

How do I clean the Onkyo D-165 speakers?

Use a soft, dry cloth to wipe the cabinet. For the grille, gently vacuum with a brush attachment. Do not use water or cleaning solvents.

Is there a break-in period for the Onkyo D-165 speakers?

Speaker performance improves after 20-50 hours of use. Play a variety of music at moderate volume to allow the drivers to loosen up.

Can I mount the Onkyo D-165 speakers on a wall?

Yes, they have a keyhole mount on the back. Use appropriate screws and wall anchors. Ensure the mount can support the 4.5 kg weight.

What should I do if there is no sound?

Check connections: ensure speaker wire is firmly inserted and polarity is correct. Verify amplifier is on and not muted. Test with another source.

Are the Onkyo D-165 speakers magnetically shielded?

Yes, they are magnetically shielded, making them safe to place near older CRT televisions or monitors without causing interference.

Does the Onkyo D-165 come with a warranty?

Yes, Onkyo provides a 2-year limited warranty covering defects in materials and workmanship. Keep your purchase receipt.

USER MANUAL D-165 ONKYO

Thank you for purchasing an Onkyo Speaker System. Please read this manual thoroughly before using it. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new Speaker System. Please retain this manual for future reference.

Safety Information

WARNING

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

Store small parts out of the reach of children and infants. If accidentally swallowed, contact a doctor immediately.

Precautions

Important Notice

The model number and serial number of this equipment are on the rear or bottom. Record these numbers on your enclosed warranty card and keep in a safe place for future reference.

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period.

The Safety of Your Ears is in Your Hands

Get the most out of your equipment by playing it at a safe level – a level that lets the sound come through clearly without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. Sound can be deceiving. Over time, your hearing “comfort level” adapts to higher volumes of sound, so what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

Be Sure To Observe The Following Guidelines:

• Do not turn up the volume so high that you can't hear what's around you.
• Use caution or temporarily discontinue use in potentially hazardous situations.
• Do not use headphones while operating a motorized vehicle; the use of headphones may create a traffic hazard and is illegal in many areas.

Establish a Safe Level:

• Set your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, without distortion.
• Once you have established a comfortable sound level, set the dial and leave it there.

For European models

Information for users on collection and disposal of old equipment and used batteries

(Symbol for equipment)

(Symbol examples) for batteries

Pb

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

These symbols are only valid in the European Union. For countries outside the European Union:

If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

WEEE

http://www.onkyo.com/manual/weee/weee.pdf

Speaker Precautions

Placement

• The speaker cabinets are sensitive to extreme temperatures and humidity, do not put them in locations subject to direct sunlight or in humid places, such as near an air conditioner, humidifier, bathroom, or kitchen.
• Do not put water or other liquids close to the speakers. If liquid is spilled over the speakers, the drive units may be damaged.
• Speakers should only be placed on sturdy, flat surfaces that are free from vibration. Putting them on uneven or unstable surfaces, where they may fall and cause damage, will affect the sound quality.
• If the unit is used near a turntable, CD player or DVD player, howling or slipping of sound may occur. To prevent this, move the unit away from the turntable, CD player or DVD player otherwise lower the unit's output level.

Using Close to a TV or Computer

TVs and computer monitors are magnetically sensitive devices and as such are likely to suffer discoloration or picture distortion when conventional speakers are placed nearby. To prevent this, some speakers feature internal magnetic shielding.

Note that discoloration can also be caused by a magnet or demagnetizing tool that's too close to your TV or monitor. Check the speaker specification to see if your speakers are magnetic shielded or not.

For non-magnetic shielded speakers:

Try moving the speakers away from your TV or monitor. If discoloration should occur, turn off your TV or monitor, wait 15 to 30 minutes, and then turn it back on again. This normally activates the degaussing function, which neutralizes the magnetic field, thereby removing any discoloration effects.

Input Signal Warning

The speakers can handle the specified input power when used for normal music reproduction. If any of the following signals are fed to them, even if the input power is within the specified rating, excessive current may flow in the speaker coils, causing burning or wire breakage:

1. Interstation noise from an untuned FM radio.
2. Sound from fast-forwarding a cassette tape.
3. High-pitched sounds generated by an oscillator, electronic musical instrument, and so on.
4. Amplifier oscillation.
5. Special test tones from audio test CDs and so on.

6. Thumps and clicks caused by connecting or disconnecting audio cables. (Always turn off your amplifier before connecting or disconnecting cables.)

7. Microphone feedback.

Before Using Your New Speakers

Precautions

In catalogs and on packaging, the letter at the end of the product name indicates the color. Specifications and operation are the same regardless of the color.

The speakers contain powerful magnets. Do not put metal items, such as screwdrivers, close to the speakers, as they damage to the tweeter diaphragm.

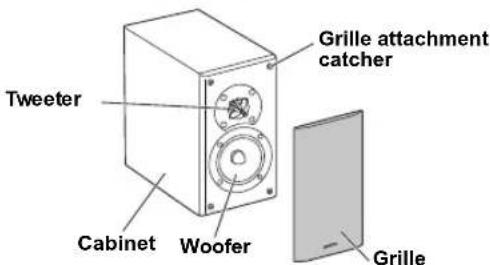

Getting to Know the Speakers

The two speakers are identical, so it doesn't matter which one you use on the left or right.

Removing the Grills

Using the Cork Spacers

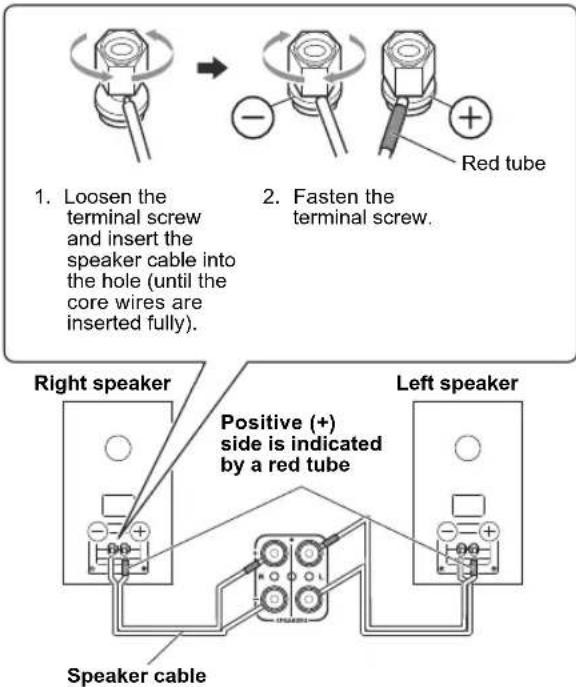

Connection the Speakers

• Before connecting the speakers, disconnect your amplifiers power cord from the wall outlet and set its volume control to minimum.
• The speaker's rated impedance is 4 Ω. Make sure you connect an amplifier that is compatible with a 4 Ω impedance.
• Use the supplied speaker cables to connect the speakers to your amplifier as shown.
• We will not accept responsibility for damage arising from the connection of equipment manufactured by other companies.

The type of speaker terminals used on the amplifier and their position depends on the model. Refer to the amplifier's instruction manual for details on connecting speakers to the amplifier.

• Make sure the speaker's positive (+) terminals are connected to the amplifier's positive (+) terminals, and the speaker's negative (−) terminals are connected to the amplifier's negative (−) terminals.
• Make sure that the positive (+) and negative (−) wires are not touching each other. If they are, a short circuit may occur, damaging your amplifier.

Specification

Type: 2-way bass reflex

Impedance: 4 Ω

Maximum input power: 120 W

Output sound pressure level: 84 dB/W/m

Frequency response: 50 Hz to 50 kHz

Crossover frequency: 2.5 kHz

Dimensions (W × H × D): 170 × 283 × 256 mm

6-11/16" × 11-1/8" × 10-1/16"

(incl. grille and projection)

Weight: 4.3 kg (9.5 lbs.)

Speakers Woofer: 13 cm (5-1/8") N-OMF cone type Tweeter: 3 cm (1-3/16") Ring type

Terminal: Screw-type speaker terminal (Banana plug supported) Grille: Detachable

Accessories: 1.1 m (3.6 ft.) speaker cable × 2

Other: Non magnetic shielding

* Specifications and appearance are subject to change without notice.
