Product Type	Strength Station (Home Gym)
Brand	Tunturi
Model	4 in 1 Strength Station
Dimensions (L x W x H)	150 x 100 x 200 cm
Weight	50 kg
Max User Weight	120 kg
Power Source	Manual (No Electricity Required)
Main Functions	Leg Press, Chest Press, Lat Pulldown, Seated Row
Weight Stack	50 kg (Included)
Cable System	Dual Pulley System with Steel Cables
Frame Material	Heavy-Duty Steel with Electrostatic Coating
Seat Adjustment	Multi-Position Adjustable Seat
Foot Plates	Non-Slip Textured Foot Plates
Maintenance	Wipe with Damp Cloth, Lubricate Moving Parts Monthly
Safety Features	Stabilizer Bars, Safety Locking Pin, Non-Slip Pedals
Spare Parts Availability	Contact Tunturi Customer Service or Authorized Retailers
Warranty	2 Years Frame Warranty, 1 Year Parts Warranty
Intended Use	Home Use Only
Assembly Required	Yes, Instructions Included

Frequently Asked Questions - 4 in 1 Strength Station TUNTURI

How do I assemble the Tunturi 4 in 1 Strength Station?

Assembly is straightforward with the included manual. You will need basic tools like a wrench and screwdriver. Follow the step-by-step instructions, ensuring all bolts are tightened securely. It is recommended to have two people for assembly.

What exercises can I perform with this strength station?

The 4 in 1 Strength Station allows you to perform leg press, chest press, lat pulldown, and seated row. Additional exercises like bicep curls and tricep pushdowns are also possible using the cable attachment.

How do I adjust the seat for different exercises?

The seat can be adjusted by pulling the adjustment knob and sliding it to the desired position. Ensure the knob locks securely into place before starting your exercise.

What is the maximum weight capacity of the weight stack?

The included weight stack has a maximum capacity of 50 kg. Additional weights are not recommended as they may exceed the designed limit.

How do I maintain the strength station?

Regularly wipe down the frame and upholstery with a damp cloth. Lubricate the guide rods and pulleys with a silicone-based lubricant every month to ensure smooth operation. Check all bolts and nuts for tightness periodically.

Is the strength station safe for home use?

Yes, the unit includes safety features such as stabilizer bars to prevent tipping, a safety locking pin to secure the weight stack, and non-slip foot plates. Always use the equipment on a level surface and keep children away during use.

Can I replace the cables if they wear out?

Yes, replacement cables are available from Tunturi or authorized dealers. Contact customer service with your model number (4 in 1 Strength Station) to order the correct cable set.

What is the weight of the machine itself?

The machine weighs approximately 50 kg without the weight stack. The total weight including the stack is around 100 kg.

How much floor space does it require?

The dimensions are approximately 150 cm (L) x 100 cm (W) x 200 cm (H). Ensure you have at least 50 cm of clearance on each side for safe operation.

What should I do if I lose the assembly manual?

You can download a PDF version of the manual for free from the notice-facile.com website or contact Tunturi customer support to request a digital copy.

USER MANUAL 4 in 1 Strength Station TUNTURI

Revision 0 September 2010 Platinum® by TUNTURI

4 in 1 Strength Station

Owner's Manual

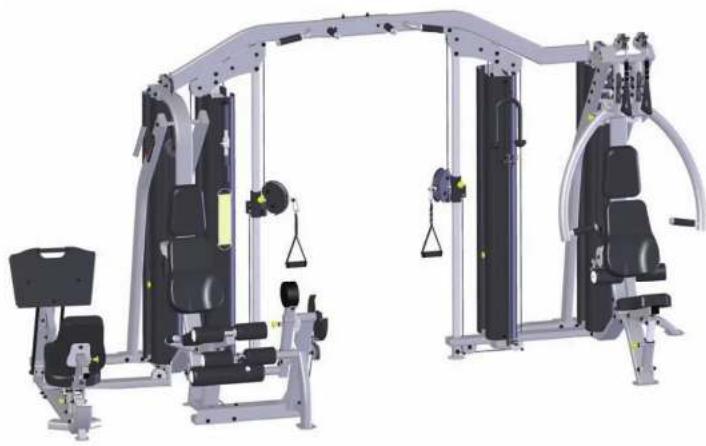

3D rendering of a modern gym with integrated arm and exercise equipment (no text or symbols visible)

Record Serial Number Here

Platinum by Tunturi

www.tunturi.com

Instructions

Congratulations on the purchase of your new 4 in 1 Strength Station. This gym will provide you with a lifetime of enjoyment to meet your strength training needs. Platinum by Tunturi strives to build the best quality multi-station gyms and to package these gyms in such a way to avoid any damage during shipping.

In order to get started with your assembly you should first familiarize yourself with this manual. It is recommended that you read through each stop thoroughly before you begin. Begin by opening your boxes and separating all of your parts. Verify that all parts are accounted for and have no damage. When all parts are accounted for, you may begin your assembly. Some items may have been pre-assembled for your convenience. Please note that hardware quantities shown reflect total quantities for your gym and may not reflect actual quantities in each bag. Assemble your gym on a solid level surface. This will ensure the best possible performance, function, and safety for the gym and your workout.

Assemble your gym according to the step by step instructions found in this manual. Failure to do so will void your warranty and may result in personal injury. After assembly, you should check each station to ensure correct operation. If a problem arises, recheck your assembly with these instructions to verify correct assembly. If you are unable to correct a problem or have questions with your assembly please contact your authorized Tunturi dealer.

Warning

Platinum by Tunluri has built this gym to give you a safe, effective and enjoyable workout. However, there is a risk assumed by individuals who use this type of equipment. It is very important that all warnings and instructions are read and followed before beginning any exercise program.

It is also very important to read and follow the preventative maintenance schedule described in this manual. If any of the warning labels or stickers are worn, faded, tom, scratched or missing they should be replaced immediately.

WARNING: There is a risk assumed by individuals who use this type of equipment. To minimize risk always follow these rules.

1) It is essential that you consult with your physician before beginning any exercise program.
2) Inspect equipment before each use for loose, worn, or frayed parts (including cables, nuts and bolts). Replace parts at first signs of wear (use only genuine Tumluri replacement parts). Use of equipment that is damaged, worn, frayed or not completely assembled on a solid, level surface may result in injury.
3) Make sure all adjustment pins are fully engaged before using equipment.
4) Keep all parts of the body and clothing outside the path of any moving parts of the gym. Be aort to the possibility of injury. Do not be careless.
5) Minors and children should not be allowed to play on or around this gym.
6) If you have any questions on proper use or maintenance of this gym, do not hesitate to call your local PLATINUM BY TUNTURI distributor or TUNTURI www.tunturi.com

Table of Contents

	Page			Page
Instructions		Cable Tension and Adjustments	16
Parts Listing 3		Weight Stack Decals and Serial Number	17
Hardware Comparison		Final Assembly and Troubleshooting	18
Pre Assembly Instructions 5		Maintenance		19
Main Frame Assembly 9-12		Floor plan Layout
Cable Routing		Contact 22
Accessories Holders and Shrouds 15
Platinum by Tunturi		2 4 in 1 Strength Station Owner's Manual

Contact

Benelux

Accell Fitness Benelux

Koningsbeltweg 51

1329 AE ALMERE

The Netherlands

Tel: [phone]

Fax: -31 38 5460055

Scandinavia

Accel Fitness Scandinavia

Varusmeslarintie 28

20361 TURKU

Finland

Tel: [phone]

Fax: [phone]

Germany

Accell Fitness North America Inc.

130 Hayward Ave, Suite 2

N2C 2E4

Kitchener. ON Canada

Tel. [phone]

Fax: [phone]

www.accelliti.ness.com

www.lunturi.com

Platinum by Tunturi

4 in 1 Strength Station Owner's Manual

Frame Components

ITEM NO.	DESCRIPTION	QTY
1	Right Side Height Adjustment	1
2	Swivel Pulley Holder	2
3	Short Base Frame	1
4	Solicoter Tube	2
5	Long Base Frame	1
6	Left Side Height Adjustment	1
7	Pulley Holder/Support Plate	4
8	Upper Support Brace (Right Side)	1
9	Extended Upper Support Brace (Left Side)	1
10	Front Angle Bracket	1
11	Rear Angle Bracket	1
12	Guide Rod Holder	2
13	Top Weight Plate	2
14	Guide Rod	4
15	Weight Plate	38
16	Rubber Donut	4
17	Free Hostor (Male)	2
18	Short Bar/Ankle Strap Holder	1
19	Front Shroud	2
20	Rear Shroud	2
21	Rope/Long Bar Holder	1

Accessories

ITEM NO.	DESCRIPTION	QTY
22	Weight Stack Pull Pin	2
23	Strap Handle	2
44	Low Row Bar	1
45	Straight Bar	1
46	Triceps Rope	1
47	Ankle Strap	1
48	Foot Strap	1

Cables

ITEM NO.	DESCRIPTION	QTY
24	Functional Trainer Cable	2

Hardware

ITEM NO.	DESCRIPTION	QTY
25	Threaded Collar	2
26	HCS 3/8"-16x 5"	4
27	HCS 3/8"-16x 2-1/2"	16
28	HCS 3/8"-16x 5-1/4"	4
29	FHSCS 3/8"-16x 3"	2
30	FHSCS 3/8"-16x 5-1/4"	2
31	HCS 3/8"-16x 3"	4
32	4 1/2" Pulley	8
33	3-1/2" Pulley	8
34	3/8" Pulley Spoors	12
35	HCS 3/8"-16x 2"	10
36	HCS 3/8"-16x 2-1/4"	6
37	HCS 3/8"-16x 1-3/4"	2
38	HCS 3/8"-16x 1/2"	8
39	3/8" Lock Washer	10
40	3/8" Flat Washer	78
41	3/8" Nylock	48
42	Weight Slack Decals	2
43	Guide Rod Lubricant	2

www.tunturi.com

Tools Required

1/2" Wrench

9/16" Wrench

9/16" Ratchet

Allen Wrench Set

Tape Measure

Snap Ring Pliers

3 4 in 1 Strength Station Owner's Manual

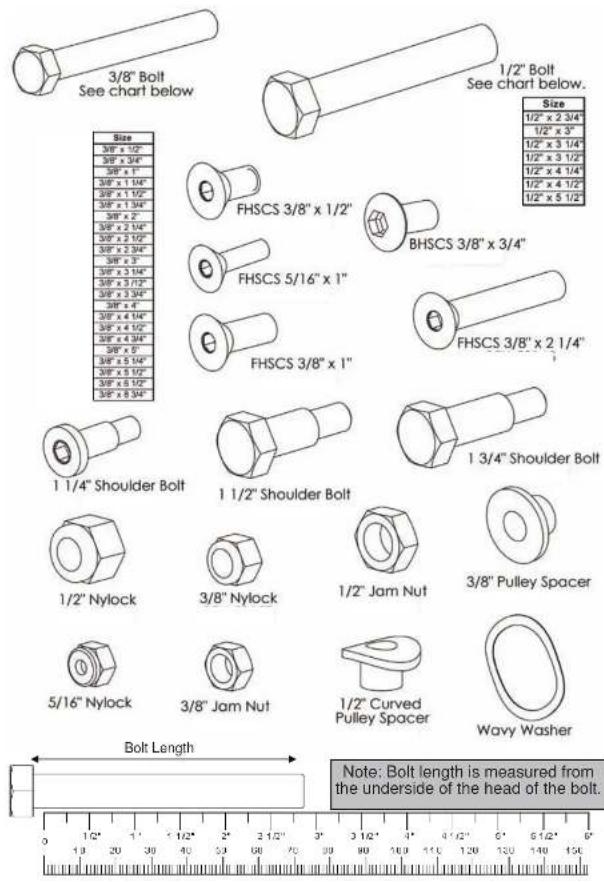

3/8" Bolt See chart below 1/2" Bolt See chart below. Size 1/2" x 2 3/4" 1/2" x 3" 1/2" x 3 1/4" 1/2" x 3 1/2" 1/2" x 4 1/4" 1/2" x 4 1/2" 1/2" x 5 1/2" FHSCS 3/8" x 1/2" BHSCS 3/8" x 3/4" FHSCS 5/16" x 1" FHSCS 3/8" x 1" FHSCS 3/8" x 2 1/4" 1 1/4" Shoulder Bolt 1 1/2" Shoulder Bolt 1 3/4" Shoulder Bolt 1/2" Nylock 3/8" Nylock 1/2" Jam Nut 3/8" Pulley Spacer 5/16" Nylock 3/8" Jam Nut 1/2" Curved Pulley Spacer Wavy Washer Bolt Length Note: Bolt length is measured from the underside of the head of the bolt.

Platinum by Tunturi

4

4 in 1 Strength Station Owner's Manual

[NO TEXT]

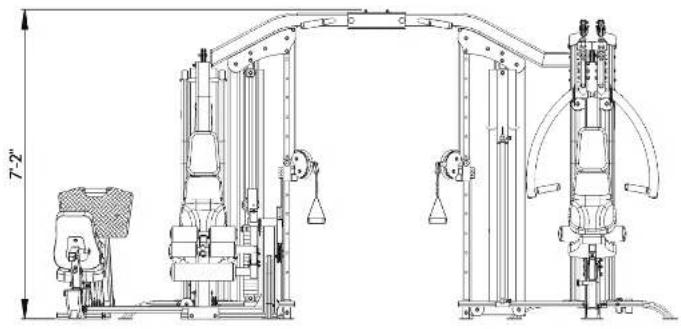

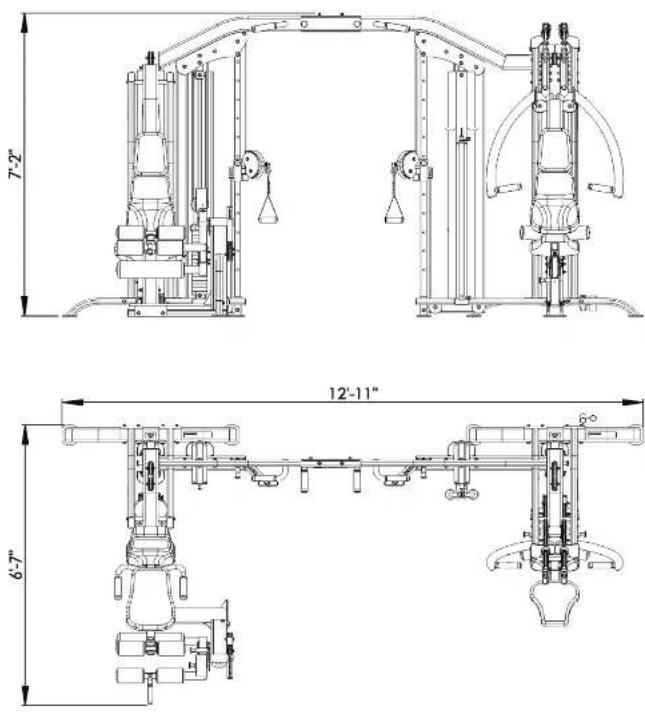

7'-2" 12'-11" 6'-7"

Layout Diagram without Leg Press
The Platinum without Leg Press has a layout dimension of 12'-11" (width) x 6'-7" (length) x 7'-2" (height). There should be a minimum of 18", preferably 24", of working space around the entire unit.

www.tunturi.com

21 4 in 1 Strength Station Owner's Manual

The image is too blurry to recognize any text content.

Technical line drawing of a mechanical lifting system with vertical and horizontal components (no text or symbols)

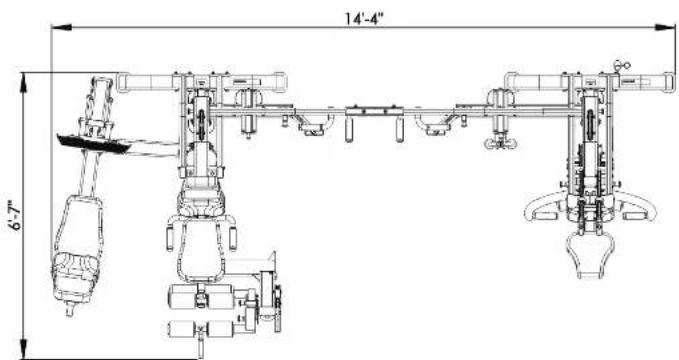

14'-4" 6'-7"

Layout Diagram with Leg Press

The Platinum with Leg Press has a layout dimension of 14'-4" (width) x 6'-7" (length) x 7'-2" (height). There should be a minimum of 18", preferably 24", of working space around the entire unit.

Platinum by Tunturi

20 4 in 1 Strength Station Owner's Manual

www.tunturi.com

5 4 in 1 Strength Station Owner's Manual

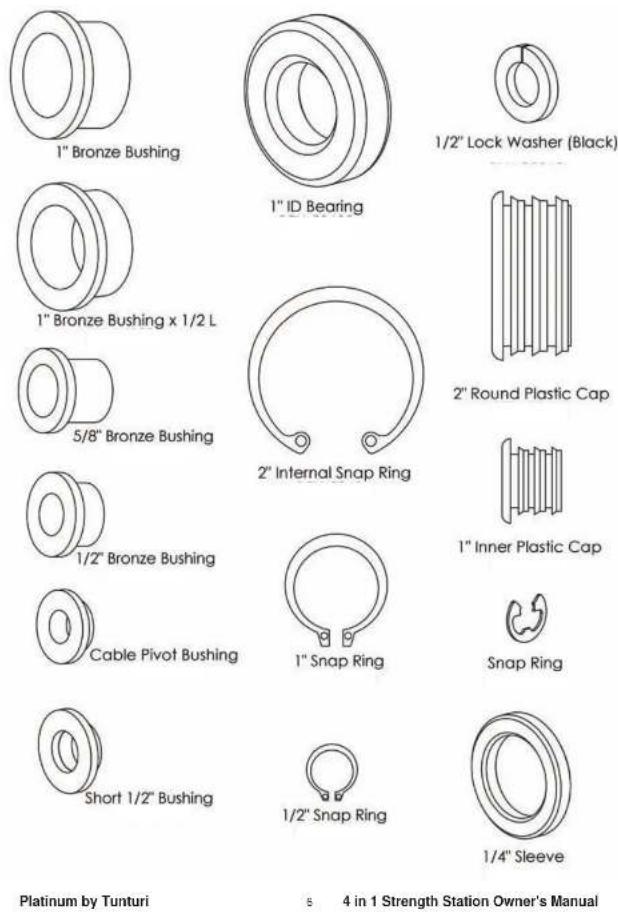

[NO TEXT]

Preventive Maintenance

Platinum by Tunturi strives to give you the very best in quality, performance and safety through carefully engineered designs and excellent workmanship. In order to maintain this high level of quality the preventative maintenance schedule below should be followed.

Clean upholstery, grips, and roller pads with mild soap and water generally after every use. The guide rods, chrome slices and frame should be cleaned with a cotton cloth. Upon cleaning the guice rods, a thin layer of Silicone or Teflon gel should be applied to each rod to ensure a glass smooth performance.

An overall inspection should be done before each workout. If the warning and safety decals are worn or have been removed they should be replaced immediately. The cables and cable systems should be inspected for signs of wear and proper tension. In order to check cables properly you should carefully run the cable through your fingertips, checking for signs of wear, cracks, burs and thinning spots. Replace any part at first signs of wear. Cables should be adjusted for proper tension. See assembly instructions for this detail. All hardware, steps, and adjustments should be checked and tightened as required.

The quick rods on your machine should be cleaned and lubricated regularly. This will ensure a glass smooth performance from your weight stack. A thin layer of either Silicone or Tellon gel should applied to each rod. Each pillow block bearing and flange bearing has a grease fittings that must be lubricated regularly. Use general purpose bearing grease and follow the schedule below.

Although cables should be inspected daily, it is important that ALL cables be replaced as directed in the schedule below. Please note that at any first sign of wear the cable should be replaced immediately.

If there are any questions concerning maintenance, please contact your local Tuntun dealer or contact Platinum by Tuntun directly at: www.tunturl.com

	Daily	Weekly	Monthly	Quarterly
Clean
Upholstery X
Hand Grips X
Roller Pods X
Guide Rods			X
Chronic Slides			X
Frame			X
Inspect
Overall	X
Safety Decals	X
Cleios	X
Cable Tension			X
Pulleys	X
Hardware	X
Stops	X
Upholstery	X
Hand Grips	X
Frames	X
Bushings	X
Bearings	X
Lubricate
Guide Rods			X
Bearings	1
Replace
Cables		3

www.tunturi.com
19 4 in 1 Strength Station Owner's Manual

The image is too blurry to recognize any text content.

Final Assembly and Troubleshooting

IMPORTANT - Check These Components Before Using Gym:

- Wrench Tighten the set screws on all Threaded Collars using an alien wrench, so that the set screws tighten against the shaft. Refer to Step 1.

Threaded Collar

- Each Free Floster must be threaded at least 1/2" into the Top Plate of the weight stack. Each must also be secured with a 1/2" Jam Nut to ensure a safe and proper connection.

Free Floater 1/2" Jam Nut Top Plate

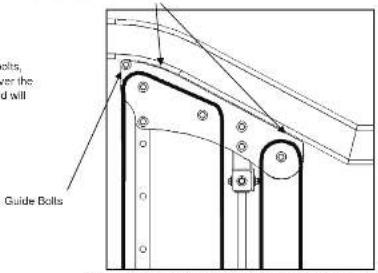

Make Sure Cable is not pinched in between the tube and the pulley support plate.

- Verify that all cables lie in between the guide bolts, tubes and the pulleys. Routing the cables over the guide bolts causes premature cable wear and will void your warranty.

bolts, over the and will Guide Bolts

Platinum by Tunturi
18 4 in 1 Strength Station Owner's Manual

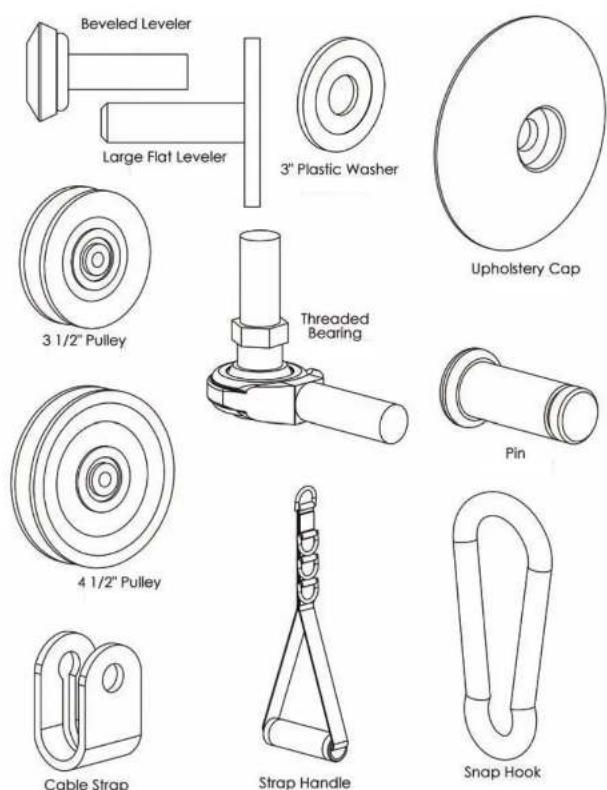

Rubber Donut

3/8" Flat Washer

1/2" Flat Washer

Plastic Cap

Screw Cap Cover

Mounting Bracket

Items not shown.

www.tunturi.com

3/8" Lock Washer

1 3/4" x 4" Rectangular Cap

6" Rubber Grips (Yellow)
7 4 in 1 Strength Station Owner's Manual

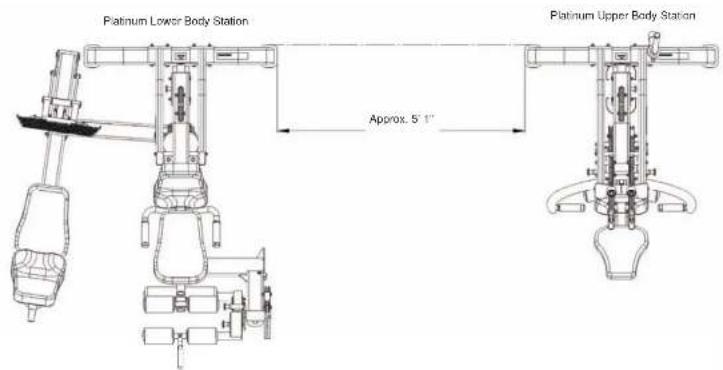

Pre-Assembling Instructions

NOTE: It is important to position the Upper Body and the Lower Body Stations accordingly. Make sure they are approximately 5 foot 1 inch apart by measuring from the inside of the rear base on each machine. Also Make sure the rear base on each machine are in line with each other across the back. This is important for connecting the two machines via the Cable Cross Over as seen in step 3. This will help to insure all of the components on the 4 in 1 Strength Station line up smoothly and will help to make the installation process effortless.

Platinum Lower Body Station Approx. 5' 1" Platinum Upper Body Station

Platinum by Tunturi

4 in 1 Strength Station Owner's Manual

Final Assembly and Troubleshooting

Weight Stack Decals:

200lb Slack (Standard)

1/2" 30 30 40 50 40

Guide Rod Lubrication:

- Clean guide rods with a lint-free cloth and apply a thin layer of silicon lubricant to each guide rod. This will ensure a glass smooth performance from your weight stack.

www.tunturi.com

17 4 in 1 Strength Station Owner's Manual

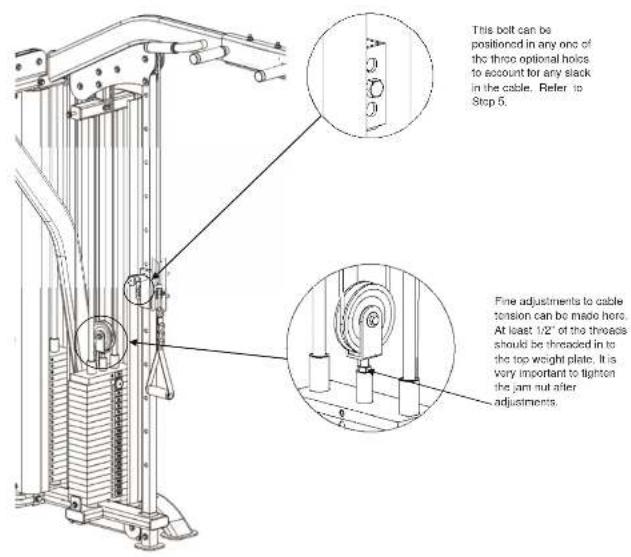

• Adjust cables to proper tension from any of the locations shown below.
  Note: All cables with threaded adjustable ends must have at least 1/2" of the threads threaded in to its counterpart. It is very important that the 1/2" Jam Nut be wrench tightened to the counterpart to ensure that the threaded adjustable end of the cable does not back out of its counterpart.
  Note: If the top plate raises off of the second plate in the weight stack, then the cable tension is too light. You will need to take some of the tension out to lower the Top plate flush with the second plate.

This bolt can be positioned in any one of the three optional holes to account for any slack in the cable. Refer to Step 5. Fine adjustments to cable tension can be made here. At least 1/2" of the threads should be sheaped in to the top weight plate. It is very important to tighten the jam nut after adjustments.

Platinum by Tunturi

16

4 in 1 Strength Station Owner's Manual

[NO TEXT]

PLEASE FOLLOW ALL DIRECTIONS VERY CAREFULLY FOR PROPER INSTALLATION.

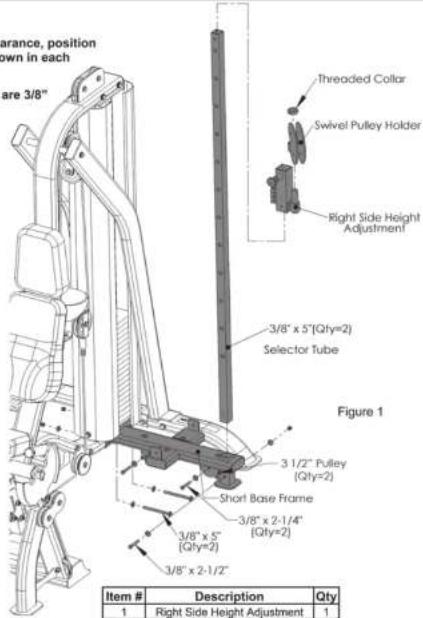

Step 1:

Note: For a more consistent appearance, position all bolts in the direction shown in each figure.

• All Fiat Washers and Nylocks are 3/8"

Do Not Tighten Hardware Until Step 3

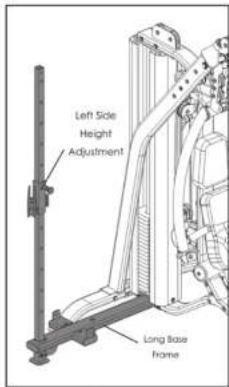

Step 1a:

Repeat step 1 for opposite (Left) side

Left Side Height Adjustment Long Base Frame

www.tunturi.com

carance, position own in each are 3/8" Threaded Collar Swivel Pulley Holder Right Side Height Adjustment 3/8" x 5"(Qty=2) Selector Tube Figure 1 3 1/2" Pulley (Qty=2) Short Base Frame 3/8" x 2-1/4" (Qty=2) 3/8" x 5" (Qty=2) 3/8" x 2-1/2" Item # Description Qty 1 Right Side Height Adjustment 1

Item #	Description	Qty
1	Right Side Height Adjustment	1
2	Swivel Pulley Holder	1
3	Short Base Frame (Right Side)	1
4	Selector Tube	1
5	Long Base Frame (Left Side)	1
6	Left Side Height Adjustment	1
25	Threaded Collar	1
26	HCS 3/8"-16 x 5"	2
27	HCS 3/8"-16x 2-1/2"	1
33	3 1/2" Pulley	2
36	HCS 3/8"-16 x 2 1/4"	2
40	3/8" Flat Washer	10
41	3/8" Nylock	5

9 4 in 1 Strength Station Owner's Manual

©

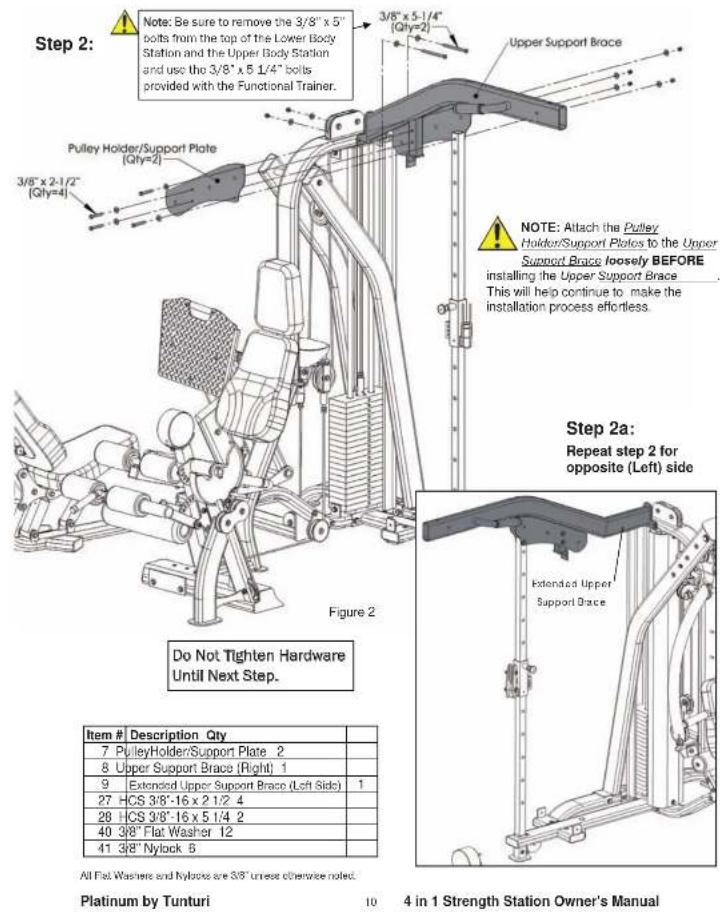

Item #	Description Qty
7	PulleyHolder/Support Plate 2
8	Upper Support Brace (Right) 1
9	Extended Upper Support Brace (Left Side)	1
27	HCS 3/8"-16 x 2 1/2 4
28	HCS 3/8"-16 x 5 1/4 2
40	3/8" Flat Washer 12
41	3/8" Nylock 5

All Flat Washers and Nylocks are 3/8" unless otherwise noted.

[NO TEXT]

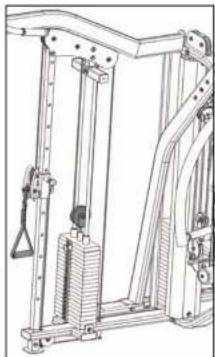

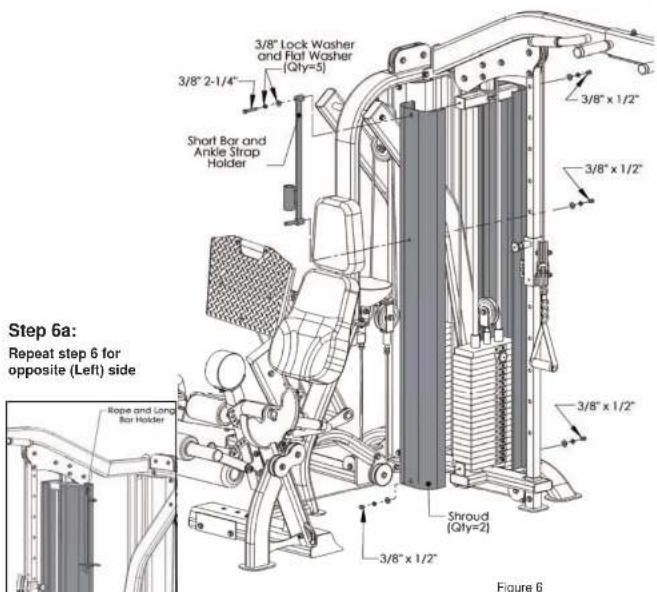

Step 6:

Step 6a: Repeat step 6 for opposite (Left) side 3/8" Lock Washer and Flat Washer (Qty=5) Short Bar and Ankle Strap Holder 3/8" x 1/2" 3/8" x 1/2" 3/8" x 1/2" 3/8" x 1/2" 3/8" x 1/2" 3/8" x 1/2" 3/8" x 1/2" Shroud (Qty=2) 3/8" x 1/2" Rope and Long Bar Holder Figure 6

All Flat Washers and Nylocks are 3/8" unless otherwise noted.

www.tunturi.com

Item #	Description	Qty
18	Short Bar/Ankle Strap Holder	1
19 Front Shroud	1
20	Rear Shroud	1
21	Rope/Long Bar Holder	1
36	HCS 3/8"-16 x 2 1/4"	1
38	HCS 3/8"-16 x 1/2"	4
39	3/8" Lock Washer	5
41 3/8" Flat Washer	5

15 4 in 1 Strength Station Owner's Manual

The image is too blurry to recognize any text content.

Step 5 Continued:

Start Here

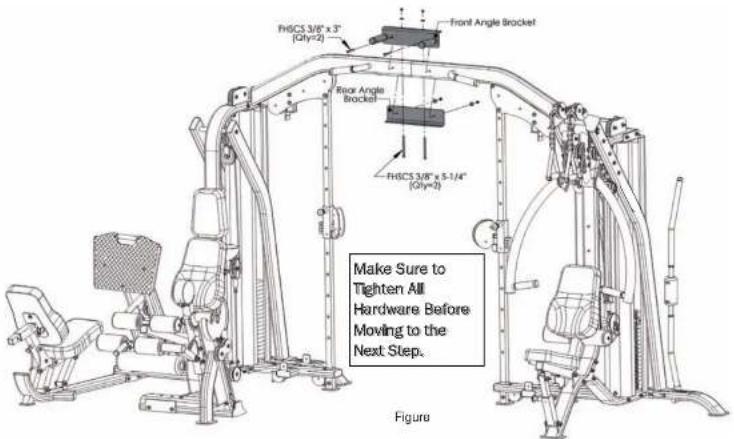

Step 3:

FHSCS 3/8" x 3" (Gly=2) Front Angle Bracket Rear Angle Bracket FHSCS 3/8" x 5-1/4" (Gly=2) Make Sure to Tighten All Hardware Before Moving to the Next Step. Figure

Note: Cables CAB-13033 has a removable Cable Strap end to make cable routing easier. The Cable Strap ends can be found packaged with the hardware.
All Flat Washers and Nylocks are 3/8" unless otherwise noted.

Platinum by Tunturi

14 4 in 1 Strength Station Owner's Manual

www.tunturi.com

Item #	Description	Qty
10	Front Angle Bracket 1
11	Rear Angle Bracket	1
29	FHSCS 3/8"-16 x 3"	2
30	FHSCS 3/8"-16 x 5 1/4	2
40	3/8" Flat Washer	4
41	3/8" Nylock	4

11 4 in 1 Strength Station Owner's Manual

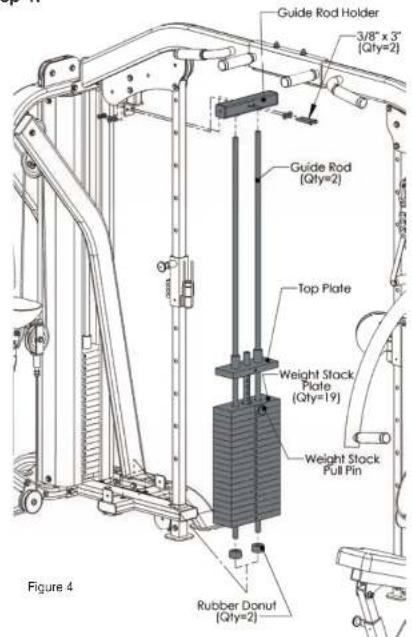

Step 4:

Guide Rod Holder 3/8" x 3" (Qty=2) Guide Rod (Qty=2) Top Plate Weight Stack Plate (Qty=19) Weight Stack Pull Pin Rubber Donut (Qty=2) Figure 4

Step 4a:
Repeat step 4 for opposite (Left) side

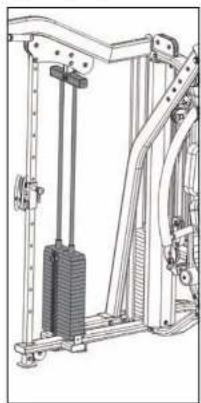

Technical line drawing of a gym lifting machine (no text or symbols visible)

All Flat Washers and Nylocks are 3/8" unless otherwise noted.

Item #	Description Qty
12	Guide Rod Holder 1
13	Top Plate 1
14	Guide Rod 2
15	Weight Stack Plate 19
16	Rubber Donut 2
22	Weight Stack Pull Pin 1
31	HCS 3/8"-16 x 3"	2
40	3/8" Flat Washer	4
41	3/8" Nylock 2

Platinum by Tunturi

12

4 in 1 Strength Station Owner's Manual

[NO TEXT]

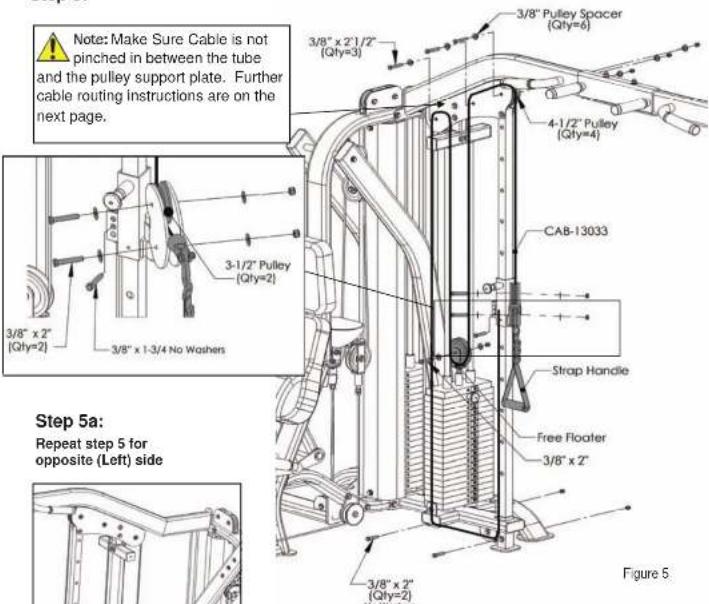

Step 5:

Note: Make Sure Cable is not pinched in between the tube and the pulley support plate. Further cable routing instructions are on the next page. 3/8" x 2" 1/2" (Qly=3) 3/8" x 2" 1/2" (Qly=3) 3-1/2" Pulley (Qly=2) 3/8" x 1-3/4 No Washers 3/8" x 2" (Qly=2) 3/8" x 2" (Qly=2) 3/8" x 2" (Qly=2) 3/8" x 2" (Qly=2) Step 5a: Repeat step 5 for opposite (Left) side 3/8" x 2" (Qly=2) 3/8" x 2" (Qly=2) 3/8" x 2" (Qly=2) 3/8" x 2" (Qly=2) 4-1/2" Pulley (Qly=4) CAB-13033 Strap Handle Free Floater 3/8" x 2" Figure 5

Technical line drawing of a mechanical lifting device with vertical supports and a triangular load (no text or symbols)

www.tunturi.com

All Flat Washers and Nylocks are 3/6" unless otherwise noted.

Item #	Description	Qty
17	Free Floater (Male)	1
23	Strap Handle	1
24	Functional Trainer Cable	1
27	HCS 3/8'-16x 2-1/2" 3
32	4 1/2" Pulley	4
33	3 1/2" Pulley	2
34	3/8" Pulley Spacers	6
35	HCS 3/8"-16 x 2"	5
37	HCS 3/8"-16 x 1 3/4	1
40	3/8" Fiat Washer	6
41	3/8" Nylock	9

13 4 in 1 Strength Station Owner's Manual

The image is too blurry to recognize any text content.
