Product Type	Video Projector
Brand	BenQ
Model	LX9215
Resolution	1024 x 768 (XGA)
Display System	Single-chip DLP
Light Source	Laser diodes
Standard Lens	F=2.0-2.09, f=22.84-28.61mm (LS2SD2)
Throw Ratio (Standard Lens)	1.6-2.0 (XGA)
Lens Shift	Vertical: -10% to 50% (XGA), Horizontal: -5% to 5%
Power Supply	AC 100-240V, 50/60 Hz, 7.0A
Power Consumption	700W (Max); <0.5W (Standby)
Weight (without lens)	24 kg (52.8 lbs)
Speaker	10W x 2 (peak to peak)
Input Terminals	HDMI (x2, one MHL), DVI-D, VGA (x2), BNC (x5), HDBaseT, Composite Video, Audio (L/R)
Output Terminals	Monitor Out (VGA), Audio Out (RCA), USB (5V/1.5A), 3D SYNC Out, 12V Trigger
Control	RS-232, LAN (RJ45), IR (front/rear), Wired Remote
Operating Temperature	0°C to 40°C at sea level
Operating Altitude	0-1499m (0-35°C); 1500-3000m (0-30°C, High Altitude mode on)
Key Features	Lens shift, corner fit, 2D keystone, 3D support, HDBaseT, network control, laser light source
Maintenance	Clean lens with soft cloth and lens cleaner; replace air filter; do not use abrasive cleaners
Safety	Class 3R laser product; avoid direct eye exposure; use grounding plug; keep ventilation clear

Frequently Asked Questions - LX9215 BENQ

How do I replace the lens on my BenQ LX9215?

Turn off the projector and disconnect power. Press the LENS RELEASE button, rotate the existing lens counterclockwise to remove it. Align the new lens flange at the 11 o'clock position and rotate clockwise until it clicks into place. Do not touch the lens surface.

How do I clean the air filter?

Turn off the projector and unplug the power cord. Loosen the captive screws on the filter cover, flip it up, and remove the filter module. Clean with a vacuum cleaner. If heavily clogged, replace with a new filter. Do not wash with water.

How can I adjust the keystone correction?

Press the KEYSTONE+ or KEYSTONE- button on the remote control, or use the 2D Keystone option in the Display menu. You can adjust both vertical and horizontal keystone using the arrow keys on the projector or remote.

How do I connect my computer to the projector?

Use a VGA cable to connect your computer's VGA output to the PC input (15-pin D-Sub) on the projector. Alternatively, use an HDMI cable for digital connection. Ensure the correct input source is selected (press SOURCE on projector or INPUT on remote).

What should I do if the remote control stops working?

First, check if the batteries are dead and replace them if needed. Ensure there are no obstacles between the remote and the IR sensor (front or rear). Stand within 8 meters (26 feet) and within 30 degrees of the sensor. If still not working, check the remote receiver setting in the menu (Front, Rear, or Front+Rear).

I forgot the password to turn on the projector. How do I reset it?

Press and hold AUTO on the projector or remote for 3 seconds. The projector will display a coded number on the screen. Write down that number, turn off the projector, and contact BenQ support with proof of purchase to decode the number and reset the password.

How do I enable 3D mode on the projector?

Go to the Display menu and select 3D. Choose the 3D mode (Auto, Top Bottom, Frame Sequential, Frame Packing, Side by Side) depending on your content. Ensure your 3D glasses are compatible with DLP Link and set DLP Link to On. You may also need to adjust 3D Sync Invert if the image appears inverted.

How do I reset all settings to factory defaults?

Go to the System Setup: Advanced menu and select Reset All Settings. Confirm by selecting Reset. This will restore all settings except User 1/User 2 picture modes to factory defaults.

What is the maximum projection distance for a 100-inch screen?

With the standard zoom lens (LS2SD2), the throw ratio is 1.6-2.0. For a 100-inch diagonal image (4:3), the distance ranges from approximately 128 inches (3.25 m) to 160 inches (4.06 m). Refer to the projection dimensions table in the manual for other lenses and screen sizes.

Can I control the projector via network?

Yes, connect an RJ45 cable to the LAN port. Go to the Network Settings menu and configure IP address (DHCP or manual). Enable AMX Device Discovery if needed. You can then control the projector via RS-232 over LAN or using Crestron/AMX controllers.

USER MANUAL LX9215 BENQ

Copyright and disclaimer

Copyright

Copyright 2015 BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation. All other logos, products, or company names mentioned in this manual may be the registered trademarks or copyrights of their respective companies, and are used for informational purposes only.

Disclaimer

BenQ Corporation makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, BenQ Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of BenQ Corporation to notify any person of such revision or changes.

This user manual aims to provide the most updated and accurate information to customers, and thus all contents may be modified from time to time without prior notice. Please visit http://www.benq.com for the latest version of this manual.

Statement regarding hyperlinks and third-party websites

BenQ is not responsible for the content of the websites or of similar resources, which are maintained and controlled by third parties, that may be linked from this product. Providing links to those websites or to similar resources does not mean that BenQ makes any warranty or representation to their content by expression or by implication.

Any third party content or service preinstalled in this product is provided "as is". BenQ does not, by expression or by implication, make any warrant to the content or to the services provided by third parties. BenQ does not warrant or guarantee that the content or services provided by third parties are accurate, effective, most up-to-date, legal, or complete. Under no circumstances shall BenQ be liable for the content or services provided by third parties including their negligence. Services provided by third parties may be terminated temporarily or permanently. BenQ does not warrant or guarantee that the any content or services provided by third parties are in good condition at any time, and is not liable for the termination of the said content and services. In addition, BenQ is not involved in any transactions you conduct in the websites or similar resources maintained by third parties.

You should contact the content or service providers for any questions, concerns, or disputes.

Table of Contents

Copyright and disclaimer 2

Copyright....2

Disclaimer 2

Statement regarding hyperlinks and third-party websites 2

Important safety instructions....6

General safety instruction....6

Notice on laser....7

Laser class....7

Laser parameters 7

Label instruction 8

Laser light instruction....9

Prepare for installation....10

Caution for installation....10

Cooling notice....II

Package contents 13

Standard packing items 13

Lens information.... 13

Introduction...... 14

Projector exterior view....14

Front and upper side view 14

Rear and upper side view.... 14

Controls and functions.... 15

Control panel....15

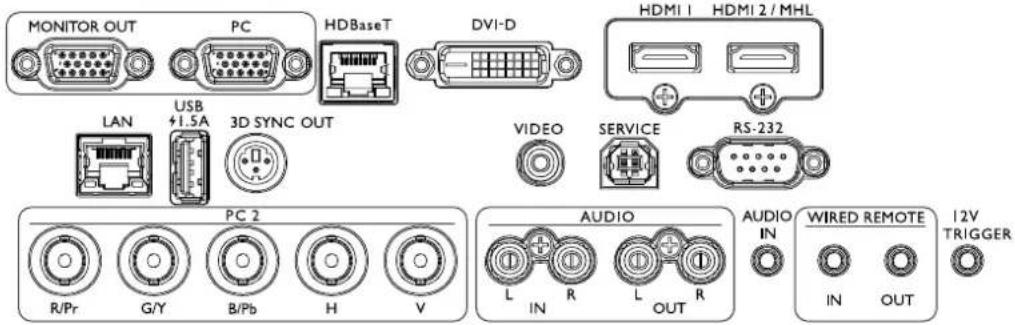

Control terminal....16

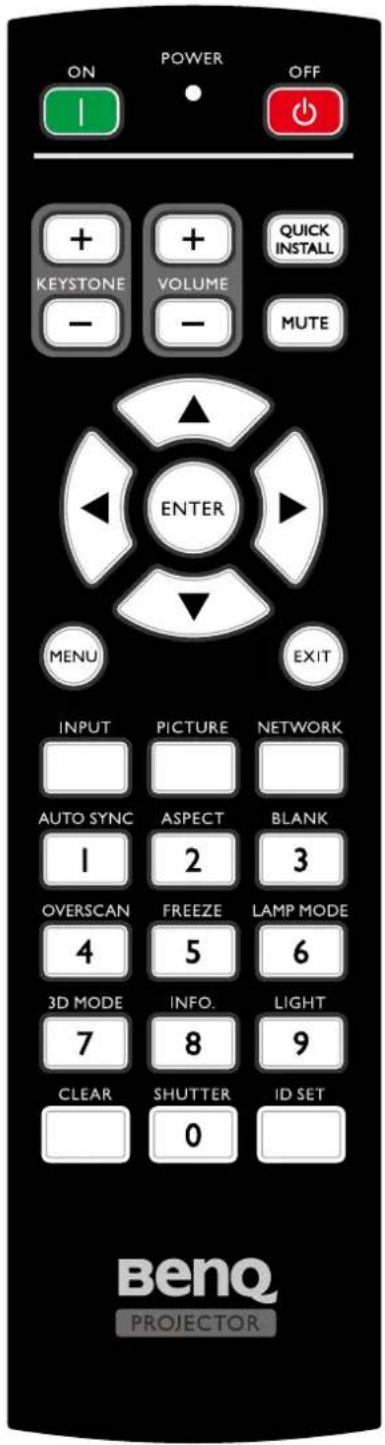

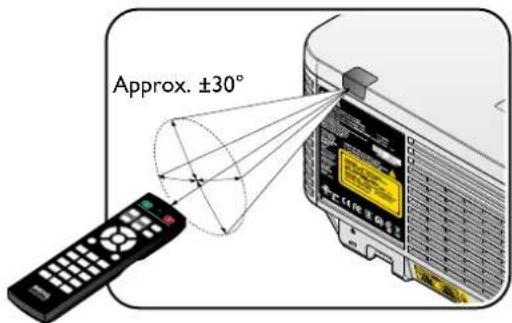

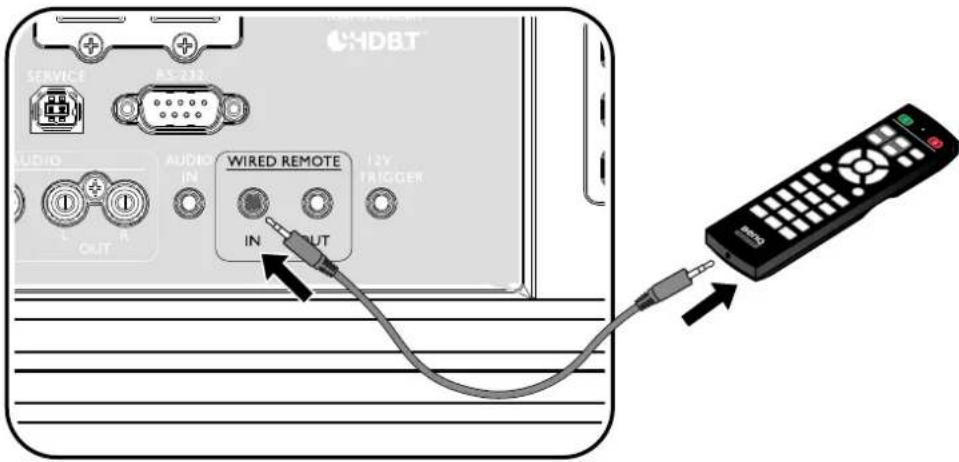

Remote control....17

Installation 21

Installing removing the optional lens 21

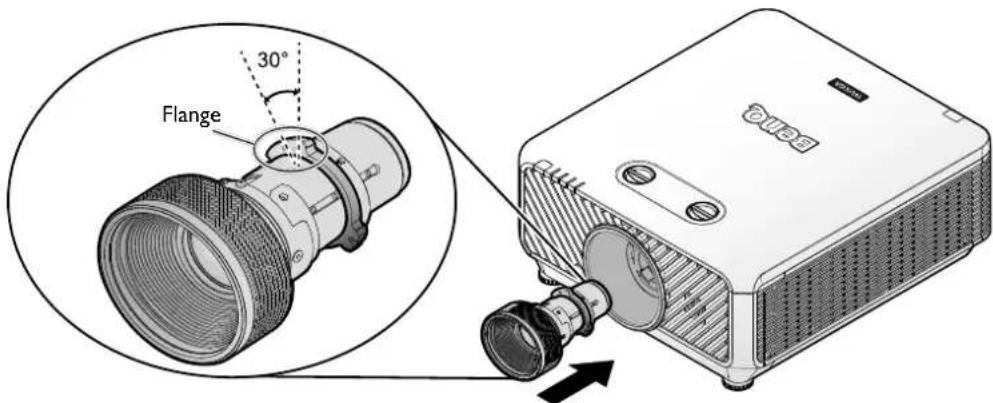

Installing the new lens....21

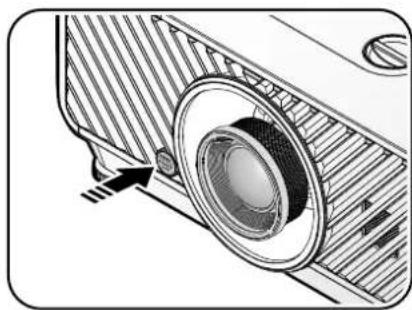

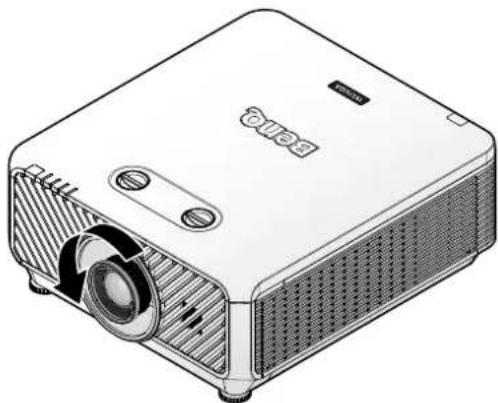

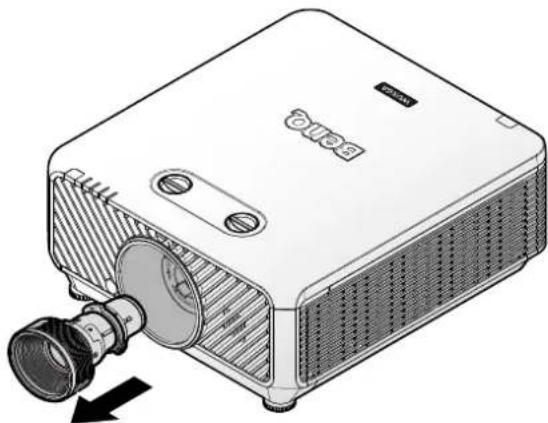

Removing the existing lens from the projector 22

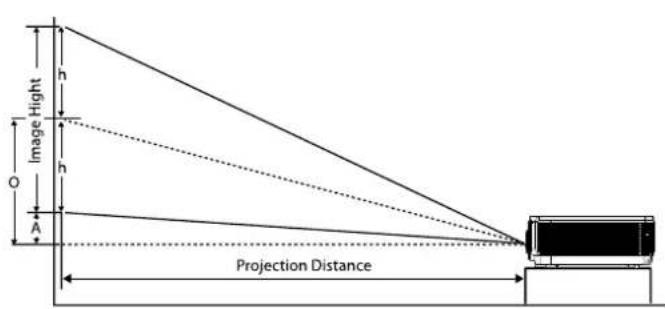

Evaluate for distance by image size....23

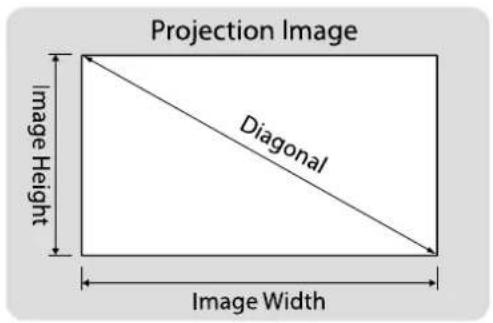

Obtaining a preferred projected image size 23

Projection dimensions.... 23

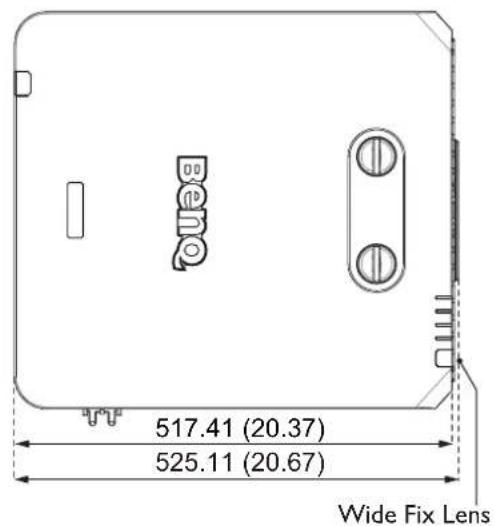

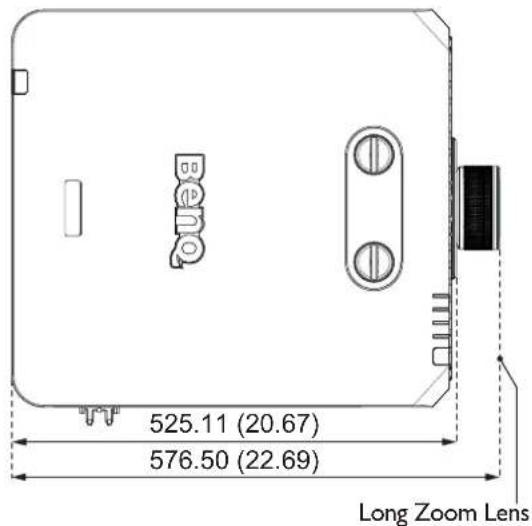

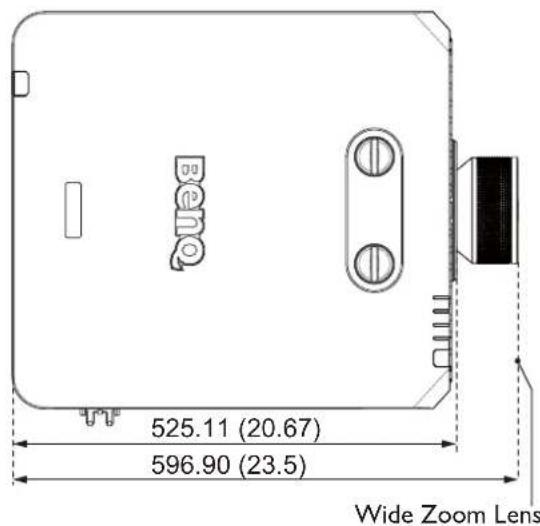

Lens dimension....25

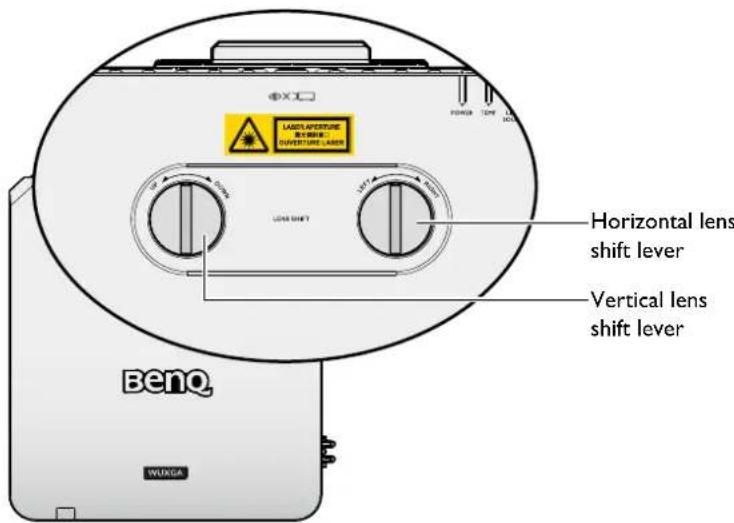

Adjusting by Lens shift 26

Adjusting the vertical image position 26

Adjusting the horizontal image position.... 26

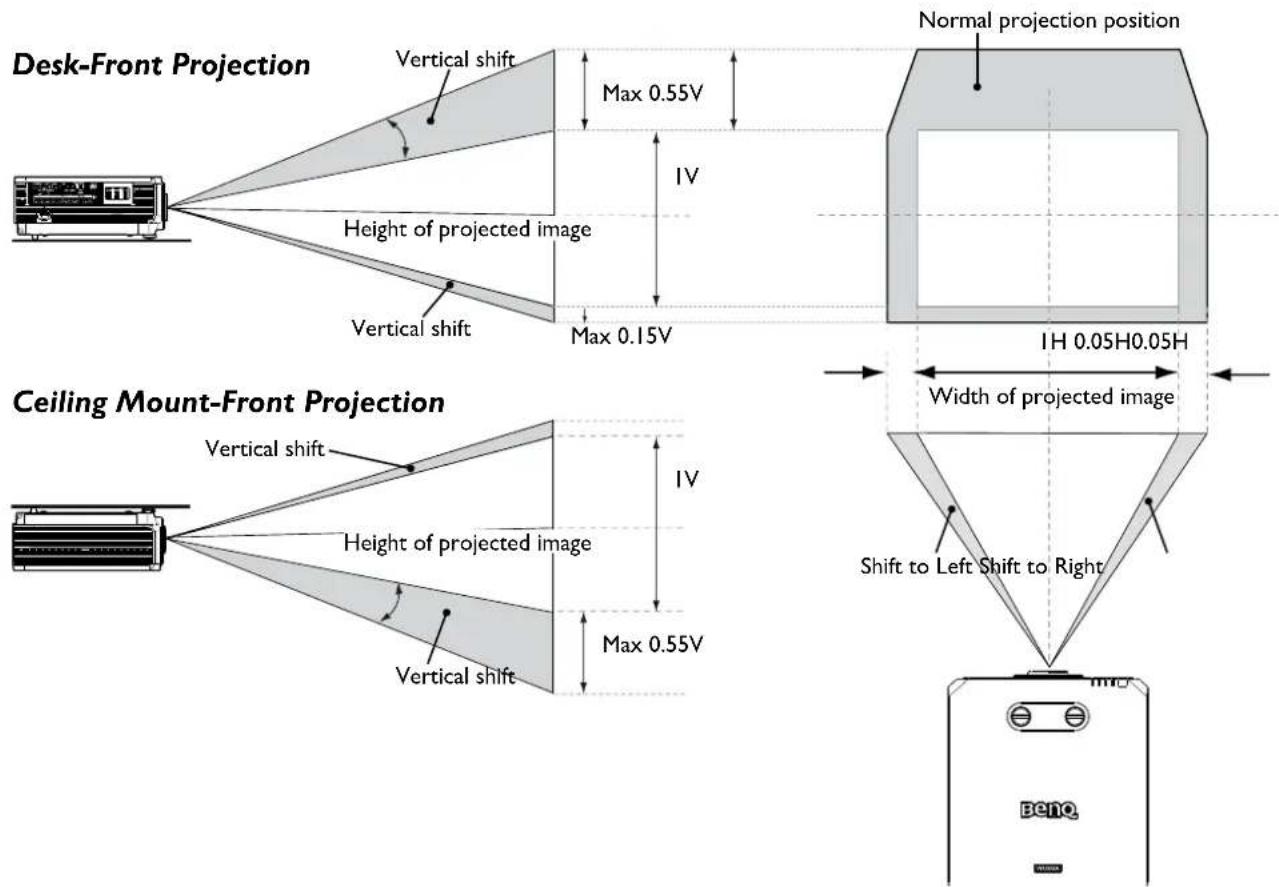

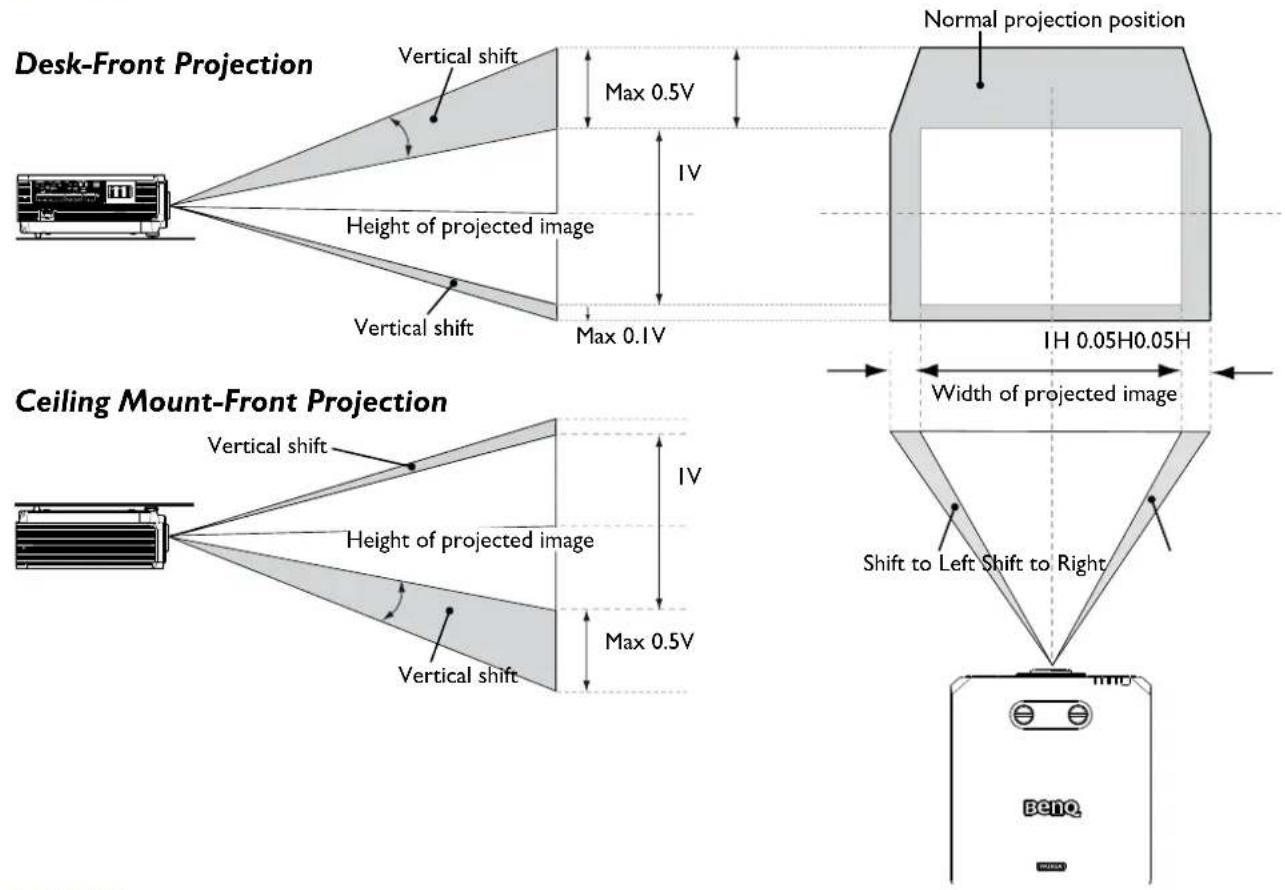

Lens shift range diagram....27

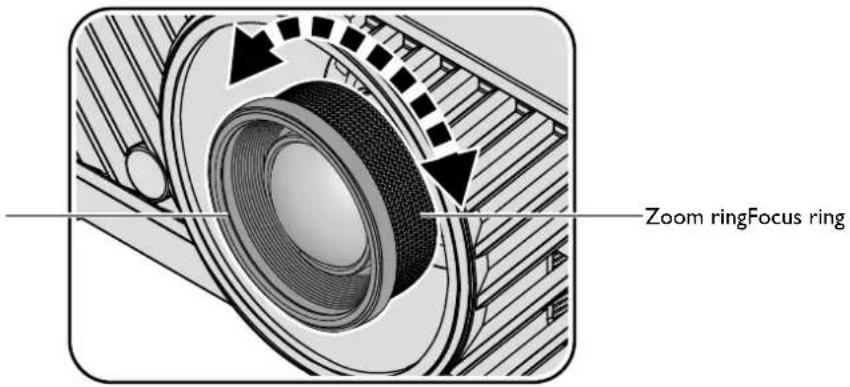

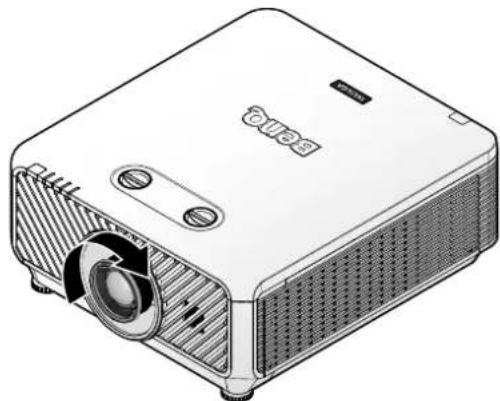

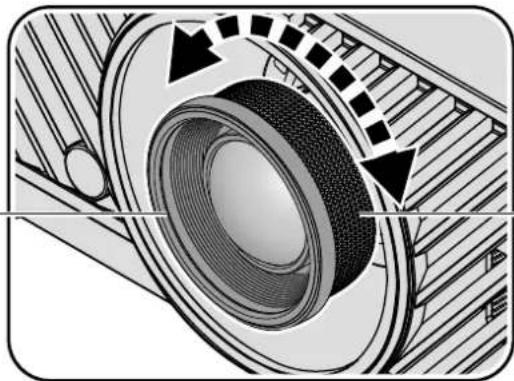

Adjusting the Zoom/Focus 28

Connection 29

Before connecting....29

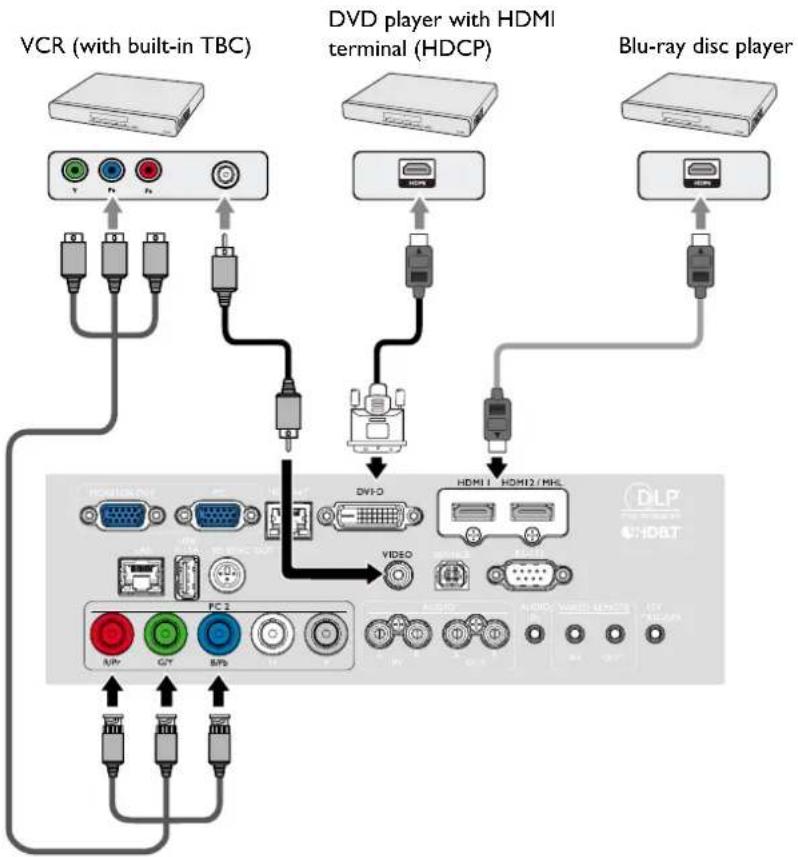

Connecting with AV equipment 31

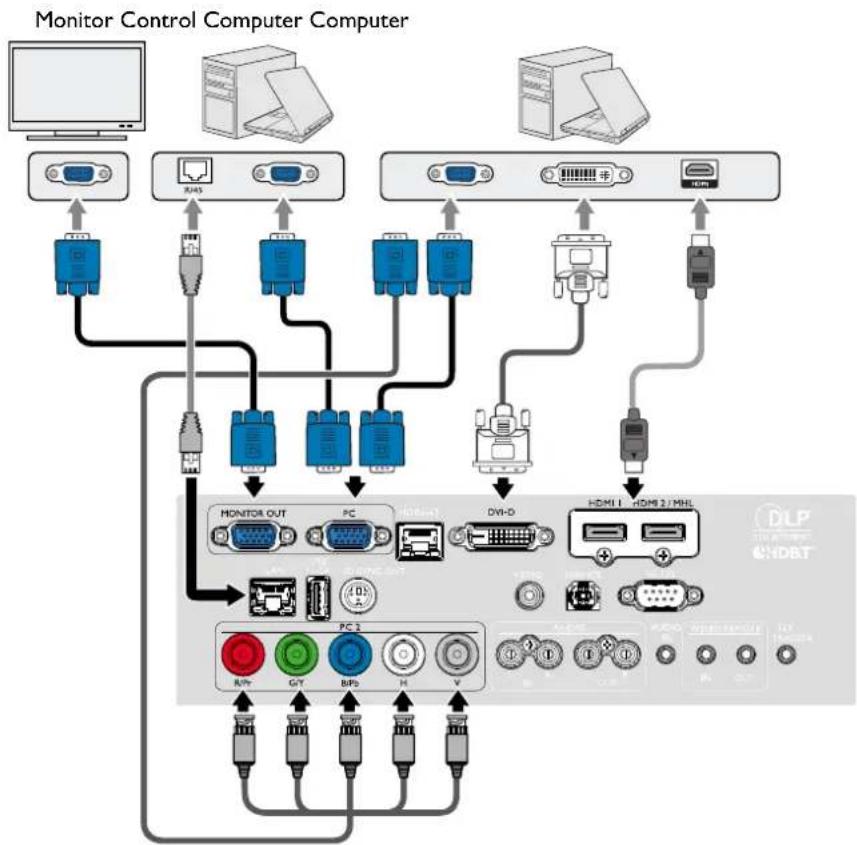

Connecting with computer 31

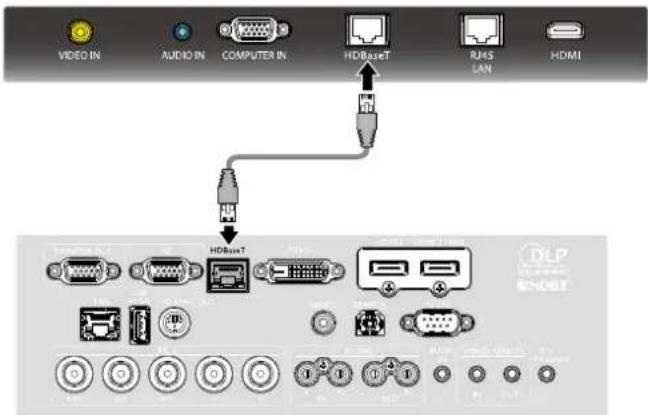

Connecting with HDBaseT transmitter 32

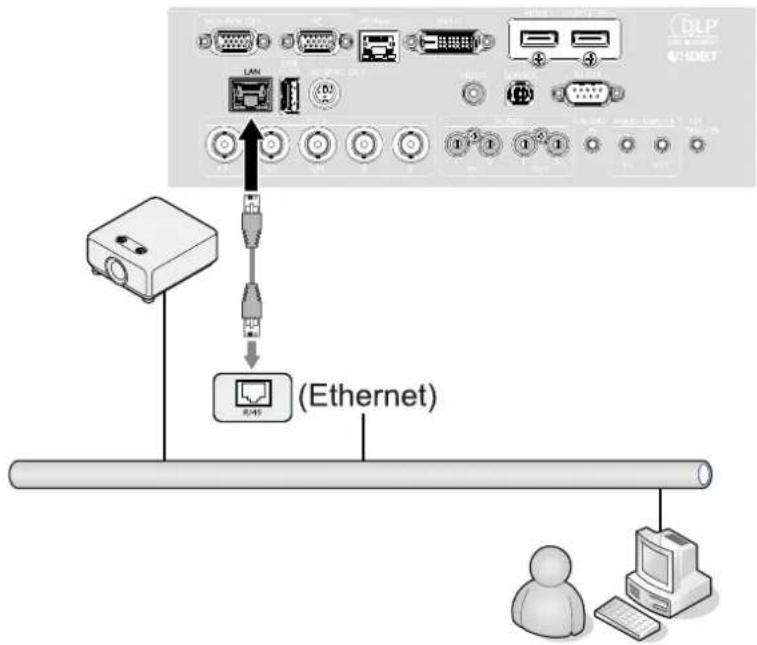

Connecting with LAN....32

Operations....33

Switch on/off the projector.... 33

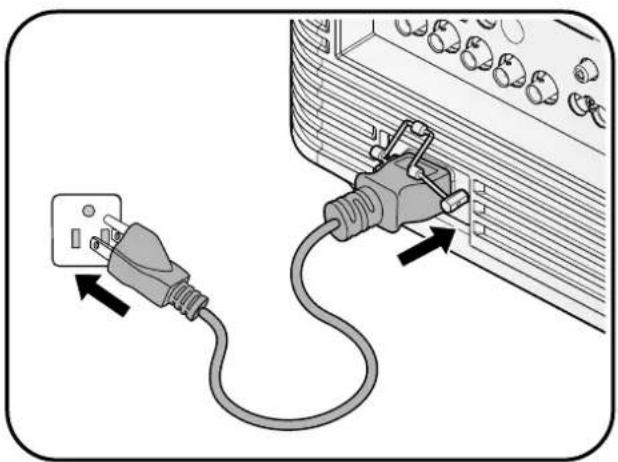

Connecting the power cord.... 33

Power indicator....33

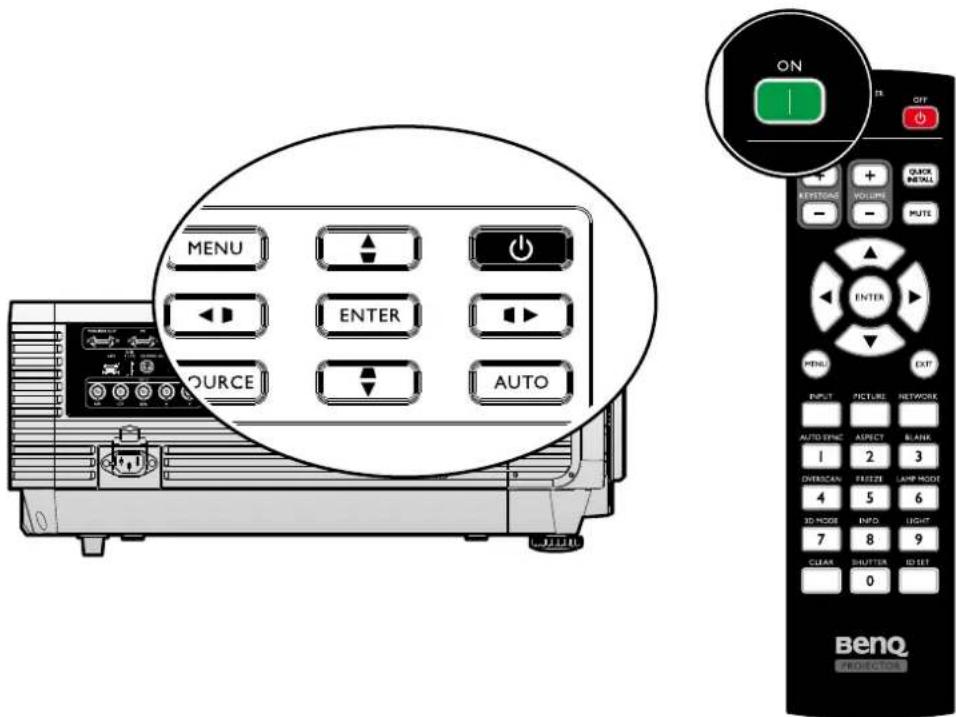

Switch on the projector 34

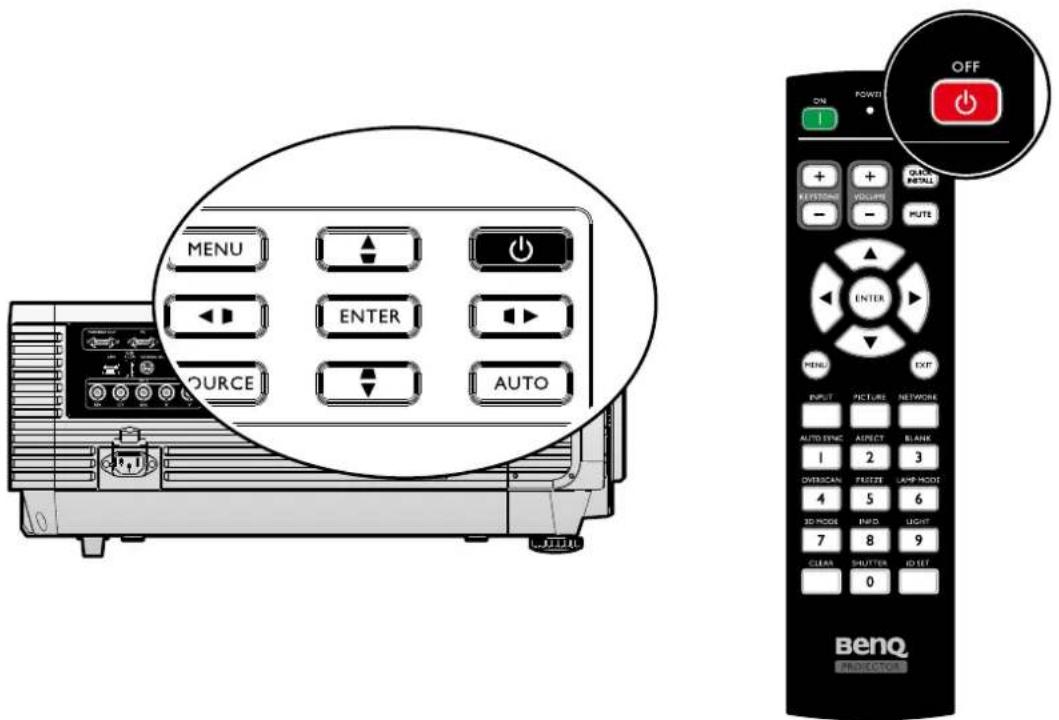

Switch off the projector 40

Using the menu 41

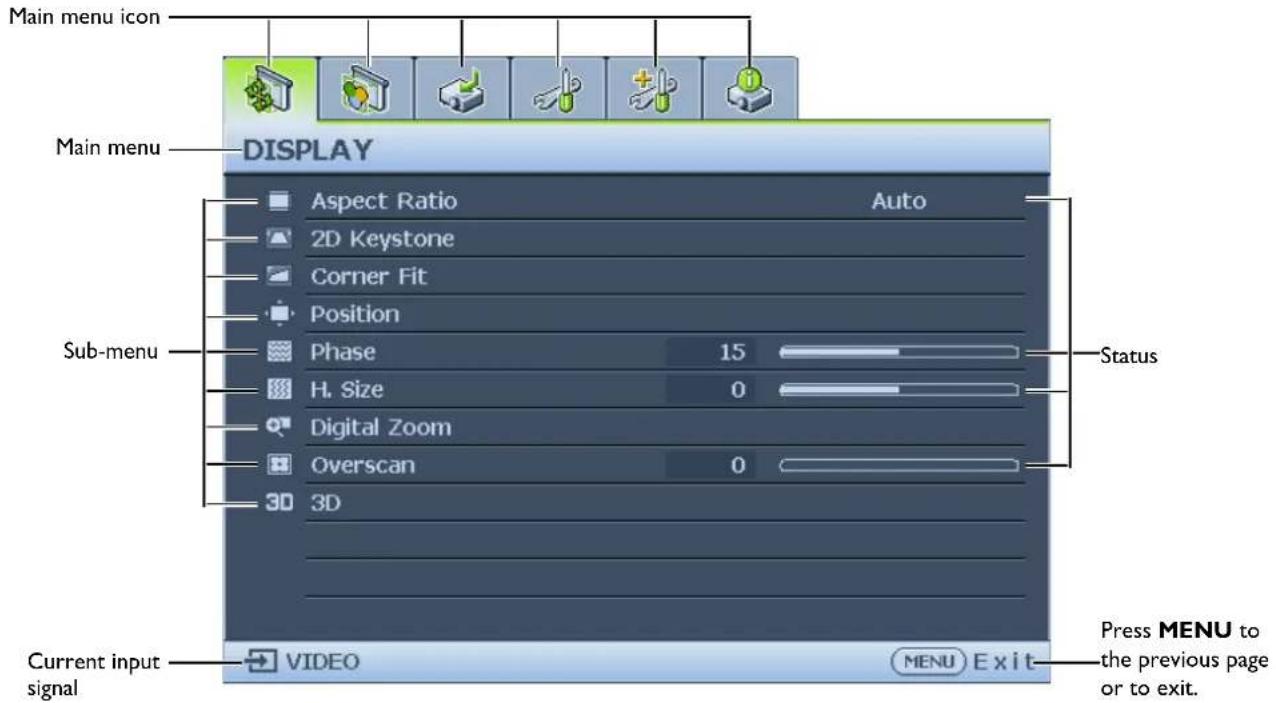

Main menu....41

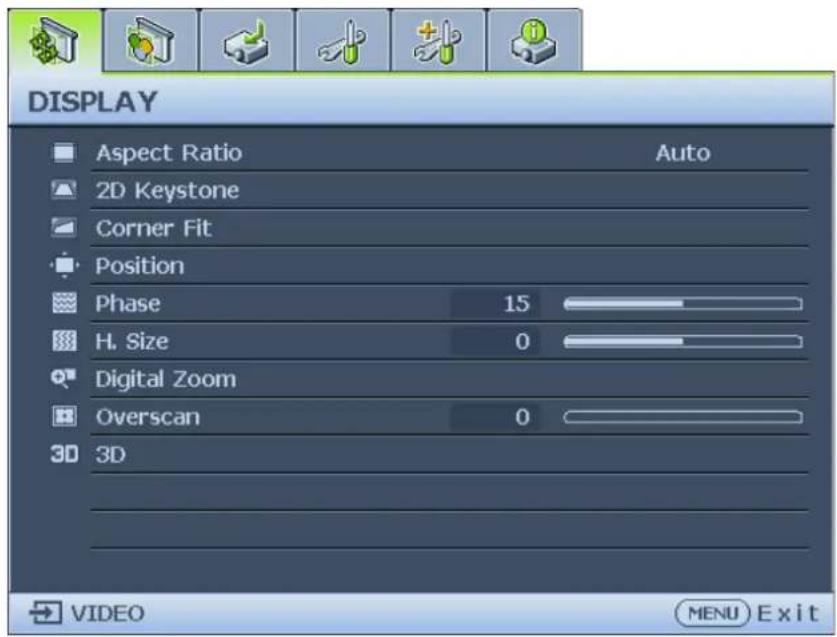

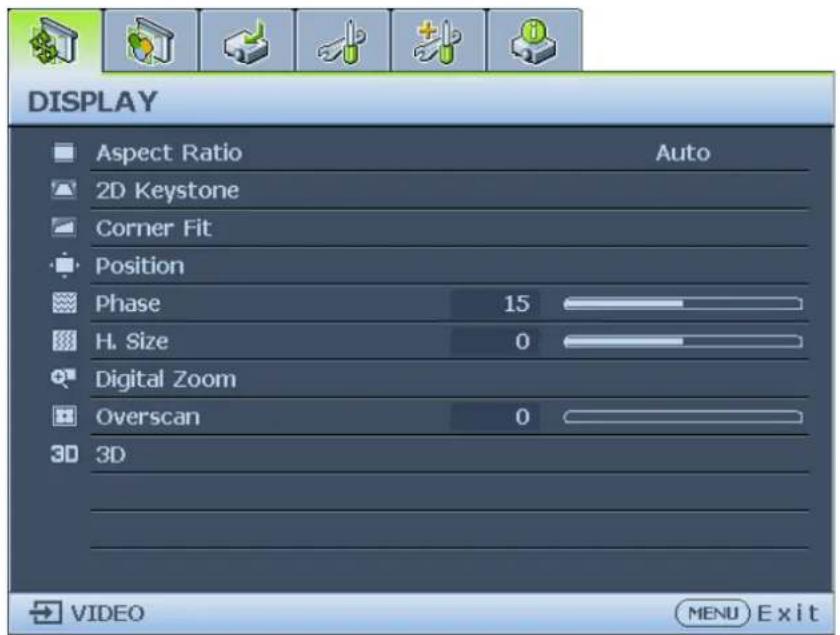

Display menu....42

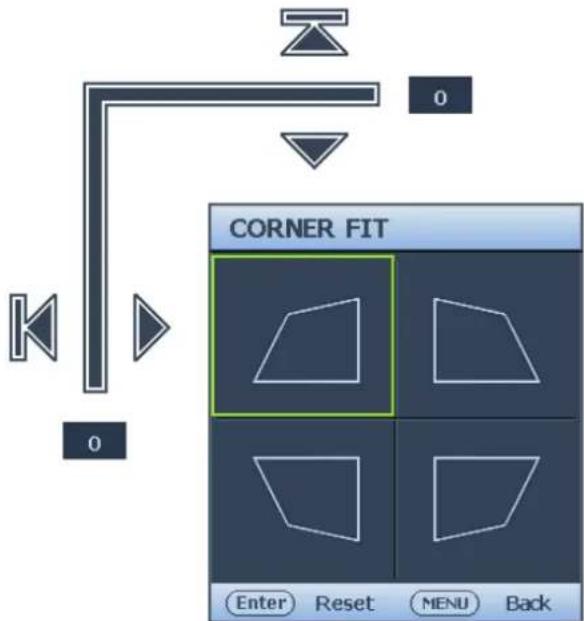

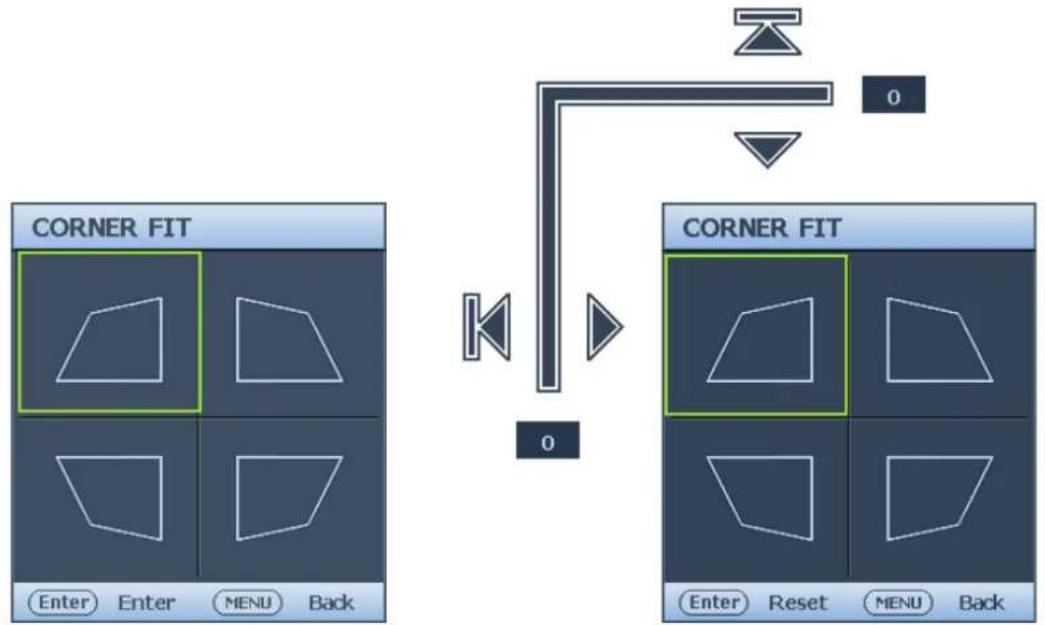

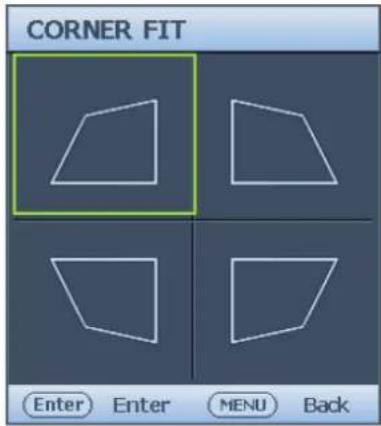

Corner Fit menu 44

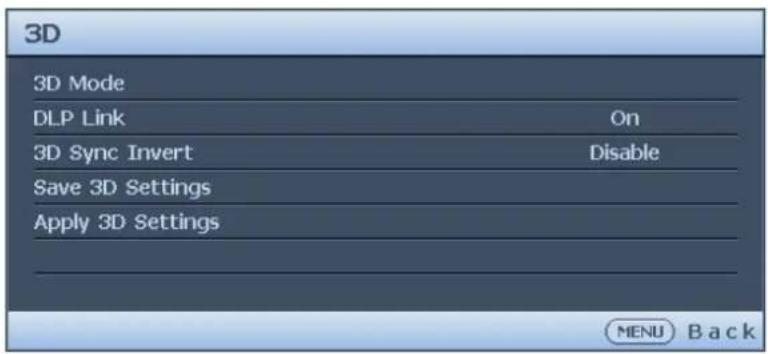

3D menu 44

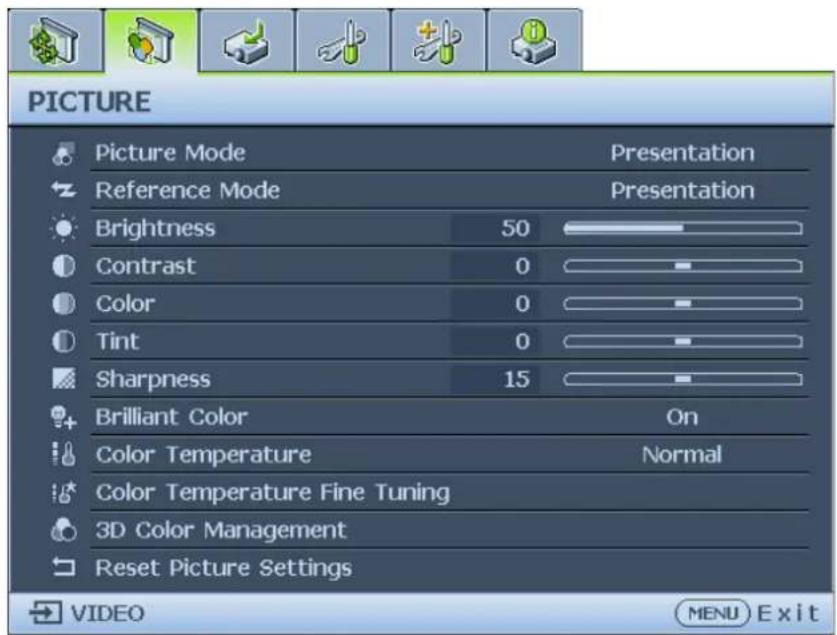

Picture menu.... 45

Color Temperature Fine Tuning menu 47

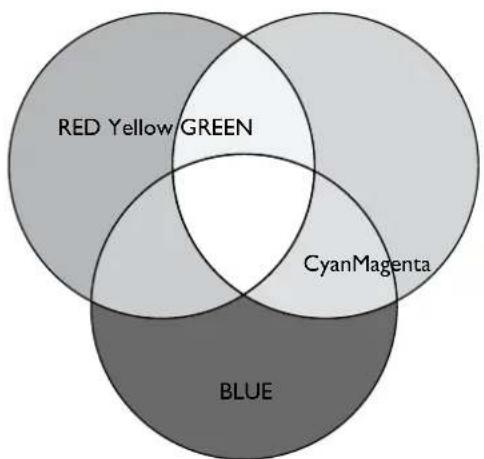

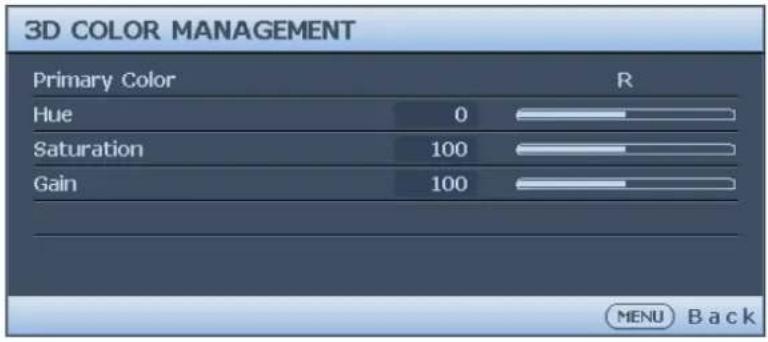

3D Color Management menu 48

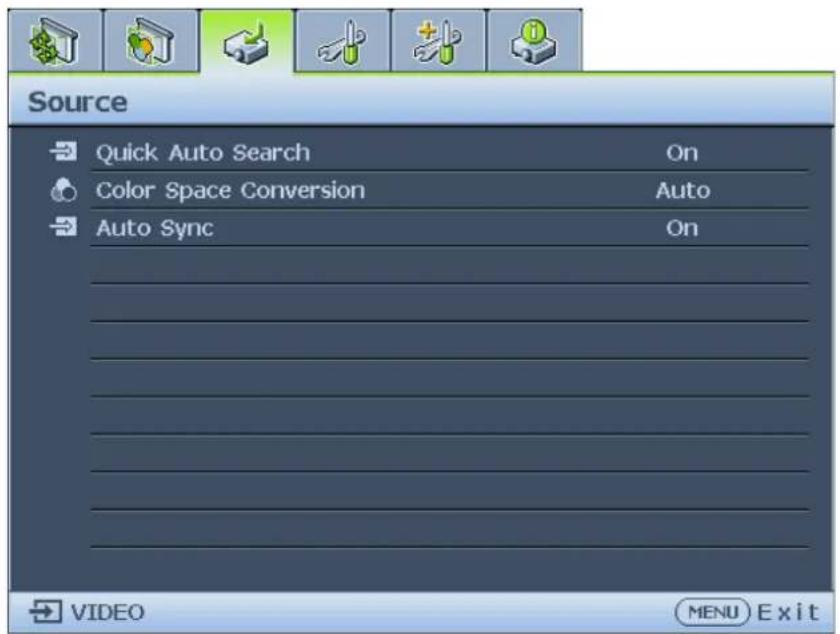

Source menu 49

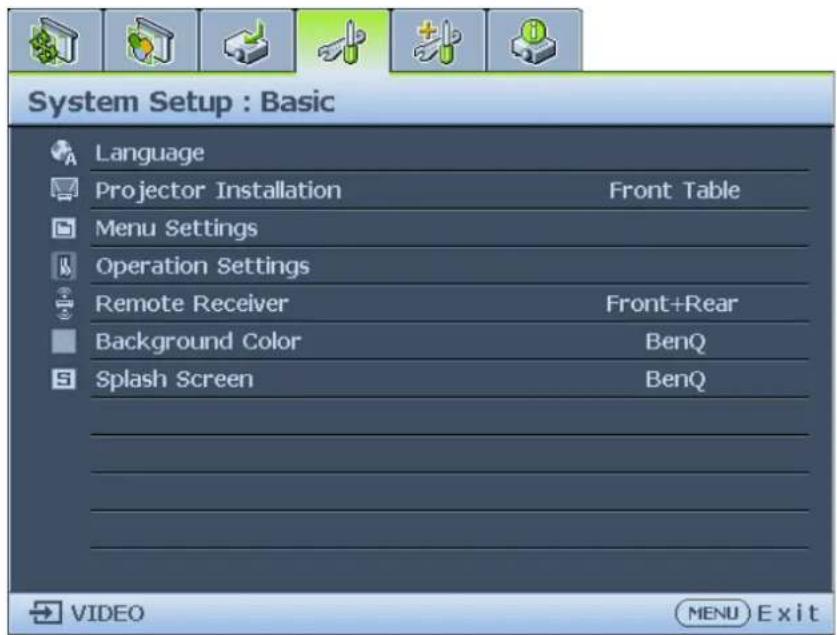

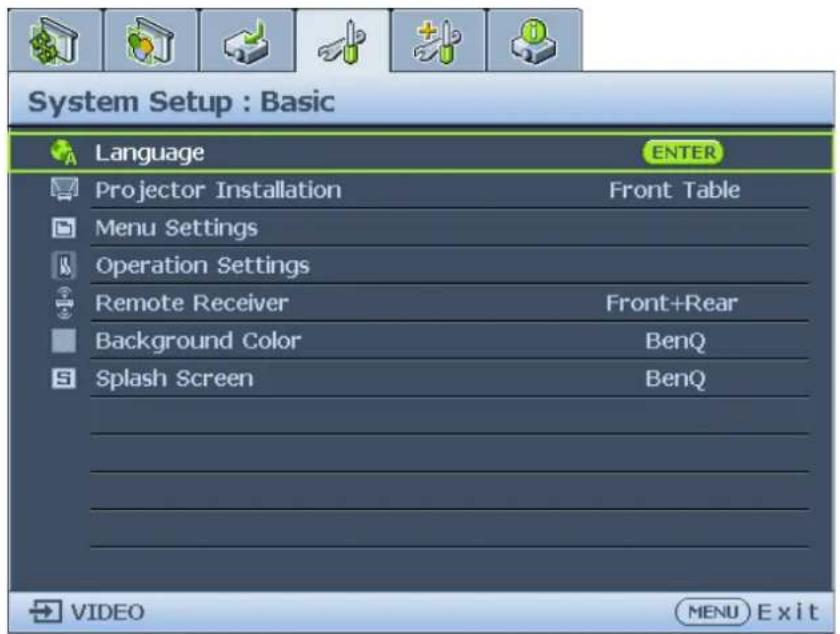

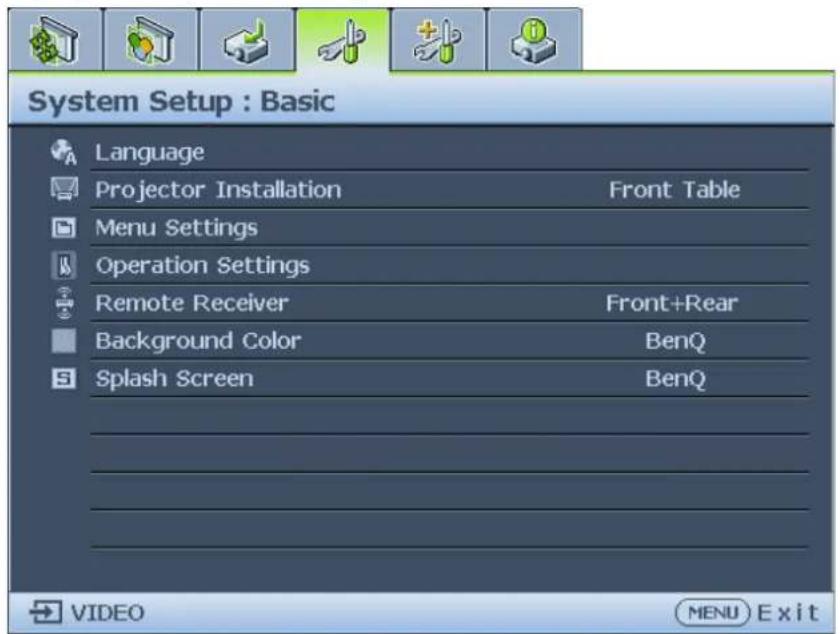

System setup : Basic menu....50

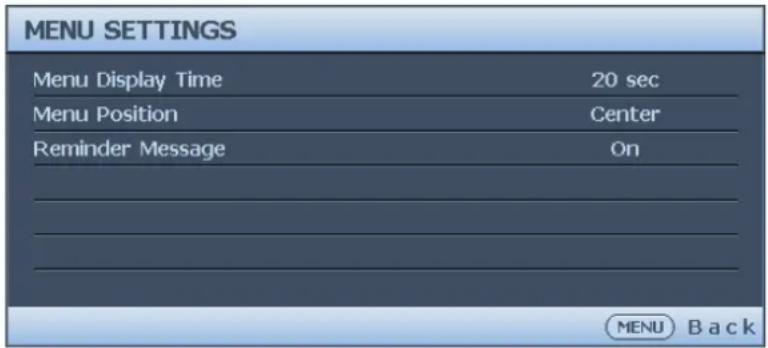

Menu Settings menu....51

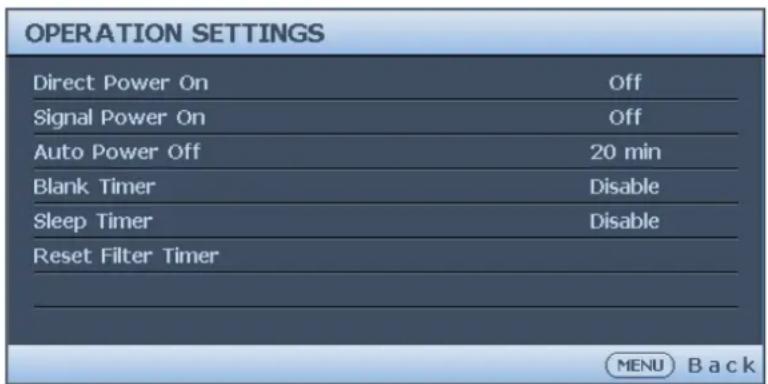

Operation Settings menu....51

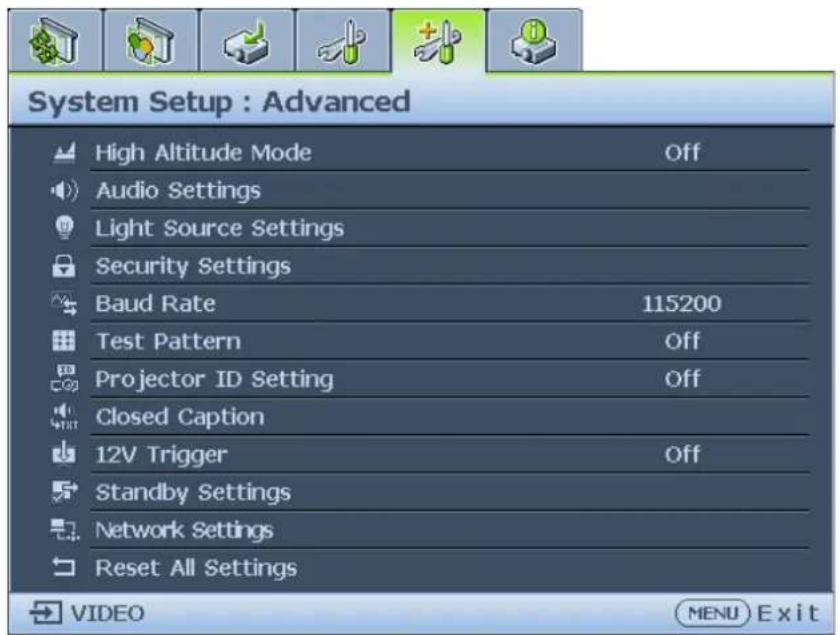

System setup : Advanced menu....52

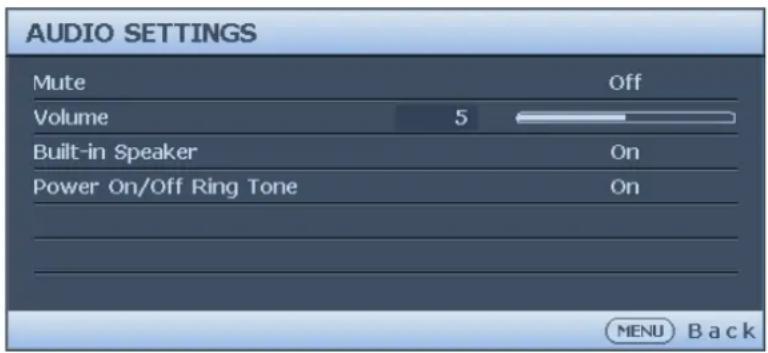

Audio Settings menu 53

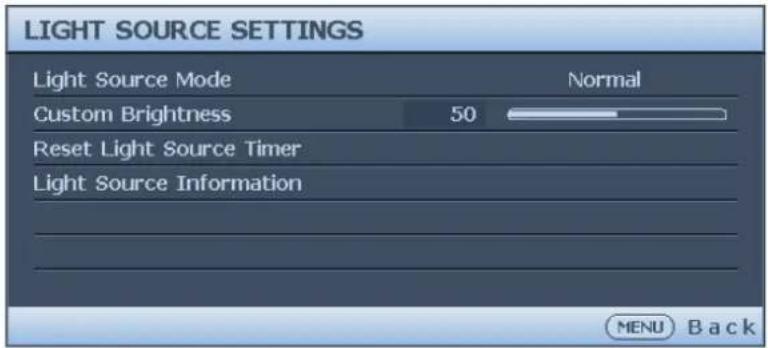

Light Source Settings menu....54

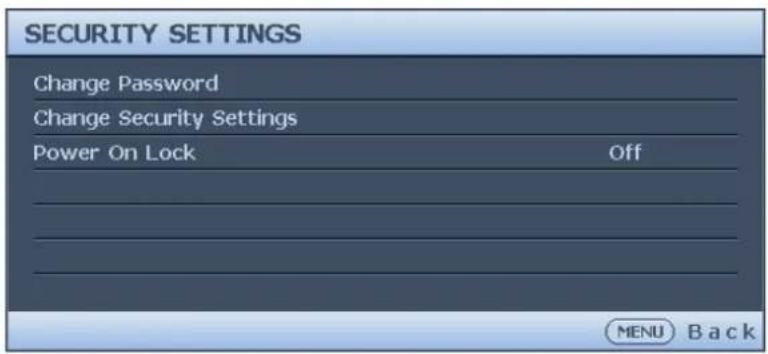

Security Settings menu 54

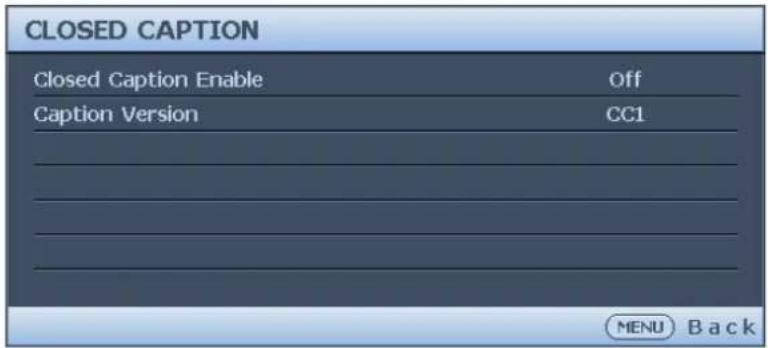

Closed Caption menu....55

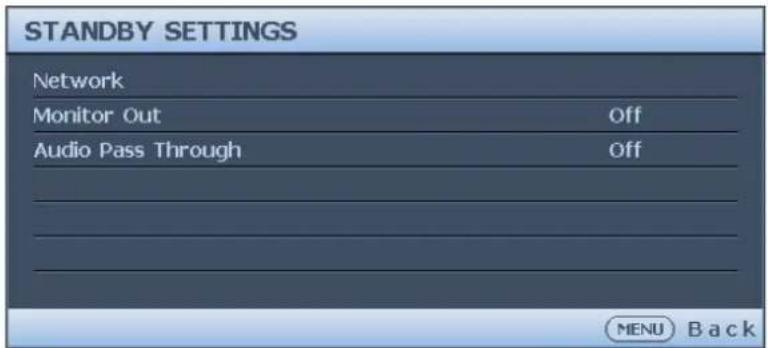

Standby Settings menu....55

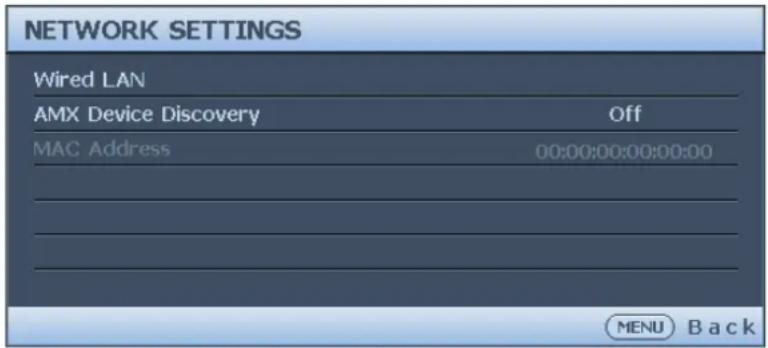

Network Settings menu 56

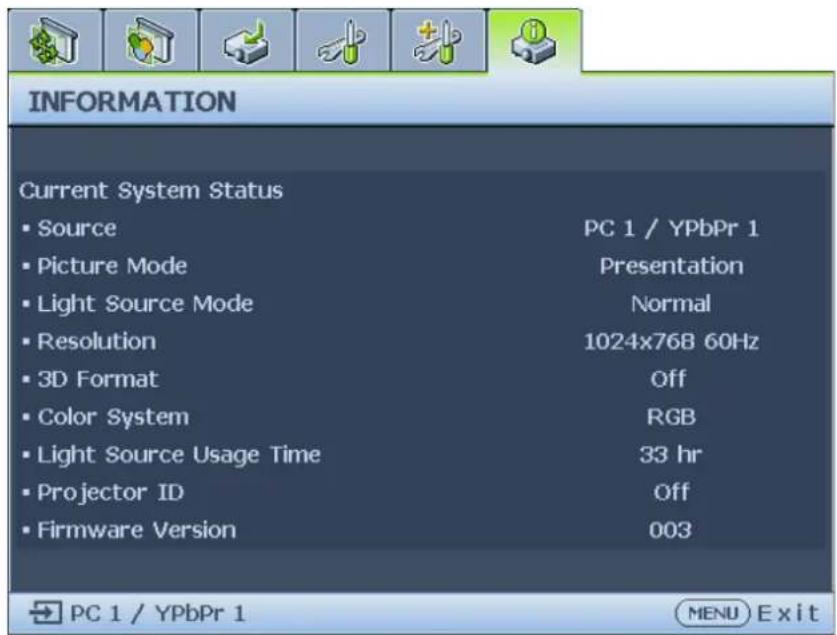

Information menu.... 57

Menu structure 58

Maintenance 61

Before maintaining the projector 61

Care of the projector 61

Clean the lens front surface 61

Clean the projector case....61

Filter maintenance 62

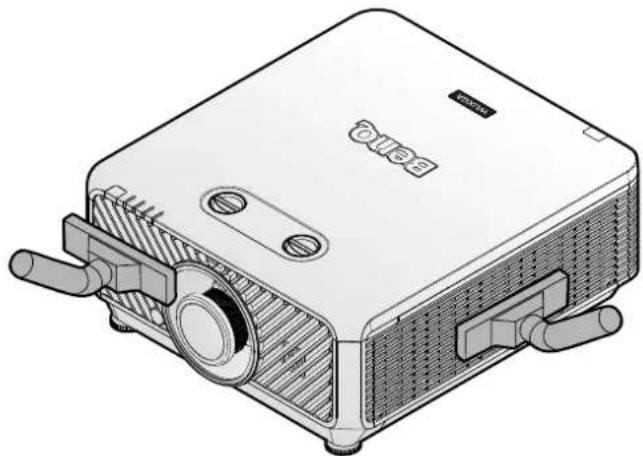

Cleaning the filter 62

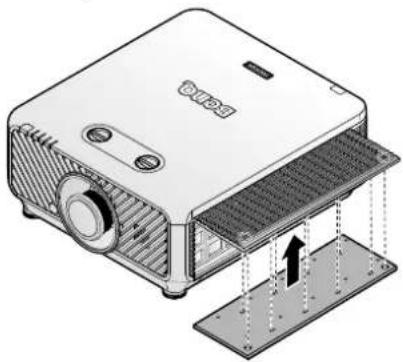

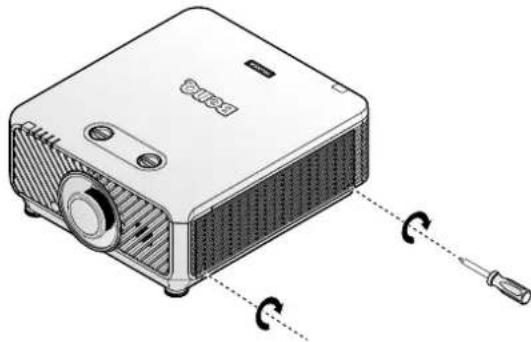

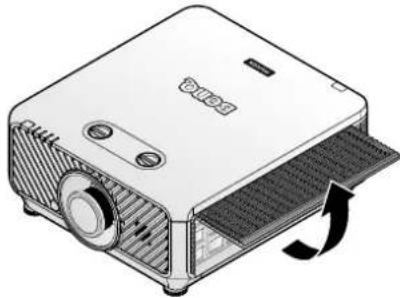

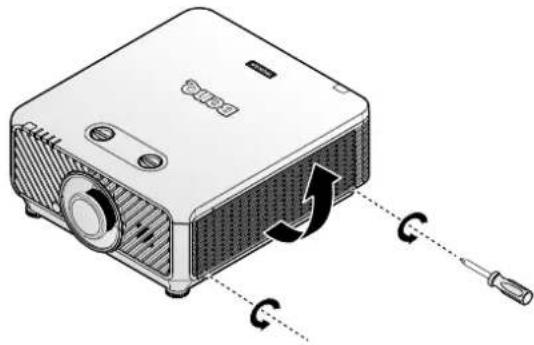

Replacing the side filter 63

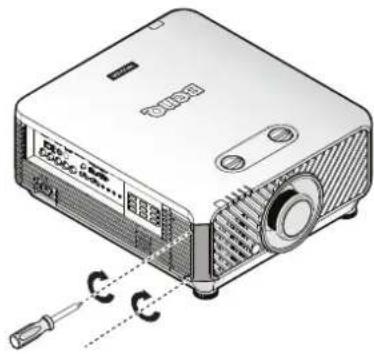

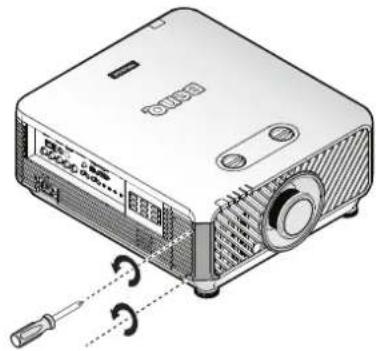

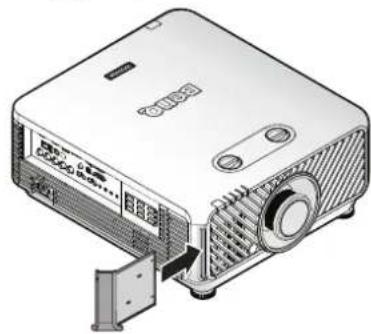

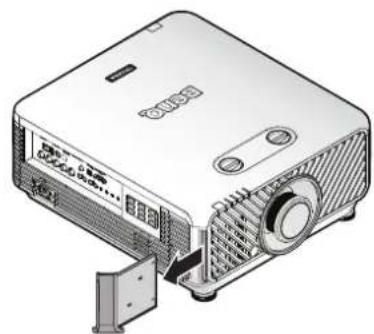

Replacing the front filter 64

LED indicator 65

System message....65

Light source error message....65

Filter message 65

Thermal error message....66

Troubleshooting 67

Troubleshooting....67

The projector does not turn on....67

No picture....67

Blurred image....67

Remote control does not work. 67

The password is incorrect....67

Specifications....68

Specifications 68

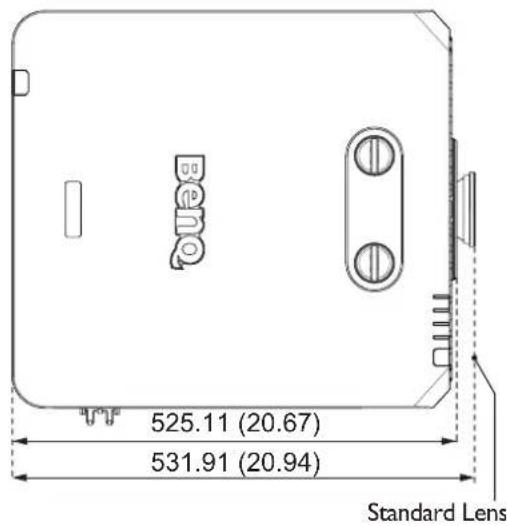

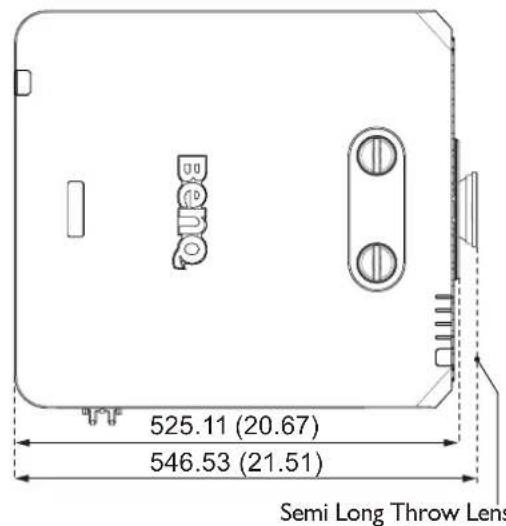

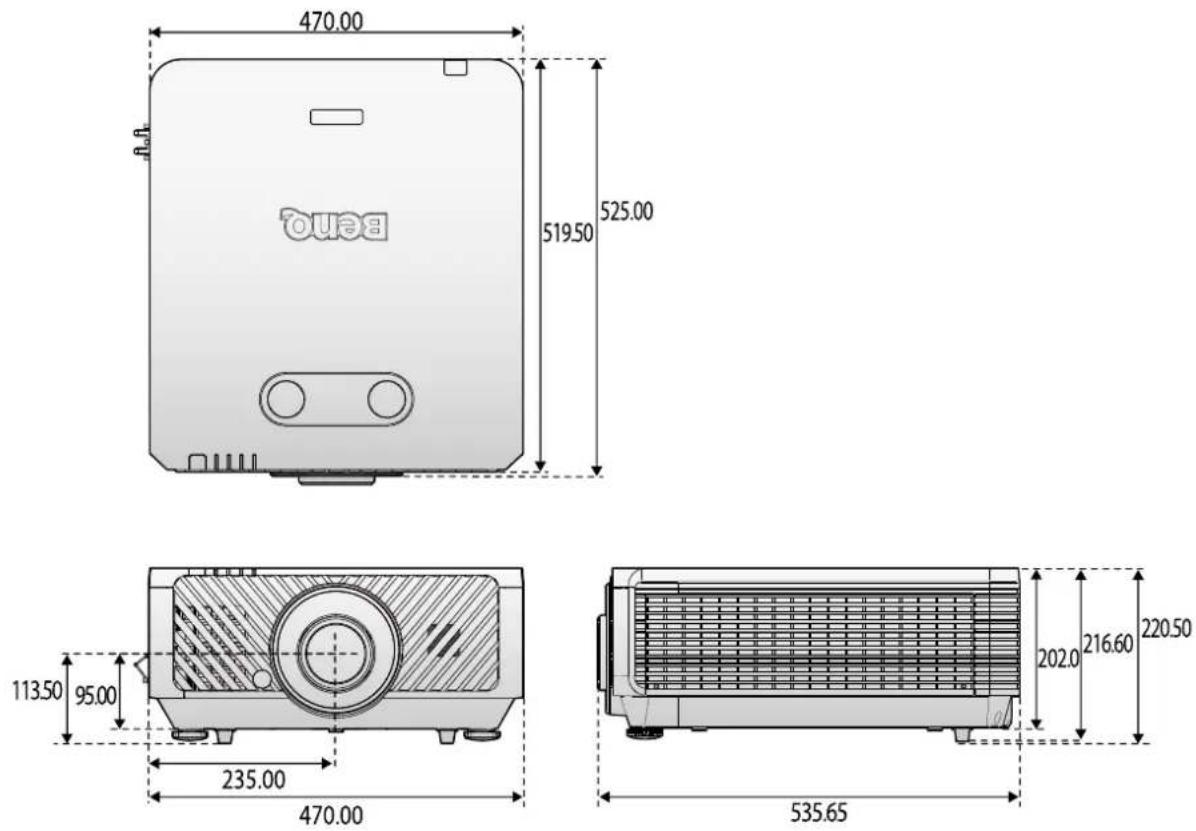

Dimensions....69

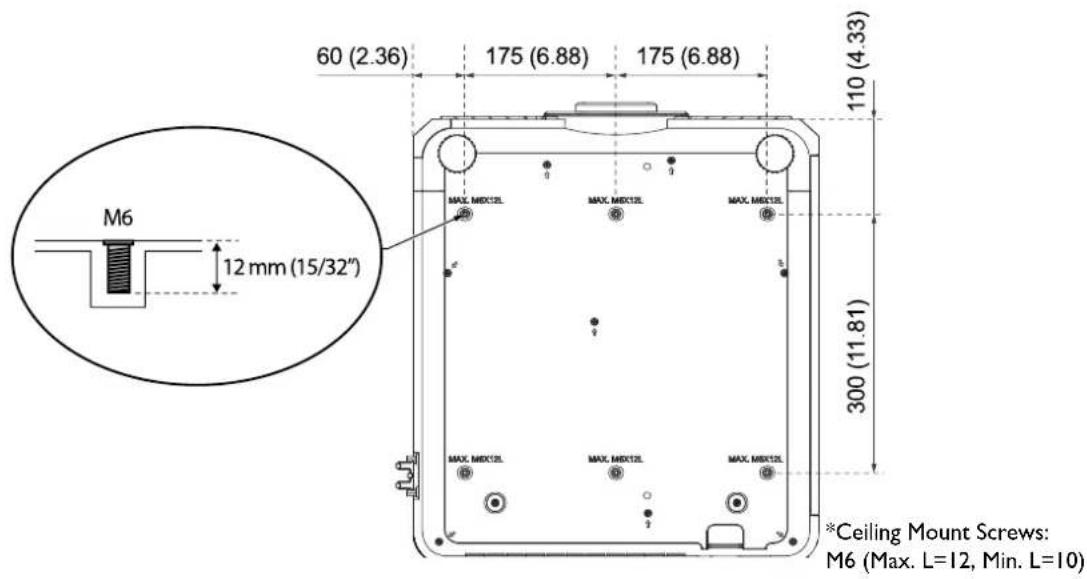

Attaching for ceiling mount 69

Appendix....70

Timing table 70

Supported timing for PC & PC 2 input....70

Support timing for Component - YPbPr input 71

Support timing for Video input....72

Support timing for HDMI & DVI-D (HDCP) input 72

Supporting timing for HDMI Video input....74

RS232 command control 75

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in this manual and marked on the product.

General safety instruction

1. Do not look straight at the projector lens during operation. The intense light beam may damage your eyes.
2. Always open the lens shutter or remove the lens cap when the projector light source is on.
3. In some countries, the line voltage is NOT stable. This projector is designed to operate safely within a mains voltage between 100 to 240 volts AC, but could fail if power cuts or surges of ±10 volts occur. In areas where the mains voltage may fluctuate or cut out, it is recommended that you connect your projector through a power stabilizer, surge protector or uninterruptible power supply (UPS).
4. Do not block the projection lens with any objects when the projector is under operation as this could cause the objects to become heated and deformed or even cause a fire. To temporarily turn off the light source, press BLANK on the remote control.
5. Do not place this product on an unstable cart, stand, or table. The product may fall, sustaining serious damage.

6. Do not attempt to disassemble this projector. There are dangerous high voltages inside which may cause death if you should come into contact with live parts.
   Under no circumstances should you ever undo or remove any other covers. Refer servicing only to suitably qualified professional service personnel.

7. Do not place this projector in any of the following environments.

8. Space that is poorly ventilated or confined. Allow at least 50 cm clearance from walls and free flow of air around the projector.

9. Locations where temperatures may become excessively high, such as the inside of a car with all windows rolled up.
10. Locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shortening the projector's life span and darkening the image.
11. Locations near fire alarms
12. Locations with an ambient temperature above 40^ / 104^

13. Locations where the altitudes are higher than 3000 m (10000 feet).

14. Do not block the ventilation holes.

15. Do not place this projector on a blanket, bedding or any other soft surface.

16. Do not cover this projector with a cloth or any other item.

17. Do not place inflammables near the projector.
    If the ventilation holes are seriously obstructed, overheating inside the projector may result in a fire.

18. Do not step on the projector or place any objects upon it. Besides probable physical damage to the projector, doing so may result in accidents and possible injury.

19. Do not place liquids near or on the projector. Liquids spilled into the projector may cause it to fail. If the projector does become wet, disconnect it from the power supply's wall socket and call BenQ to have the projector serviced.

Do not remove

This equipment has a three-pin grounding-type power plug. Do not remove the grounding pin. As a safety feature, this plug will only fit a grounding-type power outlet. If you are unable to fit the plug into the outlet, contact an electrician.

Notice on laser

This symbol indicates that there is a potential hazard of eye exposure to laser radiation unless the instructions are closely followed.

Laser class

This Laser Product is designated as Class 3R during all procedures of operation. LASER LIGHT - AVOID DIRECT EYE EXPOSURE.

Do not point laser or allow laser light to be directed or reflected toward other people or reflective objects.

Direct or scattered light can be hazardous to eyes and skin.

There is a potential hazard of eye exposure to laser radiation if the included instructions are not followed.

Caution – use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Laser parameters

Wavelength 450nm - 460nm (Blue)

Mode of operation Pulsed, due to frame rate

Pulse width 1.34ms

Pulse repetition rate 120Hz

Maximum laser energy 0.698mJ

Total internal power >100w

Apparent source size >10mm, at lens stop

Divergence >100 mili Radian

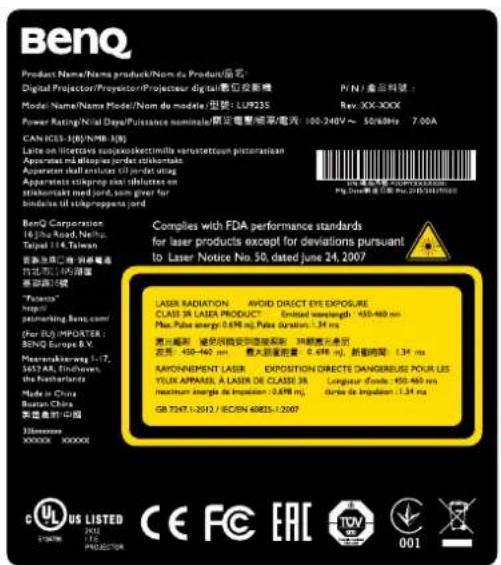

Label instruction

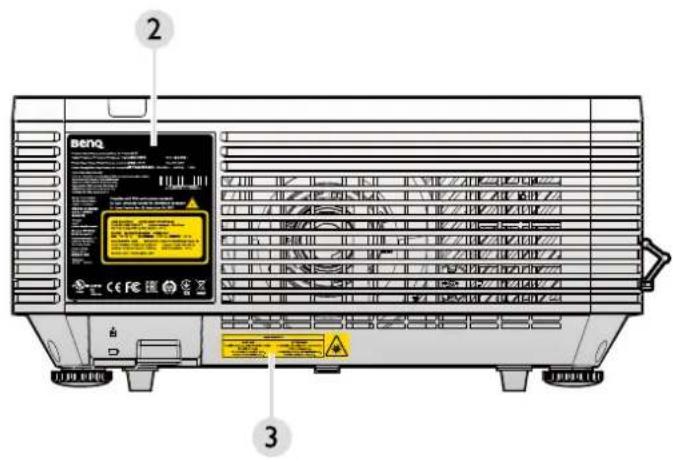

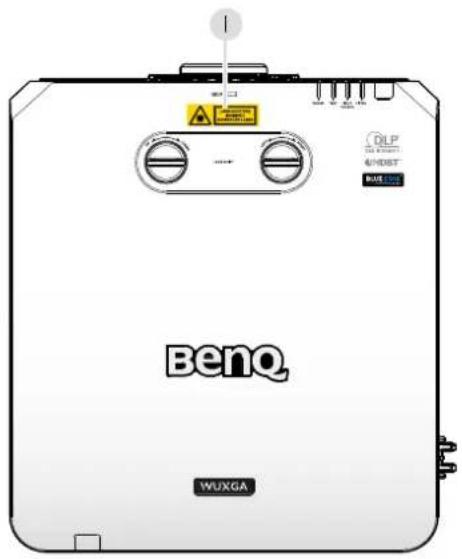

Below drawing show the label's location.

I. Laser warning label

1. Spec label

2. Explanatory Label

Laser light instruction

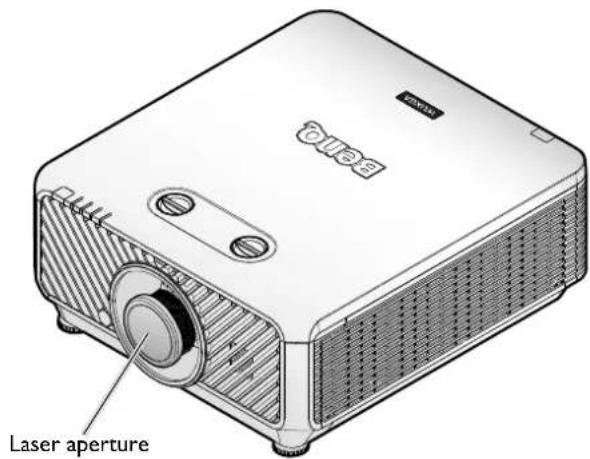

Below drawing is the laser aperture location. Be careful not to let the eye see the light directly.

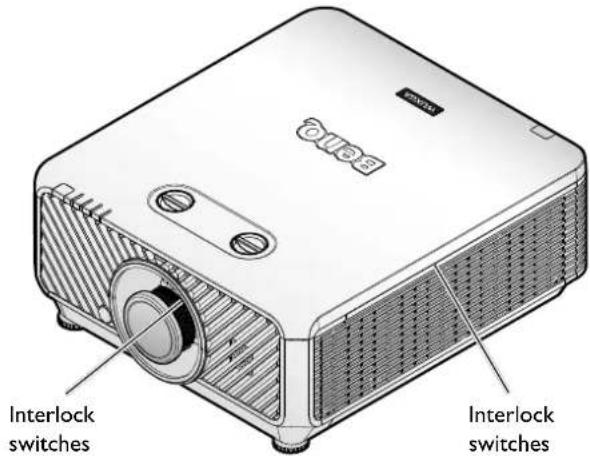

Interlock switches

This machine has 2 (Top cover x 1, Lens x 1) Interlock switches to protect the laser light Leakage.

I. Will power-off the system individually when the top cover is removed.

1. Will power-off the system individually when the lens is removed or not install correctly.

Prepare for installation

Caution for installation

1. If the projector and lens were purchased separately, remove the anti-dust cap before use and store it for future use. When transporting the projector, move the lens to the home position, remove the lens, and attach the anti-dust cap.

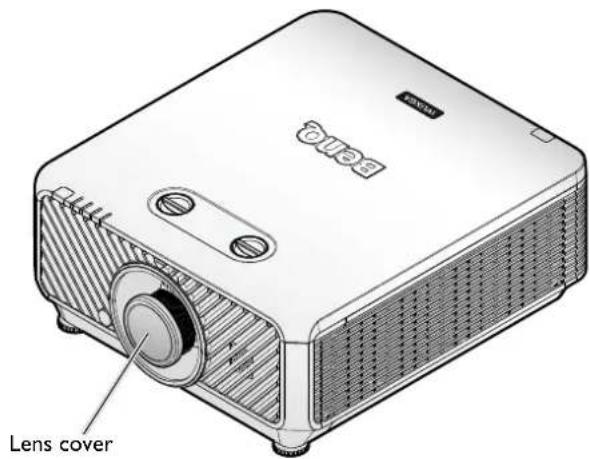

1. When the projector is not in use, attach the lens cover supplied with the projector or the projection lens.

Focus adjustment

The high clarity projection lens is thermally affected by the light from the bulb; thus, the focus is unstable for a short period immediately after the power is turned on. Please wait at least 15 minutes of continuous projection before adjusting the focus.

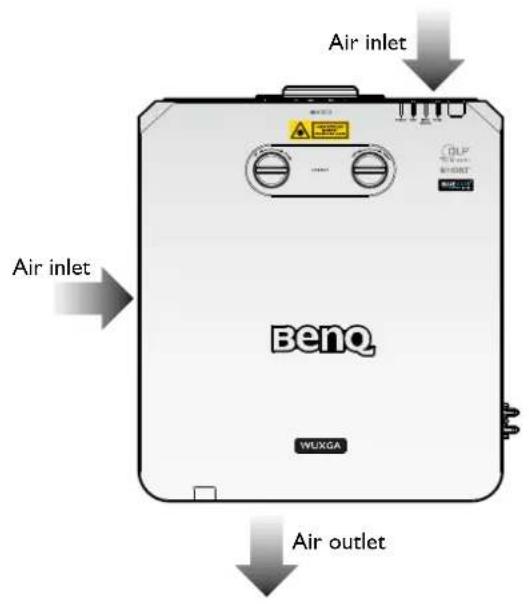

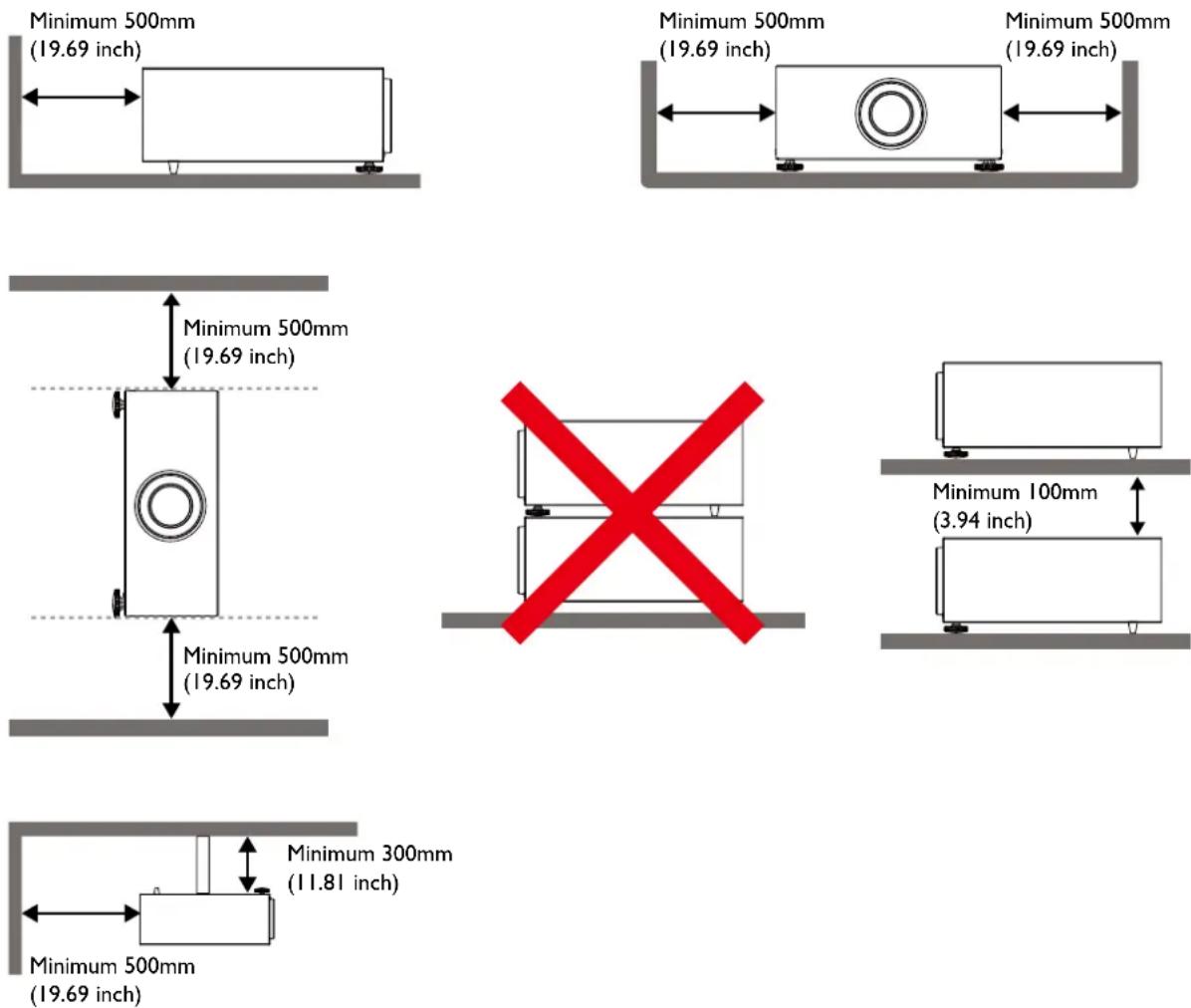

Cooling notice

Allow at least 500 mm (19.7 in) for clearance around the exhaust vent. Make sure no objects block air input within 300 mm (11.8 in).

Keep the outlet at least 1 m away from the inlets of other projectors.

• The projector can be installed at any angle.

Diagram of a mechanical or electrical component with six arms and a central block, no text or symbols present.

Top-down view of a circular object with red arrows indicating rotational motion, surrounded by surrounding geometric shapes (no text or symbols)

- Allow at least 50 cm of clearance around the exhaust vent.

• Ensure that the air intake vents do not recycle hot air from the exhaust vent.
• When operating in an enclosed space, make sure that the surrounding air temperature does not exceed the projector's operating temperature and that the air intake and exhaust vents are unobstructed.
• All enclosures should pass a certified thermal evaluation to ensure that the projector does not recycle exhaust air. Recycling exhaust air may cause the projector to shutdown even if the ambient temperature is within the acceptable operating temperature range.

Package contents

Standard packing items

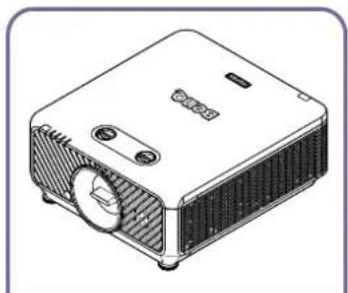

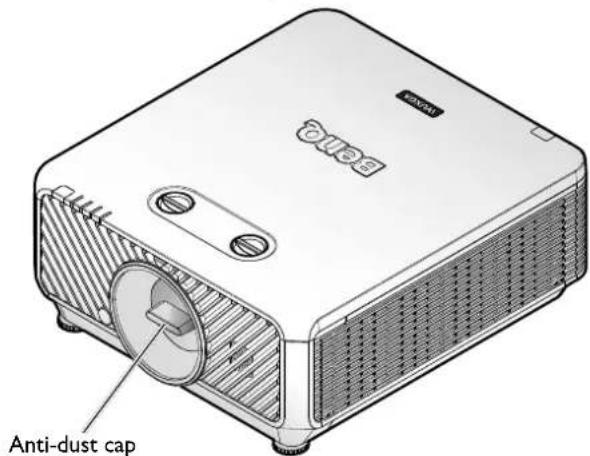

Illustration of a projector with ventilation slots and a button (no text or symbols)

Projector with anti-dust cap

Front view of a black remote control with navigation buttons and a brand logo (no visible text or symbols on the device itself)

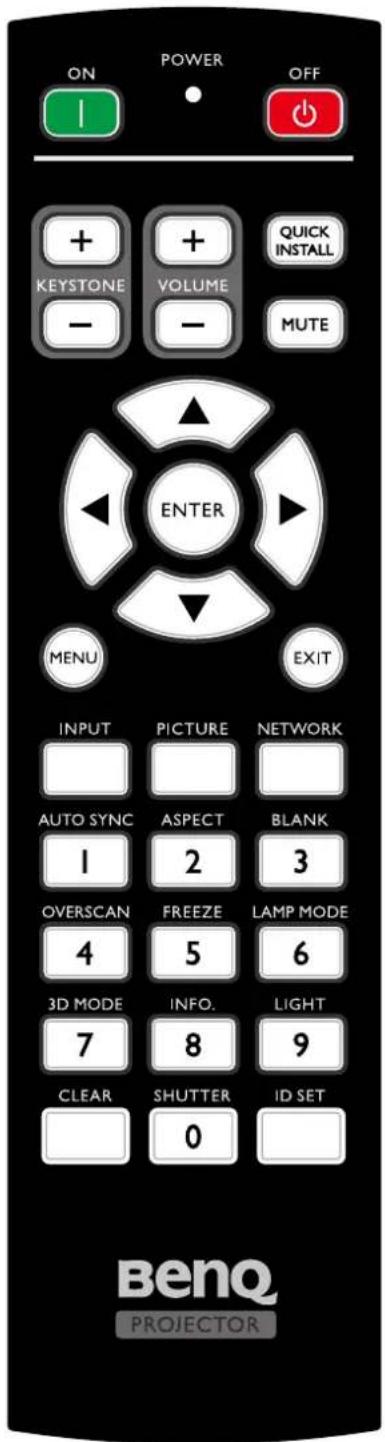

Remote control

Two cylindrical batteries arranged vertically inside a rounded rectangular frame (no text or symbols)

Batteries

Illustration of a closed book with a small logo on the cover (no visible text or symbols on the spine)

Installation Guide

Line drawing of a coiled electrical plug with terminal connectors (no text or symbols)

Power cable

Line drawing of a cable with two connectors and a connecting rod (no text or symbols)

VGA cable

Lens information

Model Lens Type		Part Number	Throw Ratio Lens Shift
LS2ST3	Wide fix 5J.JDH3	7.002	XGA: 0.81WUXGA: 0.778	Vertical: -15%-55% (WUXGA), -10%-50% (XGA)Horizontal: -5%-5%
LS2ST1	Wide zoom 5J.JD	DH37.011	XGA: 1.14-1.347WUXGA: 1.1-1.3	Vertical: -15%-55% (WUXGA), -10%-50% (XGA)Horizontal: -5%-5%
LS2SD2	Standard 5J.JEN3	7.001	XGA: 1.6-2WUXGA: 1.54-1.93	Vertical: -15%-55% (WUXGA), -10%-50% (XGA)Horizontal: -5%-5%
LS2LTI	Semi long 5J.J	DH37.032	XGA: 2-3WUXGA: 1.93-2.9	Vertical: -15%-55% (WUXGA), -10%-50% (XGA)Horizontal: -5%-5%
LS2LT2	Long zoom 5J.J	DH37.041	XGA: 3.11-5.18WUXGA: 3-5	Vertical: -15%-55% (WUXGA), -10%-50% (XGA)Horizontal: -5%-5%

Introduction

Projector exterior view

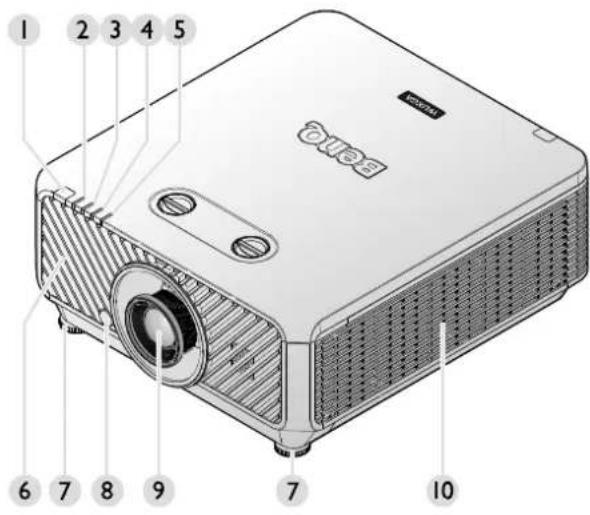

Front and upper side view

I. Front IR remote sensor
2. FILTER indicator light
3. LIGHT SOURCE indicator light
4. TEMPerature indicator light
5. POWER indicator light
6. Front vent (cool air intake)
7. Front adjuster foots
8. LENS RELEASE button
9. Projection lens
10. Side vent (cool air intake)

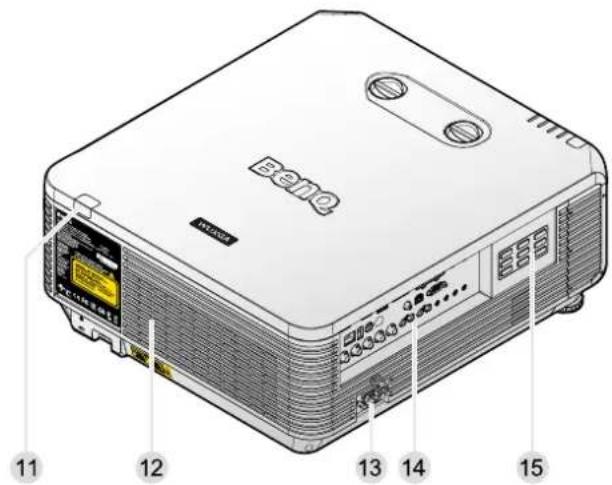

Rear and upper side view

II. Rear IR remote sensor
12. Vent (cool air outtake)
13. AC power cord inlet
14. Control terminals
15. Control panel

Controls and functions

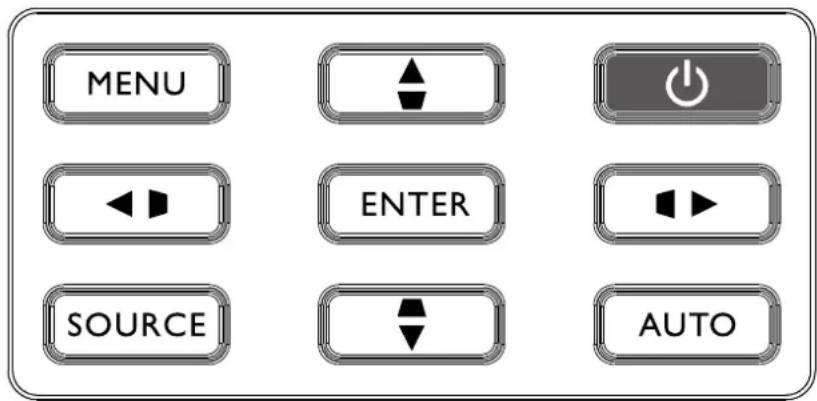

Control panel

- MENU

Turns on the On-Screen Display (OSD) menu. Goes back to previous OSD menu, exits and saves menu settings. See "Using the menu" on page 41 for details.

- Keystone/Arrow keys ( ▶/◀ Left)

Manually corrects distorted images resulting from an angled projection.

- SOURCE

Displays the source selection bar.

- ENTER

Selects an available picture setup mode.

Enacts the selected On-Screen Display (OSD) menu item. See "Using the menu" on page 41 for details.

- Keystone/Arrow keys ( ▲ / ▼ Down)

Manually corrects distorted images resulting from an angled projection.

• AUTO

Automatically determines the best picture timings for the displayed image. See "Auto adjusting the image" on page 39 for details.

- Keystone/Arrow keys ( ◀ /▶ Right)

Manually corrects distorted images resulting from an angled projection.

• Power

Toggles the projector between standby mode and on. See "Switch on the projector" on page 34 and "Switch off the projector" on page 40 for details.

- Keystone/Arrow keys ( ▼/▲ Up)

When the On-Screen Display (OSD) menu is activated, the ▲, ▼, ◀, and ▶ keys are used as directional arrows to select the desired menu items and to make adjustments. See "Using the menu" on page 41 for details.

Control terminal

• MONITOR OUT

Connection to other display equipment for concurrent playback display.

• PC

15-pin VGA port for connection to RGB, component HD source, or PC.

- HDBaseT

For connection to RJ45 Cat5/Cat6 cable to input uncompressed high-definition video (HD).

• DVI-D

Connection to DVI source.

• HDMI I

Connection to HDMI source.

• HDMI 2/MHL

Connection to HDMI or MHL source.

• LAN

For connection to RJ45 Cat5/Cat6 Ethernet cable to control the projector through a network.

- USB 1.5A

Support 5V/1.5A output.

• 3D SYNC OUT

Connection to 3D IR sync signal transmitter.

• VIDEO

Connection to a video source.

- SERVICE

Maintenance exclusive port for authorized maintenance personnel only.

• RS-232

Standard 9-pin D-sub interface for connection to PC control system and projector maintenance.

• PC 2 (R/Pr, G/Y, B/Pb, H, V)

Connection to RGB or YPbPr/YCbCr output signal with BNC type input terminal.

• AUDIO IN (L/R)

Connection to an audio input source via an audio or audio L/R cable.

• AUDIO OUT (L/R)

Connection to a speaker or headset.

• AUDIO IN

Connection to an audio input source via an audio cable.

• WIRED REMOTE IN

Connection to remote control for wire remote control.

Caution:

Make sure the port is valid before inserting a wired remote controller. The remote controller may be damaged in case of an invalid port, e.g. a wired remote controller is connected to trigger output.

• WIRED REMOTE OUT

Connection to another projector.

- 12V TRIGGER

3.5mm mini earphone jack, employs 200mA display relay to provide I2(+/-1.5)V output and short circuit protection.

Remote control

• ON / OFF Toggles the projector between standby mode and on.

- KEYSTONE+/KEYSTONE- Manually corrects distorted images resulting from an angled projection.

• VOLUME +/VOLUME - Increases/decreases the projector volume.

- QUICK INSTALL Displays the Quick Install OSD menu.

- MUTE Toggles projector audio between on and off.

- Arrow keys ( ▲ Up, ▼ Down, ◀ Left, ▶ Right) When the On-Screen Display (OSD) menu is activated, the arrow keys are used as directional arrows to select the desired menu items and to make adjustments. See "Using the menu" on page 41 for details.

- ENTER Selects an available picture setup mode. Activates the selected On-Screen Display (OSD) menu item.

- MENU Turns on the On-Screen Display (OSD) menu. Goes back to previous OSD menu, exits and saves menu settings.

- EXIT Goes back to previous OSD menu, exits and saves menu settings.

- INPUT Selects an input source for display.

• PCITURE Press to display Picture menu.

• NETWORK Selects Network Display as the input signal source.

• AUTO SYNC Automatically determines the best picture timings for the displayed image.

• ASPECT Selects the display aspect ratio.

- BLANK Used to hide the screen picture.

• OVERSCAN

Press to select overscan mode.

- FREEZE

Freezes the projected image.

- LAMP MODE

Press to display OSD menu to select desired light source mode.

- 3D MODE

Press to display 3D setup menu.

- INFO.

Press to display INFORMATION menu.

• LIGHT

Press to open backlight of remote controller.

- CLEAR

Clear remote ID SET assigned to all projectors.

Press CLEAR and ID SET for five seconds. The LED blinks three times then the ID setting is cleared.

- SHUTTER

The function is not available on this projector.

• ID SET

- Remote control ID SET (set the particular remote code)

Press to set remote ID.

Press ID SET for three seconds. The POWER indicator on the remote control blinks, then press 01\~99 to designate an ID.

Note:

The remote control number (Remote control ID) must match the Projector ID Setting number for accurate control.

- Clear Remote ID SET (set remote code to all) Press CLEAR and ID SET for five seconds. The POWER indicator on the remote control blinks a single instance to reset remote code to all, can control projector no matter projector id setting.

- Numeric buttons

Enters numbers in network settings.

Numeric buttons 1, 2, 3, 4 cannot be pressed when asked to enter password.

- WIRE REMOTE jack

Connect to projector for wire remote control.

Connect with projector

When you use a system with multiple projectors, use commercially available M3 stereo mini jack cables to connect the other projectors via the WIRED REMOTE IN/WIRED REMOTE OUT terminals.

The remote control is effective even in places where obstacles stand in the light path or where devices are susceptible to outside light.

Note:

Use two core shielded cables no longer than 15m (49.2 ft). The remote control may not operate when the length of the cable exceeds 15m (49.2 ft) or when it is not properly shielded.

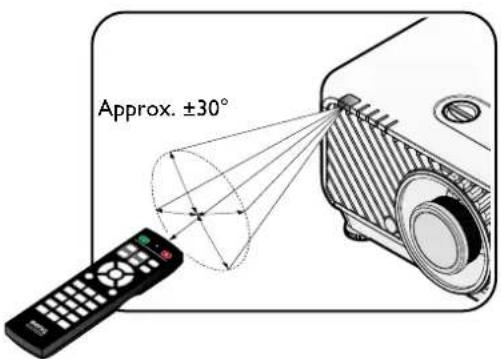

Remote control effective range

Infra-Red (IR) remote control sensor is located on the front and rear of the projector. The remote control must be held at an angle within 30 degrees perpendicular to the projector's IR remote control sensor to function correctly. The distance between the remote control and the sensor should not exceed 8 meters (\~ 26 feet).

Make sure that there are no obstacles between the remote control and the IR sensor on the projector that might obstruct the infra-red beam.

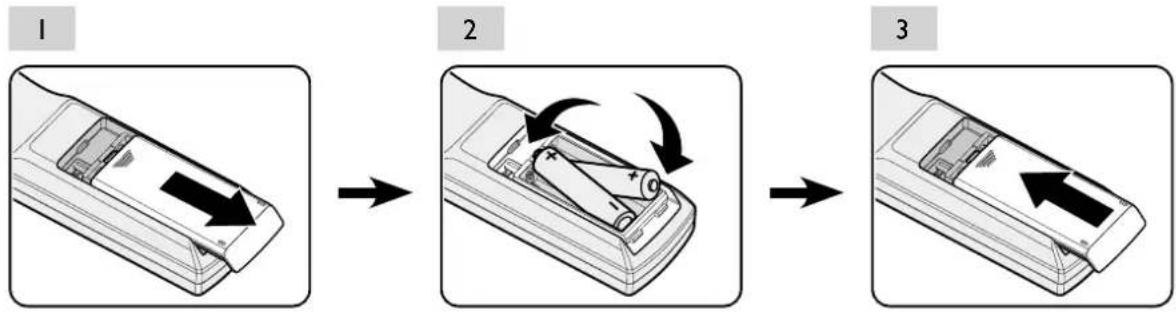

Replacing the remote control battery

1. To open the battery cover, turn the remote control over to view its back, push on the finger grip on the cover and slide it up in the direction of the arrow as illustrated. The cover will slide off.

2. Remove any existing batteries (if necessary) and install two AA batteries observing the battery polarities as indicated in the base of the battery compartment. Positive (+) goes to positive and negative (-) goes to negative.

3. Refit the cover by aligning it with the base and sliding it back down into position. Stop when it clicks into place.

Caution:

- Avoid excessive heat and humidity.

• There may be battery damage if the battery is incorrectly replaced.

- Replace only with the same or equivalent type recommended by the battery manufacturer.

- Dispose of the used battery according to the battery manufacturer's instructions.

- Never throw a battery into a fire. There may be danger of an explosion.

- If the battery is dead or if you will not be using the remote control for a long time, remove the battery to prevent damage to the remote control from possible battery leakage.

Installation

Installing removing the optional lens

Caution:

• Do not shake or place excessive pressure on the projector or the lens components as the projector and lens components contain precision parts.
• Before removing or installing the lens, be sure to turn off the projector, wait until the cooling fans stop, and turn off the main power switch.
• Do not touch the lens surface when removing or installing the lens.
• Keep fingerprints, dust or oil off the lens surface. Do not scratch the lens surface.
  • Work on a level surface with a soft cloth under it to avoid scratching.
• If you remove and store the lens, attach the lens cap to the projector to keep off dust and dirt.

Installing the new lens

Remove both end caps from the lens.

Note:

Removal of the plastic body cap before inserting a lens for the first time.

1. Align the flange and correctly position at the II o'clock position as shown in the picture.

Note:

Flange must be positioned at the 11 o'clock position, direction as shown in the picture.
2. Rotate the lens clockwise until you feel it click into place.

Illustration of a projector with visible lens and ventilation slots (no text or symbols)

Removing the existing lens from the projector

I. Push the LENSE RELEASE button to the unlock position.

Technical illustration of a projector with a circular lens and directional arrows indicating motion (no text or symbols)

1. Grasp the lens.

2. Rotate the lens counterclockwise. The existing lens will be disengaged.

Illustration of a projector with visible lens and ventilation slots (no text or symbols)

1. Pull out the existing lens slowly.

Illustration of a projector with a lens and ventilation slots, shown in 3D style (no text or symbols)

Evaluate for distance by image size

Obtaining a preferred projected image size

The distance from the projector lens to the screen, the zoom setting (if available), and the video format each factors in the projected image size.

Projection dimensions

Refer to "Dimensions" on page 69 for the center of lens dimensions of this projector before calculating the appropriate position.

LX9215

The screen aspect ratio is 4:3 and the projected picture is 4:3.

Lens										Wide Zoom (LS2ST1)				Standard (LS2SD2)
Throw ratio 1.14~1.347 1.6~2
Diagonal Image Width Image Height						Offset (A) O		Distance Distance
						Wide/ Tele Wide/ Tele Wide				Tele Wide Tele
(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)
80	2.03	64	1.63	48	1.22	0.0	0.000	24.0	0.610	73	1.85	86	2.19	102	2.60	128	3.25
100	2.54	80	2.03	60	1.52	0.0	0.000	30.0	0.762	91	2.32	108	2.74	128	3.25	160	4.06
120	3.05	96	2.44	72	1.83	0.0	0.000	36.0	0.914	109	2.78	129	3.28	154	3.90	192	4.88
150	3.81	120	3.05	90	2.29	0.0	0.000	45.0	1.143	137	3.47	162	4.11	192	4.88	240	6.10
200	5.08	160	4.06	120	3.05	0.0	0.000	60.0	1.524	182	4.63	216	5.47	256	6.50	320	8.13
300	7.62	240	6.10	180	4.57	0.0	0.000	90.0	2.286	274	6.95	323	8.21	-	-	-	-
400	10.16	320	8.13	240	6.10	0.0	0.000	120.0	3.048	-	-	-	-	-	-	-	-

Lens										Semi Long (L S2LTI)				Long Zoom (L S2LT2)				Wide Fix (LS2ST3)
Throw ratio										2~3				3.11~5.18				0.81
Diagonal Image Width Image Height						Offset (A)		O		Distance				Distance				Distance
						Wide/Tele		Wide/Tele		Wide		Tele		Wide		Tele		NA
(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)
80	2.03	64	1.63	48	1.22	0.0	0.000	24.0	0.610	128	3.25	192	4.88	199	5.06	332	8.42	52	1.32
100	2.54	80	2.03	60	1.52	0.0	0.000	30.0	0.762	160	4.06	240	6.10	249	6.32	414	10.53	65	1.65
120	3.05	96	2.44	72	1.83	0.0	0.000	36.0	0.914	192	4.88	288	7.32	299	7.58	497	12.63	78	1.98
150	3.81	120	3.05	90	2.29	0.0	0.000	45.0	1.143	240	6.10	360	9.14	373	9.48	622	15.79	97	2.47
200	5.08	160	4.06	120	3.05	0.0	0.000	60.0	1.524	320	8.13	480	12.19	498	12.64	829	21.05	130	3.29
300	7.62	240	6.10	180	4.57	0.0	0.000	90.0	2.286	480	12.19	720	18.29	746	18.96	1243	31.58	194	4.94
400	10.16	320	8.13	240	6.10	0.0	0.000	120.0	3.048	640	16.26	960	24.38	-	-	-	-	-	-

LU9235

The screen aspect ratio is 16:10 and the projected picture is 16:10.

Lens										Wide Zoom (LS2ST1)				Standard (LS2SD2)
Throw ratio 1.1~1.3 1.54~1.93
Diagonal Image Width Image Height				Offset (A) O			Distance Distance
				Wide/Tele Wide			Wide Wide Wide			Wide Wide Wide
(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)
80	2.03	68	1.72	42	1.08	2.1	0.054	23.3	0.592	75	1.90	88	2.24	104	2.65	131	3.33
100	2.54	85	2.15	53	1.35	2.6	0.067	29.1	0.740	93	2.37	110	2.80	131	3.32	164	4.16
120	3.05	102	2.58	64	1.62	3.2	0.081	35.0	0.888	112	2.84	132	3.36	157	3.98	196	4.99
150	3.81	127	3.23	79	2.02	4.0	0.101	43.7	1.111	140	3.55	165	4.20	196	4.98	245	6.24
200	5.08	170	4.31	106	2.69	5.3	0.135	58.3	1.481	187	4.74	220	5.60	261	6.63	327	8.31
300	7.62	254	6.46	159	4.04	7.9	0.202	87.4	2.221	280	7.11	331	8.40	-	-	-	-
400	10.16	339	8.62	212	5.38	10.6	0.269	116.6	2.962	-	-	-	-	-	-	-	-

Lens										Semi Long (LS2LTI)				Long Zoom (LS2LT2)				Wide Fix (LS2ST3)
Throw ratio										1.93~2.9				3~5				0.778
Diagonal Image Width Image Height						Offset (A)		O		Distance				Distance				Distance
						Wide/Tele		Wide/Tele		Wide		Wide		Wide		Wide		NA
(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)
80	2.03	68	1.72	42	1.08	2.1	0.054	23.3	0.592	131	3.33	197	5.00	204	5.17	339	8.62	53	1.34
100	2.54	85	2.15	53	1.35	2.6	0.067	29.1	0.740	164	4.16	246	6.25	254	6.46	424	10.77	66	1.68
120	3.05	102	2.58	64	1.62	3.2	0.081	35.0	0.888	196	4.99	295	7.50	305	7.75	509	12.92	79	2.01
150	3.81	127	3.23	79	2.02	4.0	0.101	43.7	1.111	245	6.24	369	9.37	382	9.69	636	16.15	99	2.51
200	5.08	170	4.31	106	2.69	5.3	0.135	58.3	1.481	327	8.31	492	12.49	509	12.92	848	21.54	132	3.35
300	7.62	254	6.46	159	4.04	7.9	0.202	87.4	2.221	491	12.47	738	18.74	763	19.39	1272	32.31	-	-
400	10.16	339	8.62	212	5.38	10.6	0.269	116.6	2.962	655	16.63	984	24.99	-	-	-	-	-	-

Note:

There is 5% tolerance among these numbers due to optical component variations. BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector before you permanently install it, so as to make allowance for this projector's optical characteristics. This will help you determine the exact mounting position so that it best suits your installation location.

Lens dimension

Optional Lens (Wide Fix: LS2ST3) Optional Lens (Wide Zoom: LS2ST1)

Optional Lens (Standard: LS2SD2) Optional Lens (Semi Long Throw: LS2LTI)

Optional Lens (Long Zoom: LS2LT2)

Adjusting by Lens shift

The Lens Shift function can be used to adjust the position of the projected image either horizontally or vertically within the range detailed below.

Adjusting the vertical image position

The vertical image height can be adjusted between 50% and -10% for XGA, 55% and -15% for WUXGA of offset position. Please consult the Lens Shift Range diagram below for further clarification.

Adjusting the horizontal image position

With the lens in the center position the horizontal image position can be adjusted to the left or right by up to a maximum of 5% of the image width. Please consult the Lens Shift Range diagram below for further clarification.

Lens shift range diagram

LX9215

LU9235

Notice (when edge blending)

- To avoid the image shaking or some pixels in the display may be misaligned, do not use the projector in the following location:

• In a building close to a construction site.
- In a room where an air conditioner unit is working and it vibrates.

- In a place where the temperature changes dramatically that may cause thermal contraction.

- Before making any adjustment, leave the projector lit for at least 45 minutes after its light source is turned on. This allows he internal temperature of the projector to stabilize.

Adjusting the Zoom/Focus

You may turn the zoom ring to zoom in or out. To focus the image, rotate the focus ring until the image is clear. The projector will focus at distances. See page 23.

Technical illustration of a mechanical bearing assembly (no text or symbols)

Zoom ringFocus ring

Connection

Before connecting

• Before connecting, carefully read the operating instructions for connecting the external device
• Turn off the power to all devices before connecting cables.

• Take note of the following before connecting cables. Failure to do so may result in malfunctions.

• Before connecting a cable to the projector or to a device that is connected to the projector, touch any nearby metallic objects to remove any static electricity from your body.

• Do not use unnecessarily long cables to connect the projector or a device to the projector. Using a longer cable that is wound makes it act like an antenna, making it more susceptible to noise.

• When connecting cables, connect GND first and then insert the connecting terminal of the connecting device.

• Acquire any connection cables necessary to connect external devices to the system that are not supplied.

• The images on the screen may wobble if the video signal contains too much jitter. In this case, a time base corrector (TBC) must be connected.
• If synchronization signal outputs from computers or video equipment are disrupted due to changes in the video output settings or any other reasons, the colors of projected images may be temporarily disrupted.
• The projector accepts video signals, Y/C signals, YCBCR/YPBPR signals, analog RGB signals (synchronization signals are TTL level), and digital signals.
• Some computer models are not compatible with the projector.
• Use a cable compensator when you connect devices to the projector with long cables. If a cable compensator is not used, the image may not display properly.

PC

No.	Serial No. Serial
1 R/PR 9 -
2 G/Y 10 GND
3 B/PB 11 GND
4 - 12 DDC data
5	GND
6	GND
7	GND
8 GND

13	SYNC/HD
14	VD
15	DDC clock

HDMI I

No.	Serial No. Serial
1	TMDS Data2+ 11 TMDS Clock	Shield
2	TMDS Data2 Shield 12 TMDS	Clock-
3	TMDS Data2- 13 CEC
4	TMDS Data1+	14	Reserved (N.C. on device)
5	TMDS Data1 Shield 15 SCL
6	TMDS Data1- 16 SDA
7	TMDS Data0+	17	DDC/CEC Ground
8	TMDS Data0 Shield 18 +5 V	Power (max 50 mA)
9	TMDS Data0- 19 Hot Plug Detect
10	TMDS Clock+

Even-numbered pins of 2 to 18

Odd-numbered pins of 1 to 19

DVI-D

No. Serial No. Serial
1 T.M.D.S data 2-		13 -
2	T.M.D.S data 2+	14	-+5 V
3	T.M.D.S data 2/4 shield	15	GND
4 -		16 Hot plug detection
5	-	17	T.M.D.S data 0-
6	DDC clock	18	T.M.D.S data 0+
7	DDC data	19	T.M.D.S data 0/5 shield
8 -		20 -
9 T.M.D.S data 1-		21 -
10	T.M.D.S clock1+	22	T.M.D.S clock shield
11	T.M.D.S data 1/3 shield	23	T.M.D.S clock+
12	-	24	T.M.D.S clock-

Connecting with AV equipment

Connecting with computer

Connecting with HDBaseT transmitter

Projector connecting terminals

Connecting with LAN

Operations

Switch on/off the projector

Connecting the power cord

Plug the power cord into the projector and into a wall socket. Turn on the wall socket switch (where fitted). Check that the POWER indicator light on the projector lights orange after power has been applied.

Diagram showing a plug inserted into an electronic device with cable, no text or symbols present

Caution:

Please use the original accessories (e.g. power cable) only with the device to avoid possible dangers such as electric shock and fire.

Power indicator

Power	Temp	Light	Filter	Status & Description
Orange - - Stand-by
Green Flashing	--- Powering up
Green -- Normal operation
Orange Flashing	--- Normal power down cooling

Switch on the projector

Press ⏻ POWER on the projector or ON on the remote control to start the projector and a start up tone sounds. The POWER indicator light flashes green and stays green when the projector is on.

The start up procedure takes about 30 seconds. In the later stage of start up, a startup logo is projected.

(If necessary) Rotate the focus ring to adjust the image clearness.

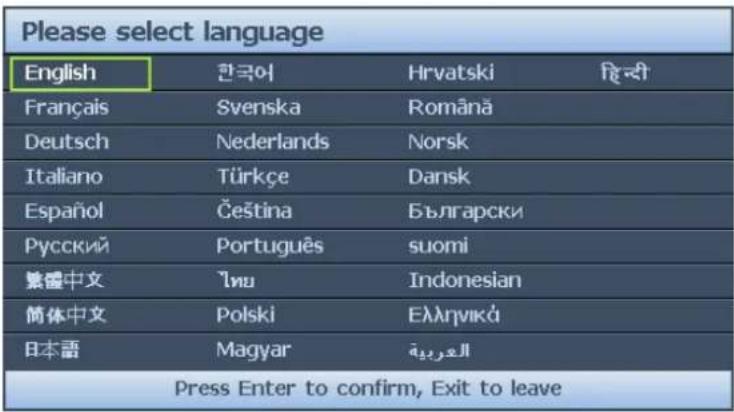

Select language

To use the OSD menus, please set them to your familiar language first.

*After this process is done, this menu will not show up again after 1st time adjustment unless user presses Reset All Settings.

I. Press ENTER on the projector or remote control to turn the OSD menu on.

1. Use ◀/▶ to highlight the System Setup: Basic menu.

1. Press ▼ to highlight Language and press ENTER to select a preferred language.

1. Press ENTER twice* on the projector or remote control to leave and save the settings.

*The first press leads you back to the main menu and the second press closes the OSD menu.

I. Front Table

Select this location with the projector placed on a table in front of the screen. This is the most common way to position the projector for quick setup and portability.

Simple line drawing of a person standing next to a desk with a computer, connected by wires (no text or symbols)

2. Rear Table

Select this location with the projector placed on a table behind the screen.

Note that a special rear projection screen is required.

*Set Rear Table in the SYSTEM

SETUP: Basic > Projector Installation menu after you turn the projector on.

Simple line drawing of a person observing a laptop on a desk with a simple geometric setup (no text or symbols)

3. Front Ceiling

Select this location with the projector suspended upside-down from the ceiling in front of the screen.

Purchase the BenQ Projector Ceiling Mounting Kit from your dealer to mount your projector on the ceiling.

*Set Front Ceiling in the SYSTEM

SETUP: Basic > Projector Installation menu after you turn the projector on.

Simple line drawing of a mechanical setup with a hanging device and a human silhouette (no text or symbols)

4. Rear Ceiling

Select this location with the projector suspended upside-down from the ceiling behind the screen.

Note that a special rear projection screen and the BenQ Projector Ceiling Mounting Kit are required for this installation location.

*Set Rear Ceiling in the SYSTEM

SETUP: Basic > Projector Installation menu after you turn the projector on.

Simple line drawing of a human silhouette and a mechanical device with connecting lines, no text or symbols present.

Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.

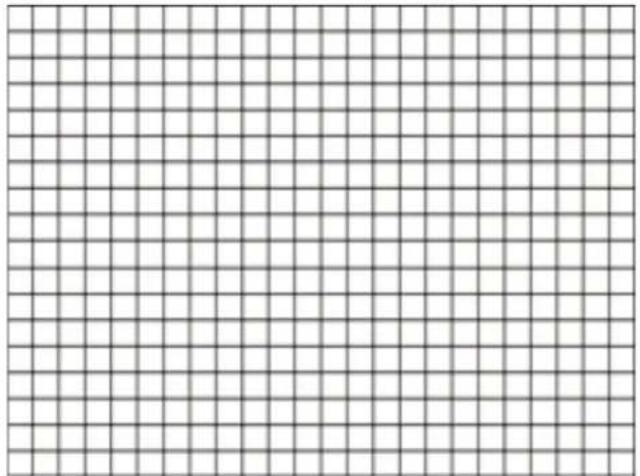

Using test pattern

The projector is capable of displaying the grid test pattern. It can be used to assist you with the adjustment of image size and focus, ensuring that the projected image is free from distortion. To display the test pattern, open the OSD menu and go to the System Setup: Advanced > Test Pattern and press ◀/▶ to select On.

Blank grid paper with uniform square cells (no text or symbols)

Adjusting by corner fit

Manually adjust four corners of the image by setting the horizontal and vertical values. Using the OSD menu

I. Press MENU and then press ◀/▶ until the Display menu is highlighted.
2. Press ▼ to highlight Corner Fit and press ENTER. The Corner Fit page displays.

1. Press ▲/▼/◄/► to select one of the four corners and press ENTER.

1. Press ▲/▼ to adjust vertical values from 0 to 60.

2. Press ◀/▶ to adjust horizontal values from 0 to 60.

Auto adjusting the image

In some cases, you may need to optimize the picture quality. To do this, press AUTO on the projector or remote control. Within 3 seconds, the built-in Intelligent Auto Adjustment function will re-adjust the values of Frequency and Clock to provide the best picture quality.

The current source information will be displayed in the upper left corner of the screen for 3 seconds.

Note:

• The screen will be blank while AUTO is functioning.
• This function is only available when PC signal (analog RGB) is selected.

Fine turning the image size and clarity

I. Adjust the projected image to the size that you need using the ZOOM ring.
2. Sharpen the image by rotating the FOCUS ring.

Switch off the projector

I. Press ⏻ POWER or OFF and a confirmation message will appear prompting you. If you don't respond in a few seconds, the message will disappear.
2. Press ⏻ POWER or OFF a second time. The POWER indicator light flashes orange, the projection light source shuts down.

1. Once the cooling process finishes, a "Power Off Ring Tone" will be heard. The POWER indicator light is a steady orange and fans stop. Disconnect the power cord from the power outlet.

Caution:

• To protect the light source, the projector will not respond to any commands during the cooling process.
- Press ⏻ POWER or ON again to start the projector after the POWER indicator light turns orange.

Using the menu

Main menu

The projector is equipped with On-Screen Display (OSD) menus for making various adjustments and settings.

Below is the overview of the OSD menu.

I. Display menu (see "Display menu" on page 42)
2. Picture menu (see "Picture menu" on page 45)
3. Source menu (see "Source menu" on page 49)
4. System Setup : Basic menu (see "System setup : Basic menu" on page 50)
5. System Setup : Advanced menu (see "System setup : Advanced menu" on page 52)
6. Information menu (see "Information menu" on page 57)

Available menu items may vary depending on the connected video sources or specified settings. Menu items that are not available will become grayed out.

• Use the arrow keys ( ▲/▼/◄/►) on the projector or remote control to move through the menu items.
  • Use ENTER to confirm the selected menu item.

Display menu

- Aspect Ratio

Press ◀/▶ to adjust the aspect of the projected image. The options are Auto, Real, 4:3, 16:9 and 16:10.

• Using the remote control

I. Press ASPECT to show the current setting.
2. Press ASPECT repeatedly to select an aspect ratio to suit the format of the video signal and your display requirements.

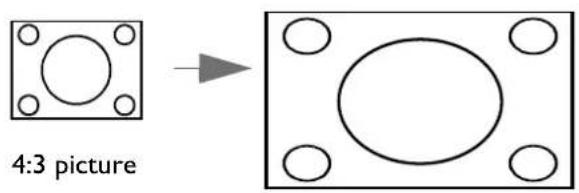

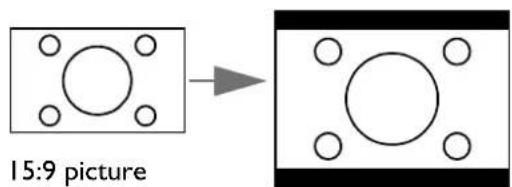

1. Auto: Scales an image proportionally to fit the projector's native resolution in its horizontal width. This is suitable for the incoming image which is neither in 4:3 nor 16:9 and you want to make most use of the screen without altering the image's aspect ratio.

1. 4:3: Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for 4:3 images like computer monitors, standard definition TV and 4:3 images aspect DVD movies, as it displays them without aspect alteration.

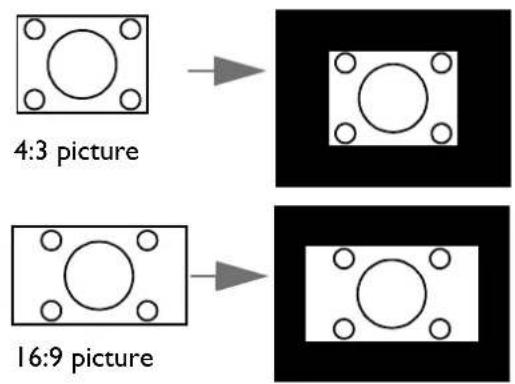

1. Real: The image is projected as its original resolution, and resized to fit within the display area. For input signals with lower resolutions, the projected image will display smaller than if resized to full screen. You could adjust the zoom setting or move the projector away from the screen to increase the image size if necessary. You may also need to refocus the projector after making these adjustments.

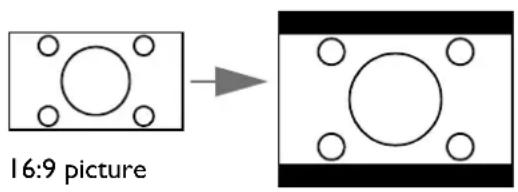

1. 16:9: Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. This is most suitable for images which are already in a 16:9 aspect, like high definition TV, as it displays them without aspect alteration.

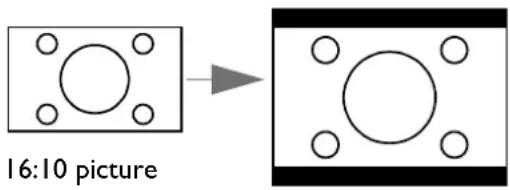

1. 16:10: Scales an image so that it is displayed in the center of the screen with a 16:10 aspect ratio. This is most suitable for images which are already in a 16:10 aspect, as it displays them without aspect alteration.

- 2D Keystone

Press ENTER and press ▲/▼/◄/► to adjust horizontal or vertical distortion brought by the projection angle.

- Corner Fit

Press ENTER to enter the Corner Fit menu. See "Corner Fit menu" on page 44 for more details.

- Position

Press ENTER and press ▲/▼/◄/► to adjust the position of the projected picture.

- Phase

Press ◀/▶ to adjust Phase for the projected picture.

• H. Size

Press ◀/▶ to adjust H. Size for the projected picture.

- Digital Zoom

Press ◀/▶ to enlarge the projected image.

- Overscan

Press ◀/▶ to hide edge of the projected image to damage the noise appear.

• 3D

Press ENTER to enter the 3D menu. See "3D menu" on page 44 for more details.

Corner Fit menu

• Top Left
  Press ENTER and press ▲/▼/◄/► to correct the top left corner.
• Top Right
  Press ENTER and press ▲/▼/◄/► to correct the top right corner.
• Bottom Left
  Press ENTER and press ▲/▼/◄/► to correct the bottom left corner.
• Bottom Right
  Press ENTER and press ▲/▼/◄/► to correct the bottom right corner.

3D menu

• 3D Mode
  Press ENTER to enter the 3D Mode menu. Press ▲/▼ to select the 3D format. The options are Auto, Top Bottom, Frame Sequential, Frame Packing, Side by Side and Off.
• DLP Link
  Press ◀/▶ to disable or enable DLP Link sync. The options are On and Off.
  • 3D Sync Invert
  Press ◀/▶ to enable or disable 3D Sync Invert.
• Save 3D Settings
  Press ENTER to enter the Save 3D Settings menu. Press ▲/▼ and ENTER to save the current 3D settings.
• Apply 3D Settings
  Press ENTER to enter the Apply 3D Settings menu. Press ▲/▼ and ENTER to apply the saved 3D settings.

Picture menu

- Picture Mode

Press ◀/▶ to select a picture mode. The options are Bright, Presentation, sRGB, Cinema, DICOM SIM, 3D, User 1 and User 2.

• Bright mode: Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, such as using the projector in well lit rooms.
• Presentation mode: Is designed for presentation. The brightness is emphasized in this mode to match PC and notebook coloring.
• sRGB mode: Maximizes the purity of RGB colors to provide true-to-life images regardless of brightness setting. It is most suitable for viewing photos taken with an sRGB compatible and properly calibrated camera, and for viewing PC graphic and drawing applications such as AutoCAD.
• Cinema mode: Is appropriate for playing colorful movies, video clips from digital cameras or DVs through the PC input for best viewing in a blackened (dimly lit) environment.
• DICOM SIM: This display mode simulates the grayscale/gamma performance of equipment used for “Digital Imaging and Communications in Medicine” (DICOM).

Important: This mode should NEVER be used for medical diagnosis, it is for education/training purposes only.

• 3D mode: Is appropriate for playing 3D images and 3D video clips.
• User I/User 2 mode: Recalls the settings customized based on the current available picture modes.

• Reference Mode

Press ◀/▶ to select a reference mode. The options are Bright, Presentation, sRGB, Cinema, DICOM SIM and 3D.

- Brightness

Press ◀/▶ to adjust the brightness of the projected image.

The higher the value, the brighter the image. And lower the setting, darker the image. Adjust this control so the black areas of the image appear just as black and that detail in the dark areas is visible.

- Contrast

Press ◀/▶ to adjust the contrast of the projected image.

The higher the value, the greater the contrast. Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.

• Color

Press ◀/▶ to adjust the color saturation.

Lower setting produces less saturated colors. If the setting is too high, colors on the image will be overpowering, which makes the image unrealistic.

- Tint

Press ◀/▶ to adjust the tint of the projected image.

The higher the value, the more reddish the picture becomes. The lower the value, the more greenish the picture becomes.

- Sharpness

Press ◀/▶ to adjust the display sharpness of the projected image.

The higher the value, the sharper the picture becomes. The lower the value, the softer the picture becomes.

- Brilliant Color

Press ◀/▶ to adjust the brilliant color of the projected image.

This feature utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing truer, more vibrant colors in picture. It enables a greater than 50% brightness increase in mid-tone images, which are common in video and natural scenes, so the projector reproduces images in realistic and true colors. If you prefer images with that quality, select On. If you don't need it, select Off.

When Off is selected, the Color Temperature function is not available.

• Color Temperature

Press ◀/▶ to adjust the color temperature. The options are Cool, Normal and Warm.

• Cool: makes the image appear bluish white.
• Normal: Maintains normal colorings for white.
• Warm: Makes images appear reddish white.

• Color Temperature Fine Tuning

Press ENTER to enter the Color Temperature Fine Tuning menu. See "Color Temperature Fine Tuning menu" on page 47 for more details.

• 3D Color Management

Press ENTER to enter the 3D Color Management menu. See "3D Color Management menu" on page 48 for more details.

- Reset Picture Settings

Press ENTER to enter the Reset Picture Settings menu. Press ▲/▼ and press ENTER to set to the default value.

• Current: Returns current picture mode to the factory preset settings.
- All: Returns all settings, except User 1/User 2 in the Picture menu to the factory preset settings.

Color Temperature Fine Tuning menu

COLOR TEMPERATURE FINE TUNING
Red Gain	50
Green Gain	50
Blue Gain	50
Red Offset	0
Green Offset	0
Blue Offset	0

• R Gain
  Press ◀/▶ to adjust the Red Gain.

- G Gain Press ◀/▶ to adjust the Green Gain.

• B Gain Press ◀/▶ to adjust the Blue Gain.

- R Offset Press ◀/▶ to adjust the Red Offset.

- G Offset Press ◀/▶ to adjust the Green Offset.

• B Offset Press ◀/▶ to adjust the Blue Offset.

To set a preferred color temperature:

1. Highlight Color Temperature and select Warm, Normal or Cool by pressing ◀/▶ on the projector or remote control.

2. Press ▼ to highlight Color Temperature Fine Tuning and press ENTER. The Color Temperature Fine Tuning page appears.

3. Press ▲/▼ to highlight the item you want to change and adjust the values by pressing ◀/▶. • R Gain/G Gain/B Gain: Adjusts the contrast levels of Red, Green, and Blue. • R Offset/G Offset/B Offset: Adjusts the brightness levels of Red, Green, and Blue.

4. Press MENU to exit and save the settings.

3D Color Management menu

- Primary Color

Press ENTER to enter the Primary Color menu. Press ▲/▼ to select the primary color. The options are R, G, B, C, M and Y.

- Hue

Press ENTER to enter the Hue menu. Press ▲/▼/◄/► to adjust settings.

- Saturation

Press ENTER to enter the Saturation menu. Press ▲/▼/◄/► to adjust settings.

- Gain

Press ENTER to enter the Gain menu. Press ▲/▼/◄/► to adjust settings.

3D Color Management

In most installation situations, color management will not be necessary, such as in classroom, meeting room, or lounge room situations where lights remain on, or where building external windows allow daylight into the room.

Only in permanent installations with controlled lighting levels such as boardrooms, lecture theaters, or home theaters, should color management be considered. Color management provides fine color control adjustment to allow for more accurate color reproduction, should you require it.

Proper color management can only be achieved under controlled and reproducible viewing conditions. You will need to use a colorimeter (color light meter), and provide a set of suitable source images to measure color reproduction. These tools are not provided with the projector, however, your projector supplier should be able to provide you with suitable guidance, or even an experienced professional installer.

The Color Management provides six sets (RGBCMY) of colors to be adjusted. When you select each color, you can independently adjust its range and saturation according to your preference.

If you have purchased a test disc which contains various color test patterns and can be used to test the color presentation on monitors, TVs, projectors, etc. You can project any image from the disc on the screen and enter the 3D Color Management menu to make adjustments.

To adjust the settings:

1. Go to the Picture menu and highlight 3D Color Management.

2. Press ENTER and the 3D Color Management page displays.

3. Highlight Primary color and press ◀/▶ to select a color from among Red, Green, Blue, Cyan, Magenta and Yellow.

4. Press ▼ to highlight Hue and press ◀/▶ to select its range. Increase in the range will

include colors consisted of more proportions of its two adjacent colors.

Please refer to the illustration to the right for how the colors relate to each other.

For example, if you select Red and set its range at 0, only pure red in the projected picture will be selected. Increasing its range will include red close to yellow and red close to magenta.

1. Press ▼ to highlight Saturation and adjust its values to your preference by press ◀/▶. Every adjustment made will reflect to the image immediately.

For example, if you select Red and set its value at 0, only the saturation of pure red will be affected.

Source menu

- Quick Auto Search

Press ◀/▶ to enable or disable search the input source automatically.

• Color Space Conversion

Press ◀/▶ to select the color space. The options are Auto, RGB and YUV.

- Auto Sync

Press ◀/▶ to enable or disable auto sync function.

System setup : Basic menu

- Language

Press ENTER to enter the Language menu. Press ▲/▼/◄/► to select the language of OSD menu.

- Projector Installation

Press ◀/▶ to select the projector installation. The options are Front, Rear, Rear Ceiling and Front Ceiling.

- Menu Settings

Press ENTER to enter the Menu Settings menu. See "Menu Settings menu" on page 51 for more details.

• Operation Settings

Press ENTER to enter the Operation Settings menu. See "Operation Settings menu" on page 51 for more details.

- Remote Receiver

Press ◀/▶ to select the remote receiver. The options are Front, Rear and Front+Rear.

- Background Color

Press ◀/▶ to select the background color when no input signal. The options are BenQ, Black, Blue and Purple.

- Splash Screen

Press ◀/▶ to select the start up patern when the projector turns on. The options are BenQ, Black and Blue.

Menu Settings menu

- Menu Display Time

Press ◀/▶ to select the menu display time period. The options are 5 sec, 10 sec, 20 sec, 30 sec and Always.

- Menu Position

Press ◀/▶ to select the menu display position. The options are Center, Top-Left, Top-Right, Bottom-Right and Bottom-Left.

- Reminder Message

Press ◀/▶ to enable or disable reminder message displays.

Operation Settings menu

- Direct Power On

Press ◀/▶ to enable or disable automatically turning on the projector when the AC power is connected.

- Signal Power On

Press ◀/▶ to enable or disable automatically turning on the projector when an input signal is detected.

- Auto Power Off

Press ◀/▶ to enable or disable automatically turning off the projector when there is no input signal.

- Blank Timer

Press ◀/▶ to set the length of time the image is blanked. The options are Disable, 3 mins, 10 mins, 15 mins, 20 mins, 25 mins and 30 mins.

- Sleep Timer

Press ◀/▶ to set the length of time before the projector is turned off. The options are Disable, 5 mins, 10 mins, 15 mins, 20 mins, 25 mins and 30 mins.

- Reset Filter Timer

Press ENTER to reset the filter timer.

System setup : Advanced menu

• High Altitude Mode

Press ◀/▶ to enable or disable High Altitude Mode. Enable this function when the operating altitude is higher than 1500m or the ambient temperature is over 40°C.

- Audio Settings

Press ENTER to enter the Audio Settings menu. See "Audio Settings menu" on page 53 for more details.

• Light Source Settings

Press ENTER to enter the Light Source Settings menu. See "Light Source Settings menu" on page 54 for more details.

• Security Settings

Press ENTER to enter the Security Settings menu. See "Security Settings menu" on page 54 for more details.

- Baud Rate

Press ◀/▶ to select RS-232 baud rate. The options are 2400, 4800, 9600, 14400, 19200, 38400, 57600 and 1152000.

- Test Pattern

Press ◀/▶ to select the test pattern. The options are Off, Grid, White, Red, Green, Blue, Black, RGB Ramps, Color Bar, Step Bars, CheckBoard, Horizontal Lines, Vertical Lines, Diagonal Lines, Horizontal Ramp and Vertical Ramps.

- Projector ID Setting

Press ◀/▶ to enable or disable the projector ID.

- Closed Caption

Press ENTER to enter the Closed Caption menu. See "Closed Caption menu" on page 55 for more details.

- 12 Trigger

Press ◀/▶ to enable or disable 12V trigger function.

- Standby Settings

Press ENTER to enter the Standby Settings menu. See "Standby Settings menu" on page 55 for more details.

• Network Settings

Press ENTER to enter the Network Settings menu. See "Network Settings menu" on page 56 for more details.

- Reset All Settings

Press ENTER to reset all settings to default value.

Audio Settings menu

- Mute

Press ◀/▶ to enable or disable the mute function.

• Using the remote control

Press MUTE to temporarily turn off the sound. While the sound is off, the screen will display in the upper right corner of the screen.

To restore the sound, press MUTE again.

• Using the OSD menu

I. Press MENU and then press ◀/▶ until the System Setup: Advanced menu is highlighted.
2. Press ▼ to highlight Audio Settings and press ENTER. The Audio Settings page displays.
3. Highlight Mute and press ◀/▶ to select On.
4. To restore the sound, repeat steps 1-3 and press ◀/▶ to select Off.

- Volume

Press ◀/▶ to adjust the volume of the projector.

• Using the remote control

Press VOLUME+/VOLUME- to select a desired sound level.

• Using the OSD menu

I. Press MENU and then press ◀/▶ until the System Setup: Advanced menu is highlighted.
2. Press ▼ to highlight Audio Settings and press ENTER. The Audio Settings page displays.
3. Press ▼ to highlight Volume and press ◀/▶ to select a desired sound level.

- Build-in speaker

Press ◀/▶ to enable or disable the built-in speaker.

• Power on/off Ring

Press ◀/▶ to enable or disable sound when the projector turns on or off.

Note:

The only way to change Power on/off ring tone is setting On or Off here. Setting the sound mute or changing the sound level will not affect the Power on/off ring tone.

Light Source Settings menu

• Light Source Mode

Press ◀/▶ to select the light source mode. The options are Normal, Economic, Dimming and Custom.

- Custom Brightness

Press ◀/▶ to adjust the brightness of the projector.

- Reset Light Source Timer

Press ENTER to reset the light source timer.

• Light Source Information

Press ENTER to enter the Light Source Information menu.

Security Settings menu

- Change Password

Press ENTER to change the password.

- Change Security Settings

Press ENTER to change the security settings.

- Power On Lock

Press ◀/▶ to enable or disable the power on lock function. If the function is enabled, you must enter the password every time the projector is turned on.

Closed Caption menu

- Closed Caption Enable

Press ◀/▶ to enable or disable the closed caption function.

- Caption Version

Press ◀/▶ to select the closed captioning mode. The options are CC1, CC2, CC3 and CC4.

Standby Settings menu

- Network

Press ENTER to enable the network function when the projector is in standby mode.

- Monitor Out

Press ◀/▶ to enable or disable the monitor out function when the projector is in standby mode.

• Audio Pass Through

Press ◀/▶ to enable the audio line-out function when the projector is in standby mode. The options are Audio In, Audio L/R, HDMI 1, HDMI 2 / MHL and Off.

Network Settings menu

- Wired LAN

Press ENTER to enter the Wired LAN menu to setup the IP address, subnet mask, default gateway, DNS server and DHCP.

• AMX Device Discovery

Press ◀/▶ to enable or disable the AMX device discovery function. When the function is enabled, the projector can be detected by an AMX controller.

- Mac Address

Displays the cureent MAC address of the projector.

Information menu

- Source

Displays the current signal source.

- Picture Mode

Displays the current picture mode.

• Light Source Mode

Displays the current light source mode.

- Resolution

Displays the native resolution of the input source.

- 3D Format

Displays the current 3D mode. Only available when 3D Mode is enabled.

- Color System

Displays the input system format.

• Light Source Usage Time

Displays the number of hours the light source has been used.

- Projector ID

Displays the current projector ID.

- Firmware Version

Displays the firmware version of your projector.

Menu structure

Main menu Sub-menu Options
Display Aspect Ratio	Auto/ Real/ 4:3/ 16:9/ 16:10
	2D Keystone
	Corner Fit Top Left/ Top Right/ Bottom		Left/ Bottom Right
	Position
	Phase
	H.size
	Digital zoom PC: 1.0X~2.0X
		Video: 1.0X~1.8X
	Overscan Composite/S-Video: 0-3
		others: 0-3
	3D 3D mode Auto/ Off/ Frame sequential/
		Frame packing/ Top bottom/ Side by side
		DLP Link On/ Off
		3D Sync Invert Disable/ Invert
		Save 3D Setting 3D Settings	I/ 3D Settings 2/ 3D Settings 3
		Apply 3D Setting	3D Settings I/ 3D Settings 2/ 3D Settings 3
Picture	Picture Mode		Bright/ Presentation/ sRGB/ Cinema/ DISCOM/ 3D/ User 1/ User 2
	Reference Mode		Bright/ Presentation/ sRGB/ Cinema/ DISCOM/ 3D
	Brightness
	Contrast
	Color
	Tint
	Sharpness
	Brilliant Color		On/ Off
	Color Temperature		Cool/ Normal/ Warm
	Color Temperature		R Gain/ G Gain/ B Gain/ R Offset/ G Offset/ B Offset
	Fine Tuning
	3D Color	Primary Color	R/ G/ B/ C/ M/ Y
	Management	Hue
		Saturation
		Gain
	Reset picture settings		Current/ All/ Cancel
Source	Quick Auto Search		On/ Off
	Color Space		Auto/ RGB/ YUV
	Conversion
	Auto Sync		On/Off
System Setup: Basic Language			English/Français/Deutsch/Italiano/Espanol/Ryckni/繁體中文/简体中文/日本語/한국어/Svenska/Nederlands/Türkçe/Čeština/Português/1nu/Polski/Magyar/Hrvatski/Română/Norsk/Dansk/Български/Suomi/Indonesian/Елгнкá/العربية/हिन्दी
	Projector Installation Front/ Rear/ Rear Ceiling/ Front		Ceiling
	Menu Setting Menu Display Time 5 sec/ 10 sec/ 20 sec/ 30 sec/Always
	Menu Position Center/ Top-Left/ Top-Right/Bottom-Right/ Bottom-Left
	Reminder Message On/ Off
	Operation Setting Direct Power On On/ Off
	Signal Power On On/ Off
	Auto Power Off Disable/ 3 mins/ 10 mins/
	Blank Timer	Disable/ 5 mins/ 10 mins/15 mins/ 20 mins/ 25 mins/30 mins
	Sleep Timer	Disable/ 30 mins/ 1 hr/ 2 hrs/3 hrs/ 4 hrs/ 8 hrs/ 12 hrs
	Reset Filter Timer	Reset/ Cancel
	Remote Receiver	Front+Rear/ Front/ Rear
	Background Color	BenQ/ Black/ Blue/ Purple
	Splash Screen	BenQ/ Black/ Blue
System Setup: Advanced	High Altitude Mode		On/ Off
	Audio Settings	Mute	On/ Off
		Volume
		Build-in speaker	On/ Off
		Power on/off Ring On/ Off
	Light Source Settings	Light Source Mode	Normal / Economic/ Dimming/Custom
		Custom Brightness	25%-100%
		Reset Light Source Timer	Reset/ Cancel
		Light Source Information	Light Source Usage Time/Normal Mode/ EconomicMode/ Dimming Mode/Custom Mode
	Security Setting	Change Password
		Change Security Settings
		Power On Lock	On/ Off
	Baud Rate 2400/ 4800/ 9600/ 14400/		19200/ 38400/ 57600/ 115200
System Setup: Advanced	Test Pattern Off/ Grid/ White/ Red/ Green/	Blue/ Black/ RGB Ramps/ Color Bar/ Step Bars/ CheckBoard/ Horizontal Lines/ Vertical Lines/ Diagonal Lines/ Horizontal Ramp/ Vertical Ramps
	Projector ID Setting Off/ 01~99
	Closed Caption Closed Caption Enable On/ Off
	Caption Version CCI/ CC2/ CC3/ CC4
	I2V Trigger On/ Off
	Standby Settings Network Enable Network Standby Mode
		Auto Disable Network Standby Mode
	Monitor Out On/ Off
	Audio Pass Through	Audio In/ Audio L/R/ HDMI I/ HDMI 2/MHL/ Off
	Network settings Wired LAN	StatusDHCPIP AddressSubnet MaskDefault GatewayDNS ServerApply
		AMX Device Discovery Mac AddressOn/ Off
	Reset All Settings	Reset/ Cancel
Information	Current System Status	SourcePicture ModeLightsource ModeResolution3D FormatColor SystemLightsource Usage TimeProjector IDFirmware Version

Maintenance

Before maintaining the projector

• Make sure to turn off the power before maintaining the projector.
• When switching off the projector, make sure to follow the procedures in "Switch off the projector" on page 40.

Care of the projector

Your projector needs little maintenance. The only thing you need to do on a regular basis is to keep the lens clean.

Never remove any parts of the projector. Contact your dealer if other parts need replacing.

Clean the lens front surface

Clean the lens whenever you notice dirt or dust on the surface.

• Use a canister of compressed air to remove dust.
• If there is dirt or smears, use lens-cleaning paper or moisten a soft cloth with lens cleaner and gently wipe the lens surface.

Caution:

Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the projector surface and cabinet material.

Clean the projector case

Before you clean the case, turn the projector off using the proper shutdown procedure as described in "Switch off the projector" on page 40 and unplug the power cord.

• To remove dirt or dust, wipe the case with a soft, lint-free cloth.
• To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral pH detergent. Then wipe the case.

Caution:

Never use wax, alcohol, benzene, thinner or other chemical detergents. These can damage the case.

Filter maintenance

Cleaning the filter

The air filter prevents dust from accumulating on the surface of the optical elements inside the projector. If the filter is dirty or clogged, your projector may overheat or degrading the projected image quality.

I. Turn off the projector, and unplug the AC power cord from the AC outlet.

1. Cleaning the filter with a vacuum cleaner.

Technical illustration of a projector unit with ventilation slots and ports (no text or symbols)

Caution:

Recommend avoiding dusty or smoky environments when you operate the projector, it may cause poor image quality. If the filter is heavily clogged and unable to clean, replace a new filter.

Note:

Using a ladder is recommended to access the filter. Do not remove the projector from the wall mount.

Replacing the side filter

1. Turn off the projector and unplug the power cord from the outlet. Remove any dust on the projector and around the air vents. Loosen the two captive screws that secure the filter cover.

Illustration of a projector with a screwdriver and directional arrows indicating motion (no text or symbols)

1. Flip up the filter cover.

Illustration of a projector with a slide and ventilation slots, showing internal components and a curved arrow indicating rotation (no text or symbols present)

1. Remove the filter module from the projector.

Illustration of a projector with a slide and ventilation array (no text or symbols)

1. Align the holes on the new filter module with the captive screws on the filter cover.

Illustration of a projector with ventilation grilles and a slide, showing internal components and an upward arrow (no text or symbols)

1. Replace the filter cover onto the projector by pushing gently in the direction shown and tighten the screws.

Illustration of a projector with a screwdriver and ventilation slots, shown with no text or symbols.

Replacing the front filter

1. Turn off the projector and unplug the power cord from the outlet. Remove any dust on the projector and around the air vents. Loosen the two captive screws that secure the filter cover.

Illustration of a projector with a screwdriver and scroll wheel (no text or symbols)

1. Remove the filter module from the projector.

Illustration of a projector with a detached drive and ventilation slots (no text or symbols visible)

1. Replace the new filter module with the filter cover.

Diagram showing a grid panel mounted on a metal bracket next to a separate panel with an arrow pointing to it (no text or symbols present)

1. Replace the filter cover into the projector by pushing gently in the direction shown.

Illustration of a projector with a slide and cable attachment (no text or symbols visible)

1. Tighten the screws.

Illustration of a projector with screwdriver and paperclip, no text or symbols present

Note:

Do not wash the filter with the water or other liquid matter.

Resetting the filter timer

1. After the startup logo, open the On-Screen Display (OSD) menu. Go to the SYSTEM SETUP: Basic > Operation Settings menu. Press ENTER. The Operation Settings page displays. Highlight Reset Filter Timer. A warning message displays asking if you want to reset the filter timer. Highlight Reset and press ENTER. The filter time will be reset to '0'.

LED indicator

System message

Power	Temp	Light	Filter	Status & Description
Orange - -	- Stand-by
Green Flashing	--- Powering up
Green - -	- Normal operation
Orange Flashing	--- Normal power down cooling
Red Red	Red - Downloading
Green - Red	- Color wheel start fail
Green -		Red Flashing	- Phosphor wheel start fail
Red Flashing	--- Scaler shutdown fail
Red - Red	- Scaler reset fail
- Red -	- LAN download fail
- Green	-- LAN download processing
Green - Orange	- Ligh source life exhausted
- Green		Red Flashing	- Lens release
- Green	Red - Case open

Light source error message

Power	Temp	Light	Filter	Status & Description
-- Red	- Lightsource	error in normal operation
--	-	Orange Flashing	Red	Lightsource is not lit up

Filter message

Power	Temp	Light	Filter	Status & Description
Green	-	-	Orange	Filter replace warning

Thermal error message

Power	Temp	Light	Filter	Status & Description
Red Red	-- Fan 1 error
Red	Red Flashing	-- Fan	2 error
Red Green	-- Fan 3 error
Red	Green Flashing	-- Fan	4 error
Red Flashing	Red -- Fan 5 error
Red Flashing	Red Flashing	-- Fan	6 error
Red Flashing	Green -- Fan 7 error
Red Flashing	Green Flashing	-- Fan	8 error
Red Red	- Green Fan	9 error
Green Red	-- Temperature 1 error
Green	Red Flashing	-- Thermal sensor	1 open error
Green Green	-- Thermal sensor 1	short error
Green	Green Flashing	-- Thermal IC #1	12C connection error
Green Flashing	Red -- Temperature	2 error
Green Flashing	Red Flashing	-- Thermal sensor	2 open error
Green Flashing	Green -- Thermal sensor 2	short error
Green Flashing	Green Flashing	-- Thermal IC #2	12C connection error
Green Flashing	Green Green - Temperature 3 error
Orange	Red Flashing	-- Thermal sensor	3 open error
Orange Green	-- Thermal sensor 3	short error
Orange	Green Flashing	-- Thermal IC #3	12C connection error
Green Flashing	Green	Green Flashing	- Temperature 4 error
Green Flashing	Green Flashing	Green - Temperature	5 error
Green	Red	Red	-	Thermal break warning

Troubleshooting

Troubleshooting

The projector does not turn on.

Cause Remedy
There is no power from the power cable.	Plug the power cord into the AC inlet on the projector, and plug the power cord into the power outlet. If the power outlet has a switch, make sure that it is switched on.
Attempting to turn the projector on again during the cooling process.	Wait until the cooling down process has completed.

No picture.

Cause Remedy
The video source is not turned on or connected correctly.	Turn the video source on and check that the signal cable is connected correctly.
The projector is not correctly connected to the input signal device.	Check the connection.
The input signal has not been correctly selected.	Select the correct input signal with the SOURCE key on the projector or remote control.

Blurred image.

Cause Remedy
The projection lens is not correctly focused.	Adjust the focus of the lens using the focus ring.
The projector and the screen are not aligned properly.	Adjust the projection angle and direction as well as the height of the unit if necessary.
The lens cover is still closed. Open the lens cover.

Remote control does not work.

Cause Remedy
The battery is out of power. Replace the	battery with new one.
There is an obstacle between the remote control and the projector.	Remove the obstacle.
You are too far away from the projector.	Stand within 7 meters (23 feet) of the projector.

The password is incorrect.

Cause Remedy
You do not remember the password.	1. Press and hold AUTO on the projector or remote control for 3 seconds. The projector will display a coded number on the screen.2. Write down the number and turn off your projector.3. Seek help from the local BenQ service center to decode the number. You may be required to provide proof of purchase documentation to verify that you are an authorized user of the projector.

Specifications

Specifications

Optical

Resolution

LX9215

1024 × 768

LU9235

1920 × 1200

Display system

Single-chip DLP ^TM system

Lens F/Number

STANDARD LS2SD2

F=2.0 to 2.09, f=22.84 to 28.61mm

WIDE FIX LS2ST3

F=2.54, f=11.46mm

WIDE ZOOM LS2ST1

F=2.5 to 3.1, f=28.5 to 42.75mm

SEMI LONG LS2LT1

F=2.05 to 2.27, f=16.64 to 19.5mm

LONG ZOOM1 LS2LT2

F=2.2 to 2.5, f=44.5 to 74.19mm

Light source

Laser diodes

Electrical

Power supply

AC100-240V

50/60 Hz (Automatic)

7.0A

Power consumption

700W (Max); < 0.5W (Standby)

Mechanical

Weight

52.8 lbs (24 Kg) (without lens)

Output terminals

Speaker

10 watt x 2 (peak to peak)

Audio signal output

RCA R/L jack x 1

Monitor Out

D-Sub 15-pin (female) x1

USB

TYPE-A (5V/1.5A)

3D SYNC OUT x 1

Wire Remote

PC audio jack x 1

Control

USB

Type-B x1

RS-232 serial control

9 pin x 1

IR receiver x 2

12V TRIGGER

12VDC (Max. 0.2 A) x 1

LAN control

RJ45 x 1

Wired Remote

PC audio jack x 1

Input terminals

Computer input

RGB input

D-Sub 15-pin (female) x 1

BNC x 5

Digital input

DVI-D x 1

Video signal input

COMPONENT

D-Sub 15-pin (female) x 1

BNC x 3

VIDEO

RCA jack x 1

SD/HDTV signal input

Digital - HDMI x 1

HDMI 2/MHL x 1

RJ45 x1 (HDBaseT)

Audio signal input

Audio in

PC audio jack x 1

RCA audio jack (L/R) x 1

Environmental Requirements

Operating temperature

0°C-40°C at sea level

Operating relative humidity

10%-90% (without condensation)

Operating altitude

0–1499 m at 0°C–35°C

1500–3000 m at 0°C–30°C (with High

Altitude Mode on)

Storage temperature

-20°C-60°C

Storage humidity

10%-90% RH (without condensation)

Note:

All specifications are subject to change without notice.

Dimensions

Attaching for ceiling mount

Appendix

Timing table

Supported timing for PC & PC 2 input

Resolution	Mode	Refresh Rate (Hz)	H Frequency (kHz)	Clock (MHz)	3D Frame Sequential	3D Top Bottom	3D side-by-side
720 x 400	720 x 400_70	70.087	31.469	28.3221
640 x 480	VGA_60 59.940	31.469 25.175			◎◎	◎
	VGA_72 72.809	37.861 31.500
	VGA_75	75.000	37.500	31.500
	VGA_85	85.008	43.269	36.000
800 x 600	SVGA_60	60.317	37.879	40.000	◎◎	◎
	SVGA_72	72.188	48.077	50.000
	SVGA_75	75.000	46.875	49.500
	SVGA_85	85.061	53.674	56.250
	SVGA_120(Reduce Blanking)	119.854	77.425	83.000	◎
1024 x 768	XGA_60	60.004	48.363	65.000	◎◎	◎
	XGA_70	70.069	56.476	75.000
	XGA_75	75.029	60.023	78.750
	XGA_85	84.997	68.667	94.500
	XGA_120(Reduce Blanking)	119.989	97.551	115.500	◎
1152 x 864	1152 x 864_75	75.000	67.500	108.000
1024 x 576	BenQ NB Timing	60.000	35.820	46.996
1024 x 600	BenQ NB Timing	64.995	41.467	51.419
1280 x 720	1280 x 720_60	60.000	45.000	74.250	◎◎	◎
1280 x 768	1280 x 768_60	59.870	47.776	79.500	◎◎	◎
1280 x 800	WXGA_60	59.810	49.702	83.500	◎◎	◎
	WXGA_75	74.934	62.795	106.500
	WXGA_85	84.880	71.554	122.500
	WXGA_120(Reduce Blanking)	119.909	101.563	146.250	◎
1280 x 1024	SXGA_60	60.020	63.981	108.000		◎	◎
	SXGA_75	75.025	79.976	135.000
	SXGA_85	85.024	91.146	157.500
1280 x 960	1280 x 960_60	60.000	60.000	108		◎	◎
	1280 x 960_85	85.002	85.938	148.500
1360 x 768	1360 x 768_60	60.015	47.712	85.500		◎	◎
1440 x 900	WXGA+_60	59.887	55.935	106.500		◎	◎
1400 x 1050	SXGA+_60	59.978	65.317	121.750		◎	◎
1600 x 1200	UXGA	60.000	75.000	162.000		◎	◎
1680 x 1050	1680 x 1050_60	59.954	65.290	146.250		◎	◎
*1920 x 1080 @60Hz	1920 x 1080_60 (Reduce Blanking)	60.000	67.500	148.500
*1920 x 1200 @60Hz	1920 x 1200_60 (Reduce Blanking)	59.950 74.038	154.000
640 x 480 @67Hz	MAC13	66.667	35.000	30.240
832 x 624 @75Hz	MAC16	74.546	49.722	57.280
1024 x 768 @75Hz	MAC19	74.930	60.241	80.000
1152 x 870 @75Hz	MAC21	75.060	68.68	100.000

Note:

There 3D timing showing depend the EDID file and VGA display card. It is possible that user cannot choose the above 3D timings on VGA display card.

*: No available in PC 2.

Support timing for Component - YPbPr input

Timing	Resolution	Horizontal Frequency (KHz)	Vertical Frequency (Hz)	Dot Clock Frequency (MHz)	3D Frame Sequential
480i	720 × 480	15.73	59.94	13.50	◎
480p	720 × 480	31.47	59.94	27.00	◎
576i	720 × 576	15.63	50.00	13.50
576p	720 × 576	31.25	50.00	27.00
720/50p	1280 × 720	37.50	50.00	74.25
720/60p	1280 × 720	45.00	60.00	74.25	◎
1080/50i	1920 × 1080	28.13	50.00	74.25
1080/60i	1920 × 1080	33.75	60.00	74.25
1080/24p	1920 × 1080	27.00	24.00	74.25
1080/25p	1920 × 1080	28.13	25.00	74.25
1080/30p	1920 × 1080	33.75	30.00	74.25
1080/50p	1920 × 1080	56.25	50.00	148.50
1080/60p	1920 × 1080	67.50	60.00	148.50

Support timing for Video input

Video Mode	Horizontal Frequency (KHz)	Vertical Frequency (Hz)	Sub-carrier Frequency (MHz)	3D Frame Sequential
NTSC 15.73 60 3.58				◎
PAL 15.63 50 4.43
SECAM 15.63 50 4.25 or 4.41
PAL-M 15.73 60 3.58
PAL-N 15.63 50 3.58
PAL-60 15.73 60 4.43
NTSC4.43 15.73 60 4.43

Support timing for HDMI & DVI-D (HDCP) input

Resolution	Mode	Refresh Rate (Hz)	H Frequency (kHz)	Clock (MHz)	3D Frame Sequential	3D Top Bottom	3D side-by-side
640 x 480	VGA_60	59.940	31.469	25.175	◎	◎	◎
	VGA_72	72.809	37.861	31.500
	VGA_75	75.000	37.500	31.500
	VGA_85	85.008	43.269	36.000
720 x 400	720 x 400_70	70.087	31.469	28.3221
800 x 600	SVGA_60	60.317	37.879	40.000	◎	◎	◎
	SVGA_72	72.188	48.077	50.000
	SVGA_75	75.000	46.875	49.500
	SVGA_85	85.061	53.674	56.250
	SVGA_120 (Reduce Blanking)	119.854	77.425	83.000	◎
1024 x 768	XGA_60	60.004	48.363	65.000	◎	◎	◎
	XGA_70	70.069	56.476	75.000
	XGA_75	75.029	60.023	78.750
	XGA_85	84.997	68.667	94.500
	XGA_120 (Reduce Blanking)	119.989	97.551	115.500	◎
1152 x 864	1152 x 864_75	75.000	67.500	108.000
1024 x 576	BenQ Notebook Timing	60.000	35.820	46.996
1024 x 600	BenQ Notebook Timing	64.995	41.467	51.419
1280 x 720	1280 x 720_60	60.000	45.000	74.250	◎	◎	◎
1280 x 768	1280 x 768_60	59.870	47.776	79.5	◎	◎	◎
Resolution Mode		Refresh Rate (Hz)	H Frequency (kHz)	Clock (MHz)	3D Frame Sequential	3D Top Bottom	3D side-by-side
1280 x 800	WXGA_60 59.8	0 49.702 83.5	500		◎◎	◎
	WXGA_75 74.934	62.795 106.5	500
	WXGA_85	84.880	71.554	122.500
	WXGA_120 (Reduce Blanking)	119.909 101.5	63 146.250		◎
1280 x 1024	SXGA_60	60.020	63.981	108.000		◎	◎
	SXGA_75	75.025	79.976	135.000
	SXGA_85	85.024	91.146	157.500
1280 x 960	1280 x 960_60	60.000	60.000	108.000		◎	◎
	1280 x 960_85	85.002	85.938	148.500
1360 x 768	1360 x 768_60	60.015	47.712	85.500		◎	◎
1440 x 900	WXGA+_60	59.887	55.935	106.500		◎	◎
1400 x 1050	SXGA+_60	59.978	65.317	121.750		◎	◎
1600 x 1200	UXGA	60.000	75.000	162.000		◎
1680 x 1050	1680 x 1050_60	59.954	65.290	146.250		◎	◎
1920 x 1080 @60Hz	1920 x 1080_60 (Reduce Blanking)	60.000	67.500 148.5	500
1920 x 1200 @60Hz	1920 x 1200_60 (Reduce Blanking)	59.950	74.038	154.000
640 x 480 @67Hz	MAC13	66.667	35.000	30.240
832 x 624 @75Hz	MAC16	74.546	49.722	57.280
1024 x 768 @75Hz	MAC19	75.020	60.241	80.000
1152 x 870 @75Hz	MAC21	75.060	68.680	100.000

Note:

There timing showing depend the EDID file and VGA graphic card limitation. It is possible that user cannot choose the above timings on VGA display card.

Supporting timing for HDMI Video input

Timing	Resolution Horizontal Frequency (KHz)	Vertical Frequency (Hz)	Dot Clock Frequency (MHz)	3D Frame Sequential	3D Frame Packing	3D Top Bottom	3D side-by-side
480i	720 (1440) x 480	15.73	59.94	27.00	◎
480p	720 x 480	31.47	59.94	27.00	◎
576i	720 (1440) x 576	15.63	50.00	27.00
576p	720 x 576	31.25	50.00	27.00
720/50p	1280 x 720	37.50	50.00	74.25		◎ ◎	◎
720/60p	1280 x 720	45.00	60.00	74.25	◎	◎ ◎	◎
1080/24p	1920 x 1080	27.00	24.00	74.25		◎ ◎	◎
1080/25p	1920 x 1080	28.13	25.00	74.25
1080/30p	1920 x 1080	33.75	30.00	74.25
1080/50i	1920 x 1080	28.13	50.00	74.25
1080/60i	1920 x 1080	33.75	60.00	74.25
1080/50p	1920 x 1080	56.25	50.00	148.50			◎
1080/60p	1920 x 1080	67.50	60.00	148.50			◎

RS232 command control

Function Type Operation ASCII
Power	Write Power	On*pow=on#
	Write Power	off*pow=off#
	Read Power	Status*pow=?#
Source Selection	Write COMPUTER/YPbPr*sour=RGB#
	Write COMPUTER 2/YPbPr2*sour=RGB2#
	Write DVI-D*sour=dvid#
	Write HDMI*sour=hdmi#
	Write	HDMI 2/MHL2	*sour=hdmi2#
	Write	Composite	*sour=vid#
	Write	HDbaseT	*sour=hdbaset#
	Read	Current source	*sour=?#
Audio Control	Write	Mute On	*mute=on#
	Write	Mute Off	*mute=off#
	Read	Mute Status	*mute=?#
	Write Volume +*vol=+#
	Write	Volume -	*vol=-#
	Read	Volume Status	*vol=?#
Audio source select	Write	Audio pass Through off	*audiosour=off#
	Write	Audio-Computer1	*audiosour=RGB#
	Write	Audio-Computer2	*audiosour=RGB2#
	Write	Audio-Video	*audiosour=vid#
	Write	Audio-Component	*audiosour=ypbr#
	Write Audio-HDMI*audiosour=hdmi#
	Write	Audio-HDMI2	*audiosour=hdmi2#
	Read	Audio pass Status	*audiosour=?#
Picture Mode	Write Presentation*appmod=preset#
	Write	sRGB	*appmod=srgb#
	Write	Bright	*appmod=bright#
	Write	Cinema	*appmod=cine#
	Write	DICOM	*appmod=dicom#
	Write	User1	*appmod=user1#
	Write	3D	*appmod=thread#
	Read	Picture Mode	*appmod=?#
Picture Setting	Write Contrast +*con=+#
	Write Contrast -*con=-#
	Read Contrast value*con=?#
	Write Brightness +*bri=+#
	Write Brightness -*bri=-#
	Read Brightness value*bri=?#
	Write Color +*color=+#
	Write	Color -	*color=-#
	Read	Color value	*color=?#
	Write	Sharpness +	*sharp=+#
	Write	Sharpness -	*sharp=-#
	Read	Sharpness value	*sharp=?#
	Write	Color Temperature-Warm	*ct=warm#
	Write	Color Temperature-Normal	*ct=normal#
	Write	Color Temperature-Cool	*ct=cool#
	Read	Color Temperature Status	*ct=?#
	Write	Aspect 4:3	*asp=4:3#
	Write	Aspect 16:9	*asp=16:9#
	Write	Aspect 16:10	*asp=16:10#
	Write	Aspect Auto	*asp=AUTO#
	Write	Aspect Real	*asp=REAL#
	Read	Aspect Status	*asp=?#
	Write Digital Zoom In	*zooml#
	Write Digital Zoom out	*zoomO#
	Write	Auto	*auto#
	Write	Brilliant color on	*BC=on#
	Write	Brilliant color off	*BC=off#
	Read	Brilliant color status	*BC=?#
Operation Settings	Write	Projector Position-Front Table	*pp=FT#
	Write	Projector Position-Rear Table	*pp=RE#
	Write	Projector Position-Rear Ceiling	*pp=RC#
	Write	Projector Position-Front Ceiling	*pp=FC#
	Write	Quick auto search	*QAS=on#
	Write	Quick auto search	*QAS=off#
	Read	Quick auto search status	*QAS=?#
	Read	Projector Position Status	*pp=?#
	Write	Direct Power On-on	*directpower=on#
Operation Settings	Write	Direct Power On-off	*directpower=off#
	Read	Direct Power On-Status	*directpower=?#
	Write Signal	Power On-on*autopower=on#
	Write Signal	Power On-off*autopower=off#
	Read Signal	Power On-Status*autopower=?#
	Write	Standby Settings-Network on	*standbynet=on#
	Write	Standby Settings-Network off	*standbynet=off#
	Read	Standby Settings-Network Status	*standbynet=?#
	Write	Standby Settings-Monitor Out on	*standbymnt=on#
	Write	Standby Settings-Monitor Out off	*standbymnt=off#
	Read	Standby Settings-Monitor Out Status	*standbymnt=?#
Baud Rate	Write	2400	*baud=2400#
	Write	4800	*baud=4800#
	Write	9600	*baud=9600#
	Write	14400	*baud=14400#
	Write	19200	*baud=19200#
	Write	38400	*baud=38400#
	Write	57600	*baud=57600#
	Write	115200	*baud=115200#
	Read	Current Baud Rate	*baud=?#
Lamp Control	Read	Lamp Hour	*ltim=?#
	Write	Normal mode	*lampm=lnor#
	Write	Eco mode	*lampm=eco#
	Write	Dimming mode	*lampm=dimming#
	Write	Custom mode	*lampm=custom#
	Read	Lamp Mode Status	*lampm=?#
Miscellaneous	Read	Model Name	*modelname=?#
	Write	Blank On	*blank=on#
	Write	Blank Off	*blank=off#
	Read	Blank Status	*blank=?#
	Write	Freeze On	*freeze=on#
	Write	Freeze Off	*freeze=off#
	Read	Freeze Status	*freeze=?#
	Write	Menu On	*menu=on#
	Write	Menu Off	*menu=off#
	Write Up	*up#	*down#
	Write	Down	*down#
Miscellaneous	Write Right	*right#
	Write Left	*left#
	Write Enter	*enter#
	Write 3D Sync Off	*3d=off#
	Write 3D Auto	*3d=auto#
	Write 3D Sync Top Bottom	*3d=tb#
	Write 3D Sync Frame Sequential	*3d=fs#
	Write	3D Frame packing	*3d=fp#
	Write	3D Side by side	*3d=sbs#
	Write	3D inverter disable	*3d=da#
	Write	3D inverter	*3d=iv#
	Read	3D Sync Status	*3d=?#
	Write	Remote Receiver-front+rear	*rr=fr#
	Write	Remote Receiver-front	*rr=f#
	Write	Remote Receiver-rear	*rr=r#
	Read	Remote Receiver Status	*rr=?#
	Write	AMX Device Discovery-on	*amxdd=on#
	Write	AMX Device Discovery-off	*amxdd=off#
	Read	AMX Device Discovery Status	*amxdd=?#
	Read	Mac Address	*macaddr=?#
	Write	High Altitude mode on	*Highaltitude=on#
	Write	High Altitude mode off	*Highaltitude=off#
	Read	High Altitude mode status	*Highaltitude=?#
