USER MANUAL MP735 BENQ

Important safety instructions ....3

Introduction......7

Projector features ......7

Shipping contents......8

Projector exterior view......9

Controls and functions......10

Positioning your projector14

Choosing a location....14

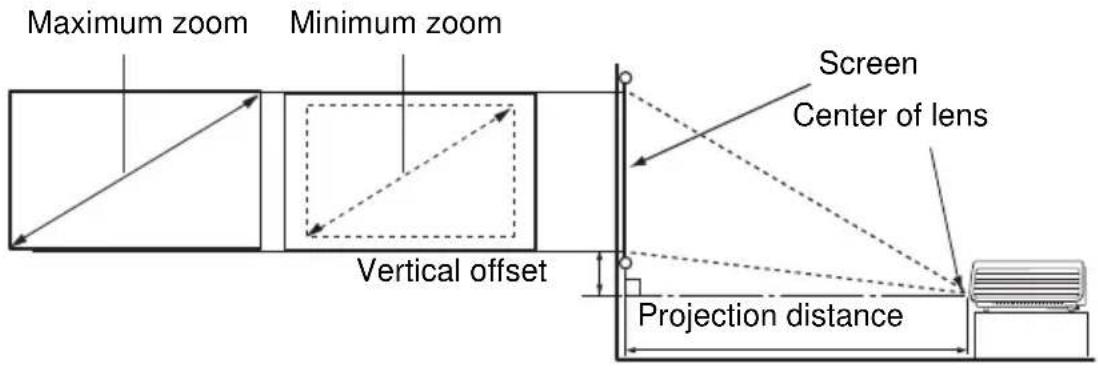

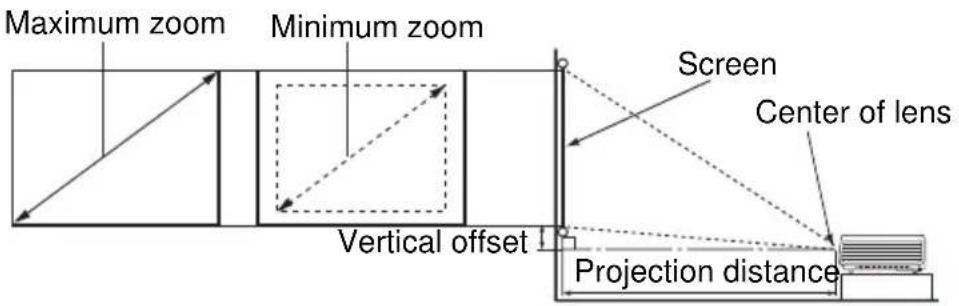

Obtaining a preferred projected image size....15

Connection......20

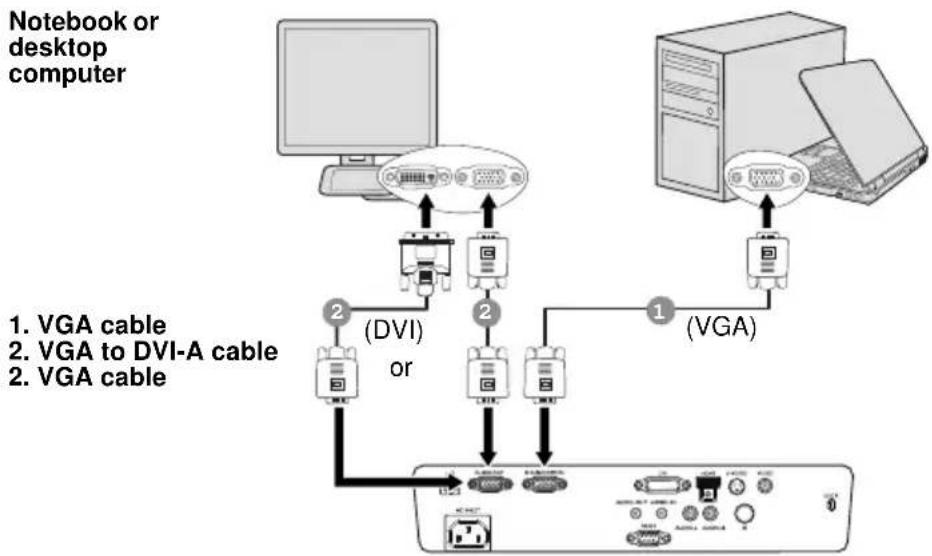

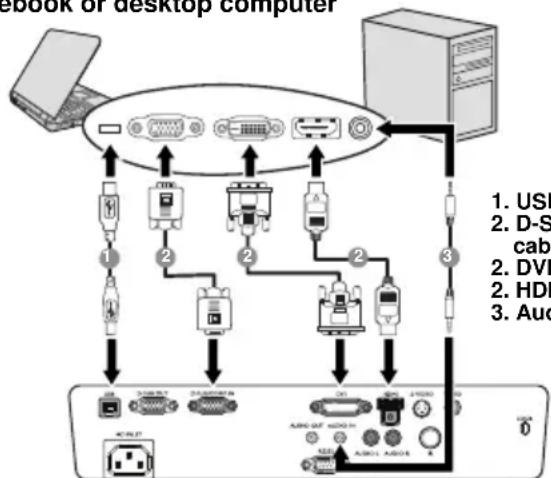

Connecting a computer or monitor ....20

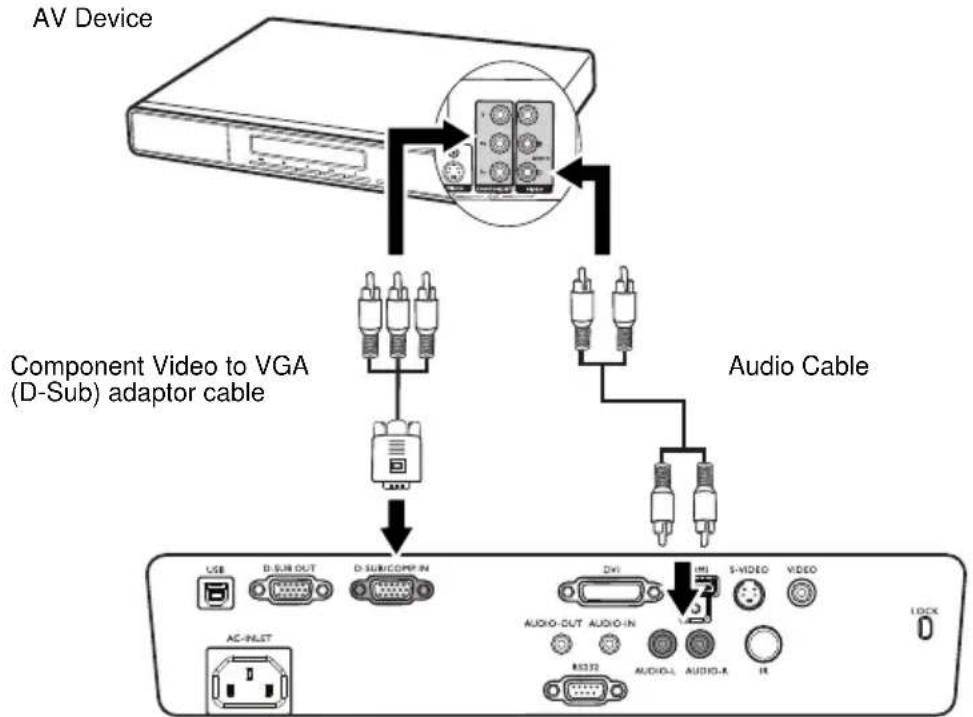

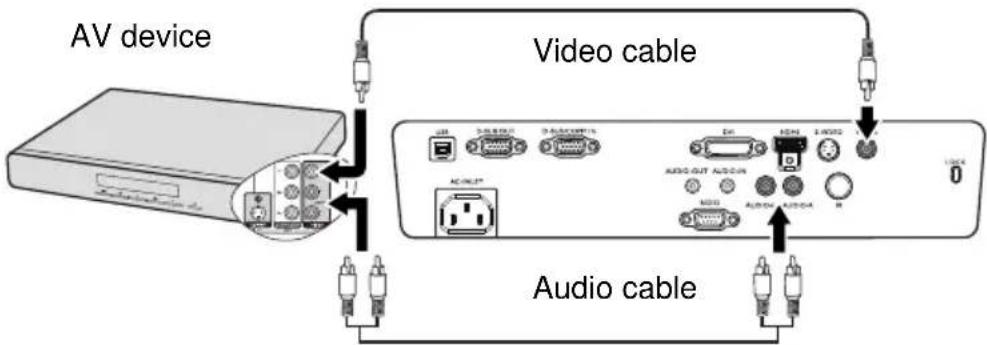

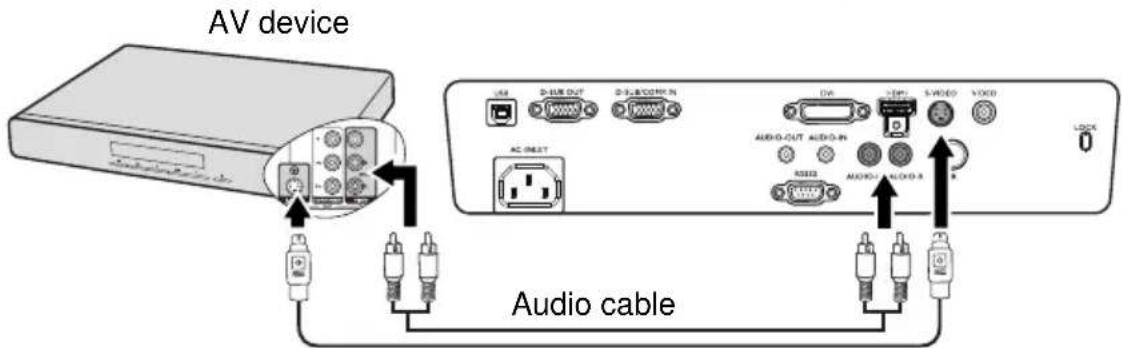

Connecting Video source devices.....22

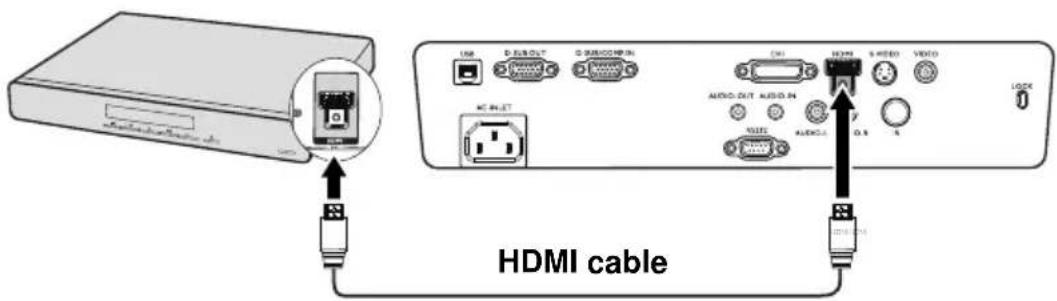

Connecting HDMI source devices.....23

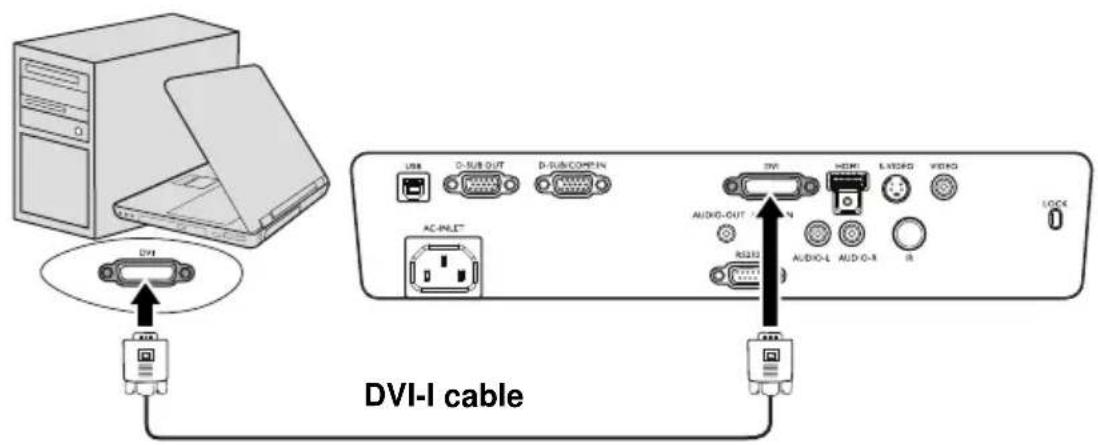

Connecting DVI-I source devices.....24

Operation......28

Starting up the projector....28

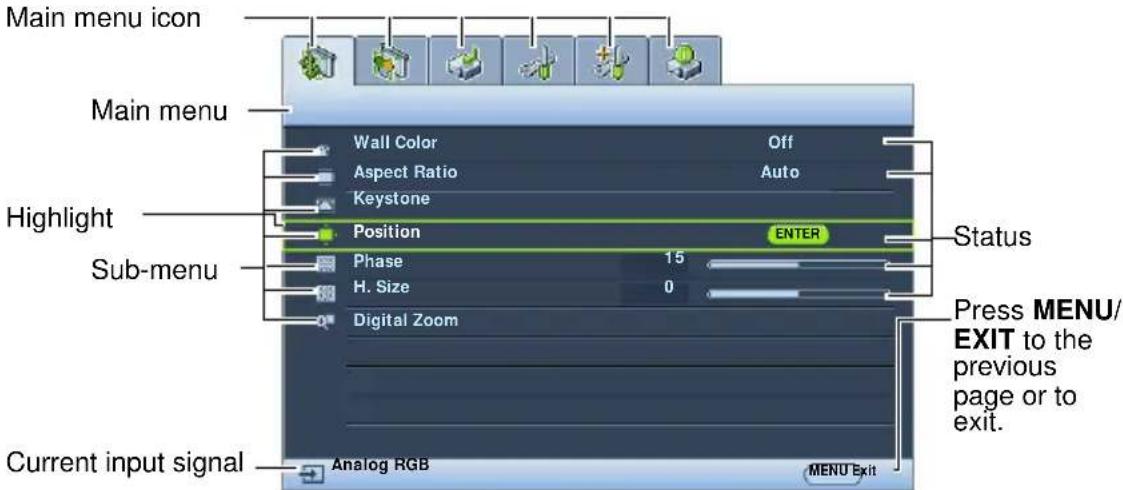

Using the menus....29

Securing the projector....29

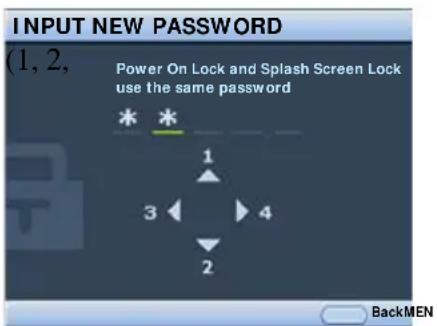

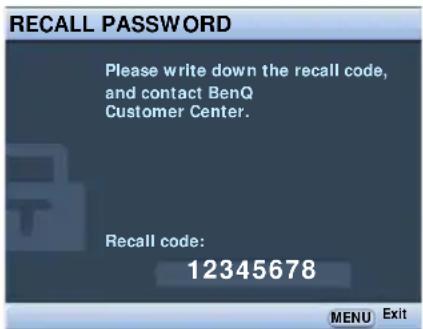

Utilizing the password function......30

Switching input signal....33

Adjusting the projected image .....34

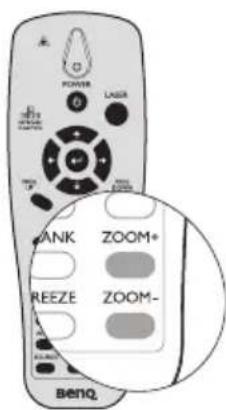

Magnifying and searching for details.36

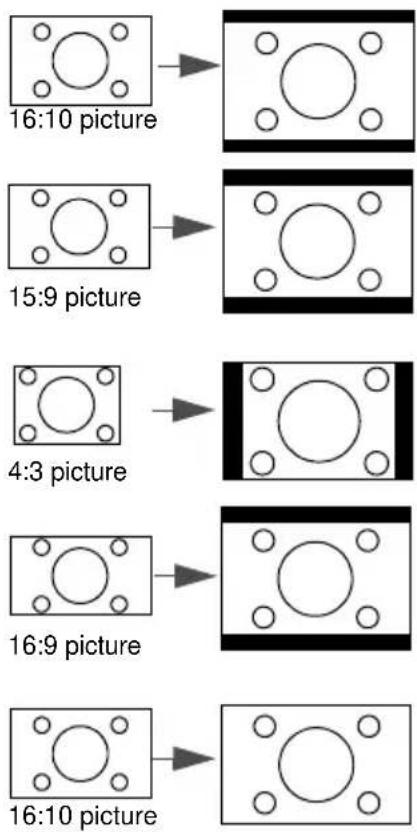

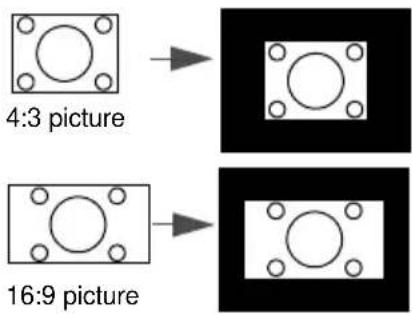

Selecting the aspect ratio ......37

Optimizing the image....39

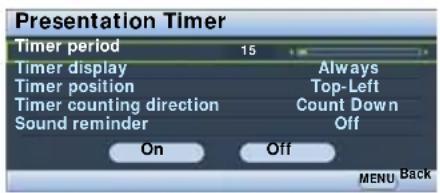

Setting the presentation timer .....43

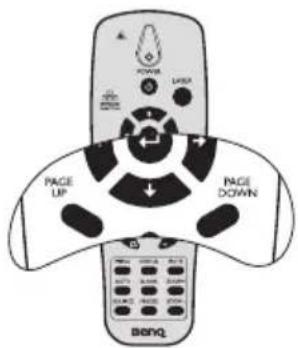

Remote paging operations......44

Hiding the image....44

Locking control keys......45

Freezing the image....45

Utilizing FAQ function......45

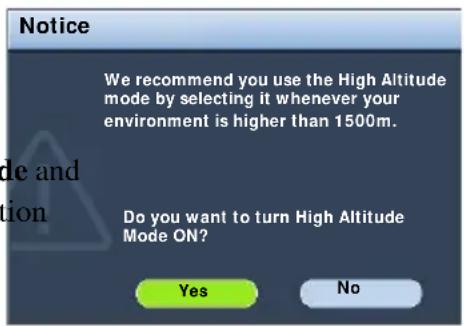

Operating in a high altitude environment46

Creating your own startup screen..... 46

Adjusting the sound...... 47

Personalizing the projector menu display.... 48

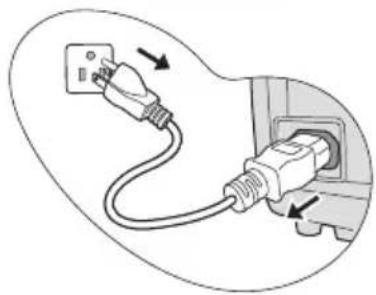

Shutting down the projector 48

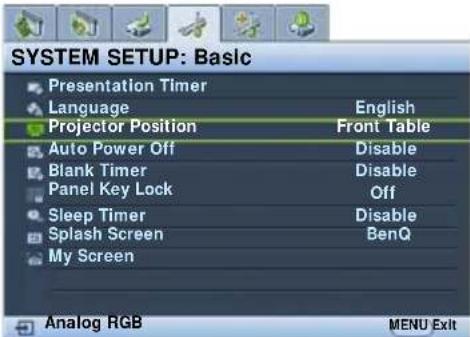

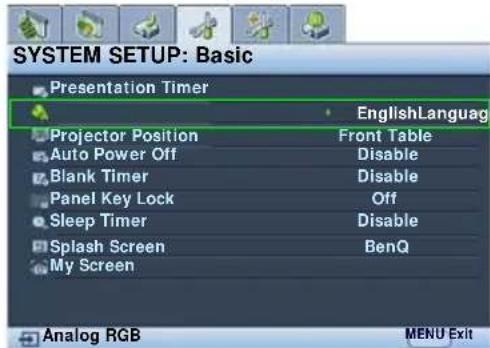

Menu operation.... 49

Maintenance ....57

Care of the projector.... 57

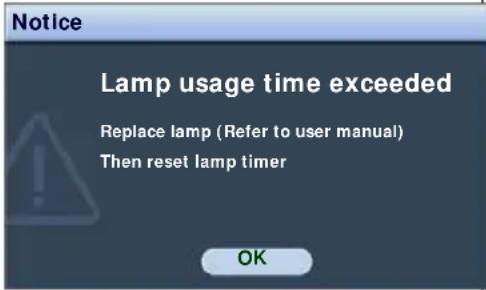

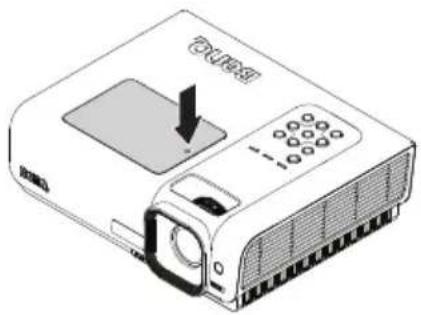

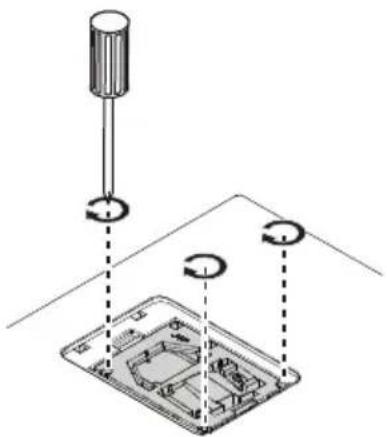

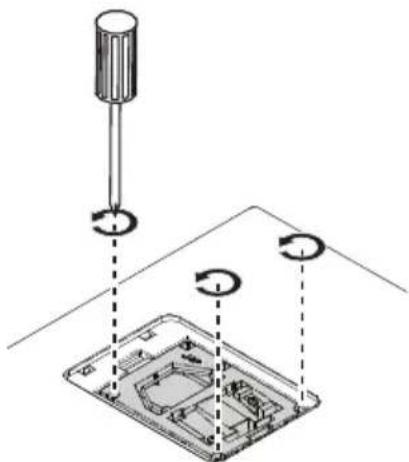

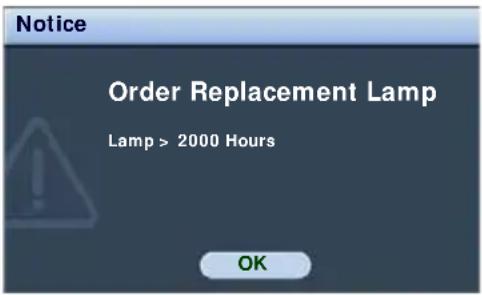

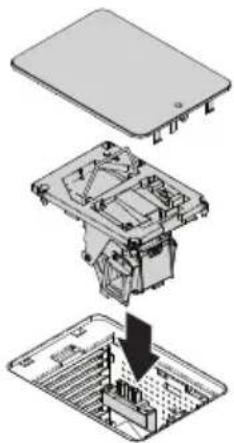

Lamp information.... 58

Troubleshooting ......64

Specifications......65

Projector specifications.... 65

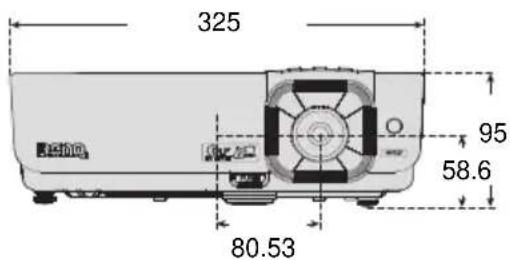

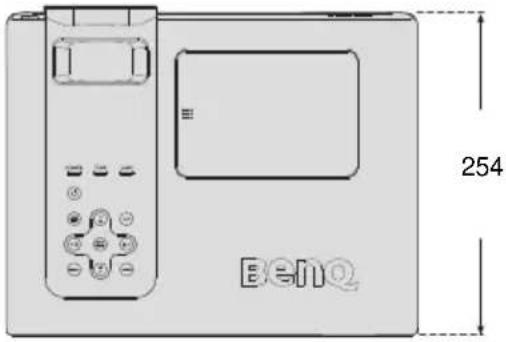

Dimensions.... 66

Timing chart 66

Warranty and Copyright information....70

Regulation statements....71

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in this manual and marked on the product.

Safety Instructions

1. Please read this manual before you operate your projector. Save it for future reference.

Cartoon illustration of a projector with hands holding a sheet of paper (no text or symbols)

1. Do not look straight at the projector lens during operation. The intense light beam may damage your eyes.

Illustration of a projector with a screen and sunglasses, emitting a light beam to a prohibition symbol (no text or labels present)

1. Refer servicing to qualified service personnel.

Cartoon illustration of a Beno projector with smiling face and cap (no text or symbols)

1. Always open the lens shutter or remove the lens cap when the projector lamp is on.

Cartoon illustration of a projector with a smiling face and pointing gesture (no text or symbols)

1. In some countries, the line voltage is NOT stable. This projector is designed to operate safely within a mains voltage between 100 to 240 volts AC, but could fail if power cuts or surges of ±10 volts occur. In areas where the mains voltage may fluctuate or cut out, it is recommended that you connect your projector through a power stabilizer, surge protector or uninterruptible power supply (UPS).

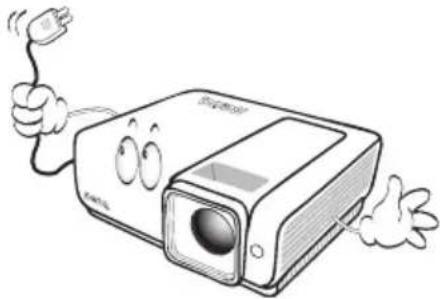

Cartoon illustration of a projector with a connected cable and a small screen (no text or symbols)

1. Do not block the projection lens with any objects when the projector is under operation as this could cause the objects to become heated and deformed or even cause a fire. To temporarily turn off the lamp, press BLANK on the projector or remote control.

Safety Instructions (Continued)

1. The lamp becomes extremely hot during operation. Allow the projector to cool for approximately 45 minutes prior to removing the lamp assembly for replacement.

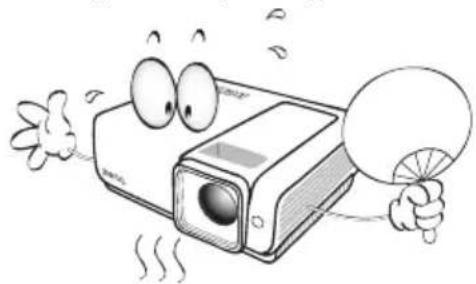

Cartoon illustration of a projector with a fan and motion lines (no text or symbols)

1. Do not operate lamps beyond the rated lamp life. Excessive operation of lamps beyond the rated life could cause them to break on rare occasions.

Cartoon illustration of a computer monitor with a syringe inserted, showing no text or symbols on the device itself.

1. Never replace the lamp assembly or any electronic components unless the projector is unplugged.

Cartoon illustration of a smiling projector with arms and legs, no text or symbols present

1. Do not place this product on an unstable cart, stand, or table. The product may fall, sustaining serious damage.

Cartoon illustration of a projector with cartoon faces and a cup on top (no text or symbols)

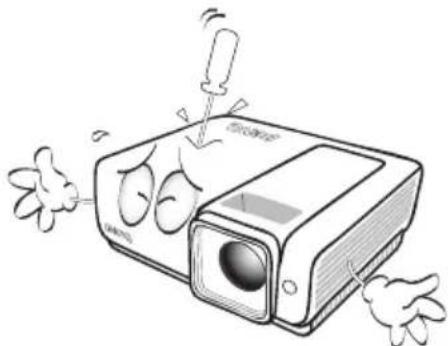

1. Do not attempt to disassemble this projector. There are dangerous high voltages inside which may cause death if you should come into contact with live parts. The only user serviceable part is the lamp which has its own removable cover. Under no circumstances should you ever undo or remove any other covers. Refer servicing only to suitably qualified professional service personnel.

Cartoon illustration of a projector with arms and legs, showing motion and facial features (no text or symbols)

1. When the projector is under operation, you may sense some heated air and odor from its ventilation grill. It is a normal phenomenon and not a product defect.

Safety Instructions (Continued)

1. Do not place this projector in any of the following environments.

2. Space that is poorly ventilated or confined. Allow at least 50 cm clearance from walls and free flow of air around the projector.

3. Locations where temperatures may become excessively high, such as the inside of a car with all windows rolled up.
4. Locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shortening the projector's life span and darkening the image.

Illustration of a hot pot, projector, and broom with smoke (no text or symbols)

• Locations near fire alarms
• Locations with an ambient temperature above 35^ C / 95^ F

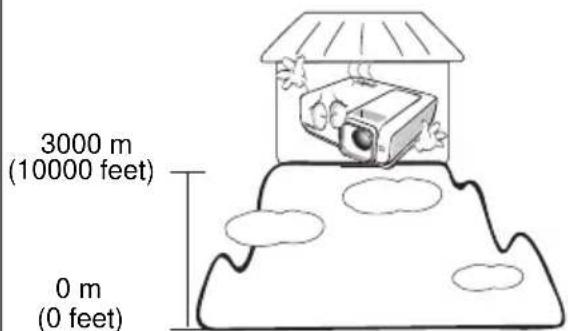

• Locations where the altitudes are higher than 3000 m (10000 feet).

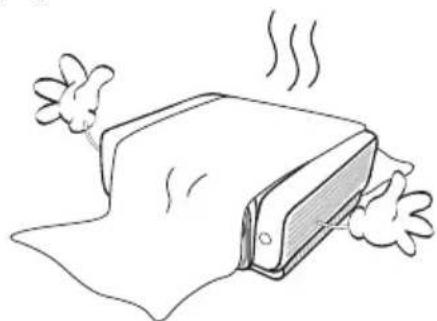

1. Do not block the ventilation holes.

2. Do not place this projector on a blanket, bedding or any other soft surface.

3. Do not cover this projector with a cloth or any other item.
4. Do not place inflammables near the projector.

Cartoon illustration of a closed book with steam rising, no text or symbols present

If the ventilation holes are seriously obstructed, overheating inside the projector may result in a fire.

1. Always place the projector on a level, horizontal surface during operation.

- Do not use if tilted at an angle of more than 10 degrees left to right, nor at angle of more than 15 degrees front to back. Using the projector when it is not fully horizontal may cause a malfunction of, or damage to, the lamp.

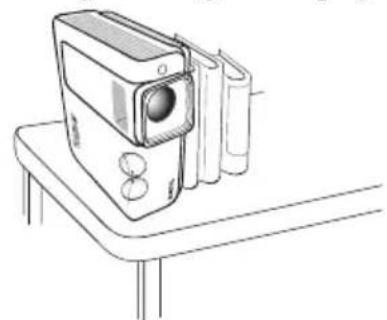

Illustration of a portable projector with two books beside it (no text or symbols visible)

1. Do not stand the projector on end vertically. Doing so may cause the projector to fall over, causing injury or resulting in damage to the projector.

Line drawing of a vintage digital camera on a table (no text or symbols)

Safety Instructions (Continued)

1. Do not step on the projector or place any objects upon it. Besides probable physical damage to the projector, doing so may result in accidents and possible injury.

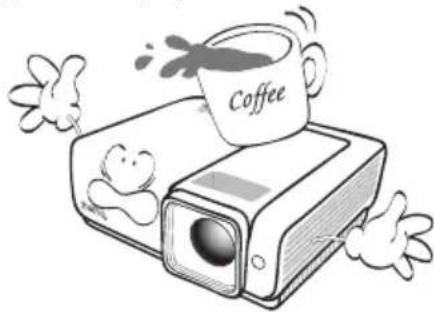

Cartoon illustration of coffee being placed on a projector with steam and bubbles (no text or symbols)

1. Do not place liquids near or on the projector. Liquids spilled into the projector may cause it to fail. If the projector does become wet, disconnect it from the power supply's wall socket and call BenQ to have the projector serviced.

Illustration of a projector with a plug and smoke, emitting exhaust smoke (no text or symbols)

1. This product is capable of displaying inverted images for ceiling mount installation.

Use only BenQ's Ceiling Mount Kit for mounting the projector and ensure it is securely installed.

Cartoon illustration of a smiling camera with arms and legs, surrounded by flying birds (no text or symbols)

⚠️ Ceiling mounting the projector

We want you to have a pleasant experience using your BenQ projector, so we need to bring this safety matter to your attention to prevent possible damage to person and property.

If you intend to mount your projector on the ceiling, we strongly recommend that you use a proper fitting BenQ projector ceiling mount kit and that you ensure it is securely and safely installed.

If you use a non-BenQ brand projector ceiling mount kit, there is a safety risk that the projector may fall from the ceiling due to an improper attachment through the use of the wrong gauge or length screws.

You can purchase a BenQ projector ceiling mount kit from the place you purchased your BenQ projector. BenQ recommends that you also purchase a separate Kensington lock compatible security cable and attach it securely to both the Kensington lock slot on the projector and the base of the ceiling mount bracket. This will perform the secondary role of restraining the projector should its attachment to the mounting bracket become loose.

Introduction

Projector features

The projector integrates high-performance optical engine projection and a user-friendly design to deliver high reliability and ease of use.

The projector offers the following features.

• Wall color correction allowing projection on surfaces of several predefined colors
• Quick auto search speeding up the signal detecting process
• Selectable password protected function
• Up to 11 sets of picture modes providing multiple choices for different projection purposes

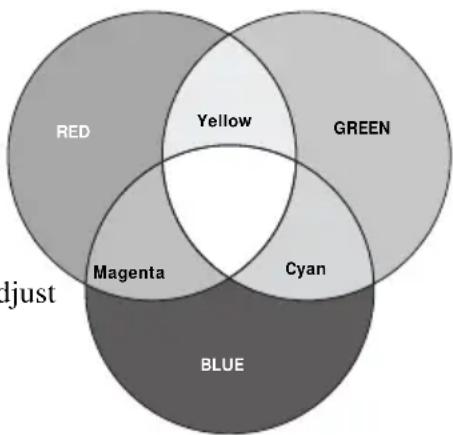

  • 3D color management allowing color adjustments to your liking
• Selectable quick cooling function makes the projector cool in a shorter time
• Presentation timer for better control of time during presentations
• One-key auto-adjustment to display the best picture quality
  • Digital keystone correction to correct distorted images
• Adjustable color balance control for data/video display
  • High brightness projection lamp
• Ability to display 16.7 million colors
• Multi-language On-Screen Display (OSD) menus
• Switchable normal and economic modes to reduce the power consumption
• Component HDTV compatibility (YP bPr)
  • High quality manual zoom lens
• Splash Screen lock to prevent unauthorized use
• FAQ to troubleshoot operational problems with one quick key press
  • Built-in speakers provide mixed mono audio when an audio input is connected
• Powerful AV function to provide high quality video image
• HDCP compatibility
  • HDMI 1.3 compatibility

- The apparent brightness of the projected image will vary depending on the ambient lighting conditions, selected input signal contrast/brightness settings, and is directly proportional to projection distance.

- The lamp brightness will decline over time and may vary within the lamp manufacturers specifications. This is normal and expected behavior.

Shipping contents

Carefully unpack and verify that you have all of the items shown below. If any of these items are missing, please contact your place of purchase.

Standard accessories

The supplied accessories will be suitable for your region, and may differ from those illustrated.

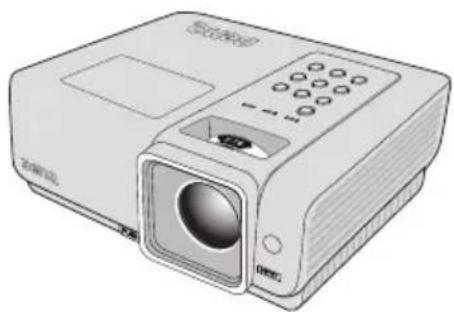

Illustration of a projector with a screen and control panel (no text or symbols visible)

Standard Remote

Illustration of a remote control with buttons and dials (no text or symbols)

For Japan Model Only

Projector Remote control with battery

(UK)(US)

(KOREA)(CHINA)

Line drawing of a single cord with two terminal plugs (no text or symbols)

(JAPAN)
(EU)

Coiled cable with two connectors (no text or symbols visible)

Power cord VGA cable

Quick start guide User manual CD Warranty card*

Optional accessories

1. Spare lamp kit

2. Presentation Plus

3. Ceiling mount kit

4. RS-232 cable

*The warranty card is only supplied in some specific regions. Please consult your dealer for detailed information.

Projector exterior view

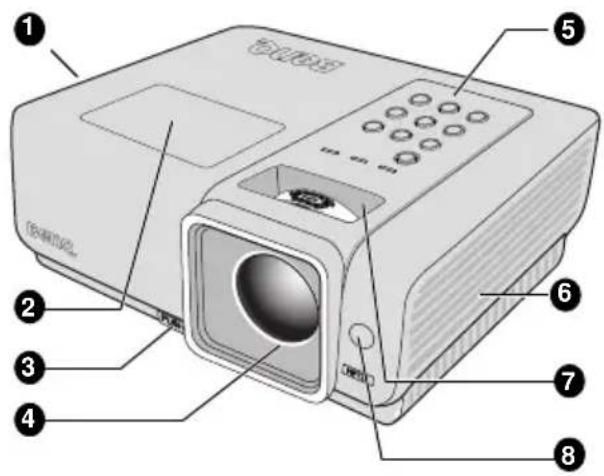

Front/upper side

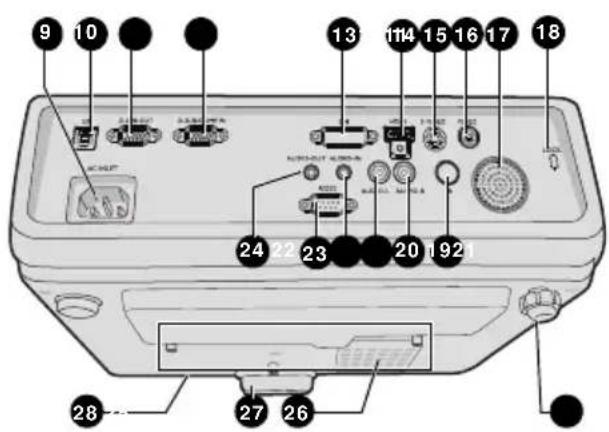

Rear/lower side

1. Vent (heated air exhaust)
2. Lamp cover

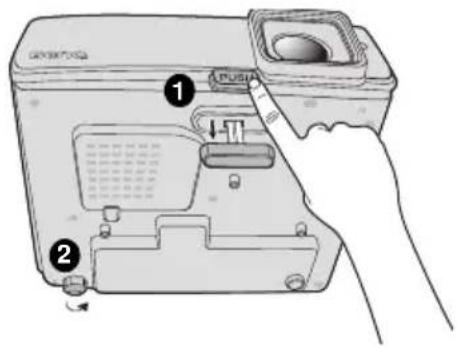

3. Quick-release button
4. Projection lens
5. External control panel (See "Projector" on page 10 for details.)
6. Vent (cool air intake)
7. Focus ring and Zoom ring

8. Front IR remote sensor

9. AC power cord inlet

10. USB input socket
11. D-SUB output socket
12. D-SUB/COMP.IN input socket
13. DVI input socket
14. HDMI input socket
15. S-VIDEO input socket
16. VIDEO input socket
17. AUDIO speaker
18. Kensington anti-theft lock slot
19. IR receiver
20. AUDIO input socket (right)
21. AUDIO input socket (left)
22. AUDIO input socket
23. RS-232 control port
24. AUDIO output socket
25. Rear adjuster foot
26. Air intake vent
27. Quick-release foot
28. Ceiling mount holes

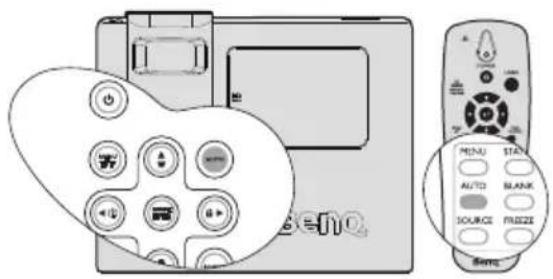

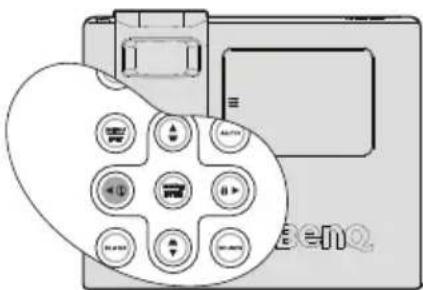

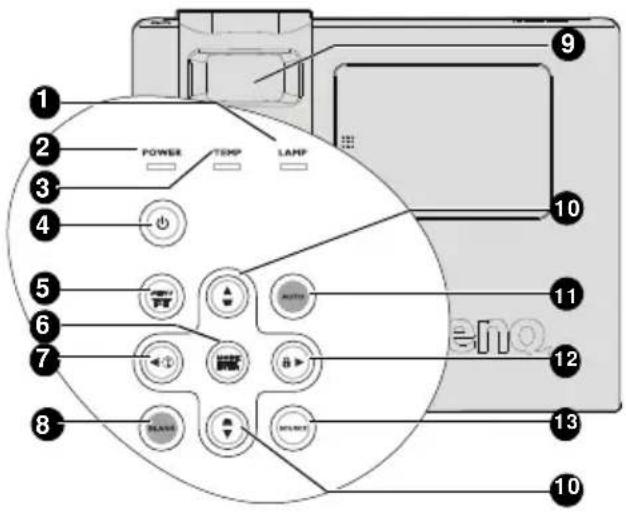

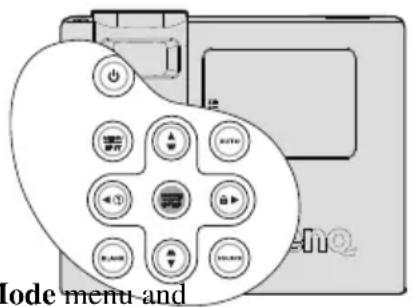

Controls and functions Projector

1. LAMP indicator light

Indicates the status of the lamp. Lights up or flashes when the lamp has developed a problem. See "Indicators" on page 63 for details.

2. POWER indicator light

Lights up or flashes when the projector is under operation. See "Indicators" on page 63 for details.

3. TEMPerature indicator light

Lights up red if the projector's temperature becomes too high. See "Indicators" on page 63 for details.

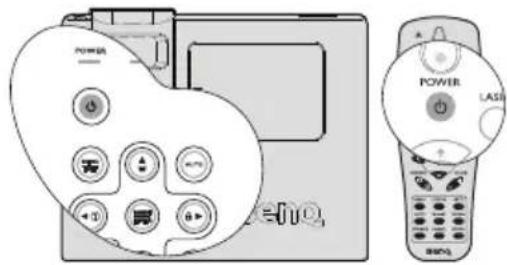

4. POWER

Toggles the projector between standby mode and on.

See "Starting up the projector" on page 28 and "Shutting down the projector" on page 48 for details.

5. MENU/EXIT

Turns on the On-Screen Display (OSD) menu. Goes back to previous OSD menu, exits and saves menu settings.

See "Using the menus" on page 29 for details.

6. MODE/ENTER

Selects an available picture setup mode. See "Selecting a picture mode" on page 39 for details.

Enacts the selected On-Screen Display (OSD) menu item. See "Using the menus" on page 29 for details.

7. Left/ ?

Starts the FAQ function. See "Utilizing FAQ function" on page 45 for details.

8. BLANK

Used to hide the screen picture. See "Hiding the image" on page 44 for details.

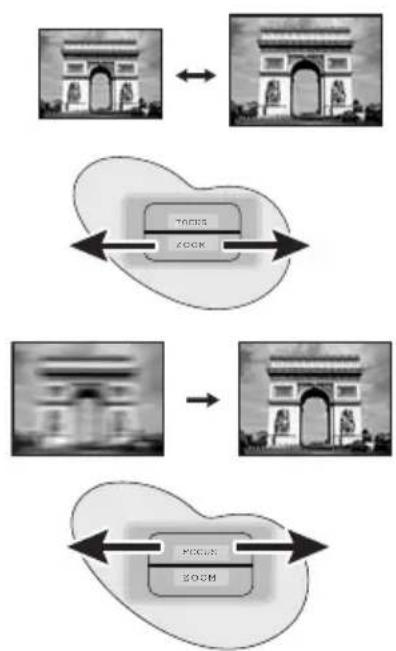

9. FOCUS/ZOOM Ring

Used to adjust the projected image appearance. See "Fine-tuning the image size and clarity" on page 35 for details.

10. Keystone/Arrow keys (/ Up, ▲

▼ Down)

Manually corrects distorted images resulting from an angled projection. See "Correcting keystone" on page 35 for details.

11. AUTO

Automatically determines the best picture timings for the displayed image. See "Auto-adjusting the image" on page 34 for details.

12. Right/

Activates panel key lock. See "Locking control keys" on page 45 for details. When the On-Screen Display (OSD) menu is activated, the #7, #10, and #12 keys are used as directional arrows to select the desired menu items and to make adjustments. See "Using the menus" on page 29 for details.

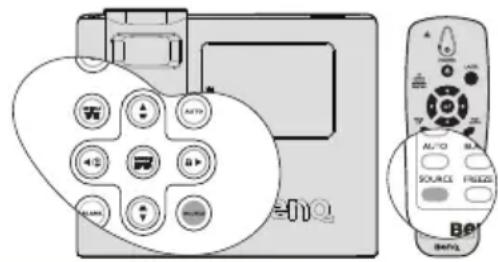

13. SOURCE

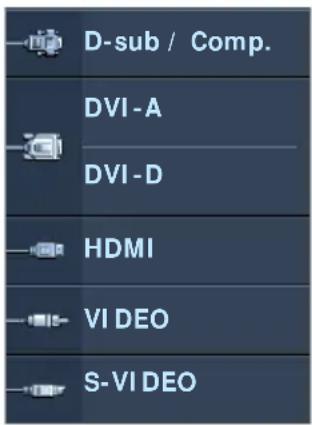

Displays the source selection bar. See "Switching input signal" on page 33 for details.

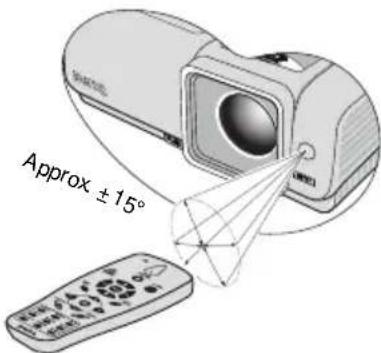

Remote control

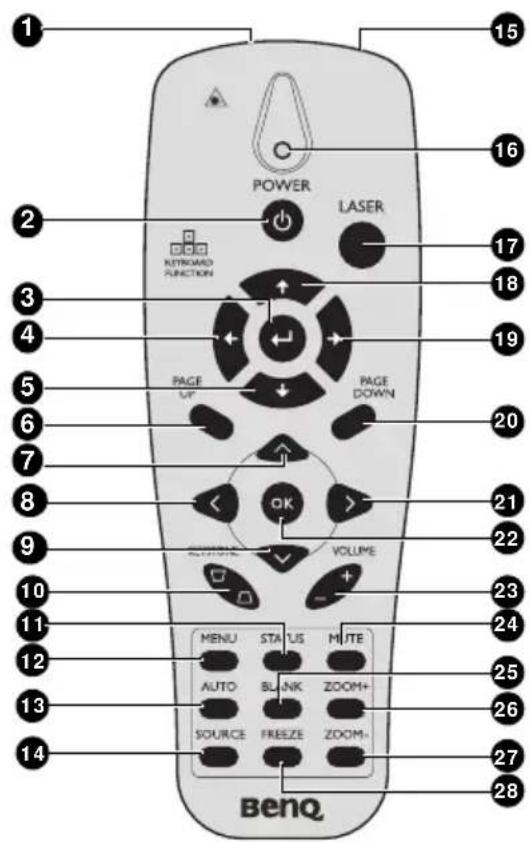

Standard remote

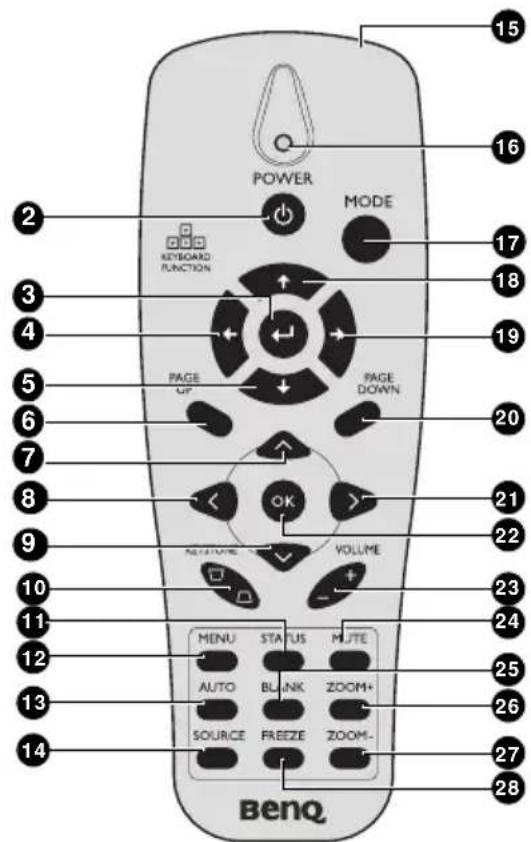

For Japan model only

1. Laser (Standard Remote only)

Use as on-screen pointer.

DO NOT POINT IN EYES.

2. POWER

Toggles the projector between standby mode and on. See "Starting up the projector" on page 28 and "Shutting down the projector" on page 48 for details.

3. Enter

Enter key when connected through USB to a PC.

4. Left

Left arrow when connected through USB to a PC.

5. Down

Down arrow when connected through USB to a PC.

6. PAGE UP

Page up arrow when connected through USB to a PC. See "Remote paging operations" on page 44 for details.

7. Up cursor

Navigates and changes settings in the OSD. See "Using the menus" on page 29 for details.

8. Left-cursor

Navigates and changes settings in the OSD. See "Using the menus" on page 29 for details.

9. Down cursor

Navigates and changes settings in the OSD. See "Using the menus" on page 29 for details.

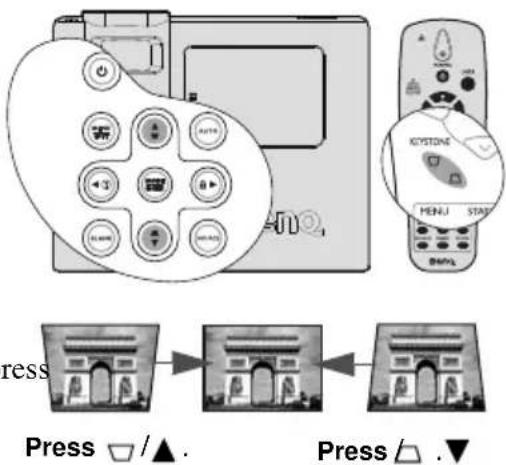

10. KEYSTONE keys (/)

Manually corrects distorted images resulting from an angled projection. See "Correcting keystone" on page 35 for details.

11. STATUS

Opens the OSD STATUS menu (the menu only opens when an input device is detected).

12. MENU

Turns on the On-Screen Display (OSD) menu. Goes back to previous OSD menu, exits and saves menu settings.

See "Using the menus" on page 29 for details.

13. AUTO

Automatically determines the best picture timings for the displayed image. See "Auto-adjusting the image" on page 34 for details.

14. SOURCE

Displays the source selection bar. See "Switching input signal" on page 33 for details.

15. IR transmitter

Transmits signals to projector.

16. Status LED

Lights when the remote control is used.

17. LASER/MODE

LASER: Press to operate the on-screen pointer. MODE: Choose a suitable preset mode for usage environment.

18. Up

Up arrow when connected through USB to a PC.

19. Right

Right arrow when connected through USB to a PC.

20. PAGE DOWN

Page down arrow when connected through USB to a PC. See "Remote paging operations" on page 44 for details.

21. Right cursor

Navigates and changes settings in the OSD. See "Using the menus" on page 29 for details.

22. OK

Changes settings in the OSD. See "Using the menus" on page 29 for details.

23. VOLUME +/-

Adjusts volume. See "Adjusting the sound level" on page 47 for details.

24. MUTE

Mutes the built-in speaker.

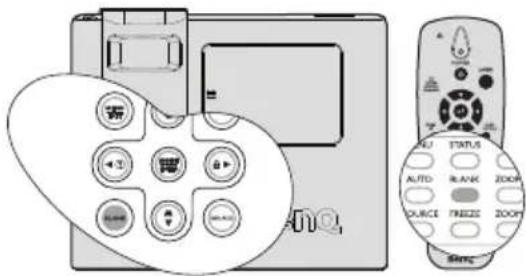

25. BLANK

Hides the screen picture.

26. ZOOM+

Zoom in.

27. ZOOM-

Zoom out.

28. FREEZE

Freeze/unfreezes the on-screen picture. See "Freezing the image" on page 45 for details.

Operating the LASER pointer

The LASER Pointer is a presentation aid for professionals. It emits red colored light when you press it and the indicator lights up red. The laser beam is visible. It is necessary to press and hold LASER for continuous output.

Do not look into the laser light window or shine the laser light beam on yourself or others. See the warning messages on the back of the remote control prior to using it.

The laser pointer is not a toy. Parents should be mindful of the dangers of laser energy and keep this remote control out of the reach of children.

Remote control effective range

Infra-Red (IR) remote control sensor is located on the front of the projector. The remote control must be held at an angle within 30 degrees perpendicular to the projector's IR remote control sensor to function correctly. The distance between the remote control and the sensor should not exceed 7 meters (\~ 23 feet).

Make sure that there are no obstacles between the remote control and the IR sensor on the projector that might obstruct the infra-red beam.

Replacing the remote control battery

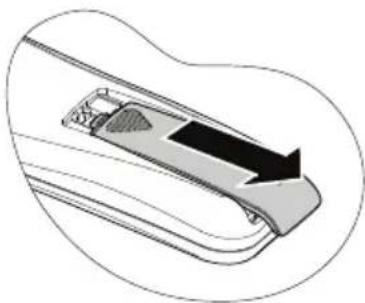

1. Remove the battery compartment cover by sliding the cover in the direction of the arrow.

Diagram of a mechanical component with a directional arrow indicating movement or force (no text or symbols present)

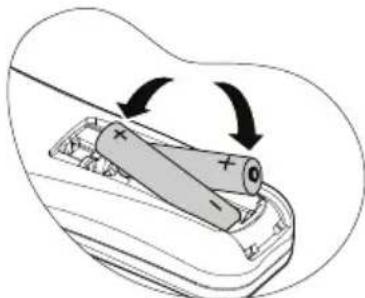

1. Insert the supplied batteries taking note of the polarity (+/-) as shown here.

Diagram of a battery holder with two wheels and a rotating arrow indicating rotation (no text or symbols)

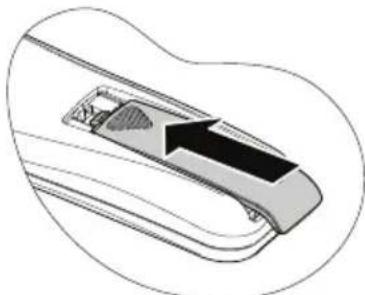

1. Replace the cover.

Diagram of a car interior showing a handle and seat with an arrow indicating direction (no text or symbols)

- Avoid excessive heat and humidity.

- There may be battery damage if the battery is incorrectly replaced.

- Replace only with the same or equivalent type recommended by the battery manufacturer.

- Dispose of the used battery according to the battery manufacturer's instructions.

- Never throw a battery into a fire. There may be danger of an explosion.

- If the battery is dead or if you will not be using the remote control for a long time, remove the battery to prevent damage to the remote control from possible battery leakage.

Positioning your projector

Choosing a location

Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.

Your projector is designed to be installed in one of four possible installation locations:

1. Front Table

Select this location with the projector placed on a table in front of the screen. This is the most common way to position the projector for quick setup and portability.

2. Front Ceiling

Select this location with the projector suspended upside-down from the ceiling in front of the screen.

Purchase the BenQ Projector Ceiling Mounting Kit from your dealer to mount your projector on the ceiling.

Set Front Ceiling in the SYSTEM SETUP: Basic > Projector Position menu after you turn the projector on.

3. Rear Table

Select this location with the projector placed on a table behind the screen.

Note that a special rear projection screen is required.

Set Rear Table in the SYSTEM SETUP: Basic > Projector Position menu after you turn the projector on.

4. Rear Ceiling

Select this location with the projector suspended upside-down from the ceiling behind the screen.

Note that a special rear projection screen and the BenQ Projector Ceiling Mounting Kit are required for this installation location.

Set Rear Ceiling in the SYSTEM SETUP: Basic > Projector Position menu after you turn the projector on.

Simple line drawing of a pendulum setup with a person observing and a table, no text or symbols present.

Simple line drawing of a mechanical setup with a vertical rod and a horizontal beam, alongside a human silhouette (no text or symbols)

Simple line drawing of a person observing a simple pendulum setup with a box on a table (no text or symbols)

Simple line drawing of a mechanical setup with a hanging weight and a human silhouette (no text or symbols)

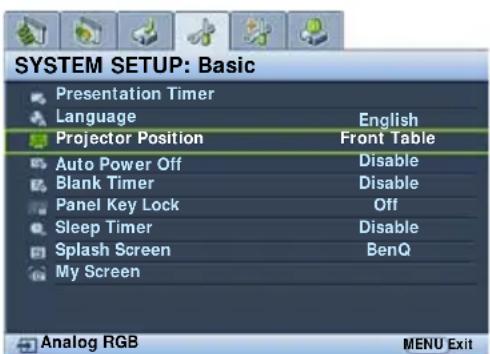

\*To set the projector position:

1. Press MENU/EXIT on the projector or remote control and then press ↕ until the SYSTEM SETUP: Basic menu is highlighted.

2. Press ▲/▼ to highlight Projector Position and press ◀/▲ until the correct position is selected.

Obtaining a preferred projected image size

The distance from the projector lens to the screen, the zoom setting (if available), and the video format each factors in the projected image size.

4:3 is the native aspect ratio of MP724 and MP727. 16:10 is the native aspect ratio of MP735. To be able to project a complete 16:9 (widescreen) aspect ratio image on MP724 or MP727, the projector can resize and scale a widescreen image to the projector's native aspect width. This will result in a proportionally smaller height equivalent to 75% of the projector's native aspect height.

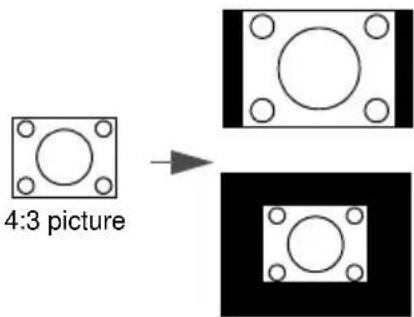

4:3 aspect image in a 4:3 aspect display area

16:9 aspect image scaled to a 4:3 aspect display area

Thus, a 16:9 aspect image will not utilize 25% of the height of a 4:3 aspect image displayed by this projector. This will be seen as darkened (unlit) bars along the top and bottom (vertical 12.5% height respectively) of the 4:3 projection display area whenever displaying a scaled 16:9 aspect image in the vertical center of the 4:3 projection display area.

The projector should always be placed horizontally level (like flat on a table), and positioned directly perpendicular ( 90^ right-angle square) to the horizontal center of the screen. This prevents image distortion caused by angled projections (or projecting onto angled surfaces).

The modern digital projector does not project directly forward (like older style reel-to-reel film projectors did). Instead, digital projectors are designed to project at a slightly upward angle above the horizontal plane of the projector. This is so that they can be readily placed on a table and will project forward and upwards onto a screen positioned so that the bottom edge of the screen is above the level of the table (and everyone in the room can see the screen).

If the projector is mounted on a ceiling, it must be mounted upside-down so that it projects at a slightly downward angle.

You can see from the diagram on page 17, that this type of projection causes the bottom edge of the projected image to be vertically offset from the horizontal plane of the projector. When ceiling mounted, this refers to the top edge of the projected image.

If the projector is positioned further away from the screen, the projected image size increases, and the vertical offset also increases proportionately.

When determining the position of the screen and projector, you will need to account for both the projected image size and the vertical offset dimension, which are directly proportional to the projection distance.

BenQ has provided a table of screen sizes to assist you in determining the ideal location for your projector. Refer to "MP724/727 projection dimensions" on page 17/18 or "MP735 projection dimensions" on page 19 depending on the projector you are using. There are two dimensions to consider, the perpendicular horizontal distance from the center of the screen (projection distance), and the vertical offset height of the projector from the horizontal edge of the screen (offset).

How to determine the position of the projector for a given screen size

1. Select your screen size.
2. Refer to the table and find the closest match to your screen size in the left columns labelled "4:3 screen". Using this value, look across this row to the right to find the corresponding average distance from screen value in the column labelled "Average". This is the projection distance.
3. On that same row, look across to the right column and make note of the "Vertical offset in mm" value. This will determine the final vertical offset placement of the projector in relation to the edge of the screen.
4. The recommended position for the projector is aligned perpendicular to the horizontal center of the screen, at the distance from the screen determined in step 2 above, and offset by the value determined in step 3 above.

For example (MP724), if you are using a 120-inch screen, the average projection distance is 4999 mm and with a vertical offset of 256 mm.

If you place the projector in a different position (to that recommended), you will have to tilt it down or up to center the image on the screen. In these situations, some image distortion will occur. Use the Keystone function to correct the distortion. See "Correcting keystone" on page 35 for details.

How to determine the recommended screen size for a given distance

This method can be used for situations where you have purchased this projector and would like to know what screen size will fit in your room.

The maximum screen size is limited by the physical space available in your room.

1. Measure the distance between the projector and where you want to position the screen. This is the projection distance.
2. Refer to the table and find the closest match to your measurement in the average distance from screen column labelled "Average". If the min and max values are available on the table, check that your measured distance is between the min and max distances listed on either side of the average distance value.
3. Using this value, look across that row to the left to find the corresponding screen diagonal listed in that row. That is the projected image size of the projector at that projection distance.
4. On that same row, look across to the right column and make note of the "Vertical offset in mm" value. This will determine the final placement of the screen in relation to the horizontal plane of the projector.

For example (MP724), if your measured projection distance was 4.5 m (4500 mm), the closest match in the "Average" column is 4499 mm. Looking across this row shows that a 108-inch screen is required.

MP724/727 projection dimensions

Refer to "Dimensions" on page 66 for the center of lens dimensions of this projector before calculating the appropriate position.

MP724

4:3 screen					Recommended projection distance from screen in mm			Vertical offset in mm
diagonal Width				Height	Min length (with max. zoom)	Average	Max length (with min. zoom)
Feet Inches mm		mm mm
4	48	1219	975	732	1853	1999	2146	102
	59	1499	1199	899	2278	2458	2638	126
5	60	1524	1219	914	2316	2499	2682	128
6	72	1829	1463	1097	2780	2999	3219	154
	79	2007	1605	1204	3050	3291	3532	169
7	84	2134	1707	1280	3243	3499	3755	179
8	96	2438	1951	1463	3706	3999	4292	205
	98	2489	1991	1494	3784	4082	4381	209
9	108	2743	2195	1646	4170	4499	4828	230
	118	2997	2398	1798	4556	4915	5275	252
10	120	3048	2438	1829	4633	4999	5364	256
	138	3505	2804	2103	5328	5749	6169	294
12	144	3658	2926	2195	5560	5998	6437	307
	157	3988	3190	2393	6061	6540	7019	335
15	180	4572	3658	2743	6949	7498	8047	384
	197	5004	4003	3002	7606	8206	8807	420
18	216	5486	4389	3292	8339	8998	9656	461
	236	5994	4796	3597	9111	9831	10550	504
25	300	7620	6096	4572	11582	-	-	640

MP727

4:3 screen					Recommended projection distance from screen in mm			Vertical offset in mm
diagonal Width				Height	Min length (with max. zoom)	Average	Max length (with min. zoom)
Feet Inches mm		mm mm
4 48 1219 975 732 1756 1902 2049 90
59 1499 1199 899 2158 2338 2518 111
5 60 1524 1219 914 2195 2377 2560					112
6	72	1829	1463	1097	2633	2853	3072	135
	79	2007	1605	1204	2890	3130	3371	149
7	84	2134	1707	1280	3072	3328	3584	158
8	96	2438	1951	1463	3511	3804	4097	181
	98	2489	1991	1494	3584	3883	4182	184
9	108	2743	2195	1646	3950	4279	4609	203
	118	2997	2398	1798	4316	4676	5035	222
10	120	3048	2438	1829	4389	4755	5121	226
	138	3505	2804	2103	5047	5468	5889	260
12	144	3658	2926	2195	5267	5706	6145	271
	157	3988	3190	2393	5742	6221	6700	295
15	180	4572	3658	2743	6584	7132	7681	339
	197	5004	4003	3002	7205	7806	8406	371
18	216	5486	4389	3292	7900	8559	9217	406
	236 5994 4796 3597 8632 9351 10071 444
25	300	7620	6096	4572	10973	11887	12802	564

There is 3% tolerance among these numbers due to optical component variations. BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector before you permanently install it, so as to make allowance for this projector's optical characteristics. This will help you determine the exact mounting position so that it best suits your installation location.

MP735 projection dimensions

Refer to "Dimensions" on page 66 for the center of lens dimensions of this projector before calculating the appropriate position.

16:10 screen					Recommended projection distance from screen in mm			Vertical offset in mm
diagonal Width				Height	Min length (with max. zoom)	Average	Max length (with min. zoom)
Feet Inches mm		mm mm
4	48	1219	1034		646	1582	1701	1820	74
	59	1499	1271	794	1944	2090	2237	91
5	60	1524	1292		808	1977	2126	2275	93
6	72	1829	1551		969	2373	2551	2729	111
	79	2007	1702	1063	2603	2799	2995	122
7	84	2134	1809		1131	2768	2976	3184	130
8	96	2438	2068		1292	3164	3401	3639	149
	98	2489	2111	1319	3230	3472	3715	152
9	108	2743	2326		1454	3559	3827	4094	167
	118	2997	2542	1589	3889	4181	4473	183
10	120	3048	2585	1615	3955	4252	4549	186
	138	3505	2972	1858	4548	4890	5231	214
12	144	3658	3102	1939	4746	5102	5459	223
	157	3988	3382	2114	5174	5563	5952	243
15	180	4572	3877	2423	5932	6378	6824	279
	197	5004	4243	2652	6492	6980	7468	305
18	216	5486	4652	2908	7118	7653	8188	334
	236	5994	5083	3177	7777	8362	8947	365
25	300	7620	6462	4039	9886	10630	11373	464

There is 3% tolerance among these numbers due to optical component variations. BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector before you permanently install it, so as to make allowance for this projector's optical characteristics. This will help you determine the exact mounting position so that it best suits your installation location.

Connection

When connecting a signal source to the projector, be sure to:

1. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly inserted.

In the connections shown below, some cables may not be included with the projector (see "Shipping contents" on page 8). They are commercially available from electronics stores.

Connecting a computer or monitor

Connecting a computer

The projector provides a VGA input socket that allows you to connect it to both IBM® compatibles and Macintosh® computers. A Mac adapter (an optional accessory) is needed if you are connecting legacy version Macintosh computers.

Additionally, you can also connect the projector to a computer via the USB cable so you can perform paging operations of the application on the PC or notebook.

To connect the projector to a notebook or desktop computer:

- With a VGA cable: • With a DVI-I cable: • With a HDMI cable:

Your computer must be equipped with a DVI-I output socket.

1. Take a DVI-I cable and connect one end to the DVI-I output socket of the computer. Connect the other end of the cable to the DVI-I signal input socket on the projector.

Your computer must be equipped with a HDMI output socket.

1. Take a HDMI cable and connect one end to the HDMI socket of the computer. Connect the other end of the cable to the HDMI signal input socket on the projector.

2. Take a VGA cable and connect one end to the D-Sub output socket of the computer. Connect the other end of the VGA cable to the D-SUB/COMP.IN signal input socket on the projector.

3. If you wish to use the remote paging function, take a USB cable and connect the larger end to the USB port of the computer, and the smaller end to the (USB) socket on the projector. See "Remote paging operations" on page 44 for details.

4. If you wish to make use of the projector (mixed mono) speakers in your presentations, take a suitable audio cable and connect one end of the cable to the audio output socket of the computer, and the other end to the AUDIO socket of the projector. Once connected, the audio can be controlled by the projector On-Screen Display (OSD) menus. See "Audio Settings" on page 51 for details.

The final connection path should be like that shown in the following diagram:

Notebook or desktop computer

Many notebooks do not turn on their external video ports when connected to a projector. Usually a key combo like FN + F3 or CRT/LCD key turns the external display on/off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol on the notebook. Press FN and the labeled function key simultaneously. Refer to your notebook's documentation to find your notebook's key combination.

Connecting a monitor

If you want to view your presentation close-up on a monitor as well as on the screen, you can connect the D-SUB OUT signal output socket on the projector to an external monitor with a VGA or VGA to DVI-A cable by following the instructions below.

To connect the projector to a monitor:

- With a VGA cable: • With a VGA to DVI-A cable:

1. Connect the projector to a computer as described in "Connecting a computer" on page 20. The D-SUB output only works when an appropriate D-SUB input is made to the projector. Be sure the projector is connecting with the computer using the D-SUB/COMP.IN socket, not the DVI-I socket.

2. Take a suitable VGA cable (only one supplied) and connect one end of the cable to the D-Sub input socket of the video monitor.

3. Connect the other end of the cable to the D-SUB OUT socket on the projector.

Your monitor must be equipped with a DVI input socket.

1. Connect the projector to a computer as described in "Connecting a computer" on page 20. The D-SUB output only works when an appropriate D-SUB input is made to the projector. Be sure the projector is connecting with the computer using the D-SUB/COMP.IN socket, not the DVI-I socket.

2. Take a VGA to DVI-A cable and connect the DVI end of the cable to the DVI input socket of the video monitor.

3. Connect the VGA end of the cable to the D-SUB OUT socket on the projector.

The final connection path should be like that shown in the following diagram:

Connecting Video source devices

You can connect your projector to various Video source devices that provide any one of the following output sockets:

• HDMI
• DVI-I
- Component Video
• S - V i d e o
- Video (composite)

You need only connect the projector to a Video source device using just one of the above connecting methods, however each provides a different level of video quality. The method you choose will most likely depend upon the availability of matching terminals on both the projector and the Video source device as described below:

Best video quality

The best available video connection method is HDMI. If your source device is equipped with a HDMI socket, you can enjoy uncompressed digital video quality.

See "Connecting HDMI source devices" on page 23 for how to connect the projector to a HDMI source device and other details.

If no HDMI source is available, the next best video signal is DVI-I. If your source device is equipped with a DVI-I socket, you can enjoy digital video quality.

See "Connecting DVI-I source devices" on page 24 for how to connect the projector to a DVI-I source device and other details.

If no DVI-I source is available, the next best video signal is Component Video (not to be confused with composite Video). Digital TV tuners and DVD players output Component Video natively, so if available on your devices, they should be your connection method of choice in preference to S-Video or (composite) Video.

See "Connecting Component Video source devices" on page 25 for how to connect the projector to a Component Video device.

Better video quality

The S-Video method provides a better quality analog video than standard composite Video. If you have both composite Video and S-Video output terminals on your Video source device, you should elect to use the S-Video option.

Least video quality

Composite Video is an analog video and will result in a perfectly acceptable, but less than optimal result from your projector, being the least video quality of the available methods described here.

See "Connecting S-Video source devices" on page 26 for how to connect the projector to an S-Video or Video device.

Connecting Audio

The projector has built-in mono speakers which are designed to provide basic audio functionality accompanying data presentations for business purposes only. They are not designed for, nor intended for stereo audio reproduction use as might be expected in home theater or home cinema applications. Any stereo audio input (if provided), is mixed into a common mono audio output through the projector speakers.

Connecting HDMI source devices

The projector provides a HDMI input socket that allows you to connect it to a HDMI source device like a DVD player, a DTV tuner or a display.

HDMI (High-Definition Multimedia Interface) supports uncompressed video data transmission between compatible devices like DTV tuners, DVD players and displays over a single cable. It provides pure digital viewing and listening experience.

Examine your Video source device to determine if it has a set of unused HDMI output sockets available:

• If so, you can continue with this procedure.
• If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to an HDMI source device:

1. Take a HDMI cable and connect one end to the HDMI output socket of the HDMI source device. Connect the other end of the cable to the HDMI signal input socket on the projector. Once connected, the audio can be controlled by the projector On-Screen Display (OSD) menus. See "Audio Settings" on page 51 for details.

2. Connect the other end of the HDMI cable to the socket on the projector.

The final connection path should be like that shown in the following diagram:

AV device

- In the unlikely event that you connect the projector to a DVD player and the projected picture displays wrong colors, please change the color space to YUV. See "Changing Color Space" on page 33 for details.

- If no signal is detected after establishing the connection, turn off the Quick Auto Search function in the SOURCE menu. See "Switching input signal" on page 33 for details.

Connecting DVI-I source devices

The projector provides a DVI-I input socket that allows you to connect it to a DVI-I source device like a DVD player.

DVI-I format is used to directly carry a digital signal to a digital display without signal conversion. The pure digital connection provides faster and higher image quality than an analog connection, due to the nature of the digital format.

Examine your source device to determine if it has an unused DVI-I output socket available:

• If so, you can continue with this procedure.
• If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to a DVI-I source device:

1. Take a DVI-I cable and connect one end to the DVI-I output socket of the DVI-I source device. Connect the other end of the cable to the DVI-I signal input socket on the projector.

1. If you wish to make use of the projector (mixed mono) speakers, take a suitable audio cable and connect one end of the cable to the audio output sockets of the video device, and the other end to the AUDIO socket of the projector.

Once connected, the audio can be controlled by the projector On-Screen Display (OSD) menus. See "Audio Settings" on page 51 for details.

- The projector is only capable of playing mixed mono audio, even if a stereo audio input is connected. See "Connecting Audio" on page 22 for details.

- In the unlikely event that you connect the projector to a DVD player and the projected picture displays wrong colors, please change the color space to YUV. See "Changing Color Space" on page 33 for details.

- If no signal is detected after establishing the connection, turn off the Quick Auto Search function in the SOURCE menu. See "Switching input signal" on page 33 for details.

Connecting Component Video source devices

Examine your Video source device to determine if it has a set of unused Component Video output sockets available:

• If so, you can continue with this procedure.
• If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to a Component Video source device:

1. Take a Component Video to VGA (D-Sub) adaptor cable and connect the end with 3 RCA type connectors to the Component Video output sockets of the Video source device. Match the color of the plugs to the color of the sockets; green to green, blue to blue, and red to red.
2. Connect the other end of the Component Video to VGA (D-Sub) adaptor cable (with a D-Sub type connector) to the D-SUB/COMP.IN socket on the projector.

The final connection path should be like that shown in the following diagram:

• If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.
• If you have already made an HDMI Video connection between the projector and this Component Video source device using HDMI Video connections, you need not connect to this device using a Component Video connection as this makes an unnecessary second connection of poorer picture quality. See "Connecting Video source devices" on page 22 for details.

Connecting S-Video source devices

Examine your Video source device to determine if it has an unused S-Video output socket available:

• If so, you can continue with this procedure.
• If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to an S-Video source device:

1. Take an S-Video cable and connect one end to the S-Video output socket of the Video source device.
2. Connect the other end of the S-Video cable to the S-VIDEO socket on the projector. The final connection path should be like that shown in the following diagram:

S-Video cable

• If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.
• If you have already made a Component Video connection between the projector and this S-Video source device using Component Video connections, you need not connect to this device using an S-Video connection as this makes an unnecessary second connection of poorer picture quality. See "Connecting Video source devices" on page 22 for details.

Connecting Composite Video source devices

Examine your Video source device to determine if it has a set of unused composite Video output sockets available:

• If so, you can continue with this procedure.
• If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to a composite Video source device:

1. Take a Video cable and connect one end to the composite Video output socket of the Video source device.
2. Connect the other end of the Video cable to the VIDEO socket on the projector.

The final connection path should be like that shown in the following diagram:

• If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.
• You need only connect to this device using a composite Video connection if HDMI and Component Video and S-Video inputs are unavailable for use. See "Connecting Video source devices" on page 22 for details.

Operation

Starting up the projector

1. Plug the power cord into the projector and into a wall socket. Turn on the wall socket switch (where fitted). Check that the POWER indicator light on the projector lights orange after power has been applied.

Diagram of a plug being inserted into a socket, showing wiring and power outlet (no text or symbols)

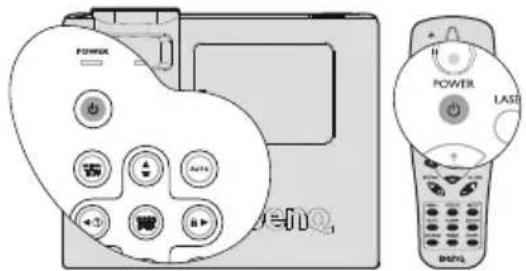

1. Press POWER on the projector or remote control to start the projector and a start up tone sounds. The POWER

indicator light flashes green and stays green when the projector is on.

The start up procedure takes about 30 seconds. In the later stage of start up, a startup logo is projected.

(If necessary) Rotate the focus ring to adjust the image clearness.

To turn off the ring tone, see "Turning off the Power on/off ring tone" on page 47 for details.

If the projector is still hot from previous activity, it will run the cooling fan for approximately 90 seconds before energizing the lamp.

1. If you are prompted for a password, press the arrow keys to enter a five digit password. See "Utilizing the password function" on page 30 for details.
2. Switch all of the connected equipment on.
3. The projector will start to search for input signals. The current input signal being scanned displays in the upper left corner of the screen. If the projector doesn't detect a valid signal, the message 'No Signal' will continue displaying until an input signal is found.

You can also press SOURCE on the projector or remote control to select your desired input signal. See "Switching input signal" on page 33 for details.

If the frequency/resolution of the input signal exceeds the projector's operating range, you will see the message 'Out of Range' displayed on a blank screen. Please change to an input signal which is compatible with the projector's resolution or set the input signal to a lower setting. See "Timing chart" on page 66 for details.

To maintain the lamp life, once you turn the projector on, wait at least 5 minutes before turning if off.

Using the menus

The projector is equipped with On-Screen Display (OSD) menus for making various adjustments and settings.

Below is the overview of the OSD menu.

To use the OSD menus, please set them to your familiar language first.

1. Press MODE/ENTER on the projector or remote control to turn the OSD menu on.

1. Use / to highlight the SYSTEM SETUP: Basic menu.

1. Press to highlight Language and press ◀to select a preferred language.

1. Press MODE/ENTER twice* on the projector or remote control to leave and save the settings. *The first press leads you back to the main menu and the second press closes the OSD menu.

Securing the projector Using a security cable lock

The projector has to be installed in a safe place to prevent theft. Otherwise, purchase a lock, such as a Kensington lock, to secure the projector. You can locate a Kensington lock slot on the left side of the projector. See "Kensington anti-theft lock slot" on page 9 for details.

A Kensington security cable lock is usually a combination of key(s) and a lock. Refer to the lock's documentation for finding out how to use it.

Utilizing the password function

For security purposes and to help prevent unauthorized use, the projector includes an option for setting up password security. The password can be set through the On-Screen Display (OSD) menu. For details of the OSD menu operation, please refer to "Using the menus" on page 29.

You will be inconvenienced if you activate the power-on lock functionality and subsequently forget the password. Print out this manual (if necessary) and write the password you used in this manual, and keep the manual in a safe place for later recall.

Setting a password

Once a password has been set, the projector cannot be used unless the correct password is entered every time the projector is started.

Once a password has been set and the Splash Screen Lock is activated, you cannot change the splash screen that display at projector startup unless the correct password is entered.

1. Open the OSD menu and go to the SYSTEM SETUP: Advanced > Security Settings menu. Press MODE/ENTER. The Security Settings page displays.
2. Highlight Power on Lock and select On by pressing ◀/▶.
3. As pictured to the right, the four arrow keys ( , ▲▼ , ◀, ▶ ) respectively represent 4 di
   ▼, ◀, ▶) respectively represent 4 digits

3, 4). According to the password you desire to set, press the arrow keys to enter five digits for the password.

1. Confirm the new password by re-entering the new password.

Once the password is set, the OSD menu returns to the Security Settings page.

1. To activate the Power on Lock function, press ▲/▼ to highlight Power on Lock and press 🔊to select On.
2. To activate the Splash Screen Lock function, press ▲/▼ to highlight Splash Screen Lock and press ◀/► to select On.

When the Splash Screen Lock is activated, the My Screen function in the SYSTEM SETUP: Basic menu will be password protected.

The digits being input will display as asterisks on-screen. Write your selected password down here in this manual in advance or right after the password is entered so that it is available to you should you ever forget it.

Password: ____

Keep this manual in a safe place.

1. To leave the OSD menu, press MENU/EXIT.

If you forget the password

If the password function is activated, you will be asked to enter the five-digit password every time you turn on the projector. If you enter the wrong password, the password error message as pictured to the right displays lasting for three seconds, and the message

'INPUT PASSWORD' follows. You can retry by entering another five-digit password, or if you did not

record the password in this manual, and you absolutely do not remember it, you can use the password recall procedure. See "Entering the password recall procedure" on page 31 for details.

If you enter an incorrect password 5 times in succession, the projector will automatically shut down in a short time.

Entering the password recall procedure

1. Press and hold AUTO on the projector or remote control for 3 seconds. The projector will display a coded number on the screen.
2. Write down the number and turn off your projector.
3. Seek help from the local BenQ service center to decode the number. You may be required to provide proof of purchase documentation to verify that you are an authorized user of the projector.

Changing the password

1. Open the OSD menu and go to the SYSTEM SETUP: Advanced > Security Settings > Change password menu.
2. Press MODE/ENTER. The message 'INPUT CURRENT PASSWORD' displays.

3. Enter the old password.

4. If the password is correct, another message 'INPUT NEW PASSWORD' displays.

5. If the password is incorrect, the password error message displays lasting for three seconds, and the message 'INPUT CURRENT PASSWORD' displays for your retry. You can press MENU/EXIT to cancel the change or try another password.

6. Enter a new password.

The digits being input will display as asterisks on-screen. Write your selected password down here in this manual in advance or right after the password is entered so that it is available to you should you ever forget it.

Password:

Keep this manual in a safe place.

1. Confirm the new password by re-entering the new password.
2. You have successfully assigned a new password to the projector. Remember to enter the new password next time the projector is started.
3. To leave the OSD menu, press MENU/EXIT.

Disabling the password function

To disable password protection, go back to the SYSTEM SETUP: Advanced > Security Settings > Change Security Settings menu after opening the OSD menu system. Press MODE/ENTER. The message 'INPUT PASSWORD' displays. Enter the current password.

i. If the password is correct, the OSD menu returns to the Security Settings page. Press ▼ to highlight Power on Lock and press ◀/▶ to select Off. You will not have to enter the password next time you turn on the projector.
Press ▼ to highlight Splash Screen Lock and press ◀/▶ to select Off. The Splash Screen function in the SYSTEM SETUP: Basic will become available.
ii. If the password is incorrect, the password error message displays lasting for three seconds, and the message 'INPUT PASSWORD' displays for your retry. You can press MENU/EXIT to cancel the change or try another password.

Though the password function is disabled, you need to keep the old password in hand should you ever need to re-activate the password function by entering the old password.

Switching input signal

The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time.

Be sure the Quick Auto Search function in the SOURCE menu is On (which is the default of this projector) if you want the projector to automatically search for the signals.

You can also manually cycle through the available input signals.

1. Press SOURCE on the projector or remote control. A source selection bar displays.
2. Press / until your desired signal is selected and press MODE/ENTER. Once detected, the selected source information will display on the screen for seconds. If there is multiple equipment connected to the projector, repeat steps 1-2 to search for another signal.

• The brightness level of the projected image will change accordingly when you switch between different input signals. Data (graphic) "PC" presentations using mostly static images are generally brighter than "Video" using mostly moving images (movies).
• The input signal type effects the options available for the Picture Mode. See "Selecting a picture mode" on page 39 for details.
• The native display resolution of this projector is in a 4:3 aspect ratio (MP735 is 16:10). For best display picture results, you should select and use an input signal which outputs at this resolution. Any other resolutions will be scaled by the projector depending upon the 'aspect ratio' setting, which may cause some image distortion or loss of picture clarity. See "Selecting the aspect ratio" on page 37 for details.

Changing Color Space

In the unlikely event that you connect the projector to a DVD player via the projector's DVI-D input and the projected picture displays wrong colors, please change the color space to YUV or RGB.

To do this:

1. Press MENU/EXIT and then press ◀/▶ until the SOURCE menu is highlighted.
2. Press ▼ to highlight Color Space Conversion and press ◀/▶ to select YUV or RGB.

This function is only available when the DVI-D or HDMI input socket is in use.

Adjusting the projected image

Adjusting the projection angle

The projector is equipped with 1 quick-release adjuster foot and 1 rear adjuster foot. These adjusters change the image height and projection angle. To adjust the projector:

1. Press the quick-release button and lift the front of the projector. Once the image is positioned where you want it, release the quick-release button to lock the foot in position.
2. Screw the rear adjuster foot to fine tune the horizontal angle.

To retract the foot, hold up the projector while pressing the quick-release button, then slowly lower the projector. Screw the rear adjuster foot in a reverse direction.

If the projector is not placed on a flat surface or the screen and the projector are not perpendicular to each other, the projected image becomes trapezoidal. To correct this situation, see "Correcting keystone" on page 35 for details.

• Do not look into the lens while the lamp is on. The strong light from the lamp may cause damage to your eyes.
• Be careful when you press the adjuster button as it is close to the exhaust vent where hot air comes from.

Auto-adjusting the image

In some cases, you may need to optimize the picture quality. To do this, press AUTO on the projector or remote control. Within 3 seconds, the built-in Intelligent Auto Adjustment function will re-adjust the values of Frequency and Clock to provide the best picture quality.

The current source information will be displayed in the upper left corner of the screen for 3 seconds.

• The screen will be blank while AUTO is functioning.
• This function is only available when PC signal (analog RGB) is selected.

Fine-tuning the image size and clarity

1. Adjust the projected image to the size that you need using the ZOOM ring.

2. Then sharpen the image by rotating the FOCUS ring.

Correcting keystone

Keystoning refers to the situation where the projected image is noticeably wider at either the top or bottom. It occurs when the projector is not perpendicular to the screen.

To correct this, besides adjusting the height of the projector, you will need to manually correct it following one of these steps.

• Using the remote control

Press on the projector or remote control to display the Keystone correction page. Press to correct keystoning at the top of the image. Press to correct keystoning at the bottom of the image.

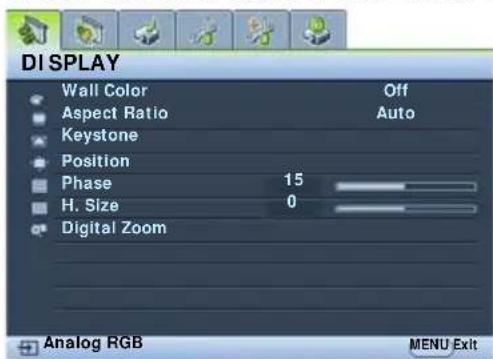

• Using the OSD menu

1. Press MENU/EXIT and then press / ◀ until the DISPLAY menu is highlighted.

1. Press ▼ to highlight Keystone and press MODE/ENTER. The Keystone correction page displays.

2. Press to correct keystoning at the top of the image or press to correct keystoning at the bottom of the image.

Magnifying and searching for details

If you need to find the details on the projected picture, magnify the picture. Use the direction arrow keys for navigating the picture.

• Using the remote control

1. Press Zoom +/- to display the Zoom bar.
2. Press Zoom + to magnify the center of the picture. Press the key repeatedly until the picture size is suitable for your need.
3. Use the directional arrows ( , , ▲) on the projector or remote control to navigate the picture.
4. To restore the picture to its original size, press AUTO. You can also press Zoom -. When the key is pressed again, the picture is further reduced until it is restored to the original size.

• Using the OSD menu

1. Press MENU/EXIT and then press ◀ /▶ until the DISPLAY menu is highlighted.
2. Press ▼ to highlight Digital Zoom and press MODE/ENTER. The Zoom bar displays.
3. Repeat steps 2-4 in the section of "Using the remote control" above. Or if you are using the projector control panel, continue to the following steps.
4. Press on the projector repeatedly to magnify the picture to a desired size.
5. To navigate the picture, press MODE/ENTER to switch to the paning mode and press the directional arrows (▲, ▼) to navigate the picture.
6. To reduce size of the picture, press MODE/ENTER to switch back to the zoom in/out functionality, and press AUTO to restore the picture to its original size. You can also press ▼peatedly until it is restored to the original size.

The picture can only be navigated after the picture is magnified. You can further magnify the picture while searching for details.

Selecting the aspect ratio

The 'aspect ratio' is the ratio of the image width to the image height. For MP724 and MP727, the default aspect ratio is 4:3. And for MP735, the default aspect ration is 16:10. Most analog TV and computers are in 4:3 ratio, and digital TV and DVDs are usually in 16:9 ratio.

With the advent of digital signal processing, digital display devices like this projector can dynamically stretch and scale the image output to a different aspect than that of the image input signal.

To change the projected image ratio (no matter what aspect the source is):

1. Press MENU/EXIT and then press ◀ /▶ until the DISPLAY menu is highlighted.

2. Press ▼ to highlight Aspect Ratio.

3. Press / to select an aspect ratio to suit the format of the video signal and your display requirements.

About the aspect ratio

In the pictures below, the black portions are inactive areas and the white portions are active areas. OSD menus can be displayed on those unused black areas.

1. Auto:

MP724 and MP727: Scales an image proportionally to fit the projector's native resolution in its horizontal width. This is suitable for the incoming image which is neither in 4:3 nor 16:9 and you want to make most use of the screen without altering the image's aspect ratio.

MP735: Scales an image proportionally to fit the projector's native resolution in its horizontal width and vertical height. This is suitable for the incoming image which is in 4:3, 16:9 or 16:10 and you want to make most use of the screen without altering the image's aspect ratio.

2. Real:

The image is projected as its original resolution, and resized to fit within the display area. For input signals with lower resolutions, the projected image will display smaller than if resized to full screen. You could adjust the zoom setting or move the projector away from the screen to increase the image size if necessary. You may also need to refocus the projector after making these adjustments.

OSD menus can be displayed in the unused black areas.

3. 4:3:

Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for 4:3 images like computer monitors, standard definition TV and 4:3 images aspect DVD movies, as it displays them without aspect alteration.

4. 16:9:

Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. This is most suitable for images which are already in a 16:9 aspect, like high definition TV, as it displays them without aspect alteration.

MP724 and MP727:

MP735:

MP724 and MP727:

MP735:

MP724 and MP727:

MP735:

Optimizing the image

Selecting a picture mode

The projector is preset with several predefined picture modes so that you can choose one to suit your operating environment and input signal picture type.

To select an operation mode that suits your need, you can follow one of the following steps.

• Press MODE/ENTER on the projector repeatedly until your desired mode is selected.
• Go to the PICTURE > Picture Mode menu and

press ↗ to select a desired mode.

Picture modes for different types of signals

The picture modes available for different types of signals are listed below.

PC input signals: DVI, D-SUB / COMP. IN (analog RGB)

1. Dynamic mode (Default): Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, such as using the projector in well lit rooms.
2. Presentation mode: Is designed for presentations. The brightness is emphasized in this mode to match PC and notebook coloring.
3. sRGB mode: Maximizes the purity of RGB colors to provide true-to-life images regardless of brightness setting. It is most suitable for viewing photos taken with an sRGB compatible and properly calibrated camera, and for viewing PC graphic and drawing applications such as AutoCAD.
4. Cinema mode: Is appropriate for playing colorful movies, video clips from digital cameras or DVs through the PC input for best viewing in a blackened (little light) environment.
5. User 1/User 2 mode: Recalls the settings customized based on the current available picture modes. See "Setting the User 1/User 2 mode" on page 40 for details.

Video input signals: Component (YPbPr), S-Video, Video, D-Sub/Comp. IN (YPbPr), DVI-D (HDCP/HDMI), HDMI, HDCP

1. Dynamic mode: Is suitable for playing gamebox-based video games in a normal living room lighting level environment.
2. Standard mode (Default): Is appropriate for viewing colorful movies, video clips from digital cameras or DVs.
3. Cinema mode: Is suitable for enjoying dark movies or DVD movies best viewed in a blackened (little light) home cinema or lounge room environment.
4. User 1/User 2 mode: Recalls the settings customized based on the current available picture modes. See "Setting the User 1/User 2 mode" on page 40 for details.

Setting the User 1/User 2 mode

There are two user-definable modes if the current available picture modes are not suitable for your need. You can use one of the picture modes (except the User 1/User 2) as a starting point and customize the settings.

1. Press MENU/EXIT to open the On-Screen Display (OSD) menu.
2. Go to the PICTURE > Picture Mode menu.
3. Press ◀/▶ to select User 1 to User 2.
4. Press ▼ to highlight Reference Mode.

This function is only available when User 1 or User 2 mode is selected up in the Picture Mode sub-menu item.

1. Press / to select a picture mode that is closest to your need.

2. Press ▼ to select a sub-menu item to be changed and adjust the value with ◀/▶. See "Fine-tuning the image quality in user modes" below for details.

3. When all settings have been done, highlight Save Settings and press MODE/ENTER to store the settings.

4. The confirmation message 'Setting Saved' displays.

Using Wall Color

In the situation where you are projecting onto a colored surface such as a painted wall which may not be white, the Wall Color feature can help correct the projected picture's color to prevent possible color difference between the source and projected pictures.

To use this function, go to the DISPLAY > Wall Color menu and press ◀/▶ to select a color which is the closest to the color of the projection surface. There are several precalibrated colors to choose from: Light Yellow, Pink, Light Green, Blue, and Blackboard.

Fine-tuning the image quality in user modes

According to the detected signal type, there are some user-definable functions available when User 1 or User 2 mode is selected. You can make adjustments to these functions based on your needs.

Adjusting Brightness

Highlight Brightness in the PICTURE menu and adjust the values by pressing ◀/▶ on the projector or remote control.

The higher the value, the brighter the image. And lower the setting, darker the image. Adjust this control so the black areas of the image appear just as black and that detail in the dark areas is visible.

Adjusting Contrast

Highlight Contrast in the PICTURE menu and adjust the values by pressing ◀/▶ on the projector or remote control.

The higher the value, the greater the contrast. Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.

Adjusting Color

Highlight Color in the PICTURE menu and adjust the values by pressing ◀/▶ on the projector or remote control.

Lower setting produces less saturated colors. If the setting is too high, colors on the image will be overpowering, which makes the image unrealistic.

Adjusting Tint

Highlight Tint in the PICTURE menu and adjust the values by pressing ◀/▶ on the projector or remote control.

The higher the value, the more reddish the picture becomes. The lower the value, the more greenish the picture becomes.

Adjusting Sharpness

Highlight Sharpness in the PICTURE menu and adjust the values by pressing ◀/▶ on the projector or remote control.

The higher the value, the sharper the picture becomes. The lower the value, the softer the picture becomes.

Adjusting Brilliant Color

Highlight Brilliant Color in the PICTURE menu and select by pressing ◀/▶ on the projector or remote control.

This feature utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing truer, more vibrant colors in picture. It enables a greater than 50% brightness increase in mid-tone images, which are common in video and natural scenes, so the projector reproduces images in realistic and true colors. If you prefer images with that quality, select On. If you don't need it, select Off.

On is the default and recommended selection for this projector. When Off is selected, the Color Temperature function is not available.

Selecting a Color Temperature

Highlight Color Temperature in the PICTURE menu and adjust the values by pressing ◀/▶ on the projector or remote control.

The options available for color temperature* settings vary according to the signal type selected.

1. T1: With the highest color temperature, T1 makes the image appear the most bluish white than other settings.
2. T2: Makes images appear bluish white.
3. T3: Maintains normal colorings for white.
4. T4: Makes images appear reddish white.

\*About color temperatures:

There are many different shades that are considered to be "white" for various purposes. One of the common methods of representing white color is known as the "color temperature". A white color with a low color temperature appears to be reddish white. A white color with a high color temperature appears to have more blue in it.

3D Color Management

In most installation situations, color management will not be necessary, such as in classroom, meeting room, or lounge room situations where lights remain on, or where building external windows allow daylight into the room.

Only in permanent installations with controlled lighting levels such as boardrooms, lecture theaters, or home theaters, should color management be considered. Color management provides fine color control adjustment to allow for more accurate color reproduction, should you require it.

Proper color management can only be achieved under controlled and reproducible viewing conditions. You will need to use a colorimeter (color light meter), and provide a set of suitable source images to measure color reproduction. These tools are not provided with the projector, however, your projector supplier should be able to provide you with suitable guidance, or even an experienced professional installer.

The Color Management provides six sets (RGBCMY) of colors to be adjusted. When you select each color, you can independently adjust its range and saturation according to your preference.

If you have purchased a test disc which contains various color test patterns and can be used to test the color presentation on monitors, TVs, projectors, etc. You can project any image from the disc on the screen and enter the 3D Color Management menu to make adjustments.

To adjust the settings:

1. Go to the PICTURE menu and highlight 3D Color Management.
2. Press MODE/ENTER and the 3D Color Management page displays.
3. Highlight Primary color and press ◀/▶ to select a color from among Red, Green, Blue, Cyan, Magenta and Yellow.
4. Press ▼ to highlight Hue and press ◀/▶ to select its range. Increase in the range will include colors consisted of more proportions of its two adjacent colors.

Please refer to the illustration to the right for how the colors relate to each other.

For example, if you select Red and set its range at 0, only pure red in the projected picture will be selected. Increasing its range will include red close to yellow and red close to magenta.

1. Press ▼ to highlight Saturation and adjust

its values to your preference by pressing ↗

▶ . Every adjustment made will reflect to the image immediately.

For example, if you select Red and set its value at 0, only the saturation of pure red will be affected.

1. Press ▼ to highlight Gain and adjust its values to your preference by pressing ◀/

▶. The contrast level of the primary color you select will be affected. Every adjustment made will reflect to the image immediately.

1. Repeat steps 3 to 6 for other color adjustments.

2. Make sure you have made all of the desired adjustments.

3. Press MENU/EXIT to exit and save the settings.

Saturation is the amount of that color in a video picture. Lower settings produce less saturated colors; a setting of "0" removes that color from the image entirely. If the saturation is too high, that color will be overpowering and unrealistic.

Setting the presentation timer

The presentation timer can indicate the presentation time on the screen to help you achieve better time management when giving presentations. Follow these steps to utilize this function:

1. Go to the SYSTEM SETUP: Basic >

Presentation Timer menu and press MODE/ENTER to display the Presentation Timer page.

1. Press ▼ to highlight Timer period and decide the timer period by pressing ◀/▶. The length of time can be set from 1 to 5 minutes in 1-minute increments and 5 to 240 minutes in 5-minute increments.

If the timer is already on, the timer will restart whenever the r period is reset.

1. Press ▼ to highlight Timer display and choose if ant the timer to show up on the screen by pressing ◀ ▶

Selection Description

Always Displays the timer on screen throughout the presentation time.

1 min/2 min/3 min Displays the timer on screen in the last 1/2/3 minute(s).

Never Hides the timer throughout the presentation time.

1. Press ▼ to highlight Timer position and set the timer position by pressing ◀ ▶.

Top-Left Bottom-Left Top-Right Bottom→Right

1. Press ▼ to highlight Timer counting direction and select your desired counting direction by pressing ◀ ▶.

Selection Description

Count Up	Increases from 0 to the preset time.
Count Down	Decrease from the preset time to 0.

1. Press ▼ to highlight Sound reminder to select On. A notice sound alerts 30 seconds before and at the end of the Presentation Timer countdown.

2. To activate the presentation timer, press and press ◀/▶ to select On and press MODE/ENTER.

3. A confirmation message displays. Highlight Yes and press MODE/ENTER to confirm. You will see the message “Timer is On” displaying on the screen. The timer starts counting at the time the timer is on.

To cancel the timer, perform the following steps.

1. Go back to the Presentation Timer page.

2. Press ▼ and press ◀/▶ to highlight Off and press MODE/ENTER. A confirmation message displays.

3. Highlight Yes and press MODE/ENTER to confirm. You will see the message "Timer is Off" displaying on the screen.

Remote paging operations

Connect the projector to your PC or notebook with a USB cable prior to using the paging function. See "Connecting a computer" on page 20 for details.

You can operate your display software program (on a connected PC) which responds to page up/down commands (like Microsoft PowerPoint) by pressing PAGE ▲ of the remote control.

If remote paging function doesn't work, check if the USB connection is correctly made and the mouse driver on your computer is updated to the latest version.

The remote paging function cannot work with Microsoft® Windows® 98 operating system.

Windows® XP or higher operating systems are recommended.

Hiding the image

In order to draw the audience's full attention to the presenter, you can use BLANK on the projector or remote control to hide the screen image. Press any key on the projector or remote control to restore the image. The word 'BLANK' appears at the lower right corner of the screen while the image is hidden.

You can set the blank time in the SYSTEM SETUP: Basic > Blank Timer menu to let the projector return the image automatically after a period of time when there is no action taken on the blank screen.

No matter Blank Timer is activated or disabled, you can press any key except PAGE ▲/▼, ENTER and LASER on the remote control, or ENTER on the projector to restore the picture.

- Do not look into the laser light window or shine the laser light beam on yourself or others. See the warning messages on the back of the remote control prior to using it.

- Do not block the projection lens from projecting as this could cause the blocking object to become heated and deformed or even cause a fire.

Locking control keys

With the control keys on the projector locked, you can prevent your projector settings from being changed accidentally (by children, for example). When the Panel Key Lock is on, no control keys on the projector will operate except POWER.

1. Press / ▶ on the projector or go to the

SYSTEM

SETUP: Basic > Panel Key Lock menu, and select On by pressing ◀ on the projector or remote control.

1. A confirmation message displays. Select Yes to confirm.

To release panel key lock, press and hold ▶ / 🔒 for 3 seconds on the projector.

You can also use the remote control to enter the SYSTEM SETUP: Basic > Panel Key Lock and press ◀/▶ to select Off.

- Keys on the remote control are still in use when panel key lock is enabled.

- If you press POWER to turn off the projector without disabling panel key lock, the projector will still be in locked status the next time it is turned on.

Freezing the image

Press FREEZE on the remote control to freeze the image. The word 'FREEZE' will display in the upper left corner of the screen. To release the function, press any key on the projector or remote control.

Even if an image is frozen on the screen, the pictures are running on the video or other device. If the connected devices have active audio output, you will still hear the audio even though the image is frozen on screen.

Utilizing FAQ function

The INFORMATION menu contains possible solutions to problems encountered by users regarding image quality, installation, special feature operation and service information.

To get the FAQ information:

1. Press / on the projector or press MENU/

EXIT to open the OSD menu and press ◀▶ to highlight the INFORMATION menu.

1. Press ▼ to highlight FAQ-Image and Installation or FAQ-Features and Service

based on the information you want to know.

1. Press MODE/ENTER.

2. Press / to select a problem and press MODE/ENTER for possible solutions.

3. Press MENU/EXIT to exit the OSD.

Operating in a high altitude environment

We recommend you use the High Altitude Mode when your environment is between 1500 m –3000 m above sea level, and temperature is between 5°C–23°C.

Do not use the High Altitude Mode if your altitude is between 0 m and 1500 m and temperature is between 5°C and 28°C. The projector will be over cooled, if you turn the mode on under such a condition.

To activate the High Altitude Mode:

1. Press MENU/EXIT and then press / ◀ ▶ until the SYSTEM SETUP: Advanced menu is highlighted.
2. Press ▼ to highlight High Altitude Mode and press ◀/▶ to select On. A confirmation message displays.
3. Highlight Yes and press MODE/ENTER.

Operation under "High Altitude Mode" may cause a

higher decibel operating noise level because of increased fan speed necessary to improve overall system cooling and performance.

If you use this projector under other extreme conditions excluding the above, it may display auto shut-down symptoms, which is designed to protect your projector from over-heating. In cases like this, you should switch to High Altitude mode to solve these symptoms. However, this is not to state that this projector can operate under any and all harsh or extreme conditions.

Creating your own startup screen

In addition to selecting the projector preset startup screen from among BenQ logo, Black or Blue screen, you can make your own startup screen that is a picture projected from your computer or video source.

To create your own startup screen, project the picture you want to use as your startup screen from either a computer or video source. The rest steps are as follows.

1. Press MENU/EXIT and then press ◀ /▶ until the SYSTEM SETUP: Basic menu is highlighted.
2. Press ▼ to highlight My Screen and press ENTER.
3. A confirmation message displays. Press CAPTURE or ENTER again.
4. The message 'Screen Capturing...' displays while the projector is processing the picture. Please wait.
5. If the action is successful, you see the message 'Captured Succeeded' on the screen. The captured picture is saved as My Screen.
6. To view the captured picture displayed as the startup screen, set My Screen in the SYSTEM SETUP: Basic > Splash Screen menu and restart the projector.

In the unlikely event that the capturing action fails, change your target picture.

Adjusting the sound

The sound adjustments made as below will have an effect on the projector speakers. Be sure you have made a correct connection to the projector audio input. See "Connection" on page 20 for how the audio input is connected.

To temporarily turn off the sound,

• Using the remote control

Press MUTE to temporarily turn off the sound. While the sound is off, the screen will display in the upper right corner of the screen.

To restore the sound, press MUTE again.

• Using the OSD menu

1. Press MENU/EXIT and then press ◀ /▶ until the SYSTEM SETUP: Advanced menu is highlighted.
2. Press to highlight Audio Settings and press ENTER. The Audio Settings page displays.
3. Highlight Mute and press ◀/▶ to select On.
4. To restore the sound, repeat steps 1-3 and press ◀/▶ to select Off.

Adjusting the sound level

To adjust the sound level,

1. Repeat steps 1-2 above.
2. Press ▼ to highlight Volume and press ◀/▶ to select a desired sound level.

Turning off the Power on/off ring tone

To adjust the sound level,

1. Repeat steps 1-2 above.
2. Press ▼ to highlight Power on/off ring tone and press ◀/▶ to select Off.

The only way to change Power on/off ring tone is setting On or Off here. Setting the sound mute or changing the sound level will not affect the Power on/off ring tone.

Personalizing the projector menu display

The On-Screen Display (OSD) menus can be set according to your preferences. The following settings do not affect the projection settings, operation, or performance.

- Menu display time in the SYSTEM SETUP: Advanced > Menu Settings menu sets the length of time the OSD will remain active after your last key press. The time length ranges from 5 to 30 seconds in 5-second increments. Use /to select a suitable time frame.

- Menu position in the SYSTEM SETUP: Advanced >Menu Settings menu sets the OSD position in five locations. Use ↕ to select a preferred position.

- Language in the SYSTEM SETUP: Basic menu sets your familiar language for the OSD menus. Use ↕ to select your language.

- Splash Screen in the SYSTEM SETUP: Basic menu sets a preferred logo screen to be displayed during projector start-up. Use 🔔 to select a screen.

Shutting down the projector

1. Press POWER and a confirmation message displays prompting you.

If you don't respond in a few seconds, the message will disappear.

If you want to cancel the message, press any key except PAGE ▲/▼ and LASER on the remote control.

Do not look into the laser light window or shine the laser light beam on yourself or others. See the warning messages on the back of the remote control prior to using it.

1. Press POWER a second time. The

POWER indicator light flashes orange, the projection lamp shuts down, and the fans will continue to run for approximately 90 seconds to cool down the projector.

Diagram of a plug inserted into a socket, showing wiring and connection (no text or symbols)

1. Once the cooling process finishes, the POWER indicator light is a steady orange and fans stop.

2. Disconnect the power cord from the wall socket if the projector will not be used in an extended period of time.

- To protect the lamp, the projector will not respond to any commands during the cooling process.

- To shorten the cooling time, you can also activate the Quick Cooling function. See "Quick Cooling" on page 54 for details.

- If the projector is not properly shut down, to protect the lamp, when you attempt to re-start the projector, the fans will run for a few minutes to cool down. Press POWER again to start the projector after the fans stop and the POWER indicator light turns orange.

Menu operation

Menu system

Please note that the on-screen display (OSD) menus vary according to the signal type selected.

Main menu Sub-menu Options
1. DISPLAY	Wall Color	Off/Light Yellow/Pink/Light Green/Blue/Blackboard
	Aspect Ratio Auto/Real/4:3/16:9
	Keystone
	Position
	Phase
	H. Size
	Digital Zoom
2. PICTURE	Picture Mode	PC source: Dynamic/Presentation/sRGB/Cinema/User 1/User 2Video source: Dynamic/Standard/Cinema/User 1/User 2
	Reference Mode	PC source: Dynamic/Presentation/sRGB/Cinema Video source: Dynamic/Standard/Cinema
	Brightness
	Contrast
	Color
	Tint
	Sharpness
	Brilliant Color On/Off
	Color Temperature	T1/T2/T3/T4
	3D Color Management	Primary color R/G/B/C/M/Y
		Hue
		Saturation
		Gain
	Save Settings
3. SOURCE	Quick Auto Search	On/Off
	Color Space Conversion	RGB/YUV
6.INFORMATION	FAQ-Image and Installation
	FAQ-Features and Service
	Current System Status	• Source• Picture Mode• Resolution• Color System• Equivalent Lamp Hour

4. SYSTEM SETUP: Basic	Presentation Timer	Timer period 1~240 minutes
		Timer display Always/1 min/2 min/3 min/Never
		Timer position	Top-Left/Bottom-Left/Top-Right/Bottom-Right
		Timer counting direction	Count Down/Count Up
		Sound reminder On/Off
		On/Off
	Language		ENGLISH/ FRANÇAIS/ DEUTSCH/ITALIANO/ESPAÑOL/ PYCCKIЙ/繁體中文/简体中文/日本語/한국어/Svenska/ Nederlands/ Türkçe/Čeština/ Português/ Talşajna/ Polski
	Projector Position		Front Table/Rear Table/Rear Ceiling/Front Ceiling
	Auto Power Off		Disable/5 min/10 min/15 min/20min/25 min/30 min
	Blank Timer		Disable/5 min/10 min/15 min/20min/25 min/30 min
	Panel Key Lock On/Off
	Sleep Timer		Disable/30 min/1 hr/2 hr/3 hr/4hr/8 hr/12 hr
	Splash Screen BenQ/My Screen/Black/Blue
	My Screen		Capture current image what user want
5. SYSTEM SETUP: Advanced	Quick Cooling Off/On
	High Altitude Mode Off/On
	Audio Settings	Mute Volume Power on/off ring tone	Off/On Range : 0 ~ 10 Off/On
	Menu Settings	Menu display time	5 sec/10 sec/15 sec/20 sec/25 sec/30 sec
		Menu position	Center/Top-left/Top-right/Bottom-right/Bottom-left
	Standby D-Sub Output Off/On
	Lamp Settings	Lamp Mode Normal/Economic
		Reset lamp timer
		Equivalent Lamp Hour
	Security Settings	Change password
		Change Security Settings
		Power on Lock Off/On
		Splash Screen Lock	Off/On
	Baud Rate		2400/4800/9600/14400/19200/38400/57600/115200
	Test Pattern Off/On
	Reset All Settings

Note that the menu items are available when the projector detects at least one valid signal. If there is no equipment connected to the projector or no signal detected, limited menu items are accessible.

The default values listed in this manual, especially on page 49-56, are for reference only. They may vary from the projectors due to the continuous improvement to the products.

Description of each menu

FUNCTION (default setting/ value)		DESCRIPTION (default setting/value)
1. DISPLAY menu	Wall Color (Off)	Corrects the projected picture's color when the projection surface is not white. See "Using Wall Color" on page 40 for details.
	Aspect Ratio (Auto)	There are four options to set the image's aspect ratio depending on your input signal source. See "Selecting the aspect ratio" on page 37 for details.
	Keystone (0)	Corrects any keystoning of the image. See "Correcting keystone" on page 35 for details.
	Position (0)	Displays the position adjustment page. To move the projected image, use the directional arrow keys. The values shown on the lower position of the page change with every key press you made until they reach their maximum or minimum.
	Phase (depends on the selected input signal)	Adjusts the clock phase to reduce image distortion.
	H. Size (depending on the selected signal)	Adjusts the horizontal width of the image.
	Digital Zoom (1.0X)	Magnifies or reduces the projected image. See "Magnifying and searching for details" on page 36 for details.
2. PICTURE menu	Picture Mode (PC source: Dynamic; Video source: Standard)	Pre-defined picture modes are provided so you can optimize your projector image set-up to suit your program type. See "Selecting a picture mode" on page 39 for details.
	Reference Mode	Selects a picture mode that most suits your need for the image quality and further fine-tune the image based on the selections listed on the same page below. See "Setting the User 1/User 2 mode" on page 40 for details.
	Brightness	Adjusts the brightness of the image. See "Adjusting Brightness" on page 40 for details.
	Contrast	Adjusts the degree of difference between dark and light in the image. See "Adjusting Contrast" on page 40 for details.
	Color (0)	Adjusts the color saturation level -- the amount of each color in a video image. See "Adjusting Color" on page 41 for details.
2. PICTURE menu	Tint(0)	Adjusts the red and green color tones of the image. See "Adjusting Tint" on page 41 for details.The function is only available when Video or S-Video with NTSC system is selected.
	Sharpness(15)	Adjusts the image to make it look sharper or softer. See "Adjusting Sharpness" on page 41 for details.
	Brilliant Color(On)	Adjusts white peaking while maintaining correct color presentation.See "Adjusting Brilliant Color" on page 41 for details.
	Color Temperature	See "Selecting a Color Temperature" on page 41 for details.
	3D Color Management	See "3D Color Management" on page 42 for details.
	Save Settings	Saves the settings made for User 1 or User 2 mode.
3. SOURCE menu	Quick Auto Search(On)	See "Switching input signal" on page 33 for details.
	Color Space Conversion(Auto detect by DVI/HDMI source)	Only action for DVI/HDMI Input source.
4. SYSTEM SETUP: Basic menu	Presentation Timer(Off)	Reminds the presenter to finish the presentation within a certain time frame. See "Setting the presentation timer" on page 43 for details.Timer period (15 min.)Sets a preferred length of time for presentation.Timer display (Always)Sets whether to display the timer on screen.Timer position (Top-Left)Sets the position where the timer displays on screen.Timer counting direction (Count Down)Sets the timer counting direction.
	Language	Sets the language for the On-Screen Display (OSD) menus. See "Using the menus" on page 29 for details.
menu 4. SYSTEM SETUP: Basic	Projector Position (Front Table)	The projector can be installed on a ceiling or behind a screen, or with one or more mirrors. See "Choosing a location" on page 14 for details.
	Auto Power Off (Disable)	Allows the projector to turn off automatically if no input signal is detected after a set period of time. See "Setting Auto Power Off" on page 58 for details.
	Blank Timer (Disable)	Sets the image blank time when the Blank feature is activated, once elapsed the image will return to the screen. See "Hiding the image" on page 44 for details.
	Panel Key Lock (Off)	Disables or enables all panel key functions except ⏻POWER on the projector and keys on the remote control. See "Locking control keys" on page 45 for details.
	Sleep Timer (Disable)	Sets the auto-shutdown timer. The timer can be set to a value between 30 minutes and 12 hours.
	Splash Screen (BenQ logo)	Allows you to select which logo screen will display during projector start-up. Four options are available: BenQ logo, My Screen, Black screen, or Blue screen.
	My Screen	Captures and stores the projected picture as My Screen. See "Creating your own startup screen" on page 46 for details.
Advanced menu 5. SYSTEM SETUP:	Quick Cooling (On)	Selecting On enables the function and the projector cooling time will be shortened to a few seconds.If you attempt to restart the projector right after the quick cooling process, it may not be turned on successfully and will rerun its cooling fans.
	High Altitude Mode (Off)	A mode for operation in high altitude areas. See "Operating in a high altitude environment" on page 46 for details.
	Audio Setting	Mute (Off)Volume (5)Power On/Off ring tone (On)See "Adjusting the sound" on page 47 for details.
	Menu Settings	Menu display time (15 sec)Sets the length of time the OSD will remain active after your last key press. The range is from 5 to 30 seconds in 5-second increments.Menu position (Center)Sets the On-Screen Display (OSD) menu position.
Standby D- Sub Output (Off)	Selecting On enables the function. The projector can output a VGA signal when it is in standby mode and the D-SUB IN and D-SUB OUT sockets are correctly connected to devices. See "Connecting a monitor" on page 21 for how to make the connection.Enabling this function slightly increases the standby power consumption.
Lamp Settings	Lamp Mode (Normal)See "Setting Lamp mode as Economic" on page 58 for details.Reset lamp timerSee "Resetting the lamp timer" on page 62 for details.Equivalent Lamp HourSee "Getting to know the lamp hour" on page 58 for details on how the total lamp hour is calculated.
Security Settings	Change passwordYou will be asked to enter the current password before changing to a new one. See "Utilizing the password function" on page 30 for details.Change Security SettingPower on Lock (Off)Splash Screen Lock (Off)See "Utilizing the password function" on page 30 for details.
Baud Rate (115200)	Selects a baud rate that is identical with your computer's so that you can connect the projector using a suitable RS-232 cable and update or download the projector's firmware. This function is intended for qualified service personnel.
Test Pattern (Off)	Selecting On enables the function and the projector displays the grid test pattern. It helps you adjust the image size and focus and check that the projected image is free from distortion.
Reset All Settings	Returns all settings to the factory preset values.The following settings will still remain: Position, Phase, H. Size, User 1, User 2, Language, Projector Position, High Altitude Mode, Security Settings, Baud Rate, My Screen.

FUNCTION (default setting/ value)		DESCRIPTION (default setting/value)
6. INFORMATION menu	FAQ-Image and Installation	Displays possible solutions to problems you may encounter.
	FAQ-Features and Service
	Current System Status	SourceShows the current signal source.Picture ModeShows the selected mode in thePICTUREmenu.ResolutionShows the native resolution of the input signal.Color SystemShows input system format, NTSC, PAL, SECAM, or RGB.Equivalent Lamp HourDisplays the number of hours the lamp has been used.

The INFORMATION menu shows you the current operating status of the projector.

Maintenance

Care of the projector

Your projector needs little maintenance. The only thing you need to do on a regular basis is to keep the lens clean.

Never remove any parts of the projector except the lamp. Contact your dealer if other parts need replacing.

Cleaning the lens

Clean the lens whenever you notice dirt or dust on the surface.

• Use a canister of compressed air to remove dust.
• If there is dirt or smears, use lens-cleaning paper or moisten a soft cloth with lens cleaner and gently wipe the lens surface.

Never rub the lens with abrasive materials.

Cleaning the projector case

Before you clean the case, turn the projector off using the proper shutdown procedure as described in "Shutting down the projector" on page 48 and unplug the power cord.

• To remove dirt or dust, wipe the case with a soft, lint-free cloth.
• To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral pH detergent. Then wipe the case.

Never use wax, alcohol, benzene, thinner or other chemical detergents. These can damage the case.

Storing the projector

If you need to store the projector for an extended time, please follow the instructions below:

• Make sure the temperature and humidity of the storage area are within the recommended range for the projector. Please refer to "Specifications" on page 65 or consult your dealer about the range.
• Retract the adjuster feet.
• Remove the battery from the remote control.
• Pack the projector in its original packing or equivalent.

Transporting the projector

It is recommended that you ship the projector with its original packing or equivalent. When you carry the projector yourself, please use the original box or a suitable soft carry case.

Lamp information

Getting to know the lamp hour

When the projector is in operation, the duration (in hours) of lamp usage is automatically calculated by the built-in timer. The method of calculating the equivalent lamp hour is as follows:

Total (equivalent) lamp hour

= 1 (hours used in Economic mode) +3 / 2 (hours used in normal mode)

See "Setting Lamp mode as Economic" below for more information on Economic mode.

To obtain the lamp hour information:

1. Press Menu/Exit and then press ◀/▶ until the SYSTEM SETUP: Advanced menu is highlighted.
2. Press ▼ to highlight Lamp Settings and press MODE/ENTER. The Lamp Settings page displays.
3. You will see the Equivalent lamp hour information displaying on the menu.
4. To leave the menu, press Menu/Exit.

You can also get the lamp hour information on the INFORMATION menu.

Extending lamp life

The projection lamp is a consumable item that normally can last up to 2000-3000 hours with proper usage. To keep the lamp life as long as possible, you can do the following settings via the OSD menu.

Setting Lamp mode as Economic

Using Economic mode reduces system noise and power consumption by 20%. If the Economic mode is selected, the light output will be reduced and result in darker projected pictures.

Setting the projector in Economic mode also extends the lamp operation life. To set Economic mode, go into the SYSTEM SETUP: Advanced > Lamp Settings > Lamp mode menu and press ◀. ▶

Setting Auto Power Off

This function allows the projector to turn off automatically if no input source is detected after a set period of time to prevent unnecessary waste of lamp life.

To set Auto Power Off, go into the SYSTEM SETUP: Basic > Auto Power Off menu and press 🔍. The time period can be set from 5 to 30 minutes in 5-minute increments. If the preset time lengths are not suitable for your presentation, select Disable. The projector will not automatically shut down in a certain time period.

Timing of replacing the lamp

When the Lamp indicator lights up red or a message appears suggesting it is time to replace the lamp, please install a new lamp or consult your dealer. An old lamp may cause a malfunction in the projector and in some instances the lamp may explode.

The Lamp indicator light and Temperature warning light will light up if the lamp becomes too hot. Turn the power off and let the projector cool for 45 minutes. If the Lamp or Temp indicator still lights up after turning the power back on, please contact your dealer. See "Indicators" on page 63 for details.

The following lamp warning displays will remind you to change the lamp.

Status Message
The lamp has been in operation for 2000 hours. Install a new lamp for optimal performance. If the projector is normally run withEconomicselected (See"Setting Lamp mode as Economic" on page 58), you may continue to operate the projector until the 2950 hour lamp warning appears.
The lamp has been in operation for 2950 hours. A new lamp should be fitted to avoid the inconvenience when the projector runs out of lamp time.

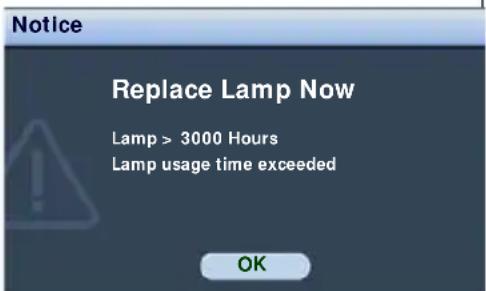

The lamp has been in operation for 3000 hours. It is strongly recommended that you replace the lamp at this age. The lamp is a consumable item. The lamp brightness diminishes with use. This is normal lamp behavior. You can replace the lamp whenever you notice that the brightness level has significantly diminished. If the lamp is not replaced beforehand, it must be replaced after 3000 hours usage.
The lamp MUST be replaced before the projector will operate normally.

Replacing the lamp

• If lamp replacement is performed while the projector is suspended upside-down from the ceiling, make sure that no one is underneath the lamp socket to avoid any possible injury or damage to the human eyes caused by fractured lamp.
• To reduce the risk of electrical shock, always turn the projector off and disconnect the power cord before changing the lamp.
  • To reduce the risk of severe burns, allow the projector to cool for at least 45 minutes before replacing the lamp.
  • To reduce the risk of injuries to fingers and damage to internal components, use caution when removing lamp glass that has shattered into sharp pieces.
• To reduce the risk of injuries to fingers and/or compromising image quality by touching the lens, do not touch the empty lamp compartment when the lamp is removed.
• This lamp contains mercury. Consult your local hazardous waste regulations to dispose of this lamp in a proper manner.

• To assure optimal performance from the projector, it is recommended that you purchase a BenQ projector lamp for lamp replacement.

• Turn the power off and disconnect the projector from the wall socket. If the lamp is hot, avoid burns by waiting for approximately 45 minutes until the lamp has cooled.

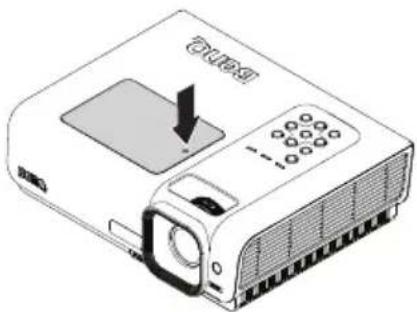

• Press the lamp cover down as shown and the cover pops up.
• Remove the lamp cover.
• Loosen the screws that secure the lamp.
• Do not turn the power on with the lamp cover removed.
• Do not insert your fingers between the lamp and the projector. The sharp edges inside the projector may cause injuries.

Illustration of a projector with a slide and control panel (no text or symbols)

Diagram of a device with an upward arrow indicating motion or force, showing internal components (no text or symbols)

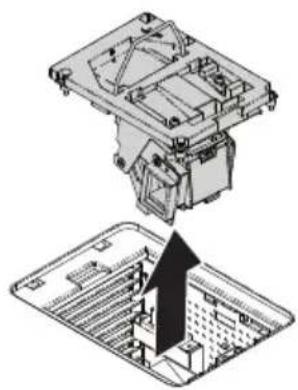

1. Lift the handle so that it stands up. Use the handle to slowly pull the lamp out of the projector.

• Pulling it too quickly may cause the lamp to break and scatter broken glass in the projector.
• Do not place the lamp in locations where water might splash on it, children can reach it, or near flammable materials.
• Do not insert your hands into the projector after the lamp is removed. If you touch the optical components inside, it could cause color unevenness and distortion of the projected images.
• Insert the new lamp into the lamp compartment and make sure it fits in the projector.

Ensure the connectors are aligned.

If you experience resistance, lift the lamp and start again.

1. Tighten the screws that secure the lamp.

2. Loose screw may cause a bad connection, which could result in malfunction.

3. Do not over tighten the screw.
4. Ensure the handle is fully laid flat and locked in place.
5. Replace the lamp cover on the projector.

Technical illustration of a mechanical assembly with an arrow indicating a process or operation (no text or symbols present)

Exploded view diagram of a device showing internal components and a downward arrow indicating a process (no text or symbols present)

Diagram showing a screwdriver above a computer motherboard with three circular components and dashed lines indicating rotation (no text or symbols)

Diagram of a mechanical assembly with a downward arrow indicating force or direction (no text or symbols present)

1. Press the lamp cover down until the click is heard locking the projector.

Illustration of a projector with a slide and control panel (no text or symbols)

1. Restart the projector.

Do not turn the power on with the lamp cover removed.

Resetting the lamp timer

1. After the startup logo, open the On-Screen Display (OSD) menu. Go to the SYSTEM SETUP: Advanced > Lamp Settings menu. Press MODE/ENTER. The Lamp Settings page displays. Press ▼ to highlight Reset lamp timer and press MODE/ENTER. A warning message

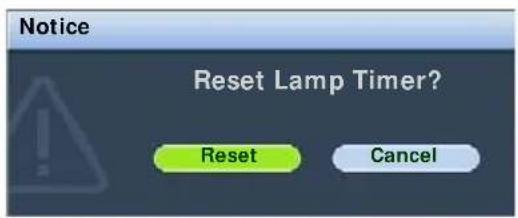

displays asking if you want to reset the lamp timer. Highlight Reset and press MODE/ENTER. The lamp time will be reset to '0'.

Do not reset if the lamp is not new or replaced as this could cause damage.

Indicators

Light Status & Description
Power Temp Lamp
Power events
Orange Off Off			Stand-by mode
Green Flashing	Off Off		Powering up
Green Off Off			Normal operation
Orange Flashing	Off Off		The projector needs to cool for 90 seconds after the power is turned off.
Lamp events
Orange Flashing	Off Red		The lamp ignition retries if the lamp fails during startup.
Off Off	Red		1. The projector needs 90 seconds to cool down.Or2. Please contact your dealer for assistance.
Thermal events
Off Red Off			The projector has shutdown automatically. If you try to re-start the projector, it will shutdown again. Please contact your dealer for assistance.
Off Red Red
Off Red Green
Off Red Orange
Red	Red Red
Red	Red Green
Red	Red Orange
Green	Red Red
Green	Red Green
System events
Off Green Red			The projector has shutdown automatically. If you try to re-start the projector, it will shutdown again. Please contact your dealer for assistance.
Off Green Green
Off Green Orange

Troubleshooting

⑦ The projector does not turn on.

Cause Remedy
There is no power from the power cable.	Plug the power cord into the AC inlet on the projector, and plug the power cord into the power outlet. If the power outlet has a switch, make sure that it is switched on.
Attempting to turn the projector on again during the cooling process.	Wait until the cooling down process has completed.

⑦ No picture

Cause Remedy
The video source is not turned on or connected correctly.	Turn the video source on and check that the signal cable is connected correctly.
The projector is not correctly connected to the input signal device.	Check the connection.
The input signal has not been correctly selected.	Select the correct input signal with the SOURCE key on the projector or remote control.

⑦ Blurred image

Cause Remedy
The projection lens is not correctly focused.	Adjust the focus of the lens using the focus ring.
The projector and the screen are not aligned properly.	Adjust the projection angle and direction as well as the height of the unit if necessary.

⑦ Remote control does not work

Cause Remedy
The battery is out of power. Replace the battery with new one.
There is an obstacle between the remote control and the projector.	Remove the obstacle.
You are too far away from the projector.	Stand within 7 meters (23 feet) of the projector.

? The password is incorrect

Cause Remedy
You do not remember the password.	Please see "Entering the password recall procedure" on page 31 for details.

Specifications Projector specifications

All specifications are subject to change without notice.

General
Product name Digital Projector
Model name MP724 MP727	MP735
Optical
Resolution	1024 x 768 XGA	1024 x 768 XGA	1280 x 800 WXGA
Display system 1-CHIP DMD
Lens F/Number	F = 2.55 to 2.72, f = 21.3 to 24.5 mm	F = 2.6 to 2.81, f = 26.01 to 29.84 mm	F = 2.55 to 2.71, f = 21.33 to 24.46 mm
Lamp 280 W lamp 280 W lamp	230 W lamp
Electrical
Power supply AC100–240V, 50/60 Hz (Automatic)
Power consumption	360W (Max)/ <5W (Standby)	360W (Max)/ <5W (Standby)	300W (Max) <5W (Standby)
Mechanical
Dimensions	325 mm (W) x 95 mm (H) x 254 mm (D)
Weight 7.5 lbs (3.4 Kg)
Input terminal
Computer input
RGB input	D-Sub 15-pin (female) x 1
Digital input	DVI-I HDCP x 1
Video signal input
HDMI	Screw type x 1
S-VIDEO	Mini DIN 4-pin port x 1
VIDEO	RCA jack x 1
SD/HDTV signal input	Analog – D-Sub <-> Component RCA jack x 3 (through RGB input)
Audio input	Mini jack x 1, RCA jack x 2
Output terminal
RGB output	D-Sub 15-pin (female) x 1
Audio output	Mini jack x 1
Speaker	3W mono speaker
Control terminal
USB	Type B
RS-232 serial control	9 pin x 1
Environmental Requirements
Operating temperature	5°C–35°C at sea level
Operating relative humidity	10%–85% (without condensation)
Operating altitude	0–1499 m at 5°C–28°C1500–3000 m at 5°C–23°C (with High Altitude Mode on)

Dimensions

325 mm (W) × 95 mm (H) × 254 mm (D)

Timing chart

Supported timing for Analog RGB input

Resolution Horizontal Frequency (kHz)		Vertical Frequency (Hz)	Pixel Frequency (MHz)	Mode
640 x 480	31.469 59.940 25.175 VGA_60
	37.861 72.809 31.500 VGA_72
	37.500 75.000 31.500 VGA_75
	43.269 85.008 36.000 VGA_85
720 x 400 37.927 85	039 35.5 720 x 400 x 85
800 x 600	35.2 56.3 36 SVGA_56
	37.879 60.317 40.000 SVGA_60
	48.077 72.188 50.000 SVGA_72
	46.875 75.000 49.500 SVGA_75
	53.674 85.061 56.250 SVGA_85
1024 x 768	48.363 60.004 65.000 XGA_60
	56.476 70.069 75.000 XGA_70
	60.023 75.029 78.750 XGA_75
	68.667 84.997 94.500 XGA_85
Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Frequency (MHz)	Mode
1280 x 800	49.7 59.8 83.5 WXGA_60
	62.8 74.9 106.5 WXGA_75
	71.554 84.880 122.500 WXGA_85
1280 x 1024	63.981 60.020 108.000 SXGA3_60
	79.976 75.025 135.000 SXGA3_75
	91.146 85.024 157.500 SXGA3_85
1440 x 900 55.935 5	9.887 106.500 WXGA+_60
1400 x 1050 65.317	59.978 121.750 SXGA+_60
1600 x 1200 75.000	60.000 162.000 UXGA
640 x 480@67Hz 35	.000 66.667 30.240 MAC13
832 x 624@75Hz 49	.722 74.546 57.280 MAC16
1024 x 768@75Hz 6	0.241 75.020 80.000 MAC19
1152 x 870@75Hz 6	8.68 75.06 100.000 MAC21

Supported timing for Component-YPbPr input

Signal Format Horizontal Frequency (kHz) Vertical Frequency (Hz)
480i(525i)@60Hz 15.73 59.94
480p(525p)@60Hz 31.47 59.94
576i(625i)@50Hz 15.63 50.00
576p(625p)@50Hz 31.25 50.00
720p(750p)@60Hz 45.00 60.00
720p(750p)@50Hz 37.50 50.00
1080i(1125i)@60Hz	33.75 60.00
1080i(1125i)@50Hz	28.13 50.00
1080P@60Hz	67.5	60.00
1080P@50Hz	56.26 50.00

Supported timing for Video and S-Video inputs

Video mode Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Color sub-carrier Frequency (MHz)
NTSC 15.73 60 3.58
PAL 15.63 50 4.43
SECAM 15.63 50 4.25 or 4.41
PAL-M 15.73 60 3.58
PAL-N 15.63 50 3.58
PAL-60 15.73 60 4.43
NTSC4.43 15.73 60 4.43

Supported timing for DVI-I and HDMI (HDCP) input

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Frequency (MHz)	Mode
720 x 400	37.927	85.039	35.5	720 x 400_85
640 x 480	31.469	59.940	25.175	VGA_60
	37.861	72.809	31.500	VGA_72
	37.500	75.000	31.500	VGA_75
	43.269	85.008	36.000	VGA_85
800 x 600	35.2	56.3	36 SVGA_56
	37.879	60.317	40.000	SVGA_60
	48.077	72.188	50.000	SVGA_72
	46.875	75.000	49.500	SVGA_75
	53.674	85.061	56.250	SVGA_85
1024 x 768	48.363 60.004 65.000	XGA_60
	56.476 70.069 75.000	XGA_70
	60.023 75.029 78.750	XGA_75
	68.667 84.997 94.500	XGA_85
1280 x 800	49.7 59.8 83.5 WXGA_60
	62.8 74.9 106.5 WXGA_75
	71.554 84.880 122.500	WXGA_85
1280 x 1024	63.981 60.020 108.000	SXGA_60
	79.976 75.025 135.000	SXGA_75
	91.146 85.024 157.500	SXGA_85
1440 x 900 55.935 59	887 106.500 WXGA+_60
1400 x 1050 65.317 59	9.978 121.750 SXGA+_60
1600 x 1200 75.000 60	0.000 162.000 UXGA
640 x 480@67Hz 35.000	66.667 30.240 MAC13
832 x 624@75Hz 49.7	22 74.546 57.280 MAC16
1024 x 768@75Hz 60	241 75.020 80.000 MAC19
1152 x 870@75Hz 68	68 75.06 100.000 MAC21
VIDEO	31.47 60 27 480p
	31.25 50 27.000 576p
	37.50 50 74.25 720p_50
	45.00 60 74.25 720p_60
	28.13 50 74.25 1080i_50
	33.75 60 74.25 1080i_60
	67.5 60 148.5 1080p
	56.26 50 148.5 1080p

Displaying a 1080i_50 or 1080i_60 signal may result in slight image vibration.

Warranty and Copyright information

Limited warranty

BenQ warrants this product against any defects in material and workmanship, under normal usage and storage.

Proof of purchase date will be required with any warranty claim. In the event this product is found to be defective within the warranty period, BenQ's only obligation and your exclusive remedy shall be replacement of any defective parts (labor included). To obtain warranty service, immediately notify the dealer from which you purchased the product of any defects.

Important: The above warranty shall be void if the customer fails to operate the product in accordance with BenQ's written instructions, especially the ambient humidity must be in-between 10% and 85%, temperature in-between 5°C and 28°C, altitude lower than 4920 feet, and avoiding to operate the projector in a dusty environment. This warranty gives you specific legal rights, and you may have other rights which vary from country to country.

For other information, please visit www.BenQ.com.

Copyright

Copyright 2008 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation.

Disclaimer

BenQ Corporation makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, BenQ Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

*DLP, Digital Micromirror Device and DMD are trademarks of Texas Instruments. Others are copyrights of their respective companies or organizations.

Regulation statements

FCC statement

CLASS B: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.
— Increase the distance between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.

EEC statement

This machine was tested against the 89/336/EEC (European Economic Community) for EMC (Electronic Magnetic Compatibility) and fulfills these requirements.

WEEE directive

Disposal of Waste Electrical and Electronic Equipment by users in private households in the European Union.

This symbol on the product or on the packaging indicates that this can not be disposed of as household waste. You must dispose of your waste equipment by handling it over to the applicable take-back scheme for the recycling of electrical and electronic equipment. For more information about recycling of this equipment, please contact your city office, the shop where you purchased the equipment or your household waste disposal service. The recycling of materials will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and environment.
