10010432 - Kettle Klarstein - Free user manual and instructions

Product Type	Electric Kettle
Brand	Klarstein
Model	10010432
Capacity	1.7 Liters
Power Rating	2200 Watts
Voltage	220-240 V, 50-60 Hz
Housing Material	Stainless Steel
Lid Type	Flip-top lid
Base Type	360° Cordless base
Heating Element	Concealed stainless steel
Auto Shut-Off	Yes
Boil-Dry Protection	Yes
Water Level Indicator	Transparent window with markings
Filter	Removable lime scale filter
Switching	Illuminated power switch
Dimensions (W x D x H)	Approx. 22 x 18 x 25 cm
Weight	Approx. 1.2 kg (including base)
Cord Length	Approx. 70 cm
Color	Silver/Black
Warranty	2 years

Frequently Asked Questions - 10010432 Klarstein

What is the capacity of the Klarstein 10010432 kettle?

The capacity is 1.7 liters, which is suitable for boiling up to 7 cups of water.

How do I descale the kettle?

Fill the kettle with a mixture of water and vinegar (1:1 ratio) or use a commercial descaling agent. Bring to a boil, let it soak for 15 minutes, then rinse thoroughly.

Can I open the lid while boiling?

It is not recommended to open the lid during boiling as it may cause hot steam burns. Wait until the boiling stops.

Is the kettle cordless?

Yes, the kettle sits on a 360° cordless base for easy lifting and pouring.

What safety features does the kettle have?

It includes auto shut-off and boil-dry protection, which automatically turns off the kettle if it runs dry or when the water reaches boiling point.

Can I boil milk or other liquids?

No, this kettle is designed only for water. Boiling other liquids may cause damage and clog the filter.

How do I clean the filter?

Remove the filter from the spout and wash it under running water with a soft brush. For stubborn scale, soak in vinegar solution.

What is the power consumption?

The kettle has a 2200 W power rating, ensuring quick boiling.

Does the kettle have a water level indicator?

Yes, it features a transparent window with markings to easily see the water level.

Is the warranty still valid if I descale with vinegar?

Yes, using vinegar for descaling is generally acceptable and does not void the warranty, as long as you follow the recommended procedure and rinse thoroughly.

USER MANUAL 10010432 Klarstein

Black and silver digital water heater with blue internal color gradient, no visible text or symbols on the device itself.

Wasserkocher

10010432

10010433

KLARSTEIN

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

• This appliance is designed for domestic use only and for commercial applications. No responsibility is accepted for damage resulting from improper use or non-compliance with the instructions.
• Please keep these instructions for future reference. If the appliance is passed to another person. This instruction manual should accompany it.
• Before inserting the main plug into the socket, check that the main supply voltage and current rating corresponds with the power supply details shown on the appliance model label.
• Never allow the heating base or the kettle to make contact with or be immersed in water. However, should this happen, have the unit examined by a qualified personnel, including the replacement of the power cord. If repairs are needed, please send the appliance to our customer service department.
• Do not operate the appliance if

The appliance or power cord shows any signs of damage

The appliance has been dropped

• Always remove the plug from the wall socket

After use

In case of any malfunction

Before cleaning

• When removing the plug from the wall socket, never pull on the power cord.
• This appliance is not intended for use by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Do not attempt to remove any parts of the housing nor insert any metal objects into the interior of the appliance.
• To prevent damage to the power cord, do not let it pass over sharp corners or edges.
• Do not expose the appliance to rain or moisture and do not operate the appliance outdoors or with wet hands.
  • Use only clean cold water, and let the water run for approx. two minutes before filling.
• The appliance operates at very high temperatures. Caution: there is danger of scalding from escaping water or steam. Do not touch any part of the kettle except the handle (when the appliance is in use and ensure that the lid is properly screwed. This appliance is designed for heating water only. Never put any other liquid into the kettle.

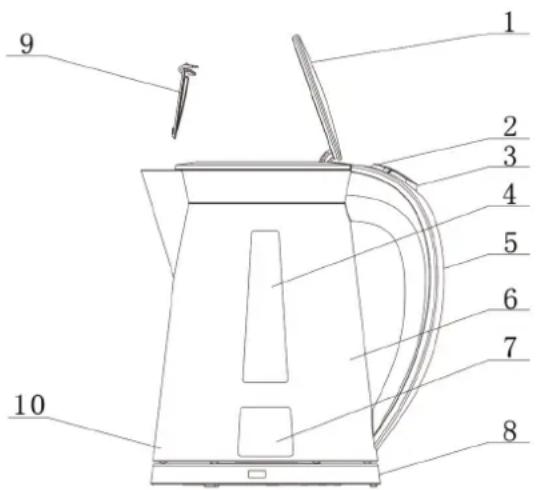

DESCRIPTION

1. Cover
2. Lid Open Switch
3. ON/OFF Switch
4. Water Level gauge
5. Handle
6. Body
7. Decorative piece
8. Cordless Base
9. Filter
10. Sub base

Before using for the first time

- Prior to initial use, clean it by going through several boiling cycles, using clean water with each cycle and filling the kettle (6) to its upper marking, the water will reach boiling point after approximately 5 minutes, when the unit switches off automatically.

Operation

• Place the cordless base (8) on a firm and level surface.
• Pour the desired amount of clean water into the kettle (6); do not touch any part of the kettle except the handle. When the appliance is in use, and ensure that the lid (1) is properly closed, The amount of water can be measured by the level mark (4) on the outside of the kettle, always pay attention to the minimum and maximum levels and ensure that the lid (1) is properly and firmly closed.
• Position the kettle in such a way on the sub base (10) that the underside of the kettle fits precisely into the contact on the base.
• Insert the plug into a wall socket.
• Put the on/off switch (3) to its '1' position to start the heating process, the indicator lamp will light up.
• As soon as the water reaches boiling point, the on/off switch (3) return automatically to the "0" position, the indicator lamp will go out. The water kettle can also be switched off manually by putting the on/off switch to the "0" position.
• The hot water may now be poured safely through the spout into another container, safety cut - out.
• This kettle is equipped with a safety cut -out to protect the appliance from damage in case of inappropriate use, should the appliance be accidentally operated without water or if all the water has evaporated the safety cut out will automatically switch off the heating element.
• In such a case remove the plug from the wall socket immediately and refill the kettle only after an adequate cooling down period, about 15 - 20 seconds

Decalcifying

• Should the appliance switch off before reaching boiling point this is a sign that it is necessary to decalcify.
• Any regular descaling agent may be used, provided the relevant instructions are observed, Do not fill the kettle to the upper mark to avoid spillage if the descaling agent causes the water to foam.
• To clean the kettle thoroughly of any decalcification residues let it go through several boiling cycles using clean water with each cycle, Rinse the kettle with clean water afterwards.

CLEANING AND CARE

• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
• Do not use abrasives or harsh cleaning solutions.
• Do not immerse the base or the kettle in any liquid, to clean the exterior, a slightly damp, lint - free cloth may be used.
• It is advisable to remove lime deposits from the kettle at regular intervals.

SPECIFICATIONS

Supply voltage: 220-240V \~ 50Hz, Power consumption: 1850 - 2200W, Volume: 1.7L

Warning:

1. DO NOT IMMERSE IN WATER
2. If the kettle is overfilled. Boiling water may be ejected.
3. The kettle is only to be used with the stand provided.
4. If the supply cord is damaged it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Hints on Disposal

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

According to the European waste regulation 2002/96/EG this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

CE

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
