10018896 - Kettle Klarstein - Free user manual and instructions

Product Type	Electric Kettle
Brand	Klarstein
Model	10018896
Capacity	1.7 liters
Power	1500-2200 W
Voltage	220-240 V, 50/60 Hz
Dimensions (approx.)	24 x 20 x 26 cm
Weight (approx.)	1.2 kg
Material	Stainless steel body with plastic lid and handle
Heating Element	Concealed stainless steel
Auto Shut-Off	Yes, when water reaches boiling point
Boil-Dry Protection	Yes, automatic switch-off if operated without water
Base Type	360° cordless swivel base
Lid Type	Hinged lid with one-button opening
Water Level Indicator	Yes, transparent mark on both sides
Filter	Removable limescale filter
Care and Cleaning	Descale regularly with vinegar or citric acid; wipe exterior with damp cloth
Safety Features	Auto shut-off, boil-dry protection, cool-touch handle
Spare Parts	Filter, lid, base available from manufacturer
Repairability Index	Moderate; basic parts can be replaced by user
Warranty	2 years

Frequently Asked Questions - 10018896 Klarstein

What is the capacity of the Klarstein 10018896 kettle?

The kettle has a capacity of 1.7 liters, ideal for boiling up to 7 cups of water.

Does the kettle have auto shut-off?

Yes, it features automatic shut-off when the water reaches boiling point for safety.

Is there boil-dry protection?

Yes, the kettle is equipped with boil-dry protection that switches it off if operated without water.

What material is the kettle made of?

The body is stainless steel with a plastic handle and lid for durability and comfort.

How do I clean the limescale filter?

The removable filter can be taken out and rinsed under water; soak in vinegar or descaling solution for stubborn deposits.

Can I use the kettle on a 360-degree base?

Yes, it comes with a 360° cordless swivel base for easy placement and lifting.

How do I descale the kettle?

Fill the kettle with equal parts water and white vinegar, boil, let sit for 15 minutes, then rinse thoroughly. Repeat as needed.

What is the power consumption?

The kettle operates at 1500-2200 W depending on voltage, ensuring fast boiling.

Is the handle cool to the touch?

Yes, the handle is designed as a cool-touch handle for safe pouring.

Where can I find spare parts?

Spare parts such as the filter, lid, and base can be ordered from Klarstein's customer service or website.

USER MANUAL 10018896 Klarstein

Row of white icons representing kitchen appliances including blender, kettle, refrigerator, air conditioner, fan, washing machine, and microwave (no text or symbols)

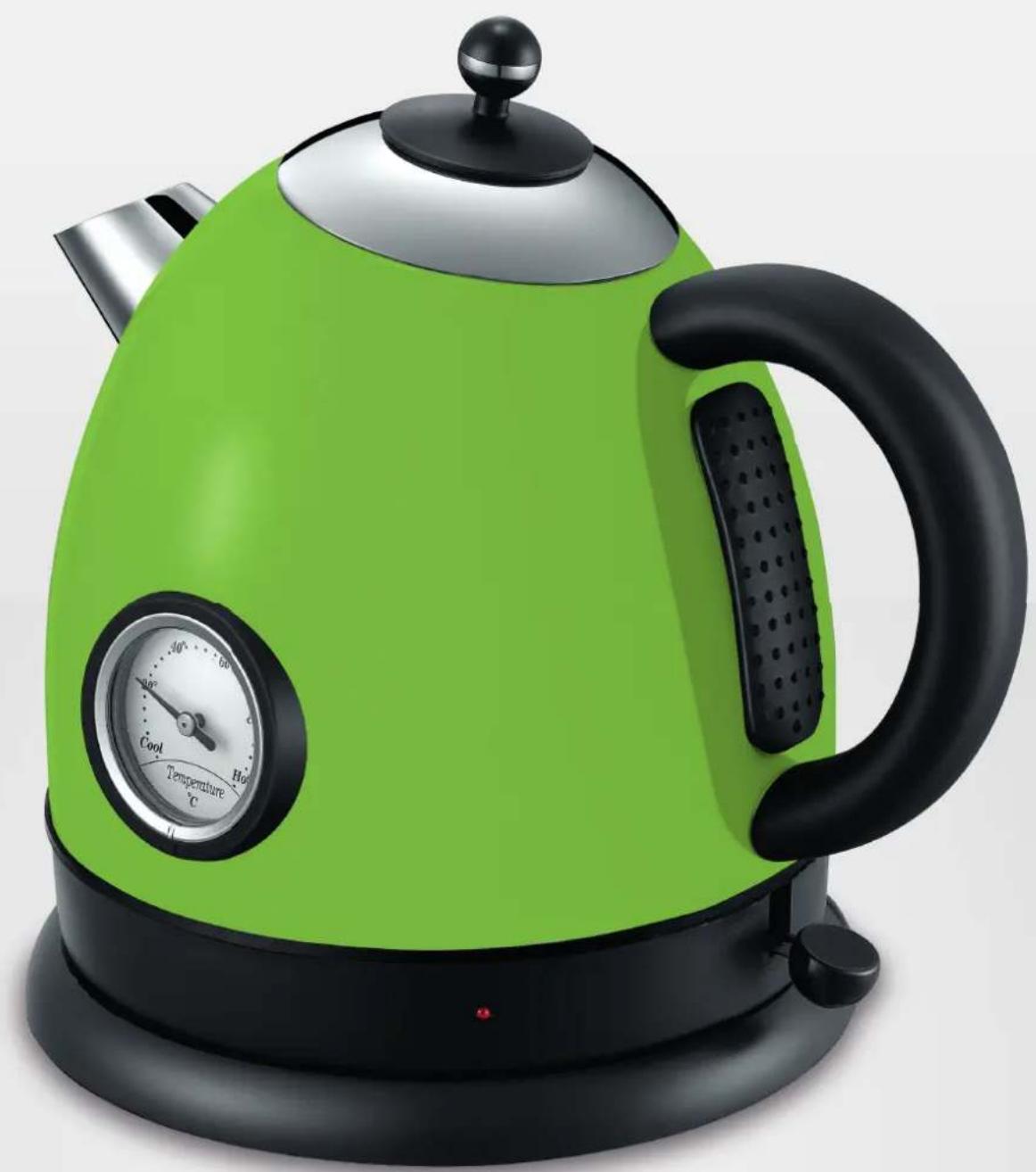

Green and black electric kettle with a digital thermometer and heat gauge (no text or symbols visible)

Wasserkocher

10009464 10009465 10009466

10009467 10018896

KLARSTEIN

SICHERHEITSHINWEISE

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

PRODUCT STRUCTURE DIAGRAM

A. Lid Cover

B. Filer

C. Body

D. Base

E. Power Indicator Light

F. On/Off Switch]

G. Handle

H. Thermometer

SAFETY INSTRUCTION

This appliance corresponds to accepted technological standards with regards to safety. Nevertheless, as a manufacturer we consider it our obligation to make you aware of the following safety information.

General Safety

• This appliance may only be connected to a power supply with the same voltage as that specified on the rating plate!
• Never use the flex to pull the plug out of the socket but pull the actual plug.
• If the main cord of this appliance is damaged, it has to be replaced by the manufacturer or its customer service or a trained electrician to avoid risks.
• Never use the kettle if it has been dropped or has evidently been damaged or has become immersed in water. Contact Customer Care Department for examination and repair.
• Repairs to this appliance may only be carried out by qualified service engineers. Considerable danger may result from improper repairs. If repairs become necessary, please contact the Customer Care Department or your authorized dealer.
  • Always pull out the plug

before cleaning and attending to the kettle and after each time it is used and for faults during operation

Safety

• Only use the electric kettle when supervised.
  • Supervise children particularly carefully!
• Packaging materials, e.g. Plastic bags, should be accessible to children.
  • Before starting the appliance ensure that the mains cord and plug are dry
• Never use the kettle with wet hands.
• Never use the kettle outdoors.
• Keep appliance at least 4 inches away from the walls or other objects during operation. Do not place any objects on top of appliance while it is operating. Place the appliance on a surface that is resistant to heat.
• Whilst using the kettle, high temperature is reached which can cause scalding if the kettle is not handled carefully. Therefore only hold the appliance by the handle (G) provided.
• Do not use the kettle unsupervised. Do not place or use the kettle on hot surfaces or near naked flames.
• Always pour water into kettle before plugged in and heating up the appliance. Never pour water into heated kettle.
• Be sure kettle is filled with water to at least 0.75L. Do not operate appliance without water or with an insufficient amount of water.
• Attention: if the kettle is overfilled, there is risk that the kettle above the maximum marking.

THE AUTOMATIC SWITCH OFF

The kettle will switch off automatically and the power indicator light (E) will go out when the water has boiled or the kettle is removed from the base.

If you want to stop the heating process before the kettle automatically switches off, simply press the ON/OFF switch (F) down again.

When the water has boiled the kettle will switch off automatically. If the kettle is only filled with a little water, it takes longer to switch off.

USING YOUR KETTLE

Before using your kettle, you should wipe it inside and outside with a damp cloth due to hygienic reasons.

Initial use

• Place the base unit on a firm surface. The base unit must be dry before us.
• If the mains cord is longer than necessary it can be wound up at the bottom of the base unit.
• Open the lid.
• Fill with at least sufficient water, but not higher than the MAX mark.
• Close the lid until it engages. The automatic switches off can only function reliably if this is done. Wipe excess water off the kettle.
• Place the kettle onto the base in any position you wish.
• Plug the mains plug into a wall socket.
• Press the ON/OFF switch down to the ON position, the power indicator light lights up and the kettle starts to heat up.
• The ON/OFF switch only catches when the kettle is on the base unit.
• Do not use the water from the first boiling cycle to prepare food.
• Be careful not to spill any water onto the base unit.
• To reheat water, check the water level to ensure it is above the 0.75L water level. If necessary, add more water, then place kettle back onto base unit. Press ON/OFF switches down, into the ON position. You can switch it to OFF position when the temperature reaches your desire through the temperature dia.
• When refilling, take care when lifting the lid, as the kettle, if hot, may be full of steam, and keep your face, hands, etc. clear of the opening.

CLEANING AND CARE

• Always disconnect the kettle from the mains supply before cleaning. Allow the kettle to cool before cleaning.
• Never clean the kettle and base unit under running water or immerse it in washing-up water.
• Occasionally rinse out inside of the kettle with clean water.
• Clean the outside of the appliance only using a damp cloth. Do not use any caustic or abrasive cleansing agents.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

DECLARATION OF CONFORMITY

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

CE

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
