Product Type	Rice Cooker
Brand	Klarstein
Model	10027396
Capacity (uncooked rice)	Up to 8 cups (approx. 1.6 L)
Voltage	220-240 V
Frequency	50/60 Hz
Functions	Cook, Keep Warm
Inner Pot Material	Non-stick coated aluminum
Lid Material	Glass (with metal rim)
Accessories Included	Measuring cup, inner pot, lid
Heating Plate	Metal with thermo-control
Safety Features	Auto switch-off, short cord to prevent tripping
Cleaning	Wash inner pot and lid in hot soapy water; wipe exterior with damp cloth; use steel wool on heating plate if needed
Maintenance	Keep heating plate and inner pot bottom clean and free of residue
Warranty	Standard manufacturer warranty (details not specified)
Certifications	CE, EMC, LVD, RoHS

Frequently Asked Questions - 10027396 Klarstein

How do I use the rice cooker?

Use the included measuring cup to add rice to the inner pot, then add water according to the water line inside the pot (e.g., for 2 cups of raw rice, add water to the 2-cup line). Place the inner pot in the cooker, close the lid, plug in the power cord, and press the switch down to begin cooking. The indicator will show "cook". When done, the switch pops up; let it steam for 15 minutes before serving.

What is the water-to-rice ratio?

The manual provides a chart: for 2 cups of raw rice, add 2 to 2 1/2 cups of water; for 4 cups, add 4 to 4 1/2 cups; for 6 cups, add 6 to 6 1/2 cups; for 8 cups, add 8 to 8 1/2 cups. Always use the water line markings inside the inner pot for accuracy.

Can I cook other foods besides rice?

Yes, you can stew foods, but the water level should not exceed 70% of the volume. Do not cover the ventilating hole to prevent scalding. The cooker is primarily designed for rice, but can be used for soups or steaming.

How do I clean the rice cooker?

Remove the inner pot and lid, wash them in hot soapy water, rinse thoroughly, and dry with a soft cloth. Wipe the outer body with a clean damp cloth. Never submerge the base in water. To clean the heating plate, use steel wool to remove residue, then wipe with a damp cloth and dry completely.

Why is the switch hard to press down?

If the switch is difficult to press to the "cook" position, the inner pot may not be fully inserted or the cooker may have just finished cooking. Ensure the pot sits properly on the heating plate by turning it gently left and right. Do not force the switch.

How does the Keep Warm function work?

The Keep Warm feature activates automatically whenever the cord is plugged in, even if not cooking. After cooking, the cooker will keep rice warm until unplugged. Keep the lid on to prevent drying out.

Is the rice cooker safe to use around children?

Close supervision is required when used near children. The appliance is not intended for use by children without supervision. The short power cord reduces tripping hazards, and the cooker has a switch that pops up automatically to stop heating.

What should I do if the power cord is damaged?

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid hazard. Do not use the appliance until repaired.

Can I use an extension cord?

A longer cord may be used with care. Ensure the extension cord's electrical rating is at least as high as the appliance's rating (220-240V). Arrange the cord so it does not drape over countertops where children could pull it.

How do I store the rice cooker?

Unplug and allow to cool completely. Clean all parts and dry thoroughly. Store in a dry place. Do not wrap the cord tightly around the cooker. Keep the heating plate and inner pot free of foreign objects.

USER MANUAL 10027396 Klarstein

Row of white icons representing kitchen appliances including blender, refrigerator, oven, and TV (no text or symbols)

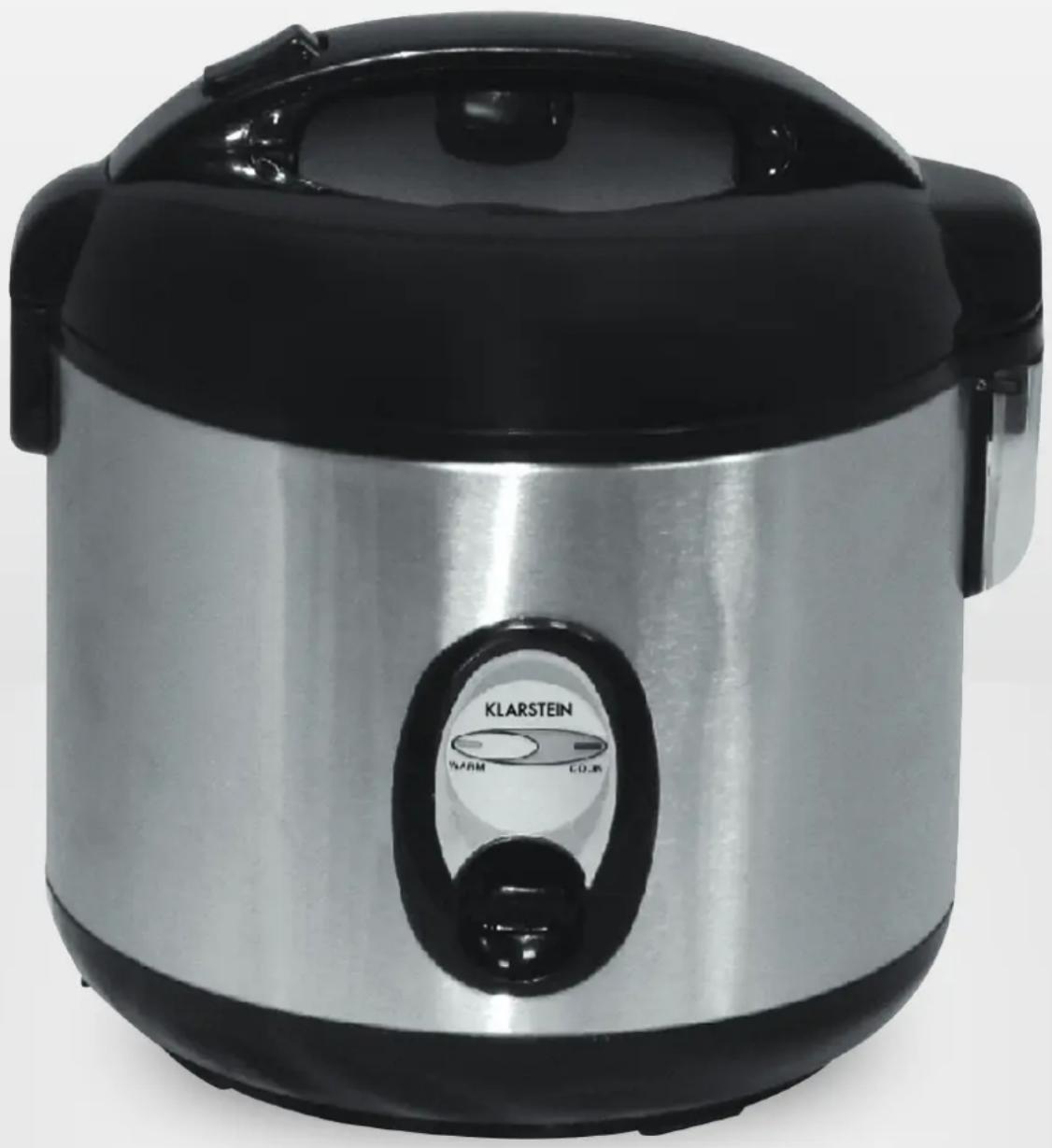

Exterior view of a modern rice cooker with black and silver casing (no visible text or symbols)

Reiskocher

10027396

KLARSTEIN

Warnung

Gerät

When using your electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions carefully.
2. Do not touch hot surfaces, use handles or knobs.
3. To protect against electrical shock do not immerse cord, plugs, or main body in water or any other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when out in use and before cleaning. Allow to cool before putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injury.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or heated oven.
11. Extreme caution must be used when moving an appliance containing hot oil or other liquids.
12. Do not use appliance for other than intended use.
13. The appliance must not be immersed in water.
14. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
15. Children should be supervised to ensure that they do not play with the appliance.
16. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacture or its service agent.
17. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

OPERATING INSTRUCTIONS

CAUTIONS TO READ BEFORE USING RICE COOKER:

1. Only use this product with the correct AC voltage outlet. For correct rated voltage see box and label at the bottom of the unit.
2. Be sure to unplug AC cord when pan is not in cooker, or when cooker is not being used. Remember the "KEEP WARM" feature operates whenever the cord is plugged in

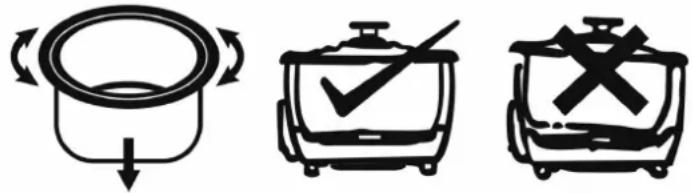

3. Place the inner pot inside the cooker before operating. Turn the pot gently to right and left.
4. If the switch button is difficult to press to the "cook" position, do not try to force it down. This difficulty usually occurs when inner pot is not fully inserted in cooker or when cooking has just finished.
5. Place the lid on your inner pot while cooking; keep the lid in place after serving to prevent your rice from drying out or discoloring.
6. Keep bottom of inner pot and surface of heater plate free of foreign matter to prevent operating malfunctions.

MAINTENANCE PROCEDURES

1. Remove inner pot and lid and wash them in hot soapy water, taking care to rinse completely, and then dry with a soft cloth.

2. Clean outside of cooker with a clean damp cloth. Never clean any part of the cooker with abrasive cleaner. Use a damp cloth or sponge with water and mild dish detergent. Do not submerge any part of cooker in water. Wash only inner pot and lid.

3. To clean the heating plate and thermo-control plate, use steel wool to polish or remove any residue. Then wipe with a damp cloth. Allow to dry completely before re-using. You must keep the heating plate and thermo-control plate free from any foreign objects; otherwise the cooker will not operate properly.

4. Improper cleaning of cooker may cause unpleasant odors.
5. Any residue of vinegar or salt may cause pan to corrode.

HOW TO USE

1. Using the measuring cup provided in the package, measure and add rice to the inner pot.
2. By measuring cup, add amount to water to the rice inside the inner pot according to the following standard:

Cups of Raw Rice

8 cups	8- 8 1/2 cups
6 cups	6 - 6 1/2 cups
4 cups	4 - 4 1/2 cups
2 cups	2 - 2 1/2 cups

Water add to the line on pot

1. Set inner pot in cooker. Place rice and water in inner pot. Close the lid firmly. Turn pan gently to right and left. Close the cover firmly.
2. Plug in power cord. Do not plug in until ready to cook. Otherwise, rice may be spoiled. If pot is not in cooker, cooking will not begin.
3. Press switch. "cook" indicator tells you cooking has started.
4. When rice is done, the switch will pop up. After the switch pops up, leave covered for at least 15 minutes to steam rice.
5. Unplug after each use. Grasp the plug, not the cord.
6. When you stew, the water level should not more than 70% of the volume.
7. Do not cover the ventilating hole to avoid scaling.

CAUTION:

TO REDUCE THE RISH OF ELECTRIC SHOCK, COOK ONLY IN REMOVABLE CONTAINER.

Short Cord Requirements

If the attached or detachable power supply cord is less than 1.4 m in length, the instruction manual shall include the following short cord requirements, which are not part of Important Safeguards.

A. A short (or detachable) power supply cord is to be provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
B. Longer (detachable power supply cords or) extension cords are available and may be used if care is exercised in their use.
C. If a long (detachable power supply cord or) extension cord is used,

(1) the marked electrical rating of the (detachable power supply cord or) extension cord should be at least as great as the electrical rating of the appliance,
(2) if the appliance is of the grounded type, the extension cord should be a grounding type 3-wire cord,
(3) the longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

CAUTION

BEFORE STARTING TO COOK, CLEAN THE BOTTOM OF THE INNER POT AND THE SURFACE OF THE HEATER PLATE, THEN TURN THE INNER POT CLOCKWISE AND ANTI - CLOCKWISE SO THAT IT SITS PROPERLY ONTO THE HEATER PLATE INSIDE THE RICE COOKER. OTHERWISE, THE RICE COOKER WILL NOT WORK OR WILL BE DAMAGED.

Technical specifications

Technical specifications: 220-240V 50/60Hz

The manufacturer of this product is CHAL-TEC Vertriebs- + Handels GmbH, Wallstraße 16, 10179 Berlin.

This product complies with the requirements of the directives

CE

Product is in compliance with the following norms:

2004/108/EC (EMC)

2006/95/EC (LVD)

2011/65/EC (RoHS)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Electric and electronic equipment and included batteries contains materials, componentsans substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.

Electric and electronic equipment and batteries is marked with the crossed ou trash can symbol, seen here. This symbol signifies that electric and electronic equipment and batteries should not be disposed of with other household waste, but should be disposed of separately.

As the end user it is important that you submit your used batteries to the appropriate and designated facility. In this manner you make sure that the batteries are recycled in accordance with legislature and will not harm the environment.

All cities have established collection points, where electric and electronic equipment and batteries can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city.

CHAL-TEC Vertriebs- + Handels GmbH; Wallstraße 16; 10179 Berlin, Germany
