USER MANUAL HEKS12254A2 Hanseatic

Line drawing of a rectangular cabinet or enclosure with mounting feet at both ends (no text or symbols)

Gebrauchsanleitung

Einbau-Kühlschrank

Inhaltsverzeichnis

Lieferung DE-3

Verpackungs-Tipps DE-3

Line drawing of a refrigerator with open door, side panel, and small inset photo of a tray holding a key (no text or symbols)

Verpackungs-Tipps

Diagram illustrating a hand using scissors to cut a heart shape with rotation arrows, labeled (11)

Diagram of a mechanical setup with three vertical rods and rotational arrows, no text or symbols present

Simple line drawing of a 3D block with a screwdriver and rotational arrow indicating motion (no text or symbols)

Diagram showing four sequential steps of a mechanical bracket assembly with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing a bolt detail (no text or symbols)

Simple line drawing of a mechanical setup with a rotating shaft and base, no text or symbols present.

Diagram of a door with two arrows indicating flow or movement, no text or symbols present

(20) (15) (17)

(17) (20)

(17) (18)

Technical line drawing of a mechanical assembly with a bracket and mounting bracket (no text or symbols)

(15) (16)

Technical line drawing of a mechanical assembly with no visible text or symbols

(Festnetz 20 Cent/Anruf, Mobilfunk max.

60 Cent/Anruf)

Line drawing of a rectangular cabinet or enclosure with mounting feet at both ends (no text or symbols)

User manual

Built-in refrigerator

Table of contents

Delivery GB-3

Packaging tips .... GB-3

Package contents . . . . . . . . . . . . . . . . . . . . GB-3

Check the delivery . . . . . . . . . . . . . . . . . . . . GB-3

Appliance parts / control elements . . . . . . . GB-4

For your safey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB-5

Intended use GB-5

Explanation of terms GB-5

Explanation of symbols . . . . . . . . . . . . . . GB-5

Safety notices GB-5

Operation GB-9

Requirements for safe use. . . . . . . . . . GB-9

Starting up the refrigerator . . . . . . . . . . . GB-9

Switching the refrigerator on and off . . . . GB-9

Setting the temperature . . . . . . . . . . . . GB-10

Door alarm GB-11

Rearranging the shelves . . . . . . . . . . GB-11

Refrigerating food . . . . . . . . . . . . . . . . . . . . . GB-12

Refrigeration tips . . . . . . . . . . . . . . . . . . GB-12

Maintaining quality . . . . . . . . . . . . . . . . . . GB-12

Care and maintenance . . . . . . . . . . . . . . . . GB-13

Checking and cleaning the door seals . GB-13

Defrosting the refrigerator . . . . . . . . . GB-13

Cleaning the refrigerator . . . . . . . . . GB-13

Start-up GB-15

Moving and unpacking . . . . . . . . . . . . . . GB-15

Choosing a suitable location . . . . . . . GB-15

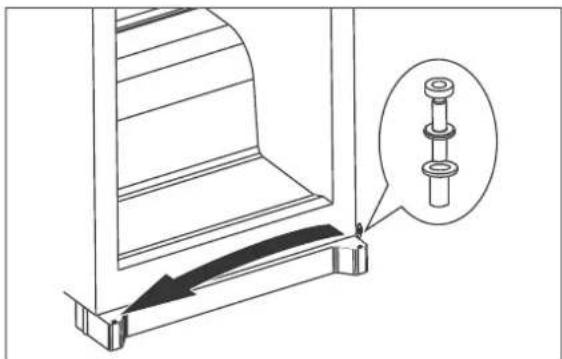

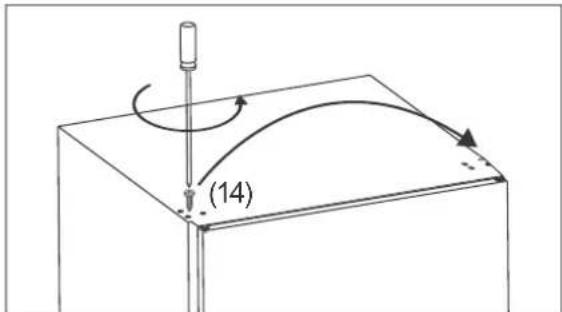

Changing the door hinges . . . . . . . . . . GB-16

Installation GB-17

Installing the refrigerator . . . . . . . . . . . . GB-18

Cleaning before use . . . . . . . . . . . . . . . . . . GB-19

Troubleshooting table . . . . . . . . . . . . . . . . . . GB-20

Service GB-21

Advice, order and complaint . . . . . . . . GB-21

Repairs and spare parts . . . . . . . . . . . GB-21

Environmental protection . . . . . . . . . . . . . GB-22

Disposing of old electrical devices in an environmentally-friendly manner . GB-22 Our contribution to the protection of the ozone layer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB-22

Product data sheet for electric household refrigerators and freezers as well as corresponding combination appliances according to Regulation (EU) No. 1060/2010 and Regulation (EU) No. 643/2009 GB-23

Technical specifications . . . . . . . . . . . . . GB-23

You can find more information on installation and start-up from page GB-15.

Before using the appliance, first read the safety notices and user manual carefully from be-

ginning to end. This is the only way to ensure you can use all the functions safely and reliably. Be absolutely sure to also observe the national regulations in your country, which are also valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the product.

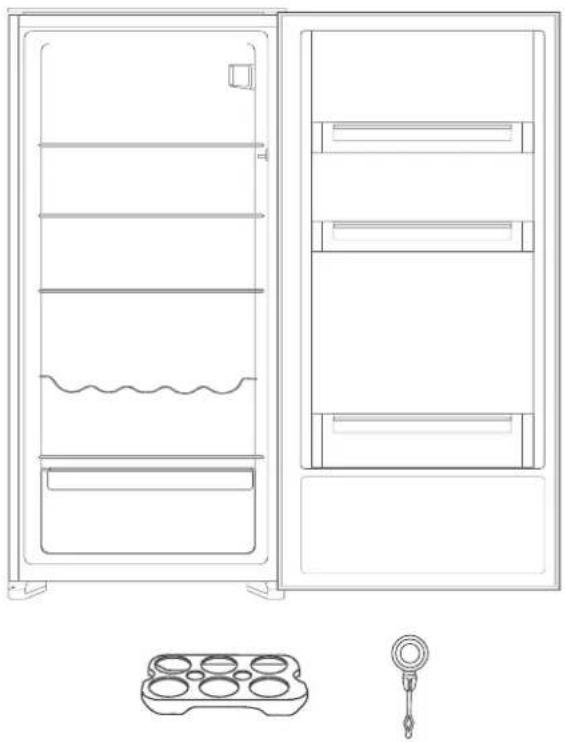

Delivery

Line drawing of a refrigerator with open doors and internal compartments, accompanied by a small inset image of a tray holding six circular indentations (no text or symbols)

Packaging tips

If you have sufficient space, we recommend keeping the packaging, at least during the warranty period. If

the appliance needs to be sent out for repairs, only the original packaging will provide sufficient protection.

If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Package contents

1× Built-in refrigerator
3× glass shelves
1× bottle rack
1× glass shelf as a cover for the fruit/vegetable drawer
1× fruit/vegetable drawer
3× door shelves
1× cleaning rod
1× egg rack
1× cleaning rod
1× user manual

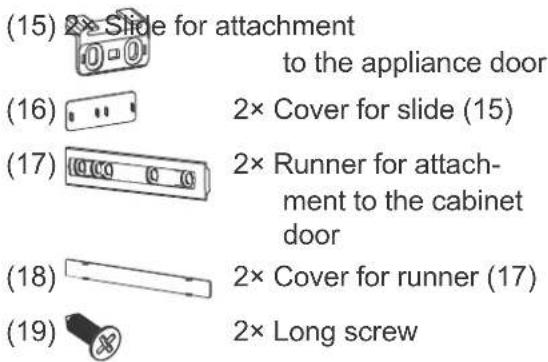

various parts for installation (see „Installation“ on page GB-17)

Check the delivery

1. Move the refrigerator to a suitable place and unpack it (see „Start-up“ on page GB-15).
2. Check that the delivery is complete.
3. Check whether the refrigerator was damaged during transit.
4. If the delivery is incomplete or the refrigerator has been damaged during transit, please contact our service department (see "Service" on page GB-21).

WARNING!

Never use a damaged appliance.

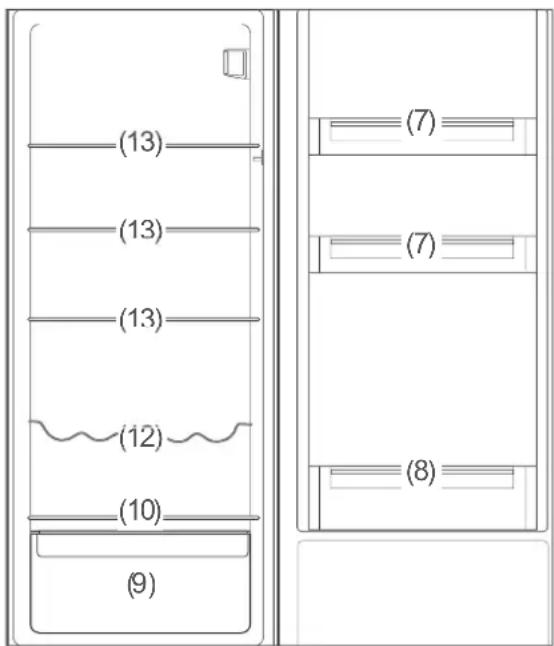

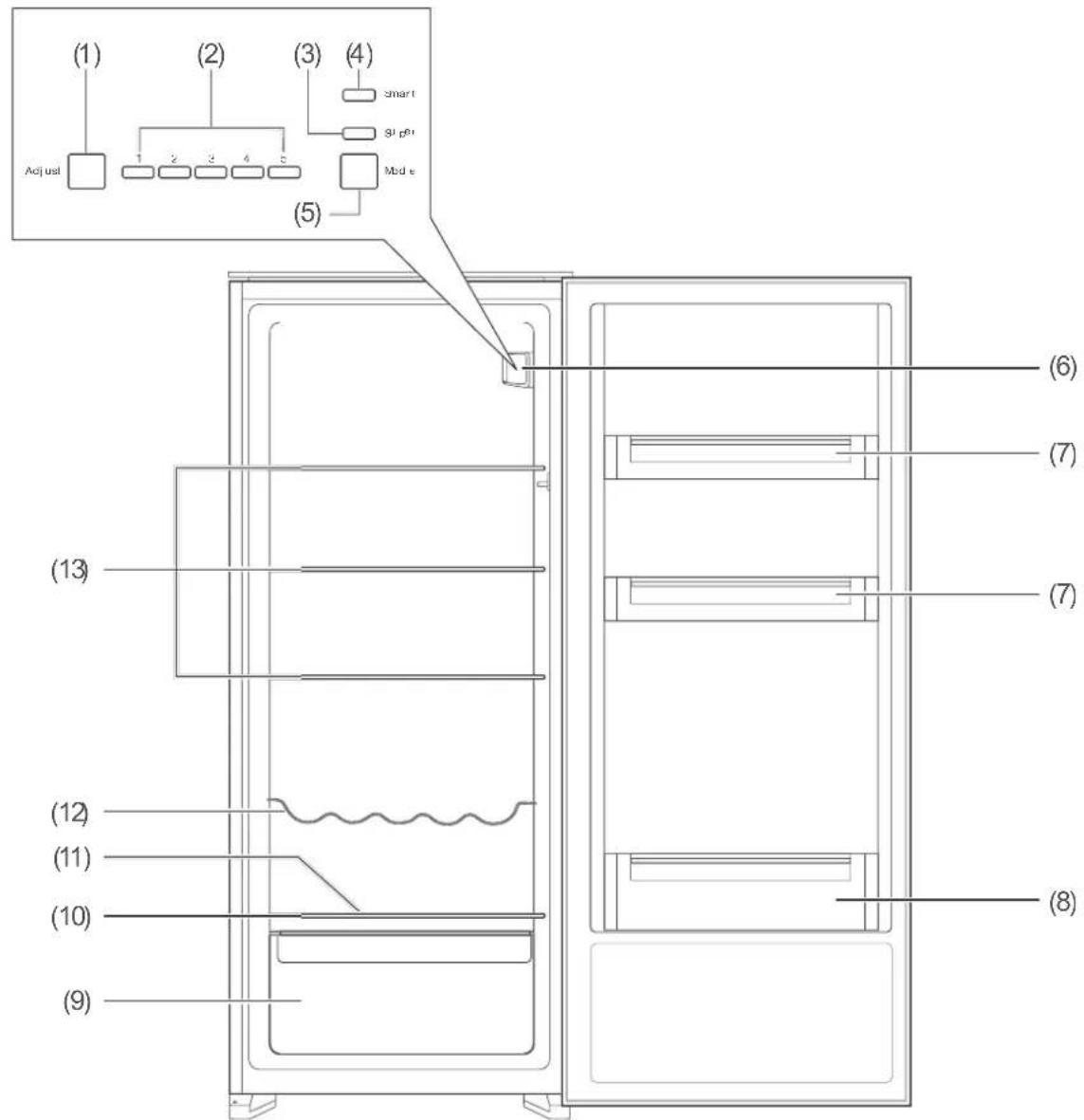

Appliance parts / control elements

(1) (2) (3) (4) smart SI p01 Mdc e Adjust (5) (6) (7) (13) (7) (12) (8) (11) (10) (9)

(1) Adjust: set the temperature
(2) Temperature indicator
(3) Super: lower the temperature further
(4) Smart: Automatic operation
(5) Mode: set to "Super" or "Smart"
(6) Control unit and refrigerator light
(7) Door shelves
(8) Large door shelf

(9) Fruit/vegetable drawer
(10)Glass shelf as a cover for the fruit/vegetable drawer
(11) Defrost drain
(12)Bottle rack
(13)Glass shelves

For your safey

Intended use

The appliance is suitable for refrigerating fresh foods.

It may only be operated when properly installed in a suitable built-in cabinet.

The appliance is intended solely for use in private households.

Use the appliance exclusively as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.

Explanation of terms

The following signal words can be found in this user manual.

WARNING

This symbol indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION

This symbol indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This symbol warns against possible damage to property.

This symbol refers to useful additional information.

Explanation of symbols

Caution: Fire hazard!

Safety notices

In this chapter you will find general safety notices which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters on operation, start-up, etc.

WARNING

Risks in handling household electrical appliances

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
■ Do not operate or continue to operate the appliance, if

– it shows visible signs of damage, e.g. the power cord is defective,
– it starts smoking or there is a smell of burning,
- it makes unfamiliar noises.

Should this occur, pull out the mains plug or switch off the fuse and contact our service department (see „Service“ on page GB-21).

■ The appliance corresponds to protection class 1 and may only be connected to a properly earthed socket.

Do not connect to a multiple socket outlet, power strip, timer or to a separate remote-controlled system for distance monitoring and control.

■ If the mains plug is no longer accessible after installation, an all-pole disconnecting device complying with overvoltage category III must be connected to the house wiring with a contact gap of at least 3 mm; this includes fuses, circuit breakers and contactors.

■ Do not kink or pinch the mains cord or lay it over sharp edges.

- Keep the appliance, the mains plug and the mains cord away from open flames and hot surfaces.

■ Always touch the mains plug, not the mains cord.

■ Never touch the mains plug with wet hands.

■ Never immerse the mains cord or plug in water or any other liquids.

■ If the mains cord of the appliance is damaged, it must be replaced by the manufacturer, through customer service or by a qualified specialist.

Modifi cations and repairs to the ap- pliance, such as replacing the refrigerator light, may only be carried out by authorised specialists(see „Service“ on page GB-21).

- Independent repairs made to the appliance may cause damage to property and personal injury, and any liability and warranty claims will be forfeited. Never attempt to repair the faulty – or supposedly faulty – appliance yourself.

■ Only parts corresponding to the original appliance specifications may be used for repairs. This appliance contains electrical and mechanical parts which are essential for protection against potential sources of danger.

- Do not put any objects in or through the housing openings, and also make sure that children cannot insert any objects in them.

- In the event of a fault, and before extensive cleaning, pull out the mains plug or switch off the fuse.

Risks to children

Risk of suffocation!

Children can become entangled in the packaging fi lm or swallow small parts and suffocate.

■ Do not allow children to play with the packaging fi lm.

■ Prevent children from pulling small parts off the device or taking them out of the accessory bag and putting them in their mouths.

Risks when dealing with chemical substances

Danger of explosion!

Improper handling of chemical substances can lead to explosions.

- Do not store explosive substances or spray cans with flammable propellants inside the appliance as they may create ignitable gas-air mixtures.

■ Never use defrosting sprays to defrost. They can generate explosive gases.

CAUTION

Risks for certain groups of people

Dangers for children and people with limited physical, sensory or mental capacity!

■ This appliance can be used by children aged eight years and above and by

persons with reduced physical, sensory or mental abilities, or who lack experience and/or knowledge, if they are supervised or have been instructed in the safe use and understand the dangers associated with its use.

■ Cleaning and maintenance must not be carried out by children unless they are supervised.
■ Children must not be allowed to play with the appliance.

Risks when dealing with fridge and freezer appliances

Fire hazard!

Improper handling of the appliance can lead to fire and property damage.

• Only connect the appliance to a properly installed and earthed electric socket. Do not connect to a multi-socket extension cable or a multi-socket plug.

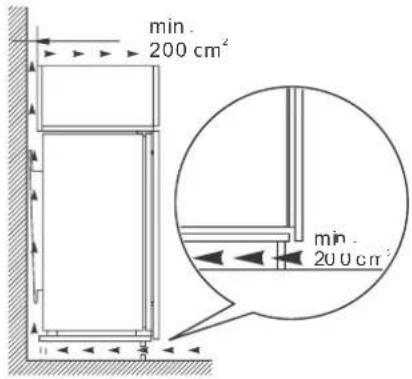

• In order to guarantee sufficient air circulation, do not close the ventilation openings in the appliance housing.

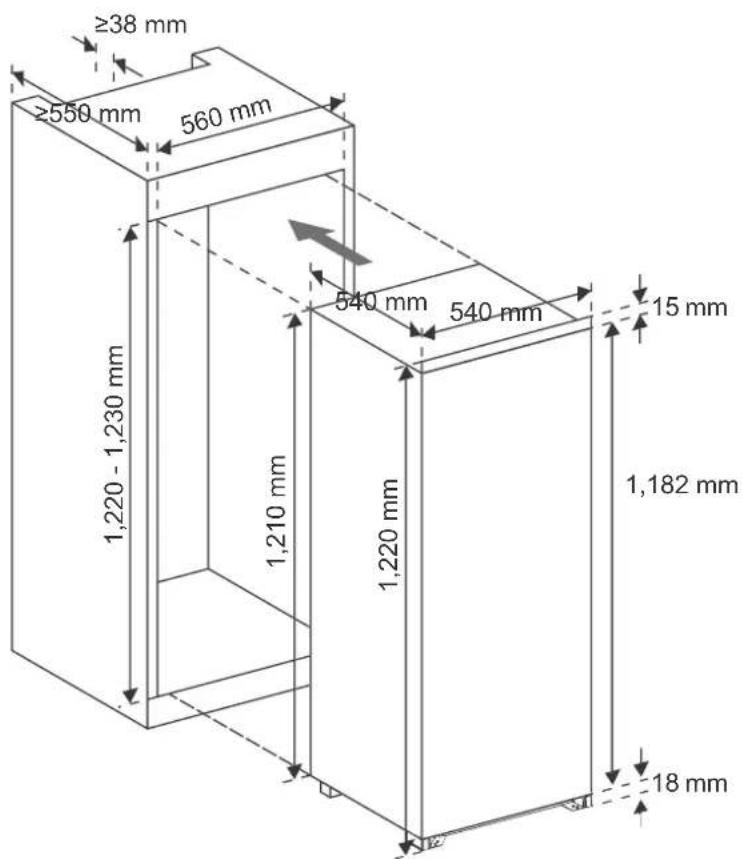

• Observe the minimum measurements of the built-in cabinet (see „Built-in cabinet and ventilation“ on page GB-17).

Dangers from the refrigerant!

Your appliance's refrigeration circuit contains the environmentally friendly but fl ammable refrigerant R600a (isobutane).

■ Mechanical modifications to the refrigeration system are only permitted by authorised specialists.
■ Do not damage the refrigeration circuit, e.g. by piercing the refrigerator-

ant channels of the evaporator with sharp objects, by bending pipes, etc.

■ Leaking refrigerant is flammable, and can lead to eye damage. In this situation, rinse the eyes with clean water and call a doctor immediately.
- To prevent the formation of a flammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 1 m ^3 per 8 g of refrigerant in compliance with the EN 378 standard. The amount of refrigerant contained in your appliance can be found on the data sheet (see „Data sheet“ on page GB-23).

Risk of injury!

Improper handling of the appliance may result in injury.

■ The appliance is heavy and bulky. Ask another person to help with moving and installation.
■ Do not use the base, drawers, doors, etc., as steps or for support.

Health hazard!

Incorrect handling, insufficient cooling or overlapping items can spoil the stored food. This could lead to a risk of food poisoning when consumed!

■ In particular, pack raw meat and fish carefully to ensure that adjacent food cannot be contaminated by salmonella or similar bacteria.
■ Abide by the storage times recommended by food manufacturers.
■ After a possible power failure, check whether the stored foodstuffs are still edible.

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

- Abide by the specified ambient temperature (see “climate category” line on page GB-23).

! NOTICE

Risk of damage to property!

If the refrigerator has been carried on its side, lubricant from the compressor may have got into the refrigeration circuit.

■ If possible, do not tilt the refrigerator into a horizontal position.
- Allow the refrigerator to stand upright for 2 hours before starting it up. The lubricant will flow back into the compressor during this time.

Improper handling of the appliance can lead to property damage.

■ Do not use the door to pull or lift the appliance.
- The appliance must only be placed on a level and firm surface. The surface must be strong enough to support the appliance's weight when fully laden.
- Do not use sharp or pointed objects to unpack it.
■ When unpacking the appliance, never damage the insulation material on the back of the appliance.
- Do not use any electrical parts inside the appliance that do not conform to the manufacturer's recommended design.

■ Do not use any mechanical devices or means other than those recommended by the manufacturer.
■ The interior light must only be used to illuminate the interior of the appliance. It is not suitable for lighting a room.
- Do not store glass or metal containers containing water, lemonade, beer etc. Water expands when frozen and can burst the container.
■ Defrost the appliance in a timely manner, before it forms a layer of ice and frost of more than 4 mm. Excessive ice formation increases power consumption and the freezer compartment door may no longer close tightly.
- Do not use any means other than those recommended by the manufacturer to speed up defrosting. For example, do not use any electric heating equipment, knives or devices with an open flame such as a candle. The thermal insulation and the interior are scratch and heat-sensitive and can melt.
■ When cleaning, please note:

– Never use harsh, granular, soda, acid, solvent-based or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.

- Door seals and plastic parts are sensitive to oil and grease. Remove contaminants as quickly as possible.

- Only use soft cloths.

- Wait 5 minutes after switching off. Only then switch the appliance on again.

■ Only use original accessories.

Operation

Requirements for safe use

• You have read chapter „For your safety“ on page GB-5 and understand all the safety notices.
• The refrigerator is installed and connected as described in chapter „Start-up“ on page GB-15.

Starting up the refrigerator

NOTICE

Risk of damage to property!

If the refrigerator has been carried on its side, lubricant from the compressor may have got into the refrigeration circuit.

■ If possible, do not tilt the refrigerator into a horizontal position.
- Allow the refrigerator to stand upright for 2 hours before starting it up. This gives the lubricant time to flow back into the compressor.

- Switch off the fuse for the mains socket to which the refrigerator is connected. A signal tone will sound, and the refrigerator light (6) will illuminate when the door is opened.

Switching the refrigerator on and off

The refrigerator is factory-set to switch on automatically when you first insert the mains plug into the socket.

Switching on

- Press and hold the Adjust button (1) for 5 seconds. A signal tone will sound and the refrigerator light (6) will illuminate. The refrigerator is switched on.

If the refrigerator makes disturbing noises after it is switched on, check that it is in a stable position and cor-installed.

Switching off

1. Press and hold the Adjust button (1) for 5 seconds. A signal tone will sound and the refrigerator light (6) will go out. The refrigerator is switched off.
2. Empty the refrigerator and clean it as described in chapter „Care and maintenance“ on page GB-13.

Setting the temperature

WARNING

Health hazard!

The refrigerator may not work properly if exposed to excessively low ambient temperatures for extended periods of time. This could then cause a rise in temperature inside the refrigerator.

■ Always maintain the prescribed ambient temperature (see “Climate class” on page GB-23).

To check the refrigeration, you will need a refrigerator/freezer thermometer.

- Place the refrigerator/freezer thermometer on the glass shelf (10) above the fruit/ vegetable drawer; the correct temperature here is +6 °C.

Setting the temperature manually

- Press the Adjust button (1) repeatedly to set the refrigeration temperature. The temperature indicator (2) shows the selected setting.

Only indicator 1 illuminated: weakest refrigeration.

Indicators 1 - 5 illuminated: strongest refrigeration.

- Adjust the setting according to the ambient temperature. Select a mid-level setting (e.g. 3) at first and then readjust if necessary.

Setting the temperature automatically
    note right of F
        (4) --> S["Smart"]
        note right of G
        (5) --> T["Super"]

• Press the Mode button (5) until the Smart indicator (4) is illuminated. The temperature will now be set automatically. You can read the current temperature setting from the indicator.
• To resume setting the temperature manually, press the Mode button once. The Smart indicator will go out and the temperature can be set manually again.

Quick refrigerating

• To quickly refrigerate foods that you have just added, e.g., canned drinks, press the Mode button (5) until the Super indicator (3) is illuminated. The refrigerator will run at maximum refrigeration. This will further reduce the temperature in the refrigerator.
• To switch off the Super setting again, press the Mode button (5) until the Super indicator (3) is no longer illuminated. The Super setting will stay active for a maximum of 54 hours. It will then switch off automatically.

Door alarm

To prevent excessive heat loss, a signal tone will sound when the refrigerator door has been open for longer than 1.5 minutes.

- Close the refrigerator door. The door alarm will shut off.

Rearranging the shelves

The glass shelves (10) and (13), door shelves (7) and (8) and bottle rack (12) can be taken out and rearranged if necessary.

• Remove the glass shelves and bottle rack by lifting the back slightly and pulling them out from the front, then re-insert them in the desired position.
• Remove the door shelves by lifting them upwards, then lower them into the new position.

Refrigerating food

WARNING

Danger of explosion!

Storing fl ammable gases and liquids may cause ignitable gas-air mixtures to form inside the appliance. This could result in an explosion.

- Do not store explosive substances or spray cans with flammable propellants inside the appliance.

Refrigeration tips

(13) (13) (13) (12) (10) (9) (7) (7) (8)

- Fill the refrigerator to make the best use of the temperature conditions inside:

• Place spreadable butter and cheese in the door shelf (7) at the top. This is where the temperature is warmest.
• Store preserves, jars and eggs in a door shelf (7). Eggs are best stored on the supplied egg rack.
• Place drinks cartons and bottles in the large door shelf (8). Position full contain-

ers closer to the hinge in order to reduce the door load.

• Place securely-closed bottles on the bottle rack (12).
• Place cooked and baked foods on the glass shelves (13).
• Place fresh meat, game, poultry, bacon, sausage and raw fish on the glass shelf (10) above the fruit/vegetable drawer (9). This is where the temperature is lowest.

• Place fresh fruit and vegetables in the fruit/vegetable drawer (9).

• Only store strong alcohol standing upright and closed tightly.

• Allow hot food to cool before placing it in the refrigerator.
• The temperatures in the appliance and thus the energy consumption can increase
• if the doors are opened frequently or for a prolonged period.
  – if the temperature falls below or exceeds the prescribed interior temperature.
• Energy consumption is also dependent on the selected location (for more detailed information, see page GB-15).

Maintaining quality

• To maintain the flavour and freshness of food in the refrigerator, make sure that any food to be refrigerated is packed up before you place it inside. Use food-grade plastic containers or commercially available wraps.
• Place the food
• in the refrigerator in a way that allows air to circulate freely. Do not cover the shelves with paper or anything similar.
• somewhere that is not directly against the rear wall. Otherwise it could freeze onto the rear wall.

Care and maintenance

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Before cleaning, pull out the mains plug or switch off the fuse.
■ When pulling out the mains plug, always hold the plug itself and not the cord.

CAUTION

Dangers for children and people with limited physical, sensory or mental capacity!

■ Cleaning and user maintenance must not be carried out by children unless they are supervised.

NOTICE

The surfaces and appliance parts can be damaged through improper handling.

■ Never use harsh, soda, acid, solvent or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.
■ Use care products only on the outer surfaces.
■ Door seals and plastic parts are sensitive to oil and grease. Remove contaminants as quickly as possible.
■ Only use soft cloths.

Checking and cleaning the door seals

The door seals must be checked regularly to make sure that no air gets into the appliance.

1. To test them, clamp a thin piece of paper in various places. The paper should be difficult to pull through at all points.
2. If the seal is not uniform everywhere: Carefully warm the seal in the affected places with a hair dryer and pull it out slightly with your fingers.
3. Only clean dirty seals with clean water.

Defrosting the refrigerator

This is not necessary as the refrigerator has an auto-defrost feature. Frost and ice are automatically defrosted and the thaw water is collected in a thaw water container on the reverse side of the appliance. The thaw water evaporates as a result of the heat generated by the motor.

Cleaning the refrigerator

1. Switch the appliance off by pressing the Adjust button (1) for 5 seconds.
2. Disconnect the mains plug from the socket or switch off the fuse.
3. Remove the chilled goods and place them in a cool room.
4. Remove the fruit/vegetable drawer (9), door shelves (7) and (8), glass shelves (10) and (13) and bottle rack (12), and wash all the parts in lukewarm soapy water. Then dry everything thoroughly.

5. Wipe out the interior with a cloth lightly moistened in soapy water. Make sure that no liquid gets into the control unit and refrigerator light.

6. Add a few drops of vinegar to the water when wiping for a second time to prevent the formation of mould. Wipe the interior dry and leave the door open a while to air.

Diagram illustrating a hand using scissors to cut a heart shape with rotation arrows, labeled (11)

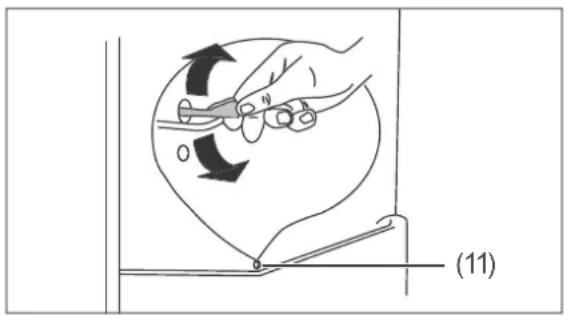

1. Clean the opening of the defrost drain (11) using the enclosed cleaning rod.
2. Re-insert the shelves and drawer.
3. Put the food back in the refrigerator.
4. Re-insert the mains plug or switch on the fuse.
5. Press and hold the Adjust button (1) for 5 seconds. The appliance switches on.
6. Set the desired refrigeration temperature.

Start-up

Moving and unpacking

WARNING

Risk of suffocation!

• Do not allow children to play with the packaging fi lm. They may get caught up in this or suffocate.
  ■ Prevent children from pulling small parts off the device or taking them out of the accessory bag and putting them in their mouths.

CAUTION

Risk of injury!

Improper handling of the appliance may result in injury.

■ The appliance is heavy and bulky. Ask another person to help with moving and installation.
■ Do not use the base, drawers, doors, etc., as steps or for support.

NOTICE

Risk of damage!

Improper handling of the appliance may result in damage.

■ If possible, do not tilt the refrigerator into a horizontal position.
- Allow the refrigerator to stand upright for 2 hours after transit.
■ Do not use sharp or pointed objects to unpack it.

• Move the appliance using a dolly or with the help of a second person.
• Unpack the appliance and carefully remove all packaging, plastic moulding, adhesive strips, protective film and foam padding from the inside, outside and back of the appliance.

Choosing a suitable location

CAUTION

Dangers from the refrigerant!

• Do not damage the refrigeration circuit, e.g. by piercing the refrigerant channels of the evaporator with sharp objects, by bending pipes, etc.
  ■ Leaking refrigerant is flammable, and can lead to eye damage. If this happens, rinse eyes with clear water and call a doctor immediately.

NOTICE

Risk of damage!

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

■ Make sure that the specified ambient temperature is maintained (see “Climate class” on page GB-23).

To prevent the formation of an ignitable gas-air mixture in the event of a leak in the refrigeration circuit, the installation space must have a minimum size of 1 m^3 per 8 g of refrigerant in compliance with standard EN 378. That equates to a minimum space of 3 m^3 for this appliance.

• Suitable locations are dry, well-ventilated areas that are cool if possible.
• Unsuitable locations are ones with direct sunlight or which are directly next to an oven, hob or radiator.

Changing the door hinges

You can change the position of the refrigerator door hinges if necessary. This work requires some manual dexterity. Please read through all of the following steps before starting work.

You will need the following tools:

• PH2 cross-tip screwdriver

• 8 mm spanner

• Make sure that the refrigerator is not connected to the mains.

• Close the door.

Diagram of three vertical poles rotating in a rectangular frame with curved arrows indicating rotation (no text or symbols)

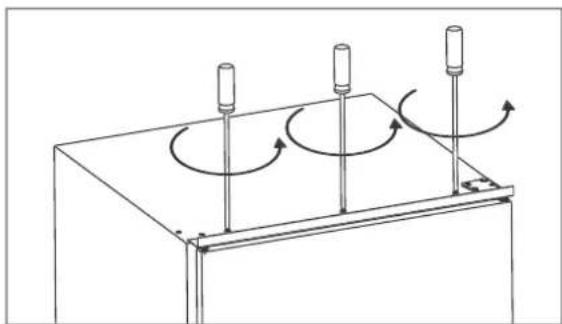

1. Unscrew the metal strip from the refrigerator. Use the cross-tip screwdriver.

Simple line drawing of a 3D block with a screw and rotation arrow, no text or symbols present

1. Unfasten the screws for the upper hinge using an 8 mm spanner and remove the hinge.

Mechanical assembly diagram showing four sequential steps of a bracket with mounting holes and rotating components (no text or labels)

1. Unscrew the hinge pin from the hinge. Turn the hinge 180°. Re-insert the hinge pin into the hinge.
2. Lift up the door, removing it from the lower hinge pin as you do so, and set it to one side.

Technical diagram showing a mechanical assembly with a magnified inset of a bolt detail (no text or symbols present)

1. Insert the lower hinge pin on the opposite side and put the door back on.
2. Close the door.

(14)

1. Remove the screw (14) with a cross-tip screwdriver and re-insert it on the opposite side.

Simple line drawing of a rotating mechanical component with a cylindrical shaft and rotating arrow (no text or symbols)

1. Put the upper hinge on the correct side of the door and screw it tight.
2. Screw the metal strip back onto the refrigerator.
3. Check that the door seal is correctly in place (see „Checking and cleaning the door seals“ on page GB-13).

Installation

Parts for installation

(15) 2× Slide for attachment to the appliance door (16) 2× Cover for slide (15) (17) 2× Runner for attach- ment to the cabinet door (18) 2× Cover for runner (17) (19) 2× Long screw

(20) 10×Short screw
(21) 1× Sealing strip

Built-in cabinet and ventilation

The built-in cabinet must meet the following requirements:

≥38 mm ≥550 mm 560 mm 1,220 - 1,230 mm 1,210 mm 1,220 mm 540 mm 540 mm 15 mm 1,182 mm 18 mm

Ventilation cross-section: Installation dime

min 200 cm² min 200 cm²

Installing the refrigerator

Before installation, check that the door hinges are on the correct side. Change the position of the door hinges if necessary (see „Changing the door hinges“ on page GB-16).

For installation, you will need a PH2 cross-tip screwdriver.

1. Switch off the fuse for the intended socket (220-240 V\~ / 50 Hz). Then insert the mains plug into the socket.

Diagram of a cabinet with two arrows indicating flow or movement, no text or symbols present

1. Slowly and carefully push the refrigerator into the built-in cabinet. Make sure that the side to be opened is as close as possible to the wall of the cabinet.

(20) (15) (17)

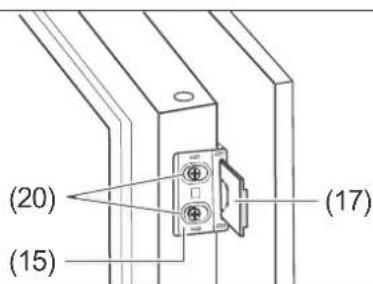

1. There are holes pre-drilled in the outside edges of the appliance door for the slides (15) to be attached. Use the short screws (20) to fasten the slides on the side that is to be opened.

2. Push the runners (17) into the slides (15). Close and open the cabinet door to check that it closes fully and easily. If necessary, correct the position of the refrigerator.

3. Open the appliance door and cabinet door at the same time. As you do so, mark the best position for the runners on the inside of the cabinet door.

(17) (20)

1. Remove the runners from the slides again.

2. Use 2 short screws (20) to fasten each of the runners to the inside of the cabinet door in the marked positions.

(17) (18)

1. Press the covers (18) onto the runners.

Technical line drawing of a mechanical bracket with a hanging lock component (no text or symbols)

1. Unscrew the slides again and push them onto the fitted runners.

2. Screw the slides back onto the appliance door.

(15) (16)

1. Press the covers (16) onto the slides.

2. Check that the doors open and close easily and that the appliance door seals properly when closed. If necessary, adjust the position of the refrigerator and of the slides and runners.

(20)

Technical line drawing of a mechanical assembly with no visible text or symbols

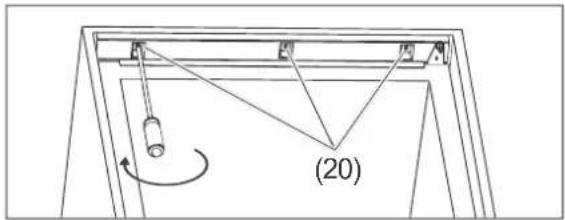

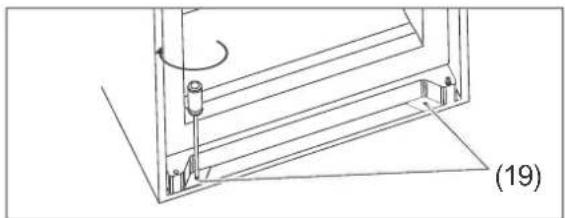

1. Once the doors open and close correctly, screw the refrigerator to the built-in cabinet. To do so, use 3 short screws (20) at the top and the two long screws (19) at the bottom.

(21)

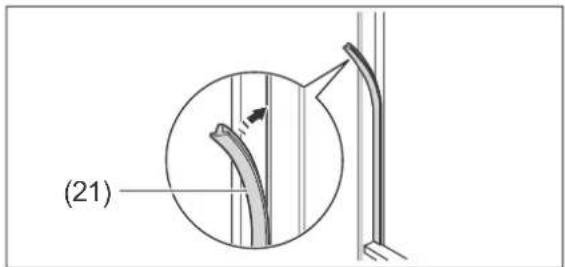

1. With the door open, press the sealing strip into the gap between the refrigerator and the built-in cabinet. Installation is now complete.

Cleaning before use

To remove the odour that comes with all new appliances, clean the appliance before using it (see „Cleaning the refrigerator“ on page GB-13).

You will find all important information about operation from page GB-9.

Troubleshooting table

Malfunctions can occur in any electrical appliance. This does not necessarily mean that there is a defect in the appliance. Therefore, please check whether or not you can correct the fault using the table.

WARNING

Risk of electric shock in case of improper repair!

Never attempt to repair the faulty – or supposedly faulty – appliance yourself. You can endanger yourself and subsequent users. Only authorised specialists may carry out these repairs.

Problem Possible cause Solutions, tips, explanations
Compressor off, interior light off.	Appliance is switched off. Press the Adjust button (1) for 5 seconds.
	No electricity to socket. Check the socket with another appliance.
	Mains plug is loose. Check that the mains plug is firmly inserted.
Compressor off, interior light on.	Desired temperature has been reached.	Further cooling not required. When the inside temperature rises, the compressor automatically turns on.
Appliance cools too quickly.	The temperature controller is set at too high a level.	Select a lower setting (see „Setting the temperature“ on page GB-10).
The appliance doesn't cool sufficiently.	The temperature controller is set at too low a level.	Select a higher setting (see „Setting the temperature“ on page GB-10).
	Door not tightly closed or door seal is not completely tight.	See (see „Checking and cleaning the door seals“ on page GB-13).
	The appliance is near a heat source.	Place insulation plate between the appliances or change location.
	Food has been stored warm.	Only store cooled foods.
	Ambient temperature too low or too high.	Adjust the ambient temperature to the climate category (see „Data sheet“ on page GB-23).
	Compressor seems defective.	Set the appliance to maximum refrigeration (see „Setting the temperature“ on page GB-10). If the compressor does not switch on within an hour, please contact our service department (see page GB-21).
Appliance is making a noise.	Operating noises are functional and are not a sign of malfunction.	Humming: Refrigeration unit is running.
		Flowing noise: Refrigerant is flowing through the pipes.
		Clicking: Compressor is switching on or off.
	Disturbing noises. Check the installation and re-adjust if necessary.
Water has accumulated in the bottom of the refrigerator.	Defrost drain (11) is blocked.	Unblock the defrost drain using the enclosed cleaning rod.

Service

In order for us to help you quickly, please tell us:

Name of appliance Model Colour Order	er number
Hanseatic Built-in refrigerator	HEKS 12254A2 white 455	916

Advice, order and complaint

Please contact your mail order company's customer service centre if

– the delivery is incomplete,
– the appliance is damaged during transport,
– you have questions about your appliance,
- a malfunction cannot be rectified using the troubleshooting table,
– you would like to order further accessories.

Repairs and spare parts

Customers in Germany

– Please contact our technical service:

Telephone [phone] (landline 20 cents/call, mobile max 60 cents/call)

Customers in Austria

- Please contact your mail order company's customer service centre or product advice centre.

Please note:

You are responsible for the condition of the appliance and its proper use in the household. If you contact customer service due to a user error, you will be charged for the callout even during the guarantee/warranty period. Damage resulting from non-compliance with this manual will unfortunately not be recognised.

Environmental protection

Disposing of old electrical devices in an environmentally-friendly manner

Electrical appliances contain harmful substances as well as valuable resources.

Every consumer is therefore required by law to dispose of old electrical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Please contact your dealer directly for more information about this topic.

CAUTION

Fire hazard!

Cooling appliances, which contain refrigerants and gases in the cooling systems and insulation, have to be properly disposed of. Refrigerant leakage may cause a fire hazard.

■ Until the point of proper disposal, ensure that none of the cooling fins or tubes on a cooling appliance are damaged.

Our contribution to the protection of the ozone layer

100% CFC and HFC-free refrigeratorants and foaming agents were used in this appliance. This protects the ozone layer and reduces the greenhouse effect.

Our packaging is made from environmentally friendly, recyclable materials:

– Outer packaging made of cardboard
– Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of polyethylene (PE)
– Tension bands made of polypropylene (PP)
– Saving energy also protects against excessive global warming. Your new appliance uses little energy due to its environmentally friendly insulation and technology.

If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Product data sheet for electric household refrigerators and freezers as well as corresponding combination appliances according to Regulation (EU) No. 1060/2010 and Regulation (EU) No. 643/2009

Brand name		hanseafic
Model code HEKS 12254A2
Household refrigerator model category 1, refrigerator
Energy efficiency class on a scale of A+++ (high-est efficiency) to G (lowest efficiency)		A++
Energy consumption 102 kWh/year, based on the results of a 24 hour standard test. The actual consumption depends on the type of usage and the position of the appliance.
Total volume	Freezer compartment / star classification	-L/-
	Fridge compartment (frost-free) 2)	201 L
Storage time in case of malfunction		-h
Freezing capacity - kg		-kg/24 h
Climate class: SN-T. This appliance is designed for operation in ambient temperatures between 10 °C and 43 °C.
Airborne noise emissions		40 dB(A) re 1 pW
Built-in appliance		yes

The values indicated above have been measured under standardised laboratory conditions pursuant to EN 62552.

Technical specifications

Order number 455 916
Name of appliance Built-in refrigerator
Model	HEKS
Supply voltage / frequency 220 - 240 V, 50 Hz
Power consumption 0.6 A
Power consumption 80 W
Device measurements (Height × Width × Depth with connections)	122 cm × 54 cm × 54 cm
Unloaded weight 34 kg
Refrigerant R600a (isobutane)
Refrigerant filling quantity 23 g
Foaming agent Cyclopentane
