User manual

Manual/version:

196274 GB 20180328

Order no.: 77870106

Reproduction, even

of excerpts, is not

permitted!

Coffee machine

Table of contents

Table of contents ..... GB-2

Delivery. GB-3

Package contents ..... GB-3

Check the delivery ..... GB-3

Appliance parts and control elements . . . . . . . GB-4

Safety GB-5

Intended use . . . . . . . . GB-5

Explanation of terms . . . GB-5

Safety notices . . . . . . . GB-6

Start-up. . . . . . . . . . . . GB-12

Unpack the appliance . GB-12

Choose a suitable location . . . . . . . . . . GB-12

Assembling the device. GB-13

Empty cycle . . . . . . . GB-13

Setting the time ..... GB-14

Operation GB-16

Brew the coffee . . . . . . GB-17

Start time delay ..... GB-18

Automatic switch-off function . . . . . . . . . . GB-19

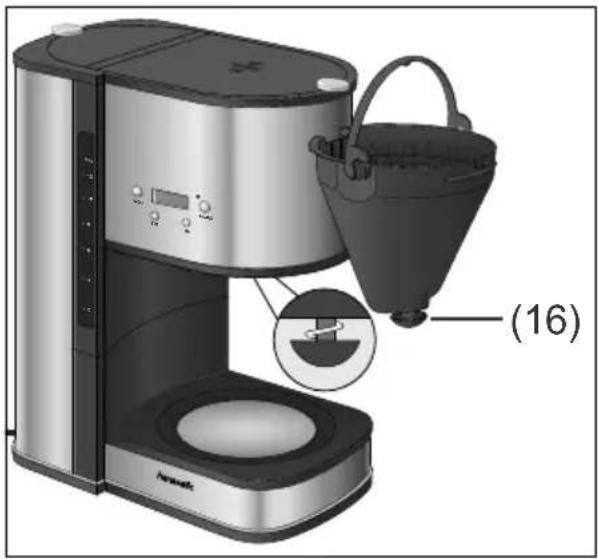

Drip protection . . . . . . GB-19

Cleaning and maintenance. . . . . . . . GB-20

Cleaning the coffee machine . . . . . . . . . . GB-20

Decalcifying the coffee machine . . . . . . . . . . GB-21

Troubleshooting table . . . GB-22

Service GB-23

Advice, order and complaint . . . . . . . . . GB-23

Spare parts . . . . . . . . GB-23

Environmental protection GB-24

Disposing of old electrical devices in an environmentally-friendly manner . . . . . GB-24

Packaging .... GB-24

Technical specifications . GB-25

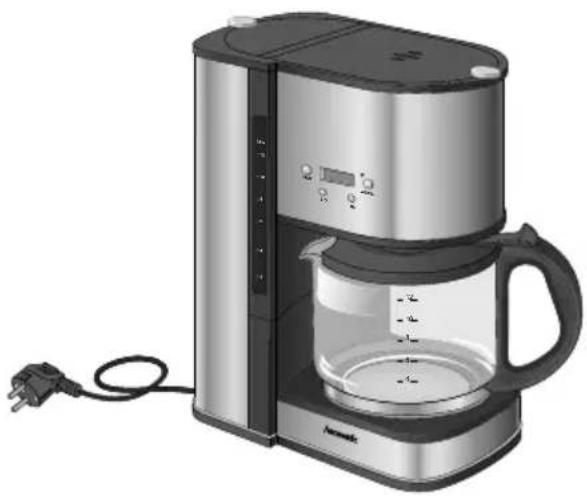

Delivery

Illustration of a modern coffee maker with glass lid and power cord (no text or symbols)

Package contents

• Coffee machine
• User manual

Check the delivery

1. Unpack the appliance.
2. Check the package contents.
3. If the delivery is incomplete or the appliance has been damaged during transit, please contact our service department (see page GB-23).

WARNING!

Risk of electric shock!

■ Never use a damaged appliance.

Before using the appli- ance, please first read through the safety instructions and user manual carefully. This is the only way you can use all the functions reliably and safely. Be absolutely sure to also observe the national regulations in your country, which are also valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the appliance.

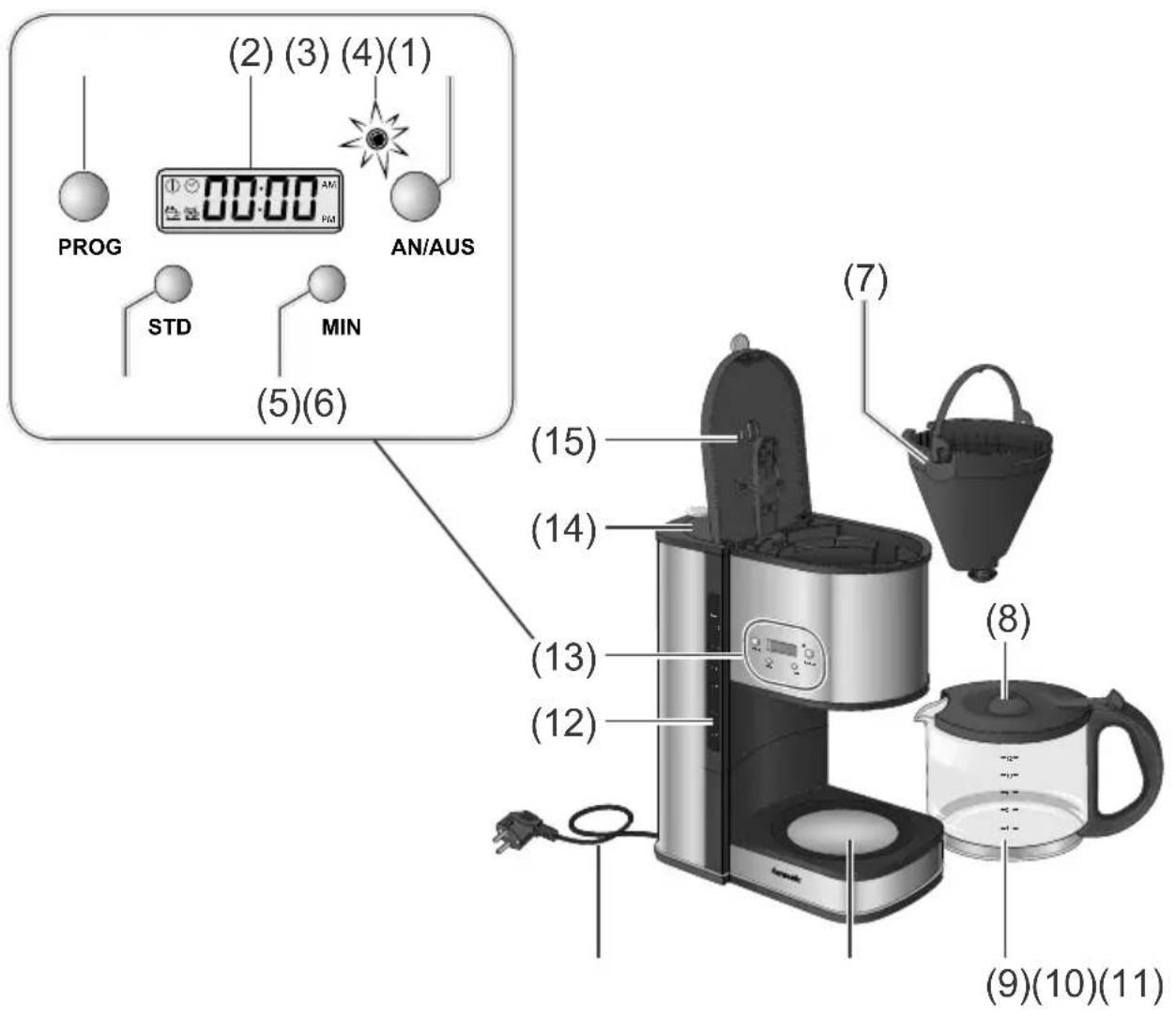

Appliance parts and control elements

(2) (3) (4)(1) PROG 00:00 AM PM AN/AUS STD MIN (5)(6) (7) (15) (14) (13) (12) (8) (9)(10)(11)

(1) The PROG setting controls the hours, programming the start time delay and the automatic shut-off feature
(2) Display
(3) Control light
(4) AN/AUS (ON/OFF) button
(5) MIN Setting in minutes
(6) STD Setting in hours
(7) Filter holder with drip protection

(8) Flavour protection lid
(9) Coffee pot
(10) Hotplate
(11) Mains cable including mains plug
(12) Water level indicator
(13) Control panel
(14) Water tank lid
(15) Filter compartment lid

Safety

Intended use

You can prepare coffee in ordinary domestic quantities using this coffee machine. Use the size 4 fl Iters which are available from shops. The coffee machine is designed for use in private households and is not designed for commercial use or multiple use (e.g.: use by several parties in a block of flats).

Only use the coffee machine as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.

Explanation of terms

The following symbols can be found in this user manual.

WARNING

This symbol indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION

This symbol indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This symbol warns against possible damage to property.

This symbol refers to useful additional information.

Safety notices

In this chapter you will find general safety instructions which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters on operation, cleaning, etc.

WARNING

Risks in handling household electrical appliances

Risk of electric shock! Touching live parts may result in severe injury or death.

■ Prior to each use, check whether the articles or the mains connection show signs of damage. If this is the case, do not switch the appliance on, instead you should inform our customer service department (see page GB-23).
■ Only connect the appliance if the socket voltage matches the requirements indicated on the type plate.
■ The appliance corresponds to protection class I and

may only be connected to a plug with a protective conductor that has been properly installed. Do not connect to a multiple socket outlet, power strip, timer or to a separate remote-controlled system for distance monitoring and control.

■ The AN/AUS switch does not disconnect the appliance from the mains. The appliance must therefore be connected to an easily accessible socket so that it can be quickly disconnected from the power supply in the event of breakdown.
- Do not operate or continue to operate the appliance, - if it shows signs of visible damage, e.g. the mains cable is defective. - if it starts smoking or there is a smell of burning. - it makes unfamiliar noises.

In this case pull the mains plug out of the socket and inform our service department (see page GB-23).

■ If the mains cable of the appliance is damaged, the manufacturer, its custom-

er service team or a person with similar qualifications must replace it.

■ Investigations and repairs to the appliance may only be carried out by authorised specialists, such as our service department (see page GB-23). Unauthorised repairs to the appliance can cause property damage and personal injury, and invalidate liability and warranty claims.

■ Never open the housing.
■ Do not attempt to repair an appliance which is defective or supposed to be defective.
■ Only parts corresponding to the original appliance specifications may be used for repairs.

This appliance contains electrical and mechanical parts which are essential for protection against po- tential sources of danger.

■ Always pull the mains plug out of the socket if the appliance is faulty and when cleaning or maintaining the socket.
■ Make sure that children do not insert any objects into the appliance.

• Keep the appliance, the mains plug and the mains cord away from open flames and hot surfaces.
  ■ Do not kink or pinch the mains cable or lay it over sharp edges.
  ■ Never pull the mains plug out of the socket by the mains cord, always hold the mains plug itself.
  ■ Never use the mains cable as a carrying handle.
  ■ Never touch the mains plug with wet hands.
  ■ Take care to prevent the risk of tripping when laying the mains cord.
  ■ Never immerse the appliance in water.
  ■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
  ■ Never store the appliance in such a way that it can fall into a bathtub or sink.
  ■ Never touch an electrical appliance if it has fallen into water. In such a case, immediately unplug the mains plug from the socket.
  ■ Do not immerse the appliance or the mains cable or mains plug in water or other liquids.

■ Thoroughly dry all parts after cleaning.

Risks in handling household appliances which heat up

Fire hazard!

The appliance will become hot during operation. Flammable objects placed close to the appliance may ignite easily.

■ Do not place objects near to flammable objects such as curtains.
■ Never place the appliance near to hot surfaces, such as hotplates, ovens etc.
■ Do not store objects on the hotplates or the appliance whilst the device is in operation.
■ Do not cover the appliance, e.g. with cloths or other items.

Risks caused by hot liquid and steam

Risk of scalding!

When the coffee machine is in use, hot steam will come out of it which will lead to scalding if it comes into contact with unprotected skin. Hot coffee can cause scalding in the mouth or the oesophagus and on unprotected skin.

■ Drink freshly brewed coffee with care.
■ Avoid any contact with the hot steam while the coffee is brewing, when refi lling the water tank and when the lid is open.
■ Do not fi ll the water tank past the MAX fi ll level mark.
■ Ensure that the lid is closed during operation.

When fi lling the appliance with fresh water, hot steam may come out of the water outlet shortly after the brewing process.

■ If several consecutive brewing processes are required, switch the coffee machine off after every brewing process and allow it to cool for approx. 5 minutes.

If the appliance falls down, contact with hot coffee can lead to scalding.

■ Do not position the appliance on the edge of the worktop.
■ Do not allow the network cable to hang over the edge of the worktop.

Health hazard

Improper use of the appli- ance may lead to damage to health.

■ During first use, after decalcification and after having not used the device for a prolonged period of time, allow a full tank of water to percolate through the appliance and throw it away.

Risks to children

Risk of suffocation!

Children can become entangled in the packaging fi lm and suffocate.

■ Do not allow children to play with the packaging fi lm.

CAUTION

Risks for certain groups of people

Danger to children and people with impaired physical, sensory or mental abilities! Such persons often fail to recognise risks or underestimate them.

■ This appliance may be used by children aged eight years and above, as well as persons with reduced physical, sensory or mental capacities or those lacking experience and/or knowledge, if they are supervised or have been instructed in how to safely use the appliance and have understood the dangers associated with operating it.

■ Children must not be allowed to play with the appliance.
■ The appliance and its connector cable must be kept away from children under 8 years of age.
■ Do not leave the appliance unsupervised while in operation.
■ Cleaning and user maintenance may not be per-

formed by children unless they are at least eight years old and under supervision.

Risks in handling coffee machines

Risk of burns!

The glass jug and the hot-plate become hot during operation and may cause burns if contact with the skin occurs.

The hotplate will remain hot for some time after switching off.

■ Only touch the glass jug by the handle.
■ Do not touch the hotplate when hot and do not touch underneath the filter.
■ Allow the appliance to cool completely prior to cleaning it.

! NOTICE

Risk of damage!

Improper handling of the appliance may cause it to become damaged.

■ Only use pure ground coffee. Water-soluble or freeze-dried instant products and other drink powders are unsuitable.
■ Never expose the appliance to high temperatures (heaters etc.) or to the effects of the weather (rain etc.).

■ Do not expose the appliance to temperatures below 0 °C for prolonged periods. Residual water that may have frozen could damage the appliance.

■ Only use the appliance if it is on a level, stable and non-sensitive surface.

■ Do not operate the appliance when empty.

■ Only fi ll it with fresh, cold drinking water; do not add other liquids to the water tank.

■ Please keep in mind that the surface coatings of furniture sometimes contain chemical additives that may corrode the rub-

ber feet of the appliances. This may cause residue to accumulate on the surface of the furniture. You should therefore place a heat- and water-resistant layer underneath the appliance.

■ Do not set up the appliance under kitchen cupboards or similar. They could be damaged by the steam that is emitted.
■ Do not use sharp objects to unpack the appliance.
■ Never immerse the appliance in water in order to clean it.
■ Never place the appliance or individual parts in a dishwasher.
■ Do not use a steam cleaner to clean it. This can cause short-circuiting and damage the appliance.
■ Do not use any solvent-based, abrasive or scouring cleaners (e.g. oven cleaners or grill sprays) or cleaning utensils (e.g. scouring pads or similar). They could damage the surfaces.

Start-up

Unpack the appliance

NOTICE

Risk of damage!

Improper handling of the appliance may cause it to become damaged.

■ Do not use sharp objects to unpack the appliance.

1. Unpack the coffee machine.
2. Carefully remove all parts of the packaging, plastic profiles, tape and foam padding.

Choose a suitable location

Place the coffee machine

– on a solid, level, water-resistant and non-sensitive surface;
– not underneath an overhanging cupboard;
- in such a way that there is space above to open the filter compartment lid (15);
– in such a way that there is free space of at least 3 cm between the coffee machine and the adjacent areas to the side and the rear;

• not upon or next to an oven, another heat source or near to a sink;
  – in such a way that it is out of the reach of children.

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ When laying out the mains cable, ensure that it cannot become damaged by sharp edges or through contact with hot surfaces (e.g. electrical hobs).

Assembling the device

(15) (9)

1. Clean the housing after un- packing with a slightly damp cloth and wash the coffee pot (9) with soapy water.

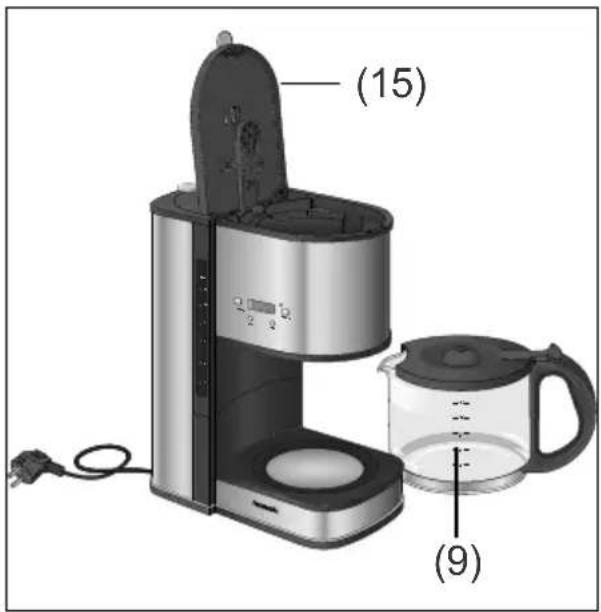

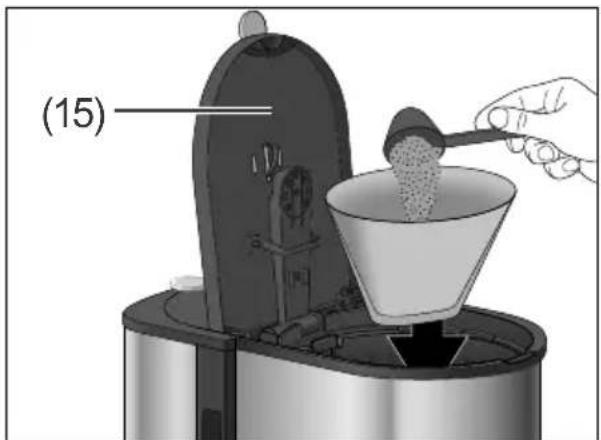

2. Open the filter compartment lid (15).

Mechanical device with a bucket and handle, showing internal components and motion arrows (no text or symbols)

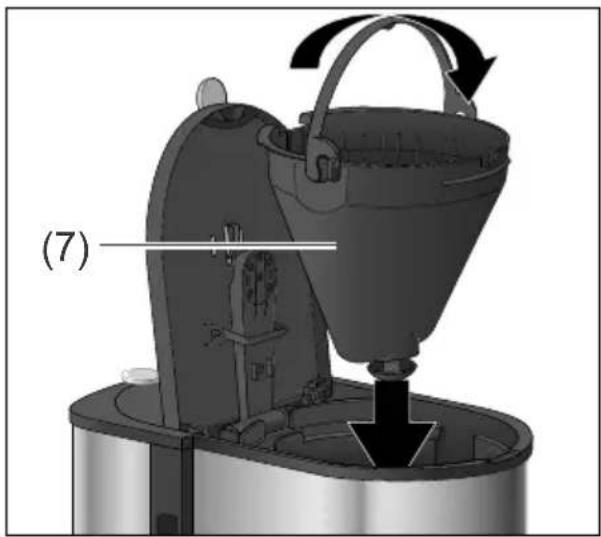

1. Replace the filter holder (7). Ensure that the handle is tipped forward so that it locks correctly.
2. Insert a coffee filter. We recommend that you use size 4

paper coffee filters which are available in shops.

00:00 PROG STD MIN AN/AUS

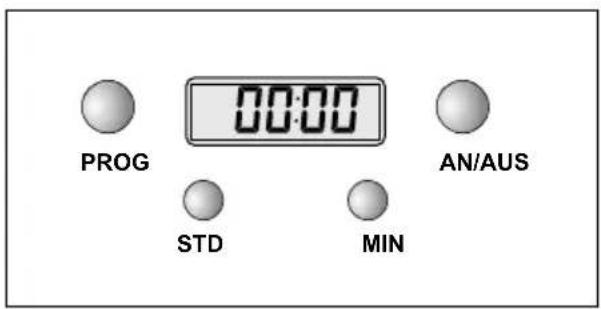

1. Insert the mains plug in an easily accessible protective-contact socket. ☐☐☐☐ will flash on the display. The appliance is in standby mode.

Empty cycle

During first use, after decalcification and if you have not used the appliance for a prolonged period of time, fill the water tank (without coffee) and run the machine for a full empty cycle.

CAUTION

Risk of scalding! When the coffee machine is in use, hot steam will come out of it which will lead to scalding if it comes into contact with unprotected skin.

■ Do not open the lid during operation.

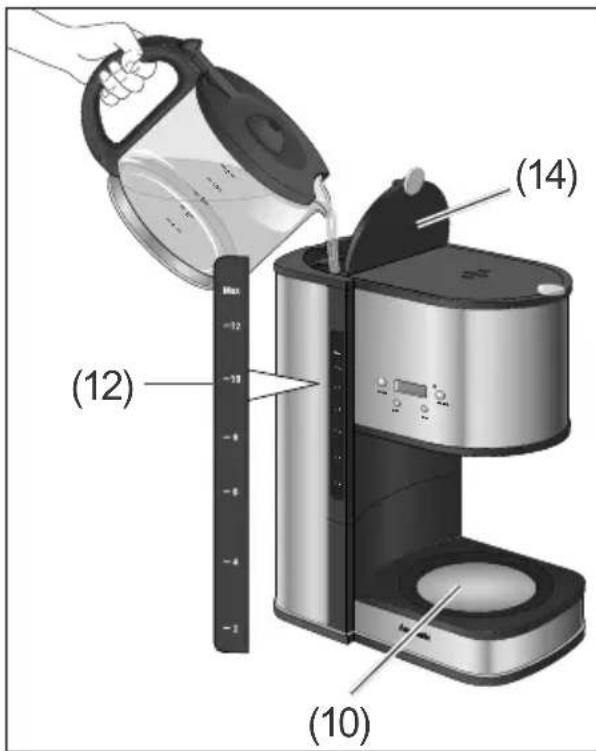

(10) (12) (14)

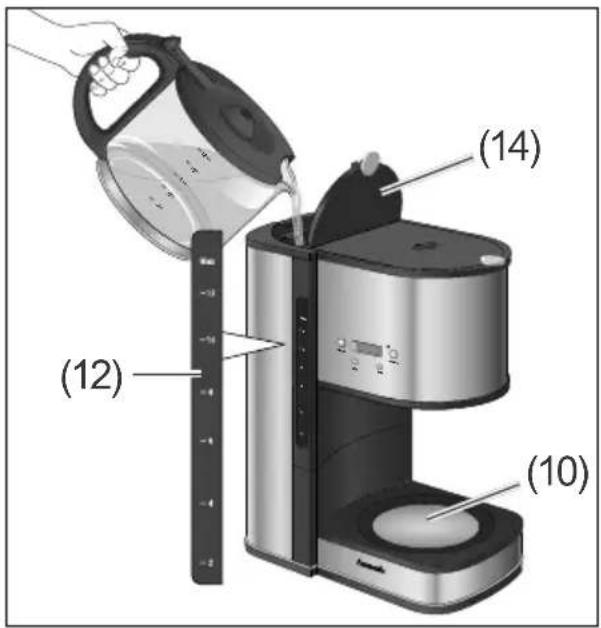

1. Fill the coffee pot with fresh, cold tap water.
2. Open the water tank lid (14) and pour the water out of the coffee pot into the water tank up to the MAX mark on the water level indicator (12). Dry the coffee pot from the outside and reposition it on the hotplate (10).

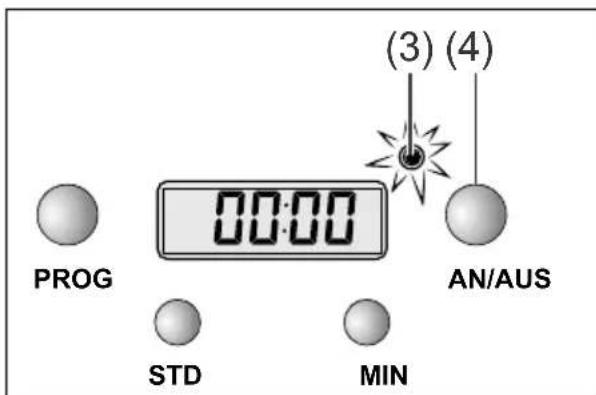

PROG 00:00 STD MIN (3) (4) AN/AUS

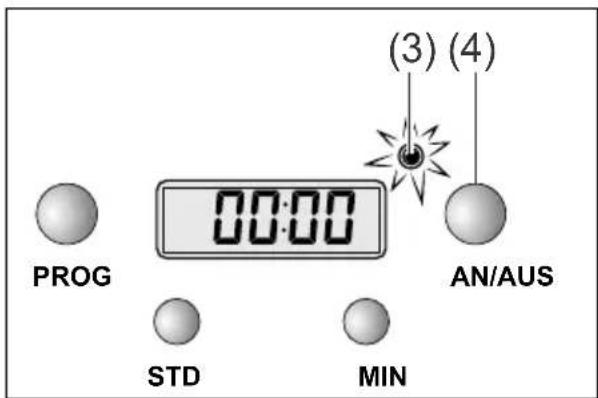

1. Press the AN/AUS button (4) twice.

The control light (3) is illuminated in red and the water will begin to percolate through.

1. Once the water has percolated through, press the button (4) once again to switch off the appliance.
   The control light will go out.
   Your coffee machine is now ready for use.

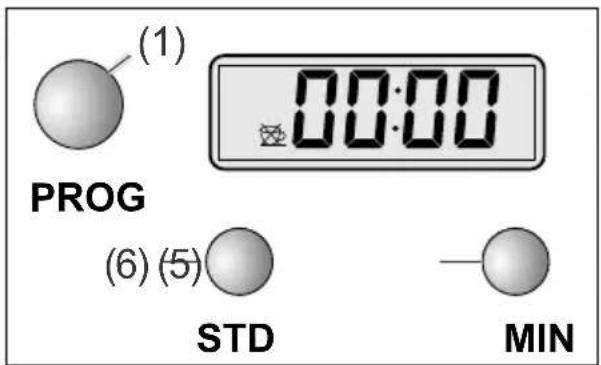

Setting the time

If you wish to use the appliance as a clock or use the “start time delay” function, you must set the time.

If you are connecting the device to the power supply for the first time or if the appliance was disconnected from the network, □□:□□ will flash in the display.

(2) (3) (4)(1) PROG 00:00 AN/AUS STD MIN (5)(6)

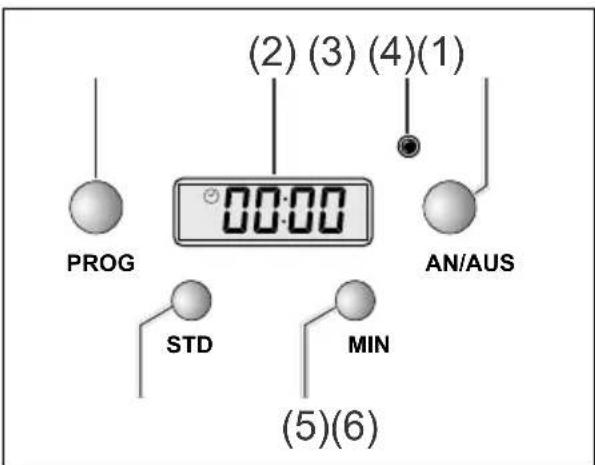

1. Push the AN/AUS button (4) as often as required until the control light (3) is no longer flashing.

2. Press the PROG button (1) once. A clock symbol Ⓤwill flash in the display.

3. Set the current time with the buttons STD (hours) (6) and MIN (minutes) (5). If you hold the button pressed in, the display will change more quickly.
4. Around 5 seconds after you last press the button, the setting will be saved.

Operation

CAUTION

Risk of scalding!

When the coffee machine is in use, hot steam will be created which can scald the skin if unprotected.

■ Avoid contact with the hot steam. Avoid any contact with the hot steam while cooking, when refi lling the water tank and when the lid is open.
■ Do not touch the lid during operation.

When fi lling the appliance with fresh water, hot steam may come out of the water outlet shortly after the brewing process.

■ If several consecutive brewing processes are required, switch the coffee machine off after every brewing process and allow it to cool for approx. 5 minutes.

Risk of burns!

The glass pot and the hot-plate become hot during operation and may cause burns if touched.

The hotplate will still remain hot for some time after switching it off.

■ Only hold the glass pot by the handle.
■ Do not touch the hotplate when it is hot and do not reach underneath the filter.

Hot coffee can cause scalding in the mouth or the oesophagus and on unprotected skin.

■ Drink freshly brewed coffee with care.

NOTICE

Improper use of the appli- ance can lead to damage to the appliance.

■ Only fi ll it with fresh, cold drinking water; do not add other liquids to the water tank.
■ Do not exceed the maximum fi ll level.

Brew the coffee

(15)

1. Open the filter compartment lid (15).
2. Insert a size 4 paper filter and add the required quantity of ground coffee to the filter. We recommend one teaspoon of medium- to fine-ground coffee for each normal sized cup (approx. 125 ml). For larger cups, please use a heaped teaspoon.

(12) (14) (10)

1. Open the water tank lid (14).

2. Add the correct quantity of fresh, cold tap water to the water tank.

There is a scale on the water tank and on the pot to measure the quantity of fresh water. This applies for normal-sized cups of approx. 125 ml.

Never add more water than up to the upper MAX mark.

1. Close the water tank lid.

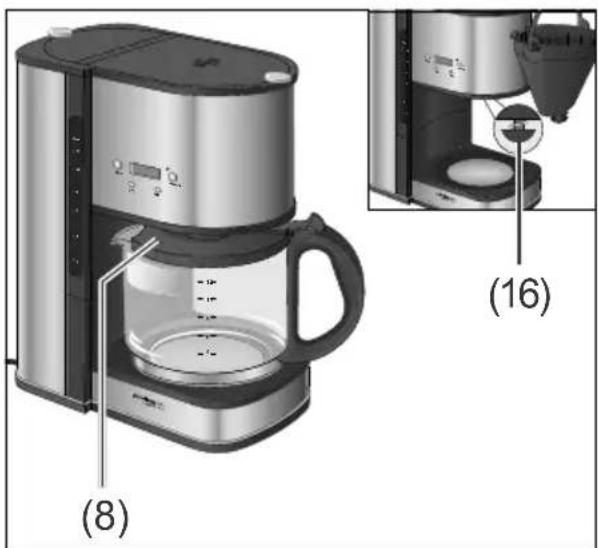

(8) (16)

1. Place the coffee pot on the hotplate. Ensure that the pot is correctly positioned so that the flavour protection lid (8) pushes the drip protector (16) up into the filter holder.

PROG 00:00 STD MIN (3) (4) AN/AUS

1. Press the AN/AUS button (4). The control light (3) will be illuminated in red and the brewing process will begin.
2. If no more coffee drips out, the brewing process has finished. You can now take out the coffee pot and pour the coffee.
3. If you want to keep the rest of the coffee warm, place the coffee pot back on the hot-plate without switching off the coffee machine.
4. To switch the appliance off, press the AN/AUS button (4). The control light (3) will go off.

If you do not switch off your coffee machine, it will automatically switch off after 40 minutes.

Start time delay

If you want the brewing process to begin at a certain time, use the start time delay.

Requirements:

• The current time has been set (see „Setting the time“ on page GB-14).
• The appliance is in standby mode (the display lights up, the control light (3) does not).

Enter the start time

(1) PROG (6) (5) STD MIN

1. Press the PROG button (1) twice.
   In the display, the cup symbol will flash.

2. Set the desired start time with the buttons STD (hours) (6) and MIN (minutes) (5).

Around 5 seconds after you last press the button, the setting will be saved.

The control light (3) will be illuminated in blue; the start time delay has now been activated.

If you disconnect the coffee machine from the network, the activation and setting of the start time delay will be deleted.

Automatic switch-off function

The appliance and the hotplate will normally switch off after 40 minutes automatically. To save energy, you can set an earlier switch-off time for the hotplate (can be set from 1 to 40 minutes). This setting is not saved, but the process must be repeated every time the coffee machine is switched on.

(1) PROG (6) (5) STD MIN

1. Switch the coffee machine on or off using the AN/AUS button (4).

The control light (3) is illuminated in red.

1. Press the PROG button (1) twice.

On the display the cup symbol is flashing.

1. Set the desired keep-warm time with the MIN button (5).

Around 5 seconds after you last press the button, the standard display will once again appear.

The cup symbol will no longer flash.

1. Once the keep-warm time has elapsed the control light will go out (3). The appliance will go back into standby mode.

Drip protection

(16)

Your coffee machine is equipped with a drip protector (16) which seals the filter outlet as soon as you take away the coffee pot. This means that no coffee will run out onto the hotplate.

Only remove the coffee pot for a short time, as hot water will continue to run into the filter and can cause it to overflow.

Cleaning and maintenance

Cleaning the coffee machine

WARNING

Risk of electric shock! Improper handling of the appliance can lead to serious injuries or to death.

■ Before cleaning and maintenance, pull the mains plug out of the socket.
■ Never immerse the appliance in water in order to clean it.
■ Do not use a steam cleaner to clean it.

CAUTION

Risk of burns!

The appliance will become hot during operation. Touching the hot appliance can lead to burns.

■ Allow the appliance to cool completely prior to cleaning it.

NOTICE

Risk of damage!

Improper cleaning can cause short-circuiting and damage the device.

■ Never place the appliance in a dishwasher.

Improper use of cleaning products or cleaning utensils can scratch or chemically damage the surface.

■ Do not use any solvent-based, abrasive or scouring cleaners or cleaning utensils (e.g. oven spray or grill spray) or cleaning utensils such as scouring pads or similar.

■ Do not use any abrasive cleaners (scouring or thinning agents) to clean the appliance.

1. Disconnect the mains plug from the socket.
2. Allow the appliance to cool off completely.
3. Wipe the appliance surface with a slightly moistened towel. Use a small amount of washing-up liquid to remove stub-

born dirt. Make sure that the control panel does not become wet.

1. Wash the coffee pot in normal soapy water or put it in the dishwasher. Frequent washing in the dishwasher can bleach the plastic.
2. Thoroughly dry all parts after cleaning.

Decalcifying the coffee machine

Depending on the degree of hardness of the water, calcium deposits can build up inside the coffee machine. It is necessary to decalcify the machine if the brewing process takes longer or if sounds are heard during the brewing process.

1. Mix 2-3 tablespoons of vinegar essence with the maximum quantity of cold water.
2. Pour the mixture into the water tank.
3. Switch the appliance on. The water-vinegar mixture will run through and decalcify the brewing system.

4. Tip the mixture away after it has percolated through the coffee machine.

5. To rinse the appliance through, allow at least the maximum quantity of clean water to run through the machine.

6. Repeat the decalcification process if required.

Troubleshooting table

Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, please check the tables to see if you can correct the malfunction.

WARNING

Risk of electric shock in case of improper repair! Never try to repair a defective or suspected defective appliance yourself. You can put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.

Problem Possible	cause Solutions, tips
The coffee machine does not work.	The AN/AUS switch has not been activated.	Switch the appliance on.
	Mains plug is loose.	Check that the mains plug is firmly inserted into the socket.
	The socket is defective.	Test the appliance with another socket.
		Checking the fuses.
The brewing process does not start as planned.	The start time delay has been activated but the time has been incorrectly set.	Set the time (see „Setting the time“ on page GB-14).

Service

In order for us to help you quickly, please tell us:

Name of appliance Model Order	number
hanseatic Coffee machine CM2	065S 77870106

Advice, order and complaint

Please contact your mail order company's customer service centre if

– the delivery is incomplete,
– the appliance is damaged during transport,
– you have questions about your appliance,
- a fault cannot be rectified using the troubleshooting table,
– you would like to order further accessories.

Spare parts

Customers in Germany

- Please contact the company Hermes Fulfilment GmbH:

– Tel. [phone]

Mon-Thurs 8 am to 3 pm, Friday 8 am to 2 pm

Customers in Austria

- Please contact your mail order company's customer service centre or product advice centre.

Please note:

You are responsible for the condition of the appliance and its proper use in the household. Damage resulting from non-compliance with this manual unfortunately cannot be recognised.

Environmental protection

Disposing of old electrical devices in an environmentally-friendly manner

Electrical appliances contain harmful substances as well as valuable resources.

Every consumer is therefore required by law to dispose of old electrical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Please contact your dealer directly for more information about this topic.

Packaging

Our packaging is made of environmentally-friendly, recyclable materials:

– Outer packaging made of cardboard
- Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of poly-ethylene (PE)
– Tension bands made of polypropylene (PP).

If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Technical specifications

Brand	hanseatic
Name of appliance Coffee machine
Model	CM2065S
Power consumption 915-1080 W
Supply voltage 220–240 V~ / 50 Hz
Protection class I
Capacity 1.5 l
Cable length 87 cm
Weight (without water) 2.25 kg
Order number	77870106
