| Product type | Coffee maker |
| Brand | Hanseatic |
| Model | HCM125900WD |
| Color | White |
| Power supply | 220–240 V~, 50–60 Hz, 1000 W |
| Protection class | I |
| Water tank capacity | 1.25 L |
| Maximum fill | 10 cups (approx. 125 ml per cup) |
| Auto shut-off | After 40 minutes of inactivity |
| Power cord length | Approx. 85 cm |
| Net weight | 1.57 kg |
| Filter type | Size 4 paper filter |
| Jug material | Glass with plastic lid |
| Control | On/Off button with red indicator |
| Intended use | Domestic, preparing normal household quantities of coffee |
| Maintenance | Regular cleaning and descaling required |
| Spare parts availability | Minimum 7 years after last model version |
| Safety features | Hot surface warning, automatic shut-off, non-immersible |
Frequently Asked Questions - HCM125900WD Hanseatic
User questions about HCM125900WD Hanseatic
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Coffee maker in PDF format for free! Find your manual HCM125900WD - Hanseatic and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HCM125900WD by Hanseatic.
USER MANUAL HCM125900WD Hanseatic
Kaffeemaschine
Inhaltsverzeichnis
WARNUNG
Stromschlaggefahr!
Line drawing of a coffee maker with a funnel and lid, labeled (2), showing no text or symbols on the device itself.natural_image
Line drawing of a modern coffee maker with water filter and control panel (no text or symbols)User manual
Coffee machine
Table of contents
Explanation of terms and symbols .....EN-3
Explanation of terms .....EN-3
Explanation of symbols....EN-3
Safety .EN-4
Intended use ....EN-4
Safety notices .....EN-4
Appliance parts and control elements .....EN-8
Delivery....EN-9
Package contents .....EN-9
Check package contents .....EN-9
Preparation.... EN-10
Before getting started ..... EN-10
Suitable location EN-10
Cleaning before use ..... EN-10
Full empty cycle....EN-11
Instant emergency shut-off ..... EN-12
Making coffee ..... EN-13
Interrupting brewing ..... EN-14
Cleaning and descaling ..... EN-15
Cleaning the appliance ..... EN-16
Descaling the appliance ..... EN-16
Service EN-17
Advice, complaints and orders ..... EN-17
Repairs and spare parts ..... EN-17
Waste prevention, free return
and disposal......EN-18
Waste prevention EN-18
Free return of old
electrical appliances..... EN-18
Disposal EN-18
Packaging EN-19
Technical specifications ..... EN-20

Please read through the safety instructions and user manual carefully before using the appli-
ance. This is the only way you can use all the functions safely and reliably
Be absolutely sure to also observe the national regulations in your country, which are also valid in addition to the regulations specified in this user manual.
Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the appliance.
Explanation of terms and symbols
Explanation of terms
The following signal terms can be found in this user manual.

WARNING
This signal term indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION
This signal term indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE
This signal term warns against possible damage to property.
Explanation of symbols
The following symbols can be found in this user manual and/or on the product.

This symbol warns of a hot surface.

This symbol refers to useful additional information.
Safety
Intended use
The appliance is designed for preparing normal household quantities of coffee.
The appliance is intended solely for domestic use.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Use the appliance only as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.
Safety notices
In this chapter you will find general safety notices which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters on operation, cleaning, etc.
Risks to children and certain groups of people

WARNING
Risk of suffocation for children!
Children can become entangled in the packaging film and suffocate.
■ Do not allow children to play with the packaging fi lm.

WARNING
Risk of scalding!
If the mains cord is within reach of young children, they could pull down the appliance and suffer serious scalding.
■ Set up the appliance so that neither the appliance nor the mains cord can be reached by young children.

CAUTION
Risk of injury!
Children and certain groups of people have a higher risk of being injured when handling the appliance.
■ Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
■ This appliance can be used by children aged from 8 years and above if they have been given supervision concerning use of the appliance in a safe way and if they understand the hazards involved.
■ Children shall not play with the appliance.
■ Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
- Keep the appliance and its cord out of reach of children aged less than 8 years.
Risks in handling household electrical appliances

WARNING
Risk of electric shock!
Touching live parts may result in severe injury or death.
■ Connect the appliance only if the socket voltage matches the requirements indicated on the type plate.
■ Do not connect the appliance to a multi-socket extension cable or a multi-socket plug.
■ Do not operate the appliance with an external timer or a separate remote control system.
■ Connect the appliance only to a properly installed and earthed electric socket.
■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
■ Do not operate or continue to operate the appliance, if it
– shows visible signs of damage, e.g. the supply cord is defective.
- starts smoking or there is a smell of burning.
- makes unfamiliar noises.
In this case, pull the mains plug out of the socket and contact our service department (see "Service" on page EN-17).
■ This appliance can only be completely disconnected from the mains by pulling out the mains plug. The appliance must therefore be connected to an easily accessible socket so that it can be quickly disconnected from the power supply in the event of fault.
- Keep the appliance, mains plug and mains cord away from naked fl ames and hot surfaces.
■ Do not kink or pinch the mains cord or lay it over sharp edges.
■ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
■ Always take hold of the mains plug itself, not the mains cord. Never touch the mains plug with wet hands.
■ Switch off the appliance and unplug it from the mains when not in use, in the event of a fault, and before cleaning or maintenance.
■ Inspections and repairs to the appliance may only be carried out by authorised specialists. Independent repairs made to the appliance may cause damage to property and personal injury and void liability and warranty claims.
■ Never try to repair the appliance yourself.
■ Never open the housing.
■ Only parts corresponding to the original appliance specifications may be used for repairs.
Water that has seeped inside may cause a short circuit or electrocution.
■ Note that the appliance may not be immersed in water.
■ Switch off the appliance and pull the mains plug out of the socket before cleaning.
■ Do not set up the appliance near taps or sinks.
■ Do not put the appliance or individual parts of the appliance in a dishwasher.
■ Do not use a steam cleaner to clean it.
Risks in handling coffee machines

WARNING
Fire hazard!
Improper use of the coffee maker can cause fires.
■ Do not heat the jug in a microwave or oven.

CAUTION
Health hazard!
Failure to clean the appliance can cause damage to health, as can improper use of ingredients or cleaners and descaling agents.
■ Fill the water tank with fresh water only; never use hot water or other liquids such as carbonated mineral water or milk.
- Keep the appliance and individual parts clean at all times.
■ Clean the appliance regularly (see "Full empty cycle" on page EN-11).
■ Follow manufacturer instructions on cleaners and descaling agents.

CAUTION
Risk of scalding!
When the coffee machine is in use, hot steam will come out of it which will lead to scalding if it comes into contact with unprotected skin.
■ Do not leave the lid open during operation.
■ Do not touch the lid or reach just above it during operation.
■ Avoid all contact with hot liquid.
Filling the appliance with fresh water shortly after brewing may produce a burst of hot steam.
■ If several brewing processes are required, switch off the coffee machine after each brewing process and allow it to cool for approx. 5 minutes.
Hot coffee can cause scalding in the mouth or the oesophagus and on unprotected skin.
■ Drink freshly brewed coffee with care.

CAUTION
Risk of burns!
The heating element surface becomes very hot during operation and can cause burns if touched. The heating element surface is subject to residual heat after use.
■ Only hold the jug by the handle.
■ Do not touch the hotplate when it is hot.
■ Do not reach under the filter.
■ Allow the appliance to cool completely prior to cleaning it.
■ Do not place any objects on the hot-plate except the jug.

NOTICE
Risk of damage to property!
Improper handling of the appliance can lead to damage.
■ Never expose the appliance to temperatures below 0 °C. Residual water that may have frozen could damage the appliance.
If the appliance is used at temperatures of less than +5 °C and over +40 °C it may lead to faults in the electronics.
■ Use the appliance only if it is standing on a level, stable and non-sensitive surface.
■ Never operate the appliance when empty.
■ Only use the jug supplied.
■ Never exceed maximum fi ll level.
■ Make sure that the fi lter is fi lled with pure ground coffee only and with no other substances, such as water-soluble or freeze-dried instant products, other drink powders or foreign bodies.
- Do not use any solvent, caustic or abrasive cleaning products (e.g. oven or grill spray) or cleaning utensils (e.g. scouring pads) to clean the appliance.
■ Note that the coffee-maker shall not be placed in a cabinet when in use (see "Suitable location" on page EN-10).
Surface coatings on furniture sometimes contain chemical additives that can eat away at the rubber feet of the appliance. This may cause residue to accumulate on the surface of the furniture.
■ Place a heat-resistant, waterproof and non-slip pad underneath the appliance if it is stood on sensitive furniture.

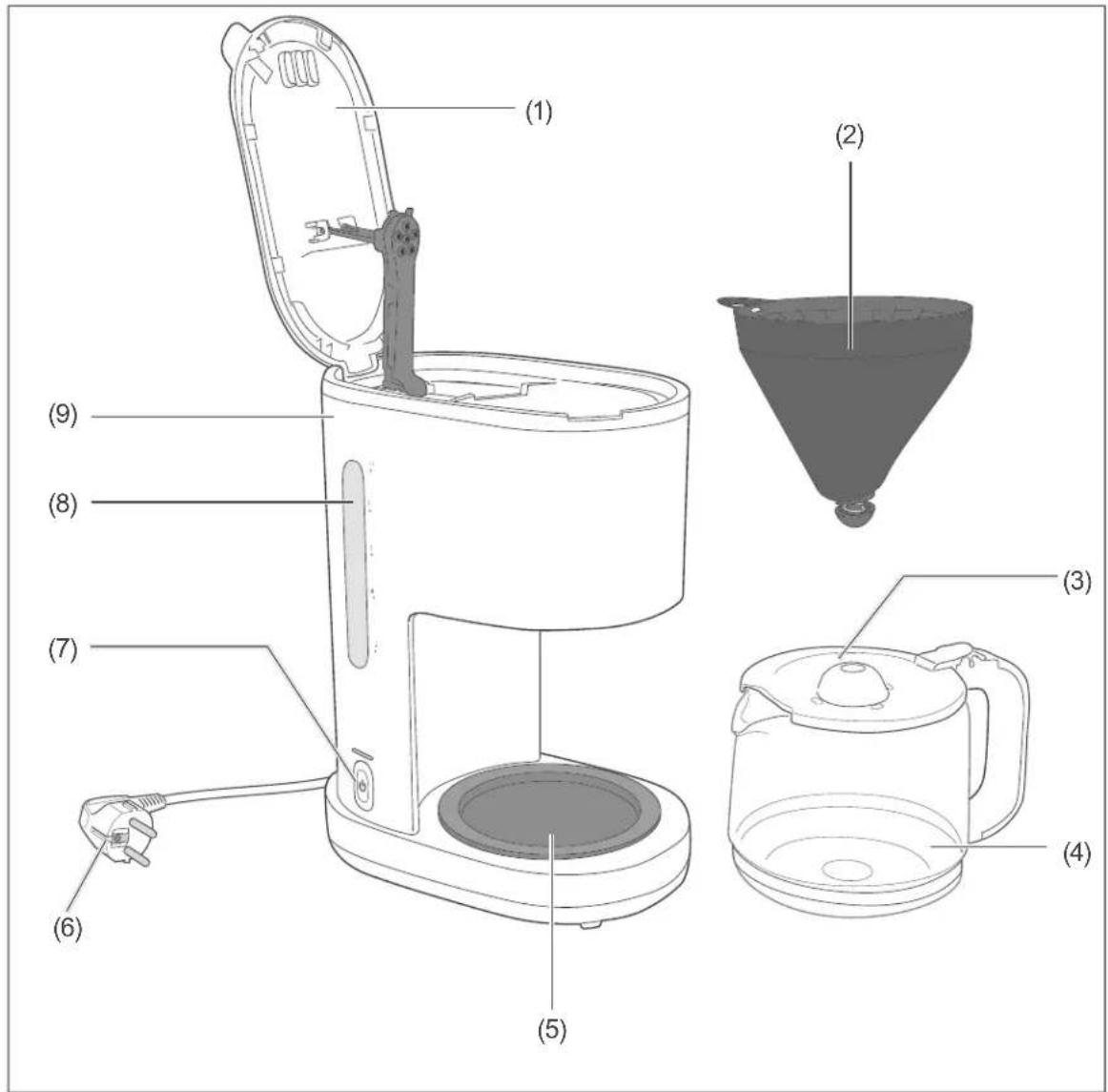

Appliance parts and control elements

(1) Water tank lid
(2) Filter basket
(3) Jug lid
(4) Jug
(5) Hotplate
(6) Mains plug and cord

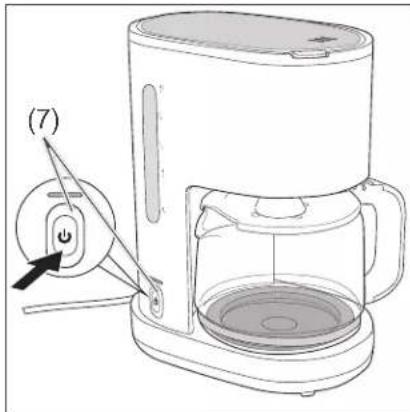

(7) On/Off button

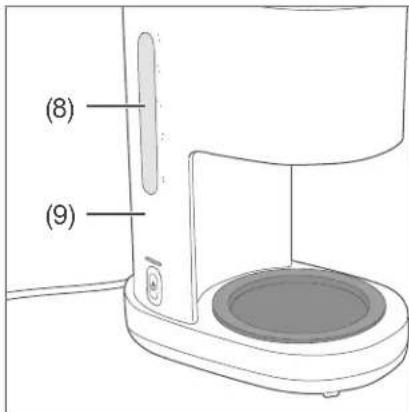

(8) Water level indicator
(9) Water tank

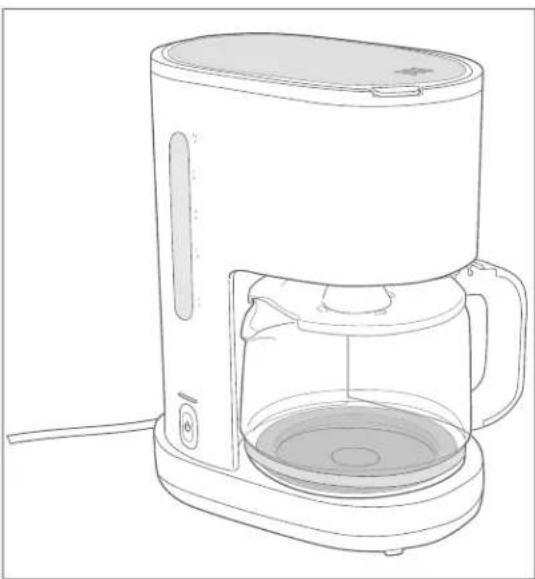

Delivery
WARNING
Risk of electric shock!
Touching live parts may result in severe injury or death.
■ Never use a damaged appliance.
Package contents
- Coffee machine
- Jser manual
Check package contents
- Jnpack the appliance.
- Check that the delivery is complete.
- Check whether the appliance was damaged during transit.
- f the delivery is incomplete or the appliance has been damaged during transit, please contact our service department (see "Service" on page EN-17).
Preparation
Before getting started
- Read chapter "Safety" on page EN-4, in particular the safety instructions.
Suitablelocation
- Position the appliance on a firm, level, dry, waterproof and durable surface.
- Place the appliance so that it and the mains cord are inaccessible to young children.
- Do not set up the appliance directly beside a cooker or other heat source.
- Leave at least 3 cm of space next to and behind the appliance and at least 15 cm of space above the appliance as it releases heat into the environment.
- Do not set up the appliance directly below kitchen wall units because steam is emitted from the top.
- Do not place the appliance near water taps or sinks, as water may get into the housing and damage the appliance.
- Lay out the mains cord so that it will not be damaged by sharp edges or by coming into contact with hot surfaces, e.g. electric hobs.
- Position the appliance in an area which is protected from frost. The appliance could be damaged if the water inside it freezes.
Cleaning before use
- Remove all pieces of packaging from the appliance.


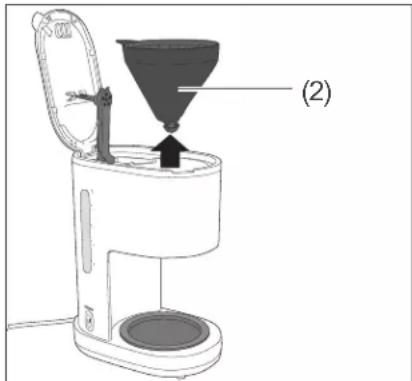

- Remove the filter basket (2) and clean it with washing-up water.
- Clean the jug (4) and the jug lid (3) as well with water.
- Dry all parts carefully.
Full empty cycle
- Before first use, after descaling and if you have not used the appliance for a prolonged period of time, fill the water tank completely (without coffee) and allow machine to run through 1–2 times and then tip the water away.
CAUTION
Risk of scalding!
When the coffee machine is in use, hot steam will come out of it which will lead to scalding if it comes into contact with unprotected skin.
■ Do not leave the lid open during operation.
■ Do not touch the lid or reach just above it during operation.
■ Avoid all contact with hot liquid.
CAUTION
Risk of burns!
The heating element surface becomes very hot during operation and can cause burns if touched. The heating element is subject to residual heat after use.
■ Only hold the jug by the handle.
■ Do not touch the hotplate when it is hot.
■ Do not place any objects on the hot-plate except the jug.

You will find this symbol on the hot-plate. It warns of a hot surface.

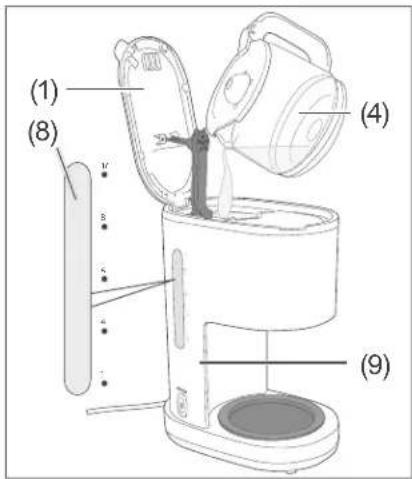

- Open the water tank lid (1).
- Fill the jug (4) with fresh, cold tap water.
- Pour the water out of the jug (4) into the water tank (9) up to the 10 mark on the water level indicator (8).

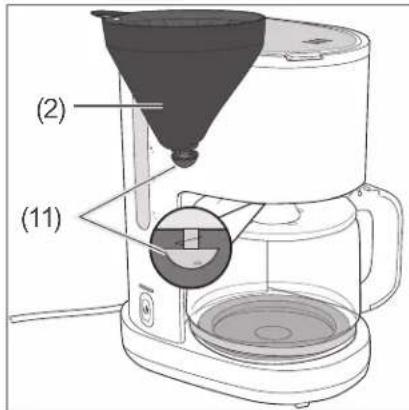

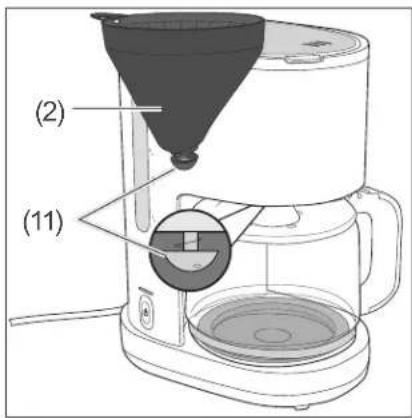

- Insert the filter basket (2) into the appliance.

- Place the jug (4) on the hotplate (5) so that the jug lid (3) pushes the drip guard (11) on the filter basket (2) upwards.

-
Close the water tank lid (1). It must click audibly into place.
-
Insert the mains plug (6) into a properly installed and easily accessible socket.

-
Press the On/Off button (7) to switch on. The On/Off button (7) lights up red. Brewing begins.
-
Once the water has percolated through, press the On/Off switch (7) again to switch off the appliance. The light on the button goes out.
-
Take out the filled jug and pour away the water.
-
Repeat the process 1–2 more times, allowing the coffee machine to cool for 5 minutes each time.
-
Pull the mains plug (6) out of the socket when you are not using the appliance.
Instant emergency shut-off
- Press the On/Off button (7), and pull the mains plug (6) out of the socket to switch off the appliance in an emergency.
Making coffee

CAUTION
Risk of scalding!
When the coffee machine is in use, hot steam will come out of it which will lead to scalding if it comes into contact with unprotected skin.
■ Do not leave the lid open during operation.
■ Do not touch the lid or reach just above it during operation.
■ Avoid all contact with hot liquid.

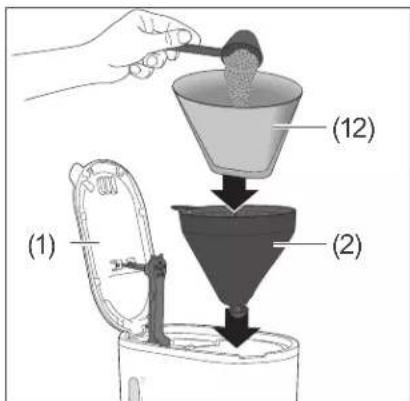

- Open the water tank lid (1).
- Insert the filter basket (2).
- Place a commercially available size 4 filter (12) into the filter basket (2).
- Add the desired quantity of ground coffee.

We recommend using one level coffee scoop of medium- to fine-ground coffee per normal sized cup (approx.
125 ml). For larger cups, please use a heaped scoop.


The water tank (9) has a water level indicator (8) to measure the quantity of fresh water. The numbers and are for normal-sized cups.
- Use the jug (4) to pour the correct quantity of fresh, cold tap water into the water tank (9).
Never fill more water than the top mark 10. - Close the jug (4) with the jug lid (3).
- Place the jug (4) on the hotplate (5).

- Make sure that the jug lid pushes the drip guard (11) on the filter basket (2) upwards.

-
Close the lid (1) of the water tank (9). It must click audibly into place.
-
Insert the mains plug (6) into a properly installed and easily accessible socket.

- Press the On/Off button (7) to switch on the appliance.
The On/Off button (7) lights up red. The water will be heated, the coffee will be brewed and will gradually flow into the pot. When the coffee stops flowing, the brewing process has finished.
- Switch off the appliance.

The appliance switches off automatically if left on for more than 40 minutes.
Interrupting brewing
- If you want to switch off the coffee machine off prematurely, press the On/Off button (7). The light on the button goes out.
Cleaning and descaling
The appliance should be cleaned and descaled regularly to prevent it from becoming damaged and to ensure your coffee has the best possible flavour.

WARNING
Risk of electric shock!
Water that has seeped inside may cause a short circuit or electrocution.
■ Never immerse the appliance, mains cord or plug in water or any other liquids.
■ Switch off the appliance and pull the mains plug out of the socket before cleaning.
■ Do not put the appliance or individual parts of the appliance in a dishwasher.
■ Do not use a steam cleaner to clean it.

CAUTION
Health hazard!
Failure to clean the appliance can cause damage to health, as can improper use of ingredients or cleaners and descaling agents.
■ Follow manufacturer instructions on cleaners and descaling agents.
■ Avoid contact with the descaler.
■ Do not ingest the descaler.
■ Do not mix the descaler with other cleaning agents and descalers or other chemicals.
■ Wash your hands after using the de-scaling agent.

CAUTION
Risk of corrosion!
If water-descaler mixture is poured in shortly after a brewing operation, hot steam may escape from the water spout and cause scalding and burns.
■ Allow the appliance to cool completely before cleaning and descaling.
Risk of scalding!
During descaling, hot steam is released, which can cause burns on unprotected skin.
■ Do not leave the lid open during operation.
■ Do not touch the lid or reach just above it during operation.
■ Avoid all contact with hot liquid.

NOTICE
Risk of damage to property!
Improper handling of the appliance can lead to damage.
■ Never immerse the appliance, mains cord or plug in water or any other liquids.
■ Do not put the appliance or individual parts of the appliance in a dishwasher.
■ Do not use a steam cleaner to clean it.
■ Do not use any solvent, caustic or abrasive cleaning products (e.g. oven or grill spray) or cleaning utensils (e.g. scouring pads) to clean the appliance.
■ Do not set up the appliance under kitchen cupboards. Maintain minimum distances around the appliance (see "Suitable location" on page EN-10).
Cleaning the appliance
- Make sure that the appliance mains plug is removed from the socket and that the appliance has cooled down completely.
- Wipe the appliance housing regularly with a damp cloth.
- Remove the filter basket (2) and the jug (4) with the jug lid (3) and clean them with washing-up water. Then dry the parts carefully.
- Rinse 1–2 times with the maximum amount of clear water.
Descaling the appliance
How often you need to descale the appliance will depend on your water hardness. More or less scale will form depending on how hard your water is.
Regular descaling will
– prolong the life of the appliance,
– ensure that it works properly,
– prevent excessive steam,
– shorten brewing times,
– save energy.
- Use 1 litre of descaling liquid according to manufacturer instructions.
- Make sure that the appliance mains plug (6) is removed from the socket and the appliance has cooled down completely.
- Pour the descaling liquid into the water tank (9) up to the 10 mark on the water level indicator (8).
- Insert the filter basket (2) (see "Full empty cycle" on page EN-11).
- Close the lid of the water tank (1). It must click audibly into place.
- Insert the mains plug (6) into a properly installed and easily accessible socket.
- Press the On/Off button (7) to switch on. The On/Off button (7) lights up red. Descaling begins.
- Pour the descaling liquid away after it has run through.
- Rinse 1–2 times with the maximum amount of clear water.
- Pull the mains plug (6) out of the socket when you are not using the appliance.
Service
Please note!
You are responsible for the condition of the appliance and its proper use in the household.
If you call out for customer service due to an operating error, you will incur charges, even during the guarantee/warranty period.
Damage resulting from non-compliance with this manual unfortunately cannot be recognised.
In order for us to help you quickly, please tell us:
| Name of appliance | Colour | Model | Order number |
| hanseatic Coffee machine | white | HCM125900WD | 25527702 |
Advice, complaints and orders
Please contact your mail order company's customer service centre if
– the delivery is incomplete,
– the appliance is damaged during transport,
– you have questions about your appliance,
- a malfunction cannot be rectified using the troubleshooting table,
– you would like to order further accessories.
You can find the contact details of your product advisor online on the service pages of your mail order company. The various sections of product advice are listed here.
Please have your appliance invoice ready.
For more information, visit www.hanseatic.de
Repairs and spare parts
You can prevent waste by having your defective appliances repaired. Please contact our Customer Service department.
Please have your appliance invoice ready (date of purchase and item no.).
Spare parts are available for a minimum period of seven years after the final version of the model has been placed on the market. Door seals are available for a period of ten years.
Customers in Germany
Place an order at https://reparaturauftrag.operatec.eu by E-mail: otto@operatec.de Phone +49 (0) 40 36 03 31 50
Customers in Austria
Please contact your mail order company's customer service centre or product advice centre.
Waste prevention, free return and disposal
Waste prevention
According to the provisions of Directive 2008/98/EC, waste prevention measures always take priority over waste management.
In the case of electrical and electronic equipment, waste prevention measures include, in particular, prolonging the life of the equipment by repairing defective articles and selling used ones in good working order instead of dispatching them for disposal.
Please help us reduce waste and contact our customer service if your product is faulty.
Further particulars are available as part of the Waste Prevention Programme of the German Government with the Involvement of the Federal Länder.
Free return of old electrical appliances
Upon purchasing a new electrical appliance of the same type with essentially the same function, consumers may return an old electrical appliance to a distributor obliged to take back old appliances, at no extra cost for the consumers. This option also exists for deliveries made to a private household. For distance selling, the option of having old electrical equipment collected for free applies only in the case of purchase of new electrical equipment with heat exchangers (e.g. refrigerators, dehumidifiers), screens and display devices with a screen surface > 100 cm ^2 , and large devices with at least one of its external dimensions measuring more than 50 cm.
In addition, consumers may return up to three old electrical appliances of the same type to a distributor's collection point for free, without having to purchase a new electrical appliance. In this case, however, the old appliances' external dimensions may not exceed 25 cm.
Disposal
Disposing of old electrical devices in an environmentally friendly manner

Electrical appliances contain harmful substances as well as valuable resources.
Every consumer is therefore required by law to dispose of old electri-
cal appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.
You can dispose of old electrical appliances free of charge at your local recycling centre.
Please contact your dealer directly for more information about this topic.
Don't forget to erase data!
If necessary, each consumer is responsible for erasing personal data from electrical and electronic equipment.
Single-use and rechargeable batteries, lamps and bulbs
If necessary, old single-use and rechargeable batteries that are not encased by an old electrical appliance, as well as lamps/bulbs that can be removed from an old electrical appliance without being destroyed, must be removed and disposed of separately before you return the appliance.

This symbol means that single-use and rechargeable batteries must not be disposed of with other household waste.
Consumers are required by law to bring all single-use and rechargeable batteries, regardless of whether they contain harmful substances*) or not, to a collection point operated by their communal authority or boro-
ugh or to a retailer, so that they can be disposed of in an environmentally friendly manner and so that valuable resources (e.g. cobalt, nickel or copper) can be recovered.
Single-use and rechargeable batteries can be returned free of charge.
Some of the possible contents (e.g. mercury, cadmium and lead) are toxic and, if improperly disposed of, can have adverse effects on the environment. Heavy metals, for instance, can have detrimental health effects on humans, animals and plants and accumulate in the environment and food chain, and then enter the body indirectly through the consumption of food.
There is a high risk of fire with old lithium batteries. Special care must therefore be taken to properly dispose of old lithium batteries and rechargeable batteries. Improper disposal can also lead to internal and external short circuits due to thermal effects (heat) or mechanical damage. A short circuit can lead to a fire or an explosion and have serious consequences for people and the environment. It is therefore important to tape off the terminals of lithium batteries and rechargeable batteries before disposing of them to prevent an external short circuit.
Single-use and rechargeable batteries that are not built into the device should be removed before disposal and then disposed of separately.
Please only dispose of single-use and rechargeable batteries in a discharged state!
If possible, use rechargeable batteries in place of disposable batteries.
*) labelled with:
Cd = Cadmium
Hg = Mercury
Pb = Lead
Packaging

Our packaging is made of environmentally friendly, recyclable materials:
– Outer packaging made of cardboard
- Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of polyethylene (PE)
– Tension bands made of polypropylene (PP)
- Saving energy also protects against excessive global warming. Your new appliance uses little energy due to its environmentally friendly insulation and technology.

If you have sufficient space, we recommend retaining the packaging, at least during the warranty period. If the appliance needs to be sent out for repairs, only the original packaging will provide sufficient protection.
If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.
Technical specifications
| Manufacturer Hanseatic | |
| Name of appliance Coffee machine | |
| Model HCM125900WD | |
| Colour White | |
| Supply voltage 220–240 V~, 50 Hz–60 Hz | |
| Power 1 000 W | |
| Protection class I | |
| Water tank capacity 1.25 L | |
| Mains cord length (incl. plug) approx. 85 cm | |
| Unloaded weight | 1.57 Kg |
| Item no. | 25527702 |
