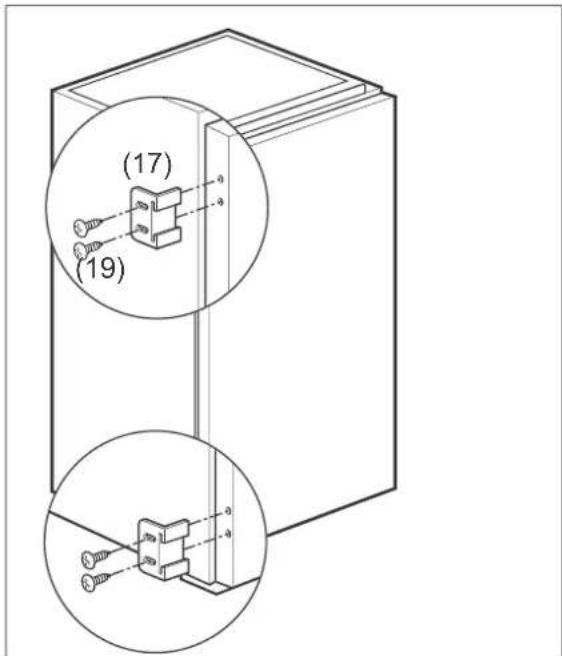

(17) (19)

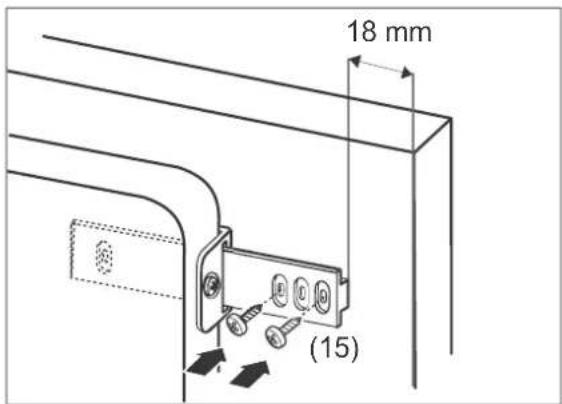

18 mm (15)

(16) (18)

Line drawing of a rectangular refrigerator placed on a grid floor (no text or symbols)

User manual

Built-in refrigerator

Table of contents

Table of contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB-2

Delivery GB-3

Package contents . . . . . . . . . . . . . . . . . . . . . GB-3

Check the delivery . . . . . . . . . . . . . . . . . . . . GB-3

Packaging tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB-3

Appliance parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB-4

Safety GB-5

Intended use GB-5

Explanation of terms GB-5

Explanation of symbols . . . . . . . . . . . . . . GB-5

Safety notices GB-5

Operation GB-9

Requirements GB-9

Switching on and off . . . . . . . . . . . . . . . . . . . . GB-9

Thermostat control . . . . . . . . . . . . . . . . . . . . . . . . GB-9

Refrigeration GB-10

Store food correctly . . . . . . . . . . . . . . . . . GB-10

Maintaining quality . . . . . . . . . . . . . . . . . . GB-10

Saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . GB-10

Moving glass shelves and door compartments . . . . . . . . . . . . . . GB-10

Care and maintenance . . . . . . . . . . . . . . . . GB-11

Checking and cleaning door seals. . . . GB-11

Clean exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . GB-11

Defrosting the fridge compartment . . . . GB-11

Cleaning the fridge compartment ..... GB-11

Changing bulb . . . . . . . . . . . . . . . . . . . . . . . . . GB-12

Start-up GB-13

Moving and unpacking . . . . . . . . . . . . . GB-13

The suitable location . . . . . . . . . . . . . . GB-13

The suitable furniture . . . . . . . . . . . . . . . GB-14

Cleaning before use . . . . . . . . . . . . . . . . . GB-15

Changing the door hinges . . . . . . . . . GB-15

Switching on appliance . . . . . . . . . . . . GB-16

Troubleshooting table . . . . . . . . . . . . . . . . . . GB-18

Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . GB-18

Service GB-20

Advice, order and complaint . . . . . . . GB-20

Repairs and spare parts . . . . . . . . . . . GB-20

Environmental protection . . . . . . . . . . . . GB-21

Disposing of old electrical devices in an environmentally-friendly manner . . . . . . . . . . . . . . . . . . . . . . . . . . GB-21

Our contribution to the protection of the ozone layer . . . . . . . . . . . . . . . . . . . . . . GB-21

Information on installation and start-up available from page GB-13.

Please read through the safety instructions and user manual carefully before using the appli-

ance. Only this way can all of the functions be used safely and reliably.

Be absolutely sure to also observe the national regulations in your country, which are also valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the product.

Delivery

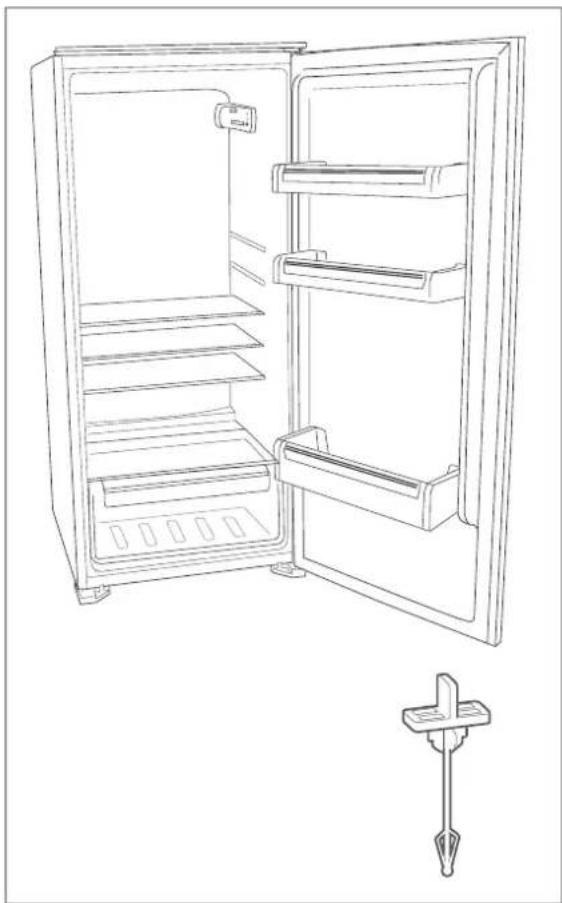

Line drawing of an open refrigerator with a side view showing the door and shelf (no text or symbols)

Package contents

– Refrigerator with vegetable drawer
- Cleaning rod
– Egg tray, 6 compartments (not illustrated)

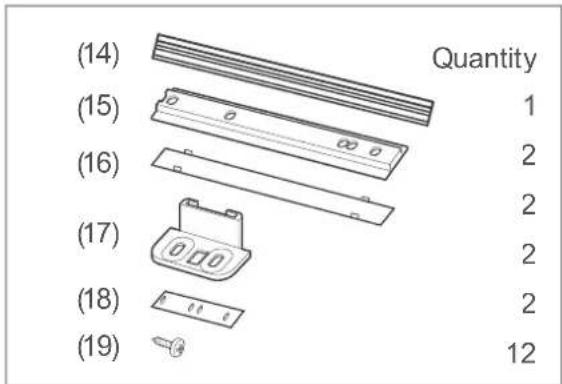

– Pouch with fittings (see figure on page GB-16)
- User manual

Check the delivery

1. Move the appliance to a suitable place and unpack it (see „Start-up“ on page GB-13).
2. Check that the delivery is complete.
3. Check whether the appliance was damaged during transit.
4. If the delivery is incomplete or the appliance has been damaged during transport, please contact our Service Centre (see page GB-20).

WARNING!

Do not operate the appliance if it has visible damage.

Packaging tips

If you have sufficient space, we recommend keeping the packaging, at least during the warranty period. If the appliance needs to be sent out for repairs, only the original packaging will provide sufficient protection.

If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Appliance parts

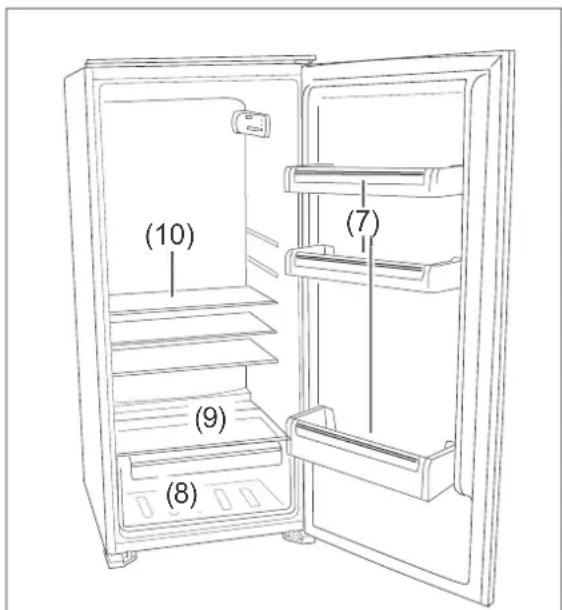

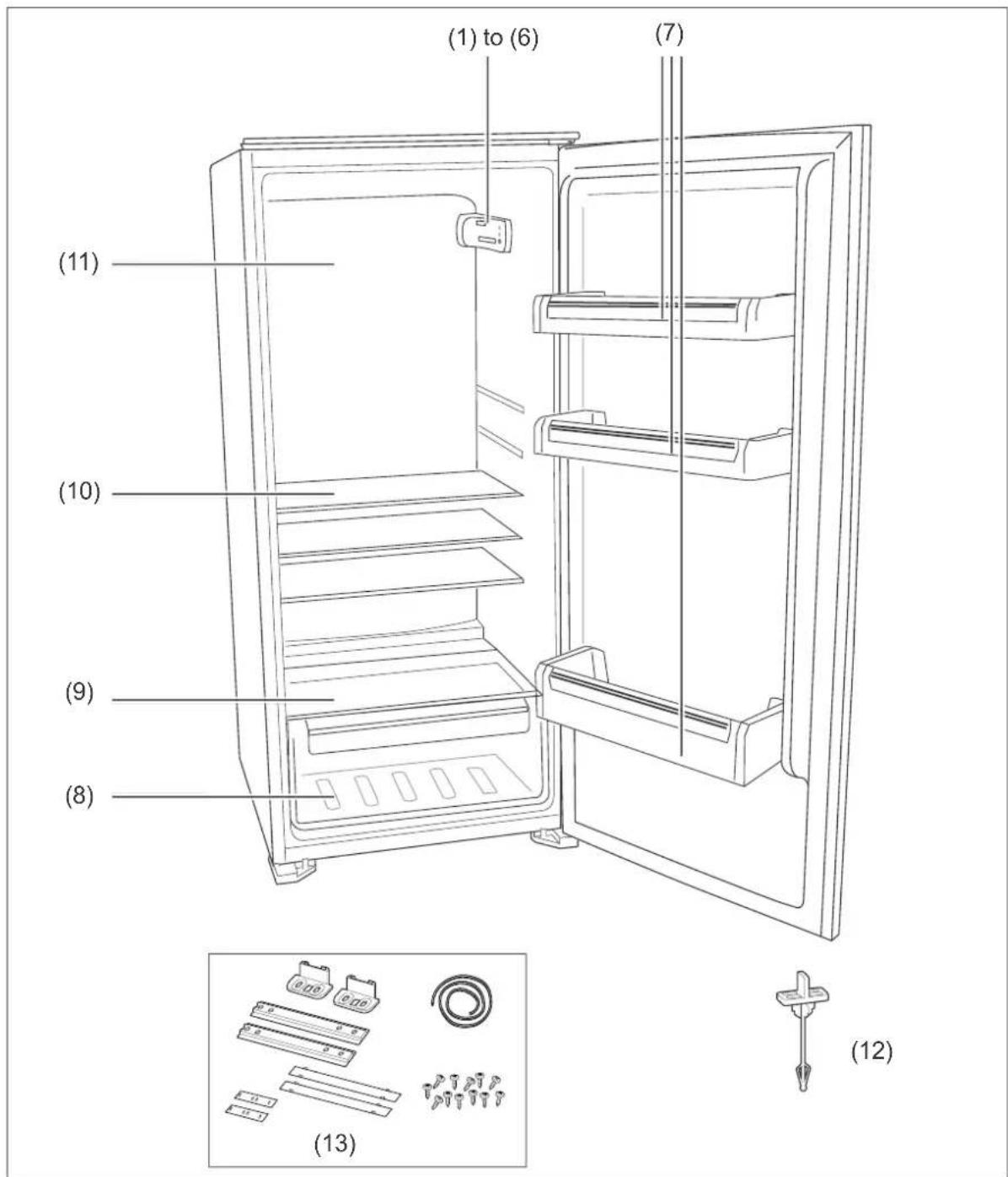

(1) to (6) (7) (11) (10) (9) (8) (12) (13)

(1) Interior light
(2)-(6) Control elements (For more information see page GB-9)
(7) 3 open door compartments
(8) Drawer for fruit and vegetables

(9) 1 glass shelf as a cover for the vegetable drawer
(10) 3 glass shelves, adjustable
(11) Fridge compartment
(12) Cleaning rod
(13) Pouch with fittings, (more information from page GB-13)

Safety

Intended use

The appliance is intended to chill fresh foods.

The appliance is intended solely for use in private households.

Use the appliance exclusively as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.

Explanation of terms

The following symbols can be found in this user manual.

WARNING

This symbol indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION

This symbol indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This symbol warns against possible damage to property.

This symbol refers to useful supplementary information.

Explanation of symbols

Caution: Fire hazard!

Safety notices

In this chapter you will find general safety notices which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters on operation, cleaning, etc.

Risks in handling household electrical appliances

Risk of electric shock!

The appliance operates with 220–240 V\~/50 Hz mains voltage. Touching live parts may result in severe injury or death.

■ Only use the appliance indoors. Do not use in wet rooms or in the rain.

■ Do not operate or continue to operate the appliance,
■ if it has visible damage, e.g. the power cord is defective.
■ if it starts smoking or there is a smell of burning.
■ it makes unfamiliar noises.

In this case, you should pull out the mains plug and have the appliance repaired (see „Service“ on page GB-20).

■ Only connect the appliance to an easily accessible socket so that you can quickly disconnect it from the mains in the event of a fault.
■ Take care to prevent the risk of tripping when laying the mains cord.
■ The device, mains plug and cable should be kept away from naked flame and hot surfaces.
- Do not kink or pinch the mains cord or lay it over sharp edges. This can result in a break in the cable.
■ If the mains cord of the appliance is damaged, it must be replaced by the manufacturer, through customer service or by a qualified specialist.

■ Do not operate the appliance with an external timer or a separate remote control system.
■ Do not put any objects in or through the housing openings, and also make sure that children cannot insert any objects in them.
■ Always take hold of the mains plug at the cable itself, not the mains cord.
■ Never touch the mains plug with wet hands.
■ Never immerse the mains cord or plug in water or any other liquids.
■ In the event of any defect, or when cleaning and servicing, please unplug from the mains.
■ Inspections and repairs to the appliance may only be carried out by authorised specialists and our service personnel (see page GB-20). Unauthorised repairs to the appliance can cause property damage and personal injury, and invalidate liability and warranty claims. Never try to repair a defective or suspected defective appliance yourself.
■ Only parts corresponding to the original appliance specifications may be used for repairs. This appliance contains electrical and mechanical parts which are essential for protection against potential sources of danger.

Fire hazard!

The inappropriate use of the device can cause a fire and damage to property.

■ Only connect the appliance to a properly installed and earthed electric socket. Do not connect to a multi-socket extension cable or a multi-socket plug.
■ To ensure adequate air circulation, the ventilation slots and the entire space above the unit must remain clear of obstructions.

- Do not place the appliance directly against the wall. Adhere to minimum distances (see „The suitable location“ on page GB-13).

Risk of injury!

■ The appliance is heavy and bulky. Seek the help of another person during transport, setting up, positioning or while mounting or dismantling the doors.

- Drawers, shelves, etc. must not be used as steps or supports.

Risks for certain groups of people

Dangers for children and people with limited physical, sensory or mental capacity!

■ This appliance may be used by children aged eight years and above, as well as persons with reduced physical, sensory or mental capacities or those lacking experience and/or knowledge, if they are supervised or have been instructed in how to safely use the appliance and have understood the dangers associated with operating it.

■ Cleaning and maintenance must not be carried out by children unless they are supervised.

Additional precautionary measures apply to children of all ages.

■ Do not allow children to play with the packaging fi lm. They may get caught up in this or suffocate.
■ Children must not be allowed to play with the appliance.
■ Stop children from pulling small parts from the appliance or taking them out of the accessory bag and putting them in their mouths. Children can choke on small parts.

Risks when dealing with fridge and freezer appliances

Dangers from the refrigerant!

The refrigerant circuit of your appliance contains the sustainable but fl ammable refrigerant R600a (isobutane).

■ Mechanical intervention in the refrigeration system must only be carried out by authorised specialists.
■ Do not damage the refrigeration circuit, e.g. by piercing the refrigerant channels of the evaporator with sharp objects, by bending pipes, etc.
■ Leaking refrigerant is flammable, and can lead to eye damage. If this happens, rinse eyes with clean water and call a doctor immediately.
- To prevent the formation of a flammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 1m^3 per 8 g of refrigerant in compliance with the EN 378 standard. The volume of refrigerant is specified on the data sheet (see page GB-22).

Danger of explosion!

Improper handling of the appliance can lead to explosions.

■ Do not store explosive substances or spray cans with flammable propellants inside the appliance, as they may cause ignitable gas-air mixtures to explode.
■ Never use defrosting sprays. They can generate explosive gases. Also refrain from using electric heating appliances, naked flames or ice scrapers. The insulation could melt or become scratched.
■ Only store high-proof alcohol upright and tightly sealed.

Health hazards!

Incorrect handling, insufficient cooling or overlapping items can spoil the stored food. This could lead to a risk of food poisoning when consumed!

■ In particular, pack raw meat and fish carefully to ensure that adjacent food cannot be contaminated by salmonella or similar bacteria.
■ After a power failure, check whether food is still edible.

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

- Observe the specified ambient temperature (see “climate category” line on page GB-22).

Risk of damage!

Improper handling of the appliance can lead to property damage.

■ Do not use the door to pull or lift the appliance.
- The appliance must only be placed on a level and fi rm surface. The surface must be strong enough to support the appli-ance's weight when fully laden.
■ Do not use sharp or pointed objects to unpack it.
■ When unpacking the appliance, never damage the insulation material on the back of the appliance.
- Do not use any electrical parts inside the appliance that do not conform to the manufacturer's recommended design.
■ Do not use any mechanical devices or means other than those recommended by the manufacturer.

■ The interior light must only be used to illuminate the interior of the appliance. It is not suitable for lighting a room.
■ Do not store glass or metal containers containing water, lemonade, beer etc. Water expands when frozen and can burst the container.
■ Defrost the appliance in a timely manner, before it forms a layer of ice and frost of more than 4 mm. Excessive ice formation increases power consumption and the freezer compartment door may no longer close tightly.
■ Do not use any means other than those recommended by the manufacturer to speed up defrosting. For example, do not use any electric heating equipment, knives or devices with an open

flame such as a candle. The thermal insulation and the interior are scratch and heat-sensitive and can melt.

■ When cleaning, please note:
– Never use harsh, granular, soda, acid, solvent-based or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.
- Door seals and plastic parts are sensitive to oil and grease. Remove contaminants as quickly as possible.
- Only use soft cloths.
■ Wait 5 minutes after switching off. Only then switch the appliance on again.
■ Only use original accessories.

Operation

Requirements

You can use the appliance if

- You have read the "Safety" chapter and understood the safety instructions (page GB-5).

– It has been set up and connected as described in the “Start-up” chapter (see page GB-13).

Switching on and off

Switching on

You will hear a brief signal tone as soon as the appliance is connected to the mains. The appliance is switched on, the interior light illuminates, the motor starts to work, the refrigerant flows through the pipes and you hear a slight noise.

- If the appliance makes worrying noises check the solid base and remove any objects on the appliance.

Switch off / shutdown

1. Empty the appliance and clean it (see Chapter „Care and maintenance“ on page GB-11).
2. Leave the door open slightly to avoid mould formation.
3. Pull out the mains plug.

Thermostat control

WARNING

Health hazard!

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

- Observe the specified ambient temperature (see “Climate category” on page GB-22).

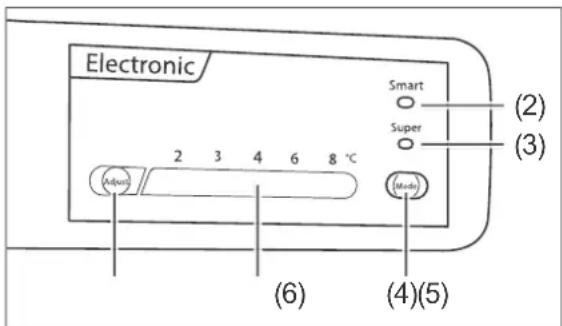

Electronic Smart Super (2) (3) (6) (4)(5)

The control panel offers you various options to control the inside temperature.

• Set the inside temperature with the "Adjust" (6) button from +2 °C to +8 °C. The scale (5) shows the current setting. Each time you press the button, the setting changes in degree increments.
• Activate or deactivate the "Smart" or "Super" mode with the "Mode" (4) button. The corresponding LED (2) or (3) illuminates.
  – In “Smart” mode the cooling power adjusts to the ambient conditions. We recommend using this mode.
• In "Super" mode the appliance cools down as far as possible. After 54 hours it reverts to the configured temperature.

In order to monitor the cooling power, we recommend using a fridge/freezer

thermometer. Place this on the glass shelf above the vegetable drawer. Here the right temperature is +6 °C.

Refrigeration

WARNING

Danger of explosion!

Improper handling of the appliance can lead to explosions.

■ Do not store explosive substances or spray cans with flammable propellants inside the appliance, as they may cause ignitable gas-air mixtures to explode.
■ Only store alcohol upright and tightly sealed.

Store food correctly

(10) (7) (9) (8)

Fill the fridge compartment (11) in such a way that the temperature conditions inside are used to their full potential:

• Place spreadable butter and cheese in the top door compartment (7). This is where it is warmest.
• Store bottles and drinks cartons in the bottom door compartment (7). Position full containers closer to the hinge in order to reduce the strain on the door.
• Place cooked and baked foods on the glass shelves (10).
• Place fresh meat, game, poultry, bacon, sausage and raw fish on the glass shelf

(9) above the vegetable drawer (8). This is where the temperature is lowest.

- Place fresh fruit and vegetables in the vegetable drawer (8).

Maintaining quality

• To maintain the flavour and freshness of food in the fridge compartment (11), only place packaged food in the fridge compartment. Use special plastic containers for good or standard food wrap.
• Place the food
  – in the fridge in a way that allows the air to circulate freely. Do not cover the glass shelves with paper or anything similar.
  – somewhere that is not directly against the rear wall. Otherwise it may freeze onto the rear wall.

Saving energy

• Allow hot food to cool before placing it in the fridge compartment (11).
• The temperatures in the appliance and thus the energy consumption can increase
• if the doors are opened frequently or for a prolonged period.
• if the room temperature fluctuates up and/or down.
• Energy consumption is also dependent on the selected location (for more detailed information, see page GB-13).

Moving glass shelves and door compartments

The glass shelves (10) above the vegetable drawer cover can be moved around.

1. Inserting and removing glass shelf/door compartment.
2. Guide glass shelf/door compartment over the side brackets from above.

Care and maintenance

WARNING

Health hazard!

■ Cleaning and user maintenance must not be carried out by children unless they are supervised.

Risk of electric shock!

■ Unplug the mains cable before cleaning. Always take hold of the plug itself, do not pull on the mains cord.
■ Make sure that no cleaning water gets into the ventilation slots, the electrical parts and the drain opening.

NOTICE

The surfaces and door seals can get damaged by improper handling.

■ Never use harsh, soda, acid, solvent or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.
■ Use care products only on the outer surfaces.
- The door seals are sensitive to oil and grease – making the rubber porous and brittle.
■ Only use soft cloths.

Checking and cleaning door seals

The door seals must be checked regularly so that no air can enter the appliance.

1. To test them, clamp a thin piece of paper in various places. The paper should be difficult to pull through at all points.
2. If the seal is not uniform everywhere: Carefully warm the seal in the affected places with a hair dryer and pull it out slightly with your fingers.
3. Only clean dirty seals with clean water.

Clean exterior

- Painted surfaces: Use only light pH-neutral soapy water.

Defrosting the fridge compartment

This is not necessary. Since the fridge compartment of your appliance has an auto-defrost feature. Frost and ice are automatically defrosted and the thaw water is collected in a thaw water container on the reverse side of the appliance. The thaw water evaporates as a result of the heat generated by the motor.

Cleaning the fridge compartment

1. Pull out the mains plug.
2. Remove the chilled goods and place them in a cool room.
3. Remove the vegetable drawer (8), the door compartments (7) and the glass drawers (9) and (10) and clean them in tepid water with a little washing-up liquid. Dry all parts thoroughly.
4. Wipe down the inside with warm water and washing-up liquid.
   Add a few drops of vinegar to the water when wiping for a second time to prevent the formation of mould. Wipe the interior dry and leave the door open a while to air.
5. Clean the opening of the condensate drain above the vegetable drawer (8) with the cleaning rod (12).
6. Only clean the door seals with clean water; they are sensitive to oil and fat.
7. Reinsert the glass shelves, door compartments and drawers and replace the chilled goods.
8. Insert the mains plug again.

Changing bulb

WARNING

Risk of electric shock!

As the appliance works with mains voltage, which can be dangerous, touching live parts may lead to serious injury or death.

■ Unplug the mains cable before changing the light bulb.

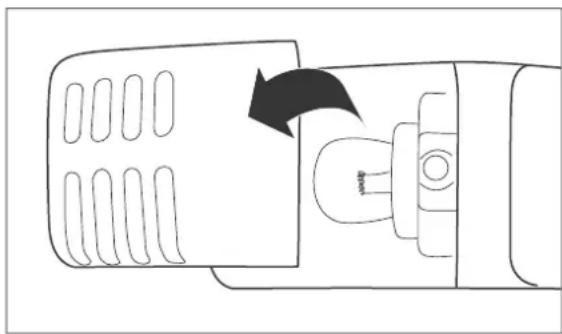

Diagram of a device with a light bulb and ventilation slots, showing airflow direction (no text or symbols)

Only use light bulbs of the same shape with an output of max. 15 watt, 230 volt and Holder E 14.

1. Disconnect the mains plug from the socket.
2. Loosen the cover screw with a cross-headed screwdriver and remove the cover.
3. Unscrew the light bulb from the holder and replace with a new one.
4. Replace the cover and apply slight pressure at the rear to snap it into the groove.
5. Screw the cover back on.
6. Re-insert the mains plug into the socket.

Start-up

WARNING

Risk of injury!

■ The appliance is heavy and bulky. Seek the help of another person during transport, setting up, positioning or while mounting or dismantling the doors.
■ Drawers, doors, etc. must not be used as steps or for support.

Hazards of refrigerant

■ Do not damage the refrigeration circuit, e.g. by piercing the refrigerant channels of the evaporator with sharp objects, by bending pipes, etc.
■ Leaking refrigerant is flammable, and can lead to eye damage. If this happens, rinse eyes with clear water and call a doctor immediately.
- To prevent the formation of a flammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 1m^3 per 8g of refrigerant in compliance with the EN 378 standard. The amount of refrigerant in your appliance can be found in the data sheet (see page GB-13).

CAUTION

Risk of damage!

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

- Observe the specified ambient temperature (see “Climate category” on page GB-22).

Improper handling of the appliance may result in damage.

■ If possible, do not tip the appliance horizontally, but transport it at a slight angle.
■ Only rest the appliance against the wall to change the door stop.
■ Do not use sharp objects to unpack it.

Moving and unpacking

• Move the appliance using a trolley or with the help of a second person.
• Unpack the device and carefully remove all packaging, plastic profiles, adhesive strips and foam padding from the outside.
• Leave all packaging and transport materials inside for the moment.

The suitable location

To achieve the highest possible cooling performance with the least energy consumption, choose a location that:

– is not too warm, is dry and well ventilated,
– is not in direct sunlight,
- is at least 3m^3

We do not advise placing it directly next to an oven, stove or radiator. The minimum distances to such appliances are:

– from electric stoves 3 cm
– from oil and coal burning stoves 30 cm
– from cooling units 2 cm
– from washing machines/dishwashers2 cm

If these distances cannot be maintained, an insulating panel must be placed in-between. If underfloor heating is installed in the room where the appliance is to be installed, place a solid insulating plate under the refrigerator.

The suitable furniture

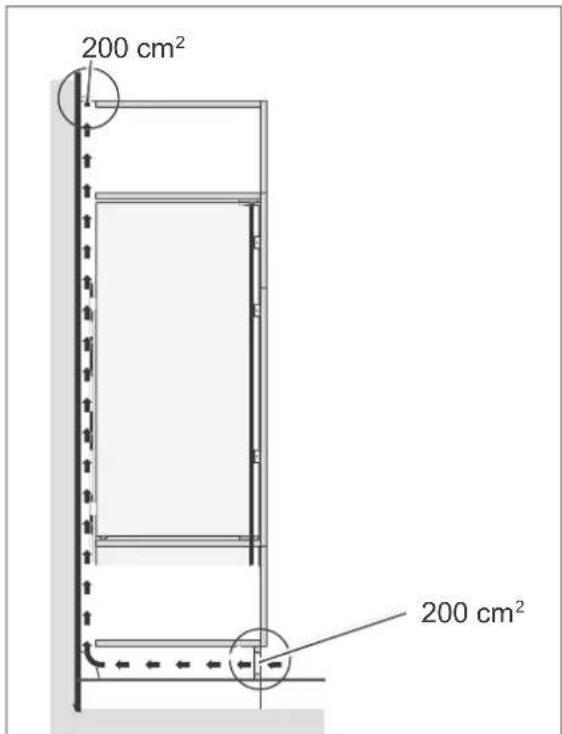

200 cm² 200 cm²

To achieve sufficient ventilation around the refrigerator for safety reasons, the specifications of the necessary ventilation cross-section must be adhered to.

Ventilation of the compressor and condenser occurs through an opening that must be available underneath the kitchen cabinet (size of the opening: minimum 200 cm ^4 ).

There must also be an opening on top of the kitchen cabinet to make sure that air can escape (size of the opening: minimum 200 cm²).

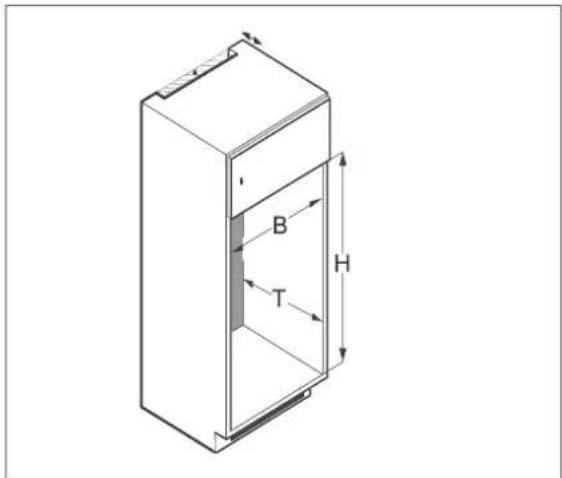

B T H

The installation recess must meet the following requirements:

Height (H): 1220 to 1230 mm

Width (B): 560 mm

Depth (T): ≥ 550 mm

Distance to the wall: ≥ 38 mm

Mains cord length: ca. 1520 mm

Ventilation chamber at the rear of the built-in cabinet: at least 200 cm ^2

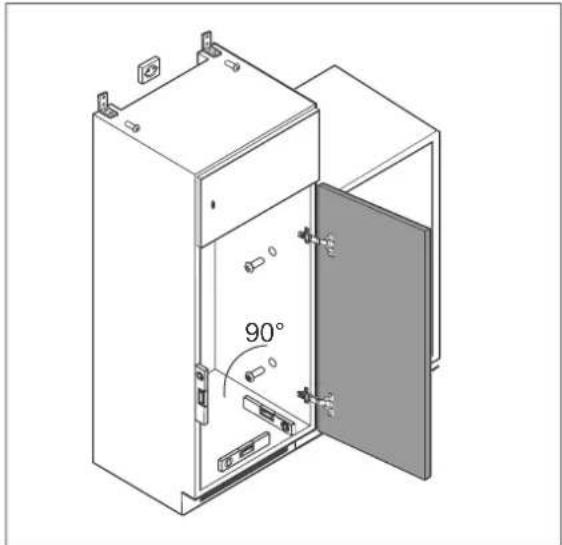

Isometric line drawing of an open refrigerator with a 90-degree angle marked on the door (no text or symbols present)

The installation recess must be screwed to the neighbouring cabinets or to the wall and carefully aligned. The cabinet doors must be aligned and the hinges tightened.

Cleaning before use

To remove the odour that comes with all new appliances, clean the appliance before use (see „Cleaning the fridge compartment“ on page GB-11.

Changing the door hinges

You can change the side on which the door opens. The stop is on the right on delivery.

As this alteration requires some manual skills, please read through the work instructions before altering.

In addition to the package contents, you will require

• a medium sized cross-slotted screwdriver,

• a pair of flat-nosed pliers,
  – the assistance of another person, where possible.

• Ensure that the appliance is not connected to the power supply.

• Remove the door compartments (7), the vegetable drawer (8) and the glass shelves (9) and (10).

A B

1. Screw the strip (A) onto the top and put it to one side.
2. Also unscrew the screw (B) on the new stop side and keep it in a safe place.

Pure technical line drawing of a mechanical component with mounting holes and a labeled section (no text or symbols)

1. Loosen the three screws of the top hinge (C), remove them and keep them in a safe place.
2. Remove the door and set it aside.
3. Screw in the screw (B) on the previous stop side.
4. Tilt the device slightly and rest it against the wall.

Diagram showing two mechanical components with arrows indicating direction, no text or symbols present

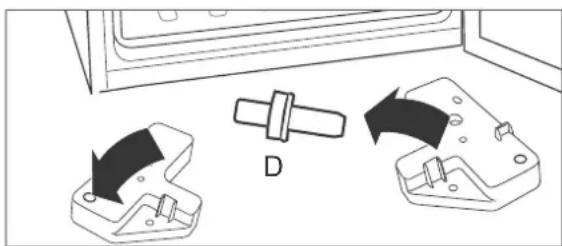

1. Unscrew both feet.

2. Remove the pin (D) from one foot and insert it into the other; the shorter side goes in the foot.

3. Insert the foot with the pin (D) into the designated recess from underneath and screw the foot tight again.
4. Also screw the other foot tight.
5. Reposition the appliance upright.
6. Place the door over the pin (D) from above and close it.
7. Now loosen the pin in the top hinge (C) using flat-nosed pliers.
8. Re-insert the pin from the other side.

Technical line drawing of a mechanical component with mounting holes and a labeled part 'C' (no text or symbols beyond label)

1. Screw the hinge (C) onto the new stop side.
2. Then check the door sits correctly (see "Checking and cleaning door seals" on page GB-11).

Switching on appliance

Installation materials

(14) (15) (16) (17) (18) (19) Quantity 1 2 2 2 2 2 12

In addition to the package contents, you will require

• a medium sized cross-slotted screwdriver,
• a pair of flat-nosed pliers,
  – the assistance of another person, where possible.

! NOTICE

Risk of damage!

Improper handling of the refrigerator may result in damage.

■ The refrigerator should be installed by a specialist, otherwise any warranty claims will be void.

Please read through the work steps first before you start installing the refrigerator.

1. Before installing and connecting the appliance, switch off the relevant power circuit and/or turn off the relevant fuses.
2. Please remove the door compartments (7), the vegetable drawer (8) and the glass shelves (9) and (10).

(17) (19)

1. Screw the elbows (17) onto the appliance door with the screws (19). Pre-mark the screw holes with a 2.5 mm nail.

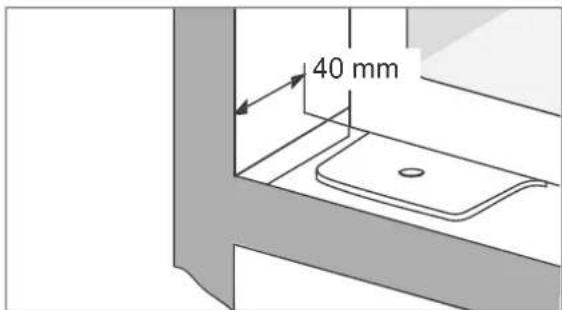

40 mm

1. Insert the appliance into the built-in cabinet. The distance between the appliance and the lower edge of the built-in cabinet must be approx. 40 mm.

To make sure the joint profile can be clamped, a gap of 4 mm in the entire height between appliance and built-in cabinet must be retained on the opposite side of the door hinges.

(19)

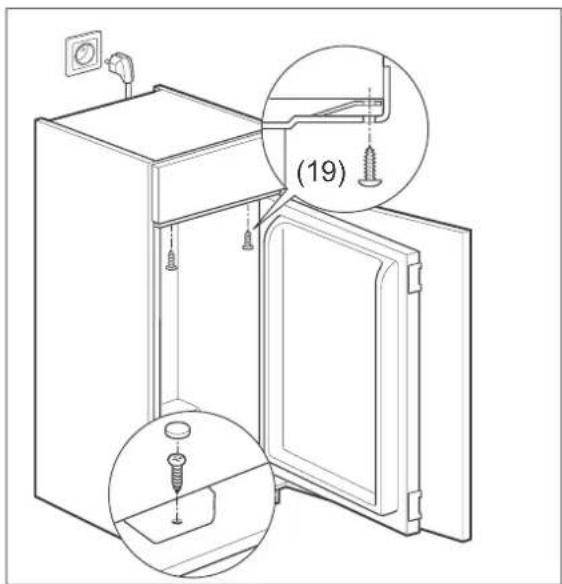

1. Screw the refrigerator to the built-in cabinet using the screws (19).
2. Insert the mains plug into a properly installed socket.

18 mm (15)

1. Open the refrigerator door out as far as possible. Push the door couplers (15) into the guide rails of the elbows (17).
2. Screw the door couplers (15) on tight using the screws (19), while maintaining a gap of approx. 18 mm to the edge of the door of the built-in cabinet.
3. Close the door of the built-in cabinet and check that the sliding guide between the elbow (17) and the door coupler (15) function smoothly.

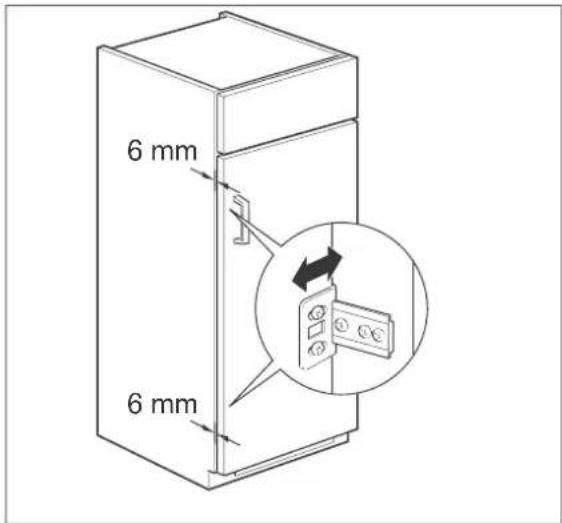

6 mm 6 mm

1. A gap of at least 6 mm must be maintained between the built-in refrigerator and the built-in cabinet door so that the refrigerator door can close without any problems.

To set the gap width, loosen the screws (19) slightly and manually set the desired distance. Then tighten the screws (19) again.

(16) (18)

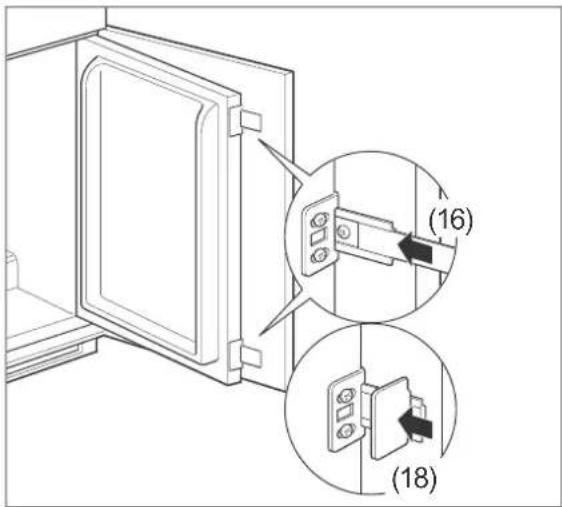

1. Open the refrigerator door out as far as possible and push the long cover strips (16) into the guide rails of the door couplers (15).
2. Place the short cover strips (18) on the elbows (17) as a cover.

(14)

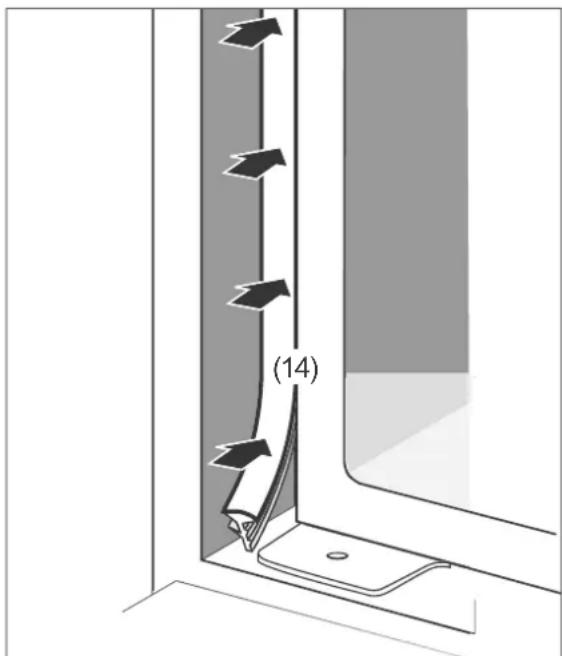

1. Cut the joint profile (14) to the appropriate length. Push it into the opposite side of the door hinges between the appliance and wall of the built-in cabinet.
2. Replace the glass shelves (9) and (10), the vegetable drawer (8) and the door compartments (7).

Power supply

CAUTION

Risk of damage to property!

The coolant must be allowed to settle before connecting.

■ Leave the appliance to stand for 2 hours after transportation.

1. Switch the power circuit that was disabled for installation of the appliance back on again and/or replace the relevant fuses. You will hear an brief signal tone.
   The appliance is switched on, the interior light illuminates (1), the motor starts to work, the refrigerant flows through the pipes and you hear a slight noise.
2. Please see Chapter „Operation“ on page GB-9 for operating instructions and tips for optimal use.

Troubleshooting table

Malfunctions can occur in all electrical appliances. This does not necessarily mean that there is a defect in the appliance. Therefore, please check whether or not you can correct the fault using the table.

WARNING

Risk of electric shock in case of improper repair!

Never attempt to repair the faulty – or supposedly faulty – appliance yourself. You can endanger yourself and subsequent users. Only authorised specialists may carry out repairs.

Troubleshooting table
Problem Possible cause	Solutions, tips
Compressor off, interior light off.	No electricity to socket. Check by connecting another appliance.
	Mains plug is loose. Check the tightness of the mains plug.
Compressor off, interior light on.	Desired temperature has been reached.	Further cooling not required. When the inside temperature rises, the compressor automatically switches on.
	Repositioning. The appliance requires 2 hours to allow the refrigerant to settle.
Appliance cools too quickly.	Temperature scale is set too cold.	Turn down the temperature (see „Thermostat control“ on page GB-9).
The appliance doesn't cool sufficiently.	Incorrect temperature selected.	Set lower temperature (see page GB-9).
	Door not tightly closed or door seal is not completely tight.	See „Checking and cleaning door seals“ on page GB-11.
	The appliance is near a heat source.	Place insulation plate in-between or change location.
	Food has been put in warm.	Only put in cooled foods.
	Ambient temperature too low or too high.	Adjust the ambient temperature to the climate category (see „Product data sheet and technical specifications“ on page GB-22).
	Compressor seems defective.	Set temperature to “+2”. If the compressor does not switch on within an hour, please contact our service centre (see page GB-20).
Appliance is making a noise.	Functional operating noise. These are not malfunctions.	Humming: Refrigeration unit is running.
		Flowing noise: Refrigerant is flowing through the pipes.
		Clicking: Motor switching on or off.
	Distracting noises that you can disregard.	Check that it is stable.
		Remove any objects from the appliance.
		Remove any foreign matter from the back of the appliance.

Service

In order for us to help you quickly, please tell us:

Name of appliance Colour Model Article number
hanseatic Built-in refrigerator white HEKS 12254 A1 325 548

Advice, order and complaint

Please contact your mail order company's customer service centre if

– the delivery is incomplete,
– the appliance is damaged during transport,
– you have questions about your appliance,
- a malfunction cannot be rectified using the troubleshooting table,
– you would like to order further accessories.

Repairs and spare parts

Customers in Germany

- Please contact our technical service: Telephone [phone] (landline 20 cents/call, mobile max 60 cents/call)

Customers in Austria

- Please contact your mail order company's customer service centre or product advice centre.

Please note: You are responsible for the condition of the appliance and its proper use in the household. If you call customer service because of an operating error, you will be charged for the visit, even during the guarantee/warranty period. We regret that any damage resulting from non-compliance with this manual will not be recognised.

Environmental protection

Disposing of old electrical devices in an environmentally-friendly manner

Electrical appliances contain harmful substances and valuable resources.

Every consumer is therefore required by law to dispose of old electrical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Please contact your dealer directly for more information about this topic.

CAUTION

Fire hazard!

Cooling appliances, which contain refrigerants and gases in the cooling systems and insulation, have to be properly disposed of. Refrigerant leakage may cause a fire hazard.

■ Until the point of proper disposal, ensure that none of the cooling fins or tubes on a cooling appliance are damaged.

Our contribution to the protection of the ozone layer

100% CFC and HFC-free refrigerants and foaming agents were used in this appliance. This protects the ozone layer and reduces the greenhouse effect.

Our packaging is made from environmentally friendly, recyclable materials:

– Outer packaging made of cardboard
– Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of polyethylene (PE)
– Tension bands made of polypropylene (PP)
- Saving energy also protects against excessive global warming. Your new appliance uses little energy due to its environmentally friendly insulation and technology.

If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Product fiche concerning Regulation (EU) No 1060/2010

Trade mark hanseatic
Model identifier 325548 / HEKS 12254A1
Category of the household refrigerating appliance model	1, Refrigerator with one or more fresh-food storage compartments
Energy efficiency class on a scale from A+++ (most efficient) to D (least efficient)	A+
Energy consumption 128 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located
Storage volumeRefrigeratorFreezer / Star rating	201 L- L / - Stars
Power cut safe	- h
Freezing capacity	- kg / 24 h
Climate class: SN-ST . This appliance is intended to be used at an ambient temperature between +10 °C and +38 °C bestimmt.
Airborne acoustical noise emissions	41 dB(A) re 1 pW
Built-in appliance	yes

The values indicated above have been measured under standardised laboratory conditions pursuant to EN 62552.

Technical specifications

Order number 325548
Name of appliance Refrigerator
Model identifier HEKS 12254A1
Device measurements (Height × Width × Depth with connections) 121.0 cm × 54.0 cm × 54.0 cm
Unloaded weight 34 kg
Refrigerant R600a
Filling capacity refrigerant 23 g
Foaming agent Cyclopentane
Power consumption 80 W
Supply voltage / frequency / fuse / lamp power	220–240 V / 50 Hz / 0.5 A / max 15 W
Protection class 1
