User manual

Refrigerator

Table of contents

Delivery GB-3

Package contents . . . . . . . . . . . . . GB-3

Check the delivery . . . . . . . . . . . GB-3

Appliance parts / control elements .... GB-4

Control panel and display . . . . . . . GB-5

Safety GB-6

Explanation of terms . . . . . . . . . . GB-6

Explanation of symbols . . . . . . . . GB-6

Safety notices GB-7

Operation GB-12

Before getting started . . . . . . . . . GB-12

Switching the appliance on and off GB-12

Setting the temperature . . . . . . . GB-13

The "Super Cool" function . . . . . . GB-13

The "Holiday" function . . . . . . . . GB-14

The "Alarm" function . . . . . . . . . . GB-15

The "Child Lock" function ..... GB-15

Glass and door shelves . . . . . . . GB-16

The bottle rack . . . . . . . . . . . . . . . GB-16

The fresh compartment . . . . . . . GB-16

The bottle shelf . . . . . . . . . . . . . . . GB-16

The cold-storage compartment . . . GB-17

Moisture control in the vegetable drawer . . GB-17

Chilling food GB-18

Filling the fridge compartment . . . . GB-18

Maintaining quality . . . . . . . . . . . GB-19

Care and maintenance . . . . . . . . . GB-20

Checking and cleaning door seals . GB-20

Clean exterior GB-20

Cleaning the reverse side . . . . . . GB-20

Cleaning the interior . . . . . . . . . . GB-20

Interior lighting . . . . . . . . . . . . . . . GB-21

Start-up GB-22

Before starting to use the appliance GB-22

Transporting, unpacking and setup GB-22

Setting up and aligning the

appliance GB-24

Basic cleaning GB-24

Commissioning the appliance . . . . GB-24

Troubleshooting table . . . . . . . . . . . GB-26

Service GB-28

Advice, order and complaint ..... GB-28

Repairs and spare parts . . . . . . . GB-28

Environmental protection . . . . . . . GB-29

Disposing of

old electrical devices in an

environmentally friendly manner . . GB-29

Our contribution to the protection

of the ozone layer . . . . . . . . . . . . GB-29

Product fiche concerning

Regulation (EU) No 1060/2010.....GB-30

Technical specifications . . . . . . . . GB-31

You can find more information on setting up the appliance and starting it up for the first time

from page GB-22.

Please read through the safety instructions and user manual carefully before using the appliance. This is the only way you

can use all the functions safely and reliably.

Be sure to also observe the national regulations in your country, which are valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the product.

Delivery

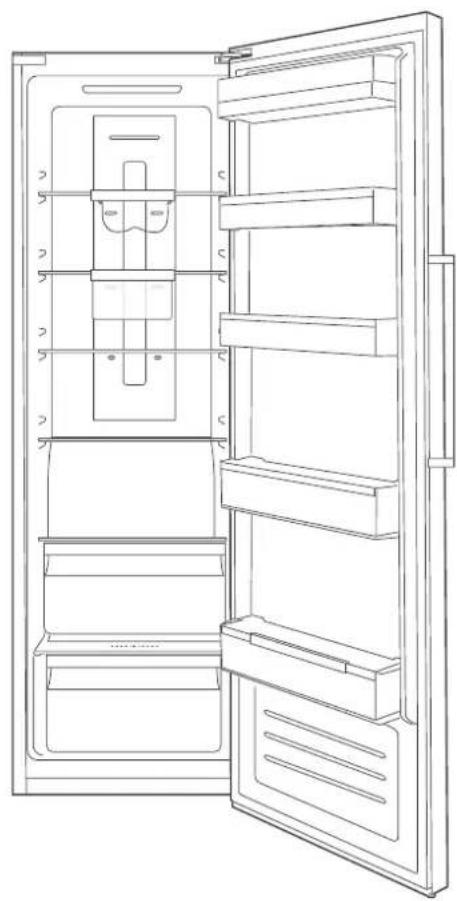

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Package contents

1× Refrigerator
2× Egg tray

Check the delivery

1. Move the appliance to a suitable place and unpack it (see "Before starting to use the appliance" on page GB-22).
2. Remove all parts of the packaging, plastic profiles, tape and foam padding.
3. Check that the delivery is complete.
4. Check whether the appliance was damaged during transit.
5. If any parts are missing or the appliance has been damaged in transit, please contact our service team (see page GB-29).

WARNING

Risk of electric shock!

Never use a damaged appliance.

Appliance parts / control elements

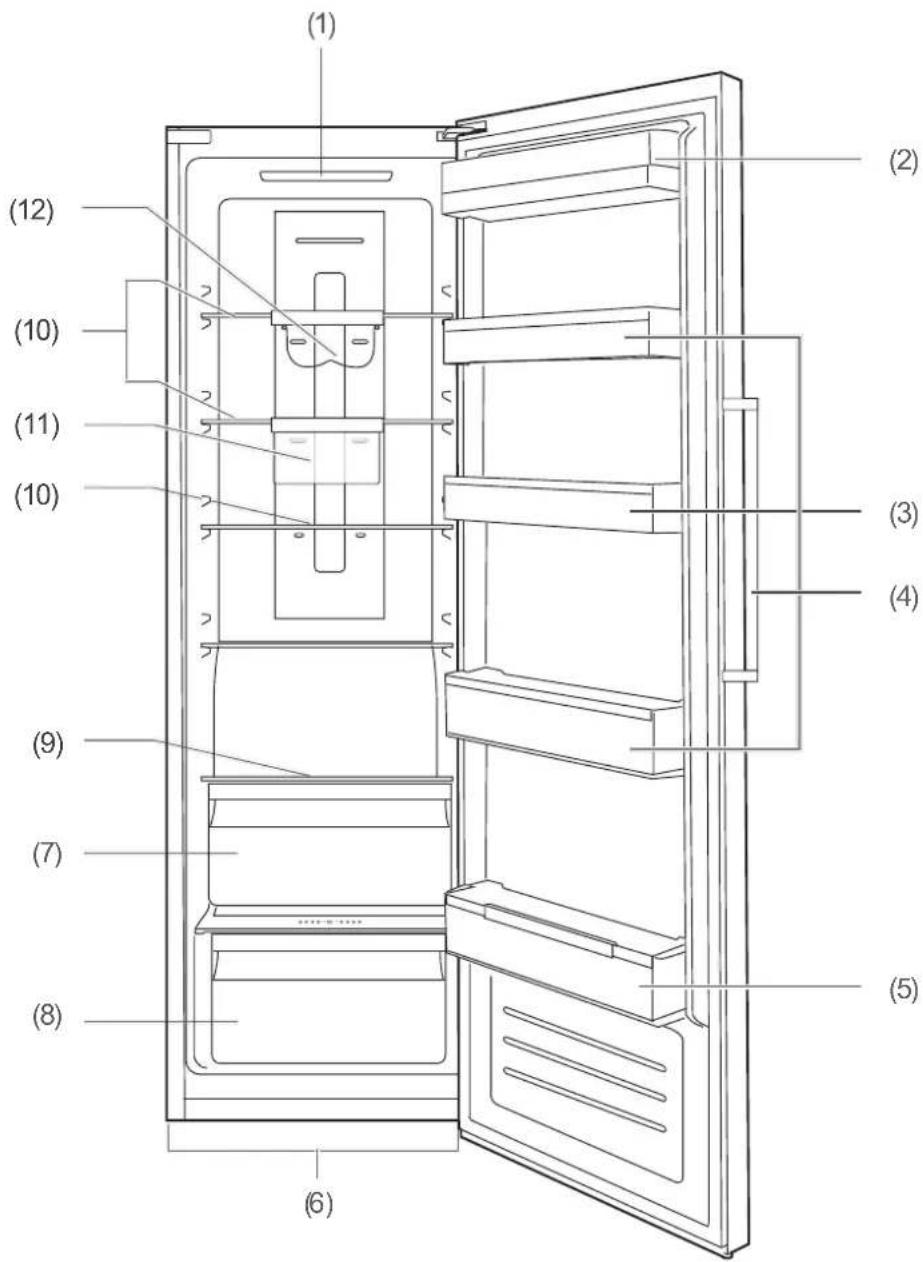

(1) Interior lighting
(2) Butter and cheese tray
(3) Door shelves
(4) Door handle
(5) Bottle rack
(6) Screw feet (not pictured)

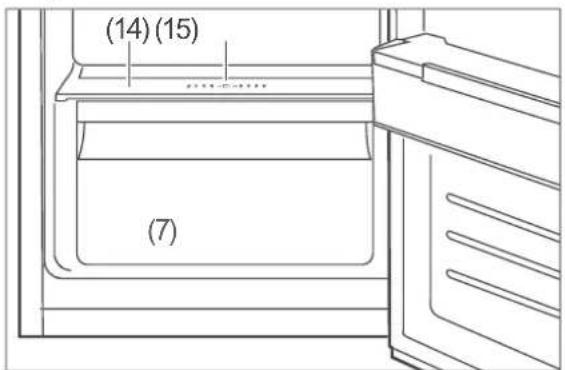

(7) Vegetable drawers

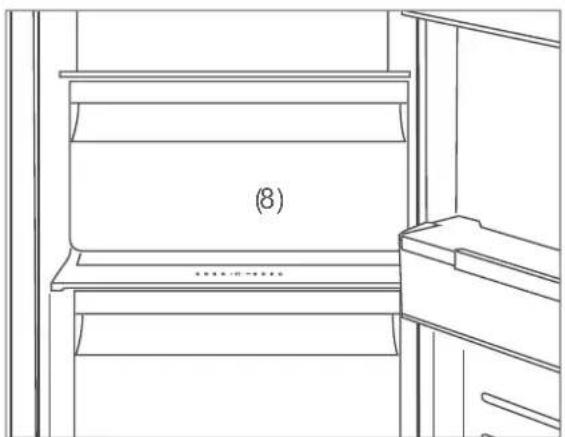

(8) Cold-storage compartment
(9) Glass shelf as a cover for the vegetable drawer
(10) 3 glass shelves in the fridge compartment

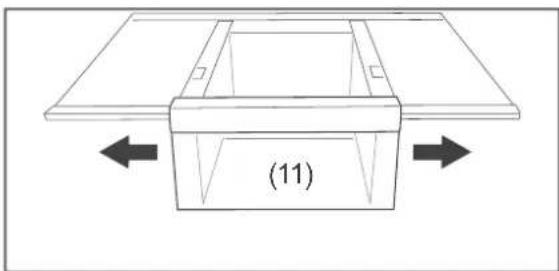

(11) Fresh compartment

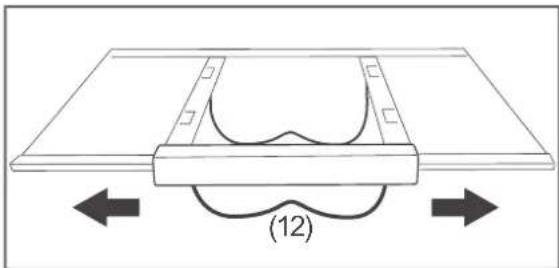

(12) Bottle shelf

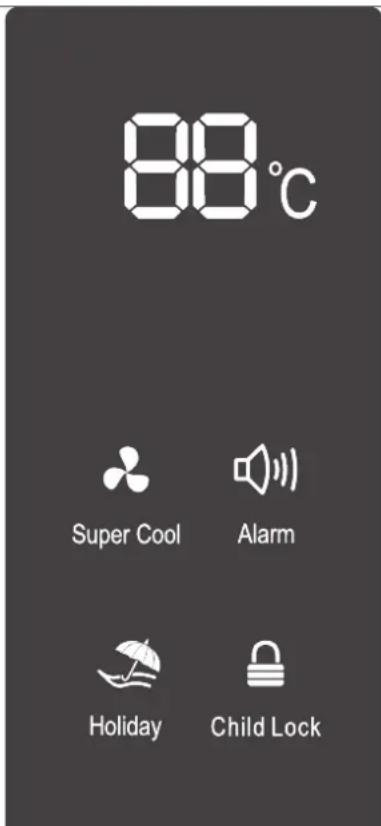

Control panel and display

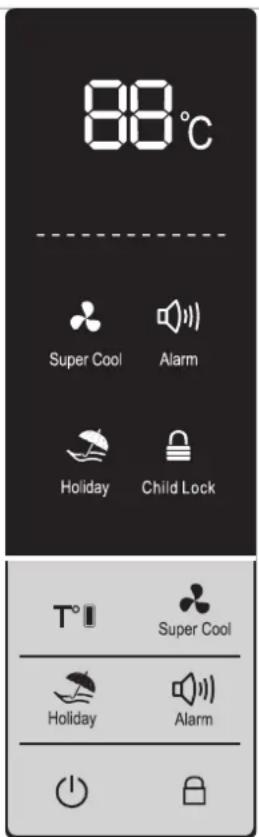

88°C Super Cool Alarm Holiday Child Lock T° Super Cool Hollday Alarm

T°I	Button for setting the temperature
Super Cool	“Super Cool” button for quick cooling
Holiday	“Holiday” button to activate the “Holiday” function

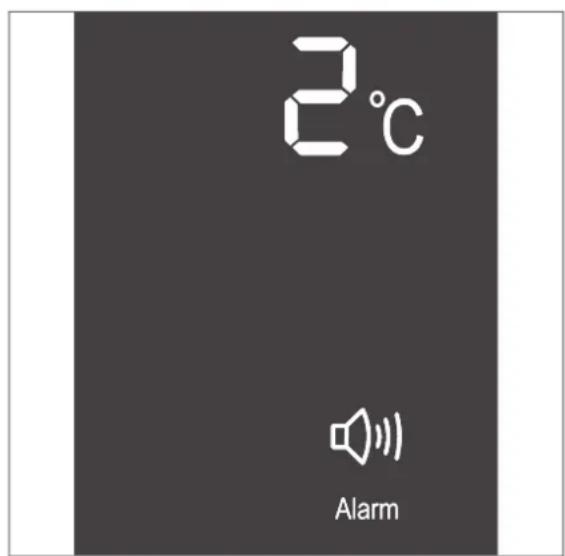

Alarm	“Alarm” button to activate/deactivate the alarm when, e.g. the appliance door is left open for longer than 2 minutes.
	On/off button for switching the appliance on or off

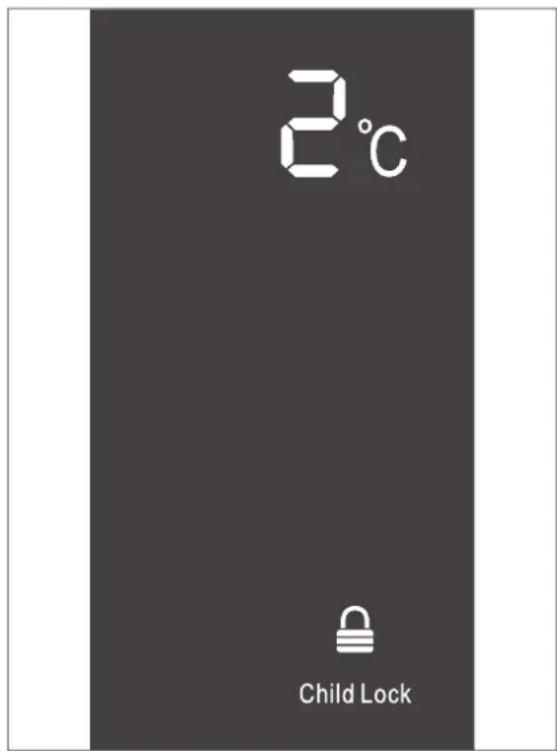

	“Child Lock” button for activating/deactivating the child lock

Safety

The purpose of this appliance is to

• chill fresh food,
  -to store ordinary commercially available deep-frozen food,
  – to deep freeze fresh, room-temperature foods and
• to prepare ice cubes.

This appliance is designed for household use and in similar environments such as

– private kitchens in shops, offices and other work areas;
– in agricultural operation and for use by guests in hotels, motels and other accommodation types;
-in bed and breakfasts;
– in the catering business and similar wholesaling operations.

Use the appliance exclusively as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.

Explanation of terms

The following symbols can be found in this user manual.

WARNING

This symbol indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION

This symbol indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This symbol warns against possible damage to property.

This symbol refers to useful additional information.

Explanation of symbols

Warning! Risk of fire / flammable materials!

This appliance complies with the relevant European and national guidelines. This is confirmed with the CE label (corresponding explanations are available from the manufacturer).

Safety notices

In this chapter you will find general safety notices which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters on commissioning, operation, set-up etc.

WARNING

Risks in handling household electrical appliances

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
■ Do not operate or continue to operate the appliance if

– it shows visible signs of damage, e.g. the power cord is defective,
– it starts smoking or there is a smell of burning,
- it makes unfamiliar noises.

In such cases, remove the mains plug from the socket or unscrew/isolate the fuse and contact our service department (see page GB-29).

■ The appliance corresponds to protection class I and may only be connected to a plug with a protective conductor that has been installed properly. When connecting, make sure that it has the right voltage. You can find more detailed information about this on the nameplate.

■ Do not connect to a timer or a separate remote-controlled system for distance monitoring and control.
■ The appliance can only be completely disconnected from the power supply by pulling out the mains plug. The appliance must therefore be connected to an easily accessible socket so that it can be quickly disconnected from the power supply in the event of breakdown.
■ If the mains plug is no longer accessible after installation, an all-pole disconnecting device complying with overvoltage category III must be connected to the house wiring with a contact gap of at least 3 mm; this includes fuses, circuit breakers and contactors.
■ When positioning the appliance, ensure the supply cord is not trapped or damaged.
- Do not kink or pinch the mains cord or lay it over sharp edges. This can result in a break in the cable.
■ When installing the appliance, please ensure that the connecting cable does not become pinched or damaged.
■ Do not locate multiple portable socket- outlets or portable power supplies at the rear of the appliance.
■ Please do not position extension leads or portable power supply units at the back of the unit.
- Keep the appliance, the mains plug and the mains cord away from open flames and hot surfaces.
■ Always touch the mains plug, not the mains cord.

■ Never touch the mains plug with wet hands.
■ Never immerse the mains cord or plug in water or any other liquids.
■ If you notice that the mains cord for the unit is damaged, it must be replaced with a special mains cord available from the manufacturer or its customer service team.
■ Inspections and repairs to the appliance may only be carried out by authorised specialists. Please contact our Service Department (see page GB-29) as required.
■ Independent or improper repairs made to the appliance may cause damage to property and personal injury; any liability and warranty claims will be forfeited. Never try to repair a defective or suspected defective appliance yourself.
■ This appliance contains electrical and mechanical parts which are essential for protection against potential sources of danger. Only parts corresponding to the original appliance specifications may be used for repairs.
■ In the event of a fault, as well as before extensive cleaning, pull out the mains plug or isolate/unscrew the fuse.
■ Do not put any objects in or through the housing openings, and also make sure that children cannot insert any objects into them.
- Check the appliance regularly for damage.

Risks to children

Risk of suffocation!

Children can become entangled in the packaging fi lm or swallow small parts and suffocate.

■ Do not allow children to play with the packaging fi lm.
■ Prevent children from pulling small parts from the device or taking them out of the accessory bag and putting them in their mouths.

Risks when dealing with chemical substances

Danger of explosion!

Improper handling of chemical substances can lead to explosions.

■ Do not store explosive substances or spray cans with flammable propellants inside the appliance, as they may cause ignitable gas-air mixtures to explode.
■ Never use defrosting sprays to defrost. They can generate explosive gases.

CAUTION

Risks for certain groups of people

Dangers for children and people with limited physical, sensory or mental capacity!

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand

the hazards involved. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

■ Make sure children do not have unsupervised access to the appliance.

Risks when dealing with fridge and freezer appliances

Fire hazard!

Improper handling of the appliance can lead to fire and property damage.

■ Only connect the appliance to a properly installed and earthed electric socket.
■ Do not connect to a multi-socket extension cable or a multi-socket plug.
■ To ensure adequate air circulation, do not close the ventilation openings in the appliance housing.
- Do not place the appliance directly against the wall. Observe the minimum spacing intervals (see “Transporting, unpacking and setup” on page GB-22).

Dangers from the refrigerant!

Your appliance's refrigeration circuit contains the environmentally friendly, but fl ammable refrigerant R600a (isobutane).

■ Mechanical intervention in the refrigeration system must only be carried out by authorised specialists.
- Do not damage the refrigerant circuit, for example, by piercing the refrigerant channels of the condensate evaporator with sharp objects, bend-

ing the piping, cutting open the insulation, etc.

■ Refrigerant is flammable when spurting out and can damage the eyes. In this case, rinse your eyes in clean water and seek medical assistance immediately.
■ To prevent the formation of a flammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 1 m^3 per 8 g of refrigerant in compliance with the EN 378 standard. The amount of refrigerant contained in your appliance can be found in the data sheet at the end of this user manual.

Risk of injury!

Improper handling of the appliance may result in injury.

■ The appliance is heavy and bulky. Ask another person to help with moving and installation.
- Check that entry route and installation location are free of obstacles (e.g. closed doors or objects lying on the floor).
■ Bases, drawers, doors, etc. must not be used as steps or for support purposes.
■ Do not place heavy objects on the appliance, as they could fall down and cause injuries.
■ Lay the mains cord so that it does not pose a tripping hazard.

Health hazard!

Contaminated foods can cause health problems.

■ Opening the door for long periods can cause a signifi cant increase of the temperature in the compartments of the appliance.
■ Clean regularly surfaces that can come in contact with food and accessible drainage systems.
■ Store raw meat and fi sh in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
■ Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
■ One-, two- and three-star compartments are not suitable for the freezing of fresh food.
■ If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Health hazard!

Incorrect handling, insufficient cooling or overlapping items can spoil the stored food. This could lead to a risk of food poisoning when consumed!

■ In particular, pack raw meat and fish carefully to ensure that adjacent food cannot be contaminated by salmonella or similar bacteria.
■ Abide by the storage times recommended by food manufacturers.

■ If the “Holiday” function has been activated, please do not store food in the refrigerator!
■ In the event of a prolonged power outage or appliance malfunction, please remove any stored food from the appliance and store it in a sufficiently cool room or another cooling appliance (maximum storage time in the event of a power outage: 34 hours).
■ After a malfunction, check whether the stored food is still edible.

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

■ Always adhere to the prescribed ambient temperature (see “climate classes” in the data sheet at the end of this user manual).

! NOTICE

Risk of damage

If the appliance has been transported horizontally, lubricant from the compressor may make its way into the cooling circuit.

■ Only transport the appliance in a vertical position.
- Allow the cooling unit to stand upright for 2 hours before start-up. The lubricant will flow back into the compressor during this time.

Improper handling of the appliance can lead to property damage.

■ Do not use the door to pull or lift the appliance.
- The appliance must only be placed on a level and firm surface. The surface must be strong enough to support the appliance's weight when fully laden.
■ Do not use sharp or pointed objects to unpack it.
■ When unpacking the appliance, never damage the insulation material on the back of the appliance.
- Do not use any electrical parts inside the appliance’s cooling chamber that do not conform to the manufacturer’s recommended design.
■ Do not use any mechanical devices or means other than those recommended by the manufacturer.
■ Do not place any objects in the fan, and please also ensure that children are unable to insert any objects.
■ The interior light must only be used to illuminate the interior of the appliance. It is not suitable for lighting a room.
■ Defrost the appliance in a timely manner, before it forms a layer of ice and frost of more than 5 mm. Excessive ice formation increases power consumption, the drawers become difficult to open and the door may not close completely.
- Do not use any means other than those recommended by the manufacturer to speed up defrosting. For example, do not use any electric heating equipment, knives or devices with an open flame such as a candle. The thermal insulation and the interior

are scratch and heat-sensitive and can melt.

■ When cleaning, please note:

– Never use harsh, granular, soda, acid, solvent-based or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.

- Door seals and plastic parts are sensitive to oil and grease. Remove contaminants as quickly as possible.

– Use only soft cloths for cleaning.

■ Wait 5 minutes after switching off. Only then switch the appliance on again.

■ Only use original accessories.

Operation

Before getting started

• Read chapter "Safety" from page GB-6, in particular all the safety notices.
• Set up and connect the appliance as described in chapter "Before starting to use the appliance" from page GB-22.

A beep will sound whenever a button is pressed.

Switching the appliance on and off

The first time the mains plug is connected to a power source, you will hear a beep and, for a few seconds, all the indicators on the display will light up:

88°C Super Cool Alarm Holiday Child Lock

Thereafter the display will switch off.

Switching on

• Press the on/off button for roughly 5 seconds to turn the appliance on.
  A beep will sound. When switched on for the first time, the display will show the temperature set before it's turned off.
  The compressor starts to work, the refrigerant flows through the pipes and a quiet humming sound can be heard. The interior light will switch on as soon as the door is opened and will switch off if the door is closed.
  After a few minutes, the display will switch off.

If the appliance makes worrying noises, check the solid base and remove any objects that may be on top of the appliance.

Switching off

• Press the on/off button (1) again for roughly 5 seconds to switch the appliance off.
  A beep will sound, following which the appliance will switch off.

Setting the temperature

WARNING

Health hazard!

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature in the fridge and freezer compartment.

■ Always adhere to the prescribed ambient temperature (see “climate classes” in the data sheet at the end of this user manual).

Using the button, you can set the temperature.

1. Press the button until the temperature display appears.
   A beep will sound, and the temperature display will appear.
2. Press the button again until the desired temperature setting appears.

You can set the temperature in increments of 1^ C, with the setting decreasing from 8^ C to 2^ C with every press of the button, before returning to 8^ C after being pressed again.

A beep will sound sound every time a button is pressed.

The "Super Cool" function

With the “Super Cool” function you can chill your refrigerated goods more quickly, allowing them to stay fresher for longer.

Activating the "Super Cool" function

1. Press any button on the display to activate it.
   A beep sound can be heard, and the temperature will appear on the display.
2. Press the Super Cool button.

2°C Super Cool

A beep will sound sound, and the temperature display will switch from the set temperature to “2°C”, and the “Super Cool” indicator will light up.

The "Super Cool" function switches off automatically after 6 hours; thereafter the temperature setting will remain at 2^ C.

Deactivating the "Super Cool" function

- Press either the button or the button to deactivate the "Super Cool" function. A beep will sound. The "Super Cool" indicator on the display will disappear, and the temperature display will return to the previously set value.

The "Holiday" function

The “Holiday” function can be used if you are going to be away for a long time, and would like to save energy.

WARNING

Health hazard!

Incorrect handling, insufficient cooling or overlapping items can spoil the stored food. This could lead to a risk of food poisoning when consumed!

■ If the “Holiday” function has been activated, please do not store food in the refrigerator!

Activating the "Holiday" function

1. Press any button on the display to activate it.
   A beep will sound, and the temperature will appear on the display.
2. Press the Holiday button for 3 seconds.

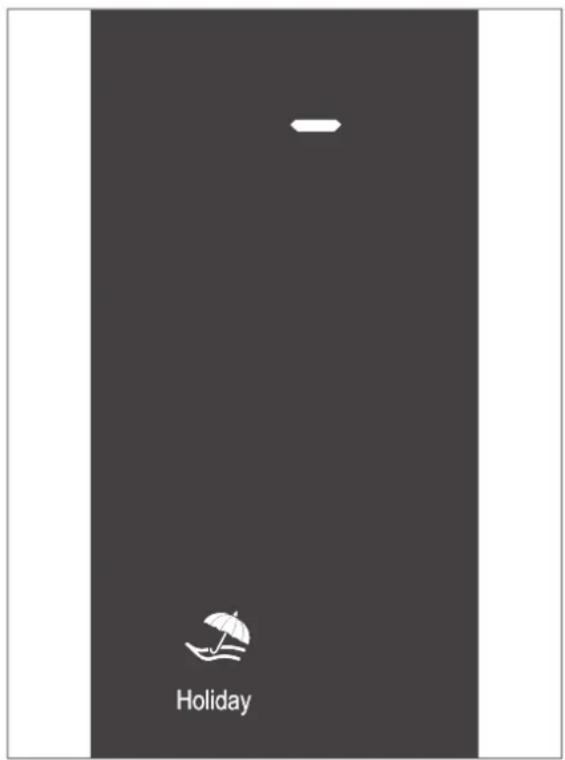

Holiday

A beep will sound. The temperature display will switch from the set temperature to “-”, and the “Holiday” indicator will light up.

Deactivating the "Holiday" function

1. Press either the T° holiday button to deactivate the "Holiday" function. A beep will sound.
2. Press either the T°, or button. A beep will sound. The "Holiday" indicator will disappear, and the temperature display will return to the previously set value.

The "Alarm" function

The “Alarm” function will alert you to when the refrigerator door has been open for more than two minutes.

Activating and deactivating the "Alarm" function

The ‘Alarm’ function is activated automatically when the appliance is turned on.

2°C Alarm

If the door is left open for longer than two minutes, three alarm signals will sound, and the "Alarm" function will light up.

The alarm signal will sound once every minute, until a total of 10 minutes have elapsed.

- Simply press the Alarm button again for a few seconds to deactivate the "Alarm" function.

A beep will sound, and the display Alarm will disappear.

The "Child Lock" function

With the "Child Lock" function, you can prevent children from operating the appliance's control panel.

Activating the "Child Lock" function

1. Press the button for roughly 3 seconds to activate the "Child Lock" function. A beep will sound, and the temperature display will light up,
2. Press the ☐ button again for roughly 3 seconds.

2°C Child Lock

A beep will sound, and "Child Lock" will appear on the display.

The control panel has now been locked.

Deactivating the "Child Lock" function

- Press the Button for roughly 3 seconds to deactivate the "Child Lock" function. The "Child Lock" indicator will disappear.

Glass and door shelves

The glass shelves (10), the butter and cheese compartment (2), the door shelves (3) and the bottle rack (5) can be removed, and the door shelves (3) can be rearranged as needed.

1. Lift up and remove the glass shelf/door shelf.
2. Insert the glass shelf or door shelf from above into the desired new position.

The bottle rack

(13) (5)

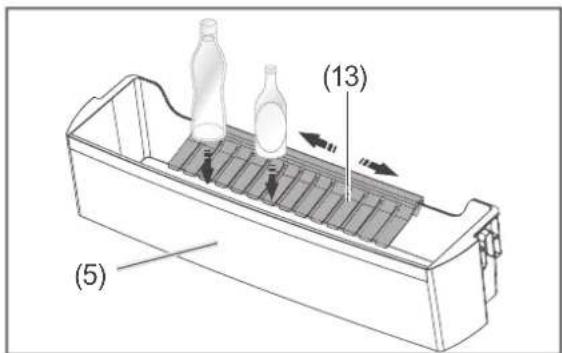

The bottle rack (5) contains a bottle holder (13), which is there to prevent bottles from falling out when forcefully opening the door. The bottle holder (13) can be moved as required.

The fresh compartment

Simple line drawing of a rectangular object with two arrows indicating left and right motion, labeled (11) at the base (no text or symbols on the object itself)

The fresh compartment (11) can also be moved as desired.

The bottle shelf

Diagram of a mechanical or structural component with two arrows indicating direction, no text or symbols present

The bottle shelf (12) can also be moved as desired.

The cold-storage compartment

Line drawing of a cabinet interior with shelves and doors, no text or symbols present

When storing foodstuff in the cold-storage department (8), on a glass shelf (10) or (9), the freshness, taste and appearance of your food products will remain better for longer.

(15) Low High

If the freshness disc (15) in the top cover (14) of the vegetable drawer (7) is closed, fresh fruit and vegetables can be stored for longer.

If the vegetable drawer (7) is completely filled, open the freshness disc (15) in the cover (14) of the vegetable drawer (7). This controls the air and moisture in the vegetable drawer (7) and prolongs the shelf life of the food.

If you spot condensation (14) on the top cover (7) of the vegetable drawer (15), please open the freshness disc.

Moisture control in the vegetable drawer

(14) (15) (7)

The cover (14) of the vegetable drawer (7) has moisture control.

Chilling food

WARNING

Danger of explosion!

Improper handling of the appliance can lead to explosions.

■ Do not store explosive substances or spray cans with flammable propellants inside the appliance, as they may cause ignitable gas-air mixtures to explode.

CAUTION

Health hazard!

Contaminated foods can cause health problems.

■ Opening the door for long periods can cause a signifi cant increase of the temperature in the compartments of the appliance.

■ Clean regularly surfaces that can come in contact with food and accessible drainage systems.

■ Store raw meat and fi sh in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

■ Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

■ One-, two- and three-star compartments are not suitable for the freezing of fresh food.

■ If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Filling the fridge compartment

- Fill the fridge compartment in such a way that the temperature conditions inside are used to their full potential:

- Place the spreadable butter and soft cheese in the butter and cheese compartment (2) in the refrigerator's upper section. This is where the temperature is warmest.

- Store any preserves, glass jars and eggs in the door shelves (3). Eggs are best stored on the supplied egg tray.

– Small bottles and tubes should be stored in the bottle rack (5).

• Place drinks cartons and bottles on the bottle rack (5). Position full containers closer to the hinge in order to reduce the strain on the door.
• Place cooked and baked foods on the glass shelves (10).
• Place fresh meat, game, poultry, bacon, sausage and raw fish on the glass shelf (9) above the vegetable drawer (7). This is where the temperature is lowest.

• Place fresh fruit and vegetables in the vegetable drawer (7) or the fresh compartment (11).
  – Larger bottles, wine bottles etc. should be stored on the bottle shelf (12).

• Only store strong alcohol standing upright and closed tightly.

• Allow hot food to cool before placing it in the fridge compartment.
• The temperatures in the appliance and thus the energy consumption can increase

- if the door is opened frequently or for a long time.

- if the temperature falls below or exceeds the prescribed interior temperature.

- Energy consumption is also dependent on the selected location (see "Start-up" on page GB-22).

Maintaining quality

• To maintain the flavour and freshness of food in the fridge compartment, only place packaged food in the fridge compartment. Use special plastic containers for food or customary films.
• Place the food

– in the fridge in a way that allows the air to circulate freely. Do not cover the shelves with paper or anything similar.

– somewhere that is not directly against the rear wall. Otherwise it may freeze onto the rear wall.

Care and maintenance

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Before cleaning, unplug the mains plug from the socket or isolate/un-screw the fuse.
■ When pulling out the mains plug, always take hold of the mains plug itself and never the mains cord.

CAUTION

Hazards for children and people with limited physical, sensory or mental capacity.

■ Cleaning and user maintenance must not be carried out by children unless they are supervised.

NOTICE

The surfaces and appliance parts can be damaged through improper handling.

■ Never use harsh, granular, soda, acid, solvent-based or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.
■ Door seals and plastic parts are sensitive to oil and grease. Remove contaminants as quickly as possible.
■ Only use soft cloths.

Checking and cleaning door seals

The door seals must be checked regularly so that no air can enter the appliance.

1. To test them, clamp a thin piece of paper in various places. The paper should be difficult to pull through at all points.
2. If the seal is not uniform everywhere: Warm the seal in the appropriate places in front of you with a hair dryer and pull it out with your fingers.
3. Only clean dirty seals with clean water.

Clean exterior

• Painted surfaces
  Use only light pH-neutral soapy water.
  – Stainless steel surfaces
  Use special stainless steel cleaner from a specialist shop. Never use polish.

Cleaning the reverse side

Remove dust and clean the back of the appliance and the compressor once or twice a year.

- Carefully brush the reverse side of the appliance and the compressor with a soft brush.

Cleaning the interior

The fridge compartment does not need to be defrosted as it is equipped with an automated thawing function. Frost and ice are automatically defrosted and the thaw water is collected in a thaw water container on the reverse side of the appliance. The thaw water evaporates as a result of the heat generated by the motor.

1. Remove the vegetable drawer (7), the cold-storage compartment (8) and the glass shelves (9) and (10).
2. When looking to remove the butter and cheese compartment (2), the door shelves (3) or the bottle rack (5), press them together slightly at the sides while pulling them up simultaneously and out of their secure position.
3. Clean all of the parts in lukewarm soapy water. Then dry everything thoroughly.
4. Wipe down the inside with warm water and washing-up liquid.
5. When wiping clean, add a few drops of vinegar to the water to prevent mould from forming.
6. Wipe the interior dry and leave the door open a while to air.
7. Only clean the door seals with clean water; they are sensitive to oil and fat.
8. Replace the glass shelves, the drawers and the door shelves.

Interior lighting

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Do not remove the cover from the interior lighting.
■ Do not attempt to replace the interior lighting.

Maintenance-free LEDs are used to light the appliance. If the interior light does not work, contact our customer service department (see page GB-29).

Start-up

Before starting to use the appliance

- Read chapter "Safety" from page GB-6, in particular all the safety notices.

Transporting, unpacking and setup

WARNING

Risk of suffocation!

Children can become entangled in the packaging fi lm or swallow small parts and suffocate.

■ Do not allow children to play with the packaging fi Im.

CAUTION

Risk of injury!

Improper handling of the appliance may result in injury.

■ The appliance is heavy and bulky. Seek the help of another person when moving the appliance.

■ Drawers, doors etc. must not be used as steps or for support purposes.

Dangers from the refrigerant!

- Do not damage the refrigeration circuit, for example by piercing the refrigerant channels of the condensate vaporiser with sharp objects, cutting off the tubing, etc.

■ Refrigerant is flammable when spurting out and can damage the eyes. If this happens, rinse eyes with clean water and seek medical assistance immediately.

NOTICE

Risk of damage!

Improper handling of the appliance may result in damage.

■ If possible, do not tilt the cooling appliance horizontally.
■ Do not use sharp or pointed objects to unpack it.
■ When unpacking the appliance, never damage the insulation material on the back of the appliance.

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

■ Always adhere to the prescribed ambient temperature (see “climate classes” in the data sheet at the end of this user manual).

1. Unpack the appliance and carefully remove all packaging, plastic moulding, adhesive strips, protective film and foam padding from the inside, outside and back of the appliance.
2. Select a suitable location and adhere to the stipulated minimum distances and ambient temperatures (see the next page).

C A B D F G G E H I

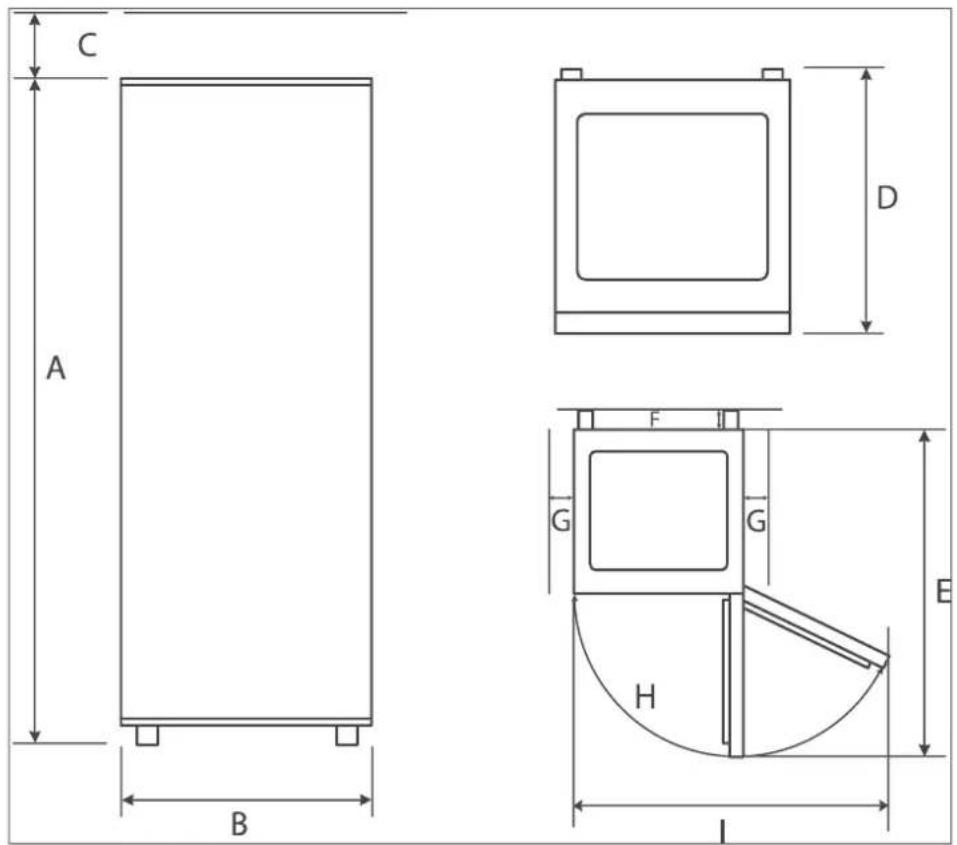

Space requirement diagram (when the door is open and when the door is closed)

Space required according to the appliance dimensions

A: 1855 mm B: 595 mm

C: ≥100 mm D: 712 mm*)

E: 1220 mm**) F: 50-70 mm

G: ≥ 50 mm H: 135°

I: 1025 mm

*) handle depth included

**) parts at the back included

- To prevent the formation of a flammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 1m^-3 per 8g of refrigerant in compliance with the EN 378 standard. The amount of refrigerant contained in your appliance can

be found on the data sheet at the end of this user manual.

- The appliance must only be placed on a level and firm surface. The surface must be strong enough to support the appliance's weight when fully laden.

- Suitable locations are dry, well-ventilated areas that are cool if possible.

- Unsuitable locations are ones with direct sunlight or which are directly next to an oven, hob or radiator.

– The following minimum distances must be maintained:

– from electrical hobs 3 cm
– from oil and coal burning stoves 30cm
– from other cooling appliances 2 cm
– from washing machines/ dishwashers 2 cm

- If you would like to reduce these distances, you can fit an insulation plate between the appliances.

- If underfloor heating is installed at the setup location, place the cooling appliance on an insulation plate made from solid material.

Setting up and aligning the appliance

NOTICE

Risk of damage!

Insuffi cient air circulation may lead to overheating and cause damage to the appliance.

■ The entire space above the appliance must remain clear.
■ The appliance should not stand directly against the wall (leave a minimum clearance of 5 cm).

1. Place the appliance on as flat and as firm a base as possible.
2. Check the position with a spirit level.


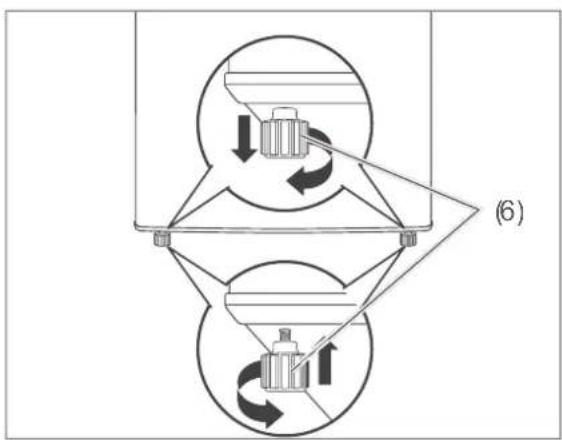

1. Level out any unevenness on the ground using the two front screw feet (6).

2. Close the door.

3. Tilt the appliance backwards slightly and screw/unscrew the screw feet (6).

- Stand the appliance back up again and check the alignment with a spirit level. Repeat the process until the appliance is standing up vertically. The appliance should not move when opening the door.

Attaching the door handle

If you wish, you can now attach the door handle.

(16)

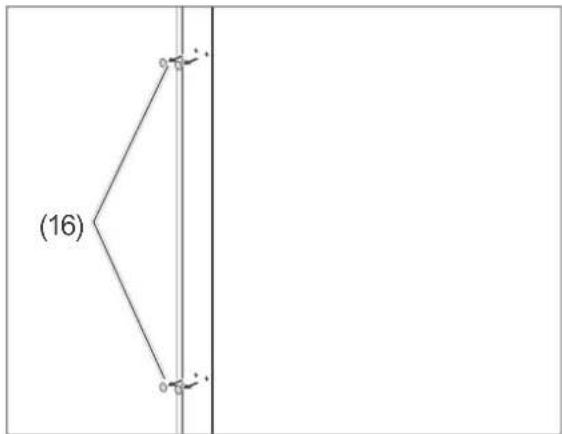

1. Use a knife or a flat-tip screwdriver to remove the blind plugs (16) from the side of the door.

(17) (4)

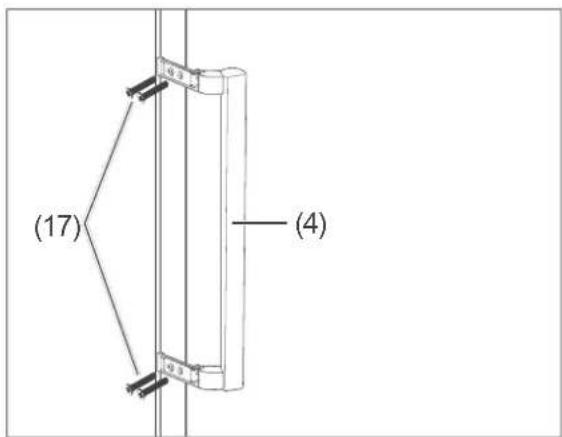

1. Secure the door handle (4) with the screws provided (17).

Technical line drawing of a vertical structural component with a labeled section (18), no text or symbols present.

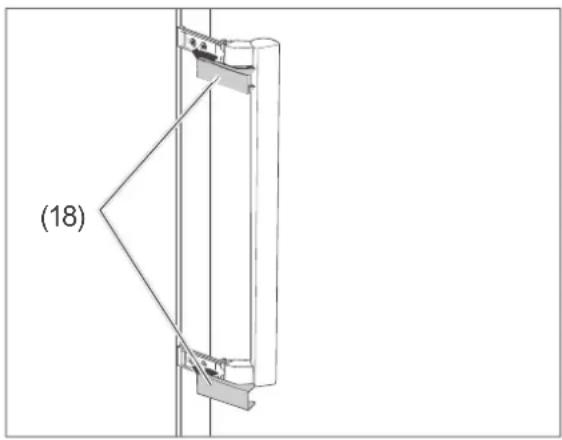

1. Slide the decorative cover (18) over the handle.

Basic cleaning

In order to remove the odour which is present in all new appliances, wipe the interior with diluted vinegar prior to first use. Then wipe it out with clean water and dry all of the parts off afterwards.

Commissioning the appliance

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Do not operate or continue to operate the appliance, if
– it shows visible signs of damage, e.g. the power cord is defective,
– it starts smoking or there is a smell of burning,
– it makes unfamiliar noises.

Should this occur, remove the mains plug or unscrew/isolate the fuse and contact our service department (see "Service" on page GB-29).

■ Do not connect to a timer or a separate remote-controlled system for distance monitoring and control.
■ If the mains plug is no longer accessible after installation, an all-pole disconnecting device complying with overvoltage category III must be connected to the house wiring with a contact gap of at least 3 mm; this includes fuses, circuit breakers and contactors.
■ Do not kink or pinch the mains cord or lay it over sharp edges. This can result in a break in the cable.

CAUTION

Fire hazard!

Improper handling of the appliance can lead to fire and property damage.

■ Only connect the appliance to a properly installed and earthed electric socket. Do not connect to a multi-socket extension cable or a multi-socket plug.

NOTICE

Risk of damage!

If the appliance has been transported horizontally, lubricant from the compressor may make its way into the cooling circuit.

- Allow the appliance to stand upright for approx. 2 hours after transport and before connecting. This allows the lubricant enough time to flow back into the compressor.

- Insert the mains plug into an easily accessible and properly installed socket (220-240 V\~ / 50 Hz).

The interior light (1) switches on and off automatically when the door is opened and closed.

You will find all important information about operation from page GB-12.

Troubleshooting table

Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, please check the tables to see if you can correct the malfunction.

WARNING

Risk of electric shock in case of improper repair!

Never try to repair a defective or suspected defective appliance yourself. This may put your own and future users' lives at risk. Only authorised specialists are allowed to carry out this repair work.

Problem	Possible cause	Solutions, tips, explanations
Compressor off, interior light off.	No electricity to socket.	Check the socket with another appliance.
	Mains plug is loose.	Check the tightness of the mains plug.
Compressor off, interior light on.	Appliance is switched off.	Switch the appliance (see “Setting the temperature” on page GB-13) on.
	Desired temperature has been reached.	Further cooling not required. When the inside temperature rises, the compressor automatically switches on.
Appliance cools too quickly.	Temperature has been set too high.	Select a lower setting (see “Setting the temperature” on page GB-13).
The appliance doesn’t cool sufficiently.	Temperature has been set too low.	Select a higher setting (see “Setting the temperature” on page GB-13).
	Door not tightly closed or door seal is not completely tight.	See (see “Checking and cleaning door seals” on page GB-20).
	The appliance is near a heat source.	Place insulation plate between the appliances or change location.
	Food has been stored warm.	Only store cooled foods.
	Too many goods frozen.	Freeze a maximum of 2 kg at any one time.
	Ambient temperature is too low or too high.	Adjust the ambient temperature to the climate category (see “Technical specifications” on page GB-32).
	Compressor seems defective.	Set the temperature to “2°C”. Activate the “Super Cool” function (super Cool button). If the compressor does not switch on within an hour, please contact our service centre (see page GB-29).
Appliance is making a noise.	Operating noises are functional and are not a sign of malfunction.	Humming: Refrigeration unit is running.
		Flowing noise: Refrigerant is flowing through the pipes.
		Clicking: Compressor is switching on or off.
	Disturbing noises.	Check that it is stable.
		Remove any objects from the appliance.
		Remove any foreign matter from the back of the appliance.

Service

In order for us to help you quickly, please tell us:

Name of appliance Colour Model Order number
hanseatic Refrigerator	Stainless steel	HKS 18560DA2I 3537 5920

Advice, order and complaint

Please contact your mail order company's customer service centre if

– the delivery is incomplete,
– the appliance is damaged during transport,
– you have questions about your appliance,
- a malfunction cannot be rectified using the troubleshooting table,
– you would like to order further accessories.

Repairs and spare parts

Customers in Germany

– Please contact our technical service:
Telephone [phone]
(Landline 20 cents/call, mobile max.
60 cents/call)

Customers in Austria

- Please contact your mail order company's customer service centre or product advice centre.

Please note: You are responsible for the condition of the appliance and its proper use in the household. If you call out for customer service due to an operating error, you will incur charges, even during the guarantee/warranty period. Damage resulting from non-compliance with this manual unfortunately cannot be recognised.

Environmental protection

Disposing of old electrical devices in an environmentally friendly manner

Electrical appliances contain harmful substances as well as valuable resources.

Every consumer is therefore required by law to dispose of old electrical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Please contact your dealer directly for more information about this topic.

CAUTION

Fire hazard!

Cooling appliances, which contain refrigerants and gases in the cooling systems and insulation, have to be properly disposed of. Refrigerant leakage may cause a fire hazard.

■ Until the point of proper disposal, ensure that none of the cooling fins or tubes on a cooling appliance are damaged.

Our contribution to the protection of the ozone layer

100% CFC and HFC-free refrigerants and foaming agents were used in this appliance. This protects the ozone layer and reduces the greenhouse effect.

Our packaging is made of environmentally-friendly, recyclable materials:

– Outer packaging made of cardboard
– Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of polyethylene (PE)
– Tension bands made of polypropylene (PP)
- Saving energy also protects against excessive global warming. Your new appliance uses little energy due to its environmentally friendly insulation and technology.

If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Product fiche concerning Regulation (EU) No 1060/2010

Trade mark	hanseatic
Model identifier	3537 5920 / HKS18560DA2I
Category of the household refrigerating appliance model	3, Refrigerator-chiller and Refrigerator with a 0-star compartment
Energy efficiency class on a scale from A+++ (most efficient) to D (least efficient)	A++
Energy consumption 130 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located
Storage volumeRefrigerator	360 L338 L cooling22 L chill compartment
Storage volumeFreezer / Star rating	- L / - star
Power cut safe	- h
Freezing capacity	- kg / 24 h
Climate class: SN,N,ST,T . This appliance is intended to be used at an ambient temperature between +10 °C and +43 °C.
Airborne acoustical noise emissions	40 dB(A) re 1 pW
Built-in appliance	no

The values indicated above have been measured under standardised laboratory conditions pursuant to EN 62552.

Technical specifications

Item number	3537 5920
Name of appliance	Refrigerator
Model identifier	HKS18560DA2I
Device measurements (Height × Width × Depth with connections)	1855 mm × 595 mm × 712 mm
Unloaded weight	74 kg
Refrigerant	R600a
Filling capacity refrigerant	46 g
Foaming agent	cyclopentane
Rated power	70 W
Supply voltage / frequency / rated current	220 - 240 V / 50 Hz / 0,4 A
Protection class	I
