User manual

Hanseatic Refrigerator

Table of contents

Delivery.... EN-3

Package contents ..... EN-3

Check the delivery ..... EN-3

Intended use ...... EN-3

Appliance parts / control elements .... EN-4

Safety EN-5

Explanation of terms ..... EN-5

Explanation of symbols ..... EN-5

Safety notices.... EN-5

Operation ...... EN-10

Requirements for safe use ..... EN-10

Switching the appliance on and off EN-10

Setting the temperature ..... EN-10

Moving the glass shelf and door compartments .....EN-11

Chilling food EN-12

Filling the fridge compartment . . . . EN-12

Maintaining quality ..... EN-13

Care and maintenance ..... EN-14

Checking and cleaning the door seals.... EN-14

Clean exterior EN-14

Replacing the interior light ..... EN-15

Start-up EN-16

Preparing for start-up ..... EN-16

Moving and unpacking ..... EN-16

Choosing a suitable location ..... EN-16

Setting up and aligning the appliance .... EN-17

Changing the door hinges ..... EN-18

Cleaning before use ..... EN-20

Connecting the appliance to electricity ..... EN-20

Troubleshooting table ..... EN-22

Environmental protection ..... EN-24

Disposing of old electrical devices in an environmentally-friendly manner .... EN-24

Our contribution to the protection of the ozone layer ..... EN-24

Service EN-25

Advice, order and complaint ..... EN-25

Repairs and spare parts ..... EN-25

Product fiche concerning

Regulation (EU) No 1060/201090 .. EN-26

Technical specifications ..... EN-27

You can find more information on setting up the appliance and starting it up for the first time

from page EN-16.

Please read through the safety instructions and user manual carefully before using the appli-

ance. This is the only way you can use all the functions reliably and reliably. Be sure to also observe the national regulations in your country that are valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the product.

Delivery

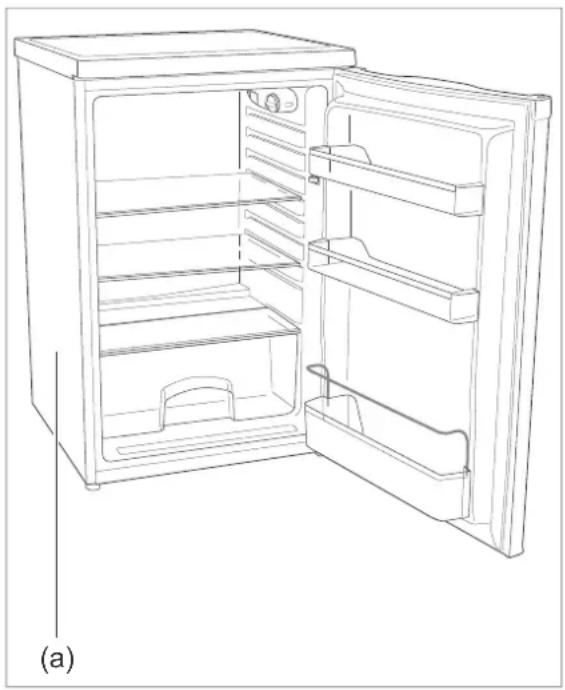

Line drawing of an open refrigerator with doors open, showing internal shelves and doorways (no text or symbols)

Package contents

1× Refrigerator with three-star freezer compartment and vegetable compartment (a)
1× Warranty documents

Check the delivery

1. Move the appliance to a suitable place and unpack it (see „Start-up“ on page EN-16).
2. Remove all parts of the packaging, plastic profiles, tape and foam padding.
3. Check that the delivery is complete.
4. Check whether the appliance was damaged during transit.
5. If the delivery is incomplete or the appliance has been damaged during transport, please contact our Service Centre (see page EN-25).

WARNING!

Risk of electric shock! Never use a damaged appliance.

Intended use

The appliance is intended to chill fresh foods.

The appliance is intended solely for use in private households. It is not designed for commercial use.

Use the appliance exclusively as described in this user manual. Any other

use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.

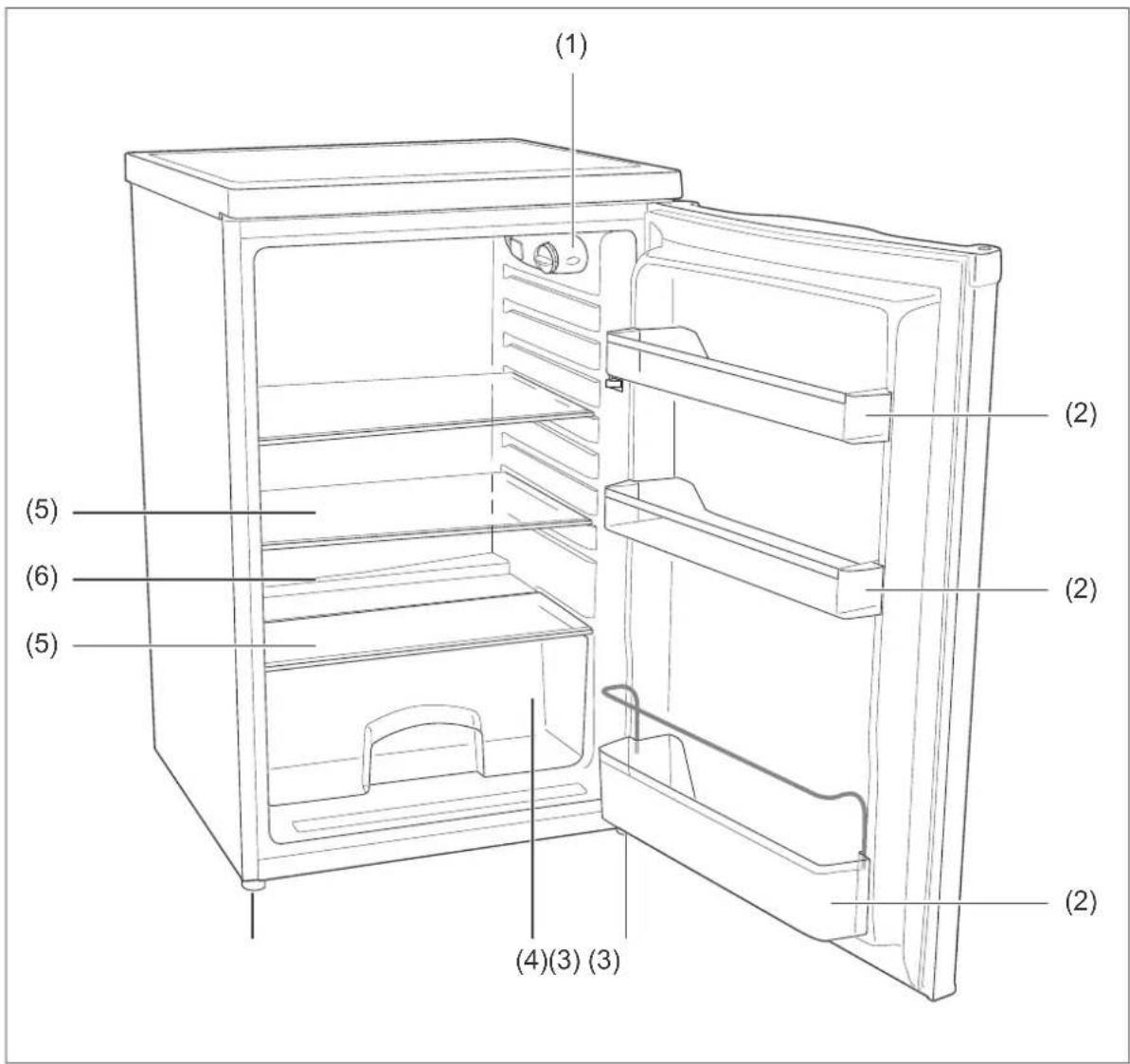

Appliance parts / control elements

(1) (2) (5) (6) (5) (4)(3) (3) (2)

(1) Temperature controller and interior lighting
(2) Door compartment

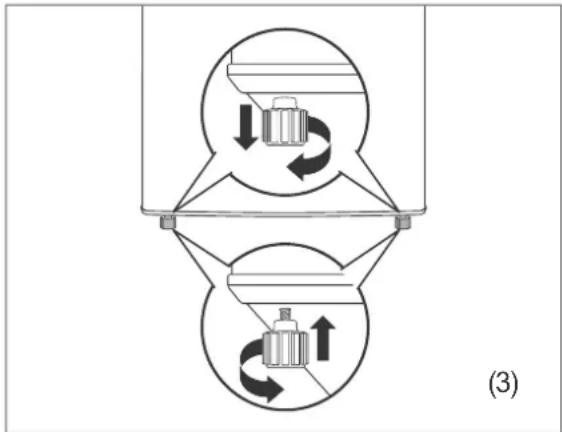

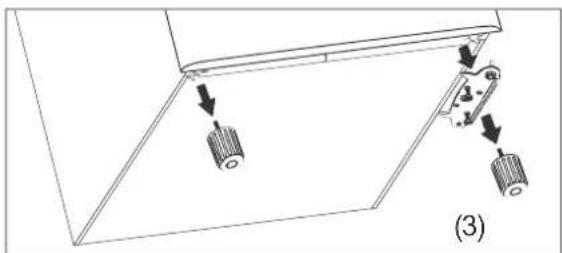

(3) Screw feet

(4) Vegetable drawer
(5) Glass shelf
(6) Defrost drain

Safety

Explanation of terms

The following symbols can be found in this user manual.

WARNING

This symbol indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION

This symbol indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This symbol warns against possible damage to property.

This symbol refers to useful additional information.

Explanation of symbols

Caution: Fire hazard!

Safety notices

In this chapter you will find general safety notices which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters on operation, installation, etc.

WARNING

Risks in handling household electrical appliances

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
■ Do not operate or continue to operate the appliance, if
– it shows visible signs of damage, e.g. the power cord is defective,
– it starts smoking or there is a smell of burning,
- makes unfamiliar noises.

In such cases, pull out the mains plug or unscrew/isolate the fuse and contact our service department (see page EN-25).

■ The appliance corresponds to protection class I and may only be connected to a plug with a protective conductor that has been properly installed. When connecting, make sure that it has the right voltage. You can find more detailed information about this on the nameplate.
■ Do not connect to a timer or a separate remote-controlled system for distance monitoring and control.
■ The appliance must only be completely disconnected from the power supply by pulling out the mains plug. The appliance must therefore be connected to an easily accessible socket so that it can be quickly disconnected from the power supply in the event of breakdown.
■ If the mains plug is no longer accessible after installation, an all-pole disconnecting device complying with overvoltage category III must be connected to the house wiring with a contact gap of at least 3 mm; this includes fuses, circuit breakers and contactors.

• Do not kink or pinch the mains cord or lay it over sharp edges. This can result in a break in the cable.
  ■ When positioning the appliance, ensure the supply cord is not trapped or damaged.
  ■ Do not locate multiple portable socket- outlets or portable power supplies at the rear of the appliance.
• Keep the appliance, mains plug and mains cord away from open flames and hot surfaces.
  ■ Always touch the mains plug, not the mains cord.
  ■ Never touch the mains plug with wet hands.
  ■ Never immerse the mains cord or plug in water or any other liquids.
  ■ If the mains cord of the appliance is damaged, it must be replaced by the manufacturer, through customer service or by a qualified specialist.
• Inspections and repairs to the appliance may only be carried out by authorised specialists (see „Service“ on page EN-25).
  ■ Independent or improper repairs made to the appliance may cause damage to property and personal injury; any liability and warranty claims will be forfeited. Never try to repair a defective or suspected defective appliance yourself.
  ■ Only parts corresponding to the original appliance specifications may be used for repairs. This appliance contains electrical and mechanical parts which are essential for protection against potential sources of danger.
  ■ In the event of a fault, as well as before extensive cleaning, pull out the

mains plug or isolate/unscrew the fuse.

■ Do not put any objects in or through the housing openings, and also make sure that children cannot insert any objects in them.
■ Check the appliance regularly for damage.

Risks to children

Risk of suffocation!

Children can become entangled in the packaging fi lm or swallow small parts and suffocate.

■ Do not allow children to play with the packaging fi lm.
■ Prevent children from pulling small parts from the device or taking them out of the accessory bag and putting them in their mouths.

Risks when dealing with chemical substances

Danger of explosion!

Improper handling of chemical substances can lead to explosions.

■ Do not store explosive substances or spray cans with flammable propellants inside the appliance, as they may cause ignitable gas-air mixtures to explode.
■ Never use defrosting sprays to defrost. They can generate explosive gases.

CAUTION

Risks for certain groups of people

Dangers for children and people with limited physical, sensory or mental capacity!

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

■ Make sure children do not have unsupervised access to the appliance.

Risks associated with using refrigerators

Fire hazard!

Improper handling of the appliance can lead to fire and property damage.

■ Only connect the appliance to a properly installed and earthed electric socket.
■ Do not connect to a multi-socket extension cable or a multi-socket plug.
- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- Do not place the appliance directly against the wall. Observe the minimum spacing intervals (see „Choosing a suitable location“ on page EN-16).

Dangers from the refrigerant!

Your appliance's refrigeration circuit contains the environmentally friendly, but fl ammable refrigerant R600a (isobutane).

■ Mechanical intervention in the refrigeration system must only be carried out by authorised specialists.
- Do not damage the refrigerant circuit, for example by piercing the refrigerant channels of the condensate vaporiser with sharp objects, bending the tubing, etc.
■ Refrigerant is flammable when spurting out and can damage the eyes. In this case, rinse your eyes in clean water and seek medical assistance immediately.
- To prevent the formation of a flammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 1 m ^3 per 8 g of refrigerant in compliance with the EN 378 standard. The amount of refrigerant contained in your appliance can be found on the data sheet (see „Technical specifications“ on page EN-27).

Health hazard!

Contaminated foods can cause health problems.

■ Opening the door for long periods can cause a signifi cant increase of the temperature in the compartments of the appliance.
■ Clean regularly surfaces that can come in contact with food and accessible drainage systems.

■ Store raw meat and fi sh in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

■ If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Risk of injury!

Improper handling of the appliance may result in injury.

■ The appliance is heavy and bulky. Ask another person to help with moving and installation.
- Check that entry route and installation location are free of obstacles (e.g. closed doors or objects lying on the floor).
■ Bases, drawers, doors, etc. must not be used as steps or for support purposes.
■ Do not place heavy objects on the appliance, as they could fall down and cause injuries.
■ Lay the mains cord so that it does not pose a tripping hazard.

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

■ Always abide by the prescribed ambient temperature (see the ‘Climate categories’ line on page EN-26).

! NOTICE

Risk of damage!

If the appliance has been transported horizontally, lubricant from the compressor may make its way into the cooling circuit.

■ Only transport the appliance in a vertical position, where possible.
- Allow the appliance to stand upright for 2 hours before start-up. The lubricant will flow back into the compressor during this time.

Improper handling of the appliance can lead to property damage.

■ Do not pull or lift the appliance by gripping the door.
- The appliance must only be placed on a level and firm surface. The surface must be strong enough to support the appliance's weight when fully laden.
■ Do not use sharp or pointed objects to unpack it.
■ Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
■ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
■ The interior light must only be used to illuminate the interior of the appliance. It is not suitable for lighting a room.

■ When cleaning, please note:

- Never use harsh, granular, soda, acid, solvent-based or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.

- Door seals and plastic parts are sensitive to oil and grease. Remove contaminants as quickly as possible.

- Use only soft cloths for cleaning.

■ Wait 5 minutes after switching off. Only then switch the appliance on again.

■ Only use original accessories.

Operation

Requirements for safe use

• You have read chapter „Safety“ from page EN-5 and understand all the safety notices.
• The appliance is set up and plugged in as described in chapter „Start-up“ from page EN-16.

Switching the appliance on and off

NOTICE

Risk of damage!

Improper handling of the appliance can lead to property damage.

■ The interior light must only be used to illuminate the interior of the appliance. It is not suitable for lighting a room.

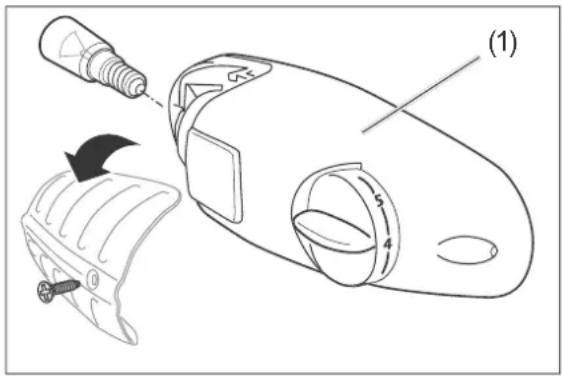

(1)

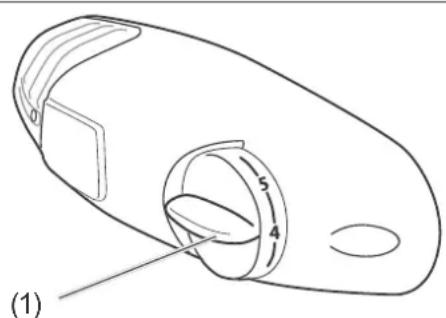

The temperature controller (1) can be used to switch the appliance on and off. The temperature controller is situated on the right-hand wall of the fridge compartment.

Switching on

1. Set the temperature controller (1) to a setting of between '1' and '7'.
   The appliance is then switched on. The compressor will begin to work. The interior light will switch on as soon as the door is opened and will switch off if the door is closed.

2. If the appliance makes unusual noises, check that it is on a solid base and remove any objects that are on top of the appliance.

Switching off

1. Set the temperature controller (1) to '0'. The compressor is switched off. The appliance doesn't refrigerate.
2. To disconnect the appliance from the power supply, pull the mains plug out of the socket.
3. Empty the appliance and clean it (see "Care and maintenance" on page EN-14).
4. Leave the door open slightly to avoid mould formation.

Setting the temperature

WARNING

Health hazard!

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature in the fridge and freezer compartment.

■ Always abide by the prescribed ambient temperature (see the ‘Climate class’ line on page EN-26).

Use the temperature controller (1) to set.

• First select a medium setting.
• If, for example in summer, the ambient temperature increases, so select a lower setting accordingly.

To

– increase the refrigeration output in the fridge and freezer compartments, turn the temperature controller towards '7'.
– decrease the refrigeration output in the fridge and freezer compartments, turn the temperature controller towards '1'.

Ideally you need one refrigerator/freezer thermometer to be able to control the refrigeration output.

Place it above the vegetable compartment; the correct temperature here is +6^ C.

Moving the glass shelf and door compartments

Both upper glass shelves (5) and the door compartments (2) can be taken out and rearranged if necessary.

1. Pull out the shelf / lift up and remove the door compartment.
2. Slide the shelf into a new position / insert the door compartment from above into a new position.

Chilling food

WARNING

Danger of explosion!

Improper handling of the appliance can lead to explosions.

■ Do not store explosive substances or spray cans with flammable propellants inside the appliance, as they may cause ignitable gas-air mixtures to explode.

CAUTION

Health hazard!

Contaminated foods can cause health problems.

■ Opening the door for long periods can cause a signifi cant increase of the temperature in the compartments of the appliance.
■ Clean regularly surfaces that can come in contact with food and accessible drainage systems.
■ Store raw meat and fi sh in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
■ If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

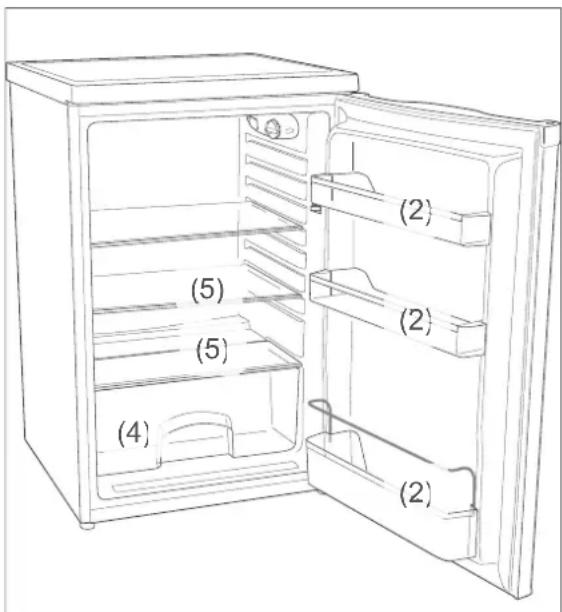

Filling the fridge compartment

(2) (5) (5) (4) (2)

• Fill the fridge compartment in such a way that the temperature conditions inside are used to their full potential:
• Place spreadable butter and cheese in the top door compartment (2). This is where the temperature is warmest.
• Store preserves, jars and eggs in the middle door compartment (2). Eggs are best stored on the supplied egg tray (b).
• Place drinks cartons and bottles in the lower door compartment (2). Position full containers closer to the hinge in order to reduce the strain on the door.
• Place cooked and baked foods on the upper glass shelf (5).
• Place fresh meat, game, poultry, bacon, sausage and raw fish on the glass shelf above the vegetable compartment (4).
  This is where the temperature is lowest.
• Place fresh fruit and vegetables in the vegetable drawer (4).
• Only store strong alcohol standing upright and closed tightly.
• Allow hot food to cool before placing it in the fridge compartment.

- The temperatures in the appliance and thus the energy consumption can increase

- if the door is opened frequently or for a prolonged period.

- if the temperature falls below or exceeds the prescribed interior temperature.

- Energy consumption is also dependent on the selected location (see „Choosing a suitable location“ on page EN-16).

Maintaining quality

- To maintain the flavour and freshness of food in the fridge compartment, only place packaged food in the fridge compartment. Use special plastic containers for food or customary films.

- Place the food

– in the fridge in a way that allows the air to circulate freely. Do not cover the shelves with paper or anything similar.

– somewhere that is not directly against the rear wall. Otherwise it may freeze onto the rear wall.

Care and maintenance

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Before cleaning, unplug the mains plug from the socket or isolate/un-screw the fuse.
■ When pulling out the mains plug, always take hold of the mains plug itself and never the mains cord.

CAUTION

Dangers for children and people with limited physical, sensory or mental capacity!

■ Cleaning and user maintenance must not be carried out by children unless they are supervised.

NOTICE

Risk of damage!

The surfaces and appliance parts can be damaged through improper handling.

■ Never use harsh, granular, soda, acid, solvent-based or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.
■ Door seals and plastic parts are sensitive to oil and grease. Remove contaminants as quickly as possible.
■ Only use soft cloths.

Checking and cleaning the door seals

The door seals must be checked regularly so that no air can enter the appliance.

1. To test them, clamp a thin piece of paper in various places. The paper should be difficult to pull through at all points.
2. If the seal is not uniform everywhere: Warm the seal in the appropriate places in front of you with a hair dryer and pull it out with your fingers.
3. Only clean the dirty seals with clean water; they are sensitive to oil and fat.

Clean exterior

– Coated surfaces
Only use light pH-neutral soapy water.
– Stainless steel surfaces
Use special stainless steel cleaner from a specialist shop. Never use polish.

1. Set the temperature controller (1) to '0'.
2. Pull the mains plug out of the socket.
3. Remove the chilled foods and make sure that it remains sufficiently cool.
4. Remove the three door compartments (2), the three glass shelves (5) and the vegetable compartment (4). Clean all of the parts in lukewarm soapy water. Then dry everything thoroughly.

(6)

(d)

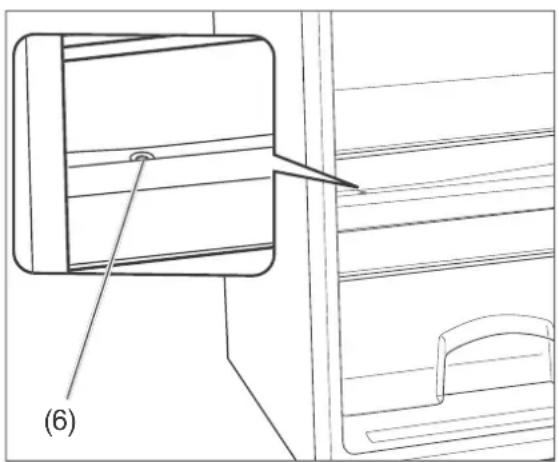

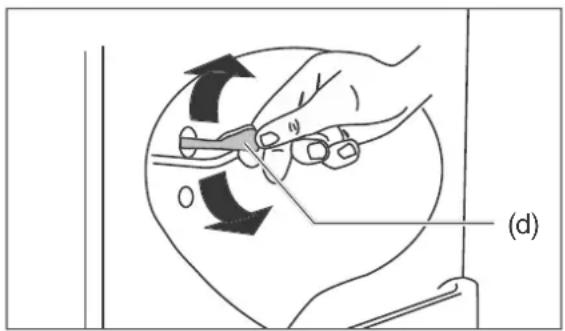

1. Clean the opening of the defrost drain (6).
2. Wipe down the inside with warm water and washing-up liquid.

When wiping clean, add a few drops of vinegar to the water to prevent mould from forming.

1. Rub everything completely dry, including the door seals, and allow to air briefly.
2. Replace the glass shelves, the vegetable compartment and the door compartments.
3. Place the chilled food back in the refrigerator.
4. Insert the mains plug back into the socket and turn the temperature controller (1) to its normal position.

Replacing the interior light

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Unplug the mains cable before changing the light bulb.

Only use light bulbs with an output of max. 10 W, 220-240 V and an E14 base (ILCOS: IBA/C-10-220/240-E14-23).

(1)

1. Pull the mains plug out of the socket.
2. Loosen the cover screw with a cross-headed screwdriver and remove the cover.
3. Unscrew the bulb from the holder and replace with a new one of the same type.
4. Screw the cover back on.
5. Re-insert the mains plug into the socket.

Start-up

Preparing for start-up

You have read chapter „Safety“ from page EN-5 and understand all the safety notices.

Moving and unpacking

WARNING

Risk of suffocation!

Children can become entangled in the packaging fi lm or swallow small parts and suffocate.

■ Do not allow children to play with the packaging fi Im.
■ Prevent children from pulling small parts from the device or taking them out of the accessory bag and putting them in their mouths.

CAUTION

Risk of injury!

Improper handling of the appliance may result in injury.

■ The appliance is heavy and bulky. Ask another person to help with moving and installation.
■ Vegetable compartment, door etc. must not be used as steps or for support purposes.

! NOTICE

Risk of damage!

Improper handling of the appliance may result in damage.

■ If possible, do not tilt the appliance horizontally.
■ Do not use sharp or pointed objects to unpack it.

1. Move the appliance using a dolly or with the help of a second person.
2. Unpack the appliance and carefully remove all packaging, plastic moulding, adhesive strips, protective film and foam padding from the inside, outside and back of the appliance.

Choosing a suitable location

! WARNING

Health hazard!

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature in the fridge and freezer compartment.

■ Always abide by the prescribed ambient temperature (see the ‘Climate categories’ line on page EN-26).

CAUTION

Dangers from the refrigerant!

• Do not damage the refrigeration circuit, for example by piercing the refrigerant channels of the condensate vaporiser with sharp objects, cutting off the tubing, etc.
  ■ Refrigerant is flammable when spurting out and can damage the eyes. In this case, rinse your eyes in clean water and seek medical assistance immediately.

A D B E C

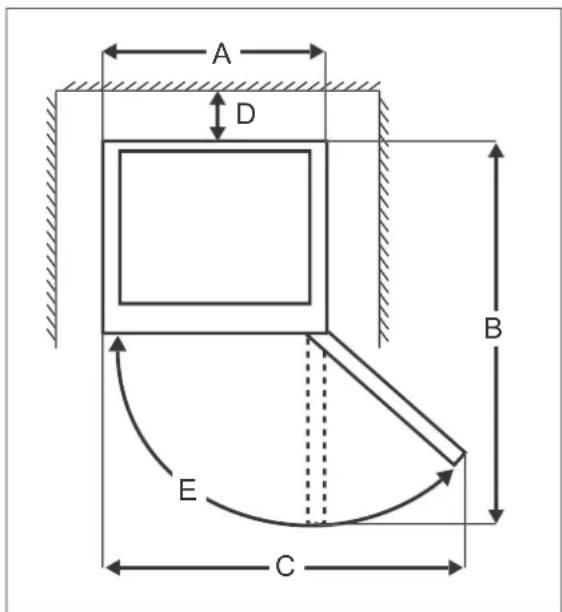

Space requirement according to appliance dimensions

A: 54.5 cm B: 106.5 cm

C: 89.0 cm D: ≥ 5.0 cm

E: 110-125°

Space requirements:

• To prevent the formation of a flammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 3m^3 .
  – The appliance must only be placed on a level and firm surface. The surface must be strong enough to support the appliance's weight when fully laden.
• Suitable locations are dry, well-ventilated areas that are cool if possible.
• Unsuitable locations are ones with direct sunlight or which are directly next to an oven, hob or radiator.
• If underfloor heating is installed at the setup location, place the cooling appliance on an insulation plate made from solid material.

Minimum distances:

– The following minimum distances must be maintained:

– from electrical hobs 3 cm
– from oil and coal burning stoves 30cm
– to other freezer appliances 2 cm
– from washing machines/dishwashers 2 cm

- If you would like to reduce these distances, you can fit an insulation plate between the appliances.

Setting up and aligning the appliance

1. Place the appliance on as flat and as firm a base as possible.
2. To ensure adequate air circulation, the entire space above the appliance must remain clear of obstructions.

3. Check the position with a spirit level.

4. Level out any unevenness on the ground using the two front screw feet (3).

5. Close the door.

6. Tilt the appliance backwards slightly and screw/unscrew the two screw feet (3).
7. Stand the appliance back up again and check the alignment with a spirit level.

- Repeat the process until the appliance is standing up vertically. The appliance should not move when opening the door.

Changing the door hinges

If necessary, the side of the door hinges can be changed. The door hinges are on the right upon delivery.

This work requires some manual dexterity. Please read the following steps completely before changing the hinges.

In addition to the package contents, you will require:

– Medium-sized cross-headed screwdriver
- 8 mm and 10 mm spanner
– strong piece of string
– The assistance of another person, where possible

WARNING

Risk of electric shock!

To change the door hinges you will need to remove the cover from the appliance. Live parts can become accessible by doing so.

■ Pull the mains plug out of the socket before starting to change the door hinges.

Requirement: The appliance must not be connected to the power supply.

Removing the cover

Line drawing of a mechanical device with a screwdriver and directional arrows indicating movement (no text or symbols)

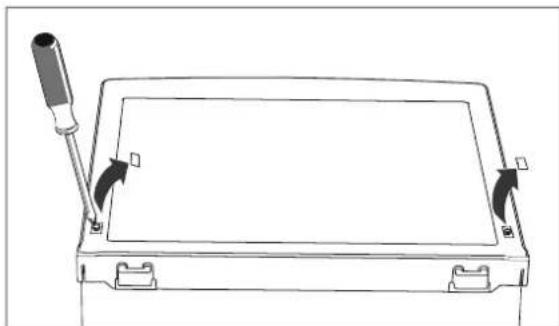

1. Carefully lever out the two screw covers on top of the cover using a screwdriver.

2. Unscrew the two screws from the cover by turning to the left and right using a cross-headed screwdriver.

Line drawing of a mechanical device with an upward arrow indicating motion or force (no text or symbols)

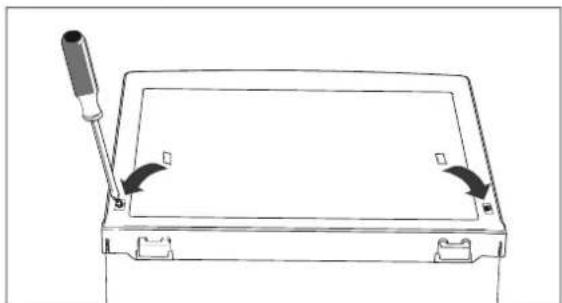

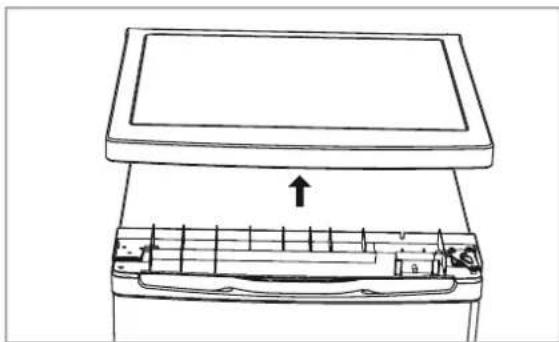

1. Lever out the two sides of the cover on the front slightly and lift the cover up.

Changing the upper hinge

Technical line drawing of a mechanical component with an inset showing a cylindrical component and an arrow indicating direction (no text or symbols)

1. Open the door.

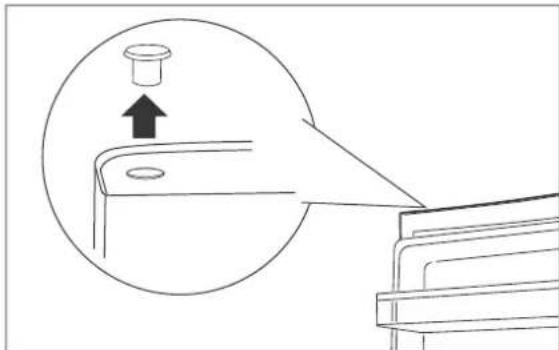

Remove the blind plug on the top of the door by wrapping a strong piece of string around it, tightly pulling the string back and forth and carefully levering out the blind plug.

Technical line drawing of a vehicle front panel with internal compartments and mounting points (no text or symbols)

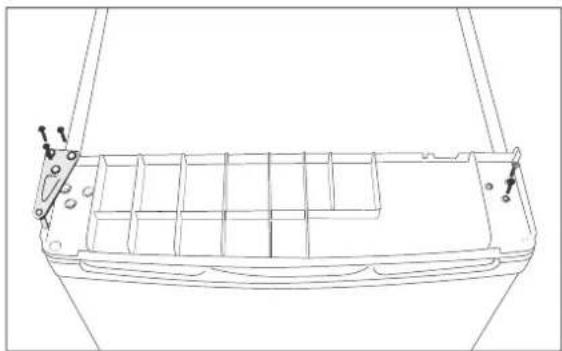

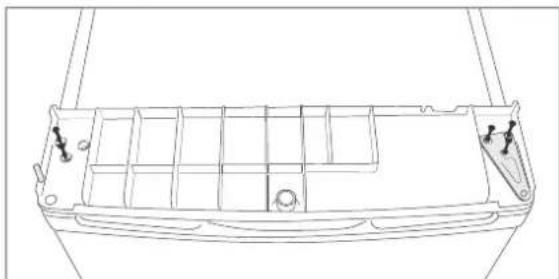

1. Unscrew the three fixing screws for the hinge plate and the two screws on the opposite side. To do this, use an 8mm spanner or a cross-headed screwdriver.
2. Remove the hinge plate.

Technical line drawing of a car front panel with structural ribs and mounting brackets (no text or symbols)

1. Screw the hinge plate as well as the two screws back onto the respective opposite side.

Simple line drawing of a mechanical component with two downward arrows indicating force or direction (no text or symbols)

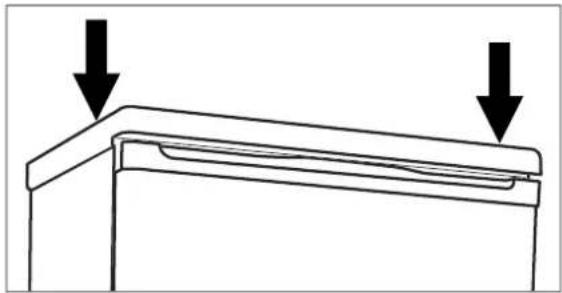

1. Place the cover back on the refrigerator. Push down on both sides (left and right) of the front of the cover until you hear it click into place.

Line drawing of a device with a screwdriver and two curved arrows indicating rotation or movement (no text or symbols)

1. Screw the two screws tightly back onto the cover. To do this, use a cross-headed screwdriver. Secure the two screw covers.

Changing the lower hinge

Diagram showing mechanical components with arrows indicating motion, no text or symbols present

1. Tilt the refrigerator backwards (max. 45°).

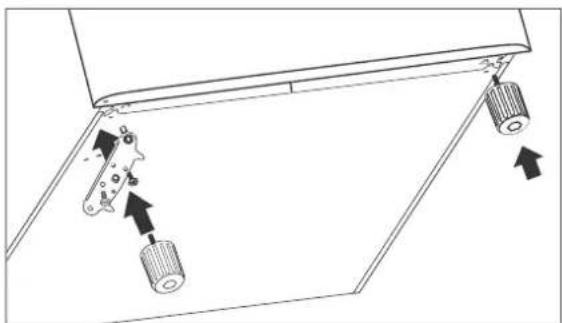

2. Unscrew the two front screw feet (3).
3. Unscrew the lower hinge plate. To do this, use an 8mm spanner or a cross-headed screwdriver.

Mechanical assembly diagram showing bolted components and directional arrows indicating motion (no text or labels)

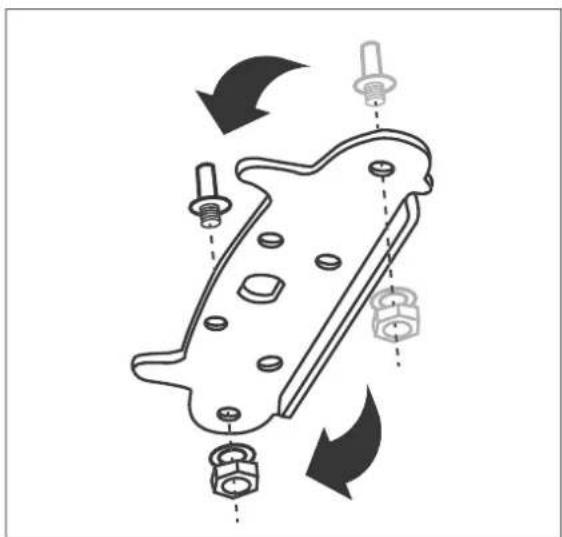

1. Move the hinge pin to the opposite side of the hinge plate. To loosen and tighten the nut, use a 10 mm spanner or the bottom of a screw foot.

Technical diagram showing mechanical components with arrows indicating motion (no text or symbols)

1. Screw the hinge plate tightly back onto the opposite side. Make sure that the hinge pin is in the hinge bushing of the door.

The door will now function properly again.

1. Screw the two screw feet back on tightly and align the refrigerator.

Technical line drawing of a mechanical bracket with an inset showing a cylindrical component and a downward arrow (no text or symbols)

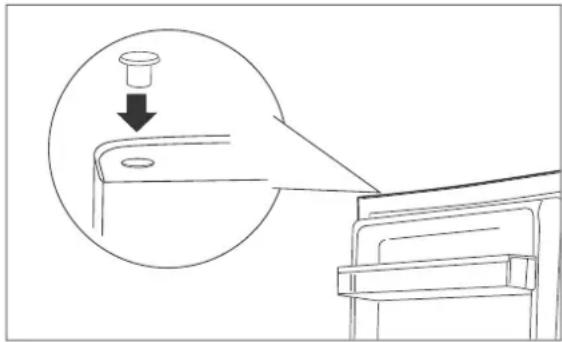

1. Reinsert the blind plug on the opposite side of the door.

Cleaning before use

To remove the odour that comes with all new appliances, clean the appliance before using it (see „Care and maintenance“ on page EN-14).

Connecting the appliance to electricity

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Do not operate or continue to operate the appliance, if
– it shows visible signs of damage, e.g. the power cord is defective,
– it starts smoking or there is a smell of burning,
- makes unfamiliar noises.

In such cases, pull out the mains plug or unscrew/isolate the fuse and contact our service department (see page EN-25).

■ Do not connect to a timer or a separate remote-controlled system for distance monitoring and control.
■ If the mains plug is no longer accessible after installation, an all-pole disconnecting device complying with overvoltage category III must be connected to the house wiring with a contact gap of at least 3 mm; this includes fuses, circuit breakers and contactors.

- Do not kink or pinch the mains cord or lay it over sharp edges. This can result in a break in the cable.

CAUTION

Fire hazard!

Improper handling of the appliance can lead to fire and property damage.

■ Only connect the appliance to a properly installed and earthed electric socket. Do not connect to a multi-socket extension cable or a multi-socket plug.

NOTICE

Risk of damage!

If the appliance has been transported horizontally, lubricant from the compressor may make its way into the cooling circuit.

- Allow the appliance to stand upright for approx. 2 hours after transport and before connecting. This allows the lubricant enough time to flow back into the compressor.

- Insert the mains plug into an easily accessible and properly installed socket (220–240 V\~ / 50 Hz). When the door is open, the interior lighting (1) will now be switched on.

You will find all important information about operation from page EN-10.

Troubleshooting table

Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, please check the tables to see if you can correct the malfunction.

WARNING

Risk of electric shock in case of improper repair!

Never try to repair a defective or suspected defective appliance yourself. This may put your own and future users' lives at risk. Only authorised specialists are allowed to carry out this repair work.

Problem Possible cause Solutions, tips, explanations
Compressor off, interior light off.	No electricity to socket. Check the socket by connecting another device.
	Mains plug is loose. Ensure the mains plug is securely plugged in.
Compressor off, interior light on.	The temperature controller (1) is set to '0'.	Turn the temperature controller to a higher position (see „Setting the temperature“ on page EN-10).
	Desired temperature has been reached.	Further cooling not required. When the inside temperature rises, the compressor automatically switches on.
Appliance cools too quickly.	The temperature controller is set at too high a level.	Select a lower temperature (see page EN-10).
The appliance doesn't cool sufficiently.	The temperature controller is set at too low a level.	Select a higher setting (see page EN-10).
	Door not tightly closed or door seal is not completely tight.	See ‘Checking and cleaning the door seals’ on page EN-14.
	The appliance is near a heat source.	Place an insulation plate between the appliances or switch locations.
	Food has been stored warm.	Only store food that has cooled down.
	Ambient temperature too low or too high.	Adjust the ambient temperature to the climate class (see „Product fiche concerning Regulation (EU) No 1060/201090“ on page EN-26).
	Compressor seems defective.	Set the temperature controller to '7'. If the compressor does not switch on within an hour, inform our customer service team (see page EN-25).
Interior lighting isn't working.	Power supply is interrupted.	Check the socket by connecting another device.
	Bulb faulty Replace the bulb (see „Replacing the interi-or light“ on page EN-15).
Appliance is making a noise.	Operating noises are functional and are not a sign of malfunction.	Humming: Refrigeration unit is running.
		Flowing noise: Refrigerant is flowing through the pipes.
		Clicking: Compressor is switching on or off.
	Disturbing noises. Check that it is stable.
Water has accumulated in the fridge compartment at the bottom.	Defrost drain above the vegetable drawer is blocked.	Remove blockage in defrost drain (see „Care and maintenance“ on page EN-14).

Environmental protection

Disposing of old electrical devices in an environmentally-friendly manner

Electrical appliances contain harmful substances as well as valuable resources.

Every consumer is therefore required by law to dispose of old electrical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Please contact your dealer directly for more information about this topic.

Our contribution to the protection of the ozone layer

100% CFC and HFC-free refrigerants and foaming agents were used in this appliance. This protects the ozone layer and reduces the greenhouse

Our packaging is made from environmentally friendly, recyclable materials:

– Outer packaging made of cardboard
– Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of polyethylene (PE)
– Tension bands made of polypropylene (PP)
- Saving energy also protects against excessive global warming. Your new appliance uses little energy due to its environmentally friendly insulation and technology.

If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Service

In order for us to help you quickly, please tell us:

Name of appliance Colour Model Order number
Hanseatic Refrigerator	Stainless steel look	HKS 8555A2S 667	576
	white HKS 8555A2	557 394

Advice, order and complaint

Please contact your mail order company's customer service centre if

– the delivery is incomplete,
– the appliance is damaged during transport,
– you have questions about your appliance,
- a malfunction cannot be rectified using the troubleshooting table,
– you would like to order further accessories.

Repairs and spare parts

Customers in Germany

– Please contact our technical service: Telephone [phone] (landline 20 cents/call, mobile max 60 cents/call)

Customers in Austria

- Please contact your mail order company's customer service centre or product advice centre.

Please note: You are responsible for the condition of the appliance and its proper use in the household. If you call out for customer service due to an operating error, you will charges, even during the guarantee/warranty period. Damage resulting from non-compliance with this manual unfortunately cannot be recognised.

Product fiche concerning Regulation (EU) No 1060/201090

Trade mark	hanseatic
Model identifier	557394 / HKS 8555A2667576 / HKS 8555A2S
Category of the household refrigerating appliance model	1, Refrigerator with one or more fresh-food storage compartments
Energy efficiency class on a scale from A+++ (most efficient) to D (least efficient)	A++
Energy consumption 91 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located
Storage volumeRefrigeratorFreezer / Star rating	130 _- L/ - star
Power cut safe	- h
Freezing capacity	- <g / 24 h
Climate class: N-ST . This appliance is intended to be used at an ambient temperature between +16 °C and +38 °C.
Airborne acoustical noise emissions	43 dB(A) re 1 pW
Built-in appliance	no

The values indicated above have been measured under standardised laboratory conditions pursuant to EN 62552.

Technical specifications

Item number	557394, 667576
Name of appliance	Refrigerator
Model identifier	HKS 8555A2HK S 8555A2S
Device measurements (Height × Width × Depth with connections)	85,0 cm × 55,0 cm × 58,0 cm
Unloaded weight	26 kg
Refrigerant	R600a
Filling capacity refrigerant	20 g
Foaming agent	Cyclopentane
Rated power	80 W
Supply voltage / frequency / rated current / lamp power 22	0-240 V / 50 Hz / 0,55 A max 10 W
Protection class	I
