Product Type	Wine Cellar (Wine Storage Unit)
Model	JC-201S
Brand	Hanseatic
Dimensions (H x W x D)	1285 x 480 x 575 mm
Weight	40 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	80 W
Energy Efficiency Class	B
Annual Energy Consumption	204 kWh/year
Climate Category	N (10°C to 38°C)
Temperature Range	+5°C to +22°C
Refrigerant	R600a (isobutane), 35 g
Foaming Agent	Cyclopentane
Capacity (0.75 L bottles)	77 bottles
Number of Shelves	5
Max Load per Shelf	14 bottles
Noise Level	43 dB(A)
Defrost Type	Auto-defrost
Door Hinge	Reversible (user changeable)
LED Lighting	Yes, switchable
Control Type	Electronic with digital display
Built-in	No (freestanding)
Safety Features	Flammable refrigerant R600a; requires 4.5 m³ ventilation space; child safety warnings
Maintenance	Clean door seals, defrost drain, and interior with mild detergent

Frequently Asked Questions - JC-201S Hanseatic

How do I set the temperature on my Hanseatic JC-201S wine cellar?

Press the zone select key (9) to choose the upper or lower zone. Then press the increase (11) or decrease (12) key to adjust the temperature between +5°C and +22°C. The lower zone can only be set equal to or higher than the upper zone.

What is the maximum bottle capacity of the JC-201S?

The nominal capacity is 77 standard 0.75 L bottles. Do not exceed 14 bottles per shelf to avoid damage.

How do I clean the wine cellar?

Unplug the appliance. Remove bottles and shelves. Clean the interior with warm water and mild detergent (add a few drops of vinegar to prevent mold). Clean door seals with clean water only. Dry thoroughly before reconnecting.

Can I change the door hinge direction?

Yes, the door hinge is reversible. Follow the step-by-step instructions in the manual using a cross-tip and flat-head screwdriver. The glass door is heavy (13 kg), so get assistance.

What refrigerant is used and is it dangerous?

The refrigerant is R600a (isobutane), which is flammable. Avoid open flames and hot surfaces. In case of leakage, ventilate the room and avoid sparks. The refrigerant charge is 35 g.

What safety precautions should I follow?

Always use a properly grounded outlet. Do not use extension cords. Keep ventilation openings clear. Do not store explosive substances or spray cans inside. Ensure children do not play with the appliance. If the power cord is damaged, have it replaced by a professional.

Does the JC-201S require defrosting?

No, it features auto-defrost. Frost and ice melt automatically; thaw water evaporates from a container at the back. No manual defrosting is needed.

What should I do if the appliance is making unusual noises?

Normal operating noises include humming (compressor), flowing (refrigerant), and clicking (thermostat). If noises are disturbing, check that the appliance is level and not touching walls or objects. Remove any debris from the back.

How do I replace the LED light?

The LED light is maintenance-free and should not be replaced by the user. If it malfunctions, contact an authorized service technician (see manual for service contact). Do not remove the light cover.

What are the optimal storage temperatures for different wines?

Recommended temperatures: Sparkling wine +10°C, White wine +10°C to +12°C, Red wine +12°C to +14°C, Rosé +12°C to +16°C. Avoid frequent temperature fluctuations.

USER MANUAL JC-201S Hanseatic

Line drawing of an open refrigerator with shelves and test tubes (no text or symbols)

Gebrauchsanleitung

Weinkühlschrank

Inhaltsverzeichnis

Lieferung DE-3

Lieferumfang DE-3

Line drawing of a multi-level refrigerator with open doors and internal compartments (no text or symbols)

Lieferumfang

Line drawing of a refrigerator interior showing the front and side views (no text or symbols)

Simple geometric diagram showing a rectangle with a smaller square inside, labeled 'D' on the top left (no other text or symbols)

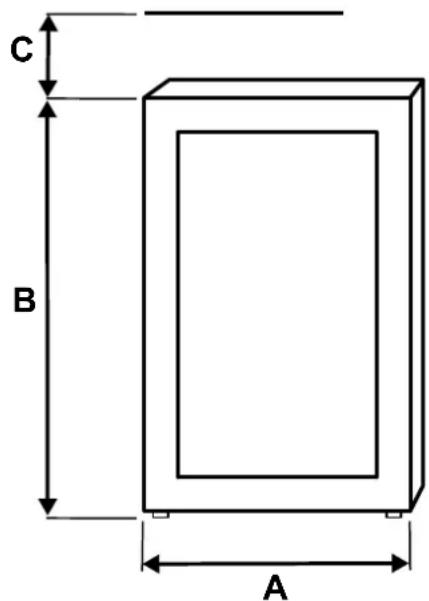

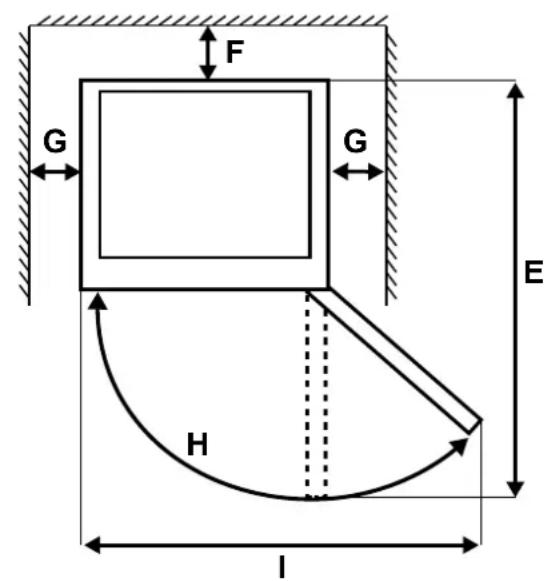

A: 480 mm B: 1285 mm

C: 100 mm D: 526 mm

E: 1050 mm F: 100 mm

G: 50 mm H: 150°

1: 890 mm

(Festnetz 20 Cent/Anruf, Mobilfunk max.

60 Cent/Anruf)

Line drawing of a refrigerator with open door and shelves, no text or symbols present

User manual

Wine refrigerator

Table of contents

Delivery GB-3

Package contents . . . . . . . . . . . . . . GB-3

Check the delivery . . . . . . . . . . . . GB-3

Packaging tips . . . . . . . . . . . . . . . . . GB-3

Appliance parts / control element . . . . GB-4

Safety GB-5

Intended use . . . . . . . . . . . . . . . . . . . GB-5

Explanation of symbols . . . . . . . . . GB-5

Explanation of terms . . . . . . . . . . . GB-5

Safety notices . . . . . . . . . . . . . . . . . . GB-5

Operation GB-10

The control panel . . . . . . . . . . . . GB-10

Before getting started . . . . . . . . GB-10

Key tones GB-10

Switching the appliance on and off . .GB-10

Switching on . . . . . . . . . . . . . . . . . . GB-10

Setting the temperature . . . . . . . GB-11

Changing the temperature unit . . . GB-11

LED light GB-11

Interior equipment . . . . . . . . . . GB-11

Storing bottles . . . . . . . . . . . . . . . . . . GB-12

Filling the appliance . . . . . . . . . GB-12

Maximum storage capacity . . . . . . GB-12

Maintaining quality . . . . . . . . . . . GB-13

Care and maintenance . . . . . . . . . GB-14

Checking and cleaning door seals . .GB-14

Clean exterior . . . . . . . . . . . . . . . . . GB-14

Cleaning the back of the appliance . .GB-14

Defrosting the appliance . . . . . . . GB-14

Cleaning the inside of the

appliance GB-15

Replacing the LED light . . . . . . . GB-15

Start-up GB-16

Before starting to use the

appliance GB-16

Moving and unpacking . . . . . . . GB-16

Choosing a suitable location ..... GB-16

Setting up and aligning the

appliance GB-18

Basic cleaning . . . . . . . . . . . . . . . . GB-18

Connecting the appliance . . . . . . GB-18

Changing the door hinges. . . . . . . GB-20

Troubleshooting table . . . . . . . . . . GB-22

Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB-24

Advice, order and complaint . . . . . GB-24

Repairs and spare parts . . . . . . . GB-24

Environmental protection . . . . . . . GB-25

Disposing of old electrical devices

in an environmentally-

friendly manner . . . . . . . . . . . . . . . . . . GB-25

Our contribution to the

protection of the ozone layer .... GB-25

Product data sheet for electric household refrigerators and freezers as well as corresponding combination appliances according to Regulation (EU) No.

1060/2010 and Regulation (EU)

No. 643/2009 GB-26

Technical specifications . . . . . . . . GB-26

You can find more information on setting up the appliance to starting it up for the first time

from page GB-16.

Please read through the safety instructions and user manual carefully before using the appli-

ance. This is the only way you can use all the functions reliably and safely.

Be absolutely sure to also observe the national regulations in your country, which are also valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the product.

Delivery

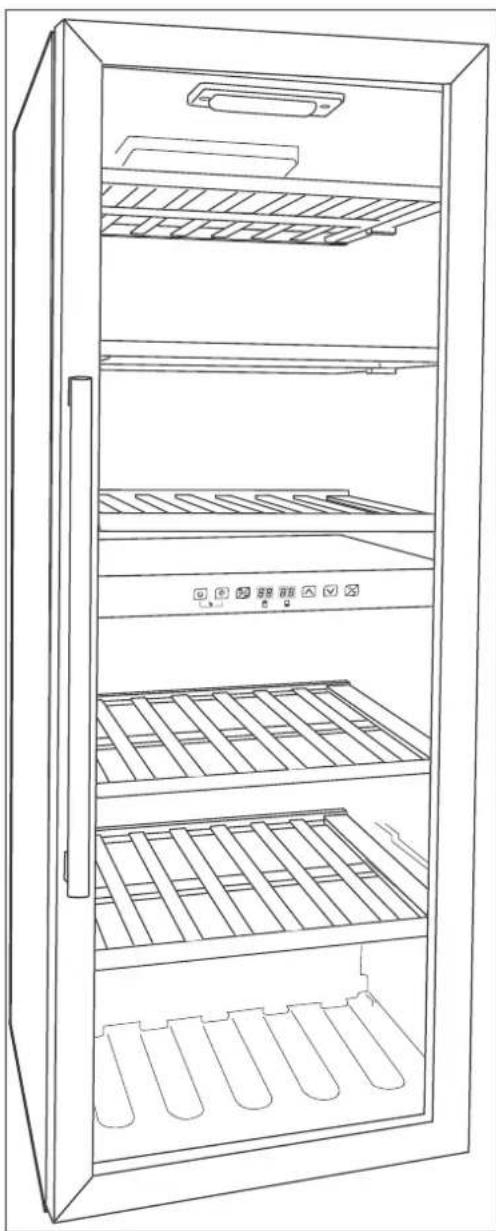

Line drawing of a multi-level refrigerator with open doors and internal compartments (no text or symbols)

Package contents

1× Wine refrigerator
5× bottle shelf
1× User manual

Check the delivery

1. Move the appliance to a suitable place and unpack it see „Start-up“ on page GB-16).
2. Remove all parts of the packaging, plastic profiles, tape and foam padding.
3. Check that the delivery is complete.
4. Check whether the appliance was damaged during transit.
5. If the delivery is incomplete or the appliance has been damaged during transport, please contact our Service Centre (see page GB-24).

WARNING!

Risk of electric shock!

Never use a damaged appliance.

Packaging tips

If you have sufficient space, we recommend keeping the packaging, at least during the warranty period. If the appliance needs to be sent out for repairs, only the original packaging will provide sufficient protection.

Should you choose not to keep the packaging, please dispose of it in an environmentally friendly way.

Appliance parts / control element

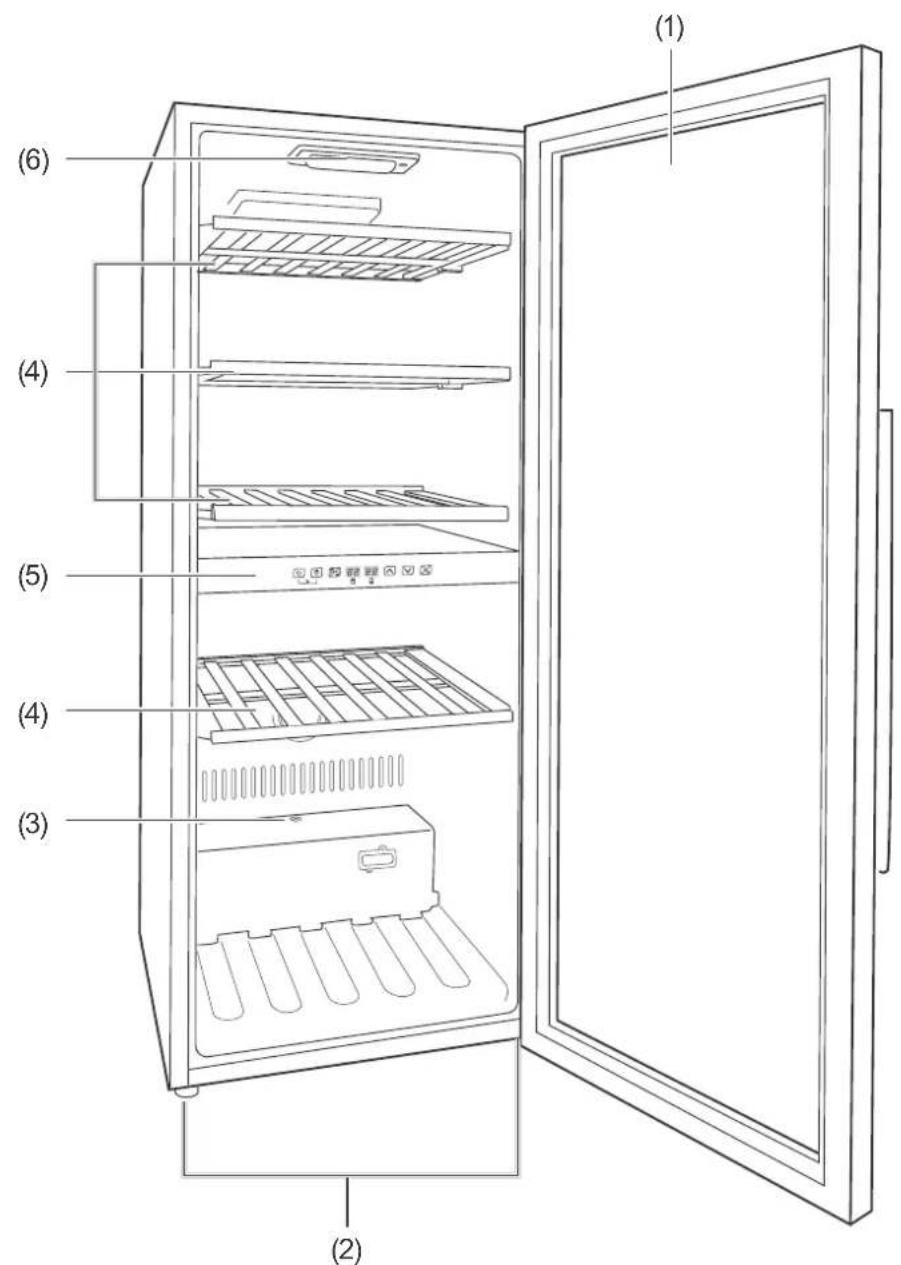

(1) Glass door
(2) Screw feet

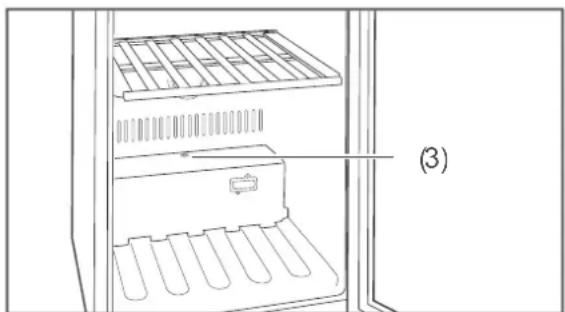

(3) Defrost drain

(4) Bottle shelves
(5) Control panel
(6) LED light

Safety

Intended use

This appliance is intended solely for storing wine.

The wine refrigerator is designed for private household use. It is not suitable for commercial applications or shared use (e.g. use by several parties in a block of flats).

The appliance is not a built-in device and is not suitable for insertion into cabinets, etc.

Use the appliance exclusively as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.

Explanation of symbols

Warning: Fire hazard!

Explanation of terms

The following symbols can be found in this user manual.

WARNING

This symbol indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION

This symbol indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This symbol warns against possible damage to property.

This symbol refers to useful additional information.

Safety notices

In this chapter you will find general safety notices which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters.

WARNING

Risks in handling household electrical appliances

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
■ Do not operate or continue to operate the appliance if

– it shows visible signs of damage, e.g. the power cord is defective,
– it starts smoking or there is a smell of burning,
- it makes unfamiliar noises.

In such cases, remove the mains plug and contact our Service department (see page GB-24).

■ The appliance corresponds to protection class I and may only be connected to a plug with a protective conductor that has been properly installed. When connecting, make sure that it has the right voltage. You can find

more detailed information about this on the nameplate.

■ The appliance must only be completely disconnected from the power supply by pulling out the mains plug. The appliance must therefore be connected to an easily accessible socket so that it can be quickly disconnected from the power supply in the event of breakdown.
- Do not kink or pinch the mains cord or lay it over sharp edges. This can result in a break in the cable.
■ When positioning the appliance, ensure the supply cord is not trapped or damaged.
- Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
- Keep the mains plug and the mains cord away from open flames and hot surfaces.
■ Always touch the mains plug, not the mains cord.
■ Never touch the mains plug with wet hands.
■ Never immerse the appliance, mains cord or mains plug in water or any other liquids. Never expose electrical equipment to water.
■ If the mains cord of the appliance is damaged, it must be replaced by the manufacturer, through customer service or by a qualified specialist.
- Inspections and repairs to the appliance may only be carried out by authorised specialists see „Service“ on page GB-24).
■ Independent or improper repairs made to the appliance may cause damage to property and personal in-

jury; any liability and warranty claims will be forfeited. Never try to repair a defective or suspected defective appliance yourself.

■ This appliance contains electrical and mechanical parts which are essential for protection against potential sources of danger. Only parts corresponding to the original appliance specifications may be used for repairs.
■ In the event of a defect, disconnect the mains plug before carrying out any extensive cleaning work or before repositioning the appliance.
- Do not put any objects in or through the housing openings, and also make sure that children cannot insert any objects in them.
- Check the appliance regularly for damage.
■ Do not remove the LED light covers.
■ Do not attempt to replace the LED light yourself.

Risks to children

Risk of suffocation!

Children can become entangled in the packaging fi lm or swallow small parts and suffocate.

■ Do not allow children to play with the packaging fi lm.
■ Prevent children from pulling small parts off the appliance or putting them in their mouths.

Risks associated with chemical substances

Risk of fire and explosion!

Your appliance's refrigeration circuit contains the environmentally friend-

ly, but fl ammable refrigerant R600a (isobutane).

• Keep the appliance away from open flames and hot surfaces.
  ■ Mechanical intervention in the refrigeration system must only be carried out by authorised specialists.
• Do not damage the refrigeration circuit, for example, by piercing the refrigerant channels of the condensate evaporator with sharp objects, bending the piping, cutting open the insulation, etc.
  ■ Refrigerant is flammable when spurting out and can damage the eyes. In this case, rinse your eyes in clean water and seek medical assistance immediately.
• To prevent the formation of a flammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 1m^3 per 8 g of refrigerant in compliance with the EN 378 standard. The amount of refrigerant contained in your appliance can be found on the product data sheet at the end of this user manual.

Danger of explosion!

Improper handling of chemical substances can lead to explosions.

• Do not store explosive substances or spray cans with flammable propellants inside the appliance, as they may cause ignitable gas-air mixtures to explode.
  ■ Never use defrosting sprays. They can generate explosive gases.

CAUTION

Risks for certain groups of people

Danger to children and people with impaired physical, sensory or mental abilities!

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

■ Make sure children do not have unsupervised access to the appliance.

Risks when dealing with fridge and freezer appliances

Fire hazard!

Improper handling of the appliance can lead to fire and property damage.

■ Only connect the appliance to a properly installed and earthed electric socket.
- Do not connect to a multi-socket extension cable or a multi-socket plug.
■ To ensure adequate air circulation, do not close the ventilation openings in the appliance housing.
- Do not place the appliance directly against the wall. Adhere to minimum distances see „Choosing a suitable location“ on page GB-16).

Health hazard!

Improper handling of the appliance can cause health problems.

■ Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
■ Clean regularly surfaces that can come in contact with food and accessible drainage systems.
■ If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Risk of injury!

Improper handling of the appliance may result in injury.

■ The appliance is heavy and bulky. Seek the help of another person when moving the appliance and changing the door hinges.
- Check that entry route and installation location are free of obstacles (e.g. closed doors or objects lying on the floor).
■ Wear protective gloves when moving/installing the appliance and changing the door hinges.
■ Bases, doors, etc. must not be used as steps or for support purposes.
■ Do not place any heavy objects on the appliance.
■ Take care to prevent the risk of tripping when laying the mains cord.

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

■ Always abide by the prescribed ambient temperature (see product data sheet at the end of this user manual).

! NOTICE

Risk of damage

If the appliance has been transported horizontally, lubricant from the compressor may get into the cooling circuit.

• Do not tilt the appliance more than 45° or lay it on its side.
• Allow the cooling unit to stand upright for 2 hours before start-up. The lubricant will flow back into the compressor during this time.

Improper handling of the appliance can lead to property damage.

• Do not use the door to pull or lift the appliance.
• The appliance must only be placed on a level and firm surface. The surface must be strong enough to support the appliance's weight when fully laden.

• Do not operate the appliance near sinks, taps or containers filled with liquids such as vases, aquariums, etc. Make sure that the device does not get wet.
  ■ The maximum load of 14 bottles per bottle shelf must not be exceeded.
  ■ Do not use sharp or pointed objects to unpack it.

• Do not use any electrical parts inside the appliance that do not conform to the manufacturer's recommended design.

• Do not use any mechanical devices or means other than those recommended by the manufacturer.
  ■ When cleaning, please note:

– Never use harsh, granular, soda, acid, solvent-based or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.
- Door seals and plastic parts are sensitive to oil and grease. Remove contaminants as quickly as possible.
- Do not clean the appliance parts in the dishwasher.
– Use only soft cloths for cleaning.

- Wait 5 minutes after switching off. Only then switch the appliance on again.

■ Only use original accessories.

Operation

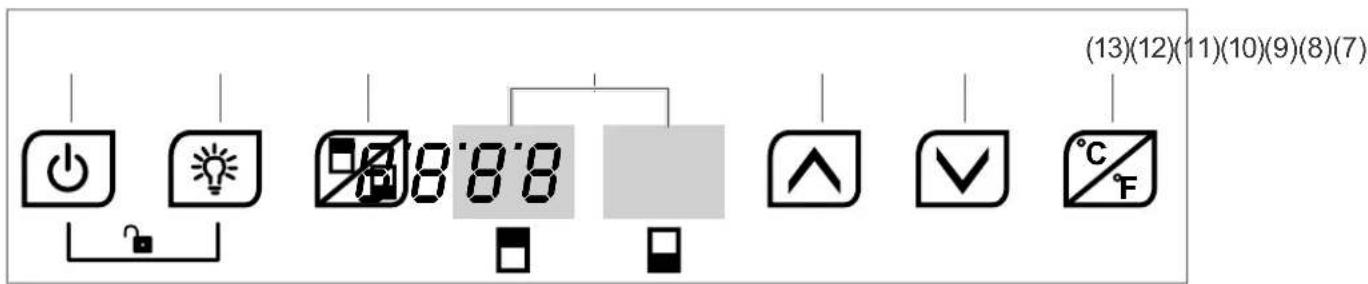

The control panel

(7) ☐ Switch Wine refrigerator on/off
(8) ☐ Switch light on/off
(9) ☐ Select temperature zone (top/bottom)
(10) 8'8 '8'8 Temperature indicator

(11) △ Increase temperature
(12) ☑ Reduce temperature
(13) ☑ Change temperature unit between Celsius and Fahrenheit.

Before getting started

• Read the „Safety“ chapter from page GB-5.
• Set up and connect the appliance as described in the „Start-up“ chapter from page GB-16.

Key tones

Each time you press one of the keys numbered (7) to (9) and (11) to (13), you will hear a beep. This tells you that the appliance has registered your keypress.

Switching the appliance on and off

Switching on for the first time

- If you have not already done so, insert the mains plug into an easily accessible and properly installed socket (220–240 V\~/ 50 Hz).

A beep will sound.

The temperature indicator (10) will show the current internal temperatures,

• left for the upper zone,
• right for the lower zone.

You will hear the compressor start to work, and the appliance will begin cooling.

The appliance is switched on.

Switching on

- Press the ⏻ key (7).

A beep will sound.

The temperature indicator (10) will show the current internal temperatures,

– left for the upper zone,
- right for the lower zone.

You will hear the compressor start to work, and the appliance will begin cooling.

The appliance is switched on.

Switching off

- Press the ⏻ key (7).

The temperature indicator (10) will shut off. The compressor will not work and the appliance will stop cooling. The appliance is switched off.

Setting the temperature

WARNING

Health hazard!

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

■ Always abide by the prescribed ambient temperature (see product data sheet at the end of this user manual).

Select an internal temperature to suit the wine. Further information on the optimum storage temperature can be found in the section „Maintaining quality“ on page GB-13.

You can choose settings ranging from +5°C to +22°C (41°F to 72°F).

The lower zone temperature can only be set equal to or higher than the upper zone temperature.

1. Select the desired interior zone by pressing key (9)

- once for the upper zone. The left-hand temperature indicator (10) will flash. - twice for the lower zone.

The right-hand temperature indicator (10) will flash.

As long as the temperature indicator is flashing, you can set the temperature.

1. The temperature of the selected zone can be

- increased by pressing the key (11) until the desired temperature is displayed.
- reduced by pressing the key (12) until the desired temperature is displayed.

After a short while the flashing will stop and the desired temperature will be set.

The appliance will adjust itself to the set temperature while showing the current internal temperature.

Changing the temperature unit

You can choose whether the internal temperature is displayed in Celsius or in Fahrenheit.

The small green symbol on the top right next to the temperature indicator (10) lets you identify the current setting.

- To change the unit, press the ⓄF key (13).

LED light

- To switch the LED on or off, press the key (8).

Interior equipment

The bottle shelves (4) can be removed and rearranged if necessary.

Removing the shelves

- Lift the rear of the bottle shelf slightly and pull it out.

Inserting the shelves

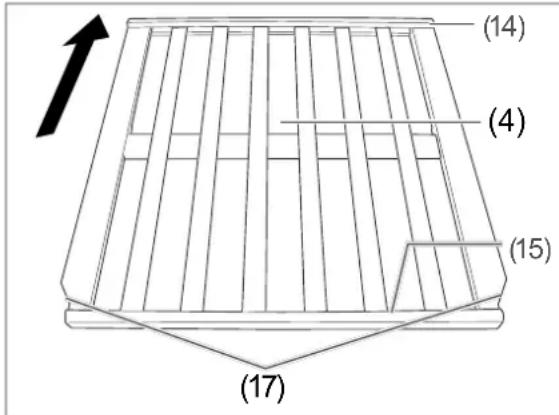

1. Turn the bottle shelf (4) so that the front rail (15) and back rail (14) are facing up and the chamfered edges (17) are facing forward.
2. Insert the bottle shelf (4) into the side brackets and slide it all the way back.

Storing bottles

WARNING

Danger of explosion! Improper handling of the appliance can lead to explosions.

- Do not store explosive substances or spray cans with flammable propellants inside the appliance, as they may cause ignitable gas-air mixtures to explode.

CAUTION

Health hazard!

Improper handling of the appliance can cause health problems.

■ Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
■ Clean regularly surfaces that can come in contact with food and accessible drainage systems.
■ If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Filling the appliance

• Lay bottles in the slots between the wooden rails on the bottle shelves (6) and (4). The lock will face forward in the direction of the glass door (1).
• Make sure that the bottles do not directly touch the interior walls of appliance or the glass door.
• Remove the packaging (e.g. cardboard) before placing items in the appliance.
• Systematically fill the appliance so the wine you want is easy to reach so that you do not have to move the wine bottles around a lot.
• Only store strong alcohol standing upright and closed tightly.
• Make sure that the device is at least 70% filled in order to counteract fluctuations in temperature.

Maximum storage capacity

NOTICE

Risk of damage!

Damage may be caused to the appliance by placing too much weight on the shelves.

■ Do not exceed the maximum load of 14 bottles per shelf.

The appliance is designed to only hold a certain number of bottles, the so-called nominal capacity.

The nominal capacity indicates how many standard 0.75 litre bottles you can store in the appliance. You will find information about the 'Nominal capacity' on the product data sheet at the end of this user manual.

- Abide by the nominal capacity.

Maintaining quality

Storage temperature

The optimum storage temperature varies depending on the type of wine, due to the fact that wines have different shelf lives and age differently.

Wine Storage temperature
Semi-sparkling wine	+6 °C to +10 °C
Sparkling wine +10 °C
White wine +10 °C	to +12 °C
Red wine +12 °C to	+14 °C
Rosé wine +12 °C to	+16 °C

• Avoid strong and frequent variations in temperature.
• Ensure that there is enough space between the bottles to promote the circulation of air inside the appliance.
• The appliance's interior temperatures can increase and lead to increased energy consumption
• if the glass door is opened frequently or for a prolonged period.
• if the temperature falls below or exceeds the prescribed interior temperature.
• if a large number of bottles is put into storage at once.
• if the appliance's nominal capacity is exceeded.

Storage period

The storage periods of wines differs and is dependent on many factors. Use the following storage periods as a general guideline:

Wine Storage period
Rosé wine, light red wine	1 to 2 years
White wine 3 to 5 years
Red wine approx. 6 years
Very sweet wines +15 years

Additional factors

• Make sure to move the wine as little as possible during storage. Frequently moving the wine around can lead to rapid ageing.
• Ensure that the wine is kept as far away as possible from light and stored in the dark.
• Do not turn the LED light (6) on frequently. Exposure to light can affect the taste.

Care and maintenance

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Unplug the mains cable before cleaning.
- When pulling out the mains plug, always take hold of the mains plug itself and never the mains cord.

CAUTION

Danger to children and people with impaired physical, sensory or mental abilities!

■ Cleaning and user maintenance must not be carried out by children unless they are supervised.

Risk of injury!

Sharp-edged appliance parts beneath the appliance may lead to cuts.

■ Exercise caution when cleaning the appliance.

NOTICE

Risk of damage!

The surfaces and appliance parts can be damaged through improper handling.

■ Never use harsh, granular, soda, acid, solvent-based or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.

■ Door seals and plastic parts are sensitive to oil and grease. Remove contaminants as quickly as possible.

■ Only use soft cloths.

Checking and cleaning door seals

The door seals must be checked regularly so that no air can enter the appliance.

1. To test them, clamp a thin piece of paper in various places. The paper should be difficult to pull through at all points.
2. If the seal is not uniform everywhere: Warm the seal in the appropriate places in front of you with a hair dryer and pull it out with your fingers.
3. Only clean dirty seals with clean water.

Clean exterior

• Painted surfaces
  Use only light pH-neutral soapy water.
  – Stainless steel surfaces
  Use special stainless steel cleaner from a specialist shop. Never use polish.

Cleaning the back of the appliance

Dust deposits on the back of the appliance can affect the appliance's performance and lead to increased energy consumption.

- Remove dust and clean the back of the appliance and the compressor once or twice a year. Use a soft brush to do this.

Defrosting the appliance

No defrosting is required as the appliance has an auto-defrost feature. Frost and ice are automatically defrosted and the thaw water is collected in a thaw water container on the reverse side of the appliance. The thaw water evaporates as a result of the heat generated by the motor.

Cleaning the inside of the appliance

NOTICE

Risk of damage!

Improper cleaning of the appliance parts can lead to damage.

■ Do not clean the appliance parts in the dishwasher.

1. Disconnect the mains plug from the socket.
2. Take out the wine bottles and temporarily store them in a cool room.
3. Remove the bottle shelves (4).
4. Wipe off all parts with a damp cloth. Use lukewarm rinsing water to remove stubborn stains. Wipe down with clean water.
5. Dry all parts thoroughly.
6. Wash the interior with warm water and washing-up liquid.
   When wiping clean, add a few drops of vinegar to the water to prevent mould from forming.
7. Wipe the interior dry and leave the glass door (1) open for a while to air.

Line drawing of a refrigerator interior showing the rack and storage compartments (no text or symbols)

1. Clean the opening of the defrost drain (3) using a cleaning rod.

2. Only clean the door seals with clean water; they are sensitive to oil and fat.

3. Replace all removed parts.

4. Put the wine bottles back in the appliance.

5. Insert the mains plug once again.

Replacing the LED light

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Do not remove the LED light covers.
■ Do not attempt to replace the LED light yourself.

Maintenance-free LEDs are used to light the appliance.

Should the LED light ever malfunction, contact an authorised professional see „Service“ on page GB-24).

Start-up

Before starting to use the appliance

Re-read the „Safety“ chapter from page GB-5.

Moving and unpacking

WARNING

Risk of suffocation!

Children can become entangled in the packaging fi lm or swallow small parts and suffocate.

■ Do not allow children to play with the packaging fi lm.
■ Prevent children from pulling small parts off the device or taking them out of the accessory bag and putting them in their mouths.

CAUTION

Risk of injury!

Improper handling of the appliance may result in injury.

■ The appliance is heavy and bulky. Seek the help of another person when moving the appliance.
■ Bases, doors, etc. must not be used as steps or for support purposes.

! NOTICE

Risk of damage!

Improper handling of the appliance may result in damage.

• Do not tilt the appliance more than 45°.
  ■ Do not use sharp or pointed objects to unpack it.

• When unpacking the appliance, never damage the insulation material on the back of the appliance.

• Move the appliance using a dolly or with a second person.

• Unpack the appliance and carefully remove all packaging, plastic moulding, adhesive strips, protective film and foam padding from the inside, outside and back of the appliance.

Choosing a suitable location

! WARNING

Risk of fire and explosion!

Your appliance's refrigeration circuit contains the environmentally friendly, but fl ammable refrigerant R600a (isobutane).

- Keep the appliance away from open flames and hot surfaces.

Dangers from the refrigerant!

- Do not damage the refrigeration circuit, for example by piercing the refrigerant channels of the condensate vaporiser with sharp objects, cutting off the tubing, etc.

■ Refrigerant is flammable when spurting out and can damage the eyes. In this case, rinse your eyes in clean water and seek medical assistance immediately.

! NOTICE

Risk of damage!

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

■ Always abide by the prescribed ambient temperature (see product data sheet at the end of this user manual).

Space required according to the appliance dimensions

Simple geometric diagram showing a rectangle with a smaller square inside, labeled 'D' on the left side (no text or symbols within the shapes)

A: 480 mm B: 1285 mm

C: 100 mm D: 526 mm

E: 1050 mm F: 100 mm

G: 50 mm H: 150 °

l: 890 mm

• To prevent the formation of a flammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 4,5m^3 .
• The appliance must only be placed on a level and firm surface. The surface must be strong enough to support the appliance's weight when fully laden.

• Suitable locations are dry, well-ventilated areas that are cool if possible.

• Unsuitable locations are ones with direct sunlight or which are directly next to an oven, hob or radiator.
  – The following minimum distances must be maintained:

– from electrical hobs 20 cm
– from oil and coal burning stoves100 cm
– from other cooling appliances 20 cm
– from washing machines/dishwashers 20 cm

- If you would like to reduce these distances, you can fit an insulation plate between the appliances.

- If underfloor heating is installed at the setup location, place the cooling appliance on an insulation plate made from solid material.

Setting up and aligning the appliance

1. Place the appliance on as flat and as firm a base as possible.
2. To ensure adequate air circulation, – do not place the appliance directly against the wall. Leave a gap of at least 10 cm to the back wall and 5 cm to the side.
3. Check the position with a spirit level.


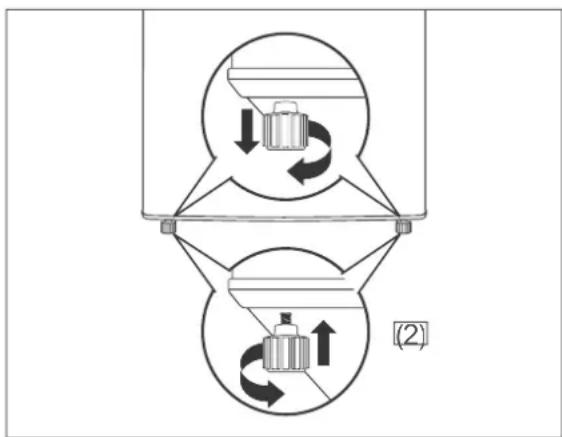

1. Level out any unevenness on the ground using both of the front screw feet.

2. Close the glass door (1).

3. Tilt the appliance backwards slightly and screw/unscrew the screw feet (2).
4. Stand the appliance back up again and check the alignment with a spirit level. Repeat the process until the appliance is standing up vertically. The appliance should not move when opening the glass door.

Basic cleaning

To remove the odour that comes with all new appliances, clean the appliance before using it see „Care and maintenance“ on page GB-14).

Connecting the appliance

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Do not operate or continue to operate the appliance if
– it shows visible signs of damage, e.g. the power cord is defective,
– it starts smoking or there is a smell of burning,
- it makes unfamiliar noises.

In such cases, remove the mains plug and contact our Service department (see page GB-24).

■ Connection to a timer or separate remote control system for the purposes of remotely monitoring and controlling it is not permitted.
- Do not kink or pinch the mains cord or lay it over sharp edges. This can result in a break in the cable.

CAUTION

Fire hazard!

Improper handling of the appliance can lead to fire and property damage.

- Only connect the appliance to a properly installed and earthed electric socket. Do not connect to a multi-socket extension cable or a multi-socket plug.

NOTICE

Risk of damage!

If the cooling unit has been transported horizontally, lubricant from the compressor may get into the cooling circuit.

- Allow the appliance to stand upright for approx. 2 hours after transport and before connecting. This allows the lubricant enough time to flow back into the compressor.

- Insert the mains plug into an easily accessible and properly installed socket (220–240 V\~ / 50 Hz).

The temperature indicator (10) will light up. The appliance is switched on.

You will find all important information about operation from page GB-10.

Changing the door hinges

CAUTION

Risk of injury!

The glass door is very heavy (13 kg).

■ Get another person to help you with attaching or removing the glass door.

NOTICE

Risk of damage!

Improper handling of the appliance may result in damage.

■ Do not tilt the appliance more than 45^ .
■ Do not lay it on its side.

Depending on the space conditions, you can change the direction of the door hinges on your appliance. This work, however, requires you to have a certain degree of craftsmanship skills. Please read the following steps completely before changing the hinges.

You will need the following tools to change the door hinges:

– Medium size cross-tip screwdriver
– Medium size flat-headed screwdriver

Removing the glass door

1. Ensure that the appliance is not connected to the power supply.
2. Remove the bottle shelves (4).

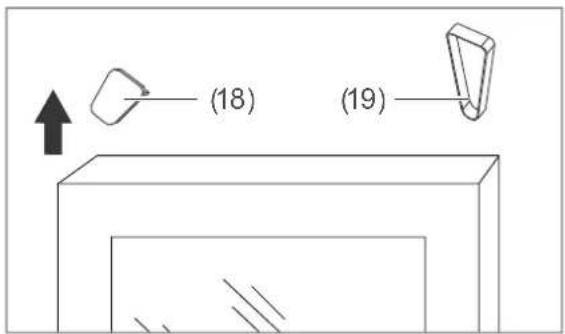

1. Carefully lift up the blanking plate (18) and hinge cover (19) with a flat-head screwdriver and remove them. Hold onto the blanking plate and hinge cover.

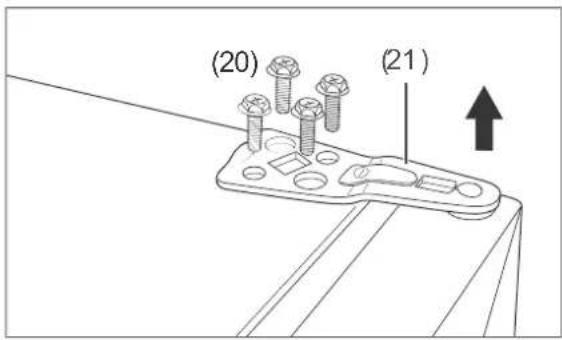

1. Make sure that the glass door (1) cannot slip, and loosen the screws (20) on the upper hinge (21). Use the cross-tip screw-driver.
2. Remove the screws (20) and the upper hinge (21). Keep hold of all the parts.
3. Lift off the glass door (1) and set it aside.

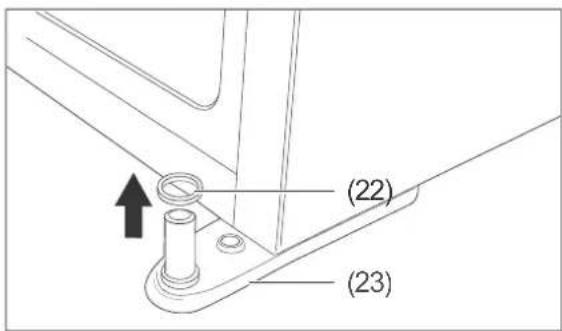

1. Remove the washer (22) from the lower hinge (23).

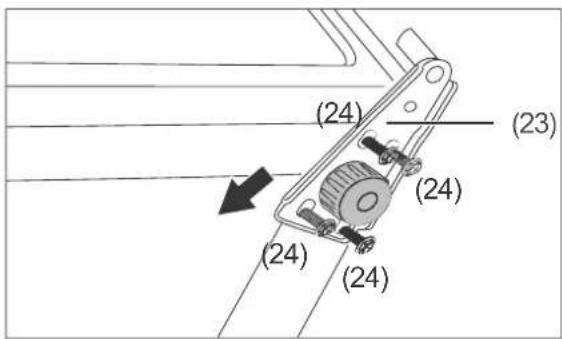

1. Loosen the screws (24) and remove the lower hinge (23) from the appliance.

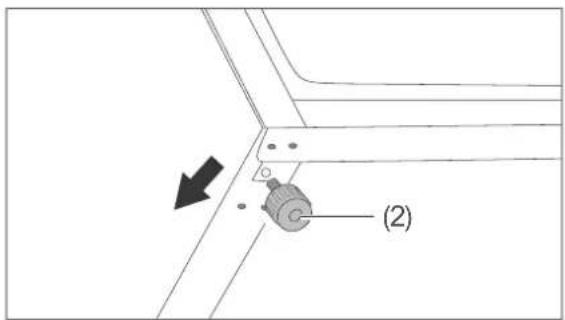

1. Remove the screw foot (2) and screw it back in on the opposite side.

Installing the glass door

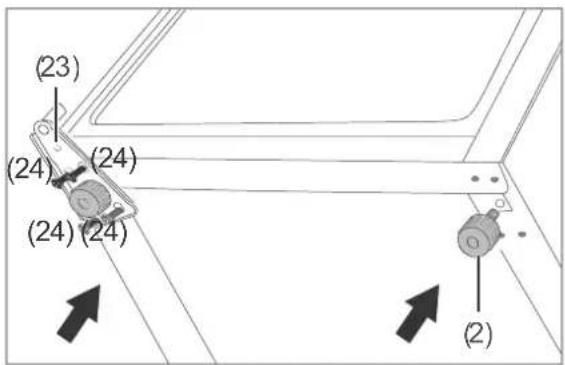

1. Tighten the lower hinge (23) on the other side using (24) the screws.
2. Put the washers (22) on the lower hinge.
3. Rotate the glass door (1) 180^ and carefully insert it on the lower hinge. Firmly hold onto the glass door. It is still loose.
4. Ensure that the glass door is positioned properly. Adjust the door if necessary. Repeat steps 1 to 4.

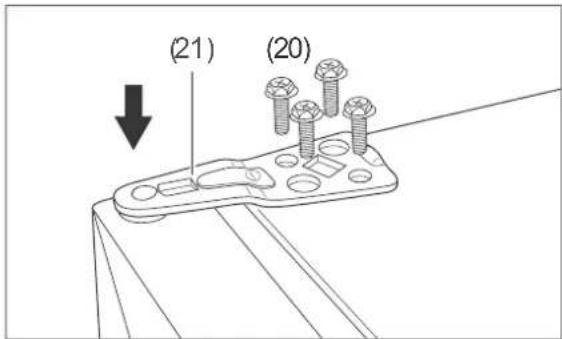

1. Tighten the upper hinge (21) with the screws (20).
2. Place the hinge cover on (19) the upper hinge and firmly press it down.
3. Insert the blanking plate (18) on the opposite side at the top.
4. Check whether the door seal is securely in place (see page GB-14).
5. Re-insert the bottle shelves (4).

Troubleshooting table

Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, please check the tables to see if you can correct the malfunction.

WARNING

Risk of electric shock in case of improper repair!

Never try to repair a defective or suspected defective appliance yourself. You can put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.

Problem Possible cause Solutions, tips, explanations
Compressor off, control unit off.	No electricity to socket. Check the socket with another appliance.
	Mains plug is loose. Check the tightness of the mains plug.
Compressor off, control unit on.	Desired temperature has been reached.	Further cooling not required. When the inside temperature rises, the compressor automatically switches on.
Appliance cools too quickly.	Temperature has been set too low.	Select a higher setting see „Setting the temperature“ on page GB-11).
The appliance doesn’t cool sufficiently.	Temperature has been set too high.	Select a lower setting see „Setting the temperature“ on page GB-11).
	Door not tightly closed or door seal is not completely tight.	See “Checking and cleaning the door seals” on page GB-14.
	The appliance is near a heat source or sunlight.	Place insulation plate between the appliances or change location.
	Minimum distances not maintained (too short).	Adhere to the minimum wall distances see „Choosing a suitable location“ on page GB-16).
	Too many bottles of wine stored.	Do not exceed the maximum nominal capacity (see product data sheet at the end of this user manual).
	Ambient temperature too low or too high.	Adjust the ambient temperature to the climate category (see product data sheet at the end of this user manual).
	Compressor seems defective.	Set the temperature to ‘4’. If the compressor does not switch on within an hour, please contact our service centre (see page GB-24).
Appliance is making a noise.	Operating noises are functional and are not a sign of malfunction.	Humming: Refrigeration unit is running.
		Flowing noise: Refrigerant is flowing through the pipes.
		Clicking: Compressor is switching on or off.
	Disturbing noises. Check that	it is stable.
		Remove any objects from the appliance.
		Remove any debris from the back of the appliance.
Water has accumulated in the appliance.	Defrost drain is blocked. Unblock the defrost drain using the enclosed cleaning rod (or equivalent).

Service

In order for us to help you quickly, please tell us:

Name of appliance Model Order number
hanseatic Wine refrigerator	JC-201S 41677525

Advice, order and complaint

Please contact your mail order company's customer service centre if

– the delivery is incomplete,
– the appliance is damaged during transport,
– you have questions about your appliance,
- a malfunction cannot be rectified using the troubleshooting table,
– you would like to order further accessories.

Repairs and spare parts

Customers in Germany

- Please contact our technical service: Telephone [phone] (landline 20 cents/call, mobile max 60 cents/call)

Customers in Austria

- Please contact your mail order company's customer service centre or product advice centre.

Please note: You are responsible for the condition of the appliance and its proper use in the household. If you call out for customer service due to an operating error, you will charges, even during the guarantee/warranty period. Damage resulting from non-compliance with this manual unfortunately cannot be recognised.

Environmental protection

Disposing of old electrical devices in an environmentally-friendly manner

Electrical appliances contain harmful substances as well as valuable resources.

Every consumer is therefore required by law to dispose of old electrical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Please contact your dealer directly for more information about this topic.

CAUTION

Fire hazard!

Cooling appliances, which contain refrigerants and gases in the cooling systems and insulation, have to be properly disposed of. Refrigerant leakage may cause a fire hazard.

■ Until the point of proper disposal, ensure that none of the cooling fins or tubes on a cooling appliance are damaged.

Our contribution to the protection of the ozone layer

100% CFC and HFC-free refrigerants and foaming agents were used in this appliance. This protects the ozone and reduces the greenhouse effect.

Product data sheet for electric household refrigerators and freezers as well as corresponding combination appliances according to Regulation (EU) No. 1060/2010 and Regulation (EU) No. 643/2009

Brand name	hanseatic
Model code JC-201S
Household refrigerator model category 2, cellar	-refrigerator, refrigerator with cellar compartment, wine storage unit
Energy efficiency class on a scale of A+++ (highest efficiency) to G (lowest efficiency)	B
Energy consumption 204 kWh/year, based on the results of a 24 hour standard test. The actual consumption depends on the type of usage and the position of the appliance.
Nominal capacity (Number of 0.75 litre standard bottles)	77
Lowest storage temperature	+5 °C
Storage time in case of malfunction	- h
Freezing capacity	- kg /24 h
Climate category: N. This appliance is intended for operation at an ambient temperature between 10 °C and 38 °C
Airborne noise emissions	43 dB(A) re 1 pW
Built-in appliance	no

This appliance is intended solely for storing wine.

The values indicated above have been measured under standardised laboratory conditions pursuant to EN 62552.

Technical specifications

Article number 41677525
Name of appliance Wine storage unit
Model JC-201S
Supply voltage / frequency 220 - 240 V, 50 Hz
Power consumption / heating power 80 W / 80 W
Device measurements (Height × Width × Depth with connections)	128,5 cm × 48 cm × 57,5 cm
Unloaded weight 40 kg
Refrigerant R600a (Isobutan)
Refrigerant filling capacity 35 g
Foaming agent Cyclopentane
