Product Type	Canopy Range Hood
Brand	Juno Electrolux
Model	JFT60010X
Width Options	498, 548, 598, 698, 798, 898, 998 mm
Height (Minimum)	234 mm
Depth	482 mm (without glass visor)
Outlet Diameter	100 mm (120 mm on some models)
Operating Modes	Extraction (ducted) and Recirculation (with charcoal filter)
Minimum Height Above Hotplate	65 cm
Controls	Slider switches for lighting and fan speeds
Fan Speeds	Multiple speeds (low for normal cooking, high for strong odors)
Lighting	Worktop illumination (replaceable bulb)
Grease Filter Type	Multi-layer metal or thin synthetic (1 mm)
Grease Filter Cleaning	Wash metal filter monthly in hot water or dishwasher; replace synthetic every 2 months
Charcoal Filter	Required for recirculation mode; replace every 3 months
Installation Types	Wall cabinet fixing, wall mounting (with optional brackets)
Electrical Connection	Via bipolar switch with 3 mm contact gap
Voltage	Match rating plate (typically 220-240 V)
Safety Features	Double insulation (Class II), earth cable not required
Weight	Approximately 12 kg (estimated)
Material	Stainless steel
Included Accessories	Fixing kit with screws, paper template, charcoal filter (for recirculation)

Frequently Asked Questions - JFT60010X Juno Electrolux

What is the minimum distance between the hob and the hood?

The hood must be installed at least 65 cm above the hotplate to comply with safety regulations.

Can I use this hood in recirculation mode?

Yes, the hood can be used in recirculation mode. You must fit a charcoal filter and set the conversion lever to the RECYCLING position.

How do I clean the grease filters?

Multi-layer metal filters should be washed in hot water with mild detergent or in a dishwasher once a month. Thin synthetic filters (1 mm) should be replaced every two months.

How often should I replace the charcoal filter?

For optimal performance, replace the charcoal filter every three months if the hood is used in recirculation mode.

What should I do if the light bulb fails?

Disconnect the hood from the mains, open the metal grille, and check the bulb is fully screwed in. Replace with an identical bulb to ensure safe operation.

Can I duct the hood from the rear?

Yes, you can invert the position of the flanged spigot and blanking plug to duct from the rear outlet instead of the top.

Is it safe to flambé under this hood?

No, never do flambé cooking under the hood. Overheated fats can catch fire.

What type of electrical connection is required?

The hood must be connected via a bipolar switch with a 3 mm contact gap. Ensure the mains voltage matches the rating plate. For Class II appliances, no earth connection is needed.

How do I remove the metal grille for cleaning?

Press the slider catches on each side to pivot the grille down, then pull forward on the right side to release the hinge pin from the slot.

Can the hood be installed in a wall cabinet without pre-drilled holes?

Yes, if no predrilled cabinet, use the paper template to mark holes and fix the hood with 3.5 x 16 mm screws (not supplied) from inside the cabinet.

USER MANUAL JFT60010X Juno Electrolux

Close-up of a young girl with curly hair and a checkered dress, making a hand gesture (no visible text or symbols)

We were thinking of you

when we made this product

EN

GENERAL INFORMATION SAFETY WARNINGS 5

CHARACTERISTICS

INSTALLATION

USE

MAINTENANCE

EN

Welcome to the world of Electrolux

Thank you for choosing a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. The Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable. You find some examples on the cover in this manual. Please take a few minutes to study this manual so that you can take advantage of the benefits of your new machine. We promise that it will provide a superior User Experience delivering Ease-of-Mind.

Good luck!

DE

This canopy hood is designed to be fixed to any rigid vertical surface, over a gas or electric hotplate and can be used either in the extraction mode (ducted to the outside) or in the recirculation mode (internal recycling). All cookers hood perform better when used in extraction mode. During winter time it may be convenient to use the hood in the recycling mode to avoid heat loss from the kitchen.

Before starting the installation, consideration should be given to the diffi culties to be found during installation. The installation work must be undertaken by a qualifi ed and competent person in conformity to the rules concerning the extraction of contaminated air.

The manufacturer disclaims all liability for any damage or injury caused as a result of not following the instructions for installation contained in the following text.

1 - SAFETY WARNINGS

1.1 - When used in the extraction mode, the cooker hood ducting must not be connected to a fl ue which is used for exhausting fumes from appliances supplied with energy other than electric, such as a central heating fl ue or water heating fl ue.
1.2 - Before connecting to the mains supply ensure that the mains voltage corresponds with the voltage on the rating plate inside the hood.
1.3 - Connect the cooker hood to the mains via a bipolar switch which has 3mm clearance between the contacts.

1.4 - For cooker hoods featuring an earth cable, make sure the electric plant of your house is correctly earthed.
1.5 - Appliance in class II are provided with a double insulation; therefore do not connect then through earthed plugs but through simple bipolar plugs.
1.6 - When installed, the hood must be positioned at least 65cm above the hotplate.
1.7 - Never do fl ambé cooking under this cooker hood.
1.8 - Never leave frying pans unattended during use as overheated fat and oil may catch fi re.
1.9 - Before carrying out any kind of maintenance or cleaning, disconnect the hood from the mains supply.
1.10-If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then this must be of the room sealed or balanced fl ue type. If other types of fl ue or appliance are fi tted, ensure that there is an adequate supply of air into the room. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
1.11-The appliance must be positioned so that the plug is accessible.

1.12-If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

1.13-This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

1.14-Children should be supervised to ensure that they do not play with the appliance.

CHARACTERISTICS

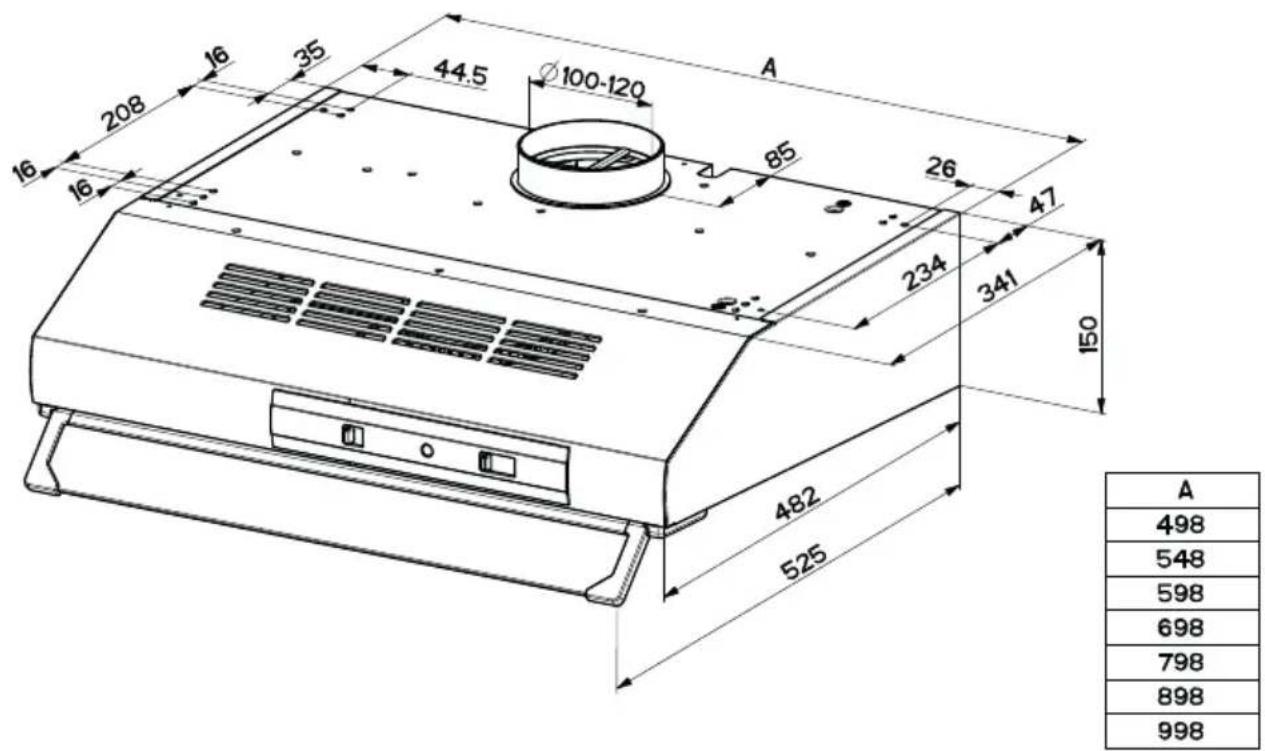

Dimensions

208 16 35 44.5 Ø100-120 A 16 16 85 26 47 234 341 150 482 525 A 498 548 598 698 798 898 998

EN

INSTALLATION

2 - INSTALLATION INSTRUCTIONS

Some installation systems require the opening and removal of the metal grille panel.

2.1 - Instructions for opening and removing the metal grille panel

To open the grille panel, press inwardly on the two slider catches at each side of the grille panel and the grille will pivot down.

To remove the metal grille, pull forward on the right hand side so that the hinge pin on the back of the grille will be released from the slot in the side of the casing.

2.2 - Wall cabinet fi xing

a-Predrilled wall cabinet: fi x the hood onto the wall cabinet base panel using the four screws 4.2 x 45 mm (supplied with the fixing kit).

It is not necessary to open the metal grille.

b-No predrilled wall cabinet:

b.1-If the hood is provided with a paper fi xing template, follow the instructions.

b.2-If the hood is not provided with a paper fi xing template, position the hood on the wall cabinet base panel and pilot drill the 3.5 x 16 mm screws (not supplied with the fi xing kit) from the inside onto the wood.

2.3 - Wall mounting

a-Drill two ∅ 8 mm holes on the wall using the paper template, insert two rawl plugs and two 4.2 x 44,4mm screws leaving 5 mm untightened. Open the metal grille panel, hook the hood on and fully tighten the screws.

b-If the hood is not provided with a paper fi xing template, drill two ∅ 8mm holes (see draw.), insert the plugs and screws, proceeding as directed under

paragraph a.

c-For wall mounting using wallbrackets (optional), follow the instructions of the fixing template.

d-Pay attention to the safety regulation of point 1.6.

2.4 - Choice of operating mode a - Extraction mode

To check that the hood is set up for extraction, open the grille panel and make sure that the conversion lever or the change-over knob on the centrifugal unit is in the DUCTING position. The charcoal fi Iter is not required.

For ducting to the outside, the hood is supplied with a rear and top outlet. A flange spigot of 100 mm diameter (120 mm in certain models) is usually fitted on the top outlet and a blanking plug on the rear outlet. If you choose to duct the hood from the rear of the casing, you should invert the position of the flange and of the blanking plug. Pay attention to the safety regulation 1.1.

b - Internal recirculation mode

To check that the hood is set up for recirculation, open the grille panel and make sure that the conversion lever or the change-over knob on the centrifugal unit is in the RECYCLING position. The charcoal filter is to be fitted. To fit the charcoal filter, support the filter with one hand and turn the thumb screw through the centre of the charcoal filter. If the filter is of the interlocking type, turn the filter clockwise. The hood can remain connected to the outside.

2.5 - Electrical connection and working test

1-The safety measures 1.2, 1.3, 1.4 and 1.5 of paragraph 1 are to be strictly observed.

2-Once the electrical connection has been completed, check that the work-top illumination, motor and speeds work properly.

USE

3 - OPERATION

3.1- Controls are located on the right hand side of the front to operate worktop illumination and select the most suitable working speed for your cooking. To increase the area of extraction, the glass visor should be pulled open. The top speed should be used when frying or cooking foods with strong odours, while a lower speed can be used for normal cooking. To obtain the best performance from your hood, turn it on before you start cooking and leave it running for a few minutes after your cooking is over to clear the air.

3.2- Pay attention to safety regulations 1.7 and 1.8

MAINTENANCE

4 - MAINTENANCE AND CLEANING

Regular maintenance and cleaning will ensure good performance and reliability, while extending the working-life of the hood. Special attention should be reserved to the grease fi Iter and to the charcoal fi Iter (recycling mode).

4.1 - Grease fi Iter

This retains the solid grease particles and can be supplied in different types. It is fitted onto the reverse side of the metal grille panel. Maintenance of the grease filter varies according to the used type.

a-Whatever type of filters used, the filter is easily removed from the grille by pushing the metal wire clips to one side and removing.
b-Thin synthetic fi lter (1 mm thick). It should not be washed and should be replaced every two months. If the fi lter is provided with a saturation indicator, replace when:
b.1-The violet colour of the dots, which are visible through the metal grille, is spread over the whole surface of the filter.
b.2-The red colour of the stripes, which is not visible through the metal grille when the fi Iter is clean, becomes visible from the outside of the metal grille.
c-Multi-layer metal fi lter. It should be washed once a month in hot water using mild detergent or liquid soap. It can be washed in a dish-washer. It should not be bent and should be left to drain dry.

WARNING: An excess of grease in the fi Iter not only would affect the performance of the hood, but it is also a possible fi re risk. We strongly recommend therefore to clean and replace fi Iters in accordance with the manufacturer 's instructions.

4.2 - Cleaning Metal self-supporting Grease Filters

• The fi Iters are washable and must be cleaned at least every 2 months of operation, or more frequently for particularly heavy usage.
• Remove the fi Iters one at a time by pushing them towards the back of the group and pulling down at the same time.
• Wash the fi Iters, taking care not to bend them. Allow them to dry before refi tting.
• When refitting the filters, make sure that the handle is visible on the outside.

4.3 - Charcoal fi Iter

The charcoal filter is a chemical filter to be used only when the hood is in the recirculation mode. To replace the charcoal filter, open the grille and remove the thumb screw through the centre of the charcoal filter. If the filter is of the interlocking type, turn the filter anticlockwise. Replace by reversing the operation.

For a good performance replace the charcoal fi iter on average every three months.

4.4 - Worktop illumination

If a lamp fails to function at any time, open the metal grille panel and check that the lamp is fully screwed into the holder. When changing the lamp, an identical replacement must be fitted to ensure a safe working of the hood.

Disconnect the cooker hood from the mains supply before changing the light bulb.

4.5 - Cleaning

The metal work should be cleaned regularly, at least once a month, using mild household cleaner and

polish. Never use abrasives. For all operations from point 4.1 to point 4.4 and in particular for point 4.3,

pay special attention to the safety regulation 1.9.

4 - MAINTENANCE AND CLEANING

Modern stainless steel refrigerator with vertical glass panels and a black handle (no visible text or symbols)

Exterior view of a modern microwave oven with control panel and display (no visible text or symbols)

White electric stove with four top ovens and a front-mounted door (no visible text or symbols)

Exterior view of a red and silver vacuum cleaner (no text or symbols visible)

3D rendering of a yellow gas stove with four black flanges (no text or symbols visible)

Exterior view of a stainless steel kitchen appliance with control panel and ventilation duct (no visible text or symbols)

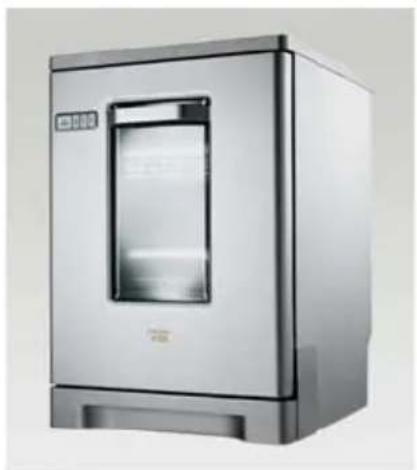

Exterior view of a stainless steel kitchen appliance with a glass door and control panel (no visible text or symbols)

Exterior view of a stainless steel industrial cooling unit (no visible text or symbols)

Exterior view of a modern vacuum cleaner with red and blue casing (no text or symbols visible)

Exterior view of a silver washing machine with digital display and circular vent (no visible text or symbols)

Exterior view of a stainless steel electric grill with six grilles and open doors (no visible text or symbols)

Exterior view of a modern stainless steel refrigerator with dual doors and a water dispenser (no visible text or symbols)
