Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety instructions....24
2. Installation 27
   2.1 Important safety information.... 27
   2.2 General information.... 27
   2.3 Installation steps 28
   2.4 Carbon filter 33
3. Operation.... 35
   3.1 Control panel.... 35
   3.2 Reduction of the environmental impacts of cooking.... 35
4. Cleaning/maintenance 36
5. Trouble shooting....38
6. Technical data....39
   6.1 Information in accordance with Regulation (EU) 66/2014....39
   6.2 Relevant data for installation 40
7. Waste management....41
8. Guarantee conditions 42
   A. Technical drawing....43

EU - Declaration of Conformity

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.
The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case.

i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

1. Safety instructions

i Read the safety instructions carefully before you operate the appliance for the first time. All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

⚠️ CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

⚠ WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

NOTICE! indicates possible damage to the appliance.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
i The appliance is intended for private use only.
The appliance is intended for extracting/recirculating cooking vapours in a private household only.
i The appliance is intended for indoor-use only.
The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.

DANGER

1. Do not operate the appliance when it does not work properly, is visibly damaged, has dropped down or the power cord/plug are damaged.
2. The power cord must be replaced by a qualified professional only.
3. Never repair the appliance yourself.

4. Do not operate any room-air dependent fireplaces while operating the appliance; otherwise harmful gases will get from the fireplace into your home. Whenever the hood is operated together with chimney-vented fireplaces (e.g. coal furnace), ensure there is sufficient air supply in the room where the appliance is installed in. Always consult your local chimney-sweep master. When you operate the appliance in recirculating mode, you can simultaneously run room-air dependent fireplaces.

5. If gas is set free in your home:

Open all windows.
Do not unplug the appliance and do not use the control panel.
Do not touch the appliance until the gas has gone.
Otherwise sparks can be generated which will ignite the gas.

WARNING!

1. Whenever you use extractor hoods in combination with non electrically-operated appliances (gas and oil-fired appliances), the negative pressure of the corresponding room must not be more than 4 Pa ( 4 × 10^5 bar).
2. An electrical supply of 220-240V AC / 50 Hz is required. Do not use a socket board or a multi socket or an extension cord when operating the appliance with 220–240 V/50 Hz (AC). All electrical connections which may be damaged must be repaired by a qualified professional.
3. Only connect the appliance to a properly grounded and dedicated socket.
4. The appliance must be grounded. Only use a proper safety socket to minimize risk of electric shock. The technical data of your energy supply must meet the data on the rating label.
5. Your domestic circuit must be equipped with an automatic circuit breaker.
6. Strictly observe the minimum distance between hood and hob (Please be sure to observe the information in chapter 2.1 of this instruction manual).
7. Do not cook a la flambé dishes below the extractor hood. The flames may damage your appliance and/or cause fire.
8. Do not operate the gas jets of a gas hob without cookware. The flames may damage your appliance and/or cause fire.
9. If you fry, permanently keep an eye on the oil as it can catch fire. The risk of auto-ignition rises when using the oil many times.
10. Do not carry out any procedures on the hob using naked light or fire. The flames may damage your appliance and/or cause fire.
11. The exhaust hose must not be made of flammable materials or contain any

flammable materials.

1. Operate the appliance with inserted grease filters only. Otherwise recirculating-transported fat will deposit in the appliance and the exhaust system. RISK OF FIRE! Clean or replace the filters regularly.
2. Disconnect the appliance from the mains before cleaning and maintenance.
3. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
4. This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.
5. Always supervise children so they will not play with the appliance.

CAUTION!

1. Accessible parts of the hood may become hot while cooking.
2. Carry out the installation of the appliance with at least two persons. Risk of damage. RISK OF INJURY!

NOTICE!

1. The appliance must be transported and installed by at least two persons.
2. Unpack the parts of the chimney very carefully; otherwise you will damage the chimney
3. Remove the complete packaging materials before initial operation. The appliance may be equipped with a transportation lock. Remove the transportation lock completely. When removing be very careful. Do not use any aggressive detergents to remove residues of the transportation lock.
4. Clean and maintain the appliance regularly to enable its proper operation and optimal performance.
5. Take the enclosed parts from the packaging and its polystyrene-components.
6. Check that the power cord and the appliance are not damaged before electrical connection.

2.1 Important safety information

Required minimum distance hood to

Ceramic-glass rings/hotplates	65 cm
Gas cooker	75 cm
Coal / oil / stove wood firing	85 cm

⚠ WARNING! If you ignore the required minimum distance, the accumulated fat in the filters can catch fire due to the heat emission of the hob. RISK OF FIRE!

1. The minimum distances do not represent the required total height but a minimum value generated by adding the height of the hob (floor hob) and the required minimum distance of the hob to the extractor hood (hob extractor hood)

& (floor hob) + & (hob extractor hood) = & Minimum installation height

1. Adapt the total installation height to the height of the user. Please note that the extraction capacity of the appliance can decrease if installed at a large distance to the hob.

⚠ WARNING! Never install the appliance below the required minimum distance.

⚠ WARNING! Any potential user has to be careful not to hit their head on the corners and edges of the appliance. RISK OF BRUISES! RISK OF INJURIES IN THE OCULAR AREA!

2.2 General information

1. ⚠️ WARNING! Do not lead the exhaust air into a chimney which is used for extracting exhaust air of appliances operated by gas or other combustibles.
2. For extracting the exhaust air always observe the current legal regulations.

3. The diameter of the exhaust hose must meet the diameter of the connecting ring.

4. If your appliance is equipped with a carbon filter, remove the carbon filter before you operate the appliance in the extraction mode. The carbon filter should be used in the recirculating mode only.

5. The exhaust duct should be as short and straight as possible. The diameter of the exhaust hose should be at least 120/150 mm (look at chapter TECHNICAL DATA). Otherwise you have to expect increased noise and decreased performance of your appliance.
6. The proper maximum bending angle outwards is 120^ .
7. Use smooth tubes or flexible, non-inflammable exhaust hoses only.
8. When the exhaust duct is connected horizontally, a minimum falling gradient of 1 cm/m or an inclination of 2^ is required. Otherwise condensate will get into the motor of the hood.
9. When an exhaust duct is used, the ending of the exhaust hose must be adjusted into the direction of flow.
10. If the exhaust duct passes through cool areas (e.g. an attic), a temperature gradient may occur in the different parts of the exhaust duct so condensate will be generated. Proper insulation of the corresponding parts of the exhaust duct will then be needed. Equip such an exhaust duct with a condensate trap if need be.
11. Depending on the model the hood is equipped with one (top) or two (top, back) outlets.
12. The idle outlet is covered by a plastic cap. You can remove this cap by turning it anticlockwise. Use the cap to cover the idle outlet.

2.3 Installation steps

⚠ WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

⚠ WARNING! Do not damage the wiring in the wall while drilling

NOTICE! At least one assistant is required for installation.

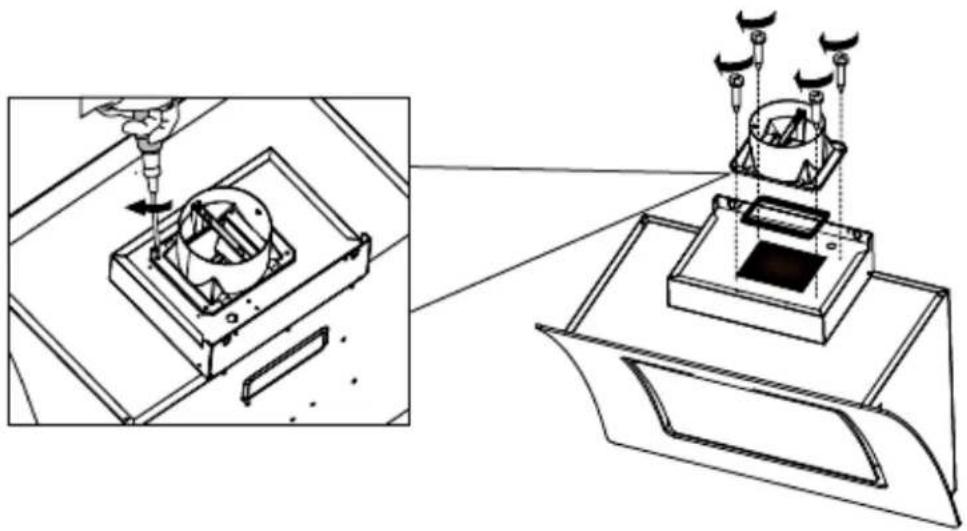

Before installing the cooker hood, please fix the damper flap on the air outlet of the hood.

Technical illustration showing a mechanical assembly with tool and component views (no text or symbols)

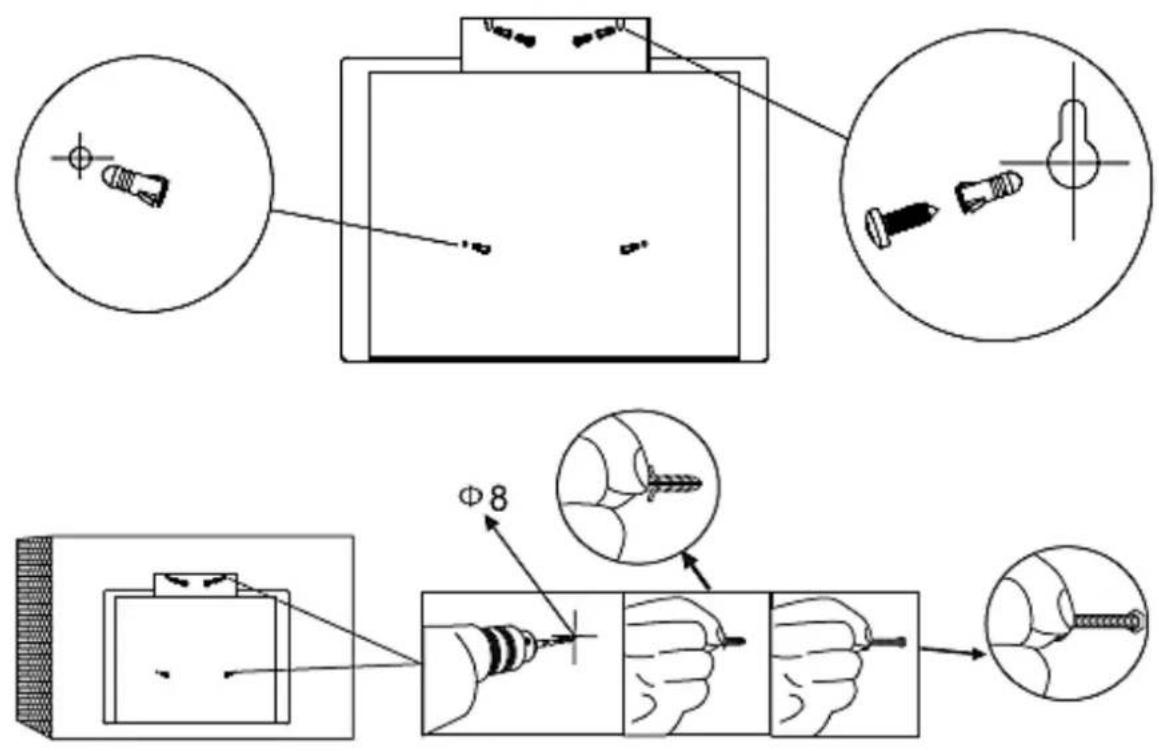

1. Find a suitable position for the appliance. Drill four 8 mm holes in the wall using the stencil. Fix the top expanding plugs and screws in the holes. The screw heads must have a distance of 10 mm to the wall (see also item 2). Also insert the bottom expanding plugs.

Technical diagram illustrating a mechanical assembly process with labeled components and tool paths

1. Suspend the appliance on the 4 installation openings and adjust it properly.

Technical diagram showing a mechanical assembly with a 10mm bolt and a spring attached to a wall, alongside a close-up of the spring.

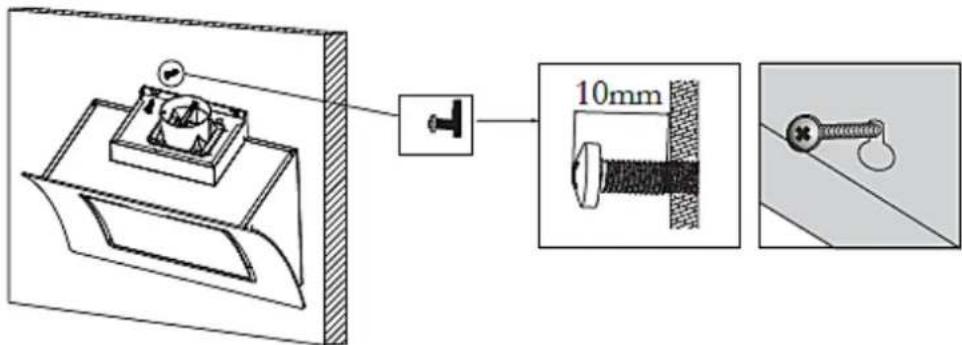

1. Tighten the four screws; start with the upper two screws, then tighten the lower ones.

Technical diagram showing a mechanical component before and after application, with a magnified view of a circular feature being held.

1. You can lay the exhaust hose as follows:

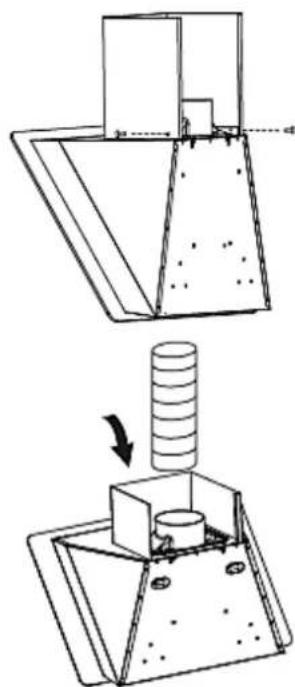

Fix the chimney bracket and the outer chimney using 4*8 screws.

Connect the exhaust hose to the air outlet.

Diagram showing a mechanical assembly with a cylindrical component being inserted into a base plate (no text or symbols present)

Vertically: Lay the exhaust hose to a roof cap*.

Horizontally: Lay the exhaust hose to an exhaust outlet equipped with an air grille*.

*: Not included in delivery.

1. Fix the chimney bracket and the inner chimney using 3,5*8 screws.

2. Move the inner chimney up and down. Define the suitable height for the inner chimney.

Cross-sectional diagram of a pipe system with water flow, showing pipe narrowing and brick wall (no text or labels)

Technical diagram showing a mechanical or structural assembly with labeled components and motion indicators

Diagram showing a mechanical or electrical component with a magnified inset and directional arrow, likely illustrating a process or measurement.

Simple line drawing of three stacked rectangular blocks with a downward arrow indicating compression or lifting (no text or symbols)

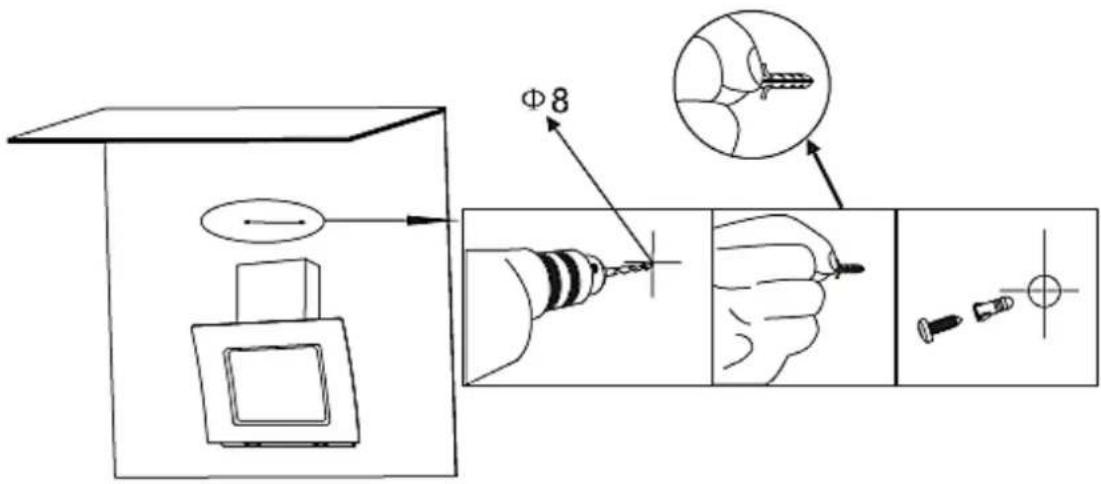

1. Drill two 8 mm holes into the wall(use the stencil) and insert the expanding dowels.

Technical diagram illustrating a mechanical assembly with labeled components and magnified views of the tool path.

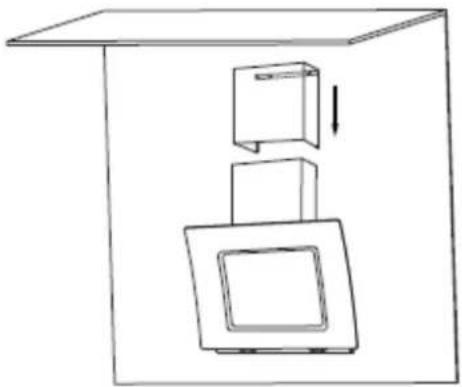

1. Fix the upper chimney by tightening the screws.

Simple line drawing of a cabinet with two boxes and one square, no text or symbols present

Simple line drawing of a mechanical structure with a pulley and circular components (no text or symbols)

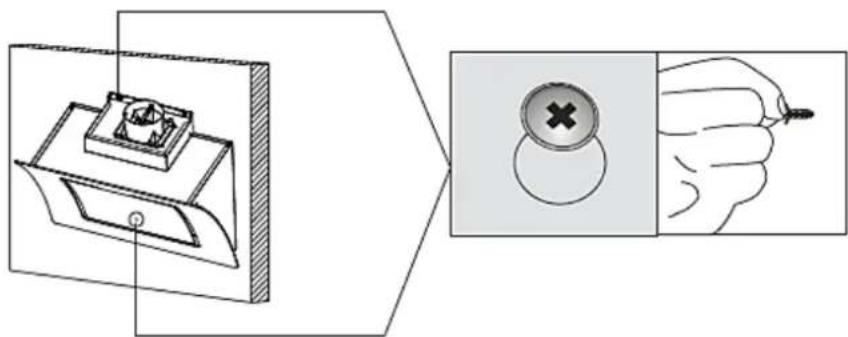

1. Insert the aluminium filter and plug in the appliance.

2. If the socket is covered by the chimney, you must plug in the appliance at an earlier point in time. In such a case, the relevant socket must be equipped with a disconnecting device. All required work to install such a disconnecting device must be carried out by a qualified professional.

➢ Check from all sides that the appliance is aligned horizontally; otherwise the appliance will not work properly.

2.4 Carbon filter

Product code: CO 04.

⚠ WARNING! Unplug the appliance or disconnect it from the mains (use the relevant fuse in your household fuse box).

⚠️WARNUNG! Use the carbon filters in recirculation mode only.

1. Remove the grease filter(s).

Simple line drawing of a hand holding a small object over a flat surface, with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with a curved arrow indicating rotation (no text or symbols)

1. Please note the following illustration:

Motor WOOD

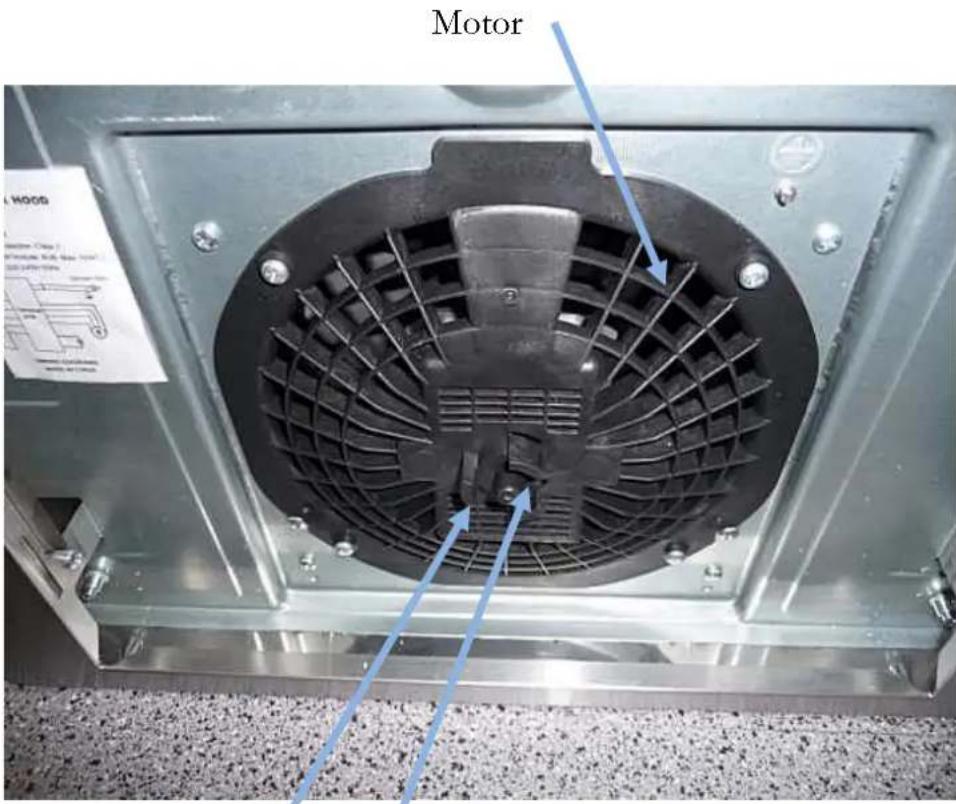

Holding mechanism/motor

1. Match the brackets of the filter with the holding mechanism of the motor and press carefully until the filter locks.

Circular black object with radial lines and a central hole, labeled 'Front' at top (no other text or symbols)

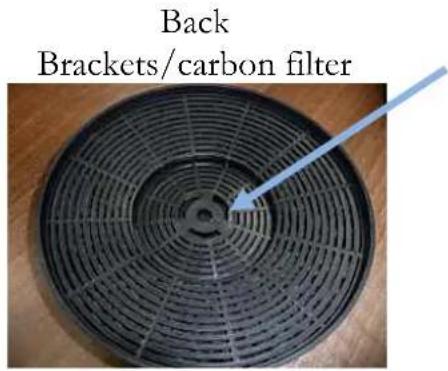

Back Brackets/carbon filter

1. Install the grease filter(s).

NOTICE! Depending on frequency of use, replace the carbon filters every three to six months. Clean the grease filter(s) regularly for proper operation of the motor.

You can order carbon filters at www.pkm-online.de

3.1 Control panel

CAUTION! The lamp must not be covered by thermal insulation or other materials. Do not touch the illuminant within 30 minutes after using the appliance

NOTICE! Only switch on the lights while the appliance is operating. Do not switch on the lights to lighten the room.

When the appliance has been connected to the mains, an acoustic signal sounds. The appliance is in stand-by mode now.

Never press more than one key at the same time.

On/Off/Timer

1. Touch once and the button is illuminated. The appliance will run in the previous setting.

2. Touch once while the appliance is operating to activate the timer mode. The appliance will be switched off after 15 minutes. If you operate one of the speed buttons within this period, the timer mode is cancelled automatically.

3. Touch twice while the appliance is operating to switch off.

Light on/off.

Low motor speed, suitable for cooking which produces little cooking steam.

Medium motor speed, suitable for standard/daily cooking.

High motor speed, suitable for cooking which produces very much cooking steam.

3.2 Reduction of the environmental impacts of cooking

➢ Cover your pot/pan with lid during cooking.
Switch off the appliance after cooking or use the delayed switch-off function (equipment depends on model).
➢ Switch off the illuminant(s) of the appliance after cooking.

The diameter of the pot/pan should meet the diameter of the cooking zone or the size of the flame of the burner (gas appliances).
Only operate the highest motor speed of the appliance to extract strong concentration of cooking fumes.
Clean the grease filter(s) regularly as clean filters will increase the efficiency of the appliance.
➢ Replace carbon filters (for recirculation mode only) regularly. Observe the information given on the packaging of the carbon filters.

4. Cleaning/maintenance

⚠ WARNING!

Disconnect the appliance from the mains before you clean or maintain it.
Ignoring the cleaning and maintenance instructions will cause an increased risk of fire.

NOTICE!

➢ Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

1. Clean the housing of the appliance with a suitable detergent. Use such a product carefully and economically.

2. Do not clean the control panel with a detergent. Use a damp cloth. Otherwise you may damage the electronic components of the controls.

3. Never use any alcohol-containing detergents to clean matt black painted appliances as these detergents cause colour-changes.

4. Clean the glass panels ^2 with a suitable detergent only.

5. When you clean or replace the grease filters or the carbon filters also clean all visible components on the bottom of the appliance with a mild, non-acrid and fat-dissolving detergent.

6. Do not damage the grid of metal-made grease filters. The colour of the metal surface may change due to frequent cleaning as well as the use of aggressive detergents.

7. Such changes do not influence the capacity of the appliance and are no reason for complaint.

8. Do not use a steam cleaner. RISK OF ELECTRIC SHOCK!

9. Do not use any abrasive detergents.

Filters

⚠ WARNING! There is RISK OF FIRE when cleaning is not carried out according to these instructions!

Aluminium filter

You do not need to replace aluminium filters. Clean them once a month by hand or in a dishwasher (30 ^1 ). Do not use any acrid or corrosive detergents. Do not use any abrasive detergents! Do not use any alkaline dishwasher-detergents! (ph more than 7). Do not put the filter in the dishwasher together with tableware Filters which are blocked with food debris do not carry a guarantee. Dry the filters properly before you reinstall them.

Carbon filters

Conventional carbon filters cannot be cleaned. The capacity of these filters is limited. You can use such filters for about 3-6 months. Replace a depleted filter. Find further information on the filter packaging.

Replacing of the illuminant

Do not touch the illuminant with your hands. The sweat on your fingers will reduce the operating time of your new illuminant. Use a thin cloth or a thin glove.

1. ⚠️ WARNING! Disconnect the appliance from the energy supply.
2. The illuminant should have cooled down before you remove it.
3. Remove the old illuminant.
4. Replace it with a new one of the same kind and power.

Required minimum distance to surfaces such as pot lids, oven cloths etc. to avoid any hot parts and risk of fire.

Only use self-shielded illuminants to avoid hot parts, risk of fire and exposure to UV-radiation.

MALFUNCTION

POSSIBLE CAUSE

MEASURE

The appliance does not work at all.

The plug of the appliance is not connected to the socket.
The plug has become loose.
The socket is not supplied with energy.
The fuse is switched off.

➢ Check the corresponding socket by connecting it with another appliance.
▶ Check the fuse.
The voltage is too low. Compare the data on the model plate with the data of your energy supplier.

Light is on but motor does not work.

▶ ventilation damper blocked.
▶ motor mounting defective.

remove blockage.
replace motor.

Abnormal motor-smells.

▶ motor defective

replace motor

Smear of oil.

▶ one-way valve is leaky
➢ connection base chimney-telescopic chimney is leaky

seal the valve
➢ seal the connection with a suitable material

Appliance vibrates.

▶ motor not properly fixed
▶ hood not properly fixed

fix motor properly
➢ fix hood properly

Insufficient extracting capacity.

▶ too much distance hood-hob
too much draught because of open doors and/or windows

▶ lower position of hood
▶ close the doors/windows

Appliance is unstable.

➢ mounting rail is not firmly fixed
▶ screws are not firmly tightened

➢ fix mounting rail properly
▶ tighten the screws

If the hood does not work properly and/or you can hear increased operating noise, check the schedule below:

◆ Incorrect dimension of the air duct.
◆ Obstruction in the air duct.
The diameter of the air duct from hood to wall-box inclusive should be 120 mm; otherwise the capacity of the motor may be decreased.
If you have installed a fly screen on the wall-box, the air vent may be obstructed. Check by removing the fly screen.
If the cover panel of the wall box is equipped with firm and slanted slats, the air vent may be obstructed. Check by removing the cover panel.

❖ Install a cover panel with moveable slats, which do not obstruct the air vent.
◆ Check condition and cleanliness of the filters.
- Check if the air which is extracted by the hood is replaced to avoid negative pressure.
When you run your appliance in recirculating mode, check if the carbon filter has been replaced on time (min. every 3-6 months).

If the appliance has a malfunction not noted on the schedule or if you have checked all items on the schedule but the problem still exists, please contact the aftersales service..

6. Technical data

6.1 Information in accordance with Regulation (EU) 66/2014

Brand/trademark	PKM
Model identifier	S2-60BBTX
	S2-90BBTX
	S2-60BWTX
	S2-90BWTX
Annual energy consumption (AEC _hood )	27.5	kWh/year
Energy efficiency index (EEI _hood )	B
Time extension factor (f)	1,7
Fluid dynamical efficiency (FDE _hood )	9.2
Fluid dynamical efficiency index	E
Grease separation	43
Grease separation index	G
Air flow at minimum speed/standard operation	158.0	m ^3 /h ^(1)
Air flow at maximum speed/standard operation	300.6	m ^3 /h ^(1)
Air flow during operation at intensiveor rapid operation setting	-	m ^3 /h ^(1)
Air pressure at best operating point (P _BEP )	-	Pa
Connected load	62	W
Power consumption lighting system (W _l )	2.0	W
Lighting efficiency (LE _hood )	80.0	lux/Watt
Lighting efficiency index	A
Power consumption standby (Ps)	0,7	W
Power consumption off (Po)	0.47	W
A-rated noise emission at minimum speed/standard operation	51	dB (2)
A-rated noise emission at maximum speed/standard operation	59	dB (2)
A-rated noise emission during operation at intensive or rapid operation setting	59	dB (2)

Explications:

(1) measurement of air flow

Range hoods with a maximum air flow, which is more than 650 m^3/h at an available setting, must automatically change to an air flow, which is max. 650 m^3/h .

(2) Airborne acoustical noise

According to dB(A) re 1 pW.

To determine the results, and in accordance with the requirements in relation to the labelling of energy-related products and with regard to ecodesign requirements, the following calculation and measurement methods were applied:

➢ Directive of the European Parliament and of the Council 2010/30/EU; REGULATION NO 65/2014.
➢ Directive of the European Parliament and of the Council 2009/125/EC; REGULATION NO 66/2014.
➢ EN 50564 - Electrical and electronic household and office equipment. Measurement of low power consumption
EN 60704-2-13 - Household and similar electrical appliances. Test code for the determination of airborne acoustical noise. Particular requirements for range hoods.
EN 61591 - Household range hoods and other cooking fume extractors - Methods for measuring performance.

6.2 Relevant data for installation

Voltage/frequency	AC 220-240V/50Hz
Grease filter/material/dishwasher-proof	1 aluminium √
Carbon filter *	1*CO 04
Exhaust hose	√
Installation material	√
Instruction manual	√
Telescopic chimney extractable from-to	40.00-73.00 cm
Installation with ventilation stack or air duct outwards	Wall penetration = 120 mm ∅Drilling = approx. 130 mm ∅
Dimensions H*W*D in cm	80.60-110.60*60.00*34.00
Weight net/gross in kg	14.00/16.00

Different data for S2-90BBTX/ S2-90BWTX

Dimensions H*W*D in cm

80.60-110.60*90.00*34.00

Weight net/gross in kg

16.20/18.50

* Optional equipment.

7. Waste management

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
2. Old and unused appliances must be send for disposal to the responsible recycling centre. Never expose to open flames.
3. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately.
4. Dispose of any paper and cardboard into the corresponding containers.
5. Dispose of any plastics into the corresponding containers.
6. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
7. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

for large electric appliances; PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees.

These are not restricted to the manufacturer's guarantee.

Any guarantee claim has to be made immediately after the detection and within

24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery.

The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

270 251 φ120 1106 806 340 430 285 600

Abmessungen in mm.

Dimensions in mm.

Please contact the shop you purchased the appliance at.

Subject to alterations

Updated

06/24/2016
