S20-60ABTZ - Range hood PKM - Free user manual and instructions

Product Type	Cooker Hood
Model	S20-60ABTZ
Brand	PKM
Installation Width	60 cm
Dimensions (H×W×D)	35.0–94.0 × 60.0 × 38.6 cm
Net Weight	13.0 kg
Material	Stainless steel / Glass
Power Supply	220–240 V AC, 50 Hz
Connected Load	168 W
Motor Speeds	3 (touch control)
Maximum Airflow	621.3 m³/h
Noise Emission (min/max)	59 / 63 dB
Energy Efficiency Class	A
Annual Energy Consumption	40.4 kWh
Lighting	2 × 1.5 W LED
Grease Filter	1 aluminium, dishwasher-proof
Carbon Filter (optional)	2 × CF110
Operating Modes	Extraction and Recirculation
Minimum Distance to Gas Hob	75 cm
Minimum Distance to Electric Hob	65 cm
Telescopic Chimney Extension	30.0 – 59.0 cm
Warranty	24 months

Frequently Asked Questions - S20-60ABTZ PKM

What is the minimum distance required between the hood and a gas hob?

The minimum distance is 75 cm for gas cookers. For ceramic-glass rings or hotplates, it is 65 cm, and for coal/oil/wood firing, 85 cm.

How do I install the carbon filter for recirculation mode?

First, unplug the appliance. Remove the grease filter by pressing the lock and pulling it downwards. Then plug the carbon filter into the appliance and turn it clockwise to lock it in place. Ensure it is properly secured.

How often should I clean the grease filter?

Clean the aluminium grease filter at least once a month. You can wash it by hand or in a dishwasher at 30°C. Avoid using abrasive or corrosive detergents. Dry thoroughly before reinstalling.

When should I replace the carbon filter?

Carbon filters cannot be cleaned and should be replaced every 3 to 6 months depending on usage. Replace sooner if odours are not effectively removed.

What should I do if the hood does not start?

Check if the plug is connected and the socket is powered. Ensure the fuse is not tripped. If the light works but the motor does not, the ventilation damper may be blocked. If problems persist, contact a qualified professional.

Can I use the hood without an external exhaust duct?

Yes, you can use the hood in recirculation mode. In this mode, you must install carbon filters to absorb odours. No exhaust hose is required; the air is filtered and recirculated back into the kitchen.

How do I replace the LED lamps?

Disconnect the hood from the power supply and let the lamps cool down. Remove the grease filter, then carefully push out the old lamp. Disconnect the wire, connect the new lamp, push the wires back, and secure the lamp. Use only specified LEDs (2×1.5 W).

What is the maximum airflow of this hood?

The maximum airflow is 621.3 m³/h at the highest speed setting. The airflow at minimum speed is 414.8 m³/h.

Is the hood suitable for installation above an island?

Yes, the hood is designed for wall installation but can be adapted for island use if proper ducting is arranged. However, the manual primarily describes wall mounting with a telescopic chimney.

How do I reduce cooking odours and improve efficiency?

Always cover pots and pans with lids. Use the highest speed only when needed. Switch off the hood and lights after cooking. Clean the grease filter regularly and replace carbon filters on time to maintain optimal performance.

USER MANUAL S20-60ABTZ PKM

Exterior view of a modern kitchen air conditioner unit with black and silver casing (no text or symbols visible)

Exterior view of a modern white appliance with a silver tab and control buttons (no text or symbols visible)

Deutsch

Englisch

Seite 2

Page 22

Pure geometric diagram of a 3D rectangular prism with internal lines and dashed projection planes, no text or symbols present.

Metal panel with two labeled slots marked '3', showing internal structure and mounting holes (no text or symbols beyond the number)

Technical line drawing of a mechanical assembly with labeled component '1' (no text or symbols beyond label)

1) Halteeisen 1

Close-up of gloved hands holding a metallic electronic device with a slot, no visible text or symbols

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present.

Simple line drawing of a hand holding a rectangular object with an arrow, no text or symbols present

Simple line drawing of a hand pressing down on a laptop (no text or symbols)

Close-up of hands holding a small mechanical component with a transparent dome and circular opening (no visible text or symbols)

Close-up of hands holding a green glass lens with a white handle, against a blurred background (no text or symbols visible)

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

Index....23

1. Safety instructions....24
2. Installation.... 27

2.1 Main components ...... 27
2.2 Installation steps.... 28

1. Control panel 33

3.1 Reduction of the environmental impacts of cooking 33

1. Cleaning/maintenance 34

4.1 Grease filter 34
4.2 Carbon filters....35
4.3 Replacing of the illuminant 35

1. Trouble shooting....35
2. Technical data in accordance with Regulation (EU) 66/2014 .... 37
3. Waste management.... 38
4. Guarantee conditions....39

EU - Declaration of Conformity

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.
The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case.

i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

1. Safety instructions

Read the safety instructions carefully before you operate the appliance for the first time. All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

⚠️ DANGER indicates a hazardous situation which, if ignored, will result in death or serious injury.

⚠️ CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

⚠ WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

NOTICE! indicates possible damage to the appliance.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly-made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
i The appliance is intended for private use only.
The appliance is intended for extracting/recirculating cooking vapours in a private household only.
i The appliance is intended for indoor-use only.
i The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.

DANGER

1. Do not operate the appliance when it does not work properly, is visibly damaged, has dropped down or the power cord/plug are damaged.
2. The power cord must be replaced by a qualified professional only.
3. Never repair the appliance yourself.

4. Do not operate any room-air dependent fireplaces while operating the appliance; otherwise harmful gases will get from the fireplace into your home. Whenever the hood is operated together with chimney-vented fireplaces (e.g. coal furnace), ensure there is sufficient air supply in the room where the appliance is installed in. Always consult your local chimney-sweep master. When you operate the appliance in recirculating mode, you can simultaneously run room-air dependent fireplaces.

5. If gas is set free in your home:

Open all windows.
Do not unplug the appliance and do not use the control panel.
Do not touch the appliance until the gas has gone.
Otherwise sparks can be generated which will ignite the gas.

WARNING!

1. Whenever you use extractor hoods in combination with non electrically-operated appliances (gas and oil-fired appliances), the negative pressure of the corresponding room must not be more than 4 Pa (4 * 10 ^-5 bar).
2. An electrical supply of 220-240V AC / 50 Hz is required. Do not use a socket board or a multi socket or an extension cord when operating the appliance with 220–240 V/50 Hz (AC). All electrical connections which may be damaged must be repaired by a qualified professional.
3. Only connect the appliance to a properly grounded and dedicated socket.
4. The appliance must be grounded. Only use a proper safety socket to minimize risk of electric shock. The technical data of your energy supply must meet the data on the rating label.
5. Your domestic circuit must be equipped with an automatic circuit breaker.
6. Strictly observe the minimum distance between hood and hob:

Minimum distance hood to

Ceramic-glass rings/hotplates	65 cm
Gas cooker	75 cm
Coal / oil / stove wood firing	85 cm

1. Do not cook a la flambé dishes below the extractor hood. The flames may damage your appliance and/or cause fire.
2. Do not operate the gas jets of a gas hob without cookware. The flames may damage your appliance and/or cause fire.
3. If you fry, permanently keep an eye on the oil as it can catch fire. The risk of auto-ignition rises when using the oil many times.
4. Do not carry out any procedures on the hob using naked light or fire. The flames may damage your appliance and/or cause fire.
5. The exhaust hose must not be made of flammable materials or contain any flammable materials.
6. The extracted air must not be conducted by an exhaust pipe of a heater or similar, not electrically-operated appliances.
7. Operate the appliance with inserted grease filters only. Otherwise recirculating-transported fat will deposit in the appliance and the exhaust system. RISK OF FIRE! Clean or replace the filters regularly.
8. Disconnect the appliance from the mains before cleaning and maintenance.
9. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
10. This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.
11. Always supervise children so they will not play with the appliance.

CAUTION!

1. Accessible parts of the hood may become hot while cooking.
2. Carry out the installation of the appliance with at least two persons. Risk of damage. RISK OF INJURY!

NOTICE!

1. The appliance must be transported and installed by at least two persons.
2. Unpack the parts of the chimney very carefully; otherwise you will damage the chimney
3. Remove the complete packaging materials before initial operation. The appliance may be equipped with a transportation lock. Remove the transportation lock completely. When removing be very careful. Do not use any aggressive detergents to remove residues of the transportation lock.
4. Clean and maintain the appliance regularly to enable its proper operation and

optimal performance.

1. Take the enclosed parts from the packaging and its polystyrene-components.
2. Check that the power cord and the appliance are not damaged before electrical connection.

2. Installation

1. The diameter of the exhaust hose must meet the diameter of the connecting ring.
2. If your appliance is equipped with a carbon filter, remove the carbon filter before you operate the appliance in the extraction mode. The carbon filter should be used in the recirculating mode only.
3. The exhaust duct should be as short and straight as possible. The diameter of the exhaust hose should be at least 120/150 mm (look at chapter TECHNICAL DATA). Otherwise you have to expect increased noise and decreased performance of your appliance.
4. The proper maximum bending angle outwards is 120^ .
5. Use smooth tubes or flexible, non-inflammable exhaust hoses only.
6. When the exhaust duct is connected horizontally, a minimum falling gradient of 1 cm/m or an inclination of 2^ is required. Otherwise condensate will get into the motor of the hood.
7. When an exhaust duct is used, the ending of the exhaust hose must be adjusted into the direction of flow.
8. If the exhaust duct passes through cool areas (e.g. an attic), a temperature gradient may occur in the different parts of the exhaust duct so condensate will be generated. Proper insulation of the corresponding parts of the exhaust duct will then be needed. Equip such an exhaust duct with a condensate trap if need be.
9. Depending on the model the hood is equipped with one (top) or two (top, back) outlets.
10. The idle outlet is covered by a plastic cap. You can remove this cap by turning it anticlockwise. Use the cap to cover the idle outlet.

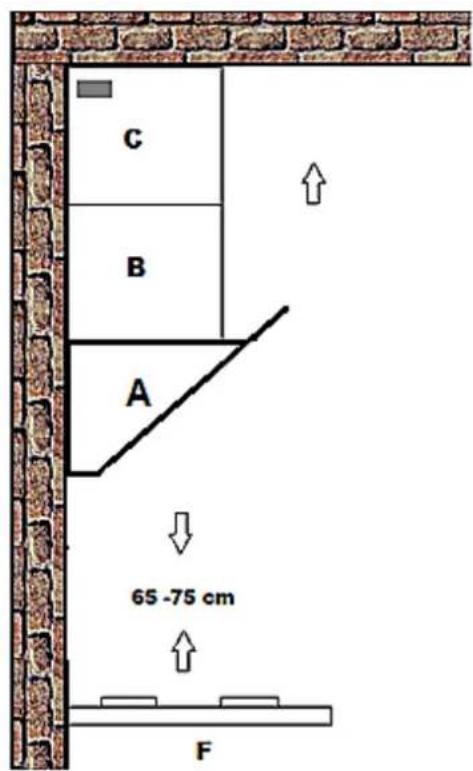

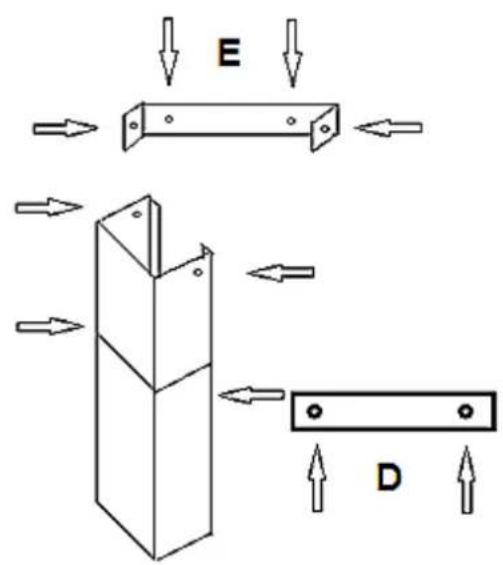

2.1 Main components

A Hood

B Base chimney

C Telescopic chimney

D Bracket 1

E Bracket 2

F Hob

C B A 65 -75 cm F

E D

2.2 Installation steps

⚠ WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
⚠ WARNING! Do not damage the wiring in the wall while drilling

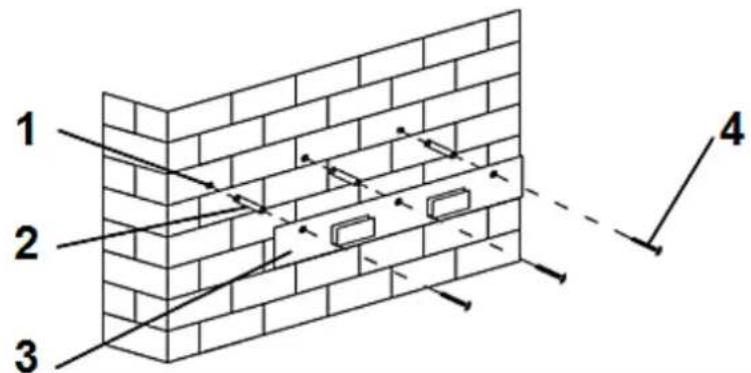

1. Drill three 8 mm holes to install the suspension bracket. Fix the suspension bracket on the wall using the provided screws and dowels.

1 2 3 4

1 Drilled holes
3 Suspension bracket
2 Dowels
4 Screws 4mm*30mm

1. For inclined models: Four additional 4*8 mm drillings are required to fix the appliance.

Pure technical line drawing of a 3D geometric structure without any text, numbers, or symbols

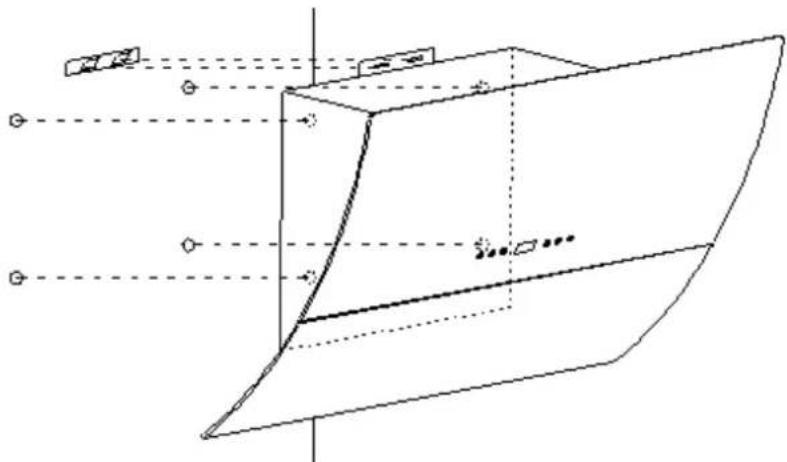

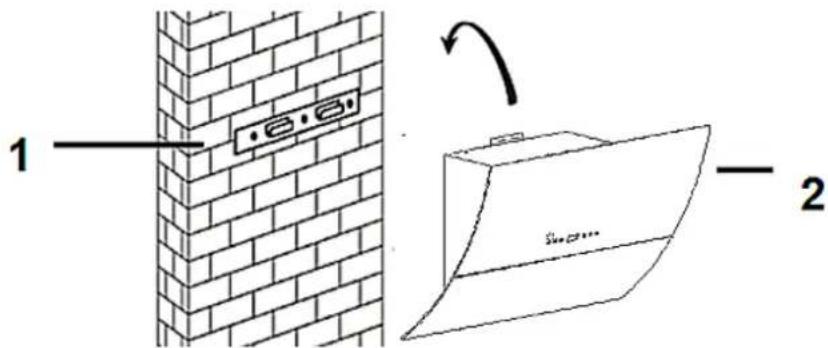

1. Hang the appliance on suspension bracket. Fix the appliance (look at step 2). The appliance must be installed in horizontal position. Check proper position using a spirit level.

1 2

1 Suspension bracket

2 Hood

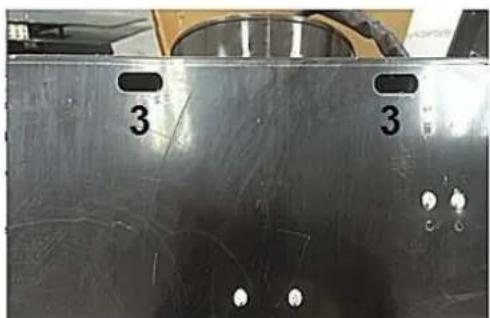

3 Openings for suspension bracket.

Metal panel with two labeled slots marked '3', showing surface wear and small holes (no text or symbols beyond the number)

1. Install the one-way-valve on the air outlet of the hood. Then install the exhaust hose on the one-way-valve as described below.

1 ↓ 2

1) Exhaust hose
2) Hood

Installation of the chimney

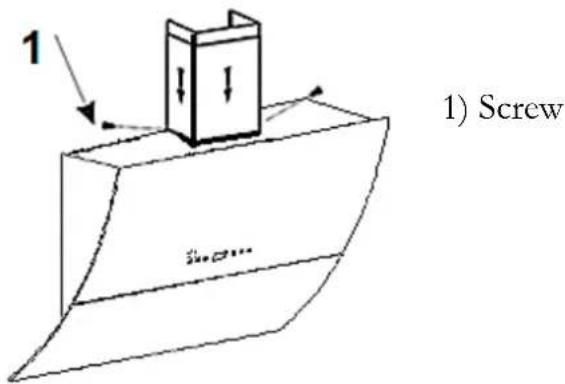

1. Fix the lower chimney using 2 pcs. 4*8mm screws.

1) Screw

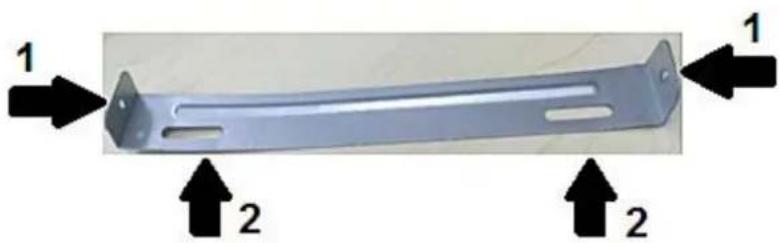

1. Adjust the chimney to the required height. Then fix bracket 1 using 2 pcs. 4*8 mm screws as described below.

Technical line drawing of a mechanical assembly with labeled component 1 (no text or symbols beyond label)

1) Bracket 1

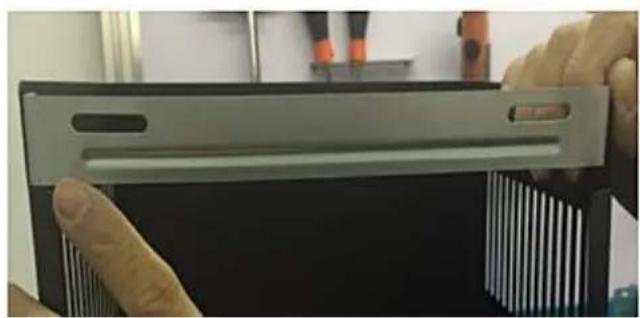

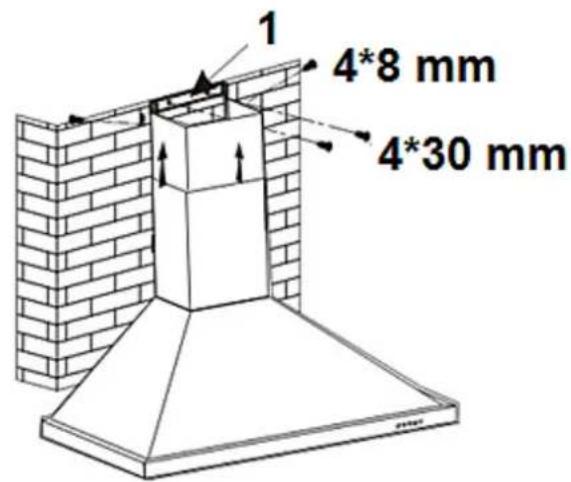

1. Drill two 8 mm holes to install bracket 2. Fasten bracket 2 on the wall using the 2 provided screws.

2. Fix the chimney using the two screws.

1 4*8 mm 4*30 mm

1 Bracket 2

1 2 1 2 2

1 4*8 mm screws

2 4*30 mm screws + dowels

Close-up of hands holding a metallic electronic device with a slot, mounted on a black surface (no visible text or symbols)

1. Insert the grease filters and connect the appliance to the mains ^3 .

➢ Check the correct position of the hood from front and side perspective. Otherwise the appliance will not work properly.

Installation steps (recirculation mode)

1. If your home is not equipped with an air outlet for extracting exhaust air to the outside, the exhaust hose is not required. The further installation is similar to the INSTALLATION STEPS (EXTRACTION MODE).

Diagram of a conical device emitting particles with directional arrows indicating motion (no text or symbols)

1. You can use carbon filters for odour absorption in recirculation mode only. For installing carbon filters, remove the grease filter. Press the lock and pull the grease filter downwards.

Illustration of a hand holding a small object over a flat surface with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand pressing down on a laptop (no text or symbols)

1. Plug the carbon filter into the appliance and turn in clockwise direction.

⚠ WARNING! Unplug the appliance before installing the carbon filter. For recirculating mode only!

⚠ WARNING! Install the carbon filters safely and properly; otherwise the carbon filters can loosen and cause hazardous situations.

NOTICE! The suction capacity is decreased by installed carbon filters.

You can order the carbon filters at www.pkm-online.de

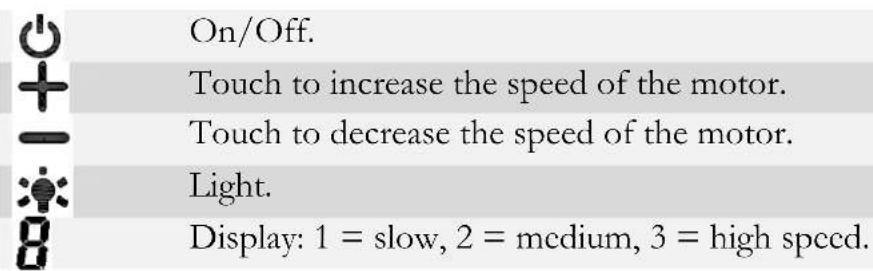

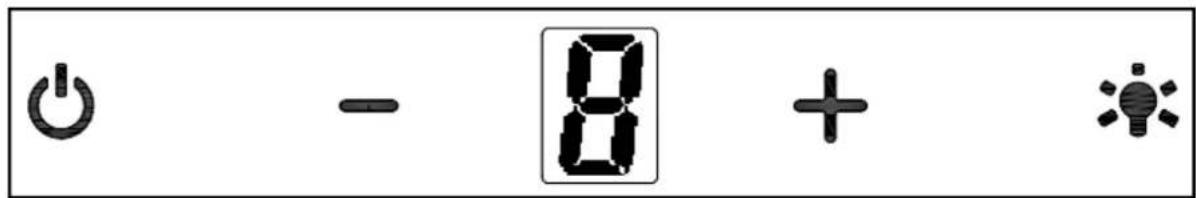

3. Control panel

0 - 8 +

On/Off. Touch to increase the speed of the motor. Touch to decrease the speed of the motor. Light. Display: 1 = slow, 2 = medium, 3 = high speed.

NOTICE! Only switch on the lights while the appliance is operating. Do not switch on the lights to lighten the room.

NOTICE! Only switch on the lights while the appliance is operating. Do not switch on the lights to lighten the room.

Do not touch the illuminant within 30 minutes after using the appliance. ⚠️ CAUTION! The lamp must not be covered by thermal insulation or other materials.

3.1 Reduction of the environmental impacts of cooking

➢ Cover your pot/pan with lid during cooking.
➢ Switch off the appliance after cooking or use the delayed switch-off function (equipment depends on model).
➢ Switch off the illuminant(s) of the appliance after cooking.
The diameter of the pot/pan should meet the diameter of the cooking zone or the size of the flame of the burner (gas appliances).
Only operate the highest motor speed of the appliance to extract strong concentration of cooking fumes.
Clean the grease filter(s) regularly as clean filters will increase the efficiency of the appliance.

Replace carbon Iters (for recirculaon mode only) regularly. Observe the informaon given on the packaging of the carbon Ite

WARNING!

Disconnect the appliance from the mains before you clean or maintain it.
Ignoring the cleaning and maintenance instructions will cause an increased risk of fire.

NOTICE!

Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

1. Clean the housing of the appliance with a suitable detergent. Use such a product carefully and economically.
2. Do not clean the control panel with a detergent. Use a damp cloth. Otherwise you may damage the electronic components of the controls.
3. Never use any alcohol-containing detergents to clean matt black painted appliances as these detergents cause colour-changes.
4. Clean the glass panels ^4 with a suitable detergent only.
5. When you clean or replace the grease filters or the carbon filters also clean all visible components on the bottom of the appliance with a mild, non-acrid and fat-dissolving detergent.
6. Do not damage the grid of metal-made grease filters. The colour of the metal surface may change due to frequent cleaning as well as the use of aggressive detergents.
7. Such changes do not influence the capacity of the appliance and are no reason for complaint.
8. Do not use a steam cleaner. RISK OF ELECTRIC SHOCK!
9. Do not use any abrasive detergents.

4.1 Grease filter

Aluminium filter

Clean the aluminium filters once a month by hand or in a dishwasher (30 ^0 ). Do not use any acrid or corrosive detergents. Do not use any abrasive detergents! Do not use any alkaline dishwasher-detergents! (ph more than 7). Do not put the filter in the dishwasher together with tableware Filters which are blocked with food debris do not carry a guarantee. Dry the filters properly before you reinstall them.

4.2 Carbon filters

Conventional carbon filters cannot be cleaned. The capacity of these filters is limited. You can use such filters for about 3-6 months. Replace a depleted filter. Find further information on the filter packaging.

4.3 Replacing of the illuminant

1. ⚠️ WARNING! Disconnect the appliance from the energy supply.
2. Let the illuminant cool down before replacing.
3. Remove the grease filters and push out the illuminant. Be especially careful while doing so.
4. Pull the illuminant carefully out of the hole and disconnect the energy supply wire.

Close-up of a hand holding a magnifying glass over a circular object, with no visible text or symbols.

1. Now connect the new illuminant to the energy supply wire.
2. Push the wires back into the hole and fix the new illuminant.

Close-up of hands holding a green circular object with a white ring, against a bright blue background (no text or symbols visible)

5. Trouble shooting

MALFUNCTION POSSIBLE CAUSE MEASURE The appliance does not work at all.

The plug of the appliance is not connected to the socket.

➢ Check the corresponding socket by connecting it with another appliance.

The plug has become loose.

The socket is not supplied with energy.

The fuse is switched off.

▶ Check the fuse.

The voltage is too low. Compare the data on the model plate with the data of your energy supplier.

Light is on but motor does not work.

▶ ventilation damper blocked.

▶ motor mounting defective.

remove blockage.

replace motor.

Abnormal motor-smells.

▶ motor defective

replace motor

Smear of oil.

▶ one-way valve is leaky

➢ connection base chimney-telescopic chimney is leaky

seal the valve

seal the connection with a suitable material

Appliance vibrates.

▶ motor not properly fixed

fix motor properly

▶ hood not properly fixed

➢ fix hood properly

Insufficient extracting capacity.

▶ too much distance hood-hob

▶ lower position of hood

too much draught because of open doors and/or windows

➢ close the doors/windows

Appliance is unstable.

➢ mounting rail is not firmly fixed

➢ fix mounting rail properly

▶ screws are not firmly tightened

▶ tighten the screws

If the hood does not work properly and/or you can hear increased operating noise, check the schedule below:

◆ Incorrect dimension of the air duct.
◆ Obstruction in the air duct.
The diameter of the air duct from hood to wall-box inclusive should be 120 mm; otherwise the capacity of the motor may be decreased.
If you have installed a fly screen on the wall-box, the air vent may be obstructed. Check by removing the fly screen.
If the cover panel of the wall box is equipped with firm and slanted slats, the air vent may be obstructed. Check by removing the cover panel.
❖ Install a cover panel with moveable slats, which do not obstruct the air vent.
- Check if the air which is extracted by the hood is replaced to avoid negative pressure.
When you run your appliance in recirculating mode, check if the carbon filter has been replaced on time (min. every 3-6 months).

If the appliance has a malfunction not noted on the schedule or if you have checked all items on the schedule but the problem still exists, please contact the shop you purchased the appliance at.

6. Technical data

Informaon in accordance with Regulaon (EU) 66/2014

Type	Cooker hood
Material	Stainless steel/glass
Installation-width in cm	60.00
Touch control Speed	3
Recirculation/extraction mode*	✓	✓
Annual energy consumption (AEChood)	40.4 kW/h
Energy efficiency category	A
Fluid dynamical efficiency (FDEhood)	28.5
Fluid dynamical efficiency category	A
Lighting efficiency (LEhood)	33.6 lux/W
Lighting efficiency category	A
Grease separation	75.0 %
Grease separation category	D
Air flow **	414,8 m3/h	594 m3/h
Maximum air flow Qmax	621,3 m3/h
A-rated noise emission **	59 dB	63 dB
Power consumption off (Po)	0.48 W
Power consumption standby (Ps)	-
Power consumption lighting system (Wi)	3 W (2*1.5 W/LED)
Connected load	168 W
Voltage/frequency	AC 220-240V/50Hz
Grease filter/material/dishwasher-proof	1 aluminium	✓
Carbon filter ***	2*CF 110
Exhaust hose	✓
Installation material	✓
Instruction manual	✓
Telescopic chimney extractable from-to	30.00-59.00 cm
Dimensions appliance H*W*D in cm	35.00-94.00*60.00*38.60
Weight net/gross in kg	13.00/15.50

* Extraction mode: installation with ventilation stack or air duct outwards only, wall penetration = ∅ 150 mm, drilling approx. ∅ 160 mm.

** Measured values at minimum/maximum motor speed.

*** Optional equipment.

To determine the results, and in accordance with the requirements in relation to the labelling of energy-related products and with regard to ecodesign requirements, the following calculation and measurement methods were applied:

➢ Directive of the European Parliament and of the Council 2010/30/EU; REGULATION NO 65/2014.
➢ Directive of the European Parliament and of the Council 2009/125/EC; REGULATION NO 66/2014.
➢ EN 50564 - Electrical and electronic household and office equipment. Measurement of low power consumption
EN 60704-2-13 - Household and similar electrical appliances. Test code for the determination of airborne acoustical noise. Particular requirements for range hoods.
EN 61591 - Household range hoods and other cooking fume extractors - Methods for measuring performance.

7. Waste management

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
2. Old and unused appliances must be send for disposal to the responsible recycling centre. Never expose to open flames.
3. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately.
4. Dispose of any paper and cardboard into the corresponding containers.
5. Dispose of any plastics into the corresponding containers.
6. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
7. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are Please contact your local authorities to recyclable. receive further information.

for large electric appliances; PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee. Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

Aftersales service information on the leaflet inside this instruction manual.

Subject to alterations

Updated 02/24/2018
