Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety instructions....20
2. Installation 23
   2.1 Exhaust air discharge.... 24
   2.2 Required tools: 25
   2.3 Installation on a cupboard 25
   2.4 Installation on a wall.... 26
   2.5 After installation.... 27
   2.6 Carbon filter 27
3. Control panel....28
4. Cleaning/maintenance 28
5. Trouble shooting....30
6. Technical data.... 32
7. Waste management.... 33
8. Guarantee conditions .... 34
   A. Technische Zeichnung/technical drawing 35

EU - Declaration of Conformity

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.
The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case.

i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

1. Safety instructions

i Read the safety instructions carefully before you operate the appliance for the first time. All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

NOTICE! indicates possible damage to the appliance.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
i The appliance is intended for private use only.
The appliance is intended for extracting/recirculating cooking vapours in a private household only.
i The appliance is intended for indoor-use only.
The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.

DANGER

1. Do not operate the appliance when it does not work properly, is visibly damaged, has dropped down or the power cord/plug are damaged.
2. The power cord must be replaced by a qualified professional only.
3. Never repair the appliance yourself.
4. Do not operate any room-air dependent fireplaces while operating the appliance; otherwise harmful gases will get from the fireplace into your home. Whenever the hood is operated together with chimney-vented fireplaces (e.g. coal furnace), ensure there is sufficient air supply in the room where the appliance is installed in. Always consult your local chimney-sweep master. When you operate the appliance in recirculating mode, you can simultaneously run room-air dependent fireplaces.

5. If gas is set free in your home:

Open all windows.
Do not unplug the appliance and do not use the control panel.
Do not touch the appliance until the gas has gone.
Otherwise sparks can be generated which will ignite the gas.

WARNING!

1. Whenever you use extractor hoods in combination with non electrically-operated appliances (gas and oil-fired appliances), the negative pressure of the corresponding room must not be more than 4 Pa (4 * 10 ^-5 bar).

2. An electrical supply of 220-240V AC / 50 Hz is required. Do not use a socket board or a multi socket or an extension cord when operating the appliance with 220–240 V/50 Hz (AC). All electrical connections which may be damaged must be repaired by a qualified professional.

3. Only connect the appliance to a properly grounded and dedicated socket.
4. The appliance must be grounded. Only use a proper safety socket to minimize risk of electric shock. The technical data of your energy supply must meet the data on the rating label.
5. Your domestic circuit must be equipped with an automatic circuit breaker.
6. Strictly observe the minimum distance between hood and hob:

Minimum distance hood to

Ceramic-glass rings/hotplates	65 cm
Gas cooker	75 cm
Coal / oil / stove wood firing	85 cm

1. Do not cook a la flambé dishes below the extractor hood. The flames may damage your appliance and/or cause fire.
2. Do not operate the gas jets of a gas hob without cookware. The flames may

damage your appliance and/or cause fire.

1. If you fry, permanently keep an eye on the oil as it can catch fire. The risk of auto-ignition rises when using the oil many times.
2. Do not carry out any procedures on the hob using naked light or fire. The flames may damage your appliance and/or cause fire.
3. The exhaust hose must not be made of flammable materials or contain any flammable materials.
4. Operate the appliance with inserted grease filters only. Otherwise recirculating-transported fat will deposit in the appliance and the exhaust system. RISK OF FIRE! Clean or replace the filters regularly.
5. Disconnect the appliance from the mains before cleaning and maintenance.
6. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
7. This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.
8. Always supervise children so they will not play with the appliance.

CAUTION!

1. Accessible parts of the hood may become hot while cooking.
2. Carry out the installation of the appliance with at least two persons. Risk of damage. RISK OF INJURY!

NOTICE!

1. The appliance must be transported and installed by at least two persons.
2. Unpack the parts of the chimney very carefully; otherwise you will damage the chimney
3. Remove the complete packaging materials before initial operation. The appliance may be equipped with a transportation lock. Remove the transportation lock completely. When removing be very careful. Do not use any aggressive detergents to remove residues of the transportation lock.
4. Clean and maintain the appliance regularly to enable its proper operation and optimal performance.
5. Take the enclosed parts from the packaging and its polystyrene-components.

6. Check that the power cord and the appliance are not damaged before electrical connection.

7. ⚠️ WARNING! Do not lead the exhaust air into a chimney which is used for extracting exhaust air of appliances operated by gas or other combustibles.

8. For extracting the exhaust air always observe the current legal regulations.
9. The diameter of the exhaust hose must meet the diameter of the connecting ring.
10. If your appliance is equipped with a carbon filter, remove the carbon filter before you operate the appliance in the extraction mode. The carbon filter should be used in the recirculating mode only.
11. The exhaust duct should be as short and straight as possible. The diameter of the exhaust hose should be at least 120/150 mm (look at chapter TECHNICAL DATA). Otherwise you have to expect increased noise and decreased performance of your appliance.
12. The proper maximum bending angle outwards is 120^ .
13. Use smooth tubes or flexible, non-inflammable exhaust hoses only.
14. When the exhaust duct is connected horizontally, a minimum falling gradient of 1 cm/m or an inclination of 2^-0 is required. Otherwise condensate will get into the motor of the hood.
15. When an exhaust duct is used, the ending of the exhaust hose must be adjusted into the direction of flow.
16. If the exhaust duct passes through cool areas (e.g. an attic), a temperature gradient may occur in the different parts of the exhaust duct so condensate will be generated. Proper insulation of the corresponding parts of the exhaust duct will then be needed. Equip such an exhaust duct with a condensate trap if need be.
17. Depending on the model the hood is equipped with one (top) or two (top, back) outlets.

2.1 Exhaust air discharge

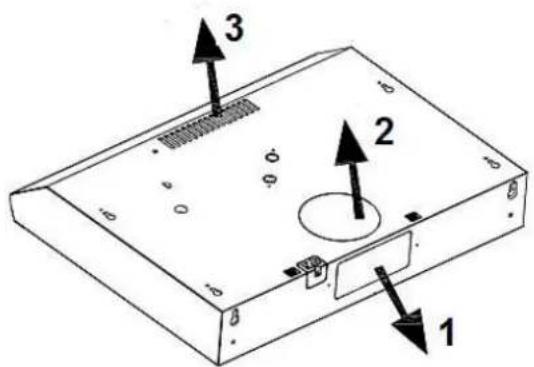

The appliance is suitable to be operated in extraction (horizontal or vertical discharge) or recirculation mode (without discharge).

1 2 3

1 Horizontal discharge
2 Vertical discharge
3 Recirculation mode (without discharge)

Vertical discharge

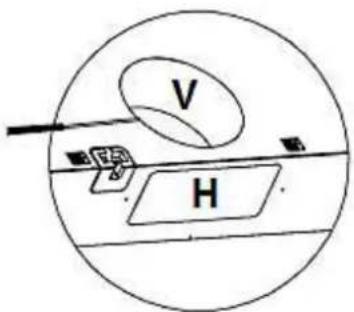

Open air outlet V. Slide a flat head screwdriver under the cover and pry the cover. Cut the joints using tin snips. Do not remove cover H.

V F5 H

Horizontal discharge

If the appliance is installed at an outside wall, the exhaust air can be discharged horizontally, unless there are obstacles such as wall brackets, beams etc. in the wall.

V H

Open air outlet H. Slide a flat head screwdriver under the cover and pry the cover. Cut the joints using tin snips. Do not remove cover V.

Recirculation mode (without discharge)

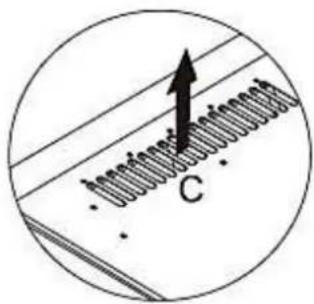

The exhaust air is led back into the kitchen, when the appliance is operated in recirculation mode. Do not remove the covers H and V. The exhaust air is discharged via outlet C. The use of carbon filters to eliminate cooking vapours and odours is permissible for recirculation mode only.

interfacial C

2.2 Required tools:

Drill, flat head screwdriver, cross head screwdriver, tin snips, 3/8" socket or ratchet with extension, measuring tape, hand saw or jigsaw, insulating tape, adhesive tape.

⚠ WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

WARNING! Do not damage the wiring in the wall while drilling

NOTICE! At least one assistant is required for installation.

2.3 Installation on a cupboard

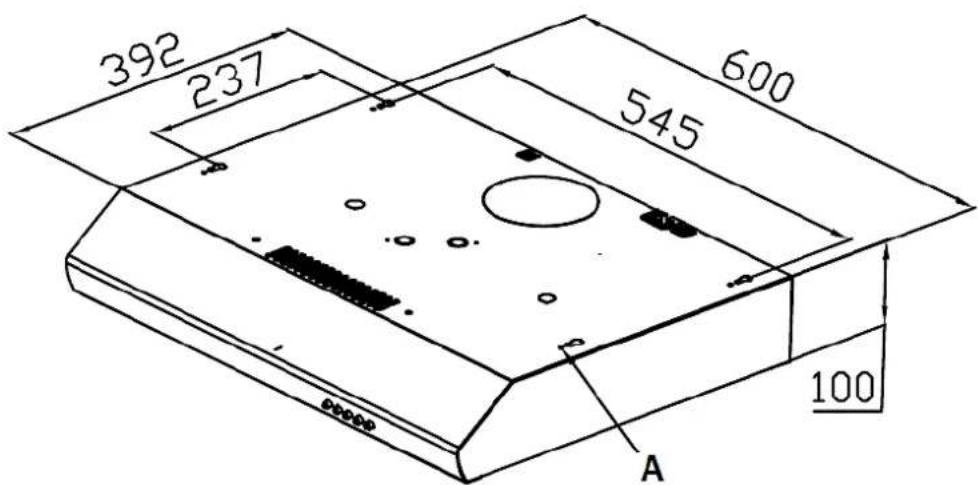

1. Specify the position of the appliance at the cupboard according to the drawing below. Screw 4 supplied screws into the cupboard relevant to the position of the 4 slots for the screw heads on the appliance. Do not tighten the screws completely as you have to hang the appliance on the screw heads.

392 237 600 545 100 A

A Safety hole

1. Hang the appliance on the screw heads. Insert the screw heads into the round slots; then move the appliance so that the screw heads are in the narrow section of the suspension. Tighten the 4 screws to ensure safe and proper positioning.

2. Fix screws through the small safety holes to protect the appliance from unintended moving.

2.4 Installation on a wall

1. If the cupboard is not suitable for installation, you can carry out a wall installation. Screw 2 supplied screws into the wall relevant to the position of the 2 slots for the screw heads on the back of the appliance. Do not tighten the screws completely as you have to hang the appliance on the screw heads.

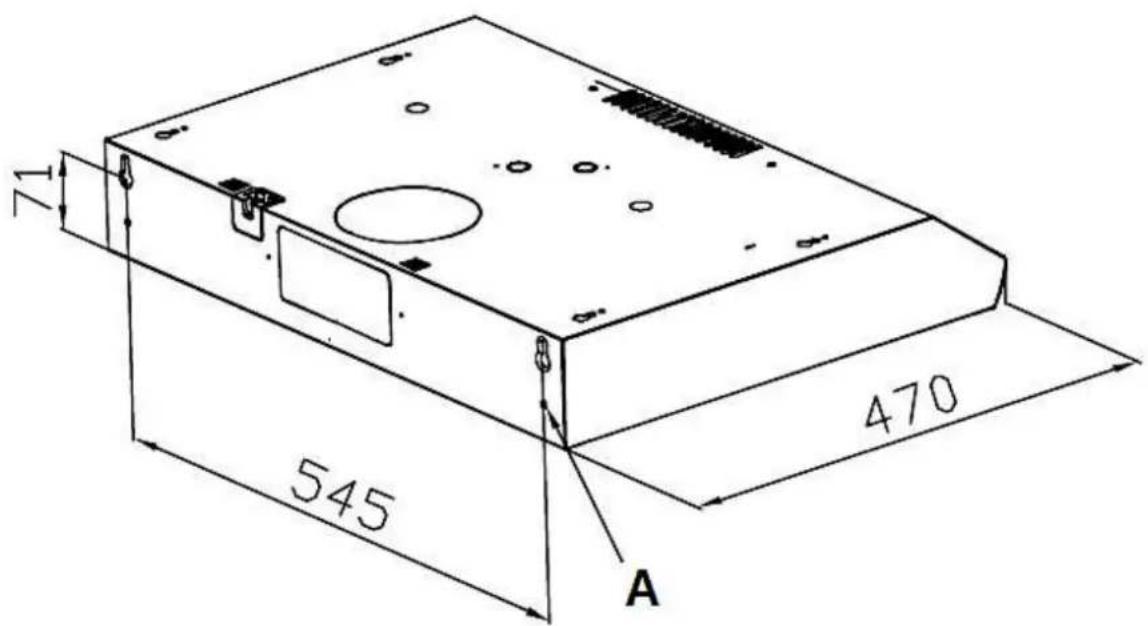

71 545 470 A

A Safety hole

1. Hang the appliance on the screw heads. Insert the screw heads into the round slots; then move the appliance so that the screw heads are in the narrow section of the suspension. Tighten the 2 screws to ensure safe and proper positioning.

2. Fix screws through the small safety holes to protect the appliance from unintended moving.

2.5 After installation

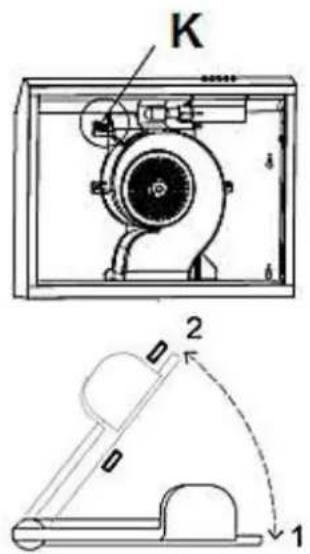

After completed installation, use knob K for the adjustment between extraction or recirculation mode. Open the filter and you can see knob K.

Extraction mode: Knob K to position 2. Recirculation mode: Knob K to position 1.

K 2 1

2.6 Carbon filter

⚠ WARNING! Before you install any carbon filters: switch the appliance off and disconnect it from the mains.

Circular black plastic fan with radial blades, no text or symbols visible

You can order the carbon filter at www.pkm-online.de

1. Remove the aluminium grease filter.

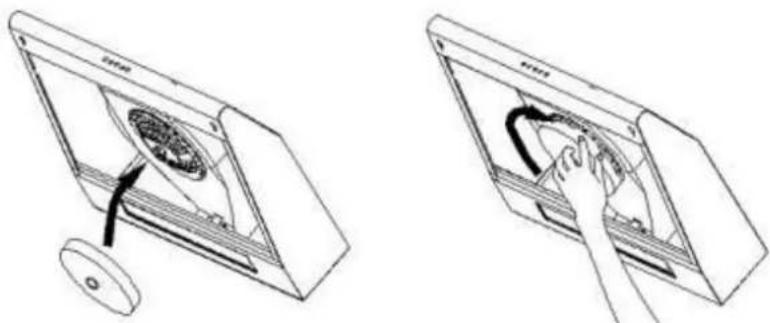

2. Install the carbon filter CO6 on the bottom side of the motor (bayonet catch).
3. Reinstall the aluminium grease filter.
4. Use carbon filters for extraction mode only.

Two technical line drawings of a device with a handle and internal components, no text or symbols present.

CAUTION! The lamp must not be covered by thermal insulation or other materials. Do not touch the illuminant within 30 minutes after using the appliance.

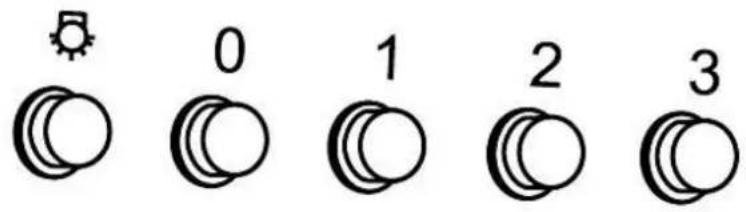

0 1 2 3

Light on/off.

0 Motor off.

1 On. Low motor speed.

2 On. Medium motor speed.

3 On. High motor speed.

NOTICE! Only switch on the lights while the appliance is operating. Do not switch on the lights to lighten the room.

4. Cleaning/maintenance

WARNING!

Disconnect the appliance from the mains before you clean or maintain it.

Ignoring the cleaning and maintenance instructions will cause an increased risk of fire.

NOTICE!

Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

1. Clean the housing of the appliance with a suitable detergent. Use such a product carefully and economically.

2. Do not clean the control panel with a detergent. Use a damp cloth. Otherwise you may damage the electronic components of the controls.

3. Never use any alcohol-containing detergents to clean matt black painted appliances as these detergents cause colour-changes.

4. Clean the glass panels ^2 with a suitable detergent only.

5. When you clean or replace the grease filters or the carbon filters also clean all visible components on the bottom of the appliance with a mild, non-acrid and fat-dissolving detergent.
6. Do not damage the grid of metal-made grease filters. The colour of the metal surface may change due to frequent cleaning as well as the use of aggressive detergents.
7. Such changes do not influence the capacity of the appliance and are no reason for complaint.
8. Do not use a steam cleaner. RISK OF ELECTRIC SHOCK!
9. Do not use any abrasive detergents.

Grease filter

Acryl filter

Replace the acryl filter regularly. The frequency of replacing depends on how often you operate the appliance. Find further information on the packaging of the filters when purchasing new ones.

WARNING! There is RISK OF FIRE when cleaning is not carried out according to these instructions!

Clean the filters once a month by hand or in a dishwasher (40 ^ C). Do not use any acrid or corrosive detergents. Do not use any abrasive detergents! Do not use any alkaline dishwasher-detergents! (ph more than 7). Do not put the filter in the dishwasher together with tableware. Filters which are blocked with food debris do not carry a guarantee. Dry the filters properly before you reinstall them.

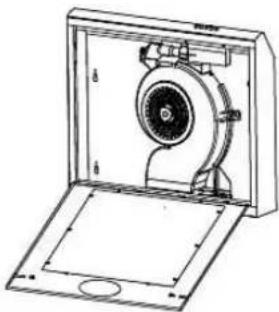

Replacing of the illuminant

Do not touch the illuminant with your hands. The sweat on your fingers will reduce the operating time of your new illuminant. Use a thin cloth or a thin glove.

1. ⚠️ WARNING! Disconnect the appliance from the energy supply.
2. The illuminant should have cooled down before you remove it.
3. Remove the old illuminant.
4. Replace it with a new one of the same kind and power (max. 28W).

Technical line drawing of a mechanical device with a central fan and mounting base (no text or symbols)

E14 28W x 1 max

$$ - - \mathrm{m} = 0, 4 5 \mathrm{m} $$

Required minimum distance to surfaces such as pot lids, oven cloths etc. to avoid any hot parts and risk of fire.

Only use self shielded illuminants to avoid hot parts, risk of fire and exposure to UV-radiation.

Carbon filters

Conventional carbon filters cannot be cleaned. The capacity of these filters is limited. You can use such filters for about 3-6 months. Replace a depleted filter. Find further information on the filter packaging.

5. Trouble shooting

MALFUNCTION
POSSIBLE CAUSE	MEASURE
The appliance does not work at all.
The plug of the appliance is not connected to the socket.The plug has become loose.The socket is not supplied with energy.The fuse is switched off.	Check the corresponding socket by connecting it with another appliance.Check the fuse.The voltage is too low. Compare the data on the model plate with the data of your energy supplier.
Light is on but motor does not work.
Ventilation damper blocked.Motor mounting defective.	Remove blockage.Replace motor.
Abnormal motor-smells.
Motor defective	Replace motor
Smear of oil.
One-way valve is leaky	Seal the valve

Appliance vibrates.

▶ Motor not properly fixed

➢ Fix motor properly

▶ Hood not properly fixed

➢ Fix hood properly

Insufficient extracting capacity.

▶ Too much distance hood-hob

▶ Lower position of hood

➢ Too much draught because of open doors and/or windows

▶ Close the doors/windows

Appliance is unstable.

Screws are not firmly tightened

▶ Tighten the screws

If the hood does not work properly and/or you can hear increased operating noise, check the schedule below:

◆ Incorrect dimension of the air duct.
◆ Obstruction in the air duct.
The diameter of the air duct from hood to wall-box inclusive should be 120 mm; otherwise the capacity of the motor may be decreased.
If you have installed a fly screen on the wall-box, the air vent may be obstructed. Check by removing the fly screen.
If the cover panel of the wall box is equipped with firm and slanted slats, the air vent may be obstructed. Check by removing the cover panel.
❖ Install a cover panel with moveable slats, which do not obstruct the air vent.
◆ Check condition and cleanliness of the filters.
- Check if the air which is extracted by the hood is replaced to avoid negative pressure.
When you run your appliance in recirculating mode, check if the carbon filter has been replaced on time (min. every 3-6 months).

If the appliance has a malfunction not noted on the schedule or if you have checked all items on the schedule but the problem still exists, please contact the shop you purchased the appliance at.

6. Technical data

Type	Cooker hood
Material	Sheet steel/silver-painted
Installation-width in cm	60.00
Push buttons	5
Recirculation/extraction mode*	✓	✓
Annual energy consumption (AEC _hood )	66.0 kW/h
Energy efficiency category	D
Fluid dynamical efficiency (FDE _hood )	3.1
Fluid dynamical efficiency category	G
Lighting efficiency (LE _hood )	2.0 lux/W
Lighting efficiency category	G
Grease separation	87.1 %
Grease separation category	B
Air flow **	90 m ^3 /h	136 m ^3 /h
Maximum air flow Qmax	143 m ^3 /h
A-rated noise emission **	61 dB	67 dB
Power consumption off (P _o )	0.00 W
Power consumption standby (P _s )	0,00 W
Power consumption lighting system (W)	28 W (1*28 W/Halogen)
Connected load	108 W
Voltage/frequency	220-240 VAC /50Hz
Grease filter/material/dishwasher-proof	1	acrylic ✓
Carbon filter ***	1*CO 6
Exhaust hose	-
Installation material	✓
Instruction manual	✓
Telescopic chimney extractable from-to	-
Dimensions appliance H*W*D in cm	10.00*60.00*47.00
Weight net/gross in kg	4.60/5.20

* Extraction mode: installation with ventilation stack or air duct outwards only, wall penetration = ∅ 120 mm, drilling about ∅ ca. 130 mm.

** Measured values at minimum/maximum motor speed.

*** Optional equipment.

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
2. Old and unused appliances must be send for disposal to the responsible recycling centre. Never expose to open flames.
3. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately.
4. Dispose of any paper and cardboard into the corresponding containers.
5. Dispose of any plastics into the corresponding containers.
6. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
7. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

for large electric appliances; PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee.

Any guarantee claim has to be made immediately after the detection and within

24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery.

The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

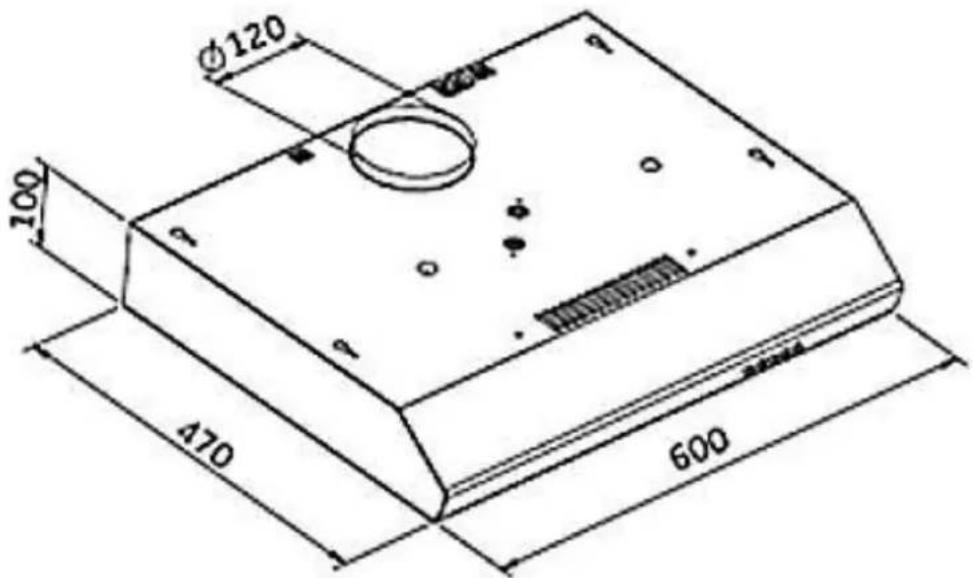

φ120 100 470 600

Abmessungen in mm.

Dimensions in mm.

Please contact the shop you purchased the appliance at.

Subject to alterations

Updated

09/10/2015
