Product Type	Analogue Quartz Watch Chronograph
Brand	ORIENT
Model	Sports KU00005T
Category	Watch
Movement	Analogue quartz (crystal oscillator 32,768 Hz)
Accuracy	Mean monthly rate: ±20 seconds at normal temperature (5°C to 35°C)
Operating Temperature Range	-5°C to +50°C
Drive System	Step motor
Display	24-hour, hour, minute, and second hands; stopwatch minute and second hands; date
Functions	Time display, calendar (date), stopwatch (up to 30 min in 1 sec increments), split time, battery end of life indicator
Stopwatch	Measures up to 30 minutes in 1-second increments; automatic stop and reset at 30 min; split time function
Water Resistance	Reinforced water resistance for daily life (50m / 5 bar) per manual: suitable for swimming but not diving
Battery	SR920SW, 1 piece; approximate battery life: 3 years (stopwatch used less than 30 min/day)
Battery End of Life Indicator	Small second hand moves in 2-second intervals
Crown	Two-position crown: first click for date, second click for time setting; some models have screw-down crown
Rotating Bezel	Some models include a rotating indicator bezel for elapsed time measurement
Magnetism Resistance	Keep away from strong magnetic fields; temporary speed changes are reversible
Shock Resistance	Avoid strong shocks; light sports like golf are acceptable
Luminous	Some models have luminous hands/dial; non-radioactive paint stores light
Band	Some models with water resistant treatment on leather/nylon bands; effect may diminish over time
Dimensions	Not specified in manual; typical ORIENT Sports chronograph case diameter approx. 42-45 mm (estimate)
Weight	Not specified; typical around 80-100 g (estimate)
Manual Pages	107 pages (PDF)
Maintenance	Avoid chemicals, extreme temperatures, and strong water jets; rinse seawater after exposure

Frequently Asked Questions - Sports KU00005T ORIENT

How do I set the time on my ORIENT Sports KU00005T watch?

Pull the crown out to the second click position (the second hand stops). Turn the crown to set the hour and minute hands to the current time. Ensure AM/PM is correct using the 24-hour hand. Push the crown back in after adjustment.

How do I set the date?

Pull the crown out to the first click position. Turn the crown clockwise to set the date. Avoid setting the date between 9:00 PM and 1:00 AM to prevent malfunction. Push the crown back in after adjustment.

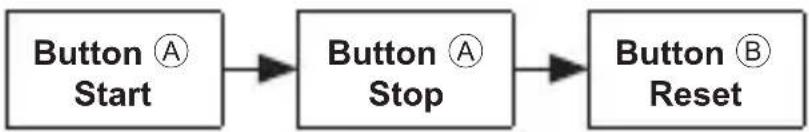

How do I use the stopwatch?

Press button A to start and stop the stopwatch. Press button B to reset. The stopwatch measures up to 30 minutes in 1-second increments. For split times, press button B during measurement to record an intermediate time, press again to release.

What should I do if the stopwatch hands do not return to zero?

Pull the crown to the second click position. Press button A or B to adjust the stopwatch second hand to the 0 position (the minute hand adjusts accordingly). Push the crown back in. Then reset the time if necessary.

Is my ORIENT Sports watch water resistant?

This model is water resistant for daily life reinforced (50m/5 bar). It can be used for swimming but not for diving. Do not operate the crown underwater, and ensure it is pushed in or screwed down securely.

How do I know when to replace the battery?

The watch has a battery end of life indicator: the small second hand moves in 2-second intervals instead of 1-second. When this occurs, replace the battery promptly to avoid leakage.

Can I replace the battery myself?

No, battery replacement requires special tools and techniques. Contact the place of purchase or an ORIENT authorized service center. Use only the specified battery type SR920SW.

What precautions should I take with chemicals and magnetism?

Avoid contact with gases, mercury, chemicals (paint thinner, gasoline, detergents, perfumes, etc.) as they may cause discoloration or damage. Keep the watch away from strong magnetic fields; temporary time deviation is reversible.

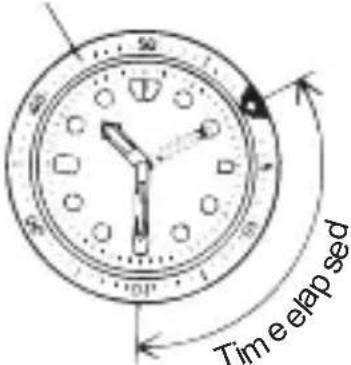

How do I use the rotating bezel (if present)?

If your watch has a rotating bezel, turn it so the triangle mark aligns with the minute hand. The elapsed time can be read from the distance between the minute hand and the bezel numerals. The bezel typically turns clockwise only to prevent accidental movement.

My watch stopped or runs incorrectly. What should I do?

First, check if the battery is depleted (see battery indicator). If not, ensure the watch is not magnetized (place away from magnets) or exposed to extreme temperatures. If problems persist, contact an ORIENT service center.

USER MANUAL Sports KU00005T ORIENT

ANALOGUE QUARTZ WATCH CHRONOGRAPH

INSTRUCTION MANUAL

Thank you for choosing our product. To ensure prolonged use and optimum performance, please read this instruction manual carefully and familiarize your-self with the terms of the guarantee.

Please keep this Instruction Manual handy for future reference.

◆ SAFETY PRECAUTIONS

Make absolutely sure to observe the demarcated contents indicated below to prevent any possible physical danger and property damage to you as well as other people concerned.

... A demarcation with this symbol represents the contents assuming imminent danger for death or serious injury when the product is used in any manner different from given instructions.

... A demarcation with this symbol represents the contents assuming possibility for death or serious injury when the product is used in any manner different from given instructions.

... A demarcation with this symbol represents the contents assuming possibility of causing human injury or material damage only when a product is used in any manner different from given instructions.

◆ IN HANDLING THE WATCH

(1) Water-resistance

Type\Conditions of use			Underwater operation of crown and operation of crown with drops of water on it	Exposure to small amounts of water (face-washing, rain, etc.)	Water sports (swimming, etc.), frequent contact with water (car-washing, etc.)	Skin diving (air tanks are not used)	Scuba diving (air tanks are used)	Mixed-gas Diving (using helium gas)
Non water resistant		Without WATER RESISTANT (WATER RESIST)	× ×	× ×	× ×
Water resistant watches	Water resistant for daily life	WATER RESISTANT (WATER RESIST)	×	○	× ×	× ×
	Reinforced water resistance for daily life I	WATER RESISTANT (WATER RESIST) 50m (5bar)	×	○	○	× ×	×
	Reinforced water resistance for daily life II	WATER RESISTANT (WATER RESIST) 100m (10bar) 200m (20bar)	×	○	○	×	×	×
Diver's watches	Diver's watch for Air Diving	AIR DIVER'S 100m / 150m 200m	×	○	○	○		×
	Diver's watch for Mixed-gas Diving	He-GAS DIVER'S 200m / 300m /...	×	○	○	○	○

* It is recommended that you use the watch correctly following the above-mentioned scope of usage after ascertaining water resistance precautions marked on the dial or caseback.

CAUTION

① A watch with water resistance for daily life 30m (3 bar) can be used during face-washing, etc. but cannot be used in an environment in which it will be submerged in water.
② A watch with reinforced water resistance for daily life I 50m (5 bar) can be used while swimming, etc. but cannot be used during any type of diving including skin diving.
③ A watch with reinforced water resistance for daily life II 100m or 200m (10 or 20 bar) can be used while skin diving, but cannot be used while scuba diving using oxygen tanks or saturation diving using helium gas, etc.
④ Keep the crown pushed in at all times (in the normal position) while using the watch. If the crown is the screwed-down type, check that it is securely screwed down.
⑤ Do not operate the crown underwater, or while the watch is wet. Water may enter the interior of the watch and defeat the water resistance.
⑥ If your watch is non-water resistant, beware of splashes of water (during face washing, rain, etc.) and sweat. If the watch becomes wet from water or sweat, wipe the moisture off with a dry, soft cloth.
⑦ Even with a water resistant watch for everyday use, avoid directing strong jets of mains water onto the watch. Water pressure above the limit can apply, which may defeat the water resistance.
⑧ With a water resistant watch for everyday use, rinse sea water off the case after exposure, then wipe it thoroughly to avoid corrosion and other effects.
⑨ The interior of the watch contains some amount of moisture, which may cause fogging on the inside of the glass when the outside air is cooler than the internal temperature of the watch. If the fogging is temporary it causes no harm inside the watch, but if prolonged, or if water enters the watch, consult your place of purchase and do not leave the problem untreated.

(2) Handling the Battery

① If a button battery or coin battery is ingested, it may cause chemical burns or perforation of mucous membrane even in a short period of time, and in the worst-case scenario, may result in death. Never leave button batteries or coin batteries within the reach of infants or young children.

If a button battery or coin battery is ingested, or there is a possibility that one was ingested, it must be removed at once. Please treat as an emergency situation and contact a doctor immediately.

② Do not remove the battery from the watch. Contact the place of purchase of the watch or your nearest ORIENT authorized service center for assistance when wanting to remove the battery.
③ The battery used in this watch is not a rechargeable battery, so it cannot be recharged and used again. Do not attempt to charge the battery as doing so could cause it to overheat or explode.
④ A skin rash or other symptom may develop if leaking battery fluid comes into contact with skin. Do not leave depleted batteries sitting around for long periods of time.

(3) Replacing the Battery

① Depleted batteries that are left sitting in the watch for long periods of time may begin to leak battery acid, which could lead to malfunction. Be sure to replace depleted batteries as soon as possible.
② Replace the watch battery only with the specified battery type.
③ Battery replacement requires special-purpose tools, techniques, etc. Reversing the polarities when inserting the battery may cause the battery to overheat or explode. Contact the place of purchase or your nearest ORIENT authorized service center for assistance when wanting to replace the battery.

④ The watch comes equipped with a battery end of life indicator.

If the small second hand begins to advance two tick marks for every movement, it means that the battery is nearing the end of its life and will need to be replaced.

Contact the place of purchase or your nearest ORIENT authorized service center immediately for assistance with battery replacement.

⑤ Steps to be taken after the battery is replaced

After you have the battery replaced, be sure to set the time and set the stopwatch hands to the "0" position.

(Refer to ◆ SETTING THE TIME AND ADJUSTING THE STOPWATCH HAND POSITION (Hands for time display and stopwatch hands) for more information.)

(4) Shock

① Be sure not to carry the watch when you engage in strenuous sports, whereas playing such light sports as golf, etc., will not adversely influence the watch.

② Avoid a violent shock such as dropping the watch on the floor.

Simple line drawing of a person using a tool to dig or walk (no text or symbols)

(5) Magnetism

① If the watch is left at a location with strong magnetism for an extended period of time, the components may be magnetized, resulting in malfunction. Be careful.

② The watch may temporarily speed up or slow down when exposed to magnetism. Precision is restored when placed away from magnetism. In such a case, reset the time.

(6) Vibration

The watch may lose precision if subjected to strong vibrations such as from riding motorcycles, using jackhammers, chain saws, etc.

Simple line drawing of a person riding a three-wheeled motorcycle with motion lines (no text or symbols)

(7) Temperature

In the environment below and above the normal temperatures <5^ 35^> , the watch may malfunction and stop.

CAUTION

Do not use the watch at high temperatures, such as in a sauna. The watch may heat and cause burns.

(8) Chemicals, Gases, etc.

Utmost caution must be exercised when coming into contact with gases, mercury, chemicals (paint thinner, gasoline, various solvents, detergents containing such components, adhesives, paint, drugs, perfumes, cosmetics, etc.), and so forth. Such may cause discoloration of the watchcase, watchband, and dial face. Discoloration, deformation, and damage to various resin-based component parts may also occur.

(9) About accessory parts

CAUTION

Do not attempt to disassemble or modify the watch.

WARNING

Store the bracelet/strap pin and other small parts out of the reach of children.

If any small parts are swallowed, immediately contact a doctor.

(10) Allergic reactions

CAUTION

If you develop a skin rash or your skin becomes abnormally irritated due to contact with the watch or strap, stop wearing the watch immediately and consult a doctor.

(11) About "luminous light"

Some models have luminous light on the hands and dial.

The luminous light is a safe paint that stores sunlight and artificial light without using any radioactive material, and emits that light in a dark setting. As the paint discharges the stored light, it will become dimmer

over time. The amount of light emitted and the time that light is emitted depends on various factors when the light is stored, such as the shape of the glass, the thickness of the paint, surrounding brightness level, the distance from the watch to the light source, and the light absorption level. Please note that when not enough light energy is stored, the watch may emit weak light or emit light for only a short time.

(12) Water resistant watchband

Some models employ leather and nylon bands on which a special treatment to resist perspiration and water absorption have been applied. Please understand that the water resisting effect of this watchband can be lost depending on the period and conditions of use.

◆ FEATURES

(1) This is an analog crystal oscillator watch.
(2) The current time is indicated by the 24-hour, hour, minute, and second hands.
(3) The watch also comes with a calendar function (date) and stopwatch function (measures up to 30 min. in 1 sec. increment) in addition to the time display.
(4) The stopwatch function also records split times (the amount of time that elapses from when the stopwatch is started until a certain point, while the watch continues to record total time elapsed).
(5) When the battery life begins to run out, the small second hand starts to move in 2-sec. intervals to warn that the battery is getting low. (Battery End Of Life indicator)

◆ SPECIFICATIONS

(1) Crystal oscillator frequency: 32,768 Hz (Hz = Oscillations per second)
(2) Wrist-worn accuracy: Mean monthly rate: ±20sec.
(at normal temperature <5°C \~ 35°C>)
(3) Operating temperature range: -5^ +50^
(4) Drive system: Step motor
(5) Display system:
[Time function]
24-hour, hour, and minute hands with a second hand that moves at one-second intervals.

[Stopwatch function]

Stopwatch minute hand turns a full circle in 30 minutes at one-second intervals.

Stopwatch second hand turns a full circle in 60 seconds at one-second intervals.

(6) Additional function: Second hand halt mechanism, reset switch, accumulated elapsed time counter, split time function, battery end of life indicator
(7) Battery: SR920SW; 1 piece
(8) Battery life: Approx. 3 years if the stopwatch is used for less than 30 minutes a day.

* The above specifications are subject to change without notice for improvement.

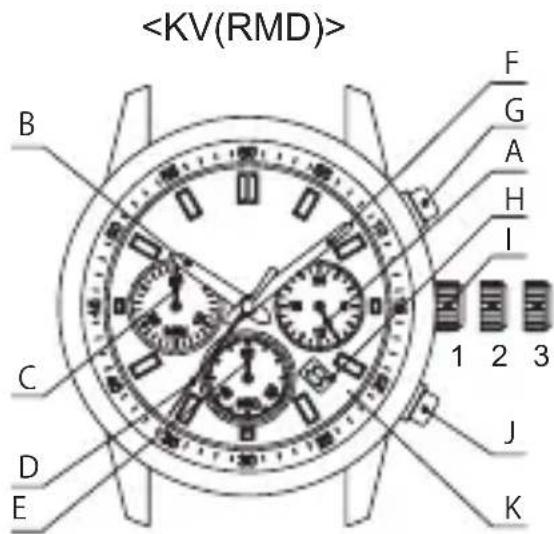

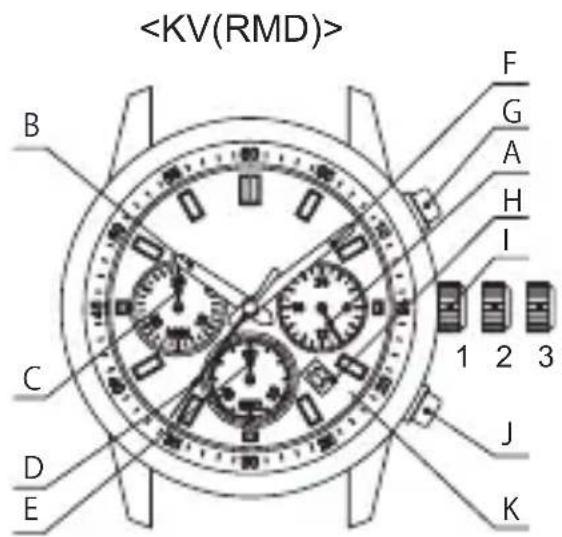

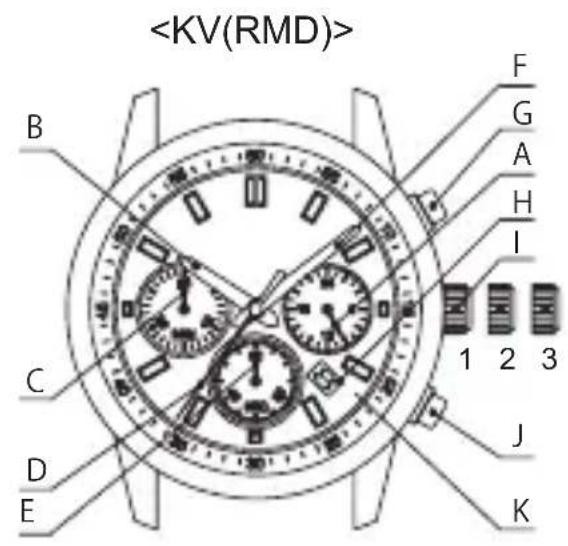

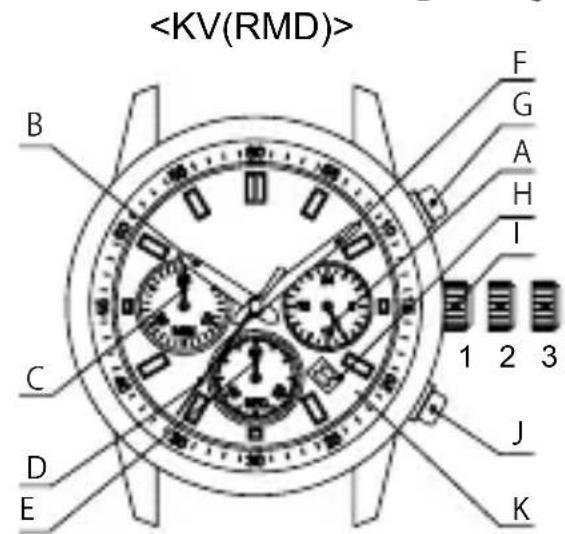

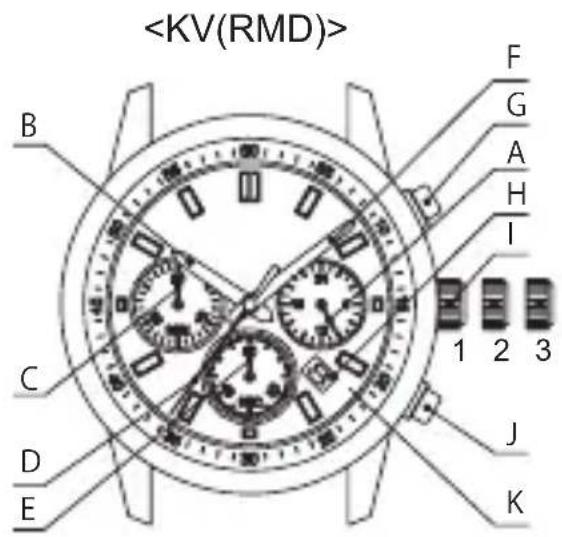

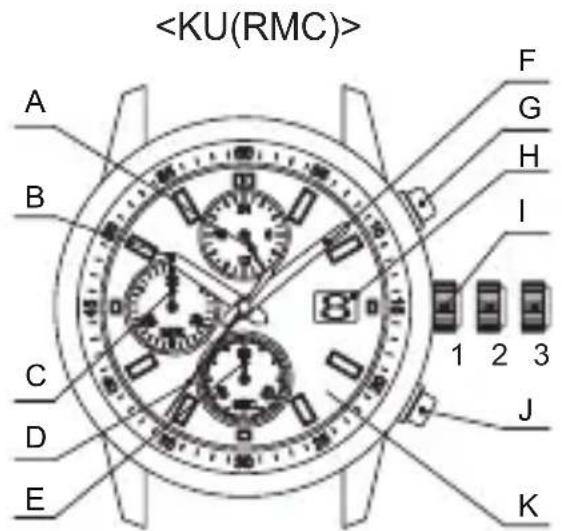

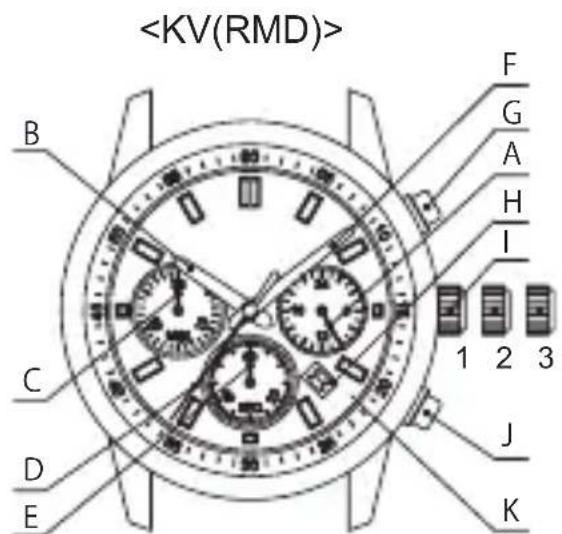

◆ NAMES AND FUNCTIONS OF INDIVIDUAL COMPONENT PARTS

A: 24-hour hand G: Button Ⓐ
B: Hour hand H: Date
C: Stopwatch minute hand I: Crown
D: Second hand J: Button Ⓑ
E: Stopwatch second hand K: Dial
F: Minute hand

A B C D E F G H I 1 2 3 J K

B C D E F G A H I 1 2 3 J K

1 : Normal position
2 : First click : Date setting
3 : Second click : Time setting (The second hand stops) Resetting the stopwatch

* The position of the crown or date indicator may vary on some models.

◆ MODELS WITH SCREWED-DOWN CROWN

Depending on the model, you may not be able to pull the crown out without unscrewing it (models with screwed-down crown).

Operate this type of watch as follows:

(1) Before setting the date and time, first turn the crown to the left to loosen the screw lock.
(2) After setting the date and time, turn the crown to the right while pressing in, until it stops turning to securely tighten the screw.

◆ MODELS WITH A SCREWED-DOWN BUTTON RING

Some models may have a configuration that allows the button ring (ring on the outer periphery) to be locked (fixed) into place by being screwed down. Use the following operating method for this type of watch.

(1) When wanting to use the buttons, first turn the button ring to the left, and then loosen it until the screw stops.
* The buttons may not be able to be used if the button ring cannot be loosened enough. Do not turn it more forcefully than necessary.
(2) After finishing using the buttons, turn the button ring to the right, and firmly tighten it until the screw stops.
* Do not tighten it more forcefully than necessary.

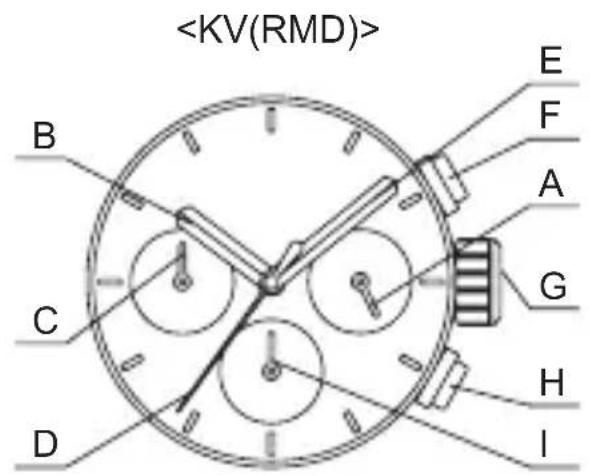

◆ SETTING THE TIME AND ADJUSTING THE STOPWATCH HAND POSITION (Hands for time display and stopwatch hands)

This watch allows you to both set the time and set the stopwatch hands to the "0" position with the crown at the second click position. Once the crown is pulled out to the second click, check the following two items, and if necessary, make adjustments, and then push the crown back in.

(1) Time of the basic watch
(2) "0" position of the 2 stopwatch hands

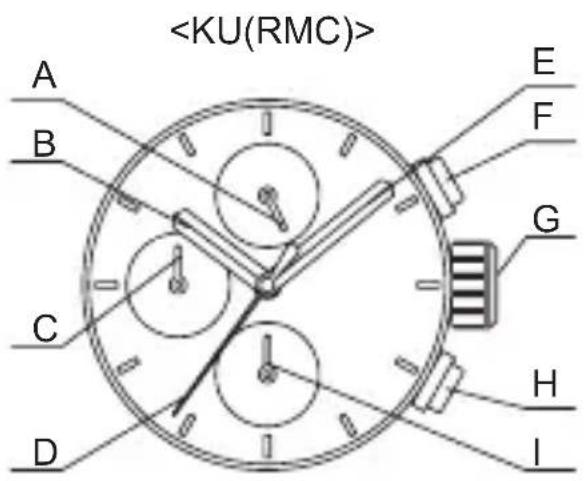

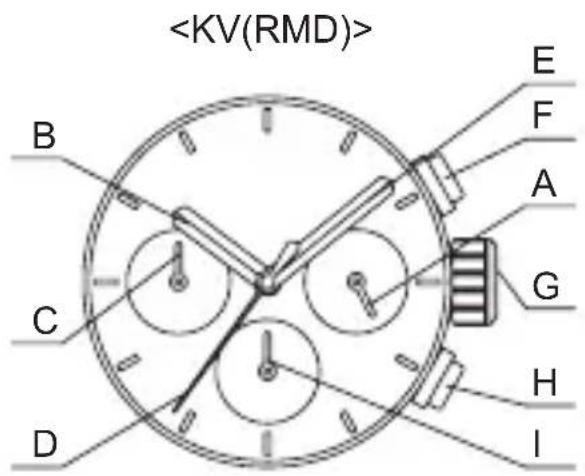

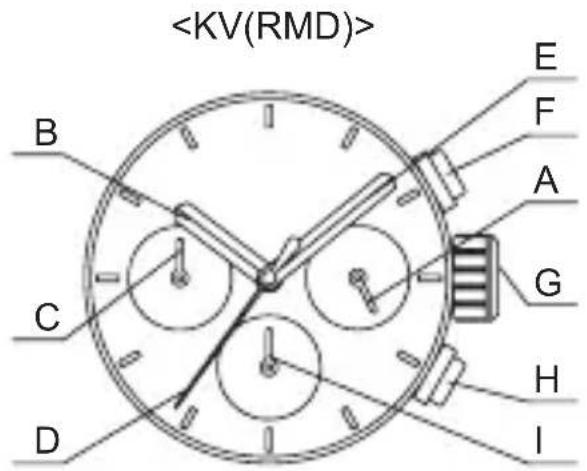

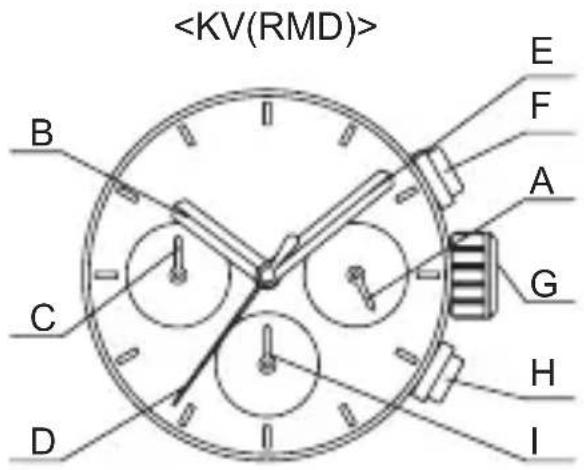

A: 24-hour hand F: Button Ⓐ
B: Hour hand G: Crown
C: Stopwatch minute hand H: Button Ⓑ
D: Second hand I: Stopwatch second hand
E: Minute hand

A B C D E F G H I

B C D E F A G H I

(1) Pull out the crown to the second click when the second hand is at the 12 o'clock position.

The second hand stops on the spot.

Diagram showing a stopwatch with an arrow pointing right, indicating measurement or action.

* If the stopwatch is measuring, the stopwatch hands are automatically reset to "0" position.

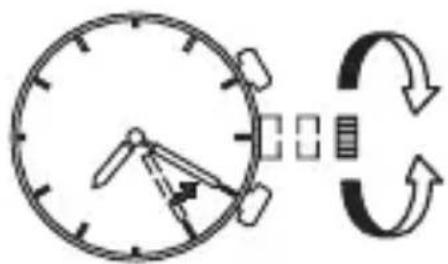

(2) Turn the crown to set the hour and minute hands to the current time.

Diagram showing a clock with directional arrows and a circular arrow indicating rotation or synchronization.

After setting the time, also set the stopwatch hands to the "0" position.

It is recommended that the hands be set to the time a few minutes ahead of the current time, taking into consideration the time required to push the crown back in when all the adjustments are completed.

* When setting the hour hand, check that AM/PM is correctly set. The date changes around midnight. You can check AM and PM with the 24-hour hand.

* When setting the minute hand, first advance it 4 to 5 minutes ahead of the desired time, and then, turn it back to the exact minute.

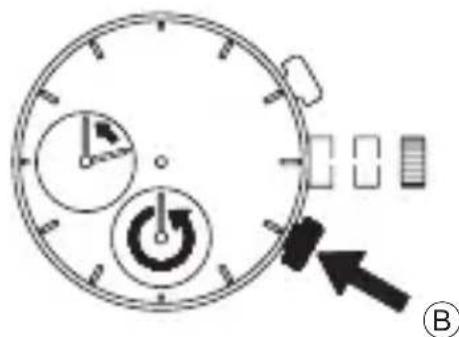

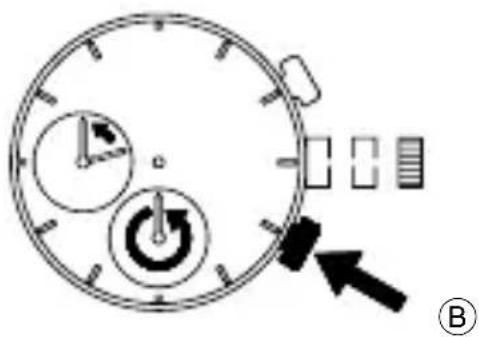

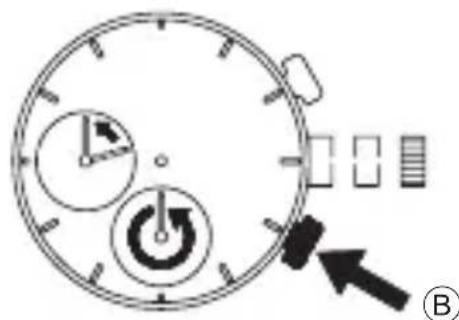

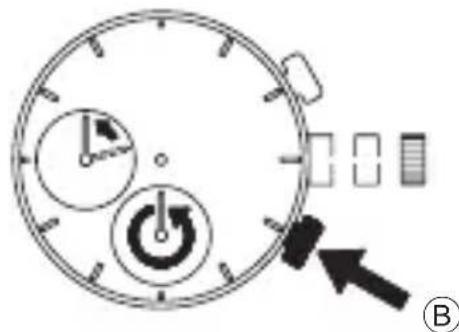

(3) Set the two stopwatch hands to the 0 position.

Diagram showing a circular dial with labeled components and an arrow pointing to a section marked A

Diagram of a stopwatch with an arrow pointing to it, labeled with circled number B

Press the Ⓐ or Ⓑ button to set the stopwatch second hand to the 0 second position.

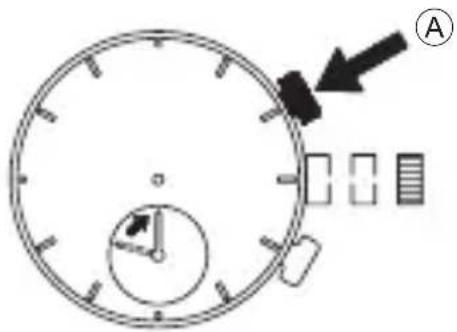

Press the Ⓐ button once to advance the stopwatch second hand by one increment.

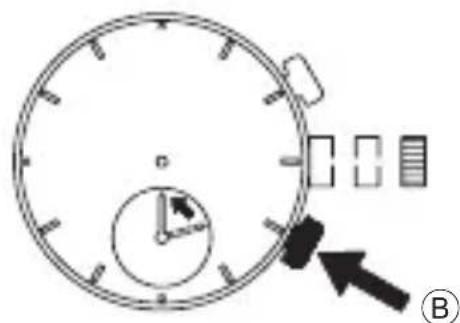

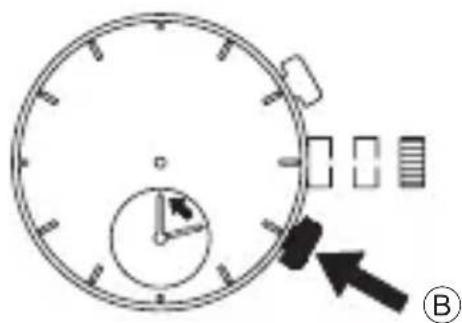

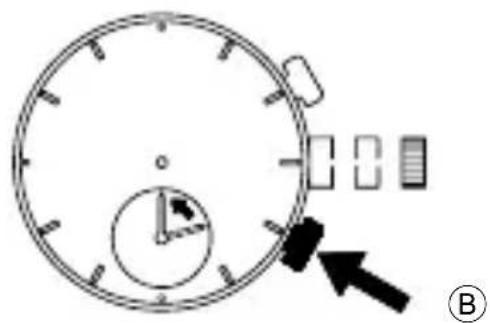

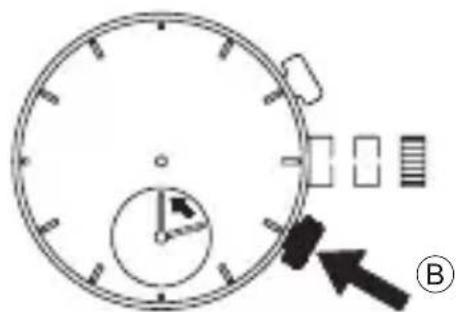

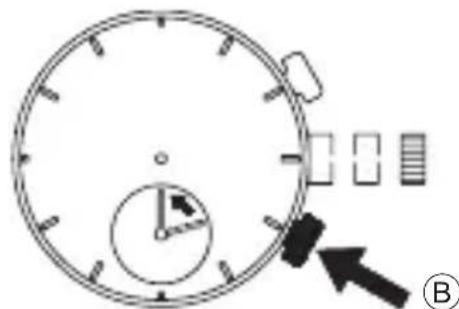

Press the Ⓑ button once to move the stopwatch second hand back by one increment.

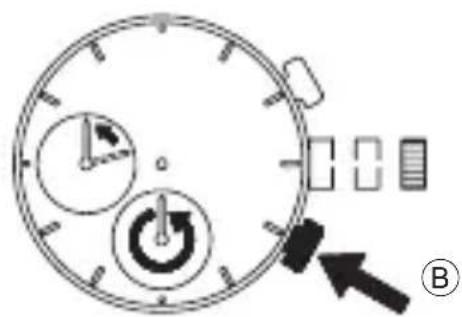

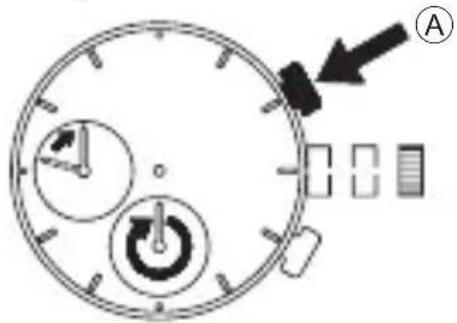

Press and hold the Ⓐ button to fast forward, and press and hold the Ⓑ button to fast rewind.

* During fast forward and fast rewind, the speed of the hand movement may differ but this is not a failure.

Diagram of a circular device with labeled components and an arrow pointing to component A

Diagram of a stopwatch with clock face, speedometer, and directional arrow indicating navigation or action

The stopwatch minute hand is interlocked with the stopwatch second hand.

When the stopwatch second hand makes one rotation, the stopwatch minute hand moves by one increment.

Operate the buttons to set the stopwatch minute hand and stopwatch second hand to the 0 position.

(4) After all the adjustments are completed, push the crown back in to the normal position.

ENGLISH

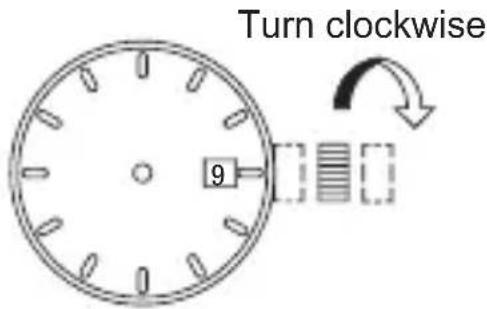

◆ HOW TO SET THE DATE

* Do not set the date during the period from 9:00 p.m. to 1:00 a.m., as the date on the watch switches over during this time.

Setting the date during this time period may cause the date to fail to change even after the day switches over and may cause the watch to malfunction.

* When setting the date, move the hour hand to a time outside of this period before proceeding.

(1) Pull out the crown to the first click.

* The crown on this watch can be pulled out to either of two clicks.

(2) Turn the crown clockwise to set the date.

5

Turn clockwise 9

(3) After all the adjustments are completed, push the crown back in to the normal position.

* The position of the crown or date indicator may vary on some models.
* About date correction at month's end:

Date correction is necessary for months with 30 days or less. In this case, set the date to the [1st day] on the first day of the next month.

9

◆ HOW TO USE THE STOPWATCH

• The stopwatch measures up to 30 minutes in 1-second increment.
• The stopwatch will continue measuring time for up to 30 minutes. Once 30 minutes have passed, the stopwatch will automatically stop and be reset back to zero.
• The stopwatch time can be read using the stopwatch second hand located at the 6 o'clock position and the stopwatch minute hand located at the 9 o'clock position.
  • The stopwatch has a split time function.

[How to read the stopwatch hands]

The time measured is indicated by the two stopwatch hands (stopwatch second and stopwatch minute hands).

• If the stopwatch hands do not return to "0" position when the stopwatch is reset, follow the procedure in "♦ SETTING THE TIME AND ADJUSTING THE STOPWATCH HAND POSITION" to reset them.
• In that case, be sure to adjust the hands for time display to the current time.

■ How to reset the stopwatch

- When the stopwatch hands are counting:

① Press button Ⓐ to stop the stopwatch.
② Press button Ⓑ to reset the stopwatch.

- When the stopwatch hands are stopped: One of the following three stopwatch operations has occurred. Reset the stopwatch accordingly.

A B

[The stopwatch was stopped in "standard measurement"]

① Press button Ⓑ to reset the stopwatch.

[The stopwatch stops with the split time displayed (the stopwatch continues measuring)]

① Press button Ⓑ. The split time is released and the stopwatch hands move quickly to indicate the measurement in progress.
② Press button Ⓐ to stop the stopwatch.
③ Press button Ⓑ to reset the stopwatch.

[The stopwatch stops with the split time displayed (the stopwatch is stopped)]

① Press button Ⓑ. The stopwatch hands move quickly and stop.
② Press button Ⓑ to reset the stopwatch.

* When the stopwatch is reset, the stopwatch minute hand and stopwatch second hand return to the 0 position.

The stopwatch minute hand and stopwatch second hand are interlocked.

When the stopwatch second hand makes one rotation, the stopwatch minute hand moves one increment.

Buttons cannot be operated during reset operation.

- When the measurement time before reset is less than 8 minutes The stopwatch second hand and stopwatch minute hand turn counterclockwise to return to the 0 position.

- When the measurement time before reset is 8 minutes or more The stopwatch second hand and stopwatch minute hand turn clockwise to return to the 0 position.

■ Standard measurement


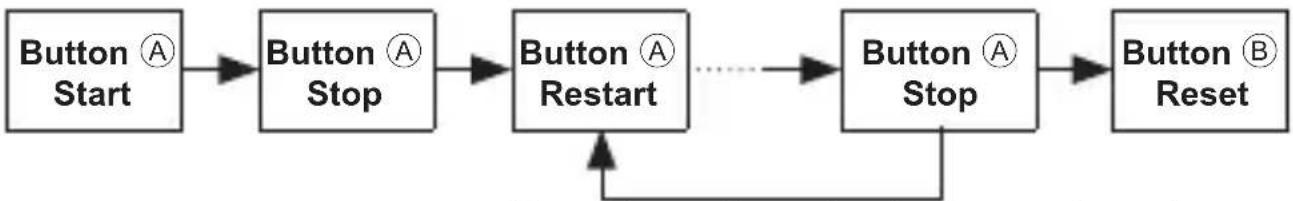

■ Accumulated elapsed time measurement

Restarting and stopping the stopwatch can be repeated by pressing button Ⓐ.

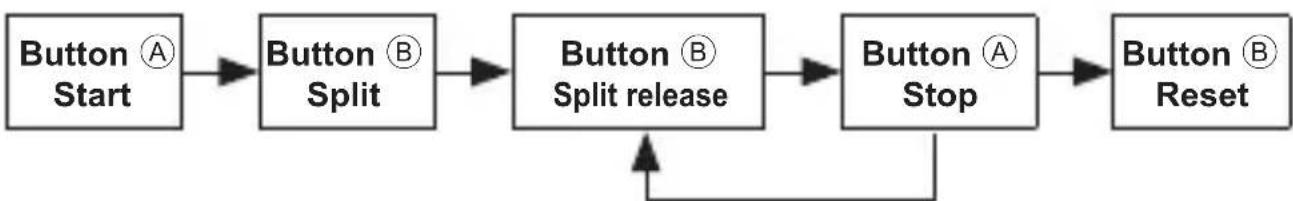

■ Split (intermediate) time measurement

Measurement and release of the split time can be repeated by pressing button Ⓑ.

- About button operation when the stopwatch hand is fastforwarded after the split time is released

① Pressing Ⓐ during fast forward: Displays the accumulated elapsed time (pressing the Ⓐ button for the 2nd and subsequent times is invalid)
② Pressing Ⓑ during fast forward: Displays the final split time or accumulated elapsed time (the Ⓑ button can be pressed as many times as needed)

Note: Pressing the Ⓑ button toggles between split and split release.

③ Pressing Ⓐ → Ⓑ during fast forward: Resets (returns to the 0 position)
④ Pressing Ⓑ → Ⓐ druing fast forward: Displays the split time (pressing the S1 button the 2nd and subsequent times is invalid)
⑤ Press Ⓑ → Ⓐ → Ⓑ during fast forward: Displays the accumulated elapsed time
⑥ Press Ⓑ → Ⓐ → Ⓑ → Ⓑ during fast forward: Resets (returns to the 0 position)

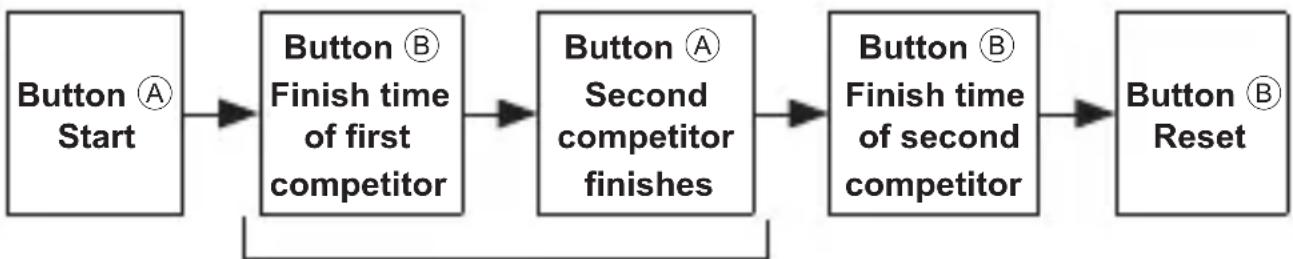

■ Measurement of two competitors

The hands indicate the first competitor's time while the measurements are being taken.

◆ HOW TO USE THE ROTATING INDICATOR BEZEL

Please notice that some models come with a rotating indicator bezel, which should be used properly.

Turn the bezel by pointing the ▽ mark to the minute hand.

While certain time goes by, you can measure the elapsed time from the distance between minute hand and figures on the rotating indicator bezel.

You can also set the ▽ mark as a desired time to remind you how long time is still remain for an appointment.

You cannot turn the bezel reversely since it comes with a protection mechanism for preventing wrong

operation by force or shock. Figures on the bezel could also help you to read the current time easily.

Rotating indicator bezel

Time elapsed

The above shows that 20 minutes have elapsed from 10:10.

* Depending on design, anti-reversely and 1 minute “click” sound mechanism on rotating indicator ring does not apply to some models.

DEUTSCH

ANALOGE QUARZUHR

CHRONOGRAPH ,

BEDIENUNGSANLEITUNG

Simple line drawing of a person using a tool to clean or brush (no text or symbols)

(5) Magnetismus

Simple line drawing of a person riding a three-wheeled motorcycle (no text or symbols)

(7) Temperatur

A B C D E F G H I 1 2 3 J K

B C D E F G A H I 1 2 3 J K

A B C D E F G H I

B C D E F A G H I

Diagram showing a stopwatch with an arrow pointing to it, indicating time measurement or status.

Diagram showing a clock with directional arrows and a circular arrow indicating rotation or synchronization.

Diagram of a circular device with labeled components and an arrow pointing to component A

Diagram of a stopwatch with directional arrows and labeled parts, showing time measurement and component layout.

Diagram of a stopwatch with labeled parts and an arrow pointing to the top-right section, marked with letter A.

Diagram of a stopwatch with clock face, speedometer, and directional arrow indicating navigation or action

Simple line drawing of a clock face with an arrow pointing to it, no text or symbols present.

Simple line drawing of a person using a tool to dig or sweep (no text or symbols)

(5) Magnetismo

Simple line drawing of a person riding a three-wheeled motorcycle with motion lines indicating speed (no text or symbols)

(7) Temperatura

Alle temperature inferiori o superiori a quelle normali

A B C D E F G H I 1 2 3 J K

B C D E F G A H I 1 2 3 J K

A B C D E F G H I

B C D E F A G H I

Diagram showing a stopwatch with an arrow pointing right, indicating measurement or action.

Diagram showing a clock with directional arrows and a circular diagram with arrows, indicating a cycle or synchronization process.

Diagram of a circular device with labeled components and an arrow pointing to component A

Simple line drawing of a stopwatch with an arrow pointing to it, no text or symbols present.

Diagram of a circular device with labeled components and directional arrow, marked with circled 'A'

Diagram of a stopwatch with clock face, power button, and directional arrow indicating action

Simple line drawing of a person using a tool to clean or dig (no text or symbols)

(5) Magnetismo

Simple line drawing of a person riding a three-wheeled motorcycle (no text or symbols)

(7) Temperaturas

A B C D E F G H I 1 2 3 J K

B C D E F G A H I 1 2 3 J K

A B C D E F G H I

B C D E F A G H I

Diagram showing a stopwatch with an arrow pointing right, indicating time measurement or action

Diagram showing a clock with directional arrows and a circular arrow indicating rotation or synchronization.

Diagram showing a circular dial with labeled components and an arrow pointing to component A

Diagram of a stopwatch with an arrow pointing to it, labeled with circled number B

Diagram of a circular device with labeled components and directional arrows, including a circled section marked 'A'

Diagram of a stopwatch with clock face, time, and directional arrow indicator

Simple line drawing of a clock face with an arrow pointing to the right side (no text or symbols)

♦ AJUSTE DE LA FECHA

PRECAUCIÓN

5 Clay schedule

Simple line drawing of a person using a tool to dig or walk (no text or symbols)

Simple line drawing of a person riding a motorcycle (no text or symbols)

(7) Температура

A B C D E F G H I 1 2 3 J K

B C D E F G A H I 1 2 3 J K

A B C D E F G H I

B C D E F A G H I

Simple line drawing of a stopwatch with an arrow pointing right (no text or symbols)

Diagram showing a clock with directional arrows and a circular arrow indicating rotation or synchronization.

Diagram of a clock face with directional arrows and labeled section A, showing measurement or navigation elements.

Diagram of a circular stopwatch with an arrow pointing to it, no text or symbols present.

Diagram of a clock face with directional arrows and a labeled section (A), showing time, speed, and control buttons.

Diagram of a stopwatch with clock face, speedometer, and directional arrow pointing to a button labeled B

Simple line drawing of a clock face with an arrow pointing to it (no text or symbols)

◆ УСТАНОВКА ДАТЫ

ВНИМАНИЕ

Analog clock face with Chinese characters indicating time and direction, showing hands and numerals.

Simple line drawing of a clock face with an arrow pointing to the left side (no text or symbols)

Diagram showing a clock face with an arrow pointing to a section, labeled with circled 'A' in the top right corner.

Diagram of a stopwatch with an arrow pointing to it, showing time and duration measurement.

Diagram of a stopwatch with directional arrows and labeled section A, showing clock face, dial, and control buttons.

Diagram of a stopwatch with clock face, speedometer, and directional arrow indicating navigation or action

Diagram of a stopwatch with directional arrow indicating time measurement or navigation

Diagram showing a clock with directional arrows and a circular arrow indicating rotation or synchronization.

A B C D E F G H I

B C D E F A G H I

9

A :G :A approximately ٢٤

A B C D E F G H I 1 2 3 J K

B C D E F G A H I 1 2 3 J K

1: الوضع العادي

Simple line drawing of a child using a tool to dig or walk (no text or symbols)

Simple line drawing of a person riding a three-wheeled motorcycle (no text or symbols)
