Product Type	Spiralizer / Vegetable Spiralizer
Brand	Hanseatic
Model	LW-6508G1
Power Consumption	100 W
Supply Voltage	220–240 V ~, 50/60 Hz
Protection Class	II
Order Number	26850316
Intended Use	Spiralizing and slicing solid fruits and vegetables (e.g., carrots, courgettes, apples)
Suitable Food Dimensions	Diameter: 30–60 mm, Length: 60–125 mm
Number of Cutting Inserts	3 (for slices, thick noodles, thin noodles)
Maximum Continuous Operation	30 seconds
Cool-Down Time Required	At least 1 minute
Housing Material	Plastic
Blade Material	Stainless steel
Motor Unit Cleaning	Wipe with damp cloth; do not immerse
Removable Parts Cleaning	Dishwasher safe or hand wash
Safety Features	Filler neck lock mechanism; sharp blade protection
Included Accessories	Pusher, filler neck, 3 cutting inserts, motor unit, collecting container
Spare Parts Availability	Yes, via customer service (Germany: Hermes Fulfilment)

Frequently Asked Questions - LW-6508G1 Hanseatic

How do I assemble the spiralizer?

Place the motor unit on the collecting container, select a cutting insert and insert it into the motor unit opening, then attach the filler neck and turn it towards the lock symbol until it clicks.

What foods can be processed with the LW-6508G1?

Solid fruits and vegetables like apples, pears, carrots, courgettes, potatoes, cucumbers. The food must be 30–60 mm in diameter and 60–125 mm long. Do not process hard foods like nuts, ice, or coffee beans.

What is the maximum operating time?

The appliance is designed for short-term operation of up to 30 seconds. After that, let it cool down for at least 1 minute.

How do I clean the spiralizer?

Unplug the appliance. Wipe the motor unit with a damp cloth; do not immerse in water. All other parts (pusher, filler neck, cutting inserts, collecting container) can be washed by hand or in the dishwasher.

What should I do if the appliance does not work?

Check that the mains plug is connected and the socket works. Ensure the filler neck is correctly locked in place (turn until it clicks). If the problem persists, contact customer service.

Are spare parts available for this model?

Yes, spare parts can be ordered through customer service. In Germany, contact Hermes Fulfilment GmbH.

Can the spiralizer be used for commercial purposes?

No, it is designed for private household use only. Commercial use may damage the appliance and void warranty.

Is the appliance safe to use with children?

Children aged 8 years and above can use it under supervision. Keep packaging film away from children to avoid suffocation. The blades are sharp; handle with care.

How do I remove a remaining piece from the pusher?

Press the two green brackets on top of the pusher to push it apart, releasing the remaining piece.

What should I do if the results are inadequate?

The food may be too solid; clean the cutting insert. Also, avoid pressing too hard. If issues persist, refer to the troubleshooting table in the manual.

USER MANUAL LW-6508G1 Hanseatic

Line drawing of a handheld electronic device with a cylindrical top and rectangular base (no text or symbols)

Gebrauchsanleitung

Anleitung/Version:

196016_DE_20180301

Line drawing of a mechanical device with a cylindrical top and labeled part (6), no text or symbols present.

Line drawing of a hand using a blender to press or feed into a container with coiled contents (no text or symbols)

Technical line drawing of a mechanical component with a black arrow pointing to a specific part (no text or symbols present)

Line drawing of a handheld electronic device with a cylindrical top and rectangular base (no text or symbols)

User manual

Manual/version: 196016_GB_20180301 Order no.: 26850316 Reproduction, even of excerpts, is not permitted!

Spiralizer

Table of contents

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB-3

Using for the first time. . . . .GB-8

Operation ....GB-11

Cleaning . . . . . . . . . . . . . . . GB-13

Troubleshooting table . . . .GB-14

Service ....GB-15

Environmental protection .GB-16

Technical specifications ..GB-16

Before using the appliance, please first carefully read through the safety instructions and user manual. This is the only way you can use all the functions reliably and reliably.

Be absolutely sure to also observe the national regulations in your country, which are also valid in addition to the regulations specified in this user manual.

Keep the user manual in a safe place for reference purposes. If you lend the appliance out, give it away or sell it, also pass on the user manual to the future users.

Safety

Intended use

The spiralizer is intended exclusively for the production of continuous strips or sliced spirals from solid fruit (e.g. apples, pears, etc.) and vegetables (such as carrots, courgettes, potatoes, cucumbers, etc.).

It is not suitable for chopping or crushing ice cubes, dry and hard foods (e.g. nuts, coffee beans, etc).

The spiralizer is designed for use in private households and is not designed for commercial use or multiple use (e.g. use by several parties in a block of flats).

Use the spiralizer only as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury.

The manufacturer accepts no liability for damage caused by improper use.

Explanation of terms

The following symbols can be found in this user manual.

WARNING

This symbol indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION

This symbol indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This symbol warns against possible damage to property.

This symbol refers to useful additional information.

Safety instructions

In this chapter you will find general safety instructions which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters on operation, cleaning, etc.

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Check the appliance and the power supply cable regularly for damage.
■ If the housing or the power cord is damaged, the appliance is dropped or leaking or if there is other visible damage, do not start the appliance. In such a case, please contact our customer service (see page GB-15).

■ Only use the appliance indoors and never operate it in damp rooms or expose it to rain.

■ Never repair a defective or suspected defective appli-

ance yourself. You can put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.

■ Always connect the appliance to an easily accessible socket, so that you can quickly unplug the mains plug in an emergency.
■ Do not operate the appliance with an external timer or a separate remote control system.
■ Do not let the power cord hang down to prevent children or pets from pulling on or getting caught in it.
■ Place the power cord in such a way that it cannot be reached or damaged by either children or pets.
■ To avoid hazards, have a damaged power cord replaced only by the manufacturer, the after-sales service or a similarly qualified person.
■ If the appliance is giving off smoke, a burning smell or making unusual noises, immediately switch off the

appliance and unplug the mains plug. Do not start the appliance after that.

■ Never open the housing.
■ The appliance may only be repaired by an authorised specialist company. Only parts corresponding to the original appliance specifications may be used. This appliance contains electrical and mechanical parts which are essential for protection against potential sources of danger.

■ Do not immerse the appliance itself, the power cord or the mains plug in water. Do not allow any liquid to enter into the housing.

■ Never store the appliance in such a way that it can fall into a bathtub or sink.

■ Never touch an electrical appliance if it has fallen into water. In such a case, immediately unplug the mains plug from the socket.

■ Never touch the mains plug with wet hands.

■ Keep the appliance, the mains plug and the power

cord away from hot surfaces and open flames.

■ Always pull the mains plug out of the socket,
– when the appliance is not in use,
– before cleaning,
- if a malfunction occurs,
- if there is a storm with thunder and lightning.
■ Never use the power cord as a carrying strap.
■ Do not use a steam cleaner or high-pressure cleaner to clean the appliance.

Risk of suffocation!

Children can become entangled when playing in the packaging film and suffocate.

■ Ensure that the packaging film remains out of the reach of children.

CAUTION

Risk of injury!

Danger to children and persons with reduced physical, sensory or mental abilities (for example, people with disabilities to some extent, older persons with impaired physical and mental abilities) or who lack experience and knowledge (for example older children).

■ This appliance can be used by children aged eight years and above and by persons with reduced physical, sensory, or mental abilities, or who lack experience and knowledge, if they are supervised or have been instructed in the safe use of the appliance and understand the dangers associated with its use.

■ Children must not be allowed to play with the appliance.
■ Cleaning and user maintenance must not be carried out by children.

The blades of the spiralizer are sharp.

■ Be careful when handling blade inserts.
■ Unplug the mains plug before assembling and disassembling the appliance, before cleaning and when the appliance is left unattended.
■ In all cases, work with the pusher supplied. Do not use any other aids to press the food into the filler neck.
■ Never grasp into the filler neck.

! NOTICE

Risk of damage!

■ Do not use solvent-based, corrosive or abrasive cleaning agents (e.g. pan scourers or similar). These can scratch the surfaces.
■ Only use the spiralizer if it is standing on an easily accessible, level, dry and sufficiently stable work surface.
■ Do not use the spiralizer any more if the plastic is torn, cracked or deformed. Only use appropriate original spare parts to replace damaged parts.
■ Slip-resistant plastic feet are located on the underside of the collecting container. Furniture panels/surfaces treated with certain care products can attack and soften the plastic feet. If necessary, place a non-slip pad underneath the appliance.

Using for the first time

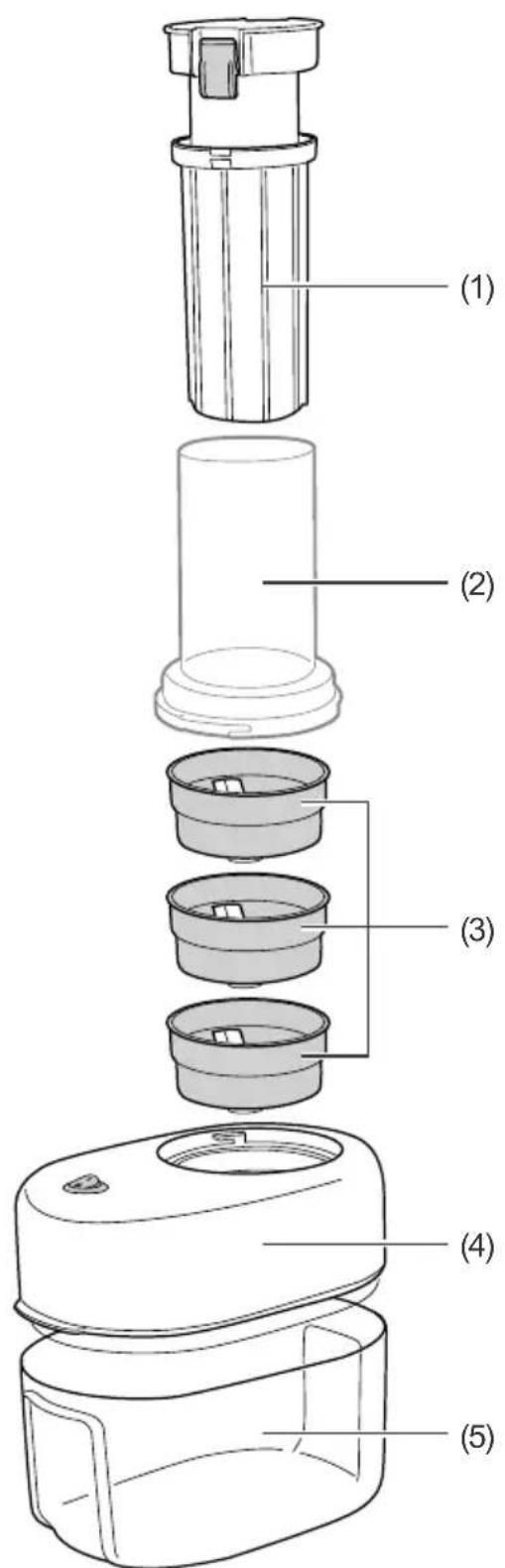

Product contents

(1) Pusher 1×
(2) Filler neck 1×
(3) Cutting inserts 1× for slices, 1× for thick and 1× for thin noodles
(4) Motor unit 1×
(5) Collecting container 1×

Check the delivery

CAUTION

Risk of injury!

The blades in the cutting inserts are sharp.

■ Be careful when unpacking and do not grasp into the cutting inserts.

• Unpack all parts and check them for transport damage.
• If anything is missing or damaged, contact our service centre (see page GB-15).

WARNING!

Risk of electric shock!

Never use a damaged appli- ance.

Cleaning before use

Before first use, wash all parts of the spiralizer, except the motor unit, (4) with conventional washing liquid or place them in the dishwasher.

Assembling the spiralizer

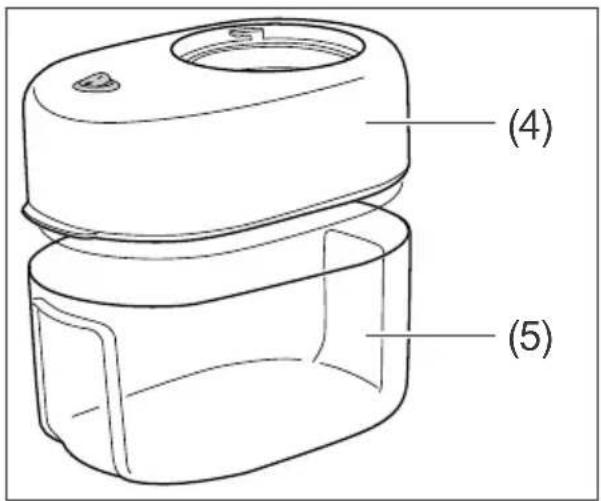

1. Place the motor unit (4) on the collecting container (5).

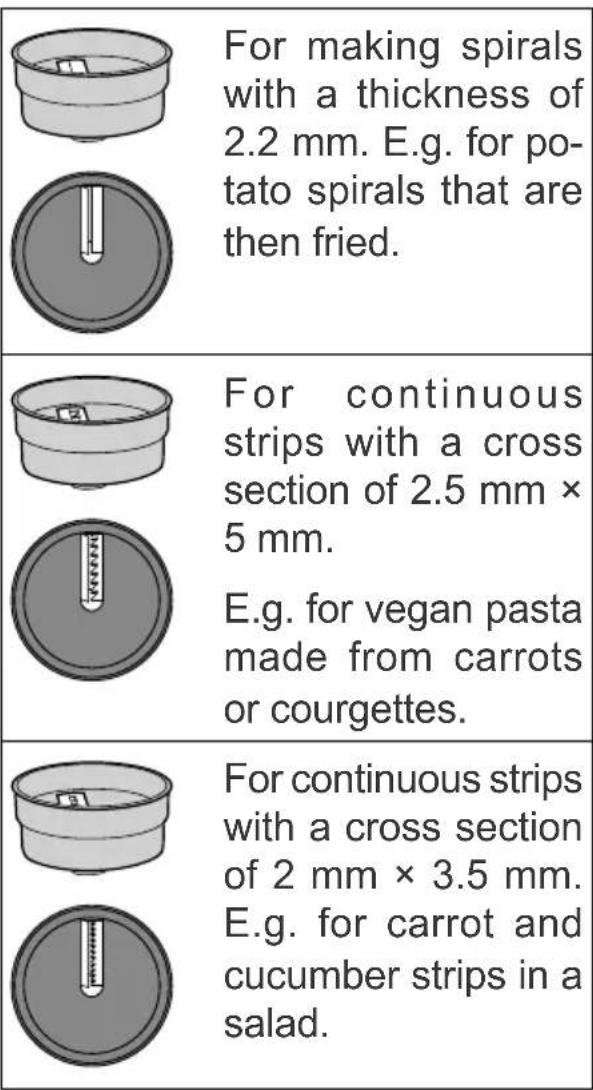

Cutting inserts

These cutting inserts are suitable for the following products:

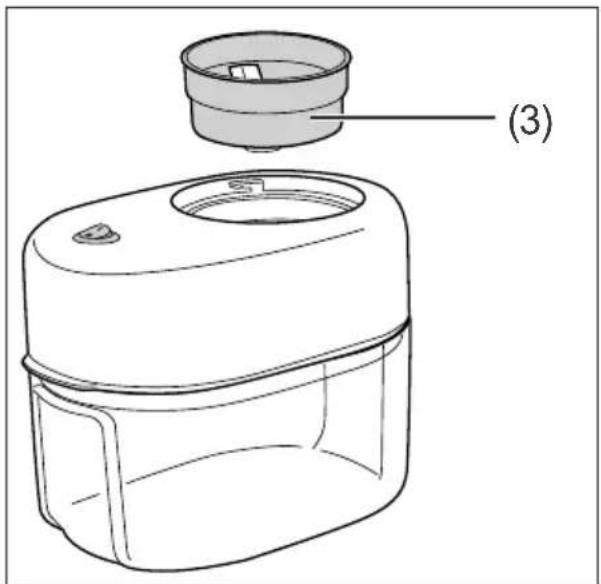

1. Select the desired cutter insert (3) and insert it into the opening of the motor unit.

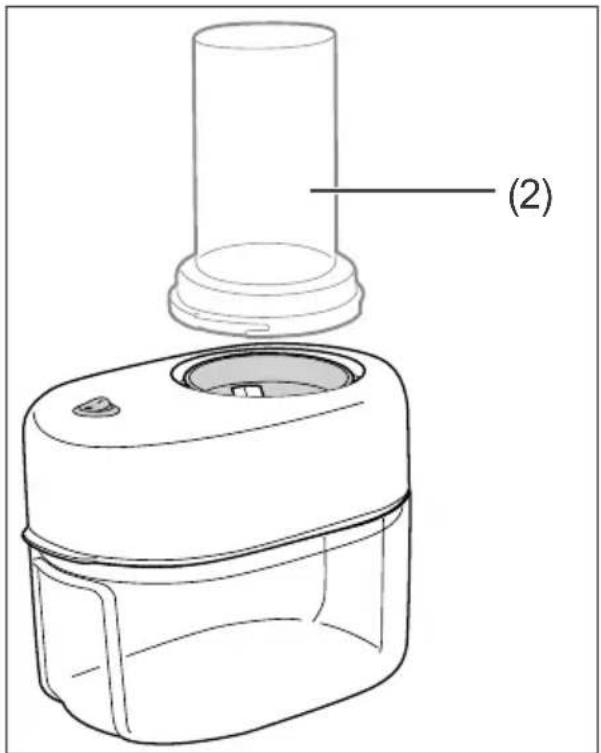

1. Place the filler neck (2) onto the motor unit and turn it towards the closed lock symbol → 🔒. It must click audibly into place.

Line drawing of a mechanical device with a cylindrical top and labeled part (6), no text or symbols present.

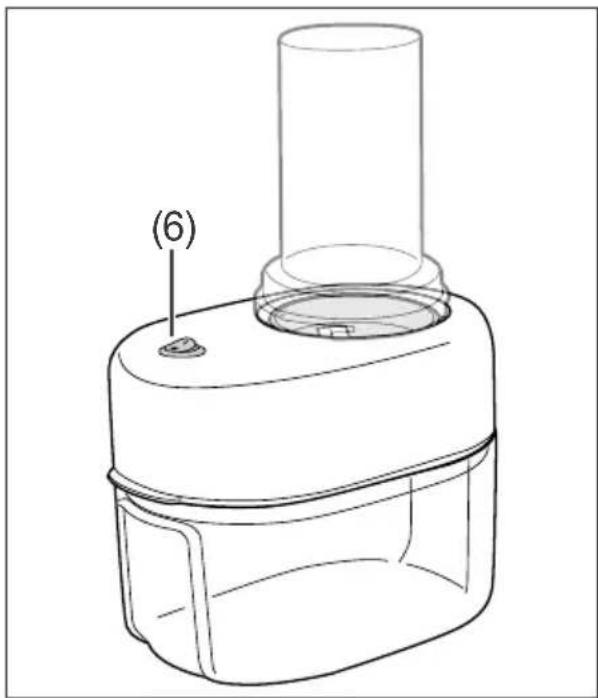

Make sure the power switch is at (6) '0' and then plug the mains plug into a socket. The spiralizer is now ready for use.

Operation

CAUTION

Risk of injury!

The blades in the cutting inserts are sharp.

■ In all cases, work with the pusher supplied. Do not use any other aids to press the food into the filler neck.

■ Never grasp into the filler neck.

NOTICE

Risk of damage!

The spiralizer is designed for short-term operation of up to 30 seconds.

■ Allow the appliance to cool down for at least one minute after this time.

Which foods are suitable?

Solid fruits and vegetables such as:

• Apples
• Pears
• Carrots
• Courgettes
• Potatoes
• Cucumbers

The food to be processed must be within the following dimensions:

– Diameter: 30–60 mm
- Length: 60–125 mm

If necessary, cut the food to these dimensions.

Operation

Requirements:

• You have read and understood all the safety instructions.
• You have inserted the desired cutting insert.
• You have assembled the appliance as described above.

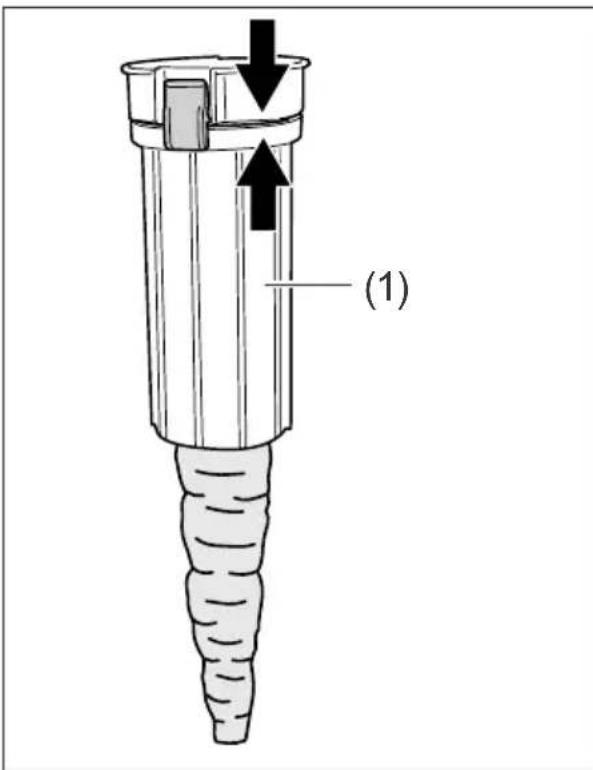

1. If you have not already done so, press the pusher (1) together.
2. Place the food on the spikes on the underside of the pusher.
3. Now insert the pusher with the food into the filler neck.

Line drawing of a hand using a blender to press or feed into a container with coiled contents (no text or symbols)

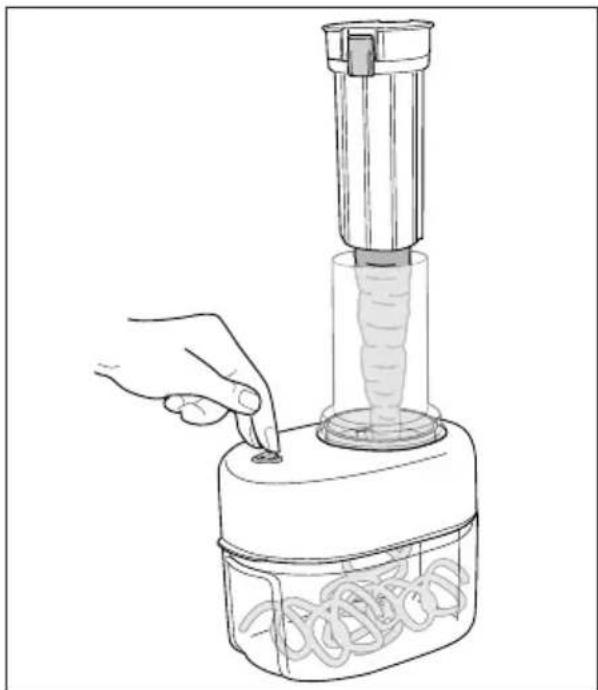

1. Switch on the appliance with the power switch and press the pusher lightly at the same time. Depending on the cutting insert, noodles or spiral slices are now produced and collected in the collecting container.

Technical line drawing of a mechanical component with a black arrow indicating a specific part (no text or symbols present)

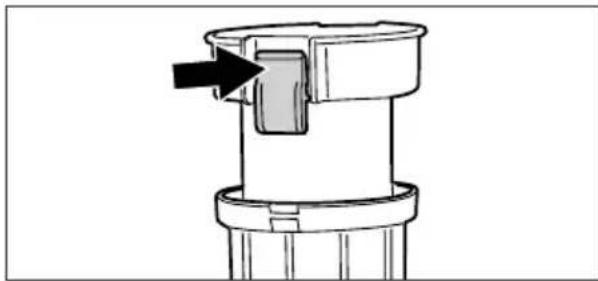

1. To remove the remaining piece from the pusher, press on the two green brackets at the top. The pusher is pushed apart and releases the remaining piece.

Cleaning

CAUTION

Risk of injury!

The blades in the cutting inserts are sharp.

■ Unplug the mains plug before cleaning.
■ Be careful when cleaning.

Risk of short circuit!

A short circuit may by caused by water entering into the housing.

■ Never immerse the motor unit (4) in water.
■ When cleaning, make sure that no water reaches the motor unit.

NOTICE

Risk of damage!

Incorrect cleaning agents can damage surfaces.

■ Do not use solvent-based, corrosive or abrasive cleaning agents (e.g. pan scourers or similar).

The appliance must be cleaned after each use. Acidic foods or fruit can discolour the plastic. These discolourations do not constitute damage.

1. Unplug the mains plug before cleaning at all costs.
2. Only use a slightly moistened cloth to wipe the motor unit (4).
3. All other parts can be washed as usual or cleaned in the dishwasher.

Troubleshooting table

Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, please check the tables to see if you can correct the malfunction.

WARNING

Risk of electric shock in case of improper repair!

Never try to repair a defective or suspected defective appliance yourself. You can put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.

Problem Possible cause Solutions, tips
The appliance is not working.	There is no power supply.	Make sure that the mains plug is correctly plugged into the socket. Check that the socket is working properly using another appliance.
	The filler neck (2) is not inserted correctly.	Place the filler neck onto the motor unit (4) and turn it towards the closed lock symbol → 🔒. It must click audibly into place.
The appliance is working, but the result is inadequate.	The food is very solid.	Interrupt the process and clean the cutting insert.
	You are pushing down too hard.	Apply less pressure to the material to be cut.

Service

So we can help you quickly, please tell us:

Name of appliance Model Order number
hanseatic Spiralizer LW-6508	G1 26850316

Advice, order and complaint

Please contact your mail order company's customer service centre if

– the delivery is incomplete,
– the appliance is damaged during transport,
– you have questions about your appliance,
- a malfunction cannot be rectified using the troubleshooting table,
- you would like to order further accessories.

Spare parts

Customers in Germany

– Please contact: Hermes Fulfilment GmbH: Tel. [phone] Mon-Thurs 8 am to 3 pm, Fri-day 8 am to 2 pm

Customers in Austria

- Please contact your mail order company's customer service centre or product advice centre.

Please note:

You are responsible for the condition of the appliance and its proper use in the household. Damage resulting from non-compliance with this manual unfortunately cannot be recognised.

Environmental protection

Disposal of old appliances

Electrical appliances contain harmful substances as well as valuable resources.

Every consumer is therefore required by law to dispose of old electrical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Please contact your dealer directly for more information about this topic.

Packaging

Our packaging is made of environmentally-friendly, recyclable materials:

– Outer packaging made of cardboard
- Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of poly-ethylene (PE)
– Tension bands made of polypropylene (PP).

If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Technical specifications

Brand:

Name of appliance: Spiralizer

Model: LW-6508G1

Power: 100 W

Supply voltage: 220–240 V\~, 50/60 Hz

Protection class: II

Order number: 26850316

hanseatic
