Product type	Diamond drill
Brand	HUSQVARNA
Model	DM S240
Rated power	2400 W
Rated voltage	230 V or 100-120 V
Rated current	10 A (230 V) / 20 A (100-120 V)
Spindle speed (no load)	Position 1: 390 rpm, Position 2: 890 rpm
Max drilling diameter	250 mm / 10 inches
Shaft thread (internal)	G 1/2" external 5/8" 11 UNC
Shaft thread (external)	1 1/4" 7 UNC
Drilling motor weight	5.9 kg / 13 lbs
Drill stand weight	14.5 kg / 32 lbs

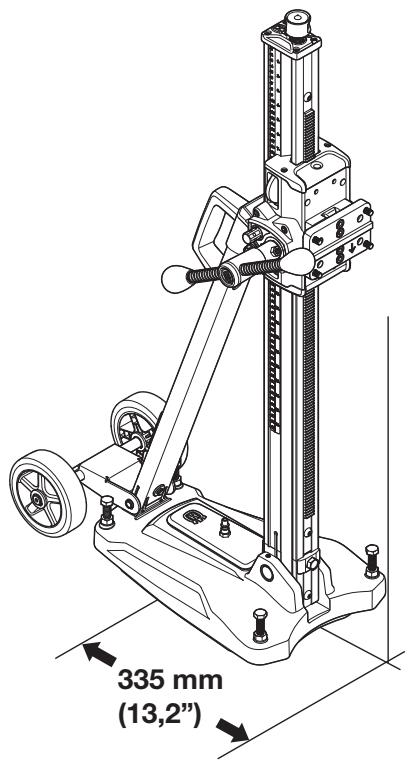

Stand dimensions (H x W x D)	1052 x 266 x 545 mm
Stand travel	686 mm / 27 inches
Column tilt angle	0 to 60°
Power supply	Single-phase, with ground plug
Cooling	Water (G 1/4" connection)
Protection	Double insulation, earth leakage circuit breaker, overload protection
Required safety equipment	Helmet, ear protectors, goggles/visor, breathing mask, gloves, boots
Sound pressure level	90 dB(A) at ear level
Guaranteed sound power level	107 dB(A)
Vibration level (handle)	< 2.5 m/s²
Possible stand fixings	Vacuum plate, expanding mandrel/anchoring, threaded rod
Included components (motor)	Switch, brush cover, stand attachment, spindle, speed selector, water connection, circuit breaker, manual
Included components (stand)	Leveling screws, pillar, scale, level indicator, power supply housing, fixing screws, handle, lever, bracket, quick-release, lock, gearbox, rack, gear train, adjusting screw, vacuum plate, quick coupling, cover, seals, hex keys, manual
Maintenance and cleaning	Clean with compressed air, do not wash with water. Grease moving parts. Replace carbon brushes if < 6 mm. Check cables and switch.
Repairability	Repairs by an authorized workshop. Genuine parts recommended.
Conformity standards	EU: 2006/42/EC (machinery directive), 2004/108/EC (EMC), 2006/95/EC (low voltage). Standards: EN ISO 12100, EN 55014-1, EN 12348, etc.

Frequently Asked Questions - DM S240 HUSQVARNA

What is the maximum drilling diameter with the DM S240 diamond drill?

The maximum drilling diameter is 250 mm (10 inches) in concrete, brick and stone.

What are the compatible supply voltages?

The DM S240 operates on single-phase with a nominal voltage of 230 V or 100-120 V depending on the version. The rated current is 10 A at 230 V and 20 A at 100-120 V.

How to fix the drill stand to the floor or wall?

The stand can be fixed in three ways: by vacuum plate (minimum pressure 635 mm Hg), by expanding mandrel or anchor (hole at 335 mm from center), or by threaded rod with washer and lock nut. For ceilings, use only an expanding mandrel or anchor.

What personal protective equipment is mandatory?

It is mandatory to wear: a safety helmet, ear protectors, protective goggles or a visor, a respiratory mask, sturdy gloves, close-fitting clothing and non-slip steel-toe boots.

How to maintain the motor carbon brushes?

The carbon brushes must be checked regularly (every week with daily use). If the remaining length is less than 6 mm, replace them. Both brushes must be changed at the same time. After replacement, run the machine at no load for 10 minutes for break-in.

What to do if the drill is exceptionally slow?

Check the drill bit: it may be worn, clogged or the diamond may be rounded. Clean it with a wire brush and increase the water pressure. If rebar is encountered, reduce the pressure on the handle to avoid tripping the circuit breaker.

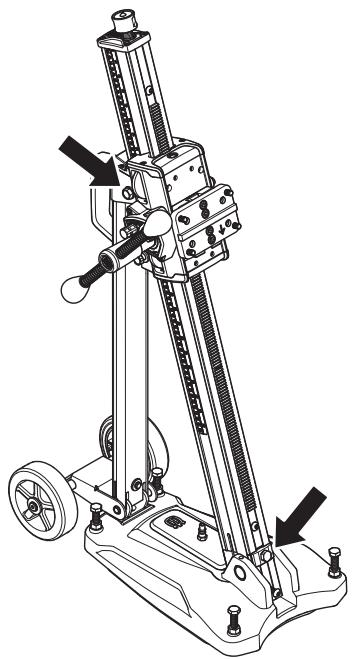

How to adjust the column tilt?

Loosen the locking screws of the column, adjust the desired angle between 0 and 60° using the feed lever, then retighten the screws. Use the angle indicator for approximate adjustment; for higher precision, use other measuring methods.

Does the machine have overload protection?

Yes, the DM S240 is equipped with an earth leakage circuit breaker and overload protection that cuts the current in case of heavy load or bit jamming.

Can the vacuum plate be used for ceiling drilling?

No, it is strictly forbidden to use the vacuum plate for ceiling or wall drilling. Use only an expanding mandrel or a suitable anchor. For ceiling drilling, equip the machine with a water collector and protect it with plastic.

What are the conformity standards of the DM S240 drill?

The machine complies with European directives: 2006/42/EC (machinery), 2004/108/EC (electromagnetic compatibility), and 2006/95/EC (electrical equipment). Harmonized standards include EN ISO 12100, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3 and EN 12348.

USER MANUAL DM S240 HUSQVARNA

Icon of an open book inside a circle (no text or symbols)

Operator's manual

Please read the operator's manual carefully and make sure you understand the instructions before using the machine.

Simple line drawing of a mechanical clamp or lever (no text or symbols)

GB ES DE FR

Symbols on the machine:

WARNING! The machine can be a dangerous tool if used incorrectly or carelessly, which can cause serious or fatal injury to the operator or others.

Please read the operator's manual carefully and make sure you understand the instructions before using the machine.

Always wear:

• Approved protective helmet
• Approved hearing protection
• Protective goggles or a visor
- Breathing mask

This product is in accordance with applicable EC directives.

Environmental marking. Symbols on the product or its packaging indicate that this product cannot be handled as domestic waste. It must instead be submitted to an appropriate recycling station for the recovery of electrical and electronic equipment.

By ensuring that this product is taken care of correctly, you can help to counteract the potential negative impact on the environment and people that can otherwise result through the incorrect waste management of this product.

For more detailed information about recycling this product, contact your municipality, your domestic waste service or the shop from where you purchased the product.

Ensure that water cannot leak into the machine when drilling in the ceiling. Use an appropriate water collector and cover the machine in plastic, but do not cover the air intakes and air outlets.

Other symbols/decals on the machine refer to special certification requirements for certain markets.

Symbols in the operator's manual:

Inspection and/or maintenance should be carried out with the motor switched off and the plug disconnected.

Always wear approved protective gloves.

Regular cleaning is required.

Visual check.

Protective goggles or a visor must be worn.

CONTENTS

Contents

KEY TO SYMBOLS

Symbols on the machine: 2

Symbols in the operator's manual: 2

CONTENTS

Contents 3

WHAT IS WHAT?

What is what on the drilling machine? 4

WHAT IS WHAT?

What is what on the stand? 5

SAFETY INSTRUCTIONS

Steps before using a new drilling machine 6

Personal protective equipment 6

Machine's safety equipment 7

General safety precautions 8

PRESENTATION

Drill motor and stand 10

Stand 10

Drill motor 10

ASSEMBLY

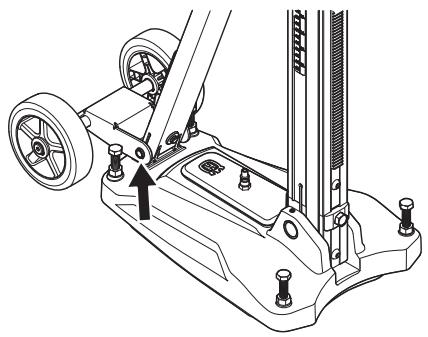

Fit the wheel kit 11

Secure the stand 11

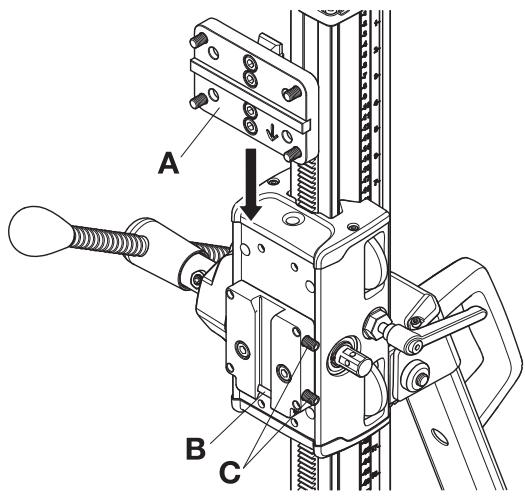

Assembly of drill motor 12

Adjust the column tilt 12

STARTING AND STOPPING

Before starting 13

Starting 13

Stopping 13

MAINTENANCE

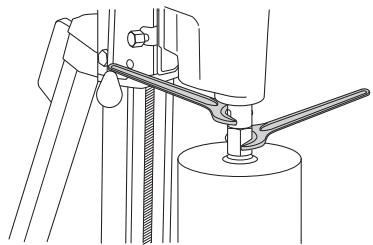

Changing the drill bit 14

Maintenance of the drill motor 14

Stand maintenance 15

Troubleshooting schedule 16

TECHNICAL DATA

Drill motor 17

Drill stand 17

EC-declaration of conformity 18

Technical diagram of a mechanical device with numbered parts labeled 1 to 4

Technical diagram of a mechanical drill bit with numbered parts labeled 5 and 6

8 Husqvarna MUSEVARNS CONSTRUCTION PRODUCTS

7

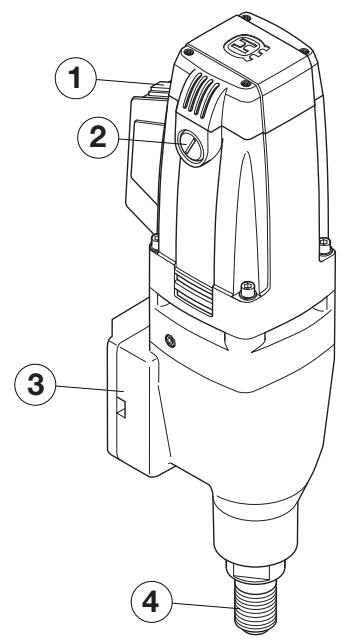

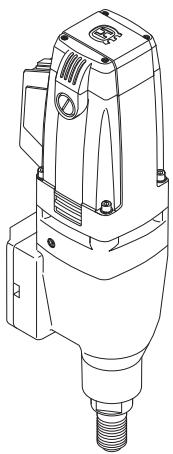

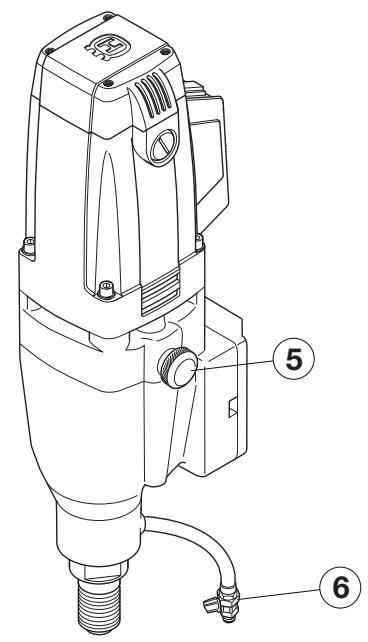

What is what on the drilling machine?

1 Switch

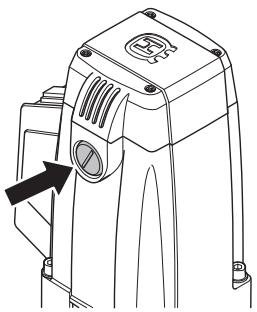

2 Carbon brush cover
3 Fixing for stand
4 Drill spindle

5 Gear selector

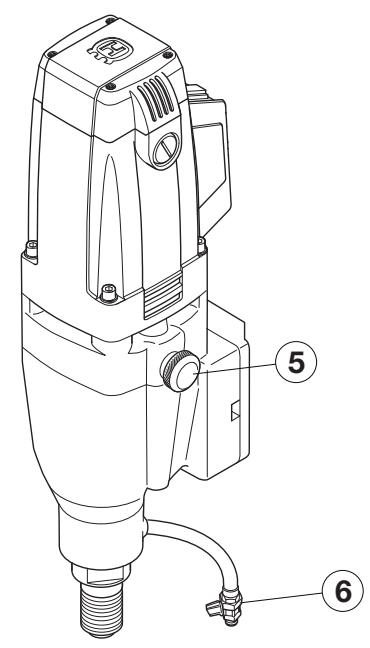

6 Water connector
7 Ground fault circuit interrupter (not for GB)
8 Operator's manual

Technical diagram of a mechanical device with numbered components and an inset image showing a Husqvarna construction product.

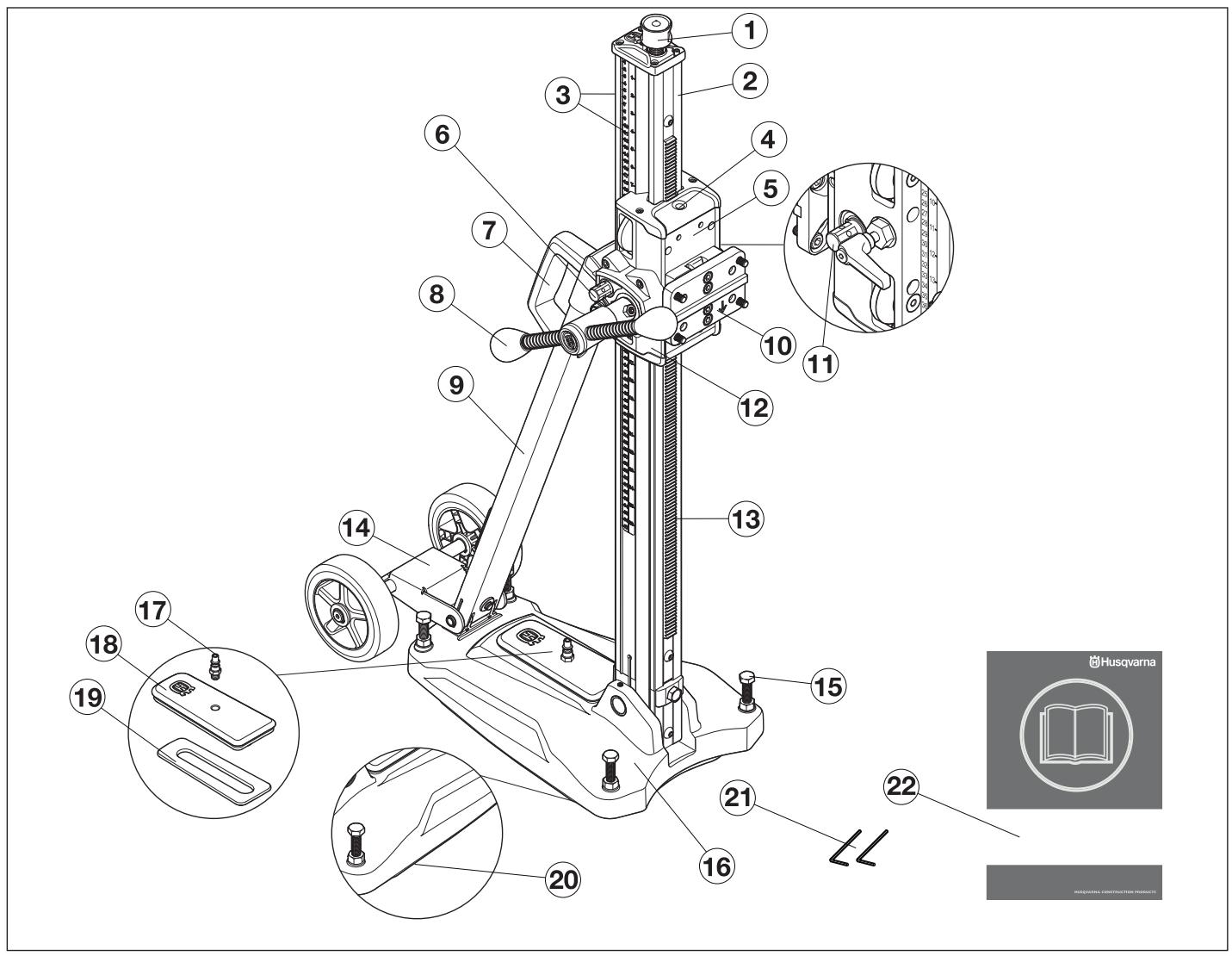

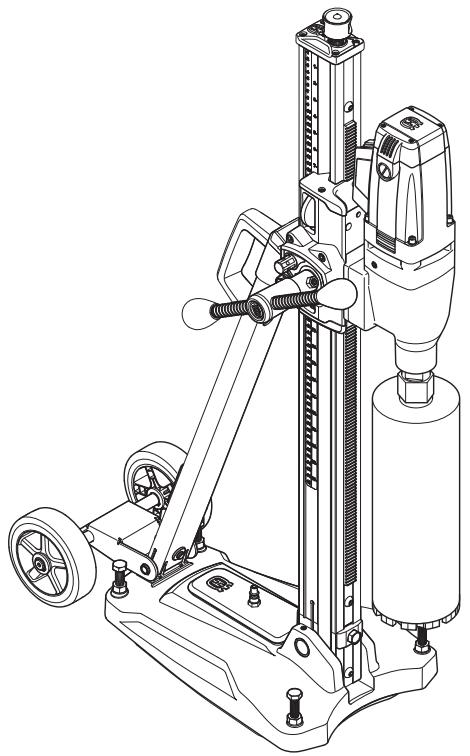

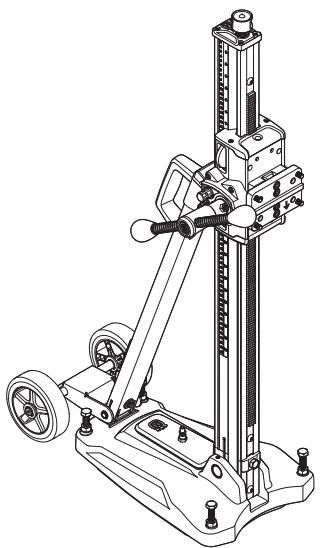

What is what on the stand?

1 Jacking screw
2 Drill column
3 Depth and tilt scale
4 Vertical and horizontal level indicator
5 Feeder housing
6 Locking screw, column tilt
7 Carrying handle
8 Feed lever
9 Back support
10 Quick mounting
11 Feeder housing lock

12 Gear box
13 Rack
14 Wheel set (removable)
15 Leveling adjustment screws
16 Base plate with integrated vacuum function
17 Quick coupling for vacuum pressure
18 Vacuum cover
19 Gasket, vacuum cover
20 Gasket, base vacuum suction
21 Allen key (3 mm, 4 mm)
22 Operator's manual

Steps before using a new drilling machine

• Do not use the drilling machine without first reading and understanding the contents of this Operator's Manual.
• This machine is designed for and intended for drilling concrete, brick and different stone materials. All other use is improper.
• The machine is intended for use in industrial applications by experienced operators.

Always use common sense

It is not possible to cover every conceivable situation you can face when using a drilling machine. Always exercise care and use your common sense. Avoid all situations which you consider to be beyond your capability. If you still feel uncertain about operating procedures after reading these instructions, you should consult an expert before continuing. Do not hesitate to contact your dealer or us if you have any more questions about the use of the drilling machine. We will willingly be of service and provide you with advice as well as help you to use your drilling machine both efficiently and safely.

Do not hesitate to contact your dealer if you have any more questions about the use of the machine. We will willingly be of service and provide you with advice as well as help you to use your machine both efficiently and safely.

Let your Husqvarna dealer check the drilling machine regularly and make essential adjustments and repairs.

Husqvarna Construction Products has a policy of continuous product development. Husqvarna reserves the right to modify the design and appearance of products without prior notice and without further obligation introduce design modifications.

All information and all data in the Operator's Manual were applicable at the time the Operator's Manual was sent to print.

WARNING! Under no circumstances should you modify the original design of the machine without approval from the manufacturer. Always use original spare parts. Unauthorised modifications and/or accessories may lead to serious injury or death to the user or others.

WARNING! The use of products such as cutters, grinders, drills, that sand or form material can generate dust and vapours which may contain hazardous chemicals. Check the nature of the material you intend to process and use an appropriate breathing mask.

Personal protective equipment

WARNING! You must use approved personal protective equipment whenever you use the machine. Personal protective equipment cannot eliminate the risk of injury but it will reduce the degree of injury if an accident does happen. Ask your dealer for help in choosing the right equipment.

• Protective helmet
• Hearing protection
  • Protective goggles or a visor

- Breathing mask

• Heavy-duty, firm grip gloves.

- Tight-fitting, heavy-duty and comfortable clothing that permits full freedom of movement.

Line drawing of a pair of trousers with a belt buckle (no text or symbols)

• Boots with steel toe-caps and non-slip sole.

• Always have a first aid kit nearby.

Machine's safety equipment

This section describes the machine's safety equipment, its purpose, and how checks and maintenance should be carried out to ensure that it operates correctly. See the "What is what?" section to locate where this equipment is positioned on your machine.

WARNING! Never use a machine that has faulty safety equipment! Carry out the inspection, maintenance and service routines listed in this section.

All servicing and repair work on the machine requires special training. This is especially true of the machine's safety equipment. If your machine fails any of the checks described below you must contact your service agent. When you buy any of our products we guarantee the availability of professional repairs and service. If the retailer who sells your machine is not a servicing dealer, ask him for the address of your nearest service agent.

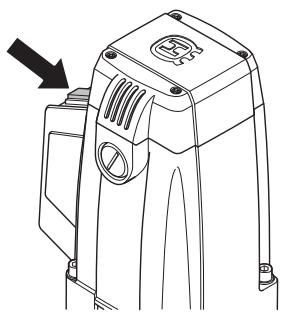

Switch

The power switch should be used to start and stop the machine.

Technical line drawing of a mechanical device with no visible text or symbols

Checking the power switch

• Start the machine by switching on the on-off switch.
• Switch the on-off switch off to stop the machine.
• A defective power switch should be replaced by an authorized service workshop.

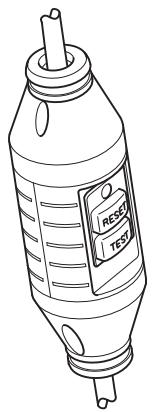

Ground fault circuit interrupter

Ground fault circuit interrupters are for protection in case an electrical fault should occur.

The LED indicates that the ground fault circuit interrupter is on and that the machine can be switched on. If the LED is not on, push the RESET button (green).

RESET TEST

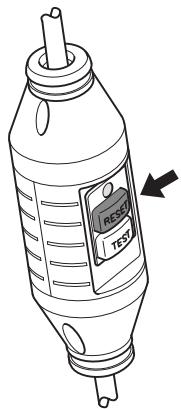

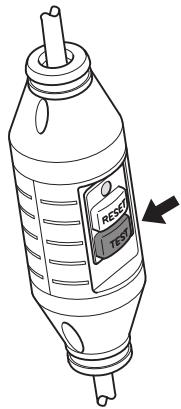

Check the ground fault circuit interrupter

- Connect the machine to the socket. Push the RESET button (green) and the red LED lights up.

RESO TEST

• Start the machine by pressing the power switch.
• Push the TEST button (blue).

RESET TEST

• The ground fault circuit interrupter should trip and the machine switch off instantly. If not, contact your dealer.
• Reset with the RESET button (green).

General safety precautions

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• People and animals can distract you causing you to lose control of the machine. For this reason, always remain concentrated and focused on the task.
• Do not use the machine in bad weather, such as dense fog, heavy rain, strong wind, intense cold, etc. Working in bad weather is tiring and can lead to dangerous conditions, e.g. slippery surfaces.
• Never start to work with the machine before the working area is clear and you have a firm foothold. Look out for any obstacles with unexpected movement. Ensure that no material can become loose and fall, causing injury when operating the machine.
• Always check the rear side of the surface where the drill bit will emerge when drilling right through. Secure and cordon off the area and make sure that no one can be injured or material damaged.

Electrical safety

WARNING! There is always a risk of shocks from electrically powered machines. Avoid unfavourable weather conditions and body contact with lightning conductors and metal objects. Always follow the instructions in the Operator's manual to avoid damage.

WARNING! Do not wash the machine with water, as water can enter the electrical system or the engine and cause damage to the machine or short circuit.

WARNING! The machine (Great Britain 110 V) is not equipped with a ground fault circuit interrupter. The machine must always be used with an isolating transformer for protection in case an electrical fault should occur.

• The machine should be connected to an earthed outlet socket.
• Check that the mains voltage corresponds with that stated on the rating plate on the machine.
• Check that the cord and extension cord are intact and in good condition. Use an extension cord intended for outdoor use.
• Never use the machine if the cord is damaged, hand it in to an authorized service workshop for repair.
• Do not use an extension cord while it is rolled up to avoid overheating.
• Never carry the machine by means of the cord and never pull out the plug by pulling the cord.
• Keep all cords and extension cords away from water, oil and sharp edges. Make sure the cord is not pinched in doors, fences or the like. Otherwise it can cause the object to become live.
• The power tool should not be exposed to more moisture than what is provided by the water system. Do not expose the power tool to rain. Water entering a power tool will increase the risk of electric shock.
• Ensure the cord is behind you when you start to use the machine so that the cord will not be damaged.

Personal safety

WARNING! There is always a risk of crush injuries when working with products containing moving parts. Wear protective gloves to avoid body injuries.

• Wear personal protective equipment. See instructions under the heading Personal protective equipment.
• Never use the machine if you are tired, if you have drunk alcohol, or if you are taking medication that could affect your vision, your judgement or your co-ordination.
• Prevent unintentional starting. Ensure the switch is in the OFF-position before connecting to power source. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Never allow anyone else to use the machine without first ensuring that they have understood the contents of the operator's manual.
• Be careful as clothing, long hair, and jewellery can get caught in moving parts.
• Remain at a distance from the drill bit when the motor is running.
• Make sure that no pipes or electrical cables are routed in the area to be drilled.
• Never leave the machine unsupervised with the motor running.
  • Always unplug the machine during longer work breaks.
• Never work alone, always ensure there is another person close at hand. Apart from being able to receive help to assemble the machine, you can also get help if an accident should occur.

Use and care

• Never use a machine that is faulty. Carry out the checks, maintenance and service instructions described in this manual. Some maintenance and service measures must be carried out by trained and qualified specialists. See instructions under the heading Maintenance.
• Inspection and/or maintenance should be carried out with the motor switched off and the plug disconnected.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Never use a machine that has been modified in any way from its original specification.
• Do not overload the machine. Overloading can damage the machine.
• Keep tools sharp and clean in order to enable safer work.
• Keep all parts in good working order and ensure that all fixtures are properly tightened.

Transport and storage

• Do not store or transport the drilling machine with the drill bit fitted in order to protect your drilling machine and drill bits from damage.
• Store the drilling machine in a lockable area so that it is out of reach of children and unauthorised persons.
• Store the drilling machine and stand in dry and frost free conditions.

Drill motor and stand

Technical line drawing of a mechanical testing machine with dual wheels and a cylindrical base (no text or symbols)

It is our wish that you will be satisfied with your product and that it will be your companion for a long time. Think of this operator's manual as a valuable document. By following its content (using, service, maintenance etc) the life span and the second-hand value of the machine can be extended. If you will sell this machine, make sure that the buyer will get the operator's manual.

A purchase of one of our products gives you access to professional help with repairs and services. If the retailer who sells your machine is not one of our authorised dealers, ask him for the address of your nearest service workshop.

Husqvarna Construction Products has a policy of continuous product development. Husqvarna reserves the right to modify the design and appearance of products without prior notice and without further obligation introduce design modifications.

Stand

Technical line drawing of a mechanical testing apparatus with wheels and a vertical scale (no text or symbols)

• The stand is for drilling in roofs, walls and floors.
• The drill stand is equipped with a quick connection plate for the drillmotor.
• The base plate is made of aluminium and is therefore very light weight. It has a integrated vacuum plate.
  • The wheel kit is dismountable.
  • The column can be tilted 0-60°.
• The feeder housing's transmission is adjustable. The higher gives 2.5:1 and the lower, 1:1.
• Feed lever can be used to adjust base plate leveling screws and set desired column tilt.

Drill motor

Technical line drawing of a mechanical device with threaded base and mounting bracket (no text or symbols)

• DMS 240 is an electric drill, intended for drilling concrete, brick and various stone materials.
• The drilling machine has a modular design and is easy to assemble.
  • The machine is intended for stand mounted drilling.
  • The machine is equipped with two gears.
  • The machine is double insulated.
• The overload protection disconnects the power, if the machine is subjected to heavy loads or if the drill bit jams.
  • The machine is water cooled.

Fit the wheel kit

Fit the wheel set in the mount on the backside of the bottom plate and tighten the screws.

Technical line drawing of a mechanical assembly with wheels and mounting feet (no text or symbols)

Secure the stand

There are three methods for fixing the stand.

• Securing with vacuum plate
• Fixing with expander or anchor
• Fixing with threaded rod, washer and lock nut

Securing with vacuum plate

WARNING! The vacuum plate must never be used for ceiling or wall drilling. Careless or incorrect use can result in serious, even fatal injury.

If the vacuum plate is used, make sure the support surface is not porous and can loosen from the floor or the wall. Make sure that the vacuum pump has sufficient power to secure the vacuum plate.

- Connect the vacuum pump to the quick coupling for vacuum pressure on the base plate.

Technical line drawing of a mechanical device with wheels and a base mount (no text or symbols)

• Place the bottom plate in the desired position.
• Switch on the vacuum pump. A minimum pressure of 635 mm Hg (25 inch Hg) must be reached so that the base plate seals tightly against the surface.

Fixing with expander or anchor

IMPORTANT! When drilling roofs, only expander or anchor suitable for surfaces exposed to tensile forces should be used.

Use only expander or anchor which is approved for current application.

335 mm (13,2")

• Drill a hole for the expander/anchor at a distance of 335 mm (13.2") from the centre of the hole.
• Bolt down the base plate.
  Check carefully that the expander is secured correctly.
• The bottom plate can be adjusted to the surface by using the leveling adjustment screws. Use the feed lever.

Fixing with threaded rod, washer and lock nut

If the mounting surface is inadequate for drilling in roofs or walls, the base plate can be fixed using a threaded rod, which is mounted on the backside with a washer and lock nut.

Drilling in the ceiling

WARNING! Use a water collector to avoid water penetrating into the machine. The machine must be covered with plastic or the like in order to prevent water penetrating into the machine, but do not cover the air intakes and air outlets.

Assembly of drill motor

IMPORTANT! Always pull out the plug from the outlet socket before cleaning, maintenance or assembly.

• Always remove the drill bit before the motor is mounted or dismounted.
• Lock the feed housing lock.
  • Fit the drill motor on the quick mount (A).
• Mount the quick mounting and drilling machine in the track on the locking clamp.
• Secure with the locking screws (C).

A B C

Adjust the column tilt

Technical line drawing of a mechanical device with gears and shafts (no text or symbols)

Loosen the locking screws for column tilt and set the desired drill angle. Tighten the locking screws. Use the feed lever. The column can be tilted 0-60°.

The angle indicator can be used for approximate adjustment. If higher precision is required, alternative measuring methods should be used.

Before starting

WARNING! Note the following before starting:

The machine should be connected to an earthed outlet socket.

Check that the mains voltage corresponds with that stated on the rating plate on the machine. Keep people and animals well away from the working area.

WARNING! Before drilling, check that all locking screws are tightened well.

Serious accidents can occur if the concrete core remains in the drill when backing out the drill motor/drill from the floor, wall or ceiling.

• Prevent unintentional starting. Ensure the switch is in the OFF-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

Make sure that:

• The switch is undamaged. If not, the switch must be replaced by an authorised repairman.
  • The machine and its equipment are correctly installed:

- The drill is secured properly.

- The stand is firmly attached.

- Secure the machine on the stand using a suitable method.

- Wear personal protective equipment. See instructions under the heading Personal protective equipment.

• Water cooling is connected to the machine.

Ground fault circuit interrupter

Make sure the ground fault circuit interrupter is switched on. The LED indicates that the ground fault circuit interrupter is on and that the machine can be switched on. If the LED is not on, push the RESET button (green).

Check the ground fault circuit interrupter. See instructions under the heading Checking, maintaining and servicing the machine's safety equipment.

Drilling in the ceiling

WARNING! The vacuum plate must never be used for ceiling drilling.

Use a water collector to avoid water penetrating into the machine. The machine must be covered with plastic or the like in order to prevent water penetrating into the machine, but do not cover the air intakes and air outlets.

WARNING! Check that no one on the floor below can be injured by falling concrete cores.

Starting

• Turn on the water cooling.
- Press in the switch fully.
- Allow the machine to come up to full speed before contacting workpiece.
- Start to feed the drill bit with the help of the feed handle.

Use very light pressure for the first few millimeters to keep the bit from wandering. Then proceed normally. It's not necessary to use excessive force. This will only slow drilling and overload the motor.

Use especially light pressure when you encounter steel reinforcing rods. High pressure against reinforcing rods will trip the circuit breaker. If the circuit breaker trips, remove the bt from contact with the workpiece before resetting.

Stopping

WARNING! The drill bit continues to rotate for a while after the motor has been switched off. Do not stop the drill bit with your hands. Personal injuries can occur.

Shut down the machine by pressing the power switch.

Cooling

Run the machine unloaded for a minute or two to cool the motor.

This will also blow dust and dirt out of the motor, ensuring longer life for the machine.

Changing the drill bit

WARNING! Always pull out the plug from the outlet socket before cleaning, maintenance or assembly.

1 Pull out the plug.
2 Get:

• The new drill bit.
• Open-ended spanners.
• Water-resistant grease.

3 Remove the old drill bit using the open-ended spanners.
4 Apply water-resistant grease to the thread of the new drill bit.
5 Attach the drill bit using the open-ended spanners.

Technical line drawing of a mechanical assembly with lever and base (no text or symbols)

Maintenance of the drill motor

WARNING! Inspection and/or maintenance should be carried out with the motor switched off and the plug disconnected.

The lifetime of your machine can be extended considerably if it is used, cared for and maintained in the proper manner.

Cleaning

• Keep the machine and drill bit clean in order for drilling to be carried out safely.
• In order for the machine to always be cooled sufficiently the cooling air openings must be kept clear and clean. Blow down the machine regularly with compressed air.

WARNING! Do not wash the machine with water, as water can enter the electrical system or the engine and cause damage to the machine or short circuit.

Electrical Feed

WARNING! Never use damaged cables. They can cause serious, even fatal, personal injuries.

Check that the cord and extension cord are intact and in good condition. Never use the machine if the cord is damaged, hand it in to an authorized service workshop for repair.

Repairs

IMPORTANT! All types of repairs may only be carried out by authorised repairmen. This is so that the operators are not exposed to great risks.

Clutch disc

If transmitted torque is lowered, clutch disc requires adjustments. Entrust this to an authorized service center.

Replacing the carbon brushes

The carbon brushes must be removed and checked regularly. Weekly if the machine is used daily or at longer intervals if the machine is used more seldom. The area of wear should be even and undamaged.

Both carbon brushes must always be replaced as a pair, but one at a time. Do as follows:

1 Remove the cover for the carbon brushes using a flat wide screwdriver.

Technical line drawing of a mechanical device with a black arrow pointing to a component (no text or symbols present)

2 Carefully remove the carbon brushes. The carbon brushes must be replaced if there is less than 6 mm remaining on the brushes.
3 Fit new carbon brushes.
4 Screw on the brush cover.
5 Let the machine idle for 10 minutes to run in the new carbon brushes.

Daily maintenance

1 Check that nuts and screws are tight.
2 Check that the power switch unit works smoothly.
3 Clean the outside of the machine.
4 Check and clean the cooling air openings.
5 Check that the cord and extension cord are intact and in good condition.

Stand maintenance

WARNING! Inspection and/or maintenance should be carried out with the motor switched off and the plug disconnected.

Cleaning and lubrication

IMPORTANT! Remove the drill motor. For maintenance of the drill motor see maintenance of the drill motor.

• It is important that the drill stand is kept clean for functionality to be maintained.
• Clean the stand using a high pressure washer and then wipe dry.
• Lubricate the moving parts on the stand. Apply grease to counteract corrosion on the contact surfaces.

Adjusting the feed housing

If there is play between the column and the feed housing, the play must be adjusted.

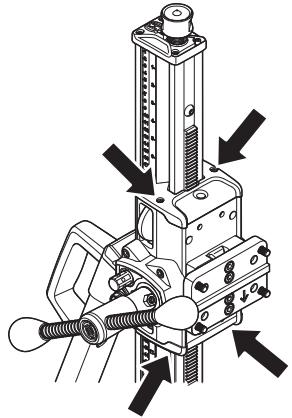

- Remove top and bottom plastic carriage covers.

Technical line drawing of a mechanical assembly with directional arrows indicating movement or force (no text or symbols present)

- Loosen set screws holding guide roller shafts.

Technical line drawing of a mechanical clamp or bracket assembly with no visible text or symbols

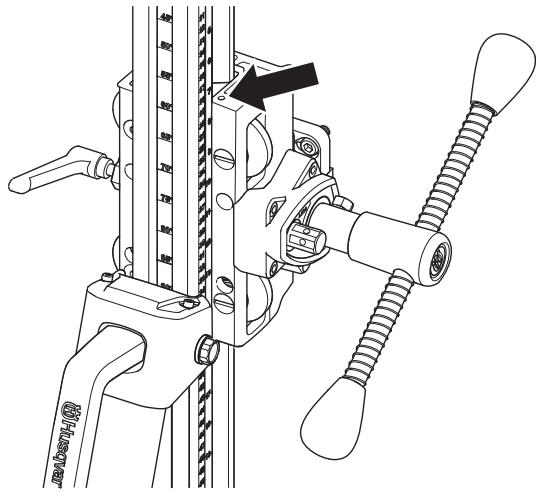

- Start with the top guide roller. Use a flat screwdriver and turn clockwise to guide the roller closer to the column.

Tighten set screw to lock the guide roller shaft.

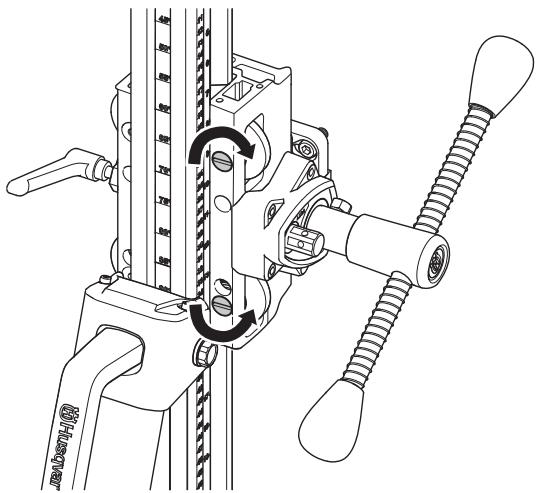

- Adjust the lower roller by screwing anti-clockwise to guide the roller nearer to the column.

Technical line drawing of a mechanical clamp or clamping device with no visible text or symbols

• Tighten set screw to lock the guide roller shaft.

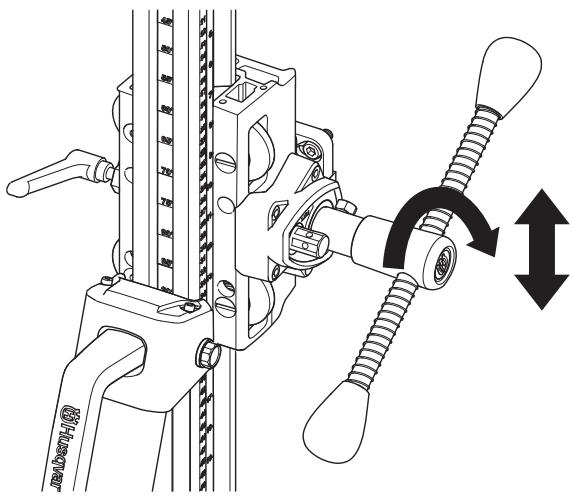

• Use the feed lever to see if the feed housing moves smoothly on the column. If not, adjust the rollers again.

Technical line drawing of a mechanical clamp or spring device with no visible text or symbols

• Fit the top and bottom plastic carraiage covers.

Repairs

IMPORTANT! All types of repairs may only be carried out by authorised repairmen. This is so that the operators are not exposed to great risks.

Daily maintenance

1 Check that nuts and screws are tight.
2 Clean the outside of the machine.
3 Check that the feed crank can be moved without resistance.
4 Check that the gearing moves easily and does not cause any noise.
5 Check for any wear or damage on the column.
6 Check that the feed housing can be moved easily and does not backlash against the stand column.

Troubleshooting schedule

Problem	Steps on the spot	Probable cause	Solution
Drilling is unusually slow.	Check bit.	Bit is worn out.	Replace bit.
		Bit is clogged with chips.	Clean bit with a wire brush and increase water pressure.
		Diamond is rounded.	Use a softer bond bit. Increase force on handle.
	Check for metal powder in waste water.	Drill is cutting reinforcing rods.	Ease up the handle to avoid tripping the circuit breaker.
Bit is stuck.	Shut off drill.	Stone or steel bar is caught between core and bit.	Using a wrench, rotate the bit clockwise to free it while backing out the handle. (Rotating it counterclockwise may unscrew the bit from the tube.)
		Base wanders during drilling.	Reset the base and tighten securely.
		Clamp has too much free play.	Adjust clearance of clamp properly.
		The bit's outer diameter is the same as the tube's.	Replace bit.
Tube is abraded.		Clamp has too much free play.	Adjust clearance of clamp properly.
		Bit, tube, or base are loose.	Tighten securely.
		Bit is deformed.	Replace bit.
		Chips not discharging well.	Increase water pressure and volume.

TECHNICAL DATA

Drill motor

Electric motor	Single-phase
Rated voltage, V	230/100-120
Rated output, W	2400

Rated current, A

230 V	10A
100-120 V	20A

Weight, kg/lbs

5,9/13

Spindle speed, idle, rpm

Position 1	390
Position 2	890

Drill bit

Max. drill diameter, mm/inches	250/10
Spindle thread, inner	G 1/2" outer 5/8" 11 UNC
Spindle thread, outer	1 1/4" 7 UNC

Water connector

G 1/4”

Noise emissions (see note 1)

Sound power level, measured dB(A)	106
Sound power level, guaranteed LWA dB(A)	107

Sound levels (see note 2)

Sound pressure level at the operators ear, dB(A)

90

Vibration levels (see note 3)

Handle, m/s2

<2,5

Note 1: Noise emissions in the environment measured as sound power ( L_WA ) in conformity with EN 12348.
Note 2: Noise pressure level according to EN 12348. Reported data for noise pressure level has a typical statistical dispersion (standard deviation) of 1.0 dB(A).
Note 3: Vibration level according to EN 12348. Reported data for vibration level has a typical statistical dispersion (standard deviation) of 1 m/s^2 .

Drill stand

Height, mm/inches	1052/41,4
Width, mm/inches	266/10,5
Depth, mm/inches	545/21,5

Weight, kg/lbs

14,5/32

Travel length, mm/inch	686/27
The column's angling	0-60°

EC-declaration of conformity

(Applies to Europe only)

Husqvarna AB, SE-433 81 Göteborg, Sweden, tel: [phone], declares under sole responsibility that drilling machine and stand Husqvarna DMS 240 from 2010's serial number and onward (the year is stated in plain text on the type plate plus a subsequent serial number) conform with the regulations in the COUNCIL'S DIRECTIVE:

• of May 17, 2006 "relating to machinery" 2006/42/EC
• of December 15, 2004 "relating to electromagnetic compatibility" 2004/108/EC.
• of December 12, 2006 "relating to electrical equipment" 2006/95/EC.

The following standards have been applied: EN ISO 12100:2003, EN 55014-1:2006, EN 55014-2/A1:2001, EN 61000-3-2:2006, EN 61000-3-3/A1/A2:2005, EN 12348/A1:2009.

Göteborg December 29, 2009

Handwritten signature or scribble on a white background, possibly a signature or autograph

Henric Andersson

Vice President, Head of Power Cutters and Construction Equipment

Husqvarna AB

(Authorized representative for Husqvarna AB and responsible for technical documentation.)

Technical diagram of a mechanical device with numbered parts labeled 1 to 4

Technical diagram of a mechanical device with numbered parts labeled 5 and 6

⑧ Husqvarna HUSQVARNA CONSTRUCTION PRODUCTS

7

Componentes de la taladradora

Technical diagram of a mechanical device with numbered components and an inset image showing a Husqvarna construction product.

Line drawing of a pair of trousers with a belt buckle (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Control del interruptor

Technical line drawing of a mechanical testing machine with wheels and a cylindrical component (no text or symbols)

Technical line drawing of a mechanical testing apparatus with wheels and a vertical scale (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with wheels and mounting points (no text or symbols)

Sujeción de la base

Technical line drawing of a mechanical device with wheels and a vertical rod, showing no text or symbols

Technical line drawing of a mechanical device with wheels and adjustment knobs (no text or symbols)

Technical line drawing of a mechanical assembly with lever and base (no text or symbols)

Technical line drawing of a mechanical device with a black arrow pointing to a component (no text or symbols present)

Technical diagram of a mechanical assembly with directional arrows indicating movement or force (no text or symbols present)

Technical diagram of a mechanical device with labeled parts and an arrow indicating a specific component.

Technical line drawing of a mechanical clamp or clamping device with no visible text or symbols

Mechanical assembly diagram showing a clamp mechanism with bidirectional arrow indicating rotation (no text or symbols present)

Handwritten signature or scribble on a white background, possibly a signature or artistic mark

Henric Andersson

Technical diagram of a mechanical device with numbered parts labeled 1 to 4

Technical diagram of a mechanical drill bit with numbered parts labeled 5 and 6

⑧ Husqvarna

⑦

Technical diagram of a mechanical device with numbered components and an inset image of the Husqvarna logo.

Line drawing of a pair of trousers with a belt buckle (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical testing machine with wheels and a cylindrical component (no text or symbols)

Technical line drawing of a mechanical testing apparatus with wheels and a vertical scale (no text or symbols)

Technical line drawing of a mechanical device with threaded base and mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with wheels and mounting feet (no text or symbols)

Technical line drawing of a mechanical device with wheels and mounting points (no text or symbols)

Technical line drawing of a mechanical device with wheels and adjustment knobs (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Bohrmotorwartung

Technical line drawing of a mechanical device with a black arrow pointing to a component (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical clamp or spring device with labeled parts and an arrow indicating a specific component.

Technical line drawing of a mechanical clamp or clamping device with no visible text or symbols

Mechanical assembly diagram showing a clamp mechanism with two directional arrows indicating motion (no text or symbols present)

Handwritten signature or scribble on a white background, possibly a signature or autograph

Henric Andersson

Vice President, Head of Power Cutters and Construction Equipment

Husqvarna AB

Technical diagram of a mechanical drill bit with numbered parts labeled 1 to 4

Technical diagram of a mechanical device with numbered parts labeled 5 and 6

⑧ Husqvarna

⑦

Technical diagram of a mechanical device with numbered components and an inset image of the Husqvarna construction product.

Line drawing of a pair of trousers with a belt buckle (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

RESO TESD

Technical line drawing of a mechanical testing machine with wheels and a cylindrical component (no text or symbols)

Technical line drawing of a mechanical lifting device with wheels and mounting feet (no text or symbols)

Technical line drawing of a mechanical device with threaded base and mounting bracket (no text or symbols)

Technical line drawing of a mechanical device with wheels and mounting feet (no text or symbols)

Sécuriser le bâti

Technical line drawing of a mechanical device with wheels and mounting points (no text or symbols)

Technical line drawing of a mechanical device with wheels and adjustment knobs (no text or symbols)

Technical line drawing of a mechanical assembly with lever and base (no text or symbols)

Technical line drawing of a mechanical device with a black arrow pointing to a component (no text or symbols present)

Technical diagram of a mechanical assembly with directional arrows indicating motion or force (no text or symbols present)

Technical line drawing of a mechanical clamp or clamping device with no visible text or symbols

Technical diagram of a mechanical clamp or spring scale with labeled parts and directional arrows indicating motion or movement.

Mechanical assembly diagram showing a clamp mechanism with rotating components and directional arrows (no text or symbols)

Handwritten signature or scribble on a white background, possibly a signature or autograph

Henric Andersson
