TC60101GB - Coffee maker SIEMENS - Free user manual and instructions

Product Type	Coffee Maker
Brand	Siemens
Model	TC60101GB
Voltage	220–240 V~
Frequency	50/60 Hz
Power Consumption	900–1100 W
Capacity	Up to 10 cups (approx. 85-125 ml per cup)
Filter Type	1x4 filter bag (size 4)
Control	On/Off switch; optional cup selection switch (3-6 or 7-10 cups)
Automatic Shut-off	After approx. 40 minutes ("auto off")
Keep-Warm Function	Heated jug base keeps coffee warm
Water Tank	Removable? Not specified; filled directly
Jug Material	Glass
Dishwasher-Safe Parts	All removable parts (filter holder, jug, lid, etc.)
Descaling	Recommended every 3-6 weeks depending on water hardness and descaler type
Safety Features	Do not immerse; keep away from children under 8; use designated handles
Warranty	Conditions defined by local dealer

Frequently Asked Questions - TC60101GB SIEMENS

How do I descale the Siemens TC60101GB coffee maker?

Mix descaling agent according to manufacturer's instructions and pour into tank. Let stand for 5 minutes, then switch on. After 1 minute, switch off and let stand for 10 minutes. Repeat at least 3 times. Then flush twice with 9 cups of clean water. If your model has cup selection, set it to 3-6 cups during descaling. Regular descaling every 3-6 weeks is recommended.

Can I prepare tea with this coffee maker?

Yes, you can prepare tea using the coffee maker. Simply add tea leaves or a tea bag to the filter and proceed as with coffee. However, note that flavours may transfer to subsequent brews, so thorough cleaning is advised after use.

Why does my coffee not taste good?

Possible reasons include: using old or incorrectly ground coffee, not cleaning the appliance regularly, or mineral buildup from hard water. Descaling and cleaning all removable parts after each use can improve taste. Also ensure you use medium-ground coffee and the correct amount (approx. 7g per cup).

How many cups can the TC60101GB make?

The maximum capacity is 10 cups (approximately 85 ml per cup for small cups, 125 ml for large cups). For best results, brew at least 3 large cups to ensure proper temperature and strength.

How do I clean the coffee maker?

Always unplug before cleaning. Do not immerse the appliance. Wipe the exterior with a damp cloth. All removable parts (jug, filter holder, lid) are dishwasher-safe, but do not place them on the heater element or wedge them in the dishwasher. Clean all coffee-contact parts after each use.

Does the coffee maker turn off automatically?

Yes, the appliance has an automatic shut-off feature that switches it off after approximately 40 minutes to save energy. This cannot be adjusted.

What type of coffee should I use?

Use medium ground coffee with a 1x4 filter bag. Recommended dose is about 7 grams per cup. Use slightly more per cup when brewing fewer cups to maintain strength.

Can I put milk or instant drinks in the water tank?

No, only fill the tank with fresh water. Adding milk, instant tea, or coffee will affect the taste of subsequent brews and may damage the appliance.

How do I use the cup selection switch?

If your model has the additional switch, set it to position '6' for 3-6 cups or position '10' for 7-10 cups. This adjusts the brewing time and coffee strength accordingly. Always set before brewing.

What should I do if the brewing time becomes longer than usual?

This is a sign that descaling is needed. Mineral deposits can clog the system. Follow the descaling procedure in the manual. Also check that the filter is not clogged.

USER MANUAL TC60101GB SIEMENS

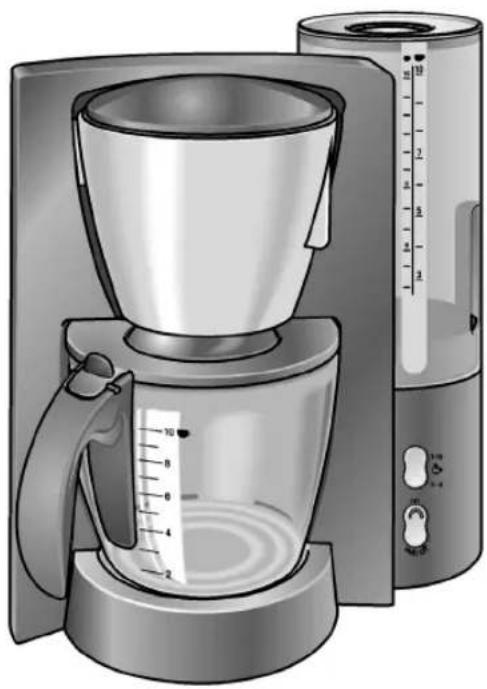

Exterior view of a Siemens coffee maker with clear glass and black control panel (no visible text or symbols)

TC 6....GB

siemens-home.com/welcome

en Instruction manual

Register your product online

Illustration of a hand pressing down on a coffee maker's side panel (no text or symbols)

Illustration of a hand pressing a cup onto a kitchen blender (no text or symbols)

Illustration of a cylindrical container with a curved pipe and arrow indicating flow or movement (no text or symbols)

Illustration of a coffee maker with a glass stand and digital scale (no text or symbols)

en

Congratulations on the purchase of your new SIEMENS appliance. In doing so, you have opted for a modern, high-quality domestic appliance. You can find further information about our products on our web page.

Contents

Safety instructions .... 3 Before using your appliance for the first time .... 4 Brewing coffee and keeping it warm .... 4 Cleaning and maintenance .... 4 Descaling the appliance .... 4 Technical specifications .... 5 Disposal .... 5 Warranty conditions .... 5

Safety instructions

Please read, follow and retain the operating instructions!

When passing on the appliance, enclose these instructions.

This appliance is designed for processing normal household quantities in the home or similar quantities in non-industrial applications.

Non-industrial applications include e.g. use in employee kitchens in shops, offices, agricultural and other commercial businesses, as well as use by guests in boarding houses, small hotels and similar dwellings.

Risk of electric shock!

Connect and operate the appliance only in accordance with the specifications on the rating plate.

To prevent injury, repairs to the appliance, such as replacing a damaged power cord, should be carried out by our customer service only.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers. Children under 8 years of age must be kept away from the appliance and the power cord and must not operate the appliance. Children shall not play with the appliance.

Cleaning and descaling must not be performed by children unless they are 8 years of age or older and are supervised.

Never immerse the appliance or mains cable in water.

Never leave the appliance unattended while it is switched on!

Do not use the appliance if the power cord and/or appliance are damaged. If there is a fault, pull out the mains plug immediately or switch off the power supply.

en

Risk of burns and risk of fire!

During operation take hold of the appliance parts and glass jug by the designated handles only.

Do not place the appliance on or near hot surfaces, e.g. hobs.

Never cover the base for the jug.

Risk of suffocation!

Do not let children play with packaging material.

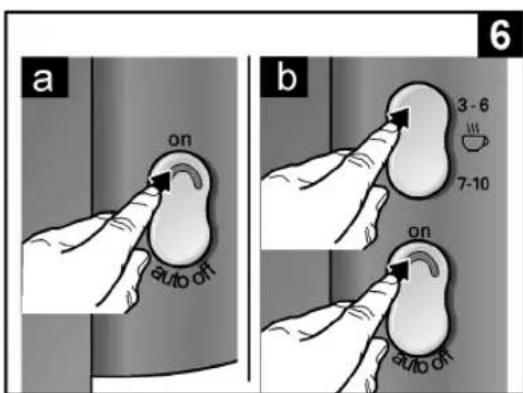

These operating instructions refer to several models:

- Basic model (Fig. 6a) with On/Off switch only,

- Model (Fig. 6b) has an additional switch for cup selection,

All models are programmed with an automatic shut-off "auto off" (to save energy) which switches the appliance off after approx. 40 minutes.

Before using your appliance for the first time

To clean the appliance, flush twice with 9 cups of water. The new appliance may emit a harmless odour.

In this case flush the appliance with a diluted vinegar solution (2 cups of vinegar to 6 cups of water), then flush the appliance twice with 9 cups of water.

Brewing coffee and keeping it warm

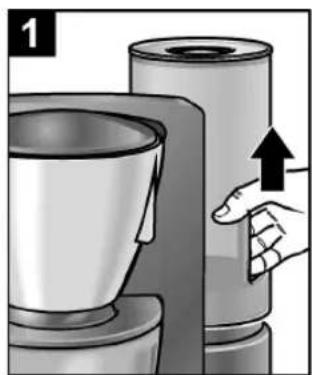

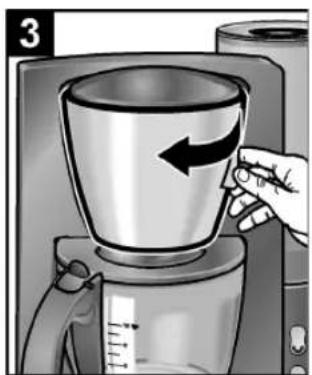

Figs. 1 to 5

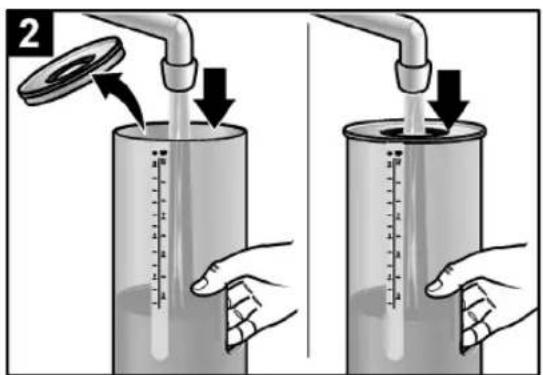

Fill the tank with water only, never milk or instant drinks such as tea or coffee (this will affect the taste of subsequent brews)!

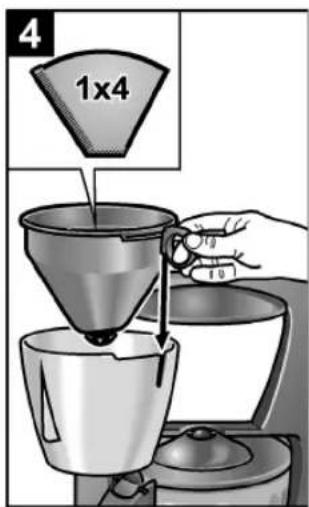

Insert 1x4 filter bag into the filter holder.

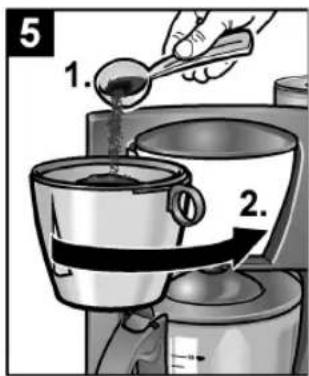

Use medium ground coffee (we recommend approx. 7 g per cup), add slightly more coffee per cup for a few cups than for a larger number of cups.

Brew at least three large cups, otherwise the coffee will not have the required temperature and strength.

= approx. 125 ml approx. 85 ml

The cup heater remains hot for some time after the appliance was switched off.

Allow the automatic coffee maker to cool down for 5 min. before refilling it with water.

Even tea can be prepared in this way.

Switch for cup selection

The strength and therefore the aroma can be selected by switching to 6 (3-6 cups) or 10 (7-10 cups).

Cleaning and maintenance

Electric shock risk

Before cleaning the appliance, pull out the mains plug.

Never immerse the appliance in water or clean in the dishwasher.

Do not use a steam cleaner.

All parts which come into contact with coffee should always be cleaned after use.

Residue will impair the taste.

All loose parts are dishwasher-proof, do not place them over the heater or wedge them into the dishwasher (deformation possible).

Wipe the outside of the housing with a damp cloth only. Do not use scouring agents.

Descaling the appliance

Descale the appliance regularly, at the latest if

– the brewing time becomes longer,

– excessive steam occurs,

– the appliance becomes louder.

Measure descaling agent according to the manufacturer's specifications and pour into the tank.

Leave the solution to stand for 5 min., then switch on the appliance, switch off after 1 min. and leave to stand for 10 min.

Repeat at least three times (more frequently depending on the calcification).

Flush residual solution out of the appliance.

en

Flush the appliance twice with 9 cups of clean water.

If models feature cup selection, set the switch to 3–6 cups during descaling.

Thoroughly rinse all loose parts.

Descaling recommendation

If water hardness is normal and the appliance is used daily, descale every 6 weeks.

If using descaling agents which are based on vinegar or citric acid, descale every 3 weeks.

Technical specifications

Voltage 220–240 V\~

Frequency 50/60 Hz

Power 900–1100 W

Disposal

This appliance has been identified in accordance with the European directive 2012/19/EC on Waste Electrical and Electronic Equipment – WEEE.

The Directive paves the way for effective EU-wide withdrawal and utilization of waste appliances.

Please ask your dealer or inquire at your local authority about current means of disposal.

Warranty conditions

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold.

Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased.

The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Subject to alterations.
