Product Type	Combination Microwave Oven with Grill and Steam
Model	HMGS2594DBK
Rated Voltage	230 V ~ 50 Hz
Rated Input Power (Microwave)	1450 W
Rated Output Power (Microwave)	900 W
Microwave with Steam Input	2300 W
Grill with Steam Input	1900 W
Oven Capacity	25 L
Turntable Diameter	315 mm
External Dimensions (W x D x H)	513 x 440 x 305 mm
Net Weight	16.5 kg
Cooking Modes	Microwave, Grill, Combi (2 levels), Steam, Defrost (by weight/time), Auto Menus (8), Steam Menus (7), Microwave/Grill+Steam Combi
Microwave Power Levels	10%, 30%, 50%, 80%, 100%
Grill Power	100% (alone), 45% or 64% in Combi modes
Steam Function	Yes, with water tank (max capacity not specified, use purified water)
Child Lock	Yes
Cleaning Function	Yes (CL-1 for 5 min, CL-2 for 10 min)
Accessories Included	Glass tray, Turntable ring assembly, Grill rack, Crusty plate, Water tank, Profile collecting water
Safety Features	Door safety interlocks, grounding required, overheat protection, steam protection
Clearance Requirements	At least 7.5 cm from walls (one side open), 30 cm above
Noise Level	Typical microwave operation; fan runs 3 min after door open

Frequently Asked Questions - HMGS2594DBK HOOVER

How do I set the clock on my Hoover HMGS2594DBK microwave?

Press the clock button once, turn the knob to set hours (0-23), press +30 to confirm, then turn to set minutes (0-59), and press +30 again. The clock will display with a colon flashing.

What does error code E-2 mean?

E-2 indicates the water tank is empty or has very little water. The oven will stop working. Refill the water tank with purified water, push it back in, and press +30 to resume cooking.

Can I use metal utensils in this microwave?

No, metal utensils, aluminum trays, or metal twist ties can cause arcing and fire. Only use microwave-safe containers. The crusty plate has a special coating but should not be cut with metal knives.

How do I use the steam function?

Fill the water tank with purified water (not above MAX), push it firmly into the oven. Select a steam menu (S-01 to S-07) by turning the dial left, press +30 to confirm, choose weight, and start. Ensure the water collection profile is attached at the bottom of the door.

How do I activate the child lock?

In idle mode, press and hold the STOP button for 3 seconds. A long beep sounds and the lock indicator appears. To unlock, press and hold STOP again for 3 seconds.

What is the cleaning function and how do I use it?

Press the clock button once for CL-1 (5 min) or twice for CL-2 (10 min). Press +30 to confirm and start. The oven will heat with steam to loosen dirt. Wipe clean after.

My microwave doesn't start. What could be wrong?

Check if the power cord is plugged in tightly. If not, unplug and plug again after 10 seconds. Ensure the door is closed properly. If the fuse blows, contact a qualified technician. Also test the outlet with another appliance.

How do I use the crusty plate?

Place the crusty plate directly on the turntable. Preheat it with the 600W + Grill setting for 3-5 minutes (see chart). Then add food. Always use oven gloves, and never place it on the turntable without the plate. Clean with warm soapy water, not abrasive sponges.

What is the maximum cooking time in microwave mode?

You can set up to 95 minutes (95:00) in microwave, grill, or combi cooking. For quick start, each press of +30 adds 30 seconds up to 95 minutes.

How do I defrost food by weight?

Press the defrost button once to select dEF1. Turn the dial to enter the weight in grams (100-2000 g). Press +30 to start. The oven automatically sets time and power.

USER MANUAL HMGS2594DBK HOOVER

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	HMGS 2594 DBK CH
Rated Voltage:	230V~50Hz
Rated Input Power(Microwave):	1450W
Rated Output Power (Microwave):	900W
Microwave with Steam input:	2300W
Grill with Steam input:	1900W
Oven Capacity:	25L
Turntable Diameter:	∅315mm
External Dimensions:	513x440x305mm
Net Weight:	Approx. 16.5 kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

2. Warning: It is hazardous for anyone other than a competent person to remove a cover which gives protection against exposure to microwave energy.

3. Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.

4. Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. (only for grill series)

5. Only use utensils suitable for use in microwave ovens.

6. The oven should be cleaned regularly and any food deposits should be removed.

7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

9. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

10. Do not overcook food.

11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

13. Install or locate this oven only in accordance with the installation instructions provided.

14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

15. Use this appliance only for its intended uses as described in manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.

16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

17. Do not store or use this appliance outdoors.

18. Do not use this oven near water, in a wet basement or near a swimming pool.

19. The temperature of accessible surfaces may be high when the appliance is operating. Keep cord away from heated surface, and do not cover any events on the oven.

20. Do not let cord hang over edge of table or counter.

21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

22. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

23. Microwave heating of beverages can result in delayed eruptive boiling, therefore take care when handling the container.

24. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

25. Children should be supervised to ensure that they do not play with the appliance.

26. The microwave oven shall not be placed in a cabinet.

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

CLEANING

Be sure to disconnect the oven from the power supply.

1. Clean the inside of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a grounding-type 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

GB

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks

Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks

Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal - trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1 Turntable ring assembly 1 Instruction Manual 1

Grill Rack( Only for Grill series )

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
H) Water tank
I) Profile collecting water

Shut off oven power if the door is opened during operation.

Water Tank Installation

1. Open the water tank (ref. H) and pour water into the tank. Don't put water over the MAX indication on the frontal panel. Then cover the lid of the water tank.

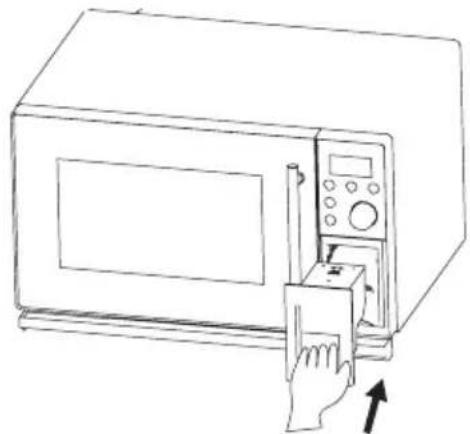

1. Push the water tank into the unit with force, otherwise, if the water tank is not installed properly, the steam function cannot be used but the oven can still work under microwave and grill function.

1. Take the profile collecting water (reference I) with two hands and fix this component at the bottom of the unit door.

Pay Special Attention to:

1. Under steam function, if the water level of the water tank is lower than the MIN, the unit will stop working with display "E-2" and the buzzer sounds for alert. At this time, you should pull out the water tank, fill the water in, then push it into the oven again as above guidance 2. Press "+30" to continue cooking.
2. When the steam function is not used for a long time, please pour out the water of the tank and fix it on the unit.
3. During cooking, there will be few steam out from the oven or sweat on the door, this is normal normal phenomenon, sponge the water with cloth.
4. Clear the profile collecting water periodically.
5. During cooking with steam, do not open the door. If you need, please open carefully, otherwise, you could have risk of burn.
6. Do not pull out the watre tank when water level is full. If it is pulled, the water will flow backwards, this is normal.
7. Please pay attention to the water level in the water tank.
8. It is suggested that you should use purified water or distilled water.

GB

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

Installation

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent walls. One side must be open.

(1) Leave a minimum clearance of 12 inches (30cm) above the oven.

(2) Do not remove the legs from the bottom of the oven.

(3) Blocking the intake and/or outlet openings can damage the oven.
(4) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

Operation Instructions

Special Instructions

1. Do not open the oven door! If it is open,the fan will continue working for 3 minutes.This is normal.

2. When "E-2" displays, which means no water or few water, the fan will continue working for 3 minutes.This is normal.

3. Do not pull out the watre tank when water level is full. If it is pulled,the water will flow backwards,this is normal. Cause it will keep the water clean.

4. Please pay attention to the water level in the gutter box.

5. It is suggested that you should use purified water or distilled water.

1. Clock Setting

When the microwave oven is electrified, the LED will display "0:00", buzzer will ring once.

(1) When in waiting states, press " ", your figures flash.
(2) Turn " " to input the hour figures. Its range is 0-23.
(3) Press " +30" to confirm the clock.
(4) Turn " " to input the minute figures. Its range is 0-59.
(5) Press " 4 to confirm.":" flashes.

Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if you press " STOP ⏱️", the oven will go back to the previous status automatically.

2. Microwave Cooking

Press " ≡ ≡ ≡ " the LED will display "P100".

Press " " for times

or turn " "to choose the power you want, and "P100", "P80" "P50", "P30", "P10", "G"... "C-2" will display for each added press. Then press

" +30" " to confirm, and turn " " to set cooking time from 0:05 to

95:00. Press " "+again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press " once, the screen display "P100".

2) Press " " once again or turn" " to choose 80% microwave power.

3) Press " +30" confirm, and the screen displays "P 80".

4) Turn " 🔍 " to adjust the cooking time until the oven displays "20:00".

5) Press " +30" ◊ " to start cooking .

Note: the step quantities for the adjustment time of the coding switch are as follow:

Order	Display	Microwave Power	Grill Power
1	P100	100%
2	P80	80%
3	P50	50%
4	P30	30%
5	P10	10%
6	G(Grill)	0%	100%
7	C-1(Combi.1)	55%	45%
8	C-2(Combi.2)	36%	64%

3. Grill or Combi. Cooking

Press " ≈ ≈ ≈ " the LED will display "P100".

Press " ≡ ≡ ≡ " for times

or turn " "to choose the power you want, and "P100", "P80" "P50", "P30", "P10", "G"... "C-2" will display for each added press. Then press

" +30" ◇ " to confirm, and turn " 🔍 " to set cooking time from 0:05 to

95:00. Press " +30" ◆ " again to start cooking.

Example: If you want to use 55 % microwave power and 45 % grill power(C-1) to cook for 10 minutes, you can operate the oven as the following steps.

1) Press " ≡ ≡ ≡ " once, the screen display "P100".

2) Press " times or turn " " to choose combi. 1 mode."

3) Press " +30" to confirm, and the screen displays "C-1".
4) Turn " 🔍 " to adjust the cooking time until the oven displays "10:00".
5) Press " +30" ◆ " to start cooking .

Note: If half the grill time passes, the oven sounds twice, and this is normal.

In order to have a better effect of grilling food, you should turn the food over, close the door, press " +30" " to start cooing, and then if no operation the oven will continue cooking.

4. Quick Start

1) In waiting state, Press " +30" ◆ " to start cooking with 100% power, each added press will increase 30 seconds cooking time up to 95 minutes.
2) In microwave, grill, combi. cooking or time defrost state, each press of " +30" ① " can increase 30 seconds of cooking time.

5. Defrost By Weight

1) Press " ☐" once, and the oven will display "dEF1".
2) Turn " 🔍" to select the weight of food from 100 to 2000 g.
3) Press " +30" ◇ " to start defrosting.

6. Defrost By Time

1) Press " ** " twice, and the oven will display "dEF2".
2) Turn " 🔍" to select the defrost time. The max.time is 95 minutes.
3) Press " +30" " to start defrosting. The defrost power is P30, and cannot be changed.

7. Auto Menu

1) Turn " 🔥 " left to choose the menu, and "A-1" to "A-8" will display, which means sausage, oat, burger, bancon, chicken pieces, pasta, soup and mince.
2) Press " +30" ◊ " to confirm.
3) Turn " 🔥 " to choose the default weight as the menu chart.
4) Press " +30" ◆ " to start cooking.

The menu chart:

Menu	Weight	Display
A-1 Sausage	150	150
	350	350
	500	500
A-2 Oat	550 g	550
	1100 g	1100
A-3 Burger	1 piece	1
	2 pieces	2
A-4 Bancon	4 pieces	4
	8 pieces	8
A-5 Chicken Pieces	150g	150
	350g	350
	500g	500
A-6 Pasta	50g	50
	100g	100
	150g	150
A-7 Soup	500g	500
	750g	750
	1000g	1000
A-8 Mince Meat	4 pieces(110g/piece)	4

Example: If you want to use "Auto Menu" to cook soup for 500g.

1) Turn "

2) Press "

3) Turn "

4) Press "

" to start cooking.

Note: When cooking chicken pieces and 2/3 cooking time passes, the buzzer will sound twice to tell you to turn the food over for better cooking.

8. Steam Menu

1) Turn " 🔥 " right to choose the menu, and "S-01" to "S-07" will display, which means potato, vegetable, fish, chop, steak, chicken and pizza.
2) Press " +30" ◊ " to confirm.
3) Turn " 🔥 " to choose the default weight as the menu chart.
4) Press " +30" ◆ " to start cooking.

The steam menu chart:

Menu	Weight	Display
S-01	1(About 230 g)	1
Potato	2(About 460 g)	2
(Inicial temp.is normal temp.)	3(About 690 g)	3
S-02	150 g	150
Vegetable	350 g	350
(Inicial temp.is 5 degrees)	500 g	500
S-03	150g	150
Fish	350g	350
(Inicial temp.is normal temp.)	500g	500
S-04	150g	150
Chop	350g	350
(Inicial temp.is normal temp.)	500g	500
S-05	150g	150
Steak	350g	350
(Inicial temp.is normal temp.)	500g	500
S-06	800g	800
Chicken	1000g	1000
(Inicial temp.is normal temp.)	1200g	1200
S-07 Pizza	400g	400
(Inicial temp.is minus 18 degrees)

Note:1) The inicail temperature for pizza is minus 18 degrees.
2) When cooking chop, steak and chicken and 2/3 cooking time passes, the buzzer will sound twice to tell you to turn the food over for better cooking.

GB

Example: If you want to use "Auto Menu" to cook fish for 350g.

1) Turn " clockwise till "S-03" display.

2) Press " +30" ◆ " to confirm.

3) Turn " " to select the weight of fish till "350" display.

4) Press " +30" ◆ " to start cooking.

9. Cleaning Function

1) In waiting state, press " ☐ " once, and the oven will display "CL-1".Press " ☐ " again, "CL-2" will display.

2) Press " +30" 1 to confirm. The default time will display. The default time for CL-1 is 5 minutes. The default time for CL-2 is 10 minutes.

3) Press " +30" " to start cleaning. Buzzer will sound five times when cleaning finish and turn back to waiting state.

Note: the fixed time for cleaning cannot be changed.

10. Microwave/Grill+Steam Combination Cooking

1) In waiting state, press " ☑ " once, and the oven will display "CL-1".

2) Press " 🔍 " times or turn " 🔍 ", "CL-1", "CL-2", "P1-S",

"P2-S", "P3-S", "G-S", CL-1" or "CL-2" will display in order.

3) Press " +30" ◆ " to confirm the steam combination way.

4) Turn " 🔍 " to adjust the cooking time from 5 minutes to 95 minutes.

5) cBoxisg" +30" ◊ " to start .

Buzzer will sound five times after cooking finish.

Power Level	1	2	3	4
Display	P1-S	P2-S	P3-S	G-S
Microwave Power	100%	79%	48%	/
Grill Power	/	/	/	100%
Steam Power	100%	100%	100%	100%

11. Steam Protection Function

Code	Trouble	Cause
E-1	The oven stops working.	The sensor temperature cannot arrives at 40 degrees when the oven works for 2 minutes,
E-2	The oven has no water or few water.	When the sensor temperature arrives at 135 degrees,the oven stops working.The buzzer will sound twice.If no water added, it will display all the time.If water added,the screen will display the surplus time.At this time,you must press " +30" ◆ " to resume cooking.Otherwise,the oven will wait.

Note: During cooking process, the oven door cannot be opened. If the door is opened, the oven stops working and the fan will work for 3 minutes. Door must be closed and press " +30" ◆ " to resume cooking.

12. Multi-section cooking

At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section.

Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following:

1) Press " ** " twice, and the oven will display "dEF2".
2) Turn " 🔍 " to select the defrost time till "5:00" display.
3) Press " ≡ ≡ ≡ " once, the screen display "P100".
4) Press " once again or turn " to choose 80% microwave power.
5) Press " +30" ◆ " to confirm, and the screen displays "P 80".
6) Turn " 🔍 " to adjust the cooking time till the oven displays "7:00".
7) Press " +30" ◆ " to start cooking, and buzzer will sound once for the first section, defrosting time counts down; buzzer will sound once again entering the second cooking. when cooking finish, buzzer sounds five times.

13 Sensor Protection Function

Code	Trouble	Cause
E-5	The sensor is disconnected	During steam and cleaning process, if the sensor is disconnected, the oven will stop working. You must press " STOP √ √ " or electricified once again.
E-6	The sensor is short circuit.	During steam and cleaning process, if the sensor is short circuit, the oven will stop working. You must press " STOP √ √ " or electricified once again.

14. Inquiring Function

In states of microwave, grill and combination cooking, press " ≡ ≡ ≡",

the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state.

15. Lock-out Function for Children

Lock: In waiting state, press " STOP √ √ " for 3 seconds, there will be a long beep denoting entering the children-lock state and the locked indicator will display if the time has been set, otherwise, the LED will display " [::] ".

Lock quitting: In locked state, press " STOP ⏱️ √️ 🔒 " for 3 seconds, there will be a long "beep" denoting that the lock is released.

16. Specification

(1) The buzzer will sound once when turning the knob at the beginning;
(2) " +30" must be pressed to continue cooking if the door is opened during cooking;
(3) Once the cooking programme has been set, " +30" ◆ " is not pressed in 1 minute. The current time will be displayed. The setting will be cancelled.
(4) The buzzer sounds once by efficient press, inefficient press will be no response.
(5) The buzzer will sound five times to remind you when cooking is finished.

Maintenance
Troubleshooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom.	Refer to "Maintenance of Microwave" to clean dirty parts.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the

applicable collection point for the recycling of electrical and electronic equipment Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly, switch off the appliance (do not subject it to rought treatment) and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important that you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

Using the Crusty Plate

Your HOOVER microwave oven has a crusty plate as an additional accessory.

This crusty plate allows you to brown food not only on the top with the grill, but also the bottom of the food turns crispy and brown due to the high temperature of the crusty plate.

Several items which you can prepare on the crusty plate can be found in the chart (see next page).

The crusty plate can also be used for bacon, eggs, sausages, etc.

1. Place the crusty plate directly on the turntable and preheat it with highest Microwave-Grill-Combination[600W+Grill] by following the times and instructions in the chart.

• Always use oven gloves to take out the crusty plate, as it is becoming very hot.

1. Brush the plate with oil if you are cooking food, such as bacon and eggs, in order to brown the food nicely.

- Please note that the crusty plate has a teflon layer which is not scratch-resis tant. Do not use any sharp objects like a knife to cut on the crusty plate.

- Use plastic accessories to avoid scratches on the surface of the crusty plate or remove the food from the plate before cutting

1. Place the food on the crusty plate.

- Do not place any objects on the crusty plate that are not heat-resistant; e.g. plastic bowels.

- Never place the crusty plate in the oven without turntable.

1. Place the crusty plate on the metal rack(or turntable) in the microwave.

2. Select the appropriate cooking time and power. Refer to the table on the next page.

UsingtheCrustyPlate

HowtocleantheCrustyPlate

Cleanthecrustyplatewithwarmwateranddetergentandrinse offwithcleanwater.

Donotuseascrubbingbrushorahardspongeotherwisethetop layerwillbedamaged.

PleaseNote

Thecrustyplateisnotdishwasher-safe.

CrustyPlateSetting

Werecommendtopreheathecrustyplatedirectlyontheturn-table. Preheathecrustyplatewiththe600W+Grillfunctionandfollowthe timesandinstructionsinthetable.

FoodPortionPowerPreheati		ngTime	Cooking Time	Recommendations
Bacon	4slices (80g)8slices (160g)	C13min.3-3 1/2 min.	4 1/2 -5min.	Preheatcrustyplate.Put slicesidebysideon crustyplate.Putcrusty plateontherack.
Grilled Tomatoes	200g (2pcs)400g (4pcs)	C13min.3min.	4min.	Preheatcrustyplate.Cuttomatoesinhalves.Putsomecheeseon top.Arrangeinacircle oncrustyplate.Put crustyplateontherack.
Burger (frozen)	2 pieces (125g)4 pieces (250g)	C13min.6-6 1/2 min	8-8 1/2 min.	Preheatcrustyplate.Put frozenburgerinacircle oncrustyplate.Put crustyplateontherack.Turnoverafter4-5min.
Baguettes (frozen)	100-150g (1pc)200-250g (2pcs)	C15min.5-6min.	6-7min.	Preheatcrustyplate.Put onebaguettebesidethe centre,2baguettesside bysideontheplate.Put crustyplateonrack.
OvenChips (frozen)	200g300g400g	C14min.9min.	12min.15min.	Preheatcrustyplate.Distributeovenchipson crustyplate.Putthe plateontherack.Turn overafterhalfofcooking time.

CrustyPlateSetting

FoodPortionPowerPreheating Time			Cooking Time	Recommendations
FishFingers (frozen)	150g(5pcs)300g(10pcs)	C14min.6-6 1/2 min.	8 1/2 -9min.	Preheatcrustyplate.Brushplatewith1tbsp.Putfishfingersinacircleontheplate.Turnoverafter3 1/2 min (5 pcs)orafter5min(10 pcs).
ChickenNuggets (frozen)	125g250g	C14min.4 1/2 -5min.	6 1/2 -7min.	Preheatcrustyplate.Brushplatewith1tbsp.Putchickennuggetson theplate.Putcrustyplateontherack.Turnoverafter3min(125g)or5min(250g).

Forno a microonde

MANUALE DI ISTRUZIONI MODELLO: HMGS 2594 DBK CH
