Product Type	Freestanding Washing Machine
Brand	Otsein-Hoover
Model	LB HV16ESALU
Dimensions (H x W x D)	85 cm x 60 cm x 55 cm
Weight	Approximately 70 kg
Power Supply	220-240 V, 50 Hz, 10 A
Energy Class	A+++
Capacity	8 kg
Maximum Spin Speed	1600 rpm
Number of Programs	15 (including Cotton, Synthetics, Delicates, Wool, Quick Wash, etc.)
Noise Level (Wash/Spin)	54 dB / 76 dB
Water Consumption per Cycle	Approximately 50 L
Child Lock	Yes
Overheat Protection	Yes
Filter Cleaning	Clean the lint filter regularly (every 10 cycles)
Descaling	Use descaler every 3 months
Spare Parts Availability	Original parts available from authorized service centers
Repairability Index	8.2 / 10
Installation Type	Freestanding, requires water inlet and drain connection

Frequently Asked Questions - LB HV16ESALU Otsein-Hoover

How do I install the washing machine?

Ensure the machine is on a stable, level surface. Connect the water inlet hose to a cold water tap and the drain hose to a standpipe or sink. Plug into a grounded outlet. Remove transport bolts before first use.

What does the 'HV16ESALU' model indicate?

The model number suggests a high spin speed of 1600 rpm and features like electronic controls and a ALU drum.

How do I clean the lint filter?

Open the lower flap, unscrew the filter, remove lint, rinse under water, and reinstall. Clean after every 10 washes to maintain performance.

What should I do if the machine shows an error code?

Refer to the manual for error code meanings. Common issues: water supply (E01), drainage (E02), door lock (E30). Turn off and restart; if persists, contact service.

Can I use a descaling agent?

Yes, use a washing machine descaler every 3 months. Run an empty hot cycle (90°C) with the descaler to remove limescale.

What is the maximum load capacity?

The maximum load is 8 kg for cotton programs. Smaller loads for synthetics (4 kg) and delicates (2 kg).

How do I activate the child lock?

Press and hold the 'Child Lock' button (usually for 3 seconds) until the lock icon appears on the display. Repeat to deactivate.

What should I do if the drum does not spin?

Check if the load is unbalanced, or if the drain is blocked. Ensure the door is properly closed. If the issue continues, check the belt or motor (professional repair needed).

Are spare parts available?

Yes, genuine Otsein-Hoover spare parts (belts, pumps, filters, etc.) are available through authorized service centers and online retailers.

How can I reduce noise during spin?

Ensure the machine is level (adjust feet). Do not overload. Use the 'Night Wash' program if available, which reduces spin speed.

USER MANUAL LB HV16ESALU Otsein-Hoover

Washing machine User instructions

Otsein

HOOVER

VISION

Green wireframe model of a washing machine (no text or symbols visible)

Bedienungselemente

Diagram showing a mechanical assembly with a magnified view of a device (no text or symbols present)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Taste "MAXI BELADUNG" (Carga extra)

D

Illustration of a hand holding a tool interacting with a container (no text or symbols visible)

Illustration of a washing machine next to a trash bin and recycling bin (no text or symbols)

Illustration of a bottle being poured into a container with a bulb above (no text or symbols)

Illustration of a hand using a pipette to lift a mechanical component (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a wall socket, with no text or symbols present.

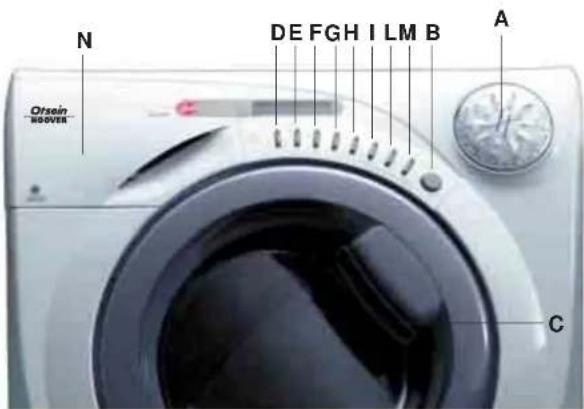

Programme selector dial	A
Start/pause button	B
Door handle	C
Big wash load button	D
Timer saver button	E
Pre wash button	F
Extra rinse button	G
Select spin button	H
Child lock button	I
Set end time/delay start button	L
Fast iron button	M
Detergent drawer	N
Door locked indicator light	P
Vision Inter@ct panel	R

Contents Page

Preface 40

General delivery notes 41

Notes on safety 41

Quick start 42

Useful advice for the user 43

Setting up, installation & testing 44

Using Vision for the first time 48

Description of controls 53

Detergent drawer 58

Detergents, washing aids and amounts to use 59

Programme selector 61

Whisper 62

The main wash 63

Programme guide 66

Cleaning and routine maintenance 68

Trouble shooting 70

Power failure 71

Customer service 72

Technical data 73

Before switching on the appliance make sure it is correctly installed and that the transit brackets are removed as shown in page 44.

Preface

Read these instructions for use and all other information enclosed with the washing machine and act accordingly.

Keep all documentation for future reference or for any future owners.

Note: this machine is solely for domestic use.

Notes on disposal

All packaging material used is environmentally-friendly and recyclable. Please help dispose of the packaging via environmentally-friendly means.

Your supplier or local council will be able to give you details of current means of disposal.

Appliances which are finished with are not worthless rubbish! Valuable materials can be salvaged via scrap reprocessing.

Note: pull out the mains plug from appliances which are finished with. Cut the power cable and dispose of it, together with the plug.

When disposing of an old washing machine, please ensure that the porthole lock is rendered inoperable to prevent children shutting themselves in the appliance.

General delivery notes

On delivery check that there is the following with the appliance:

• Instruction manual
• C certificate of guarantee
• C a p s
• I n I et hose

and check that no damage has occurred during transit, and if so, call your nearest Authorised Technical Support Service agent (see Customer Service)

Safety notes.

Note: for any cleaning or maintenance procedure for the washing machine

A) Pull out the plug
B) Turn off the tap
C) Hoover equips all its appliances with earthing. Ensure that the mains supply is earthed, and if it is not, seek assistance from a qualified person.

CE Appliance complies with European Directive 89/336/EEC, 73/23/EEC and subsequent amendments.

D) Do not touch the appliance when hands or feet are wet or damp. Do not use the appliance with bare feet.
E) The use of adapters, multiple connectors and/or extensions is not recommended.

Note: water temperature can reach 90^ during the wash cycle

F) Check there is no water left in the drum before opening the door.
G) Do not allow children or unauthorised persons to use the appliance without supervision.
H) Do not pull the power cable or the appliance itself to remove the plug from the socket.
I) The appliance must not be exposed to weather conditions (rain, direct sun, etc...)
L) When moving the appliance never lift it by the controls or by the detergent drawer.

When in transit never rest the porthole against the trolley.

M) N.B!

If the appliance is installed on a carpeted floor ensure that the ventilation holes on the base of the appliance are not obstructed.

N) The appliance should be lifted by two people.

O) If the appliance is not running properly or breaks down, switch it off, turn off the tap and do not tamper with the appliance.

Consult only the Authorised Technical Support Service for possible repair and ask them to use original spare parts.

Failure to comply with the above can compromise the safety of the appliance.

P) If the appliance's power cable should ever need replacing, consult the Authorised Technical Support Service.

Quick Start

Note: Please ensure that Vision set-up, installation and testing has been completed before referring to the Quick Start.

Washing

• O pen the door by pressing the button inside the door handle (see fig.PAGE 55).
• S elect laundry and put it in the machine.
• C lose the door.
• Put detergent in the dispenser compartments (compartment I for pre wash and compartment II for all other programmes).
• S elect programme by turning the programme knob (Your desired programme may be seen on the display).
• S elect any function buttons required and then press the Start/Pause button.
• T here may be a short time delay from pressing the start/pause bottom to the start of the programme, while the machine senses the water required and sets the parameters for the programme.

After washing

• Wait about two minutes for the door locking device to disengage (only if door locked indicator is ON)
• Switch off the machine by turning the control knob to the STOP position
• 0 pen the door and remove the laundry

Useful advice for users

Tips on using your domestic appliance in the most environmentally-friendly and economical way

Do a full load in your washing machine

To prevent any possible waste of energy, water or detergent we recommend that you put a full load in your washing machine, not exceed the maximum load size.

Save up to 50% energy by washing a full load instead of 2 half loads.

When is prewashing really needed?

Only with particularly dirty loads! Energy savings of 5 to 15% are made by not selecting the prewash option for normally soiled laundry.

Which wash temperature should you choose?

Using stain removers before machine washing reduces the need to wash at temperatures over 60°C. Energy savings of up to 50% can be made by using a 60°C wash temperature.

ARIEL - Chosen and recommended by Hoover

When we produce a new washing machine we subject it to every test possible. And one of the most important tests is the one that enables our experts to identify the most suitable detergent for solving laundry problems. Ariel was able to meet our needs: to make the washing machine function efficiently, not compromise the machine.s lifespan and produce the best wash results. Consistently excellent results, which was the main aim of the test we carried out, determined our choice and our recommendation. The prime function of a detergent that answers all washing requirements is to work with the water to remove dirt from fabrics, holding it in suspension until it is removed when the water is pumped out, and to control the amount of foam forming in the washing machine, without damaging the fibres of the items being washed. Ariel fully satisfies all these requirements, as it contains high quality elements, the result of the most advanced research, ensuring excellent results under all conditions.

Installation & Testing

After removing the machine from the packaging, proceed as follows:

On the back of the machine

1) Unscrew the screws G and remove the back panel.
2) Unscrew the centre brace A, the two side screws C and remove the transverse bracket D and the relevant plastic spacer.
3) Unscrew the 2 B braces and remove them. This will cause 2 plastic spacers to fall into the machine.
4) Remove the above-mentioned plastic spacers.
5) Remove the plastic bags containing the two polystyrene blocks at the sides.
6) Remount the back panel using the screws G.
7) Cover the holes using the caps enclosed in the instructions envelope.
8) Level the machine using the two adjustable front feet.

Diagram showing a hand inserting a component into a device, with no visible text or symbols.

Note: we recommend you keep the transit bracket, braces and screws to immobilise the machine for future transit. The Manufacturers will not be responsible for any possible damage to the machine caused by not following the rules relating to releasing the mechanism. The user is responsible for all costs of installation.

Water supply

The machine has an inlet hose with 3/4» threaded ferrules fitted to the ends to attach between the threaded connector on the appliance and the cold water supply.

The appliance must be connected to the water mains using new hose-sets. The old hose-seta should not be resused.

The appliance must only be connected to the cold water supply.

Connection to a warm water supply, that is over 40^ , may damage certain delicate fabrics.

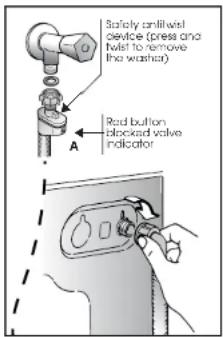

Acqua-stop

The fill hose supplied with this machine has a double skin and incorporates a water valve. If the inner hose bursts the valve will automatically shut off the water supply to prevent flooding. The indicator turns red (A). Should this happen, turn off the water supply immediately and have a new fill hose fitted by Hoover Service.

Note: it is advisable to turn off the tap after each wash to isolate the washing machine from the water supply.

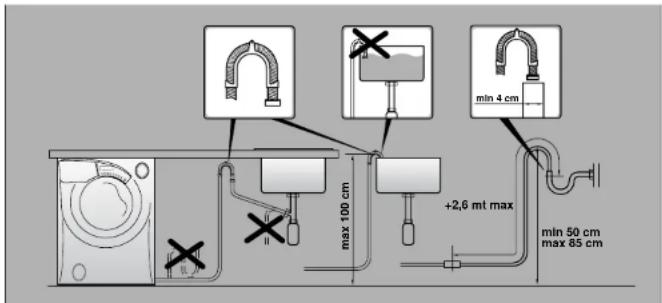

For the washing machine to function properly the terminal end of the discharge hose (mouth) must be at a minimum of 50 cm and a maximum of 85 cm from the ground.

Electricity supply and safety advice

Washing machines are supplied to operate at a voltage of 230V, 50 Hz single-phase. Check that the conductor is powerful enough to supply at least 3.0 kW, then connect the plug to a 10A earthed socket.

After installation, the appliance must be positioned so that the plug is accessible. Check that the electricity supply to your home has an earthing system.

The socket in your home and the plug on the appliance must be of the same type. It is generally not advisable to use multiple adapters and/or extension leads.

All Hoover washing machines comply with the safety requirements laid down by the Quality Trademark Institute.

Testing the installation

Refer to the programme guide for details of how to select programmes. For stopping each programme before its completion, the programme must be cancelled by holding down the START/PAUSE button for five seconds. The display will inform you that the programme has been cancelled.

1. Turn on the water supply and check for leaks from fill hose.
2. Switch on the electricity supply.
3. Select spin programme 29 and then press the Start button to start the machine. Allow the programme to continue for one minute and then cancel the programme (Please see "description of controls" section for cancelling the programme). This will remove any water remaining in the machine from factory testing.
4. To check for cold water filling to the machine: Select a rinse programme and press the Start button to start the machine. Allow the tumble action to continue until the water has pumped out. Check that the drain outlet is not leaking or overflowing.
5. Switch off the machine at the end of the cycle by turning the control knob to the off position.

Installation testing is now complete.

To ensure the drum is thoroughly clean after testing and storage, select programme 2 and run the machine for a complete cycle using only wash detergent and water.

If the machine is not to be used immediately, switch off the mains power supply and remove the plug from the power socket. We also recommend that the water stop taps are turned off.

Note: it is advisable to isolate the washing machine from the water and electricity supplies after each wash.

When using your new Hoover Vision for the first time

Your new Vision washing machine incorporates highly sophisticated Inter@ct technology which always ensures the best performance is achieved automatically. The Vision display panel is a good example of Inter@ct technology as you can always see in plain English what the machine is doing both before a wash programme (when you are setting the various programmes and options) and during a cycle (when the display lets you see the stage the cycle has reached). In this way, the Vision panel Inter@cts with you and really does serve as your personal Washing Advice Centre.

This machine will operate prior to programming the Vision set up. However, this machine has Start Delay and Programme End functions and for these functions to work efficiently the Vision set must be programmed. This is a simple operation and special care has been taken during manufacture to ensure that the user can operate this machine simply and effectively.

A quick guide around your Vision menu:

Connect product up to the electric / water supplies and drainage (see pag. 8). Select any wash programme. After a short time a message will be displayed: Note: The first message appear in Spanish. See below for changing to English.

HOOVER VISION BIENVENIDO! 11:05

Prior to entering the Vision pre set, remember time is limited while you decide on your options (30 sec. / section). If you run out of time start from this point again.

Hold down at the same time the "Timer saver" (Lavado Rápido) and "Extra rinse" (Super Aclarado) buttons for 5 sec. until screen changes to:

CAMBIAR LENGUAJE ESPAÑOL

CHOSEN LANGUAGE ENGLISH

Press "Timer saver". This confirm and enters an option

SET TIME MODE TO ABSOLUTE

Press "Timer saver"

ENABLE FINAL BLEEPING YES

Press "Timer saver"

if RELATIVE is displayed press "Extra rinse" (This changes a menu option)

if NO is displayed press "Extra rinse"

SET NEW TIME hh:

Press "Timer saver"

to change hours press the "Extra rinse" until correct

SET NEW TIME mm:

PPress "Timer saver"

to change mins press the "Extra rinse" until correct

ENABLE MEMORY ? YES

Press "Timer saver"

if NO is displayed press the "Extra rinse"

SET DEMO MODE ? NO

Press "Timer saver"

always select NO, if YES press "Extra rinse"

EXIT MENU? YES

Press "Timer saver"

if NO is displayed press the "Extra rinse"

1 WHITE COTTON 90° HEAVY 1600 RPM

You are now able to select any wash programme. You can if you wish also set a delay start. Where more detailed information is required refer to the relevant section from the following pages.

Programming the machine

Vision needs to be programmed so that the correct clock setting, language and personal requirements are set. When the machine is turned on and the programme dial is moved away from the "STOP" position to the programme selections a welcome message will appear.

HOOVER VISION WELCOME 11.06

This message is displayed for a short time while the machine recognises which programme has been selected. When the machine is ready, the programme details will appear on the display and from here you may now begin programming the machine.

Example

1 WHITE COTTON 90° HEAVY 1600 RPM

Enter the Menu

Prior to entering the Vision menu please note you have 30 seconds per operation to make your selection. Should you run out of time the display will return to the start screen, and you simply have to re-enter the Vision menu to continue with the programming. From this stage the menu can be programmed. Hold down the "Timer saver" (Lavado Rápido) and the "Extra Rinse" (Super Aclarado) buttons together for 5 seconds or until the beep sounds. The menu options can be changed by pressing the "Extra Rinse" (Super Aclarado) button. To confirm and enter an option press the "Timer saver" (Lavado Rápido) button.

Setting the language (default setting - SPANISH)

Your washing machine is automatically set to Spanish. Press the "Extra rinse" (Super Aclarado) button to change the language.

Press the "Timer saver" (Lavado Rápido) button to enter your selection. When you have entered your chosen language, the display will then ask for the "Time-mode" to be set.

Setting the time mode (default setting - ABSOLUTE)

There are two ways to select the time mode. The first is if you wish programme end or delay start to be programmed by starting the actual time you want the programme to end or begin, e.g., programme to end 18.00. This is called Absolute Time Mode.

When utilising the programme end function (or start delay), an example can be seen below when the Absolute Time Mode has been selected in the menu set-up stage.

PROGRAMME END AT18.00 14:00

This is the time of day.

Therefore, when setting the Programme end time the programme (as shown above) will end at 18.00.

The second way is if you wish programme end time or delay start to be programmed by adding hours; e.g., programme to end in 1 12 hours. This is called Relative Time Mode. When utilising the programme end function (or start delay), an example can be seen below when the Relative Time Mode has been selected in the menu set-up stage.

PROGRAMME END BY 1H 30M 14:00

Therefore, when setting the Programme end time the programme (as shown above) will end at 15:30. (1h 30m after the current time, which is 14.00) Both options are very useful, but we feel that the Absolute Time Mode will be more beneficial and easier to use since there will be no need to calculate how many hours you will need to leave before you want the machine to end or start. On reaching the set time mode you will be asked if you would like to select "Relative" time or by scrolling through using the "Extra Rinse" button (Super Aclarado) - "Absolute" time. Enter the preferred setting by pressing the "Timer saver" (Lavado Rápido) button. When you have entered your preferred time-mode, the display will then ask for the Enable Final Beeping to be set.

Enable Final Beeping (default setting - YES)

Here you have the option to have a beeping alarm to let you know the wash cycle has finished. By pressing the "Extra Rinse" (Super Aclarado) button you can scroll through the "yes" and "no" options. To enter your selection press the "Timer saver" (Lavado Rápido) button and the screen will then move to the next stage and ask you to "Set New Time"

Set New Time

This function needs to be set for two reasons: firstly to display the current time of day on the screen and secondly for the programme end/delay start settings to work correctly. You will notice in the display window that the hours on the clock will be flashing. Set the hours by continually pressing the "Extra Rinse" (Super Aclarado) button and then press the "Timer saver" button to input the hour of day. Next the minutes on the clock will begin to flash, again press the "Extra rinse" button until the required minutes are displayed and press "Timer saver" (Lavado Rápido) to input the selection. When you have Set the New Time, the display will then ask if you wish to "Enable Memory".

Enable Memory (default setting - NO)

This is a useful feature if you frequently wash laundry using the same programme. Selecting "Enable Memory" will tell the machine to remember the last programme/functions used and set them in the memory. This function works only on cottons, delicates, synthetics and woollens programme (1÷23). The memory does not retain settings within the special programme group. Select "Yes" or "No" to this option by using the "Extra Rinse" (Super Aclarado) and "Timer saver" (Lavado Rápido) button to input the selection. The display will then shown a message that asks if you require demo mode to be set.

Demo mode (default setting - NO)

Please set this option to "No" if not done so already - as this is for SERVICE use only. If the demo mode option is set to "YES" when exiting the Vision menu the wash programme WILL NOT commence. Demo Mode must be set at "NO" for the wash cycle to commence. On entering "No" via the "Timer saver" (Lavado Rápido) button you will then be asked if you wish to "Exit Menu".

Exit Menu

If you are happy with the settings you have selected, you can now exit the menu by selecting "Yes" via the "Extra Rinse" (Super Aclarado) and "Timer saver" (Lavado Rápido) button to input the selection.

However, if you are not happy with any of the settings selected you must select "No" to the exit menu command and you can then commence the programming from the beginning. By pressing the "Timer saver" (Lavado Rápido) button you are able to enter and bypass each option individually until you reach the option you would like to re-set.

When you are completely satisfied with your menu selection, you may exit the menu and testing of the installation may now commence.

If, after the initial installation you may want to change any of the menu at a later date, again run through the menu options from the beginning and change the options you want to reset. This may be useful to change the "Set New Time" when the clocks go forward or back.

Once set, the menu options will remain in the memory of the machine even if the machine is unplugged or if a power cut occurs.

Description of controls

All of the buttons and dials on the washing machine control panel are listed below.

When you have selected the desired programme and any option buttons, the information you have selected will appear on the screen in the Vision Inter@ct display panel.

When programmes and option buttons are compatible a bleeping sound will be heard and the light above the option button selected remain illuminated. If you select an option button that is not compatible with the programme you require (e.g. if you choose a cottons wash programme and try to select "Fast Iron" button - (Planchado Rápido) a buzzing sound will be heard and the button light will not illuminate. To select an option button press it once in the lower side; to deselect an option button, press it again.

Carefully read the relevant descriptions detailed below:

Programme Selector Dial

A

Rotates in both directions

Note: Do not press the start/pause button before selecting the programme. If this does happen, cancel the programme (that you have set accidentally) by pressing the start/pause button for five seconds (See programme cancelled description).

When you turn the programme selector dial and after the welcome message has disappeared, you will see a display showing the following details:

Reading from left to right:

1. The programme number
2. The programme name
3. The wash temperature
4. The degree of soiling (how dirty the wash load is)
5. The spin speed

Example

1 WHITE COTTON 90° HEAVY 1600 RPM

START/PAUSE Button

START

To start a programme press this button once. The door locked light will illuminate. The machine will now be sensing the wash load and ask you to please wait.

Example

SETTING WASHING PARAMETERS: PLS WAIT

The Vision panel will after a short delay display the time to complete the programme and then the wash cycle will commence. Vision calculates the time to the end of the selected programme based upon a standard 5kg load. During the cycle, Vision corrects the time to that applicable to the size and composition of the load.

Example

TIME TO END 1H:50M WASHING 19:30

This display also shows the current phase of the cycle and in the bottom right hand corner, the current time is displayed.

This display will change throughout the wash programme as the cycle progresses.

PAUSE

The programme may be paused at any time during the wash cycle by holding down the Start/Pause button for about two seconds and a beep will sound. A message will appear on the display to inform you that the programme has been paused. To restart the programme press the Start/Pause button once again. The display will inform you that the programme will continue.

Example

COLOURFAST COTTON PROGRAMME PAUSED

CANCEL

To cancel the programme the Start/Pause button must be pressed down for 5 seconds until the beep sounds. The display will inform you that the display has been paused and has then been cancelled.

Example

PROGRAMME CANCELLED

Note

After cancelling a programme it's possible to drain the water from the drum using the spin programme N° 29.

DOOR HANDLE

Press the finger-bar inside the door handle to open the door

C

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Door open: A special safety device prevents the door from being opened immediately after the end of the cycle. "Door locked" indicator light is illuminated when the door is fully closed. Wait for 2 minutes after the wash cycle has finished before opening the door. The door locked neon will go out and the door may be opened. As a safety measure check that there is no water evident in the drum.

BIG WASH LOAD button (CARGA EXTRA)

D

Hoover has designed a special wash boost system specially for big loads - by selecting this button, (available on programmes 1 ÷ 11 ) the volume of water within the selected wash cycle is increased and the length of time of the programme is extended to improve the wash performance for the bigger load.

TIMER SAVER button (LAVADORÁPIDO)

E

This option can be utilised on cotton and synthetic programmes (1 ÷ 17). By selecting the Timer saver option, the wash time may be reduced by up to 50 minutes, depending on the programme selected.

PRE-WASH button (PRE LAVADO)

F

This option (available on programmes 1÷17) is particularly useful for heavily soiled loads and can be used before selecting the main wash programme. Detergent for this programme should be added to the first compartment of the soap drawer labelled "I" (Please refer to Detergent Drawer Section of manual). We recommend you use only 20% of the recommended quantities shown on the detergent pack and fabric conditioner should not be used for this programme.

EXTRA RINSE button (SUPER ACLARADO)

G

This option (not available for wool programmes) adds more water at the rinsing stage. This can help prevent skin irritation from detergent residue for people with particularly sensitive skin. Selecting the Extra Rinse button is also recommended when washing heavily soiled fabrics which need a lot of detergent, or when the wash load contains towelling fabrics that have a greater tendency to retain detergent.

SELECT SPIN button (VELOCIDAD CENTRIFUGADO)

On selecting the wash programme the display will inform you of the maximum spin speed permitted for that programme. By repeatedly pressing the select spin button the speed will decrease by increments of 100 rpm. The minimum speed permitted is 400 rpm, or by continuously pressing the select spin option the spin may be cancelled if desired. On selecting the required spin speed the display will then inform you of the chosen programme. Its temperature and the newly selected spin speed.

The machine makes a different noise when spinning! This is because it has a manifold motor for better performance.

CHILD LOCK button (BLOQUEO TECLAS)

This is a useful feature to prevent children playing with the option buttons and tampering with the programme you have set. After you have set the programme and option buttons you require, press start and then Child Lock. This "locks" the control panel. You may cancel this function by pressing the child lock button briefly until you see the light above the button flash. While this light is flashing, press the "Fast Iron" button – the display will inform you that the options are no longer locked and further changes can now be made.

The programme end time/delay start options can be used if you want the washing to be ready at a later time (but within 24 hours).

NOTE: After selected the programme END TIME/DELAY START press the start button.

1. DELAY START

After selecting the programme, press delay start/set end time button once and press the hours and minutes buttons (to the left and right) until the required time is set. The display returns to the programme option if the button is pressed within 5 seconds. To cancel delay start, hold down the button for 5 seconds.

2. SET END TIME

Press delay start/set end time button twice and press the hours and minutes buttons (to the left and right) until the required time is set. When entering the programme end option, the display will show the minimum time which you can set the programme to end by. This time may only be extended as you require. NOTE: When using the delay start/set end time functions, only use detergents and laundry also via the dispenser drawer. Adding detergents etc. to the drum and then leaving them to stand for long period of time may damage your laundry.

FAST IRON Button (PLANCHADO RÁPIDO)

This option is available on Synthetics, Delicates, Woollens and some Special Programmes (excluding programmes 24-26-29). When this option is selected for Delicates, Woollens or Handwash programmes the machine will stop and the load will be held within the water in the drum. This reduces the creasing thus enabling easier ironing. To continue with the wash cycle the Fast Iron button must be pressed and the programme will re-start. With the Fast Iron option selected within the synthetics cycle the programme is completed by a short, very low speed spin. The laundry may be left in the drum in this condition without the risk of excessive creasing. If a fuller spin cycle is required select the appropriate spin (see Programme Guide) and then remove the laundry on completion of the programme.

Note: This model is fitted with an electronic “sensor” device that checks the load is balanced correctly. If the load is slightly unbalanced the machine will re-balance it automatically to then carry out the normal spin. If, after several attempts, balance is not restored a reduced spin speed will be used. If loads are seriously unbalanced the spin stage will be cancelled. This helps limit vibration, reduce noise and improve the washing machine’s reliability and life.

It is unlikely that water will be visible in the drum! This is due to the latest technology that achieves the same standard of washing and rinsing but with far less water consumption.

Detergent drawer

N

The detergent drawer is divided into 3 compartments:

• t he first, labelled «I», is for detergent utilised during Prewash
  – the second, labelled «II», is for detergent for main wash

Illustration of a hand holding a tool interacting with a mechanical component (no text or symbols visible)

Note: Some detergents are difficult to remove. For these, we recommend you use the special dispenser which is placed in the drum.

- t he third, labelled "is for special additives, fabric softeners, fragrances, starch, brighteners etc.

Note: only put liquid products in the third compartment.

The machine is programmed to automatically take up additives during the final rinse stage for all wash cycles.

Detergents, washing aids and amounts to use

Choice of detergent

General purpose detergents

• Powder detergents, for a thorough wash, with bleaching agent, particularly suitable for use in hot wash programmes (60°C and over), for heavily soiled and stained laundry.
  – Liquid detergents, particularly suitable for grease stains, such as greasy skin marks, cosmetics and oil.
• These detergents are not suitable for washing stained laundry, as they do not contain bleach.
  – Biological detergents, not all the products available give a really through wash.

Special detergents

• Detergents for coloureds and delicates, without added bleach, also often without any optical brightening agents, to preserve the colour.
• Detergents for a thorough wash, without added bleach or enzymes, particularly suitable for handling woollen fibres.
• Detergents for curtains with optical brightening agents, resistant to light, to prevent yellowing from sunlight.
• Special detergents for programmed use of chemical substances, depending on fabric type, degree of soiling and water hardness.
  Here basic detergents, softeners, bleaches/stain removers can be added separately.

Additional laundry aids

• Water softener, means less detergent can be used where water hardness is classed as hard to very hard.
• Prewash substances, for the programmed treatment of stains prior to the main wash. Using them means the subsequent wash can be at a low temperature or with bleach-free detergents.
• Fabric softener, prevents static build-up in synthetic fabrics and softens fabrics. If you own a tumble dryer, clothes are softened even without the use of a fabric softener.

Do not put solvents in the washing machine!

Keep detergents and other laundry products out of children's reach.

Before pouring in the detergent check that there are no foreign bodies in the detergent drawer.

Dosage details are usually shown on the detergent packaging. Follow those instructions.

Dosages

Only use detergents which are suitable for use in a washing machine.

You will obtain the best results from your wash with the minimum use of chemical products and the best care for your laundry if you take into consideration the degree of soiling as well as the type of detergent to choose.

The amount of detergent to use depends on:

• water hardness, depending on the hardness of the water and the type of detergent used, it is possible to reduce the amount of detergent.
• the degree of soiling, it is possible to reduce the amount of detergent used depending on the degree of soiling.
• amount of laundry, it is possible to reduce the amount of detergent when washing only a small amount of laundry.

The amounts shown on pack for detergents for washing delicates often already refer to a reduced wash size.

Follow the dosage instructions!

Dosage for powder detergent

For normal and low concentration detergents: for normally soiled laundry choose a programme without prewash.

Put the detergent in compartment II of the drawer.

For heavily soiled laundry, choose a programme with prewash.

Put 14 of the detergent in compartment I, 34 in compartment II of the drawer.

When using water softeners, first put in the detergent, then add the softener to compartment II.

For highly concentrated detergents not in single dose format, follow what is shown on pack exactly as regards type and amount of dosage.

To avoid the difficulty of checking if the detergent has been taken up, use the dosage aids provided in the detergent packaging.

Liquid detergent dosage

Liquid detergents may be used in accordance with the instructions on the relevant packaging, for all programmes without prewash, by using the special container which is placed in the drum or, for those models that have it, in the special insert for liquid detergents.

Programme selector

The washing machine has 5 different programme groups according to type of wash, temperature, spin speeds and duration for handling the various types of fabric and their level of soiling (see wash programme guide on page 66-67).

1. COTTONS

The programmes are designed for maximum washing and rinsing. With spin cycles in between, they guarantee the laundry is rinsed perfectly. The final spin cycle ensures laundry is spun dry as much as possible up to the maximum speed.

2. SYNTHETICS and mixed fabrics

Washing and rinsing performance is optimised through drum rotation speeds and water levels. The delicate action spin minimises creasing.

3. DELICATES

This is a new concept in washing, with a cycle that comprises of alternate periods of activity and pauses, particularly suitable for washing very delicate fabrics.

Wash and rinsing are carried out using a high water level to provide the best results.

4. WOOLLENS

The programmes are designed for maximum washing at the temperature most suitable to your woollen garments and their degree of soiling. Always read the wash advice label for the most suitable temperature.

5. SPECIAL PROGRAMMES - 29 minute Speed Wash, Handwash and Sportswear SPORTSWEAR 30

The washing machine has a unique Sportswear programme (programme 24). It is specially designed to wash mixed sportswear fabrics that cannot be washed on hotter programmes and is designed to remove the soil and staining created by participation in sports activities. This programme starts with a cold prewash that breaks down and loosens any excess dirt and then washes at a cool 30^ , rinses and spins slowly for the best care of your heavily soiled, delicate garments.

Hoover has given sports items their own wash care programme.

HAND WASH

This washing machine also has a gentle Hand Wash programme cycle (programme 25). This programme allows a complete washing cycle for garments specified as "Hand Wash only" on the fabric care label. The programme has a maximum temperature of 30^ and concludes with 2 rinses, one for fabric conditioner and a slow spin.

SPEED WASH R

This washing machine also has a SPEED WASH programme option (Programme 26). This programme allows a complete washing cycle to be carried out in approximately 29 minutes, with a maximum load of 2 kg and is recommended for lightly soiled items. When selecting the Speed Wash programme, please note that we recommend you use only 20% of the recommended quantities shown on the detergent pack.

Auto Half Load

The washing machine is fitted with a self adjusting water level system.

This system enables the machine to use only the right amount of water needed to wash and rinse the laundry in relation to the particular load.

This results in a reduction of the water and electricity used, without in any way compromising the washing and rinsing performance.

In fact the amount of water and electricity used will always be appropriate for the clothes load. The washing machine automatically ensures excellent washing results at minimum cost whilst respecting the environment.

WHISPER

With Vision, Hoover has made a technology breakthrough by featuring the "WHISPER" system for extra-quiet washing.

The mission of the New Vision featuring WHISPER is to improve your quality of life.

A number of very important modifications have been introduced to develop WHISPER: 7 sound absorbing panels on the sides of the machine, a sheet of corrugated material on the bottom, complete soundproofing of the motor, tub made of sound absorbing material (Silitech).

WHISPER means greater efficiency than other similar, non-soundproofed machines.

A technical analysis of the European market reveals that the new Hoover Vision featuring WHISPER is among the quietest available.

Main wash

Sorting the laundry

- It is recommended you wash only items which are washable with water and detergent and not dry-clean items.

- I f you need to wash rugs, bedspreads or other heavy items, it is best not to spin them.

- Sort the laundry according to fabric type, degree of soiling and wash temperature: follow the labelling in the garments.

Laundry for hot wash 95

Coloured, easy-care materials

Delicates and wool 40

Wash by hand

- Items labelled with the following symbols are not suitable for machine washing:

Dry clean Ⓗ

For very delicate items, such as net curtains, underwear, tights etc., you are advised to use a laundry net or wash bag.

- W pollen items must be labelled with the «Pure New Wool» symbol to be washed in the machine and must also be labelled «non-matting» or «machine washable».

- C o l our often leaks from new coloured items.

This can then colour other lighter items being washed.

We therefore recommend that coloured items should be washed for the first time separately. For future washes, colourfast items can only be washed with white laundry up to 40°C.

Note: when sorting laundry

• c heck there are no metal objects in the laundry (such as paper clips, safety pins, pins, coins etc...):
• In the event of a machine failure during the warranty period and foreign objects are found to be the cause of the failure a labour charge may be made to call out an engineer.
  – button up pillowcases, fasten zips, hook & eye fasteners, belts and long dressing gown cords;
• r e m ove curtain hooks;
  – pay close attention to the labels on items
• if you notice stubborn stains whilst sorting the laundry, remove them using a special detergent or a special stain remover.

- We recommend that you do not wash a full load of just towelling items as these can become too heavy since they absorb a lot of water, possibly resulting in a load which is out of balance (see page 21).

The correct way to wash

Preparing the laundry

A) Select and sort the laundry according to the wash care labels found on each garment. Always check the care labels.

Illustration of a washing machine next to a basket and accessories (no text or symbols)

Loading the laundry

B) Open the door.

C) Put the laundry in the washing machine. Close the door again, ensuring that no items of laundry are obstructing the lock, or door seal.

Putting detergent in machine

D) Open the drawer, choose the detergent and put in the correct amount, according to the manufacturer's instructions and the advice on page 59. Add any other laundry aids (see page 59). Close the drawer again.

Liquid detergents that are to be placed directly into the drum should use the recommended dispensing device.

Illustration of a bottle being dispensed into a container with three bottles (no text or symbols)

Selecting the wash programme

Refer to the programme guide or the programme descriptions on the front of the machine to select the most suitable programme.

The programme is selected by turning the programme selector clockwise and aligning the programme number with the indicator ▼.

Check that the tap is turned on and that the discharge hose is positioned correctly.

Press additional function buttons if you require.

Press the start button. The door locked indicator illuminates and the programme will begin.

When the programme has finished

• the door lock light is lit and the display will read "Door lock activated please wait to open".
• t he door lock light goes out (door lock released) and the display will read "Programme complete unload the laundry".
• Switch off the machine by turning the control knob to the off position.
• O pen the door and remove the laundry.
  Disconnect the plug from the mains power supply and turn off the water supply after every use.

Programme guide

PROGRAMME			FABRIC TYPE PROGRAMME FOR LOAD		WATER TEMP. °C	DETERGENT
						I *	II	#
1	90	Resistant cotton	Colourfast fabrics Cotton, linen, hemp	Intensive - heavily soiled	5	90°	●	●	●
2 **	60	Resistant cotton	Cotton, mixed fabrics Colour Fast	Intensive - heavily soiled	5	60°	●	●	●
3	50	Resistant cotton	Cotton, mixed fabrics Colour Fast	Intensive - heavily soiled	5	50°	●	●	●
4	40	Resistant cotton	Cotton, mixed fabrics Colour Fast	Intensive - heavily soiled	5	40°	●	●	●
5	60	Colour cotton	Cotton, mixed fabrics Colour Fast	Normal-Light soiling 5	60°		●	●	●
6	50	Colour cotton	Cotton, mixed fabrics Colour Fast	Normal-Light soiling 5	50°		●	●	●
7	40	Colour cotton	Cotton, mixed fabrics Colour Non Fast	Normal-Light soiling 5		40°	●	●	●
8	30	Colour cotton	Cotton, mixed fabrics Colour Non Fast	Normal-Light soiling 5	30°		●	●	●
9	40	Delicate colour	Cotton, mixed fabrics Colour Non Fast	Lightly soiled - delicate coloureds	5	40°	●	●	●
10	30	Delicate colour	Cotton, mixed fabrics Colour Non Fast	Lightly soiled - delicate coloureds	5	30°	●	●	●
11	※	Delicate colour	Cotton, mixed fabrics Colour Non Fast	Lightly soiled - delicate coloureds	5	15° (cold)	●	●	●
12	60	Synthetics	Mixed synthetic fabrics Colour Fast mixed fabrics	Heavily soiling 2 60°			●	●	●
13	50	Synthetics	Mixed fabrics, Cotton, synthetics	Heavily soiling 2 50°			●	●	●
14	40	Synthetics	Mixed fabrics, Cotton, synthetics	Heavily soiling 2 40°			●	●	●
15	40	Acrylics	Synthetics (Nylon) Coloured mixed fabrics	Normal-Light soiling	2	40°	●	●	●

Programme guide

PROGRAMME			FABRIC TYPE PROGRAMME FOR LOAD		WATER TEMP. °C	DETERGENT
						I *	II	#2
16	30	Acrylics	Synthetics (Mylon) Coloured mixed fabrics	Normal-Light soiling	2	30°	•	•
17		Acrylics	Synthetics (Mylon) Coloured mixed fabrics	Normal-Light soiling	2	15° (cold)	•	•
18	40	Delicates	Delicates Synthetics & mixed fabrics	Light soiling Delicate fabrics	1,5 40°			•
19	30	Delicates	Delicates Synthetics & mixed fabrics	Light soiling Delicate fabrics	1,5 30°			•
20		Delicates	Delicates Synthetics & mixed fabrics	Light soiling 1,5		15° (cold)		•
21	40	Woollens	Machine washable Wool Light soiling 1 30° very delicate fabrics, synthetic knits soiling 1	Normal soiling 1 40°				•
22	30	Woollens Light soiling 1 30° very delicate fabrics, synthetic knits soiling 1						•
23		Woollens Light soiling 1				15° (cold)		•
24	30	Special: Sportswear	Mixed fabrics	Thorough wash for small loads	2	30°		•
25		Special: Hand Wash	Mixed fabrics "Hand Wash only" garments	Hand washing of delicate garments	1	30°		•
26	50 R	Special: Speed Wash	Mixed fabrics	Rapid wash for lightly soiled garments	2	50°		•
27		Rinse & Wool Spin	Delicate fabrics & wool	Rinse & Wool rinse	2	-
28		Last Rinse & Spin	Mixed fabrics	Last Rinse & Spin	2	-
29		Spin	Mixed fabrics	High Speed Spin	2	-

Points to consider: When washing heavily soiled laundry it is recommended the load is reduced by about 1-1.5 kg. By doing so the laundry is allowed to circulate more freely.
** Energy label data based on programme 2 tested in accordance with EN60456.
* If the pre-wash button is pressed.

Cleaning and routine maintenance

Do not use alcohol-based scourers and/or thinners on the outside of your washing machine, just a wipe with a damp cloth will suffice. The washing machine needs very little maintenance:

• C leaning the drawer compartments.
• C leaning the filter.

Cleaning the drawer compartments

Even if it is not strictly necessary, it is advisable to clean the compartments for bleaching detergents and additives occasionally.

A) To do this you just need to pull them out firmly, but without forcing them.
B) Clean everything in the compartment under running water.
C) Put everything back in its proper place.

Cleaning the filter

The washing machine is fitted with a special filter for handling large deposits which could block the discharge hose (coins, buttons etc.) and which can, therefore, be easily retrieved.

The cleaning operation is as follows:

1. Open the lid as shown in fig
2. Turn the filter anticlockwise until it stops, remove it and clean it.
3. After cleaning it, reassemble it following the previous instructions in reverse order.
4. Close the lid.

Attention: if the filter needs cleaning while there is washing still in the drum, follow the instructions on the following page to empty the water. This will prevent excessive loss of water via the filter.

Illustration of hands using a tool to lift a battery into a tray (no text or symbols visible)

Transporting/Storing the appliance for long periods when appliance is not in use

If the appliance is being transported or is out of use for long periods in unheated places, all remaining water must be completely removed from all hoses.

Ensure mains power is off, then unclip the hose and point it downwards into a basin until all the water has emptied out.

When finished, repeat the operation in the reverse order.

Illustration of a hand using a tool to adjust or install a wall-mounted device, with no visible text or symbols.

Trouble shooting

What might be the cause of...

Defects you can remedy yourself

Before calling GIAS Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly. If the problem persists after completing the recommended checks, please call the GIAS Service, they may be able to assist you over the telephone.

	CAUSE REMED	YPROBLEM
1. Does not work on any programme	Plug not in socket.Not switched on.Power failure.Fuse blown.Door open.RCD tripped (trip switch)Has the Delay start been set.	Plug it in.Switch on.Check and refer to "Power Failure" section.Check.Close door.Reset RCD.Check.
2. Does not fill with water	See cause 1.Water supply turned off.Programme selector not correctly positioned.	Check.Turn on water supply.Position programme selector correctly.
3. Water does not drain away	Kink in discharge hose.Foreign bodies in filterThe machine has been plumbed in incorrectly.	Straighten discharge hose.Examine filter.Check installation.
4. Water on floor around the washing machine	Leaking gasket between tap and water inlet hose.Strand of clothing or dirt between door rubber gasket and door glass.Incorrect plumbing.	Replace gasket and tighten connection.Re-load the machine and keep rubber door gasket/door glass clean.Check plumbing.
5. Does not spin	Water has not yet drained away.*Spin Cancel' option selected (certain models only).Unbalanced load.	Wait a few minutes for machine to empty.Check.Rearrange load evenly.
6. Machine vibrates a lot during spin	Washing machine not completely level.Load not distributed evenly.Transit brackets not removed.	Adjust the special adjustable feet.Rearrange the laundry evenly.Remove transit brackets (see installation sector).
7. Door will not open	Two minutes have not elapsed since the programme finished.	Wait two minutes.
8. Display reads error0, 1, 5, 7, 8, 9	-	Call service.
9. Display reads error 2	No water fill.	Check water supplies are on.
10. Display reads error 3	No pump out.	Check drain is clear.Check drain hose is not linked.
11. D isplay reads error 4	Machine overfilled with water. Turn off water supply to machine.Call service.

It is unlikely that water will be visible in the drum! This is due to the latest technology that achieves the same standard of washing and rinsing but with far less water consumption.

The machine makes a different noise when spinning! This is because it has a manifold motor for better performance.

Note:

The use of environmentally-friendly, phosphate-free detergents (check detergent information on pack) can have the following effects:

• w asle water from rinsing may be cloudier because of the presence of a white powder (zeolites) held in suspension, without the rinse performance being adversely affected;
• presence of white powder on laundry after washing, which is not absorbed by the fabric and does not alter the colour of the fabric.
• The presence of foam in the final rinsing water is not necessarily an indication of poor rinsing.
• C carrying out more rinse cycles does not serve any purpose in such cases.

Power failure

If there is a power failure the wash cycle will be interrupted, the wash programme and functions will be suspended. When the power is restored, the wash programme and functions will re-start from the same point and complete the programme.

The load can be removed from the machine during a power failure as follows:

The water can be drained from the machine by:

1. Switch off the machine by the programme dial and at the mains power supply. Remove the plug from the mains power supply socket.
2. Carefully move the machine so the rear of the machine is accessible. Please follow the safety precautions which we recommend under the "safety notes" section of this manual.
3. Unclip the drain hose from the rear panel of the machine and lower the hose into a bowl on the floor.

Important: the water may be very hot!

When the bowl is full raise the end of the drain pipe to a height higher than the top of the appliance to stop the flow of water. Empty and replace the bowl and continue draining the machine until empty.

1. Once the machine is fully drained of water, clip the hose to the rear of the machine. Press the door open button and remove the load. The door can be opened approximately 2 minutes after the power failure by simply pressing the door open button. Do not force open the door.

Important: the water and the load may be very hot!

Customer Service

The appliance is covered by a certificate of guarantee which allows you free use of the Hoover Technical Support Service, except for the price of the call, for a period of one year from the date of purchase. Remember to send off the guarantee certificate for validation within 10 days of the date of purchase.

You should retain the receipt issued by the retailer when you purchased the machine to show to the call out engineer, should you need to consult one.

If your washing machine shows signs of a defect or is not working properly, before you contact GIAS Service we recommend you carry out the checks detailed on page 34 within the Trouble shooting section.

If the problem with the machine persists after completing all the recommended checks, please dial the GIAS Service number on the rear cover of this manual.

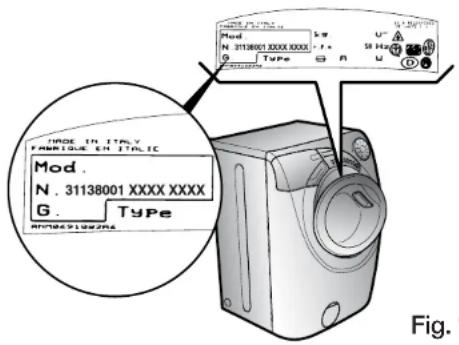

For the cost of a telephone call, you will be connected directly to GIAS. It is important you tell the GIAS advisor your product's model number and serial number, which you will find on the rating label (16 characters, beginning with the number 3), found on the front of the washing machine (door area). By doing this, your enquiry will be responded to more efficiently.

Technical data
Max. load of dry laundryWater pressureSpin SpeedMeasurementsWidthDepthHeight		5 kg(0,5÷8 bar)0,05÷0,8 MPa1600 r.p.m.60 cm61 cm85 cm

NB: For specifications regarding electrical data, see the data panel on the front of the washing machine (porthole area).

Appliance complies with European Directive 89/336/EEC, 73/23/EEC and subsequent amendments.

The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.

The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.

Otsein

HOOVER

DE

EN

02.02 - 41003707 - Printed in Italy - Imprimé en Italie
