Product type	Built-in dishwasher
Brand	Campomatic
Model	DW911EB
Height	815 mm
Width	598 mm
Depth	550 mm
Capacity	14 place settings
Water pressure	0.04 - 1.0 MPa
Power supply	220-240 V ~ 50 Hz, 12 A
Energy consumption (Eco program)	0.93 kWh
Water consumption (Eco program)	10 L
Eco program duration	175 min
Wash programs	Auto, Intensive, Normal, Eco, Express 1h, Soak
Special functions	Half-load, Delayed start (1-24h), Adjustable water softener
Noise level	49 dB (estimated)
Energy class	Not specified, estimated A+
Detergent type	Powder, 2-in-1, 3-in-1, 4-in-1, 5-in-1 tablets
Salt container capacity	1.2 kg
Rinse aid container capacity	140 ml
Tub material	Stainless steel
Installation type	Built-in or freestanding
Weight	Approximately 45 kg (estimated)

Frequently Asked Questions - DW911EB Campomatic

How to adjust the water softener on the DW911EB?

The water softener is adjusted manually by turning the ring located under the salt container cap. Use the water hardness table (French, German, or English degrees) provided in the manual to select position H1 to H6. The factory setting is H4.

What types of detergent can I use?

You can use dishwasher powder, 2-in-1, 3-in-1, 4-in-1, or 5-in-1 tablets. Avoid soap or laundry detergent. For combined tablets, make sure they fit in the compartment and follow the manufacturer's instructions.

What to do if the dishwasher does not start?

First check that the appliance is turned on (ON/OFF button) and that the door is properly closed. Ensure the plug is well inserted and that the fuse or circuit breaker has not tripped. Also check that the water tap is open and the water pressure is sufficient (0.04-1.0 MPa).

How to clean the dishwasher filters?

The filters (main, coarse and microfilter) should be cleaned regularly. To remove them, turn the coarse filter counterclockwise and lift it out. Then remove the main filter and microfilter. Clean them under running water with a brush, then reassemble in reverse order. Never operate the dishwasher without filters.

How to add regenerating salt?

The salt container is located under the lower basket. Before first use, fill it 2/3 full with water (500 ml), then add about 1.2 kg of dishwasher salt using the supplied funnel. Screw the cap back on tightly. The salt indicator light turns off after 2-6 days. Refill when it lights up.

What does error code E1 mean?

Error code E1 indicates that the water supply time is too long. Check that the water tap is open, the inlet hose is not kinked or blocked, and the water pressure is sufficient. If the problem persists, contact customer service.

How to adjust the rinse aid amount?

The rinse aid dispenser is located inside the door. To adjust the dose, remove the cap and turn the dial to the desired number (factory setting: 4). Increase the dosage if you see water spots or poor drying; decrease if the dishes are sticky or have white marks.

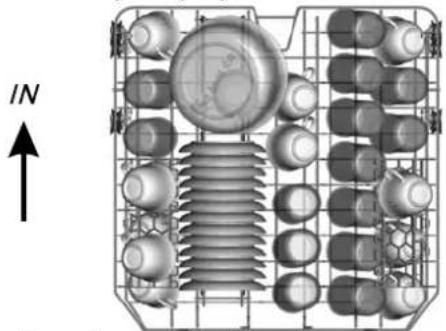

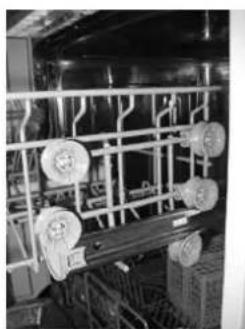

How to properly load the upper basket?

The upper basket is designed for delicate items: glasses, cups, saucers, small bowls. Place glasses upside down, tilt hollow items to allow water drainage. Ensure nothing obstructs the rotation of the spray arm. Avoid overloading.

The dishwasher produces foam, what to do?

Excessive foam can come from unsuitable detergent or rinse aid overflow. Only use special dishwasher products. In case of foam, open the door, add about 4 liters of cold water to the tub, then start a drain program. Repeat if necessary. Immediately wipe up any rinse aid overflow.

What is the consumption of the Eco program?

The Eco program (EN 50242) consumes about 0.93 kWh of electricity and 10 liters of water. Its duration is about 175 minutes. It is the most efficient program for normally soiled dishes.

USER MANUAL DW911EB Campomatic

Line drawing of a simple kitchen appliance with a handle and lid (no text or symbols)

TABLE OF CONTENT

English ____ 1

French 25

Italian 50

German 72

1. IMPORTANT SAFETY INFORMATION

WARNING!

When using your dishwasher, follow the precautions listed below:

■ This appliance is intended to be used in household and similar applications such as:

-staffkitchenareasinshops, offices and other working environments;

-farmhouses;

-by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments.

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safety and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. For EN60335-1

■ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. For IEC60335-1

■ This appliance is for indoor use only, for household use only.

■ Toprotectagainsttheriskofelectricalshock, donot immersetheunit, cordorpluginwaterorotherliquid.

■ Please unplug before cleaning and maintenance the appliance.

■ Use asoftclothmoistenwithmildsoap,andthenuse adryclothtowipeitagain.

■ Thisappliancemustbeearthed. Intheeventofa malfunctionorbreakdown, earthingwillreducetherisk ofanelectricshockbyprovidingapathofleast resistanceofelectriccurrent. Thisapplianceisequipped withacordhavinganequipment-earthingconductor andagroundingplug.
■ Theplugmustbepluggedintoanappropriateoutletthat isinstalledandearthedinaccordancewithalllocal codesandordinances.
■ Improperconnectionoftheequipment-earthing conductorcanresultintheriskofanelectricshock.
■ Checkwithaqualifiedelectricianorservice representativeifyouareindoubtwhethertheappliance isproperlygrounded.
■ Donotmodifytheplugprovidedwiththeappliance; Ifitdoesnotfittheoutlet.
■ Haveaproperoutletinstalledbyaqualifiedelectrician.
■ Donotabuse, siton, or standard on the door or dish rack of the dish washer.
■ Donotoperateyourdishwasherunlessallenclosure panelsareproperlyinplace.
■ Openthedoorverycarefullyifthedishwasheris operating,thereisariskofwatersquirtingout.
■ Donotplaceanyheavyobjectsonorstandonthedoor whenitisopen. The appliance could tip forward.

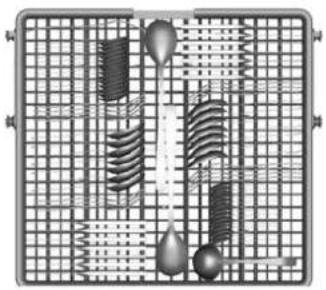

■ Whenloadingitemstobewashed: 1) Locatesharpitemssothattheyarenotlikelyto damagethedoorseal;

■2) Warning: Knivesandotherutensilswithsharppoints mustbeloadedinthebasketwiththeirpointsdownor placedinahorizontalposition.
■Check that the detergent powder is empty after completion of the wash cycle.
■ Donotwashplasticitemsunlesstheyaremarked dishwashersafeortheequivalent.
■Forplasticitemsn otsomarked, checkthemanufacturer's recommendations.
■Useonlydetergentandrinseadditivesdesignedfor anautomaticdishwasher.
■Neverusesoap,laundrydetergent,orhandwashing detergentinyourdishwasher.
■Childrenshouldbesupervisedtoensurethattheydonot playwiththeappliance.
■ Thedoorshouldnotbeleftopen, sincethiscouldincrease theriskoftripping. If the supply cordisdamaged, it must bereplaced by the manufacturer or its service agent or as similarly qualified person in order to avoid a hazard.
■During installation, the powersupply must not be excessivelyordangerouslybentorflattened.
■ Donottamperwithcontrols.
■The applianceistobeconnectedtothewatermainsusing newhosesetsandthatoldhose-setsshouldnotbereused.
■Themaximumnumberofplacesettingstobewashed is14.
■Themaximumpermissibleinletwaterpressureis1MPa.
■Theminimumpermissibleinletwaterpressureis0.04MPa.

Disposal

■ Dispose of the dishwasher packaging material correctly.
■ All packaging materials can be recycled.
■ Plastic parts are marked with the standard international abbreviations:

PE for polyethylene, e.g. sheet wrapping material PS for polystyrene, e.g. padding material POM polyoxymethylene, e.g. plastic clips PP polypropylene, e.g. Salt filler ABS Acrylonitrile Butadiene Styrene, e.g. Control Panel.

WARNING!

■ Packaging material could bed dangerous for children!
■ Ford disposing of package and the appliance please goto arecyclingcentre. Therefore cutoff the power supply cable and make the door closing device unusable.
■ Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
■ By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
■ Formore detailed information about recycling of this product, please contact your local city office and your household wasted disposalservice.
■ DISPOSAL: Donot disposethis product as unsorted municipal waste. Collection of such wastes separately for special treatment is necessary.

Quick operation guide

Fordetailedoperatingmethodreadthecorrespondingcontentontheinstructionmanual.

Switch on the appliance

Open the door, Press the Power switch button to switch on the appliance.

With each wash cycle.

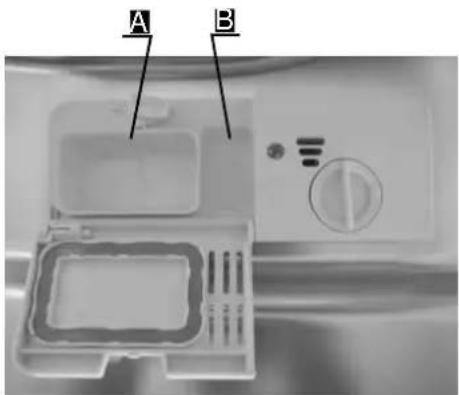

Compartment B:

Forprogrammeswithpre-washonly.

(Followtheuserinstructions!)

Checktherinseaidlevel

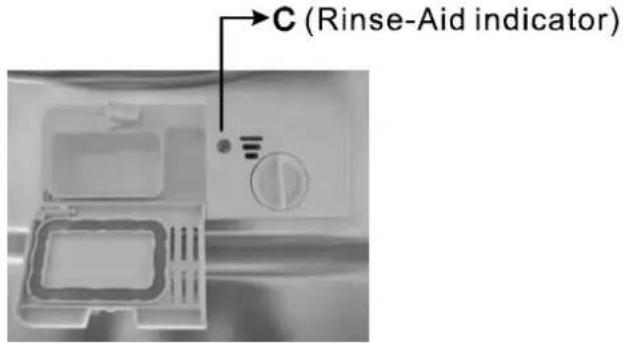

Mechanical indicator C.

Electricindicatoroncontrolpanel(ifprovided).

Checktheregeneration saltlevel

(Onmodelswithwatersoftenersystemonly.)

Electricindicatoroncontrolpanel(ifprovided).

Ifthereisnosaltwarninglightinthecontrolpanel

(forsomemodels),youcanestimatewhentofillthesaltinto

thesoftenerbythenumberofcyclesthedishwasherhasrun.

Loadthebaskets

Scrapeoffanylargeamountofleftoverfood. Softenremnantsofburntfoodinpans,

then load the baskets. Refer to the dishwasher loading instructions.

Selectaprogramme

Presstheprogrammebuttonuntiltheselectedprogrammelightsup.

( See the section entitled "Operation instruction" )

Runningthedishwasher

Closethedoor,turnonthewatertap. Themachinewillstartworkingafterabout10seconds.

- Changingtheprogramme

- 1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent may have already been released and the water already drained. If this is the case, the detergent dispensermustberefilled.

1. Open the doors slightly, then press the program button more than 3 second to cancel the running programme.

2. Selectanewprogramme

3. Closethedoor, restartthedishwasher.

WARNING!

- Addforgottendishesinthe dishwasher.

• 1. Openthedoorslightly,

1. Youcanopenthedoorcompletelyuntilthesprayarmsstop.

3.Addtheforgottendishes.

1. Close the door, the dishwasher will start running again after 10 seconds.

Open the door carefully.

Hotsteammayescape

when the door is opened!

- If the appliance is switched off during a wash cycle.

- Iftheapplianceisswitchedoffduringawashcycle,whenswitched

onagain, pleasere-selectthewashingcycle and operatethedishwasher

accordingtotheoriginalPower-onstate).

Switchofftheappliance

Whentheworkingcyclehasfinished,thebuzzerofthe

dishwasherwillsound8times,thenstop

TurnofftheapplianceusingthePowerbutton.

Turnoffthewatertap,

Warning: waitafewminutes (about 15 minutes) before unloading the dish washerto avoid handling thedishesandutensilswhiletheyarestillhotandmoresusceptibletobreak.

Theywillalsodrybetter.Unloadtheappliance,startingfromthelowerbasket.

3. Operation Instruction

IMPORTANT Togetthebestperformancefromyourdishwasher,readalloperatinginstructions beforeusingitforthefirsttime.

Control Panel

1. DisplayScreen: to show the reminding time, programm irons, salt and rinse aid warning;
2. Alt Button: Dual zone wash function, press the button to select either upper basket or lower basket loaded, and the response indicators will light on
3. Option-Option the Extra Drying or Express function with the main program being selected.
4. Delay Button: To touch the button to delay, delay time will be increased by discontinuous or continuous touch, maximum 24 hours delay can be defined.
5. Program Button: To Press the button to select appropriate Program.
6. PowerButton : To turn on/off the power supply.
7. StateIndicator: to show the state of dishwasher with the door closing, it will be particularized at paragraph 6.

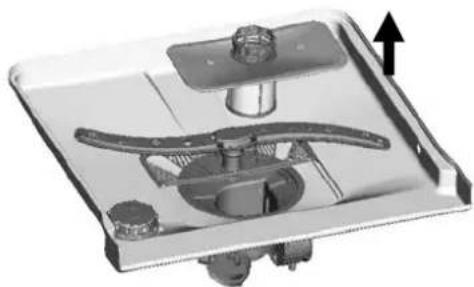

WARNING!

Simple metallic rod or bar on a plain background with a vertical dimension line labeled '7' (no text or symbols on the object itself)

The glass outer door is breakable ornament, please do not impact. And a broken door dishwasher is harmful to your family, please call for after service at once.

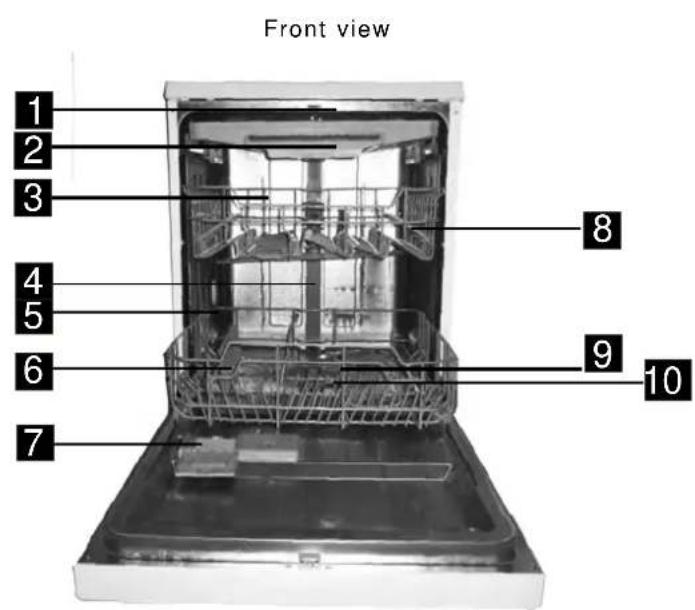

Dishwasher Features

1 Top spray arm

2 Cutleryrack

3 Upperbasket

4 Innerpipe

5 Lowerbasket

6 Saltcontainer

Back view of a device with coiled cable and mesh base, labeled 11 and 12 (no text or symbols on the diagram itself)

7 Dispenser

8 Cupshelf

9 Sprayarms

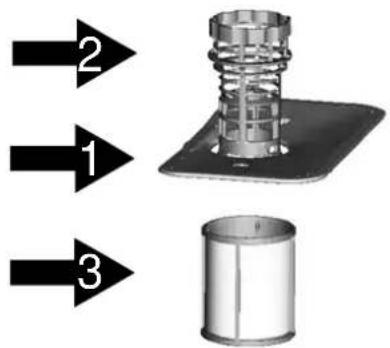

10 Filterassembly

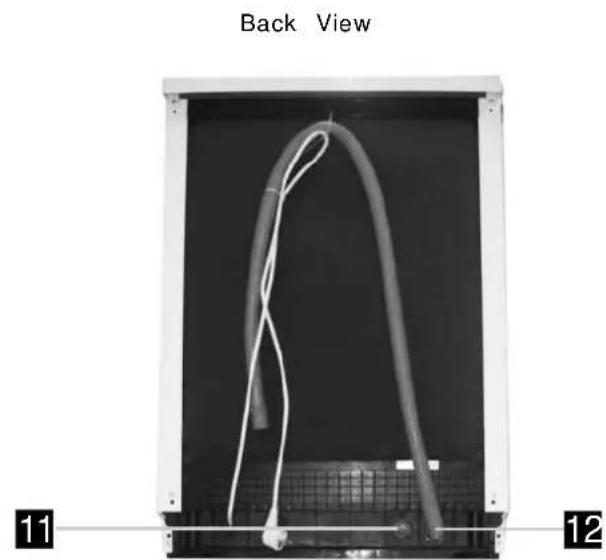

11 Inlet pipe connector

12 Drainpipe

4. Prior using for the first time

Before using your dishwasher for the first time:

A. Setthewatersoftener
B. Add 1.5Kg dishwasher salt and then full fill the salt container with water
C. Fill the rinse aid dispenser

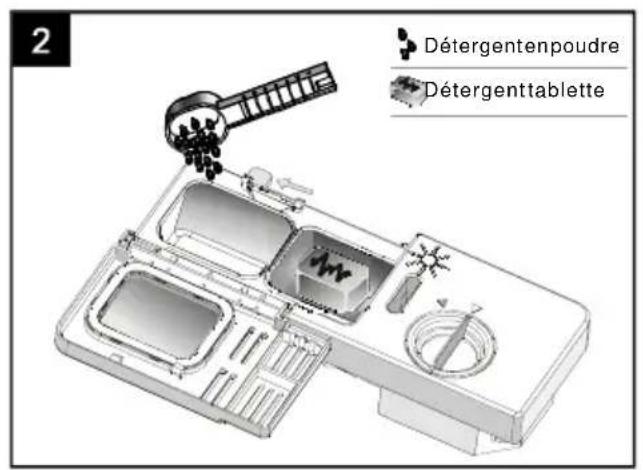

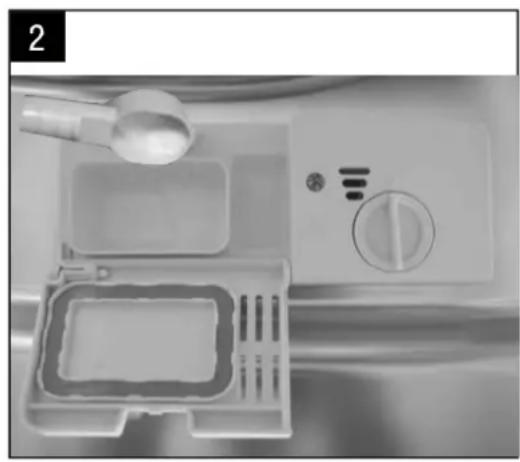

D. Fill in detergent

A. Water Softener

The water softener must be set manually, using the water hardness dial.

The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance.

The higher the content of these minerals and salts, the harder your water is.

The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

Adjusting Salt Consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption.

Please follow the steps below for adjustment in salt consumption.

1. Open the door, Switch on the appliance;
2. Press the Program button for more than 5 seconds to start the water softener set model within 60 seconds after the appliance was switched on (The Salt and Rinse aid warning lights will be on periodically when it get in the set model);
3. Press the Program button to select the proper set according to your local environment, the sets will change in the following sequence: H1->H2->H3->H4->H5->H6;
4. Press the Power button to end the setup model.

WATERHARDNESS				Selector Position	Saltconsumption (gram/cycle)
^ dH	^ fH	Clarke	mmol/l
0~5	0~9	0~6	0~0.94	H1	0
6-11	10-20	7-14	1.0-2.0	H2	9
12-17	21-30	15-21	2.1-3.0	H3	12
18-22	31-40	22-28	3.1-4.0	H4	20
23-34	41-60	29-42	4.1-6.0	H5	30
35-55	61-98	43-69	6.1-9.8	H6	60

Note:1

1 dH=1.25 Clarke=1.78fH=0.178mmol/l

DH:Germandegree

fH: French degree

Clark: British degree

Note:2

The manufactory setting: H4 (EN 50242)

Contact your local water board for information on the hardness of your water supply.

NOTE: If your model does not have any water softener, you may skip this section.

WATERSOFTENER

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water.

B. Loading the Salt Into the Softener

Always use the salt intended for use with dishwasher.

The salt container is located beneath the lower basket and should be filled as explained in the following:

Attention!

■ Only use salt specifically designed for the use in dishwashers! Every other type of salt not specifically designed for the use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused.
■ Only fill with salt just before starting one of the complete washing programs. This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

1

Mechanical component with a dial and gear mechanism, no visible text or symbols

2

Illustration of a hand pouring granular material into a kitchen appliance with a handle and bowl (no text or symbols)

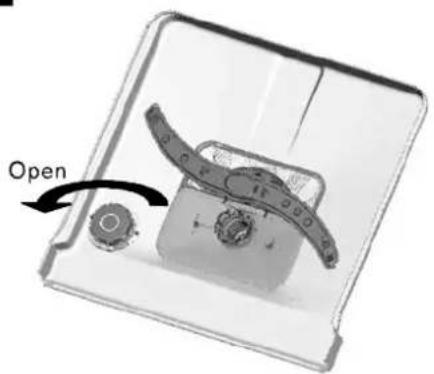

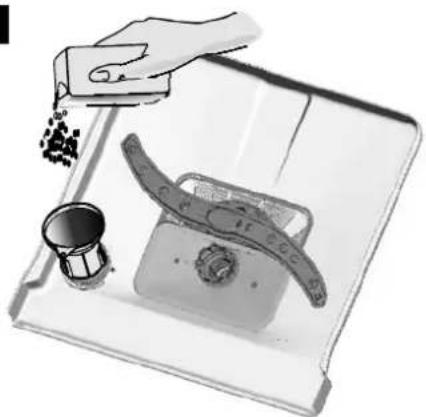

A After the lower basket has been removed, unscrew and remove the cap from the salt container.
B Place the end of the funnel (supplied) into the hole and introduce about 1.5kg of dishwasher salt.
C Full fill the salt container with water, It is normal for a small amount of water to come out of the salt container.
D After filling the container, screw the cap tightly back clockwise.
E The salt warning light will stop being after the salt container has been filled with salt.
F Immediately after filling the salt into the salt container, a washing program should be started (Wesuggesttouseashort program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is outofwarranty.

NOTE:

1. The salt container must only be refilled when the salt warning light in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the saltcontainerisfilled.
   If there is no salt warning light in the control panel (for some Models), you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run.
2. If there are spills of the salt, a soak or a rapid program should be run to remove the excessive salt.

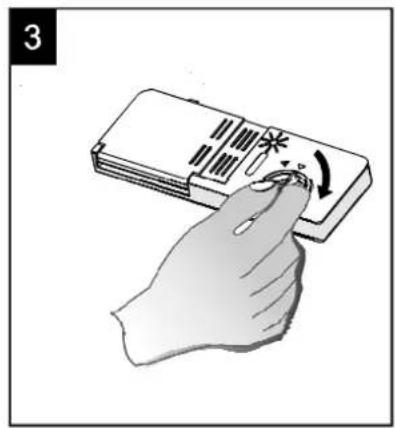

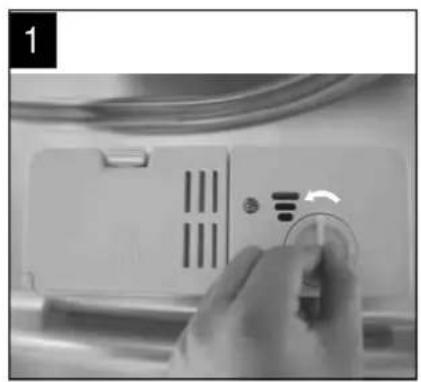

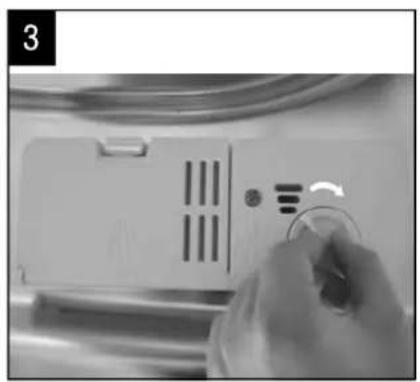

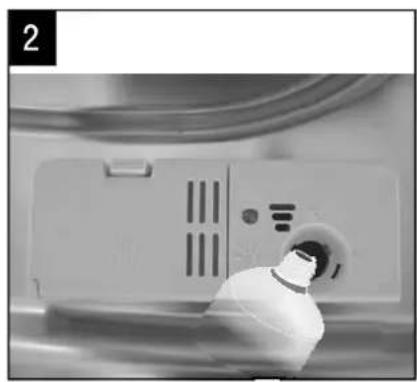

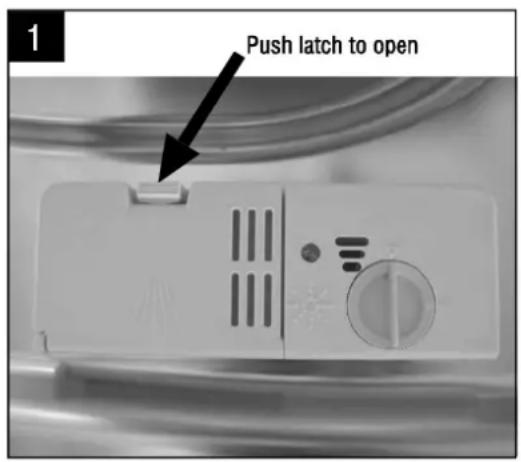

C. Fill the Rinse Aid Dispenser

RinseAid Dispenser

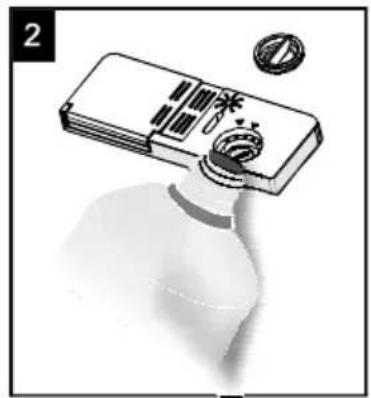

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

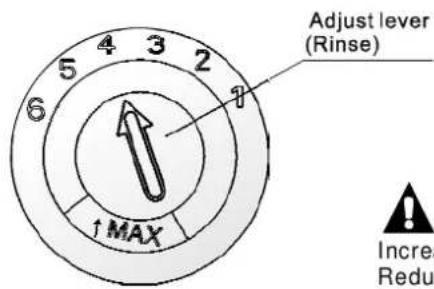

FunctionofRinseAid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to Refill the Rinse Aid Dispenser

If there is no rinse-aid warning light in the control panel, you can estimate the amount from the colour of the optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid level fall 1 / 4 full.

As the rinse aid diminishes, the size of the black dot ontherinse aidlevel indicator changes, as illustrated below.

Full
3/4full
1/2full
- 1/4full-Should refill to eliminate spotting
Empty

Hand holding a circular button next to a white electronic device with buttons and ventilation slots (no visible text or symbols)

Medical scan image showing a patient operating a CT scanner (no visible text or labels)

Close-up of a hand adjusting a white electronic device with a circular button and indicator lights (no visible text or symbols)

1 To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
2 Pour the rinse aid into the dispenser, being careful not to overfill.

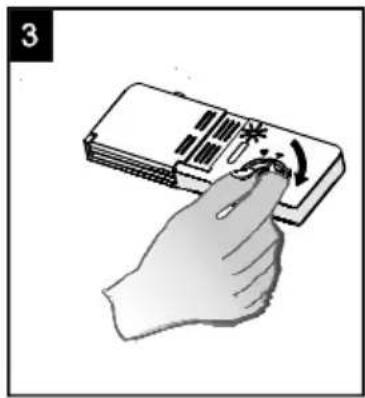

3 Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

NOTE: Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don't forget to replace the cap before you close dishwasher door.

Adjusting Rinse Aid Dispenser

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factory value is "4".)

NOTE:

Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knifeblades.

D. Function of Detergent

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

Attention!

ProperUseofDetergent

Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.

Don't put powdered detergent into the dispenser until you're ready to wash dishes.

Detergents

There are 3 sorts of detergents

1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6°dH. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split into two basic types:

■ conventional, alkaline detergents with caustic components
■ low alkaline concentrated detergents with natural enzymes

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for anormal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

Amount of Detergent to Use

Close-up of a kitchen appliance with a plastic tray, a spoon, and a control panel (no visible text or symbols)

NOTE:

If the lid is closed: press release button. The lid will spring open.
■ Always add the detergent just before starting each wash cycle.
■ Only use branded detergent aid for dishwasher.

!WARNING!

Dishwasherdetergentiscorrosive!

Take care to keep it out of reach of children.

Fillin Detergent

Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrated on the right:

A The place of main wash cycle detergent placed.

B The place of pre-wash cycle detergent placed.

Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging.

Closethelidandpressuntilillocksinplace.

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

NOTE:

■ You find information about the amount of detergent for the single programme on the last page.
■ Please aware, that according to the level soiling and the specific hardness of water differences are possible.
■ Please observe the manufacturer's recommendations on the detergent packaging.

5. Loading the Dishwasher Baskets

Recommendation

■ Consider buying utensils which are identified as dishwasher-proof.
■ Useamild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers.
■ Forparticularitems, select a program with as low atemperature as possible.
■ To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended.

For washing in the dishwasher the following cutlery/dishes

Arenotsuitable

■ Cutlery with wooden, hornchina or mother-of-pearl handles

■ Plastic items that are not heat resistant

■ Oldercutlerywithgluedpartsthatarenot temperature resistant

■ Bondedcutleryitemsordishes

■ Pewterorcooperitems

■ Crystalglass

■ Steelitemssubjecttorusting

■ Woodenplatters

■ Items made from synthetic fibres

Are of limited suitability

■ Some types of glasses can become dull after alarge number of washes
■ Silver and aluminum parts have a tendency to discolour during washing
■ Glazed patterns may fade if machine washed frequently

Attention before or after loading the Dishwasher Baskets

(For best performance of the dishwasher, follow these loading guidelines.

Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans.

It is not necessary to rinse the dishes under running water.

Place objects in the dishwasher in following way:

1. Items such as cups, glasses, pots/pans, etc. are faced downwards.
2. Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during washing.

NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.
  ■ Dishes and items of cutlery must not lie inside one another, or cover each other.
  ■ To avoid damage to glasses, they must not touch.
  ■ Load large items which are most difficult to clean into the lower basket.
  ■ The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and teacups
  ■ Long bladed knives stored in an upright position are a potential hazard!
  ■ Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
  ■ Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

Removing the Dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

The Method Loading Normal Dishware

Loading the Upper Basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and teacups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.

Technical diagram of a mechanical assembly with gears and shafts, no visible text or symbols

Pleaseberemindedthat:

■ Pots, serving bowls, etc, must always be placed top down.
- Deep pots should be slanted to allow water to flow out.
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.

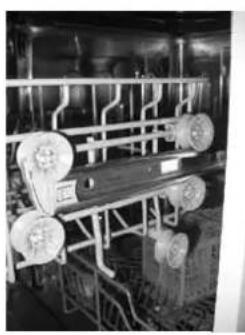

Adjusting the Upper Basket

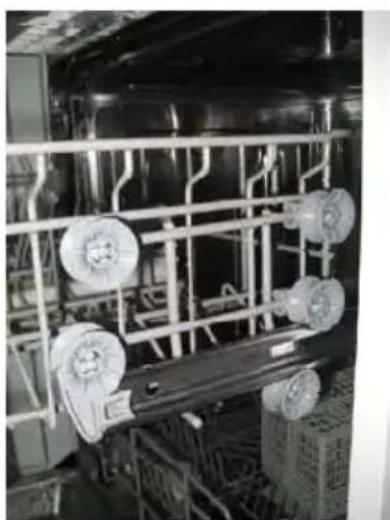

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper /lower basket. The height of the upper basket can be adjusted by placing the wheels on different height of the rails. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms..

Lower position Upper position

Industrial equipment setup with pipes and circular components (no visible text or symbols)

Interior view of a mechanical or electrical enclosure with visible wiring and components (no text or symbols)

Wheels

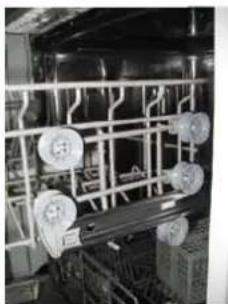

Loading the Lower Basket

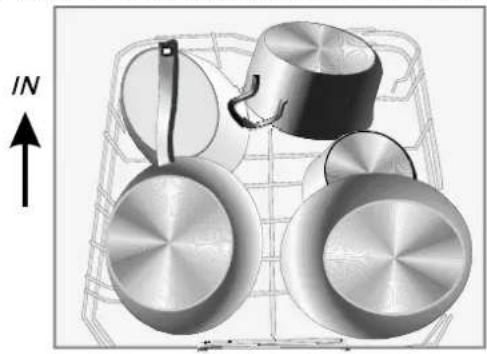

We suggest that you place large items and the most difficult to clean items are to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

Illustration of kitchen utensils including a pot, lid, and panes arranged in a grid (no text or symbols)

Folding back the cup shelves

For better stacking of pots and pans, the spikes can be folded down as show in the picture right.

Technical line drawing of a steel-framed industrial structure with no visible text or symbols

Technical line drawing of a mechanical assembly with gears and rods (no text or symbols)

Folding SpikesofLower Basket

For better stacking of pots and pans, the spikes can be folded down as show in the picture right.

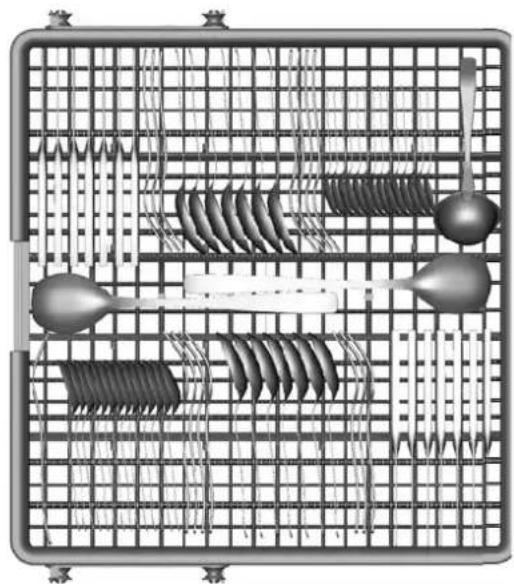

Cutlery Basket

Cutlery should be placed in the cutlery rack separately from each other in the appropriate positions, and do make sure the utensils do not nest together, this may cause bad performance.

WARNING!

• Do not let any item extend through the bottom.
  Alwaysloadsharpputensilswiththesharp pointdown! ____ ____

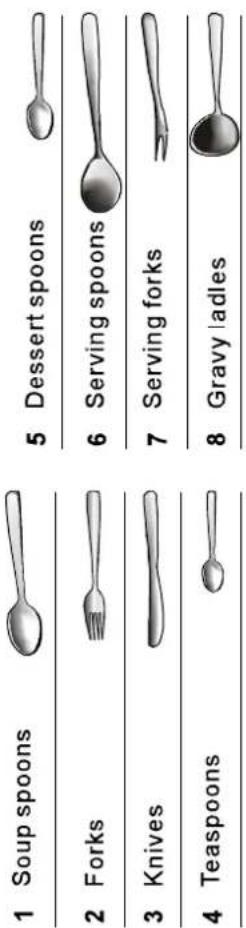

For a top quality cleaning, place the silverware in the basket making sure that:

■ Theydonotnesttogether.
■ Silverware is placed with the male face up.
■ Longutensilsinthemiddle.

Diagram of a grid-based mechanical or electrical component with four components (no text or symbols)

6. Starting a washing program

Wash Cycle Table

NOTE: (★) Means: need to fill rinse into the Rinse-Aid Dispenser.

Program	Cycle Selection Information	Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (L)	Rinse Aid
Auto AUTO	Autosensing wash, lightly, normally or heavily soiled crockery, withor without dried-onfood	Pre-wash(45) °CAutowash(45-55) Rinse Rinse(62)CDrying	5/30g(Or3in1)	120~180	0.9~1.3	8.4~12.7
Intensive	For heaviest soiled crockery, andnormally soiledpots , pansdishesetcwithdried onsoiling.	Prewash50 °C)Wash (65°C) Rinse Rinse Rinse (65°C) Drying	5/30g(Or3in1)	175	1.6	17
Normal	For normally soiled loads, such as pots, plates,glasses and lightly soiled pans.	Prewash(45)°CWash(55 °C) Rinse Rinse(65 °C) Drying	5/30g(Or3in1)	185	1.3	14
ECO (*EN 50242)	This is standard programme, it is suitable to clean normally soiled tableware and it is the most efficient programme in terms of its combined energy and water consumption for thattypeoftableware.	PrewashWash(50 °C) Rinse(65°C) Drying	5/30g(Or3in1)	175	0.93	10
Glass	For lightly soiled crockery andglass	Pre-washwash(40 °C) Rinse Rinse(60°C) Drying	5/30g	115	0.87	14
60 min	For lightly soiled loads that do not need excellent drying efficiency.	Prewash (50°C)Wash(60°C) Rinse (60°C) Drying	5/30g	60	1.15	10
Rapid [20W7]	A shorter wash for lightly soiled loads that do not need drying.	Wash(40 °C) Rinse Rinse(45 °C)	20g	40	0.6	10
Soak [560X]	Torinsedishesthatyouplan to wash later that day	Prewash		8	0	4	0

NOTE:

*EN 50242 : This programme is the test cycle. The information for comparability test inaccordance with EN50242, as follows:

■ Capacity:14 setting
■ Position Upper basket: upper wheels on rails
■ Rinseaidsetting:6
■ PI:0.49w; Po:0.45w.

Turning On the Appliance

Startingacyclewash

1 Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one (see the section entitled "LoadingtheDishwasher)."
2 Pour in the detergent (see the section entitled "Salt, Detergent and Rinse Aid").
3 Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.

4 Press the program button, the wash program will be changed as follows direction: ECO->Glass->60min->Rapid->Soak->Auto->Intensive->Normal;
5 If a program is selected, the response program indicator will light, then you can also choose the Extra Drying or Express function, close the door, the dishwasher will begin work after about 10 seconds.

Change the Program...

Premise:

A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Loading the Detergent").
2 Open the door, the machine will be in standby state, press the program button more than 3s then you can change the program to the desired cycle setting (see the section entitled " Starting a wash cycle. . .").

The front indicator show the state of dishwasher:

a).blue light with blinking: running;
b).blue light without blinking: pause;
c).white light: end of process(open the door, the white light will extinguish);
d).nolight:standby

NOTE:

If you open the door, the man who was a whole program light will stop blinking and the buzzer will move every minute unless you close the door. After you close the door, the machine will keep on working after 10 seconds.

If your model has broken remember function, the machine will go on to finish the selected program after the power cut.

Forgot to Add a Dish?

Aforgottendishcanbeaddedanytimebeforethedetergentcupopens.

1 Openthedoorslightly
4 Closethedoor,thedishwasherwillrun afterabout10 seconds.
2 Afterthesprayarmsstopworking, you can open the door completely.
3 Addforgottendishes.

At the end of the Wash Cycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the Power switch button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

■ SwitchOfftheDishwasher

Frontindicatorshowswhitelight, only in this case the programme has ended.

1. Open the door, switch off the dishwasher by pressing the Power button.
2. Turnoff the watertap!

■ Openthedoorcarefully.

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance.

Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

■ Unloading the dishwasher

It is normal that the dishwasher is wet inside.

Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

WARNING!

It is dangerous to open the door when washing, because the hot water may scald you.

7. Maintenance and Cleaning

Filtering System

The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed.

The filter system consists of a coarse filter, a flat (Main filter) And a microfilter(Fine filter).

Mainfilter 1

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

Coarsefilte 2

Larger items, such as pieces of bones or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and liftout.

Finefilter 3

Thisfilter holds soil and food residues in the sumparea and prevents it from being redeposit on the dishes during wash cycle.

Filterassembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction.

WARNING!

■ The dishwasher must never be used without the filters.
■ Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

1

Step 1: Turn the filter in anti-clockwise direction,

2

Mechanical assembly diagram showing internal components with a directional arrow (no text or labels)

Step2 lift the filter assy up

NOTE: When following this procedure from step1 to step 2, the filter system will be removed; when following it from Step 2 to Step 1, the filter system will be installed.

Remarks:

• Inspect the filters for blocking after every time the dishwasher has been used.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters underrunning water.

NOTE: The entire filter assembly should be cleaned once a week.

Cleaning the Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the last page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.

WARNING!

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased.

Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth.

After cleaning, make sure to dry it thoroughly.

For the exterior, use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning the Door

Interior view of a rectangular electronic device with internal components and a black arrow pointing to a section (no visible text or symbols)

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use aspraycleanerofanykind.

WARNING!

■ Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
■ Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

ProtectAgainstFreezing

please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows :

1. Cutoff the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

NOTE: If your dish washer cannot work because of the ice, please contact professional service persons.

CleaningtheSprayArms

It is necessary to clean the spray arms regularly for hard waterchemicalswillclogthe sprayarmjetsandbearings.

To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it.

Toremovethelowerspray arm, pull out the spray arm upward.

Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

How to Keep Your Dishwasher in Shape

■ After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

■ RemovethePlug

Before cleaning or performing maintenance, always remove the plug from the socket.

■ No Solvents or Abrasive Cleaning

Toclean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

■ WhennotinUseforaLongTime

It is recommend that your run a washcycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seal to last longer and prevent odours from forming within the appliance.

■ MovingtheAppliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factor that cause odoursto for min the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

8. Installation instruction

Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

Levelling the Appliance

Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet. In any case, the appliance should not be inclined more than 2 ^® .

About Power Connection

WARNING!

For personal safety:

■ Do not use an extension cord or an adapter plug with this appliance.
■ Do not, under any circumstances, cut or remove the earthing
■ Connection from the power cord.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

⚠ Insure proper ground exists before use

Electrical Connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

Water Connection

Cold Water Connection

Line drawing of a hand holding a faucet with a handle (no text or symbols)

Connect the cold water supply hose to a threaded 3/4 (inch) connector and make sure that it is fastened tightly in place.

If the water pipes are new or have not been used for an extended period of time, let the waterrunt to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.

WARNING!

Pleaseclosethehydrantafterusing.

Drain hose Connection

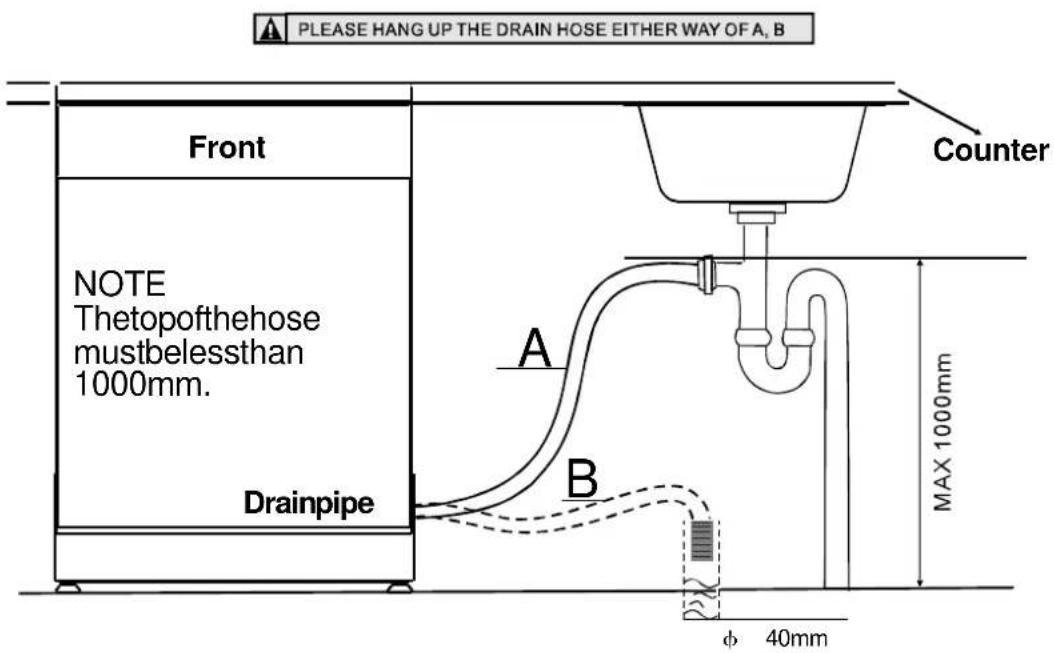

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm.

How to Drain Excess Water From Hoses

If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water Outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

ExtensionHose

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

SyphonConnection

The waste connection must be at a height less than 1000 mm (maximum) from the bottom of the dish. The water drain hose should be fixed.

Start of Dishwasher

The following things should be checked before starting the dishwasher.

1 The dishwasher is level and fixed properly
2 The inlet valve is open
3 There is a leakage at the connections of the conducts
4 The wires are tightly connected
5 Thepowerisswitchedon
6 The inlet and drain hoses are knotted
7 All packing materials and printings should be taken out from the dishwasher

Attention: After installation, please make sure to keep this manual.

The content of this manual is very helpful to the users.

Before Calling for Service

Review the charts on the following pages may save you from calling for service.

Problem	Possible Causes What to Do
Dishwasher doesn't start	Fuseblown,orthe circuitbreakeracted	Replacefuseorresetcircuitbreaker.Removeanyother appliancessharingthesamecircuitwiththedishwasher
	Powersupplyisnot turnedon	Makesurethedishwasheristurnedonandthedooris closedsecurely.Makesurethepowercordisproperlypluggedintothe wallsocket.
	Waterpressureislow	Checkthatthewatersupplyisconnectedproperlyand thewateristurnedon.
	Doorofdishwasher notproperlyclosed.	Makesuretoclosethedoorproperlyandlatchit.
water not pumped form dishwasher	Kinkindrainhose	Checkdrainhose.
	Filterclogged	Checkcoarsethefilter(see section titled "Cleaning The Filter")
	Kitchensinkclogged	Checkthekitchensinktomakesureitisdrainingwell.Iftheproblemisthekitchensinknotdraining,youmay needaplumberratherthanaservicemanfordishwashers.
Suds in the tub	Improperdetergent	Useonlythespecialdishwasherdetergenttoavoidsuds.Ifthisoccurs,openthedishwasherandletsudsevaporate.Add1gallonofcoldwatertothetub.Closeandlatchthe dishwasher,thenselectanycycle.Dishwasherwilldrain outthewateratthefirststep.Openthedoorafterdraining isstopandcheckifthesudsisdisappeared.Repeatifnecessary.
	Spilledrinse-aid	Alwayswipeuprinse-aidspillsimmediately.
Stained tub interior	Detergentwith colourantwasused	Makesurethatthedetergentistheonewithout colourant.
White film on inside surface	Hardwaterminerals	Tocleantheinterior,useadampspongewith dishwasherdetergentandwearrubbergloves.Neveruseanyothercleanerthandishwasher detergentfortheriskoffoamingorsuds.
There are rust stains on cutlery	Theaffecteditemsare notcorrosionresistant.
	Aprogrammewasnot runafterdishwasher saltwasadded.Tracesofsalthave gottenintothewashcycle.	Alwaysrunthequickwashprogramme.withoutanycrockeryinthedishwasherand withoutselectingtheTurbofunction(ifpresent),afteraddingdishwashersalt.
	Thelidofthesofter isloose	Checkthelip.Ensurethefixisfine.
Knocking noise in the wash cabinet	As p a y a r m i s knockingagainst aniteminabasket	Interrupttheprogramme.andrearrangetheitems whichareobstructingthespayarm.r
Rattling noise in the wash cabinet	Itemsofcrockery arelooseinthe washcabinet	Interrupttheprogramme,andrearrangetheitemsofcrockery.
Knocking noise in the water pipes	Thismaybecaused byon-siteinstallation orthecross-sectionof thepiping.	Thishasnoinfluenceonthedishwasherfunction.ifindoubt,contactasuitablyqualifiedplumber.

	Problem	Possible Causes	What to Do
Unsatis-factory washing result	The dishes are not clean	Thedisheswerenot loadedcorrectly.	Seenotesin"LoadingtheDishwasherBaskets".
		Theprogrammewas notpowerfulenough.	Selectamoreintensiveprogramme.See"WashCycleTable."
		Notenoughdetergent wasdispensed.	Usemoredetergent,orchangeyourdetergent.
		Itemsareblocking thepathofspayarms.r	Rearrangetheitemssothatthespaycanrotatefreely.r
		Thefiltercombination in the base of wash cabinetisnotcleanor isnotcorrectlyfitted. Thismaycause thespayarmjets togetblocked.	Cleanand/orfitthefiltercombinationcorrectly.Cleanthespayarmjets.See"CleaningtheSpray Arms".
	Cloudiness on glassware	Combinationofsoft waterandtoomuch detergent.	Uselessdetergentifyouhavesoftwaterandselect ashortestcycletowashtheglasswareandtoget themclean.
	Black or gray marks on dishes	Aluminumutensils haverubbedagainst dishes.	Useamildabrasivecleanertoeliminateethosemarks.
	Detergent left in dispenser cups	Dishesblock detergentcups.	Re-loadingthedishesproperly.
Unsatis-factory drying result	The dishes are not drying	Improperloading	Loadthedishwasherassuggestedinthedirections.
		Toolittlerinse-aid	Increasetheamountofrinse-aid/refilltherinse-aid dispenser.
		Dishesareremoved toosoon	Donotemptyyourdishwasherimmediatelyafter washing.Openthedoorslightlysothatthesteamcan escape.Beginunloadingthedishwasheronlyoncet hedishesarebarelywarmtothetouch.Emptythelow basketfirst.Thispreventswaterformdroppingoff dishesintheupperbasket.
		Wrongprogram hasbeenselected	Inshortprogramthewashingtemperatureislower. Thisalsolowerscleaningperformance.Choose aprogramwithalongwashingtime.
		Useofcutlerywith alow-qualitycoating	Waterdrainageismoredifficultwiththeseitems.Cutleryordishesofthistypearenotsuitablefor washinginthedishwasher.

Error Codes

When some malfunctions come on, the appliance will display error codes to warn you:

Codes	Meanings	Possible Causes
E1	Longerinlettime.	Faucetsisnotopened, orwaterintakeis restricted,orwaterpressureistoolow.
E4	Overflow.	Someelementofdishwasherleaks.
E8	Dividervalefailed	Dividervalefailed
E9	Keepressingabuttonmorethan30seconds.	Waterorsomethingonthebutton.

WARNING!

■ Ifoverflowoccurs,turnoffthemainwatersupplybeforecallingaservice.
If there is water in the base pan because of an overfill or small leak, the watershould beremovedbeforerestartingthedishwasher.

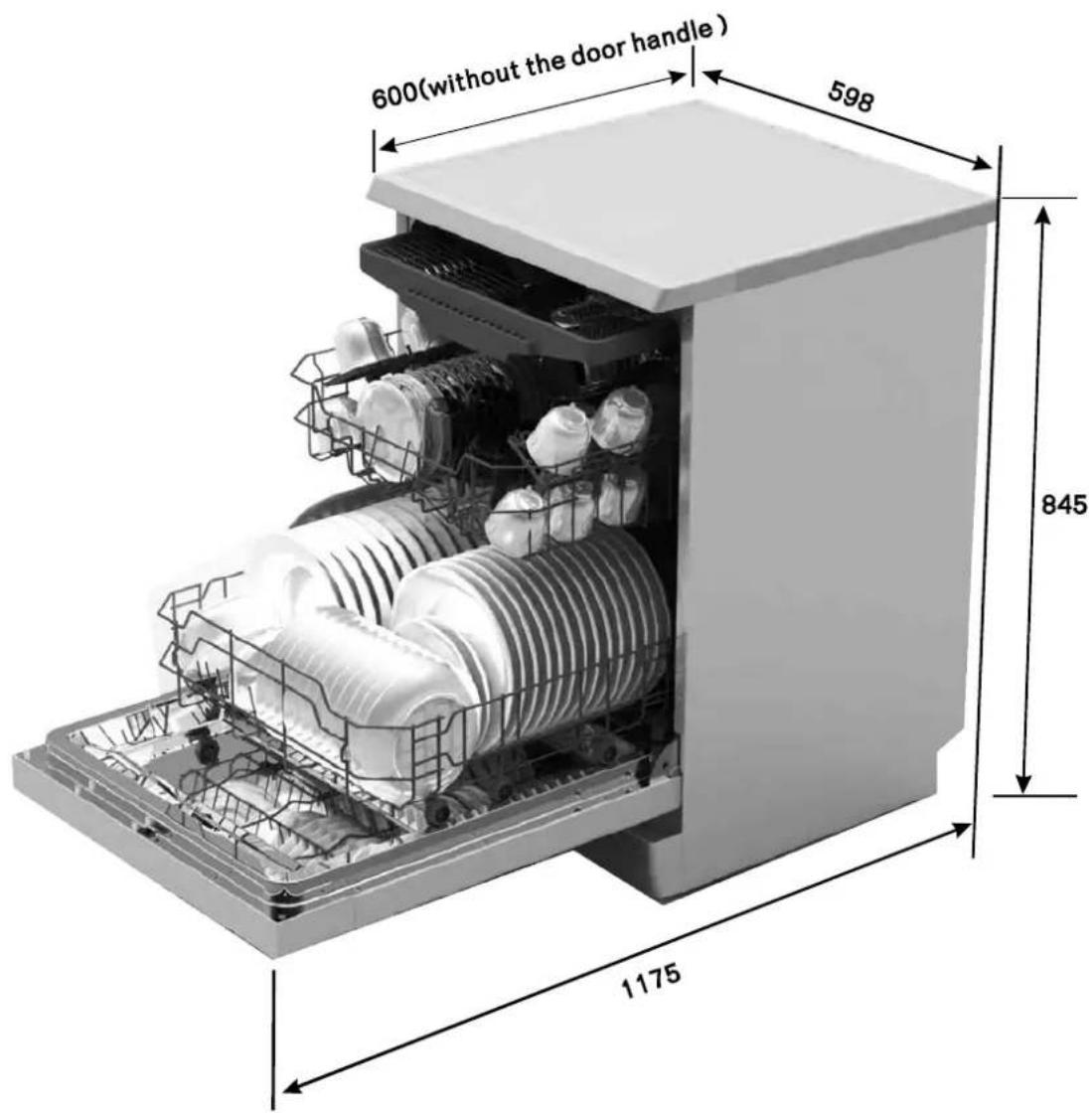

Height:845mm
Width:598mm
Depth:600mm	(withoutthedoorhandle)
Waterpressure:0.04-1.0MPa
Powersupply:seerating label
Capacity:	14 place settings

Loading the baskets according to En50242:

1. Upper basket:

Illustration of various household appliances arranged in a grid pattern (no text or symbols)

Information for comparability tests in accordance with EN 50242
Capacity: 14 place settings Position of the upper basket: lower position Programme: ECO
Rinse aid setting: 6 Softener setting: H4

Simple circular diagram with a central arrow and a vertical bar, no text or symbols present.

Note:1° dH=1.25° Clark=1.78° fH=0.178mmol/l

Illustration of a hand pouring granular material into a kitchen appliance with a side bowl (no text or symbols)

Illustration of a hand holding a card with a scroll, no text or symbols present

Illustration of a bottle with a lid and a magnified inset showing internal components (no text or symbols)

Illustration of a hand pressing down on a device with a curved arrow indicating rotation (no text or symbols)

3D technical illustration of a mechanical assembly with insulator and housing components, no visible text or symbols

Industrial piping system with multiple valves and valves in a storage or processing facility (no visible text or symbols)

Industrial machinery setup with metal frame and circular components (no visible text or symbols)

Tiroir à couverts

Diagram of a grid-based mechanical or electrical component with curved and linear elements, no visible text or symbols.

Mechanical assembly diagram showing a component with a central shaft and housing, no visible text or symbols

Important

Diagram of a mechanical device with internal components and an arrow indicating direction (no text or symbols)

Line drawing of a hand using a tool to lift a valve (no text or symbols)

A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.

Blue and white photo of a blue rectangular appliance with metal grid structure (no visible text or symbols)

Two blue metal shopping carts with grid patterns, one being lifted by a blue arrow (no text or symbols visible)

Two blue metal mesh storage units with a downward arrow indicating a process (no text or symbols visible)

Two blue industrial storage racks with grid patterns, one showing a downward arrow (no text or symbols visible)

Two blue metal frame structures with grid patterns, one showing a downward arrow (no text or symbols)

Interior view of an electronic device with curved wires and a grid base, labeled 11, 12, and 13 (no text or symbols on the diagram itself)

1.bracciodilavaggiosuperiore

Illustration of a hand pouring granular material into a kitchen appliance with a handle and bowl (no text or symbols)

Illustration of a bottle with a lid and a bulb, no text or symbols present

3D technical illustration of a device interior with labeled components (no text or symbols)

NOTA:

3D diagram of a mechanical assembly with gears and housing, no visible text or symbols

Caricamentodelcestelloinferiore

Illustration of a kitchen with cutlery, a pot, and a basket containing fruits (no text or symbols)

Industrial machinery with multi-tiered rollers and piping (no visible text or symbols)

Industrial storage racks with circular components and piping (no visible text or symbols)

Regolarelamaniglia

Structural engineering diagram showing steel framework and support beams (no text or labels)

Technical line drawing of a mechanical assembly or frame structure (no visible text or symbols)

Supportiribaltabilidelcestelloinferiore

Hand holding a wire mesh over a grid, no text or symbols visible

Cestelloperleposate

Diagram of a grid-based mechanical or electrical component with springs and spheres, no visible text or symbols

Mechanical assembly diagram showing a component with a central hub and directional arrow (no text or symbols)

Interior view of a rectangular electronic device with internal components and a black arrow pointing to a section (no visible text or symbols)

Mechanical assembly diagram showing a rotating shaft and housing with directional arrows (no text or labels)

Dopoognilavaggio

⚠️ WARNING: WARNING:

Close-up of a coiled white cable or wire wrapped in gray, mounted on a dark surface with measurement markings (no text or symbols visible)

Illustration of a hand pouring granular material into a container with a curved handle and a small bowl (no text or symbols)

Close-up of a hand holding a small object inside a device casing (no visible text or symbols)

Interior view of a modern kitchen or appliance with a person standing near the door (no visible text or symbols)

Interior view of a kitchen appliance with tiled walls and ventilation grilles (no visible text or symbols)

Interior view of a kitchen appliance with a showerhead and control panel (no visible text or symbols)

iHINWEISWEIS

Interior view of a microwave oven with labeled parts A and B (no text or symbols on the main subject)

i HINWEISWEIS

Industrial machinery setup with rollers and piping (no visible text or symbols)

Obere Position

Industrial machinery structure with metal framework and circular components (no visible text or symbols)

Architectural or engineering diagram showing staircases and structural elements (no visible text or labels)

Technical line drawing of a mechanical assembly or structural frame (no visible text or symbols)

Hand holding a hand against a grid of lines and vertical bars (no text or symbols visible)

Besteckkorb

3D diagram showing two wireframe structures with arrows indicating transformation or assembly (no text or symbols)

⚠️ WARNING:WARNING:

⚠️ WARNING: WARNING:

Mechanical component diagram showing internal parts and a directional arrow (no text or symbols)

Exterior view of a modern office building (no signage)

⚠️ WARNING: WARNING:

Line drawing of a hand using a faucet to press or install a valve (no text or symbols present)
