Product Type	Fridge-Freezer
Brand	Privileg
Model	PRC 838 A+
Energy Class	A+
Total Gross Volume	Approx. 250 L
Fridge Volume (net)	Approx. 180 L
Freezer Volume (net)	Approx. 70 L
Dimensions (H x W x D)	Approx. 180 x 60 x 65 cm
Weight	Approx. 60 kg
Climate Class	N-ST (16°C - 38°C)
Noise Level	Approx. 40 dB
Defrosting Type	Fridge: Auto-defrost; Freezer: Manual
Temperature Control	Mechanical thermostat
Door Reversible	Yes
Interior Light	Yes, LED
Shelves Material	Tempered glass
Freezer Drawers	3
Cooling System	Static (fan optional)
Refrigerant	R600a (Isobutane)
Annual Energy Consumption	Approx. 250 kWh
Spare Parts Availability	Minimum 7 years after production
Repairability Index	Not rated
Warranty	2 years
Maintenance	Clean condenser coils annually; defrost freezer when ice >5 mm

Frequently Asked Questions - PRC 838 A+ PRIVILEG

How do I reverse the door on my Privileg PRC 838 A+?

The door is reversible. You will need a screwdriver and follow the steps in the manual: remove hinges, transfer door handle to the opposite side, and reattach hinges. It is recommended to have two people for this task.

What is the recommended temperature setting for the fridge and freezer?

For optimal food preservation, set the fridge to 4°C and the freezer to -18°C. Use the thermostat dial to adjust.

Why is my fridge making noise?

Some noise is normal, such as the compressor humming or refrigerant flowing. If the noise is excessive, check that the appliance is level, not touching walls, and that items inside are stable.

How often should I defrost the freezer?

Defrost the freezer when the ice layer reaches 5 mm thickness. Turn off the appliance, remove food, and let ice melt. Do not use sharp tools to remove ice.

What should I do if the fridge is not cooling properly?

First, check that the thermostat is set correctly and the door seals are clean. Ensure the condenser coils at the back are dust-free. If problem persists, contact customer service.

Can I change the interior light bulb?

The interior light is LED and should be replaced by a qualified technician. Do not attempt to replace it yourself as it may require disassembly.

How do I clean the fridge?

Clean the interior with a mild detergent and warm water. Wipe dry. Avoid abrasive cleaners. Clean the condenser coils every six months with a vacuum or brush.

What is the energy class of this model and how can I save energy?

The Privileg PRC 838 A+ has energy class A+. To save energy, keep it away from heat sources, allow hot food to cool before storing, and avoid frequent door openings.

Where can I find spare parts for my Privileg fridge?

Spare parts are available from authorized service centers for at least 7 years after production. Contact Privileg customer support or check their website.

What should I do if the fridge stops working?

Check the power cord and circuit breaker. If the appliance still does not run, contact a qualified technician. Do not attempt to repair the compressor or refrigerant system yourself.

USER MANUAL PRC 838 A+ PRIVILEG

Instructions for use

DE

Gebrauchsanweisung

ENGLISH Instructions for use Page 4

IMPORTANT to be read and observed

Before using the appliance, read these safety instructions. Keep them nearby for future reference. These instructions and the appliance itself provide important safety warnings, to be observed at all times. The manufacturer declines any liability for failure to observe these safety instructions, for inappropriate use of the appliance or incorrect setting of controls.

⚠️ Very young children (0-3 years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised. Children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

PERMITTED USE

⚠️ CAUTION: The appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system.

This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels, bed

& breakfast and other residential environments.

This appliance is not for professional use. Do not use the appliance outdoors.

⚠ The bulb used inside the appliance is specifically designed for domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009).

⚠️ The appliance is designed for operation in places where the ambient temperature comes within the following ranges, according to the climatic class given on the rating plate. The appliance may not work properly if it is left for a long time at a temperature outside the specified range.

Climatic Class Amb. T. (°C)

SN: From 10 to 32 °C

ST: From 16 to 38 °C;

N: From 16 to 32 °C

T: From 16 to 43 °C

This appliance does not contain CFCs. The refrigerant circuit contains R600a (HC). Appliances with Isobutane (R600a): isobutane is a natural gas without environmental impact, but is flammable. Therefore, make sure the refrigerant circuit pipes are not damaged, especially when emptying the refrigerant circuit.

⚠ WARNING: Do not damage the appliance refrigerant circuit pipes.

⚠ WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

⚠ WARNING: Do not use mechanical, electric or chemical means other than those recommended by the Manufacturer to speed up the defrost process.

⚠ WARNING: Do not use or place electrical devices inside the appliance compartments if they are not of the type expressly authorised by the Manufacturer.

⚠ WARNING: Ice makers and/or water dispensers not directly connected to the water supply must be filled with potable water only.

⚠ WARNING: Automatic ice-makers and/or water dispensers must be connected to a water supply that delivers potable water only, with mains water pressure between 0.17 and 0.81 MPa (1.7 and 8.1 bar).

⚠ Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

⚠️ Do not swallow the contents (non-toxic) of the ice packs (provided with some models). Do not eat ice cubes or ice lollies immediately after taking them out of the freezer since they may cause cold burns.

⚠ For products designed to use an air filter inside an accessible fan cover, the filter must always be in position when the refrigerator is in function.

⚠ Do not store glass containers with liquids in the freezer compartment since they may break. Do not obstruct the fan (if included) with food items.

After placing the food check that the door of the compartments closes properly, especially the freezer door.

⚠️ Damaged gaskets must be replaced as soon as possible.
⚠️ Use the refrigerator compartment only for storing fresh food and the freezer compartment only for storing frozen food, freezing fresh food and making ice cubes.
⚠️ Avoid storing unwrapped food in direct contact with internal surfaces of the refrigerator or freezer compartments.

Appliances could have special compartments (Fresh Food Compartment, Zero Degree Box, etc.). Unless specified in the specific booklet of product, they can be removed, maintaining equivalent performances.

⚠️ C-Pentane is used as blowing agent in the insulation foam and it is a flammable gas.

INSTALLATION

⚠️ The appliance must be handled and installed by two or more persons - risk of injury. Use protective gloves to unpack and install - risk of cuts.
⚠️ Installation, including water supply (if any) and electrical connections, and repairs must be carried out by a qualified technician. Do not repair or replace any part of the appliance unless specifically stated in the user manual. Keep children away from the installation site. After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest After-sales Service. Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children - risk of suffocation. The

appliance must be disconnected from the power supply before any installation operation - risk of electric shock. During installation, make sure the appliance does not damage the power cable - risk of fire or electric shock. Only activate the appliance when the installation has been completed.

⚠️ Be careful not to damage the floors (e.g. parquet) when moving the appliance. Install the appliance on a floor or support strong enough to take its weight and in a place suitable for its size and use. Make sure the appliance is not near a heat source and that the four feet are stable and resting on the floor, adjust as required, and check that the appliance is perfectly level using a spirit level. Wait at least two hours before switching the appliance on, to ensure that the refrigerant circuit is fully efficient.

⚠ WARNING: To avoid a hazard due to instability, positioning or fixing of the appliance must be done in accordance with the manufacturer instructions. It is forbidden to place the refrigerator in such way that the metal hose of gas stove, metal gas or water pipes, or electrical wires are in contact with the refrigerator back wall (condenser coil).

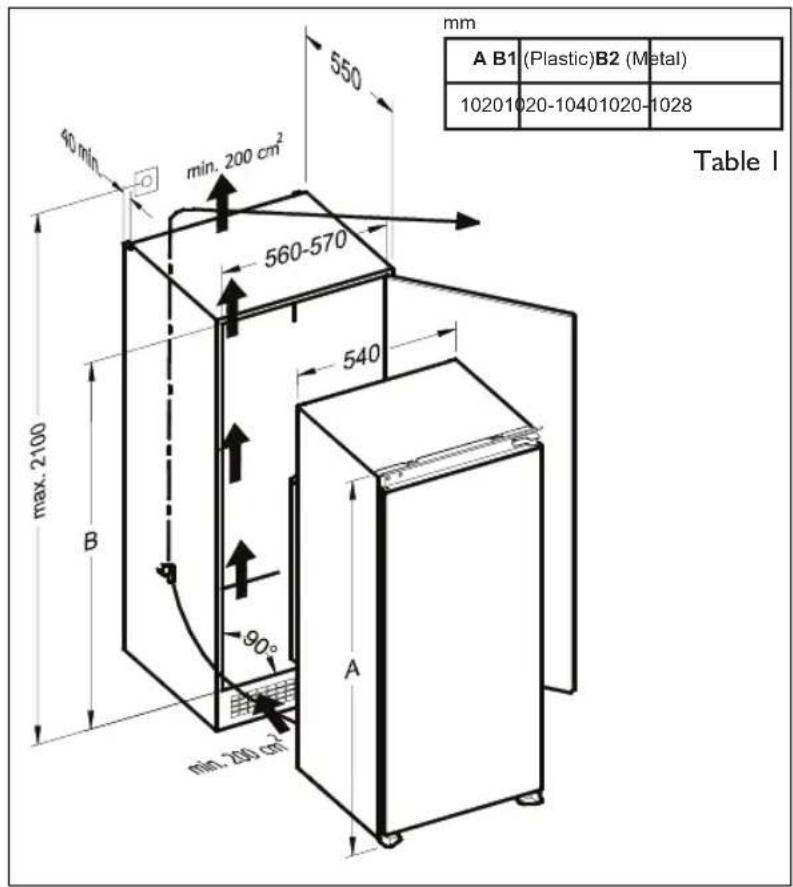

All dimensions and spacing needed for installation of the appliance are in the Installation instruction booklet.

ELECTRICAL WARNINGS

⚠ It must be possible to disconnect the appliance from the power supply by unplugging it if plug is

accessible, or by a multi-pole switch installed upstream of the socket in accordance with the wiring rules and the appliance must be earthed in conformity with national electrical safety standards.

⚠ Do not use extension leads, multiple sockets or adapters. The electrical components must not be accessible to the user after installation. Do not use the appliance when you are wet or barefoot. Do not operate this appliance if it has a damaged power cable or plug, if it is not working properly, or if it has been damaged or dropped.

⚠️ If the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard - risk of electric shock.

CLEANING AND MAINTENANCE

⚠ WARNING: Ensure that the appliance is switched off and disconnected from the power supply before performing any maintenance operation; never use steam cleaning equipment - risk of electric shock.

⚠ Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools.

DISPOSAL OF PACKAGING MATERIALS

The packaging material is 100% recyclable and is marked with the recycle symbol ⬆.

The various parts of the packaging must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

DISPOSAL OF HOUSEHOLD APPLIANCES

This appliance is manufactured with recyclable or reusable materials.

Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling of household electrical appliances, contact your local authority, the collection service for household waste or the store where you purchased the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health.negative sull'ambiente e sulla salute umana.

The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection center for the recycling of electrical and electronic equipment.

ENERGY SAVING TIPS

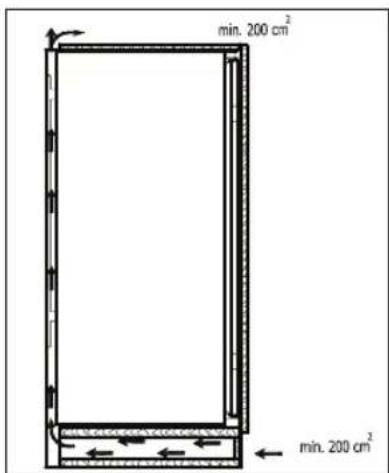

To guarantee adequate ventilation follow installation instructions. Insufficient ventilation at the back of the product increases energy consumption and decreases cooling efficiency. Frequent door opening might cause an increase in Energy Consumption.

The internal temperature of the appliance and the Energy Consumption may be affected also by the ambient temperature, as well as location of the appliance. Temperature setting should take into consideration these factors.

Reduce door opening to a minimum.

When thawing frozen food, place in the refrigerator. The low temperature of the frozen products cools the food in the refrigerator. Allow warm food and drinks to cool down before placing in the appliance.

Positioning of the shelves in the refrigerator has no impact on the efficient usage of energy. Food should be placed on the shelves in such way to ensure proper air circulation (food should not touch each other and distance between food and rear wall should be kept).

You can increase storage capacity of frozen food by removing baskets and, if present, Stop Frost shelf.

Do not worry about noises coming from the compressor which are described as normal noises in this product's Quick Guide.

HOW TO OPERATE THE APPLIANCE

Thermostat setting

- The thermostat automatically regulates the inside temperature of the fridge. By rotating the knob from position 1 to 5, colder temperatures can be obtained.

- The “•” position shows thermostat is closed and no cooling will take place.

Line drawing of a handheld electric shaver with spiral blades and a circular handle (no text or symbols)

• For short-term storage of food in the fridge, you can set the knob between minimum and medium positions (1-3).
• For long-term storage of food in the fridge, you can set knob to the medium position (3-4).

Note that: The ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the fridge. If required, change the temperature setting.

• When you first switch on the appliance, you should ideally try to run it without any food in for 24 hours and not open the door. If you need to use it straight away, try not to store a large quantity of food inside it.
• If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting in order not to damage the compressor.
• LARDERS (without star rating): Larders (coolers) do not have a freezer compartment but can cool down to 4 - 6°C.

Warnings about temperature adjustments

• It is not recommended that you operate your fridge in environments colder than 10^ in terms of its efficiency.
• Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge.
• Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.
• A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug off and then plug it on again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.
• Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.
• This appliance is designed for use at an ambient temperature within the 16^ - 32^ range.

FOOD STORAGE IN THE APPLIANCE

• The fridge is used for storing fresh food for few days.
• Do not place food in direct contact with the rear wall of the refrigerator. Leave some space around food to allow the circulation of air.
• Do not place hot food or evaporating liquid in the refrigerator.
  • Always make sure food is wrapped or stored in closed containers.
• To reduce humidity and avoid formation of frost, never place liquids in unsealed containers in the refrigerator.
• We recommend that you loosely wrap meat and store it on the glass shelf just above the vegetable bin, where the air is cooler.
• Store fruit and vegetable items loose in the crisper containers.
• To prevent the cold air escaping, try not to open the door too often, and not leave the door open for a long time.

CLEANING AND MAINTENANCE

• Disconnect the unit from the power supply before cleaning.
• Do not clean the appliance by pouring water.
• Make sure that no water enters the lamp housing and other electrical components.
• The refrigerator should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.
• Clean the accessories separately with soap and water Do not clean them in the dishwasher.
• Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plugto the mains supply with dry hands.
• Clean the condenser with a broom at least twice a year. This will help you to save on energy costs and increase productivity.

THE POWER SUPPLY MUST BE DISCONNECTED.

Defrosting

- Defrosting occurs automatically in the fridge during operation; the water is collected by the evaporation tray and evaporates automatically.

- The evaporation tray and the water drain hole should be cleaned periodically with the defrost drain plug to prevent the water from collecting at the bottom of the fridge instead of flowing out.

- You can also clean the drain hole by pouring 12 glass of water down it.

Simple line drawing of a mechanical component or bracket (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

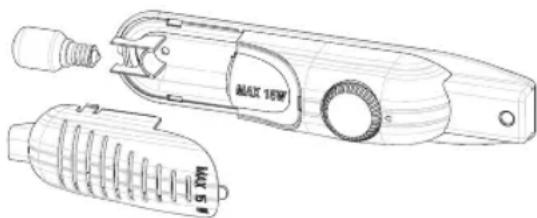

Replacing the light bulb

When replacing the bulb of the fridge;

I. Unplug the unit from the power supply,
2. Press the hooks on the sides of the light cover top and remove the light cover
3. Change the present light bulb with a new one of not more than 15 W.

1. Replace the light cover and after waiting 5 minutes plug the unit.

Technical line drawing of a handheld device with two views: one showing internal components and the other showing internal structure (no text or symbols)

Replacing LED Lighting

If your fridge has LED lighting contact the help desk as this should be changed by authorized personnel only.

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

Transportation and changing of Installation position

• The original packages and foamed polystyrene (PS) can be retained if required.
• During transportation, the appliance should be secured with a wide string or a strong rope. The instructions written on the corrugated box must be followed while transporting.
• Before transporting or changing the installation position, all the moving objects (ie, shelves, crisper...) should be taken out or fixed with bands in order to prevent them from getting damaged.

Carry your fridge in the upright position.

BEFORE CALLING YOUR AFTER SALES SERVICE

If your fridge is not working properly, it may be a minor problem, therefore check the following.

The appliance does not operate,

Check if:

• There is a power failure.
- The mains plug is not plugged in properly, or is loose.
- The thermostat setting is on position “”.
- The socket is defective. To check this, plug in another appliance that you know is working into the same socket.

The appliance performs poorly,

Check if:

• You have overloaded the appliance.
  • The door is not closed properly.
• There are not enough ventilation ducts in the kitchen unit as mentioned in the installation manual.

If there is noise:

The cooling gas which circulates in the fridge circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry, this is quite normal. If you hear different sounds, check if:

• The appliance is installed firmly as described in the installation manual.
• Objects on the appliance are vibrating.

If there is water in the lower part of the fridge,

Check if:

- The drain hole for water is not clogged (use defrost drain plug to clean the drain hole).

Recommendations

• When there is no power, to prevent any damage to the compressor, you should unplug the refrigerator. You should delay plugging in 5 – 10 minutes after power is restored.
• If you unplug the refrigerator for any reason you should wait at least 5 min to replug. This will avoid damage to the refrigerator's components.
• The cooling unit of your refrigerator is hidden at the rear of the appliance. Therefore, water droplets or icing may form on the rear surface of your fridge due to the operation of the compressor at specified intervals. This is normal, there is no need to perform a defrosting operation unless the icing is excessive.
• If you do not intend to use your fridge for a long time (e.g. in summer holidays), turn the thermostat to the «•» position. After defrosting, clean your fridge and leave the door open to prevent humidity and smells.
• If the problem persists after you have followed all the instructions above, please consult to the nearest Authorised Service Centre.
• The appliance you have purchased is designed for domestic use and can only be used at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with this, we emphasise that the manufacturer and the dealer will not be responsible for any repair and failure within the guarantee period.

Tips for saving energy

I. Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near a heat source (radiator, cooker ... etc). Otherwise use an insulating plate.
2. Allow warm food and drinks to cool down outside the appliance.
3. Cover drinks or other liquids when placing them in the appliance Otherwise humidity increases in the appliance. Therefore, the working time gets longer. Also covering drinks and other liquids helps to preserve smell and taste.
4. Try to avoid keeping the doors open for long periods or opening the doors too frequently as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.
5. Keep the covers of the different temperature compartments (crisper, chiller ... etc) closed
6. Door gasket must be clean and pliable. Replace gaskets if worn.

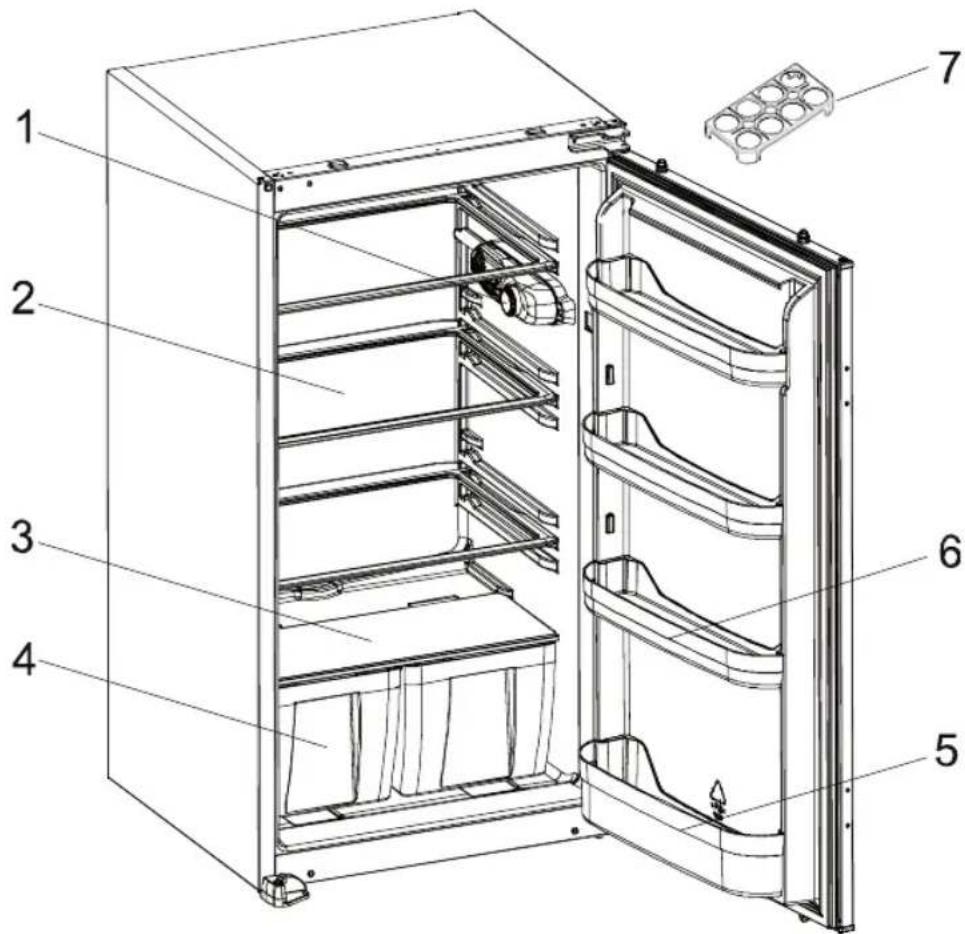

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

Technical diagram of an open refrigerator with numbered parts for identification

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

I. THERMOSTAT KNOB
2. FRIDGE SHELVES
3. CRISPER COVER
4. CRISPERS

1. BOTTLE SHELF
2. DOOR SHELVES
3. EGG HOLDER

Installation instructions and door reversibility for versions with Rail hinges

! Before installation, read the instructions carefully.
! Fit the refrigerator/freezer in stable kitchen units only.
! Cabinet dimensions are changed by material of trim flap ^1 .

I. If material of trim flap ^1 is plastic, look at (Table. I/B1) for cabinet dimensions.
2. If material of trim flap ^1 is metal, look at (Table.1/B2) for cabinet dimensions.
! If necessary, reverse the door according to instructions.

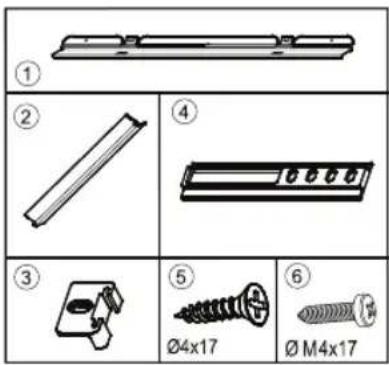

I. See fig.A for the necessary attachment components.

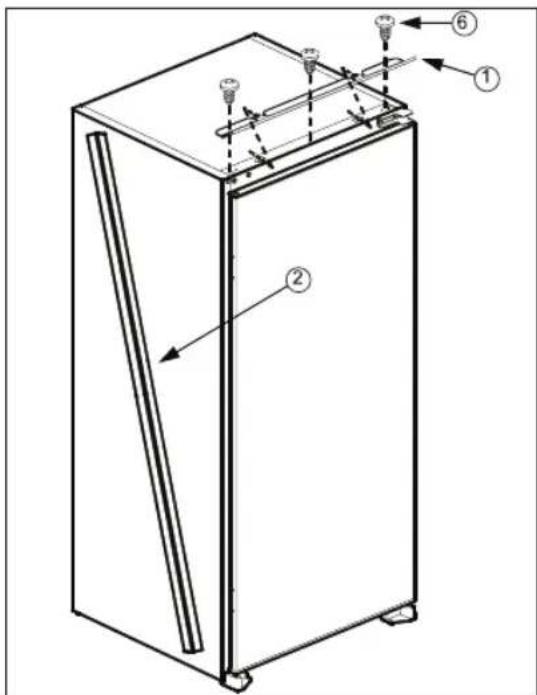

2. Insert trim flap ^1 into slot and screw by screws ^6 . (fig.D)
3. Pass the power cord through ventilation shaft and position it so that the appliance could be easily plugged in once it has been installed. (fig.B - fig.C)

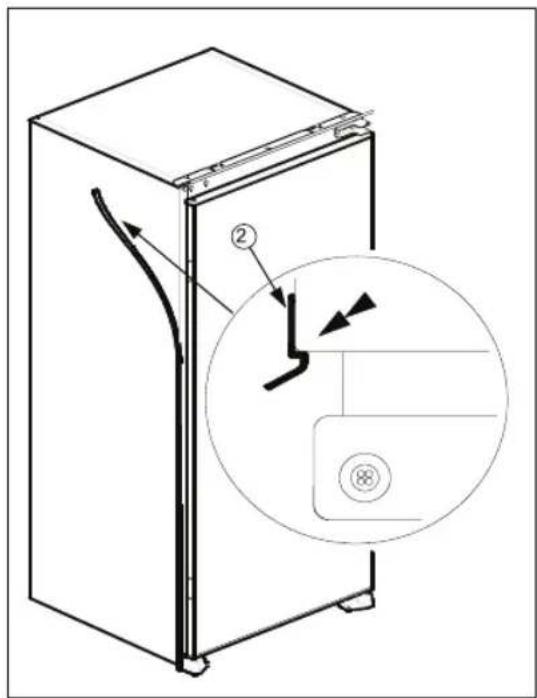

4. Take out the trim gasket ^4 located on the side panel of the appliance and stick it on reverse side of the door hinges of the appliance. (fig.D - fig.E)
5. Raise the appliance and slide into the kitchen unit.
6. Push the appliance to the reverse side of the door hinges providing that the trim gasket ^2 covers the space between the appliance and the kitchen unit.

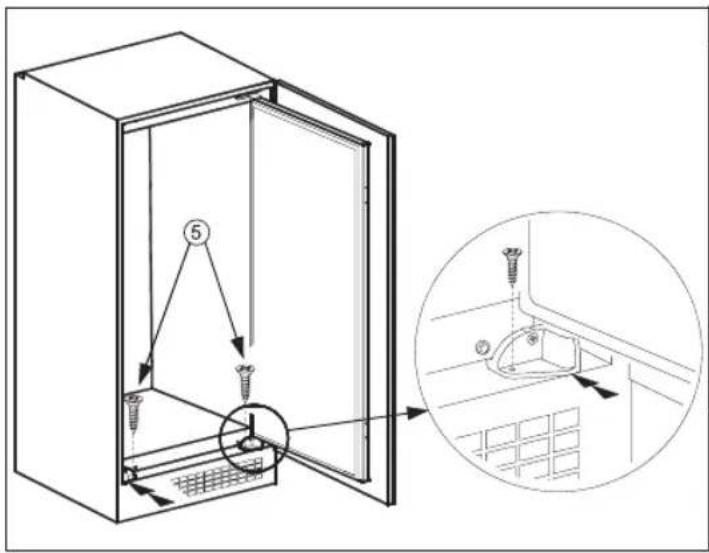

7. Align the front feet with front surface of the kitchen unit. (fig.F)

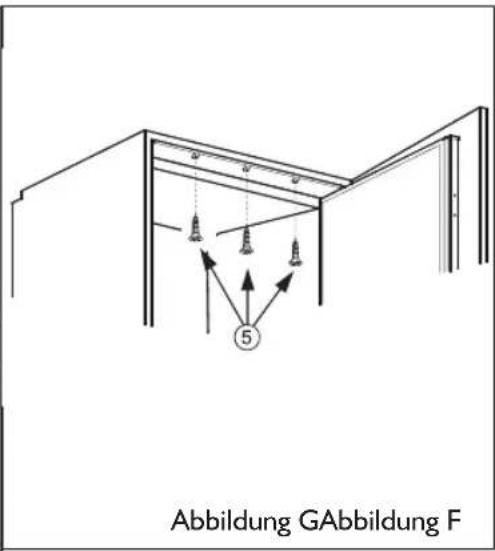

8. Screw the front feet by using screws 5. (fig.F)

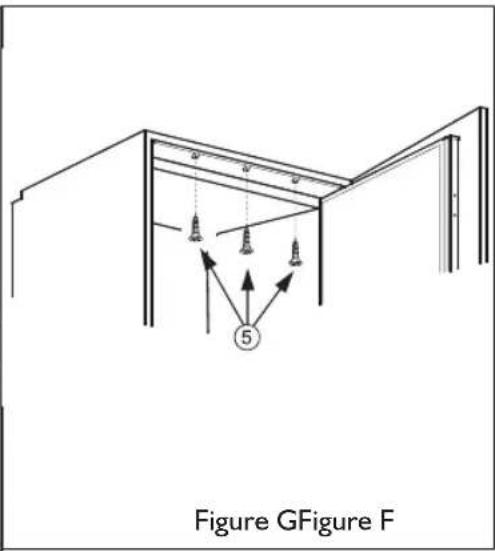

9. Screw trim flap ^1 to kitchen unit using screws ^5 . (fig.G)

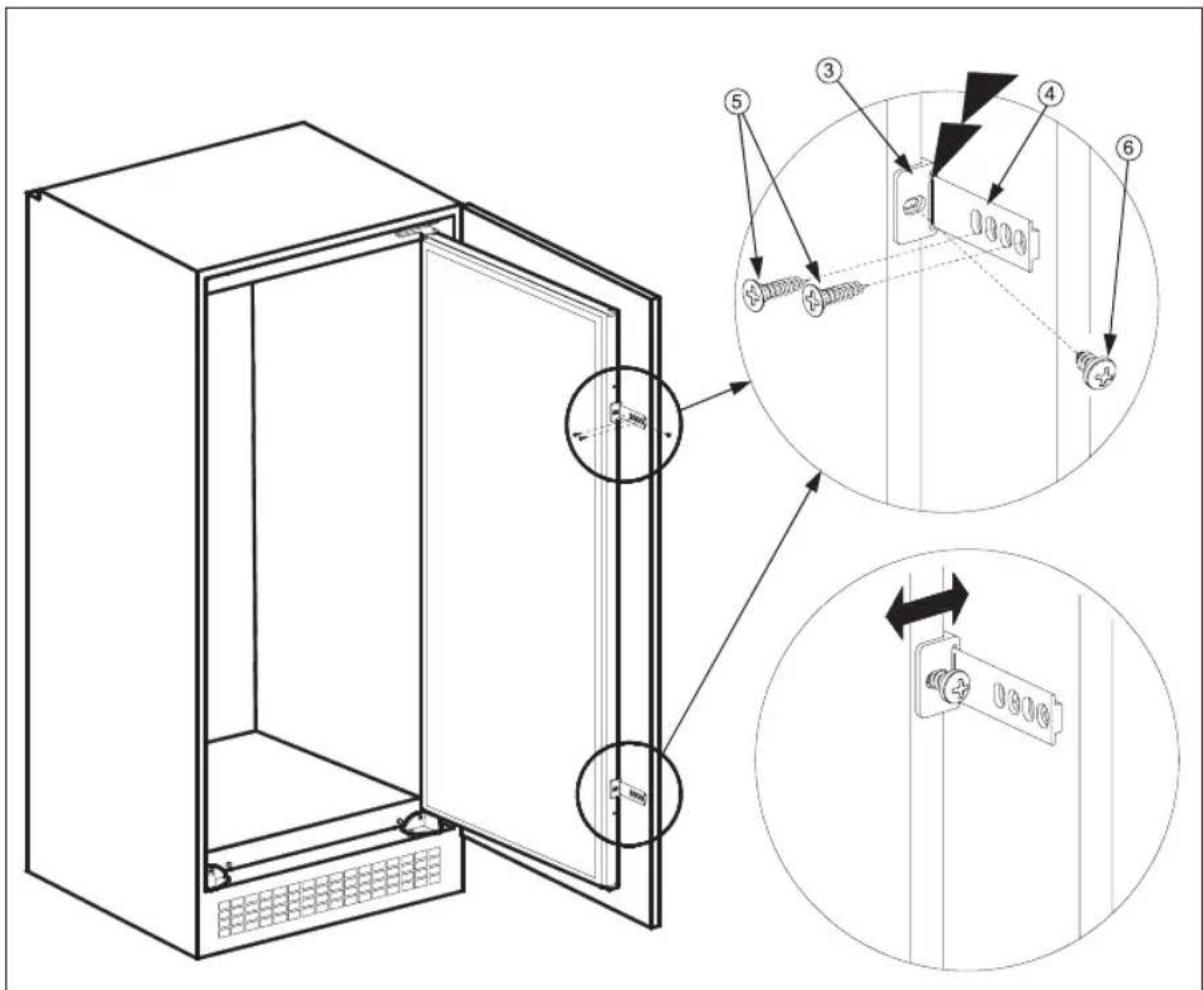

10. Screw guides ^3 to appliance door with screws ^6 . (fig.H)
II. Lean appliance door to unit door as it is opened at right angle.
12. Slide rails4 into guides ^3 aligning the groove. (fig.H)
13. Screw the rails ^4 to the unit door with screws ^5 . (fig.H)
14. Set 1\~2 mm gap on handle side between unit itself and unit door by adjusting guides ^3 . That is vital for appliance performance. (fig.H)

① ② ④ ③ ⑤ Ø4x17 ⑥ Ø M4x17

Figure A

mm A B1 (Plastic)B2 (Metal) 10201020-10401020-1028 550 min. 200 cm² 560-570 max. 2100 B 540 90° min. 200 cm² A Table I

Figure B Figure C

min. 200 cm² min. 200 cm²

Technical diagram of a refrigerator with numbered components and labeled parts

Figure D Figure E

Diagram of a refrigerator with labeled parts and an inset showing internal structure with arrows and a circled symbol.

Technical diagram of a refrigerator with screw installation and close-up detail view showing internal components

Figure GFigure F

Technical diagram of an open refrigerator with labeled components and exploded view showing internal components and mounting details.

Figure H

14

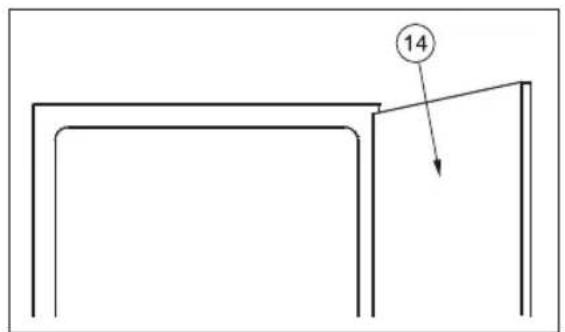

Figure J

a 17 15 16 c b 18 14

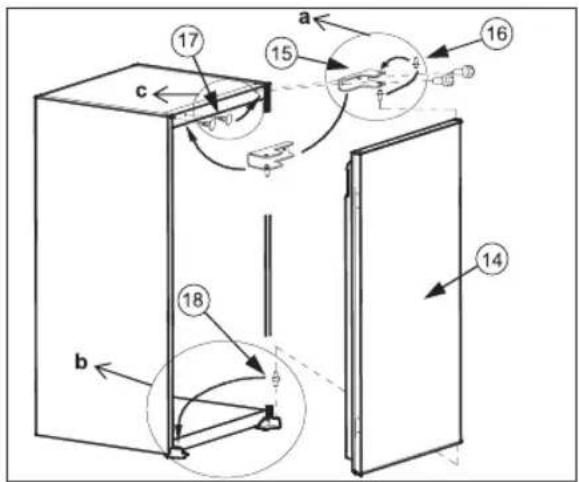

Figure K

Door reversing

I. Open appliance door ^14 . (fig.J)
2. Disassemble door hinge ^15 and take appliance door ^14 to safe place. (fig.K)
3. Unscrew door hinge pin ^16 and screw it to opposite side firmly and take to safe place. (fig.K.a)
4. Take door lower pin ^18 to opposite side. (fig.K.b)
5. Take hole plugs ^17 to opposite side. (fig.K.c)
6. Place appliance door ^14 over door lower pin ^18 and insert door hinge pin ^16 into hinge hole on appliance door ^14 and then screw door hinge ^15 firmly onto opposite side of original position. (fig.K)

SICHERHEITSHINWEISE

Line drawing of a handheld electric shaver with spiral blades and a circular handle (no text or symbols)

Simple line drawing of a mechanical component or bracket (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with a circular arrow indicating direction (no text or symbols present)

Technical line drawing of a handheld device with two views: one showing internal components and the other showing internal structure (no text or symbols)

Technical diagram of an open refrigerator with numbered parts for identification

Technical diagram of a refrigerator with numbered components and labeled parts

Technical diagram of a refrigerator with labeled parts and an inset showing internal structure with arrows and a circled symbol.

Technical diagram of a refrigerator with labeled parts and an inset close-up showing internal components.

Technical diagram of an open refrigerator with labeled components and exploded view showing internal components and mounting details.

Abbildung H

14

Abbildung J

a 17 c 15 16 18 b 14

Abbildung K

Türanschlagwechsel
