Product Type	Freezer-Fridge (Refrigerator with freezer compartment)
Model	KS95.4A++T2
Energy Efficiency Class	A++
Annual Energy Consumption	131 kWh
Total Gross / Net Volume	100 L / 83 L
Freezer Volume (Net)	14 L
Freezing Capacity (24h)	2.0 kg
Star Rating	4****
Maximum Storage Time on Failure	13 h
Climatic Class	N ~ ST (ambient 16 °C – 38 °C)
Voltage / Frequency	220-240 V AC / 50 Hz
Noise Emission	39 dB(A)
Refrigerant	R600a (flammable, environmentally friendly)
Compressor	1
Temperature Control	Adjustable thermostat (rotary knob)
Defrosting (Cooling Compartment)	Automatic
Defrosting (Freezer Compartment)	Manual
Shelves / Door Trays	1 shelf / 3 door trays
Crisper Drawer	1
Bottle Pocket	Yes
Adjustable Feet	2 (front)
Reversible Door Hinge	Yes (changeable hinge position)
Interior Light	Yes (replaceable illuminant)
Dimensions (H × W × D)	84.5 × 50.1 × 54.0 cm
Net Weight	25.4 kg
Gross Weight	27.2 kg
Warranty	24 months (manufacturer guarantee)
Spare Parts Availability	Original spare parts available through authorized service

Frequently Asked Questions - KS95.4A++T2 PKM

How do I set the temperature on my PKM KS95.4A++T2 refrigerator?

Turn the thermostat rotary knob inside the cooling compartment. A medium setting is suitable for normal operation. For higher ambient temperatures, select a colder setting. Turn to 0/OFF to stop the compressor (but unplug to disconnect power).

How do I defrost the freezer compartment?

Remove all food and place in a cooler. Turn the thermostat to 0/OFF and unplug the appliance. Let the ice melt naturally – do not use sharp objects or hot water. Place cloths to absorb water. Once defrosted, clean and dry the compartment, then restart.

Can I reverse the door opening direction?

Yes, the door hinge is reversible. Follow the instructions in the manual: switch off and unplug, remove worktop covers, tilt the appliance, unscrew hinges, swap door pin and sealing plug, and reinstall on the opposite side. Use at least two persons and do not tilt more than 45°.

How do I clean the refrigerator?

Unplug the appliance before cleaning. Use a soft cloth with warm water and a mild, non-acidic detergent. Do not use abrasive cleaners, solvents, or organic detergents. Rinse with clear water and dry. Clean the condenser twice a year with a vacuum or soft brush.

Why is my refrigerator making unusual noises?

Common noises include flowing water (refrigerant), clicking (compressor switching), humming (compressor running), and knocking/snapping (thermal expansion). Ensure the appliance is level and not touching walls. If noise persists, check for loose items or contact service.

How can I save energy with this refrigerator?

Let hot food cool before storing. Open the door as little as possible. Keep the appliance well-ventilated (min. 10 cm back, 30 cm sides/top). Defrost regularly to avoid ice buildup. Set the thermostat to a medium setting unless needed colder.

What should I do if the refrigerator is not cooling?

Check if the plug is connected and the socket has power. Ensure the thermostat is not set to 0/OFF. Verify the door closes properly and the seal is clean. If the compressor does not run, check the fuse. If problems persist, contact the retailer.

How do I replace the interior light bulb?

Unplug the appliance. Remove the light cover. Replace the bulb with one of the same type and wattage (refer to specifications). Reinstall the cover. Do not use the bulb for room illumination – it is intended for appliance use only.

What safety precautions should I take regarding the refrigerant R600a?

R600a is flammable. Do not damage the cooling circuit during transport or use. If a leak occurs, keep away from fire, sparks, or heat sources, open windows, and contact the shop immediately. Do not store explosive materials or aerosol cans.

How long can I store food during a power failure?

The freezer can keep food frozen for up to 13 hours if left unopened. Keep the door closed. After that, consume or discard food according to its condition. Do not refreeze thawed food.

USER MANUAL KS95.4A++T2 PKM

Fridge with freezer-compartment

Exterior view of a white refrigerator with a dark blue lid (no text or symbols visible)

Deutsch

English

Seite 2

Page 23

www.pkm-online.de

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with wheels and a handle (no text or symbols)

Simple line drawing of a person climbing a rope from a window (no text or symbols)

Pure mechanical diagram showing a frame with arrows and a labeled point M, no text or symbols present.

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety information 24
   1.1 Signal words.... 25
   1.2 Safety instructions.... 25
2. Climatic classes.... 28
3. Installation 29
   3.1 Site 29
   3.2 Changing of the hinge position 30
4. Operation.... 31
   4.1 Main components....31
   4.2 Temperature control.... 32
   4.3 Operational parameters 32
   4.4 Helpful hints/energy saving 33
   5 Cleaning and maintenance.... 34
   5.1 Defrosting....35
   5.2 Replacing of the illuminant 35
5. Trouble shooting.... 36
6. Decommissioning....37
7. Technical data.... 38
8. Waste management....40
9. Guarantee conditions.... 41

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

EU - Declaration of Conformity

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

1. Safety information

READ THE SAFETY INFORMATION AND THE SAFETY INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE THE APPLIANCE FOR THE FIRST TIME.

All information included in those pages serve for the protection of the operator. If you ignore the safety information and the safety instructions, you will endanger your health and life.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly-made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
The appliance is intended for private use only as well as to be used (1) in staff kitchen areas of shops, offices and other working environments; (2) by clients in hotels, motels, B&B and other residential type environments; (3) for catering and similar non-retail applications.

i The appliance is intended for cooling food only.
i The appliance is intended for indoor-use only.
The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

1.1 Signal words

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

⚠ WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

NOTICE! indicates possible damage to the appliance.

1.2 Safety instructions

DANGER!

1. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.
2. Never try to repair the appliance yourself. If the appliance does not operate properly, please contact the shop you purchased the appliance at. Original spare parts should be used only.

3. When the power cord is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only.

4. This appliance is equipped with the environmental-friendly refrigerant R600a. The refrigerant R600a is inflammable. The components of the cooling circuit must neither be damaged during transport nor use.

5. If any part of the cooling circuit is damaged, the appliance must not stand near a fire, naked light or spark-generating devices. Contact the shop you purchased the appliance at immediately.

6. If gas is set free in your home:

a) Open all windows.
b) Do not unplug the appliance and do not use the control panel or thermostat.
c) Do not touch the appliance until all the gas has gone.
d) Otherwise sparks can be generated which will ignite the gas.

1. Keep all components of the appliance away from fire and other sources of ignition when you dispose of or decommission the appliance.

2. EXPLOSION HAZARD! Do not store any explosive materials or sprays, which contain flammable propellants, in your appliance. Explosive mixtures can explode there.

3. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD.

4. Do not connect the appliance to the electric supply unless all packaging and transit protectors have been removed.

5. Operate the appliance with 220\~240V/50Hz/AC only. All connections and energy-leading components must be replaced by an authorized professional.

6. Do not use a socket board or a multi socket when connecting the appliance to the mains.

7. Do not connect the appliance to an energy saving plug (e.g. Sava Plug) and to inverters which convert direct current (DC) into alternating current (AC), e.g. solar systems, power supply of ships.

8. A dedicated and properly grounded socket meeting the data of the plug is required to minimize any kind of hazard. The appliance must be grounded properly.

9. Check that the power cord is not placed under the appliance or damaged when moving the appliance.

10. The technical data of your energy supplier must meet the data on the model plate of the appliance.

11. Your domestic circuit must be equipped with an automatic circuit breaker.

12. Do not modify the appliance.

13. Turn off the power before you install the appliance and before you connect it to the mains. RISK OF FATAL ELECTRIC SHOCK!
14. Disconnect the appliance from the mains before you clean or maintain it.
15. Do not use any electric appliances inside the food storage compartments of your appliance unless they are recommended by the manufacturer of your refrigerator.
16. Do not put any heat-radiating appliances onto your appliance.
17. Do not install the appliance in a place where it may come in contact with water/rain; otherwise the insulation of the electrical system will be damaged.
18. Do not put a water-boiler or vases onto your appliance. The electrical components of your appliance can be seriously damaged by water over-boiling or spilled water.
19. Do not use any steam cleaners to clean or defrost the appliance. The steam can get into contact with the electrical parts and cause an electrical short. RISK OF ELECTRIC SHOCK!
20. Never use mechanic devices, knives or other sharp-edged items to remove encrusted ice inside the appliance. RISK OF ELECTRIC SHOCK caused by damaging the interior of the appliance.
21. Children must never play with the appliance.
22. If you decommission your appliance (even temporarily), ensure that children cannot get into the appliance. Strictly observe the corresponding safety instructions numbers. 1 and 4, chapter DECOMMISSIONING, ultimate
23. Strictly observe the instructions in chapter INSTALLATION.

CAUTION!

1. The condenser and the compressor, located at the rear of the appliance, can reach high temperatures during ordinary operation. Carry out the installation according to this manual. An insufficient ventilation of the appliance will impair its operation and will damage the appliance. Do not cover or block the ventilation slats at any time.
2. Do not put any gassy beverages into the freezer compartment of the appliance, because their containers could explode.
3. Do not touch the extremely cooled surfaces with wet or damp hands, because your skin may stick on these surfaces.

NOTICE

1. When you move the appliance, hold it at its base and lift it carefully. Keep the appliance in an upright position.
2. Do not tilt the appliance more than 45^0 .
3. If the appliance is transported in a horizontal position, some oil may flow from the compressor into the refrigerant circuit.
4. Leave the appliance in an upright position for 4-6 hours before you switch it on to ensure, that the oil has flowed back into the compressor.
5. Never use the door for moving the appliance as you will damage the hinges.
6. The appliance must be transported and installed by at least two persons.
7. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time.
8. Do not operate the appliance unless all components are installed properly.
9. Do not stand or lean on the base, the drawers, the doors etc of the appliance.
10. Do not put hot liquids or hot foodstuff into the appliance.
11. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.
12. The rating plate must not be removed or made illegible, otherwise all terms of the warranty become invalid!

2. Climatic classes

Look at chap. TECHNICAL DATA for information about the climatic class of your appliance. Your appliance can be operated in rooms with relevant room temperatures as named below.

CLIMATIC CLASS	AMBIENT TEMPERATURE
SN	+100→+320C	e.g. unheated cellar
N	+160→+320C	inner home temperature
ST	+160→+380C	inner home temperature
T	+160→+430C	inner home temperature

3.1 Site

1. Unpack the appliance carefully. Dispose of the packaging as described in chapter waste management.
2. The accessories of your appliance can be protected from damage due to transportation (adhesive tapes etc.). Remove such tapes very carefully. Remove remains of such tapes with a damp cloth using lukewarm water and a mild detergent (see also chapter CLEANING AND MAINTENANCE). Never remove any components of the back of the appliance!
3. Install the appliance in a suitable position with an adequate distance from sources of heat and cold.
4. Check that the appliance and the power cord are not damaged.
5. Install the appliance in a dry and well-ventilated place.
6. Protect the appliance from direct sunlight.
7. The doors must open completely and without hindrance.
8. Install the appliance on a level, dry and solid floor. Check the correct installation with a bubble level.
9. Connect the appliance to the mains properly.
10. The nameplate is inside the appliance or at the back.

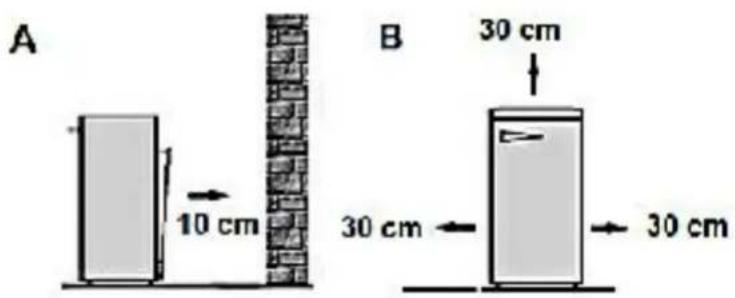

Ventilation ^3

A 10 cm B 30 cm 30 cm 30 cm

Minimum distances required for proper ventilation:

Λ. Back ↔ wall	Min. 10 cm
B. Right/left ↔ any piece of furniture/wall	Min. 30 cm
B. Free space above	Min. 30 cm
Door opening angle	Min. 160^

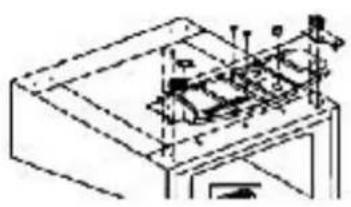

3.2 Changing of the hinge position

WARNING! Switch off and unplug the appliance before changing the hinge position. RISK OF ELECTRIC SHOCK!

CAUTION! The change of the hinge position must be carried out by at least two persons; otherwise you may hurt yourself or damage the appliance. Do not tilt the appliance more than 45^ .

Technical line drawing of a mechanical assembly or machine component (no visible text or symbols)

Simple line drawing of a cabinet or rack with legs and feet, no text or symbols present

1. Remove the 2 covers and screws of the worktop und pull it forward.
2. Slightly tilt the appliance back and secure it in this position.
3. Remove the screws of the hinge and the bracket of the hinge axle.
4. Open the door slightly and pull it downwards from the hinge.
5. Unscrew the top hinge axle and install it on the opposite side. Put the door on the axle. Close the door.
6. Tighten the bracket of the hinge axle with the screws on the opposite side.

NOTICE! Adjust the door properly. The seal must close properly.

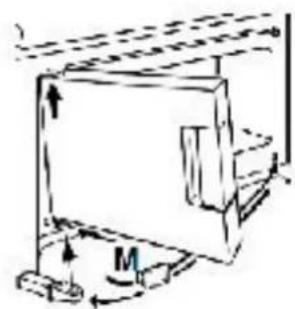

Changing of the freezer compartment door

1. Open the door of the freezer compartment slightly.
2. Carefully press the spring of the recess with a suitable screwdriver and remove the pin of the door and the door.
3. Install sealing plug (M) on the opposite side.
4. Turn the door by 180^ und insert the pin in the recess on the bottom.
5. Lift the door slightly and insert it in the top pin while inserting the bottom pin in the square opening. Moving the door up and down simplifies the installation.
6. Clean the appliance before you connect it to the mains.

Simple line drawing of a person using a tool to clean or install a door (no text or symbols)

Diagram of a device with labeled components and directional arrows indicating motion or force

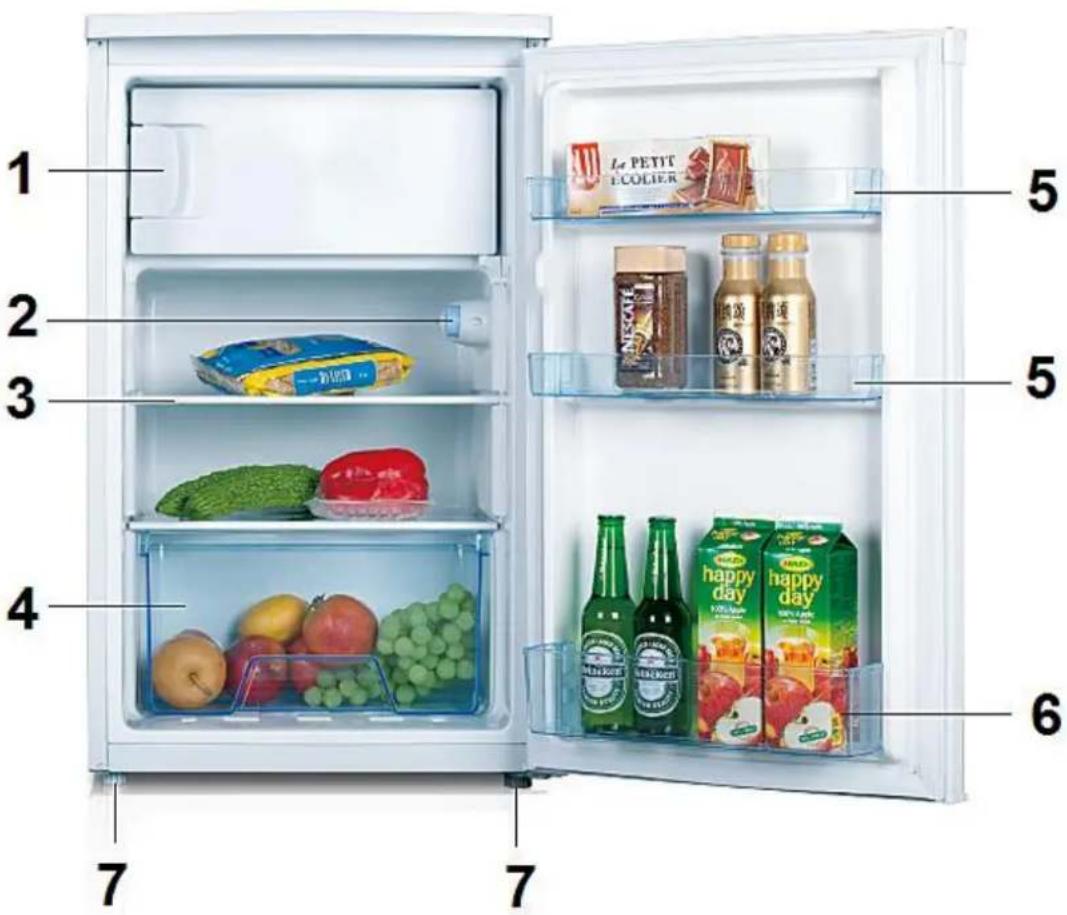

4.1 Main components

1 2 3 4 5 5 6 7 7 Le PETIT ÉCOLIER NÉCOSÉ Chéder Happy day happy day

1 Freezer compartment
2 Thermostat
3 Shelf
4 Crisper
5 Dorr trays
6 Bottle pocket
7 Adjustable foot

AFTER INSTALLATION WAIT 4-6 HOURS BEFORE YOU CONNECT YOUR APPLIANCE TO THE MAINS!

4.2 Temperature control

1. Initial use: Operate the appliance without any load until it auto-stops at the desired temperature (usually for 2 to 3 hours). Then you can put food into the appliance.
2. You can set the temperature using the thermostat rotary knob. A medium setting is most suitable for general operation.
3. In case of high outdoor temperatures (e.g. hot summer days) select a higher setting.
4. If you choose a low temperature and some rime is generated at the back of the appliance, we recommend you select a higher temperature.
5. Adept the temperature setting to the outdoor temperature.
6. If you have disconnected the appliance from the energy supply, wait 10 minutes before you restart the appliance. Otherwise the appliance can be damaged.

The setting definitions are standard values only.
The setting 0/OFF switches off the compressor only. You must unplug the appliance to disconnect it from the mains.

4.3 Operational parameters

1. The appliance can only reach the relevant temperatures when:

a. the a ambient temperature meets the climatic class.
b. the doors close properly.
c. you do not open the doors too often or too long.
d. the door seals are in proper condition.
e. the appliance is properly positioned.
f. you have not overfilled the appliance.
g. you do not store warm or hot food in the appliance.

1. When the ambient temperature is very high, it is recommended to set the thermostat to a colder setting if needed. If the colder setting should cause strong formation of encrusted ice, please select a lower setting.

2. High ambient temperatures and simultaneously operating at the coldest setting may make the compressor operate permanently to keep the temperature constant inside the appliance.

3. Defrost the appliance periodically as encrusted ice will decrease the power and increase the energy consumption of the appliance.

4.4 Helpful hints/energy saving

◆ Cooked food can be stored in the appliance. Let it cool down to room temperature before you put it into your appliance.
◆ Store your food in colourless, airtight and tasteless materials.
Some food like meat, fish etc. may become dry and release strong odours. You can avoid these by wrapping them into aluminium foil or plastic wrap or putting them into an airtight bag or container.
◆ Allow ample storage place for your food. Do not overfill your appliance.
- Wrap your food in plastic wrap or suitable paper and place each kind of food in a particular location in your appliance. This will prevent any contamination, a loss of water and a mingling of odours.
Let warm or hot food cool down to room temperature before you put it into your appliance. Otherwise the energy consumption will increase.
Put the frozen food you want to defrost into the cooling-compartment of you appliance.
❖ Try opening the door as little as possible, especially when the weather is warm and humid. If you open the door, close it as fast as possible.
- Permanently check, that the appliance is well-ventilated. The appliance has to be well-ventilated from all sides.

How to freeze food

1. Wrap fresh food you want to freeze in aluminium foil, cling film, air and water tight plastic bags, polyethylene containers or other suitable plastic containers with a lid.
2. Leave some free space between the single pieces of frozen food as proper air circulation is required.
3. The food is frozen completely after 24 hours (you find the relevant information about the maximum freezing capacity within 24 hours in chapter technical data).
4. Only buy frozen food, when its packaging is not damaged. Damaged packaging may indicate an interruption of the cold chain.
5. Avoid or reduce variations in temperature: buy frozen food at the end of shopping and transport it in thermally insulated bags.
6. Do not refreeze defrosted and semi-defrosted food. Consume within 24 hours.

7. Observe the complete information on the packaging of frozen food.

8. ⚠️WARNING! Disconnect the appliance from the mains before you clean or maintain it.

9. Always keep the appliance clean so that unpleasant odours do not occur.
10. Dust deposits on the condenser will increase the energy consumption. Clean the condenser twice a year with a vacuum cleaner or a soft brush.
11. Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

Detergent

➢ Do not use any harsh, abrasive or aggressive detergents.
Do not use any solvents.
Do not use any abrasive detergents! Do not use any organic detergents! ^4 Do not use essential oils!
These instructions are valid for all surfaces of your appliance.

External cleaning

1. Use a moist cloth and a mild, non-acidic detergent. Use a suitable detergent for stubborn stains.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.

Internal cleaning

1. Clean the shelves and the inside with warm water and a mild detergent.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.
4. Check the water drain and clean it if needed.

Door seals

➢ Clean with warm water and a mild, non-acidic detergent.

5.1 Defrosting

Cooling compartment:

1. The cooling-compartment is defrosted automatically. The water runs in a container near the compressor, where it evaporates.

Freezer:

⚠ WARNING! Never use any mechanical items, knives or other sharp-edged objects to remove the encrusted ice. RISK OF ELEKTRICAL SHOCK!

1. Remove the contents and put them into a cooling box.
2. Switch off the appliance by turning the thermostat to position 0/AUS/OFF and disconnect it from the mains.
3. When the encrusted ice melts put some dry cloths into the appliance to hold the water back.
4. Do not support the defrosting procedure with hot water.
5. Remove the big pieces of ice first. Then remove the small pieces of ice.
6. Clean and dry the appliance and door seals with soft cloths.
7. Leave the door of the appliance open for a while.

5.2 Replacing of the illuminant

1. ⚠️ WARNING! Switch off the appliance and pull the plug out of the socket before you change the illuminate.
2. Remove the cover.
3. Replace the illuminant by a new one of the same kind and power.
4. Reinstall the cover.

According to the EU regulation No. 244/2009, your appliance is classified as a household appliance in accordance with the ecodesign requirements for non-directional household lamps. This means that bulbs, which are used in household appliances, must not be used to illuminate domestic establishments.

MALFUNCTION

POSSIBLE CAUSE

MEASURE

The appliance does not work at all.

The plug of the appliance is not connected to the socket.
The plug has become loose.
The socket is not supplied with energy.
▶ The fuse is switched off.
The voltage is too low.

➢ Check the corresponding socket by connecting it with another appliance.
▶ Check the fuse box.
➢ Compare the data on the model plate with the data of your energy supplier.

The compressor does not work at all.

▶ Incorrect energy supply.

Check the energy supply.

The compressor operates for too long.

The appliance has been switched off for a while.
➢ Too much or too hot food in the appliance.
➢ Doors opened too often or too long.

The appliance needs some time to reach the preset temperature.
Remove any hot food.
Do not open the door too often/too long.

Strong formation of encrusted ice.

The door is not properly closed.
The door seal is damaged or soiled.

▶ Close the door.
➢ Clean/replace the door seal.

The door makes a strange sound when opened.

The door seals are soiled.

▶ Clean the seals.

Uncommon noise.

The appliance is not installed on a flat and level ground.. The appliance touches a wall or other object
➢ Frozen food is stored improperly.
Items have dropped behind the appliance.

Install properly.
➢ Store food properly.
Remove the items.

If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact the shop you purchased the appliance at.

i

The operating conditions described below are normal and do not indicate a malfunction.

The refrigerant generates a sound similar to flowing water.
- Sometimes you may hear a sound which is generated by the injection process of the cooling circuit.
The sides of the appliance may get warm while the appliance is running.

Distinct noise

When you operate the appliance for the first time or the temperature falls below a certain level, the appliance will operate with high power to reach the preset temperature.

Condensed water in/on the appliance

may be generated inside or outside the appliance by high humidity or very warm ambient temperatures..

Clicking

You will hear the compressor click if it is activated or deactivated.

Hum

is caused by the compressor while running.

Knocking/snapping

may be generated by sequential expansion and shrinkage of the components of the cooling system. It is caused by variation of temperature before and after the compressor is activated or deactivated.

7. Decommissioning

Decommissioning, temporarily

❖ If the appliance is not used for a longer period of time:

1. Draw the plug out of the socket.
2. Remove all food stored in the appliance.
3. Dry the inside of the appliance with a cloth and leave the door open for a few days.

❖ While away on an average vacation/holiday (14-21 days):

1. Do the same as described above, or
2. let the appliance operate.
   b. clean the cooling compartment.
   c. freeze all food which is suitable to be frozen.

a. remove all perishable food from the cooling compartment.

◆ If you want to move the appliance:

1. Secure all removable parts and the contents of the appliance. Pack them separately if necessary.
2. Transport the appliance in an upright position only. All other positions can cause damage to the compressor.
3. Do not damage the feet of the appliance.

Decommissioning, ultimate

1. Draw the plug out of the socket.
2. Cut off the power cord at the appliance.
3. Completely remove every door of the appliance.
4. Leave the shelves in their position so that children are not able to get into the appliance.
5. Follow the advice for the disposal of the appliance in chapter WASTE MANAGEMENT.

8. Technical data

KS 95.4 A++ T2

Model	Freezer-Fridge
Climatic class	N ~ ST(ambient temperature 16 - 38°C)
Energy efficiency class*	A++
Annual energy consumption in kW/h**	131.00
Voltage/frequency	220-240W AC/50Hz
Volume gross/net/freezer in l	100/83/14
Noise emission	39 dB/A
Stars	4****
Freezing capacity/24 h	2.00 kg
Max. storage time/malfunction	13.00 h
Adjustable thermostat	yes
Compressor	1
Refrigerant	R600a
Changeable hinge position	yes
Adjustable feet	2 (front)
Defrosting cooling comp./freezer	automatically/manual
Shelves/door trays	1/3
Crisper	1
Dimensions appliance H*W*D in cm	84.50*50.10*54,00
Weight net/gross in kg	25.40/27.20

KS 95.4 A+ T2

Model	Freezer-Fridge
Climatic class	N ~ ST(ambient temperature 16 - 38°C)
Energy efficiency class*	+
Annual energy consumption in kW/h**	167.00
Voltage/frequency	220-240W AC/50Hz
Volume gross/net/freezer in l	100/83/14
Noise emission	39 dB/A
Stars	4****
Freezing capacity/24 h	2.00 kg
Max. storage time/malfunction	13.00 h
Adjustable thermostat	yes
Compressor	1
Refrigerant	R600a
Changeable hinge position	yes
Adjustable feet	2 (front)
Defrosting cooling comp./freezer	automatically/manual
Shelves/door trays	1/3
Crisper	1
Dimensions appliance H*W*D in cm	84.50*50.10*54,00
Weight net/gross in kg	25.40/27.20

* On a scale from + + + (highest efficiency) to D (lowest efficiency).
** Based on standard measurement results within 24 hours. The current energy consumption depends on the way the appliance is used as well as on its site.

1. Dispose of the appliance relevant to the current legislation in view of explosive gases. The cooling systems and insulation of refrigerators and freezers contain refrigerants and gases which have to be deposed of properly. Do not damage the cooling fins and tubes. If refrigerants escape there is FIRE HAZARD!

2. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD!

3. Old and unused appliances must be send for disposal to the responsible recycling centre. Never expose to open flames.

4. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately. Remove the door completely so children are not able to get into the appliance as this endangers their lives!

5. Dispose of any paper and cardboard into the corresponding containers. Dispose of any plastics into the corresponding containers.

6. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.

7. Receive more detailed information from your retailer or your municipal facilities.

Refrigerant

1. The refrigerant circuit of the appliance contains the refrigerant R600a, a natural gas of high environmental compatibility.

2. ⚠WARNING! Do not damage any components of the refrigerant circuit while transporting the appliance. FIRE HAZARD!

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

The refrigerant R600a is flammable!

for large electric appliances; PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers.

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee.

Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

Please contact the shop you purchased the appliance at.

Subject to alterations

Updated 05/09/2017
