USER MANUAL PPC-40.15 AFK

White cooking pot with lid and black handle, no visible text or symbols

Partypfanne

Party Pan

Partia Pan

Party Pan

Casserole Partie

Partito Pan

PPC-40.15

Multipfanne

Illustration showing hands installing a pot and plug into an electrical socket (no text or symbols)

NIW OFF

Hand holding a circular button with an arrow, no text or symbols present

Reinigungsanweisung

Line drawings of kitchen utensils including a spatula, plate with a knife, and a brush (no text or symbols)

Der Temperaturregler

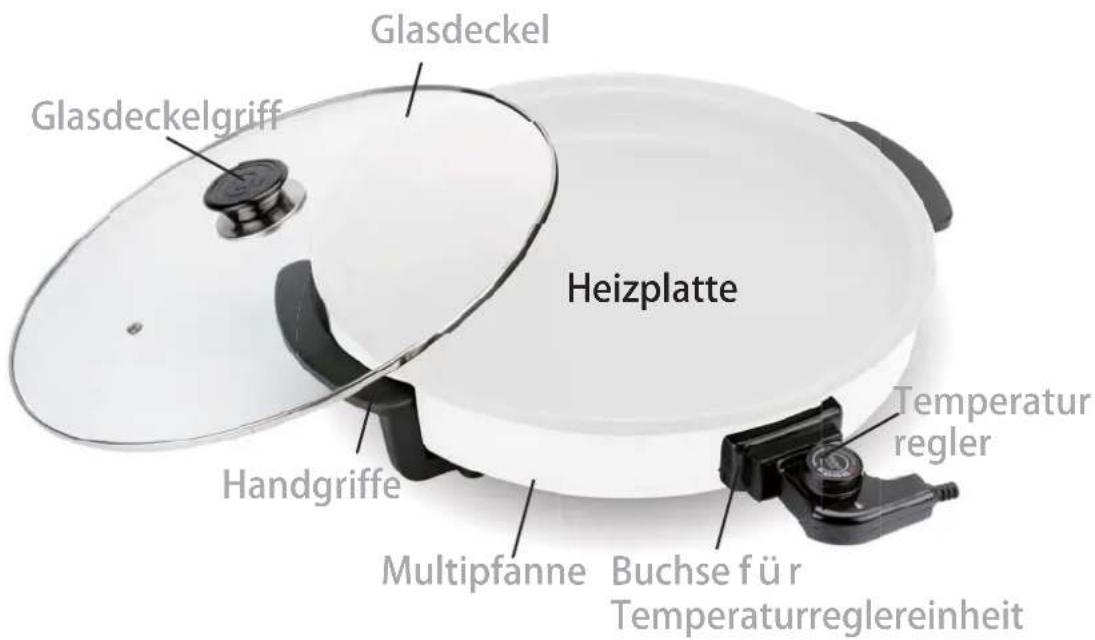

Glass lid Lid Handle Heating plate Carrying handle Multi pan Jack of the temperature regulator Temperature regulator

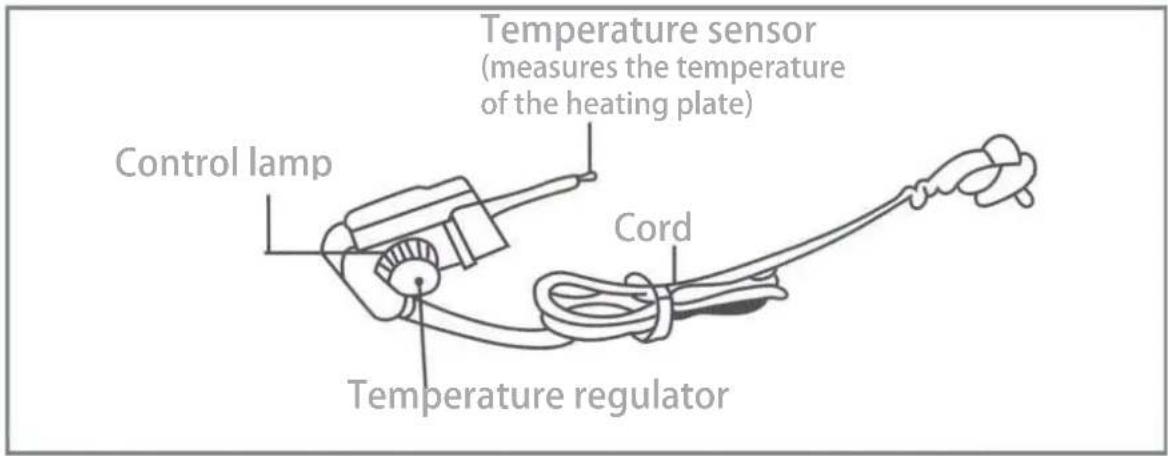

Temperature control unit:

Control lamp Temperature sensor (measures the temperature of the heating plate) Cord Temperature regulator

Safety cautions

To avoid damage or danger by improper use, the instruction manual should be followed and carefully kept. If you give the appliance to another person, also supply them with the instruction manual.

Intended use: This appliance is suited for cooking suitable food in the private household. The appliance is not suited for commercial use. Only use the appliance for the intended purpose and in the way indicated in these instructions.

• Ensure that your mains voltage corresponds to that stated on the rating plate of the appliance.
• Always place the appliance on a flat, dry and heat resistant surface to eliminate therisk of falling down. Make sure the cord cannot get caught in any way to avoid accident hazard. Never move the appliance by pulling the cord. Do not wind the cord around the appliance and do not bend it. From time to time check if the cord is damaged. In this case or if the appliance is damaged it must not be used any more.
• Additional protection may be obtained by fitting an earth-leakage circuit-breaker 1J6=\~0mA4 into 2our home installation. Please consult a qualified electrician.
• Do not operate any appliance if:

- power cord is damaged

- in case of malfunction or if it has been dropped or damaged in any manner

- Should the cord be damaged, it must be replaced by a competent qualified electrician1*4 to avoid an2 danger caused b2 electric current. Special tools are required to repair the appliance. Jn an2 case as! a 1*4 competent qualified electrician to chec! andrepair it. 1*4 Competent qualified electrician: after sales department of the producer or importer or an2 person "ho is qualified, approved and competent to perform this kindof repairs in order to avoid all danger.

- Caution! An electric appliance is no toy! Children should be supervised to ensure that they do not play with the appliance. Never leave the appliance unsupervised "hen in use. Explain to 2our children all ris!s which can be caused by electric current:

• 'anger caused b2 hot parts of the appliance and exhausting hot steam
• Danger caused by electric current

Keep the appliance at any time out of reach of children or persons who can not handle electric appliances properly.

- Do not leave packaging components (plastic bags, cardboard, polystyrene, etc.) within the reach of children, as it could be dangerous. Children may not play with the plasticfoil - danger of suffocation!

Caution! Danger of electric shock! Appliance, cord and plug should never get into contact with water or any other liquids to avoid the risk of electric shock:

• never immerse the appliance, the cord or the plug in water or any other liquid for any reason whatsoever
• the cord should never get wet or get in contact with humid things.
• never use the appliance near a sink, or bathtub to avoid danger of falling into water
• never touch the appliance with wet hands or standing on a wet ground
• never place the appliance on wet ground

- Caution heat and fire danger! The appliance gets very hot during operation. Never leave it unattended during operation. Keep special care when using it. Only touch the handles or use oven mitts to open or close! Never touch the hot housing or other hot parts!

- Caution! Danger of burning! Hot steam can exhaust! There is alwaysdanger of scalding while dealing with hot appliances. Do not use theappliance without the lid. Especially when opening the lid alwaysensure not to come into contact with exhausting hot steam!

- Remove the lid by lifting it slowly and not in your direction. Before removing the lid switch OFF the appliance for safety reason.

- Caution Development of heat and fire danger! The appliance must not be placed next to easily inflammable objects. Always keep enough distance to the walls, furniture, cupboards to prevent damage from hot steam. Do not place the appliance on or near a hot gas or electric burner or on a heated oven.

• Ensure that the cord does not touch hot parts of the appliance like housing.
• Be extremely cautious as oil and fat preparations might catch fire if overheated. Provide proper ventilation when using the appliance.
• Make sure the appliance has cooled down before cleaning and storing it.
  • Always unplug the appliance when not in use.
• Always attach the temperature control unit to the unit before plugging into wall outlet. To disconnect, turn temperature control button to "OFF", then remove from wall outlet.
• Only cook consumable food. It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food.

• Always switch OFF and unplug the appliance before changing accessories and beforecleaning. Never move the appliance while it is hot.

• After use always unplug the appliance from outlet to avoid any risk caused by unsupervised electric appliances. Always let the appliance cool down completely before cleaning and storing it.

• Never use the appliance outside and always place it in a dry environment to avoid damage caused by humidity. This appliance is not suited for outside use.
• To avoid damage and danger of injury use attachments only which are delivered with this appliance.
• From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage.

- Unplug the cord from the mains

• when malfunction occurs during use
• before changing accessories and cleaning
• after use

- To unplug pull the plug only, never pull on the cord to avoid damage.

- Should the cord be damaged, it must be replaced by a competent qualifiedelectrician1*4. Before cleaning, al"a2s unplug the appliance from the po"er suppl2. All repairs should be made b2 a competent qualified electrician1*4.

1*4 Competent qualified electrician: after sales department of the producer or importer or other person "ho is qualified, approved and competent to perform this !ind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and !no"ledge if the2 have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.

- The appliance is not intended to be operated b2 means of an external timer or separate remote-control system.

Scope of delivery

• Multi pan
• Glass lid
• Handle of the glass lid
• Retainer ring for the handle of the glass lid
• 6ixing material for the handle of the glass lid
  • Temperature control unit with plug
• Instructions for use

Before first use

• Remove all packaging material and foils. Put the retainer ring for the handle of the glass lid centered onto the glass lid. Then put the handle on top of the retainer ring and fix it with the screw and washer provided. Ensure that the handle is fixed properly at the glass lid.
• Clean the pan and the cap as described in CLEANING INSTRUCTION and NOTESFOR MAINTENANCE AND USE OF NON-ADHERENT SURFACES.
• When it is first switched on, the grill may smell and emit some smoke. This is normal; the grease that may have adhered to the element during manufacturing is burning off. We therefore recommend that you heat up the grill for a few minutes without any food (ventilate the room during this period).
• Wipe the non-stick coated surface slightly with some cooking oil.

How to use and tips

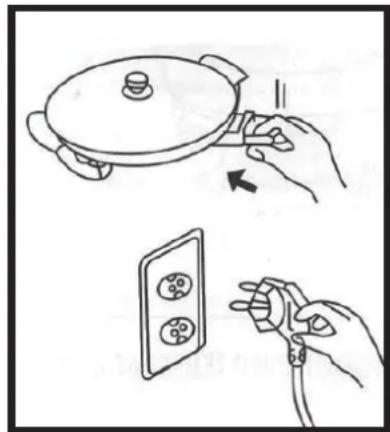

- Make sure, that the temperature control button shows OFF and plug it surely into the socket. If the temperature regulator isn't plugged -incorrectly, an abnormal heating can occur, which may cause accident or damage. Therefore makesure that the temperature regulator is plugged-incorrectly.

- Connect the cable to a properly installed and grounded power socket only (220-240V \~ 50Hz).

• Adjust the temperature regulator to the desired temperature according to the food to be cooked.
• The appliance is pre-heated, when the control lamp of the temperature regulator switches off. The control lamp can be illuminated periodically during operation to show that the temperature will be kept.

Diagram showing electrical installation steps: heating a pot and connecting wires to a socket with two switches.

Cooking with the multi pan

Pre-heat the multi pan approx. 2-5 minutes. If the control lamp switches off the pan has reached the adjusted temperature.

Note: The cooking time is depending on the type of food to be cooked, the quantity and the desired cooking result and has to be evaluated by own experiences.

Note: To avoid scratches at the non-adherent surface use kitchen tools of nylon, plastic or wood only. Handle with care!

Caution! Heat and fire danger! The appliance gets very hot during operation. Keep special care when using it. Only touch the handles or use oven mitts to open or close! Never touch the hot housing or other hot parts!

After completion of the cooking process the food can be kept warm by switching back to MIN level.

MIN	keep warm
1	minimum heat
2	roast good, hamburger
3	pancake, scrambled
4	ham, bacon
5	Pizza

N/W OFF

Please note that the lid has a steam outlet.

Attention: watch exhausting-steam when opening the lid!

• During operation glottal stops can occur. This isn't a failure. The noise originates as a result of thermal expansion of the heater and the heating plate.
• Don't touch the reflector with the hand, don't put flammable materials onto the pan.
• The heating element (ring) is positioned below the heating plate. Directly above thering of the heating element, the heating plate will get hotter than in other parts of the heating plate.

After use switch back the temperature regulator to "OFF" first pull out the plug from the plug socket and remove the automatic temperature regulator not before cooling off the appliance.

Line drawing of a hand holding a circular object with a handle, no text or symbols present

Attention: Due to the temperature sensor of the temperature regulator is still hot after use, first let the appliance cool down.

Cleaning instruction

Caution danger of electric shock! Never immerse the appliance, cord and plug into water. Always disconnect the appliance from power supply before cleaning to avoid risk of electrical shock.

Caution danger of burning! Always let the appliance cool down enough before cleaning and storing.

NOTE: none of these parts are suitable for the dishwasher!

• Before cleaning or storing pull out the mains plug and let the appliance cool down.
• Don't use abrasive cleaning agents or scrubbing sponges to clean the pan surface!
• Remove food residues after use at still warm condition with a wet cloth or papertowel. In case of tough fouling cook up again the pan with some water.

• Never use cleaning agents, nylon brush or metal brush! Never immerse the pan into water or wash it under running water. Water canintrude into the appliance and cause damage to the electric parts inside.
• Clean the pan with a soft, sponge slightly damp and little soap suds, wipe again with sponge slightly damp with some clear water and dry carefully with a soft cloth. After drying apply a thin film of cooking oil onto the surface.
• Clean the cap with a soft sponge and a little bit of rinsing-agent. Never use thinners, gasoline, cleaning agents or chemical treated cloths as the surface could bedamaged.
• Clean the automatic temperature regulator with a soft paper towel or a dry and softcloth. Never wet clean the automatic temperature regulator unit. Electric shock or burncan occur if it comes into contact with watyer or liquid. Never immerse the plug or cord into water!

Notes for maintenance and use of non-adherent surfaces

- To avoid scratches at the non-adherent surface use kitchen toolsof nylon, plastic or wood only. Handle with care!

- Never cut food directly inside the pan. Cutting will damage thenon-stick coated surface.

- DON'T USE STEEL WOOL ON THE PAN SURFACE.

- Clean the pan carefully after every use. Remove persisting residues with a soft sponge (plastic) and a gentle rinsing-age

- Food residues that remain in the pan will lead to adhere or

Line drawings of kitchen utensils including a spatula, plate with knife, and bucket (no text or symbols)

The temperature regulator

• The temperature regulator is a highly sensitive part. Due to this the appliance should be handled with care and not exposed to shocks or jabs and should not fall down.
• Note: Only the supplied temperature regulator has to be used. Never use adifferent temperature regulator!
• When plugging-in the temperature regulator make sure that it is plugged-in correctly. For removal don't pull at the cable but at the plug of the temperature regulator itself. Never use force and do not bend.

• Keep clean the temperature regulator and the pins of the socket.

• If the automatic temperature sensor is damaged, switch-off immediately and stop use. For any kind of repair bring the appliance to your next local dealer.

• Before insert or removal of the automatic temperature regulator make sure that the scale of the automatic temperature regulator is set to OFF. Otherwise a breakdown or over-heating may happen.

Technical data

220-240V\~ 50Hz 1500W

This appliance is tested according to GS regulations and is built to CE directives.

Disposal

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Notice for environmental: Dispose the packaging according to the local garbage regulations. Paper and carton should be disposed separately from plastic bags. If at any time in the future you should need to dispose of this product please note that waste electrical products must not be disposed of with household waste. The symbol (crossed dustbin) on the product, the package or in the instructions for use indicates this. Please recycle where facility exist. Check with your local authority or retailer for recycling advice. Dispose the appliance at the end of its lifespan according to environmental considerations (Waste Electrical and Electronical Equipment Directive).
