CTV 4817 - Television AEG - Free user manual and instructions

Product Type	Colour Television and PC Monitor
Screen Size	20 inches (51 cm diagonal)
Display Technology	TFT LCD
Resolution	1024 x 768 (max)
Contrast Ratio	500:1 (typical)
Brightness	450 cd/m²
Response Time	< 25 ms
Viewing Angle	160° horizontal / 140° vertical
Dimensions (with stand)	616 x 451 x 218 mm
Dimensions (without stand)	616 x 451 x 79 mm
Weight	12.3 kg
Power Supply	12 V DC via adaptor (230 V AC, 50 Hz)
Power Consumption	60 W (max)
Audio Output	2 x 3 W RMS (10% THD)
Sound System	German Stereo
TV Standards	PAL/SECAM B/G, D/K, I/I'
Channel Coverage	VHF, UHF, Hyperband, Cable TV (S1-S41)
Preset Programmes	100
Inputs	2 x SCART, S-Video, Video, Audio (R/L), 15-pin PC, PC Audio, Headphone, RF Antenna
Special Features	APS, Teletext (7 pages, Fastext), Child Lock, Sleep Timer, PIP, Multilingual OSD, NTSC Playback, Auto Standby (5 min)
Remote Control	Included (batteries: 2 x AAA)
Cleaning	Soft dry cloth; do not use liquid cleaners
Safety	Do not leave in standby when leaving home; ensure ventilation; disconnect during storms
Guarantee	24 months

Frequently Asked Questions - CTV 4817 AEG

How do I set up the TV for the first time?

Connect the power adaptor and antenna. Press the power button to switch to standby, then press a digit button or P/Ch+ to turn on. The APS (Automatic Programming System) will start automatically. Select your country and language, then choose 'Continue' to search and store channels.

What should I do if the remote control stops working?

First, press the 'TV' button to ensure the remote is in TV mode. If still not working, check or replace the batteries (2 x AAA). You can also use the control panel buttons on top of the TV for basic functions.

How can I adjust the picture settings?

Press the Green button on the remote to open the Picture menu. Use the arrow keys to adjust Brightness, Contrast, Colour, Sharpness, and Picture Mode (4:3, 16:9, or Auto). Press OK to store settings.

Can I connect a PC to this TV?

Yes, connect the PC via the 15-pin D-sub connector and PC audio input. Press the PC button on the remote to switch to PC mode. Use the Geometry menu to adjust horizontal/vertical position and auto-adjust.

What does the Child Lock feature do?

When enabled (via Feature menu), the TV can only be controlled by the remote control. The control panel buttons (except standby) become disabled. To activate, go to Feature menu, set Child Lock to 'On'.

How do I use the Teletext function?

Select a channel with Teletext transmission, then press the TELETEXT button. Use digit buttons to enter a page number. Press coloured buttons for Fastext. Press TV to exit. You can also superimpose text over the programme by pressing the Mix button.

Why does the TV automatically turn off after a while?

The TV has a no-signal detection feature. If no valid signal is detected for 5 minutes, it switches to standby. This applies to both TV and PC modes. Press the standby button to turn it back on.

How can I clean the screen?

Use a soft, slightly damp cloth to clean the screen. Do not use abrasive solvents or liquid cleaners, as they may damage the coating.

What should I do if there is no sound?

Check if the TV is muted (Mute indicator on screen). Press the Mute button again to restore sound. Also ensure the volume is turned up and the balance is centred. If using external speakers, verify connections.

Is it safe to leave the TV on when I leave the house?

No, the manual advises not to leave the TV in standby or operating when leaving the house. Unplug the power cord during storms or long absences to prevent damage.

USER MANUAL CTV 4817 AEG

FARBFERNSEHGERÄT COLOUR TELEVISION TELEVISORE A COLORI TELEVISOR COLOR

AEG

CTV 4817 ST/VT

BEDIENUNGSANLEITUNG (D) USER MANUAL (GB) ISTRUZIONI PER L'USO (I) INSTRUCCIONES DE MANEJO (E)

Table of Contents

DO NOT LEAVE YOUR TV SET OPERATING OR ON STANDBY WHEN YOU LEAVE YOUR HOUSE.

A PC INPUT ⑧ 12 V DC ⊖ ● + © PC AUDIO INPUT (D) HEADPHONES E ANTENNA

F SCART CONNECTION 1 (AV-1) SCART CONNECTION 2 (AV-2) H S-VIDEO INPUT ① VIDEO INPUT J AUDIO INPUT (R) —(AV-3) K AUDIO INPUT (L)

Antenna connections

D-47906 Kempen/Germany

Installation of device on the wall (optional) 39 Features 41 Panel Features 41

Safety Precautions 41

Before Switching on your TV 43

Power connection .... 43 Connections to the RF input socket .. 43 How to connect other devices .... 43 Inserting batteries in the remote control handset .... 43

Switching the TV ON/OFF 43

To switch the TV on: 43 To switch the TV off: 44

Operating the TV 44

A.P.S. (Automatic Programming System) 44 Operating with the buttons on the TV set 44 Operating with Remote Control 44

Menu System 45

Sound Menu .... 46 Picture Menu .... 48 Feature Menu .... 50 Installation Menu .... 51 Programme Menu .... 52 Source Menu .... 54

Other Features .... 54

TV Status .... 54 Programme Swap (P<P) .... 54 Double-digit (- / - ) .... 54 Personal Preferences (PP) .... 55 Sound Indicator .... 55 Picture Mode .... 55 Sleep Timer Indicator .... 55 Mute Indicator .... 55 No-Signal Detection (TV) .... 55 No-Signal Detection (PC) .... 55 Volume Bar .... 56 AV Modes .... 56

Signal Out Of Range 56

PC MODE 56

Installation .... 56 Switching from TV to PC .... 56 Main Menu in PC mode: .... 56 Sound Menu .... 56 Picture Menu .... 56 PIP Picture .... 57 Feature Menu: .... 57 Geometry Menu: .... 57 Source Menu: .... 58 PIP Source Menu: .... 58

Teletext 58

To operate Teletext .... 58 To select a page of Teletext .... 58 To Select Index Page .... 58 To Select Teletext with a TV Programme 58 To Select Double Height Text .... 59 To Reveal "concealed" Information .... 59 To Stop Automatic Page Change .... 59 To Select a Subcode Page .... 59 To exit Teletext .... 59 To Display the Time .... 59 Fastext .... 59

Peripheral Equipment Connections .... 60

PC Sound Connection .... 60 Via the Euroconnector .... 60 Via Ant Input .... 60 Decoder .... 60 TV and Video Recorder .... 60 Playback NTSC .... 60 Search for and store the test signal of the video recorder .... 61 Camera and Camcorder .... 61 Connect the decoder to the video recorder .... 61 Connecting Headphones .... 61 Connecting the PC .... 61

Antenna Connections 63

PC INPUT TYPICAL DISPLAY MODES ... 64

Tips 65

Specifications 66

Guarantee 67

Remote Control Buttons

1 Stand By 2 Cursor Up 3 Cursor Right 4 OK = Okey (Store) 5 +info (Program Menu) 6 0 - 9 = Direct Program 7 -I-- = Double Digit 8 P=Previous Programme 9 P/CH + = Programme Up 10 Volume + 11 TV / Quit Menu 12 External Source (AV-1, AV-2, AV-3, S-VIDEO, PC) 13 Yellow (FEATURE) = Feature Menu 14 Blue (INSTALL) = Installation Menu 15 Hold 16 Update, = No function 17 Index Page 18 Reveal, PC = Switch from TV to PC 19 Expand, = Aspect ratio 20 Mix, = PIP on / PIP off 21 Teletext 22 Time 23 Red (SOUND) = Sound Menu 24 Green (PICTURE) = Picture Menu 25 Mute 26 I-II = Mono/Stereo - Dual I-II 27 - Volume - 28 - P/CH = Programme Down 29 PP Personal Preference 30 M = Menu 31 Cursor Down 32 Cursor Left

Control Panel Buttons

Preparation

Install Display on solid horizontal surface such as a table or desk.

For ventilation, leave a space of at least 10 cm free all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set.

Use this apparatus in tropical and/or moderate climates.

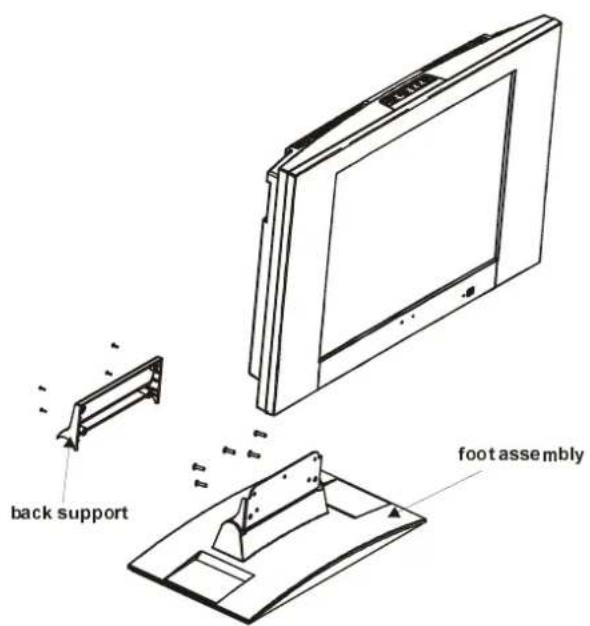

Installation of device on the wall (optional)

Step1:

Invert the flat monitor screen and placed it on a flat surface. Remove the foot top cover. Remove the back support from the screen. Replace the support with the mounting bracket align the holes from the bracket with the mounting holes found on the back of the monitor chassis. Secure the bracket with the same four (4) 4 (mm) head screws.

Step 2:

Choose the wall where the monitor will be located. Level and mark with a pencil the four (4) mounting points found on the wall bracket. Drill pilot holes for the plastic anchors, then secure the wall bracket with the four (4) L=32 mm x D=5 mm screws (supplied).

Step 3:

Raise the monitor with the mounting bracket attached and slip the top opening onto the safety flange on the secured wall bracket. Let the monitor fall into place safely and secure the two (2)

D=4 mm x L=10 mm safety screws (supplied) with a long screwdriver for additional security.

Note: Do not over tighten!

Features

• It is a remote controlled colour television and PC monitor.
• 100 programmes from VHF, UHF bands or cable channels can be preset.
• It can tune cable channels.
• Controlling the TV is very easy by its menu driven system.
• It has 2 pieces of Euroconnector socket for external devices (such as video, video games, audio set, etc.)
• To use as a monitor, 15 Pin Mini D-Sub connector for computer. (Optional)
• Optional stereo sound systems (German or German+Nicam) are available.
• Multilanguage OSD.
• Teletext (Fastext, 7 pages).
• It is possible to connect headphones. • A.P.S. (Automatic Programming System)
• All programmes can be named.
• Programme swapping between the last two watched programmes.
• Forward or backward automatic tuning.
• Sleep timer.
• Child lock.
• Zoom mode • 4:3, 16:9 Auto switch • Automatic sound mute when no transmission.
• When no valid signal is detected, after 5 minutes the TV switches itself automatically to stand-by mode.
• NTSC playback.
• Universal power supply range is a standard feature on this model. • TV picture in PC (if PC input available).
• PLL (Channel Search) • PC input (supports up to 1024 x 768)

Panel Features

• High resolution, 20-inch TFT LCD display. • High contrast ratio (500:1 typical) - Brightness: 450 cd/m² • High-speed response time < 25 msec. - Wide viewing angle (typical) 160° (horizontal) and 140° (vertical). • 8-bit colour depth, displays 16.7 M colours.

Safety Precautions

1. Power Source

The TV set is designed to operate on 12 V DC. The adaptor should be operated from a 230V AC, 50 Hz outlet. Ensure you select the correct voltage setting for your convenience.

2. Power Cord

The power supply cord should be placed so that it is not likely to be walked on or pinched by items placed upon them or against it. Pay particular attention to the cord where it enters the plug, power outlet, and the point where it exits from the receiver.

3. Moisture and Water

Do not use this equipment in a humid and damp place (avoid the bathroom, the sink in the kitchen, and near the washing machine). Do not expose this equipment to rain or water, as this may be dangerous, and do not place objects filled with liquids on top. Avoid dripping or splashing.

4. Cleaning

Before cleaning, unplug the adaptor from the main supply outlet. Do not use liquid or aerosol cleaners. Use a soft and dry cloth.

5. Ventilation

The slots and openings on the receiver are intended for ventilation and to ensure reliable operation. To prevent overheating, these openings must not be blocked or covered in any way.

6. Lightning

In case of storm and lightning or when going on holiday, disconnect the power cord from the wall outlet.

7. Replacement Part

When replacement parts are required, be sure the service technician has used replacement parts which are specified by the manufacturer or have the same specifications as the original one. Unauthorized substitutions may result in fire, electrical shock, or other hazards.

8. Servicing

Please refer all servicing to qualified personnel. Do not remove the cover as this may result in electric shock.

9. Naked Flame Sources

Do not place naked flame sources on the apparatus.

WARNING: When the device is not in use for a long time, disconnect from power.

Instructions for waste disposal:

• Packaging and packaging aids are recyclable and should principally be recycled. Packaging materials, such as foil bag, must be kept away from children.
• Battery, including those which is heavy metal-free, should not be disposed of with household waste. Please dispose of used battery in an environmentally sound manner. Find out about the legal regulations which apply in your area.
• Cold cathode fluorescent lamp in LCD PANEL contains a small amount of mercury, please follow local ordinates or regulations for disposal.

"DO NOT LEAVE YOUR TV AT STAND-BY OR OPERATING WHEN YOU LEAVE YOUR HOUSE"

"The LCD panel is very high technology product with about a million thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not affect the performance of your product."

Before Switching on your TV

Power connection

IMPORTANT: The TV set is designed to cooperate on 12 V DC. For this, an adaptor is used which gives 12V DC voltage. Connect this adaptor to a system that supplies 230V AC, 50 Hz.

• After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains.

Connections to the RF input socket

- Connect the aerial or cable TV plug to the RF input socket located at the back of the TV and connect the cable plug coming out from the TV out socket located at the devices (VCR, DVB etc.) to this socket as well.

How to connect other devices

IMPORTANT: Switch off the TV before connecting any external device.

Sockets for external connections are at the back of the TV. For connection of other devices via Euroconnector refer to the manuals of the related devices.

Inserting batteries in the remote control handset

• Remove the battery cover located on the back of the handset by gently pulling upwards from the indicated part.
• Insert two AAA (R03) or equivalent type of batteries inside.
• Replace the battery cover.

NOTE: Remove battery from remote control handset when it is not to be used for a long period. Otherwise it can be damaged due to any leakage of battery.

Switching the TV ON/OFF

To switch the TV on:

Your TV will switch on in two steps:

1- Connect the power supply cord to the system. Press the "☐" button at the top of the TV. Then the TV switches itself to stand-by mode and the led becomes red located on the front of the TV. 2- To switch on the TV from stand-by mode either:

Press a digit button on the remote control so that a programme number is selected, or,

Press "-P/Ch" or "P/Ch+" button at the top of the TV or press "-P/CH" or "P/CH+" button on the remote control, so that last switched off programme is selected.

In either case the TV will switch on and the led becomes green.

To switch the TV off:

- Press the "stand-by" button on the remote control, so the TV will switch to stand-by mode and the GREEN LED will become RED,

or,

Press the 🔊 button located on the top of the TV, so the TV will switch off and the GREEN LED will turn off.

Operating the TV

You can operate your TV both using the remote control handset and onset buttons.

A.P.S. (Automatic Programming System)

"All Prestored Programmes Will Be Erased" message will be displayed when you turn on your TV for the first time. APS searches and sorts all channels and stores them automatically on your TV, according to the transmission of programme systems in your area.

To cancel APS before starting, press "TV" button. First of all choose the "Country". This, will effect the sort process in APS. By pressing the "△" or "▽" button, come to the "Language" item and select the language in which the menus of the TV will appear. As soon as you change the language, the menu items will be displayed in the selected language. To select "Continue" use "△" or "▽" button and press "◀" or "▶" button.

After APS is finalized, a programmeist will appear on the screen. In the programmeist you will see the programme numbers and names assigned to the programmes.

If you press the "TV" button at any time while the A.P.S. is running, the A.P.S. will be ended. Then, the program list on the screen will show channels captured until this time.

If you do not accept the locations and / or the programme names of programmes, you can change them in Programme menu.

Operating with the buttons on the TV set

Volume setting and programme selection can be made by using the buttons at the control panel on the top of the TV.

Volume Setting

- Press "-VOLUME" button to decrease volume or "VOLUME+" button to increase volume, so a volume level scale (slider) will be displayed at the middle of the bottom on the screen.

Programme Selecting

- Press "P/Ch+" button to select the next programme or "- P/Ch" button to select the previous programme.

Entering Main Menu

- Press "M" button to enter Main menu. In the Main menu select submenu using "-P/Ch" or "P/Ch+" button and enter the submenu using "-VOLUME" or "VOLUME+" button. To learn the usage of the menus, refer to the Menu System section.

Operating with Remote Control

The remote control handset of your TV is designed to control all the functions of the model you selected. The functions will be described in accordance with the menu system of your TV.

Functions of the menu system are described in Menu System section.

Volume Setting

Press “+” button to increase volume. Press “-” button to decrease volume. A volume level scale (slider) will be displayed at the middle of the bottom on the screen.

Programme Selecting

(Previous or next programme)

• Press "-P/CH" button to select the previous programme.
• Press "P/CH+" button to select the next programme.

Programme Selecting (direct access):

Press digit buttons on the remote control handset to select programmes between 0 and 9. The TV will switch to the selected programme. To select programmes between 10 and 99, you must use the double digit button "- / --".

P -- this OSD is displayed at the upper left hand side of the screen.

After that, press the digit buttons consecutively for the programme you want to select (e.g., for programme 27, first press 2 and then 7). If you are late in pressing any digit button, this function will be ignored and the display will be erased. Similarly, you must not be late in pressing any digit button after entering the first digit. The limit of the delay time is 3 seconds.

Press directly the programme number to reselect single digit programmes.

Programme Swapping

- Press "P<P" (programme swap) button to select the last selected programme. This button provides swapping between the last two selected programmes. For example, select

programme 8, then select programme 2. Now, if you press "P<P" button, programme 8 will be selected. If you press the same button again, programme 2 will be selected, and so on.

Menu System

Your TV has been designed with a menu system to provide easy manipulation of a multi-function system. The TV is controlled by choosing the commands, which are displayed on the screen.

Press the "M" button. The main menu will be displayed at the middle of the screen.

To select a sub-menu, use "∠or" button, and press "◀" or "▶" button or directly press "OK" button.

MAIN MENU

The menu system is described below.

The short way to enter the menus is to press:

"M" Button, Main Menu.

Red Button, Sound Menu.

Green Button, Picture Menu.

Yellow Button, Feature Menu.

Blue Button, Install Menu.

"i" Button,

Programme Menu in TV mode or,

Source Menu in AV mode.

The Menu button has two functions: first, it opens or closes the main menu; second, it closes the sub-menu and then opens its parent menu.

Sound Menu

To change sound settings.

• Enter the Sound Menu directly by pressing the Red button, or
• As you enter the main menu, Sound will be the first item. In the main menu, select Sound using the "△" or "▽" button, then enter the Sound menu by pressing the "◀", "▶", or "OK" button.

Setting Volume:

As you enter the Sound menu, Volume will be the first selected option.

- Press "▲" button to increase volume.

- Press "◀" button to decrease volume.

Or you can directly change the volume settings using "▲ +" (to increase) or "- " (to decrease) button.

Setting Balance

It allows adjusting the distribution between the left and right speakers.

- Using "△" or "▽" button select Balance.

- Press "▷" button to change balance rightward.

- Press "◀" button to change balance leftward.

When balance control is in mid position, the cursor is displayed with one arrow.

Selecting Mode

• Using "△" or "▽" button select Mode.
• Press "◀" or "▶" button to change Mode.

You can choose Mono, Stereo or Dual (I-II) mode, only if the selected channel supports that mode.

You can also change sound mode directly pressing "I-II" button on your remote control.

In case of bilingual broadcast (Dual Sound), you can select original or dubbed language using mode option.

Setting Effect

You can use this feature to switch the sound effect on and off. Pressing the "or" button will turn this feature on and off. If the current sound system is Mono and the sound effect is set to ON, then the sound will be heard as if it is Stereo. If the current sound system is Stereo, switching this effect on will make the sound deeper. Switching it off will make no change in Mono and Stereo.

To Change Headphone Sound Settings

(optional)

• Using the "△" or "▽" button, select Headphone.
• Press the "◀" or "▶" button, or directly press the "OK" button on Headphone, to enter the Headphone menu. This is a sub-menu of the Sound menu, and all options in this menu work the same as in the Sound menu.

Setting Headphone Volume

• As you enter the Headphone sound menu, Volume will be the first selected option.
• Press the "▶" button to increase volume.
• Press the "◀" button to decrease volume.

Setting Headphone Sound Mode

- Using the "△" or "▽" button, select Mode.

Pressing the "◀" or "▶" button will change the current sound mode. (e.g., If the current sound mode is stereo, it will be stereo or vice versa).

In case of bilingual broadcast, you can select the original or dubbed language again using the mode menu. So when somebody listens to the original language from the loudspeakers, somebody else can listen to the dubbed language from the headphone.

To Store the Settings

• Press "OK" button on the remote control to store the settings directly. or,
• Using “△” or “▽” button select Store. Press “◀”, “▷” or “OK” button to store current headphone volume and sound mode. The stored values will be valid for all the programmes.

Equalizer

• Using “△” or “▽” button select Equalizer.
• Press "◀" or "▶" button or directly press "OK" button to enter Equalizer sub-menu.

In Mode item there are five pre-defined and one user defined options. These are User, Classic, Jazz, Rock, Pop and Flat. The predefined options can not be changed by the user. If you want to change one of the fre-

quency values of the predefined options, the Mode must be switched to User option.

The 5 items below the Mode are available to adjust the sound settings in 5 frequency values: 120 Hz, 500 Hz, 1.5 kHz, 5 kHz and 10 kHz. To change the values of 5 frequency options, select one of the options by “△” or ▽ button, and then press “▶” to increase the value, or ◀” to decrease the value. In mid position, cursor is displayed with one arrow.

To store the Equalizer settings, press "◀" or "▶" button or directly press "OK" button on "Store" option.

During the store process all the items are stored, moreover, the User mode information would not be lost. In other words, when the user mode is selected again, after storing the Mode with one of the predefined options, the user defined frequency values would be set.

Setting AVL

- Using "△" or "▽button select AVL.

- Pressing "◀or " " button will turn on and off this feature.

Automatic Volume Limiting (Avl) function normalises sound to obtain fixed output level between programmes, having different sound levels.

To Store the Settings

- When the cursor is on any item which has no sub-menu, press the "OK" button on the remote control to store the settings directly. Or,

- Press "◀", "▶", or "OK" button on the "Store" option to store Sound menu settings.

Picture Menu

• To enter the Picture menu directly, press the Green button, or - Press "M" button, now you are in the main menu. In the Main menu, select "Picture" using "△" or "▽" button, then enter the Picture menu by pressing "◀", "▶", or "OK" button.

Setting Brightness

• As you enter the Picture menu, Brightness will be the first item.
• Press "▶" button to increase brightness.
• Press "◀" button to decrease brightness.

Setting Contrast

- Using "△" or "▽" button, select Contrast.

• Press "▶" button to increase contrast level.
• Press "◀" button to decrease contrast level.

Setting Colour

• Using "△" or "▽" button, select Colour.
• Press "▶" button to increase colour level.
• Press the “◀” button to decrease the color level.

Setting Sharpness

• Using the “△” or “▽” button, select Sharpness.
• Press the “D” button to increase the peaking level.
• Press the “◀” button to decrease the peaking level.

Setting Picture Mode:

• Using the “△” or “▽” button, select Picture Mode.
• Press the “◀” or “▶” button to set Picture Mode. Picture Mode can be set to Auto, 4:3, or 16:9.

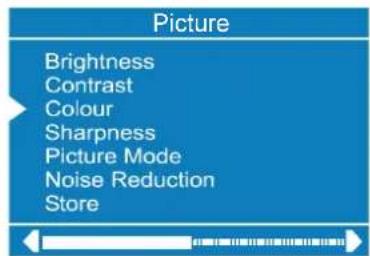

Brightness, Contrast, Colour, Sharpness, Picture Mode, Noise Reduction, Store

4:3

Setting Noise Reduction

• Using the “△” or “▽” button, select Noise Reduction.
• Press the “◀” or “▶” button to select the Noise Reduction level: “Off”, “Minimum”, “Medium”, or “Maximum”. Then select “Store” and press the “◀” or “▶” button to save your setting.

Note 1:

At low signal levels, changes to the Noise Reduction function are not effective when there is a menu on the screen. If the menu is removed, the effect of this function is visible. During normal broadcasting, Noise Reduction changes take effect immediately.

Note 2:

When viewing moving pictures, if Noise Reduction is set to maximum, some picture distortions may occur. Setting Noise Reduction to medium or minimum will improve the picture.

Setting Hue

(During playback of NTSC system, this option appears in AV mode only when an NTSC video source is applied. Otherwise, the HUE option is invisible in the Picture menu.)

• Use the "△" or "▽" button to select Hue.
• Press the "▶" button to increase the hue level.
• Press the "◀" button to decrease the hue level.

The center value is indicated with one arrow.

To Store the Settings

- When the cursor is on any item that has no sub-menu, press the "OK" button on the remote control to store the settings directly. Or,

- Press the "◀", "▶", or "OK" button on the Store option to store Picture menu settings.

Feature Menu

• To enter the Feature menu directly, press the Yellow button. Or,

- Press the "M" button to enter the main menu. In the main menu, select Feature using the "△" or "▽" button. Then enter the Feature menu by pressing the "◀", "▶", or "OK" button.

Sleep Timer

As you enter the Feature menu, Sleep Timer will be the first selected option. Use the "◀" or "▶" button to change the Sleep Timer values between Off, 0:15, 0:30, 0:45, 1:00, 1:15, 1:30, 1:45, and 2:00.

If the sleep timer is activated, it is displayed with the TV status on the upper right of the screen.

0:15

Feature

Off

After the set time of the sleep timer ends, the TV automatically goes to stand-by.

Child Lock

You can use this feature to prevent children from turning the TV on/off or changing programmes or adjustments etc. without the remote control.

The Child Lock feature can be set to On or Off using the "◀" or "▶" button. When Off is selected, there will be no difference in the operation of your TV. When On is selected, the TV can only be controlled by the remote control handset. In this case, the control panel buttons except the "⏻" button at the top of the TV will not work.

Selecting Menu Language

The menu language can be chosen by pressing the "◀" or "▶" button on the Language item.

Feature

Sleep Timer

Child Lock

Language

Av-2 Output

PC Sound Mode

English

Av-2 Output

From Av-2 Output; TV, AV-1 or AV-3 can be given. TV, AV-1 or AV-3 can be chosen by pressing "◀" or ▶ button on "Av-2 OUTPUT".

Feature

Sleep Timer

Child Lock

Language

Av-2 Output

PC Sound Mode

TV

PC Sound Mode

PC sound can be chosen by pressing "◀" or "▶" button on PC Sound Mode item.

You can select sound that comes from TV, AV-1, AV-2, AV-3 or PC to hear in PC mode.

Feature

Sleep Timer

Child Lock

Language

AV-2 Output

PC Sound Mode

PC

To Store Settings

In the Feature menu, all settings are stored automatically.

Installation Menu

• To enter the Installation menu directly, press the Blue button, or - Press "M" button, now you are in the main menu. In the main menu, select "Install." using "△" or "▽" button. Then enter the install menu by pressing "◀" / "▶" or "OK" button.

Menu

Sound... Picture Feature... Install... Program. Source

When any item is selected with "△" or "▽" button in the install menu, the selected item will be highlighted on the bottom bar. Changes by pressing "◀" or "▶" button will result only at the highlighted item on the bottom bar.

Selecting Programme

To select a programme number, you can use the "◀" or "▶" button, the digit buttons, or the double-digit button with digit buttons.

Install

Programme

Band

Channel

Standard

Search

Fine Tuning

VCR Mode

Store

P 02 C-36 C 36 BG 252

Selecting Band

The band can be chosen either

• "C" or "S" by the "<brd" button.

Selecting Channel

Channel can be changed by "◀" or "▶" button, by Digit Buttons or by the Double Digit button with digit buttons.

For band C,

01 - 83, WEST EUROPE.

01 - 12, 21 - 69, EAST EUROPE.

01 - 17, 21 - 73, UK.

01 - 76, FRANCE.

04 - 09, FRANCE 2.

For band S,

01 - 41, for all channel tables.

Selecting Standard

Using "◀" or "▶" button on Standard, you can change the standard to B/G, D/K, I/I', L/L'.

Selecting Search

To start the search process, press "▶" button for forward search or "◀" button for backward search. If a signal is found or reaches to end of the band after searching, press "◀" or "▶" buttons to continue search process. To stop the search process when you want, press "◀" or "▶" buttons again.

Selecting Fine Tuning

You can use the Fine Tuning process for fine adjustment (after coarse adjustment), if you are not happy about the image on the screen.

Use "◀" or "▶" button on Fine Tuning item, until getting the best image on the screen.

Normally the Fine Tuning cursor is placed next to the left side on the slider and this is indicated with one arrow.

Setting VCR (Video Cassette Recorder) Mode

• This item can be seen in TV, AV-1, AV-2, AV-3, S-VIDEO modes.
• If you want to watch a VCR source from one of these modes, then it will be better to set VCR mode "on". For this, while the cursor is on this item press the "◀" or "▶" buttons to set it "On".
• If you want to watch a DVD, then you must set this item "off"; because DVD is not a source like a VCR and to see the picture better, you must set the VCR mode "Off".

To Store Settings

• Press "OK" button on the remote control to store the settings directly. or,
• Press "◀", "▶" or "OK" button on Store option to store Install menu settings.

Programme Menu

• To enter Programme menu directly, press the "i" button in TV mode, or
• Press "M" button, now you are in main menu. In the main menu, select "Program." using "△" or "▽" button. Then enter the Programme menu, press "◀" / "▶" or "OK" button.

Moving cursor to four direction you can reach 20 programmes in the same page. By scrolling the pages up or down by pressing the navigation buttons you can select all the programmes in TV mode (except the AV mode).

By cursor action, programme selection is done automatically. In order to select programme is also possible by using digit or double-digit button. In this way programme selection gets also automatically. The TV Status is changed by the programme selection too. When using double-digit button in order to select a programme, the Programme Number in TV Status OSD is displayed in "P --" form, and by pressing digit buttons they are displayed in it.

Programme Number is between 00 and 99. Programme Name has a name string with 4 characters. After autostore process the Programme Names are set to:

- Channel search "C-01" or "S-01" (band and channel number) or name of the tuned channel if defined.

At the bottom of the menu there is a programme sort functions section. Each function is activated by color button (seen above). Name allows changing the programme name. By Delete you can delete programmes that you decided. Insert section is for inserting programmes into another programme spaces. By selecting Autostore section, Autostore menu will be available.

Name:

To change the name of a decided programme, that programme is selected and pressed to the Red button (Name). The first letter begins to blink on the selected name. To change that letter △" or ∇ button can be used, and to select the other letters, ◀" or "▶" button can be used. If the cursor is at the last letter of the Programme Name, pressing "▶" button moves the cursor at the beginning. On the contrary, if the cursor is at the beginning of the Programme Name, pressing "◀" button moves the cursor at the end.

After changing the name by pressing the Red button (Store) it is stored. After activating the name process the "Insert", "Delete" and "Autostore" processes will be inactive and "Cancel" option will be valid. This option cancels the name process, if the new name do not want to be stored. To cancel option is activated by pressing Blue button.

Insert:

When it is pressed to Green button (Insert), "Name", "Autostore" and "Delete" functions are erased, the selected programme (A) is displayed with an arrow. From now on, the automatic selection is canceled. With navigation buttons, the decided programme space (B) can be selected and by pressing the green button again inserting is occurred to that space (B).

Press Blue button to activate "Cancel" function of "Insert" process.

Delete:

For "Delete" process it is pressed to yellow button, ("Name", "Insert" and "Autostore" functions are inactive). Pressing yellow button again erases the selected programme from the programme list, and the programmes below shift one up. Pressing Blue button cancels the activated "Delete" process.

Autostore:

To enter Autostore menu, press to the blue button. To learn the features of this function see "Autostore" below.

Autostore, searches and stores all channels automatically on your TV, according to the transmission of programme systems in your area.

First of all choose the "Country" by using "◀" or "▶button.

To cancel Autostore before starting, press the "TV" button. To select "Continue", use the "△" or "▽" button and press the "◀" or "▶" button.

After Autostore is finalized, a programme list will appear on the screen. In the programme list, you will see the programme numbers and names assigned to the programmes.

If you do not accept the locations and/or the programme names of programmes, you can change them in the Programme menu.

Source Menu

You can switch your TV to AV modes by pressing the "AV" button directly or by selecting in the source menu from the main menu.

While in AV mode, you can also switch your TV to TV or other AV modes by selecting in the source menu from the main menu.

Menu

Sound . . . Picture . . . Feature . . . Install . . . Program . . . Source . . .

In the main menu, firstly use the △ or ▽ button, then use the "◀" / "▶" or "OK" button to enter the Source menu. In the source menu, move the cursor by the "△" or ▽ button and then press the "OK" button or the "◀" or "▶" buttons when the cursor is on the required item. The selected mode comes automatically on the screen.

Other Features

TV Status

Programme Number, Programme Name (or AV), (they are displayed on the upper left of the screen) and Sleep Timer (shows the time left on the upper right of the screen if enabled). The sound indicator and picture mode are displayed with them too. They are displayed after programme change for 3 seconds.

P 01 Programme Number

PR 01 Programme Name (4 characters)

These OSDs are displayed when a new programme is entered by digit button or by pressing "P<P", "-P/CH", "P/CH+", "TV", "AV" or "≡i" button.

Program Swap (P<P)

This button is used to re-enter the previously entered programme. Pressing "P<P" consecutively allows swapping between the two last entered programmes.

Double-digit (- / - - )

This OSD is displayed when the "Double-Digit" button is pressed in place of the programme number indicator.

P --

After that, to enter a programme, two digits must be pressed consecutively. If there is a delay in pressing any digit button, this function will be ignored and the display will be erased. Similarly, there must be no delay in pressing any digit button after entering the first digit. The time limit for the delay is 3 seconds.

Personal Preferences (PP)

All preset values will be restored when pressing "PP".

PP

Sound Indicator

The alternatives for the indicator are Mono, Stereo, Dual I, and Dual II. This indicator is displayed under the programme number indicator on the screen. The "I-II" button is used to select Mono or Stereo, or Dual I or Dual II.

MONO

In Mono broadcast or in forced-mono (for stereo broadcast).

STEREO

In Stereo broadcast.

DUAL I

If dual broadcast detected. Dual I is selected in default and also can be selected after Dual II by Remote Control.

DUAL II

If Dual II selected by Remote Control.

Picture Mode

Picture mode OSD is displayed when button is pressed. Picture mode can be changed to Auto, 4:3 or 16:9 by pressing "♣" button.

Sleep Timer Indicator

It is displayed on the upper right of the screen when a new programme is entered by digit button or by pressing "P<P", "-P/CH", "P/CH+", "TV", "AV" or "EI" button. If sleep timer is activated it is displayed with the TV status and erased with it after 3 seconds.

After the setting time of sleep timer has

passed then TV goes automatically to standby.

0:15

Mute Indicator

It is placed in the upper middle of the screen when enabled, and it stays there until it is disabled.

To cancel mute, there are two alternatives: the first one is pressing the "button", this volume is set to the preceding value, and the second one is increasing the volume level, thus it starts at the minimum level to increase. By decreasing the volume level in mute state, mute will not be ignored, only the volume level will decrease. If mute is canceled after decreasing the volume level, the volume will be valid with the decreased level.

No-Signal Detection (TV)

If no valid signal is detected, it takes 5 minutes for the TV to switch to Stand-By mode, unless a signal is detected or a Remote Control command is received.

After a Remote Control command (if the No-Signal Timer is active), the timer stops. If no signal is detected again, the timer is reset to 5 minutes and starts counting down again 3 seconds later.

This feature is not valid in AV mode.

4:31

No-Signal Detection (PC)

If no valid signal is detected for 5 minutes, the system goes to Stand-By mode. To switch on the system, press the "🔊" button.

No input signal detected

As a last status feature, the system starts from TV or PC, whichever was the status before stand-by or switch-off. Note that SCART inputs have precedence over both TV and PC.

Volume Bar

It is displayed in the lower middle of the screen. When a volume command is received (by pressing "▲+" or "▲-" on the Remote Control or the Control panel at the top of the TV) and no menu is active, it stays on the screen for 3 seconds after the last volume command, or until another command is received in between.

AV Modes

By pressing the "AV" button, you can switch your TV to AV modes (except when in Tele-text). Pressing this button will consecutively switch the TV through the optional AV modes: AV-1, AV-2, AV-3, S-VIDEO, PC.

To quit the AV mode, press the "TV" button, digit buttons, or "-P/CH" or "P/CH+".

Signal Out Of Range

When the PC input signal is not supported by the LCD-TFT TV, a message is displayed like "Signal out of range" and the screen is blanked.

Signal out of range

PC MODE

Installation

• Power off both the computer and the display before making any connections. The monitor comes with a 15-pin PC cable. Connect one end of the signal cable to the 15-pin connector on the rear of the computer.

• Tighten the screws of the display cable until the connectors are fastened securely (finger-tighten only).
• If you are using the Windows operating system

running on a PC with a Microsoft Plug & Play compatible video card, your system will select the appropriate timing for your monitor.

Switching from TV to PC

Press the "PC" button to switch directly to PC mode.

Main Menu in PC mode:

Enter the main menu by pressing the "M" button on the remote control.

Sound Menu

In the main menu, select "Sound" using the "△" or "▽" button, then enter the Sound menu by pressing the "◀", "▶", or "OK" buttons.

The items in this menu are described in the Sound menu starting on page 46.

Picture Menu

In the Main menu, select "Picture" using the "△" or "▽" button, then enter the Picture menu by pressing the "◀", "▶", or "OK" buttons.

All adjustments in this menu, except Picture Mode, are identical to the adjustments defined in the TV picture menu starting on page 48. Picture Mode can be set to Auto, 4:3, and 16:9 in PC mode.

PIP Picture

In the Main menu, select "PIP Picture" using the "△" or "▽" button, then enter the PIP Picture menu by pressing the "◀", "▶", or "OK" buttons.

This menu is displayed when PIP is shown on the screen; otherwise, the message "PIP No Signal" will be displayed at the bottom of the menu.

PIP picture is displayed on the screen with the "■" button. By pressing the "OK" button, the PIP window is selected and the border of the PIP window becomes green. The PIP position is changed with the "◀" / "▶" buttons. There are six different PIP positions. The PIP size is decreased with the "▽" button and increased with the "△" button. Three different PIP sizes are available.

The programme in the PIP window is increased / decreased with the "P/CH+" / "-P/CH" buttons. AV mode is also available in the PIP window. Digit buttons are inactive for the PIP window. The PIP window is removed from the screen with the "■" button.

Feature Menu:

In the main menu, select "Feature" using the "△" or "▽" button, then enter the Feature menu by pressing the "◀", "▶", or "OK" buttons.

The items in this menu are described in the Feature menu starting on page 50.

PC SOUND MODE:

This item selects the sound source for PC mode. However, when the PIP is displayed and highlighted with a green border, the sound switches to whatever is displayed in the PIP. Whenever you close the PIP or make the PIP border blue again by deselecting the PIP, the sound switches back to PC Sound Mode.

Geometry Menu:

In the Main menu, select "Geometry" using the "△" or "▽" button, then enter the Geometry menu by pressing the "◀", "▶", or "OK" buttons.

Adjust the required horizontal or vertical position or Hsync Phase by using the "◀" and "▶" buttons.

You can make position adjustments directly by using Auto position.

Select Auto position using the "△" or "▽" buttons and press the "◀" or "▶" button.

"Wait" is displayed at the bottom of the menu. After a few seconds, the screen geometry is adjusted automatically.

Warning: Auto position adjustment is recommended to be done with a full screen image for proper adjustment.

To store this menu setting, select "Store" using the "△" or "▼" buttons and then press the "OK" button. "Stored" will be displayed for a few seconds at the bottom of the menu.

Source Menu:

In the Main menu, select "Source" using the "△" or "▽" button, then enter the Source menu by pressing the "◀", "▶", or "OK" buttons.

Select the available sources of TV, AV-1, AV-2, AV-3, S-Video, or PC by pressing the "◀", "▶", or "OK" buttons.

PIP Source Menu:

This menu is available when the PIP is displayed.

In the Main menu, select "PIP Source" using the "△" or "▼" button, then select any available source of TV, AV-1, AV-2, AV-3, or S-Video by pressing the "◀", "▶", and then "OK" buttons.

Teletext

Teletext is an information system that displays text on your TV screen. Using the Teletext information system, you can view a page of information on a subject that is available in the list of contents (index).

On-screen display is not available in text mode.

Contrast, brightness or colour control is not available, but volume control is available in text mode.

To operate Teletext

- Select a TV station on which Teletext is being transmitted.

- Press (TELETEXT) "☐" button. Usually the list of contents (index) is displayed on the screen.

To select a page of Teletext

- Press the appropriate digit buttons for the required Teletext page number.

The selected page number is displayed at the top left corner of the screen. The Teletext page counter searches until the selected page number is located, so that the desired page is displayed on the screen.

• Press "P/CH+" button to move the Teletext screen forward one page at a time.
• Press "- P/CH" button to move the Teletext screen backward one page at a time.

To Select Index Page

- To select the page number of the index (generally page 100), press "≡i" button.

To Select Teletext with a TV Programme

• Press "button. The text is now super-imposed over the programme on the screen.
• Press " 🔊" button again to return to the Teletext page.

To Select Double Height Text

• Press the button for the top half of the information page to be displayed in double-height text.
• Press the "[+]" button again for the bottom half of the information page to be displayed in double-height text.
• Press the "🔊" button once more for the full page of normal-height text.

To Reveal "Concealed" Information

• Pressing the "?" button once will reveal answers on a quiz or games page.
• Pressing the "☐?" button again will conceal the revealed answers.

To Stop Automatic Page Change

The teletext page you have selected may contain more information than what is on the screen; the rest of the information will be displayed after a period of time.

• Press the "☒" button to stop the automatic page change.
• Press the "≡" button again to allow the next page to be displayed.

To Select a Subcode Page

Subcode pages are subsections of long Teletext pages that can only be displayed on the screen one section at a time.

• Select the required Teletext page.
• Press the "≡" button.
• Select the required subcode page number by pressing four digit buttons (e.g., 0001).
• If the selected subcode page is not displayed in a short time, press "EX" button. TV programme will be displayed on the screen.
• Teletext page number will be displayed on the upper left corner of the screen when the selected page is found.
• Press "EX" button to display the selected Teletext page.

To exit Teletext

- Press "TV" or "☐" button. The screen will switch to TV mode.

To Display the Time

• While watching a TV programme with Teletext transmission press “ 📄 ” button. The current time information, captured from Teletext will be displayed at the upper right of the screen until the “ 📄 ”, “AV” or “M” button pressed.
• If the programme being watched does not have Teletext transmission, no information will be displayed.

Fastext

(This is applicable if your TV is equipped with FASTEXT feature)

Your CTV supports the 7 page Teletext system. When the page number of any of the 7 pages in memory is entered, the system will not search for the requested page; instead it will display the page automatically.

• Press "P/CH+" button to move the Teletext screen forward one page at a time.
• Press "- P/CH" button to move the Teletext screen backward one page at a time.

For Fastext

The subject-heading for the information may have a particular colour. - Press an appropriate Red, Green, Yellow or Blue button in order to reach the relevant page quickly.

Peripheral Equipment Connections

There is a wide range of audio and video equipment that can be connected to your TV.

Connection diagrams at the end of this section show you where the different equipment should be connected at the back side of the TV.

PC Sound Connection

• Connect the PC Audio output to the TFT PC Audio In socket with a stereo connection cable.
• In the main menu select "Feature" using "△" or "▽" button then enter the Feature menu pressing "◀", "▶" or "OK" button. Come on "PC Sound Mode" using "△" or "▼" button and select PC from the TV, AV-1, AV-2, AV-3 and PC options using "◀", "▶" or "OK" button.
• Source also should be selected as PC in the main menu.

Via the Euroconnector

Your TV set has 2 Euroconnector sockets. If you want to connect peripherals (e.g. video, decoder, etc.) which have Euroconnectors, to your TV, use SCART input.

If an external device is connected via Euroconnector sockets TV is switched to AV mode automatically. In this case if both sockets are connected SCART-1 has the precedence.

In AV mode if you press the "i" button the TV status OSD is displayed on the screen.

Via Ant Input

If you want to connect to your TV, peripherals like video recorders or decoders, but the device you want to connect does not have Euroconnector, you should connect it to the ANT input of your TV set.

If the VCR is connected via antenna input it is suggested to use the Programme 0.

Decoder

Cable TV offers you a wide choice of programmes. Most of them are free, others are to be paid for by the viewer. This means that you will need to subscribe to the broadcasting organisation whose programmes you wish to receive. This organisation will supply you a corresponding decoder unit to allow the programmes to be unscrambled. For further information ask your dealer. See also the booklet supplied with your decoder.

Connect a decoder with an aerial socket to the TV

- Connect the aerial cable.

Connect a decoder without an aerial socket to the TV

- Connect the decoder to your TV with a eurocable (RCA Jack Cable) to EXTERNAL (RCA Jack). When your decoder has a Euroconnector / RCA Jack you can obtain better picture quality if you connect a eurocable (RCA Jack Cable) to EXTERNAL (RCA Jack).

TV and Video Recorder

- Connect the aerial cables.

Better picture quality can be obtained if you also connect a eurocable to EXTERNAL socket (optional).

Playback NTSC

Connect NTSC VCR player to one of two Euroconnectors at the back of the TV.

Then, press "AV" button to select AV-1 or AV-2.

Search for and store the test signal of the video recorder

• Unplug the aerial cable from the aerial socket "ANT" of your video recorder.
• Switch on your TV and put the video recorder on the test signal. (See the handbook for your video recorder.)
• Search for the test signal of your video recorder in the same way as you searched for and stored the TV signals. See Install, Search and Store TV channels. Store the test signal under programme number 0.
• Replace the aerial cable in the aerial socket "ANT" of your video recorder once you have stored the test signal.

Camera and Camcorder

To connect to (AV-3) input

Connect your camera or camcorder at the back side of your TV.

- Connect your equipment to the TV via VIDEO (yellow), AUDIO R (red) and AUDIO L (white) inputs. You should connect the jacks to the input in the same colour.

Connect the decoder to the video recorder

Some video recorders have a special euroconnector for decoder.

- Connect a eurocable to the euroconnector of your decoder and to the special euroconnector of your video recorder. See also the handbook of your video recorder.

- To connect your video recorder to the TV, see TV and Video Recorder section.

If you want to connect more equipment to your TV, consult your dealer.

Connecting Headphones

Use the stereo headphone socket on the back side of your TV, to connect headphones.

Connecting the PC

Connect PC monitor with 15-pin PC cable to the 15-pin connector on the rear of the computer. For detail installation procedure see Installation in PC mode.

To connect to S-Video input

Connect your camera or camcorder to the back of your TV.

Connect your equipment to the TV via the S-Video input on the back using S-Video cables.

Peripheral Equipment Connections

Ⓐ PC INPUT B DC 12 V © PC AUDIO INPUT D HEADPHONE E ANTENNA

⑤ SCART SOCKET 1 (AV-1) © SCART SOCKET 2 (AV-2) (H) S-VIDEO INPUT ① VIDEO INPUT J AUDIO INPUT (R)—(AV-3) K AUDIO INPUT (L)

Antenna Connections

Outdoor Antenna Connections

Peripheral Equipment Connections

PC INPUT TYPICAL DISPLAY MODES

The display has a maximum resolution of 1024 x 768, vertical sync frequency range of 50-75 Hz, and a horizontal sync frequency range of 30-69 KHz.

The following table is an illustration of some of the typical video display modes.

Mode	Resolution		Frequency		Sync. Polarity
	Horizontal	Vertical	Hor. (kHz)	Ver. (Hz)	Hor.	Ver.
1	640	400	31.5	70	-	+
2	640	480	31.5	60	-	-
3	640	480	37.9	72	-	-
4	640	480	37.5	75	-	-
5	720	400	31.5	70	-	+
6	800	600	35.2	56	+	+
7	800	600	37.9	60	+	+
8	800	600	48.1	72	+	+
9	800	600	46.9	75	+	+
10	1024	768	48.4	60	-	-
11	1024	768	56.5	70	+	+
12	1024	768	60.0	75	+	+

Tips

Care of the Screen

Clean the screen with a slightly damp, soft cloth. Do not use abrasive solvents as they may damage the TV screen coating layer.

Colors of image on screen are abnormal

For TV:

Have you selected the correct TV system? Is your TV set or house aerial located too close to the loudspeakers, non-earthed audio equipment, or neon lights, etc.?

Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial.

Is the picture or Teletext unrecognizable? Check if you have entered the correct frequency.

The picture quality may degrade when two peripherals are connected to the TV at the same time. In such a case, disconnect one of the peripherals.

For Monitor:

- Check that the Video (Signal) Cable from the Display has been securely and correctly connected to the 15-pin Video Connector on the rear panel of the Computer.

- If you have used an adaptor to convert the 15-pin Video (Signal) Cable Connector from the Display to fit the connector on the rear of the Computer, check the pin assignment of the Display.

No Image on Display Screen

For TV:

Is the aerial connected properly? Are the plugs connected tightly to the aerial socket? Is the aerial cable damaged? Are suitable plugs used to connect the aerial? If you are in doubt, consult your dealer.

No Image means that your TV is not receiving any transmission. Have you pressed the correct buttons on the remote control? Try once more.

ing any transmission. Have you pressed the correct buttons on the remote control? Try once more.

Check that the power cord of the Display has been connected securely into a wall outlet or grounded extension cable or strip.

• Check that the power cord of the display has been securely connected to a wall outlet or a grounded extension cable or power strip.
• Display is equipped with electronic power switch, it will remain power-off in case of any power failure. It is necessary to push power switch again to power-on the display. Check that LED on front of display is green.
• Check that Video (Signal) Cable from the Display has been securely and correctly connected to the 15-pin Video Connector on the rear panel of the Computer.
• Check that Video Card is firmly seated in card slot of Computer motherboard.
• Check that the Brightness and/or the Contrast adjustments of the Display have not been turned down to minimum levels.

Sound

You cannot hear any sound. Did you perhaps interrupt the sound, pressing "button? Are external speakers connected to the TV?"

Sound is coming from only one of the speakers. Is the balance set to one direction extreme? See Sound menu.

Remote Control

Your TV no longer responds to the remote control. Press the "TV" button on the remote control once more. Perhaps the batteries are exhausted. If so you can still use the buttons on the control panel at the top of your TV.

Have you selected the wrong menu? Press "TV" button to return to TV mode or press "M" button to return to the previous menu.

No solution:

Switch your TV set off and on. If this does not work, call the service personnel; never attempt to repair it yourself.

Specifications

TV BROADCASTING

PAL SECAM B/G, D/K, I/I

RECEIVING CHANNELS

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

CABLE TV (S1-S20/ S21-S41)

Input Signal

Video: Analog 0.7 Vp-p 75 ohm positive

Sync: TTL Level positive or negative, Separate sync.

Horizontal Timing 30 - 69 KHz

Vertical Timing 50 - 75 Hz

Dot Rate

78.75 MHz max.

Video Cable/Input Connector

15 pin mini D cable

PANEL

Size: 20" (51 cm) diagonal

Displayable Resolution

1024 x 768 maximum

Non-interlaced

Active Display Area

408 mm horizontal x 306 mm vertical

Number of preset channels: 100

Channel indicator

On-screen display

RF aerial input

75 Ohm (unbalanced)

Operating voltage

For adaptor: 230 V AC, 50 Hz.

For TV: 12 V DC

Audio

German Stereo

AUDIO OUTPUT POWER

2 x 3 W RMS (10% THD)

POWER CONSUMPTION (W) (max.)

60

Dimensions (WxHxD)

W 616 mm.

H 451 mm.

D 218 mm. with stand

79 mm. without stand

Weight 12.3 Kg.

Compliance:

CE, MPR II Low Emissions, ISO-9001.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24-month guarantee starting on the date of purchase (receipt).

During the life of the guarantee, any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase, no free replacement or repair will be carried out.

For repairs or replacement during the life of the guarantee, return the device in its original packing together with the proof of purchase to your dealer.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases, please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g., motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance, or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee, repairs can be carried out by the competent dealer or repair service against the payment of the ensuing costs.

INDEX

THE BUTTONS ON THE REMOTE CONTROL ..... 69

THE BUTTONS ON THE CONTROL

PANEL 70

PREPARATION 71

CONTROL PANEL BUTTONS

PREPARATION

"DO NOT LEAVE THE TV SET IN STANDBY OR ON WHEN YOU LEAVE HOME"

Image mode

Ⓐ PC INPUT (B) DC 12 V © PC AUDIO INPUT D HEADPHONES AND ANTENNA F SCART SOCKET 1 (AV-1) © SCART SOCKET 2 (AV-2) H S-VIDEO INPUT ① VIDEO INPUT J AUDIO INPUT (R) — (AV-3) © AUDIO INPUT (L)

ANTENNA CONNECTIONS

④ OK = Okay (Save)

⑨ P/CH + = Program Up

10 Volume +

28 - P/CH = Program Down

Image Mode

To operate Teletext

Fastext

Ⓐ PC INPUT

B DC 12 V

PC AUDIO INPUT

HEADPHONES

ANTENNA

⑤ EUROCONNECTOR 1 (AV-1)

© EUROCONNECTOR 2 (AV-2)

S-VIDEO INPUT

① VIDEO INPUT

J AUDIO INPUT (R) — (AV-3)

K AUDIO INPUT (L)
