IAN 111121 - Wristwatch AURIOL - Free user manual and instructions

Product Type	Digital Watch
Brand	Auriol
Model	IAN 111121
Case Diameter	Approx. 40 mm
Case Thickness	Approx. 10 mm
Weight	About 50 g
Strap Material	Plastic / Resin
Case Material	Plastic
Display Type	LCD Digital
Backlight	Yes
Water Resistance	30 meters (3 ATM) – splash resistant
Battery Type	CR2032
Battery Life	Approx. 2 years
Functions	Time, Date, Alarm, Stopwatch, Backlight
Time Format	12/24 hour selectable
Accuracy	Quartz ±15 seconds per month
Care Instructions	Clean with a soft dry cloth; avoid exposure to extreme temperatures
Safety	Keep away from small children; button cell battery hazard
Spare Parts	Replacement batteries and straps available online
Repairability	Battery replacement easy; other repairs by professional

Frequently Asked Questions - IAN 111121 AURIOL

How do I set the time on my Auriol watch?

In normal time display, press and hold the MODE button (usually the leftmost) for about 2 seconds until the seconds flash. Then use the ADJUST (or ST/SP) button to change the value. Press MODE to move to hours, minutes, etc. After setting, press MODE repeatedly to return to normal display.

How do I set the alarm?

Press the MODE button until the alarm screen appears (usually with AL or bell icon). Press and hold MODE to enter setting mode. Use the ADJUST button to set the alarm time. Press MODE to toggle alarm on/off. The alarm will ring for 30 seconds and can be stopped by pressing any button.

How do I replace the battery?

Use a small screwdriver to open the battery compartment on the back cover. Replace with a CR2032 battery, ensuring correct polarity (+ facing up). Close the cover securely. Dispose of old battery properly.

Is my Auriol watch waterproof?

The watch is water-resistant to 30 meters (3 ATM). This means it can withstand splashes and rain, but not swimming or diving. Do not press buttons underwater.

How do I use the stopwatch?

Press the MODE button until you see the stopwatch display (usually CHR or a timer icon). Press the START button to begin timing, press again to stop. Press the RESET button to reset to zero.

What does the backlight button do?

Press the LIGHT button (usually top right) to illuminate the display for a few seconds. This allows reading the time in the dark.

How do I switch between 12-hour and 24-hour format?

In time setting mode (after holding MODE), cycle through to the hour setting. Press the ADJUST button repeatedly to toggle between 12H and 24H format.

What should I do if the watch stops working?

First, check the battery. If the display is dim or empty, replace the battery (CR2032). If it still doesn't work, the watch may have an internal fault. Contact customer support or a professional watch repair.

How do I clean my Auriol watch?

Use a soft, dry cloth to clean the case and strap. Avoid using abrasive cleaners or solvents. If the watch is water-resistant, you can rinse it in fresh water after exposure to saltwater, but dry it thoroughly.

Where can I find a replacement strap?

Replacement straps for Auriol IAN 111121 can be purchased online from retailers such as Amazon or specialized watch strap stores. Ensure the strap width matches (typically 20mm). Also check the official Auriol parts website if available.

USER MANUAL IAN 111121 AURIOL

ES

rELOJ dE PuLSErA

Operation and Safety Notes

DE AT CH

ArMbAnduHr

ES Página	5
IT/MT Pagina	11
PT Página	17
GB/MT Page	23
DE/AT/CH Seite	29

111121-14-01-12

B

111121-14-13-30

		10 BAR	5 BAR	3 BAR

RELOJ DE PULSERA

● Preparations for use

Changing the battery

Note: Have batteries changed in a specialist shop.

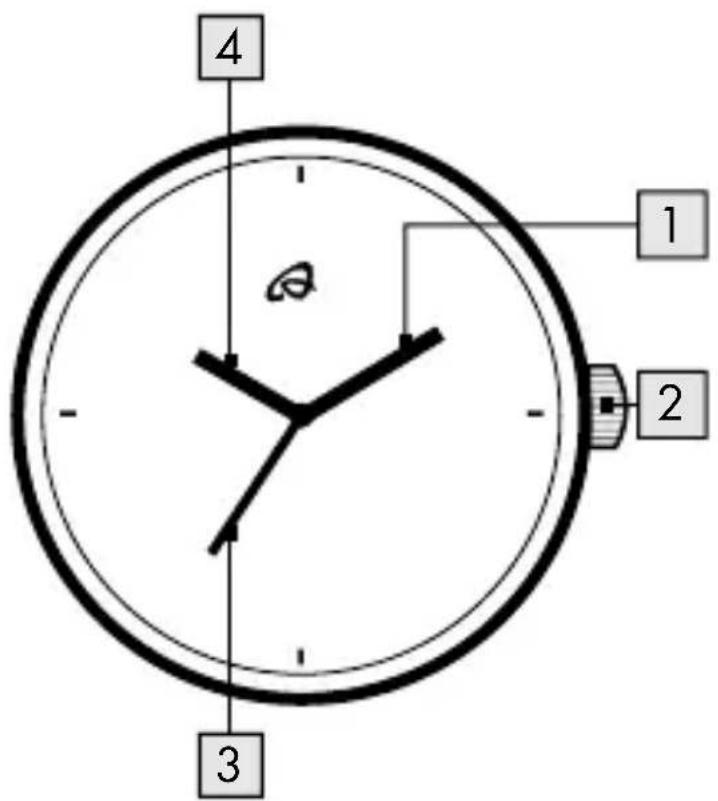

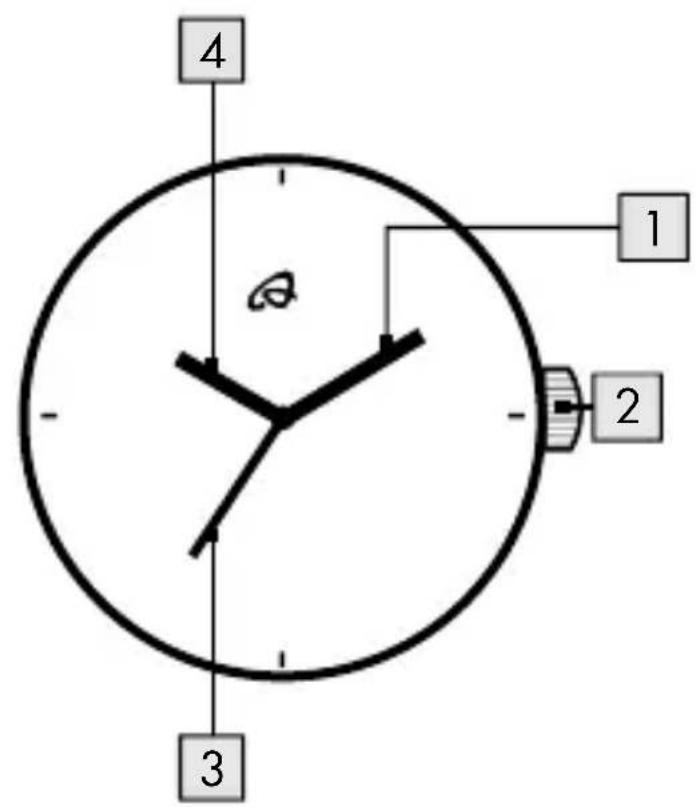

Display

1 Minute hand
2 Crown
3 Second hand
4 Hour hand

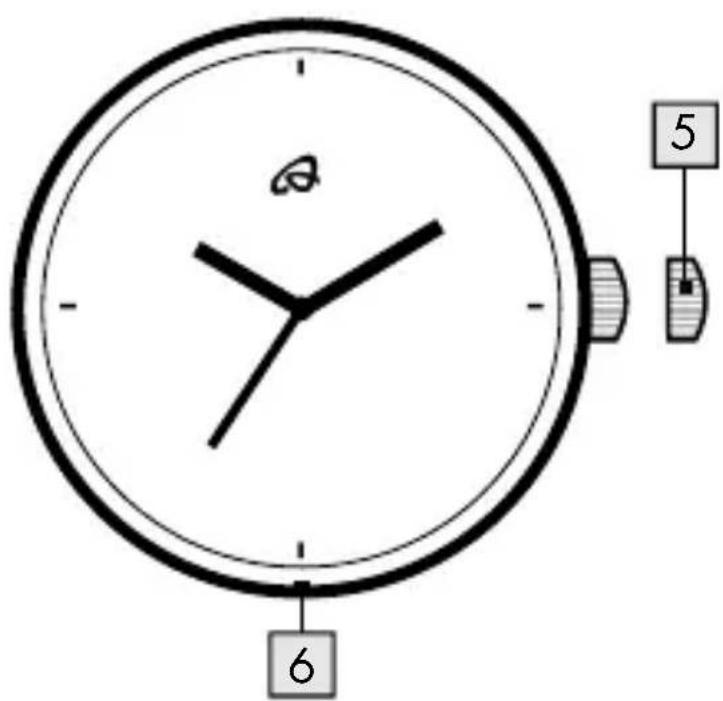

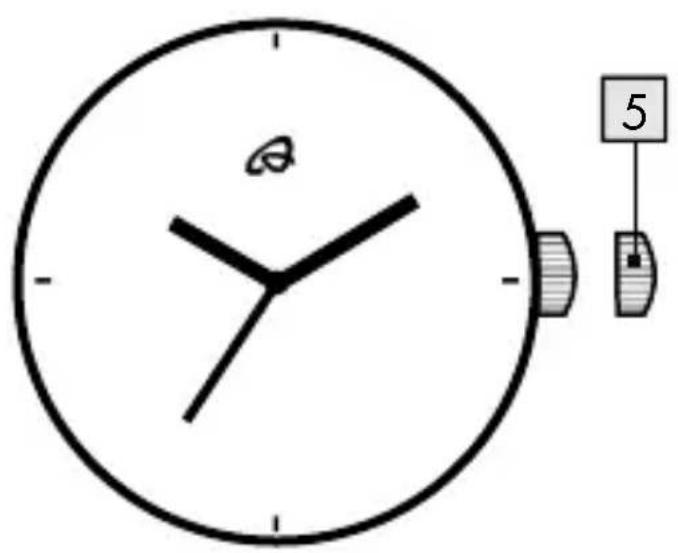

5 1st position
6 Bezel (rotating outer ring) (111121-14-01-12)

Setting the time

1. To set the time, pull the crown 2 out to the 1st position 5.
2. Turn the crown 2 to set the hour and minute hands 4, 1.
3. When the crown 2 is pushed back to the normal position the second hand 3 begins to run.

Watertightness

This watch is watertight to five bar in accordance with DIN 8310.

Figure C shows the permissible areas of use. Please note that the watertightness is not a permanent feature. It should be checked annually and particularly before subjecting it to special conditions, as the function of the inbuilt sealing elements diminishes with daily use.

Timing

(111121-14-01-12)

The bezel 6 is used to indicate a period of time (e.g. jogging time).

The amount of time elapsed can be read easily from the bezel.

Turn the bezelin anti-clockwise direction to mark the start of timing.

Cleaning and maintenance

- Clean the product on the outside only with a soft, dry cloth.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries must be recycled in accordance with Directive 2006 / 66 / EC. Please return the batteries and / or the device to the available collection points.

Environmental damage through incorrect disposal of the batteries!

Batteries must not be disposed off with domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols of the heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries at a local collection point.

WArrAnTY

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within three years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

The warranty further excludes a reduction in water tightness. The state of water tightness is not a permanent property and should therefore be regularly maintained. Please note, opening and repairs performed by unauthorized individuals will void any warranty.

CE

ARMBANDUHR

Inbetriebnahme

Batterie wechseln
