Instruction Manual

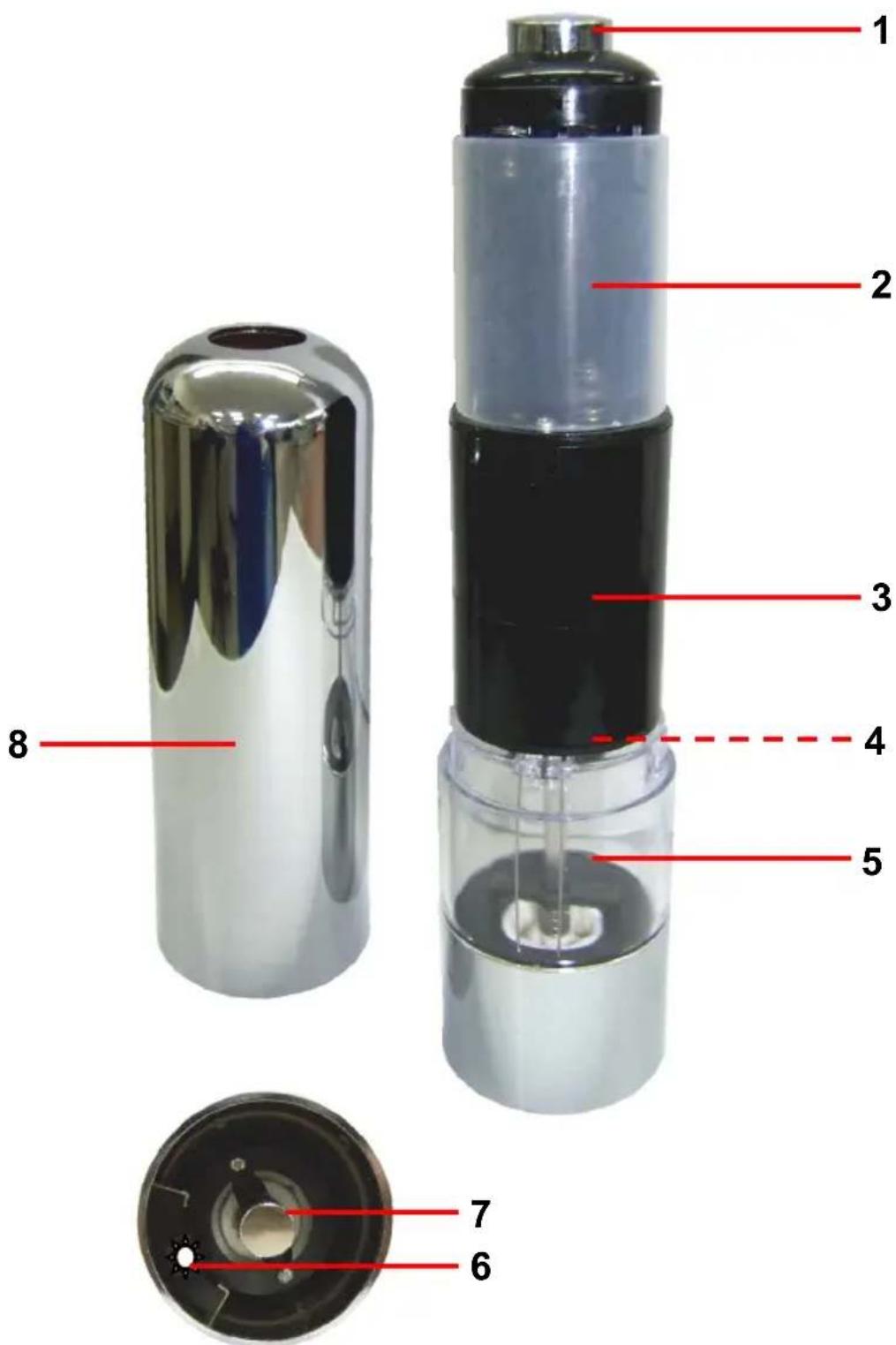

Electric Pepper Mill with Light KDL-502

Article No. 86 62 77

This manual belongs with the product. It contains important information operating the unit. Please pass it on along with the unit if it is handed over to a third party!

Please familiarize yourself with the proper handling of the unit by reading each section of this manual in correct order; observe the instructions at all times. Keep these operating instructions in a safe place for future reference.

Please read the safety instructions!

These instructions will make it easier for you to use the unit correctly and help prevent misunderstandings and possible damage or injury.

Labeled diagram of a water filter device showing internal components and parts with numbered annotations

Before using for the first time ......Page 6

Inserting batteries and filling ......Page 6

Operation......Page 7

Cleaning Page 7

Technical Data Page 8

Sicherheitshinweise

Simple line drawing of a three chasing recycling symbol (no text or labels)

Pure electrical circuit lines without any symbols

Bedienung

Close-up of a black mechanical component with a white cylindrical top (no text or symbols visible)

Close-up of a mechanical component with transparent glass casing and black top, showing internal components (no visible text or symbols)

Bedienung

Gebrauch

Please read the following instructions carefully to avoid malfunctions, damage and injuries:

• Please read these operating instructions carefully.
• Only use the pepper mill in
• Do not leave packing materials lying around carelessly. Plastic bags etc. can be dangerous toys for children.
• Keep the unit out of there
  ■ Never immerse the pepper m
• Only fill the container with
• Only use the unit indoors in dry rooms or in environments protected against moisture.
• Do not subject the unit to
• Do not subject the unit to
• Remove the batteries from t if the batteries are flat.
• Do not recharge non-rechargeable batteries, disassemble, burn or short-circuit batteries.
• Do not clean the unit's components with aggressive detergents or cleaning spirits. Use a slightly damp cloth to clean.
• Do not disassemble the unit. It does not contain any parts serviceable by you.
• If you have any questions or problems, please contact our service department. Do not attempt to repair the unit yourself.

Simple line drawing of a recycling symbol (three chasing arrows) with no text or labels

Batteries do not belong in household garbage.

For battery disposal, please check with your local council.

Pure electrical circuit lines without any symbols

Before using for the first time

• Familiarize yourself with the unit before using for the first time. Observe the safety instructions and only use the unit in compliance with these operating instructions.
• Remove all packaging compo
• Clean the unit, as describe

Inserting batteries and filling

1. Hold the container (5) with one hand and turn the housing cover (8) counter clockwise with the other hand. Pull the cover upright to remove it from the container.

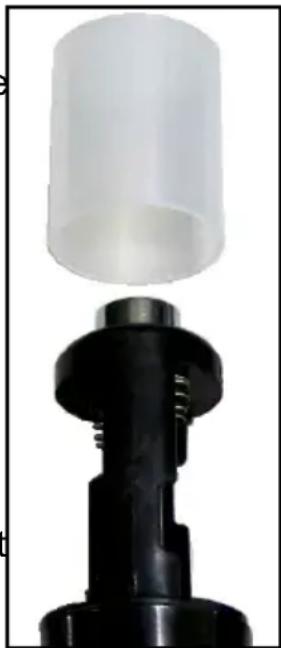

2. Pull the drive unit (3) and the transparent battery cover upright.
3. Insert 4 fresh batteries of the type LR6 (AA) into the battery compartment (2). Observe the right polarity. The battery polarity symbols are shown in the battery compartment.
4. Fill the container up to approx. 80 % with pepper or salt through the filling hole (4).

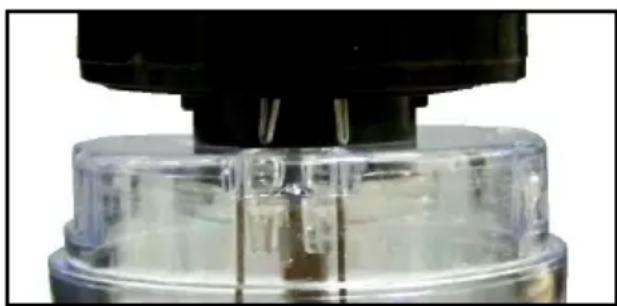

5. First, place the transparent battery cover on the drive unit and then place the drive unit with the included batteries in the container. Make sure the connecting wires are directed above the screws on the container. Press the drive unit firmly on the container.
6. Put the housing cover over the drive unit. Turn the housing cover clockwise and tighten the container.

Close-up of a black mechanical component with a white cylindrical top (no text or symbols visible)

Close-up of a mechanical component with transparent glass casing and black top, no visible text or symbols

Operation

• Press and hold the ON/OFF and to switch on the built-in LED (6).
• You can set the required grinding size by turning the screw (7):

clockwise = finer;

counter clockwise = coarser.

• If the grinding unit does not to select a coarser setting. If the grinding unit still does not turn, it may be blocked. Select the coarsest setting and shake the pepper mill back and forth until the grinding unit operates again.
• If the grinding unit fails to turns very slowly, the batteries are flat. In this case, replace the 4 batteries with a complete new set. Do not mix rechargeable batteries with ordinary batteries or new ones with flat batteries.

Cleaning

• Preferably, clean the container immediately before you intend to fill it with new pepper or salt. Shake the container empty first and remove any residue with a small, non-food contaminating brush. Do not wash the container with water or any other liquid.
• Only use a lightly moistened cloth to clean the outside housing.
• Do not immerse the pepper
  ■ Do not use any aggressive
• Do not use any metallic or sharp tools as this could damage the surface of the unit.

Nennleistung 4 W Nominated Power

Batterien 4 x LR6 (AA) Batteries
