Product Type	Gas hob (cooker top)
Model	Zanussi ZGL646ITX
Number of Burners	4 gas burners (1 rapid, 2 semi-rapid, 1 auxiliary)
Burner Power Ratings	Rapid: 3.0 kW (G20) / 2.8 kW (G30/G31); Semi-rapid: 2.0 kW; Auxiliary: 1.0 kW
Ignition Type	Automatic electric ignition with thermocouple safety device
Gas Connection	G 1/2" male thread; adaptable for Natural Gas (G20) or LPG (G30/G31)
Electrical Supply	230 V ~ 50 Hz
Hob Dimensions (W x D)	580 mm x 500 mm
Recess Dimensions (L x W)	550 mm x 470 mm
Net Weight	Approx. 12 kg
Burner Diameter Range	Rapid: 160-260 mm; Semi-rapid: 120-220 mm; Auxiliary: 80-160 mm
Thermocouple Safety	Yes, flame failure device on each burner
Child Safety	Designed to prevent unsupervised use by young children
Material	Enamel steel and stainless steel
Cleaning	Wash burner caps and crowns with warm soapy water; avoid abrasive cleaners
Dishwasher Safe Parts	Pan supports are dishwasher safe
Installation Type	Built-in; fits into kitchen unit with appropriate cut-out
Service & Spare Parts	Genuine spare parts available through authorized Service Centres
Certifications	Complies with EEC Directives 2006/95, 89/336, 93/68

Frequently Asked Questions - ZGL646ITX ZANUSSI

How do I light the gas burners on my Zanussi ZGL646ITX?

Push and turn the corresponding knob anticlockwise to the maximum position. If the model has automatic ignition, the spark ignites the gas. After lighting, keep the knob pressed for about 5 seconds to allow the thermocouple to heat up, then adjust the flame.

What size pans should I use for each burner?

Use pans with a base diameter within the recommended range: Rapid burner 160-260 mm, Semi-rapid 120-220 mm, Auxiliary 80-160 mm. Always use flat-bottomed pans for even heat distribution.

How do I clean the hob properly?

Disconnect the appliance from the power supply. Wash enamelled parts with warm soapy water. Clean burner caps and crowns frequently with hot soapy water. Avoid abrasive cleaners, steel wool, or bleach. Pan supports are dishwasher safe. Wipe the hob top with a soft damp cloth.

What should I do if a burner fails to light?

Check that the burner cap and crown are correctly positioned and clean. Ensure the ignition candle and electrode are clean and free from food residue. If the problem persists, verify the gas supply is on and that the thermocouple is functioning. If still not lighting, contact an authorized service centre.

Can I convert the hob from natural gas to LPG?

Yes, the hob is adaptable. You need to replace the injectors with the ones supplied for LPG (see table in manual) and adjust the bypass screw for minimum flame. This should be done by a qualified installer. The conversion kit is included with the appliance.

Is the hob safe for children?

The hob has safety features such as thermocouple flame failure devices that cut off gas if the flame goes out. However, children should be supervised and kept away from hot surfaces. The appliance is designed to be used by adults and children under supervision only.

What are the electrical requirements for installation?

The hob requires a 230 V ~ 50 Hz supply. It must be properly earthed. If connecting directly, install a double pole switch with at least 3 mm contact gap. Use a suitable cable type H05RR-F or equivalent. Do not use an extension cord.

How do I adjust the minimum flame setting?

Light the burner and turn the knob to the minimum position. Remove the knob. Use a thin screwdriver to adjust the bypass screw (see Fig. 8 in manual). For LPG, tighten clockwise until a small stable flame; for natural gas, unscrew about 1/4 turn. Ensure the flame does not go out when turning from max to min.

What are the recommended clearances for installing the hob?

The cut-out edge must be at least 55 mm from the rear wall and 100 mm from side walls or furniture. Hanging cabinets or hoods must be at least 650 mm above the hob. Ensure proper ventilation openings as per manual.

Where can I find genuine spare parts or service?

Contact your local authorized Service Centre. The manual includes a list of contacts by country. Always insist on genuine original spare parts to ensure safety and proper function.

USER MANUAL ZGL646ITX ZANUSSI

⚠️ Important Safety Information

These warnings are provided in the interest of safety. You must read them carefully before installing or using the appliance.

About Installation, Cleaning and Manteinance

• It is mandatory that all operations required for the installation are carried out by a qualified or competent person, in accordance with existing rules and regulations.
• Disconnect the appliance from the electrical supply, before carrying out any cleaning or maintenance work.
• Ensure a good ventilation around the appliance. A poor air supply could cause lack of oxygen.
• Ensure that the gas supply complies with the gas type stated on the identification label, placed near the gas supply pipe.
• Using a gas cooking appliance will produce heat and moisture in the room which it has been installed in. Ensure a continuous air supply, keeping the air vents in good conditions or installing a cooker hood with discharge tube.
• In case of intensive or long time use of the appliance, make the ventilation more efficient, by opening a window or increasing the electric exhaust fan power.
• Once you removed all packaging from the appliance, ensure that it is not damaged and the electric cable is in perfect conditions. Otherwise, contact your dealer before proceeding with the installation.
• The manufacturer disclaims any responsibility should all the safety measures not be carried out.
• Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by unexperienced persons may cause injury or serious malfunctioning. Refer to your local Service Centre. Always insist on genuine spare parts.

During Operation

• It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred, always ensure that the book is left with the appliance in order that the new owner can get to know the functions of the appliance and the relevant warnings.
• This appliance has been designed for non professional purpose in private houses only. It is meant to cook edible foodstuff only and MUST NOT be used for any other purposes.
• It is dangerous to alter the specification in any way.
• For hygiene and safety reasons, this appliance should be kept clean at all times. A build-up of fats or other foodstuff could result in a fire.
  • Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by

unexperienced persons may cause injury or serious malfunctioning. Refer to your local Service Centre. Always insist on genuine spare parts.

• Ensure that all control knobs are in the OFF position when not in use.
• Should you connect any electrical tool to a plug near this cooking appliance, ensure that electric cables are not in contact with it and keep them far enough from the heated parts of this appliance.
• If the appliance is out of order, disconnect it from the electric supply.

Child Safety

• This appliance has been designed to be operated by adults and children under supervision. Young children MUST NOT be allowed to tamper with the controls or play near or with the appliance.
• Accessible parts of this appliance may become hot when it is in use. Children should be KEPT AWAY until it has cooled.
• This appliance is not intended for use by children or other persons whose physical, sensory or mental capabilities or lack of experience and knowledge prevents them from using the appliance safely without supervision or instruction by a responsible person to ensure that they can use the appliance safely.

Environmental Information

• After installation, please dispose of the packaging with due regard to safety and the environment.
- When disposing of an old appliance, make it unusable, by cutting off the cable.

• The symbol

on the product or on its packaging is a product may not be treated as it. Instead it shall be handed over to collection point for the recycling of electronic equipment. By ensuring this need of correctly, you will help prevent consequences for the environment in, which could otherwise be caused by waste handling of this product. For information about recycling of this contact your local city office, your disposal service or the shop where the product.

These instructions are only for the countries stated by the symbol printed on the front cover of this instruction book.

Contents

For the User

Important Safety Information 2

Instruction for the User 3

Cleaning and Maintenance 5

For the Installer

Technical Data 6

Instruction for the Installer 6

Electrical Connection 7

Adaptation to different types of gas 8

Building In 9

Possibilities for insertion 10

This appliance complies with the following E.E.C. Directives:

- 2006/95 (Low Voltage Directive);

- 89/336 (Electromagnetical Compatibility Directive);

- 93/68 (General Directives)

and subsequent modifications.

MANUFACTURER:

ELECTROLUX HOME PRODUCTS ITALY S.p.A.

Viale Bologna, 298

47100 FORLì (Italy)

Guide to Use the instructions

The following symbols will be found in the text to guide you throughout the Instructions:

Safety Instructions

Step by step instructions for an operation

Hints and Tips

Environmental information

Instruction for the User

Once the hob has been installed, it is important to remove any protective materials, which were put on in the factory.

Hob burners control knobs

The hob burners control knobs are situated on the hob right hand side. The symbols on the knobs mean that:

there is no gas supply

there is maximum gas supply

there is minimum gas supply

Lighting the burners

For easier lighting, proceed before putting a pan on the pan support.

Models with semi-automatic ignition

To light a burner, depress the relevant switch marked with a small spark. Then, push in the relevant knob and turn it anticlockwise to "maximum position" (ZGL 646 I).

Fig. 1

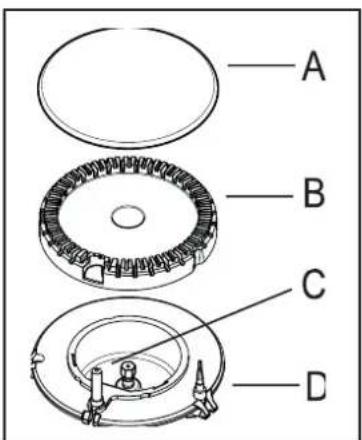

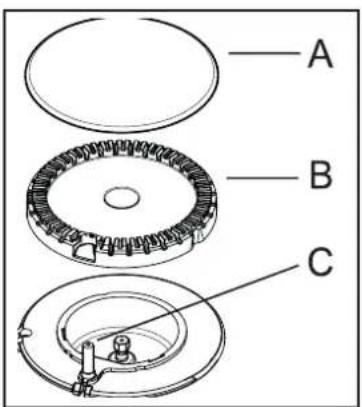

A - Burner cap
B - Burner crown
C - Ignition candle
D - Thermocouple

Fig. 2

Models with automatic ignition

Push in the relevant knob and turn it anticlockwise to "maximum position". After lighting the flame, keep the knob pushed down for about 5 seconds. This will allow the "thermocouple" (Fig. 2, lett. D) to be heated and the safety device to be switched off, otherwise the gas supply would be interrupted (ZGL 646 IT - ZXL 636).

Then, check the flame is regular and adjust it as required.

If you cannot light the flame even after several attempts, check the "cap" (Fig. 1-2, lett. A) is in the correct position.

To put the flame out, turn the knob to the symbol ●.

• Always turn the flame down or put it out before taking the pans off the burner..

Using the hob correctly

To ensure maximum burner efficiency, it is strongly recommended that you use only pots and pans with a bottom fitting the size of the burner used, so that flame will not spread beyond the bottom of the vessel.

It is also advisable, as soon as a liquid starts boiling, to turn down the flame so that it will barely keep the liquid simmering.

Use only pans or pots with flat bottom.

Carefully supervise cookings with fats or oil, since these types of foodstuff can result in a fire, if over-heated.

Use of electric plate (ZXL 636)

To switch on the plates, turn the relevant knob to the required position.

The plates are regulated by a 7 position switch:

Position 0: off

Position 1: minimum disbursement of heat

Position 6: maximum disbursement of heat

The pilot light signals the connection of the electric plate.

It is important to note that the plate may smoke a little and produce a slightly unpleasant odour when used for the first time. This is quite normal and will disappear after a few minutes.

Using the plate correctly

• When cooking by electric, saucepans should have a thick base and be perfectly flat in order to ensure total contact with the plate and, consequently, perfect conduction.
• Occasionally, saucepans have a thin bottom and these loose their shape over a period of time. In this manner two of the qualities of the electric plate are lost: the even distribution of heat and the saving of energy. Cooking time is also lengthier.

In the absence of electricity, ignition can occur without the electrical device; in this case approach the burner with a flame, push the relevant knob down and turn it anti-clockwise until it reaches the "maximum" position.

When switching on the mains, after installation or a power cut, it is quite normal for the spark generator to be activated automatically.

Burner minimum maximum diameter diameter
Big (rapid) 160 mm. 260 mm.Medium (semirapid) 120 mm. 220 mm.Small (auxiliary) 80 mm. 160 mm.

Two laboratory beakers with crossed-out triangular warning symbols, no text or labels present

Two simple line drawings of a beaker with bubbles and liquid, shown from different angles (no text or symbols)

Simple line drawing of a steaming container with crossed lines indicating resistance or heat (no text or symbols)

• As regards the size of the saucepans: for best results, the plate and the saucepan should have the same diameter. The diameter of the saucepan may be slightly larger; a smaller diameter is not advised.
• Never leave the plates on without a saucepan! Switch off the plate just before the end of cooking time. The heat accumulated by the plate will finish cooking the food and save energy.

When cooking with fats or oils maximum care must be taken as these can self-ignite when over-heated.

Cleaning and Maintenance

Disconnect the appliance from the electrical supply, before carrying out any cleaning or maintenance work.

General cleaning

Wash the enamelled components with warm soapy water. Never use abrasive cleaners.

Frequently wash the "caps" and the "crowns" with hot soapy water, carefully taking away any built-up of food.

Regularly wipe over the hob top using a soft cloth weel wrung out in warm water to which a little liquid detergent has been added. Avoid the use of the following:

• household detergent and bleaches;
• impregnated pads unsuitable for non-stick saucepans;
• steel wool pads;
• bath/sink stain removers.

Should the hob top become heavily soiled, it is recommended that a proper cleaning product is used.

Pan supports

The pan supports are dishwasher proof.

If the marks are particularly difficult to remove, use common non-abrasive cleaners or specific products.

Never use steel wool pads or acids.

Ignition candle

The electric ignition is obtained through a ceramic "candle" and a metal electrode (Fig.1-2 lett. C). Keep these components well clean, to avoid difficult lighting, and check that the burner crown holes are not obstructed.

Cleaning of the hotplates

Spills on the hotplates should be removed using warm water and a soft cloth.

Alternatively, wipe the plates with a drop of olive oil on a kitchen towel (while the plates are still warm).

Periodic Maintenance

Periodically ask your local Service Centre to check the conditions of the gas supply pipe and the pressure adjuster, if fitted.

To ensure the good operation of the hob and its safety features, it is necessary that the taps are periodically lubricated.

Fig. 3

Technical Data

Gas Burners Rating

Rapid Burner 3,0 kW (G20) - 2,8 kW (G30/G31)

Semirapid Burner 2,0 kW

Auxiliary Burner 1,0 kW

Appliance Class 3

Category II2H3B/P

Setting

Natural gas G20 - 20 mbar

Gas connection G 1/2"

Electric hotplate (ZXL 636)

∅ 145 mm.

1,5 kW

Electric Supply

230 V \~ 50 Hz

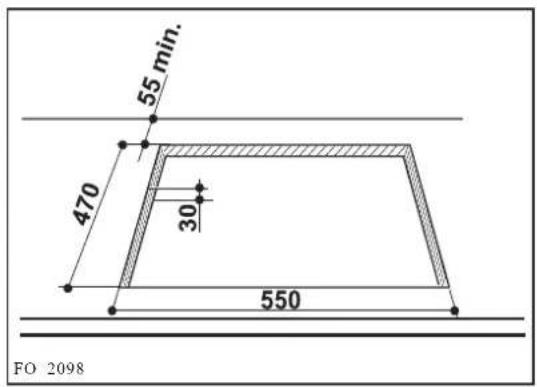

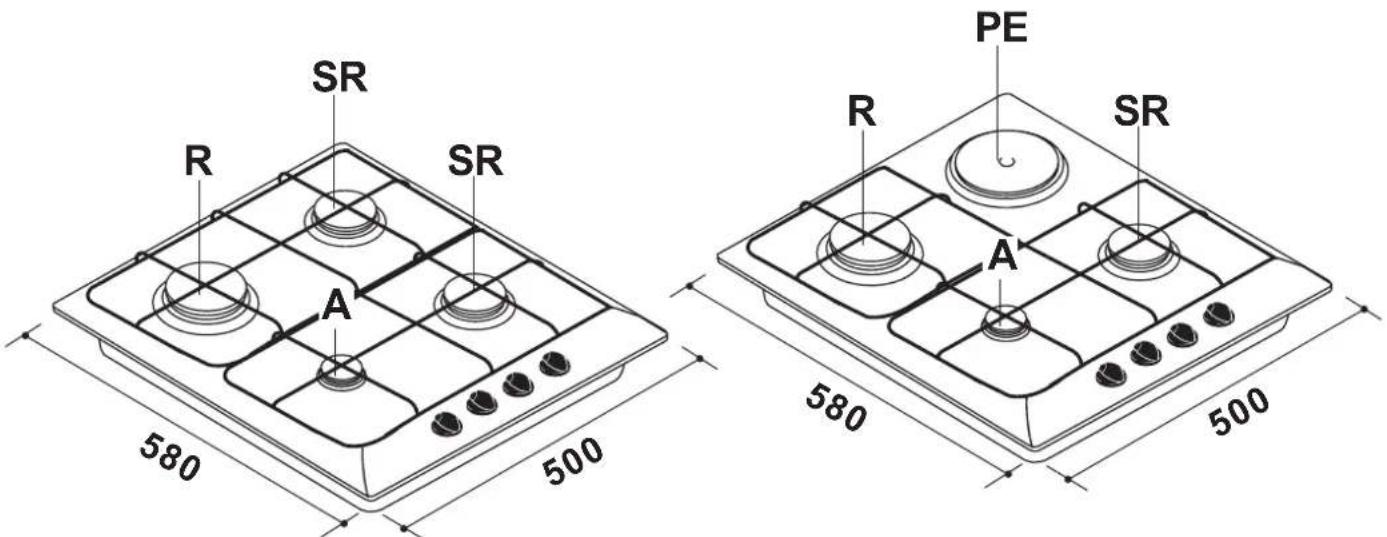

Hob recess dimensions

Length

550 mm.

Width

470 mm.

Instruction for the Installer

• The following instructions about installation and maintenance must be carried out by qualified personnel in compliance with the regulation in force.

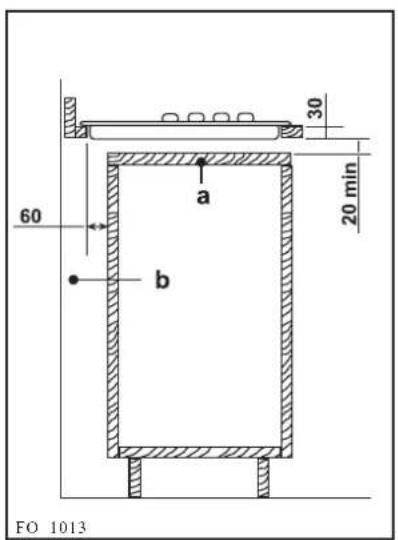

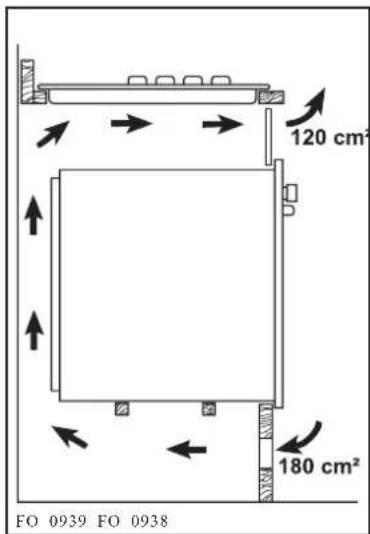

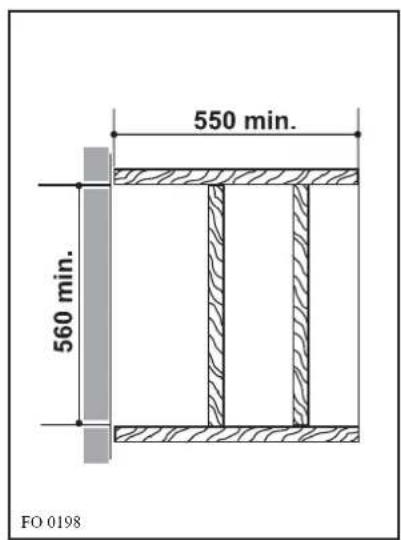

• The side walls of the unit in which the hob is going to be installed, must not exceed the height of the working top.

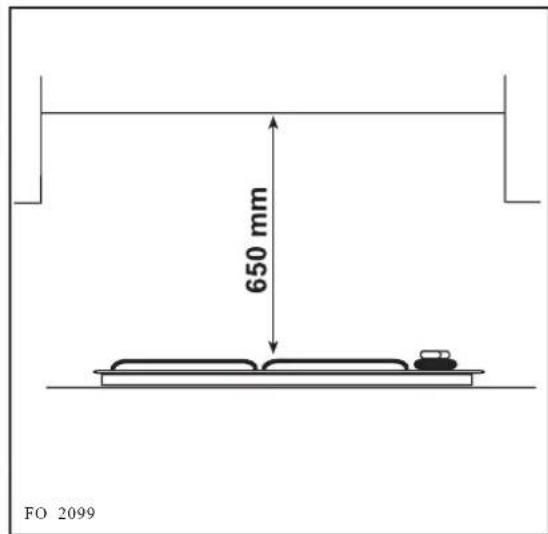

• Avoid installing the appliance in the proximity of inflammable materials (e.g. curtains, tea towels etc.).
• The appliance must be electrically disconnected before all interventions. If any electric supply to the appliance is required to carry out the work, ensure all the necessary precautions are followed.

THE MANUFACTURER WILL NOT ACCEPT LIABILITY, SHOULD ANY OF THE OTHER SAFETY INSTRUCTIONS INCORPORATED IN THIS BOOK OR THE REGULATION IN FORCE BE IGNORED.

Fig. 4

Gas connection

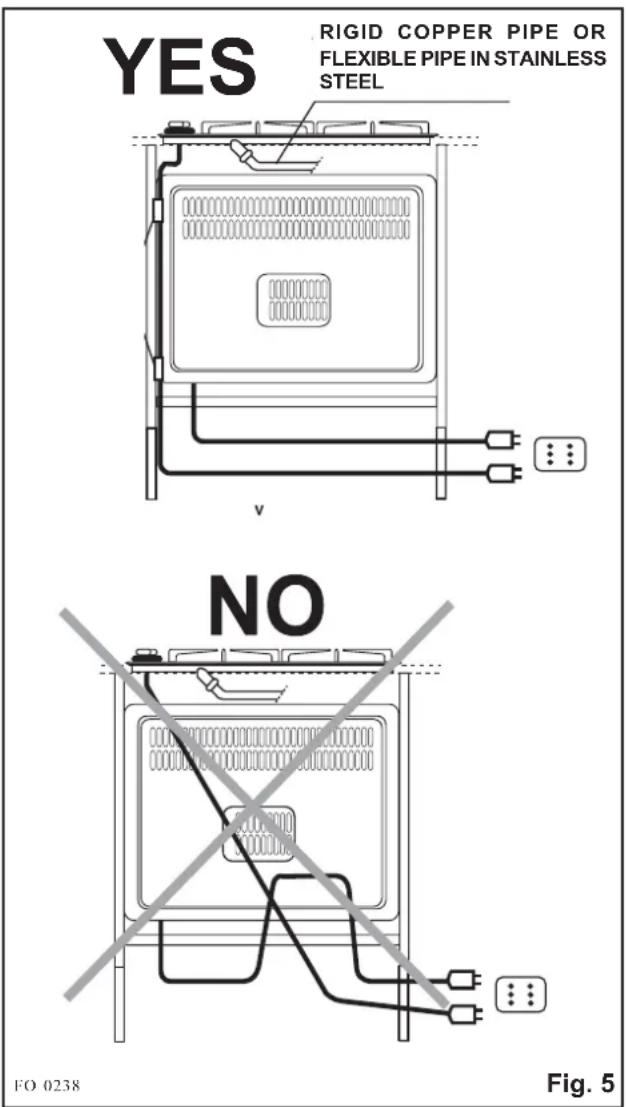

Choose fixed connections or use a flexible pipe in stainless steel in compliance with the regulation in force. If using flexible metallic pipes, be careful they do not come in contact with mobile parts or they are not squeezed. Use the same attention when the hob is combined with an oven.

IMPORTANT - To ensure a correct operation, a saving of energy and the long-life of the appliance, the voltage pressure of the appliance must correspond to the recommended values.

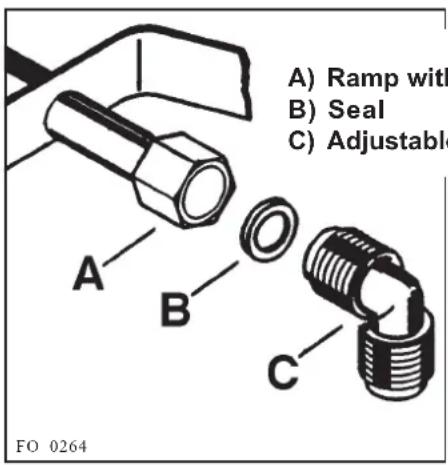

The adjustable connection is fixed to the comprehensive ramp by means of a threaded nut G 1/2". Interpose the sealing between the components as shown in Fig. 4. Screw the parts without forcing, adjust the connection in the required direction and tighten everything.

IMPORTANT - When the final connection has been made, it is essential that a thorough leak test is carried out on the hob and installation. Use some soapy water, never a flame.

Electrical Connection

The appliance is designed to be connected to 230 V monophase electricity supply.

The connection must be carried out in compliance with the laws and regulations in force.

Before the appliance is connected:

1) check that the main fuse and the domestic installation can support the load (see the rating label);
2) check that the power supply is properly earthed in compliance with the current rules;
3) check the socket or the double pole switch used for the electrical connection can be easily reached with the appliance built in the forniture unit.

The appliance is supplied with a connection cable. This has to be provided with a proper plug, able to support the load marked on the identification plate. The plug has to be fitted in a proper socket.

If connecting the appliance directly to the electric system, it is necessary that you install a double pole switch between the appliance and the electricity supply, with a minimum gap of 3 mm. between the switch contacts and of a type suitable for the required load in compliance with the current rules.

The connection cable has to be placed in order that, in each part, it cannot reach a temperature 90^ C higher than the room temperature.

The brown coloured phase cable (fitted in the terminal block contact marked with "L") must always be connected to the network phase.

Replacement of the voltage cable

Only cable types H05RR-F, H05V2V2-F T90 or H05 BB-F must be used. The cable section must be suitable to the voltage and the working temperature.

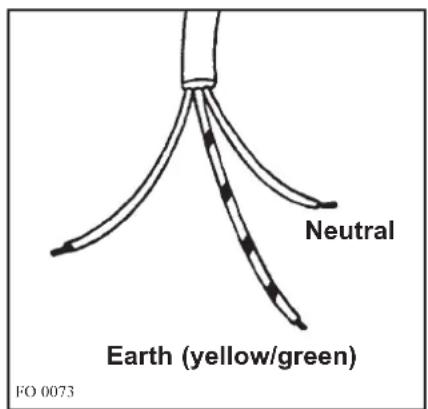

The yellow/green earth wire must be approximately 2 cm. longer than the phase wires (Fig. 6).

Fig. 6

Adaptation to different types of gas

Injectors replacement

• Remove the pan supports.
• Remove the burner's caps and crowns.
• With a socket spanner 7 unscrew and remove the injectors (Fig. 7), and replace them with the ones required for the type of gas in use (see table 2).
• Reassemble the parts, following the same procedure backwards.
• Replace the rating label (placed near the gas supply pipe) with the relevant one for the new type of gas supply. You can find this label in the package of the injectors supplied with the appliance.

Should the feeding gas pressure be different or variable compared with the required pressure, an appropriate pressure adjuster must be fitted on the gas supply pipe, in compliance with the rules in force.

Adjustment of minimum level

To adjust the minimum level of the burners, proceed as follows:

• Light the burner.
• Turn the knob on the minimum position.
• Remove the knob.

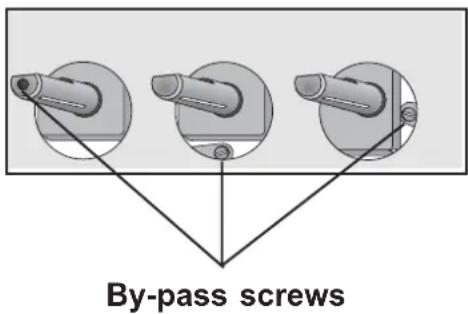

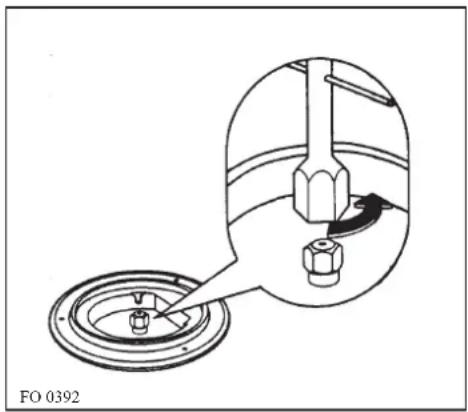

• With a thin screwdriver, adjust the by-pass screw (see Fig. 8). If changing from natural gas to LPG, completely tighten clockwise the screw, until a small regular flame is obtained. If changing from LPG to natural gas unscrew about 1/4 turn the bypass screw, until a small regular flame is obtained.
• Finally check the flame does not go out when quickly turning the knob from the maximum position to the minimum position.

This procedure can easily be carried out, anyhow the hob has been positioned or built in the working top.

Technical diagram of a mechanical assembly with a dial indicator and component detail (no text or symbols)

Fig. 7

Fig. 8

Table 1 : By-pass diameters

Burner ∅ By-pass	in 1/100 of mm.
Auxiliary 28 Semi-rapid 32 Rapid 42

Table 2 : injectors

TYPE TYPE OF INJECTORS NOMINAL REDUCED NOMINAL NOMINAL
OF GAS	BURNER	MARKS1/100 mm	POWERINPUTKW	POWERkW	POWER		PRESSUREmbar
					m^3/h	g/h
NATURALGASG 20	Rapid (large)	119	3,0	0,75	0,286	-	20
	Semi-rapid (medium)	96	2,0	0,45	0,190	-
	Auxiliary (small)	70	1,0	0,33	0,095	-
LPG(Buthane/Propane)	Rapid (large)	86	2,8	0,75	-	204	30/30
	Semi-rapid (medium)	71	2,0	0,45	-	145
	Auxiliary (small)	50	1,0	0,33	-	73

Building In

Mod. ZGL 646
Mod. ZXL 636

These hobs can be inserted in a built-in kitchen unit whose depth is between 550 and 600 mm. The hobs dimensions are shown in the relevant diagram.

The edge of the cut out must have a minimum distance from the rear wall of 55 mm.

If there are side walls, or sides of the furniture unit near the hob, the cut out edges must have a minimum distance of 100 mm.

Hanging forniture units or hoods must be placed at 650 mm. minimum from the hob.

$$ \begin{array}{l} \mathbf {A} = \text { Auxiliary burner } \ \mathrm{SR} = \text { S e m i r a p i d b u r n e r } \ R = \text { Rapid Burner } \ \mathrm{PE} = \text { E l e c t r i c h o t p l a t e } \ \end{array} $$

Dimensions are given in millimeters

Fig. 9

Fitting the hob to the worktop

The hobs can be installed in a kitchen unit with an opening for insertion whose dimensions are shown in Fig. 9. To install the hob, proceed as follows:

1) Place the sealing gasket (supplied with the hob) on the edges of the cut out: place it exactly on the front and rear edge, taking care that the sealings meet without overlapping;

2) Fix the hob with the relevant screws (Fig. 10). The traction of the screws is able to trace the sealing, any excess of which can be easily removed.

The edge of the hob forms a double labyrinth seal which provides a total guarantee against infiltration of liquids.

Fig. 10

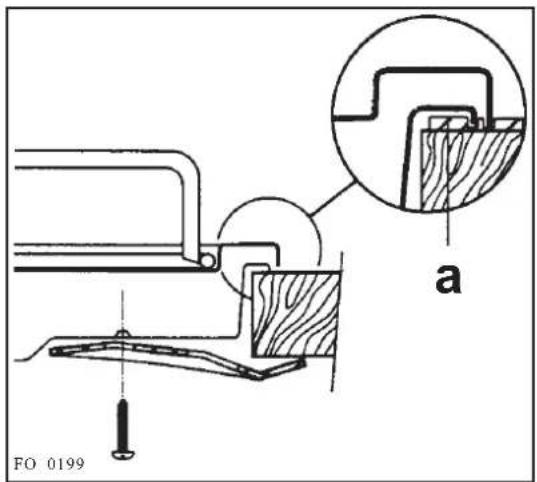

a) Sealing gasket

Possibilities for insertion

Kitchen unit with door

Proper arrangements must be taken in designing the furniture unit, in order to avoid any contact with the bottom of the hob which can be heated when it is operated. The recommended solution is shown in Fig. 11.

The panel fitted under the hob should be easily removable to allow an easy access if a technical assistance intervention is needed.

Kitchen unit with oven

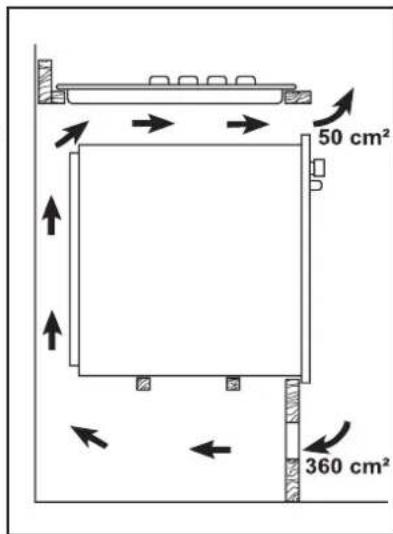

The hob recess dimensions must comply the indication given in Figs. 12 and 13 and must be provided with brackets to allow a continuous supply of air.

To avoid overhating, the building in should be carried out as shown in Figs. 14 e 15.

The hob's electric connection and the oven's one must be carried out separately, both for safety reasons and to allow the oven to be easily taken off the unit.

In case a hood with lenght of 600 mm. is fitted over the hob, the hanging furniture units beside the hood must be placed at 650 mm. minimum from the hob (Fig.16).

Fig. 11 Fig. 12

a) Removable panel
b) Space possibly useful for connections

Fig. 14

Fig. 15

Fig. 16

Fig. 13

Service and original spare parts

This machine, before leaving the factory, has been tested and studied by many experts and specialists, in order to give you the best results.

Any repair work which needs to be carried out should be done with the utmost care and attention.

For this reason we recommend that for any problem you contact the dealer who sold it to you, or our nearest authorized Service Centre, specifying the nature of the problem and the particular model which you own. Always Insist on genuine original spare parts.

Electrolux

Distriparts

www.electrolux.com

Albania	[phone]	Rr. Pjeter Bogdani Nr. 7 Tirane
Belgique/België/Belgien	[phone]	Bergensesteenweg 719, 1502 Lembeek
Česká republika	[phone]	Budějovická 3, Praha 4, 140 21
Danmark	[phone]	Sjællandsgade 2, 7000 Fredericia
Deutschland	[phone]	Muggenhofer Str. 135, 90429 Nürnberg
Eesti	[phone]	Pärnu mnt. 153, 11624 Tallinn
España	[phone]	Carretera M-300, Km. 29,900 Alcalá de Henares Madrid
France	www.electrolux.fr
Great Britain	[phone]	Addington Way, Luton, Bedfordshire LU4 9QQ
Hellas	[phone]	4, Limnou Str., 54627 Thessaloniki
Hrvatska	[phone]	Slavonska avenija 3, 10000 Zagreb
Ireland	[phone]	Long Mile Road Dublin 12
Italia	[phone]	C.so Lino Zanussi, 26 - 33080 Porcia (PN)
Latvija	[phone]	Kr. Barona iela 130/2, LV-1012, Riga
Lietuva	[phone]	Ozo 10A, LT 08200 Vilnius
Luxembourg	[phone]	Rue de Bitbourg, 7, L-1273 Hamm
Magyarország	[phone]	H-1142 Budapest XIV, Erzsébet királyné útja 87
Nederland	[phone]	Vennootsweg 1, 2404 CG - Alphen aan den Rijn
Norge	[phone]	Risløkkvn. 2 , 0508 Oslo
Österreich	[phone]	Herziggasse 9, 1230 Wien
Polska	[phone]	ul. Kolejowa 5/7, Warszawa
Portugal	[phone]	Quinta da Fonte - Edificio Gonçalves Zarco - Q 35 -2774-518 Paço de Arcos
Romania	[phone]	Str. Garii Progresului 2, S4, 040671 RO
Schweiz - Suisse - Svizzera	[phone]	Industriestrasse 10, CH-5506 Mägenwil
Slovenija	[phone]	Gerbičeva ulica 98, 1000 Ljubljana
Slovensko	[phone]	Electrolux Slovakia s.r.o., Electrolux Domáce spotrebiče SK, Seberíniho 1, 821 03 Bratislava
Suomi	www.electrolux.fi
Sverige	[phone]	Electrolux Service, S:t Göransgatan 143, S-105 45 Stockholm
Türkiye	[phone]	Tarłabași caddesi no : 35 Taksim İstanbul
Россия	[phone]	129090 Москва, Олимпийский проспект, 16, БЦ "Олимпик"

РУССКИЙ

Рис. 3

Технические данные

Technical diagram of a mechanical assembly with a dial and nut, showing internal components and motion direction (no text or symbols)

Рис. 6
