USER MANUAL FINEPIX Z90 FUJIFILM

FINEPIX Z85/Z90 Series

Owner's Manual

Thank you for your purchase of this product. This manual describes how to use your FUJIFILM digital camera and the supplied software. Be sure that you have read and understood its contents and the warnings in "For Your Safety" (i) before using the camera.

For information on related products, visit our website at http://www.fujifilm.com/products/digital_cameras/index.html

Line drawing of a digital camera with lens and buttons (no text or symbols)

Before You Begin

First Steps

Basic Photography and Playback

More on Photography

More on Playback

Movies

Connections

Menus

Technical Notes

Troubleshooting

Appendix

IMPORTANT SAFETY INSTRUCTIONS

• Read Instructions: All the safety and operating instructions should be read before the appliance is operated.
• Retain Instructions: The safety and operating instructions should be retained for future reference.
• Heed Warnings: All warnings on the appliance and in the operating instructions should be adhered to.
• Follow Instructions: All operating and use instructions should be followed.

Installation

Power Sources: This video product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For video products intended to operate from battery power, or other sources, refer to the operating instructions.

Grounding or Polarization: This video product is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

Alternate Warnings: This video product is equipped with a three-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding type plug.

Overloading: Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

Ventilation: Slots and openings in the cabinet are provided for ventilation, to ensure reliable operation of the video product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the video product on a bed, sofa, rug, or other similar surface.

This video product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to. This video product should never be placed near or over a radiator or heat register.

Attachments: Do not use attachments not recommended by the video product manufacturer as they may cause hazards.

Water and Moisture: Do not use this video product near water—for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

Power-Cord Protection: Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

Accessories: Do not place this video product on an unstable cart, stand, tripod, bracket, or table. The video product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the video product. Any mounting of the appliance should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Symbolic icon of a person pushing a large cart with a diagonal line, enclosed in a circle (no text or symbols)

Antennas

Outdoor Antenna Grounding: If an outside antenna or cable system is connected to the video product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE

Ground Clamp Electric Service Equipment Ground Clamps Power Service Grounding Electrode System (NEC ART 250. PART H) Antenna Lead in Wire Antenna Discharge Unit (NEC SECTION 810-20) Grounding Conductors (NEC SECTION 810-21)

Power Lines: An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

Use

Cleaning: Unplug this video product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

Object and Liquid Entry: Never push objects of any kind into this video product through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the video product.

Lightning: For added protection for this video product receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the video product due to lightning and powerline surges.

Service

Servicing: Do not attempt to service this video product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Damage Requiring Service: Unplug this video product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power-supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the video product.
• If the video product has been exposed to rain or water.
• If the video product has been dropped or the cabinet has been damaged.

If the video product does not operate normally follow the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.

When the video product exhibits a distinct change in performance—this indicates a need for service.

Replacement Parts: When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

Safety Check: Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine that the video product is in proper operating condition.

Be sure to read these notes before use

Safety Notes

• Make sure that you use your camera correctly. Read these safety notes and your Owner's Manual carefully before use.
  • After reading these safety notes, store them in a safe place.

About the Icons

The icons shown below are used in this document to indicate the severity of the injury or damage that can result if the information indicated by the icon is ignored and the product is used incorrectly as a result.

This icon indicates that death or serious injury can result if the information is ignored.

This icon indicates that personal injury or material damage can result if the information is ignored.

The icons shown below are used to indicate the nature of the instructions which are to be observed.

Triangular icons tell you that this information requires attention ("Important").

Circular icons with a diagonal bar tell you that the action indicated is prohibited ("Prohibited").

Filled circles with an exclamation mark indicate an action that must be performed ("Required").

WARNING

Unplug from power socket

If a problem arises, turn the camera off, remove the battery, and disconnect and unplug the AC power adapter. Continued use of the camera when it is emitting smoke, is emitting any unusual odor, or is in any other abnormal state can cause a fire or electric shock. Contact your FUJIFILM dealer.

Avoid exposure to water

Do not allow water or foreign objects to enter the camera. If water or foreign objects get inside the camera, turn the camera off, remove the battery, and disconnect and unplug the AC power adapter. Continued use of the camera can cause a fire or electric shock. Contact your FUJIFILM dealer.

WARNING

Do not use in the bathroom or shower

Do not use the camera in the bathroom or shower. This can cause a fire or electric shock.

Do not disassemble

Never attempt to change or take apart the camera (never open the case). Failure to observe this precaution can cause fire or electric shock.

Do not touch internal parts

Should the case break open as the result of a fall or other accident, do not touch the exposed parts. Failure to observe this precaution could result in electric shock or in injury from touching the damaged parts. Remove the battery immediately, taking care to avoid injury or electric shock, and take the product to the point of purchase for consultation.

Do not change, heat or unduly twist or pull the connection cord and do not place heavy objects on the connection cord. These actions could damage the cord and cause a fire or electric shock. If the cord is damaged, contact your FUJIFILM dealer.

Do not place the camera on an unstable surface. This can cause the camera to fall or tip over and cause injury.

Never attempt to take pictures while in motion. Do not use the camera while you are walking or driving a vehicle. This can result in you falling down or being involved in a traffic accident.

Do not touch any metal parts of the camera during a thunderstorm. This can cause an electric shock due to induced current from the lightning discharge.

Do not use the battery except as specified. Load the battery as shown by the indicator.

Do not heat, change or take apart the battery. Do not drop or subject the battery to impacts. Do not store the battery with metallic products. Any of these actions can cause the battery to burst or leak and cause fire or injury as a result.

Use only the battery or AC power adapters specified for use with this camera. Do not use voltages other than the power supply voltage shown. The use of other power sources can cause a fire.

If the battery leaks and fluid gets in contact with your eyes, skin or clothing, flush the affected area with clean water and seek medical attention or call an emergency number right away.

	[XYBX]	WARNING
	Do not use the charger to charge batteries other than those specified here. The supplied battery charger is for use only with the type of battery supplied with the camera. Using the charger to charge conventional batteries or other types of rechargeable batteries can cause the battery to leak fluid, overheat or burst.
	When carrying the battery, install it in a digital camera or keep it in the hard case. When storing the battery, keep it in the hard case. When discarding, cover the battery terminals with insulation tape. Contact with other metallic objects or batteries could cause the battery to ignite or burst.
	Keep memory cards out of the reach of small children. Because memory cards are small, they can be swallowed by children. Be sure to store memory cards out of the reach of small children. If a child swallows a memory card, seek medical attention or call an emergency number.

CAUTION

Do not use this camera in locations affected by oil fumes, steam, humidity or dust. This can cause a fire or electric shock.

Do not leave this camera in places subject to extremely high temperatures. Do not leave the camera in locations such as a sealed vehicle or in direct sunlight. This can cause a fire.

Keep out of the reach of small children. This product could cause injury in the hands of a child.

Do not place heavy objects on the camera. This can cause the heavy object to tip over or fall and cause injury.

Do not move the camera while the AC power adapter is still connected. Do not pull on the connection cord to disconnect the AC power adapter. This can damage the power cord or cables and cause a fire or electric shock.

Do not use the AC power adapter when the plug is damaged or the plug socket connection is loose. This could cause a fire or electric shock.

Do not cover or wrap the camera or the AC power adapter in a cloth or blanket. This can cause heat to build up and distort the casing or cause a fire.

When you are cleaning the camera or you do not plan to use the camera for an extended period, remove the battery and disconnect and unplug the AC power adapter. Failure to do so can cause a fire or electric shock.

When charging ends, unplug the charger from the power socket. Leaving the charger plugged into the power socket can cause a fire.

Using a flash too close to a person's eyes may temporarily affect the eyesight. Take particular care when photographing infants and young children.

When a memory card is removed, the card could come out of the slot too quickly. Use your finger to hold it and gently release the card. Injury could result to those struck by the ejected card.

Request regular internal testing and cleaning for your camera. Build-up of dust in your camera can cause a fire or electric shock. Contact your FUJIFILM dealer to request internal cleaning every two years. Please note that this service is not free of charge.

The Battery and Power Supply

Note: Check the type of battery used in your camera and read the appropriate sections.

The following describes the proper use of batteries and how to prolong their life. Incorrect use can shorten battery life or cause leakage, overheating, fire, or explosion.

Li-ion Batteries

Read this section if your camera uses a rechargeable Li-ion battery.

The battery is not charged at shipment. Charge the battery before use. Keep the battery in its case when not in use.

Notes on the Battery

The battery gradually loses its charge when not in use. Charge the battery one or two days before use.

Battery life can be extended by turning the camera off when not in use.

Battery capacity decreases at low temperatures; a depleted battery may not function at when cold. Keep a fully charged spare battery in a warm place and exchange as necessary, or keep the battery in your pocket or other warm place and insert it in the camera only when shooting. Do not place the battery in direct contact with hand warmers or other heating devices.

■ Charging the Battery

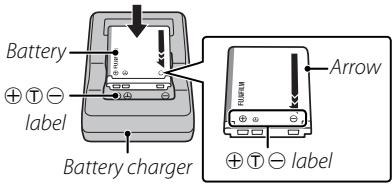

Charge the battery in the supplied battery charger. Charging times will increase at ambient temperatures below +10°C (+50°F) or above +35°C (+95°F). Do not attempt to charge the battery at temperatures above 40°C (+104°F); at temperatures below 0°C (+32°F), the battery will not charge.

Do not attempt to recharge a fully charged battery. The battery does not however need to be fully discharged before charging.

The battery may be warm to the touch immediately after charging or use. This is normal.

Battery Life

At normal temperatures, the battery can be recharged about 300 times. A noticeable decrease in the length of time the battery will hold a charge indicates that it has reached the end of its service life and should be replaced.

Storage

Performance may be impaired if the battery is left unused for extended periods when fully charged. Run the battery flat before storing it.

If the camera will not be used for an extended period, remove the battery and store it in a dry place with an ambient temperature of from +15°C to +25°C (+59°F to +77°F). Do not store in locations exposed to extremes of temperature.

■ Cautions: Handling the Battery

• Do not transport or store with metal objects such as necklaces or hairpins.
• Do not expose to flame or heat.
• Do not disassemble or modify.
• Use with designated chargers only.
• Do not drop or subject to strong physical shocks.
• Do not expose to water.
• Keep the terminals clean.
• The battery and camera body may become warm to the touch after extended use. This is normal.

AA Alkaline/Rechargeable Ni-MH Batteries

Read this section if your camera uses AA alkaline or rechargeable AA Ni-MH batteries. Information on compatible battery types may be found elsewhere in the camera manual.

■ Cautions: Handling the Batteries

• Do not expose to water, flame, or heat, or store in warm or humid conditions.
• Do not transport or store with metal objects such as necklaces or hairpins.
• Do not disassemble or modify the batteries or battery casing.
• Do not subject to strong physical shocks.
• Do not use batteries that are leaking, deformed, or discolored.
• Keep out of reach of infants and small children.

• Insert in the correct orientation.

• Do not mix old and new batteries, batteries with different charge levels, or batteries of different types.

• If the camera will not be used for an extended period, remove the batteries. Note that the camera clock will be reset.
• The batteries may be warm to the touch immediately after use. Turn the camera off and allow the batteries to cool before handling.
• Battery capacity tends to decrease at low temperatures. Keep spare batteries in a pocket or other warm place and exchange as necessary. Cold batteries may recover some of their charge when warmed.
• Fingerprints and other stains on the battery terminals can impair battery performance. Thoroughly clean the terminals with a soft, dry cloth before inserting them in the camera.

If the batteries leak, clean the battery compartment thoroughly before inserting new batteries.

If fluid from the battery comes into contact with skin or clothing, flush the affected area with water. If fluid enters your eyes, immediately flush the affected area with water and seek medical attention. Do not rub your eyes. Failure to observe this precaution could result in permanent visual impairment

Ni-MH Batteries

The capacity of Ni-MH batteries may be temporarily reduced when new, after long periods of disuse, or if they are repeatedly recharged before being fully discharged. This is normal and does not indicate a malfunction. Capacity can be increased by repeatedly discharging the batteries using the discharge option in the camera setup menu and recharging them using a battery charger.

① CAUTION: Do not use the discharge option with alkaline batteries.

The camera draws a small amount of current even when off. Ni-MH batteries that have been left in the camera for an extended period may be drawn down to the point that they no longer hold a charge. Battery performance may also drop if the batteries are run down in a device such as a flashlight. Use the discharge option in the camera setup menu to discharge Ni-MH batteries. Batteries that no longer hold a charge even after repeatedly being discharged and recharged have reached the end of their service life and must be replaced.

Ni-MH batteries can be recharged in a battery charger (sold separately). Batteries may become warm to the touch after charging. Refer to the instructions provided with the charger for more information. Use the charger with compatible batteries only.

Ni-MH batteries gradually lose their charge when not in use.

■ Disposal

Dispose of used batteries in accord with local regulations.

AC Power Adapters (Available Separately)

This section applies to all camera models. Use only FUJIFILM AC power adapters designated for use with this camera. Other adapters could damage the camera.

• The AC power adapter is for indoor use only.
• Be sure the DC plug is securely connected to the camera.
• Turn the camera off before disconnecting the adapter. Disconnect the adapter by the plug, not the cable.
• Do not use with other devices.
• Do not disassemble.
• Do not expose to high heat and humidity.
• Do not subject to strong physical shocks.
• The adapter may hum or become hot to the touch during use. This is normal.
• If the adapter causes radio interference, reorient or relocate the receiving antenna.

Using the Camera

Do not aim the camera at extremely bright light sources, such as the sun in a cloudless sky. Failure to observe this precaution could damage the camera image sensor.

Take Test Shots

Before taking photographs on important occasions (such as at weddings or before taking the camera on a trip), take a test shot and view the result in the LCD monitor to ensure that the camera is functioning normally. FUJIFILM Corporation can not accept liability for damages or lost profits incurred as a result of product malfunction.

Notes on Copyright

Unless intended solely for personal use, images recorded using your digital camera system cannot be used in ways that infringe copyright laws without the consent of the owner. Note that some restrictions apply to the photographing of stage performances, entertainments, and exhibits, even when intended purely for personal use. Users are also asked to note that the transfer of memory cards containing images or data protected under copyright laws is only permissible within the restrictions imposed by those copyright laws.

Handling

To ensure that images are recorded correctly, do not subject the camera to impact or physical shocks while images are being recorded.

Liquid Crystal

In the event that the LCD monitor is damaged, care should be taken to avoid contact with liquid crystal. Take the urgent action indicated should any of the following situations arise:

• If liquid crystal comes in contact with your skin, clean the area with a cloth and then wash thoroughly with soap and running water.
• If liquid crystal enters your eyes, flush the affected eye with clean water for at least 15 minutes and then seek medical assistance.
• If liquid crystal is swallowed, rinse your mouth thoroughly with water. Drink large quantities of water and induce vomiting, then seek medical assistance.

Although the display is manufactured using extremely high-precision technology, it may contain pixels that are always lit or that do not light. This is not a malfunction, and images recorded with the product are unaffected.

Trademark Information

xD-Picture Card and .xd are trademarks of FUJIFILM Corporation. The typefaces included herein are solely developed by DynaComware Taiwan Inc. Macintosh, QuickTime, and Mac OS are trademarks of Apple Inc. in the U.S.A. and other countries. Windows 7, Windows Vista, and the Windows logo are trademarks of the Microsoft group of companies. Adobe and Adobe Reader are either trademarks or registered trademarks of Adobe Systems Incorporated in the U.S.A. and/or other countries. The SDHC and SDXC logos are trademarks of SD-3C, LLC. The HDMI logo is a trademark. YouTube is a trademark of Google Inc. All other trade names mentioned in this manual are the trademarks or registered trademarks of their respective owners.

Electrical Interference

This camera may interfere with hospital or aviation equipment. Consult with hospital or airline staff before using the camera in a hospital or on an aircraft.

Color Television Systems

NTSC (National Television System Committee) is a color television telecasting specification adopted mainly in the U.S.A., Canada, and Japan. PAL (Phases Alternation by Line) is a color television system adopted mainly in European countries and China.

Exif Print (Exif Version 2.3)

Exif Print is a newly revised digital camera file format in which information stored with photographs is used for optimal color reproduction during printing.

IMPORTANT NOTICE: Read Before Using the Software

Direct or indirect export, in whole or in part, of licensed software without the permission of the applicable governing bodies is prohibited.

About This Manual

Before using the camera, read this manual and the warnings in "For Your Safety" (📖 ii). For information on specific topics, consult the sources below.

Table of Contents ...... xi

The "Table of Contents" gives an overview of the entire manual. The principal camera operations are listed here.

Troubleshooting 90

Having a specific problem with the camera? Find the answer here.

Warning Messages and Displays ..... 96

Find out what's behind that flashing icon or error message in the display.

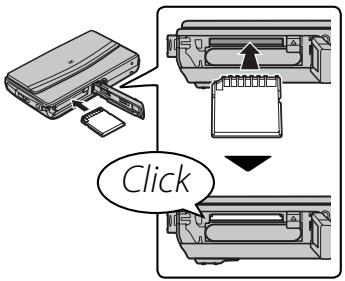

Memory Cards

Pictures can be stored in the camera's internal memory or on optional SD, SDHC, and SDXC memory cards (14), referred to in this manual as "memory cards."

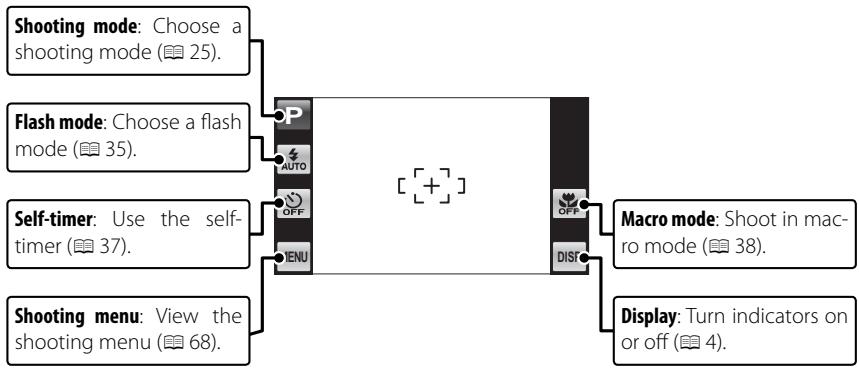

Frequently-Used Buttons

■ Recording Movies

→ Press the ➕ button to shoot a movie. To end recording, press the ➕ button again.

Illustration of two hands holding a smartphone displaying a video camera (no text or symbols)

Circular icon depicting a stylized camera with a logo, no text or symbols present

■ Taking Pictures During Playback

Simple line drawing of a container with a lid, enclosed in a circle above a wavy liquid (no text or symbols)

→ To return instantly to shooting mode, press the shutter button halfway.

Simple line drawing of a microwave oven (no text or symbols)

View Shoot !!

■ Switching Shooting and Playback Modes

Press the ▶ button when shooting switches to the playback mode.

Illustration of a hand holding a tablet device (no text or symbols visible)

Two black arrows pointing in opposite directions (no text or symbols)

Illustration of a hand holding a video player interface (no text or symbols)

Circular icon with a camera symbol and play button, no text or numbers present

Press the 🔒 button when playback switches to the shooting mode.

Table of Contents

For Your Safety ......ii

IMPORTANT SAFETY INSTRUCTIONS......ii

Safety Notes......iv

About This Manual ix

Frequently-Used Buttons ......x

Before You Begin

Symbols and Conventions....1

Supplied Accessories....1

Parts of the Camera 2

Camera Displays (Touch Panel)....3

Shooting 3

Playback....4

The Touch Panel Display....5

Tap....5

Scroll....5

Rotating the Camera 6

Shooting 6

Playback....7

Touch Panel Icons....8

Shooting 8

Playback....9

First Steps

Charging the Battery 10

Inserting the Battery and a Memory Card....11

Compatible Memory Cards ....14

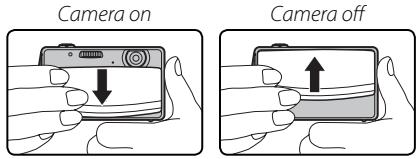

Turning the Camera on and Off 16

Shooting Mode 16

Playback Mode....16

Basic Setup 18

Basic Photography and Playback

Taking Pictures in SR AUTO (Scene Recognition) Mode.....20

Viewing Pictures 24

More on Photography

Shooting Mode....25

AUTO 26

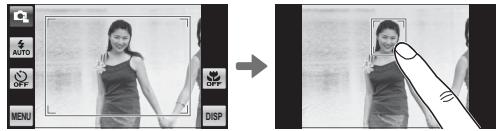

TOUCH & SHOOT 26

TOUCH & TRACK 26

SP SCENE POSITION....27

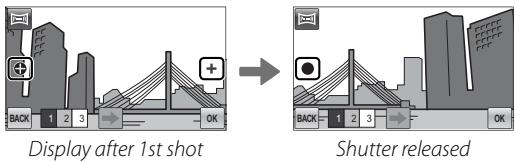

P....R MOTION PANORAMA....28

N / N ↘ NATURAL LIGHT / NATURAL & ↘ ....30

P PROGRAM AE....31

Focus Lock....32

+ Exposure Compensation....34

Using the Flash (Intelligent Flash) 35

◎ Using the Self-Timer 37

Macro Mode (Close-ups) 38

Intelligent Face Detection....39

More on Playback

Playback Options....40

Playback Zoom....41

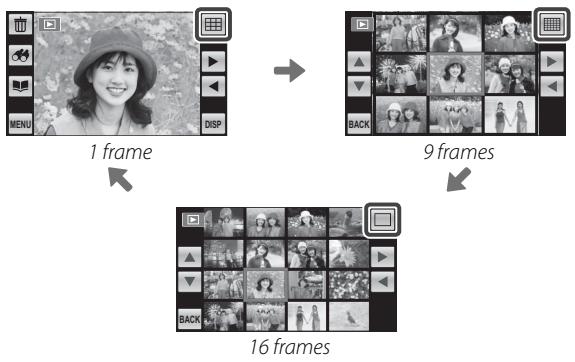

Multi-Frame Playback 42

Deleting Pictures....44

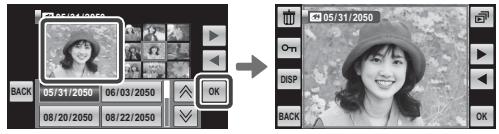

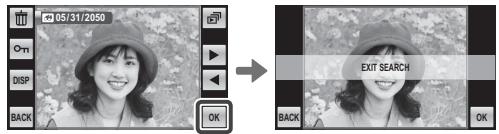

Image Search....45

PhotoBook Assist....47

Creating a PhotoBook....47

Viewing Photobooks 48

Editing and Deleting Photobooks......48

Edit 49

COLLAGE 50

? IMAGE ROTATE....51

CROP 51

RESIZE....52

RED EYE REMOVAL....52

MOVIE TRIMMING....53

MOVIE JOIN 54

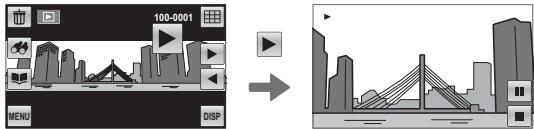

Viewing Panoramas....55

Movies

Recording Movies....56

Movie Frame Size 57

Viewing Movies 58

Connections

Printing Pictures via USB....59

Viewing Pictures on a Computer....61

Windows: Installing MyFinePix Studio 61

Macintosh: Installing FinePixViewer....63

Connecting the Camera....65

Menus

Using the Menus: Shooting Mode....68

Using the Shooting Menu....68

Shooting Menu Options 69

EXP. COMPENSATION....69

ISO ISO....69

← IMAGE SIZE....70

IMAGE QUALITY 71

FINEPIX COLOR 71

WB WHITE BALANCE 72

CONTINUOUS....72

FACE DETECTION 73

MOVIE QUALITY 73

BEST FRAMING 73

SILENT MODE....73

SET SET-UP....73

Using the Menus: Playback Mode ....74

Using the Playback Menu....74

Playback Menu Options....74

PHOTOBOOK ASSIST....74

FAVORITES....74

PICTURE COMPARE 74

IMAGE SEARCH....75

EDIT....75

SLIDE SHOW 75

ON PROTECT....76

COPY COPY....77

ERASE....77

MARK FOR UPLOAD TO 78

OFF SILENT MODE....79

SET SET-UP....79

The Setup Menu ....80

Using the Setup Menu....80

Setup Menu Options ....80

☑ IMAGE DISP....80

NoJ FRAME NO. 81

DIGITAL IS....81

DIGITAL ZOOM 82

DATE/TIME 82

VOLUME 83

SOUND......83

LCD BRIGHTNESS....83

FORMAT 83

e 言語/LANG. 84

AUTO POWER OFF 84

TIME DIFFERENCE....84

AUTOROTATE PB 85

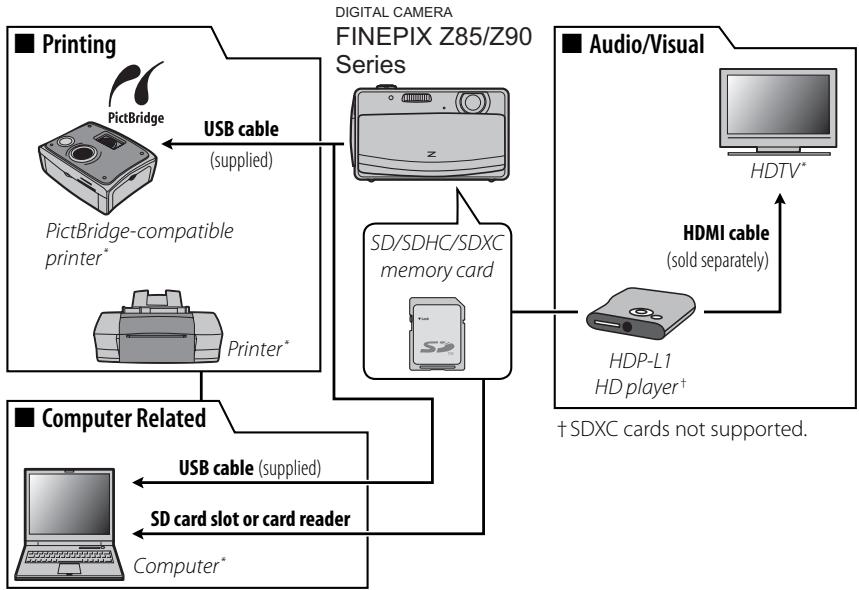

Optional Accessories 86

Printing....86

Computer Related....86

Audio/Visual 86

Accessories from FUJIFILM....87

Caring for the Camera....88

Storage and Use 88

Water and Sand....88

Condensation....88

Cleaning....89

Traveling 89

Troubleshooting

Problems and Solutions....90

Warning Messages and Displays 96

Appendix

Tips and Tricks....100

Internal Memory/Memory Card Capacity....103

Specifications 104

Symbols and Conventions

The following symbols are used in this manual:

① : This information should be read before use to ensure correct operation.

◆ : Additional information that may be helpful when using the camera.

: Other pages in this manual on which related information may be found.

Menus and other text in the LCD monitor are shown in bold. In the illustrations in this manual, displays may be simplified for explanatory purposes.

Supplied Accessories

The following items are included with the camera:

NP-45A rechargeable battery

Isometric illustration of a gray electronic device casing with mounting holes (no text or symbols)

BC-45B battery charger

Coiled cable with connectors and connectors, no visible text or symbols

USB cable

FUJIFILM

CD-ROM (contains this manual)

• Strap
• User Guide

Attaching the Strap

Attach the strap as shown.

Illustration of a portable electronic device with a cable inserted, showing ports and cables (no text or symbols)

Diagram of a device with cables and connectors, no text or symbols present

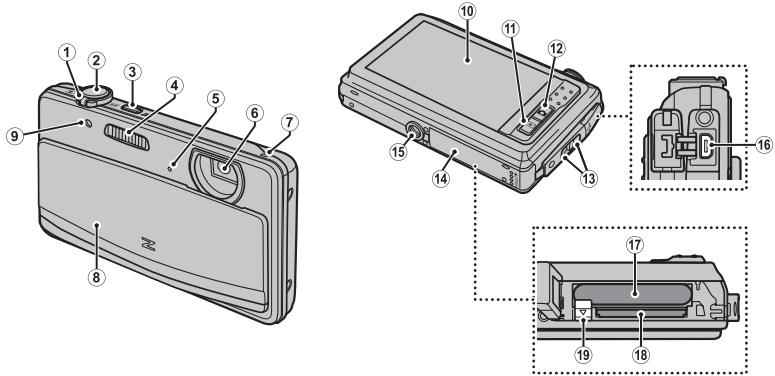

For more information, refer to the page listed to the right of each item.

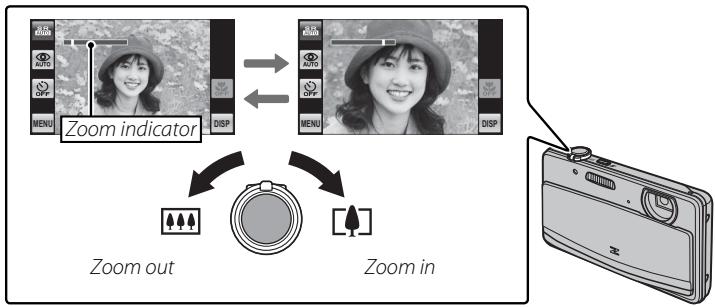

1 Zoom control 21,41
2 Shutter button.... 22
3 (movie recording) button....x, 56
4 Flash 35
5 Microphone 56
6 Lens 104
7 Speaker....58
8 On/off switch and lens cover.... 16
9 Self-timer lamp 37
10 LCD monitor.... 106
Touch panel display 3,5,6

11 ▶ ( playback) button ....24, 40
12 (shooting) button....16, 24
13 Strap eyelet 1
14 Battery-chamber cover.... 11
15 Tripod mount
16 Connector for USB cable....59, 65
17 Battery chamber.... 11
18 Memory card slot.... 12
19 Battery latch....11, 13

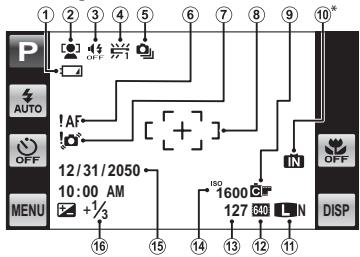

Camera Displays (Touch Panel)

The following types of indicator may be displayed during shooting and playback. Indicators vary with camera settings.

■ Shooting

1 2 3 4 5 6 7 8 9 10* P AUTO OFF MENU 12/31/2050 10:00 AM +1/3 16 15 14 13 12 11 1600 127 640 N OFF DISP

1 Battery level 4
2 Intelligent Face Detection indicator 39
3 Silent mode indicator 73
4 White balance....72
5 Continuous shooting mode....72
6 Focus warning 96
7 Blur warning....36, 96
8 Focus frame 32
9 FINPIX COLOR....71
10 Internal memory indicator*
11 Image size/quality 70
12 Movie quality....73
13 Number of available frames.... 103
14 Sensitivity....69
15 Date and time.... 18
16 Exposure compensation.... 34

* IN: indicates that no memory card is inserted and that pictures will be stored in the camera's internal memory (☐ 12).

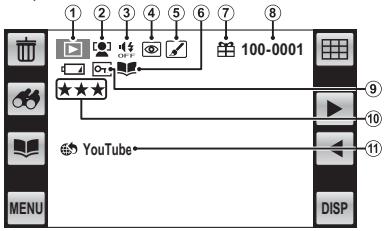

■ Playback

1 Playback mode indicator....24, 40
2 Intelligent Face Detection indicator 39
3 Silent mode indicator 79
4 Red-eye removal indicator....52
5 Edit 49
6 Photobook assist.... 47
7 Gift image....40
8 Frame number 81
9 Protected image 76
10 Favorites 74
11 Mark for upload to 78

Battery Level

Battery level is shown as follows:

Indicator	Description
(white)	Battery partially discharged.
(white)	Battery more than half discharged.
(red)	Low battery. Charge as soon as possible.
(blinks red)	Battery exhausted. Turn camera off and charge battery.

Hiding and Viewing Indicators

Tap DISP to cycle through shooting and playback indicators as follows: all icons and indicators displayed/all icons and indicators hidden/only button icons displayed.

The Touch Panel Display

The touch panel display can be operated by tapping the display or gliding a finger over the panel. The panel responds to pressure; use a firm touch, but do not use excessive force.

Tap

Lightly tap the display to adjust settings or select pictures or menu options.

AUTO OFF MENU [+] OFF DISP

Scroll

Glide lightly over the display to scroll through pictures during playback.

Screenshot of a photo editing interface showing a smile with bidirectional arrow and control buttons labeled MENU

① Note that some monitor covers may affect the visibility of the image in the monitor or make the monitor less responsive. To avoid damaging the monitor and touch panel display, observe the following precautions:

• Use only your fingers to operate the panel. Do not use excessive force.
• Do not sit on the camera (by, for example, leaving it in a back pocket when sitting down), place it under heavy objects, or attempt to force it into a small space (such as a suitcase that is already full).
• Do not attach objects to the camera strap that might place pressure on the monitor.

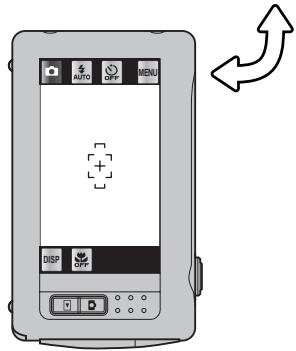

Rotating the Camera

With some exceptions, the display in the monitor rotates 90^ when the camera is in “tall” orientation.

■ Shooting

Front view of a digital camera interface with control buttons and display screen

AUTO OFF MENU + - DISP OFF

■ Playback

Front view of a digital audio workstation (no visible text or symbols)

MENU DSP

Touch Panel Icons

■ Shooting

Tap the icons in the shooting display to perform the operations listed below. The icons displayed vary with the options currently selected.


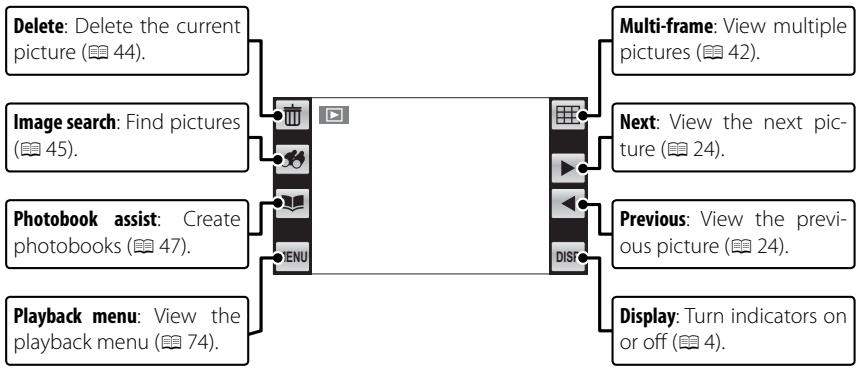

■ Playback

Tap the icons in the playback display to perform the operations listed below. The icons displayed vary with the type of picture and the current playback mode.

Charging the Battery

The battery is not charged at shipment. Charge the battery before use.

1 Place the battery in the supplied battery charger.

Insert the battery in the orientation indicated by the ⊕T⊖ labels.

The camera uses an NP-45A rechargeable battery.

Battery + T - label Battery charger Arrow + T - label

2 Plug the charger in.

Plug the charger into a power outlet. The charging indicator will light.

The Charging Indicator

The charging indicator shows battery charge status as follows:

Charging indicator	Battery status	Action
Off	Battery not inserted.	Insert the battery.
On (green)	Battery fully charged.	Remove the battery.
On (yellow)	Battery charging.	—
Blinks (yellow)	Battery fault.	Unplug the charger and remove the battery.

3 Charge the battery.

Remove the battery when charging is complete.

① Unplug the charger when it is not in use.

Inserting the Battery and a Memory Card

Although the camera can store pictures in internal memory, optional SD, SDHC and SDXC memory cards (sold separately) can be used to store additional pictures. After charging the battery, insert the battery and memory card as described below.

1 Open the battery-chamber cover.

Be sure the camera is off before opening the battery-chamber cover.
① Do not open the battery-chamber cover when the camera is on. Failure to observe this precaution could result in damage to image files or memory cards.
Do not use excessive force when handling the battery-chamber cover.

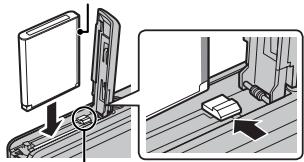

2 Insert the battery.

Align the orange stripe on the battery with the orange battery latch and slide the battery into the camera, keeping the battery latch pressed to one side.

① Insert the battery in the correct orientation. Do not use force or attempt to insert the battery upside down or backwards. The battery will slide in easily in the correct orientation.

Diagram showing two steps of a device being inserted into a device, labeled with arrows and numbered positions.

Orange stripe

Diagram illustrating a mechanical assembly or mounting process with labeled components and directional arrows indicating movement.

Battery latch

3 Insert the memory card.

Holding the memory card in the orientation shown at right, slide it in until it clicks into place at the back of the slot.

① Be sure card is in the correct orientation; do not insert at an angle or use force. If the memory card is not correctly inserted or no memory card is inserted, IN will appear in the LCD monitor and internal memory will be used for recording and playback.
① SD/SDHC/SDXC memory cards can be locked, making it impossible to format the card or to record or delete images. Before inserting an SD/SDHC/SDXC memory card, slide the write-protect switch to the unlocked position.

4 Close the battery-chamber cover.

Click

Lock ↓ Lock CD/TV

Write-protect switch

Diagram showing two steps of a device being opened, labeled with arrows and numbered positions.

Removing the Battery and Memory Card

Before removing the battery or memory card, turn the camera off and open the battery-chamber cover.

To remove the battery, press the battery latch to the side, and slide the battery out of the camera as shown.

Battery latch

Diagram of a smartphone rear panel showing the left side of the screen and the right side of the door, with no text or symbols present.

To remove the memory card, press it in and release it slowly. The card can then be removed by hand. When a memory card is removed, the card could come out of the slot too quickly. Use your finger to hold it and gently release the card.

Diagram of a hand inserting a device into a device casing (no text or symbols visible)

■ Compatible Memory Cards

FUJIFILM and SanDisk SD, SDHC and SDXC memory cards have been approved for use in the camera. A complete list of approved memory cards is available at http://www.fujifilm.com/support/digital_cameras/compatibility/. Operation is not guaranteed with other cards. The camera can not be used with xD-Picture Cards or MultiMediaCard (MMC) devices.

! Memory Cards

• Do not turn the camera off or remove the memory card while the memory card is being formatted or data are being recorded to or deleted from the card. Failure to observe this precaution could damage the card.
• Format SD/SDHC/SDXC memory cards before first use, and be sure to reformat all memory cards after using them in a computer or other device. For more information on formatting memory cards, see “FORMAT” (83).
• Memory cards are small and can be swallowed; keep out of reach of children. If a child swallows a memory card, seek medical assistance immediately.
• miniSD or microSD adapters that are larger or smaller than the standard dimensions of an SD/SDHC/SDXC card may not eject normally; if the card does not eject, take the camera to an authorized service representative. Do not forcibly remove the card.
• Do not affix labels to memory cards. Peeling labels can cause camera malfunction.

• Movie recording may be interrupted with some types of SD/SDHC/SDXC memory card. Use a CLASS ^4 card or better when shooting HD movies.

• The data in internal memory may be erased or corrupted when the camera is repaired. Please note that the repairer will be able to view pictures in internal memory.

• Formatting a memory card or internal memory in the camera creates a folder in which pictures are stored. Do not rename or delete this folder or use a computer or other device to edit, delete, or rename image files. Always use the camera to delete pictures from memory cards and internal memory; before editing or renaming files, copy them to a computer and edit or rename the copies, not the originals.

! Batteries

• Remove dirt from the battery terminals with a clean, dry cloth. Failure to observe this precaution could prevent the battery from charging.
• Do not affix stickers or other objects to the battery. Failure to observe this precaution could make it impossible to remove the battery from the camera.
• Do not short the battery terminals. The battery could overheat.
• Read the cautions in "The Battery and Power Supply" (☐ vi).
• Use only battery chargers designated for use with the battery. Failure to observe this precaution could result in product malfunction.
• Do not remove the labels from the battery or attempt to split or peel the outer casing.
• The battery gradually loses its charge when not in use. Charge the battery one or two days before use.

Turning the Camera on and Off

Shooting Mode

To turn the camera on, open the lens cover fully. The camera turns off when the lens cover is closed.

Camera on Camera off

Playback Mode

If the lens cover is closed, the camera can be turned on in playback mode by pressing the ▶ button for about a second.

Diagram of a device with a close-up view showing a camera and display panel (no text or symbols present)

To turn the camera off, press and hold the ▶ button.

Switching to Shooting Mode

To exit to shooting mode, press the shutter button halfway or the 📄 button.

⚠️ Fingerprints and other marks on the lens can affect pictures. Keep the lens clean.
① Turning the camera off does not completely end the supply of power to the camera.

Auto Power Off

The camera will turn off automatically if no operations are performed for the length of time selected for 📄 AUTO POWER OFF (📖 84).

Basic Setup

A language-selection dialog is displayed the first time the camera is turned on. Set up the camera as described below (you can reset the clock or change languages at any time using the DATE/TIME or 言語/LANG, options in the setup menu; for information on displaying the setup menu, see page 80).

1 Tap to select a language. Tap ▲ or ▼ to view additional languages.

"NO" and "BACK"

Tap BACK to return to the previous step, NO to skip the current step. Any steps you skip will be displayed the next time the camera is turned on.

2 The date will be displayed. Tap the ▲ or ▼ arrows to set the date and then tap OK. To change the order in which the year, month, and day are displayed, tap YY.MM.DD.

3 The time will be displayed. Select AM or PM, tap the ▲ or ▼ arrows to set the time, and tap OK.

START MENU 22 言語/LANG. ENGLISH FRANCAIS DEUTSCH 1/3 ESPAÑOL PORTUGUÉS ITALIANO NEDERLANDS PYCCКИЙ

START MENU DATE/TIME NO YY.MM.DD 2010 01 01 ▲ ▼ ▲ ▼ ▲ ▼ Y Y MM DD BACK OK

START MENU DATE/TIME NO AM 12 00 PM ▲ ▼ ▲ BACK OK

4 Tap a shooting mode.
5 Tap OK to enter shooting mode when setup is complete.

AUTO OFF MENU [+] DISP

The Camera Clock

If the battery is removed for an extended period, the camera clock will be reset and the language-selection dialog will be displayed when the camera is turned on.

Basic Photography and Playback

Taking Pictures in SR AUTO (Scene Recognition) Mode

This section describes how to take pictures in SR Auto (scene recognition) mode. The camera automatically analyzes the composition and adjusts settings appropriately.

1 Turn the camera on.

Fully open the lens cover. SR AUTO shooting indicators will be displayed.

The [●] Icon

This icon indicates that the camera continuously searches for faces to select the appropriate scene, increasing the drain on the battery.

我 AUTO AUTO OFF MENU DISP OF

The Scene Icon

The camera selects the scene according to shooting conditions and the type of subject: PORTRAIT (portraits), LANDSCAPE (landscapes), NIGHT (poorly-lit landscapes), MACRO (close ups), NIGHT PORTRAIT (poorly-lit portraits), BACKLIT PORTRAIT (backlit portraits), AUTO AUTO (all other scenes)

2 Frame the picture.

Use the zoom control to frame the picture in the display.

Holding the Camera

Hold the camera steady with both hands and brace your elbows against your sides. Shaking or unsteady hands can blur your shots.

Illustration of a person holding a smartphone, with no visible text or symbols

To prevent pictures that are out of focus or too dark (underexposed), keep your fingers and other objects away from the lens and flash.

Illustration of hands holding a handheld device with a no-smoking symbol above (no text or symbols on the device itself)

3 Focus.

Press the shutter button halfway to focus.

The lens may make a noise when the camera focuses; this is normal.

If the camera is able to focus, it will beep twice.

If the camera is unable to focus, the focus frame will turn red, !AF will be displayed. Change the composition or use focus lock (📖 32).

Double beep

4 Shoot.

Smoothly press the shutter button the rest of the way down to take the picture.

If the subject is poorly lit, the flash may fire when the picture is taken. For information on using the flash when lighting is poor, see "Using the Flash (Intelligent Flash)" (35).

Click

The Shutter Button

The shutter button has two positions. Pressing the shutter button halfway sets focus and exposure; to shoot, press the shutter button the rest of the way down.

Viewing Pictures

Pictures can be viewed in the LCD monitor. When taking important photographs, take a test shot and check the results.

1 Press the ▶ button.

The most recent picture will be displayed.

Diagram showing a device lock and navigation panel with an arrow pointing to the right panel.

2 View additional pictures.

Scroll left or right or tap ◀ or ▶.

Two black-and-white photos of a smiling woman with floral background, each with a software interface panel (no readable text or symbols)

Press the shutter button or the 📄 button to exit to shooting mode.

More on Photography

Shooting Mode

Choose a shooting mode according to the scene or type of subject. Tap the shooting mode icon in the monitor and tap the icon for the desired mode.

STR AUTO OFF MENU [+] DISP

Mode		See
	SCENE RECOGNITION	20
	AUTO	26
	TOUCH & SHOOT	26
	TOUCH & TRACK	26
SP	SCENE POSITION	27

Mode		See
PANORAMA	MOTION PANORAMA	28
	NATURAL LIGHT/NATURAL & ↓	30
P	PROGRAM AE	31

A description of the selected mode will be displayed; tap the description to continue, or wait for it to clear from the display automatically.

AUTO

Choose for crisp, clear snapshots. This mode is recommended in most situations.

HOME SHOOTING MODE SR AUTO Scene Recognition AUTO AUTO Touch&Shoot Touch&Track BACK GP Scene Position PANCRAMA Motion Panorama Natural Light Natural & Tech Program AE

TOUCH & SHOOT

Choose this mode to take pictures by touching the display instead of pressing the shutter button. Touch anywhere inside the "touch and shoot" area to focus on the selected subject and take a picture.

HOME SHOOTING MODE AUTO Scene Recognition AUTO Touch&Shoot Touch&Track BACK GP Scene Position PANCRAMA Motion Panorama Natural Light Natural & Tech Program AE

Image editing interface showing a person adjusting a photo frame with 'AUTO' and 'OFF' controls, before and after adjustment.

TOUCH & TRACK

Touch the subject in the display. Focus will track the subject as it moves through the frame.

The camera focuses continuously, increasing the drain on the battery, and that the sound of the camera focusing may be audible.
◆ Focus will be fixed at the center of the display when macro is on.

HOME SHOOTING MODE SR AUTO Touch&Shoot Touch&Track Back SP Scene Position PANCRAMA Motion Panorama Natural Light Nature&Tech Program AE

SP SCENE POSITION

The camera offers a choice of "scenes," each adapted to particular shooting conditions or a specific type of subject. Choose from the following options:

HOME SHOOTING MODE SR AUTO Touch&Shoot Touch&Track Back Scene Recognition AUTO PANORAMA Motion Panorama Natural Light Program AE

Scene	Description
PORTRAIT	Choose for portraits.
PORTRAIT ENHANCER	Choose for a smooth skin effect when shooting portraits.
LANDSCAPE	Choose for daylight shots of buildings and landscapes.
SPORT	Choose when photographing moving subjects.
NIGHT	Choose this mode for poorly lit twilight or night scenes.
NIGHT (TRIPOD)	Choose this mode for slow shutter speeds when shooting at night.
SUNSET	Choose this mode to record the vivid colors in sunrises and sunsets.
SNOW	Choose for crisp, clear shots that capture the brightness of scenes dominated by shining white snow.
BEACH	Choose for crisp, clear shots that capture the brightness of sunlit beaches.
PARTY	Capture indoor background lighting under low-light conditions.
FLOWER	Choose for vivid close-ups of flowers.
TEXT	Take clear pictures of text or drawings in print.

P...A MOTION PANORAMA

Follow an on-screen guide to take photos that will automatically be joined to form a panorama.

HOME SHOOTING MODE SR AUTO Scene Recognition AUTO Touch&Shoot Touch&Track PANCRAMA Motion Panorama Natural Light Program AE

1 Tap and select the pan direction.

1 2 3 3 2 1 BACK

2 Take a photograph. Exposure and white balance for the panorama are set with the first shot.
3 Frame the next shot to overlap with the previous picture by superimposing ⊕ on + so that they form a solid circle (●). The camera will release the shutter automatically.

4 Take the last shot as described in Step 3.

To end shooting and create a panorama after the first or second shot, tap OK after completing Step 2 or Step 3 and proceed to Step 5.

5 Tap OK to save the picture.

① Panoramas are created from multiple frames. The camera may in some cases be unable to stitch the frames together perfectly.
① The desired results may not be achieved with moving subjects, subjects close to the camera, unvarying subjects such as the sky or a field of grass, subjects that are in constant motion, such as waves and waterfalls, or subjects that undergo marked changes in brightness. Panoramas may be blurred if the subject is poorly lit.

For Best Results

For best results, be careful not to tilt the camera backward or forward or to either side and try not to move the camera while ⬕ and + are aligned to form a solid circle.

Printing Panoramas

Depending on the page size and the size of the panorama, panoramas may print with their edges cropped out or with wide margins at the top and bottom or at both sides.

N/N↓ NATURAL LIGHT/NATURAL & ↓

Choose Ⓝ NATURAL LIGHT or Ⓞ NATURAL & ♣.

HOME SHOOTING MODE SR AUTO Scene Recognition AUTO Touch&Shoot Touch&Track BACK BP Scene Position PANCRAMA Motion Panorama Natural Light Natural & Flash Program AE

Option	Description
N NATURAL LIGHT	Capture natural light indoors, under low light, or where the flash can not be used. The flash turns off and sensitivity is raised to reduce blur.
NATURAL &	This mode helps ensure good results with backlit subjects and in other situations with difficult lighting. Each time the shutter button is pressed, the camera takes two shots: one shot without the flash to preserve natural lighting, followed immediately by a second shot with the flash. Do not move the camera until shooting is complete.

P PROGRAM AE

The camera sets exposure automatically.

HOME SHOOTING MODE SR AUTO Touch&Shoot Touch&Track Back Scene Recognition AUTO Touch&Shoot Panorama Natural Light Program AE

To compose photographs with off-center subjects:

1 Focus: Position the subject in the focus frame ( r_[+] ) and press the shutter button halfway to lock focus and exposure. Focus and exposure will remain locked while the shutter button is pressed halfway (AF/AE lock).
2 Recompose: Keep the button pressed halfway.
3 Shoot: Press the button all the way down.

Mobile phone interface screenshot showing a person adjusting a camera lens with 'AUTO' and 'OFF' buttons, alongside a close-up of the camera's lock.

[+]

Two women posing with hands, one holding the other's hand, next to a small icon showing a downward arrow and wave (no text or symbols)

Autofocus

Although the camera boasts a high-precision autofocus system, it may be unable to focus on the subjects listed below. If the camera is unable to focus, focus on another subject at the same distance and use focus lock to recompose the photograph.

• Very shiny subjects such as mirrors or car bodies.
- Fast-moving subjects.
- Subjects photographed through a window or other reflective object.
- Dark subjects and subjects that absorb rather than reflect light, such as hair or fur.
- Insubstantial subjects, such as smoke or flame.

• Subjects that show little contrast with the background (for example, subjects in clothing that is the same color as the background).
• Subjects positioned in front of or behind a high-contrast object that is also in the focus frame (for example, a subject photographed against a backdrop of highly contrasting elements).

Exposure Compensation

To adjust exposure compensation when photographing very bright, very dark, or high-contrast subjects, tap MENU to display the shooting menu and select EXP. COMPENSATION (69). Tap ▲ or ▼ to choose an exposure compensation value and then tap OK.

P AUTO OFF MENU [+] OFF DISP

Choose positive values (▲) to increase exposure

Black-and-white photo of a duckling with its head, standing on rocks (no text or symbols visible)

Choose negative values (▼) to reduce exposure

Black-and-white photo of a duckling with its head in flight, surrounded by rocks (no text or symbols visible)

Black-and-white photo of a duck resting on rocks, no visible text or symbols

A icon and exposure indicator are displayed at settings other than ±0 . Exposure compensation is not reset when the camera is turned off; to restore normal exposure control, choose a value of ±0 .
Turn the flash off when using exposure compensation.
Exposure compensation is available only when P (PROGRAM AE) is selected for shooting mode.

↓ Using the Flash (Intelligent Flash)

When the flash is used, the camera's Intelligent Flash system instantly analyzes the scene based on such factors as the brightness of the subject, its position in the frame, and its distance from the camera. Flash output and sensitivity are adjusted to ensure that the main subject is correctly exposed while preserving the effects of ambient background lighting, even in dimly-lit indoor scenes. Use the flash when lighting is poor, for example when shooting at night or indoors under low light.

Tap the flash icon and choose from the following flash modes:

Option	Description
AUTO/AUTO(AUTO FLASH)	The flash fires when required. Recommended in most situations.
12 / 12 12 (FORCED FLASH)	The flash fires whenever a picture is taken. Use for backlit subjects or for natural coloration when shooting in bright light.
34 (SUPPRESSED FLASH)	The flash does not fire even when the subject is poorly lit. Use of a tripod is recommended.
S 12 / 12 SLOW(SLOW SYNCHRO)	Capture both the main subject and the background under low light (note that brightly lit scenes may be overexposed).

If the flash will fire, 📋 will be displayed when the shutter button is pressed halfway. At slow shutter speeds, ⚙️ will appear in the display to warn that pictures may be blurred; use of a tripod is recommended.
The flash may fire several times with each shot. Do not move the camera until shooting is complete.
The flash may cause vignetting.

Red-Eye Removal

When Intelligent Face Detection and red-eye removal (39) are on, red-eye removal is available in auto (AUTO; RED EYE REDUCTION), flash on (FORCED FLASH), and slow sync (SLOW; RED EYE & SLOW) modes. Red-eye removal minimizes "red-eye" caused when light from the flash is reflected from the subject's retinas.

To use the self-timer, tap the self-timer icon and choose from the following options:

Option	Description
( COUPLE TIME)	The camera starts the timer when it detects two portrait subjects close together. Tap ▶ or ▶ to choose how close the subjects must be together before the timer starts (the more hearts, the closer the subjects must be together). ▶ To stop the timer before the picture is taken, press the shutter button halfway.
( GROUP TIMER)	The camera will start the timer when it detects the selected number of portrait subjects. Tap ▶ or ▶ to choose the number of subjects. ▶ To stop the timer before the picture is taken, press the shutter button halfway.
( 10 SEC)	The shutter is released ten seconds after the shutter button is pressed. Use for self-portraits. The self-timer lamp on the front of the camera blinks while the timer counts down.
( 2 SEC)	The shutter is released two seconds after the shutter button is pressed. Use to reduce blur caused by the camera moving when the shutter button is pressed. The self-timer lamp will blink as the timer counts down.
(OFF)	Self-timer off.

For close-ups, tap the macro mode icon and select 🎨. When macro mode is in effect, the camera focuses on subjects near the center of the frame. Use the zoom control to compose pictures (📖 21).

To exit macro mode, tap the macro mode icon and select OFF.

Use of a tripod is recommended to prevent blur caused by camera shake.

Intelligent Face Detection

Intelligent Face Detection sets focus and exposure for human faces anywhere in the frame, preventing the camera from focusing on the background in group portraits. Choose for shots that emphasize portrait subjects.

To use Intelligent Face Detection, tap MENU to display the shooting menu and select on for 📋 FACE DETECTION (📖 73). Faces can be detected with the camera in vertical or horizontal orientation; if a face is detected, it will be indicated by a green border. If there is more than one face in the frame, the camera will select the face closest to the center; other faces are indicated by white borders.

AUTO OFF MENU [+] OFF DISP

Black-and-white photo of three people taking a selfie in a field with flowers, no visible text or symbols

Green border

① In some modes, the camera may set exposure for the frame as a whole rather than the portrait subject.
① If the subject moves as the shutter button is pressed, their face may not be in the area indicated by the green border when the picture is taken.

Playback Options

To view the most recent picture in the LCD monitor, press the ▶ button.

Diagram showing a digital camera with a close-up of its screen and control panel, highlighting the play button.

Black-and-white photo of a smiling woman holding a microphone, displayed within a media player interface (no readable text or symbols on the image itself)

Scroll left or right or tap ◀ or ▶ to view additional pictures.

Screenshot of a photo editing interface showing a black-and-white portrait with overlaid UI elements including menu, lock, and DISP controls.

Pictures taken using other cameras are indicated by a 📋 ("gift image") icon during playback.

Playback Zoom

To zoom a picture in or out:

1 Display the picture full screen and tap the picture to display the 🔒 icon.

Black-and-white photo of a smiling woman wearing a hat, with UI controls and a cursor pointer overlay (no readable text or symbols)

2 Tap the 🔒 icon. Zoom controls will be displayed; tap 🔒 to zoom in or 🔒 to zoom out (you can also select [▲] with the camera zoom control to display the zoom slider and use the zoom control to zoom in and out, or tap the display to zoom in on the selected area). Tap ▲, ▼, ◀, or ▶ to scroll the display.

Screenshot of a social media interface with a smiling person and control buttons labeled BACK, DISP, and play symbols.

Navigation window shows portion of image currently visible in the display

Tap BACK to exit zoom.

The maximum zoom ratio varies with image size. Playback zoom is not available with cropped or resized copies saved at a size of 640 or smaller.

Multi-Frame Playback

To view pictures nine at a time, tap ☐ in single-frame view. The number of pictures displayed changes each time you tap ☐ (you can also select ☐ with the camera zoom control to increase the number of pictures displayed or ☐ to decrease the number of pictures).

In 9- and 16-frame views, scroll left or right or tap ▲, ▼, ◀, or ▶ to view more pictures.

Screenshot of a photo editing interface showing multiple grayscale portrait thumbnails and control buttons labeled 'BACK' and 'Video'.

Grid of black-and-white photo grid panels showing various people and objects, with play buttons on the right (no readable text or symbols)

Tap a picture to view it full screen.

Rotating the Camera

When the camera is held in "tall" (portrait) orientation, the highlighted picture appears at the top of the display. Tap ◀ or ▶ to highlight pictures and tap the picture at the top of the display to view it full screen.

Black-and-white photo of a smiling person in a hat, surrounded by a grid of small photos and UI icons (no readable text or symbols)

Deleting Pictures

To delete individual pictures, multiple selected pictures, or all pictures, tap MENU during playback to display the playback menu, select 📄 ERASE (📖 77), and choose from the options below. Note that deleted pictures can not be recovered. Copy important pictures to a computer or other storage device before proceeding.

Black-and-white photo of a smiling woman wearing a hat, with no visible text or symbols in the main image area.

Option	Description
FRAME	Tap ◀ or ▶ to scroll through pictures and tap 📋. A confirmation dialog will be displayed; tap OK to delete the current picture. Tap BACK to return to playback when all the desired pictures have been deleted.
SELECTED FRAMES	Tap pictures to select or deselect (pictures that are protected or in a print order are shown by ⚫). When the operation is complete, tap OK to display a confirmation dialog and tap OK to delete the selected pictures.
ALL FRAMES	A confirmation dialog will be displayed; tap OK to delete all unprotected pictures (if a memory card is inserted, the pictures will be deleted from the memory card; the pictures in internal memory are only deleted if no memory card is inserted). Tapping BACK cancels deletion; note that any pictures deleted before you tapped BACK can not be recovered.

- Protected pictures can not be deleted. Remove protection from any pictures you wish to delete (76).

Search for pictures.

1 Tap the 🔗 icon in single-frame view.

Black-and-white portrait of a smiling woman wearing a hat, surrounded by floral background (no text or symbols visible)

2 Choose from the following options:

Option	Description
BY DATE	Search by date.
BY FACE	Search for faces from the face recognition database.
BY ★ FAVORITES	Search by rating (74).
BY SCENE	Search by scene.
BY TYPE OF DATA	Find all still pictures, all movies, or edited pictures.
BY UPLOAD MARK	Find all pictures selected for upload to a specified destination (78).

Searches can also be performed from the playback menu (75).

3 Select a search condition. Only pictures that match the search condition will be displayed (tap ∧ or ∨ to view additional search conditions).

05/31/2050 BACK 05/31/2050 06/03/2050 08/20/2050 08/22/2050 OK

4 The large preview to the left of the thumbnails is the current picture. To view the current picture full frame, tap the preview or tap OK.

05/31/2050 06/03/2050 08/20/2050 08/22/2050 OK 05/31/2050 Opi DISP BACK OK

Tap ◀ or ▶ to scroll through the pictures that match the search conditions or tap 📋 to view them in a slide show (📖 75). To delete (📖 44) or protect (📖 76) the pictures, tap 📋 or 🔍 respectively.

5 To exit, tap OK when the current picture is shown full frame. Tap OK to end the search.

05/31/2050 Opi DISP BACK OK → EXIT SEARCH BACK OK

Create books from your favorite photos.

Creating a PhotoBook

1 Tap the 📁 icon in single-frame view.

Photobook assist can also be accessed from the playback menu (74).

Black-and-white photo of a smiling woman holding an object, with no visible text or symbols in the main image area.

2 Tap NEW BOOK.
3 Tap one of the following to choose pictures for the new book.

• SELECT FROM ALL: Choose from all available pictures.
• SELECT BY IMAGE SEARCH: Choose from pictures matching selected search conditions (📖 45).
  Neither photographs 640 or smaller nor movies can be selected for photobooks.

4 Scroll through the images and tap 📋 to select or deselect the current image for inclusion in the book. To display the current image on the cover, tap 📋.

The first picture selected becomes the cover image. Tap 📄 to select a different picture for the cover.

5 Tap MENU to exit when the book is complete.

6 Tap COMPLETE PHOTOBOOK (to select all photos or all photos matching the specified search conditions for the book, choose SELECT ALL). The new book will be added to the list in the photobook assist menu.

HOME SELECT IMAGES FOR PHOTOBOOK SELECT ALL COMPLETE PHOTOBOOK BACK

① Books can contain up to 300 pictures.
Books that contain no photos are automatically deleted.

Viewing Photobooks

To view a book, tap it in the photobook assist menu and then tap ◀ and ▶ to scroll through the pictures.

Editing and Deleting Photobooks

Display the photobook and tap MENU. The following options will be displayed; select the desired option and follow the on-screen instructions.

• EDIT: Edit the book as described in "Creating a PhotoBook" (47).
• ERASE: Delete the book.

Photobooks

Photobooks can be copied to a computer using the supplied MyFinePix Studio software.

To edit pictures, tap MENU during playback to display the playback menu, select ⚙ EDIT.

Tap ▲ or ▼ to scroll through the menu and tap an option to select it.

Black-and-white portrait of a smiling woman wearing a hat, with blurred floral background (no text or symbols)

Option	Description
COLLAGE	Create collages (50).
IMAGE ROTATE	Rotate pictures (51).
CROP	Create cropped copies of pictures (51).
RESIZE	Create small copies of pictures (52).
RED EYE REMOVAL	Create copies with reduced red eye (52).
ASPECT RATIO	Choose the aspect ratio.
BRIGHTNESS	Adjust brightness.
FACE MOSAIC	If the original was taken with Intelligent Face Detection, a mosaic effect can be applied to up to four faces. If Intelligent Face Detection was off or no faces were detected, the mosaic effect will be applied to the center of the image.
MOVIE TRIMMING	Remove opening or ending footage to create an edited copy of the current movie (53).
MOVIE JOIN	Add existing footage to the end of the current movie to create an edited copy (54).

Select ☑ RESIZE, ✗ ASPECT RATIO, and ✗ FACE MOZAIC beforehand with other options; any retouched copied can not be further retouched by those options.

COLLAGE

Selecting ☐ COLLAGE displays a selection of collage templates.

1 Tap the desired template for the collage.
2 Tap a frame in the template and then tap a picture at the right side of the display to place it in the selected frame (you can also select a picture first and then tap the target frame). Repeat until the template is filled. If the desired picture is not visible at the right side of the display, tap ∧ or ∨ to view more pictures.

COLLAGE BACK

To rotate or crop an image for display in a collage, tap its frame in the collage template. Rotation and crop tools will appear at the edges of the display. To rotate the picture, tap r. The picture is rotated 90° clockwise each time you tap the icon. Tap 🔒 or 🔒 to zoom the

selected picture in or out and tap ▲, ▼, ◀, or ▶ to position it in the frame. Tap OK when the operation is complete. Note that depending on the template, you may not be able to rotate or crop the image.

COLLAGE BAC

3 Tap OK to complete the collage.
4 Image size options will be displayed. Tap an option to create a collage at the selected size and save it as a new file.

IMAGE ROTATE

This option rotates pictures for display on the camera. It has no effect on pictures displayed on a computer or other device.

1 Tap the left and right arrows (◀ and ▶) to select the picture you wish to rotate.
2 Tap ↘ to rotate the picture 90° clockwise, ↕ to rotate it 90° counterclockwise.
3 Tap OK.

The next time the picture is played back, the rotated one will be displayed.

The camera may not be able to rotate pictures created with other devices.

CROP

Create cropped copies of pictures.

1 Tap the left and right arrows (◀ and ▶) to select the picture you wish to crop.
2 Tap 🔒 or 🔒 to zoom in and out and tap ▲, ▼, ◀, or ▶ to scroll the picture until the desired portion is displayed. Higher zoom ratios produce smaller copies.
3 Tap OK to save the cropped copy to a separate file.

Pictures taken with other cameras can not be cropped.

RESIZE

Create small copies of pictures.

1 Tap the left and right arrows (◀ and ▶) to select the picture you wish to resize.
2 Tap an icon to copy the picture at the selected size. The sizes available vary with the size of the original image.

RED EYE REMOVAL

This option is used with pictures taken using Intelligent Face Detection to create copies that have been processed to remove red eye.

1 Tap the left and right arrows (◀ and ▶) to select a picture.
2 Tap OK to create a copy with reduced red-eye.

Red eye may not be removed if the camera is unable to detect a face or the face is in profile. Results may differ depending on the scene. Red eye can not be removed from pictures that have already been processed using red-eye removal.
The amount of time needed to process the image varies with the number of faces detected.
Copies created with 📄 RED EYE REMOVAL are indicated by a 📄 icon during playback.

MOVIE TRIMMING

Remove opening or ending footage to create an edited copy of the current movie.

1 Display the desired movie.
2 Select ▶8 MOVIE TRIMMING in the playback menu. To remove footage from the start of the copy, proceed to Step 3; otherwise, proceed to Step 4.
3 Tap ▶ to begin playback and tap ⏻ to pause when the new opening frame is reached.
4 Tap IN POINT. To remove footage from the end of the copy, proceed to Step 5; otherwise, proceed to Step 6 (to exit without creating an edited copy, tap BACK).
5 Tap ▶ to begin playback and tap 📌 to pause when the new closing frame is reached.
6 Tap OUT POINT to save the copy.

MOVIE JOIN

Add existing footage to the end of the current movie to create an edited copy.

1 Display the desired movie.
2 Select MOVIE JOIN in the playback menu.
3 Tap ◀ or ▶ to highlight a movie.

4 Tap OK to add the highlighted footage to the end of the current movie and save the resulting copy, or tap BACK to exit without creating a copy.

Both movies must have been recorded at the same frame size and frame rate and have a combined file size of no more than 2 GB.

Viewing Panoramas

To view a panorama, display in single-frame view and tap ▶.

100-0001 MENU DISP

Horizontal panoramas are displayed from left to right. The following operations can be performed during playback:

Operation	Description
End playback	Tap □ to end playback.
Pause playback	Tap □ to pause playback. Tap ▶ to resume.

Recording Movies

Press 🧑️ to shoot a movie. During recording, REC and the time remaining will be displayed and sound will be recorded via the built-in microphone (be careful not to cover the microphone during recording).

Diagram showing a device with a close-up view of its front panel and a button labeled 'OK' (OK) pointing to the screen.

REC icon 89nm 50s 340

Time remaining

To end recording, press the 🔗 button again. Recording ends automatically when the movie reaches maximum length or memory is full.

Zoom can be adjusted while recording is in progress.
Focus is fixed when 🧑️ is pressed. Exposure and white balance are adjusted automatically throughout recording. The color and brightness of the image may vary from that displayed before recording begins.
◆ Sounds made by the camera may be recorded.

① Do not open the battery chamber during shooting or while a movie is being recorded to a memory. Failure to observe this precaution could prevent the movie from being played back.
① Vertical or horizontal streaks may appear in movies containing very bright subjects. This is normal and does not indicate a malfunction.
① The temperature of the camera may rise if it is used to record movies for an extended period or if the ambient temperature is high. This is normal and does not indicate a malfunction.

Movie Frame Size

Before recording, select a frame size using the MOVIE QUALITY option in the shooting menu (73).

Option	Description
HD 1280 (1280×720)	High Definition.
S40 (640×480)	Standard definition.

Viewing Movies

During playback, movies are displayed as shown at right. Tap ▶ to begin playback. The following operations can be performed:

Operation	Description
End playback	Tap ▪ to end playback.
Pause playback	Tap !! to pause playback. Tap ▶ to resume.

Do not cover the speaker during playback.

mode icon

Black-and-white photo of a cyclist riding on a bicycle, displayed within a film viewer window (no readable text or symbols)

Printing Pictures via USB

If the printer supports PictBridge, the camera can be connected directly to the printer as shown below and pictures can be printed without first being copied to a computer. Note that depending on the printer, not all the functions described below may be supported.

1 Connect the supplied USB cable as shown and turn the printer on.

Diagram showing connection between a device and a device via cable, with labeled components and wiring connections.

2 Press the ▶ button for about a second to turn the camera on.
3 Tap ◀ or ▶ to select a picture you wish to print.
4 Tap + or – to choose the number of copies (up to 99).
5 Repeat steps 3–4 to select additional pictures. Tap PRINT to display a confirmation dialog when settings are complete.

6 Tap OK to start printing. Printing can be interrupted by tapping STOP, but note that some printers may not respond immediately. If the printer stops before printing is complete, turn the camera off and then on again.

7 After confirming that PRINTING has cleared from the camera display, turn the camera off and disconnect the USB cable.

Pictures can be printed from internal memory or a memory card that has been formatted in the camera.
If no pictures are selected, the camera will print one copy of the current picture.
Page size, print quality, and border selections are made using the printer.

Printing the Date of Recording

To print the date of recording on pictures, tap MENU in the PictBridge display and select PRINT WITH DATE (to print pictures without the date of recording, select PRINT WITHOUT DATE).

Viewing Pictures on a Computer

The supplied software can be used to copy pictures to a computer, where they can be stored, viewed, organized, and printed. Before proceeding, install the software as described below. Do not connect the camera to the computer until installation is complete.

Windows: Installing MyFinePix Studio

1 Confirm that the computer meets the following system requirements:

	Windows 7*	Windows Vista*	Windows XP*
CPU	3 GHz Pentium 4 or better		2 GHz Pentium 4 or better
RAM	1 GB or more		512 MB or more
Free disk space	15 GB or more		2 GB or more
Video	• 1024×768 pixels or more with 24-bit color or better• A graphics processing unit (GPU) that supports DirectX 7 or later
Other	• Built-in USB port recommended. Operation is not guaranteed with other USB ports.• Internet connection (broadband recommended) required to install .NET Framework (if necessary), to use auto update feature, and when performing such tasks as sharing pictures on-line or via e-mail.

* Other versions of Windows are not supported. Only pre-installed operating systems are supported; operation is not guaranteed on home-built computers or computers that have been upgraded from earlier versions of Windows.

2 Start the computer. Log in to an account with administrator privileges before proceeding.

3 Exit any applications that may be running and insert the installer CD in a CD-ROM drive.

Windows 7/Windows Vista

If an AutoPlay dialog is displayed, click SETUP.EXE. A "User Account Control" dialog will then be displayed; click Yes (Windows 7) or Allow (Windows Vista).

The installer will start automatically; click Install MyFinePix Studio and follow the on-screen instructions to install MyFinePix Studio.

If the Installer Does Not Start Automatically

If the installer does not start automatically, select Computer or My Computer from the Start menu, then double-click the FINEPIX CD icon to open the FINEPIX CD window and double-click setup or SETUP.EXE.

4 If prompted to install Windows Media Player, DirectX, or .NET Framework, follow the on-screen instructions to complete installation.
5 Remove the installer CD from the CD-ROM drive when installation is complete. Store the installer CD in a dry location out of direct sunlight in case you need to re-install the software.

Installation is now complete. Proceed to "Connecting the Camera" (65).

Macintosh: Installing FinePixViewer

1 Confirm that the computer meets the following system requirements:

CPU	PowerPC or Intel
OS	Pre-installed copies of Mac OS X version 10.3.9–10.6 (visit http://www.fujifilm.com/support/digital_cameras/compatibility/ for more information)
RAM	256 MB or more
Free disk space	A minimum of 200 MB required for installation with 400 MB available when FinePixViewer is running
Video	800 × 600 pixels or more with thousands of colors or better
Other	Built-in USB port recommended. Operation is not guaranteed with other USB ports.

2 After starting the computer and quitting any applications that may be running, insert the installer CD in a CD-ROM drive and double-click Installer for Mac OS X.
3 An installer dialog will be displayed; click Installing FinePixViewer to start installation. Enter an administrator name and password when prompted and click OK, then follow the on-screen instructions to install FinePixViewer. Click Exit to quit the installer when installation is complete.

4 Remove the installer CD from the CD-ROM drive. Note that you may be unable to remove the CD if Safari is running; if necessary, quit Safari before removing the CD. Store the installer CD in a dry location out of direct sunlight in case you need to re-install the software.

5 Mac OS X 10.5 or earlier: Open the "Applications" folder, start Image Capture, and select Preferences... from the Image Capture application menu. The Image Capture preferences dialog will be displayed; choose Other... in the When a camera is connected, open menu, then select FPVBridge in the "Applications/FinePixViewer" folder and click Open. Quit Image Capture.

Mac OS X 10.6: Connect the camera and turn it on. Open the "Applications" folder and start Image Capture. The camera will be listed under DEVICES; select the camera and choose FPVBridge from the Connecting this camera opens menu and click Choose. Quit Image Capture.

Installation is now complete. Proceed to "Connecting the Camera" (65).

Connecting the Camera

1 If the pictures you wish to copy are stored on a memory card, insert the card into the camera.

Windows users may require the Windows CD when starting the software for the first time. ① Loss of power during transfer could result in loss of data or damage to internal memory or the memory card. Charge the battery before connecting the camera.

2 Turn the camera off and connect the supplied USB cable as shown, making sure the connectors are fully inserted. Connect the camera directly to the computer; do not use a USB hub or keyboard.

Diagram showing connection between a device and a laptop via cable, with an inset image of a device labeled 'B'.

3 Press the ▶ button for about a second to turn the camera on. MyFinePix Studio or FinePixViewer will start automatically; follow the on-screen instructions to copy pictures to the computer. To exit without copying pictures, click Cancel.

If the software does not start automatically, it may not be correctly installed. Disconnect the camera and reinstall the software.

For more information on using the supplied software, start the application and select the appropriate option from the Help menu.

① If a memory card containing a large number of images is inserted, there may be a delay before the software starts and you may be unable to import or save images. Use a memory card reader to transfer pictures.
① Make sure that the computer does not display a message stating that copying is in progress before turning the camera off or disconnecting the USB cable. Failure to observe this precaution could result in loss of data or damage to internal memory or the memory card.
⚠️ Disconnect the camera before inserting or removing memory cards.
① In some cases, it may not be possible to access pictures saved to a network server using the supplied software in the same way as on a standalone computer.
① The user bears all applicable fees charged by the phone company or Internet service provider when using services that require an Internet connection.

Uninstalling the Supplied Software

Only uninstall the supplied software when it is no longer required or before beginning reinstallation. After quitting the software and disconnecting the camera, drag the "FinePixViewer" folder from "Applications" into the Trash and select Empty Trash in the Finder menu (Macintosh), or open the control panel and use "Programs and Features" (Windows 7/Windows Vista) or "Add or Remove Programs" (Windows XP) to uninstall MyFinePix Studio. Under Windows, one or more confirmation dialogs may be displayed; read the contents carefully before clicking OK.

Using the Menus: Shooting Mode

Use the shooting menu to adjust shooting settings. The options available vary with the shooting mode selected.

Using the Shooting Menu

1 To view the shooting menu, tap the MENU icon when the camera is in shooting mode.

P AUTO OFF MENU [+] OFF DISP

2 Tap the icon for the desired menu item.
3 Tap the desired option.

Shooting Menu Options

EXP. COMPENSATION

(defaults to 0)

Control the camera's sensitivity to light. Higher values can reduce blur; note, however, that mottling may appear in pictures taken at high sensitivities.

100 Bright Less noticeable ← ← ← ISO Scene Noise (mottling) → 3200 Dark → → More noticeable

Option	Description
AUTO	Sensitivity is adjusted automatically in response to shooting conditions.
3200/1600/800/400/200/100	Sensitivity is set to the specified value, which is shown in the display.

IMAGE SIZE

(defaults to L 4:3)

Choose the image size and aspect ratio at which pictures are recorded. Large pictures can be printed at large sizes with no drop in quality, while small pictures require less memory, allowing more pictures to be recorded.

L 4:3 Size Aspect ratio

Size Versus Aspect Ratio

Size
Option	Prints at sizes up to
L	34×25 cm (13.5×10 in.)
M	24×18 cm (9.5×7 in.)
S	17×13 cm (7×5 in.)

Aspect ratio

4:3: Pictures have the same proportions as the camera display.

Black-and-white photo of a person wearing a hat, with UI controls and frame markers visible (no readable text or symbols)

16:9: Suited for display on High Definition (HD) devices.

9 AUTO OFF MENU 16

IMAGE QUALITY

(defaults to NORMAL)

Choose how much image files are compressed.

Option	Description
FINE	Low compression. Select for higher image quality.
NORMAL	High compression. Select this option to store more pictures.

FINEPIX COLOR

(defaults to STD)

Enhance contrast and color saturation or take pictures in black and white.

Option	Description
STANDARD	Standard contrast and saturation. Recommended in most situations.
CHROME	Vivid contrast and color. Choose for vivid shots of flowers or enhanced greens and blues in landscapes.
B&W	Take pictures in black and white.
SEPIA	Take pictures in sepia.

Settings other than STD STANDARD are shown by an icon in the LCD monitor.

Depending on the subject, the effects of ⬆ CHROME may not be visible in the LCD monitor.

WB WHITE BALANCE

(defaults to AUTO)

For natural colors, choose a setting that matches the light source.

Option	Description
AUTO	White balance adjusted automatically.
	For subjects in direct sunlight.
	For subjects in the shade.
	Use under "daylight" fluorescent lights.
	Use under "warm white" fluorescent lights.
	Use under "cool white" fluorescent lights.
	Use under incandescent lighting.

Results vary with shooting conditions. Play pictures back after shooting to check colors in the display.

CONTINUOUS

(defaults to OFF)

Capture motion in a series of pictures.

Option	Description
ON	The camera takes up to 3 pictures while the shutter button is pressed.
OFF	One photograph is taken each time the shutter button is pressed.

Focus and exposure are determined by the first frame in each series.
The flash turns off automatically. The previously selected flash mode is restored when OFF is selected for CONTINUOUS.
Frame rate varies with shutter speed.
The number of pictures that can be recorded depends on the memory available.

FACE DETECTION

Choose whether the camera automatically detects and sets focus and exposure for human portrait subjects (39).

MOVIE QUALITY (defaults to 640)

Choose a frame size for movies (📖 57).

BEST FRAMING (defaults to OFF)

Choose ON to display a framing guide.

SILENT MODE (defaults to OFF)

Select ON to disable the speaker and flash in situations in which camera sounds or lights may be unwelcome (note that the flash will still fire in ⬆ mode).

SET SET-UP

Display the setup menu (☐ 80).

Using the Menus: Playback Mode

The playback menu is used to manage the pictures in internal memory or on the memory card.

Using the Playback Menu

1 To view the playback menu, tap the MENU icon during playback.

Black-and-white photo of a smiling woman wearing a hat, surrounded by floral background (no text or symbols visible)

2 Tap the icon for the desired menu item.
3 Tap the desired option.

Playback Menu Options

PHOTOBOOK ASSIST

Create books from your favorite photos (📖 47).

FAVORITES

To rate the picture currently displayed in full-frame playback, tap ★. A ratings dialog will be displayed; tap to select a rating of from zero to five stars.

PICTURE COMPARE

Compare two pictures side-by-side. Tap a frame to highlight it and scroll left or right or tap ◀ or ▶ to choose the picture shown. Tap 🔒 to zoom in on the highlighted picture or tap ☑ to delete it. To exit to single-frame playback, tap BACK.

IMAGE SEARCH

Search for pictures (☐ 45).

EDIT

Retouch pictures (📖 49).

SLIDE SHOW

View pictures in an automated slide show. After choosing the background music and display format, tap ▶ to view the slide show in "wide" (landscape) orientation or ▶ to view the show in "tall" (portrait) orientation.

Option	Description
NORMAL	Tap ◀ or ▶ to go back or skip ahead one frame. Select FADE-IN for fade transitions between frames.
FADE-IN
NORMAL [●]	As above, except that camera automatically zooms in on faces selected with Intelligent Face detection.
FADE-IN [●]
MULTIPLE	Display several pictures at once.
SCRAP BOOK VIEW	Display multiple pictures in random positions and sizes.
SELECT BGM	Choose background music.

The camera will not turn off automatically while a slide show is in progress.

To exit the slide show, tap the display and tap STOP.

PROTECT

Protect pictures from accidental deletion.

1 Tap 0π in the playback menu.
2 Tap one of the following options:

• FRAME: Protect selected pictures. Tap ◀ or ▶ to select the desired picture. Tap 🔒 to protect the picture. If the picture is already protected, tapping ⏻ will remove protection from the image.
• SET ALL: Protect all pictures.
• RESET ALL: Remove protection from all pictures.

3 Tap BACK to exit when the operation is complete.

① Protected pictures will be deleted when the memory card or internal memory is formatted (83).

COPY COPY

Copy pictures from internal memory to a memory card.

1 Tap COPY in the playback menu.
2 Tap one of the following options:

• IN INTERNAL MEMORY → SD CARD: Copy pictures from internal memory to a memory card.
- SD CARD → IN INTERNAL MEMORY: Copy pictures from a memory card to internal memory.

3 Select one of the following:

• FRAME: Copy selected pictures. Tap ◀ or ▶ to view pictures.
• ALL FRAMES: Copy all pictures.

4 Tap OK to copy the current picture.

◆ Copying ends when the destination is full.

ERASE

Delete all or selected pictures (☐ 44).

MARK FOR UPLOAD TO

Select pictures for upload to YouTube or Facebook using MyFinePix Studio (Windows only).

■ Selecting Pictures for Upload

1 Tap 📋 in the playback menu.

2 Tap YouTube to select movies for upload to YouTube, FACEBOOK to select photos and movies for upload to Facebook.

3 Tap ◀ or ▶ to display pictures and tap OK to select or deselect. Tap BACK to exit when all the desired pictures are selected.

Only movies can be selected for upload to YouTube.
During playback, selected pictures are indicated by YouTube or FACEBOOK icons.

■ RESET ALL: Deselecting All Pictures

To deselect all pictures, tap RESET ALL and tap OK, or tap BACK to exit without changing picture status.

If the number of pictures affected is very large, a message will be displayed while the operation is in progress. Tap BACK to exit before the operation is complete.

■ Uploading Pictures (Windows Only)

Selected pictures can be uploaded using MyFinePix Studio.

For information on installing MyFinePix Studio and connecting the camera to a computer, see "Viewing Pictures on a Computer" (61).

SILENT MODE

(defaults to OFF)

Select ON to disable the speaker and flash in situations in which camera sounds or lights may be unwelcome (note that the flash will still fire in Ⓞ mode).

SET SET-UP

Display the setup menu (☐ 80).

Using the Setup Menu

1 Tap the MENU icon to display the menu for the current mode.
2 Tap SET (setup).
3 Tap ▲ or ▼ to display the desired menu item and tap to select.
4 Tap the desired option.

Setup Menu Options

IMAGE DISP.

(defaults to 1.5 SEC)

Choose how long pictures are displayed in the LCD monitor after shooting.

Option	Description
3 SEC	Pictures are displayed for three seconds (3 SEC) or 1.5 seconds (1.5 SEC). Colors may differ slightly from those in the final image.
1.5 SEC
ZOOM (CONTINUOUS)	Pictures are displayed until you tap OK.
OFF	Pictures are not displayed after shooting.

OFF has no effect in continuous shooting mode.

FRAME NO.

(defaults to CONTINUOUS)

New pictures are stored in image files named using a four-digit file number assigned by adding one to the last file number used. The file number is displayed during playback as shown at right.

FRAME NO. controls whether file numbering is reset to 0001 when a new memory card is inserted or the current memory card or internal memory is formatted.

Frame number 100-0001 Directory number File number

Option	Description
CONTINUOUS	Numbering continues from the last file number used or the first available file number, whichever is higher. Choose this option to reduce the number of pictures with duplicate file names.
RENEW	Numbering is reset to 0001 after formatting or when a new memory card is inserted.

If the frame number reaches 999-9999, the shutter release will be disabled (☐ 98).
Selecting ⚙️ RESET (☐ 85) sets 📋 FRAME NO. to CONTINUOUS but does not reset the file number.
Frame numbers for pictures taken with other cameras may differ.

DIGITAL IS

(defaults to OFF)

When AUTO is selected, image stabilization is performed to reduce blur when the subject is poorly lit.

DIGITAL ZOOM

(defaults to OFF)

If ON is selected, selecting [+] at the maximum optical zoom position will trigger digital zoom, further magnifying the image.

The Zoom Indicator

DIGITAL ZOOM on
DIGITAL ZOOM off

⚠ Digital zoom produces lower quality images than optical zoom.

DATE/TIME

Set the camera clock (☐ 18).

VOLUME

Adjust volume for the shutter, controls, and playback. Tap an option and choose a volume, either by selecting an option in a menu (shutter and control volume) or by tapping ▲ and ▼ to choose a setting between OFF and 10 ( playback volume). Tap OK when settings are complete.

SOUND

Choose the sounds used for the shutter, at startup, and for camera controls. Tap an option and then tap an icon to choose a sound. Tap OK when settings are complete.

LCD BRIGHTNESS

(defaults to AUTO)

Control the brightness of the display.

Option	Description
AUTO	Display brightness is automatically adjusted during shooting in response to ambient lighting conditions. Brightness is not adjusted during playback.
MANUAL	Tap ▲ or ▼ to adjust brightness and then tap OK. Choose from values between -5 and +5.

FORMAT

If a memory card is inserted in the camera, this option will format the memory card. If no memory card is inserted, this option will format internal memory. Select OK to begin formatting.

① All data—including protected pictures—will be deleted from the memory card or internal memory. Be sure important files have been copied to a computer or other storage device.
Do not open the battery cover during formatting.

言語/LANG.

(defaults to ENGLISH)

Choose a language (📖 18).

AUTO POWER OFF

(defaults to 2 MIN)

Choose the length of time before the camera turns off automatically when no operations are performed. Shorter times increase battery life; if OFF is selected, the camera must be turned off manually. Note that in some situations the camera turns off automatically even when OFF is selected.

TIME DIFFERENCE

(defaults to ▲)

Switch the camera clock instantly from your home time zone to the local time at your destination when traveling. To specify the difference between local time and your home time zone:

1 Tap ← LOCAL.

2 Tap the +, -, ▲, and ▼ icons to choose the time difference. The minimum increment is 15 minutes. Tap OK when settings are complete.

To switch between local time and your home time zone, tap ✦ LOCAL or ⏻ HOME.

Option	Description
HOME	Switch to the time currently selected for DATE/TIME (82).
LOCAL	Switch to local time. If this option is selected, and the time and date will be displayed in yellow for three seconds each time the camera is turned on.

AUTOROTATE PB

(defaults to ON)

Choose ON to automatically rotate "tall" (portrait-orientation) pictures during playback.

BACKGROUND COLOR

Choose a color scheme.

fps LCD MODE

(defaults to PS ON)

Choose whether the display automatically dims to save power.

RESET

Tap OK to reset all settings except ⏻ DATE/TIME and ⚠ TIME DIFFERENCE to default values.

CALIBRATION

Calibrate the touch panel. Using your finger, tap the "+" symbols in the order (if you tap too far from the correct symbol, an error will be displayed; tap the correct symbol again) and tap OK.

VER VERSION INFO

Display the current firmware version.

Optional Accessories

The camera supports a wide range of accessories from FUJIFILM and other manufacturers.

* Available separately.

Accessories from FUJIFILM

The following optional accessories are available from FUJIFILM. For the latest information on the accessories available in your region, check with your local FUJIFILM representative or visit http://www.fujifilm.com/products/digital_cameras/index.html.

Rechargeable Li-ion batteries	NP-45A: Additional large-capacity NP-45A rechargeable batteries can be purchased as required.
Battery chargers	BC-45W: Replacement battery chargers can be purchased as required. The BC-45W charges an NP-45A battery in about 120 minutes at +20°C (+68°F).
HD players	HDP-L1 (requires HDMI cable, available from third-party suppliers): Connect to a High Definition (HD) TV to view photographs and movies from SD/SDHC memory cards.

Caring for the Camera

To ensure continued enjoyment of the product, observe the following precautions.

Storage and Use

If the camera will not be used for an extended period, remove the battery and memory card. Do not store or use the camera in locations that are:

• exposed to rain, steam, or smoke
• very humid or extremely dusty
- exposed to direct sunlight or very high temperatures, such as in a closed vehicle on a sunny day
• extremely cold
- subject to strong vibration
- exposed to strong magnetic fields, such as near a broadcasting antenna, power line, radar emitter, motor, transformer, or magnet
• in contact with volatile chemicals such as pesticides
- next to rubber or vinyl products

Water and Sand

Exposure to water and sand can also damage the camera and its internal circuitry and mechanisms. When using the camera at the beach or seaside, avoid exposing the camera to water or sand. Do not place the camera on a wet surface.

Condensation

Sudden increases in temperature, such as occur when entering a heated building on a cold day, can cause condensation inside the camera. If this occurs, turn the camera off and wait an hour before turning it on again. If condensation forms on the memory card, remove the card and wait for the condensation to dissipate.

Cleaning

Use a blower to remove dust from the lens and LCD monitor, then gently wipe with a soft, dry cloth. Any remaining stains can be removed by wiping gently with a piece of FUJIFILM lens-cleaning paper to which a small amount of lens-cleaning fluid has been applied. Care should be taken to avoid scratching the lens or LCD monitor. The camera body can be cleaned with a soft, dry cloth. Do not use alcohol, thinner, or other volatile chemicals.

Traveling

Keep the camera in your carry-on baggage. Checked baggage may suffer violent shocks that could damage the camera.

Problems and Solutions

Power and Battery

Problem	Solution
The camera does not turn on.	The battery is exhausted: Charge the battery (10) or insert a fully-charged spare battery (11).The battery is inserted incorrectly: Reinsert in the correct orientation (11).The battery-chamber cover is not latched: Latch the battery-chamber cover (12).
The battery runs down quickly.	The battery is cold: Warm the battery by placing it in a pocket or other warm place and reinsert it in the camera immediately before taking a picture.There is dirt on the battery terminals: Clean the terminals with a soft, dry cloth.is selected for shooting mode: Select auto mode to reduce the drain on the battery (25).The battery has been charged many times: The battery has reached the end of its charging life. Purchase a new battery.
The camera turns off suddenly.	Charge the battery (10) or insert a fully-charged spare battery (11).
Charging does not start.	Reinsert the battery in the correct orientation and make sure that the charger is plugged in (10).
Charging is slow.	Charge the battery at room temperature (vi).
The charging lamp lights, but the battery does not charge.	There is dirt on the battery terminals: Clean the terminals with a soft, dry cloth.The battery has been charged many times: The battery has reached the end of its charging life. Purchase a new battery. If the battery still fails to charge, contact your FUJIFILM dealer.The battery is too hot or too cold: Wait for the battery temperature to stabilize (107).

Menus and Displays

Problem	Solution
Menus and displays are not in English.	Select ENGLISH for ☐ 言語/LANG. (☐ 18, 84).

Shooting

Problem	Solution
No picture is taken when the shutter button is pressed.	Memory is full: Insert a new memory card or delete pictures (12, 44).Memory is not formatted: Format the memory card or internal memory (83).There is dirt on the memory card contacts: Clean the contacts with a soft, dry cloth.The memory card is damaged: Insert a new memory card (12).The battery is exhausted: Charge the battery (10) or insert a fully-charged spare battery (11).The camera has turned off automatically: Turn the camera on (16).
The LCD monitor goes dark after shooting.	The LCD monitor may darken while the flash charges. Wait for the flash to charge (35).
The camera does not focus.	The subject is close to the camera: Select macro mode (38).The subject is far away from the camera: Cancel macro mode (38).The subject is not suited to autofocus: Use focus lock (32).
Macro mode is not available	Choose a different shooting mode (25).
Intelligent Face Detection is not available.	Choose a different shooting mode (25).
No face is detected.	The subject’s face is obscured by sunglasses, a hat, long hair, or other objects: Remove the obstructions.The subject’s face occupies only a small area of the frame: Change the composition so that the subject’s face occupies a larger area of the frame (32).The subject’s head is tilted or horizontal: Ask the subject to hold their head straight.The camera is tilted: Keep the camera level (21).The subject’s face is poorly lit: Shoot in bright light.
Wrong subject is selected.	The selected subject is closer to the center of the frame than the main subject. Recompose the picture or turn face detection off and frame the picture using focus lock (32).
The flash does not fire.	The flash is not available in the current shooting mode: Choose a different shooting mode (25).The battery is exhausted: Charge the battery (10) or insert a fully-charged spare battery (11).The camera is in continuous mode: Select OFF for CONTINUOUS (72).The camera is in silent mode: Turn silent mode off (73).The flash is off (8): Choose a different flash mode (35).
Some flash modes are not available.	The desired flash mode is not available in the current shooting mode: Choose a different shooting mode (25).The camera is in silent mode: Turn silent mode off (73).
The flash does not fully light the subject.	The subject is not in range of the flash: Position the subject in range of the flash (106).The flash window is obstructed: Hold the camera correctly (21).
Pictures are blurred.	The lens is dirty: Clean the lens (89).The lens is blocked: Keep objects away from the lens (21).!AF is displayed during shooting and the focus frame is displayed in red: Check focus before shooting (96).!is displayed during shooting: Use the flash or a tripod (36).
Pictures are mottled.	This is normal when slow shutter speeds are selected at high temperatures and does not indicate a malfunction.
Vertical lines appear in pictures.	The camera has been used continuously at high temperatures. Turn the camera off and wait for it to cool down.
“Smear”in the form of vertical purple or white lines appears in the display.	Vertical purple or white lines may appear after the camera has been used continuously at high temperatures or when a very bright object is in the frame; this phenomenon is common to all CCD image sensors and does not indicate a malfunction. These lines are recorded in movies but do not appear in photographs. Avoid framing bright objects when filming movies.
Sounds made by the camera are recorded with movies.	Zoom was adjusted during shooting: Do not adjust zoom during shooting.Intelligent Face Detection is on: Turn Intelligent Face Detection off (39).

Playback

Problem	Solution
Pictures are grainy.	The pictures were taken with a different make or model of camera.
Playback zoom is unavailable.	The pictures were created using ☑ RESIZE or with a different make or model of camera.
No sound in movie playback.	• Playback volume is too low: Adjust playback volume (☐ 83).• The microphone was obstructed: Hold the camera correctly during recording (☐ 21, 56).• The speaker is obstructed: Hold the camera correctly during playback (☐ 58).
Selected pictures are not deleted.	Some of the pictures selected for deletion are protected. Remove protection using the device with which it was originally applied (☐ 76).
File numbering is unexpectedly reset.	The battery-chamber cover was opened while the camera was on. Turn the camera off before opening the battery-chamber cover (☐ 16).

Connections/Miscellaneous

Problem	Solution
The computer does not recognize the camera.	Be sure the camera and computer are correctly connected (65).
Pictures can not be printed.	The camera is not properly connected: Connect the camera correctly (59).The printer is off: Turn the printer on.
Only one copy is printed/the date is not printed.	The printer is not PictBridge compatible.
The camera is unresponsive.	Temporary camera malfunction: Remove and reinsert the battery (11).The battery is exhausted: Charge the battery (10) or insert a fully-charged spare battery (11).
The camera does not function as expected.	Remove and reinsert the battery (11). If the problem persists, contact your FUJIFILM dealer.
No sound.	Turn silent mode off (79).
The camera does not respond to the touch panel,or does not perform the expected action when the touch panel is used.	The touch panel requires calibration: Calibrate the touch panel (85).The hand that is holding the camera is touching the panel: Adjust your grip so that the hand that is holding the camera is not touching the panel.

Warning Messages and Displays

The following warnings are displayed in the LCD monitor:

Warning	Description
( red )	Low battery. Charge the battery ( 10 ) or insert a fully-charged spare battery ( 11 ).
( blinks red )	Battery exhausted. Charge the battery ( 10 ) or insert a fully-charged spare battery ( 11 ).
!	Slow shutter speed. Pictures may be blurred; use the flash or a tripod.
! AF(displayed in red with red focus frame)	The camera can not focus. Try one of the following solutions:Use focus lock to focus on another subject at the same distance, then recompose the picture ( 32 ).Use macro mode to focus when taking close-ups ( 38 ).
Aperture or shutter speed displayed in red	The subject is too bright or too dark and the picture will be over- or under-exposed. If the subject is dark, use the flash ( 35 ).
LENS COVER	Attempted to take photograph with lens cover closed. Open lens cover before taking photographs.
FOCUS ERROR	Camera malfunction. Turn the camera off and then on again. If the message persists, contact a FUJIFILM dealer.
LENS CONTROL ERROR
CARD NOT INITIALIZED	The memory card or internal memory is not formatted or the memory card was formatted in a computer or other device: Format the memory card or internal memory using the FORMAT option in the camera setup menu ( 83 ).The memory card contacts require cleaning: Clean the contacts with a soft, dry cloth. If the message is repeated, format the card ( 83 ). If the message persists, replace the card.Camera malfunction: Contact a FUJIFILM dealer.
PROTECTED CARD	The memory card is locked. Unlock the card ( 12 ).
BUSY	The memory card is incorrectly formatted. Use the camera to format the card ( 83 ).
CARD ERROR	The memory card is not formatted for use in the camera. Format the card (83).
	The memory card contacts require cleaning or the memory card is damaged. Clean the contacts with a soft, dry cloth. If the message is repeated, format the card (83). If the message persists, replace the card.
	Incompatible memory card. Use a compatible card (14).
	Camera malfunction. Contact a FUJIFILM dealer.
MEMORY FULL	The memory card or internal memory is full and pictures can not be recorded or copied. Delete pictures or insert a memory card with more free space.
MEMORY FULL
INTERNAL MEMORY IS FULL
INSERT A NEW CARD
WRITE ERROR	• Memory card error or connection error: Reinsert the card or turn the camera off and then on again. If the message persists, contact a FUJIFILM dealer.• Not enough memory remaining to record additional pictures: Delete pictures or insert a memory card with more free space.• The memory card or internal memory is not formatted: Format the memory card or internal memory (83).
READ ERROR	• The file is corrupt or was not created with the camera: The file can not be viewed.• The memory card contacts require cleaning: Clean the contacts with a soft, dry cloth. If the message is repeated, format the card (83). If the message persists, replace the card.• Camera malfunction: Contact a FUJIFILM dealer.
FRAME NO. FULL	The camera has run out of frame numbers (current frame number is 999-9999). Format the memory card and select RENEW for 📄 FRAME NO. Take a picture to reset frame num-bering to 100-0001, then select CONTINUOUS for 📄 FRAME NO. (📖 81).
DEACTIVATE SILENT MODE	An attempt was made to adjust the volume with the camera in silent mode. Exit silent mode before adjusting the volume (📖 79).
TOO MANY FRAMES	A search has returned more than 5,000 results, or more than 999 frames were selected for deletion. Perform a different search or select fewer pictures.
PROTECTED FRAME	An attempt was made to delete or rotate to a protected picture. Remove protection and try again (📖 76).
640 CAN NOT CROP	640 pictures can not be cropped.
CAN NOT CROP	The picture is damaged or was not created with the camera.
M CANNOT EXECUTE	An attempt was made to create a resized copy at a size equal to or larger than the original.Choose a smaller size.
S CANNOT EXECUTE
640 CANNOT EXECUTE
CAN NOT ROTATE	An attempt was made to rotate a picture that can not be rotated.
CAN NOT ROTATE	Movies can not be rotated.
CANNOT EXECUTE	Red-eye removal can not be applied to the selected picture.
CANNOT EXECUTE	Red-eye removal can not be applied to movies.
NO CARD	No memory card inserted when COPY COPY is selected. Insert a memory card.
SD NO IMAGE	The source selected for COPY COPY contains no images. Select a different source.
IN NO IMAGE
COMMUNICATION ERROR	A connection error occurred while pictures were being printed or copied to a computer or other device. Confirm that the device is turned on and that the USB cable is connected.
PRINTER ERROR	Printer out of paper or ink, or other printer error. Check printer (see printer manual for details). To resume printing, turn the printer off and then turn it back on.
PRINTER ERROR RESUME?	Printer out of paper or ink, or other printer error. Check printer (see printer manual for details). If printing does not resume automatically, tap OK to resume.
CANNOT BE PRINTED	An attempt was made to print a movie, a picture not created with the camera, or a picture in a format not supported by the printer. Movies and some pictures created with other devices can not be printed; if the picture is a still picture created with the camera, check the printer manual to confirm that the printer supports the JFIF-JPEG or Exif-JPEG format. If it does not, the pictures can not be printed.

Tips and Tricks

The following tips and tricks will help you get the most from your camera.

Battery Performance

Choose the following settings for improved battery performance:

• SHOOTING MODE (25): AUTO
• FACE DETECTION (73): OFF
- fps LCD MODE (85): POWER SAVE ON

The Silent Mode

Turning on the silent mode (73, 79) disables the speaker and flash in situations in which camera sounds or lights may be unwelcome.

The Self-timer

• To prevent blur caused by the camera moving when the shutter button is pressed, use the two-second timer.
• To turn the timer off, tap BACK (♡ and ⏻), press the shutter button halfway (♡ and ⏻).

Intelligent Face Detection

When ON is selected for 📄 FACE DETECTION (📖 39), you can:

Shooting

• Zoom in on faces when ZOOM(CONTINUOUS) is selected for IMAGE DISP. (80).
• Remove red-eye by selecting ON for Face Detection and red-eye removal.
• Zoom in on faces during slide shows (75) or by tapping [●] during play-back.
• Search for faces using 📄 IMAGE SEARCH (📖 45).
• Crop the background from portraits using 📄 CROP (📖 51).

Playback

Quick Deletion

Tap ☐ to delete a currently viewing photograph in the playback mode.

Pro Tips

• To photograph the same scene both with and without the flash, select 📋 NATURAL & ↓ for 📋 SHOOTING MODE (📖 30). Use ⚠ PICTURE COMPARE (📖 74) to compare the two shots.
• To photograph subjects that are in motion, select 📋 TOUCH & TRACK for 🎯 SHOOTING MODE (📖 26).
• To fine-tune brightness of a photograph, select P PROGRAM AE (📖 31) for 📷 SHOOTING MODE, choose an appropriate white balance option (📖 72), and adjust exposure compensation (📖 34).

Two grayscale images of a birthday cake with candles and decorative toppings (no text or symbols)

Illustration of a person kicking a soccer ball on the ground (no text or symbols)

Illustration of a skier in action on a snowy slope with mountain background (no text or symbols)

Internal Memory/Memory Card Capacity

The following table shows the recording time or number of pictures available at different image sizes. All figures are approximate; file size varies with the scene recorded, producing wide variations in the number of files that can be stored. The number of exposures or length remaining may not diminish at an even rate. A limited number of test pictures can be taken when no memory card is inserted.

Medium		Internal memory (approx. 38 MB)		2 GB		4 GB		8 GB
		FINE	NORMAL	FINE	NORMAL	FINE	NORMAL	FINE	NORMAL
Photographs	L 4:3	6	10	320	550	640	1100	1290	2210
	L 16:9	8	15	410	780	830	1570	1680	3160
	M 4:3	12	21	630	1100	1260	2200	2540	4420
	M 16:9	16	30	820	1540	1640	3090	3290	6200
	S 4:3	28	46	1420	2350	2860	4710	5740	9450
	S 16:9	40	55	2070	2830	4150	5680	8330	11400
Movies	HD 1280 ^	11 sec.		11 min.		24 min.		48 min.
	640	31 sec.		28 min.		58 min.		116 min.

* Individual movie files can not exceed 2 GB in size.
† Use a CLASS④ card or better when shooting HD movies.

Specifications

System
Model	Digital Camera FinePix Z85/Z90 Series
Effective pixels	14.2 million
CCD	12.3 -in., square-pixel CCD with primary color filter
Storage media	Internal memory (approx. 38 MB)SD/SDHC/SDXC memory cards
File system	Compliant with Design Rule for Camera File System (DCF), Exif 2.3
File format	Still pictures: Exif 2.3 JPEG (compressed)Movies: AVI-format Motion JPEG
Image size (pixels)	L 4:3: 4,320 × 3,240M 4:3: 3,072 × 2,304S 4:3: 2,048 × 1,536
Lens	Fujinon 5 × optical zoom lens, F3.9 (wide angle) – F4.9 (telephoto)
Focal length	f=5.0 mm–25.0 mm (35-mm format equivalent: 28 mm–140 mm)
Digital zoom	4:3: Approx. 6.8 × (up to 34 × when combined with optical zoom)16:9: Approx. 5.1 × (up to 25 × when combined with optical zoom)
Aperture	F3.9/F6.2 (wide angle), F4.9/F8.0 (telephoto); 2 step
Focus range(distance from front of lens)	Approx. 60 cm (1.9 ft.)–infinity (wide angle); 1.0 m (3.2 ft.)–infinity (telephoto)Macro: approx. 9 cm–80 cm/3.5 in.–2.6 ft. (wide angle); 40 cm–80 cm/1.3 ft.–2.6 ft. (telephoto)
Sensitivity	Standard output sensitivity equivalent to ISO 100, 200, 400, 800, 1600, 3200; AUTO
Metering	256-segment through-the-lens (TTL)
Exposure control	Programmed AE
Exposure compensation	-2 EV - +2 EV in increments of 13 EV
Image stabilization	Digital image stabilization
Shutter speed(combined mechanical and electronic shutter)	AUTO mode: 14 s - 12,000 s Other modes: 4 s - 12,000 s
Continuous	Up to 0.8 fps, max. 3 frames
Focus	Focus-area selection: AF CENTER, focus areas selected in 📄 TOUCH & SHOOT and 🌐 TOUCH & TRACK modesAutofocus system: Contrast-detect TTL AF
White balance	Automatic scene detection; six manual preset modes for direct sunlight, shade, daylight fluorescent, warm white fluorescent, cool white fluorescent, and incandescent
Self-timer	Off, 2 sec., 10 sec., 🎨 (COUPLE TIMER), 🎩 (GROUP TIMER)
Flash	Auto flash; effective range when sensitivity is set to AUTO is approx. 70 cm–3.1 m/2.2 ft.–10.1 ft. (wide angle), 70 cm–2.7 m/2.2 ft.–8.8 ft. (telephoto); effective range in macro mode is approx. 30 cm–80 cm/0.9 ft.–2.6 ft.
Flash mode	Auto, fill flash, off, slow sync (red-eye removal off); auto with red-eye removal, fill flash with red-eye removal, off, slow sync with red-eye removal (red-eye removal on)
LCD monitor	3.0-in., 230k-dot color LCD monitor; frame coverage approx. 96%
Movies	Frame size HD 1280 (1,280 × 720) or 640 (640 × 480); 30 fps; monaural sound
Languages	Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hebrew, Hungarian, Indonesian, Italian, Japanese, Kazakh, Korean, Latvian, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian, Slovak, Spanish, Swedish, Thai, Turkish, Ukrainian, Vietnamese
Input/output terminals
Digital input/output	USB 2.0 High-Speed, MTP/PTP

Power supply/other
Power supply	NP-45A rechargeable battery
Battery life (approximate number of frames that can be taken with a fully-charged battery)	Battery type	Approximate number of frames
	NP-45A (type supplied with camera)	220
	CIPA standard, measured in (auto) mode using battery supplied with camera and SD memory card.
	Note: Number of shots that can be taken with battery varies with battery charge level and will decline at low temperatures.
Camera dimensions(W × H × D)	95.4 mm × 56.9 mm × 20.1 mm/3.7in. × 2.2in. × 0.7in.,excluding projections (minimum depth 17.45 mm/0.6 in.)
Camera weight	Approx. 133 g/4.6 oz., excluding battery, accessories, and memory card
Shooting weight	Approx. 150 g/5.2 oz., including battery and memory card
Operating conditions	Temperature: 0 °C – +40 °C/+32 °F – +104 °FHumidity: 10% – 80% (no condensation)

NP-45A rechargeable battery
Nominal voltage	DC 3.7V
Nominal capacity	720 mAh
Operating temperature	0 °C – +40 °C/+32 °F – +104 °F
Dimensions (W × H × D)	31.0 mm × 39.6 mm × 6.0 mm/1.2 in. × 1.6 in. × 0.2 in.
Weight	Approx. 15.5 g/0.5 oz.
BC-45B battery charger
Rated input	100 V–240 V AC, 50/60 Hz
Input capacity	6.0 V (100 V/240 VA)
Rated output	4.2 V DC, 550 mA
Supported batteries	NP-45A rechargeable batteries
Charging time	Approx. 120 minutes (+20 °C/+68 °F)
Operating temperature	0 °C – +40 °C/+32 °F – +104 °F
Dimensions (W × H × D)	46 mm × 91 mm × 23 mm/1.8 in. × 3.6 in. × 0.9 in., excluding projections
Weight	Approx. 65 g/2.2 oz., excluding battery

Weight and dimensions vary with the country or region of sale.

Notices

• Specifications subject to change without notice. FUJIFILM shall not be held liable for damages resulting from errors in this manual.
• Although the LCD monitor is manufactured using advanced high-precision technology, small bright points and anomalous colors may appear, particularly in the vicinity of text. This is normal for this type of LCD monitor and does not indicate a malfunction; images recorded with the camera are unaffected.
• Digital cameras may malfunction when exposed to strong radio interference (e.g., electric fields, static electricity, or line noise).
• Due to the type of lens used, some distortion may occur at the periphery of images. This is normal.

FUJIFILM

FUJIFILM Corporation

http://www.fujifilm.com/products/digital_cameras/index.html

Restrictions on Camera Settings

The options available in each shooting mode are listed below.

Shooting Mode

SP

Option

OFF

AUTO

4

127873

OFF

AUTO

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓2

✓

102471

4

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓2

✓

S4

✓

✓

✓

✓

✓

127422

ON

AUTO

✓

✓

✓

✓

✓

✓

✓2

✓

112762

14

✓

✓

✓

✓

✓

✓

✓

✓2

✓

5LOW

✓

✓

✓

✓

✓

102473

3

✓

✓

✓

✓

✓

✓

✓2

✓

✓

✓

✓

✓

✓

✓2

✓

✓2

✓2

✓

102473

10/2

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

2/2

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

127471

4

✓1

✓

✓

✓

✓2

✓2

✓

✓

✓

102473

OFF

✓1

✓

✓

✓

✓2

✓2

✓2

✓2

✓2

✓2

✓2

✓2

✓2

✓2

✓2

✓

✓

✓

102473

2

✓

102474

AUTO

✓2

✓2

✓2

✓2

✓2

✓2

✓2

✓2

✓2

✓2

✓2

✓2

✓2

✓2

✓2

✓2

✓2

✓2

✓2

✓2

✓

3200

✓

106422

1600

✓

107043

800

✓

400

✓

102470

200

✓

102210

100

✓

102470

L

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

122270

M

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

S

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

102471

HD 1280

✓

640

✓

Shooting Mode

SP

Option

SAR KONK

AUTO

L

###

###

###

###

###

###

###

###

###

###

###

###

NORR

###

###

P

###

BODI

FINE

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

NORMAL

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√2

√

√

√

TP

TODI

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

TAID

√

√

√

√

√

√

DOWI

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

LUTI

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

WB

√

√

ON

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

OFF

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

QQ

START ON

√

√

√

√

√

√

√

√

√

√

√

√

√

OFF

√

√

√

√

√

√

√

√

√

√

√

√

√

OFF

√

√2

√2

√

√

√2

√2

√

√

√

√

√

√

√2

√2

√2

√

√

√

TENKI

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

ONADI

AUTO

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

OFF

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

THKD

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

DOKO

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

ONDAI

ON

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

OFF

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

1 The camera automatically analyzes and selects macro mode ON/OFF.
2 Automatically optimized for selected shooting mode.
