USER MANUAL UMX-TPS-TX120 Lightware

UMX-TPS-TX100 series - User's Manual 2

Important Safety Instructions

Class II apparatus construction.

The equipment should be operated only from the power source indicated on the product.

To disconnect the equipment safely from power, remove the power cord from the rear of the equipment, or from the power source. The MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.

There are no user-serviceable parts inside of the unit. Removal of the cover will expose dangerous voltages. To avoid personal injury, do not remove the cover. Do not operate the unit without the cover installed.

The appliance must be safely connected to multimedia systems. Follow instructions described in this manual.

Ventilation

For the correct ventilation and to avoid overheating ensure enough free space around the appliance. Do not cover the appliance, let the ventilation holes free and never block or bypass the ventilators (if any).

WARNING

To prevent injury, the apparatus is recommended to securely attach to the floor/wall or mount in accordance with the installation instructions. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. No naked flame sources, such as lighted candles, should be placed on the apparatus.

Waste Electrical & Electronic Equipment WEEE

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Common Safety Symbols

Symbol Description
---	Direct current
~	Alternating current
	Double insulation
	Caution, possibility of eletric shock
	Caution

UMX-TPS-TX100 series - User's Manual 3

Symbol Legend

The following symbols and markings are used in the document:

WARNING! Safety-related information which is highly recommended to read and keep in every case!

ATTENTION! Useful information to perform a successful procedure; it is recommended to read.

INFO: A notice which may contain additional information. Procedure can be successful without reading it.

DEFINITION: The short description of a feature or a function.

TIPS AND TRICKS: Ideas which you may have not known yet but can be useful.

Navigation Buttons

Go back to the previous page. If you clicked on a link previously, you can go back to the source page by the button.
Navigate to the Table Contents.
Step back one page.
Step forward to the next page.

Document Information

This User's Manual applies to the following versions of the mentioned software, firmware, and hardware:

Item Version
Lightware Device Controller (LDC) software 1.26.0b6

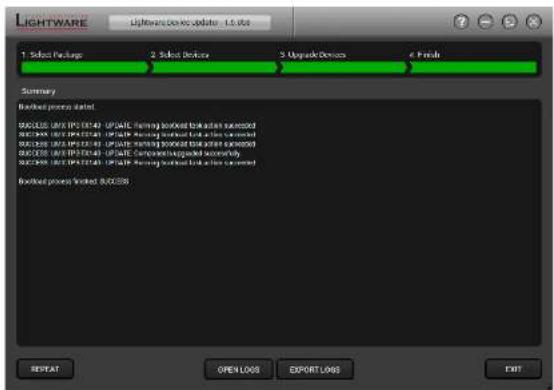

Lightware Device Updater (LDU) software 1.5.2b3
Controller firmware - UMX-TPS-TX100 series 1.1.1
Controller firmware - WP-UMX-TPS-TX100 series 1.2.0
Controller firmware - FP-UMX-TPS-TX130-MKM 1.3.0
Hardware 1.2

Document revision: 2.1

Release date: 13-11-2018

Editor: Judit Barsony

About Printing

Lightware Visual Engineering supports green technologies and eco-friend mentality. Thus, this document is made for digital usage primarily. If you need to print out few pages for any reason, follow the recommended printing settings:

• Page size: A4
- Output size: Fit to page or Match page size
- Orientation: Landscape

TIPS AND TRICKS: Thanks to the size of the original page, a border around the content (gray on the second picture below) makes possible to organize the pages better. After punching the printed pages, they can be placed easily into a ring folder.

1

2

3

Table of Contents

1. INTRODUCTION....7
   1.1.DESCRIPTION....7
   1.2. COMPATIBLE DEVICES 7

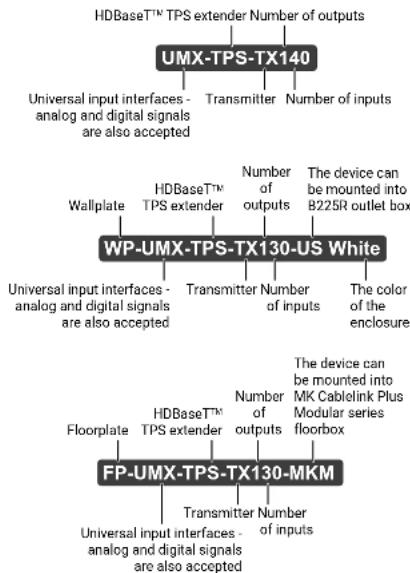

   1.3. MODEL DENOMINATION ....7 1.4. Box CONTENTS ....2

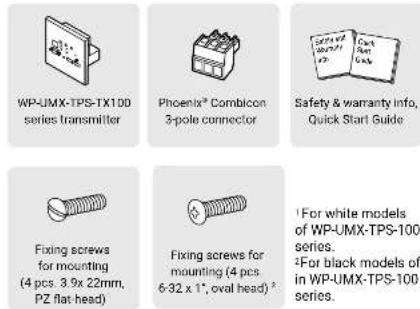

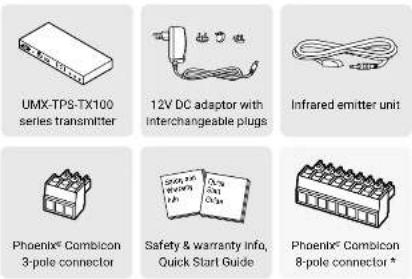

   1.4. BOX CONTENTS ....8 1.5. FEATURES ....9
   1.5 FEATURES ......8 1.6 MODEL COMPARISON 9

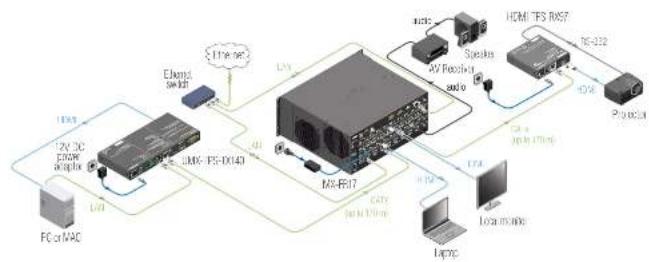

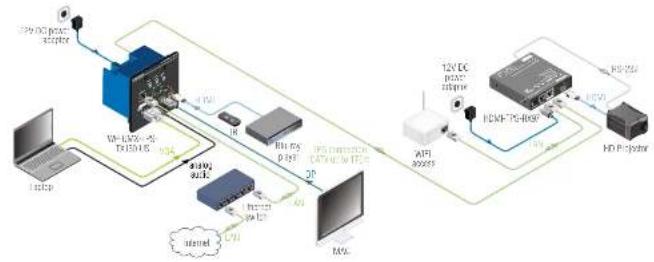

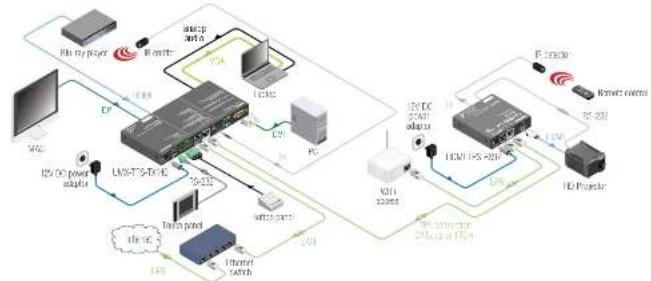

   1.7. TYPICAL APPLICATION 10
2. INSTALLATION 11
3. INSTALLATION....11 3.1. MOUNTING OPTIONS: UMY TRS TX100 STRYS....11
   2.1. MOUNTING OPTIONS - OMX-TPS-TX100 SERIES....11 3.1.1. Under deck Double Mounting Kit....11

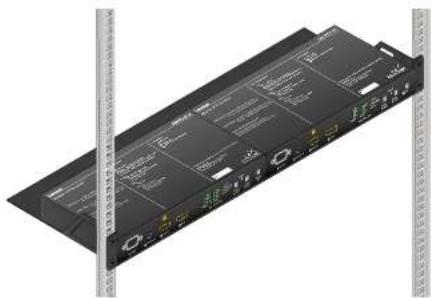

   2.1.1. Under-desk Double Mounting Kit.... 11 2.1.2. 1U High Rack Shelf.... 11
   2.1.2. TO High Rack Shell 11 3.2. MOUNTING OPTIONS - WR-UMY TRS-TX100 SERIES 12

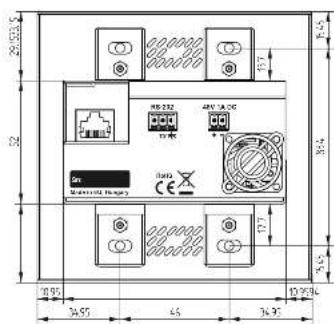

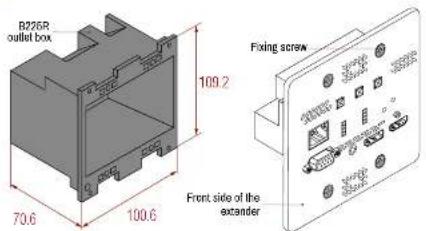

   2.2. MOUNTING OPTIONS - WP-UMX-TPS-TX100 SERIES .... 12 2.3. MOUNTING OPTIONS - FP-UMX-TPS-TX130-MKM .... 12

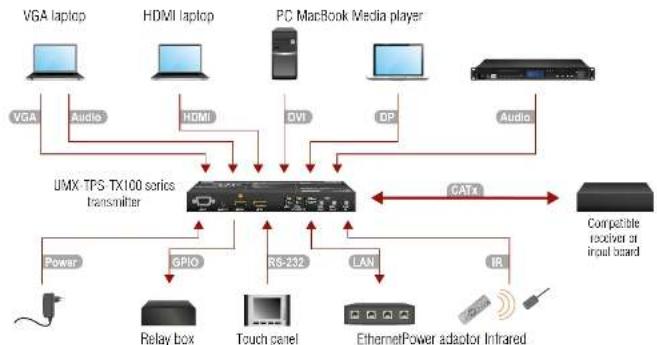

   2.4. CONNECTING STEPS....13
   2.4.1. WP-UMX-TPS-TX100 series....13
   2.4.2. UMX-TPS-TX100 series....13

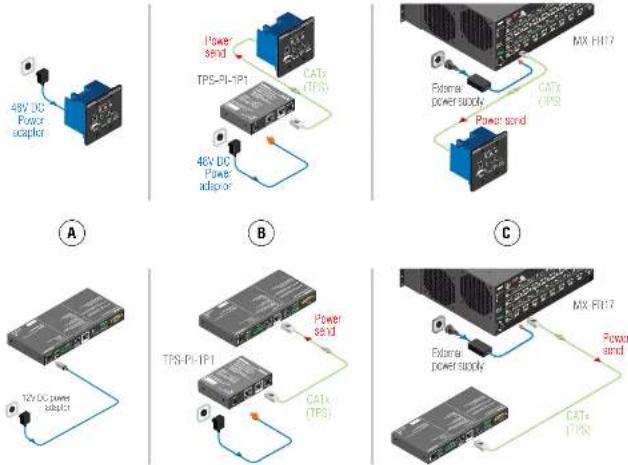

   2.5. POWERING OPTIONS....14
4. PRODUCT OVERVIEW 15
   3.1. FRONT VIEW - UMX-TPS-TX100 SERIES 15

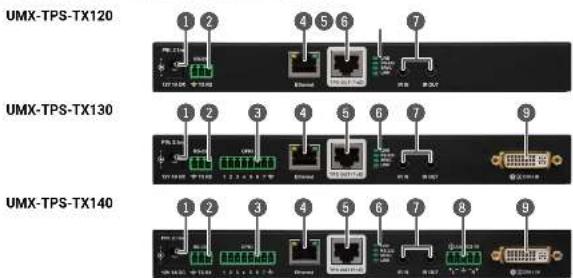

   3.2. REAR VIEW - UMX-TPS-TX100 SERIES 16

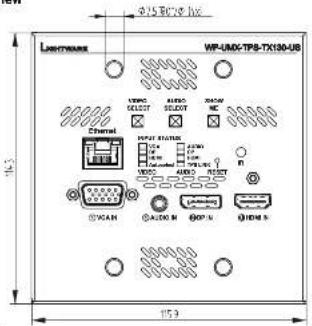

   3.3. FRONT VIEW - WP-UMX-TPS-TX100 SERIES 16
   3.4. REAR VIEW - WP-UMX-TPS-TX100 SERIES....17

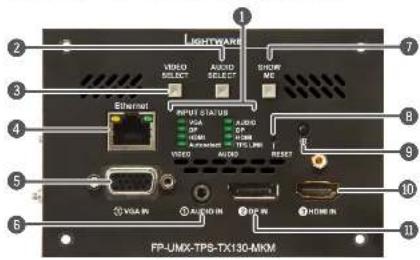

   3.5. FRONT VIEW - FP-UMX-TPS-TX130-MKM 17

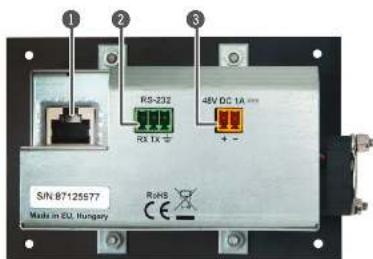

   3.6. REAR VIEW - FP-UMX-TPS-TX130-MKM 17
   3.7. ELECTRICAL CONNECTIONS....18
   3.7.1. Locking 12V DC Connection....18
   3.7.2. 48V DC Connection 18
   3.7.3. VGA Connector 18
   3.7.4.HDMI Connector 18
   3.7.5. DisplayPort Connector 18
   3.7.6. DVI-1 Connector.... 18 3.7.7. Analog Stereo Audio (lock).... 19
   3.7.7. Analog Stered Audio (Jack) 18

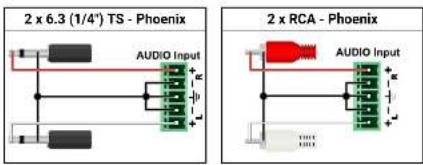

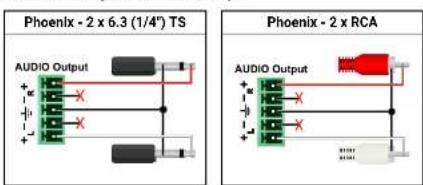

   3.7.8. Analog Stereo Audio (Phoenix) 18 3.7.9. Ethernet Connectors (TPS and LAN Ports) 10
   3.7.9. Ethernet Connector (TPS and LAN Ports) 19 3.7.10. RS 232 Connector 10
   3.7.10. RS-232 Connector 19 3.7.11. ID Connector 10
   3.7.11. IR Connector 19 3.7.12. IR Detector 10
   3.7.12. IR Detector 19 3.7.13. GPIO - General Purpose Input/Output Ports 19
   3.7.15. G-IO - General Purpose Input/Output Ports 19 2.8. TRS EXTENDER CONCEPT 20
   3.8. TPS EXTENDER CONCEPT 20 3.9. TRS INTERFACE 20

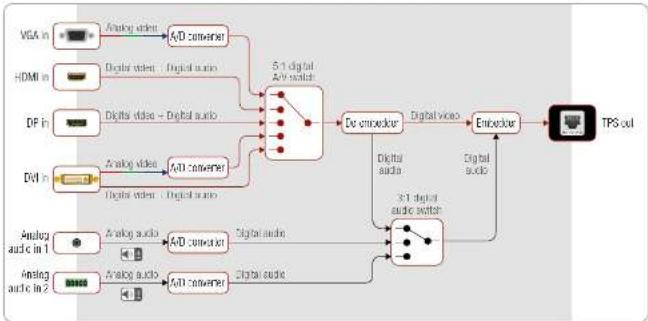

3.10. PORT DIAGRAM 21
3.11. VIDEO INTERFACE....22
3.11.1. Video Input Modes 22
3.11.2. Input Source Selection Modes 22

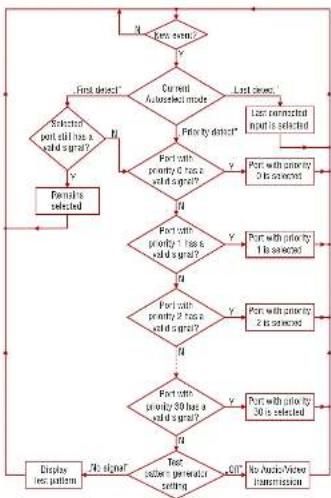

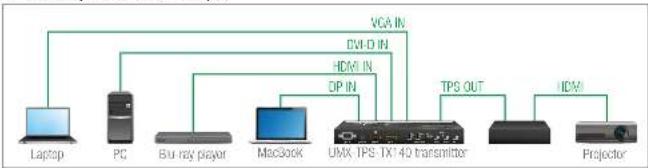

3.12. THE AUTOSELECT FEATURE....22
3.13. AUDIO INTERFACE 23
3.13.1. Audio Input Modes 23 3.13.2. Audio Options Example 22

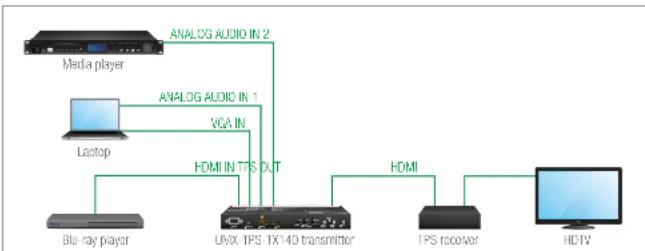

3.13.2. Audio Options - Example.... 23 3.14. Control Features.... 24
3.14. CONTROL FEATURES....24

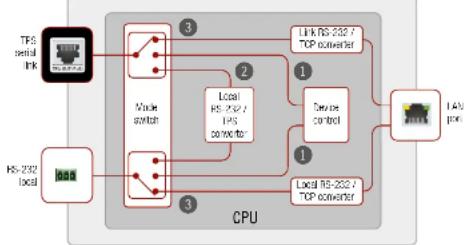

3.14.1. Serial Interface 24

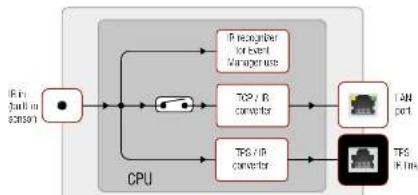

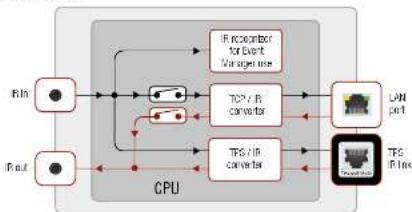

3.14.2. IR Interface 25
3.14.3 Ethernet Control Interface 25
3.14.3. Ethernet Control Interface 25 3.14.4. CBIO Interface 26
3.14.4. GPIO interface 26 3.15. FURTHER BUILT IN FEATURE 26
3.15. FURTHER BUILT-IN FEATURES....26 3.15.1. Automatically Launched Actions. The Event Manager....26
3.15.1. Automatically Launched Actions - The Event Manager.... 26 3.15.2. Transmitter Clamping - Configuration Backup and Posters.... 26
3.15.2. Transmitter Cloning - Conjugation Backup and Restore.... 26 3.15.3. Remote Firmware Upgrade of Connected Lightware Devices. 26

6.10.3: Remote Firmware Upgrade of Connected Wireless Devices...20

1. OPERATION 27

4.1. FRONT PANEL LEDS 27

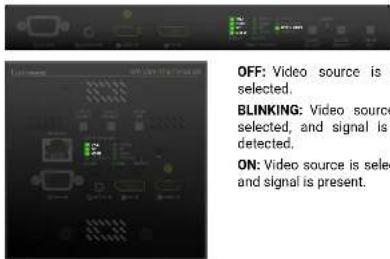

4.1.1. Video Input LEDs 27

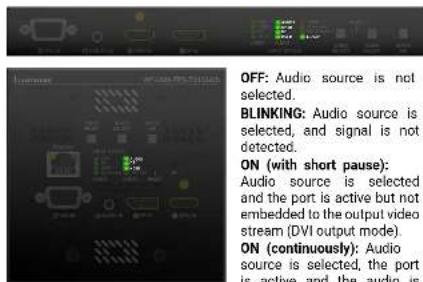

4.1.2. Audio Input LEDs 27

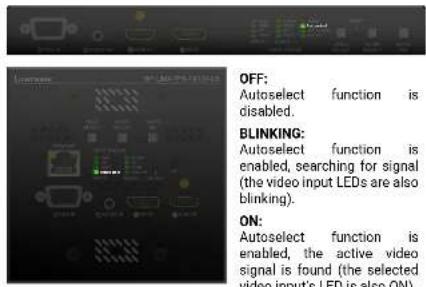

4.1.3. Autoselect LED 27

4.1.4.HDCPLED 27

4.1.5. TPS LINK LED 28

4.1.6. Firmware Version Indication 28

4.2. REAR PANEL LEDs 28

4.2.1. LIVE LED 28

4.2.2. RS-232 LED 28

4.2.3. SRVC LED 28

4.2.4. LINK LED 28

4.3. FRONT PANEL BUTTONS 29

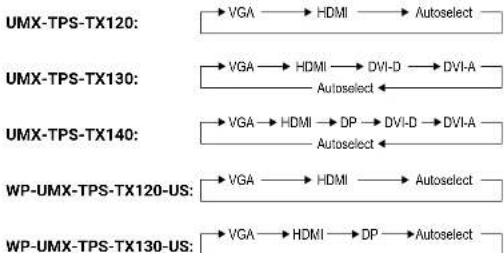

4.3.1. Video Select Button....29

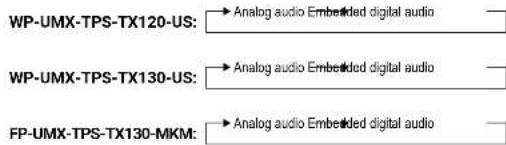

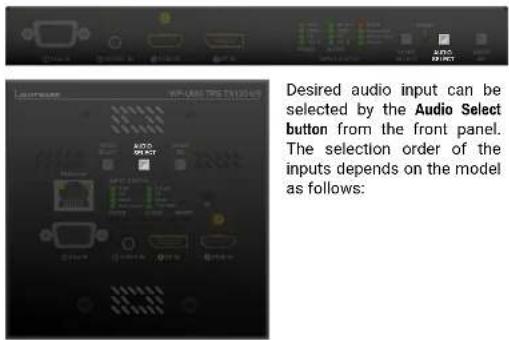

4.3.2. Audio Select Button....29

4.3.3. Port Legend 29

4.3.4. Programmable Show Me Button 29

4.4. SPECIAL FUNCTIONS ...... 29

4.4.1. Enable DHCP (Dynamic) IP Address 29

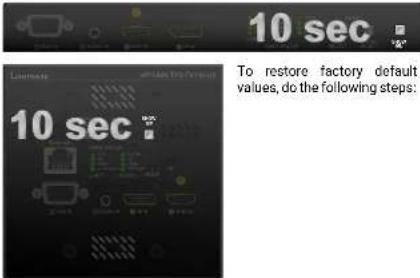

4.4.2. Reset to Factory Default Settings....30

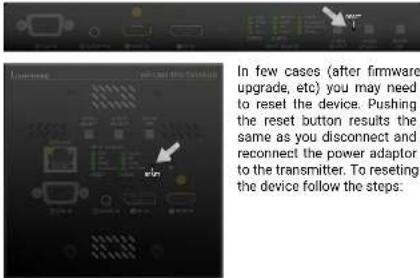

4.4.3. Resetting the Device.... 30

4.4.4. Control Lock 30

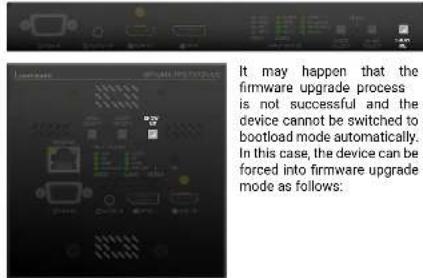

4.4.5. Entering Firmware Upgrade Mode 30

4.5. SOFTWARE CONTROL MODES 30

1. SOFTWARE CONTROL - LIGHTWARE DEVICE CONTROLLER ....31
   5.1. INSTALL AND UPGRADE 31
   5.2. RUNNING THE LDC 31

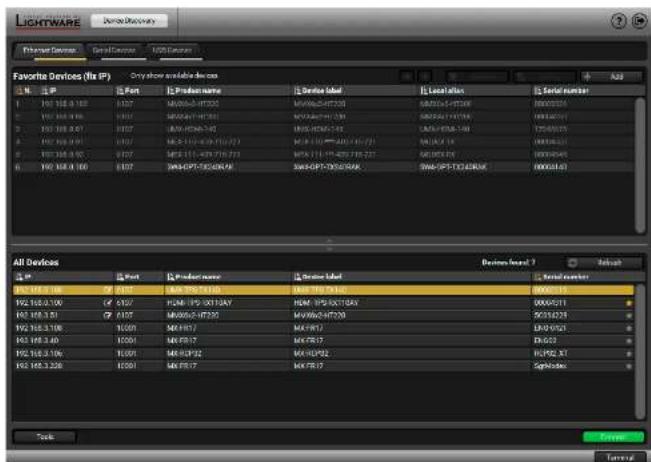

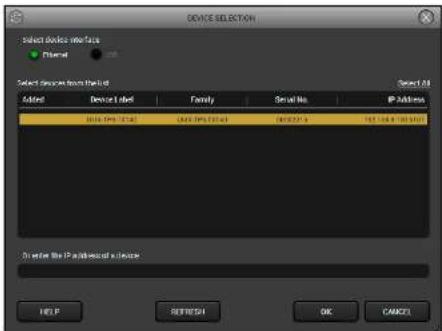

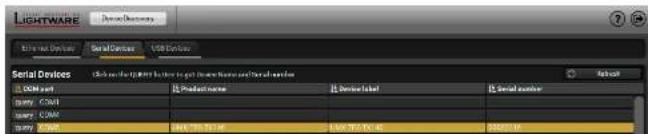

   5.3. CONNECTING TO A DEVICE (DEVICE DISCOVERY WINDOW)....32

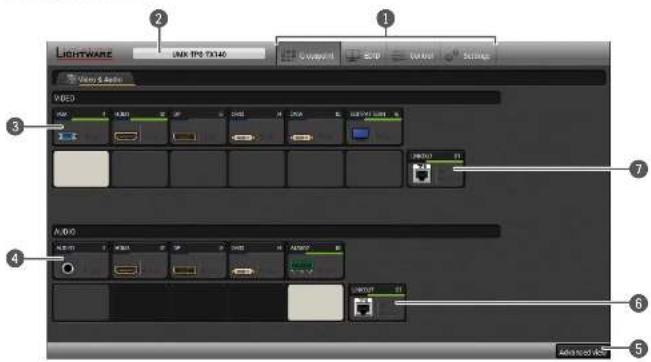

   5.4. CROSSPOINT MENU....33
   5.5. PORT PROPERTIES WINDOWS....34

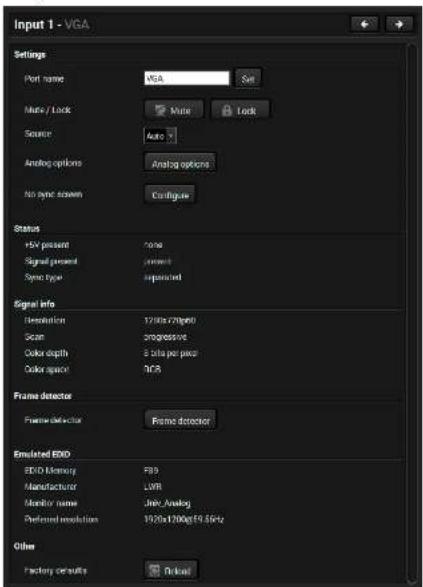

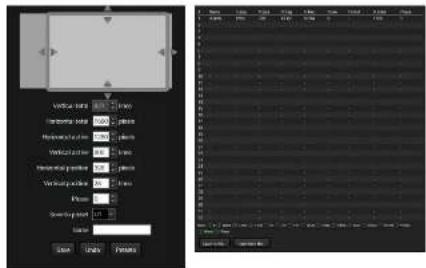

   5.5.1. Analog Video Inputs 34

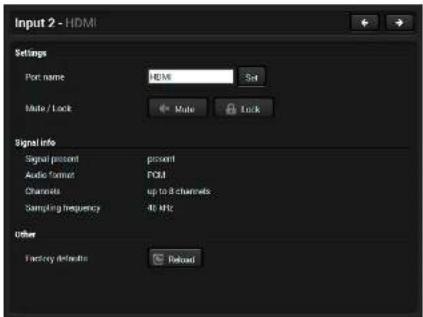

   5.5.2. Digital Video Inputs 34

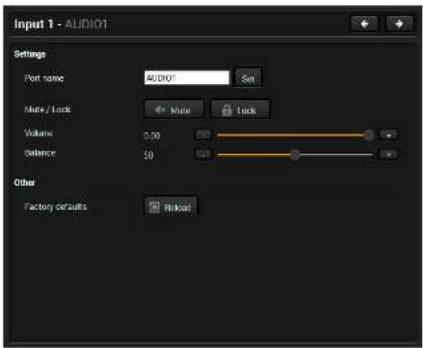

   5.5.3. Analog Audio Inputs 35
   5.5.4. Digital Audio Inputs 35

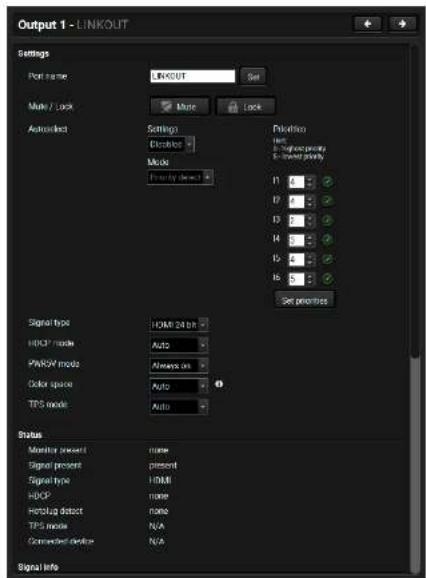

   5.5.5. TPS Video Output 35
   5.5.6. TPS Audio Output 36
   5.6. DIAGNOSTIC TOOLS....37

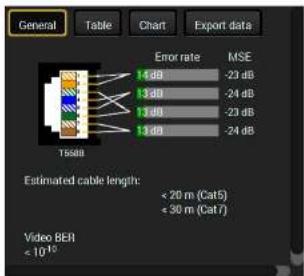

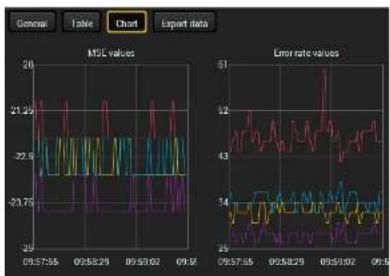

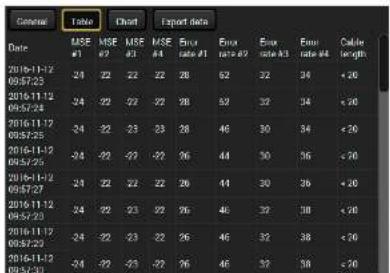

   5.6.1. Cable Diagnostics....37

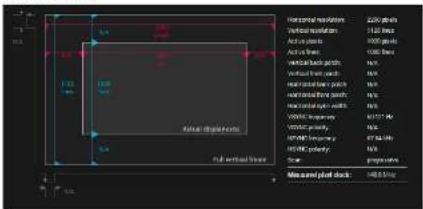

   5.6.2. Frame Detector 38

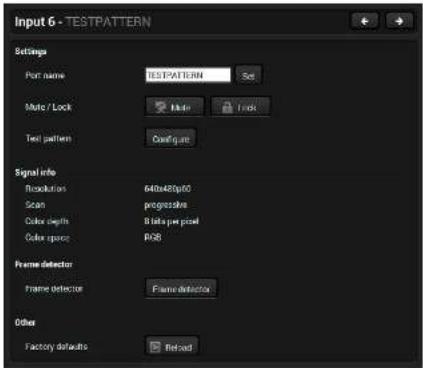

   5.6.3. Test Pattern 38

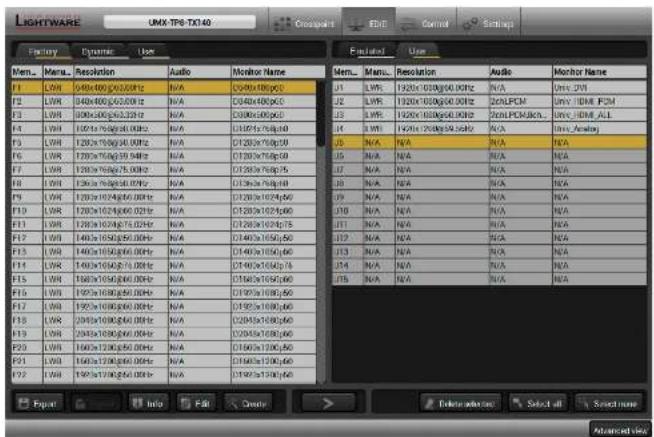

   5.7. EDID MENU....39
   5.7.1. EDID Operations....39

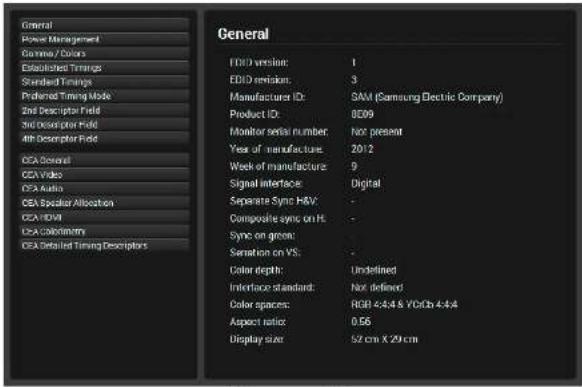

   5.7.2. EDID Summary Window 40

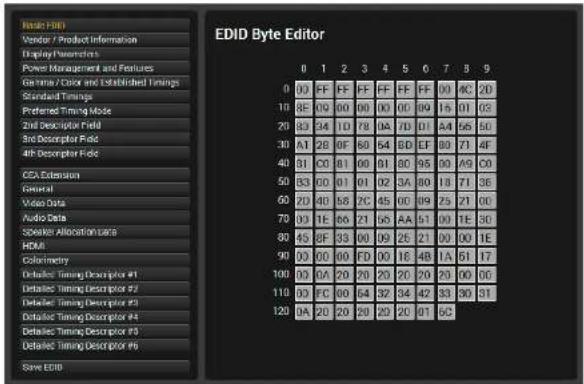

   5.7.3. Editing an EDID 40

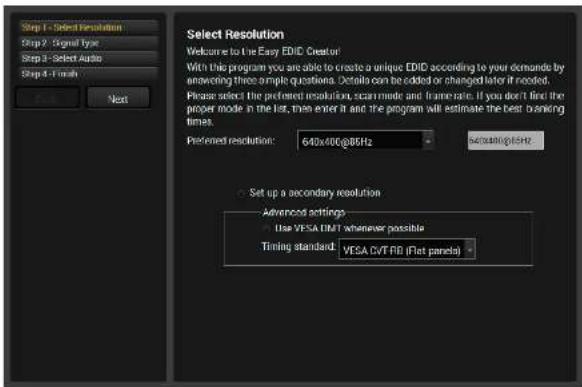

   5.7.4. Creating an EDID - Easy EDID Creator 41
   5.8. CONTROL MENU 41

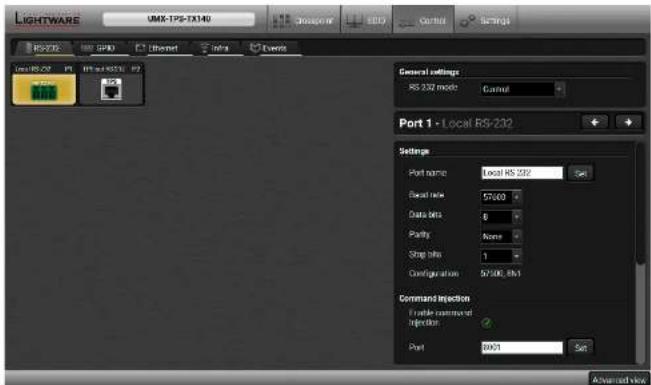

   5.8.1.RS-232 41

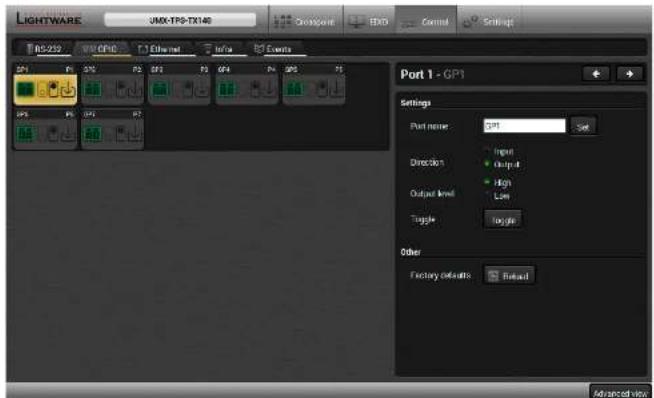

   5.8.2. GPIO 42

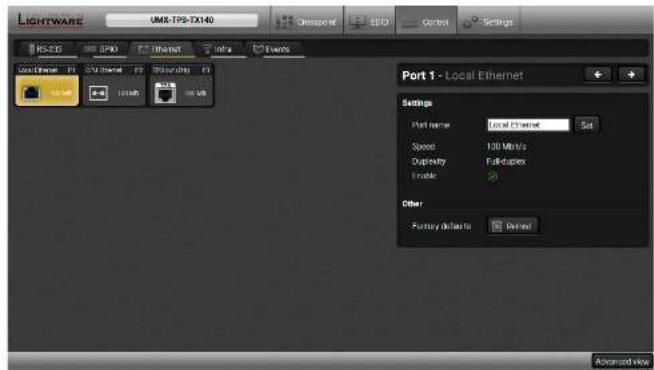

   5.8.3. Ethernet 42

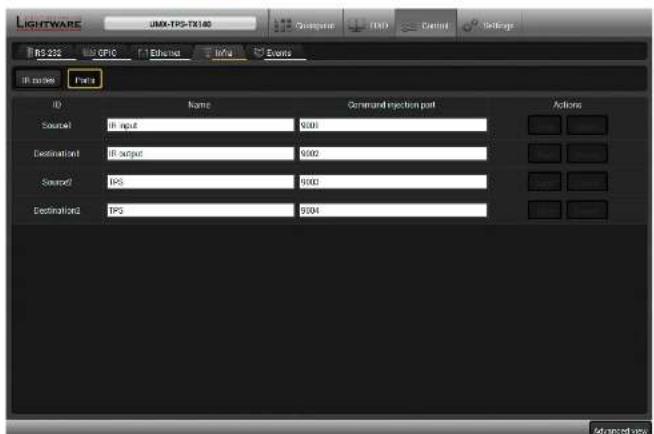

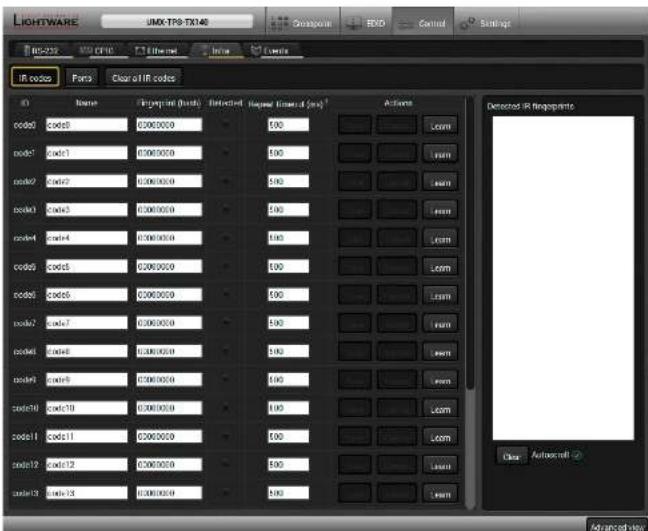

   5.8.4. Infra 43

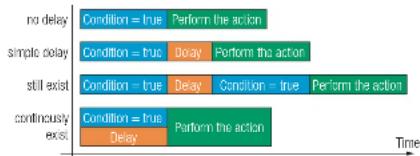

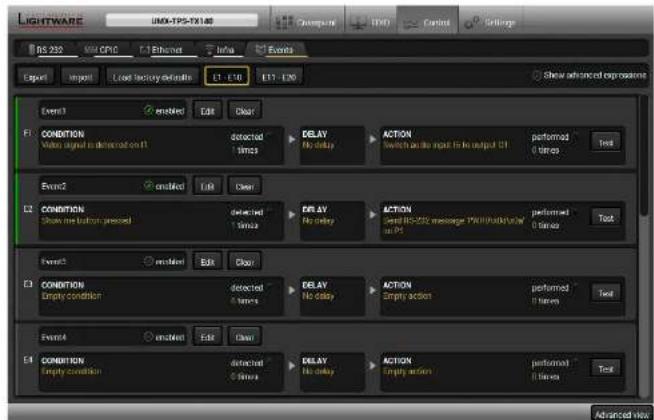

   5.9. EVENT MANAGER 44

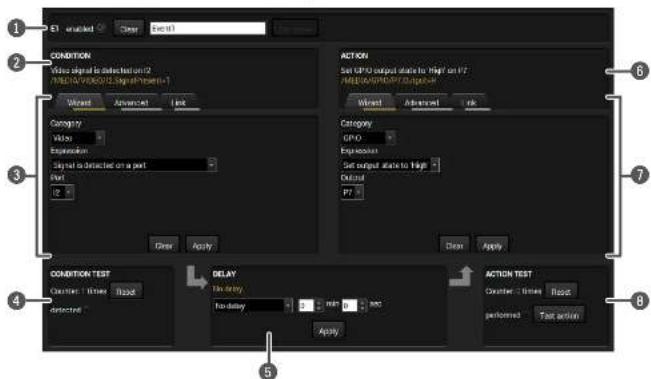

   5.9.1. The Event Editor 45
   5.9.2. Create or Modify an Event 45
   5.9.3. Special Tools and Accessories....46
   5.9.4. Clear One or More Event(s)....46
   5.9.5. Export and Import Events 46
   5.9.6. Event Creating - Example 46
   5.10. SETTINGS MENU 47

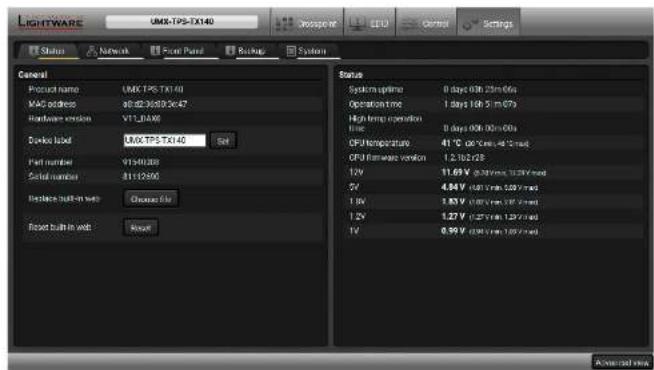

   5.10.1. Status 47

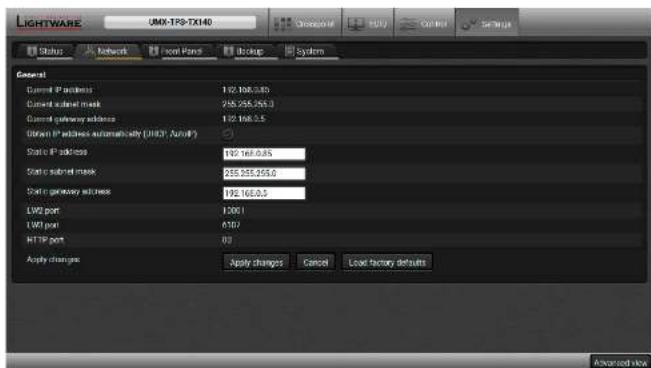

   5.10.2. Network 48
   5.10.3. Backup 48

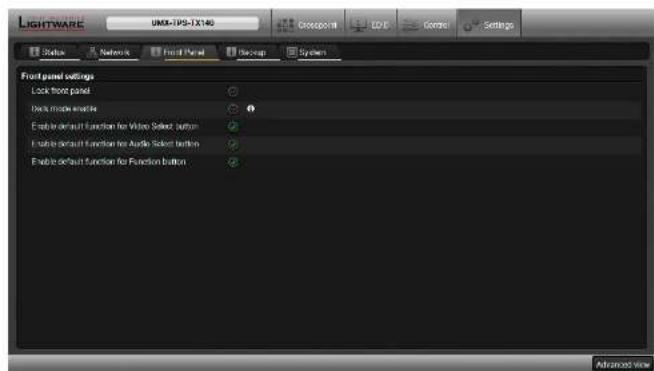

   5.10.4. Front Panel 48
   5.10.5. System 49

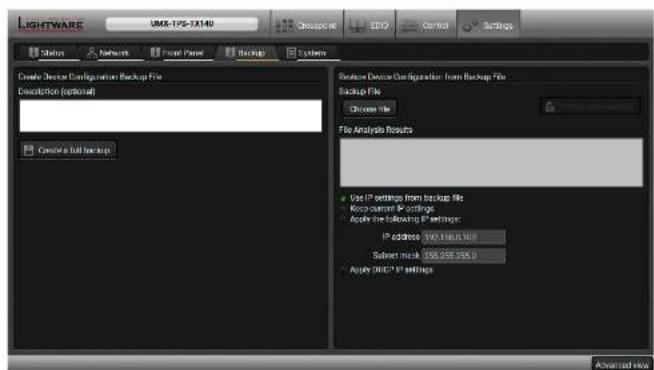

   5.11. CONFIGURATION CLONING (BACKUP TAB)....49
   5.11.1. Steps in a Nutshell 49
   5.11.2. Save the Settings of a Device (Backup) 50
   5.11.3. Upload the Settings to a Device (Restore)....50

Table of Contents

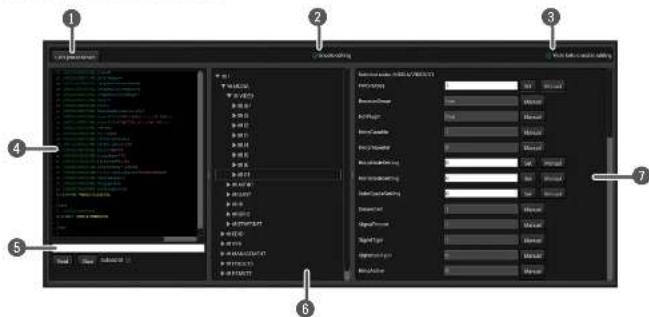

5.12. ADVANCED VIEW WINDOW 50

1. LW2 PROGRAMMER'S REFERENCE....51

6.1. LW2 PROTOCOL DESCRIPTION....51

6.2. GENERAL LW2 COMMANDS....51
6.2.1 View Product Type 51 6.2.2 Query Control Protocol 51
6.2.2. Query Control Protocol....51 6.2.3. View Firmware Version of the CPU 52
6.2.4. Connection Test 52
6.2.5. View Serial Number 52
6.2.6. Compile Time....52
6.2.7. View Installed Board....52
6.2.8. View Firmware for All Controllers 52
6.2.9. Restart the Device 52
6.2.10. Query Health Status 52 6.3.11. Partner, Family, Default Settings 52

6.2 A/V Rent Settings 52

6.3. A/V PORT SETTINGS....53 6.2.1. Switch on Input to the Output....52

6.3.1. Switch an input to the output....55 6.3.2. Mute Output....53

6.3.3 Unmute Output 53

6.3.4 Lock Output 53

6.3.5. Unlock Output 53

6.3.6. View Connection State on the Output 54

6.3.7. View Crosspoint Size 54

6.3.B. Change Video Autoselect Mode 54

6.3.9. Change Audio Autoselect Mode....54

6.3.10. Change the Video Input Priorities 55

6.3.11. Change Audio Input Priority 55

6.4. NETWORK CONFIGURATION....55

6.4.1. Query the Current IP Status 55

6.4.2. Set the IP Address 55 6.4.3. Get the Privat Mask 55

6.4.3. Set the Subnet Mask .... 55 6.4.4. Set the Gateway Address .... 55

6.4.4. Set the Gateway Address....58 6.4.5. Apply Network Settings....56

6.5. GPIO CONFIGURATION 56

6.5.1 Set Level and Direction for Each Pins 56

6.6. LW2 COMMANDS - QUICK SUMMARY 57

1. LW3 PROGRAMMERS' REFERENCE....58

7.1. OVERVIEW 58

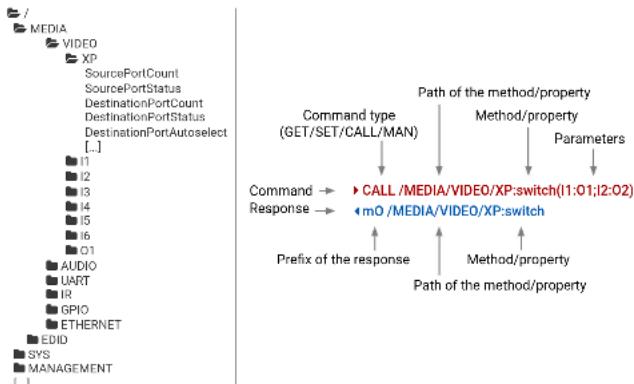

7.2. PROTOCOL RULES .....58 7.2.1. LW2 Tree Structure and Command Structure (examples) ..... 59

7.2.1. Lw3 Tree Structure and Command Structure (examples)....58 7.2.2. General Rules....59

7.2.2. General Rules....58 7.3.3. Command Types....50

7.2.3. Command types 59 7.2.4. Prefix Summary 50

7.2.4. Prefix Summary 59 7.2.5. Error Messages 50

7.2.6 Escaping 59

7.2.7. Signature 60

7.2.8. Subscription....60

7.2.9. Notifications about the Changes of the Properties 60

7.2.10. Legend for the Control Commands....60

7.3. SYSTEM COMMANDS....61

7.3.1. Query the Product Name....61

7.3.2. Set the Device Label 61

7.3.3. Query the Serial Number 61

7.3.4. Query the Firmware Version 61

7.3.5. Resetting the Device....61

7.3.6. Restore the Factory Default Settings 61 7.3.7. Lock the Front Panel Buttons 60

7.3.7. Lock the Front Panel Buttons 62 7.3.8. Disable the Default Function of the Front Panel Buttons 60

7.3.6. Disable the default function of the Front Panel Buttons....62 7.3.9. Dark Mode 62

7.3.10 Dark Mode Delay 62

7.4 VIDEO PORT SETTINGS 63

7.4.1. Query the Status of Source Ports 63

7.4.2. Query the Status of Destination Port 64

7.4.3. Query the Video Crosspoint Setting 64

7.4.4. Switching Video Input 64

7.4.5. Query the Video Autoselect Settings.... 64

7.4.6. Change the Autoselect Mode 65

7.4.7. Query the Input Port Priority 65

7.4.8. Change the Input Port Priority 65

7.4.9. Mute an Input Port 65

7.4.10. Unmute an Input Port 65

7.4.11. Lock an Input Port 66
7.4.12. Unlock an Input Port....66
7.4.13. Mute Output 66
7.4.14. Unmute Output 66
7.4.15. Lock Output 66
7.4.16. Onlock Output 66 7.4.17. HDCP Setting (Input Port) 66
7.4.17. HDCP Setting (Input Port) 66 7.4.18. Test Pattern Generator Mode 67
7.4.18. Test Pattern Generator Mode 67 7.4.19. Test Pattern Resolution 67
7.4.20 Test Pattern Color 67
7.4.21 HDCP Setting (Output Port) 67
7.4.22. HDMI Mode Settings (Output Port) 67
7.4.23. Color Space Setting (Output Port) 68
7.4.24. Query the Recent TPS Mode 68
7.4.25. TPS Mode Settings 68
7.5. AUDIO PORT SETTINGS....69
7.5.1. Query the Status of Source Ports 69
7.5.2. Query the Status of Destination Port 69
7.5.3. Query the Audio Crosspoint Setting....70
7.5.4. Switching Audio Input 70
7.5.5. Query the Audio Autoselect Settings ....70
7.5.6. Change the Autoselect Mode 70 7.5.7. Every the Input Part Priority 71
7.5.7. Query the Input Port Priority 71 7.5.8. Change the Input Port Priority 71
7.5.0 Muto an Audio Input 71
7.5.10. Imgute an Audio Input 71
7.5.10. Chimute an Audio Input 71
7.5.12 Unlock an Input Port 71
7.5.13 Mute Audio Output 72
7.5.14. Unmute Audio Output 72
7.5.15. Lock Output 72
7.5.16. Unlock Output 72
7.5.17. Analog Audio Input Level Settings 72

Table of Contents

7.6. NETWORK CONFIGURATION....73
7.6.1. Query the DHCP State 73
7.6.2. Change the DHCP State ....../3
7.6.3. Query the IP Address....73 7.6.4. Change the ID Address (Static)....72
7.6.4. Change the IP Address (Static) 73 7.6.5. Over the Subset Mask 72
7.6.5. Query the Subnet Mask....73 7.6.6. Change the Subnet Mask (Static)....73
7.6.7 Query the Gateway Address 72
7.6.7. Query the Gateway Address 75 7.6.8. Change the Gateway Address (Static) 74
7.7. RS-232 PORT CONFIGURATION 74
7.7.1. Protocol Setting 74
7.7.2. BAUD Rate Setting 74
7.7.3. Databit Setting 74
7.7.4. Stopbits Setting 74
7.7.5. Parity Setting....74
7.7.6. RS-232 Operation Mode 75
7.7.7. Command Injection Enable....75
7.8. INFRARED PORT CONFIGURATION 75 7.9.1. Flexible Command Inclining Mode 75
7.8.1. Enable Command Injection Mode 75 7.9.2. Enable/Disable Output Signal Modulation 75
7.8.2. Enable/Disable Output Signal Modulation....75 7.9. SENDING MESSAGE VIA THE COMMUNICATION PORTO....76
7.9. SENDING MESSAGE VIA THE COMMUNICATION PORTS ....76 7.9.1. Ordering Message's TCP Port ....76
7.9.1. Sending Message via TCP Port 76 7.9.2. UDP Message Sending via Ethernet 76
7.9.2. ODP Message Sending via Ethernet....76 7.9.3. Message Sending via PS 233 Serial Port....77
7.9.3. Message Sending Via RS-232 Serial Port....77 7.9.4. Using Hexadecimal Codes....77
7.9.4. Using Hexadecimal Codes....77 7.10. GRID PORT CONFIGURATION....79
7.10.1 Set the Direction of a GPIO Pin 78
7.10.1. Set the direction of a GPIO Pin....78 7.10.2. Set the Output Level of a GPIO Pin....78
7.10.2. Set the output level of a GPIO Pin....78 7.10.3. Toggle the level of a GPIO Pin....78
7.10.3. Toggle the Level of a GPIO PIN....78 7.11. EDID MANAGEMENT....78
7.11.1. Query the Emulated EDIDs 78
7.11.2 Query the Validity of a Dynamic EDID 78
7.11.3. Query the Preferred Resolution of an User EDID 79
7.11.3. Query the Preferred Resolution of an User EDID....79 7.11.4. Emulating an EDID to an Input Port....70
7.11.4. Emulating an EDID to an input Port....79 7.11.5. Emulating an EDID to All Input Ports....70
7.11.5. Emulating an EDID to All Input Ports....79 7.11.6. Copy an EDID to User Memory....70
7.11.6. Copy an EDID to user memory .... 79
7.11.7. Deleting an EDID from User Memory ....79
7.11.8. Resetting the Emulated EDIDs....79

7.12. LW3 COMMANDS - QUICK SUMMARY 80

1. FIRMWARE UPGRADE....83
   8.1. ABOUT THE FIRMWARE PACKAGE (LFP FILE)....83
   8.2. SHORT INSTRUCTIONS....83
   8.3. INSTALL AND UPGRADE 83
   8.4. DETAILED INSTRUCTIONS....84
   8.4.1. Establish the Connection 84
   8.4.2. Start the LDU and Follow the Instructions 84
   8.5. KEEPING THE CONFIGURATION SETTINGS 87
   8.6. REMOTE FIRMWARE UPGRADE OF CONNECTED LIGHTWARE DEVICES ...88

2. TROUBLESHOOTING....89

3. TECHNOLOGIES....91

10.1. EDID MANAGEMENT....91

10.1.1. Understanding the EDID 91

10.1.2 Advanced EDID Management 91

10.2. HDCP MANAGEMENT....92

10.2.1. Protected and Unprotected Content 92

10.2.2. Disable Unnecessary Encryption 92

10.3. PIXEL ACCURATE RECLOCKING 93

1. APPENDIX 94

11.1. SPECIFICATION 94

11.2. FACTORY DEFAULT SETTINGS....96

11.3. CONTENT OF BACKUP FILE 96

11.4. AUDIO CABLE WIRING GUIDE....97

11.5. MECHANICAL DRAWINGS 98

11.5.1. UMX-TPS-TX100 series 98

11.5.2. WP-UMX-TPS-TX100 series 99

11.5.3.FP-UMX-TPS-TX130-MKM 99

11.6. PORT NUMBERING....100

11.6.1. WP-UMX-TPS-TX120-US 100

11.6.2.WP-UMX-TPS-TX130-US 100

11.6.3. UMX-TPS-TX120....100

11.6.4. UMX-TPS-TX130....100

11.6.5. UMX-TPS-TX140....101

11.6.6.FP-UMX-TPS-TX130 101

11.7. MAXIMUM EXTENSION DISTANCES....101

11.8. FACTORY EDID LIST....102

11.9. FURTHER INFORMATION....103

1. Introduction UMX-TPS-TX100 series - User's Manual 7

1

Introduction

Thank You for choosing Lightware's UMX-TPS-TX100 series device. In the first chapter we would like to introduce the device highlighting the most important features in the below listed sections:

DESCRIPTION

▶COMPATIBLE DEVICES

▶MODEL DENOMINATION

Box CONTENTS

FEATURES

▶MODEL COMPARISON

▶TYPICAL APPLICATION

1.1. Description

This transmitter was designed to extend digital and analog video signals (e.g. VGA, YPrPb, HDMI 1.4 and DP 1.1) and audio signals (analog stereo audio from local inputs or embedded 7.1 HBR audio). Video signals with HDCP encryption are also supported. Analog signals (both audio and video) are converted to digital format and the audio signals can be de-embedded from the video. Thus, many combinations of the audio/video signals are available to transmit.

Using the factory, custom or transparent EDID emulation the user can fix and lock EDID data on each input connector. Advanced EDID Management forces the required resolution from any video source and fixes the output format conforming to the system requirements. The unit offers bi-directional and transparent IR, RS-232 and Ethernet transmission. Furthermore, the IR and RS-232 connection support command injection, allowing it to send any IR or RS-232 control command directly from the LAN connection.

Remote powering (Power over Ethernet) is available through a single CAT cable, but local power supply can also be used. UMX-TPS transmitter can be mounted on a rack shelf or used standalone while the WP-UMX-TPS transmitters designed to place into a wall or furniture. The transmitters are compatible with both the HDBase ^™ extenders and matrix switchers.

1.2. Compatible Devices

The transmitter is compatible with other Lightware TPS receivers, matrix TPS and TPS2 boards, 25G TPS2 boards, as well as third-party HDBaseT extenders, displays, but not compatible with the phased out TPS-90 extenders.

The transmitter is compatible with any third-party HDBaseT ^™ device.

HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

1.3. Model Denomination

1.4. Box Contents

UMX-TPS-TX100 series

Phoenix® Combicon 5-pole connector **

* Only for UMX-TPS-TX130 and UMX-TPS-TX140 models.
** Only for UMX-TPS-TX140 model.

WP-UMX-TPS-TX100 series

FP-UMX-TPS-TX100 series

Optional Accessories

The following accessories can be purchased separately:

48V DC power adaptor with interchangeable plugs

Switch/outlet box (B225R) for mounting

1.5. Features

3D and 4K Support

High bandwidth allows extension of resolutions up to 4K and even 3D sources and displays are supported.

Signal Transmission up to 170 m

Video and audio signal transmission (HDMI, Ethernet, RS-232, and Infra-Red over a single CAT5e...CAT7e cable.

Analog Audio and Video A/D Conversion

Analog audio and video signals are converted to digital before being sent to the output.

Deep Color Support and Conversion

It is possible to transmit the highest quality 36-bit video streams for perfect color reproduction.

Pixel Accurate Reclocking

Each output has a clean, jitter free signal, eliminating signal instability and distortion caused by long cables or connector reflections.

HDCP-compliant

The receiver fulfills the HDCP standard. HDCP capability on the digital video inputs can be disabled when non-protected content is extended.

Built-in Event Manager

The Event Manager tool takes care of all the necessary control in a smaller configuration by performing predefined actions in response to device status changes. Hence, in a less complex environment, there is no need to invest in additional control solutions, which makes the receiver the best choice for numerous applications.

Autoselect Function for Video Inputs

The Autoselect feature can sense the port status on the video input ports and select automatically one of them. Priority number can be set for each input port and the feature allows to set various modes for the automatic input selection (First detect, Last detect, Priority mode).

Breakaway Audio/Video Switching

Breakaway audio/video switching allows for switching audio and video separately by de-embedding and embedding audio from/into HDMI signals. For instance, audio can be de-embedded from the incoming HDMI stream, then at output a different audio can be embedded into the video signal from a different source, or audio can be routed to a separate output port.

Remote Power

The transmitters are PoE-compatible and can be powered locally by the supplied power adaptor, or remotely via the TPS connection (through the CATx cable) with a compatible power source equipment.

TPS Cable Diagnostic Tool

The TPS Cable Diagnostics Tool within the LDC software will help you identify potential twisted pair cable issues in your TPS-capable (HDBaseT compliant) system. It provides a real-time overview of the estimated cable lengths and the quality of the link.

IR

Infrared (IR) is a wireless technology used for device communication over short ranges. IR communication has major limitations because it requires line-of-sight, has a short transmission range and is unable to penetrate walls. Infrared is commonly used for remote control based applications. Third-party control systems may send IR control commands to endpoints turning them on and off or switching their inputs. IR capable extenders can carry the IR signal via CAT cable to greater distances along with other data.

Bi-directional RS-232 Pass-through

AV systems can also contain serial port controllers and controlled devices. Serial port pass-through supports any unit that works with standard RS-232.

GPIO Control Port \*

7 GPIO pins operating at TTL digital signal levels and can be controlled with both LW2 and LW3 commands.

* Only for UMX-TPS-TX130 and UMX-TPS-TX140 models.

1.6. Model Comparison

The available models have different features depending on their design. The following table contains the most important differences between the models:

	Video ports Audio ports Interface ports
	HDMI input	VGA input	DVI-I input	DP input	Jack 3.5 input	Phoenix E	Ethernet Infra	RS-232	GPIO
UMX-TPS-TX120	✓	✓	-	-	✓	-	✓	✓	✓	✓	-
UMX-TPS-TX130	✓	✓	✓	-	✓	-	✓	✓	✓	✓	✓
UMX-TPS-TX140	✓	✓	✓	✓	✓ ✓	✓ ✓	✓	✓	✓	✓	✓
WP-UMX-TPS-TX120-US Black	✓	✓	-	-	✓	-	✓	✓	✓	✓	-
WP-UMX-TPS-TX120-US White	✓	✓	-	-	✓	-	✓	✓	✓	✓	-
WP-UMX-TPS-TX130-US Black	✓	✓	-	✓	✓	-	✓	✓	✓	✓	-
WP-UMX-TPS-TX130-US White	✓	✓	-	✓	✓	-	✓	✓	✓	✓	-
FP-UMX-TPS-TX130-MKM	✓	✓	-	✓	✓	-	✓	✓	✓	✓	-

1. Introduction UMX-TPS-TX100 series - User's Manual 10

1.7. Typical Application

Standalone Application Diagram - UMX-TPS-TX140

Integrated System Diagram - UMX-TPS-TX140

Standalone Application Diagram - WP-UMX-TPS-TX130-US

2

Installation

The chapter is about the installation of the device and connecting to other appliances, presenting also the mounting options and further assembly steps

▶MOUNTING OPTIONS - UMX-TPS-TX100 SERIES

▶MOUNTING OPTIONS - WP-UMX-TPS-TX100 SERIES

MOUNTING OPTIONS - FP-UMX-TPS-TX130-MKM

▶CONNECTING STEPS

POWERING OPTIONS

2.1. Mounting Options - UMX-TPS-TX100 series

To mount the transmitter Lightware supplies optional accessories for different usage. There are two kinds of mounting kits with similar fixing method. The device has two mounting holes with inner thread on the bottom side; see the bottom view in the Mechanical Drawings section. Fasten the device by the screws enclosed to the accessory:

Two black metal bracket components labeled 'Under-desk double mounting kit' (no other text or symbols visible)

1U high rack shelf

The Under-desk double mounting kit makes easy to mount a single device on any flat surface, e.g. furniture. 1U high rack shelf provides mounting holes for fastening two half-rack or four quarter-rack sized units. Pocket-sized devices can also be fastened on the shelf. To order mounting accessories please contact [e-mail].

WARNING! Always use the supplied screws. Using different (e.g. longer) ones may cause damage to the device.

INFO: The transmitter is half-rack sized.

2.1.1. Under-desk Double Mounting Kit

The UD-kit double makes it easy to mount a single transmitter on any flat surface (e.g. furniture).

Diagram of a device under load with arrows indicating force or movement (no text or symbols)

INFO: The chipboard screws are not supplied with the mounting kit.

2.1.2. 1U High Rack Shelf

Allows rack mounting for half-rack, quarter-rack and pocket sized units.

Diagram of two electronic devices connected to a central panel with directional arrows indicating motion (no text or symbols present)

1U high rack shelf provides mounting holes for fastening two half-rack or four quarter-rack sized units. Pocket sized devices can also be fastened on the self.

Technical diagram of a server rack with labeled components and status indicators

Standard rack installation

ATTENTION! Always use all the four screws for fixing the rack shelf ears to the rack rail. Choose properly sized screws for mounting. Keep minimum two threads left after the nut screw.

2.2. Mounting Options - WP-UMX-TPS-TX100 series

The transmitter can be easily mounted into an industrial standard switch/outlet box (B225R):

INFO: The switch/outlet box is not supplied with the mounting kit but it can be purchased separately. Please contact [e-mail] for the details.

B226R outlet box 100.2 70.6 100.6 Fixing screw Front side of the extender

Step 1. Insert the extender into the B225R outlet box and position it to get the holes aligned.

B225R outlet box

Step 2. Fasten the front side of the extender to the B225R outlet box by fitting all the screws.

2.3. Mounting Options - FP-UMX-TPS-TX130-MKM

FP-UMX-TPS-TX130-MKM bracket is supplied with the product. It is compatible with CRMB265 floorbox type (MK Cablelink Plus Modular series).

Tab Fixing screw Handle FP-UMX-TPS-TX-130-MKM FP-UMX-TPS-TX-130-MKM bracket 53.4 77 217 FP-UMX-TPS-TX-130-MKM supplied with bracket

Step 1. Loose the two fixing screws on the top of the bracket. Insert the device into the frame.

100mm 20mm 30mm 40mm 50mm 60mm 70mm 80mm 90mm 100mm

Step 2. Move the handles towards the frame. Align the tab on the assembly with the slot in the frame.

3D architectural or mechanical diagram showing a rectangular frame with internal structural elements and no visible text or symbols

Step 3. Fasten the fixing screws to fix the device into the floorbox frame.

3D architectural floor plan showing structural elements and a central room with red markers (no text or symbols)

2.4. Connecting Steps

2.4.1. WP-UMX-TPS-TX100 series

CATx	Connect the transmitter and a compatible receiver or the matrix input board by a CATx cable via the TPS connectors.
VGA HDMI DP	Connect the transmitter and the sources using the inputs and VGA / DVH / HDMI / DisplayPort cables.
Audio	Optionally connect an asymmetric audio device with unbalanced audio signal (e.g. a VGA laptop) to the 2.5' TRS (jack) audio input port.
LAN	Optionally connect the transmitter to a LAN network in order to control the device.
RS-232	Optionally connect a controller/controlled device (e.g. relay box) to the RS-232 port.
Power	See powering options in the next section.

2.4.2. UMX-TPS-TX100 series

CATx	Connect the the transmitter and a compatible receiver or the matrix input board by a CATx cable via the TPS connectors.
VGA DVI HDMI DP	Connect the transmitter and the sources using the inputs and VGA / DVI-I / HDMI / DisplayPort cables.
Audio	Optionally connect an asymmetric audio device with unbalanced audio signal (e.g. a VGA laptop) to the 2.5" TRS (jack) audio input port.
Audio	Optionally connect a symmetric audio device with balanced audio signal (e.g. a media player) to the 5-pole Phoenix audio input port. See the wiring guide for the connector in the Audio Cable Wiring Guide section.
IR	Optionally for Infrared control:- Connect the IR emitter to the IR OUT port of the device.- Connect the IR detector to the IR IN port of the device.
LAN	Optionally connect the transmitter to a LAN network in order to control the device.
RS-232	Optionally for RS-232 control: connect a controller/controlled device (e.g. touch panel) to the RS-232 port.
GPIO	Optionally connect a controller/controlled device (e.g. relay box) to the GPIO port.
Power	See powering options in the next section.

2.5. Powering Options

A Using local PSU - connect the power adaptor to the DC input on the transmitter first, then to the AC power socket.
B Using PoE with connecting a transmitter: connect the TPS OUT (PoE) port of the transmitter to the TPS+PoE port of the TPS-PI-1P1 power injector by a CATx cable, and connect the TPS input port of the compatible receiver to the TPS port of the TPS-PI-1P1 by a CATx cable.
C Using PoE with connecting a matrix or an input board: connect the TPS OUT (PoE) port of the transmitter to the PoE-compatible TPS input port of the matrix or input board by a CATx cable.

ATTENTION! In case of connecting the transmitter to an input board of the matrix always connect an external PSU to the board. For the detailed information please read the user's manual of the matrix.

ATTENTION! The Ethernet port does not support PoE. Only the TPS port support PoE function.

3

Product Overview

The following sections are about the physical structure of the device, input/output ports and connectors:

▶FRONT VIEW - UMX-TPS-TX100 SERIES

▶REAR VIEW - UMX-TPS-TX100 SERIES

▶FRONT VIEW - WP-UMX-TPS-TX100 SERIES

▶REAR VIEW - WP-UMX-TPS-TX100 SERIES

▶FRONT VIEW - FP-UMX-TPS-TX130-MKM

▶REAR VIEW - FP-UMX-TPS-TX130-MKM

▶ELECTRICAL CONNECTIONS

▶TPS EXTENDER CONCEPT

▶TPS INTERFACE

PORT DIAGRAM

▶VIDED INTERFACE

THE AUTOSELECT FEATURE

▶AUDIO INTERFACE

▶CONTROL FEATURES

▶FURTHER BUILT-IN FEATURES

3.1. Front View - UMX-TPS-TX100 series

UMX-TPS-TX120

UMX-TPS-TX130

UMX-TPS-TX140

1 VGA Input D-SUB connector for analog video signal.
2 Audio1 input 3.5 mm Jack connector for asymmetric analog audio input signal.
3 HDMI input HDMI connector for DVI video or HDMI video and audio.
4 DisplayPort input DisplayPort connector for DisplayPort audio/video signal.
5 Input Status LEDs LEDs give feedback about the current status of the unit and input signals. See the details in the Front Panel LEDs section.
6 Video Select button Button for switching between video sources. See the details in the Video Select Button section.
7 Reset button Pushing the button reboots the unit.
8 Audio Select button Button for switching between audio sources. See the details in the Audio Select Button section.
9 Show Me button Special functions can be reached using this button (firmware upgrade (bootload) mode, DHCP settings, restore factory default settings, condition launching in Event Manager).

3.2. Rear View - UMX-TPS-TX100 series

UMX-TPS-TX120 UMX-TPS-TX130 UMX-TPS-TX140

12V DC input 12V DC input for local powering. For more details see the Locking 12V DC Connection section or see all the available Powering Options.

RS-232 connector 3-pole Phoenix connector for controlling the device with LDC or third-party control systems, or third-party device control. Pin assignment can be found in the RS-232 Connector section.

3 GPIO 8-pole Phoenix connector for configurable general purpose input/output ports. Pin assignment can be found in the GPIO General Purpose Input/Output Ports section.

4 Ethernet Lacking RJ-45 connector for configuring the device using Lightware Device Controller (LDC), or upgrading it using Lightware Device Updater (LDU). Any third-party control system can use this port to control the device.

5 TPS OUT Locking RJ45 connector for HDBaseT™ signal transmission. Maximum CATx cable distances can be found in the Maximum Extension Distances section. (PoE)

6 Status LEDs The LEDs give feedback about the actual state of the device. See the details in the Rear Panel LEDs section.

7 IR IN and OUT 3-pole TRS connector, also known as 3.5 mm (1/8") jack plug for optional IR receiver (IR IN) and transmitter (IR OUT) connection. Pin assignments can be found in the IR Connector section.

8 Audio2 Input 5-pole Phoenix connector for balanced analog audio input. Pin assignment can be found in the Analog Stereo Audio (Phoenix) section.

9 DVI-I input DVI-I connector for analog / DVI / HDMI signals. Pin assignment can be found in the DVI-I Connector section.

3.3. Front View - WP-UMX-TPS-TX100 series
WP-UMX-TPS-TX120-US

1 2 3 4 5 6 7 8 9 10 Laserade Laserade 10.1.1.1.1.1.1.1

WP-UMX-TPS-TX130-US

1 2 3 4 5 6 7 8 9 10 11

1 Input Status LEDs LEDs give feedback about the current status of the unit and input signals. See the details in the Front Panel LEDs section.
2 Audio Select button Button for switching between audio sources. See the details in the Audio Select Button section.
3 Video Select button Button for switching between video sources. See the details in the Video Select Button section.
4 Ethernet Locking RJ-45 connector for configuring the device using Lightware Device Controller (LDC), or upgrading it using Lightware Device Updates (LDU). Any third-party control system can use this port to control the device.
5 VGA input D-SUB connector for analog video signal.
6 Audio input 3.5 mm Jack connector for asymmetric analog audio input signal.
7 Show Me button Special functions can be reached using this button (firmware upgrade (bootload) mode, DHCP settings, restore factory default settings, condition launching in Event Manager).
B Reset button Pushing the button reboots the unit.
9 IR detector IR Detector can sense IR light which can be forwarded to the receiver side or use for controlling functions.
10 HDMI Input HDMI connector for DVI video or HDMI video and audio.
11 DisplayPort Input DisplayPort connector for DisplayPort audio/video signal.

3.4. Rear View - WP-UMX-TPS-TX100 series WP-UMX-TPS-TX120-US and WP-UMX-TPS-TX130-US

Diagram of an electrical switchgear with labeled components and parts

RS-232 connector
3-pole Phoenix connector for controlling the device with LDC or third-party control systems, or third-party device control. Pin assignment can be found in the RS-232 Connector section.

TPS output (PoE)
Locking RJ45 connector for HDBaseT™ signal transmission. Maximum CATx cable distances can be found in the Maximum Extension Distances section.

48V DC Input Power the device remotely by a PoE-compatible power injector (TPS-PI-1P1). If the device has to be powered by a local adaptor (PSU-48VP1), connect the output to the 2-pole Phoenix connector on the rear of the wall plate. See more details about powering options in the 48V DC Connection section or see all the available Powering Options.

3.5. Front View - FP-UMX-TPS-TX130-MKM

LIGHTWARE VIDEO SELECT AUDIO SELECT SHORE NE Ethernet INPUT STATUS VGA AUDIO GND HDMI AUDIO TURURE R VIDEO AUDIO RESET VGA IN AUDIO IN GPIO IN HDMI IN PP-UMX-TPS-TX130-MKM

Input Status LEDs
LEDs give feedback about the current status of the unit and input signals. See the details in the Front Panel LEDs section.

Audio Select button
Button for switching between audio sources. See the details in the Audio Select Button section.

Video Select button
Button for switching between video sources. See the details in the Video Select Button section.

Ethernet
Locking RJ-45 connector for configuring the device using Lightware Device Controller (LDC), or upgrading it using Lightware Device Updater (LDU). Any third-party control system can use this port to control the device.

VGA Input D-SUB connector for analog video signal.

Audio input 3.5 mm Jack connector for asymmetric analog audio input signal.

Show Me button
Special functions can be reached using this button (firmware upgrade (bootload) mode, DHCP settings, restore factory default settings, condition launching in Event Manager).

Reset button Pushing the button reboots the unit.

IR detector IR Detector can sense IR light which can be forwarded to the receiver side or use for controlling functions.

HDMI input HDMI connector for DVI video or HDMI video and audio.

DisplayPort input DisplayPort connector for DisplayPort audio/video signal.

3.6. Rear View - FP-UMX-TPS-TX130-MKM

S/N: B7125577 Made in EU, Hungary Rs-232 RS 1X 48V DC 1A + -

TPS output Locking RJ45 connector for HDBaseT ^™ signal transmission. Maximum CATx cable distances can be found in the Maximum Extension Distances section.

RS-232 connector
3-pole Phoenix connector for controlling the device with LDC or third-party control systems, or third-party device control. Pin assignment can be found in the RS-232 Connector section.

48V DC input

Power the device remotely by a PoE-compatible power injector (TPS-PI-1P1). If the device has to be powered by a local adaptor (PSU-48VP1), connect the output to the 2-pole Phoenix connector on the rear of the floor plate. See more details about powering options in the 48V DC Connection section or see all the available Powering Options.

1. Product Overview UMX-TPS-TX100 series - User's Manual 18

3.7. Electrical Connections

3.7.1. Locking 12V DC Connection

Two diagrams showing a device with a cable and a connector, connected by blue arrows (no text or symbols present)

Locking DC connector

UMX-TPS-TX100 series transmitters are built with locking 12V DC connector. Do not forget to turn the plug clockwise direction before disconnecting the power adaptor.

WARNING! Always use the supplied 12V power adaptor. Warranty void if damage occurs due to use of a different power source.

3.7.2. 48V DC Connection

WP-UMX-TPS-TX100 series transmitters are built with 2-pole Phoenix connector for 48V DC 1A power connection.

2-pole Phoenix connector and plug pin assignments

3.7.3. VGA Connector

The transmitter provides a standard 15-pole D-SUB female connector for connecting VGA devices. Always use high-quality VGA cable for connecting sources and displays; using a VGA cable where all the pins are wired (including the DDC channel's wires) is highly recommended.

3.7.4. HDMI Connector

The extender provides standard 19 pole HDMI connector for input. Always use high quality HDMI cable for connecting sources and displays.

3.7.5. DisplayPort Connector

UMX-TPS-TX140 and WP-UMX-TPS-TX130-US models provide standard 20-pole DisplayPort connector for input. Always use high quality DP cable for connecting DisplayPort devices.

3.7.6. DVI-I Connector

UMX-TPS-TX130 and UMX-TPS-TX140 transmitters provide a standard 29-pole DVI-I connector for input where digital and analog pins are connected internally. Hence users can use the connector receiving DVI-A (analog video) and DVI-D signals (digital video and digital audio) as well.

ATTENTION! Only one (DVI-A or DVI-D) mode is available at a time. You can use the Video Select button to choose the input source. Always use high quality DVI cable for connecting DVI devices.

The following drawing and table show the pinout of DVI-I connector and the position of analog and digital signal pins.

Pin Signal Pin Signal
1 TMDS Data2- 16 Hot Plug Detect
2	TMDS Data2+	17	TMDS Data0-
3	TMDS Data2 Shield	18	TMDS Data0+
4	not connected	19	TMDS Data0 Shield
5	not connected	20	not connected
6	DDC Clock	21	not connected
7	DDC Data	22	TMDS Clock Shield
8	Analog Vertical Sync	23	TMDS Clock+
9 TMDS Data1- 24 TMDS Clock-
10	TMDS Data1+	C1	Analog Red
11	TMDS Data1 Shield	C2	Analog Green
12	not connected	C3	Analog Blue
13	not connected	C4	Analog Horizontal Sync
14	+5V Power	C5	GND
15	GND (for +5V)

3.7.7. Analog Stereo Audio (Jack)

The connector is used for receiving unbalanced analog audio signal. It is also known as (3.5 mm or approx. 1/8") audio jack, phone jack, phone plug and mini-jack plug.

Pin nr. Signal
1	Left
2	Right
3	Ground

Jack audio plug pin assignments
You can find more information about audio functions in the Audio Interface section.

3.7.8. Analog Stereo Audio (Phoenix)

5-pole Phoenix connector is used for balanced analog audio input in the UMX-TPS-TX140 transmitter. Unbalanced audio signals can be connected as well. See more details about the balanced and unbalanced input port wiring in the Audio Cable Wiring Guide section.

Pin nr. Signal
1	Left+
2	Left-
3	Ground
4	Right-
5	Right+

Analog audio connector and plug pin assignments

Compatible Plug Type

Phoenix® Combicon series (3.5mm pitch, 5-pole), type: MC 1.5/5-ST-3.5. You can find more information about analog audio function in the Audio Interface section.

3.7.9. Ethernet Connector (TPS and LAN Ports)

The extender provides standard RJ45 connectors for TPS IN and LAN ports. Always use high quality Ethernet cable for connecting transmitters and receivers. Maximum CATx cable distances can be found in the Maximum Extension Distances section.

LAN connector TPS
connector of UMX-TPS-TX100 series transmitters
TPS connector of WP-UMX-TPS-TX100 series transmitters

Wiring of TPS and LAN Cables

Lightware recommends the termination of LAN cables on the basis of TIA/EIA T 568 A or TIA/EIA T 568 B standards.

Top

Bottom

Side

Pin	TIA/EIA T568 A	Color and name	TIA/EIA T568 B	Color and name
1		white/green stripe white/orange stripe
2		green solid orange solid
3		white/orange stripe white/green stripe
4		blue solid blue solid
5		white/blue stripe white/blue stripe
6		orange solid		green solid
7		white/brown stripe		white/brown stripe
8		brown solid		brown solid

Pin assignments of RJ45 connector types

You can find more information about TPS interface in the TPS Interface section.

3.7.10. RS-232 Connector

The extender contains a 3-pole Phoenix connector which is used for RS-232 serial connection.

Pin nr.	Signal
1	Ground
2	TX data
3	RX data

RS-232 connector pin assignments

Compatible Plug Type

Phoenix® Combicon series (3.5mm pitch, 3-pole), type: MC 1.5/3-ST-3.5. You can find more information about RS-232 interface in the Serial Interface section.

3.7.11. IR Connector

IR detector and IR emitter can be connected to the UMX-TPS-TX100 series extenders with TRS (Tip, Ring, and Sleeve) connectors. They are also known as (3.5 mm or approx. 1/8") audio jack, phone jack, phone plug, and mini jack plug. The pin assignments are the following for the detector and the emitter:

Detector - 3-pole-TRS		Emitter - 2-pole-TS
1 Tip	Signal (active low)	1 Tip	+5V
2 Ring	GND	2 Ring	Signal (active low)
3 Sleeve	+5V	3 Sleeve

INFO: Ring pole of the emitter is optional. If your IR emitter has three-pole TRS plug, then the Ring and the Sleeve are the same signal (Output -). You can find more information about Infrared interface in the IR Interface section.

3.7.12. IR Detector

WP-UMX-TPS-TX100 series transmitters are built with an IR detector on front panel of the wallplate. The sensor is used for receiving IR signals from remote control or other IR emitter devices. You can find more information about Infrared interface in the IR Interface section.

3.7.13. GPIO - General Purpose Input/Output Ports

UMX-TPS-TX130 and UMX-TPS-TX140 transmitters contain a 8-pole Phoenix connector with seven GPIO pins, which operates at TTL digital signal levels and can be set to high or low level (Push-Pull). The direction of the pins can be input or output (adjustable). Voltage ranges for GPIO inputs are the following:

	Input voltage [V]	Output voltage [V]	Max. current [mA]
Logical low level	0 - 0.8	0 - 0.5V	30
Logical high level	2 - 5	4.5 - 5V	18

INFO: The maximum total current for the seven GPIO pins is 180 mA.

Pin nr.	Level and direction
1	Configurable
2
3
4
5
6
7
Ground

1 2 3 4 5 6 7 8

GPIO connector and plug pin assignments

Compatible plug type

Phoenix® Combicon series (3.5mm pitch 8-pole), type: MC 1.5/8-ST-3.5. You can find more information about GPIO interface in the GPIO Interface section.

3.8. TPS Extender Concept

The UMX-TPS-TX100 series transmitters and wallplates are universal audio/video extenders with analog/digital conversion and audio embedding functions. The devices receive analog (VGA, DVI-A) and digital (DP, HDMI, DVI-D) video signals and transmits HDBaseT (TPS) signal including HDMI/DVI audio/video signals, Ethernet, RS-232, and infrared signals. Analog audio signals can be received via the 3.5" TRS (jack) and the 5-pole Phoenix connectors.

The device can be controlled via Ethernet, RS-232 or Infrared and is able to control third-party devices via the RS-232, Ethernet, Infrared interfaces.

INPUTOUTPUT

VGA HDMI DP¹ DVI-D² DVI-A² Analog audio TPS HDMI / DVI Ethernet RS-232 Infrared

• Ethernet
• RS-232
• Infrared
• GPIO ^7

The summary of the interfaces of UMX-TPS-TX100 series transmitters

INPUTOUTPUT

VGA HDMI DP 3 Analog audio or TPS HDMI / DVI Ethernet RS-232 Infrared

• Ethernet
• RS-232
• Infrared

The summary of the interfaces of WP- and FP-UMX-TPS-TX100 series transmitters

^1 Only for UMX-TPS-TX140 model.
^2 Only for UMX-TPS-TX130 and UMX-TPS-TX140 models.
3 Only for WP-UMX-TPS-TX130-US and FP-UMX-TPS-TX130-MKM models.

INFO: WP-UMX-TPS-TX130-US and FP-UMX-TPS-TX130-MKM models have the same functionality, the only difference in the size of the enclosure.

3.9. TPS Interface

The device is built with TPS (Twisted Pair Single) interface which are using HDBaseT ^™ technology. It means the unit transmits video, audio, Ethernet, RS-232, and Infrared signals via a single CATx cable.

TPS Interface Working Modes

The TPS working mode between the transmitter and the receiver is determined by the mode set in them. Both devices TPS mode settings together determine the finally established TPS transmission mode.

The following TPS modes are defined in the transmitter:

• Auto: The TPS mode is determined automatically.
- HDBaseT: Ideal for high resolution signals up to 4K.
- Long reach: Ideal for big distances up to 1080p@60Hz with extended cable lengths.
- LPPF1*: Only RS-232 communication is transmitted (@ 9600 baud).
- LPPF2*: Only RS-232 (@ 9600 baud) and Ethernet communication are transmitted.

* LPPF: Low Power Partial Functionality.

		Selected mode on RX side
		LPPF1	LPPF2	HDBaseT	Long reach	Auto
Selected mode on TX side	LPPF1	LPPF1	LPPF1	LPPF1	LPPF1	LPPF1
	LPPF2	LPPF1	LPPF2	LPPF2	LPPF2	LPPF2
	HDBaseT	LPPF1	LPPF2	HDBaseT	Long reach	HDBaseT
	Long reach	LPPF1	LPPF2	Long reach	Long reach	Long reach
	Auto	LPPF1	LPPF2	HDBaseT	Long reach	HDBaseT **

** If there is valid HDMI/DVI signal is on the TX side, the TPS mode will be HDBaseT on both side. If the transmitter does not transmits HDMI/DVI signal, the TPS mode will be changed to LPPF2 or LPPF1 automatically. Long reach mode is not available when both sides are set to Auto mode.

When using automatic operation mode selection, the device determines the mode of operation. If both halfs are set to Auto mode, the source side is the initiator. It will negotiate each state transition with its sink side partner.

When one of the devices is configured to manual operation mode selection, the other device may be placed in automatic mode. In this case, the mode transition negotiation is initiated by the host-managed device and the auto-mode device follows through. The allowed cable lengths and resolutions are listed in the Maximum Extension Distances section.

3.10. Port Diagram

The following figure describes the port diagram of the UMX-TPS-TX140 transmitter. The principle of the operation is the same for all models.

Port diagram

The device has four video input ports to receive analog video (VGA, DVI-A) and digital video (HDMI, DP, DVI-D) signals. The analog signals are converted to digital. A 5:1 digital audio/video switch decides which signal is routed toward the TPS output port. The device also has two analog audio input ports (3.5mm Jack, 5-pole Phoenix). The analog signals are converted to digital ones. The user can choose which audio signal is transmitted on the TPS output port: one from the analog audio sources or the original embedded audio from the HDMI / DP / DVI-D ports.

INFO: The DVI-D input accepts HDMI signal with embedded audio as well.

Besides, the device has four different interfaces to control the unit itself or third-party devices: infrared (input and output), RS-232, Ethernet, and GPIO.

1. Product Overview UMX-TPS-TX100 series - User's Manual 22

3.11. Video Interface

3.11.1. Video Input Modes

The device can receive digital video signal on the HDMI, DisplayPort, and DVI-D input ports and analog video signal on the VGA and the DVI-A input ports.

INFO: Both the DVI-A and DVI-D signals can be received on the same DVI-I input port.

3.11.2. Input Source Selection Modes

Video input source can be selected the following ways:

- pressing Video Select button on the device;

• using Lightware Device Controller (LDC);

- sending LW2 or LW3 protocol commands; or

• using the Autoselect function.

3.12. The Autoselect Feature

There are three types of Autoselect as follows.

• First detect mode: selected input port is kept connected to the output as long as it has an active signal.
• Priority detect mode: always the highest priority active input is selected to transmit.
• Last detect mode: always the last attached input is selected to transmit.

Automatic Input Selection - Example

The Concept

If there is no other source connected to the transmitter, but the Laptop, VGA input will be automatically switched to the TPS output. If the Laptop and the PC are also connected to the transmitter, DVI-D input will be switched to the TPS output. If the Blu-ray player is connected on the HDMI input, and later the MacBook is connected on the DP input of the transmitter, it will be switched to the TPS output – independently of the presence of other video signals.

Settings

- TPS output: Set the Autoselect to Enabled. Set Autoselect mode to Priority detect. The priorities are the following (the lowest number means the highest priority):

Source device Input interface Input port Priority
MacBook DP IN I3 0
Blu-ray player HDMI IN I2 1
PC DVI-D IN I4 2
Laptop VGA IN	I1 3

Priorities can be set in Lightware Device Controller software, see related settings in the TPS Video Output and the TPS Audio Output sections.

3.13. Audio Interface

3.13.1. Audio Input Modes

The device can receive embedded digital audio signal on the HDMI, DisplayPort, and DVI-D input ports and analog audio signal on the Jack and the Phoenix input ports.

Audio Embedding

The transmitter has a built-in audio embedder function which means the audio signal being received on the analog audio input port can be embedded to the TPS output.

The video and audio inputs can be combined with limitations. Below table contains the allowed connections:

		Audio sources
		HDMI DP DVI-D			Analog audio (Jack)	Analog audio (Phoenix)
Video sources	HDMI	√	-	-	√	√
	DP	-	√	-	√	√
	DVI-D --			√√√
	VGA ---				√	√
	DVI-A ---				√	√

Allowed audio connections

ATTENTION! Audio embedding is available where the pixel clocking of the video signal is up to 225 MHz. If the output video is 4K, the audio embedding function is not available.

3.13.2. Audio Options - Example

The Concept

Three audio sources are connected to the transmitter: a Blu-ray player on the HDMI input (embedded HDMI audio); a Laptop on the analog audio input 1; and a Media player on the analog audio input 2. There are two video sources as well: the Blu-ray player on the HDMI input (digital video with the embedded audio) and the Laptop on the VGA input (analog video).

The following options are available for audio routing / signal selection:

If the video input source of the HDTV is the Blu-ray player, you can select from the following audio sources:
– the original embedded HDMI audio from the Blu-ray player;
– the analog audio input 1 from the Laptop;
– the analog audio input 2 from the Media player.
- If the video input source of the HDTV is the Laptop, you can select from the following audio sources:
– the analog audio input 1 from the Laptop;
– the analog audio input 2 from the Media player.

3.14. Control Features

3.14.1. Serial Interface

Technical Background

Serial data communication can be established via the local RS-232 port (Phoenix connector) or via the TPS lines. The RS-232 ports – which are connected to the CPU – can be configured separately (e.g. if the Baud rates are different, the CPU does the conversion automatically between the ports). The RS-232 port can be switched to Pass-through mode, Control mode, or Command Injection mode; see the figure below.

Block diagram of the serial interface

The following settings are defined:

1 The Local and the TPS serial ports are in Control mode.
2 The Local and the TPS serial ports are in Pass-through mode.
3 The Local and the TPS serial ports are in Command Injection mode.

INFO: All settings are available in the LDC software, see settings in the RS-232 section.

Only one mode can be used at the same time: Control mode, or Pass-through mode, or Command Injection mode. If you choose one of them, TPS serial link and local RS-232 port will operate in the same mode.

Pass-through Mode

In pass-through mode, the given device forwards the data that is coming from one of its ports to another same type of port. The command is not processed by the CPU. Incoming serial data is forwarded from local RS-232 port to the TPS output port and vica versa inside the transmitter.

Control Mode

The incoming data from the given port is processed and interpreted by the CPU. The mode allows to control the transmitter directly. LW2 or LW3 protocol commands are accepted – depending on the current port setting.

Command Injection Mode

In this mode, the transmitter works as an RS-232 bidirectional converter. The TPS signal is converted to RS-232 data and vice versa. TCP/IP port numbers are defined for the serial ports (TPS and local) for this purpose. E.g. the default Command Injection port number of the local RS-232 port is 8001. If a command is coming from the TPS interface which addresses to the port no. 8001, it will be transmitted to the Tx pin of the local RS-232 port. That works in the opposite direction of course and the method is the same on the serial interface of the TPS port as well.

RS-232 Signal Transmission - Example

The Concept

The System controller can send commands to the transmitter and it is able to remote control the projector through the TPS receiver via RS-232.

Settings

• System controller: wireless IP connection to the same Ethernet as the transmitter is connected to. Use a dedicated software tool (e.g. a terminal) which is suitable for sending commands via TCP/IP to a certain IP:port address.
• Transmitter: set the RS-232 mode to Command Injection on TPS output port. Set the further parameters (Baud rate, Data bits, etc.) in accordance with the specifications of the projector. The transmitter will transmit the RS-232 data toward the receiver.
• Receiver: set the RS-232 mode to Pass-through on RS-232 port.
• Projector: note the RS-232 port setting that is specified by the Manufacturer. Connect a suitable serial cable with the proper wiring.

1. Product Overview UMX-TPS-TX100 series - User's Manual 25

3.14.2. IR Interface

ATTENTION! For the complete usage attach an IR emitter unit to the IR OUT and an IR detector unit to the IR IN connectors.

Technical Background

The Infrared signal transmission is similar to the serial data communication. The transmitter contains dedicated IR I/O connection and also can transmit/receive IR signal via the TPS interface. The signal is in pronto HEX format in both cases.

Block diagram of the IR Interface - UMX-TPS-TX100 series transmitters

Block diagram of the IR Interface - WP-UMX-TPS-TX100 series transmitters

The most trivial usage of the IR interface is the transparent mode: signal received or sent on local IR ports are transmitted directly on the TPS IR link port and vica versa. Beside of this there is an IR recognizer in the device where you can assign actions in Event Manager for. The third option is the command injection mode (like at serial interface in the previous section) where you can send IR commands over LAN. Command injection mode can be turned on and off by input/output ports.

INFO: All settings are available in the LDC software, see settings in the Infra section.

INFO: The modulation of output IR signal can be turned off or on by LW3 command, see details in the Enable/Disable Output Signal Modulation section.

IR Signal Transmission - Example 1

The Concept

An IR detector is attached to the Infrared input port of the TPS receiver and IR signals are sent by the Remote controller. The TPS Receiver is connected to an UMX-TPS-TX100 series transmitter built with IR output port via TPS line.

Settings:

Set the TPS IR link of the Transmitter to Transparent mode. IR signals are received over the local IR input port of the Receiver by the Remote controller. The signals transmitted further over the TPS line to the Transmitter which can control the Blu-ray player via an IR emitter.

IR Signal Transmission - Example 2

The Concept

The built-in IR detector of the Wallplate transmitter receives the IR signals from the Remote controller. The signal is transmitted via the TPS line to the TPS receiver. In this way the Remote controller can control the the Projector via the Wallplate transmitter.

3.14.3. Ethernet Control Interface

The device can be controlled over front panel Ethernet standard RJ45 connector which connected to LAN. This interface supports both LW2 and LW3 protocols.

The interface can be used to remote control the device with Lightware Device Controller and establish the connection to Lightware Device Updater software and perform firmware upgrade.

3.14.4. GPIO Interface

The GPIO (General Purpose Input/Output) port is a multifunctional input/output interface to control the transmitter or third-party devices and peripherals. You can establish connection between the controller/controllable device and the transmitter by the 8-pole Phoenix connector. Seven pin's direction is configurable independently based on needs of the application.

GPIO Options - Example

The Concept

Ceiling lamp is turned off by Relay 1 and projection screen is rolled down by Relay 2 when signal received from the PC over the VGA input. Both relays are controlled by the GPIO port.

Settings of the Transmitter

• For Relay 1: create an event in Event manager: when signal is present on Input 1 (I1) then set GPIO pins to low level for Relay 1 opening. Also create another event when signal is not present on Input 1 (I1) then set GPIO pins to high level for Relay 1 closing.
• For Relay 2: create an event in Event manager when signal is present on Input 1 (I1) then set GPIO pins to high level for Relay 2 closing. Also create another event when signal is not present on Input 1 (I1) then set GPIO pins to low level for Relay 2 opening.

When the PC starts to play the video presentation, the signal is received over the VGA input so GPIO pins send signal to Relay 1 to open which results turning off the lights. Furthermore GPIO pins also send signal to Relay 2 to close and the projection screen is rolled down. When the presentation is ended, signal ceases on the VGA input, so GPIO pins send signal to Relay 1 to close which results turning on the lights and sends signal to Relay 2 to open so projection screen returns to its enclosure.

ATTENTION! Please always check the electrical parameters of the devices what you want to control. The maximum current of one GPIO pin is 30 mA, the maximum total current for the seven pins is 180 mA.

See the LDC settings for GPIO port in the GPIO section. See also the details about the Event Manager settings in the Event Manager section.

3.15. Further Built-in Features

3.15.1. Automatically Launched Actions - The Event Manager

The Event Manager feature means that the device can sense changes on its ports and is able to react according to the pre-defined settings. Lightware Device Controller contains a user-friendly software tool and allows to create Events by defining a Condition and an Action.

Event Manager example

See more information about the settings in the Event Manager section.

3.15.2. Transmitter Cloning - Configuration Backup and Restore

The transmitter (configuration) cloning of a UMX-TPS-TX100 series transmitter or wallplate is a simple method that eliminates the need to repeatedly configure certain devices to have identical (non-factory) settings. If the devices are installed in the same type of system multiple times then it is enough to set up only one device to fit the user's needs and then copy those settings to the others, thus saving time and resources. See more information about the settings in the Configuration Cloning (Backup Tab) section.

3.15.3. Remote Firmware Upgrade of Connected Lightware Devices

Three connected electronic devices in a rack layout (no visible text or labels)

The firmware of the Lightware TPS devices can be upgraded individually by Lightware Device Updater (LDU) software. UMX-TPS-TX100 series transmitters and wallplates contain a feature which allows having a faster and more comfortable firmware upgrade process. When the firmware of the connected extenders has to be upgraded the TPS connection is necessary towards the extenders – nothing else. The LDU will find the connected devices and can upgrade them.

The upgrade process is almost the same as in the case of the usual upgrade process. See the details of the process in the Remote Firmware Upgrade of Connected Lightware Devices section.

Operation

This chapter is about the powering and operating of the device describing the functions which are available by the front/rear controls:

FRONT PANEL LEDs

REAR PANEL LEDs

▶FRONT PANEL BUTTONS

▶SPECIAL FUNCTIONS

▶SOFTWARE CONTROL MODES

4.1. Front Panel LEDs

INFO: WP-UMX-TPS-TX130-US and FP-UMX-TPS-TX130-MKM models have the same functionality. The operation of the status LEDs is also similar.

ATTENTION! When Dark mode is enabled, no LEDs are on, even though the device is fully functional.

4.1.1. Video Input LEDs

OFF: Video source is selected. BLINKING: Video source selected, and signal is detected. ON: Video source is selected and signal is present.

4.1.2. Audio Input LEDs

OFF: Audio source is not selected. BLINKING: Audio source is selected, and signal is not detected. ON (with short pause): Audio source is selected and the port is active but not embedded to the output video stream (DVI output mode). ON (continuously): Audio source is selected, the port is active and the audio is

4.1.3. Autoselect LED

OFF: Autoselect function is disabled. BLINKING: Autoselect function is enabled, searching for signal (the video input LEDs are also blinking). ON: Autoselect function is enabled, the active video signal is found (the selected video input's LED is also ON).

You can find more details in the The Autoselect Feature section.

4.1.4. HDCP LED

OFF:

Video output signal is not encrypted with HDCP.

ON:

Video output signal is HDCP-encrypted.

You can find more details in the HDCP Management section.

4.1.5. TPS LINK LED

Screenshot of a software interface showing ports and status indicators with Chinese text labels

OFF:

No TPS link between the transmitter and the receiver.

BLINKING (slow):

Low power mode is active.

BLINKING (fast):

Ethernet fallback mode is active.

ON:

TPS link is established, HDBaseT or Long Reach mode is active.

You can find more details about TPS operation modes in the TPS Interface section.

4.1.6. Firmware Version Indication

After being powered on, the transmitter lights up all LEDs, then displays its firmware version using three LEDs on the front panel: the upper three in the left column. The top LED means the first number of the firmware version – actually this is the main version. The second and the third LEDs from the top indicate the second and the third numbers of the firmware version which mean the subversions.

UMX-TPS-TX140

WP- UMX-TPS-TX130-US

Example - WP-UMX-TPS-TX130-US

The process after the device is switched on or rebooted is the following:

Step 4. VGA LED blinks once the first number (1).

Step 5. DP LED blinks twice the second number (2)

Step 6. HDMI LED stays dark showing the third number (0).

4.2. Rear Panel LEDs

4.2.1. LIVE LED

OFF:

The device is not powered.

BLINKING (slow):

The device is powered and operational.

BLINKING (fast):

The device is in firmware upgrade (bootload) mode.

ON:

The device is powered but not operational.

4.2.2. RS-232 LED

OFF:

RS-232 ports (Local and Link) are in Pass-through mode.

BLINKING:

Command injection mode is active.

ON:

RS-232 ports (Local and Link) are in Control mode.

See more details about RS-232 modes in the Serial Interface section.

4.2.3. SRVC LED

ON:

Test pattern is the selected and active input source.

See more details about Test pattern input mode in the Test Pattern section.

4.2.4. LINK LED

OFF:

No TPS link between the transmitter and the receiver.

BLINKING (slow):

Low power mode is active.

BLINKING (fast):

Ethernet fallback mode is active.

ON:

TPS link is established, HDBaseT or Long Reach mode is active.

See more details about TPS modes in the TPS Interface section.

4.3. Front Panel Buttons

INFO: WP-UMX-TPS-TX130-US and FP-UMX-TPS-TX130-MKM models have the same functionality. The operation of the front panel buttons is also similar.

4.3.1. Video Select Button

Desired video input can be selected by the Video Select button from the front panel. The selection order of the inputs depends on the model as follows:

4.3.2. Audio Select Button

Desired audio input can be selected by the Audio Select button from the front panel. The selection order of the inputs depends on the model as follows:

UMX-TPS-TX120: Analog audio Embedded digital audio UMX-TPS-TX130: Analog audio Embedded digital audio UMX-TPS-TX140: Audio1 Audio2 Embedded audio

WP-UMX-TPS-TX120-US: → Analog audio Embedded digital audio WP-UMX-TPS-TX130-US: → Analog audio Embedded digital audio FP-UMX-TPS-TX130-MKM: → Analog audio Embedded digital audio

INFO: Embedded digital audio is received on the digital video input

4.3.4. Programmable Show Me Butt

Lightbox HP-UNL TFS TX G00A 12

4.4. Special Functions

4.4.1. Enable DHCP (Dynamic) IP Ac

LINUXWARE 5 sec 30mA 12.5V 30mA 12.5V

4.4.2. Reset to Factory Default Settings

10 sec To restore factory default values, do the following steps: 10 sec

Step 1. Make sure the device is powered on and operational.
Step 2. Press and keep pressed the Show Me button for 10 seconds. After 5 seconds front panel LEDs start blinking but keep on pressing the button.
Step 3. After 10 seconds the LEDs start blinking faster, release the button and press it 3 times again quickly (within 3 seconds).
Step 4. The LEDs get dark, the device restores the factory default settings and reboots.
Factory default settings are listed in the Factory Default Settings section.

4.4.3. Resetting the Device

In few cases (after firmware upgrade, etc) you may need to reset the device. Pushing the reset button results the same as you disconnect and reconnect the power adaptor to the transmitter. To resetting the device follow the steps:

Step 1. Push the button with a thin object for a second.
Step 2. Wait until the device reboots. You can use the transmitter when the LIVE LED is blinking slowly again.
ATTENTION! Resetting the device does not reset the settings to factory defaults. To reset factory default settings see the previous section.

4.4.4. Control Lock

Press the Audio Select and Show Me buttons together (within 100 ms) to disable/ enable front panel buttons; front panel LEDs blink 4 times when locking/unlocking. If the control lock is enabled and a button is pressed, front panel LEDs blink 3 times.

4.4.5. Entering Firmware Upgrade Mode

It may happen that the firmware upgrade process is not successful and the device cannot be switched to bootload mode automatically. In this case, the device can be forced into firmware upgrade mode as follows:

Step 1. Make sure the transmitter is powered off.
Step 2. Press and keep pressed the Show Me button.
Step 3. Power on the transmitter while the Show Me button is being pressed. If the device is switched to firmware upgrade mode the LIVE LED is blinking quickly (less than 500 ms duty cycle). The other LEDs are off.
The procedure of firmware upgrade can be found in the Firmware Upgrade chapter.

4.5. Software Control Modes

User has more possibilities to control the device besides the front panel buttons. The following list contains the software control modes:

• Lightware Device Controller (LDC) - you can connect to the device via our control software using Ethernet or RS-232 interface and control or configure the device as you wish. For the details see the Software Control - Lightware Device Controller chapter.
• LW2 protocol commands: you can configure the device by using the reduced command set of LW2 protocol. For more details see the LW2 Programmer's Reference chapter.
• LW3 protocol commands: you can configure the device by using the full-range command set of LW3 protocol. For more details see the LW3 Programmers' Reference chapter.

1. Software Control - Lightware Device Controller UMX-TPS-TX100 series - User's Manual 31

5

Software Control - Lightware Device Controller

The device can be controlled by a computer through the Ethernet and RS-232 ports using Lightware Device Controller (LDC). The software can be installed on a Windows PC or macOS. The application and the User's manual can be downloaded from www.lightware.com.

INSTALL AND UPGRADE

▶RUNNING THE LDC

▶CONNECTING TO A DEVICE (DEVICE DISCOVERY WINDOW)

▶ CROSSPOINT MENU

▶PORT PROPERTIES WINDOWS

▶DIAGNOSTIC TOOLS

▶EDID MENU

▶CONTROL MENU

▶EVENT MANAGER

▶ SETTINGS MENU

▶ CONFIGURATION CLONING (BACKUP TAB)

▶ADVANCED VIEW WINDOW

5.1. Install and Upgrade

INFO: After the installation, the Windows and the Mac application has the same look and functionality. This type of the installer is equal with the Normal install in case of Windows and results an updateable version with the same attributes.

Installation for Windows OS

Run the installer. If the User Account Control drops a pop-up message click Yes.

During the installation you will be prompted to select the type of the installation: normal and the snapshot install:

Normal install Snapshot install
Available for Windows and macOS Available for Windows
The installer can update only this instance Cannot be updated
Only one updateable Instance can existfor all users	More than one different versioncan be installed for all users

Comparison of installation types

ATTENTION! Using the Normal install as the default choice is highly recommended.

Installation for macOS

Mount the DMG file with double clicking on it and drag the LDC icon over the Applications icon to copy the program into the Applications folder. If you want to copy the LDC into another location just drag the icon over the desired folder.

Upgrading of LDC

Step 1. Run the application.

The Device Discovery window appears automatically and the program

checks the available updates on Lightware's website and opens the update window if the LDC found updates.

The current and the update version number can be seen at the top of the window and they are shown in this window even with the snapshot install.

The Update window can also be opened by clicking the About is

② and the Update button.

Step 2. Set the desired update setting in the Options section.

- If you do not want to check for the updates automatically, uncheck the circle, which contains the green tick.

- If you want to postpone the update, a reminder can be set with different delays from the drop down list.

- If the proxy settings traverse the update process, set the proper values then click the OK button.

Step 3. Click the Download update button to start the upgrading.

The updates can be checked manually by clicking the Check now button.

5.2. Running the LDC

The common way to start the software is double-click on the LDC icon. But the LDC can be run by command line parameters as follows:

Type the name of a program, folder, document, or Internet resource, and Windows will open it for you. Open: IlirLightwareDeviceController.exe -130.168.0.107605 OK Cancel Browse...

Connecting to a Device with Static IP Address

Format: LightwareDeviceController -1 :

Example: LightwareDeviceController -i 192.168.0.20:10001

The LDC is connected to a device with the indicated static IP address directly; the Device Discovery window is not displayed. When the port number is not set, the default port is used: 10001 (LW2 protocol). For LW3 devices use the 6107 port number.

Connecting to a Device via a Serial Port

Format: LightwareDeviceController -c :

Example: LightwareDeviceController -c COM1:57600

The LDC is connected to a device with the indicated COM port directly; the Device Discovery window is not displayed. If no Baud rate is set the application will detect it automatically.

1. Software Control - Lightware Device Controller UMX-TPS-TX100 series - User's Manual 32

5.3. Connecting to a Device (Device Discovery Window)

There are three tabs for the different type of interfaces: Ethernet, Serial, and USB.

Lightware Device Details Fisher Service General Service I/OOS Services Favorite Devices (File IP) Only show available devices 1 200 368.4.100 2 200 368.4.101 3 200 368.4.102 4 200 368.4.103 5 200 368.4.104 6 200 368.4.105 7 200 368.4.106 8 200 368.4.107 9 200 368.4.108 10 200 368.4.109 11 200 368.4.110 12 200 368.4.111 13 200 368.4.112 14 200 368.4.113 15 200 368.4.114 16 200 368.4.115 17 200 368.4.116 18 200 368.4.117 19 200 368.4.118 20 200 368.4.119 21 200 368.4.120 22 200 368.4.121 23 200 368.4.122 24 200 368.4.123 25 200 368.4.124 26 200 368.4.125 27 200 368.4.126 28 200 368.4.127 29 200 368.4.128 30 200 368.4.129 31 200 368.4.130 32 200 368.4.131 33 200 368.4.132 34 200 368.4.133 35 200 368.4.134 36 200 368.4.135 37 200 368.4.136 38 200 368.4.137 39 200 368.4.138 40 200 368.4.139 41 200 368.4.140 42 200 368.4.141 43 200 368.4.142 44 200 368.4.143 45 200 368.4.144 46 200 368.4.145 47 200 368.4.146 48 200 368.4.147 49 200 368.4.148 50 200 368.4.149 51 200 368.4.150 52 200 368.4.151 53 200 368.4.152 54 200 368.4.153 55 200 368.4.154 56 200 368.4.155 57 200 368.4.156 58 200 368.4.157 59 200 368.4.158 60 200 368.4.159 61 200 368.4.160 62 200 368.4.161 63 200 368.4.162 64 200 368.4.163 65 200 368.4.164 66 200 368.4.165 67 200 368.4.166 68 200 368.4.167 69 200 368.4.168 70 200 368.4.169 71 200 368.4.170 72 200 368.4.171 73 200 368.4.172 74 200 368.4.173 75 200 368.4.174 76 200 368.4.175 77 200 368.4.176 78 200 368.4.177 79 200 368.4.178 80 200 368.4.179 81 200 368.4.180 82 200 368.4.181 83 200 368.4.182 84 200 368.4.183 85 200 368.4.184 86 200 368.4.185 87 200 368.4.186 88 200 368.4.187 89 200 368.4.188 90 200 368.4.189 91 200 368.4.190 92 200 368.4.191 93 200 368.4.192 94 200 368.4.193 95 200 368.4.194 96 200 368.4.195 97 200 368.4.196 98 200 368.4.197 99 200 368.4.198 100

Device Discovery Window

Establishing the Connection

Select the unit from the discovered Ethernet devices (see the picture on the left); if the device is connected via the RS-232 port click on the Query button next to the desired serial port to display the device's name and serial number (see the picture below). Double click on the device or select it and click on the green Connect button.

LIGHTWARE External Devices Serial Devices USB Devices Serial Devices External Devices (100%): 100% (log: 100%) Serial Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Devices External Diversals External Diversals External Diversals External Diversals External Diversals External Diversals External Diversals External Diversals External Diversals External Diversals External Diversals External Diversals External Diversals External Diversals External Diversals External Diversals External Diversals External Diversals External Diversals External Diversals External Diversars External Diversars External Diversars External Diversars External Diversars External Diversars External Diversars External Diversars External Diversars External Diversars External Diversars External Diversars External Diversars External Diversars External Diversars External Diversars External Diversars External Diversars External Diversars External Diversars External DiversARS External DiversARS External DiversARS External DiversARS External DiversARS External DiversARS External DiversARS External DiversARS External DiversARS External DiversARS External DiversARS External DiversARS External DiversARS External DiversARS External DiversARS External DiversARS External DiversARS External DiversARS External DiversARS External DiversARS External DiversABS External DiversABS External DiversABS External DiversABS External DiversABS External DiversABS External DiversABS External DiversABS External DiversABS External DiversABS External DiversABS External DiversABS External DiversABS External DiversABS External DiversABS External DiversABS External DiversABS External DiversABS External DiversABS

ATTENTION! Before the device is connected via the local RS-232 port, make sure that Control mode and LW3 protocol are set on the serial port.

The Ethernet tab consists of two lists:

• Favorite Devices: You can add any Lightware device that is connected via Ethernet and no need to browse all the available devices. Devices can be added by pressing the Add button or marking the desired device by the ★ symbol in the All Devices list.
• All Devices: The Lightware devices are listed which are available in the connected network.

Further Tools

The Tools menu contains the following options:

• Log Viewer: The tool can be used for reviewing log files which have been saved previously.
• Create EDID: This tool opens the Easy EDID Creator wizard which can be used for creating unique EDIDs in a few simple steps. Functionality is the same as the Easy EDID Creator.
• Demo Mode: This is a virtual MX-FR17 matrix router with full functionality built into the LDC. Functions and options are the same as a real MX-FR17 device.

The Terminal window is also available by pressing its button on the bottom.

IP Address Configuration

The IP settings of a device can be changed without establishing the connection to the LDC. If the feature is supported by the device an icon is displayed next to the IP address:

Press the icon to open the IP configuration window and set the necessary parameters then press the Apply button (or Cancel to discard and exit).

Identifying the Device

Clicking on the icon results the blinking of the status LEDs for 10 seconds. The feature helps to identify the device itself in the rack shelf.

1. Software Control - Lightware Device Controller UMX-TPS-TX100 series - User's Manual 33

5.4. Crosspoint Menu

Lightware VDD / VDD / VDD Audio & Audio VDD Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio AUDIO

1 Main menu The available menu items are displayed. The active one is showed with dark grey background color.
2 Information ribbon The label shows the device label which can be edited in the Settings menu - Status tab. Device discovery window can be displayed by clicking on this ribbon.
3 Video input ports Each tile represents a video input port. The tile below the port shows the current crosspoint setting; if the port is switched to the output, the color of the tile is white, otherwise grey.
4 Audio input ports Each tile represents an audio input port. The tile below the port shows current crosspoint setting; if the port is switched to the output, the color of the tile is white, otherwise grey. Dark grey means the audio port is not allowed to embed in the current video input port.
5 Advanced view Displaying Advanced View Window, showing the Terminal window and the LW3 protocol tree.
6 Audio output The audio output of the TPS out port. Clicking on the tile opens the TPS Audio Output.
7 Video output The video output of the TPS out port. Clicking on the tile opens the TPS Video Output.

Port Tiles

The colors of the port tiles and the displayed icons represent different states and information:

1 Port name

2 Port icon

3 Port number

4 Signal present

indicator

green: present

grey: not present

5 State indicators

State Indicators

Following icons display different states of the port/signal:

Icon Icon is grey Icon is black Icon is green
	Signal is not encrypted with HDCP	Signal is encrypted with HDCP	-
	Port is unmuted	Port is muted -
	Port is unlocked	Port is locked	-
A	Autoselect is disabled		Autoselect is enabled

1. Software Control - Lightware Device Controller UMX-TPS-TX100 series - User's Manual 34

5.5. Port Properties Windows

Clicking on the port tile opens the Port properties window. This section shows the available settings and status information by port types.

5.5.1. Analog Video Inputs

Port properties windows of VGA and DVI-A input ports provide similar settings and status information:

Input 1 - VGA Settings Port name: VGA Make Lock Source: Auto Analog options: Analog options No sync screen: Catalogue Status +5V present: None Signal present: current Sync type: cascaded Signal info Resolution: 170Hz/270GHz Scan: progressive Color depth: 2 bits per piece Color space: N/A Frame detector: Faser detector: Frame detector Emulated EVDI EBVD Memory: F99 Manufacturer: LWR Monitor name: Jew Analog Performed resolution: 1920x1200gfE9.66Hz Other Factory defaults: Update

Port properties window of the VGA video input

Available settings:

• Mute/unmute the port;
• Lock/unlock the port;
  • Source: Auto / RGB / YUV;
  • Analog options, see the details below;
• No sync screen: configuration settings of the Test Pattern;
• Frame Detector;
• Reloading factory default settings for the selected port.

Analog Options

Analog video signals are digitized on the input. The timing parameters can be adjusted here if needed. Timing presets can be saved for each resolution separately. User has 32 user presets to store different timing data.

Vertical bars Horizontal bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bars Vertical bar heights: 100 mm Vertical bar heights: 100 mm Vertical bar heights: 100 mm Vertical bar heights: 100 mm Vertical bar heights: 100 mm Vertical bar heights: 100 mm Vertical bar heights: 100 mm Vertical bar heights: 100 mm Vertical bar heights: 100 mm Vertical bar heights: 100 mm Vertical bar heights: 100mm Vertical bar heights: 100mm Vertical bar heights: 100mm Vertical bar heights: 100mm Vertical bar heights: 100mm Vertical bar heights: 100mm Vertical bar heights: 100mm Vertical bar heights: 100mm Vertical bar heights: 100mm Vertical bar heights: 100mm Vertical bar heights: 100m3 Vertical bar heights: 100m3 Vertical bar heights: 100m3 Vertical bar heights: 100m3 Vertical bar heights: 100m3 Vertical bar heights: 100m3 Vertical bar heights: 100m3 Vertical bar heights: 100m3 Vertical bar heights: 100m3 Vertical bar heights: 100m3

Analog options and Presets windows in LDC

5.5.2. Digital Video Inputs

Clicking on the HDMI, DisplayPort, or DVI-D input port icon results opening the Port properties window. The most important information and settings are available from the panel.

Input 2 - HDMI Settings Port name: HDMI Mode / Lock H10P outline No sync option Configure Status +5V present present Signal present present Signal type: HDMI H10P none Signal info Resolution: 1000x1000x100 Scan: progressable Color depth: 8 bits per pixel Color space: RGB Frame detector Frame detector Frame detector Emulated EBITO

Port properties window of the HDMI video input

Available settings:

• Mute/unmute the port;
• Lock/unlock the port;
  • HDCP setting (enable / disable);
• No sync screen: configuration settings of the Test Pattern;
  • Frame Detector;
• Reloading factory default settings for the selected port.

1. Software Control - Lightware Device Controller UMX-TPS-TX100 series - User's Manual 35

5.5.3. Analog Audio Inputs

Input 1 - AUDIO1 Settings Port name: AUDIO1 Set Male / Lock Volume: 5.00 Balance: 50 Other Factory defaults Reload

Port properties window of the AUDIO1 (Jack) input

Certain parameters of the analog audio input signal can be set as follows:

• Mute/unmute the port;
  • Volume: from 0 dB to -52 dB (step 0.25 dB), from -54 dB to -66
  dB (step 2 dB); -69 dB; -72 dB; -78 dB (default is 0 dB)
  • Balance: from 0 to 100, step 1 (default is 50 = center)
• Reloading factory default settings for the selected port.

5.5.4. Digital Audio Inputs

Input 2 - HDMI Settings Port name HDMI Set Mate / Lock Mate Lock Signal info Signal present present Audio format FOM Channels up to 8 channels Sampling frequency 40 MHz Other Factory defaults Refused

Port properties window of HDMI audio input

Certain parameters of the embedded audio input signal can be set as follows:

• Mute/unmute the port;
• Lock/unlock the port;
• Reloading factory default settings for the selected port.

5.5.5. TPS Video Output

Click on the output port to display its properties. The most important information and settings are available from the panel.

Output 1 - LINKOUT Settings Port name: LINKOUT Make / Lock AutoSelect Settings Closest Mode Frontier defect Prediction user is higher priority is lower priority. I1 0 D 0 I3 0 I4 0 I5 0 Set priorities Signal type: HDMI 24 bit HOP mode: Auto PWRGY mode: Always on Color space: Auto TPS mode: Auto Status Monitor present: none Signal present: present Signal type: HDMI HOP: none HospLog detect: none TPS mode: N/A Connected device: N/A Signal Info

Port properties window of TPS video output

Available settings:

• Mute/unmute the port;
• Lock/unlock the port;
• Autoselect settings: enable / disable, mode, and priorities. (See more details about Autoselect feature in The Autoselect Feature section),
• Signal type: Auto / DVI / HDMI 24 bit / HDMI 30 bit / HDMI 36 bit
• The outgoing signal format can be selected by a drop-down menu;
• HDCP mode: Auto / Always - The transmitter forces the source sent the signal without encryption if the content allows when Auto mode is selected;
• Power 5V mode: Auto / Always on / Always off - The setting lets the source and the sink devices be connected - independently from the transmitted signal;
• Color space: Auto / RGB / YCbCr 4:4:4 / YCbCr 4:2:2 - The outgoing signal color space can be selected by a drop-down menu;
  INFO: The color space conversion supports resolutions up to 1600×1200@60Hz. When the pixel clock frequency is above 170MHz, the conversion does not execute, and the original content will be transmitted.
• TPS mode: Auto / HDBaseT / Long reach / LPPF1 / LPPF2. See more information about TPS modes in the TPS Interface section.
• Frame Detector;
• Cable Diagnostics;
• Reloading factory default settings for the selected port.

5.5.6. TPS Audio Output

Certain parameters of the digital audio output signal can be set as follows:

Output 1 - LINKOUT Settings Port name: LINKOUT Mode / Lock AutoSelect Settings Disabled Mode Filter defect Pulsification user: 0. High level priority 1. Fixed priority 11 0 12 1 13 2 14 3 15 4 Set priorities Signal info Signal present present Audio format PCM Channels 2 channels Sampling frequency 40 kHz Other Factory defaults Reset

Port properties window of the TPS audio output

Available settings:

• Mute/unmute the port;
• Lock/unlock the port;
• Autoselect settings: enable / disable, mode, and priorities. (See more details about Autoselect feature in The Autoselect Feature section);
• Reloading factory default settings for the selected port.

1. Software Control - Lightware Device Controller UMX-TPS-TX100 series - User's Manual 37

5.6. Diagnostic Tools

5.6.1. Cable Diagnostics

The cable diagnostics is a useful tool to determine any cable related issues in case of TPS connection. The estimated cable length and the quality of the link are measured periodically and the diagnostic window shows the values in real-time. If the green bars hit the first line in the middle they turn into red. It means the number of the errors - during the extension - is higher than recommended. The link might be alive but recovering of the received data is not guaranteed.

INFO: Each bar represents a differential line in the CATx cable. The inappropriate termination of the cable usually causes high error rates. Check the cable terminations or change the cable.

General Table Chart Export data T588B Enor rate MSE 1 dB -23 dB 1.80 -24 dB 1.80 -23 dB 1.80 -24 dB Estimated cable length: < 20 m (Cat5) < 30 m (Cat7) Video BER < 10^10

Reference Values

Value Explanation
10^16-10^3	Excellent image quality
10^8	Minor error, not recognizable by eyes
10^7	Sometimes recognizable flash on a special test pattern
10^6	Small noise can be seen
10^5	Easy to recognize image error
10^4	Bad image quality

Above displayed "Video BER < 10 ^10 " value means that on average there is 1 bad pixel after 10 ^12 pixels, which means the number of the bit errors is about 1 pixel in every 80 seconds.

INFO: You can find more details about maximum twisted pair cable distances in the Maximum Extension Distances section.

Table and Chart Views

Cable diagnostics can be displayed in advanced modes as well. Two ways are available: table view and chart view. Data can be exported to a file on clicking on the Export data button.

General Table Chart Export data Date MSE MSE MSE Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro Euro EURO2016-11-12 03:57:232422222228623234< 202016-11-12 04:57:242422222228523234< 302016-11-12 05:57:252422232328463034< 302016-11-12 06:57:252422222226443036< 302016-11-12 07:57:272422222226443036< 302016-11-12 08:57:292422232226463238< 302016-11-12 09:57:302422232226463238< 30Source: Deutsche Bank, Inc. (www.guosen.com.cn)

Table view of cable diagnostics

Chart view of cable diagnostics

1. Software Control - Lightware Device Controller UMX-TPS-TX100 series - User's Manual 38

5.6.2. Frame Detector

The ports can show detailed information about the signal like full size and active video resolution. This feature is a good troubleshooter if compatibility problems occur during system installation. To access this function, open the port properties window and click on Frame detector button.

Horizontal resolution: 2000 gm Vertical resolution: 1400 gm Active plate: 2000 gm Active Steel: 1000 gm Vertical axis pitch: N/A Vertical axis depth: N/A Vertical axis pitch: N/A Vertical axis angle: N/A VCCM frequency: 37.777 Hz VCCM power: 37.74 Hz VCCM speed: N/A Scale: 5000 ps Max/min/plate clock: 148.6 MHz

Frame detector window

Lightware's Frame Detector function works like a signal analyzer and makes possible to determine the exact video format that is present on the port, thus helps to identify many problems. E.g. actual timing parameters may differ from the expected and this may cause some displays to drop the picture.

Frame Detector measures detailed timings on the video signals just like a built-in oscilloscope, but it is much more easy to use. Actual display area shows the active video size (light grey). Dark grey area of the full frame is the blanking interval which can contain the info frames and embedded audio data for HDMI signals. Shown values are measured actually on the signal and not retrieved only from the HDMI info frames.

5.6.3. Test Pattern

The port generates an image which can be displayed when there is no incoming signal on the port. Each port can have individual settings which can be set by clicking on the Configure button.

Input 6 - TESTPATTERN Settings Port name TESTPATTERN Set Mode / Lock Make End Test pattern Configure Signal info Resolution 640x480p00 Scan progressable Color depths 8 bits a pixel pixel Color space RGB Frame detector Frame detector Frame detector Other Factory defaults Reload

Port properties window of the Test pattern input

Test Pattern Configuration on Testpattern Port (I6)

Resolution: Set the desired image resolution from the drop-down menu.
Color: Click on the desired color or use the sliders and press the Set color button to store.

Test Pattern Configuration on Video Input Ports

Mode:

Auto: No sync screen signal is sent when there is no incoming signal.

Always on: No sync screen signal is sent always,

independently from the incoming signal.

Always off: No signal is sent when there is no incoming signal.

Resolution: Set the desired image resolution from the drop-down menu.

Color: Click on the desired color or use the sliders and press the Set color button to store.

1. Software Control - Lightware Device Controller UMX-TPS-TX100 series - User's Manual 39

5.7. EDID Menu

Advanced EDID Management can be accessed by selecting the EDID menu. There are two panels: left one contains Source EDIDs, right one contains Destination places where the EDIDs can be emulated or copied.

LIGHTWARE UMX-TP6-TX140 Circuit Edit Control Settings Factory Dynamic Use Facilitated Use Mem... Menu... Resolution Audio Monitor Name U1 LWR 1920x 0300g/0.00Hz N/A Drs: DPI F1 LWR 1940x 0600g/0.00Hz N/A C040x 400g/0.0 U2 LWR 1920x 0300g/0.00Hz 2ndPCM Drs: HDMI PCM F2 LWR 1900x 0500g/0.22Hz N/A C080x 600g/0.0 U3 LWR 1920x 0500g/0.00Hz 2ndPCM/8ds... Drs: HDMI ALL F3 LWR 1970x 1500g/0.0Hz N/A C135f2/76p8/0.0 U4 LWR 1920x 2700g/54.5Hz N/A Drs: Analog F4 LWR 1920x 1500g/0.0Hz N/A C1282c/76p8/0.0 U5 N/A N/A N/A N/A F5 LWR 1920x 1500g/9.94Hz N/A C1282c/76p8/0.0 U6 N/A N/A N/A N/A F6 LWR 1920x 1500g/7.5.0Hz N/A C1282c/76p8/5.75 U7 N/A N/A N/A N/A F7 LWR 1920x 1500g/6.0Hz N/A C135c/76p8/0.0 U8 N/A N/A N/A N/A F8 LWR 1920x 1500g/6.0Hz N/A C1282c/76p8/0.0 U9 N/A N/A N/A N/A F9 LWR 1920x 1500g/6.0Hz N/A C1282c/76p8/5.75 U10 N/A N/A N/A N/A F10 LWR 1920x 1500g/5.75Hz N/A C1282c/76p8/5.75 U11 N/A N/A N/A N/A F11 LWR 1920x 1500g/5.75Hz N/A C149cs/150G/5.5G U12 N/AN/AN/AN/AF13LWR 1920x 1500g/6.0Hz N/AC149cs/150G/5.5GU13N/AN/AN/AF14LWR 1920x 1500g/7.5.0HzC149cs/150G/6.7GU14N/AN/AN/AF15LWR 1920x 1500g/6.0HzC149cs/150G/6.5GU15N/AN/AN/AF16LWR 1920x 1500g/6.5GC149cs/150G/6.5GF17LWR 1920x 1500g/6.5GC149cs/150G/6.5GF18LWR 2040x 1500g/6.5GC243fs/150G/6.5GF19LWR 2040x 1500g/6.5GC243fs/150G/6.5GF20LWRC149cs/139G/6.5GF21LWRC149cs/139G/6.5GF22LWRC149cs/139G/6.5GE-mail: Info: Edit: Close: End:reference: Select all: Spectr name: Advanced view:

Control Buttons

EDID menu

Exporting an EDID (save to a file)

Importing an EDID (load from a file)

Display EDID Summary window

Opening Advanced EDID Editor with the selected EDID

Opening Easy EDID Creator

Transfer button: executing

EDID emulation or copying Deleting EDID (from User memory)

Selecting all memory places in the right panel

Selecting none of the memory places in the right panel

5.7.1. EDID Operations

Changing Emulated EDID

Step 1. Choose the desired EDID list on the source panel and select an EDID.

Step 2. Press the Emulated button on the top of the Destination panel.

Step 3. Select the desired port on the right panel (one or more ports can be selected); the EDID(s) will be highlighted with a yellow cursor.

Step 4. Press the Transfer button to change the emulated EDID.

Learning an EDID

The process is the same as changing the emulated EDID; the only difference is the Destination panel: press the User button. Thus, one or more EDIDs can be copied into the user memory either from the factory memory or from a connected sink (Dynamic).

Exporting an EDID

ATTENTION! This function is working on Windows and macOS operating systems and under Firefox or Chrome web browsers only.

Source EDID can be downloaded as a file (*.bin, *.dat or *.edid) to the computer.

Step 1. Select the desired EDID from the Source panel (line will be highlighted with yellow).

Step 2. Press the Export button to open the dialog box and save the file to the computer.

Importing an EDID

Previously saved EDID (*.bin, *.dat or *.edid file) can be uploaded to the user memory:

Step 1. Press the User button on the top of the Source panel and select a memory slot.

Step 2. Press the Import button below the Source panel.

Step 3. Browse the file in the opening window then press the Open button. Browsed EDID is imported into the selected User memory.

ATTENTION! The imported EDID overwrites the selected memory place even if it is not empty.

Deleting EDID(s)

The EDID(s) from User memory can be deleted as follows:

Step 1. Press User button on the top of the Destination panel.

Step 2. Select the desired memory slot(s); one or more can be selected ("Select All" and "Select None" buttons can be used). The EDID(s) will be highlighted with yellow.

Step 3. Press the Delete selected button to delete the EDID(s).

1. Software Control - Lightware Device Controller UMX-TPS-TX100 series - User's Manual 40

5.7.2. EDID Summary Window

Select an EDID from Source panel and press Info button to display EDID summary.

General Power Management Gamma Colors Established Timing Standard Timings Preferred Timing Mode 2nd Descriptor Field 3rd Descriptor Field 4th Descriptor Field CEA General CEA Video CEA Audio CEA Social Allocation CEA HDMI CEA Colorimetry CEA Detailed Timing Descriptors EDIO version: 1 EDIO version: 3 Manufacturer ID: SAM (Samsung Electric Company) Product ID: 8D09 Monitor serial number: Not present Year of manufacture: 2012 Week of manufacture: 9 Signal interface: Digital Separate Sync H&V: Composite sync on H: Sync on green: Saturation on VS: Color depth: Undelined Interface standard: Not defined Color spaces: RGB 4x4x4 & YOCb 4x4x4 Aspect ratio: 0.66 Display size: 52 cm X 29 cm

EDID summary window

5.7.3. Editing an EDID

Select an EDID from Source panel and press Edit button to display Advanced EDID Editor window. The editor can read and write all descriptors, which are defined in the standards, including the additional CEA extensions. Any EDID from the device's memory or a saved EDID file can be loaded into the editor. The software resolves the raw EDID and displays it as readable information to the user.

Route FHD Vendor / Product Information Display Parameters Power Management and Features Gamma / Clorior and Established Timings Standard Timings Preferred Timing Mode 2nd Descriptor Field 3rd Descriptor Field 4th Descriptor Field CCA Extension General Video Data Audio Data Speaker Allocation Lana HDMI Colorimetry Details Timing Descriptor #1 Details Timing Descriptor #2 Details Timing Descriptor #3 Details Timing Descriptor #6 Save EDID EDID Byte Editor 0 1 2 3 4 5 6 7 8 9 00 FF FF FF FF FF 00 AC 20 10 85 09 00 00 00 00 15 01 02 20 83 34 10 78 04 70 01 A4 65 50 30 AT 28 05 60 54 60 EF 80 71 4F 40 31 00 01 00 01 80 95 90 A9 C9 50 83 00 01 01 02 3A 80 18 71 36 60 20 40 58 2C 45 00 99 25 21 00 70 03 1E 66 21 56 AA 51 00 1E 30 80 45 8F 33 00 09 25 21 00 00 1E 90 00 00 00FD 00 16 4B 1A 51 17 100 02 0A 20 20 20 20 20 20 20 00 00 110 03 FC 00 64 32 34 42 33 80 31 120 DA 20 20 20 20 20 21 6C

EDID Editor window

1. Software Control - Lightware Device Controller UMX-TPS-TX100 series - User's Manual 41

5.7.4. Creating an EDID - Easy EDID Creator

Since above mentioned Advanced EDID Editor needs more complex knowledge about EDID, Lightware introduced a wizard-like interface for fast and easy EDID creation. With Easy EDID Creator it is possible to create custom EDIDs in four simple steps. By clicking on the Create button below Source panel, Easy EDID Creator is opened in a new window.

Step 1 - Select Resolution Step 2 - Signal Type Step 3 - Select Audio Step 4 - Finish Next Select Resolution Welcome to the Easy EDID Creator! With this program you are able to create a unique EDID according to your demands by enovoring three ample questions. Details can be added or changed later if needed. Please select the preferred resolution, scan mode and frame rate. If you don't find the proper mode in the list, then enter it and the program will estimate the best banking times. Preferred resolution: 640x406@85Hz 400x406@85Hz Set up a secondary resolution Advanced actions Use VESA DNT whenever possible Timing standard: VESA C/TFIB (Flat panels)

EDID Creator Window

5.8. Control Menu

5.8.1.RS-232

LIGHTWARE UMX-1PS-TX140 Current port RS-232 SPB Internet Data Events General settings RS-232 mode Control Port 1 - Local RS-232 Settings Port name: Local RS-232 Load rate: 57/000 Data bits: 6 Parity: None Stop bits: 1 Configuration: 57/000, RM1 Command injection Enable command injection: Port: 8903 Set Automated view

RS-232 tab in Control menu

The following settings and functions are available on the local and TPS link RS-232 port:

• RS-232 mode: Control, Pass-through, and Command Injection (for more details about serial interface modes see the Serial Interface section):
• Baud rate: 4800, 7200, 9600, 14400, 19200, 38400, 57600, 115200;
• Data bits: 8 or 9;
• Parity: None, Odd, or Even;
• Stop bits: 1, 1.5, or 2:
• Command injection: enable or disable;
  • Command injection port number;
  • Control protocol: LW2 or LW3;
• Message sending via serial port;
• Reloading factory defaults (see factory default settings in the Factory Default Settings section).
  ATTENTION! The RS-232 Operation mode is mirrored on the Local and Link serial port. The other settings can be adjusted separately on the two ports.

1. Software Control - Lightware Device Controller UMX-TPS-TX100 series - User's Manual 42

5.8.2. GPIO

LIGHTWARE UMX-TPS-TX140 Control Settings RS-252 GPI T1 Ethanol Infra EPI Events Port 1 - GPI Settings Port name: GPI Direction: Input Output High Output level: Low Toggle Toggle Other Factory defaults: Resetset Advanced view

GPIO tab in Control menu

The GPIO port has 7 pins, which operate at TTL digital signal levels and can be controlled by LDC or protocol commands. Select a GPIO pin and under the Port settings section; the settings (pin direction and input level) are displayed on the port tiles as well:

GPIO pin name

High level indicator *

GPIO port icon

Pin direction:

Input: down arrow

Output: up arrow

Low level indicator

GPIO port number

* Highlighted with black means the current setting.

INFO: Output level can be set only in case of setting the pin direction to Output. In case of input direction the output level setting and the Toggle button is not available.

For more details about GPIO interface see the GPIO Interface section.

5.8.3. Ethernet

LIGHTWARE UMX-TPS-TX140 Development LED Options Settings RS-20 USB EPKM Ethernet Info Events Local Ethernet CPU Ethernet TCP/IPM F3 Port 1 - Local Ethernet Settings Port name: Local Ethernet Speed: 120 MHz Duplexity: Full-duplex Enable: Other Purphy default to: Default Advanced view

Ethernet tab in Control menu

Two ports are displayed in the Ethernet settings: Local, CPU, and TPS. You can check the status of the Ethernet line by each ports: the speed and the duplexity of the connection.

The following settings are available for the local port:

• Enable / disable the port;
• Reloading factory defaults.

ATTENTION! If the Ethernet port is set to disabled, this may break the connection with the device.

INFO: CPU Ethernet port cannot be disabled.

1. Software Control - Lightware Device Controller UMX-TPS-TX100 series - User's Manual 43

5.8.4. Infra

ATTENTION! The device has no built-in Infrared receiver and transmitter. For the complete usage attach an IR emitter unit to the IR OUT and an IR detector unit to the IR IN connectors.

Infra-Red (IR) receiver and transmitter options can be found on this tab. There are three submenus are available under it: IR codes, Ports, and Clear all IR codes.

IR Codes

User can set the name of the IR code, the fingerprint (hash), and the repeat timeout in ms, as well as actions can be ordered to each IR codes.

LIGHTWARE UMX-TP8-TX146 Development END Control Settings RGB-235 Multi-CPB F1 Extended Drive Details IR codes Parts Clear of IR codes ID Name Triggering (bits) Inhibited Response Times of (ms) Actions Code0 code0 0.000000 100 Learn code1 code1 0.000000 100 Learn code2 code2 0.000000 100 Learn code3 code3 0.000000 100 Learn code4 code4 0.000000 100 Learn code5 code5 0.000000 100 Learn code6 code6 0.000000 100 Learn code7 code7 0.000000 100 Learn code8 code8 0.000000 100 Learn code9 code9 0.000000 100 Learn code10 code10 0.000000 100 Learn code11 code11 0.000000 100 Learn code12 code12 0.000000 500 Learn code13 code13 0.000000 500 Learn Detected IR flagpoints Clear Autonomous

IR codes window in Control menu

Description Function
ID Code number.
Name You can give an unique name for the desired code.
Fingerprint (hash) Fingerprint code in pronto hexa format.
Detected Indicator gives feedback about the given IR code is detected currently.
Repeat timeout (ms) You can set a timeout to avoid the involuntary code recurrence.
Actions	Action buttons for the desired IR code:Save: saving the fingerprint.Cancel: canceling the fingerprint.Lsam: learning the detected IR code.
Detected IR fingerprints	You can check the detected IR codes in this panel. Pushing Clear button deleting all current fingerprints and switch on or off the automatic scrolling with the Autoscroll pipe.

20 fingerprints can be stored in the device at the same time. Each of them can be ordered to an action in Event Manager.

Learning IR Codes

Step 1. Connect the IR detector unit to the IR IN port of the transmitter.

Step 2. Click on the Learn button.

Step 3. Turn the remote controller to the IR detector. A pop-up window appears in LDC - press your remote button to learn.

Step 4. Once the code is received, a new window pops up in LDC - learning completed. Click OK to continue.

Step 5. Optionally type a unique name for the code in the Name text box. The default name is code#, e.g. code0.

1. Software Control - Lightware Device Controller UMX-TPS-TX100 series - User's Manual 44

Ports

User can set the name and command injection port to each sources and destinations. For more details about IR interface see the IR Interface section.

LIGHTWARE UMX-TPS-TX140 RS 235 GPIO ETHNAT Infra Events IP nodes Parts ID Name Command injection port Actions Source1 IP input $0.01 Destination1 IP output $0.02 Source2 IPS $0.03 Destination2 IPS $0.04 Advanced view

Infra tab - Ports window

Clear all IR codes

Clicking on the button results deleting all stored IR fingerprints.

5.9. Event Manager

The feature means that the device can sense changes on its ports and able to react according to the pre-defined settings. The development idea of the Event manager is based on users' feedbacks. In many cases internal events (such as signal present or HDCP active) are necessary to display but it is not easy when the device is hard to access (e.g. built under the desk).

EVENT MANAGER

The Event manager can be configured to perform an action if a condition has been detected. E.g. the desired setup is that after a certain type of signal has been detected on 11 port, the port has to be switched to 01. The settings can be done via the LDC in the Control/Events tab, or by LW3 protocol commands. Configurable events number depends on the device what you are using actually.

Numerous new ideas and requests have been received in connection with the features and settings of the Event manager since the first release. Therefore, the user interface has been re-designed and many new functions implemented. The Event editor can be opened by pressing the Edit button at each Event.

There is a grey bar on the left of the Event panel in each line. If a condition and an action are set and the Event is enabled, the bar is displayed in green.

LIGHTWARE UMX-TPS-TX140 Exchange INTO Control Settings RS 232 Low CPG T-B Period Info Events Export Import Load factory defaults E1 - E10 E11 - E10 Show advanced expressions Event1 enabled Edit Clear Condition Video signal is detected on E1 detected times DELAY No delay ACTION Switch to the input to no output E1 performed 0 times Test Event2 enabled Edit Clear Condition Show the button pressed detected times DELAY No delay ACTION Send BS-C52 message (PWH) (output) or PC performed 0 times Test Event3 enabled Edit Clear Condition Empty condition detected times DELAY No delay ACTION Empty action performed 0 times Test Event4 enabled Edit Clear Condition Empty condition detected times DELAY No delay ACTION Empty action performed 0 times Test Advanced view

Control menu, Event Manager tab

Software Control - Lightware Device Controller UMX-TPS-TX100 series - User's Manual 45

5.9.1. The Event Editor

Press the Edit button in the desired Event line to open the Event editor window.

ST - enabled Clear Next 10 CONDITION Value signal to detected on 2 HPLC: 0.000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Wound Advanced Lock Category Wound Expansion Signal is detected on a port Start 12 Clear Apply ACTION Set GPIO output state to high on FZ High/High/High/High output Wound Advanced Lock Category GPIO Expansion Set output state to high Output FZ Clear Apply CONDITION TEST Character: 1, Base: 1, Hold Detected DELAY Delay: 3 min 6 sec Max delay Apply ACTION TEST Character: 1, Base: 1, Hold performed Text action

Event header The name of the Event is displayed. Type the desired name and press the Set name button. The Event can be cleared by the Clear button. Use the tick mark to enable/disable the Event.
2 Condition header If the condition is set, the description (white colored text) and the exact LW3 protocol expression (yellow colored text) can be seen. If the advanced mode was used the description is "Custom condition".
3 Condition panel The Wizard, the Advanced or the Link tool is available to set the condition. The parameters and settings are displayed below the buttons.
4 Condition test The set condition can be tested to see the working method in the practice.
5 Delay settings The action can be scheduled to follow the condition after the set time value.
6 Action header If the action is set, the description (white colored text) and the exact LW3 protocol expression (yellow colored text) can be seen. If the advanced mode was used the description is "Custom action".
7 Action panel The Wizard, the Advanced or the Link tool is available to set the action. The parameters and settings are displayed below the buttons.
B Action test The set action can be tested to see the working method in the practice.

5.9.2. Create or Modify an Event

Wizard Mode

The wizard mode lists the most common conditions and actions, so the user does not have to look for LW3 nodes and properties.
Step 1. Click on the Edit button of the desired Event; the Event editor is displayed.
Step 2. The wizard mode is displayed as default. Select the desired Category first (e.g. Audio or Video).
Step 3. Select the desired Expression from the drop-down menu. If any other parameter is necessary to set, it is going to be displayed.
Step 4. Press the Apply button to store the settings of the Condition.

Advanced Mode

The goal of this mode is the same as of the wizard: set the properties and methods for conditions and actions. The difference is the number of the available and usable properties and methods of the LW3

protocol. Advanced mode allows almost all of it.

Step 1. Click on the Edit button of the desired Event; the Event editor is displayed.
Step 2. The wizard mode is the default, press the Advanced button. The LW3 protocol tree is displayed showing the list of the properties in the drop-down menu. Navigate to the desired node.
Step 3. Select the desired Property from the menu. The manual of the property is displayed below to help to select the necessary property and to set the value.
Step 4. Set the desired value and operator, then press the Apply button to store settings.

The Link Tool

The new interface allows creating more actions to the same condition. In that case, a condition can trigger more actions. To set such an Event, the Link tool has been introduced.

Step 1. Click on the Edit button of the desired Event; the Event editor is displayed.
Step 2. The wizard mode is displayed as default, press the Link button.
Step 3. All the saved Events are analyzed and the conditions are listed (it takes some seconds to finish). The Show advanced expressions option allows showing the exact path and set the value of the given propert
Step 4. Select the desired Condition and press the Apply button to store the settings.

actions, so the Event editor is act the desired n menu. If any be displayed. Condition.

CONDITION Video signal is detected on 2 AUDIO/VIDEO/2 Signal preview = 1 Wizard Advanced Info Audio AUDIO/VIDEO/2 - MCDMA VIDEO 3D G1 11 Property Signal preview For the 1st indicator valid signal present on the past 0.5 percent. Parameter: Frequency Operator = equal (×) not equal (×) Value Clear Apply

1. Software Control - Lightware Device Controller UMX-TPS-TX100 series - User's Manual 46

5.9.3. Special Tools and Accessories

The Name of the Event

The name of a port can be changed by typing the new name and clicking the Set button. The following characters are allowed when naming:

Letters (A-Z) and (a-z), numbers (0-9), special characters: hyphen (-), underscore (_), and space ().

Enable or Disable an Event

The set Event can be enabled or disabled in the Event list, or directly in the Event editor window by setting the tick mark beside the name.

Testing the Condition

When the desired Condition is arranged, the setting can be tested. The Event list and the Event editor contains a small panel that shows if the set condition is detected and how many times. The Counter can be reset by the button in Event editor. If the Condition is true, the detected mark turns green for two seconds and the Counter is increased.

Testing the Action

The method is the same as testing the Condition, but in this case, the Action can be triggered manually by pressing the Test button.

TIPS AND TRICKS: The Test button is also placed on the Action panel in the Event list. Thus, you can check the Actions without opening the Event editor.

Delay the Action

In most cases the Action is performed immediately after the Condition is detected. But sometimes a delay is necessary between the Condition and the Action. Therefore, the new Event manager contains the Delay panel which allows that feature with below settings:

• No delay: when the Condition is detected, the Action is launched.
• Simple delay: when the Condition is detected, the Action is launched after the set time interval.
• Still exists: when the Condition is detected, the Action is launched after the set time interval only if the Condition still exists.
• Continuously exists: when the Condition is detected, the Action is launched after the set time interval only if the Condition has been existing continuously.

The available delay settings of an Event

TIPS AND TRICKS: Show advanced expressions option is a useful tool when you look for the path or value of a property but just the expression is displayed. The option is available in the Event list window or when Link tool is used.

5.9.4. Clear One or More Event(s)

Clear an Event

Press the Clear button in the Event list or in the header section in the Event editor.

Clear all Events

When all the Events must be cleared press the Load factory defaults button above the Event list. You will be prompted to confirm the process.

5.9.5. Export and Import Events

The feature allows saving all the Events. The backup file can be uploaded to another UMX-TPS-TX100 series transmitter.

Export all the Events

Step 1. Press the Export button above the Event list.
Step 2. The Save as dialog box will appear. Set the desired folder and file name, then press the Save button.
The generated file is a simple text file which contains LW3 protocol commands. The file can be viewed by a simple text editor, e.g. Notepad
ATTENTION! Editing the file is recommended only for expert users.

Import all the Events

Step 1. Press the Import button above the Event list.

Step 2. The Open dialog box will appear. Select the desired folder and file, then press the Open button.

5.9.6. Event Creating - Example

The following example shows you on a real-life situation how to set up an Event.

The Concept

The UMX-TPS-TX140 is connected to a projector by the TPS output port. The transmitter is also connected to the projector by the RS-232 port and can send commands via the serial line.

The task is to turn on the projector when signal is detected on the TPS output port.

CONDITION Signal is detected on the TPS output ACTION Turn on the projector

RS-232 Settings

Make sure that the serial line is established between the transmitter and the projector. Check that the RS-232 settings of the transmitter is set exactly the same which required for the projector: baud rate, data bits, parity, stop bits. The transmitter needs to be set to: Control protocol: LW3; and RS-232 mode: Pass-through. See the relevant LDC settings in the RS-232 section.

1. Software Control - Lightware Device Controller UMX-TPS-TX100 series - User's Manual 47

Setting the Event

You can create the Event in the Wizard in few simple steps:

Step 1. Set the condition.

Select the required parameters to set the condition:

• Category: Video;
  • Expression: Signal is detected on a port;
• Port 01.

Click on the Apply button to complete the procedure. When it is done, the condition appears on the upper side in textual and LW3 command format as well.

Step 2. Set the action.

If the condition is fulfilled, the following action needs to be launched: the receiver sends a command to the projector over the serial line:

- Power on - the required command which is accepted by the projector: PWRO

For this instance the command has to be closed with the characters so they need to be escaped. You can use the following format for escaping:

...

In the current case the command is: PWR0\x0d\x0a

Select the required parameters to set the action:

Category: RS-232
• Expression: Send RS-232 message;
- Part P1;
Message: PWRO\x0d\x0a

Step 3. Enable the Event.

Select the E1 enabled pipe in upper left corner to set the Event as launched.

INFO: If you do not find the required category/expression/etc what you need, choose the Advanced mode in the Wizard where the entire LW3 structure tree is available. For example instead of signal detection you can set a specified resolution or color range either as a condition.

CONDITION Video signal is detected on 01 /MEDIA/VIDEO/01.Signiflorent-1 Award Advanced Limit Category Video Expression Signal is detected on a port Port 01 Clear Apply

ACTION Send RS-232 message PWM@datafile on P1 MILIA/UART/P1 sendMessage-PWM@datafile Wizard Advanced Line Category RS 232 Expression Send RS-232 message Port Message P1 - PWM@datafile Close Apply

5.10. Settings Menu

5.10.1. Status

LIGHTWARE UMX-TPS-TX140 System EPU Control Settings Status Network Point Panel Risings Systems General Product name: UMX TPS-TX140 MAC address: 82.023650.26x47 Hardware version: VT_LAWM Series load: UMX TPS-TX140 Part number: V1540200 Serial number: 31112900 Replace built-in web: Choose file Reset built-in web: Reset Status System uptime: 0 days 0th 25m 66s Operation time: 1 days 10th 5 m 07s High temp operation time: 0 days 00h 00m 00s OP Temperature: 41 °C @ 25Vrms at 2 msed OP Interface version: 1.2 x 1/2 x 28 12V: 31.69 V @ 25Vrms at 25Vrms speed 5V: 4.84 V @ 25Vrms at 25Vrms speed 1.5V: 2.83 V @ 25Vrms at 25Vrms speed 1.2V: 1.27 V @ 25Vrms at 25Vrms speed TV: 6.99 V @ 25Vrms at 25Vrms speed Accessories

Status tab in Settings menu

The most important hardware and software related information can be found on this tab: hardware and firmware version, serial numbers, temperatures, operation time, and voltage information. Device label can be changed to unique description by the Set button.

Built-in Web

The built-in website of the transmitter allows to connect and query status information of the transmitter via a web browser.

• System Requirements for Operating Systems: Microsoft Windows XP, Windows Vista, Windows 7, Windows 10, macOS, Linux.
• Compatible Web Browsers: Mozilla Firefox, Google Chrome, Apple Safari.

ATTENTION! Please be sure that the computer is in the same network as the extender. If the computer has multiple Ethernet connections (for example Wi-Fi and LAN connections are used simultaneously) you will have to know the IP address for the one that is used for controlling the extender.

The .html file of the built-in web can be changed by clicking on Choose file button. Clicking on the Reset button restores the default .html file.

1. Software Control - Lightware Device Controller UMX-TPS-TX100 series - User's Manual 48

5.10.2. Network

LIGHTWARE UMX-TPS-TX140 Status Network Next Plans Backup System General Current IP address: 192.168.0.80 Current subnet mask: 255.255.255.0 Current gateway address: 192.168.0.5 Other IP addresses automatically (UH37, AutoF7) Static IP address: 192.168.0.85 Static subnet mask: 255.255.255.0 Static gateway address: 192.168.0.5 LWZ port: 1000 LWD port: 6107 HTTP port: 83 Apply changes: Apply changes Cancel Load factory defaults Advanced link

Network tab in Settings menu

IP address and DHCP settings can be set on this tab. Always press the Apply settings button to save changes. Factory defaults settings can be recalled with a dedicated button.

5.10.3. Backup

Details about this function can be found in the Configuration Cloning (Backup Tab) section.

5.10.4. Front Panel

LIGHTWARE UMS-IPS-TX140 C:\Users\NT CD5 Forms Settings Status Network Front Panel Backup System Front panel settings Lock front panel Double mode enable Enable default function for Video Select button Enable default function for Audio Token button Enable default function for Function button Advanced View

Front panel operation LEDs and buttons can be configure in this tab.

You can disable the functionality of the front panel buttons with marking the Button lock option. This is same method of the control lock made by the front panel buttons. See the details in the Control Lock section.

• Lock front panel enable/disable. This setting is equal with Control Lock. This configuration is also available via LW3 protocol, for more details see Lock the Front Panel Buttons section.
• Dark mode enable/disable: all the LEDs on the front panel of the transmitter unit are turned off 60 seconds after enabling the dark mode. Waking up the device is available by disabling the dark mode. This setting is also available via LW3 protocol, for more details see Dark Mode section.
• Enable default function for Video Select/ Audio Select/ Function button. When this property is disabled, it means that pushing the button will not perform the original function. This makes the button free for programming custom function by Event Manager. This setting is also available via LW3 protocol, for more details see Disable the Default Function of the Front Panel Buttons section.

1. Software Control - Lightware Device Controller UMX-TPS-TX100 series - User's Manual 49

5.10.5. System

LIGHTWARE UMX-FPS-TX140 Chrysler LPG Control Software Status Network Front Panel Backup System Download system.log System.log Load factory info.sits Factory defaults Robot device Robot Advanced Web

System tab in Settings menu

Three functions are available under System tab:

• Download system log - saving the file of the device.
• Load factory defaults - recalling factory defaults settings and values. All factory default settings are listed in the Factory Default Settings section.
• Reboot - rebooting the system.

5.11. Configuration Cloning (Backup Tab)

LIGHTWARE UMX-TPS-13140 Description IDD Control Settings Status Network Front Panel Backup System Create Device Configuration Backup File Description (optional) Create full backup Delete Device Configuration from Backup File Backup File Choose file File Analysis Results Use IP settings from backup file Keep current IP settings Apply the following IP settings: IP address: 199.1186.5.100 Subset mask: 255.255.255.0 Apply DRSC IP settings Advanced view

Backup tab

Configuration cloning of Lightware LW3 devices is a simple method that eliminates the need to repeatedly configure certain devices to have identical (non-factory) settings. If the devices are installed in the same type of system multiple times then it is enough to set up only one device to fit the user's needs and then copy those settings to the others, thus saving time and resources.

5.11.1. Steps in a Nutshell

Installing multiple devices with the same customized configuration settings can be done in a few easy steps:
Step 1. Configure one device with all your desired settings using the LDC software.
Step 2. Backup the full configuration file to your computer.
Step 3. If needed, make some modifications to the configuration file using a text editor (e.g. Notepad). E.g. modifying the static IP address is necessary when DHCP is not used.
Step 4. Connect to the other device which has to be configured and upload (restore) your configuration file.
Step 5. Done! You can have as many totally identical, customized devices as you like.

1. Software Control - Lightware Device Controller UMX-TPS-TX100 series - User's Manual 50

5.11.2. Save the Settings of a Device (Backup)

Step 1. Apply the desired settings in the transmitter (port parameters, crosspoint, etc.)

Step 2. Select the Settings / Backup tab from the menu.

Step 3. Write a short description in the text box on the left (optional).

Step 4. Press the Create a full backup button. You will be prompted to save the file to the computer. The default file name is the following:

BACKUP SN.LN]

Step 5. Set the desired file name, select the folder and save the file.

TIPS AND TRICKS: Using the exact product type in the filename is recommended since it makes the file usage more comfortable.

About the Backup File

The backup file is a simple text file which contains LW3 protocol commands. The first line is the description and the further lines are the commands which will be executed during the restore process. The file can be viewed (and/or edited) by a simple text editor, e.g. Notepad.

See the entire list of saved data in the Content of Backup File section.

ATTENTION! Editing the command lines is only recommended for expert users.

5.11.3. Upload the Settings to a Device (Restore)

WARNING! Please note that the settings will be permanently overwritten with the restored parameters in the device. Undo is not available.

ATTENTION! The cloning is successful when the backup file is downloaded from the same type of source device as the destination device.

The Restoring Process

Step 1. Select the Settings / Backup tab from the menu.

Step 2. Click on the Choose file button on the right panel and browse to the desired file.

Step 3. The file is verified and the result will be displayed in the textbox below. If the file is correct, then the settings can be restored.

Step 4. Choose IP settings what you want to use after backup. You can apply settings from the backup file, keep actual settings, set it manually in a dialog box or apply DHCP.

Step 5. Press the Start restore process button and click on the Yes button when asked.

Step 6. Reboot the device to apply the network settings after finishing.

5.12. Advanced View Window

Screenshot of a software interface with numbered UI elements and labeled panels for data processing and configuration.

1 LW3 protocol help Pushing the button results a help window opening which describes the most important information about LW3 protocol commands in HTML format.
Edit mode The default appearance is the read-only mode. If you want to modify the values or parameters, tick the option. You will be prompted to confirm your selection.
3 Warning mode If this pipe checked in, a warning window pops up when you enable Edit mode.
4 Terminal window Commands and responses with time and date are listed in this window. Sent command starts with 'x' character, received response starts with 'c' character. The color of each item depends on the type of the command and response. The content of the window can be emptied by the Clear button. If the Autoscroll option is ticked, the list is scrolled automatically when a new line is added.
5 Command line Type the desired command and execute it by the Send button. Clear all current commands and responses in the Terminal window by the Clear button.
Protocol tree LW3 protocol tree; select an item to see its content.
7 Node list Correspondent parameters and nodes are shown which are connected to the selected item in the protocol tree.

Manual button: Manual (short description) of the node can be called and displayed in the terminal window.

Set button: Saves the value/parameter typed in the textbox.

Call button: Calls the method, e.g. reloads factory default settings.

LW2 Programmer's Reference

The device can be controlled through a reduced command set of LW2 protocol commands to ensure the compatibility with other Lightware products. The supported LW2 commands are described in this chapter.

▶LW2 PROTOCOL DESCRIPTION

▶GENERAL LW2 COMMANDS

▶A/V PORT SETTINGS

▶NETWORK CONFIGURATION

▶GPIO CONFIGURATION

▶LW2 COMMANDS – QUICK SUMMARY

6.1. LW2 Protocol Description

The device accepts commands surrounded by curly brackets - {} - and responds data surrounded by round brackets - () - only if a command was successfully executed.

Format Explanation
	Input number in 1 or 2 digit ASCII format (01, 5, 07, 16, etc.)
	Output number in 1 or 2 digit ASCII format
	Input number in 2 digit ASCII format (01, 02, 10, 12 etc.)
	Output number in 2 digit ASCII format (01, 02, 10, 12 etc.)
	Location number in 1, 2 or 3 digit ASCII format
	id number in 1 or 2 digit ASCII format
	id number in 2 digit ASCII format
Crlf Carriage return, Line feed (0x0D, 0x0A)
•	Space character (0x20)
	Each command issued by the controller
	Each response received from the router

6.2. General LW2 Commands

6.2.1. View Product Type

Description: The device responds its name.

Format Example
Command {}Response (I:CrLf	→ {i}← (I:UMX-TPS-TX140)

Explanation: The connected device is a UMX-TPS-TX140.

Legend: shows type.

6.2.2. Query Control Protocol

Description: The device can be controlled with different control protocols. This command queries the active protocol of the currently used control interface.

Format Example
Command {P_2}Response (CURRENT●PROTOCOL●=●#<protocol>)CtLf	→ {P_2}← (CURRENT PROTOCOL = #1)

Explanation: The device communicates with LW2 protocol.

1. LW2 Programmer's Reference UMX-TPS-TX100 series - User's Manual 52

6.2.3. View Firmware Version of the CPU

Description: View the CPU firmware revision.

Format Example
Command {f}Response (FW:CrLf	→ {f}← (FW:1.1.1b1 r3082)

Legend: is the firmware version. It is followed by string which may indicate special versions.

6.2.4. Connection Test

Description: Simple test to see if the connection is established successfully.

Format Example
Command {PING}Response {PONG!}CrLf	→ {ping}← {PONG!}

6.2.5. View Serial Number

Description: The device responds its 8-digit serial number.

Format Example
Command {s}Response {SN:}CrLf	→ {s}← {SN:5A003192}

6.2.6. Compile Time

Description: Returns the date, when the microcontroller firmware was compiled.

Format Example
Command {CT}Response (Complied:.)CrLf	→ {ct}← (Compiled: May 11 2017 11:10:09)

6.2.7. View Installed Board

Description: Shows the hardware name and revision of the installed card.

Format Example
Command {is}Response (SL#•0•<MB_DESC>)CrLf(SL•END)CrLf	{is} (SL# 0 UMX-TPS-TX140 V11_2A) (SL END)

Explanation: The device reports its motherboard (slot 0).

6.2.8. View Firmware for All Controllers

Description: Shows the firmware versions of all installed controllers.

Format Example
Command {FC}Response (CF•CrLf(CF•)CrLf(CF END)CrLf	→ (fc)← (CF UMX-TPS-TX140 1.1.1b1 r3082)← (SL END)

Explanation: The device has one control panel.

6.2.9. Restart the Device

Description: The device can be restarted without unplugging power.

Format Example
Command {RST}Response	→ (rst)

Explanation: The device reboots; no response is sent in this case.

6.2.10. Query Health Status

Description: Internal voltages and measured temperature values are shown.

Format Example
Command {ST}Response (ST•)CrLf	{st} (ST CPU 11.61V 5.03V 1.84V 1.28V 0.99V 42.24C 42.23C)

6.2.11. Restore Factory Default Settings

Description: Settings can be reset to factory default values as follows:

Format Example
Command {FACTORY=ALL}Response (FACTORY ALL...)CrLf	→ (factory=all)← (FACTORY ALL...)

Explanation: All settings and parameters are reset to factory default, see the table in the Factory Default Settings section.

6.3. A/V Port Settings

6.3.1. Switch an Input to the Output

Following commands with option can take effect in multiple layers, according to their parameters. Depending on 'A' or 'V' it can change only the Audio or only the Video layer; or 'AV' changes both.

INFO: option usually can be skipped for legacy purposes. In this case, the devices change all (Video & Audio) layers but using status commands it displays information about only the Video layer. Please use AV option, when available.

Description: Switch input to output .

Format Example
Command@●Response (O●)CrLf	→ {2@1 AV}← {001 I02 AV}

Explanation: I2 audio and I2 video input ports are switched to O1 output port.

Legend:

	Layer
A Audio layer
V Video layer
AV (or nothing) Audio & Video layer

: 01 output port.

: l1...l6 input ports.

ATTENTION! The response of this command does not show if the output is muted. To check the mute status a separate query has to be used like (VC).

ATTENTION! Analog video inputs does not contain embedded audio. If you use the AV option in case of VGA input (I1) the audio will be switched to the analog audio input 1 (I1) and in case of DVI-A input (I5) the audio will be switched to the analog audio input 2 (I5).

6.3.2. Mute Output

Description: Mute output . The output signal is turned off.

Format Example
Command {#●}Response (1MTCrLf	→ (#01 A)← (1MT01 A)

Explanation: 01 audio port is muted.

ATTENTION! Muting does not change the crosspoint's state but disables the output itself. This way the last connection can be easily restored with an unmute command. Switching a muted output does not unmute the output.

6.3.3. Unmute Output

Description: Unmute output .

Format Example
Command {+●{Response (0MT<out2>●<layer>)CrLf	→ {+01 V}← (0MT01 V)

Explanation: 01 video port is unmuted.

INFO: Unmuting an output makes the previous connection active as the crosspoint state has not been changed by the muting command, only the output was disabled.

6.3.4. Lock Output

Description: Lock an output port. Output's state cannot be changed until unlocking

Format Example
Command {#><out>•<layer>}Response (1LO<out>•<layer>)CrLf	→ {#>01 A}← (1L001 A)

Explanation: 01 audio output port is locked.

6.3.5. Unlock Output

Description: Unlock an output port. The connection on output can be changed.

Format Example
Command {+<<out>●	→ {+<01 V}
Response (0LO<out2>●)CrLf	← (0LO01 V)

Explanation: 01 video output port is unlocked.

INFO: The device issues the above response regardless of the previous state of the output (either it was locked or unlocked).

6.3.6. View Connection State on the Output

Description: Viewing the crosspoint state of the device; showing the input port numbers connected to the outputs.

Format Example
Command {VC•}Response {ALL•<001>•<002}>CrLf	→ {VC AV}← {ALLV 02}← {ALLA 05}

Legend: 001 shows the corresponding output's connection state.

	Layer
	A Audio layer
	V Video layer
	AV ^ Audio & Video layer

* AV is not used in the response. When AV is typed in the commands, the response will result two lines, one for the Video and one for the Audio port states.

State letters:

Letter State Example
L Output is locked L01
M Output is muted M01
U Output is locked and muted U01

Explanation: 12 video input port is connected to the video output port and 15 audio input port is connected to the audio output port.

6.3.7. View Crosspoint Size

Description: Shows the physical crosspoint size.

Format	Example
Command {getsize••}Response {SIZE=•••}CrLf	→ {GETSIZE AV}← {SIZE=6x1 V}← {SIZE=5x1 A}

Legend:

: x

: See details in the previous section.

Explanation: The device reports that it has a video crosspoint with 6 inputs (Test pattern is the 6th input) and 1 output and an audio crosspoint with 5 inputs and 1 output.

6.3.8. Change Video Autoselect Mode

Description: The autoselect mode of the video outputs can be changed.

Format Example
Command {AS_V=<state>,<mode>}Response {AS_V=<state>,<mode>)CrLf	→ {as_v1=E;P}← {AS_V1=E;P}

Legend: The output numbers are listed in Port Numbering section.

Letter
F	First detect mode
P	Priority detect mode
L	Last detect mode

Letter
E	Autoselect mode is enabled
D	Autoselect mode is disabled

Explanation: The Autoselect mode of video output1 is enabled and set to Priority mode.

INFO: The Autoselect mode can be queried by typing the "as_v=?" command.

6.3.9. Change Audio Autoselect Mode

Description: The autoselect mode of the audio outputs can be changed.

Format Example
Command {AS_A=={state};}Response {AS_A=={state};}CrLf	→ {as_a1=E;P}← {(AS_A1=E;P)}

Legend: The output numbers are listed in Port Numbering section.

Letter
F	First detect mode
P	Priority detect mode
L	Last detect mode

Letter
E	Autoselect mode is enabled
D	Autoselect mode is disabled

Explanation: The Autoselect mode of audio output1 is enabled and set to Priority mode.

INFO: The Autoselect mode can be queried by typing the "as_v=?" command.

6.3.10. Change the Video Input Priorities

Description: The settings of video input priority can be changed as follows.

Format Example
Command {PRIO_V<=<in'_prio>;<in2_prio>,...<in4_prio>}Response {PRIO_V<=<in'_prio>,<in',prio>,...<in',prio>)Crlf	{prio_v1=1;0;2;3;4;5} (PRIO_V1=1;0;2;3;4;5)

Legend:

: The output port number: V1

...: Priority number of the input ports. See more details

about port numbering in the Port Numbering section.

Explanation: Input 2 has the highest priority (0), Input 1 has the second highest (1). Input 6 has the lowest priority (5).

ATTENTION! Always set all the priority of the ports when changing, otherwise, the change will not be executed and the response will be the current setting (like querying the priority setting).
INFO: In this case, the outputs are linked; the change will affect both local and fiber optical output ports.
INFO: The video priorities can be queried by typing the "prio_v=?" command.

6.3.11. Change Audio Input Priority

Description: The settings of video input priority can be changed as follows.

Format Example
Command {PRIO_A<=<in_l_prio>;<in2_prio>,...;<in3_prio>}Response {PRIO_A<=<in1_prio>;<in2_prio>,...;<in3_prio>}CrLf	{prio_a1=1;0;2;3;4} (PRIO_A1=1;0;2;3;4)

Legend:

: The output port number: A1

...: Priority number of the input ports. See more details about port numbering in the Port Numbering section.

Explanation: Input 2 has the highest priority (0), Input 1 has the second highest (1). Input 5 has the lowest priority (4).

ATTENTION! Always set all the priority of the ports when changing, otherwise, the change will not be executed and the response will be the current setting (like querying the priority setting).
INFO: In this case, the outputs are linked; the change will affect both local and fiber optical output ports.
INFO: The audio priorities can be queried by typing the "prio_a=?" command.

6.4. Network Configuration

6.4.1. Query the Current IP Status

Description: IP address settings can be queried as follows.

Format Example
Command {IP_STAT=?}Response (IP_STAT=<type><ip_address;<subnet_mask><gateway_addr>)Crlf	{Ip_stat=?} {IP_STAT=0;192.168.0.100;255.255.255.0; 192.168.0.1}

Legend:

: 0 = static IP; 1 = DHCP.
: IP address (four decimal octets separated by dots).
: Subnet mask (four decimal octets separated by dots).
: Gateway address (four decimal octets separated by dots).

Explanation: The device has a static (fix) IP address: 192.168.0.100; the subnet mask is 255.255.255.0, the gateway address is 192.168.0.1.

6.4.2. Set the IP Address

Description: IP address can be set as follows.

Format Example
Command {IP_ADDRESS={type};;}Response {IP_ADDRESS={type};;}CrLf	{ip_address=0;192.168.0.110} {IP_ADDRESS=0;192.168.0.110}

Legend: : 0 = static IP; 1 = DHCP
INFO: The IP address can be queried by typing the "ip_address=?" command. The response contains the fix IP address that is stored in the device even if DHCP is enabled; in this case, this IP address is not valid

6.4.3. Set the Subnet Mask

Description: Subnet mask can be set as follows.

Format Example
Command {IP_NETMASK=<subnet_mask>}Response (IP_NETMASK=<subnet_mask>)CrLf	{ip_netmask=255.255.255.0} {IP_NETMASK=255.255.255.0}

Legend: : Four decimal octets separated by dots.

INFO: The subnet mask can be queried by typing the "ip_address?" command. The response contains the fix IP subnet mask that is stored in the device even if DHCP is enabled; in this case, this IP subnet mask is not valid.

1. LW2 Programmer's Reference UMX-TPS-TX100 series - User's Manual 56

6.4.4. Set the Gateway Address

Description: Gateway address can be set as follows.

Format Example
Command{IP_GATEWAY=<gateway_addr)}>Response{IP_GATEWAY=<gateway_addr>)CrLf	{ip_gateway=192.168.0.50} {IP_GATEWAY=192.168.0.50}

Legend: : Four decimal octets separated by dots.

INFO: The gateway address can be queried by typing the "ip_gateway=?" command. The response contains the static IP gateway address that is stored in the device even if DHCP is enabled. In that case, the latest valid gateway address (for static IP) is stored.

6.4.5. Apply Network Settings

Description: Apply the network settings and restart the network interface.

Format Example
Command {ip_apply}Response {IP_APPLY}CrLf	→ {ip_apply}← {IP_APPLY}

6.5. GPIO Configuration

6.5.1. Set Level and Direction for Each Pins

Description: GPIO pins can be configured as follows. See more details about GPIO connector in the section and about the interface in the section.

Format Example
Command {GPIO==;}Response {GPIO<=;}Crlf	→ {gpio1=0;H}← {GPIO1=0;H}

Legend:

: GPIO pin number 1...8

The direction of the communication, it can be input or output.

:

The level of the pin, it can be low or high.

ParameterDescription
I Input
O Output
ParameterDescription
L Low
H High
T Toggle

Explanation: GPIO pin 1 is set to output with high level.

INFO: The current GPIO pin configuration can be queried by typing the {GPIO=?} command.

6.6. LW2 Commands - Quick Summary

General LW2 Commands

Operation	See In section	Command
View Product Type 6.2.1 {I}
Query Control Protocol 6.2.2 {P_?}
View Firmware Version of the CPU 6.2.3 {F}
Connection Test 6.2.4 {PING}
View Serial Number 6.2.5 {S}
Compile Time 6.2.6 {CT}
View Installed Board 6.2.7 {IS}
View Firmware for All Controllers 6.2.8 {FC}
Restart the Device 6.2.9 {RST}
Change the Video Input Priorities 6.2.10 {ST}
Restore Factory Default Settings 6.2.11 {FACTORY=ALL}

A/V Port Settings

Operation	See in section	Command
Switch an Input to the Output	6.3.1
Mute Output	6.3.2
Unmute Output	6.3.3
Lock Output	6.3.4
Unlock Output	6.3.5
View Connection State on the Output	6.3.6
View Crosspoint Size	6.3.7
Change Video Autoselect Mode	6.3.8
Change Audio Autoselect Mode	6.3.9
Change the Video Input Priorities	6.3.10
Change Audio Input Priority	6.3.11

Network Configuration

Operation	See In section	Command
Query the Current IP Status	6.4.1	{IP_STAT=?}
Set the IP Address	6.4.2 {IP_ADDRESS=
Set the Subnet Mask	6.4.3 {IP_NETMASK=
Set the Gateway Address	6.4.4	{IP_GATEWAY=
Apply Network Settings	6.4.5 {IP_APPLY}

GPIO Configuration

Operation	See in section	Command
Set Level and Direction for Each Pins	6.5.1	{GPIO=,}

1. LW3 Programmers' Reference UMX-TPS-TX100 series - User's Manual 58

LW3 Programmers' Reference

The device can be controlled through Lightware 3 (LW3) protocol commands to ensure the compatibility with other Lightware products. The supported LW3 commands are described in this chapter.

▶ OVERVIEW

▶PROTOCOL RULES

▶SYSTEM COMMANDS

▶VIDEO PORT SETTINGS

▶AUDIO PORT SETTINGS

▶NETWORK CONFIGURATION

RS-232 PORT CONFIGURATION

▶INFRARED PORT CONFIGURATION

▶SENDING MESSAGE VIA THE COMMUNICATION PORTS

▶GPIO PORT CONFIGURATION

▶EDID MANAGEMENT

LW3 COMMANDS - QUICK SUMMARY

7.1. Overview

The Lightware Protocol #3 (LW3) is implemented in almost all new Lightware devices (matrix switchers, signal extenders and distribution amplifiers) since 2012. The protocol is ASCII-based and all commands are terminated with a carriage return (Cr, "r") and line feed (Lf, "n") pair. It is organized as a tree structure that provides outstanding flexibility and user-friendly handling with 'nodes', 'properties' and 'methods'. The Advanced View of the Lightware Device Controller software is the perfect tool for browsing and learning how the LW3 protocol can be used in practice.

7.2. Protocol Rules

7.2.1. LW3 Tree Structure and Command Structure (examples)

7.2.2. General Rules

• All names and parameters are case-sensitive.
  • The nodes are separated by a slash (') character.
• The node name can contain the elements of the English alphabet and numbers.
  • Use the TCP port no. 6107 when using LW3 protocol over Ethernet.
• When a command is issued by the device, the received response cannot be processed by the CPU.
• The node paths describe the exact location of the node, listing each parent node up to the root.

1. LW3 Programmers' Reference UMX-TPS-TX100 series - User's Manual 59

7.2.3. Command Types

GET command

The GET command can be used to get the child nodes, properties and methods of a specific node. It can also be used to get the value of a property. Use the dot character (.) when addressing a property:

▶ GET/.SerialNumber
pr/.SerialNumber=87654321

GETALL command

The GETALL command can be used to get all child nodes, properties and methods of a node with one command.

▶ GETALL /MEDIA/UART
←ns /MEDIA/UART/P1
ns /MEDIA/UART/P2
pr /MEDIA/UART.PortCount=2
pr /MEDIA/UART.PortUi=P1:12209;P2:12224
pr /MEDIA/UART.P1=Local RS-232
pr /MEDIA/UART.P2=TPS out RS-232

SET command

The SET command can be used to modify the value of a property. Use the dot character (.) when addressing the property:

▶ SET /MEDIA/VIDEO/I1.ColorSpaceMode=0
pw /MEDIA/VIDEO/I1.ColorSpaceMode=0

CALL command

A method can be invoked by the CALL command. Use the colon character (:) when addressing the method:

▶ CALL /MEDIA/VIDEO/XP:switch(I1:01)
← m0 /MEDIA/VIDEO/XP:switch

MAN command

The manual is a human readable text that describes the syntax and provides a hint for how to use the primitives. For every node, property and method in the tree there is a manual, type the MAN command to get the manual:

▶ MAN /MEDIA/VIDEO/01.Pwr5vMode
pm /MEDIA/VIDEO/01.Pwr5vMode ['0' | "1' | "2'] 0 - Auto, 1 - Always On, 2 - Always Off

7.2.4. Prefix Summary

DEFINITION: The prefix is a 2-character long code that describes the type of the response.

The following prefixes are defined in the LW3 protocol:

Prefix Description Prefix Description

n- a node pm a manual for the property

nE an error for a node m-a method

nm a manual for a node mO a response after a success method execution
pr a read-only property mF a response after a failed method execution
pw read-write property mE an error for a method
pE an error for the property mm a manual for a method

7.2.5. Error Messages

There are several error messages defined in the LW3 protocol, all of them have a unique error number.

▶ CALL /MEDIA/VIDEO/XP:switch(IA:01)
← mE /MEDIA/VIDEO/XP:switch %E004:Invalid value

7.2.6. Escaping

DEFINITION: An escape sequence is a sequence of characters that does not represent itself when used inside a character or string literal, but is translated into another character or a sequence of characters.

Property values and method parameters can contain characters which are used as control characters in the protocol. They must be escaped. The escape character is the backslash ( ) and escaping means injecting a backslash before the character that should be escaped (like in C language).

Control characters are the following: ()#%() \r\n\t

The original message: CALL /MEDIA/UART/P1:sendMessage(Set(01))

The escaped message: CALL /MEDIA/UART/P1:sendMessage(Set\01))

1. LW3 Programmers' Reference UMX-TPS-TX100 series - User's Manual 60

7.2.7. Signature

DEFINITION: The signature is a four-digit-long hexadecimal value that can be optionally placed before every command to keep a command and the corresponding responses together as a group.

Each line is terminated with a carriage return (Cr, ' $') and line feed (Lf, '$ ') characters. In several cases the number of the lines in the response cannot be determined in advance, e.g. the client intends to receive for the whole response and also wants to be sure, that the received lines belong together and to the same command. In these cases, a special feature the 'signature' can be used. The response to that particular command will also be preceded by the signature, and the corresponding lines will be between brackets:

▶ 1700#GET /EDID.*

←(1700

pr /EDID.EdidStatus=F89:E1;D1:E2;D1:E3;D1:E4;F89:E5

← m-/EDID:copy

← m-/EDID:delete

← m-/EDID:reset

← m-/EDID:switch

← m-/EDID:switchAll

}

INFO: The lines of the signature are also Cr and Lf terminated.

7.2.8. Subscription

DEFINITION: Subscription to a node means that the user will get a notification if a property of the node changes.

A user can subscribe to any node. These notifications are asynchronous messages and are useful to keep the client application up to date, without having to periodically poll the node to detect a changed property. When the user does not want to be informed about the changes anymore, he can simply unsubscribe from the node.

ATTENTION! The subscriptions are handled separately for connections. Hence, if the connection is terminated all registered subscriptions are deleted. After reopening a connection all subscribe commands have to be sent in order to get the notifications of the changes on that connection.

Subscribe to a Node

▶ OPEN /MEDIA/VIDEO

←o-/MEDIA/VIDEO

Get the Active Subscriptions

▶ OPEN

←o-/MEDIA/VIDEO

← 0-/EDID

← a-/DISCOVERY

Subscribe to Multiple Nodes

▶ OPEN /MEDIA/VIDEO/*

←o-/MEDIA/VIDEO/*

Unsubscribe from a Node

▶ CLOSE /MEDIA/VIDEO

c-/MEDIA/VIDEO

Unsubscribe from Multiple Nodes

▶ CLOSE /MEDIA/VIDEO/*

←c-/MEDIA/VIDEO/*

7.2.9. Notifications about the Changes of the Properties

When the value of a property is changed and the user is subscribed to the node, which the property belongs to, an asynchronous notification is generated. This is notification is called as the 'change message'. The format of such a message is very similar to the response for the GET command:

CHG /EDID.EdidStatus=F48:E1

A Short Example of How to Use the Subscription

There are two independent users controlling the device through two independent connections (Connection #1 and Connection #2). The events in the rows occur after each other.

▶ OPEN /MEDIA/VIDEO/QUALITY
←o-/MEDIA/VIDEO/QUALITY
▶ GET /MEDIA/VIDEO/Quality.QualityMode
- pm /MEDIA/VIDEO/QUALITY.QualityMode=graphic
▶ GET /MEDIA/VIDEO/Quality.QualityMode
- pm /MEDIA/VIDEO/QUALITY.QualityMode=graphic
▶ SET /MEDIA/VIDEO/Quality.QualityMode=video
pw /MEDIA/VIDEO/QUALITY.QualityMode=video
- CHG /MEDIA/VIDEO/QUALITY.QualityMode=video

Explanation: The first user (Connection #1) set a subscription to a node. Later the other user (Connection #2) made a change, and thanks for the subscription, the first user got a notification about the change.

7.2.10. Legend for the Control Commands

Format Description

Input port number
Output port number
port> Input or output port number
Location number

Variable, which is defined and described in the command

Batched parameters: the underline means that

more expressions or parameters can be placed by using a semicolon, e.g. I2;I4;I5 or F27:E1;F47:E2

▶ Sent command
Received response

Space character

1. LW3 Programmers' Reference UMX-TPS-TX100 series - User's Manual 61

7.3. System Commands

7.3.1. Query the Product Name

The name of the product is a read-only parameter and cannot be modified.

Command and Response

▶ GET-/.ProductName

←pr/.ProductName=

Example

▶ GET /.ProductName

pr/.ProductName=UMX-TPS-TX140

7.3.2. Set the Device Label

ATTENTION! The device label can be changed to a custom text in the Status tab of the LDC software. This writable parameter is not the same as the ProductName parameter.

Command and Response

- SET:/MANAGEMENT/UID.DeviceLabel=

pw-/MANAGEMENT/UID.DeviceLabel=

The Device Label can be 39 character length and ASCII characters are allowed. Longer names are truncated.

Example

▶ SET /MANAGEMENT/UID.DeviceLabel=UMX-TPS_Control_room

pw /MANAGEMENT/UID.DeviceLabel=UMX-TPS_Control_room

7.3.3. Query the Serial Number

Command and Response

▶ GET/.SerialNumber

pr/.SerialNumber=

Example

▶ GET /.SerialNumber

pr/.SerialNumber=87654321

7.3.4. Query the Firmware Version

Command and Response

▶ GET-/SYS/MB.FirmwareVersion

pr-/SYS/MB.FirmwareVersion=

Example

▶ GET /SYS/MB.FirmwareVersion

pr /SYS/MB.FirmwareVersion=1.1.1b1 r3082

7.3.5. Resetting the Device

The transmitter can be restarted – the current connections (LAN, RS-232) will be terminated.

Command and Response

▶ CALL-/SYS:reset()

← m0-/SYS:reset=

Example

▶ CALL /SYS:reset()

← m0 /SYS:reset=

7.3.6. Restore the Factory Default Settings

Command and Response

▶ CALL-/SYS:factoryDefaults()

←m0-/SYS:factoryDefaults=

Example

▶ CALL /SYS:factoryDefaults()

m0 /SYS:factoryDefaults=

The device is restarted, current connections are terminated, and the default settings are restored. See the complete list in the Factory Default Settings section.

1. LW3 Programmers' Reference UMX-TPS-TX100 series - User's Manual 62

7.3.7. Lock the Front Panel Buttons

Command and Response

▶ SET /MANAGEMENT/UI.ControlLock=
pw /MANAGEMENT/UI.ControlLock=

Parameters

1: None - All functions of the front panel button are enabled.

2: Locked - The front panel buttons are locked and they can be unlock by pressing Audio select and Show me buttons or with LW3 protocol command.

3: Force locked - Locking and unlocking of the front panel buttons are possible only via protocol command.

Example

▶ SET /MANAGEMENT/UI.ControlLock=1

pw /MANAGEMENT/UI.ControlLock=1

7.3.8. Disable the Default Function of the Front Panel Buttons

This setting makes possible to set an event with Event Manager where the Condition is pressing a button and the original function of the chosen button will not be executed.

Command and Response

SET /MANAGEMENT/UI/BUTTONS/.DefaultFunctionEnable=
pw /MANAGEMENT/UI/BUTTONS/.DefaultFunctionEnable=

Parameters

Indentifier Parameter description Parameter value

Button identifier number

B1: Video select

B2: Audio select

B3: Show me button

Status of the default function

Enable

Disable

Example

▶ SET /MANAGEMENT/UI/BUTTONS/B1.DefaultFunctionEnable=false
pw /MANAGEMENT/UI/BUTTONS/B1.DefaultFunctionEnable=false

7.3.9. Dark Mode

This command turns LEDs off the on the transmitter.

Command and Response

SET /MANAGEMENT/UI/DARKMODE.DarkModeEnable=
pw /MANAGEMENT/UI/DARKMODE.DarkModeEnable=

Parameters

true: Dark mode is enabled.

false: Dark mode is disabled.

Example

▶ SET /MANAGEMENT/UI/DARKMODE.DarkModeEnable=true
pw /MANAGEMENT/UI/DARKMODE.DarkModeEnable=true

The LEDs on the front panel turn off after some delay time, which can be set in seconds.

Command and Response

SET /MANAGEMENT/UI/DARKMODE.DarkModeDelay=
pw /MANAGEMENT/UI/DARKMODE. DarkModeDelay =

Parameters

0- Delay time in seconds.

Example

▶ SET /MANAGEMENT/UI/DARKMODE.DarkModeDelay=10
pw /MANAGEMENT/UI/DARKMODE.DarkModeDelay=10

1. LW3 Programmers' Reference UMX-TPS-TX100 series - User's Manual 63

7.4. Video Port Settings

INFO: Video port numbering can be found in the Port Numbering section.

7.4.1. Query the Status of Source Ports

Command and Response

▶ GET-/MEDIA/VIDEO/XP.SourcePortStatus

pr-/MEDIA/VIDEO/XP.SourcePortStatus=;;<...>;

The response contains 5 ASCII characters for each port. The first character indicates the mute/lock state, the next four characters represent a 2-byte HEX code showing the current state of the input ports.

Example

▶ GET /MEDIA/VIDEO/XP.SourcePortStatus

pr /MEDIA/VIDEO/XP.SourcePortStatus=M00AA;T00AF;T00AA;T00EF;T000A;T002E

Parameters

Letter (Character 1)
	Mute state Lock state
T	Unmuted Unlocked
L	Unmuted Locked
M	Muted Unlocked
U	Muted Locked

	Byte 1				Byte 2
	Character 2		Character 3		Character 4		Character 5
	BIT 7-6	BIT 5-4	BIT 3-2	BIT 1-0	BIT 7-6	BIT 5-4	BIT 3-2	BIT 1-0
	Reserved	Reserved	Reserved	Reserved	Embedded audio status	HDCP status	Signal present status	Connection status
0 0	Reserved	Reserved	Reserved	Reserved	Unknown
0 1					Reserved
1 0					No embedded audio	Not encrypted	No signal	Not connected
1 1					Embedded audio presents	Encrypted	Signal presents	Connected

The Most Common Received Port Status Responses

T00AA	T	0		0		A		A
	Unlocked, Unmutated	0 0	0 0	0 0	0 0	1 0	1 0	1 0	1 0
		Reserved	Reserved	Reserved	Reserved	No embedded audio	Not encrypted	No signal	Not connected
T00AB	T	0		0		A		B
	Unlocked, Unmutated	0 0	0 0	0 0	0 0	1 0	1 0	1 0	1 1
		Reserved	Reserved	Reserved	Reserved	No embedded audio	Not encrypted	No signal	Connected
T00AF	T	0		0		A		F
	Unlocked, Unmutated	0 0	0 0	0 0	0 0	1 0	1 0	1 1	1 1
		Reserved	Reserved	Reserved	Reserved	No embedded audio	Not encrypted	Signal presents	Connected
T00EF	T	0		0		E		F
	Unlocked, Unmutated	0 0	0 0	0 0	0 0	1 1	1 0	1 1	1 1
		Reserved	Reserved	Reserved	Reserved	Embedded audio presents	Not encrypted	Signal presents	Connected
T00BF	T	0		0		B		F
	Unlocked, Unmutated	0 0	0 0	0 0	0 0	1 0	1 1	1 1	1 1
		Reserved	Reserved	Reserved	Reserved	No embedded audio	Encrypted	Signal presents	Connected
T00FF	T	0		0		F		F
	Unlocked, Unmutated	0 0	0 0	0 0	0 0	1 1	1 1	1 1	1 1
		Reserved	Reserved	Reserved	Reserved	Embedded audio presents	Encrypted	Signal presents	Connected

Only for analog video ports: Character 5 is E (11 10) which means signal is present but the cable is not connected. The explanation is analog video ports have no hotplug signal which indicates the connection status.

T00EF	T	0		0		E		F
	Unlocked/Unmused	0.0	0.0	0.0	0.0	1.1	1.0	1.1	1.1
		Reserved	Reserved	Reserved	Reserved	Embedded audio presents	Not encrypted	Signal presents	Connected

1. LW3 Programmers' Reference UMX-TPS-TX100 series - User's Manual 64

7.4.2. Query the Status of Destination Port

Command and Response

▶ GET-/MEDIA/VIDEO/XP.DestinationPortStatus

pr-/MEDIA/VIDEO/XP.DestinationPortStatus=<...>

Parameters

The response contains 5 ASCII characters for each port. The first character indicates the mute/lock state, the next 2-byte long HEX code showing the current state of the output port.

Example

▶ GET /MEDIA/VIDEO/XP.DestinationPortStatus

←pr /MEDIA/VIDEO/XP.DestinationPortStatus=M00BF

Legend: See at previous section.

Example and Explanation

MODBF
Unlocked, Mated	000000010111111
	Reserved Reserved Reserved Reserved	No embedded audio	Encrypted	Signal presents	Connected

7.4.3. Query the Video Crosspoint Setting

Command and Response

▶ GET-/MEDIA/VIDEO/XP.DestinationConnectionList

pr-/MEDIA/VIDEO/XP.DestinationConnectionList=

Parameters

Video input port number

Example

▶ GET /MEDIA/VIDEO/XP.DestinationConnectionList

pr /MEDIA/VIDEO/XP.DestinationConnectionList=11

7.4.4. Switching Video Input

Command and Response

CALL-/MEDIA/VIDEO/XP:switch(:)

- mO-/MEDIA/VIDEO/XP:switch

Example

▶ CALL /MEDIA/VIDEO/XP:switch(12:01)

• m0 /MEDIA/VIDEO/XP:switch

12 port is connected to 01 port.

7.4.5. Query the Video Autoselect Settings

Command and Response

▶ GET/MEDIA/VIDEO/XP.DestinationPortAutoselect

- pr/MEDIA/VIDEO/XP.DestinationPortAutoselect=;;<...>;

The response shows the settings of each output one by one.

Parameters

Identifier	Parameter description		Parameter values
	Two-letter code of the Autoselect settings	1stletter	E: Autoselect is enabledD: Autoselect is disabled
		2ndletter	F: First detect mode: the first active video input is selected.P: Priority detect: always the highest priority active video input will be selected.L: Last detect: always the last attached input is switched to the output automatically.

Example

▶ GET /MEDIA/VIDEO/XP.DestinationPortAutoselect

pr /MEDIA/VIDEO/XP.DestinationPortAutoselect=EL

EL: the Autoselect is Enabled on output, selected mode is Last detect.

INFO: For more information about the Autoselect feature see The Autoselect Feature section.

1. LW3 Programmers' Reference UMX-TPS-TX100 series - User's Manual 65

7.4.6. Change the Autoselect Mode

Command and Response

CALL:/MEDIA/VIDEO/XP.setDestinationPortAutoselect(<out1_set;<out2_set;<...;)
←mO-/MEDIA/VIDEO/XP.setDestinationPortAutoselect

Parameters

See the previous section.

Example 1.

▶ CALL /MEDIA/VIDEO/XP:setDestinationPortAutoselect(01:EP)

• m0 /MEDIA/VIDEO/XP:setDestinationPortAutoselect

The setting is changed to EP: Autoselect is enabled (E); the mode is set to priority detect (P).

Example 2.

- CALL /MEDIA/VIDEO/XP:setDestinationPortAutoselect(01:D)

←mO /MEDIA/VIDEO/XP:setDestinationPortAutoselect

The setting is changed to DPM: Autoselect is disabled (D). The other settings remain unchanged. Since the outputs are linked, the change will affect local and link out.

7.4.7. Query the Input Port Priority

Command and Response

▶ GET-/MEDIA/VIDEO/XP.PortPriorityList

- pr/MEDIA/VIDEO/XP.PortPriorityList=<...>

The response shows the priority of each output one after another. The priority number can be from 0 to 31; 0 is the highest- and 30 is the lowest priority. 31 means that the port will be skipped from the priority list.

Parameters

The input port priority order of the given output port: ,,<...>,

Example

▶ GET /MEDIA/VIDEO/XP.PartPriorityList

pr /MEDIA/VIDEO/XP.PortPriorityList=0,1,2,3,4,5

Parameters

Output

Video input port 11 12 13 14 15 16

Priority 012345

Highest priority is assigned to I1 port.

ATTENTION! The same priority number can be set to different input ports. When the priority numbers match, the input port with the lowest port number will have the highest priority.

7.4.8. Change the Input Port Priority

Command and Response

CALL/MEDIA/VIDEO/XP:setAutoselectionPriority(():);(():)
• m0-/MEDIA/VIDEO/XP:setAutoselectionPriority

Parameters

Priority number from 0 to 31, equal numbers are allowed (31 means that the port will be skipped from the priority list).

An input port priority can be set on an output port. Many settings can be executed by separating a semicolon (no space), see the example below.

Example

CALL /MEDIA/VIDEO/XP:setAutoselectionPriority(I1\01):4,I2\01):4)
• m0 /MEDIA/VIDEO/XP:setAutoselectionPriority

The priority number of input 1 and Input 2 has been set to 4 on output 1. The example shows that certain control characters have been escaped: the backslash “” character is inserted before the “(” and “)” characters. See more information about the escaping in the Escaping section.

7.4.9. Mute an Input Port

Command and Response

CALL/MEDIA/VIDEO/XP:muteSource()
- mO-/MEDIA/VIDEO/XP:muteSource

Example

▶ CALL /MEDIA/VIDEO/XP:muteSource(11)
• m0 /MEDIA/VIDEO/XP:muteSource

7.4.10. Unmute an Input Port

Command and Response

CALL-/MEDIA/VIDEO/XP:unmuteSource()
- mO-/MEDIA/VIDEO/XP:unmuteSource

Example

▶ CALL /MEDIA/VIDEO/XP:unmuteSource(I1)
• m0 /MEDIA/VIDEO/XP:unmuteSource

1. LW3 Programmers' Reference UMX-TPS-TX100 series - User's Manual 66

7.4.11. Lock an Input Port

Command and Response

CALL-/MEDIA/VIDEO/XP:lockSource()
←m0:/MEDIA/VIDEO/XP:lockSource

Example

▶ CALL /MEDIA/VIDEO/XP:lockSource(I1)
←m0 /MEDIA/VIDEO/XP:lockSource

7.4.12. Unlock an Input Port

Command and Response

CALL-/MEDIA/VIDEO/XP:unlockSource()

← mO-/MEDIA/VIDEO/XP:unlockSource

Example

▶ CALL /MEDIA/VIDEO/XP:unlockSource(I1)

← m0 /MEDIA/VIDEO/XP:unlockSource

7.4.13. Mute Output

Command and Response

CALL-/MEDIA/VIDEO/XP:muteDestination()
• mO-/MEDIA/VIDEO/XP:muteDestination

Example

▶ CALL /MEDIA/VIDEO/XP:muteDestination(O1)

← m0 /MEDIA/VIDEO/XP:muteDestination

7.4.14. Unmute Output

Command and Response

CALL-/MEDIA/VIDEO/XP:unmuteDestination()
- mO-/MEDIA/VIDEO/XP:unmuteDestination

Example

▶ CALL /MEDIA/VIDEO/XP:unmuteDestination(01)

m0 /MEDIA/VIDEO/XP:unmuteDestination

7.4.15. Lock Output

Command and Response

CALL-/MEDIA/VIDEO/XP:lockDestination()
← mO-/MEDIA/VIDEO/XP:lockDestination

Example

▶ CALL /MEDIA/VIDEO/XP:lockDestination(01)
m0 /MEDIA/VIDEO/XP:lockDestination

7.4.16. Unlock Output

Command and Response

CALL-/MEDIA/VIDEO/XP:unlockDestination()

- mO-/MEDIA/VIDEO/XP:unlockDestination

Example

▶ CALL /MEDIA/VIDEO/XP:unlockDestination(01)

←m0 /MEDIA/VIDEO/XP:unlockDestination

7.4.17. HDCP Setting (Input Port)

HDCP capability can be enabled/disabled on the input ports, thus, non-encrypted content can be seen on a non-HDCP compliant display. See more information in the HDCP Management section.

Command and Response

SET-/MEDIA/VIDEO/.HdcpEnable=

pw:/MEDIA/VIDEO/.HdcpEnable=

Parameters

true: HDCP enabled

false: HDCP disabled

Example

• SET /MEDIA/VIDEO/I2.HdcpEnable=true
• pw /MEDIA/VIDEO/I2.HdcpEnable=true

INFO: HDCP can be set for digital video inputs (I2, I3, I4) only. The function is unavailable on the analog inputs (I1, I5)

1. LW3 Programmers' Reference UMX-TPS-TX100 series - User's Manual 67

7.4.18. Test Pattern Generator Mode

The output port can send a special image towards the sink device for testing purposes. The setting is available on the input ports with the below-listed parameters.

Command and Response

SET/MEDIA/VIDEO/.FreeRunMode=
pw:/MEDIA/VIDEO/.FreeRunMode=

Parameters

	Always Off	Always On	Auto
Test pattern generator mode	The test pattern is not displayed on the output	The test pattern is displayed on the output	The test pattern is displayed if there is no signal on the input port

Example

▶ SET /MEDIA/VIDEO/11.FreeRunMode=2
pw /MEDIA/VIDEO/I1.FreeRunMode=2

7.4.19. Test Pattern Resolution

Command and Response

• SET-/MEDIA/VIDEO/.FreeRunResolution=
  pw/MEDIA/VIDEO/.FreeRunResolution=

Parameters

Resolution 640x480p60 720x480i60 720x480p60 720x576i50
Resolution 4567
Resolution 720x576p50		800x600p60	1024x768p60	1280x720p60
Resolution 89		10	11
Resolution 1280x1024p60		1280x1080i60	1920x1080p60	1920x1200p60

Example

- SET /MEDIA/VIDEO/I2.FreeRunResolution=10

pw /MEDIA/VIDEO/I2.FreeRunResolution=10

7.4.20. Test Pattern Color

Command and Response

SET/MEDIA/VIDEO/.FreeRunColor=
pw:/MEDIA/VIDEO/.FreeRunColor=

Parameters

RGB color in RR;GG;BB format (separated by semicolons).

Example

▶ SET /MEDIA/VIDEO/I1.FreeRunColor=10;80;20
pw/MEDIA/VIDEO/I1.FreeRunColor=10;80;20

The test pattern color is on VGA input (I1) is set to green.

7.4.21. HDCP Setting (Output Port)

HDCP capability can be set to Auto/Always on the output ports, thus, non-encrypted content can be transmitted to a non-HDCP compliant display. See more information in the HDCP Management section.

Command and Response

SET/MEDIA/VIDEO/.HdcpModeSetting=
pw-/MEDIA/VIDEO/.HdcpModeSetting=

Parameters

<hdcp_mode>	0	1
HDCP mode	Auto	Always

Example

▶ SET /MEDIA/VIDEO/01.HdcpModeSetting=0
pw /MEDIA/VIDEO/O1.HdcpModeSetting=0

7.4.22. HDMI Mode Settings (Output Port)

Command and Response

SET-/MEDIA/VIDEO/.HdmiModeSetting=
pw-/MEDIA/VIDEO/.HdmiModeSetting=

Parameters

	0	1	2	3	4
HDMI mode	Auto	DVI	HDMI 24bit	HDMI 30bit	HDMI 36bit

Example

▶ SET /MEDIA/VIDEO/01.HdmiModeSetting=2
pw /MEDIA/VIDEO/O1.HdmiModeSetting=2

1. LW3 Programmers' Reference UMX-TPS-TX100 series - User's Manual 68

7.4.23. Color Space Setting (Output Port)

Command and Response

• SET-/MEDIA/VIDEO/.ColorSpaceSetting=
  pw/MEDIA/VIDEO/.ColorSpaceSetting=

Parameters

<colorspace> 0 1 2 3
Color space Auto RGB YCbCr 4:4:4 YCbCr 4:2:2

Example

▶ SET /MEDIA/VIDEO/01.ColorSpaceSetting=2
pw /MEDIA/VIDEO/01.ColorSpaceSetting=2

7.4.24. Query the Recent TPS Mode

Command and Response

▶ GET:/REMOTE/.tpsModeSetting
- pr-/REMOTE/.tpsModeSetting=

Parameters

<tps_mode> A H L 1 2
TPS mode	Auto	HDBaseT	Long reach	LPPF1	LPPF2

Example

▶ GET /REMOTE/D1.tpsModeSetting
- pr /REMOTE/D1.tpsModeSetting =H

See more information about TPS modes in the TPS Interface section.

7.4.25. TPS Mode Settings

Command and Response

• SET:/REMOTE/.tpsModeSetting=
  pw:/REMOTE/.tpsModeSetting=
  Parameters: See at previous section.

Example

• SET /REMOTE/S1.tpsModeSetting=A
  pw /REMOTE/S1.tpsModeSetting=A

1. LW3 Programmers' Reference UMX-TPS-TX100 series - User's Manual 69

7.5. Audio Port Settings

INFO: Audio port numbering can be found in the Port Numbering section.

7.5.1. Query the Status of Source Ports

Command and Response

▶ GET-/MEDIA/AUDIO/XP.SourcePortStatus

pr-/MEDIA/AUDIO/XP.SourcePortStatus=;;<...>;

The response contains 5 ASCII characters for each port. The first character indicates the mute/lock state, the next four characters represent a 2-byte HEX code showing the current state of the input ports.

Example

▶ GET /MEDIA/AUDIO/XP.SourcePortStatus

pr /MEDIA/AUDIO/XP.SourcePortStatus=T000F;M000B;T000A;T000A;T000C

Legend:

Letter (Character 1)
	Mute state	Lock state
T	Unmuted	Unlocked
L	Unmuted	Locked
M	Muted	Unlocked
U	Muted	Locked

	Byte 1				Byte 2
	Character 2		Character 3		Character 4		Character 5
	BIT 7-6	BIT 5-4	BIT 3-2	BIT 1-0	BIT 7-6	BIT 5-4	BIT 3-2	BIT 1-0
	Reserved	Reserved	Reserved	Reserved	Reserved	Reserved	Signal present status	Connection status
0 0	Reserved	Reserved	Reserved	Reserved	Reserved	Reserved	Unknown
0 1							Reserved
1 0							No signal	Not connected
1 1							Signal presents	Connected

Example and Explanation (for input 2, M000B):

M 0 0 B
Unlocked, Muted	0 0 0 0 0	0 0 0 0 0 0 1 0 1 1
	Reserved Reserved	Reserved Reserved	Reserved Reserved	Reserved No	signal Connected

The Most Common Received Port Status Responses

T000A	T	0		0		0		A
	Unlocked, Unmuted	0 0	0 0	0 0	0 0	0 0	0 0	1 0	1 0
		Reserved	Reserved	Reserved	Reserved	Reserved	Reserved	No signal	Not connected
T000B	T	0		0		0		B
	Unlocked, Unmuted	0 0	0 0	0 0	0 0	0 0	0 0	1 0	1 1
		Reserved	Reserved	Reserved	Reserved	Reserved	Reserved	No signal	Connected
T000F	T	0		0		0		F
	Unlocked, Unmuted	0 0	0 0	0 0	0 0	0 0	0 0	1 1	1 1
		Reserved	Reserved	Reserved	Reserved	Reserved	Reserved	Signal presents	Connected

Only for Phoenix audio port: Character 5 is C (11 00) which means signal is present but the cable connection status is unknown. The explanation is Phoenix connector has no pin which can indicate the connection status so this is always unknown.

T000C	T	0		0		0		C
	Unlocked, Unmuted	0.0	0.0	0.0	0.0	0.0	0.0	1.1	0.0
		Reserved	Reserved	Reserved	Reserved	Reserved	Reserved	Signal presents	Unknown

7.5.2. Query the Status of Destination Port

Command and Response

▶ GET/MEDIA/AUDIO/XP.DestinationPortStatus

pr-/MEDIA/AUDIO/XP.DestinationPortStatus=

The response contains 5 ASCII characters for each port. The first character indicates the mute/lock state, the next 2-byte long HEX code showing the current state of the output port.

Example

▶ GET /MEDIA/AUDIO/XP.DestinationPortStatus

pr /MEDIA/AUDIO/XP.DestinationPortStatus=T000F

Legend: See at previous section.

Example and Explanation:

T	000F
Unlucked, Unmuted	00000	0000001	11
	Reserved Reserved	Reserved Reserved	Reserved Reserved Reserved				Signal presents	Connected

1. LW3 Programmers' Reference UMX-TPS-TX100 series - User's Manual 70

7.5.3. Query the Audio Crosspoint Setting

Command and Response

▶ GET-/MEDIA/AUDIO/XP.DestinationConnectionList
pr-/MEDIA/AUDIO/XP.DestinationConnectionList=

Parameters

Audio input port number

Example

▶ GET /MEDIA/AUDIO/XP.DestinationConnectionList
pr /MEDIA/AUDIO/XP.DestinationConnectionList=15

15 input port is connected to the output port.

7.5.4. Switching Audio Input

Command and Response

CALL-/MEDIA/AUDIO/XP:switch(:)
- mO-/MEDIA/AUDIO/XP:switch

Example

▶ CALL /MEDIA/AUDIO/XP:switch(I2:01)
← m0 /MEDIA/AUDIO/XP:switch

Explanation: 12 port is connected to 01 port.

7.5.5. Query the Audio Autoselect Settings

Command and Response

▶ GET-/MEDIA/AUDIO/XP.DestinationPortAutoselect
pr-/MEDIA/AUDIO/XP.DestinationPortAutoselect=
The response shows the settings of each output one by one.

Parameters

Two-letter code of the Autoselect settings:

Letter Explanation

1st letter E: Autoselect is enabled.
D: Autoselect is disabled.
F: First detect mode: the first active audio input is selected.

2 ^rd letter P: Priority detect mode: always the highest priority active audio input will be selected

L: Last detect mode: always the last attached input is switched to the output automatically.

Example

▶ GET /MEDIA/AUDIO/XP.DestinationPortAutoselect
pr /MEDIA/AUDIO/XP.DestinationPortAutoselect=EL

EL: the Autoselect is Enabled on output, selected mode is Last detect.

INFO: For more information about the Autoselect feature see The Autoselect Feature section.

7.5.6. Change the Autoselect Mode

Command and Response

CALL-/MEDIA/AUDIO/XP:setDestinationPortAutoselect(:)
- m0-/MEDIA/AUDIO/XP.setDestinationPortAutoselect

Parameters

See at previous section.

Example 1.

▶ CALL /MEDIA/AUDIO/XP:setDestinationPortAutoselect(O1:EL)
m0 /MEDIA/AUDIO/XP:setDestinationPortAutoselect

The setting is changed to EPM: Autoselect is enabled (E); the mode is set to Priority detect (P), and the port will be disconnected if a higher priority port becomes active (M).

Example 2.

▶ CALL /MEDIA/AUDIO/XP:setDestinationPortAutoselect(01:D)
- m0 /MEDIA/AUDIO/XP:setDestinationPortAutoselect

The setting is changed to DPM Autoselect is disabled (D). The other settings remain unchanged. Since the outputs are linked, the change will affect local and link out.

INFO: For more information about the Autoselect feature see The Autoselect Feature section.

1. LW3 Programmers' Reference UMX-TPS-TX100 series - User's Manual 71

7.5.7. Query the Input Port Priority

Command and Response

▶ GET-/MEDIA/AUDIO/XP.PortPriorityList
- pr/MEDIA/AUDIO/XP.PortPriorityList=out1_list;<out2_list;<_

The response shows the priority of each output one after another. The priority number can be from 0 to 31; 0 is the highest- and 30 is the lowest priority. 31 means that the port will be skipped from the priority list.

Parameters

The input port priority order of the given output port: ,,...,

Example

▶ GET /MEDIA/AUDIO/XP.PortPriorityList

pr /MEDIA/AUDIO/XP.PortPriorityList=0,1,2,3,4,5

	Output
Video input port 11 12 13 14 15 16
Priority 0 1 2 3 4 5

Highest priority is assigned to 11 port.

ATTENTION! The same priority number can be set to different input ports. When the priority numbers match, the input port with the lowest port number will have the highest priority.

7.5.8. Change the Input Port Priority

Command and Response

CALL:MEDIA/AUDIO/XP:setAutoselectionPriority<(In>(();((()

• m0 /MEDIA/AUDIO/XP:setAutoselectionPriority

Parameters

Priority number from 0 to 31, equal numbers are allowed (31 means that the port will be skipped from the priority list).

An input port priority can be set on an output port. Many settings can be executed by separating a semicolon (no space), see the example below.

Example

CALL /MEDIA/VIDEO/XP:setAutoselectionPriority(I1\01):4;I2\01):4)

• m0 /MEDIA/VIDEO/XP:setAutoselectionPriority

The priority number of input 1 and Input 2 has been set to 4 on output 1. The example shows that certain control characters have been escaped: the backslash “” character is inserted before the “(” and ”)” characters. See more information about the escaping in the Escaping section.

7.5.9. Mute an Audio Input

Command and Response

CALL-/MEDIA/AUDIO/XP:muteSource()
• mO-/MEDIA/AUDIO/XP:muteSource

Example

▶ CALL /MEDIA/AUDIO/XP:muteSource(11)
• m0 /MEDIA/AUDIO/XP:muteSource

7.5.10. Unmute an Audio Input

Command and Response

CALL-/MEDIA/AUDIO/XP:unmuteSource()
• mO-/MEDIA/AUDIO/XP:unmuteSource

Example

CALL /MEDIA/AUDIO/XP:unmuteSource(I1)
• mO /MEDIA/AUDIO/XP:unmuteSource

7.5.11. Lock an Input Port

Command and Response

CALL-/MEDIA/AUDIO/XP:lockSource()
← mO-/MEDIA/AUDIO/XP:lockSource

Example

▶ CALL /MEDIA/AUDIO/XP:lockSource(I1)
← m0 /MEDIA/AUDIO/XP:lockSource

7.5.12. Unlock an Input Port

Command and Response

CALL:/MEDIA/AUDIO/XP:unlockSource()
• mO-/MEDIA/AUDIO/XP:unlockSource

Example

CALL /MEDIA/AUDIO/XP:unlockSource(I1)
← m0 /MEDIA/AUDIO/XP:unlockSource

1. LW3 Programmers' Reference UMX-TPS-TX100 series - User's Manual 72

7.5.13. Mute Audio Output

Command and Response

CALL-/MEDIA/AUDIO/XP:muteDestination()
← mO-/MEDIA/AUDIO/XP:muteDestination

Example

▶ CALL /MEDIA/AUDIO/XP:muteDestination(O1)
m0 /MEDIA/AUDIO/XP:muteDestination

7.5.14. Unmute Audio Output

Command and Response

CALL-/MEDIA/AUDIO/XP:unmuteDestination()

← mO-/MEDIA/AUDIO/XP:unmuteDestination

Example

▶ CALL /MEDIA/AUDIO/XP:unmuteDestination(01)

- mO /MEDIA/AUDIO/XP:unmuteDestination

7.5.15. Lock Output

Command and Response

CALL-/MEDIA/AUDIO/XP:lockDestination()

- mO-/MEDIA/AUDIO/XP:lockDestination

Example

▶ CALL /MEDIA/AUDIO/XP:lockDestination(01)

- mO /MEDIA/AUDIO/XP:lockDestination

7.5.16. Unlock Output

Command and Response

CALL-/MEDIA/AUDIO/XP:unlockDestination()
- mO-/MEDIA/AUDIO/XP:unlockDestination

Example

▶ CALL /MEDIA/AUDIO/XP:unlockDestination(O1)

m0 /MEDIA/AUDIO/XP:unlockDestination

7.5.17. Analog Audio Input Level Settings

7.5.17.1. Volume

Command and Response

▶ SET-/MEDIA/AUDIO/.Volume=
pw-/MEDIA/AUDIO/.Volume=

Parameters

Sets the input volume (attenuation) between -95.625 dB and 0 dB in step of -0.375 dB. The value is rounded up if necessary to match with the step value.

Example

▶ SET /MEDIA/AUDIO/I1.Volume=-15
pw /MEDIA/AUDIO/I1.Volume=-15.000

7.5.17.2. Balance

Command and Response

▶ SET:/MEDIA/AUDIO/.Balance=
pw-/MEDIA/AUDIO/.Balance=

Parameters

Sets the balance; 0 means left balance, 100 means right balance, step is 1. Center is 50 (default).

Example

▶ SET /MEDIA/AUDIO/15.Balance=75

pw /MEDIA/AUDIO/15.Balance=75

The balance level of the right audio sink is set to 75%, the left one is set to 25%.

1. LW3 Programmers' Reference UMX-TPS-TX100 series - User's Manual 73

7.6. Network Configuration

7.6.1. Query the DHCP State

Command and Response

▶ GET/MANAGEMENT/NETWORK.DhcpEnabled
pw-/MANAGEMENT/NETWORK.DhcpEnabled=

Parameters

true: The current IP address is DHCP.

false: The current IP address is fix.

Example

▶ GET /MANAGEMENT/NETWORK.DhcpEnabled
pw /MANAGEMENT/NETWORK.DhcpEnabled=true

7.6.2. Change the DHCP State

Command and Response

SET-/MANAGEMENT/NETWORK.DhcpEnabled=
pw:/MANAGEMENT/NETWORK.DhcpEnabled=

Parameters

true: The dynamic IP address is set.

false: Fix IP address is set.

Example

▶ SET /MANAGEMENT/NETWORK.DhcpEnabled=false
pw /MANAGEMENT/NETWORK.DhcpEnabled=false

7.6.3. Query the IP Address

Command and Response

▶ GET/MANAGEMENT/NETWORK.IpAddress
pr-/MANAGEMENT/NETWORK.IpAddress=

Example

▶ GET /MANAGEMENT/NETWORK.IpAddress
pr /MANAGEMENT/NETWORK.IpAddress=192.168.0.100

7.6.4. Change the IP Address (Static)

Command and Response

▶ SET-/MANAGEMENT/NETWORK.StaticIpAddress=
pw:/MANAGEMENT/NETWORK.StaticIpAddress=

Example

▶ SET /MANAGEMENT/NETWORK.StaticIpAddress=192.168.0.85
pw /MANAGEMENT/NETWORK.StaticIpAddress=192.168.0.85

7.6.5. Query the Subnet Mask

Command and Response

▶ GET-/MANAGEMENT/NETWORK.NetworkMask
pr/MANAGEMENT/NETWORK.NetworkMask=

Example

▶ GET /MANAGEMENT/NETWORK.NetworkMask
pr /MANAGEMENT/NETWORK.NetworkMask=255.255.255.0

7.6.6. Change the Subnet Mask (Static)

Command and Response

SET-/MANAGEMENT/NETWORK.StaticNetworkMask=
pw/MANAGEMENT/NETWORK.StaticNetworkMask=

Example

▶ SET /MANAGEMENT/NETWORK.StaticNetworkMask=255.255.255.0
pw /MANAGEMENT/NETWORK.StaticNetworkMask=255.255.255.0

7.6.7. Query the Gateway Address

Command and Response

▶ GET-/MANAGEMENT/NETWORK.GatewayAddress
pr-/MANAGEMENT/NETWORK.GatewayAddress=

Example

▶ GET /MANAGEMENT/NETWORK.GatewayAddress
pr /MANAGEMENT/NETWORK.GatewayAddress=192.168.0.1

1. LW3 Programmers' Reference UMX-TPS-TX100 series - User's Manual 74

7.6.8. Change the Gateway Address (Static)

Command and Response

▶ SET-/MANAGEMENT/NETWORK.StaticGatewayAddress=
pw:/MANAGEMENT/NETWORK.StaticGatewayAddress=

Example

▶ SET /MANAGEMENT/NETWORK.StaticGatewayAddress=192.168.0.5
pw /MANAGEMENT/NETWORK.StaticGatewayAddress=192.168.0.5

7.7. RS-232 Port Configuration

7.7.1. Protocol Setting

Command and Response

SET:/MEDIA/UART/.ControlProtocol=
pw:/MEDIA/UART/.ControlProtocol=

Parameters

Identifier Parameter description Parameter values
	Serial port number P1-P2
	0: LW2
	1: LW3

Example

▶ SET /MEDIA/UART/P1.ControlProtocol=1
pw /MEDIA/UART/P1.ControlProtocol=1

7.7.2. BAUD Rate Setting

Command and Response

▶ SET:/MEDIA/UART/.Baudrate=
pw-/MEDIA/UART/.Baudrate=

Parameters

Identifier	Parameter description	Parameter values
	Serial port number	P1-P2
	Baud rate value	0: 4800; 1: 7200; 2: 9600; 3: 14400; 4: 19200; 5: 38400; 6: 57600; 7: 115200

Example

▶ SET /MEDIA/UART/P1.Baudrate=2
pw /MEDIA/UART/P1.Baudrate=2

7.7.3. Databit Setting

Command and Response

▶ SET-/MEDIA/UART/.DataBits=8|9
pw:/MEDIA/UART/.DataBits=8|9

Example

▶ SET /MEDIA/UART/P1.DataBits=8
pw /MEDIA/UART/P1.DataBits=8

7.7.4. Stopbits Setting

Command and Response

▶ SET-/MEDIA/UART/.StopBits=
pw:/MEDIA/UART/.StopBits=

Parameters

Identifier Parameter description Parameter values
<serial_port> Serial port number P1-P2
	0: 1
<stopbit> Stopbit value	1: 1,5
	2: 2

Example

▶ SET /MEDIA/UART/P1.StopBits=0
pw /MEDIA/UART/P1.StopBits=0

7.7.5. Parity Setting

Command and Response

▶ SET-/MEDIA/UART/.Parity=
pw:/MEDIA/UART/.Parity=

Parameters

Identifier Parameter description Parameter values
	Serial port number P1-P2
		0: no value
	Parity value	1: odd
		2: even

Example

▶ SET /MEDIA/UART/P1.Parity=0
pw /MEDIA/UART/P1.Parity=0

1. LW3 Programmers' Reference UMX-TPS-TX100 series - User's Manual 75

7.7.6. RS-232 Operation Mode

Command and Response

▶ SET-/MEDIA/UART/.Rs232Mode=
pw:/MEDIA/UART/.Rs232Mode=

Parameters

Identifier Parameter description Parameter values

Serial port number P1-P2

0: Pass-through
1: Control
2: Command injection

Example

▶ SET /MEDIA/UART/P1.Rs232Mode=1
pw /MEDIA/UART/P1.Rs232Mode=1

INFO: See more information about RS-232 modes in the Serial Interface section.

7.7.7. Command Injection Enable

Command and Response

SET/MEDIA/UART/.CommandInjectionEnable=
pw-/MEDIA/UART/.CommandInjectionEnable=

Parameters

Identifier Parameter description Parameter values

Serial port number P1-P2

Command injection

enable

true: Command injection enable

false: Command injection disable

Example

▶ SET /MEDIA/UART/P1.CommandInjectionEnable=true
pw /MEDIA/UART/P1.CommandInjectionEnable=true

ATTENTION! The Command injection status is stored in another read-only property:

/MEDIA/UART/.CommandInjectionStatus.

7.8. Infrared Port Configuration

INFO: Infrared input and output port numbering can be found in the Port Numbering section.

7.8.1. Enable Command Injection Mode

Command and Response

SET-/MEDIA/IR/.CommandInjectionEnable=true|false
pw-/MEDIA/IR/.CommandInjectionEnable=true|false

Example

▶ SET /MEDIA/IR/S1.CommandInjectionEnable=true
pw /MEDIA/IR/S1.CommandInjectionEnable=true

7.8.2. Enable/Disable Output Signal Modulation

Command and Response

▶ SET-/MEDIA/IR/.EnableModulation=true|false
pw:/MEDIA/IR/.EnableModulation=true|false

Example

▶ SET /MEDIA/IR/D1.EnableModulation=false
pw /MEDIA/IR/D1.EnableModulation=false

Signal modulation is turned off on IR output (D1).

INFO: The default setting value is "true" (enabled).

1. LW3 Programmers' Reference UMX-TPS-TX100 series - User's Manual 76

7.9. Sending Message via the Communication Ports

7.9.1. Sending Message via TCP Port

The device can be used for sending a message to a certain IP:port address. The three different commands allow controlling the connected (third-party) devices.

Sending a TCP Message (ASCII-format)

The command is for sending a command message in ASCII-format. This method allows escaping the control characters. For more information see the Escaping section.

Command and Response

CALL·/MEDIA/ETHERNET:tcpMessage(:=)
←m0-/MEDIA/ETHERNET:tcpMessage

Example

▶ CALL /MEDIA/ETHERNET:tcpMessage(192.168.0.103:6107=C00)

←m0 /MEDIA/ETHERNET:tcpMessage

The 'C00' message is sent to the indicated IP:port address.

Example with HEX codes

▶ CALL /MEDIA/ETHERNET:tcpMessage(192.168.0.20:5555=C00\x0a\x0d)

m0 /MEDIA/ETHERNET:tcpMessage

The 'C00' message with CrLf (Carriage return and Line feed) is sent to the indicated IP-port address. The \x sequence indicates the HEXA code; see more information in the Using Hexadecimal Codes section.

Sending a TCP Text (ASCII-format)

The command is for sending a text message in ASCII-format. This method does not allow escaping or inserting control characters.

Command and Response

CALL:/MEDIA/ETHERNET:tcpText(:=)

←mO-/MEDIA/ETHERNET:tcpText

Example

▶ CALL /MEDIA/ETHERNET:tcpText(192.168.0.103:6107=pwr_on)

← m0 /MEDIA/ETHERNET:tcpText

The 'pwr_on' text is sent to the indicated IP:port address.

Sending a TCP Binary Message (HEX-format)

The command is for sending a binary message in Hexadecimal format. This method does not allow escaping or inserting control characters.

Command and Response

CALL-/MEDIA/ETHERNET.tcpBinary(:=)
←m0-/MEDIA/ETHERNET:tcpBinary

Example

CALL /MEDIA/ETHERNET:tcpBinary(192.168.0.103:6107=0100000061620000cdcc2c40)

← mO /MEDIA/ETHERNET:tcpBinary

The '0100000061620000cdcc2c40' message is sent to the indicated IP:port address.

INFO: There is no need to insert a space or other separator character between the binary messages.

7.9.2. UDP Message Sending via Ethernet

The device can be used for sending a message to a certain IP:port address. The three different commands allow controlling the connected (third-party) devices.

Sending UDP Message (ASCII-format)

The command is for sending a UDP message in ASCII-format. This method allows escaping the control characters. For more information see the Escaping section.

Command and Response

CALL:/MEDIA/ETHERNET:udpMessage(:=)

←mO-/MEDIA/ETHERNET:udpMessage

Example

▶ CALL /MEDIA/ETHERNET:udpMessage(192.168.0.103:6107=C00)

← m0 /MEDIA/ETHERNET:udpMessage

The 'C00' message is sent to the indicated IP:port address.

Example with HEX codes

▶ CALL /MEDIA/ETHERNET:udpMessage(192.168.0.20:9988=C00\x0a\x0d)
← m0 /MEDIA/ETHERNET:udpMessage

The 'C00' message with CrLf (Carriage return and Line feed) is sent to the indicated IP:port address. The \x sequence indicates the HEXA code; see more information in the Using Hexadecimal Codes section.

1. LW3 Programmers' Reference UMX-TPS-TX100 series - User's Manual 77

Sending a TCP Text (ASCII-format)

The command is for sending a text message in ASCII-format via UDP-protocol. This method does not allow escaping or inserting control characters.

Command and Response

CALL·/MEDIA/ETHERNET:udpText(:=)

←mO-/MEDIA/ETHERNET:udpText

Example

▶ CALL /MEDIA/ETHERNET:udpText(192.168.0.20:9988=open)

← mO /MEDIA/ETHERNET:udpText

The 'open' text is sent to the indicated IP:port address.

Sending a UDP Binary Message (HEX-format)

The command is for sending a binary message in Hexadecimal format via UDP protocol. This method does not allow escaping or inserting control characters.

Command and Response

CALL·/MEDIA/ETHERNET:udpBinary(:=)

← m0-/MEDIA/ETHERNET:udpBinary

Example

▶ CALL /MEDIA/ETHERNET:udpBinary(192.168.0.20:9988=433030)

← m0 /MEDIA/ETHERNET:udpBinary

The '433030' message is sent to the indicated IP:port address.

INFO: There is no need to insert a space or other separator character between the binary messages.

7.9.3. Message Sending via RS-232 Serial Port

Sending a Message (ASCII-format)

The command is for sending a command message in ASCII-format. This method allows escaping the control characters. For more information see the Escaping section.

Command and Response

- CALL·/MEDIA/UART/P1:sendMessage()

←m0-/MEDIA/UART/P1:sendMessage

Example

▶ CALL /MEDIA/UART/P1: sendMessage(PWR0)

←m0 /MEDIA/UART/P1:sendMessage

The 'PWR0' message is sent out via the P1 serial port.

Sending a Text (ASCII-format)

The command is for sending a command message in ASCII-format. This method does not allow escaping the control characters.

Command and Response

CALL·/MEDIA/UART/P1:sendText()

← m0-/MEDIA/UART/P1:sendText

Example

▶ CALL /MEDIA/UART/P1:sendText(open)

← m0 /MEDIA/UART/P1:sendText

The 'open' text is sent out via the P1 serial port.

Sending a Binary Message (HEX-format)

The command is for sending a command message in Hexadecimal-format. This method does not allow escaping the control characters.

Command and Response

CALL·/MEDIA/UART/P1:sendBinaryMessage()

◆ m0-/MEDIA/UART/P1:sendBinaryMessage

Example

▶ CALL /MEDIA/UART/P1:sendBinaryMessage(433030)

← m0 /MEDIA/UART/P1:sendBinaryMessage

The '433030' message is sent out via the P1 serial port.

7.9.4. Using Hexadecimal Codes

Hexadecimal codes can be inserted in the ASCII message when using:

sendMessage command: CALL /MEDIA/UART/P1: sendMessage(C00\x0D)

tcpMessage command: CALL /MEDIA/ETHERNET:tcpMessage(C00\x0D)

udpMessage command: CALL /MEDIA/ETHERNET:udpMessage(C00\x0D)

• C00: the message.
- x: indicates that the following is a hexadecimal code.
- 0D: the hexadecimal code (Carriage Return).

1. LW3 Programmers' Reference UMX-TPS-TX100 series - User's Manual 78

7.10. GPIO Port Configuration

INFO: Use the GET command to query a parameter.

7.10.1. Set the Direction of a GPIO Pin

Command and Response

SET-/MEDIA/GPIO/.Direction=

pw-/MEDIA/GPIO/.Direction=

Parameters

Identifier Parameter description Parameter values

GPIO port number P1-P6

Direction of the GPIO pin I: Input

O: Output

Example

▶ SET /MEDIA/GPIO/P1.Direction=1

pw/MEDIA/GPIO/P1.Direction=1

7.10.2. Set the Output Level of a GPIO Pin

Command and Response

- SET-/MEDIA/GPIO/.Output=

pw/MEDIA/GPIO/.Output=

Parameters

Identifier Parameter description Parameter values

GPIO port number P1-P6

Value of the GPIO pin H: High level

L: Low level

Example

▶ SET /MEDIA/GPIO/P1.Output=H

pw /MEDIA/GPIO/P1.Output=H

7.10.3. Toggle the Level of a GPIO Pin

Command and Response

CALL-/MEDIA/GPIO/:toggle()
- mO-/MEDIA/GPIO/:toggle

Example

▶ CALL:/MEDIA/GPIO/P1:toggle()
- mO /MEDIA/GPIO/P1:toggle

If the direction of the pin is input: the output value is toggled.

If the direction of the pin is output: the output value and the input value are toggled.

7.11. EDID Management

7.11.1. Query the Emulated EDIDs

Command and Response

▶ GET-/EDID.EdidStatus
pr-/EDID.EdidStatus=:E1;:E2;:E3;:E4

Example

▶ GET /EDID.EdidStatus

pr /EDID.EdidStatus=D1:E1;D1:E2;D1:E3;D1:E4

Emulated EDID memory for input port is listed with the EDID number that is currently emulated on the input.

7.11.2. Query the Validity of a Dynamic EDID

Command and Response

• GET-/EDID/D/.Validity
  pr-/EDID/D/.Validity=

Parameters

true: The 'Validity' property is true, valid EDID is stored in D1 memory place.

false: The stored EDID is not valid in D1 memory place.

Example

▶ GET /EDID/D/D1. Validity
pr /EDID/D/D1. Validity=true

1. LW3 Programmers' Reference UMX-TPS-TX100 series - User's Manual 79

7.11.3. Query the Preferred Resolution of an User EDID

Command and Response

▶ GET-/EDID/U/.PreferredResolution
pr-/EDID/U/.PreferredResolution=

Example

▶ GET /EDID/U/U2.PreferredResolution
pr /EDID/U/U2.PreferredResolution=1920x1080p60.00Hz
INFO: Use the "Manufacturer" property to query the manufacturer and the "MonitorName" property to query the name of the monitor.

7.11.4. Emulating an EDID to an Input Port

Command and Response

CALL-/EDID:switch(:)

← mO-/EDID:switch

Parameters

Identifier Parameter description Parameter values
	Source EDID memory place	F#: FactoryU#: UserD#: Dynamic
	The emulated EDID memory of the desired input port.	E#: Emulated

Example

▶ CALL /EDID:switch(F49:E2)

← mO /EDID:switch

7.11.5. Emulating an EDID to All Input Ports

Command and Response

CALL:/EDID:switchAll()

← mO-/EDID:switchAll

Parameters

Source EDID memory place: Factory / User / Dynamic.

Example

▶ CALL /EDID:switchAll(F47)

← mO /EDID:switchAll

7.11.6. Copy an EDID to User Memory

Command and Response

CALL-/EDID:copy(:)
← mO-/EDID:copy

Parameters

Identifier Parameter description Parameter values

Source EDID memory place

F#: Factory

U#: User

D#: Dynamic

The desired User EDID memory slot U#: User

Example

▶ CALL /EDID:copy(D1:U1)

← mO /EDID:copy

The EDID of the last connected sink of D1 (Output 1) has been copied to U1.

7.11.7. Deleting an EDID from User Memory

Command and Response

CALL-/EDID:delete()
← mO-/EDID:delete

Example

▶ CALL /EDID:delete(U1)
← m0 /EDID:delete

7.11.8. Resetting the Emulated EDIDs

Command and Response

▶ CALL-/EDID:reset()
← mO-/EDID:reset

Example

▶ CALL /EDID:reset()
←m0/EDID:reset

Calling this method switches all emulated EDIDs to factory default one. See the table in the Factory EDID List section.

1. LW3 Programmers' Reference UMX-TPS-TX100 series - User's Manual 80

7.12. LW3 Commands - Quick Summary

System Commands

Query the Product Name

▶ GET-/.ProductName

Set the Device Label

▶ SET:/MANAGEMENT/UID.DeviceLabel=

Query the Serial Number

▶ GET-/.SerialNumber

Query the Firmware Version

▶ GET-/SYS/MB.FirmwareVersion

Resetting the Device

▶ CALL:/SYS:reset()

Restore the Factory Default Settings

▶ CALL:/SYS:factoryDefaults()

Lock the Front Panel Buttons

▶ SET /MANAGEMENT/UI.ControlLock=

Disable the Default Function of the Front Panel Buttons

▶ SET /MANAGEMENT/UI/BUTTONS/.DefaultFunctionEnable=

Dark Mode

▶ SET /MANAGEMENT/UI/DARKMODE.DarkModeEnable=

Dark Mode Delay

▶ SET /MANAGEMENT/UI/DARKMODE.DarkModeDelay=

Video Port Settings

Query the Status of Source Ports

▶ GET-/MEDIA/VIDEO/XP.SourcePortStatus

Query the Status of Destination Port

▶ GET-/MEDIA/VIDEO/XP.DestinationPortStatus

Query the Video Crosspoint Setting

▶ GET-/MEDIA/VIDEO/XP.DestinationConnectionList

Switching Video Input

▶ CALL-/MEDIA/VIDEO/XP:switch(:)

Query the Video Autoselect Settings

▶ GET-/MEDIA/VIDEO/XP.DestinationPortAutoselect

Change the Autoselect Mode

CALL:/MEDIA/VIDEO/XP:setDestinationPortAutoselect(<out1_set;<out2_set;<...;)

Query the Input Port Priority

▶ GET-/MEDIA/VIDEO/XP.PortPriorityList

Change the Input Port Priority

CALL:/MEDIA/VIDEO/XP:setAutoselectionPriority():(():)

Mute an Input Port

CALL:/MEDIA/VIDEO/XP:muteSource()

Unmute an Input Port

CALL:/MEDIA/VIDEO/XP:unmuteSource()

Lock an Input Port

CALL:/MEDIA/VIDEO/XP:lockSource()

Unlock an Input Port

CALL:MEDIA/VIDEO/XP:unlockSource()

Mute Output

CALL-/MEDIA/VIDEO/XP:muteDestination()

Unmute Output

CALL-/MEDIA/VIDEO/XP:unmuteDestination()

Lock Output

CALL-/MEDIA/VIDEO/XP:lockDestination()

Unlock Output

CALL-/MEDIA/VIDEO/XP:unlockDestination()

HDCP Setting (Input Port)

SET/MEDIA/VIDEO/.HdcpEnable=

Test Pattern Generator Mode

SET/MEDIA/VIDEO/.FreeRunMode=

1. LW3 Programmers' Reference UMX-TPS-TX100 series - User's Manual 81

Test Pattern Resolution

▶ SET/MEDIA/VIDEO/.FreeRunResolution=

Test Pattern Color

▶ SET-/MEDIA/VIDEO/.FreeRunColor=

HDCP Setting (Output Port)

▶ SET-/MEDIA/VIDEO/.HdcpModeSetting=

HDMI Mode Settings (Output Port)

- SET-/MEDIA/VIDEO/.HdmiModeSetting=

Color Space Setting (Output Port)

▶ SET-/MEDIA/VIDEO/.ColorSpaceSetting=

Query the Recent TPS Mode

▶ GET-/REMOTE/.tpsModeSetting

TPS Mode Settings

▶ SET-/REMOTE/.tpsModeSetting=

Audio Port Settings

Query the Status of Source Ports

▶ GET-/MEDIA/AUDIO/XP.SourcePortStatus

Query the Status of Destination Port

▶ GET-/MEDIA/AUDIO/XP.DestinationPortStatus

Query the Audio Crosspoint Setting

▶ GET-/MEDIA/AUDIO/XP.DestinationConnectionList

Switching Audio Input

▶ CALL:/MEDIA/AUDIO/XP:switch(:)

Query the Audio Autoselect Settings

▶ GET-/MEDIA/AUDIO/XP.DestinationPortAutoselect

Change the Autoselect Mode

- CALL:/MEDIA/AUDIO/XP:setDestinationPortAutoselect(:)

Query the Input Port Priority

▶ GET-/MEDIA/AUDIO/XP.PortPriorityList

Change the Input Port Priority

▶ CALL-/MEDIA/AUDIO/XP:setAutoselectionPriority(in> :);( :)

Mute an Audio Input

▶ CALL-/MEDIA/AUDIO/XP:muteSource()

Unmute an Audio Input

▶ CALL:/MEDIA/AUDIO/XP:unmuteSource()

Lock an Input Port

Unlock an Input Port

▶ CALL:/MEDIA/AUDIO/XP:unlockSource()

Mute Audio Output

▶ CALL:/MEDIA/AUDIO/XP:muteDestination()

Unmute Audio Output

▶ CALL-/MEDIA/AUDIO/XP:unmuteDestination()

Lock Output

▶ CALL:/MEDIA/AUDIO/XP:lockDestination()

Unlock Output

▶ CALL-/MEDIA/AUDIO/XP:unlockDestination()

Analog Audio Input Level Settings

Volume

▶ SET-/MEDIA/AUDIO/.Volume=

Balance

▶ SET-/MEDIA/AUDIO/.Balance=

Network Configuration

Query the DHCP State

▶ GET/MANAGEMENT/NETWORK.DhcpEnabled

Change the DHCP S

▶ SET-/MANAGEMENT/NETWORK.DhcpEnabled=

Query the IP Address

▶ GET-/MANAGEMENT/NETWORK.IpAddress

Change the IP Address (Static

▶ SET-/MANAGEMENT/NETWORK.StaticIpAddress=

Query the Subnet Mask

▶ GET/MANAGEMENT/NETWORK.NetworkMask

1. LW3 Programmers' Reference UMX-TPS-TX100 series - User's Manual 82

Change the Subnet Mask (Static)

▶ SET/MANAGEMENT/NETWORK.StaticNetworkMask=

Query the Gateway Address

▶ GET-/MANAGEMENT/NETWORK.GatewayAddress

Change the Gateway Address (Static)

▶ SET:/MANAGEMENT/NETWORK.StaticGatewayAddress=

RS-232 Port Configuration

Protocol Setting

▶ SET/MEDIA/UART/.ControlProtocol=

BAUD Rate Setting

▶ SET/MEDIA/UART/.Baudrate=

Databit Setting

▶ SET-/MEDIA/UART/.DataBits=8|9

Stopbits Setting

▶ SET/MEDIA/UART/.StopBits=

Parity Setting

▶ SET/MEDIA/UART/.Parity=

RS-232 Operation Mode

- SET-/MEDIA/UART/.Rs232Mode=

Command Injection Enable

- SET/MEDIA/UART/.CommandInjectionEnable=

Infrared Port Configuration

Enable Command Injection Mode

▶ SET/MEDIA/IR/.CommandInjectionEnable=true|false

nable/Disable Output Signal Modulation

▶ SET/MEDIA/IR/.EnableModulation=true|false

Sending Message via the Communication Ports

Sending Message via TCP Port

CALL·/MEDIA/ETHERNET:tcpMessage(:=)

CALL/MEDIA/ETHERNET:tcpText(:=)

CALL/MEDIA/ETHERNET.tcpBinary(<port_no=)

UDP Message Sending via Ethernet

CALL/MEDIA/ETHERNET:udpMessage(:=)
CALL·/MEDIA/ETHERNET:udpText(:=)
CALL·/MEDIA/ETHERNET:udpBinary(:=)

Message Sending via RS-232 Serial Port

▶ CALL·/MEDIA/UART/P1: sendMessage()
▶ CALL·/MEDIA/UART/P1:sendText()
▶ CALL·/MEDIA/UART/P1:sendBinaryMessage()

Using Hexadecimal Codes

GPIO Port Configuration

Set the Direction of a GPIO Pin

▶ SET/MEDIA/GPIO/.Direction=

Set the Output Level of a GPIO Pin

▶ SET/MEDIA/GPIO/.Output=

Toggle the Level of a GPIO Pin

▶ CALL-/MEDIA/GPIO/:toggle()

EDID Management

Query the Emulated EDIDs

▶ GET-/EDID.EdidStatus

Query the Validity of a Dynamic EDID

▶ GET-/EDID/D/.Validity

Query the Preferred Resolution of an User EDID

▶ GET-/EDID/U/.PreferredResolution

Emulating an EDID to an Input Port

▶ CALL:/EDID:switch(:)

Emulating an EDID to All Input Ports

▶ CALL-/EDID:switchAll()

Copy an EDID to User Memory

- CALL:/EDID:copy(:)

Deleting an EDID from User Memory

▶ CALL:/EDID:delete()

Resetting the Emulated EDIDs

▶ CALL:/EDID:reset()

8

Firmware Upgrade

The transmitter can be upgraded by using Lightware Device Updater (LDU) software over LAN. The firmware pack with the necessary components (*.Ifp file) for your specific product, the LDU application, and the User's manual can be downloaded from the Support page of our website www.lightware.com.

▶ ABOUT THE FIRMWARE PACKAGE (LFP FILE)

▶SHORT INSTRUCTIONS

INSTALL AND UPGRADE

▶DETAILED INSTRUCTIONS

KEEPING THE CONFIGURATION SETTINGS

▶REMOTE FIRMWARE UPGRADE OF CONNECTED LIGHTWARE DEVICES

ATTENTION! While the firmware is being upgraded, the normal operation mode is suspended as the transmitter is switched to bootload mode. Signal processing is not performed. Do not interrupt the firmware upgrade. If any problem occurs, reboot the device and restart the process.

ATTENTION! The firmware upgrade process has an effect on the configuration and the settings of the device. For more details, please see the Keeping the Configuration Settings section before the upgrade.

8.1. About the Firmware Package (LFP file)

The firmware files are packed in one package which is called LFP file. You need only this file to do the upgrade on your device.

• The package contains all the necessary components, binary, and other files; You do not have to get further files.
• There is a descriptor file in the package that contains each firmware with version number and a list showing the compatible devices. The descriptor is displayed after loaded the LFP file in the LDU.

8.2. Short Instructions

Step 1. Get the firmware pack and the Lightware Device Updater (LDU) application.
Step 2. Install the LDU application.
Step 3. Establish the connection between the computer and the device(s)
Step 4. Start the LDU and follow the instructions shown on the screen.

8.3. Install and Upgrade

Installation for Windows OS

INFO: The application can be installed under Windows XP or above. Run the installer. If the User Account Control drops a pop-up message click Yes. During the installation you will be prompted to select the type of the installation;

Normal Install Snapshot install
Available for Windows and macOS Available for Windows
The installer can update only this instance Cannot be updated
Only one updateable instance can exist for all users	More than one different version can be installed for all users

Comparison of install types

ATTENTION! Using the Normal install as the default value is highly recommended.

Installation for macOS

INFO After the installation the Windows and the Mac application has the same look and functionality. This type of the installer is equal with the Normal install in case of Windows and results an updateable version with the same attributes.

Mount the DMG file with double clicking on it and drag the LDU icon over the Applications icon to copy the program into the Applications folder. If you want to copy the LDU into another location just drag the icon over the desired folder.

LDU Upgrade

Step 1. Run the application. In the welcome screen click on the button in the top right corner, the About window will appear. Click on the Check now button. The program checks the available updates on Lightware website and shows its version.

UPDATE Information Current version: 1.4.683 Update version: 1.5.384 Options Check for updates automatically. Reset-time later: Next time Proxy settings: SETUP CHECK NOW UPDATE POSTPONE

1. Firmware Upgrade UMX-TPS-TX100 series - User's Manual 84

Step 2. Set the desired update settings in the Options section.

• If you do not want to check for the updates automatically, uncheck the circle, which contains the green tick.
• If you want to postpone the update, a reminder can be set with different delays from the drop down list.
• If the proxy settings traverse the update process, set the proper values then click the OK button.

Step 3. Press the Update button to download the new version; the installer will start.

Proxy settings No proxy System default Use HTTP proxy Use SOCKET 5 proxy Proxy load: Proxy port: 100 Power stream/roll: Proxy password: OK Cancel

8.4. Detailed Instructions

8.4.1. Establish the Connection

Make sure that the computer and the device are connected via an Ethernet cable and the connection is established between them.

8.4.2. Start the LDU and Follow the Instructions

After launching LDU the welcome screen will appear:

LIGHTWARE Lightware Device Update - 1.7.24 WELCOME! This update will make you through the process of updating the firmware on your device. Please follow the provider instructions. Please call your user's version or version to request, contact us at [e-mail] SELECTED MATRIX EXTERIOR

Pressing the i button a list will appear showing the supported devices.

Click on the Extender button on the main screen.

Step 1. Select the package.

Click on the Browse button and select the ".Ifp" file that will be used for the upgrade.

LIGHTWARE Software Devices update - 1.5.204 1. Select Package 2. Select Devices 3. Upgrade Devices 4. Finish Select a package on the computer B:\Users\MMU2\MMSU2-NT (1.6/1.7) Browse... Package information General Device Components Package select MMU2-NT family Number 11.5.204 Completed light files from programming Created by print Creation date 2010/06/20 11:49 Description: Production package for MMU2-NT family BACK NEXT

Package information is displayed:

• General version info, creation date, short description,
  • Devices which are compatible with the firmware,
• Components in the package with release notes.

Click on the Next button and follow the instructions.

TIPS AND TRICKS: Files with ".Ifp" extension are associated to LDU during installation. If you double click on the ".Ifp" file, the application is launched, the package is loaded automatically and above screen is shown.

1. Firmware Upgrade UMX-TPS-TX100 series - User's Manual 85

Step 2. Select device.

DEVICE SELECTION Select devices interface Ethernet Select devices from the list Adder Device List Family Serial No IP Address 0102.076.0718 0402.076.0718 0502.0718 1011.108.110.0101 Select the IP address of a device HELP REFRESH OK CANCEL

The following step is to select the desired device(s). The available and supported devices are searched and listed automatically. If the desired device is not listed, update the list by clicking the Refresh button. Select the desired devices: highlight them with a yellow cursor, then click OK.

A tick mark can be seen in the Added column if the device was added by the user previously.

Firmware Components

The firmware components of the selected devices are listed on the following screen: installed and update versions. (Update version will be uploaded to the device.)

LIGHTWARE Upgrade Device Update - 1.5 Std 1. Select Package 2. Select Devices 3. Upgrade Devices 4. Finish Review the list of selected devices Select package (01-01-02) family selection system/fp UWV TPS-TX140 (SRE: 0000210) Converter Internet: 16.000.000 Hardware Components Hardware Installed version Updated version MOS/Farmware 16.000.000 2.500.000 High version MOS/Farmware 16.000.007 16.000.007 MOS/Farmware 16.000.007 16.000.007 RETURN BACK ADD DEVICE REMOVE DEVICE REMOVE ALL NEXT

Add a device by clicking on the Add device button. The previous screen will be shown; select the desired device(s) and click on OK.

Remove a device by selecting it (highlight with yellow) and click on Remove device button, or click on Remove all button to empty the list. Devices which are not necessary to update (all firmware components are up-to-date) can be removed by the Remove up-to-date button from the device list.

Enabling Factory reset will perform factory default values for all settings in the device. Three different status can exist:

• Enabled by user: all settings will set to factory default values.
• Disabled by user: your settings will be saved and restored after upgrading.
• Enabled by default and not changeable by user: firmware upgrade must perform a factory reset to apply all changes coming with the new firmware version.

Click on the Next button to continue.

1. Firmware Upgrade UMX-TPS-TX100 series - User's Manual 86

Step 3. Upgrade the device.

Click on the Start button to continue.

LIGHTWARE Lightware Device Update - 1.5.068 1. Select Package 2. Select Devices 3. Upgrade Devices 4. Finish Track Status Log LINK: EPS 12190 Upgrade NEXT OK BACK DETAILS START

A warning window will pop up before starting upgrading the device:

- Do not unplug the power cable and the LAN cable while the upgrade is in progress. Click OK to continue.

When you confirmed the warnings, the upgrade process starts automatically.

LIGHTWARE Lightware Device Update - 1.5 Bull 1. Select Package 2. Select Devices 3. Upgrade Devices 4. Find Task SINK-TPE-100% SINK-TPE-70% Status 64% Log 2000 40% BACK DETAIL 5 NEXT

Details button opens a new window where the process is logged – see below.

BOOT LOAD PROJECTS DETAIL 5 INITI-01:01 UPDATE PRINTING INITI-01:02 UPDATE PRINTING INITI-01:03 UPDATE PRINTING INITI-01:04 UPDATE PRINTING INITI-01:05 UPDATE PRINTING INITI-01:06 UPDATE PRINTING INITI-01:07 UPDATE PRINTING INITI-01:08 UPDATE PRINTING INITI-01:09 UPDATE PRINTING INITI-01:10 UPDATE PRINTING INITI-01:11 UPDATE PRINTING INITI-01:12 UPDATE PRINTING INITI-01:13 UPDATE PRINTING INITI-01:14 UPDATE PRINTING INITI-01:15 UPDATE PRINTING INITI-01:16 UPDATE PRINTING INITI-01:17 UPDATE PRINTING INITI-01:18 UPDATE PRINTING INITI-01:19 UPDATE PRINTING INITI-01:20 UPDATE PRINTING INITI-01:21 UPDATE PRINTING INITI-01:22 UPDATE PRINTING INITI-01:23 UPDATE PRINTING INITI-01:24 UPDATE PRINTING INITI-01:25 UPDATE PRINTING INITI-01:26 UPDATE PRINTING INITI-01:27 UPDATE PRINTING INITI-01:28 UPDATE PRINTING INITI-01:29 UPDATE PRINTING INITI-01:30 UPDATE PRINTING INITI-01:31 UPDATE PRINTING INITI-01:32 UPDATE PRINTING INITI-01:33 UPDATE PRINTING INITI-01:34 UPDATE PRINTING INITI-01:35 UPDATE PRINTING INITI-01:36 UPDATE PRINTING INITI-01:37 UPDATE PRINTING INITI-01:38 UPDATE PRINTING INITI-01:39 UPDATE PRINTING INITI-01:40 UPDATE PRINTING INITI-01:41 UPDATE PRINTING INITI-01:42 UPDATE PRINTING INITI-01:43 UPDATE PRINTING INITI-01:44 UPDATE PRINTING INITI-01:45 UPDATE PRINTING INITI-01:46 UPDATE PRINTING INITI-01:47 UPDATE PRINTING INITI-01:48 UPDATE PRINTING INITI-01:49 UPDATE PRINTING INITI-01:50 UPDATE PRINTING INITI-01:51 UPDATE PRINTING INITI-01:52 UPDATE PRINTING INITI-01:53 UPDATE PRINTING INITI-01:54 UPDATE PRINTING INITI-01:55 UPDATE PRINTING INITI-01:56 UPDATE PRINTING INITI-01:57 UPDATE PRINTING INITI-01:58 UPDATE PRINTING INITI-01:59 UPDATE PRINTING INITI-01:60 UPDATE PRINTING INITI-01:61 UPDATE PRINTING INITI-01:62 UPDATE PRINTING INITI-01:63 UPDATE PRINTING INITI-01:64 UPDATE PRINTING INITI-01:65 UPDATE PRINTING INITI-01:66 DATTEMPT/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/SPR/ Initiated software version 5.5.2.2.5. Advanced Web

Step 4. Finish.

If the upgrade of a device is finished, the log can be opened by the View button on the right When all the tasks are finished, a window appears. Click OK to close and Next to display the summary page.

LIGHTWARE Lightware Devices update - 1.5.08 1. Select Package 2. Select Device 3. Upgrade Device 4. Finish Summary Bootless process installed BDCSLS: BDC IPG (0743) UPDATE: Remaining bootless bootless successful BDCSLS: BDC IPG (0743) UPDATE: Remaining bootless bootless successful BDCSLS: BDC IPG (0743) UPDATE: Remaining bootless bootless successful BDCSLS: BDC IPG (0743) UPDATE: Remaining bootless bootless successful BDCSLS: BDC IPG (0743) UPDATE: Remaining bootless bootless successful Bootless process installed: BDCSLS RESET OPEN LOOS EXPORT LOOS EXIT

Repeat button starts the process again with the selected device(s)

Open logs button opens the temporary folder where the logs can be found.

Export logs by saving the files as a zipped file.

Press Exit to close the program.

If the upgrade failed, the progress bar of the device is changed to red; restart the device(s) and repeat the process.

ATTENTION! However the device is rebooted after the firmware upgrade, switching it off and on again is recommended.

8.5. Keeping the Configuration Settings

User can keep all configuration settings and restore to the device after firmware upgrading or can choose to perform a factory reset – it means all settings will be erased in the device. For the detailed information about saved data refer to the Content of Backup File section.

The following flow chart demonstrates how this function works in the background.

Flow chart of firmware upgrade

The details about the procedure: when firmware upgrade starts, the first step is making a backup of the settings of the device. The firmware package checks the backup data and if it is needed, a conversion is applied to avoid incompatibility problems between the firmware versions. If you do not want to keep configuration settings, you can set the Factory reset option enabled.

The instruction in the firmware package of the device will inform you about this function availability, reading it is highly recommended in every case.

LIGHTWARE Upgrade Service Version 12.0.03 1. Select Package 2. Select Driver 3. Upgrade Driver 4. Total Promote the following steps to install your interface: TPS Extender Family Firmware Upgrade Instructions Interface for the upgrading process The extension of the Upgrade Form Designer. Important: • Use a selected tool for the repair system to adjust the following features: software version • Use a specific tool for the repair system to adjust the following features: software version • Check the other process which is required to use the software to modify their software version and create a new software version. • Use a specific tool for the repair system to adjust the following features: software version • Use a specific tool for the repair system to adjust the following features: software version • Use a specific tool for the repair system to adjust the following features: software version • Use a specific tool for the repair system to adjust the following features: software version

Instructions page in the UMX-TPS-TX100 series firmware package

ATTENTION! In specific cases restoring cannot be applied fully and certain settings are not copied back to the device. If a warning message appears, user can get back the original data from the backup. Logs of the upgrade procedure contain all backup data, it can be exported at the end of the upgrade procedure. In case of any question, please contact [e-mail].

ATTENTION! In certain cases, the new firmware version requires setting all parameters to set factory defaults. In this case, the "Factory reset" option is enabled by default and not changeable by the user, see details in the Firmware Components section.

ATTENTION! The feature is only supported by LDU version 1.3.0 and above.

8.6. Remote Firmware Upgrade of Connected Lightware Devices

Firmware of Lightware devices can be upgraded via another connected Lightware device without removing the device from the system. It means user does not have to connect directly to the upgradable device, it can be reached and flashed through other devices. It's a more comfortable way to keep up-to-date your Lightware devices.

Three connected audio equipment units (no visible text or labels)

There are two types of remote upgrading:

Extended Upgrade

• Intelligent devices can be upgraded via another intelligent or basic device via TPS or OPTS/OPTM link.
• For example, UMX-TPS-TX100 series extenders can be upgraded via MMX6x2-HT series matrix or a HDMI-TPS-RX95 extender.

Hosted Upgrade

• Basic devices can be upgraded only via an intelligent device via TPS link.
• For example, TPS 95 series extenders can be upgraded via MMX6x2-HT series matrix or UMX-TPS-TX100 series extenders.
• In case of hosted upgrade, the procedure is almost the same as described in Firmware upgrade – Detailed Instructions. The only difference is that the host device's name, and IP address appears beside the name of the device to be upgraded.

ATTENTION! During hosted upgrade the host device turned to bootload mode when the extender is upgraded. During the upgrade normal operation mode is suspended. When the upgrade is successfully finished, the normal operation mode is restored.

Microsoft Office 文件名(N): 类型(T): 文件名(N): 文件类型(T): 大小(S): 100.0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 A: C: D: E: F: G: H: I: J: K: L: M: N: O: P: Q: R: S: T: U: V: W: X: Y: Z: A: B: C: D: E: F: G: H: I: J: K: L: M: N: O: P: Q: R: S: T: U: V: W: X: Y: Z: A: B: C: D: E: F: G: H: I: J: K: L: M: N: O: P: Q: R: S: T: U: V: W: X: Y:Z C:\Users\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents

Remote device in device selection window

Troubleshooting

Usually, if the system seems not to transport the signal as expected, the best strategy for troubleshooting is to check signal integrity through the whole signal chain starting from source side and moving forward to the receiver end.

Link to connections/cabling section.
Link to front panel operation section.
Link to LDC software section.
Link to LW2 protocol commands section.
Link to LW3 protocol commands section.

At first, check front panel LEDs and take the necessary steps according to their states. For more information about status, LEDs refer to Front Panel LEDs and Rear Panel LEDs sections.

Symptom Root cause Action Refer to
Video signal
No picture on the video output	Device or devices are not powered properly	Check the extenders and the other devices if they are properly powered; try to unplug and reconnect them.	3.7.13.7.2
	Cable connection problem	Cables must fit very well, check all the connectors (video and TPS cables).	3.7
	TPS mode problem Check	the actual TPS mode and the selected modes of the extenders.	5.5.57.4.24
	The input port is muted Check	check the mute state of input port.	5.56.3.67.4.1
	The output port is muted Check	check the mute state of output port.	5.5.56.3.67.4.2
	Display is not able to receive the video format	Check the emulated EDID; select another (e.g. emulate the display's EDID on the input port).	5.77.11
	HDCP is disabled Enable	HDCP on the input and output ports.	5.5.25.5.57.4.177.4.21
Not the desired picture displayed on the video output	Video input is set to test pattern (no sync screen) statically	Check test pattern settings in the properties of the input ports.	5.6.37.4.18
	Video source is set to Testpattern input (i6)	Check the crosspoint settings	5.46.3.67.4.3
	Video output is set to test pattern (no sync screen) as there is no picture on video source	Check video settings of the source.
Audio signal
No audio is present on output	Source audio volume is low or muted	Check the audio settings of the source.
	Audio input port is muted	Check the audio input port properties	5.56.3.67.5.1
	Audio output port is muted	Check the output port properties.	5.56.3.67.5.2
HDMI output signal contains no audio	HDMI mode was set to DVI	Check the properties of the output port and set the signal type to HDMI or Auto.	5.5.57.4.22
	DVI EDID is emulated Check the EDID and select and HDMI EDID to emulate.		5.77.11
RS-232 signal
Connected serial device does not respond	Cable connection problem	Check the connectors to fit well; check the wiring of the plugs.	3.7.10
	RS-232 settings are different	Check the port settings of the transmitter and the connected serial device(s).	5.8.17.7
	RS-232 mode is not right Check the RS-232 mode settings (control, command injection, or disconnected)		5.8.17.7.6
Network
No LAN connection can be established	Incorrect IP address is set (fix IP)	Use dynamic IP address by enabling DHCP option.	4.4.15.10.27.6.2
		Restore the factory default settings (with fix IP).	4.4.25.10.56.2.117.3.6
	IP address conflict Check	the IP address of the other devices, too.

Symptom Root cause Action Refer to
GPIO
Connected device does not respond	Cable connection problem	Check the connectors to fit well; check the wiring of the plugs.	3.7.13
Output level cannot be changed	The direction of the selected pin is set to input	Check and modify the direction setting of the desired pin	5.8.26.5.17.10
Miscellaneous
Front panel buttons are out of operation	Buttons are locked Unlock	the buttons	4.4.45.10.1
Error messages received continuously	Different protocol is set	Check the port protocol settings (LW2 / LW3) and use the proper protocol commands.	5.8.17.7.1

10

Technologies

The following sections contain descriptions and useful technical information how the devices work in the background. The content is based on experiences and cases we met in the practice. These sections help to understand features and technical standards like the followings:

▶EDID MANAGEMENT

HDCP MANAGEMENT

▶PIXEL ACCURATE RECLOCKING

10.1. EDID Management

10.1.1. Understanding the EDID

The Extended Display Identification Data (EDID) is the passport of display devices (monitors, TV sets, projectors). It contains information about the capabilities of the display, such as supported resolutions, refresh rates (these are called Detailed Timings), the type and manufacturer of the display device, etc.

After connecting a source to a display (DVI, HDMI, DP), the source reads out the EDID to determine the resolution and refresh rate of the image to be transmitted.

EDID Communication

Most DVI computer displays have 128-byte long EDID structure. However, Digital Televisions and HDMI capable displays may have another 128 bytes, which is called E-EDID and defined by CEA (Consumer Electronics Association). This extension contains information about additional Detailed Timings, audio capabilities, speaker allocation and HDMI capabilities. It is important to know that all HDMI capable devices must have CEA extension, but not all devices with CEA extension are HDMI capable.

Common Problems Related to EDID

Problem: "My system consists of the following: a computer, a Lightware device, a WUXGA (1920x1200) LCD monitor, and an SXGA (1280x1024) projector. I would like to see the same image on the monitor and the projector. What EDID should I choose on the Lightware device?"

Solution: If you want to see the image on both displays, you need to select the resolution of the smaller display (in this case SXGA), otherwise the smaller display may not show the higher resolution image.

Problem: "I have changed to a different EDID on an input port of the Lightware device to have a different resolution but nothing happens."

Solution: Some graphics cards and video sources read out the EDID only after power-up and later they do not sense that EDID has been changed. You need to restart your source to make it read out the EDID again.

10.1.2. Advanced EDID Management

Each DVI sink (e.g. monitors, projectors, plasma displays, etc...) must support the EDID data structure. Source BIOS and operating systems are likely to query the sink using DDC2B protocol to determine what pixel formats and interface are supported. DVI standard uses EDID data structure to identify the monitor type and capabilities. Most DVI sources (VGA cards, set top boxes, etc.) will output DVI signal after accepting the connected sink's EDID information. In the case of EDID readout failure or missing EDID, the source will not output DVI video signal.

Lightware devices provide the Advanced EDID Management function that helps system integration. The built-in EDID Router can store and emulate factory pre-programmed- and User programmable EDIDs. The EDID of the attached monitors or projectors for each output are stored in a non-volatile memory. This way the EDID of a monitor is available when the monitor is unplugged or switched off.

Any EDID can be emulated on any input. An emulated EDID can be copied from the EDID router's memory (static EDID emulation), or from the last attached monitor's memory (dynamic EDID emulation). For example, the Lightware device can be set up to emulate a sink device, which is connected to one of the outputs. In this case, the EDID automatically changes, if the monitor is replaced with another display device (as long as it has a valid EDID).

EDID is independently programmable for all inputs without affecting each other. All inputs have their own EDID circuit.

INFO: The user is not required to disconnect the video cable to change an EDID as opposed to other manufacturer's products. EDID can be changed even if a source is connected to the input and powered ON.

INFO: When EDID has been changed, the router toggles the HOTPLUG signal for 2 seconds. Some sources do not sense this signal. In such cases, the source device must be restarted or powered OFF and ON again.

1. Technologies UMX-TPS-TX100 series - User's Manual 92

10.2. HDCP Management

Lightware Visual Engineering is a legal HDCP adopter. Several functions have been developed which helps to solve HDCP related problems. Complex AV systems often have both HDCP and non-HDCP components. The transmitter allows transmitting HDCP encrypted and unencrypted signals. The devices will be still HDCP compliant as they will never output an encrypted signal to a non-HDCP compliant display device. If an encrypted signal is switched to a non-compliant output, a red screen alert or muted screen will appear.

10.2.1. Protected and Unprotected Content

Many video sources send HDCP protected signal if they detect that the sink is HDCP capable – even if the content is not copyrighted. This can cause trouble if an HDCP capable device is connected between the source and the display. In this case, the content cannot be viewed on non-HDCP capable displays and interfaces like event controllers. Rental and staging technicians often complain about certain laptops, which are always sending HDCP encrypted signals if the receiver device (display, matrix router, etc.) reports HDCP compliancy. However, HDCP encryption is not required all the time e.g. computer desktop image, certain laptops still do that.

To avoid unnecessary HDCP encryption, Lightware introduced the HDCP enabling/disabling function: the HDCP capability can be disabled in the Lightware device. If HDCP is disabled, the connected source will detect that the sink is not HDCP capable, and turn off authentication.

10.2.2. Disable Unnecessary Encryption

HDCP Compliant Sink

All the devices are HDCP-compliant, no manual setting is required, both protected and unprotected contents are transmitted and displayed on the sink.

Not HDCP-compliant Sink 1.

Not-HDCP compliant sink is connected to the receiver. Some sources (e.g. computers) always send HDCP encrypted signals if the receiver device reports HDCP compliancy, however, HDCP encryption is not required all the time (e.g. computer desktop image). If HDCP is enabled in the transmitter, the image will not be displayed on the sink.

Setting the HDCP parameter to Auto on the output port and disable HDCP on the input port, the transmitted signal will not be encrypted if the content is not protected. Thus, non-HDCP compliant sinks will display non-encrypted signal.

Not HDCP-compliant Sink 2.

The layout is the same as in the previous case: non-HDCP compliant display device is connected to the receiver but the source would send protected content with encryption. If HDCP is enabled on the input port of the transmitter, the source will send encrypted signal. The sink is not HDCP compliant, thus, it will not display the video signal (but blank/red/muted/etc. screen). If HDCP is disabled on the input port of the transmitter, the source will not send the signal. The solution is to replace the display device to an HDCP-capable one.

10.3. Pixel Accurate Reclocking

Signal reclocking is an essential important procedure in digital signal transmission. After passing the reclocking circuit, the signal becomes stable, jitter-free, and can be transmitted over more equipment like processors, or event controllers. Without reclocking, sparkles, noise, and jaggles appear on the image.

Lightware's sophisticated Pixel Accurate Reclocking technology fixes more problems than general TMDS reclocking. It removes not only intra-pair skew but inter-pair skew as well. The Pixel Accurate Reclocking circuit eliminates the following errors:

Intra-pair skew

Skew between the + and - wires within a differential wire pair (e.g. Data2- and Data2+). It's caused by different wire lengths or slightly different wire construction (impedance mismatch) in DVI cable. It results in jitter.

Intra pair skew

Inter-pair skew

Skew between two differential wire pairs in a cable. It is caused by different wire pair lengths or different number of twists in the DVI cable. Too much inter-pair skew results color shift in the picture or sync loss.

Jitter

Signal instability in the time domain. The time difference between two signal transitions should be a fixed value, but noise and other effects cause variations.

Noise

Electromagnetic interference between other electronic devices such as mobile phones, motors, etc. and the DVI cable are coupled onto the signal. Too much noise results in increased jitter.

11

Appendix

Tables, drawings, guides, and technical details as follows:

▶SPECIFICATION

▶FACTORY DEFAULT SETTINGS

▶ CONTENT OF BACKUP FILE

▶AUDIO CABLE WIRING GUIDE

▶MECHANICAL DRAWINGS

▶PORT NUMBERING

▶MAXIMUM EXTENSION DISTANCES

▶FACTORY EDID LIST

▶FURTHER INFORMATION

11.1. Specification

General

Compliance......CE

EMC compliance (emission)....EN 55032:2015

EMC compliance (immunity)....EN 55035:2017

Warranty 3 years

Cooling....Passive

Operating temperature 0 to +50°C (+32 to +122°F)

Operating humidity 10% to 90%, non-condensing

Power (UMX-TPS-TX100 series)

Power supply......External power adaptor or PoE remote powering

Power adaptor.....In 100-240 V AC 50/60 Hz, Out 12V DC, 1 A

Power connector....Locking DC connector (2.1 mm pin)

Power over TPS.... DC 48V, 1A (IEEE 802.3af)

Power consumption....9 W

Power (WP-UMX-TPS-TX100 series)

Power supply......External power adaptor or PoE remote powering

Power adaptor.....In 100-240 V AC 50/60 Hz, Out 48V DC, 1 A

Power connector....Phoenix ^3 Combicon (2-pole)

Power over TPS.... DC 48V, 1A (IEEE 802.3af)

Power consumption....9 W

Power (FP-UMX-TPS-TX130MKM)

Power supply......External power adaptor or PoE remote powering

Power adaptor.....In 100-240 V AC 50/60 Hz, Out 48V DC, 1 A

Power connector....Phoenix ^9 Combicon (2-pole)

Power over TPS.... DC 48V, 1A (IEEE 802.3af)

Power consumption....9 W

Enclosure (UMX-TPS-TX100 series)

Rack mountable....Yes

Material....1 mm steel

Dimensions in mm....221W x 100.4D x 26H

Dimensions in inch 8.7 W x 3.95 D x 1.02 H

Weight - UMX-TPS-TX120 629 g

Weight - UMX-TPS-TX130 642 g

Weight - UMX-TPS-TX140 647 g

Enclosure (WP-UMX-TPS-TX100 series)

Rack mountable....No

Material.... 1 mm steel

Dimensions in mm 115.9W x 67.5D x 114.3H

Dimensions in inch 4.56 W x 2.65 D x 4.5 H

Weight - WP-UMX-TPS-TX120-US 452 g

Weight - WP-UMX-TPS-TX130-US 457 g

Enclosure (FP-UMX-TPS-TX130MKM)

Rack mountable....No

Material....1 mm steel

Dimensions in mm....116 W x 54.4 D x 77 H

Dimensions in inch 4.56 W x 2.14 D x 3.03 H

Weight 330 g

Weight with bracket 606 g

Video Ports

VGA Input

Connector type.....DE-15F (15-pole D-sub Female)

Supported video signal.....Analog RGB and YPbPr video

Color depth..... Up to 24 bits, 8 bit/color

Max. data rate ....Up to 170 MHz video and graphics digitizer

Max. resolution....Up to 1600x1200@60 Hz

HDMI Input

HDMI port connector type....19-pole HDMI Type A receptacle

Standard DVI 1.0, HDMI 1.4

Color depth....Deep color support up to 36 bits, 12 bit/color

Color space....RGB, YCbCr 4:4:4, YcbCr 4:2:2

Max. video resolutions 1920x1080@120 Hz, 24 bit

1600x1200@60 Hz, 36 bit

3840x2160@30 Hz, 24 bit

Audio formats 8 channel PCM, Dolby TrueHD

DTS-HD Master Audio 7.1

Reclocking.....Pixel Accurate Reclocking

3D support.....Yes

HDCP compliant....Yes, 1.1

DisplayPort Input

DisplayPort connector type....20-pole, DP 1.1a receptacle

Color depth....Deep color support up to 36 bits, 12 bit/color

Color space....RGB, YcbCr 4:4:4, YCbCr 4:2:2

Max. video resolutions 1920x1080@120 Hz

2560x1600@60 Hz

4096x2400@30 Hz

3D support.....Yes

HDCP compliant.....Yes, 1.3

DVI-I Input with DVI-D support

Connector type....29-pole, DVI-1

Standard DVI 1.0, HDMI 1.4

Color depth....Deep color support up to 36 bits, 12 bit/color

Color space....RGB, YCbCr 4:4:4, YcbCr 4:2:2

Max. video resolutions 1920x1080@120 Hz, 24 bit

1600x1200@60 Hz, 36 bit

3840x2160@30 Hz, 24 bit

Audio formats....8 channel PCM, Dolby TrueHD

DTS-HD Master Audio 7.1

Reclocking.....Pixel Accurate Reclocking

3D support.....Yes

HDCP compliant....Yes, 1.1

DVI-I Input with DVI-A support

Connector type....29-pole, DVI-I

Supported video signal.....Analog RGB and YPbPr video

Color depth..... Up to 24 bits, 8 bit/color

Max. data rate.....Up to 170 MHz video and graphics digitizer

Max. resolution.....Up to 1600x1200@60 Hz

TPS Output Port

TPS port connector type.... RJ45 connector

Compliance ......HDBaseT™

Transferred signals......Video, Audio, RS-232, Infrared, Ethernet

Max. video resolutions 1920x1080@120 Hz, 24 bit

1600x1200@60 Hz, 36 bit

3840x2160@30 Hz, 24 bit

Audio Ports

Embedded Audio Signal

Supported on....DisplayPort, DVI-D, HDMI ports

Supported audio formats....Up to 8 channel PCM,

Dolby TrueHD

DTS HD Master Audio 7.1 formats

Analog Audio Input (Jack)

Connector type.... 3.5mm TRS (approx. 1/8* jack)

Sampling frequency....48 kHz

Volume 95.62 - 0 dB

Maximum input level ....+0 dBu, 0.77 Vrms, 2.19 Vpp

Analog Audio Input (Phoenix)

Connector type....5-pole Phoenix connector

Signal transmission...... Balanced and unbalanced audio

Sampling frequency....48 kHz

Volume....-95.62 - 0 dB

Maximum input level ....+4 dBu, 1.23 Vrms, 3.47 Vpp

Control Ports

RS-232

Connector type....3-pole Phoenix connector

Available Baud rates.....between 4800 and 115200 baud

Available Data bits 8 or 9

Available Parity...... None / Odd / Even

Available Stop bits 1 / 1.5 / 2

Infrared

Number of IR ports 2 (1x RX, 1x TX)

Connector type 1 x 3.5mm TRS and 1 x 3.5mm TS (approx. 1/8" jack)

Ethernet

Connector type....Locking RJ45

Ethernet data rate ..... 10/100Base-T, full duplex with autodetect

Power over Ethernet (PoE)......Not supported

GPIO

Connector type....8-pole Phoenix connector

Number of configurable pins ....7

Port direction.... Input or output

Input voltage: Low level 0 - 0.8 V

Input voltage: High level 2 - 5 V

Output voltage: Low level 0 - 0.5 V

Output voltage: High level 4.5 - 5 V

Max. current: Low level....30 mA

Max. current: High level....18 mA

Total available current....180 mA

EDID Management

EDID emulation ..... Yes, both on the analog and on the digital inputs

EDID memory .... 120 factory presets, 15 user-programmable

11.2. Factory Default Settings

Parameter Setting/Value
Crosspoint settings
Video I1 (VGA in)
Audio I1 (Analog audio in 1)
Video port settings
HDCP Enabled
Autoselect Disabled
Emulated EDID on analog video inputs	Factory #89: Universal Analog EDID
Emulated EDID on digital video inputs	Dynamic #1: Copy EDID from connected sink device.
Test pattern mode Auto
Test pattern resolution 640x480p
Test pattern color (RGB code) #7F7	F7F (grey)
Test pattern resolution on Testpattern input (I6)	640x480p
Test pattern color (RGB code) on Testpattern input (I6)	#108020 (green)
Output signal type Auto
Output HDCP mode Auto
Power 5V mode Always on
Color space Auto
TPS mode	Auto
Analog audio port settings (I1 and I5)
Volume	0.00 dB (100%)
Balance	50 (center)
Network settings
IP address	192.168.0.100
Subnet mask	255.255.255.0
Static gateway	192.168.0.1
DHCP Disabled
LW2 port number	10001
LW3 port number	6107
HTTP port number	80

Parameter Setting/Value
RS-232 settings
Control protocol	LW2
Baud rate	57600
Databils	8
Parity None
Stopbits	1
Operation mode	Pass-through
Command injection port nr. - Local	8001
Command injection port nr. - TPS	8002
IR port settings
Command injection status	Enabled
Comm. inj. input port nr. - Local	9001
Comm. inj. output port nr. - Local	9002
Comm. inj. input port nr. - TPS	9003
Comm. inj. output port nr. - TPS	9004
GPIO port settings
Output level High
Direction	Input

11.3. Content of Backup File

The backup file contains numerous settings and parameters saved from the device. When the file is uploaded to a device, the followings will be overwritten:

Analog video Input ports (VGA, DVI-A)

Horizontal position, Vertical position, Active horizontal size, Active vertical size, Total horizontal size, Pixel phase

Test pattern mode, Test pattern resolution, Test pattern color

Digital video input ports (HDMI, DP, DVI-D)

Video port name, Audio port name, HDCP setting

Test pattern mode, Test pattern resolution, Test pattern color

TPS output port

Port name, HDCP mode, HDMI mode, Power +5V mode, Color space setting

Analog audio input ports

Port name, Volume, Balance

Crosspoint settings

Video crosspoint settings, audio crosspoint settings

Autoselect (enable/disable, delay settings, priority list)

Mute/lock state of video ports, Mute/lock state of audio ports

Serial ports (local and TPS)

RS-232 mode, Control protocol, Baud rate, Data bits, Stop bits, Parity

Port name and Command Injection (CI) port number

IR port

Port status (enable / disable), Code length, Repetition code, Modulation state

Input port name, Output port name

CI status (enable / disable), CI port number

Network settings

DHCP status (enable / disable), Static IP address, Network mask, Gateway address, LW2/LW3/HTTP port nr

Further settings

Device label, Control lock

User presets (U1-U32), User EDID data (U1-U15), Event Manager: settings of all Events (E1-E20)

GPIO port configuration (pin 1-7)

11.4. Audio Cable Wiring Guide

Inputs and outputs of audio devices are symmetric or asymmetric. The main advantage of the symmetric lines is the better protection against the noise therefore, they are widely used in the professional audio industry. Symmetric audio is most often referred to as balanced audio, as opposed to asymmetric, which is referred to as unbalanced audio. Lightweight products are usually built with 5-pole Phoenix connectors so we would like to help users assembling their own audio cables. See the most common cases below.

ATTENTION! Symmetric and asymmetric lines can be linked with passive accessories (e.g. special cables), but in this case half of the line level is lost.

ATTENTION! There are numerous types of regularly used connector and cable types to connect audio devices. Please always make sure that a connector or cable fits your system before use.

ATTENTION! Never join the phase-inverted (negative, cold or -) poles (either right and left) to the ground or to each other on the output side, as this can damage the unit.

INFO: Use a galvanic isolation in case of a ground loop.

The Pinout of the 5-pole Phoenix Connector

Compatible Plug Type

Phoenix® Combicon series (3.5mm pitch, 5-pole), type: MC 1.5/5-ST-3.5.

From Unbalanced Output to Balanced Input

2 x 6.3 (1/4") TS - Phoenix AUDIO Input 2 x RCA - Phoenix AUDIO Input

From Balanced Output to Unbalanced Input

Phoenix - 2 x 6.3 (1/4") TS AUDIO Output AUDIO - 2 x RCA AUDIO Output

From Balanced Output to Balanced Input

1. Appendix UMX-TPS-TX100 series - User's Manual 98

11.5. Mechanical Drawings

11.5.1. UMX-TPS-TX100 series

UMX-TPS-TX140 can be seen in the pictures, but the dimensions are the same for all the three models. Dimensions are in mm.

Front View

①I/O port ② I/O port ③ I/O port 221

Rear View

Bottom View

170.5 M3 thread M3 thread 20 4

Top View

Universal TPS Transmitter W200 16.27" xVCA - xVDB - xV3 = 26.0 K200 16.28" xVCA - xVDB - xV3 = 26.0 K200 16.29" xVCA - xVDB - xV3 = 26.0 MUT-04/04/05 FUST/04 a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) b) W200 16.27" xVCA - xVDB - xV3 = 26.0 K200 16.28" xVCA - xVDB - xV3 = 26.0 K200 16.29" xVCA - xVDB - xV3 = 26.0 MUT-04/04/05 FUCT/04 a) a) a) a) a) a) a) a) a) a) a) a) a) a) a) b) W200 16.27" xVCA - xVDB - xV3 = 26.0 K200 16.28" xVCA - xVDB - xV3 = 26.0 K200 16.29}xVCA - xVDB - xV3 = 26.0 MUT-04/04/05 FUST/04 a) a) a) a) a) a) a) a) a) b) W200 16.27" xVCA - xVDB - xV3 = 26.0 K200 16.28" xVCA - xVDB - xV3 = 26.0 K200 16.29}xVCA - xVDB - xV3= 26.0 MUT-04/04/05 FUST/04 a) a) a) a) a) a) b) W200 16.27" xVCA - xVDB - xV3 = 26.0 K200 16.28" xVCA - xVDB - xV3 = 26.0 K200 16.29}xVCA - xVDB - xV3= 26.0

Side View

1. Appendix UMX-TPS-TX100 series - User's Manual 99

11.5.2. WP-UMX-TPS-TX100 series

WP-UMX-TPS-TX130-US can be seen in the pictures, but the dimensions are the same for both models. Dimensions are in mm.

Front View

215 BC/24 hx Learware WP-UMX-TPB-TX130-UB Channel USBCC SELECT RESET AC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC 16.3 15.9

Rear View

28.525 52 R10 332 490° AC 200 67 177 34.95 45 34.95 34.95 34.95 34.95 34.95 34.95 34.95 34.95 34.95 34.95 34.95 34.95 34.95 34.95 34.95 34.95 34.95 36.45 36.45 36.45 36.45 36.45 36.45 36.45 36.45 36.45 36.45 36.45 36.45 36.45 36.45 36.45 36.45 36.45 34.95 34.95 34.95 34.95 34.95 34.95 34.95 34.95 34.95 34.95 34.95 34.95 34.95 34.95 34.95 34.95 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100%

Side
View

16 45.5 9

11.5.3. FP-UMX-TPS-TX130-MKM

Dimensions are in mm.

Front View

16 12

Rear View

S4 25

Side
View

11.6. Port Numbering

11.6.1. WP-UMX-TPS-TX120-US

Audio/Video Ports

Port name	Video port nr. (LW2)	Video port nr. (LW3)		Emulated EDID memory	Audio port nr. (LW2)	Audio port nr. (LW3)
		Till fw v1.0.3	From fw v1.1.0			Till fw v1.0.3	From fw v1.1.0
VGA in I1 P1 I1 E1 ---
HDMI in I2 P2 I2 E2 I2 P2 I2
Test pattern I3 P3 I3 ---
Audio in --- I1 P1 I1
TPS out O1 P4 O1	-	O1 P3 O1

RS-232 and IR Ports

Port name	Port nr. (LW2 / LW3)
Local serial port	P1
TPS serial link	P2

Port name	Port nr. (LW2 / LW3)
Local IR input	S1
TPS IR input	S2

11.6.2. WP-UMX-TPS-TX130-US

Audio/Video Ports

Port name	Video port nr. (LW2)	Video port nr. (LW3)		Emulated EDID memory	Audio port nr. (LW2)	Audio port nr. (LW3)
		Till fw v1.0.3	From fw v1.1.0			Till fw v1.0.3	From fw v1.1.0
VGA in I1 P1 I1 E1 ---
DP in I2 P2 I2			I2	P2 I2
HDMI in I3 P3 I3 E2 I3 P3 I3
Test pattern I4 P4 I4 ---
Audio in --- I1 P1 I1
TPS out O1 P5 O1	-	Q1 P4 O1

RS-232 and IR Ports

Port name	Port nr. (LW2 / LW3)
Local serial port	P1
TPS serial link	P2

Port name	Port nr. (LW2 / LW3)
Local IR input	S1
TPS IR input	S2

11.6.3. UMX-TPS-TX120

Audio/Video Ports

Port name	Video port nr. (LW2)	Video port nr. (LW3)		Emulated EDID memory	Audio port nr. (LW2)	Audio port nr. (LW3)
		Till fw v1.0.3	From fw v1.1.0			Till fw v1.0.3	From fw v1.1.0
VGA in I1 P1 I1 E1 ---
HDMI in I2 P2 I2 E2 I2 P2	I2
Test pattern I3 P3	I3		----
Audio in ----	I1 P1	I1
TPS out O1 P4 O1		O1 P3 O1

IR and RS-232 Ports

Port name	Port nr. (LW2 / LW3)
Local IR input	S1
Local IR output	D1
TPS IR input	S2
TPS IR output	D2

Port name	Port nr. (LW2 / LW3)
Local serial port	P1
TPS serial link	P2

11.6.4. UMX-TPS-TX130

Audio/Video Ports

Port name	Video port nr. (LW2)	Video port nr. (LW3)		Emulated EDID memory	Audio port nr. (LW2)	Audio port nr. (LW3)
		Till fw v1.0.3	From fw v1.1.0			Till fw v1.0.3	From fw v1.1.0
VGA in I1 P1 I1 E1 ---
HDMI in I2 P2 I2 E2 I2 P2	I2
DVI-D in I3 P3 I3 E3 I3 P3	I3
DVI-A in I4 P4 I4 E4 ---
Test pattern I5 P5	I5	----
Audio in ---- I1 P1	I1
TPS out O1 P6 O1	-	O1 P4 O1

IR and RS-232 Ports

Port name	Port nr. (LW2 / LW3)
Local IR input	S1
Local IR output	D1
TPS IR input	S2
TPS IR output	D2

Port name	Port nr. (LW2 / LW3)
Local serial port	P1
TPS serial link	P2

11.6.5. UMX-TPS-TX140

Audio/Video Ports

Port name	Video port nr. (LW2)	Video port nr. (LW3)		Emulated EDID memory	Audio port nr. (LW2)	Audio port nr. (LW3)
		Till fw v1.0.3	From fw v1.1.0			Till fw v1.0.3	From fw v1.1.0
VGA in I1 P1 I1 E1 ---
HDMI in I2 P2 I2 E2 I2 P2 I2
DP in I3 P3 I3 E3 I3 P3 I3
DVI-D in I4 P4 I4 E4 I4 P4 I4
DVI-A in I5 P5 I5 E5 ---
Test pattern I6 P6 I6 ----
Audio1 in ---- I1 P1 I1
Audio2 in ---- I5 P5 I5
TPS out	01	P7	01	-	01	P6	01

IR and RS-232 Ports

Port name	Port nr. (LW2 / LW3)
Local IR input	S1
Local IR output	D1
TPS IR input	S2
TPS IR output	D2

Port name	Port nr. (LW2 / LW3)
Local serial port	P1
TPS serial link	P2

11.6.6. FP-UMX-TPS-TX130

Audio/Video Ports

Port name	Video port nr. (LW2)	Video port nr. (LW3)	Emulated EDID memory	Audio port nr. (LW2)	Audio port nr. (LW3)
VGA in	1 11 E1	--
DP in	2 12		2 12
HDMI in	3 13 E2	3	3
Test pattern	4 14	--
Audio in	---	1 11
TPS out	1	01	-	1	01

RS-232 and IR Ports

Port name	Port nr. (LW2 / LW3)
Local serial port	P1
TPS serial link	P2

Port name	Port nr. (LW2 / LW3)
Local IR input	S1
TPS IR input	S2
TPS IR output	D1

11.7. Maximum Extension Distances

Resolution	Pixel clock rate	Cable lengths (Auto / Longreach TPS mode)
		CAT5e AWG24	CAT7 AWG26**	CAT7 AWG23
1024x768@60Hz	65 MHz	100 m / 130 m*	90 m / 120 m*	120 m / 170 m*
1280x720p@60Hz	73.8 MHz	100 m / 130 m*	90 m / 120 m*	120 m / 170 m*
1920x1080p@60Hz / 24bpp	148.5 MHz	100 m / 130 m*	90 m / 120 m*	120 m / 170 m*
1920x1200@60Hz	152.9 MHz	100 m / NA	90 m / NA	120 m / NA
1600x1200@60Hz	162 MHz	100 m / NA	90 m / NA	120 m / NA
1920x1080@60Hz / 36bpp	223.6 MHz	70 m / NA	70 m / NA	100 m / NA
3840x2160@30Hz UHD	297 MHz	70 m / NA	70 m / NA	100 m / NA
4096x2160@30Hz 4K	297 MHz	70 m / NA	70 m / NA	100 m / NA

* With Long reach operation mode which supports pixel clock frequencies up to 148.5 MHz.
** When remote powering is used with AWG26 cables, distances are 20% shorter.

11.8. Factory EDID List

Mem. Resolution Type Mem. Resolution Type
F1 640 x 480 @ 60.00 Hz D F34 720 x 576 @ 50.00 Hz H
F2 648 x 480 @ 60.00 Hz D F35 1280 x 720 @ 50.00 Hz H
F3 600 x 600 @ 60.32 Hz D F36 1280 x 720 @ 60.00 Hz H
F4	1024 x	768	@ 60.00	Hz	D	F37	1920 x	1080i	@ 50.04	Hz	H
F5	1280 x	768	@ 50.00	Hz	D	F38	1920 x	1080i	@ 50.00	Hz	H
F6	1280 x	768	@ 59.94	Hz	D	F39	1920 x	1080i	@ 60.05	Hz	H
F7	1280 x	768	@ 75.00	Hz	D	F40	1920 x	1080i	@ 60.05	Hz	H
F8	1360 x	768	@ 60.02	Hz	D	F41	1920 x	1080	@ 24.00	Hz	H
F9	1280 x	1024	@ 50.00	Hz	D	F42	1920 x	1080	@ 25.00	Hz	H
F10	1280 x	1024	@ 60.02	Hz	D	F43	1920 x	1080	@ 30.00	Hz	H
F11	1280 x	1024	@ 75.02	Hz	D	F44	1920 x	1080	@ 50.00	Hz	H
F12	1400 x	1050	@ 50.00	Hz	D	F45	1920 x	1080	@ 60.00	Hz	H
F13	1400 x	1050	@ 60.00	Hz	D	F46	1920 x	1080	@ 60.00	Hz	H
F14	1400 x	1050	@ 75.00	Hz	D	F47	Universal_HDMI_PCM				H
F15	1680 x	1050	@ 60.00	Hz	D	F48	Universal_HDMI_ALL				H
F16	1920 x	1080	@ 50.00	Hz	D	F49	Universal_HDMI_DC				H
F17	1920 x	1080	@ 60.00	Hz	D	F50	720 x	480	@ 30.03	Hz	A
F18	2048 x	1080	@ 50.00	Hz	D	F51	720 x	576	@ 25.04	Hz	A
F19	2048 x	1080	@ 60.00	Hz	D	F52	540 x	480	@ 60.00	Hz	A
F20	1600 x	1200	@ 50.00	Hz	D	F53	540 x	480	@ 75.00	Hz	A
F21	1600 x	1200	@ 60.00	Hz	D	F54	800 x	600	@ 50.00	Hz	A
F22	1920 x	1200	@ 50.00	Hz	D	F55	800 x	600	@ 60.32	Hz	A
F23	1920 x	1200	@ 59.56	Hz	D	F56	800 x	600	@ 75.00	Hz	A
F24	2048 x	1200	@ 59.96	Hz	D	F57	1024 x	768	@ 49.99	Hz	A
F25-F28	Reserved				D	F58	1024 x	768	@ 60.00	Hz	A
F29	Universal_DVI				D	F59	1024 x	768	@ 75.03	Hz	A
F30	1440 x	480i	@ 60.05	Hz	H	F60	1260 x	768	@ 50.00	Hz	A
F31	1440 x	576i	@ 50.08	Hz	H	F61	1280 x	768	@ 59.94	Hz	A
F32	640 x	480	@ 59.95	Hz	H	F62	1280 x	768	@ 75.00	Hz	A
F33	720 x	480	@ 59.94	Hz	H	F63	1360 x	768	@ 60.02	Hz	A

Mem. Resolution Type Mem. Resolution Type
F64	1364 x	768	@ 50.00	Hz	A	F95	Reserved				D
F65	1364 x	768	@ 59.94	Hz	A	F96	2560 x	1600	@ 59.86	Hz	D
F66	1364 x	768	@ 74.99	Hz	A	F97	3840 x	2400	@ 24.00	Hz	D
F67	1280 x	1024	@ 50.00	Hz	A	F98	1280 x	720	@ 60.00	Hz	H3D
F68	1280 x	1024	@ 60.02	Hz	A	F99	1920 x	1080	@ 60.00	Hz	H3D
F69	1366 x	1024	@ 60.00	Hz	A	F100	1024 x	768	@ 60.00	Hz	H
F70	1400 x	1050	@ 50.00	Hz	A	F101	1280 x	1024	@ 50.00	Hz	H
F71	1400 x	1050	@ 60.00	Hz	A	F102	1280 x	1024	@ 60.02	Hz	H
F72	1400 x	1050	@ 75.00	Hz	A	F103	1280 x	1024	@ 75.02	Hz	H
F73	1920 x	540	@ 50.00	Hz	A	F104	1600 x	1200	@ 50.00	Hz	H
F74	1920 x	540	@ 60.00	Hz	A	F105	1600 x	1200	@ 60.00	Hz	H
F75	1920 x	1080	@ 50.00	Hz	A	F106	1920 x	1200	@ 59.56	Hz	H
F76	1920 x	1080	@ 60.00	Hz	A	F107	2560 x	1440	@ 59.95	Hz	H
F77	1600 x	1200	@ 50.00	Hz	A	F108	2560 x	1600	@ 59.86	Hz	H
F78	1600 x	1200	@ 60.00	Hz	A	F109	3840 x	2400	@ 24.00	Hz	H
F79	1920 x	1200	@ 59.96	Hz	A	F110	3840 x	2160	@ 24.00	Hz	H
F80	1920 x	1200	@ 50.00	Hz	A	F111	3840 x	2160	@ 25.00	Hz	H
F81-F88	Reserved				A	F112	3840 x	2160	@ 30.00	Hz	H
F89	Universal_Analog				A	F113-F117	Reserved
F90	1920 x	2160	@ 59.99	Hz	D	F118	Universal_4K_PCM				H4K
F91	1024 x	2400	@ 60.01	Hz	D	F119	Universal_4K_ALL				H4K
F92-F93	Reserved				D	F120	3840 x	2160	@ 60.00	Hz	H4K
F94 2048 x 1536 @ 60.00 Hz D

Legend

Type	Description
D	DVI EDID
H	HDMI EDID
A	Analog EDID
DL	Dual-Link DVI EDID
H3D	HDMI EDID with 3D support
H4K	HDMI EDID with 4K resolution support

11.9. Further Information

Limited Warranty Statement

1. Lightware Visual Engineering LLC (Lightware) warrants to all trade and end user customers that any Lightweight product purchased will be free from manufacturing defects in both material and workmanship for three (3) years from purchase unless stated otherwise below. The warranty period will begin on the latest possible date where proof of purchase/delivery can be provided by the customer. In the event that no proof can be provided (empty 'Date of purchase' field or a copy of invoice), the warranty period will begin from the point of delivery from Lightweight.
   1.1. 25G and MODEX product series will be subject to a seven (7) year warranty period under the same terms as outlined in this document.
   1.2. If during the first three (3) months of purchase, the customer is unhappy with any aspect of a Lightware product, Lightware will accept a return for full credit.
   1.3. Any product that fails in the first six (6) months of the warranty period will automatically be eligible for replacement and advanced replacement where available. Any replacements provided will be warranted for the remainder of the original unit's warranty period.
   1.4. Product failures from six (6) months to the end of the warranty period will either be repaired or replaced at the discretion of Lightware. If Lightware chooses to replace the product then the replacement will be warranted for the remainder of the original unit's warranty period.
2. The above-stated warranty and procedures will not apply to any product that has been:
   2.1. Modified, repaired or altered by anyone other than a certified Lightware engineer unless expressly agreed beforehand.
   2.2. Used in any application other than that for which it was intended. 2.3. Subjected to any mechanical or electrical abuse or accidental damage.
   2.4. Any costs incurred for repair/replacement of goods that fall into the above categories (2.1., 2.2., 2.3.) will be borne by the customer at a pre-agreed figure.
3. All products to be returned to Lightware require a return material authorization number (RMA) prior to shipment and this number must be clearly marked on the box. If an RMA number is not obtained or is not clearly marked on the box, Lightware will refuse the shipment.
   3.1. The customer will be responsible for in-bound and Lightware will be responsible for out-bound shipping costs.
   3.2. Newly repaired or replaced products will be warranted to the end of the originally purchased products warranty period.

Document Revision History

Rev.	Release date	Changes Editor
1.0 26-09-2014 Initial version			Laszlo Zsedenyi
1.1 14-11-2014		Firmware upgrade, Event manager, Troubleshooting sections added, LW3 programmers' reference updated	Zsolt Marko Laszlo Zsedenyi
1.2 04-12-2014		Minor changes in software control section due to new LDC; SRVC LED function added	Laszlo Zsedenyi
1.3 17-03-2015		WP-UMX transmitters added, certain figures replaced	Laszlo Zsedenyi
1.4 07-07-2015		Autoselect figures changed, LDC and LDU sections upgraded, typographical corrections and minor formatting changes	Laszlo Zsedenyi
1.5 16-12-2015		Safely instructions updated, CE page pulled out, Wall plate rear photo replaced	Laszlo Zsedenyi
1.6 10-06-2016		Minor updates for LDC v1.8.0 and LDU v1.3.0, updated Event Manager, changes in LW3 structure.	Tamas Forgacs
1.7 09-05-2017 Minor corrections			Laszlo Zsedenyi
2.0 19-09-2017		New document format, updated LW3 prog. ref. chapter	Tamas Forgacs
2.1 13-11-2018		Add supplement in connection with FP-UMX-TPS-TX130-MKM model; 1080p120Hz signal support info added	Judit Barsony

Contact Us

[e-mail]

[phone]

[e-mail]

[phone]

Lightware Visual Engineering LLC.

Peterdy 15, Budapest H-1071, Hungary

www.lightware.com

©2018 Lightware Visual Engineering. All rights reserved. All trademarks mentioned are the property of their respective owners. Specifications subject to change without notice.
