USER MANUAL VS5PT24WET Profilo

Instructions for use

Line drawing of a vacuum cleaner with coiled hose and handle (no text or symbols)

VS5PT ...

Simple line drawing of an open book with a right-pointing arrow on the right page (no text or symbols)

1 Adjustable floor tool*
2 Floor tool with integrated wet vacuum cleaning system
3 Suction pipe*
4 Handle*
5 Hose
6 Upholstery nozzle*
7 Crevice nozzle*
8 Cover
9 On/off button with electronic suction regulator*
10 Power cord

11 Parking aid
12 Motor protection filter
13 Storage aid (on underside of unit)
14 Dust bag
15 Carrying handle
16 Exhaust grille
17 Dust bag change indicator*

*depending on equipment

Spare parts and accessories

A Replacement filter pack VZ51PT1AFG

Contains:

5 self-sealing dust bags

1 micro-hygiene filter

B HEPA Filter, product code 263506*

additional filter for pure exhaust air.

Recommended for those with allergies.

Replace every year.

C TURBO-UNIVERSAL®-upholstery brush,

product code 460431*

Simultaneously brush and vacuum upholstered furniture, mattresses, car seats, etc..

Particularly suitable for vacuuming animal hair and fur.

The brush roller is driven by the suction force of the vacuum cleaner.

No electrical connection required.

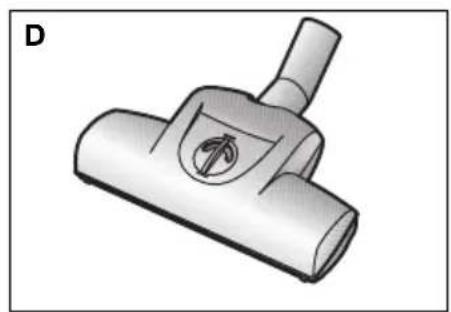

D TURBO-UNIVERSAL®- floor brush,

product code 467681*

Simultaneously brush and vacuum short-pile carpets and fitted carpets or any kind of covers. Particularly suitable for vacuuming animal hair and fur. The brush roller is driven by the suction force of the vacuum cleaner.

No electrical connection required.

E Hard floor nozzle, product code 465010*

To vacuum smooth flooring (parquet, tiles, terracotta...).

*Depending on the model, special accessories are available in our After Sales Service.

Congratulations on your purchase of a Profilo VS5PT vacuum cleaner.

This instruction manual describes various VS5PT models, which means that some of the equipment features and functions described may not be available on your model.

You should only use original Profilo accessories, which have been specially developed for your vacuum cleaner to achieve the best possible vacuuming results.

Please keep this instruction manual in a safe place. If you pass the vacuum cleaner on to someone else, please also pass on this instruction manual.

Intended use

This vacuum cleaner is intended for domestic use only, not for commercial use.

Only use this vacuum cleaner in accordance with the instructions in this instruction manual.

The manufacturer will not accept any responsibility for damage caused by improper use or incorrect operation. Therefore, you must note the following points.

The vacuum cleaner must only be operated with:

■ Manufacturer's original dust bags
■ Manufacturer's original replacement parts, accessories or special accessories

Safety information

This vacuum cleaner complies with the generally accepted standards of technology and relevant safety regulations.

■ Always observe the information on the rating plate when using the vacuum cleaner and connecting to the power supply.
■ Never use the vacuum cleaner without a dust bag fitted.

=> This can damage the appliance.

■The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised or have been instructed on the safe use of the appliance and the have understood the potential dangers of using the appliance.

■ Children must never play with the appliance
■ Cleaning and user maintenance must never be carried out by children without supervision.

The vacuum cleaner may not be used for:

■ cleaning persons or animals
■ vacuuming up:

• hazardous, sharp-edged, hot or red hot substances.
• damp or liquid substances
  – highly flammable or explosive substances and gases
• ash, soot from tiled stoves and central heating systems
• toner dust from printers and copiers.

- Keep suction away from your head when using the handle, nozzles or pipe.

=> Risk of injury.

■ Stand the appliance on a firm, secure surface when vacuuming.
■ When vacuuming stairs, the appliance must always be lower down than you.
■ In the following cases, stop using the appliance immediately and contact the after-sales service:

• if the mains connection cable is damaged.
• if you have accidentally vacuumed up some liquid or liquid has entered the inside of the appliance
• if the appliance has been dropped.

■ Do not use the power cord to carry the vacuum cleaner.
■ Fully extend the power cord when using the vacuum cleaner continuously for several hours.
■ When disconnecting the appliance from the mains, pull on the plug, not the power cord.
■ Do not pull the power cord around sharp corners or allow it to become trapped.
■ Unplug the power cord from the mains before carrying out any work on the vacuum cleaner or its accessories.
■ Do not use the vacuum cleaner if it is damaged. Unplug the power cord from the mains if a fault is detected.
■ For safety reasons, only authorised after-sales service personnel are permitted to carry out repairs and fit replacement parts to the vacuum cleaner.
■ Protect the vacuum cleaner from outside weather conditions, moisture and sources of heat.
■ The vacuum cleaner is not suitable for use on building sites.

=>Vacuuming up building rubble could damage the appliance.

■ Switch off the appliance when it is not in use.
■ At the end of its life, the appliance should be rendered unusable, then disposed of in an appropriate manner.
■ Plastic bags and films must be kept out of the reach of children before disposal (risk of suffocation).
■ do not pour any flammable substances or substances containing alcohol onto the filters (filter bag, motor protective filter, exhaust filter, etc.).

Disposal information

Packaging

The packaging is designed to protect the vacuum cleaner from being damaged during transportation. It is made of environmentally friendly materials and can be recycled.

Dispose of packaging that is no longer required at an appropriate recycling point.

■ Used vacuum cleaners

Used vacuum cleaners still contain many valuable materials. Therefore, please take your used vacuum cleaner to your retailer or recycling centre to be recycled. For current disposal methods, please enquire at your retailer or your local council.

■ Disposal of filters and dust bags

Filters and dust bags are made from environmentally friendly materials.

As long as they do not contain substances that are not permitted to be disposed of in the household rubbish, you can dispose of them with your normal household rubbish.

Please note

- The mains socket must be protected by at least a 16 amp fuse.

If a fuse should blow when you switch on the appliance, this may be because other electrical appliances which have a high current draw are connected to the same power circuit.

To prevent the fuse from blowing, select the lowest power setting before switching the appliance on, and increase the power only once it is running.

Fold out picture pages.

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Before using for the first time

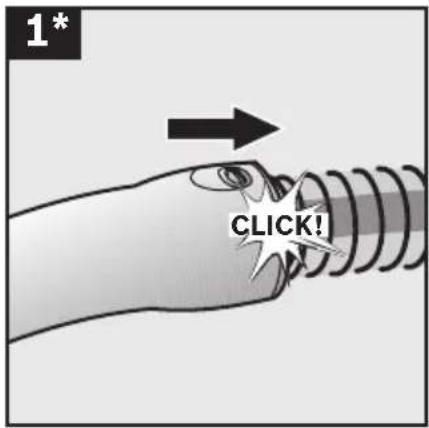

Figure 1\*

Push the handle onto the flexible tube and until it engages.

Setting up

Figure 2

a) Push the hose connector into the opening on the vacuum cleaner until it engages.

b) To remove the hose, press the two lugs together and pull the hose out.

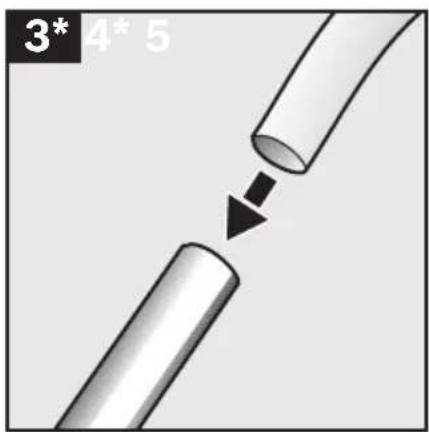

Figure 3\*

Connect the handle and suction hose/telescopic tube together.

Figure 4\*

Connect the floor tool and suction hose/telescopic tube together.

Figure 5

Connect the suction hoses.

Figure 6

Holding the power cord by the plug, pull out the required length and plug it into the mains socket.

Figure 7

Press the on/off button in the direction of the arrow to switch your vacuum cleaner on/off.

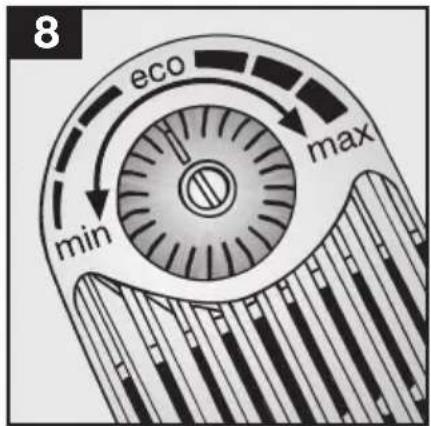

Figure 8\*

Adjust the suction by turning the on/off button in the direction of the arrow.

Vacuuming

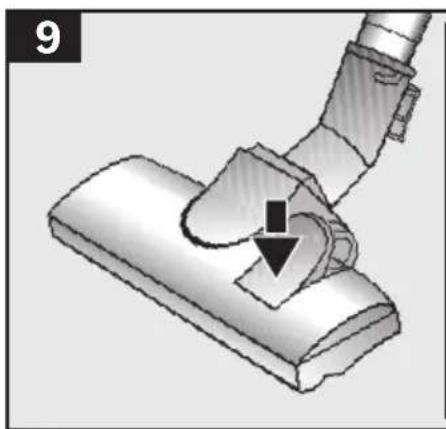

Figure 9

Adjusting the floor tool:

■ Rugs and carpets =>

■ hard floors =>

Caution!

Floor tools are subject to a certain amount of wear, depending on the type of hard floors you have (e.g. rough, rustic tiles). Therefore, you must check the underside of the floor tool at regular intervals. Worn undersides of floor tools may have sharp edges that can damage sensitive hard floors, such as parquet or linoleum. The manufacturer does not accept any responsibility for damage caused by worn floor tools.

Floor tool with integrated wet vacuum cleaning system

If your appliance is equipped with a floor tool with integrated wet vacuum cleaning system, please consult the accompanying instruction manual for instructions on use and maintenance.

Figure 10\*

Vacuuming with accessories

(attach to handle or suction hose as required).

a) Crevice nozzle for vacuuming crevices and corners, etc..
b) Upholstery nozzle for vacuuming upholstered furniture, curtains, etc.

Figure 11

When stopping cleaning for a moment, you can use the parking aid on the back of the vacuum cleaner.

Slide the catch on the floor tool into the groove at the rear of the appliance.

Figure 12

The appliance can also be carried using the two handles when vacuuming steps, for example.

When the work is done

Figure 13

Unplug the vacuum cleaner.

Tug the power cord briefly and let go. The cable then rewinds automatically.

Figure 14

To store or transport the vacuum cleaner, use the storage aid on the underside of the vacuum cleaner.

Stand the vacuum cleaner up on its end. Slide the catch on the floor tool into the groove on the underside of the appliance.

Changing the filter

Replacing the dust bag

Figure 15\*

If the dust bag change indicator is completely yellow when the floor tool is lifted from the floor and the highest suction power is selected, the dust bag must be changed, even though it may not yet be full. In this case it is essential to change the dust bag due to the type of material it contains.

The nozzle, suction pipe and flexible tube must not be blocked, as this would also lead to dust bag change indicator being triggered.

Figure 16

Open the lid by moving the locking lever in the direction of the arrow.

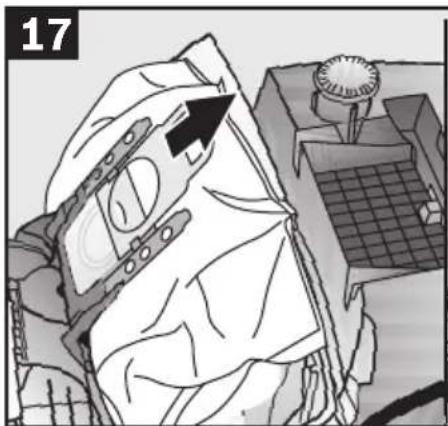

Figure 17

a) Seal the dust bag by pulling the sealing strip and then remove it.
b) Slide the new dust bag into the holder to the stop.

■ Caution: The cover can only be closed when
- a dust bag is inserted.

If you have used the vacuum cleaner for fine dust particles (such as plaster or cement), clean the motor protection filter and, if necessary, replace the microfilter.

Cleaning the motor protection filter

The motor protection filter should be cleaned regularly by knocking out the dirt and rinsing.

Figure 18\*

■ Open the dust bag compartment lid.
■ Pull out the motor protection filter in the direction of the arrow.
■ Clean the motor protection filter by tapping it.
■ If it is very dirty, the motor protection filter should be rinsed.

The filter must then be left to dry for at least 24 hours.

■ After cleaning, slide the motor protection filter into the vacuum cleaner and close the dust bag compartment lid.

Replacing the motor protection filter

Replacing the hygiene microfilter

(Omitted on vacuum cleaners which have a HEPA filter). When should I change the filter? Each time a new paper filter pack is fitted.

Figure 19 \*

■ Open the covering.
■ Pull out the filter holding fixture and open up.
■ Dispose of the old hygiene microfilter and insert a new hygiene microfilter.
■ Slide the filter holding fixture in and close the covering.

Replacing the HEPA filter (motor protection filter)

If your vacuum cleaner is equipped with a HEPA filter, this should be replaced once a year.

Figure 20 \*

■ Open the dust bag compartment lid.
■ Pull out the HEPA filter in the direction of the arrow and remove it from the appliance.
■ Insert the new HEPA filter and close the dust bag compartment lid.

Care

Always switch the vacuum cleaner off and disconnect the power cord from the mains before cleaning the vacuum cleaner.

The vacuum cleaner and plastic accessories can be cleaned with a commercial plastics cleaner.

Do not use abrasive, glass or all-purpose cleaners.
- Never immerse the vacuum cleaner in water.

The dust compartment can, if necessary, be cleaned with a second vacuum cleaner or simply wiped with a dry cloth or a duster.

Subject to technical changes.

Описание прибора

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

GB Conditions of guarantee

For this appliance the guarantee conditions as set out by our representatives in the country of sale apply. Details regarding same may be obtained from the dealer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced.

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or labels)

tr

"This appliance is labelled in accordance with the European directive 2002/96/EG concerning waste electrical and electronic equipment – WEEE. The directive provides the framework for the return and recycling of used appliances as applicable throughout the EU."

ru

Simple line drawing of a rectangular grid structure labeled 'B' (no text or symbols on the diagram itself)

3D rendered mechanical component with cylindrical and curved sections (no text or symbols)

Illustration of a mechanical component with a handle and circular feature (no text or symbols)

Illustration of a cleaning brush with a handle and textured base (no text or symbols)

Illustration of a biological structure with a labeled arrow pointing to a small circular feature (no text or symbols present)

Illustration of a robotic arm with a tool inserted, showing mechanical components and motion arrows (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a component (no text or symbols visible)

Diagram showing two cylindrical objects with an arrow indicating a process or transformation (no text or symbols)

Close-up of a hand using a tool to adjust or install a mechanical component, no visible text or symbols

Diagram of a car interior showing a highlighted circular component with an arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a lever pressing a component (no text or symbols visible)

Diagram of a hand using a vacuum cleaner to lift a rubber block, showing mechanical components and a downward arrow (no text or symbols)

Diagram of a pipette with a pointed tip inserted into a cylindrical tube, labeled '10* a' (no text or symbols on the diagram itself)

Diagram showing a tool interacting with a mechanical component, labeled '10* b' (no text or symbols on the diagram itself)

Mechanical assembly diagram showing a tool interacting with a component, labeled with number 11 (no text or symbols on the diagram itself)

Illustration of a handheld vacuum cleaner with visible ear and grille (no text or symbols)

Illustration of a handheld vacuum cleaner with attached tubing (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Close-up illustration of a mechanical device with a cable inserted, showing internal components and an arrow indicating direction (no text or symbols)

Mechanical diagram of a vacuum cleaner with a tool inserted, showing no text or symbols

Illustration of a hand using a tool to press down a mechanical component (no text or symbols visible)

Illustration of a person in protective gear with a device and a numbered label '17' (no readable text or symbols)

Technical illustration of a mechanical component with arrows indicating assembly or movement (no text or symbols present)

Illustration of a hand pressing down on a mechanical component with a numbered label (18*) and an upward arrow, no readable text or symbols present.

A
