Product Type	Built-in Electric Hob
Model	M15R40X0
Brand	Neff
Number of Hotplates	4
Hotplate Types	Single-circuit, Dual-circuit, Extended cooking zone
Hotplate Diameters	14.5 cm, 18 cm, 21 cm, and combined zones (e.g., 17/26.5 cm, 21/14.5 cm, 18/12 cm) depending on model variant
Control Type	Rotary knobs
Residual Heat Indicator	Yes, for each hotplate
Power Levels	9 heat settings
Hob Material	Ceramic glass
Cleaning	Clean after each use with suitable ceramic cleaner; use glass scraper for stubborn dirt
Safety Features	Automatic shut-off? Not specified; residual heat indicator; child safety locks? Not specified; overheating protection? Not specified
Power Connection	Requires professional installation; detailed electrical specs not provided in user manual
Dimensions (approximate)	Standard built-in size; exact dimensions vary by model variant (see rating plate)
Weight	Approx. 8 kg (typical for 4-zone ceramic hob)
Energy Efficiency	Tips for saving energy provided; use lids, match pan size, utilize residual heat
Warranty	Standard manufacturer warranty; contact after-sales service with E and FD numbers

Frequently Asked Questions - M15R40X0 NEFF

How do I activate the dual-circuit hotplate?

Turn the hotplate control clockwise to the ◎ symbol. Then set the desired heat setting. To switch off, turn to 0 and reset.

How can I tell if a hotplate is still hot?

The residual heat indicator (±) lights up when the hotplate is warm after cooking. The heat can be used to keep food warm or melt chocolate.

What type of cookware is best for this hob?

Use pots and pans with flat, smooth bases to avoid scratching the ceramic. Avoid aluminium or copper bases that may leave residues.

How do I clean the ceramic hob?

Clean after each use when cool. Use a suitable ceramic cleaner and a soft cloth or glass scraper for burnt-on food. Never use abrasive sponges or harsh chemicals.

What should I do if sugar or sugar-rich food spills on the hob?

Remove immediately with a glass scraper to prevent blisters. Switch off the hotplate and allow it to cool before cleaning the area.

How can I save energy while cooking?

Use lids on pots, match pan size to hotplate diameter, use minimal water, and switch off the hotplate 5-10 minutes before end of cooking to use residual heat.

What do I do if a hotplate does not heat up?

Check that the appliance is connected to power and the fuse is not blown. If the problem persists, contact Neff after-sales service with your E number and FD number.

Are there any safety precautions for children?

Keep children under 8 at a safe distance. The hob gets hot during and after use. Supervise older children if they use the appliance.

Can I use foil or aluminum containers on the hob?

No. Aluminum foil and plastic containers can melt onto the hotplate. Avoid using them directly on the ceramic surface.

How do I activate the extended cooking zone?

Turn the hotplate control clockwise to the ∞ symbol (if available) to activate the extended zone. Set the heat setting. To switch off, turn to 0 and reset.

USER MANUAL M15R40X0 NEFF

Close-up of a black electric stove burner with three circular cutouts and a white inner circle, no text or symbols visible.

[de] Gebrauchsanleitung .....2
[el] Οδηγίες χρήσεως ......7
[en] Instruction manual ..... 12

M13R1., M13R2., M1.R4.,

M1.R7.., M8.R4.., M9.R4..,

M13.R5., M9.R5..

Kochfeld

Βάση εστιών

Hob

EFF

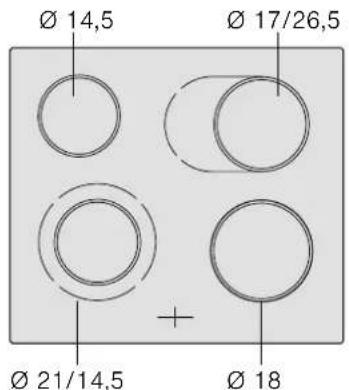

M13R1...

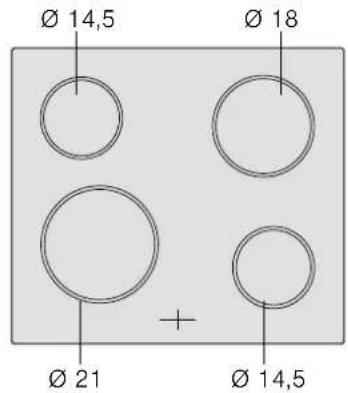

M1.R4., M1.R7., M8.R4., M9.R4..

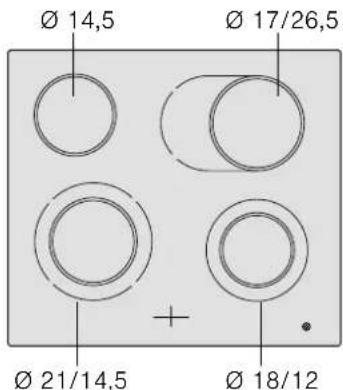

M13R2...

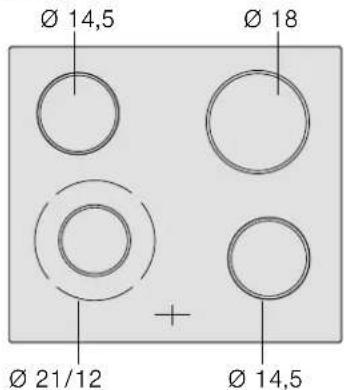

M13R5..., M9.R5...

Environmental protection 13

Environmental protection.... 13

Tips for saving energy 13

Getting to know your appliance.... 14

The hotplates 14

Hotplate and residual heat indicators.... 14

Setting the hob.... 14

Switching the hob on and off 14

Setting a hotplate.... 14

Table of cooking times 14

Cleaning and care....15

Ceramic 15

Hob surround 15

After-sales service....15

Additional information on products, accessories, replacement parts and services can be found at www.neff-international.com and in the online shop www.neff-eshop.com

⚠️ Safety precautions

Please read this manual carefully. Please keep the instruction and installation manual as well as the appliance certificate in a safe place for later use or for subsequent owners.

Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.

Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty.

This appliance is intended for domestic use only. The appliance must only be used for the preparation of food and drink. The appliance must be supervised during operation. Only use this appliance indoors.

This appliance is not intended for operation with an external clock timer or a remote control.

Do not use lids or unsuitable child safety grilles. These can cause accidents, due to overheating, catching fire or materials shattering, for example.

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.

Children must not play with the appliance. Children must not clean the appliance or carry out general maintenance unless they

are at least 8 years old and are being supervised.

Keep children below the age of 8 years old at a safe distance from the appliance and power cable.

Risk of fire!

■ Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.
■ The hotplates become very hot. Never place combustible items on the hob. Never place objects on the hob.
■ The appliance gets hot. Do not keep combustible objects or aerosol cans in drawers directly underneath the hob.

Risk of burning!

The hotplates and the area around them get very hot. Never touch the hot surfaces. Keep children away.

Risk of electric shock!

• Incorrect repairs are dangerous. Repairs may only be carried out by one of our trained after-sales engineers. If the appliance is faulty, unplug the mains plug or switch off the fuse in the fuse box. Contact the after-sales service.
  ■ Penetrating moisture may cause an electric shock. Do not use any high-pressure cleaners or steam cleaners.

• A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.

• Cracks or fractures in the glass ceramic may cause electric shocks. Switch off the circuit breaker in the fuse box. Contact the after-sales service.

Causes of damage

Caution!

■ Rough pot and pan bases scratch the ceramic.
■ Avoid boiling pots dry. This may cause damage.
■ Never place hot pots or pans on the control panel, the display area or the surround. This may cause damage.

Overview

The following table provides an overview of the most frequent kinds of damage:

Risk of injury!

Saucepans may suddenly jump due to liquid between the pan base and the hotplate. Always keep the hotplate and saucepan bases dry.

■ Damage can occur if hard or pointed objects fall on the hob.
■ Aluminium foil and plastic containers melt on hot hotplates. Oven protective foil is not suitable for your hob.

Damage Cause Action

Stains Food spills Remove spills immediately with a glass scraper.

Unsuitable cleaning agents Only use cleaning agents which are suitable for ceramic

Scratches Salt, sugar and sand Do not use the hob as a work surface or storage space.

Rough pot and pan bases scratch the Check your cookware.ceramic.

Discolouration Unsuitable cleaning agents Only use cleaning agents which are suitable for ceramic

Pan abrasion (e.g. aluminium) Lift the pots and pans when moving them.

Blisters Sugar, food with a high sugar content Remove spills immediately with a glass scraper.

Environmental protection

Unpack the appliance and dispose of the packaging in an environmentally-responsible manner.

Environmental protection

This appliance is labelled in accordance with the European Directive 2002/96/EU concerning used electrical and electronic appliances (WEEE - waste electrical and electronic equipment). The guideline determines the framework for the return and recycling of used appliances as applicable.

Tips for saving energy

■ Always use a correctly fitting lid for the pan. Cooking without the lid requires four times as much energy. A glass lid allows you to observe the cooking without having to lift the lid off.
■ Use pots and pans with level bases. Using cookware with unlevel bases increases energy consumption.
The diameter of the base of your pot or pan should match the size of the hotplate. In particular, if pots that are too small are placed on a hotplate, energy is wasted. Please note: Cookware manufacturers often specify the diameter of the top of the pan. This is usually bigger than the diameter of the base of the pan.
■ Use a small pan for small quantities of food. A large saucepan containing little food requires more energy.

■ Use only a little water when cooking. This will save energy. It also preserves vitamins and minerals in vegetables.
■ Switch to a lower heat setting as soon as possible.
■ Use the residual heat of the hob. For longer cooking times, you can switch the hotplate off as early as 5 - 10 minutes before the end of the cooking time.

Getting to know your appliance

The instruction manual is the same for various different hobs. An overview of the models with their dimensions is given on page 2.

The hotplates

Hotplate Activating and deactivating
○ Single-circuit hotplate
◎ Dual-circuit hotplate	To activate: turn the hotplate control clockwise to ◎. Set the heat setting. To switch off: turn the hotplate control to 0 and reset. Never turn the hotplate control beyond the ◎ symbol to 0.
∞ Extended cooking zone	To activate: turn the hotplate control clockwise to ◎. Set the heat setting. To switch off: turn the hotplate control to 0 and reset. Never turn the hotplate control beyond the ◎ symbol to 0.

Note on hobs M13R50., M9.R5...

The right-hand dual-circuit hotplate is activated and deactivated by touching the Ⓞ symbol on the ceramic plate.

Hotplate and residual heat indicators

The hotplate and residual heat indicators ± light up when a hotplate is warm:

■ Hotplate indicator - during operation, shortly after you have switched on a hotplate.
■ Residual heat indicator - after cooking, when the hotplate is still warm.

You can use the residual heat to save energy, e.g. to keep a small dish warm or to melt chocolate.

Setting the hob

This section informs you how to set the hotplates. The table shows heat settings and cooking times for various meals.

Switching the hob on and off

You can switch the hob on and off with the hotplate controls.

Table of cooking times

The following table provides some examples.

Cooking times and heat settings may vary depending on the type of food, its weight and quality. Deviations are therefore possible.

Setting a hotplate

Adjust the heat setting of the hotplates using the hotplate controls.

Heat setting 1 = lowest setting

Heat setting 9 = highest setting

Note: Hotplate temperature is regulated by the heat switching on and off. The heat may also switch on and off at the highest setting.

When heating thick liquids, stir regularly.

For bringing liquids to the boil, use heat setting 9.

	Ongoing cooking setting	Ongoing cooking time in minutes
Melting
Chocolate, cooking chocolate, gelatine	1	-
Butter	1-2	-
Heating and keeping warm
Stew (e.g. lentil stew)	1-2	-
Milk**	1-2	-
Poaching, simmering
Dumplings	4*	20-30 mins
Fish	3*	10-15 mins
White sauces, e.g. béchamel sauce	1	3-6 mins
Braising
Roulades	3-4	50-60 mins
Pot roasts	3-4	60-100 mins
Goulash	3-4	50-60 mins

* Continue cooking without a lid
** Without lid

	Ongoing cooking setting	Ongoing cooking time in minutes
Boiling, steaming, stewing
Rice (with double the quantity of water)	3	15-30 mins
Unpeeled boiled potatoes	3-4	25-30 mins
Boiled potatoes	3-4	15-25 mins
Pasta, noodles	5*	6-10 mins
Stew, soups	3-4	15-60 mins
Vegetables	3-4	10-20 mins
Vegetables, frozen	3-4	10-20 mins
Cooking in a pressure cooker	3-4	-
Frying**
Escalope, plain or breaded	6-7	6-10 mins
Escalope, frozen	6-7	8-12 mins
Steak (3 cm thick)	7-8	8-12 mins
Fish and fish fillet, plain	4-5	8-20 mins
Fish and fish fillet, breaded	4-5	8-20 mins
Fish and fish fillet, breaded and frozen, e.g. fish fingers	6-7	8-12 mins
Stir fry, frozen	6-7	6-10 mins
Pancakes	5-6	continuous

* Continue cooking without a lid
** Without lid

Cleaning and care

The information in this section provides help on how best to care for your hob.

Suitable maintenance and cleaning products can be purchased from the after-sales service or in our e-Shop.

Ceramic

Clean the hob after each use. This will prevent spills from burning onto the ceramic.

Only clean the hob when it has cooled down sufficiently.

Use only cleaning agents which are suitable for ceramic. Follow the cleaning instructions on the packaging.

Never use:

■ Undiluted washing-up liquid
■ Detergent intended for dishwashers
■ Scouring agents

■ Harsh cleaning agents such as oven spray or stain remover
■ Abrasive sponges
■ High-pressure cleaners or steam jet cleaners

Ground-in dirt can be best removed with a glass scraper, available from retailers. Please note the manufacturer's instructions.

You can also obtain a suitable glass scraper from our after-sales service or from the e-Shop.

Hob surround

To prevent damage to the hob surround, please observe the following instructions:

■ Use only warm, soapy water.
■ Do not use harsh or abrasive agents.
■ Do not use the glass scraper.

After-sales service

Our after-sales service is there for you if your appliance should need to be repaired. We are committed to find the best solution also in order to avoid an unnecessary call-out.

E number and FD number:

Please quote the E number (product number) and the FD number (production number) of your appliance when contacting the after-sales service. The rating plate bearing these numbers can be found on the appliance certificate.

Please note that a visit from an after-sales service engineer is not free of charge, even during the warranty period.

Please find the contact data of all countries in the enclosed customer service list.

To book an engineer visit and product advice

GB 0844 8928989

Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply.

IE 01450 2655

Trust the expertise of the manufacturer, and rest assured that the repair will be carried out by trained service technicians using original spare parts for your domestic appliance.
