EKINOX E6 - Smartphone iGET - Free user manual and instructions

Product Type	Smartphone
Brand	iGET
Model	EKINOX E6
SIM Card Type	Nano SIM (dual SIM or 1 SIM + microSD)
Supported Networks	GSM 850/900/1800/1900 MHz, WCDMA 900/2100 MHz, 4G LTE 800/900/1800/2100/2600 MHz
WiFi	2.4G WiFi (20 MHz: 2412–2472 MHz, 40 MHz: 2422–2462 MHz)
Battery Charging	Via provided adapter and USB cable; connect to wall outlet
Operating Temperature Range	-10°C to +40°C
Distance from Ear/Body	At least 15 mm
Warranty Period	24 months
Compliance	Directive 2014/53/EU, CE, RoHS
Maximum EIRP	2W (1W for some bands)
Country of Origin	Imported by INTELEK spol. s r.o., Czech Republic

Frequently Asked Questions - EKINOX E6 iGET

How do I install the SIM and microSD cards?

First, switch off the phone. Use the eject pin to remove the SIM tray. Arrange cards as shown in the manual: either two Nano SIMs or one Nano SIM plus one microSD card. Insert the tray back into the phone.

How should I charge the battery for the first time?

Connect the provided charger to the phone and plug it into a wall outlet. Charge until the battery is full, then disconnect. The manual indicates no specific initial charge time, but a full charge is recommended before first use.

How do I turn the phone on, off, or put it to sleep?

Press and hold the ON button to power on. To turn off, press and hold ON, select 'Off', and confirm. A short press of the ON button puts the phone into sleep mode.

What safety precautions should I follow?

Do not use while driving; keep at least 15 mm from ear/body; avoid magnetic fields, extreme temperatures (-10 to +40°C), and moisture; turn off near explosives, in hospitals, and on planes; use only certified accessories.

What is the warranty period and how do I claim it?

The warranty period is 24 months. Claims should be made through your dealer. The warranty card must include the serial number matching the product and purchase document. Damage from misuse, normal wear, or unauthorized modifications voids warranty.

How should I dispose of the device?

Do not dispose of it with household waste. Use designated collection points for electrical and electronic equipment to help protect the environment. The crossed-out wheelie bin symbol indicates separate collection.

Can I use the phone while driving?

No, it is prohibited for safety reasons. The manual explicitly states: 'Do not use your phone while driving.'

Is the phone water-resistant?

No, the manual advises to keep the phone dry. It contains a moisture-detecting label that turns red if wet, which may void warranty.

Where can I find the full EU Declaration of Conformity?

The full text is available at www.iget.eu. The device complies with Directive 2014/53/EU.

What are the frequency bands supported by this phone?

GSM: 850/900/1800/1900 MHz; WCDMA: 900/2100 MHz; 4G LTE: 800/900/1800/2100/2600 MHz; WiFi 2.4G (20 and 40 MHz channels).

USER MANUAL EKINOX E6 iGET

Warranty card.... 40

Schéma/Schéma/Schema/Scheme/Schemat/Minta

Symbol of a trash bin crossed with no visible text or labels

4G/LTE: 800/900/1800/2100/2600 MHz

2.4G WiFi (20 MHz): 2412 – 2472 MHz

2.4G WiFi (40 MHz): 2422 – 2462 MHz

Pre prepnutie telefónu do režimu spánku krátko stlačte tlačidlo pre Zapnutie.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

4G/LTE: 800/900/1800/2100/2600 MHz

2.4G WiFi (20 MHz): 2412 – 2472 MHz

2.4G WiFi (40 MHz): 2422 - 2462 MHz

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

DE

4G/LTE: 800/900/1800/2100/2600 MHz

2.4G WiFi (20 MHz): 2412 – 2472 MHz

2.4G WiFi (40 MHz): 2422 – 2462 MHz

Individual parameters, description by figures and design in the manual may differ depending on the version and updates.

Printing errors reserved.

Update your device as soon as a new version of software is available.

The warranty card is on the last pages of this manual.

Update your device as soon as a new version of software is available.

The buyer is obliged to provide a serial number on the warranty card as well as in the delivery note and the proof of purchase. In this context, the buyer acknowledges that unless the serial number of goods is not marked on the proof of purchase, delivery note and in the warranty card and therefore it cannot be possible to compare this serial number marked on goods and its protective packaging with the serial number stated in the warranty card, delivery note and the proof of purchase and thus to verify that the goods runs from the seller, the service center is competent to claim such a goods automatically and reject it immediately. The buyer must instruct all persons to whom the goods would be subsequently sold. Product complaints do with your dealer if you are not on the web www.iget.eu indicated otherwise.

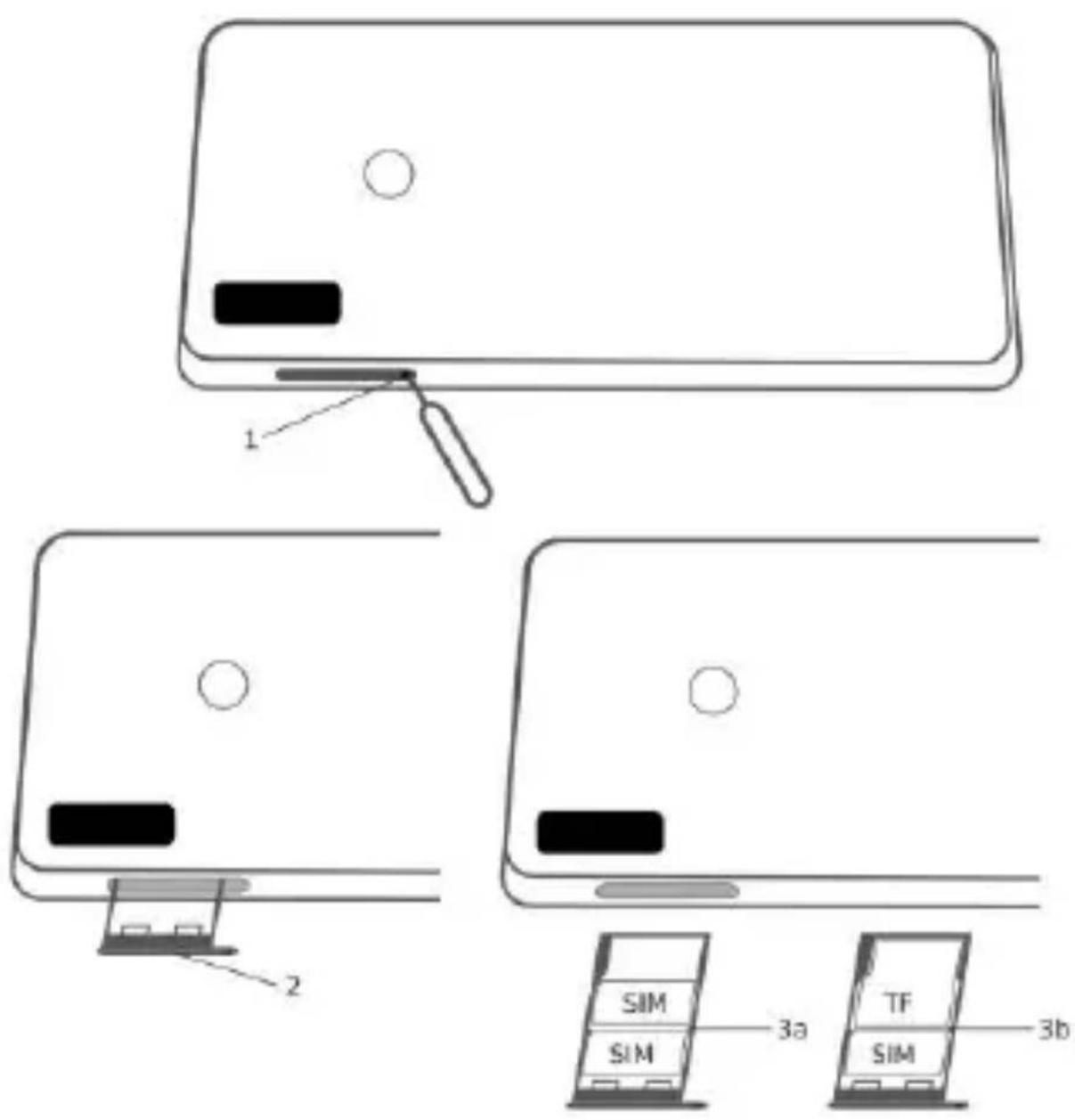

Installing the NANO SIM and microSD card:

Switch your phone off before installing the card.

1. Pull the pin for ejecting the SIM card slot from the package.and insert it into the hole in the compartment for the SIM card until until it jups off from the body of the phone.

2. Gently remove the compartment out of the slot.

3. a) 2x NANO SIM b) 1x NANO SIM and 1x microSD card aim as shown on the picture in user guide and gently push them into the tray.

4. Put the entire compartment together with the cards back into the phone.

Charging the battery:

Before putting your phone into service you must recharge its battery.

1. Connect the adapter to the charger.
2. Connect the charger to the wall outlet.
3. If the battery is fully charged, disconnect the phone from the charger.

Switching the phone on/ off/ sleep mode:

Make sure that the phone has a SIM card and the battery is fully charged.

Press the ON button to switch on the phone.

Switch off the phone by pressing ON and select OFF.

Confirm it by pressing OK.

Press shortly ON button to switch the phone over to the sleep mode.

Safety Precautions:

Do not use your phone while driving.

Do not use your phone at the petrol stations.

Hold the phone at least 15 mm

from your ear and body.

The phone produces a bright or flashing light.

The small parts of the phone can cause suffocation.

Do not expose your phone to open fire.

The phone can produce a loud sound.

The phone is not resistant to fillings.

Avoid exposure to magnetic fields.

Keep the phone away from medical devices.

Avoid extreme temperatures ( -10^ , +40^ ).

On request, turn off your phone in hospitals and other medical facilities.

Keep the phone dry.

On request, turn off the phone at airports and on planes.

Do not dismantle the phone.

Turn off the phone in the vicinity of explosive materials and chemicals.

Use the phone only with certified equipment.

Do not reckon only upon your phone during emergency situations.

The phone contains a label that detects moisture. In case of moisture inside phone this label becomes red. The manufacturer has the right to reject a warranty with such a damaged phone.

Damages requiring professional repair:

If such cases may occur, please, contact the authorized service or your distributor:

Moisture got into the phone.

The phone is mechanically damaged.

The phone is extremely overheated.

1) For household use: The given symbol (crossed-out wheeled bin) on the product or at accompanying documents means that used electrical and electronic products should not disposed of with household waste. To ensure proper disposal of the product, hand it over to a designated collection point, where it will be accepted free of

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

charge. The correct disposal of this product will help to save valuable natural resources and prevent any potential negative impacts on the environment and human health, which could otherwise be caused by inappropriate disposal of wastes. For more details, please, contact your local authorities or the nearest collection point. The improper

EN

disposal of this waste can be penalized in accordance with national regulations. Information for users to disposal of electrical and electronic devices (corporate and business use): For proper disposal of electrical and electronic devices, ask for details from your dealer or distributor. Information for users to disposal of electrical and electronic devices in other countries outside EU: The above mentioned symbol (crossed-out wheeled bin) is valid only in the countries of EU. For proper disposal of electrical and electronic devices, ask for details from your authorities or dealer. All is expressed by the symbol of crossed-out wheeled bin on product, packaging or in printed materials.

2) Set up the claim for warranty repair of device at your dealer. If you have technical questions or problems, contact your dealer. Follow the rules for working with electrical equipment. The user may not dismantle the device or replace any part of this. Opening or removing the covers poses the risk of electric shock. In case of incorrect reassembly and subsequent connection you are also exposed to electric shock.

Declaration of Conformity:

Company INTELEK spol. s r.o. hereby declares that all E6 devices are in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available on this website www.iget.eu.

CE

The warranty period of the product is 24 months, unless stated otherwise.

This device can be used in the following countries:

AT	BE	CY	CZ	DK	EE	FI	MT	NL	PL	PT	SK
SI	ES	DE	GR	HU	IE	IT	LV	LT	GB	IS	LI
NO	CH	BG	HR	RU	RO	FR	SE	LU	TR

Restrictions on WiFi use:

	IT
	NO

Italy - The conditions for using the WiFi network are described in the so-called Electronic Communications Code Norway - The 2.4 GHz limitation applies only to the area 20 km from colony of Ny-Ålesund.

RoHS:

The components used in the device meet the requirements on the restriction of hazardous substances in electrical and electronic devices in accordance with Directive 2011/65/EU. The RoHS declaration can be downloaded from www.iget.eu.

Operation of radio equipment:

CZ: This radio equipment can be operated in the Czech Republic under the General Authorizations VO-R / 1 / 05.2018-2 and VO-R / 12 / 09.2010-12.

SK: This radio equipment can be operated under General Authorizations VPR - 07/2014, VPR - 02/2018 and VPR - 35/2012.

Maximum EIRP:

Max. 2W / Max. 1W.

Frequency range:

GSM: 850/900/1800/1900 MHz

WCDMA: 900/2100 MHz

4G/LTE: 800/900/1800/2100/2600 MHz

2.4G WiFi (20 MHz): 2412 – 2472 MHz

2.4G WiFi (40 MHz): 2422 – 2462 MHz

Producer / Exclusive importer of iGET products to EU:

INTELEK spol. s r.o., Ericha Roučky 1291/4,

627 00 Brno - Černovice, CZ

web: http://www.iget.eu

SUPPORT: http://www.iget.eu/helpdesk

Copyright © 2018 Intelek spol. s r.o. All rights reserved.

Instrukcja:

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

4G/LTE: 800/900/1800/2100/2600 MHz

2.4G WiFi (20 MHz): 2412 – 2472 MHz

2.4G WiFi (40 MHz): 2422 – 2462 MHz

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

4G/LTE: 800/900/1800/2100/2600 MHz

WiFi (20 MHz): 2412 – 2472 MHz

WiFi (40 MHz): 2422 – 2462 MHz

Serial / Batch number: (S/N)

Date of sale:

Warranty until:

Sale document number:

Seal of the store:

Information for Customers about Warranty Terms and

Conditions:

Warranty shall apply to defects of purchased product, found during its warranty period. When purchasing a particular product, please consider carefully what properties and functions you expect your product to have. The fact that purchased product shall not satisfy your later requirements shall not give any reason for complaint. Please, prior to the first use of this product read carefully its operating instructions and follow these instructions consistently.

We recommend you to keep original product packing

WARRANTY CARD

during the warranty period for possible transport of the product in such a way so as to prevent any product damage during its transport and handling.

For the purpose of due application of any complaint about the product we recommend you to ask Seller to fill-in and confirm this Warranty Card including identification of serial number of purchased product, which shall comply with the serial number specified both in the document proving product purchase and delivery note and purchased product. In this connection Customer hereby takes into account that unless this Warranty Card specifies serial number of purchased product, i.e., comparison of such serial number identified in the product with the serial number identified in this Warranty Card and document of product purchase/or delivery note shall not allow to confirm that particular product has come from Seller, in case of any doubts about the origin of such particular product Seller shall be entitled to automatically and without any other acts to reject the complaint of such goods.

Warranty shall not apply to:

-product damage suffered by unqualified installation of firmware or its modification;

-product damage by static electricity;

-product use for any other purposes than designed, described in attached operating instructions;

-damage to warranty seal of the producer, attached to the product;

-product damage inconsistent with the operating instructions, technical standards or safety regulations valid in the Czech Republic;

-product damage resulting from normal wear and tear;

-discharged batteries, decrease in battery capacity caused by its wear and tear;

-product defects caused by the use in dusty, polluted or in any other way dissatisfactory environment pursuant to attached operating instructions.

WARRANTY CARD

Wear and tear of the product and its components caused by their common use (discharged batteries, decreased capacity of accumulator, wear and tear of mechanical or displaying components, wear and tear of supply cables, headphones etc.) shall be subject neither to defect warranty nor quality warranty in the moment of take-over. Furthermore, complaints about product parameters, not included in the operating instructions or in any commercial-technical documentation of Seller, related to the product, shall not be subject to quality warranty in the moment of take-over.

Proof of product purchase, or delivery note, shall constitute an integral part of this Warranty Card.
