Product Type	Projector Zoom Lens
Brand	Panasonic
Model	ET-DLE085
Compatibility	Select Panasonic projectors
Lens Type	Zoom lens
F Value	1.85 - 2.20
Focal Length	11.8 mm - 14.6 mm
Dimensions (W x H x D)	140 mm x 140 mm x 206 mm
Net Weight	1.3 kg
Color	Black
Material	Glass lens, plastic/metal body
Supplied Accessories	Lens cap, desiccant bag
Key Functions	Focus balance adjustment for periphery
Safety Features	Automatic power-off before lens replacement; electrical shock prevention
Cleaning	Use clean, soft, dry cloth; avoid fluffy or oily cloths
Storage	Store away from vibration or impacts
Disposal	WEEE compliant; do not dispose with household waste

Frequently Asked Questions - ET-DLE085 PANASONIC

How do I attach the ET-DLE085 lens to my Panasonic projector?

First, ensure the projector is powered off and disconnected. Align the red dot on the lens positioning guide with the guide grooves on the projector's lens mount cover. Insert the lens fully and rotate it clockwise until you hear a click. Then gently turn it counterclockwise to confirm it is secure.

How do I detach the ET-DLE085 lens?

Power off the projector and disconnect the power plug. Remove the lens mount cover by turning it counterclockwise and sliding it toward the front. While pressing the lens release button, turn the zoom lens completely counterclockwise to detach it. Reattach the lens mount cover clockwise afterwards.

How can I adjust the focus on the periphery of the projected image?

First, focus the center of the screen using the projector's controls. Then, manually turn the periphery focus adjustment ring on the lens to sharpen the edges. The ring has markings as a guide; refer to the projector specifications for exact projection distances.

What should I do if the lens gets dirty?

Use a clean, soft, and dry cloth to gently wipe off dust and dirt. Do not use fluffy cloths containing oil, water, or dust. Avoid applying excessive pressure as the lens material is easily damaged.

Is it safe to touch the lens surface?

No, avoid touching the lens surface with bare hands. Fingerprints and dirt can be magnified and degrade image quality. If the lens is not in use, always place the supplied lens cap on it.

What precautions should I take before replacing the lens?

Always turn off the projector and disconnect the power plug to prevent electrical shock. Also, ensure the projection lens is returned to the home position as described in the projector's manual before removal.

What is the purpose of the desiccant bag included with the lens?

The desiccant bag absorbs moisture to protect the lens during storage. Do not open or eat the contents. If it gets into eyes or mouth, rinse with plenty of water and seek medical attention. Keep away from children.

What are the dimensions and weight of the ET-DLE085 lens?

The lens is 140 mm wide, 140 mm high, and 206 mm deep. It weighs 1.3 kg (approximately 2.87 lb).

Can I use this lens with any Panasonic projector?

The ET-DLE085 is designed for select Panasonic projectors. For specific compatibility and projection distance details, refer to the projector's operating instructions or visit the Panasonic projector support page.

How should I dispose of the lens at the end of its life?

Do not dispose of the lens with household waste. Follow local regulations for electronic waste (WEEE). Take it to a designated collection point for proper treatment, recovery, and recycling. Contact local authorities for details.

USER MANUAL ET-DLE085 PANASONIC

Technical line drawing of a mechanical component with no visible text or symbols

Thank you for purchasing this Panasonic product.

Please read these operating instructions and the projector operating instructions carefully, and then use this product correctly.
Before using this product, be sure to read "Read this fi rst!" (→ Page 2).
Please save this manual for future use.

Read this fi rst!

Always follow these precautions

WARNING:

Before replacing the zoom lens, be sure to turn the power off and disconnect the power plug from the wall outlet.

● Otherwise, an electrical shock may result.

CAUTION:

■ Supplied accessories and consumables:

Do not open the desiccant bag. Do not eat the contents. (Inadvertently ingesting desiccant could be harmful.)

• If the desiccant gets into your eyes or mouth, immediately rinse with plenty of water and seek medical attention.
• Keep desiccant out of the reach of children.

Supplied Accessories

Make sure that the following has been provided

Part name Appearance (quantity)
Lens cap		1 of each

Attaching the Lens / Detaching the Lens

Before replacing the projection lens

Return the projection lens to the home position before replacing or removing it.

For details on how to return the lens to the home position, refer to the operating instructions of the projector.

Attention

● Make sure that the projector power supply is switched off before attaching or detaching the projection lens.
● After removing the projection lens, store it safely away from vibration or impacts.
- Do not touch the electric contact points of the projection lens with your fingers. Dust and dirt on the contacts may cause contact malfunctions.
- Remove the lens cap before mounting the zoom lens.
- Do not touch the surface of the lens with bare hands. Finger prints and dirt on the surface of the lens will be magnified by the lens and lower the quality of the projected image. Place the supplied lens cap on the zoom lens when the projector is not in use.
- The lens is made of glass. The lens could be damaged if brought into contact with or rubbed against hard objects. Handle the lens carefully.
- Use a clean, soft and dry cloth to wipe away dust and dirt from the lens.
Do not use fl uffy cloths containing oil, water or dust for cleaning. The material in the lens is easily damaged so do not apply excessive pressure when wiping it.

Attaching the Lens

Technical line drawing of a mechanical component with concentric rings and a base plate (no text or symbols)

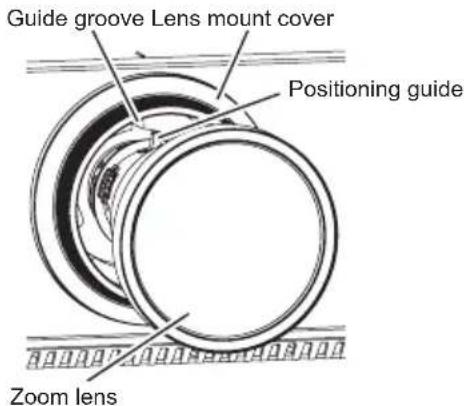

1) With the lens mount cover that came with your projector attached, align the positioning guide on the zoom lens with the guide grooves on the projector, and insert the zoom lens fully.

● There is a red dot at the bottom right end of the positioning guide.

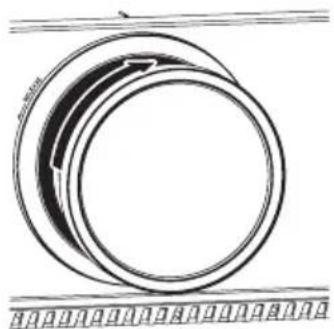

2) Rotate the lens clockwise until you hear a "click".

Note

● Gently turn the zoom lens counterclockwise to check that it will not fall out.

Attaching the Lens / Detaching the Lens (continued)

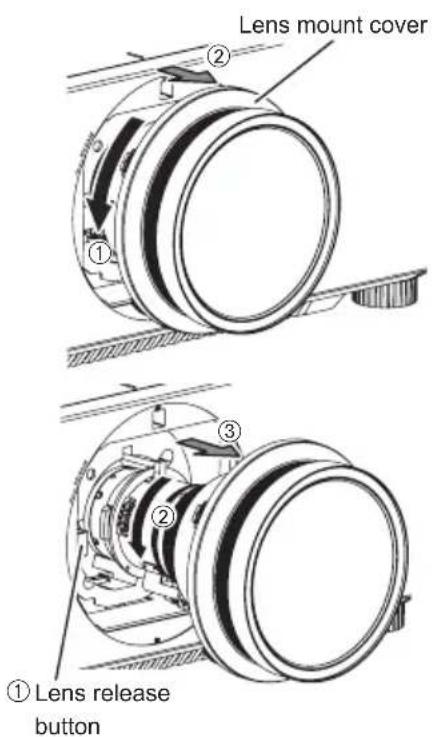

Detaching the Lens

1) Turn the lens mount cover counterclockwise to detach it from the lens and slide it towards the front end of the lens.

2) Turn the zoom lens completely counterclockwise while pressing the lens release button to detach the lens.

3) Turn the lens mount cover clockwise to reattach it.

Focus Adjustment Function

The focal balance between the center and periphery of the projected image changes depending on the size of the projected image.

The lens is equipped with a focus balance adjustment function for the screen periphery.

■ Adjusting the Focus

1) Focus the center of the screen by operating the projector unit.

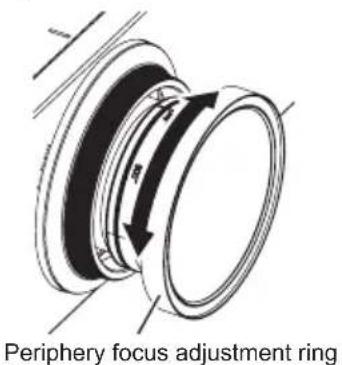

2) Turn the periphery focus ring by hand as shown in the figure to adjust the focus in the periphery of the screen.

Note

● The projected image sizes and scale shown on the periphery focus adjustment ring are an approximate guide.

- For details on the projection distance, see the projector specifications (https://eww.pavc.panasonic.co.jp/projector/extranet/main/spec/index.html).

4-ENGLISH

Specifications the Lens

Lens Type Zoom lens
F value 1.85 - 2.20
Focal Length (f) 11.8 mm (15/32 inches) - 14.6 mm (9/16 inches)
Dimensions	Width	140 mm (5-1/2 inches)
	Height	140 mm (5-1/2 inches)
	Depth	206 mm (8-1/8 inches)
Net Weight 1.3 kg (2.87 lb)

Note

● As for projection distance, please refer to the operating instructions of the projector.

Information for users in the European Union

Importer's name and address within the European Union

Panasonic Marketing Europe GmbH

Panasonic Testing Center

Winsbergring 15, 22525 Hamburg, Germany

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis.

Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.
