Adell - Kettle FAKIR - Free user manual and instructions

Product Type	Kettle
Brand	Fakir
Model	Adell
Capacity	1.7 liters
Voltage	220V-240V
Frequency	50-60 Hz
Power	1850W-2200W
Lifetime	7 years
Spout Type	Non-spill spout
Water Level Indicator	Yes
Base Type	360° rotational power base with cord storage
Auto Shut-Off	Yes, when water boils
Boil-Dry Protection	Yes, automatic shut-off if operated without water
Control	On-off button with indicator light
Lid	Yes, with handle
Handle	Yes, insulated for safe handling
Descaling	Required periodically; use vinegar and water mixture
Cleaning	Wipe with soft damp cloth; do not immerse base or body in water
Intended Use	Household use only
Safety Protection	Overheat protection and automatic shut-off

Frequently Asked Questions - Adell FAKIR

How do I descale the Fakir Adell kettle?

Descale regularly by filling the kettle with a mixture of 1/3 vinegar and 2/3 water. Boil 2-3 times, then empty. Rinse by boiling clean water 1-2 times. Never use abrasive cleaners.

What is the capacity of the kettle?

The Fakir Adell kettle has a capacity of 1.7 liters. Always fill between the MIN and MAX marks.

Can I boil liquids other than water?

No, only water. Boiling other liquids may damage the appliance or cause injury. The kettle is designed solely for water.

Why does my kettle turn off before boiling?

This indicates limescale buildup. Descale the kettle immediately using the vinegar method described in the manual.

How do I clean the kettle?

Unplug and let cool. Wipe the exterior and interior with a soft damp cloth. Do not immerse the base or body in water.

What safety features does the kettle have?

It has auto shut-off when water boils and boil-dry protection that turns off heating if operated without water.

Can children use this kettle?

Children aged 8+ can use it under supervision. Children 3-8 may only switch on/off under supervision. Never allow children to play with it.

What should I do if the kettle doesn't turn on?

Check if it's plugged in, the on-off button is pressed, and the socket has power. If the cord is damaged, contact Fakir authorized service for replacement.

How do I use the kettle for the first time?

Unwind the cord fully, fill with water to MAX, boil, and discard the water to clean. Then fill with desired amount and boil normally.

How should I store the kettle?

Store in a dry place, preferably in original packaging. Wrap the cord around the base. Keep away from children and heat sources.

USER MANUAL Adell FAKIR

White Fakir Adell water heater with black handle and spout (no visible text or symbols on body)

ADELL

DE Wasserkocher

EN Kettle

TR Su Isitici

RU Водонагреватель

AR سخان المياه

Benutzerhandbuch

User Manual

Kullanım Kılavuzu

On the Operating Instructions....14

Meanings of the Symbols 14

Liability 14

EC Conformity Declaration....14

Intended Use 15

Unauthorized Use....15

Safety is Important 17

Safety Warnings 17

Unpacking....19

First Use 19

Parts Description....20

Technical Information....20

Descaling....20

Cleaning and Maintenance of the Appliance 21

Troubleshooting 21

Recycling 22

Dispatch....22

EN

Dear Customer,

We hope you'll enjoy your product and we thank you for choosing Fakir Hausgeräte, who has its signature on innovative technologies.

We wish you the best yield from Fakir Adell Kettle produced with high quality and technology. Therefore, before using the product, we kindly ask you to read this User Guide carefully and keep it for future reference.

On the Operating Instructions

These operating instructions are intended to enable the safe and proper handling and operation of the appliance. Read these operating instructions carefully before using the appliance for your safety and others'.

Meanings of the Symbols

In this manual, you will see the symbols below.

WARNING!

This sign identifies hazards that could result in injury or death.

ATTENTION!

Indicates notices of risks that can result in damage to the appliance.

NOTE!

Emphasizes tips and other useful information in the operating manual.

Liability

In case of any damage that may occur as a result of use not in compliance with the instructions in this manual and the appliance is used in a place outside of its own area of use, and is repaired elsewhere other than the authorized services of Fakir does not assume any responsibility.

EC Conformity Declaration

This appliance fully complies with the 2014/30/EU Electromagnetic Compatibility and 2014/35/EU Voltage Directives. The appliance bears the CE mark on the rating plate.

Fakir reserves the right to change the design and equipment.

Intended Use

Product model is designed for household use. It is not suitable for business or industrial use. In case of any failure arising from otherwise use, our authorized services will provide out of warranty service.

Unauthorized Use

In cases of unauthorized use specified below, the appliance may be damaged or cause injuries;

• This device is not suitable for people who are not mentally stable or who do not have enough information to use such devices. Please do not let these people use the appliance.
• This electric appliance is not a toy. So please never let children play with the appliance and be more careful when there are children.
• Keep small items of packaging and plastic bags away from children. Otherwise they may harm themselves by swallowing them, especially packaging bags may cause danger of suffocation.

WARNING!

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children should not play with this appliance
• Cleaning and maintenance shall not be carried out by children without supervision.
• Keep the packing materials away from the children. Choking risk!
• Children younger than 3 years shall be kept away from the appliance if they are not supervised constantly.
• This appliance may be used by persons (including children) with limited physical, sensory or mental capabilities, or with limited experience and/or knowledge, only under the supervision of a person responsible for their safety, or in accordance with the instructions of that person.
• Children shall be supervised to ensure that they do not play with the appliance.
• This appliance shall not be used for play.
• Children older than 3 years and younger than 8 years may switch the appliance on and off only if they are under supervision or are informed of the safe use of the appliance and if they understand the hazards that may be caused by the appliance. In this respect, it is a prerequisite for the appliance to be in normal usage position or that it is installed properly.
• Children older than 3 years and younger than 8 years shall not plug the appliance to the electrical outlet, adjust the appliance, and do not perform any cleaning or maintenance operations.
• The appliance shall not be used without supervision.

Safety is Important

• Read these operating instructions carefully before using the appliance for your safety and others'. Keep this manual in a safe place for future use.
• When using an electrical device, the following precautions should always be taken. In order to prevent fire, electric shock and personal injuries;
• Before using the appliance, make sure your mains voltage is compatible with the appliance voltage.
• This device is not a toy. So please never let your children play with the appliance and be more careful when there are children.
• Before the first use, check the appliance for damages and malfunctions. If there is any malfunction or damage to the equipment, do not use the appliance and get in contact with Fakir Authorized Service.

Safety Warnings

When utilizing an electrical appliance, the precautions below shall always be taken in order to prevent fire, shock or personal injuries;

• This appliance shall only be used within its own utilization field as specified in the user's manual.
• Using electrical appliances may be dangerous, so please read the user's manual before using the appliance.
• Before plugging the appliance, into the power outlet ensure that the voltage matches the rated value specified in the type label.

- Use the appliance always on a dry, non-slip and flat surface.

- Never submerse the base unit of your appliance or the water heater. In this case, your appliance must be controlled by the authorized Fakir Service.

- In an event where the appliance or the cord is damaged, do not use the appliance and contact authorized Fakir service.

- If the appliance cord is damaged, it shall be replaced only by a Fakir authorized service centre.

• Always unplug the appliance, from the power outlet before cleaning

it.

• Do not pull from the cord, use the plug to unplug the appliance.
• The children are not aware of the threats posed by the electrical appliance. Do not ever let children to play with electrical appliances.
• Do not try tor remove an object of the appliance or try to place a metal object in the appliance.
• In order to prevent any damage that may occur on the appliance cable, do not use the appliances on places with sharp corners.
• Do not ever use your appliances outside. Do not expose the appliance to moisture or rain and do not operate with wet hands.
• Your appliance will get hot when used, therefore only touch the handle.
• Never touch the appliance during boiling. Use the handle to hold your appliance.
• Fill the water up till the MAX. level of your appliance. If you overfill, there is a danger that the water may overflow.
• Never operate your appliance when its lid is open.
• Never put any liquid other than water into your appliance.
• Repair works shall only be undertaken by Fakir authorized service. Repairs that are inadequate or carried out by unauthorized personnel may pose harm to the user. In this case, Fakir Elektrikli Ev Aletleri ve Dış Ticaret A.Ş. will absolutely accept no responsibility.
• Do not punch a hole or a tear on the section where the on/off button is.
• Descale your appliance regularly.
• Your electric kettle can only work with the base provided.

KEEP THIS USER MANUAL FOR FUTURE REFERENCE.

ATTENTION!

Please read the safety rules and operation instructions written in the user manual. Keep this user manual for future use.

Unpacking

Before first use, unpack the appliance end its accessories, check for damages and defects. If there is any malfunction or damage to the equipment, do not use the appliance and get in contact with Fakir Authorized Service.

- Repair works shall only be undertaken by Fakir authorized service. Repairs that are inadequate or carried out by unauthorized personnel may pose harm to the user.

-Do not punch a hole or a tear on the section where the on/off button is.

First Use

• Please read the user manual carefully before you use your appliance.
• Unwind the wrapped wire completely.
• Pour the water you firstly filled and boiled in your appliance after it is boiled. So that, you'll clean your appliance.
• Remove all packaging materials and labels from the appliance.
• Place the appliance on a flat, solid surface.
• Pour the water into the water heater at the desired amount.
• Do not touch any part of the appliance except the handle when the appliance is in operation and make sure that the lid of the appliance is properly closed.
• The amount of water you have put in the appliance will be seen with a water level indicator. Note that the water you filled the appliance is always more than the MIN level and less than the MAX level, and make sure that the lid is fully closed.
• The heater base is located just below the water heater body, and the water heater body sits properly on the tank.
• Plug in the appliance.
• Turn the on/off switch to the opening position, the indicator lamp will light up and the water inside the appliance will start heating.
• When the water in the appliance boils, the light will turn off automatically when the on/off button is turned off. The on/off button may be used to stop the water heating of the appliance in each cycle of water heating.
• You can transfer the hot water to any other container of your choice.
• The appliance has a safety protection circuit against waterless operation. In the event of waterless operation, the appliance will automatically turn off the heating elements. In such a case, unplug the appliance from the outlet. After allowing the water heater for 15-20 seconds, you can refill it with water.

WARNING!

Never use a defective appliance.

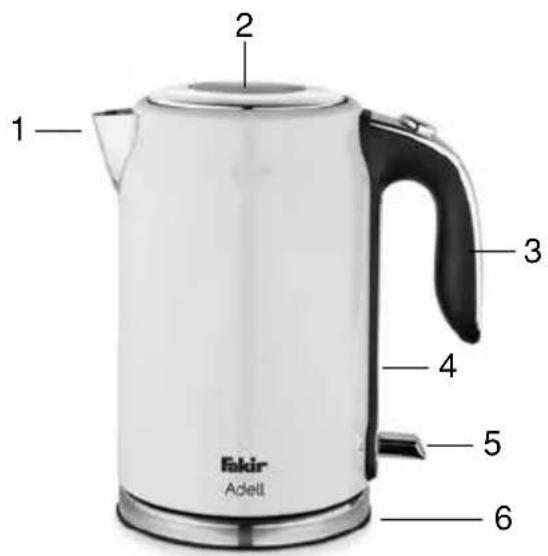

Parts Description

1. Non-Spill Spout

2. Lid

3. Handle

4. Water level indicator

5 On-off button

6 360° rotational power base with cord storage

Technical Information

Voltage : 220V-240V

Capacity : 1.7L

Frequency : 50-60 Hz

Power : 1850W-2200W

Lifetime : 7 years

Descaling

If the appliance turns off automatically before reaching the boiling point, it is a sign that it should be descaled.

Descaling cleaning agents must be used in accordance with the instructions in the user manual.

Add 1/3 vinegar and 2/3 water mixture into the appliance. Pour after boiling 2 or 3 times.

If there is any possibility that the descale cleaning agent in the water will bubble, fill the appliance with water less than the MAX. water level.

After performing the descaling process, boil the appliance 1-2 times with clean water and rinse. Then drain away the boiling water.

Cleaning and Maintenance of the Appliance

Before cleaning the appliance, make sure that it is unplugged and the appliance is cooled down completely.

Do not use hard or abrasive detergents to clean the appliance.

Do not allow the heater body or the heater base to contact with water. Clean the inside and outside of your appliance with a soft damp cloth.

We recommend that the appliance is cleaned regularly.

NOTE!

Before you call Customer Service, check whether you can correct the problem/ fault yourself.

For this purpose, please see the “TROUBLESHOOTING” section. If you can not resolve the problem/error, please call Customer Service. Before calling please make ready the model name and product serial number. You can find this information on the TYPE LABEL of your product. Help Line: ([phone]

Troubleshooting

Your appliance is processed via Quality Control against any malfunction.

Fault Possible Cause Solution
Appliance Does Not Operate	Appliance is unplugged.Appliance is not turned onThere's no power in the socket.Power cord is damaged	Plug the applianceTurn on the applianceTry another outletTake appliance to be repaired

Recycling

If your device comes to an end of its lifetime, cut the power cord to make sure it cannot be used.

According to the applicable laws in your country, leave the appliance to the waste bins identified specially for such devices.

Electrical waste must not be disposed of together with household waste.

Dispose the device to the waste baskets designated for electrical waste.

The packaging of the appliance consists of recycling-capable materials. Throw out them in suitable recycling bins.

The appliance complies with WEEE Regulation.

Dispatch

Carry the appliance in the original package or a similar, well-padded package to prevent damage to the appliance.

Fakir customer service/

Kundenservice:

Rights to make changes are reserved.

Subject to revision

40 01 994 - 9911
