AR1065 - Blender Arzum - Free user manual and instructions

Type de produit	Hand Blender Set
Marque	Arzum
Modèle	AR1065
Puissance	1500 W
Tension	230 V ~ 50 Hz
Contrôle de vitesse	Sensitive touch technology, 2 levels: Normal (white light) and Turbo (blue light)
Accessoires inclus	Stainless steel blender shaft, processing bowl (1500 ml), measuring bowl (900 ml), beater adapter with two beaters, cutter adapter with double-sided stainless steel blade
Capacité du bol de coupe	1500 ml
Capacité du bol de mesure	900 ml
Matériau de la tige	Stainless steel
Matériau de la lame	Stainless steel double-sided
Durée de fonctionnement maximale	10 seconds continuously
Temps de refroidissement	1 minute after each 10-second operation
Utilisation prévue	Household only; not for commercial/industrial use
Nettoyage	Motor body and adapters: wipe with damp cloth; bowl, blades, beaters: dishwasher safe (top rack) or hand wash
Consignes de sécurité	Unplug when unattended; keep away from children; do not immerse motor; operate only with shaft in food
Pièces détachées	Original spare parts available through Arzum Authorized Service
Réparabilité	Do not attempt self-repair; contact Arzum Authorized Service
Pays d'origine	Turkey
Garantie	3 years (as indicated on product)

Frequently Asked Questions - AR1065 Arzum

How do I control the speed of the Arzum AR1065 blender?

The blender features sensitive touch technology with a single button. Press lightly for normal speed (white indicator light), and press harder for turbo speed (blue indicator light). The more pressure, the higher the speed.

Can I blend hot liquids with this hand blender?

Yes, you can blend hot liquids, but always ensure the blender shaft is fully immersed in the liquid before starting. Never operate the blender outside the pot or in an empty container. Let the liquid cool slightly if very hot, and exercise caution.

How should I clean the motor body?

Never immerse the motor body in water or any liquid. Wipe it clean with a slightly damp cloth and dry thoroughly. For the blender shaft, rinse under running water with mild soap, but avoid water entering the motor connection slot.

What is the maximum continuous operating time?

The blender is designed for continuous operation of maximum 10 seconds. After each 10-second cycle, let the appliance cool down for at least 1 minute before using again to prevent damage.

Can I use the blender to crush ice or hard materials?

No, the manual states: Do not use the appliance for breaking too stiff materials into pieces. It is intended for soft to medium-hard foods like fruits, vegetables, sauces, and batters.

How do I attach the beaters for whisking?

First, push the beaters into the beater adapter until they click into place. Then attach the beater adapter to the motor block without overtightening. Insert the blender into a deep vessel and press the operation button.

Can I wash the blender shaft in the dishwasher?

No, the manual specifies: NEVER wash the blender shaft in the dishwasher. Wash it by hand with warm, soapy water and rinse thoroughly. However, the processing bowl, measuring bowl, double-sided blade, and beaters can be washed in the top rack of a dishwasher.

What should I do if water gets into the motor connection slot?

If water accidentally enters the slot, immediately turn the blender upside down to drain the water, shake it gently, and let it dry completely with the blade in an upright position before using again.

Is the Arzum AR1065 suitable for making baby food?

Yes, the manual mentions it can be used for making cooked vegetables, fruits, and potatoes for baby food. Cut ingredients into small pieces and blend until smooth.

Where can I find spare parts or get repairs?

For any repairs or spare parts, contact Arzum Authorized Service. Do not attempt to repair the appliance yourself. Use only original spare parts to maintain safety and performance.

USER MANUAL AR1065 Arzum

Product photo of a kitchen blender with three variants: a stand mixer, a 3D model, and a digital kitchen brush (no visible text or symbols)

1500 WATT

Turkey

TECHNOART MAXI AR 1065 EL BLENDER

Close-up of a white and silver electronic device with a button labeled 'Bra 1' (no additional text or symbols visible)

Glass blender with water filled with round objects, no visible text or symbols

Close-up of a cooking pot with a spatula stirring liquid, placed on a stovetop (no text or symbols visible)

Close-up of a mechanical component with a downward arrow indicating compression or disassembly (no text or symbols visible)

Close-up of a black cylindrical object with two metallic rods extending upward (no text or symbols visible)

DİKKAT

Close-up of a hand mixer blending white batter in a bowl (no text or symbols visible)

Close-up of a kitchen blender with a handle and side dish, no visible text or symbols

Close-up of a mechanical component with a downward arrow indicating a specific feature (no text or symbols visible)

Close-up of a mechanical component with a downward arrow indicating a process or damage (no text or symbols visible)

Close-up of a metallic mechanical component with water splashing, no visible text or symbols

Close-up of a dark, rounded object with two circular indentations on top (no text or symbols visible)

3D rendered image of a dark, conical object with a narrow neck and rounded top (no text or symbols)

Product photo of a blender with a side view and kitchen pitcher (no text or symbols visible)

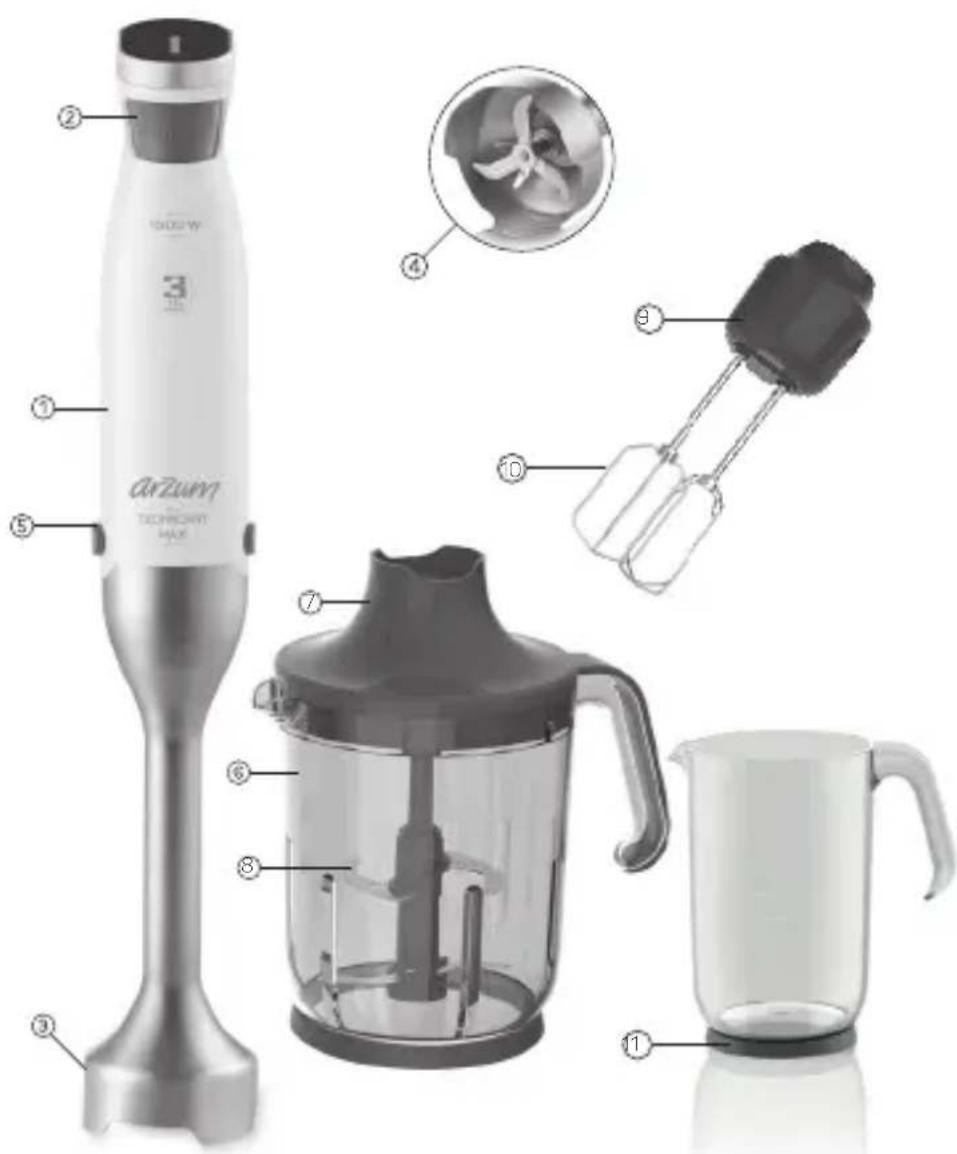

1- Main body (Motor)
2- Operation / Speed control button
3- Stainless steel blender shaft
4- Stainless steel blade
5- Attachment removal button
6- Processing bowl with a capacity of 1500 ml

7- Cutter adepter
8- Double sided stainless steel blade
9-Beater adepter
10- Beaters
11- Measuring bowl with a capacity of 900 ml

We thank you for having selected the Arzum brand hand blender. This product as well is one of those offered to you to make life easier for you. In order to obtain utmost output from your appliance, please read carefully this user's manual and save it for further use.

IMPORTANT SAFEGUARDS

• Make sure that the voltage indicated on the Arzum TECHNOART MAXI Hand Blender corresponds with the mains voltage in your home. Our company shall not be held liable for any failures owing to any discrepancy and such failures shall not be covered by the guarantee.

- Your appliance is for household use only. Do not use outdoors for commercial or industrial purposes. Otherwise, inconvenient uses shall not be covered by the guarantee.

- Keep the appliance away from and out of the reach of children. - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand

the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

·Always disconnect the blender from the supply if it is left unattended and before assembling, disassembling or cleaning;

- Do not allow children to use the blender without supervision.

- To prevent harming your appliance do not use extension cords that supply insufficient current.

- NEVER place your appliance over or near direct heat sources such as hot gas, electric burner, or heating oven.

- Do not let cord hang over edge of a table or counter, or touch any other appliances.

- Avoid from touching any moving parts when in use. Do not keep your hands, hairs, clothes, or any tools closer.

- Before coming closer with the moving parts, release your hand from the operation button and wait the motor exactly stop then unplug your appliance from the mains plug.

- Do not use the appliance for breaking too stiff materials into pieces.

- NEVER attach to your hand blender any accessories belonging to other appliances.

- Avoid actions that may harm or damage the cord or plug of your device. Do not carry your apparatus by holding from the cord. To unplug the heater, hold the plug and NEVER pull by the cord.

- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner, such as by dropping down, etc. Do not attempt to repair it by yourself. Call immediately Arzum Authorized Service. Care that for using the only original spare parts.

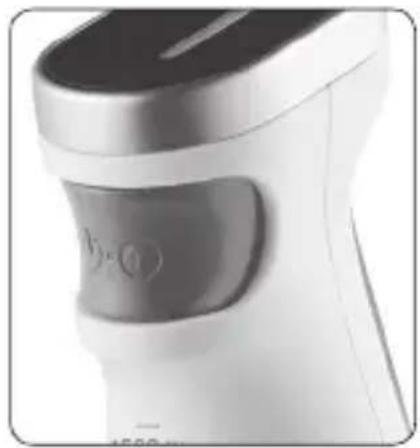

SPEED CONTROL BUTTON/ SENSIBLE TOUCH TECHNOLOGY

- One-button speed control: You can start the motor and control the speed of your appliance with a single touch the speed button with ergonomic grip.

- Touch-sensitive speed setting provides more power as you apply pressure to the button.

- If you press the speed button slowly, your device will work in the first level, and if you press the button all the way to the end, it will work in the second level, i.e. Turbo level.

- The indicator light will turn white when you operate the speed control button in the first level.

- The indicator light will turn blue when you operate the speed control button in Turbo level.

Close-up of a white and gray electronic device with a button labeled 'B' (no visible text or symbols beyond the label)

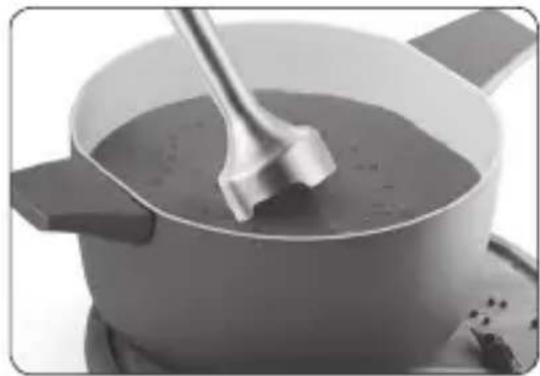

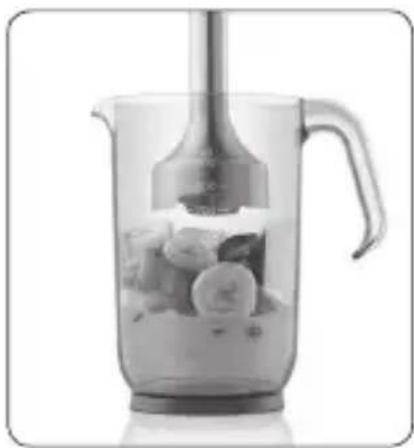

USING YOUR HAND BLENDER

- Mount the metal foot of your hand blender to the main body by pushing it up until you hear a 'click'.

- Use your blender inside of a deep pot in order to obtain the best results and to prevent the material from spreading out.

- Cut the food in small pieces and then pour the pot. Put the stainless steel blender shaft inside of the pot and plug your appliance into mains plug.

- Press the operation button and operate your blender. Your blender is operating while pressing the button.

Glass blender with liquid and sliced food inside, no visible text or symbols

- Operate your blender at short intervals. When a material is in the upright position, move it up and down through depressing the operation button of your hand-blender.

CAUTION: Operate your blender when the blender shaft is inside of the pot with food. NEVER operate outside the pot or an empty pot, it will be dangerous. After finishing your operation NEVER take the blender shaft out of inside the pot unless it completely stops.

- With your hand blender; You can prepare sauce, milk, fruit juice, soup, cocktail and milkshake or you can use it for making cooked vegetables, fruits and potatoes (eg baby food) and mixing soft ingredients such as butter, egg, flour and oil (for mayonnaise, omelette and dessert).

- Never use your hand blender by pushing it on the material to be used. - After you have finished your work unplug your appliance and then remove the blender shaft from the main body. Clean the stainless steel blender shaft and blade and wipe dry with a soft cloth.

Close-up of a pot with a metal spatula stirring a dark liquid, placed on an induction cooktop (no text or symbols visible)

WARNING: THIS APPLIANCE HAS BEEN DESIGNED TO OPERATE

CONTINUOUSLY FOR 10 SECONDS MAXIMUM. MAKE SURE NOT TO EXCEED SUCH DURATION WHEN PREPARING FOODS. OTHERWISE, THIS MAY CAUSE DAMAGING TO YOUR APPLIANCE.

ALLOW TO COOL DOWN FOR 1 MINUTE PER ONE-TIME OPERATION OF 10 SECONDS.

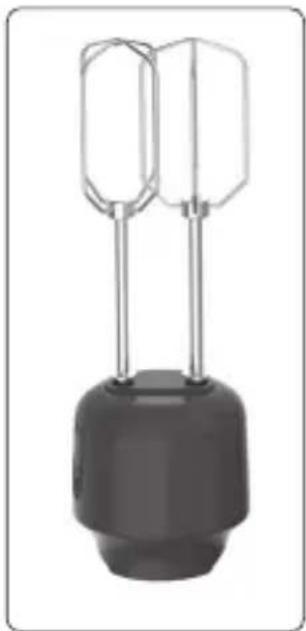

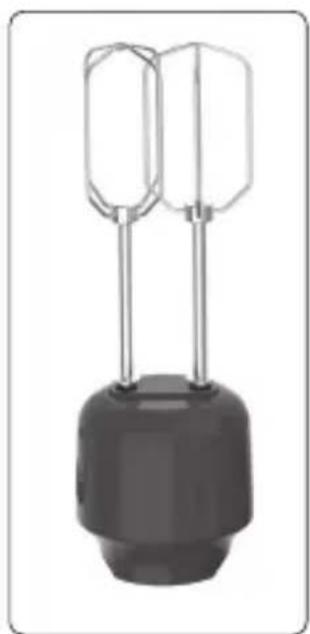

Beating & Mixing With Beater Legs

- You can easily make such mixtures as pound cakes, omelets, pancake dough, mayonnaise, by using the beating accessories of your Arzum Technoart MAXI Blender Set.

- In order to use beater accessories, first mount the beaters by pushing until you make sure that such legs are properly fixed on their place.

Close-up of a mechanical component with a downward arrow indicating compression or disassembly (no text or symbols visible)

• Attach the beater adapter to the motor block, without tightening too much.
• Insert your hand blender in the upright position into a deep vessel in which you put materials previously, and depress the operation button, then move the appliance circularly inside of the materials.
• Never apply much pressure on your appliance.
  • After each use ALWAYS dismantle the beaters from the beater adapter, and wash them using water with detergent.
• NEVER immerse the beater adapter in water; it would be sufficient to wipe dry with a damp cloth. Leakage of excessive water into the accessory may result in malfunctions.

Close-up of a black cylindrical object with two metallic rods extending upward (no text or symbols visible)

- Crepe dough recipe:

• 375ml milk,
• 250gr fame
• 2 eggs.

In turbo mode, run 5 repeat intervals for 3 seconds

WARNING

1- Always operate your hand blender in upright position.
2- NEVER use your appliance in an empty container or outdoors.
3- Do not press your device onto the materials hardly.

4- Never immerse the main body of the blender in water.

Close-up of a hand mixer blending white cream into a bowl (no text or symbols visible)

Cutting With Bowl

• Using the cutting accessory with a capacity of 1500 ml. of your Arzum Technoart MAXI Blender Set you can cut any foods easily and practically.
- Locate the cutting blades of your appliance onto the shaft in the middle part of the case.
- Place the foods to be cut inside of the case, ensuring that the foods will be of the equivalent level and without piling up.

Close-up of a kitchen blender with food being mixed, no visible text or symbols

- Put your cutter adapter of your device onto the case.

- Place the motor body of your hand blender in its slot located on the adapter, without tightening too much.

- Start the process by depressing the operation button located on the main body.

• Once you have finished your work, rinse the bowl

and double sided stainless steel blade with water and detergent, and store the blade in the bowl.

- NEVER immerse the cutter adapter in water. Wipe the outside with a damp cloth.

Close-up of a mechanical component with a black arrow pointing to a specific area (no text or symbols visible)

Close-up of a mechanical component with a downward arrow indicating a process or damage (no text or symbols visible)

Close-up of a white electronic device with a gray control panel and a black arrow pointing to it (no visible text or symbols)

Cutting and Mixing Suggestions

- The Cutting and Mixing Suggestions are results of the tests performed, and you can determine the operation form and periods according to your own taste as well.

Nutritions	Maximum Capacity DurationStage
Walnut 250 gr		2 stage (Turbo)	3 sec2-3 repeat intervals
Parsley	50 gr	2 stage (Turbo)	1 sec2-3 repeat intervals
Onion	300 gr.	2 stage (Turbo)	1 sec2-4 repeat intervals
Fruit	300 gr.	1 stage (Turbo)	7 sec
Butter-Honey mix	150 gr of butter400 gr of honey	2 stage (Turbo)	3 sec

WARNING

1- NEVER operate your Arzum Technoart MAXI unless the main body is attached to the cutter adapter.
2- Do not lift the main body from its slot unless the motor fully stops.
3- Store the cutting blades in the bowl, since they are very sharp.

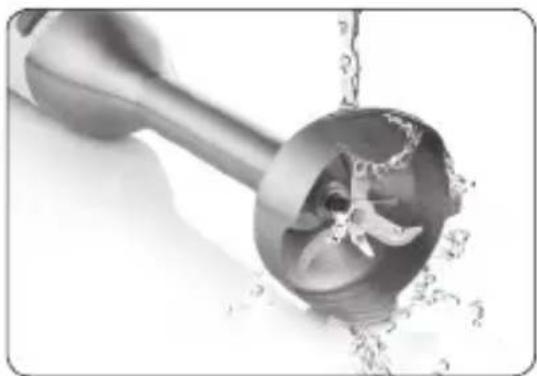

CLEANING AND CARE

- Ensure that the mains plug is disconnected from the wall socket before cleaning your rod-blender, and allow cooling down for a while.

- It is very important for you to rinse the accessories immediately after using, so that the overall cleaning of the appliance can be easier.

- NEVER immerse the motor (main body) into water or other liquids. Wipe the outside with a slightly damp cloth and then dry thoroughly.

- Rinse the stainless steel blender shaft and blade using tepid water and soap. When cleaning under running water, take care not to leak any water into the slot on which the motor is located. If water leaks into the slot, immediately turn upside down and shake it out, and then allow it to

Close-up of a mechanical component with water splashing, no visible text or symbols

cool down with the blade in the upright position. NEVER wash the blender shaft in the washer machine.

- You can wash the measuring bowl of your appliance by using water and soap, or in the upper section of a dishwasher.

Beater Adapter: NEVER immerse into water or other liquids. Wipe the outside with a slightly damp cloth and then dry thoroughly.

Close-up of a gray, rounded object with two circular indentations on top (no text or symbols visible)

Cutter Adapter: NEVER immerse into water or other liquids. Wipe the outside with a slightly damp cloth and then dry thoroughly.

Bowl, double sided stainless steel cutting blades, and beaters of your Arzum Technoart Maxi Plus Blender Set can be washed by using water and soap, or in the upper section of a dishwasher.

Repeat the same steps after each use.

Close-up of a dark, conical plastic object with a narrow neck and rounded top (no text or symbols visible)

Product photo of a blender and pitcher with kitchen utensils (no text or symbols visible)

The values which are declared in markings on the product or on the papers which are given together with the product are the values which are obtained in the laboratory environment according to the related standards. These values can vary according to the usage and environment conditions of the product.

Product life 7 years

Technical Specifications

230 V \~ 50 Hz

1500 W

HANDLING AND SHIPMENT

• During handling and shipment, your appliance must be kept in original package in order to prevent damages to its parts.
• Keep at normal position during shipment.
• Do not drop the product when transporting and protect from impacts.
  • After delivery of the product, failures and damages that may occur while transporting are not covered by warranty.

The product is in compliance with the EEE Directives. WEEE

This product contains recyclable materials that compliance with the WEEE directives. Do not dispose this product as unsorted municipal waste. Please contact your local municipality for the nearest collection point.

Manufacturer / Importer:
